AirLive RS-2000 User manual

Security Gateway Series

Table of Contents
List of Languages
En
g
lish
Españo
................
Security Gateway Series
l
.................
Deutsch
...............
Polski
日本語
...............
Slovensky
.................
............
Portu
g
uês
Česky
..................
Русский
Français
Italiano
Magyar
Ελληνικός
............
..............
..............
..............
..............
...........
1
14
24
34
44
53
63
73
83
92
102
112
122

1
Security Gateway Series English
Declaration of Conformity
We, Manufacturer/Importer
OvisLink Corp.
5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan
Declare that the products
VPN GateWay
RS-1000, RS-1200 , RS-2000
are in conformity with
In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive
Clause Description
■EN 55022:1998/A1:2000 Limits and methods of measurement of radio disturbance characteristics of information technology equipment
■EN 61000-3-2:2000 Disturbances in supply systems caused by household appliances and similar electrical equipment "Harmonics"
■EN 61000-3-3:1995 A1:2001 Disturbances in supply systems caused by household appliances and similar electrical equipment "Voltage fluctuations"
■EN 55024:1998/A1:2001 Information Technology equipment-Immunity characteristics-Limits and methods of measurement
■CE marking
Manufacturer/Importer
Signature： ______________
Name ： Albert Yeh
Position/ Title : Vice President
English
Date： 2007/6/20

2 Security Gateway Series
English
Declaration of Conformity
We, Manufacturer/Importer
OvisLink Corp.
5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan
Declare that the products
Multi Security Firewall
RS-3000
are in conformity with
In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive
Clause Description
■EN 55022:1998/A1:2000/A2:2003 Limits and methods of measurement of radio disturbance characteristics of information technology equipment
■EN 61000-3-2:2000 Disturbances in supply systems caused by household appliances and similar electrical equipment "Harmonics"
■EN 61000-3-3:1995/ A1:2001 Disturbances in supply systems caused by household appliances and similar electrical equipment "Voltage fluctuations"
■EN 55024:1998/A1:2001/A2:2003 Information Technology equipment-Immunity characteristics-Limits and methods of measurement
■CE marking
Manufacturer/Importer
Signature： ______________
Name ： Albert Yeh
Position/ Title : Vice President
English
Date： 2007/5/21

3
Security Gateway Series English
Declaration of Conformity
We, Manufacturer/Importer
OvisLink Corp.
5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan
Declare that the products
Firewall
AirLive ES-4000 Series, IAR-5000 Series
are in conformity with
In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive
Clause Description
■EN 55022:1998/A1:2000/A2:2003 Limits and methods of measurement of radio disturbance characteristics of information technology equipment
■EN 61000-3-2:2000 Disturbances in supply systems caused by household appliances and similar electrical equipment "Harmonics"
■EN 61000-3-3:1995/ A1:2001 Disturbances in supply systems caused by household appliances and similar electrical equipment "Voltage fluctuations"
■EN 55024:1998/A1:2001/A2:2003 Information Technology equipment-Immunity characteristics-Limits and methods of measurement
■CE marking
Manufacturer/Importer
Signature： ______________
Name ： Albert Yeh
Position/ Title : Vice President
English
Date： 2007/7/5

English
Note on the FCC standard
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences
when the equipment is operating in a commercial area. This equipment generates, uses and may radiate radio
frequency energy, and if not installed in accordance with the user guide, may cause interference in the
transmission of radio communications. If operating in a residential area, it is probable this equipment will cause
harmful interference, in which case the user will be required to try to correct this interference using his own
means.
Note on CE Marking
This is a Class B product. In a residential area this product may cause radio interference, in which case the user
can be required to take the appropriate measures. OvisLink Corp. hereby declares that AirLive RS-2000,
RS-1200, RS-3000, ES-4000, and IAR-5000 meet the basic requisites of directive 99/05/CE, and is therefore
liable for the accuracy of these data: OvisLink Corp.
5F, No.6 Lane 130,
Min-Chuan Rd, Hsin-Tien City,
Taipei, Taiwan
TEL: [phone]
Warranties
This product has undergone various quality controls to ensure proper operation.
This product is covered by a two-year warranty for countries inside European Union. For other countries, the
warranty period is one year only. In the event of any manufacturing fault or breakdown, it will be repaired by
OvisLink Corp. Please contact your supplier for details on the procedure to follow. This warranty shall not be
applicable in the event of damage caused by improper use of the product, accidents, faulty handling or
manipulation nor any future incompatibility with third party products.
4 Security Gateway Series
English

English
Important Information
The default login name is admin
The default IP address is 192.168.1.1
The default password is airlive
The default Subnet Mask is 255.255.255.0
LED Indicators

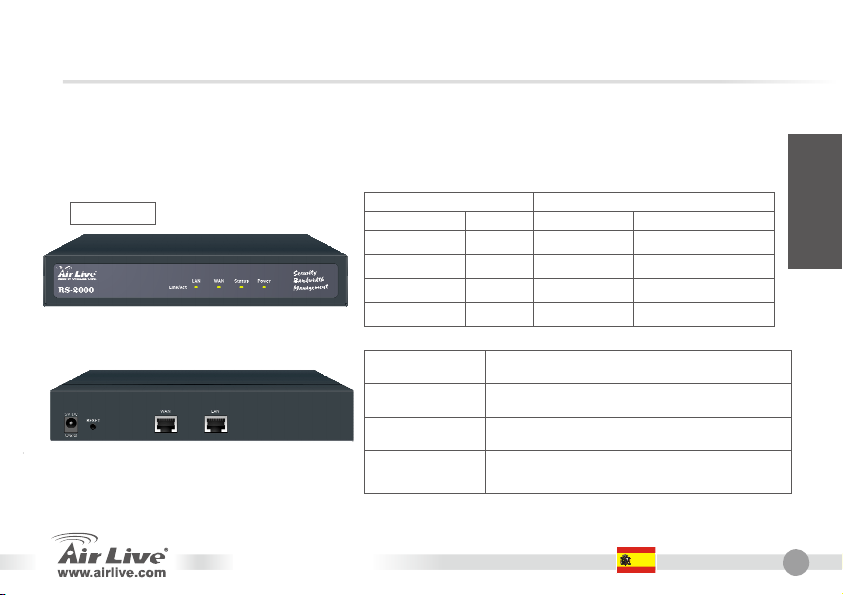

RS-2000
LED Status
Color
5
Security Gateway Series English
Indicator ON Flashing
-●Green Power onPower
-●Green Turning onStatus
- Sending/Receiving●GreenWAN
- Sending/Receiving●GreenLAN
Use this port to connect to a router, DSL
modem, or Cable modem
WAN Port (WAN)
Use this port to connect to the LAN network
of the office.
LAN Port (LAN)
Reset the WAN Security Gateway to the
original default settings.
Reset
Connect one end of the power supply to this
port, the other end to the electrical wall outlet.
DC Power

6 Security Gateway Series
English
LED Status
Indicator Color ON Flashing
Power ●Green Power on -
Status ●Green Ready to use Turning on
WAN1 ●Green - Sending/Receiving
WAN2 ●Green - Sending/Receiving
LAN ●Green - Sending/Receiving
DMZ ●Green - Sending/Receiving

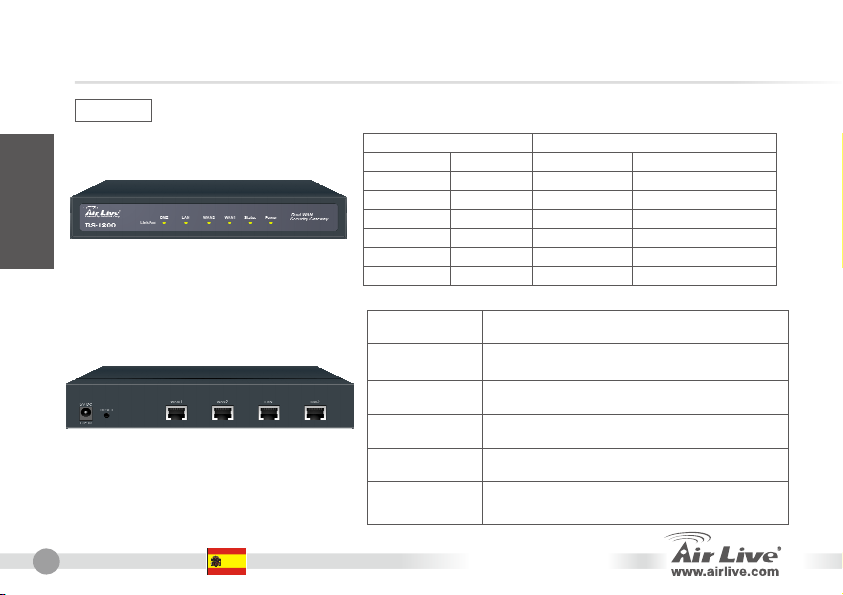

RS-1200
WAN 1 Port
(WAN)
Use this port to connect to a router, DSL
modem, or Cable modem
WAN 2 Port
(WAN)
Use this port to connect to a router, DSL
modem, or Cable modem
LAN Port (LAN) Use this port to connect to the LAN network of
the office.
DMZ connection to the Internet (FTP, SNMP, HTTP,
DNS)
Reset Reset the Dual WAN Security Gateway to the
original default settings.
DC Power Connect one end of the power supply to this
port, the other end to the electrical wall outlet.
English

English

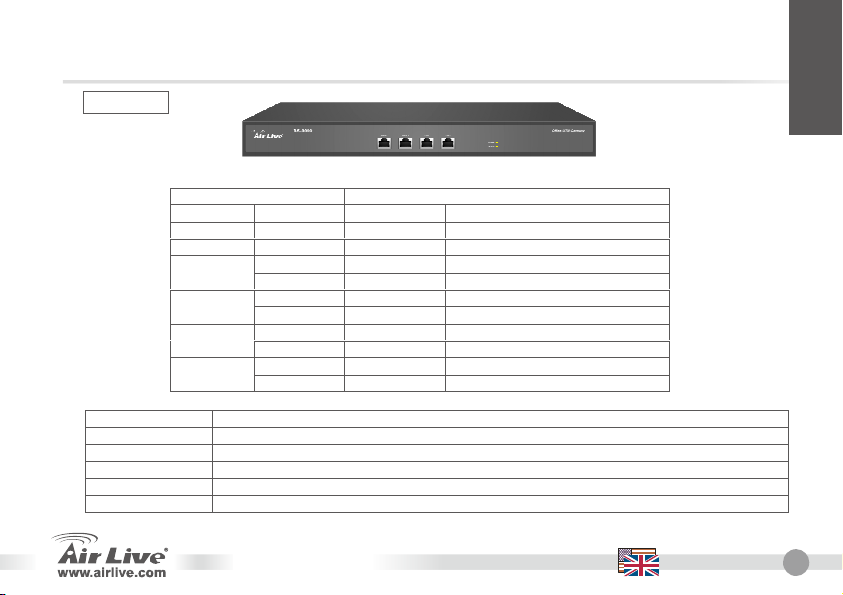

RS-3000
LED Status
Indicator Color ON Flashing
-●Green Power onPower
●Green Ready to use Turning onStatus
- Sending/Receiving●Green
WAN1 -●Orange 100 Mbps
-●Green Sending/Receiving
WAN2 -●Orange 100 Mbps
- Sending/Receiving●Green
LAN -●Orange 100 Mbps
-●Green Sending/Receiving
DMZ -●Orange 100 Mbps
WAN1 Port (WAN) Use this port to connect to a router, DSL modem, or Cable modem
WAN2 Port (WAN) Use this port to connect to a router, DSL modem, or Cable modem
LAN Port (LAN) Use this port to connect to the LAN network of the office.
DMZ connection to the Internet (FTP, SNMP, HTTP, DNS)
Console 9-pin serial port connector for checking setting and restore to the factory setting.
DC Power Input voltages ranging from 100 ~ 250 VAC, and with a maximum power output of 80 watts.
7
Security Gateway Series
English

8 Security Gateway Series
English
English

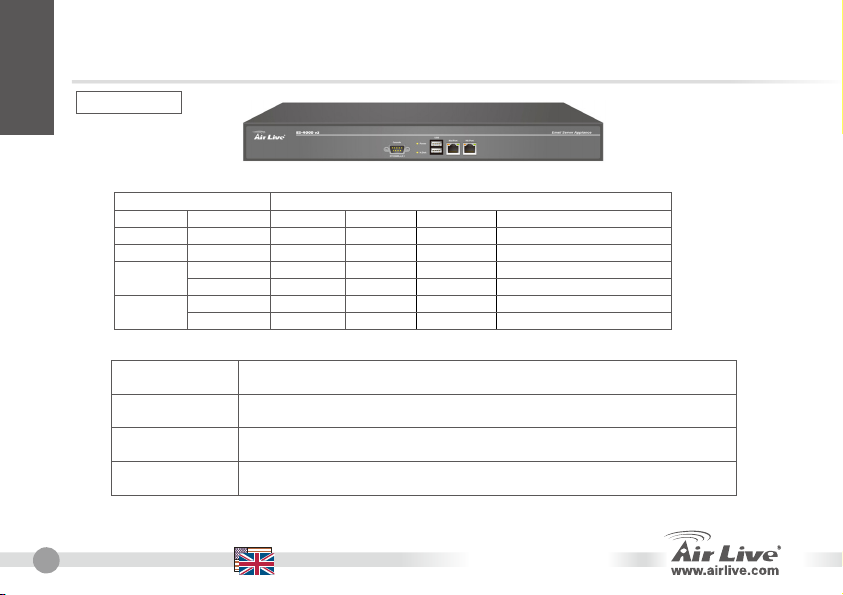

ES-4000 v2
LED Status
Indicator Color
Port1 Use this port to connect to internal network
Port2 HA
Console Port 9-pin serial port connector for checking setting and restore to the factory setting.
AC Power Input voltages ranging from 100 ~ 240 VAC, and with a maximum power output
of 85 watts.
OFF ON Orange Flashing
-- -●Green Power onPower
---●Green Data reading/accessingHard Disk
1000 Mbps -●Green 10 Mbps 100 Mbps
Port1 ---●Orange Sending/Receiving
-●Green 10 Mbps 100 Mbps 1000 Mbps
Port2 ---●Orange Sending/Receiving

English
9
Security Gateway Series English
IAR-5000 v2
LED Status
Indicator Color
Port1 Use this port to connect to internal network
Port2 Use this port to connect to internal network
Console Port 9-pin serial port connector for checking setting and restore to the factory
setting.
AC Power Input voltages ranging from 100 ~ 240 VAC, and with a maximum power output
of 85 watts.
OFF ON Orange Flashing
-- -●Green Power onPower
---●Green Data reading/accessingHard Disk
1000 Mbps -●Green 10 Mbps 100 Mbps
Port1 ---●Orange Sending/Receiving
-●Green 10 Mbps 100 Mbps 1000 Mbps
Port2 ---●Orange Sending/Receiving

10 Security Gateway Series
English
English
RS-1200/2000/3000 WebUI Example
STEP 1:
1. Connect the Admin’s PC and the LAN port of
the Security Gateway.
2. Open an Internet web browser and type the
default IP address of the Security Gateway as
192.168.1.1 in the address bar.
3. A pop-up screen will appear and prompt for a
username and password. Enter the default login
username (admin) and password (airlive) of
Administrator.
If the company’s LAN IP Address is not subnet of
192.168.1.0, (i.e. LAN IP Address is 172.16.0.1), then
the Administrator must change his/her PC IP address
to be within the same range of the LAN subnet (i.e.
172.16.0.2). Reboot the PC if necessary.

11
Security Gateway Series English

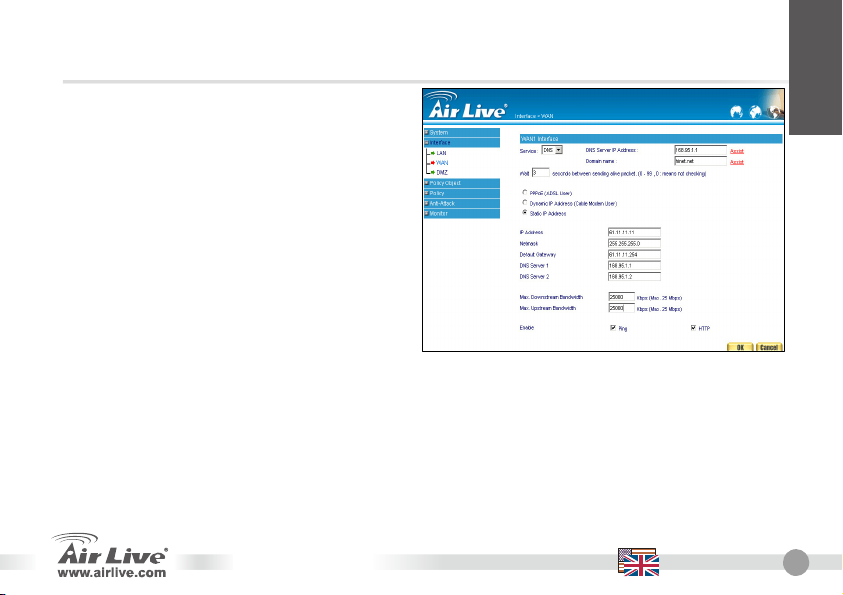

STEP 2:
After entering the username and password, the
Security Gateway WEB UI screen will display. Select
the Interface tab on the left menu and a sub-function
list will be displayed.
zClick on WAN from the sub-function list, enter
proper Layer3 network setup information
zClick Modify to modify WAN1/2 settings (i.e.
WAN1 Interface)
English
WAN1 interface
IP Address 61.11.11.11
NetMask 255.255.255.0
Default Gateway 61.11.11.254
DNS Server1 168.95.1.1
STEP 3:
Click on the Policy tab from the main function menu, Note: The above figures are only examples.
and then click on Outgoing from the sub-function Please fill in the appropriate IP address
list. information provided to you by the ISP.
STEP 4:
Click on New Entry button.

12 Security Gateway Series
English
English

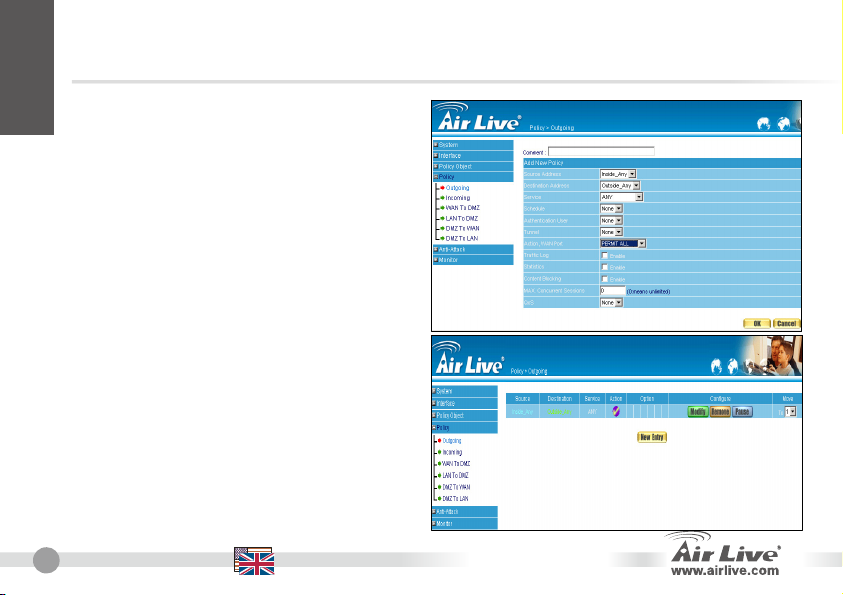

STEP 5:
When the New Entry option appears, enter the
following configuration:
Source Address -Inside_Any
Destination Address -Outside_Any
Service -ANY
Action -Permit ALL
Click on OK to apply the changes.
STEP 6:
The configuration is successful when the screen
below is displayed. Make sure that all the
computers that are connected to the LAN port have
their Default Gateway IP Address set to the Security
Gateway’s LAN IP Address (i.e. 192.168.1.1). At
this point, all the computers on the LAN network
should gain access to the Internet immediately. If a
Security Gateway filter function is required, please
refer to the Policy section in the user manual.

English
ES-4000 / IAR-5000 Configuration
STEP 1:
1. Connect the Admin’s PC and the port1 of the Security Gateway.
2. Open an Internet web browser and type the default IP address of the
Security Gateway as 192.168.1.1 in the address bar.
3. A pop-up screen will appear and prompt for a username and
password. Enter the default login username (admin) and password
(airlive) of Administrator.
STEP 2:
1. If user is the first time to login the Security Gateway management
interface, system will automatically switch to Install Wizard page,
and guide user to configure the settings.
2. Please check manual on CD for more detail configuration.
13
Security Gateway Series English

14 Security Gateway Series
Español
Nota sobre el estándar FCC
Este equipo ha sido probado y funciona completamente bajo las regulaciones para los equipos digitales Clase
B, coincidentemente con la parte 15 de las reglas de FCC. Estos limites se diseñan para proporcionar
protección razonable contra la interferencia dañosa cuando el equipo opera en un ambiente comercial. Este
equipo usa y puede generar frecuencia de radio y, si no se instala y usa de acuerdo con la guía del usuario,
puede causar interferencia dañosa para otros transmisores de radio. Es probable que el funcionamiento de este
equipo en una área residencial cause interferencia, en ese caso el usuario tendrá que corregir la interferencia
por su propios medios.
Español
Nota sobre CE Marking
Este es un producto Clase B, en un ambiente domestico puede causar interferencia de radio, in este caso el
usuario puede ser que requiera tomar mediadas adecuadas. OvisLink S.A. declara por la presente que el
AirLive RS-2000, RS-1200, RS-3000, ES-4000 y IAR-5000 cumple con los requisitos básicos de las directivas
99/05/CE, y es por consiguiente responsable por la exactitud de estos datos:
OvisLink Corp.
5F, No.6 Lane 130,
Min-Chuan Rd, Hsin-Tien City,
Taipei, Taiwan
TEL: [phone]
Garantías
Este producto ha sido sometido a varios controles para asegurar el funcionamiento apropiado.
Este producto esta cubierto por dos anos de garantía para los países que componen la Unión Europea. Por
otros países, el periodo de garantía es de un ano. En el caso de un falla de fabricación o rotura, sera reparado
por Ovislink Corp. Por favor contáctese con su distribuidor para mayor información de este procedimiento. Esta
garantía no será aplicable en caso de daño causado por el uso impropio del producto, accidentes, manejo
defectuoso o manipulación ni cualquier incompatibilidad futura con terceros productos.

Información Importante
El nombre de usuario predeterminado es admin
La dirección IP predeterminada es: 192.168.1.1
La contraseña predeterminada es airlive
La mascara de subred predeterminada es
255.255.255.0
15
Security Gateway Series Español
LEDs Indicadores
RS-2000 LED Estado
Indicadore Color ON Intermitente
Power ●Verde Encendido -
Estado ●Verde Listo para usar Encendido
WAN ●Verde - Enviando/Recibiendo
LAN ●Verde - Enviando/Recibiendo
Puerto WAN
(WAN) Use este puerto para conectar al router, DSL
modem, o Cable modem.
Puerto LAN
(LAN)
Use este puerto para conectar la red LAN a la
Oficina
Reset Vuelve a los valores predeterminados del ancho
de banda original.
DC Power Conecte el conector de la fuente de
alimentación al equipo y el otro extremo a la
pared.
Español

16 Security Gateway Series
Español
RS-1200
LED Estado
Español
Color Indicadore ON Intermitente
●Verde Encendido -
Power
●Verde Listo para usar Encendido
Estado
●Verde Enviando/Recibiendo
-WAN1
●Verde Enviando/Recibiendo
-WAN2
●Verde Enviando/Recibiendo
-LAN
●Verde Enviando/Recibiendo
-DMZ
Puerto WAN 1
(WAN) Use este puerto para conectar al router, DSL
modem, o Cable modem.
Use este puerto para conectar al router, DSL
Puerto WAN 1
(WAN) modem, o Cable modem.
Puerto LAN
(LAN)
Use este puerto para conectar la red LAN a la
Oficina
Conexión a Internet (FTP, SNMP, HTTP, DNS)
DMZ
Vuelve a los valores predeterminados de los
puertos WAN del gateway de seguridad.
Reset
Conecte el conector de la fuente de
alimentación al equipo y el otro extremo a la
pared.
DC Power

RS-3000
Español
LED Estado
Indicadore Color ON Intermitente
-●Verde EncendidoPower
●Verde Listo para usar EncendidoEstado
- Enviando/Recibiendo●Verde
WAN1
-●Naranja 100 Mbps
-●Verde Enviando/Recibiendo
WAN2
-●Naranja 100 Mbps
- Enviando/Recibiendo●Verde
LAN
-●Naranja 100 Mbps
-●Verde Enviando/Recibiendo
DMZ
-●Naranja 100 Mbps
Puerto WAN 1 (WAN) Use este puerto para conectar al router, DSL modem, o Cable modem.
Puerto WAN 2 (WAN) Use este puerto para conectar al router, DSL modem, o Cable modem.
Puerto LAN (LAN) Use este puerto para conectar la red LAN a la Oficina
DMZ Conexión a Internet (FTP, SNMP, HTTP, DNS)
conector serial de 9 pines para revisar la configuración y restaurar las configuraciones
de fabrica.
Puerto de Consola
17
Security Gateway Series Español
Fuente de Corriente
Alterna
entrada de voltaje rango entre 100 a 250VAC, y con un maximo de salida de potencia
de 80 Watts

18 Security Gateway Series
Español
ES-4000 v2
Español
EstadoLED
Indicadore Color IntermitenteOFF ON Naranja
- - -EncendidoPower ●Verde
- - - Lectura de los datos/el tener accesoHard Disk ●Verde
-10 Mbps 100 Mbps 1000 Mbps
●Verde
Puerto 1 - - - Enviando/Recibiendo
●Naranja
-10 Mbps 100 Mbps
1000 Mbps
●Verde
Puerto 2
- - - Enviando/Recibiendo
●Naranja
Use este puerto para conexiones de la red interna
Puerto 1
HA
Puerto 2
conector serial de 9 pines para revisar la configuración y restaurar las
configuraciones de fabrica.
Puerto de Consola
Fuente de Corriente
Alterna
entrada de voltaje rango entre 100 a 240VAC, y con un maximo de salida de
potencia de 85 Watts.
