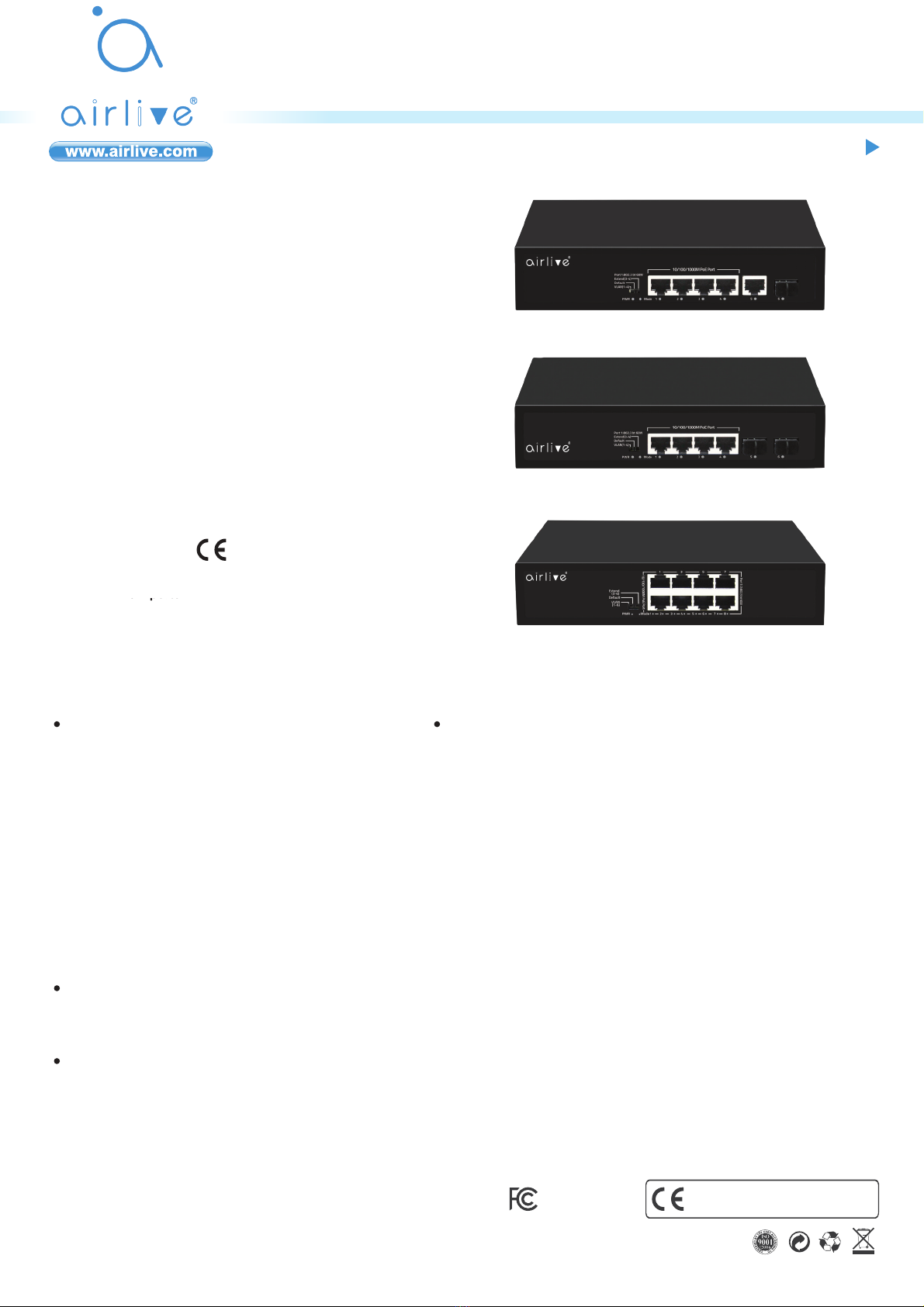

AirLive POE-GSH402 BT Series User manual

6-Port Gigabit PoE+ Switch
Including 1 SFP port, 1 1000T port, 60/120W
Quick Setup Guide
Declaration of Conformity
We, Manufacturer/Importer
Declare that the product
8-Port Gigabit PoE+ Switch, 120W
POE-GSH800-120-BT
is in conformity with
In accordance with 2014/30/EU and 2014/35/EU Directive
Clause
Manufacturer/Importer
Description
AirLive Technology Corporation
4F, No.132, Lane 235, Baoqian Rd., Xindian Dist.,
New Taipei City 23145, Taiwan
■
■CE marking
Name : A van Rossem Position/ Title : Product Manager
EN 55032:2015+A11:2020 Electromagnetic compatibility (EMC)
■EN 62368-1:2014+A11:2017 Electromagnetic compatibility (LVD)
Date : June 2022Place : Republic of China (Taiwan)
/ po
ter
POE-GSH411 BT series
10 Ports Gigabit Managed PoE+ Switch
POE-GSH802M
POE-GSH411 BT series
POE-GSH800-120-BT
6-Port Gigabit PoE+ Switch
Including 1 SFP port, 1 1000T port, 60/120W
POE-GSH411 BT Series
6-Port Gigabit PoE+ Switch
Including 2 SFP port, 60/120W
POE-GSH402 BT Series
POE-GSH800-BT
POE-GSH411-BT
POE-GSH402-BT
POE-GSH402 BT series
6-Port Gigabit PoE+ Switch
Including 2 SFP port, 60/120W
POE-GSH402 BT series
8-Port Gigabit PoE+ Switch 120W
POE-GSH800-120-BT
Tested To Comply
With FCC Standards.
FOR HOMEOR OFFICE USE
FCC 47 CFR Part 15 Subpart B (Class A), ANSI C63.4:2014
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
AirLive Technology Corporation declares that thisdevice
is in compliance with the essential requirements and
other relevantprovisionsofdirective 2014/30/EU.
Regulatory Approvals
CE Marking Warning
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
CE Statement
This product complies with the 2014/30/EU and 2014/35/EU directives,
including the following safety and EMC standards:
EN 55032:2015+A11:2020
■
Electromagnetic compatibility (EMC)
EN IEC 61000-3-2:2019
■
Electromagnetic compatibility (EMC)
EN 61000-3-3:2013+A1:2019
■
Electromagnetic compatibility (EMC)
EN 55035:2017+A11:2020
■
Electromagnetic compatibility (EMC)
EN 62368-1:2014+A11:2017
■
Electromagnetic compatibility (LVD) - Safety
RoHS Statement
This product complies with RoHS directive 2011/65/EU and amendment
Commission Delegated Directive (EU)2015/863.
IEC 62321-3-1:2013
■
IEC 62321-5:2013
■
IEC 62321-4:2013+AMD1:2017
■
IEC 62321-7-1:2015
■
IEC 62321-7-2:2017
■
IEC 62321-6:2015
■
IEC 62321-8:2017
■

Quick Setup Guide
Installation Step:
English
EN
Installation Steps
PoE Port
Figure A
PoE Port
Port 1 60W PoE Port
10 Ports Gigabit Managed PoE+ Switch
POE-GSH802M
LED DEFINITIONS
Power
Link/Act
Mode (DIP Indicator)
Red ON
Red Off
Green ON
Green ON
Green OFF
Green Blinking
Power is on and normal.
The switch is not receiving power.
The port Status LEDs ON Link Connection, LEDs Blinking Data transmission.
VLAN Mode.
Default Mode.
Extend Mode.
10 Ports Gigabit Managed PoE+ Switch
POE-GSH802M
PoE Port
PoE Port
Port 1~2 60W PoE Port
10 Ports Gigabit Managed PoE+ Switch
POE-GSH802M
10 Ports Gigabit Managed PoE+ Switch
POE-GSH802M
Figure B
Mode Switch Control
VLAN
Default
Extend
Port isolation mode. In this mode ports (1~4 GSH411/402) and (1~6 GSH800) cannot communicate with each
other and can only communicate with the Up-Link port. PoE Watchdog is enabled only for model POE-GSH800.
Normal mode. All ports can communicate with each other. PoE Watchdog is disabled.
Extension mode. PoE power supply and data transmission distance can be extended to 250meter at the
transmission rate of 10Mbps Port (3~4 GSH411) and (3~6 GSH800) only. PoE Watchdog is enabled only for
model POE-GSH800.
1. Remove the switch and accessories from the package.
2. Connect power to the switch. Make sure that “Power” LED is on.
3. Connect your IEEE802.3af/at/bt compliant Power Devices (PD)
to Ports 1~4 (GSH411/402) 1~8 (GSH800) and the Switch will
automatically supply power through these ports (see Figure A/B).
Note: Port 1 on the POE-GSH411BT and Port 1~2 on the
POE-GSH800-120 BT can supply up to 60W (802.3bt).
4. Check the Port LED indicator status. When a PoE device is
connected and the port is supplying power, it light on.
5. For more product information visit www.airlive.com.
6-Port Gigabit PoE+ Switch
Including 1 SFP port, 1 1000T port, 60/120W
POE-GSH411 BT series
6-Port Gigabit PoE+ Switch
Including 2 SFP port, 60/120W
POE-GSH402 BT series
8-Port Gigabit PoE+ Switch 120W
POE-GSH800-120-BT
