AirMan SDG60S-7A6 User manual

Preface
A040491
Thank you for having selected our “AIRMAN” product.
◆ This manual explains about the proper operation and daily inspection and maintenance of this
machine.
◆ In order to use a machine safely, people with sufficient knowledge and sufficient technology need to
deal with it.
◆ Before operating the unit, read the manual carefully, fully understand its operation and
maintenance requirement. Maintain “SAFETY OPERATION AND PROPER MAINTENANCE OF
THE UNIT”.
Be sure to follow safety warnings and cautions given in the manual.
Unsafe operation could cause serious injury or death.
◆For details of handling, maintenance and safety of the engine, see the Engine Operation Manual.
◆Keep the manual available at all times for the operator or safety supervisor.
◆ If the manual is lost or damaged, place an order with your dealer for another copy.
◆ Be sure that the manual is included with the unit when it is handed over to another user.
◆ There may be some inconsistency in detail between the manual and the actual machine due to
improvements of the machine. Ask your dealer if you have any questions or problems.
◆ If you have any questions about the unit, please inform us the model and serial number. A plate
stamped with the model and serial number is attached to side of the unit.
◆ Each illustrated figure (Fig.) has a number of 7
digits (for instance, A040491) at the right
bottom. This number is not a part number, but
it is used only for our reference number.

Table of Contents
1. Safety ...................................................................................................................................................... 1-1
1.1 Caution before Operation .............................................................................................................. 1-2
1.2
Caution during Operation .............................................................................................................. 1-4
1.3
Caution during Inspection and Maintenance ............................................................................... 1-6
1.4
Safety Warning Labels .................................................................................................................. 1-8
2. Part Names ............................................................................................................................................. 2-1

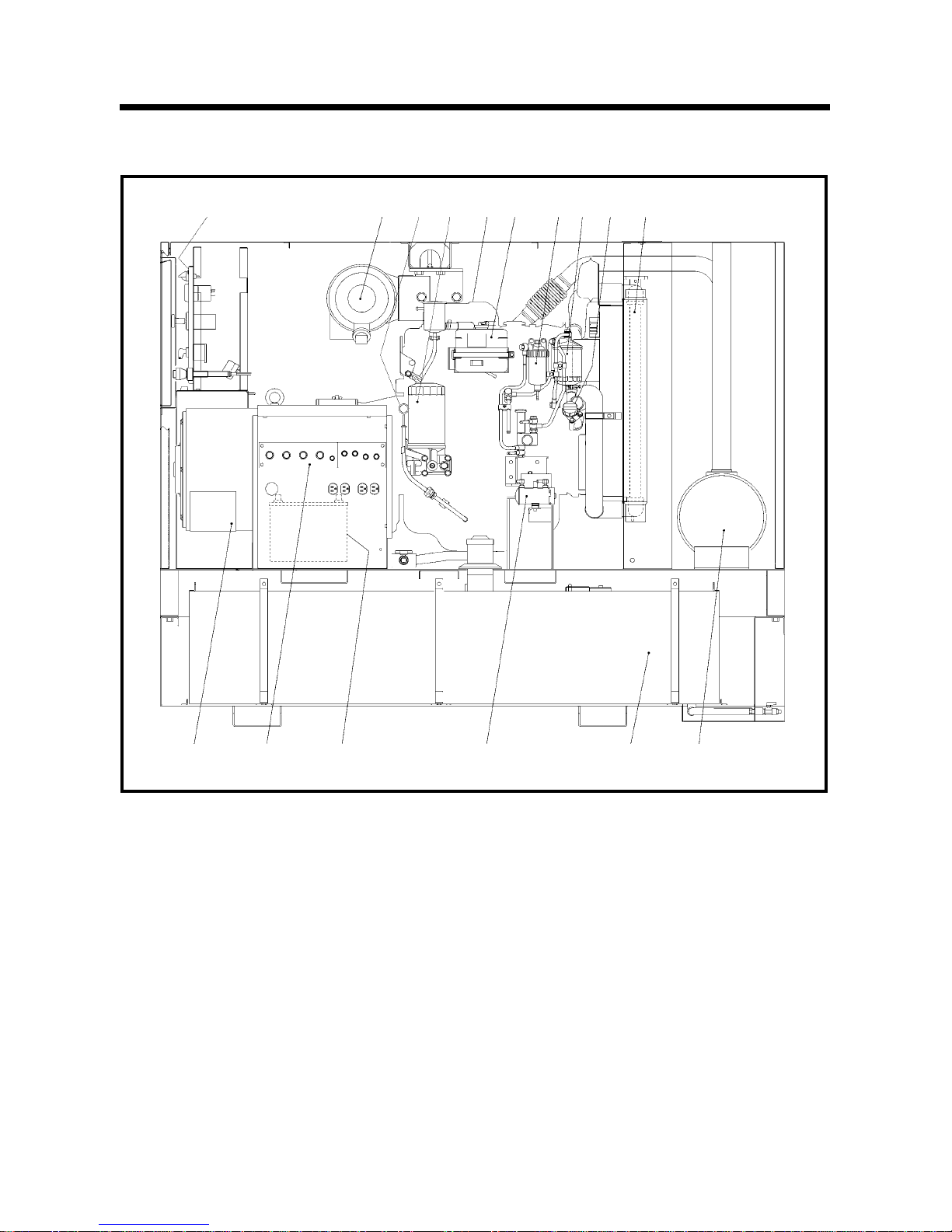

2.1 Internal Components ....................................................................................................................... 2-1
3. Installation .............................................................................................................................................. 3-1

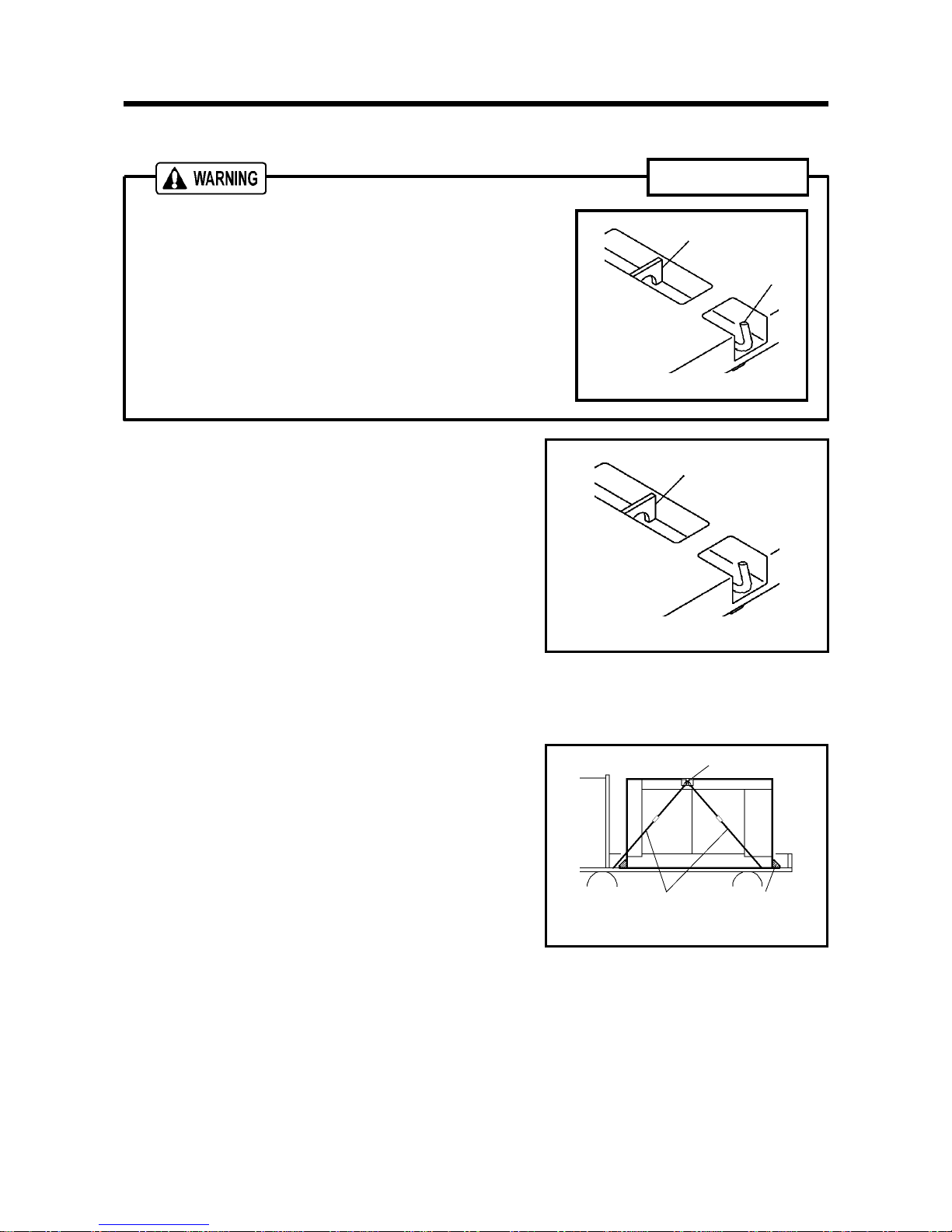

3.1 Transporting Unit ........................................................................................................................... 3-1
3.2

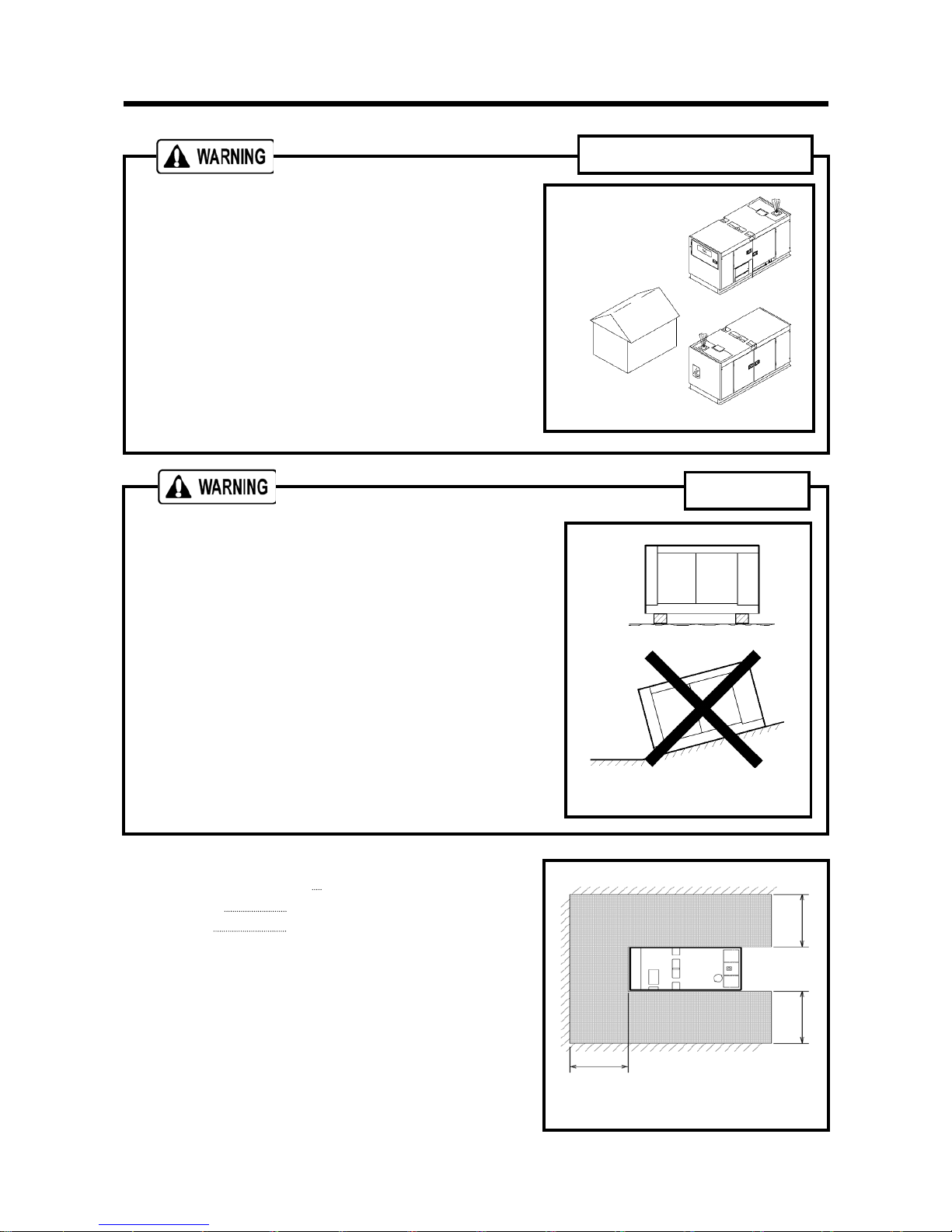

Conditions of Unit Installation ...................................................................................................... 3-2
3.3
Leakage Protection Device and Grounding Method ................................................................. 3-5
3.4

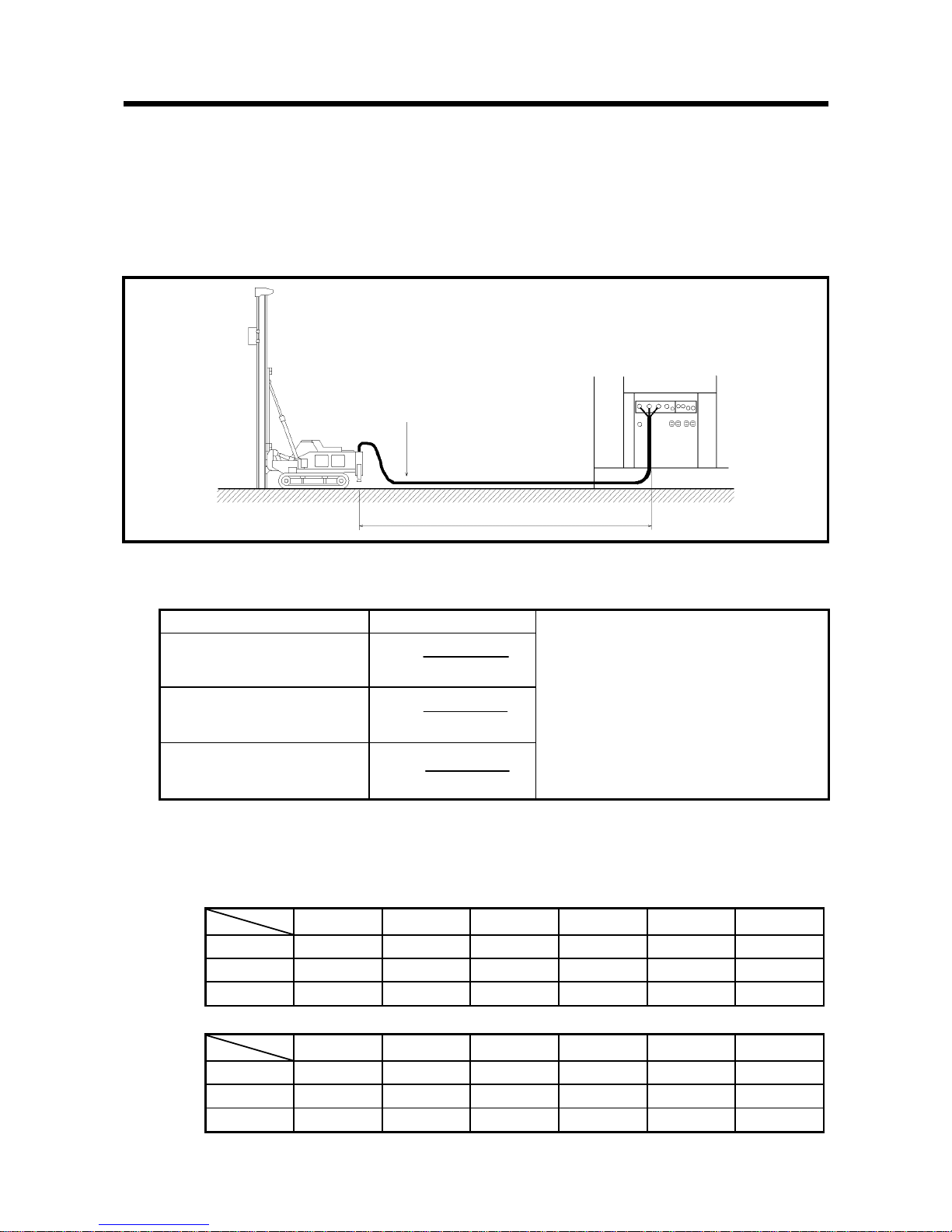

Selecting Cable ............................................................................................................................... 3-7
4. Operation ................................................................................................................................................ 4-1
4.1 Instrument panel ............................................................................................................................ 4-1
4.2
Protection device ........................................................................................................................... 4-2
4.3
Check Frequency Selection Switch for AVR ............................................................................. 4-4
4.4
How To Switch Voltages ............................................................................................................... 4-5
4.5
Connecting Load ............................................................................................................................ 4-6
4.6
Engine Oil・Coolant・Fuel .......................................................................................................... 4-10
4.7
Check before Starting the Machine ............................................................................................. 4-11
4.8
Operation and Stopping ................................................................................................................ 4-14
5. Periodic Inspection/Maintenance ....................................................................................................... 5-1
5.1 Important items at Periodic inspection and Maintenance or after Maintenance ....................... 5-1
5.2
Daily Inspection and keeping Operation Log ............................................................................... 5-2
5.3
Periodic Replacement of Parts .................................................................................................... 5-2
5.4
Periodic Inspection List ................................................................................................................. 5-3
5.5
Maintenance .................................................................................................................................... 5-4
6. Maintenance/Adjustment ..................................................................................................................... 6-1
6.1 Maintenance of Battery ................................................................................................................... 6-1
6.2
Troubleshooting ............................................................................................................................... 6-3
7. Storage of the Unit ................................................................................................................................ 7-1
7.1 Preparation for Long-term Storage .................................................................................................... 7-1
8. Specifications ........................................................................................................................................ 8-1
8.1 Specifications ................................................................................................................................... 8-1
8.2 Outline drawing ............................................................................................................................ 8-2
9. Wiring Diagram ...................................................................................................................................... 1 9-1
9.1 Generator Wiring Diagram .............................................................................................................. . 9-1
9.2
Engine Wiring Diagram ................................................................................................................... . 9-2
10.
Piping Diagram .................................................................................................................................... 1 10-1
10.1 Fuel piping ...................................................................................................................................... . 10-1

1.Safety
1-1
This manual explains and illustrates general requirements for safety and cautions for safety.
Please read these safety requirements carefully and fully understand the contents before starting the
machine.
For your better recognition, according to the degree of potential danger harmful to a human body,
safety messages are classified into three hierarchical categories, namely, , , and
with a caution symbol － attached to each message.
When one of these messages is found, please take preventive measures for safety to carry out “SAFETY
OPERATION AND PROPER MAINTENANCE OF THE UNIT ”.
DANGER indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury. This signal word
is to be limited to the most extreme situations.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may also be
used to alert against unsafe practices.
IMPORTANT indicates important caution messages for the per-
formance or durability of the unit, which has no concern to injury
or accident of or to a human body.
Follow warnings mentioned in this manual. This instruction manual does not describe all safety items.
We, therefore, advise you to pay special attention to all items (even though they may not be described in
the manual) for your safety.

1.Safety
1-2
PC002
D004
TR0093

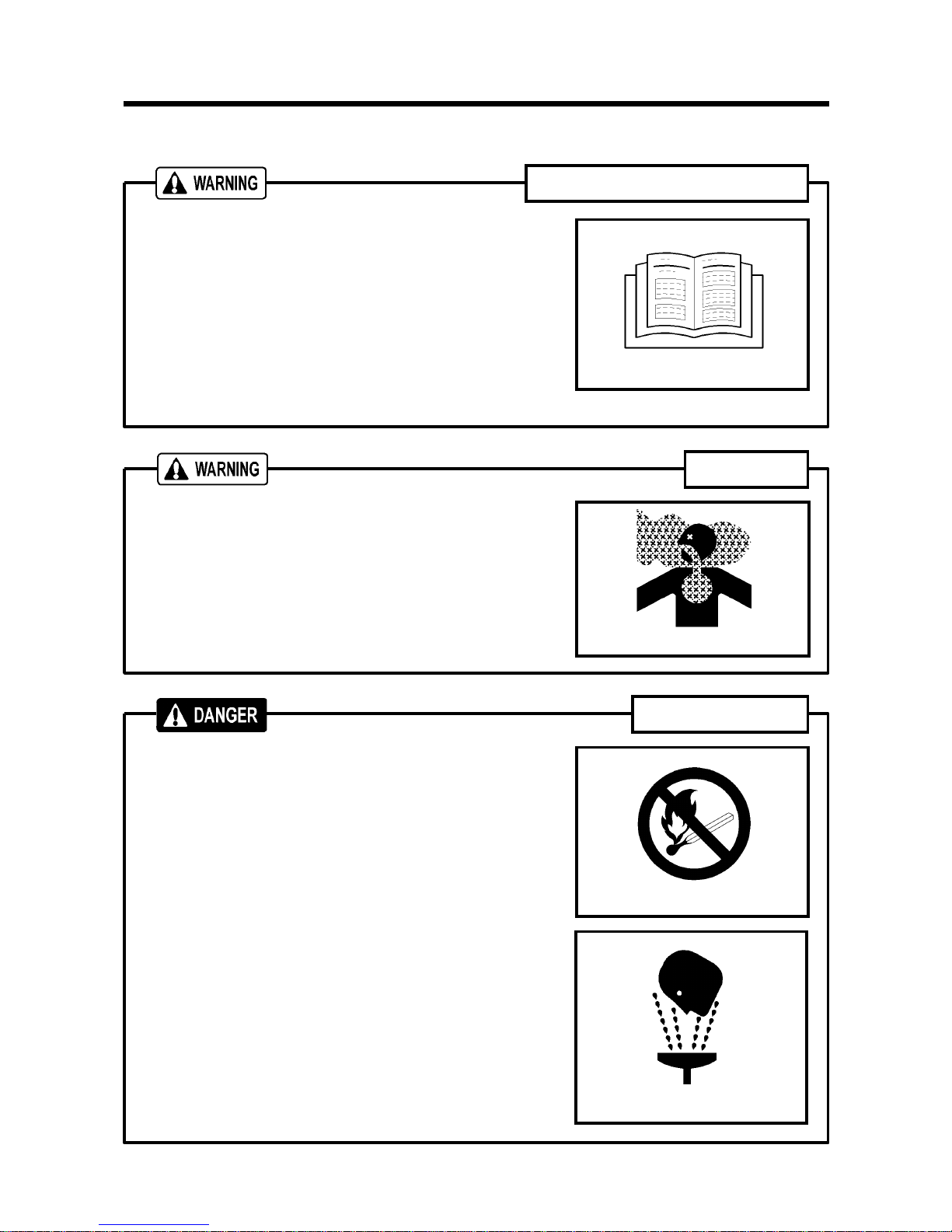

1.1 Caution before Operation
 Read each instruction plate which is displayed in the manual
or on the machine carefully, understand its content and
follow the indications thereof.
 Keep the Safety Warning labels clean. When they are damaged
or missing, apply new ones.
 Do not modify the machine without prior approval. The safety
may be compromised, functions may be deteriorated, or
machine life may be shortened.
 Never use the machine for the other purposes than power
supply. Otherwise, serious accidents may occur.
 Exhaust gas from the engine is poisonous, and could cause
casualties when it is inhaled.
Avoid using the machine in an insufficiently ventilated
building or a tunnel.
 Keep flames away from battery.
 Battery may generate hydrogen gas and may explode.
 Battery electrolyte is dilute sulfuric acid.
In case of mishandling, it could cause skin burning.
 Wear protective gloves and safety glasses when handling a
battery.
 Dispose of battery, observing local regulations.
TR0086
Follow the safety instructions
Ventilation
Handling battery

1.Safety
1-3
TR0084
TR0085
TR0096
 When handling machine, do not wear;
 loose clothes
 clothes with unbuttoned sleeves
 hanging tie or scarf
 dangling jewelry
 Such outfit could be caught in the machine or dragged in
the rotating portion of the machine, and could cause a
serious injury.
 Do not operate the machine when you are tired or drunk or under the influence of drugs. Otherwise,
a hasty conclusion or careless handling may cause unexpected injury or accident. Manage your
physical and mental health and be cautious in handling the machine.
 Please wear protection implements, such as a helmet,
protection glasses, earplugs, safety shoes, a glove, and a
protection-against-dust mask, according to the contents of
work for safety.
 Have first-aid boxes and fire-extinguishers near the unit ready
for emergency situations such as injuries and a fire.
 It is advisable to have a list of phone numbers of doctors,
ambulance and the fire department available in case of
emergency.
 Such things as unnecessary equipment and tools, cables, hoods, canvas sheets and pieces of wood
which are a hindrance to the job, have to be cleared and removed. This is because operators and
personnel nearby may stumble on them and may be injured.
Safety outfit
Maintain both physical and mental health
Protection equipments
Safety fittings
Safety around the machine

1.Safety
1-4
H990208
TR0304
H990432
1.2 Caution during Operation
 Never touch the output terminals during operation.
 Notice that the voltage of several hundreds volt is applied to
the output terminal.
 When removing or connecting a connecting cable for changing
load, be sure to switch OFF the circuit breaker, remove the
starter key from the starter switch, then carry out a work. The
operator must keep the key during operation.
Neglecting the cautions mentioned above, and a third
party
starting the machine during operation may cause
serious accidents such as electric shock.
 Keep hands off from the rotating portion or belts while running.
It could cause serious injuries if hands should be caught in.
 Do not, under any circumstance, open the radiator cap while
running or immediately after stopping operation. Otherwise
high temperature steam jets out and this could cause
scalding.
Never touch the output terminals and interior of control board
Hands off from rotating parts and belts
Do not remove radiator cap during operation

1.Safety
1-5
H990432
D004
H990433

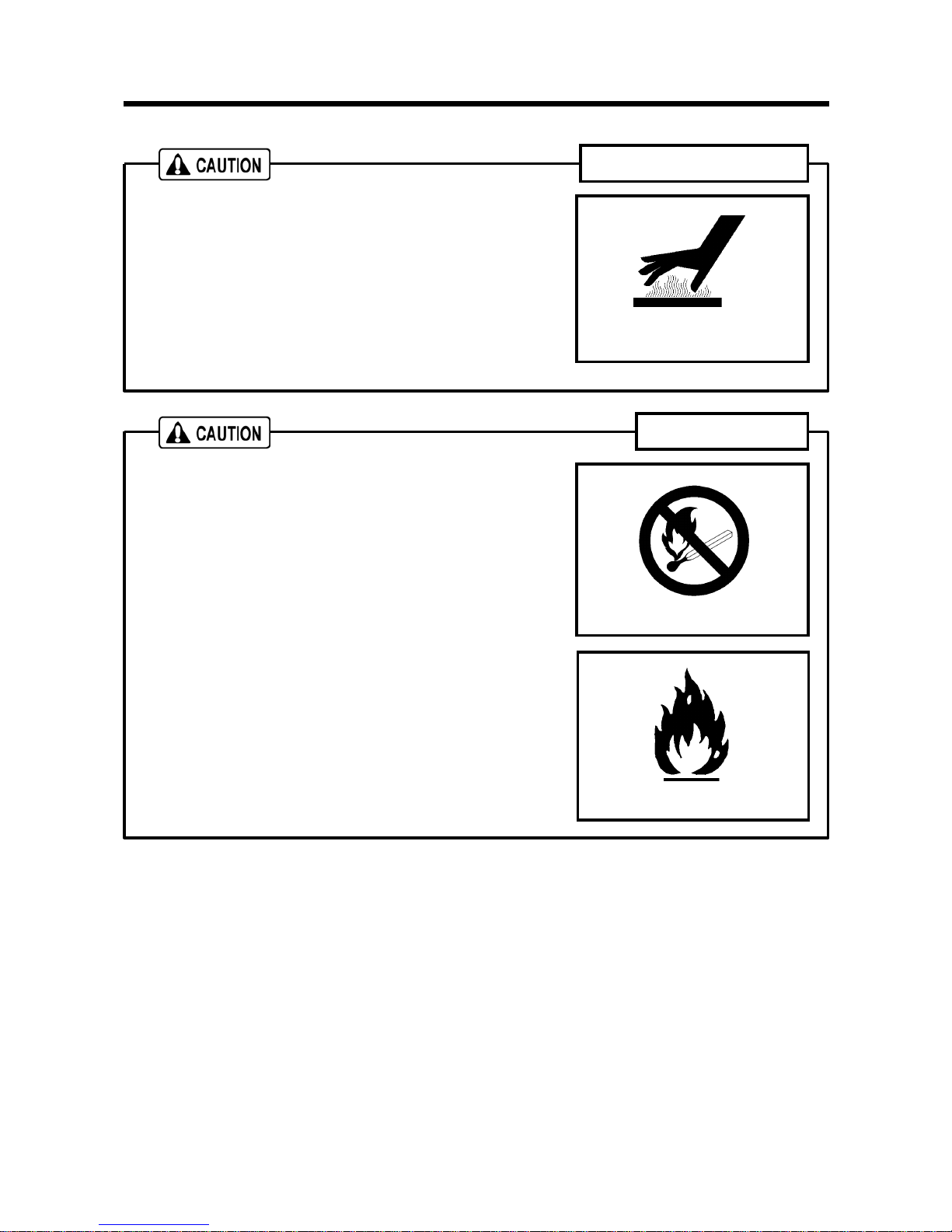

 Never work nearby hot portions of the machine while it
is running.
 Do not touch hot portions of the machine while inspecting the
machine when running.
 Such parts as engine, exhaust manifold, exhaust pipe, muffler,
and radiator are especially hot, so never touch those parts,
because it could cause scalding.
 Coolant water and engine oil are also very hot and dangerous
to touch. Avoid checking or refilling them while the unit is
running.
 Do not, under any circumstance, bring lit cigarettes or matches
near such oils as diesel fuel oil, and engine oil, etc.
They are extremely flammable and dangerous, so be careful
when handling.
 Refilling oils should be done in an outdoor well-ventilated
place.
 Refuel after stopping the engine, and never leave the fuel
nearby the machine. Do not spill. It may cause a fire. When it
is spilt, wipe it up completely.
 Do not supply fuel up to the fuel cap. And then the fuel may
get spilt when the unit is moved, transported and it is vibrating.
 Such parts as muffler and exhaust pipe can be extremely hot.
Remove twigs, dried leaves, dried grass and waste paper, etc.
from the exhaust outlet of the muffler.
 Keep a fire extinguisher available by the machine in case of
unexpected fire.
Do not touch hot parts
Fire prevention

1.Safety
1-6
SY001
TR0304
W009
W003

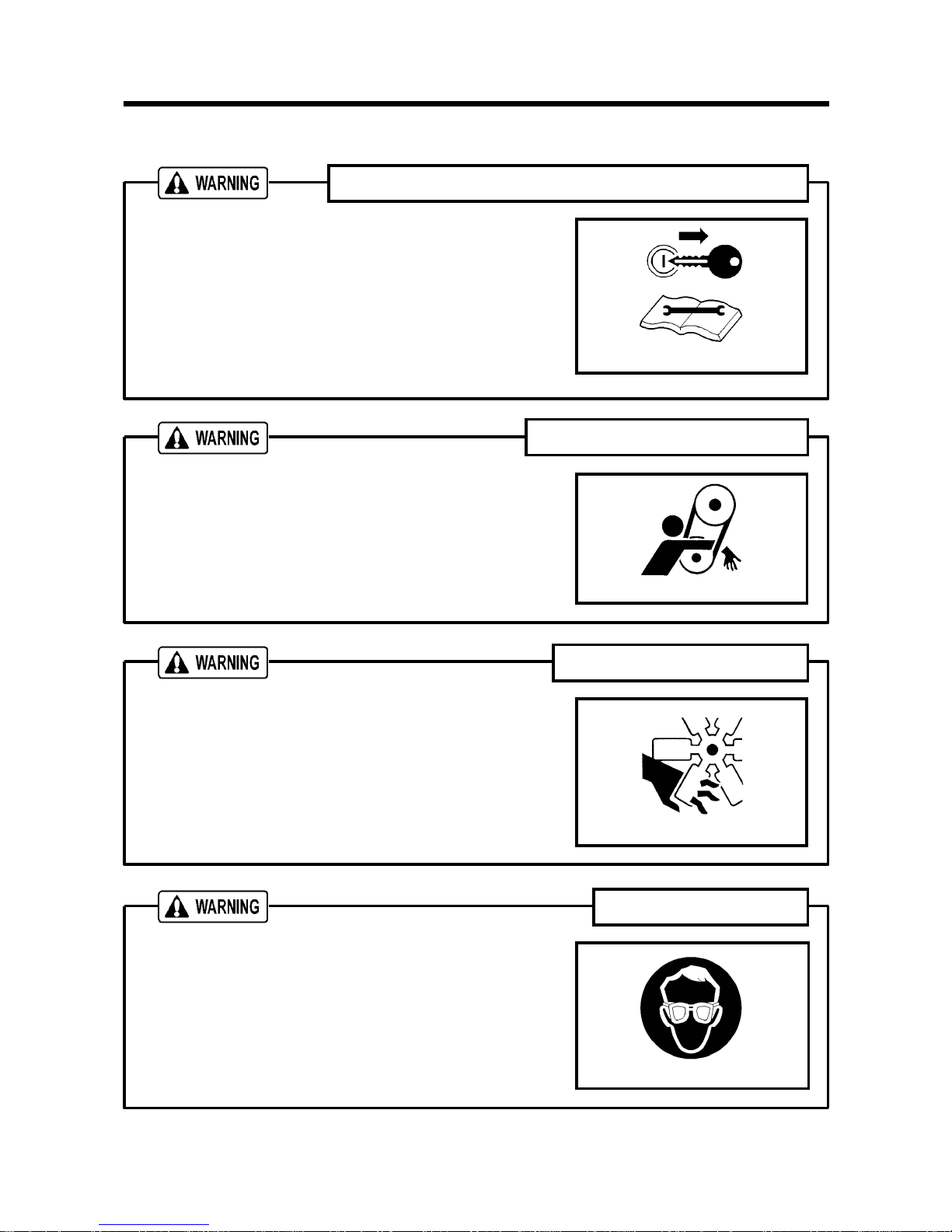

1.3 Cautions during Inspection and Maintenance
 Before starting inspection, switch off the circuit breaker of this
machine, remove the starter key from the starter switch, and
then hang a “Now Checking and under Maintenance” tag
where it can be easily seen. The checker must keep the key
during checking and maintenance.
 Remove the negative (–) side cable from the battery.
If the above procedure is neglected, and another person starts
operating the machine during check or maintenance, it could
cause serious injury.
 Be sure to stop the engine and remove the starter key
whenever the tension of the fan belt is to be adjusted.
 If the machine is running, it might catch the operator’s hand
into the fan belts, and this could cause a serious injury.
 Be sure to stop the engine and remove the starter key
whenever the tension of the fan belt is to be adjusted.
 If the machine is running, it might catch the operator’s hand
into the fan belts, and this could cause a serious injury.
 When cleaning dust accumulated in such devices as the
air-filter, etc., by blowing compressed air, wear safety glasses,
etc. to protect your eyes.
Hang a “Now Checking and under Maintenance” tag
Adjusting tension of fan belt
Hands off from cooling fan
Cleaning by air-blow

1.Safety
1-7
TR0206
H990432
H990432

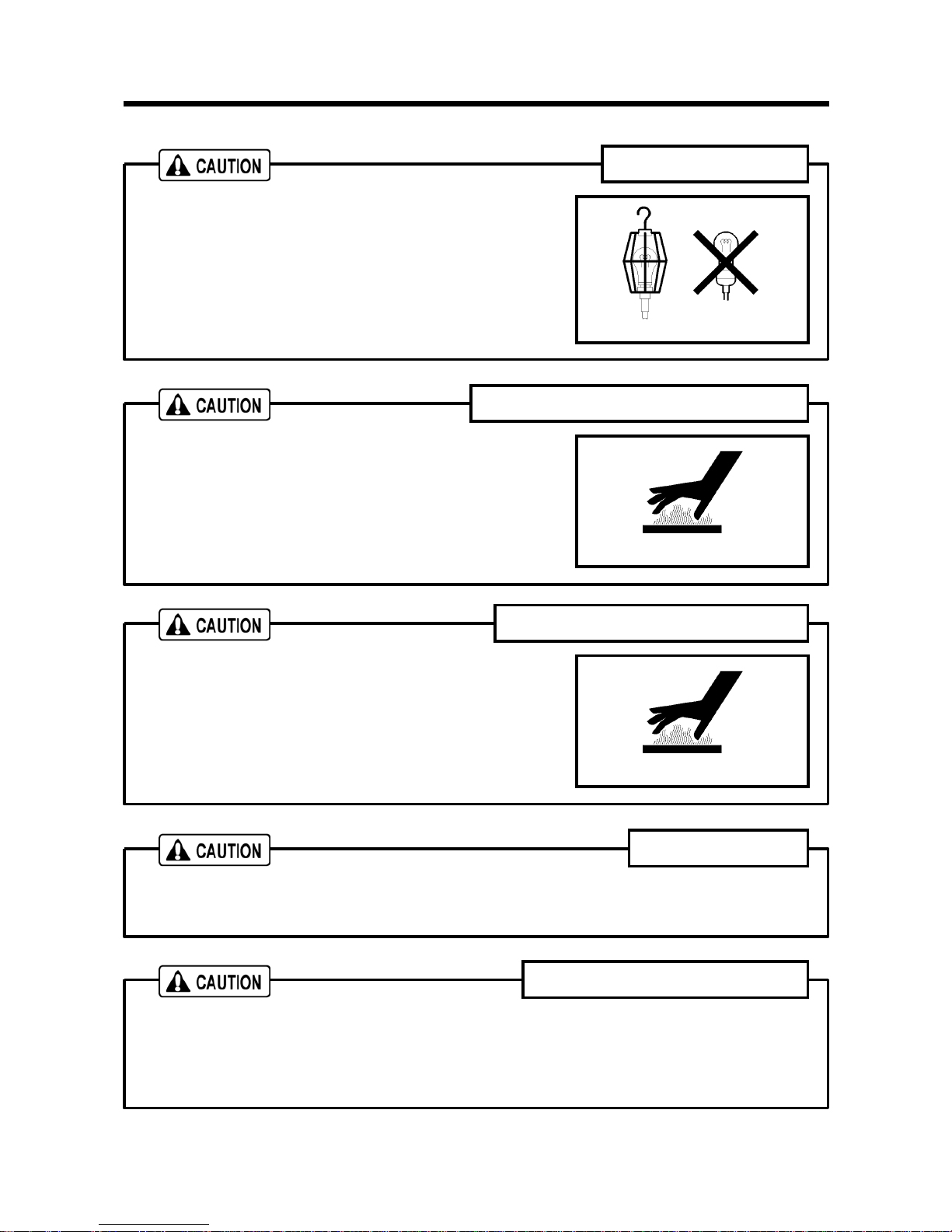

 It is recommended to use a lamp with safety guard fitted where
the site is dark. Operating the machine gropingly or by relying
on one’s intuition could cause unexpected accidents.
 Any lamps without safety guard are not recommended since
they can be broken and they could ignite flammables such as
fuel, etc.
 Be sure to stop the engine, and let the coolant water suffi-
ciently cool down before draining it.
 If the drain valve is opened before the coolant water is cooled
enough, hot water could jet out, and it could cause scalding.
 After stopping the engine, wait 10 to 20 minutes until the engine
oil cools off. Then check the level of the engine oil, or refill or
drain the oil.
 During operation or immediately after the engine stops, its oil
is extremely hot and pressurized, so it may jet out when the
cap is loosened. Be careful not to scald yourself from it.
 When washing the machine, cover the control panel, generator and its electric parts to prevent them
from being exposed to splashing water and avoid possible decrease in electrical insulation or other
troubles to the machine.
 Waste liquid from the machine contains harmful material. Do not discharge it onto the ground or into
the river, lake or sea. Such material will pollute the environment.
 Be sure to use a container to hold the waste liquid from the machine.
 Be sure to follow the designated regulations when disposing of oil, fuel, coolant (antifreeze), filter,
battery or other harmful materials.
Lighting apparatus
Opening coolant water drain valve
Refilling or draining of engine oil
Cleaning the unit
Disposal of waste liquid, etc.
