USER MANUAL
H3TS+

FREE INTELLIGENT LIFE
EN
FR
IT
DE
ES
/ 01-24
/ 25-48
/ 49-72
/ 73-96
/ 97-120
H3TS+

- 1 -
USER MANUAL
EN
H3TS+

- 2 -
Battery
Clutch
Motor
Rear wheel
Controller
Armrest
Handrail button
Frame
Footrest
Front wheel
Packing list
Diagram
H3TS+ 1 unit Charger 1 piece
Instruction 1 unit Accessory 1 set
Headrest 1 unit
Push rod motor housing
Backrest
Headrest

- 3 -
1-1

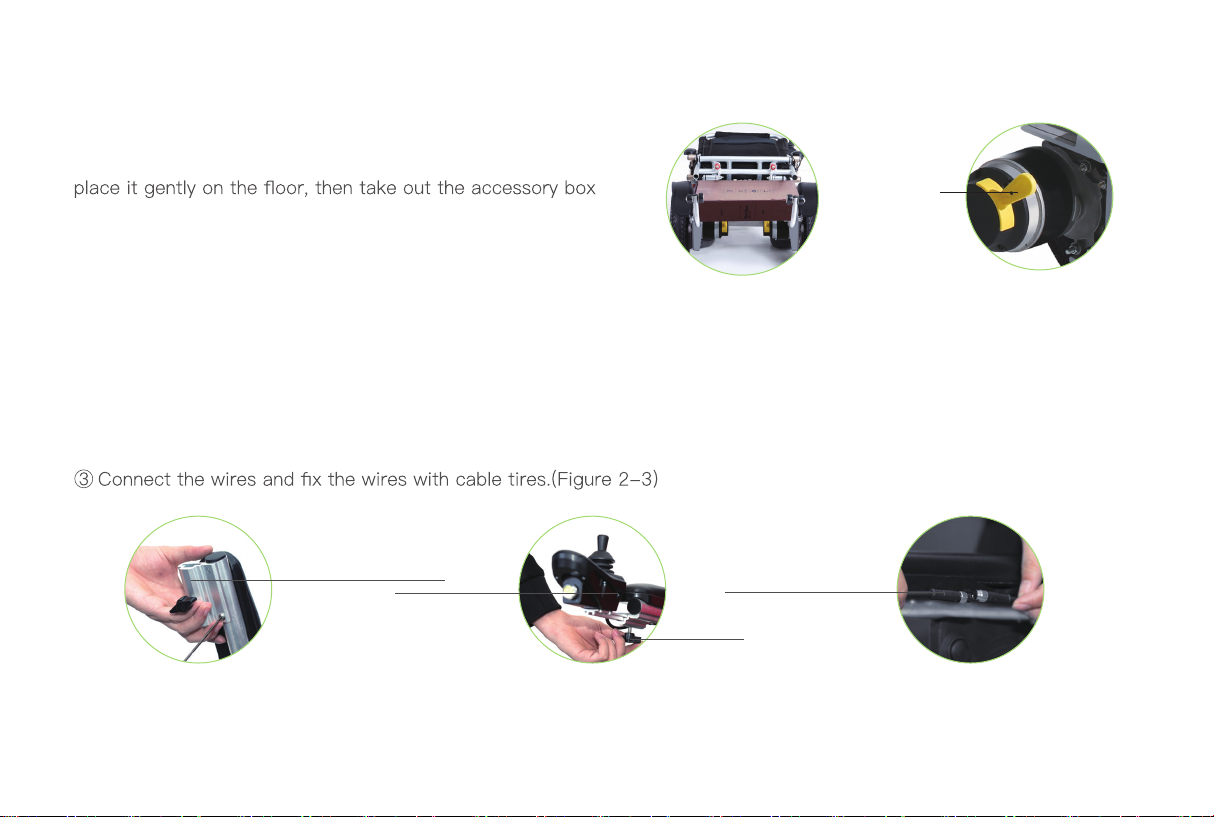

User Instructions:
Open the wheelchair carton, take out the wheelchair and
at the rear of the wheelchair (see Picture1-1) and remove the
cardboard near the motor lock. Turn the motor lock to drive
mode (see Picture1-2). Contents in the paper box: a Charger,
controller, user manual, plastic tie and assembling tools etc.
1.Take out the accessory box at the
rear of the wheelchair
The joystick could be installed on the left or right armrest freely, accoridng to user's habit
①Fix the joystick groove with screw and tighten the screw (Figure 2-1)
②Insert the joystick into the groove and tighten the screw. (Figure 2-2)
2.Install the joystick
2-1 2-2 2-3
The joystick groove
The joystick
assembly
The joystick wiring
Screw
1-2
clutch
handle

- 4 -

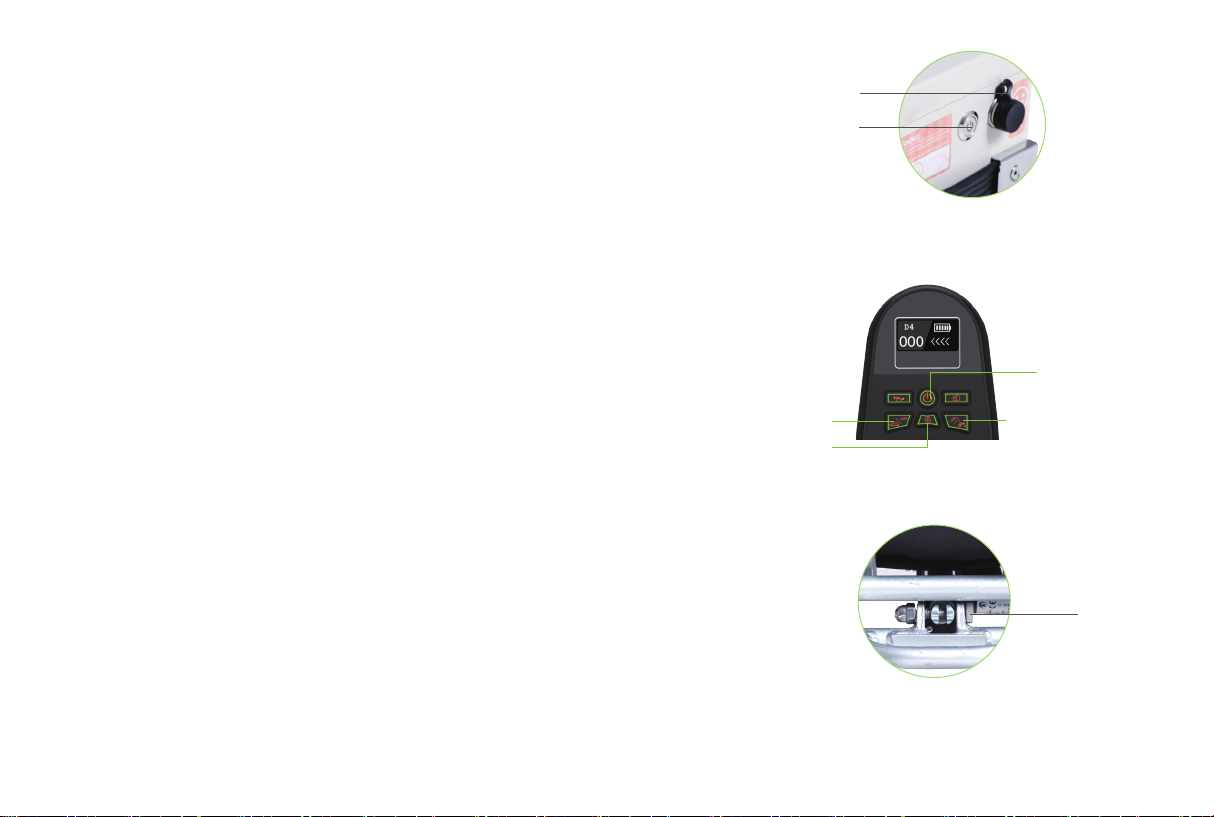

After completing the above steps, turn on the power. The main
power switch and charging port are located behind the battery
compartment (Picture3-1).
3.Turn on the main power
3-1
Charging port
Main power
switch
If the wheelchair cannot be folded automatically due to a
malfunction of the electrical parts, please use the given tools
to remove the screws located at the rear of the wheelchair (see
Picture 4-2) to fold/unfold it manually.
Notes:
4-2
Screw
Press and hold the up/extension button 1 on the controller for
3 seconds in the o state (as shown in Figure 4-1). When the
controller panel lights up. Release the button when the “Drip”
sound appears, wait for the wheelchair to automatically expand.
After the expansion is completed, press ③ to exit the expansion
and contraction.
Turn on the power switch ④ and start to use (Figure 4-1).
4.Unfold the wheelchair
4-1
Power
Switch
Speed up /
Unfold
Speed down / Fold
Stop folding /
unfolding
④
①
②
③

- 5 -
Main Technical Parameters
Size 1076X620X987mm
（controller size not included） Item weight ~28.0kg（without battery）
Folding size 842X620X560mm
（controller size not included） Max. load 130kg
Rotation radius 1.2m Battery weight 3kg
Standard max. speed 6Km/h Climbing capacity ≥ 6°
Braking performance ≤ 1.5m Slope capacity about 9°
Charging time about 5H Battery lithium 25.2V 524Wh
Input voltage AC110-220V Applicable temperature -15℃ ~50℃
Over-obstacle capacity ≥ 40mm Trench crossing capacity 100mm
Front wheel 8 inch Rear wheel 12.5 inch, inatable tire
Motor Dual-drive brush motor with clutch pull rod. Power: 200W; voltage: 24V;
Automatic folding
function a key to automatically contract and extend
Specications
Warning
Please do not throw away the waste battery, so as not to pollute the environment. The waste lithium battery of the product is
to be recycled by the enterprise or dealer, and the government designated outlets.

- 6 -
Installation and usage
When removing the battery case, rst make sure that the main
power switch is o. Unplug the battery bus connector (as shown
in Figure 1-1), press the spring clip and pull out the battery case
(Figure 1-2); when the battery is installed, insert the battery box
directly until the spring clips the battery box, then put Insert the
battery bus plug into the battery bus jack.
Note:
1. Pay attention to the front and back of the battery case, and the
side with the sticker facing up.
2. When the battery bus is plugged in and out, please align the
card slot with the protrusion (as shown in Figure 1-3).
3. Do not touch the main wires and charging port with metal
objects when the main battery switch is turned on, to prevent
damage to accessories and danger.
1. Battery disassembly instructions
1-1
1-3
1-2
Main power
switch
bus bump
bus plug
shrapnel
top sticker
2.Main power switch
Tip: Please turn o power to prevent the battery from over-discharging if riders don’t use it.
When the indicator is on, H3TS+ is powered on, and when it's o,H3TS+ is powered o.

- 7 -
3.Battery charging instructions
Please connect the charger to the wheelchair before connecting
it to the AC power while charging. Please align the notch on
the charger (See Picture 3-1) with the protruding part of the
charging port (See Picture 3-2), insert and tighten the xing cap
for connection. Please loosen the xing cap before removing the
charger from the wheelchair.
3-1 3-2
notch protruding
part
4. Left and Right Joystick Exchange
4-3 4-4 4-5 4-64-1 4-2
Disconnect the joystick cable (Figure 4-1) and loosen the screw to remove the joystick (Figure 4-2). Remove notch of
one side of the joystick (Figure 4-3), turn it 180 degrees to the other armrest position, tighten the screw to secure the
joystick (Figure 4-4), then insert the joystick into the notch. Attach the screw (Figure 4-5), reconnect the joystick wiring,
and nally attach the joystick cable with the cable ties (Figure 4-6).
The joystick
groove
The joystick
assembly
Screw

- 8 -

- 9 -
Backrest tilt stateBackrest retracted
Adjust the backrest angle
D5
DT
Wheelchair gear / mode description
Wheelchair speed is adjustable in 5 speeds: D1, D2, D3, D4, D5
DR in gear / mode area indicates entering remote mode; DF indicates entering
folding mode; B means the wheelchair Bluetooth is connected with the APP or
Bluetooth wireless remote control; E01-E16 corresponding error code;
A01-A16 corresponding alarm code
Press the "Power Switch" button to turn on the power of the controller，short press
“Stop button”，LED display shows “DT”mode.To adjust backrest angle via “Speed
down/fold”button and “Speed up/unfold”button.
1. In “DT”mode,long press “Speed up/unfold” button, the backrest unfolds backwards
2. In “DT”mode, long press “Speed down/fold” button, the backrest retracted forward.

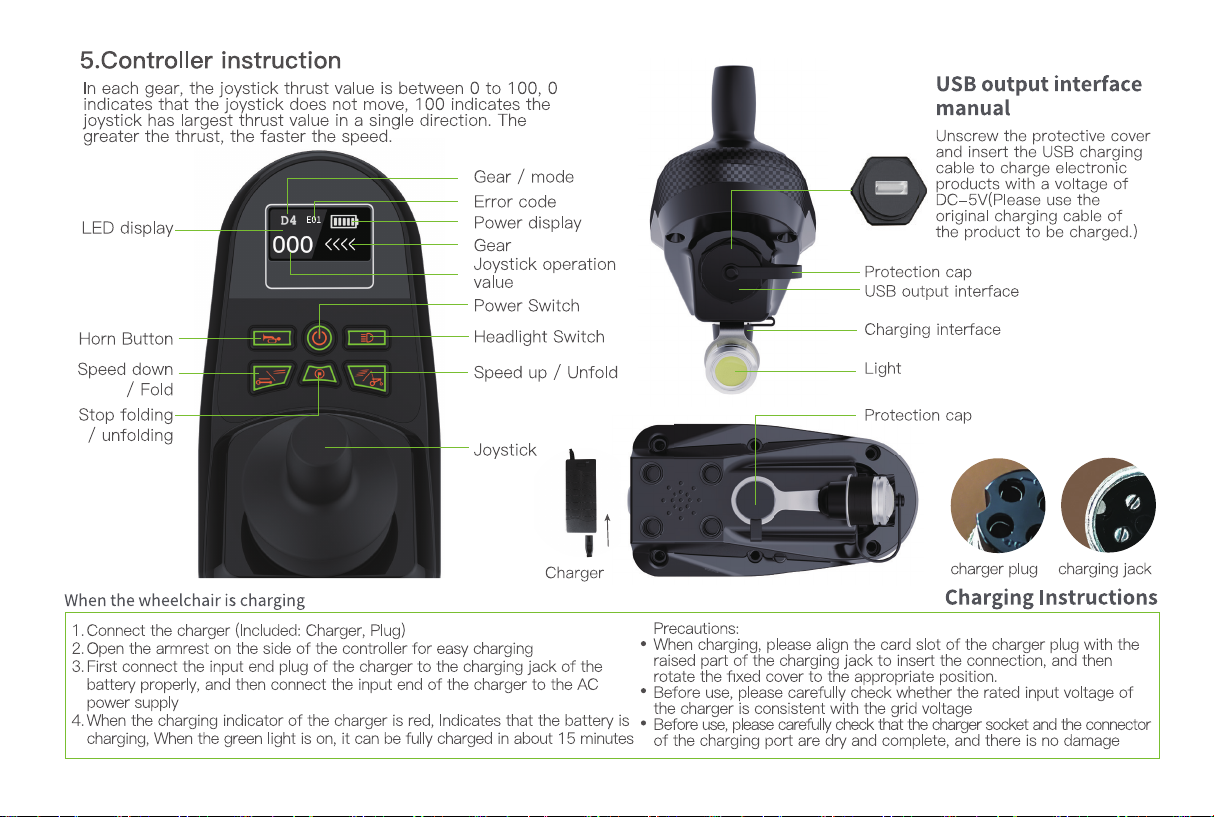

Error code
Gear / mode
LED display

- 10 -
Note: During the folding process, you can stop folding by
turning the joystick or clicking any key.
Make sure the power button on the battery box is turned
on and the wheelchair is unfolded, then press the power
switch on the controller to be ready to drive or remote
control. Press it again to shut down the ready mode.
Power Switch
In the power-o state, press the button over 2 seconds,
the Wheelchair enters the extending/contracting mode.
Release it to contract. In the extending/contracting mode,
click the button to stop contracting if it is contracting.
When extending stops, click it to contract. In the ready
mode, remote control mode and riding mode, click the gear
button to decrease one gear.
Speed down / Fold
Remarks: The wheelchair cannot be turned on when it
is folded. You need to unfold the wheelchair and then it
could be turned on.
Press the button the buzzer will buzz; Release the button,
the buzzer stop buzzing.
Horn Button
Make sure both the power on the battery box and on the
controller are turned on, then press the headlight switch to
turn on the headlight, and press it again to turn o.
Headlight switch
In the power-o state, press the button over 2 seconds, the
Wheelchair enters the extending/contracting mode. Release it
to extend. In the extending/contracting mode, click the button
to stop extending if it is extending. When contracting stops,
click it to extend. In the ready mode, remote control mode and
riding mode, click the gear button to increase one gear.
Speed up / Unfold
In the extending/contracting mode, click the
button to stop extending or contracting. It enters
the shutdown state.
Remarks: without Any operation on joystick or
remote control for 5 minutes, the controller will
automatically shut down (screen o/ght o), and
you can re-operate the wheelchair by clicking
the power button on the joystick.
Stop folding / unfolding

- 11 -
The controller controls H3TS+ to go forward, backward, and turn left and right, and to accelerate, decelerate and
brake. After turn on the switch button, push the rod forward vertically and H3TS+ moves forward. More forward, the
faster the speed. Release the rod to slow down and when fully released, the rod is reset and H3TS+ stops and is in
the braking state. Pull the rod backward, H3TS+ moves backwards, more backward, the faster the speed to backward.
Release the rod to slow down and when fully released, the rod is reset and H3TS+ stops and is in the braking state.
Similarly, turn the rod to left or right, H3TS+ will turn left or right. Pushing more left or right, the faster the speed
towards left or right. Release the rod to slow down and when fully released, the rod is reset and H3TS+ stops and is in
the braking state.

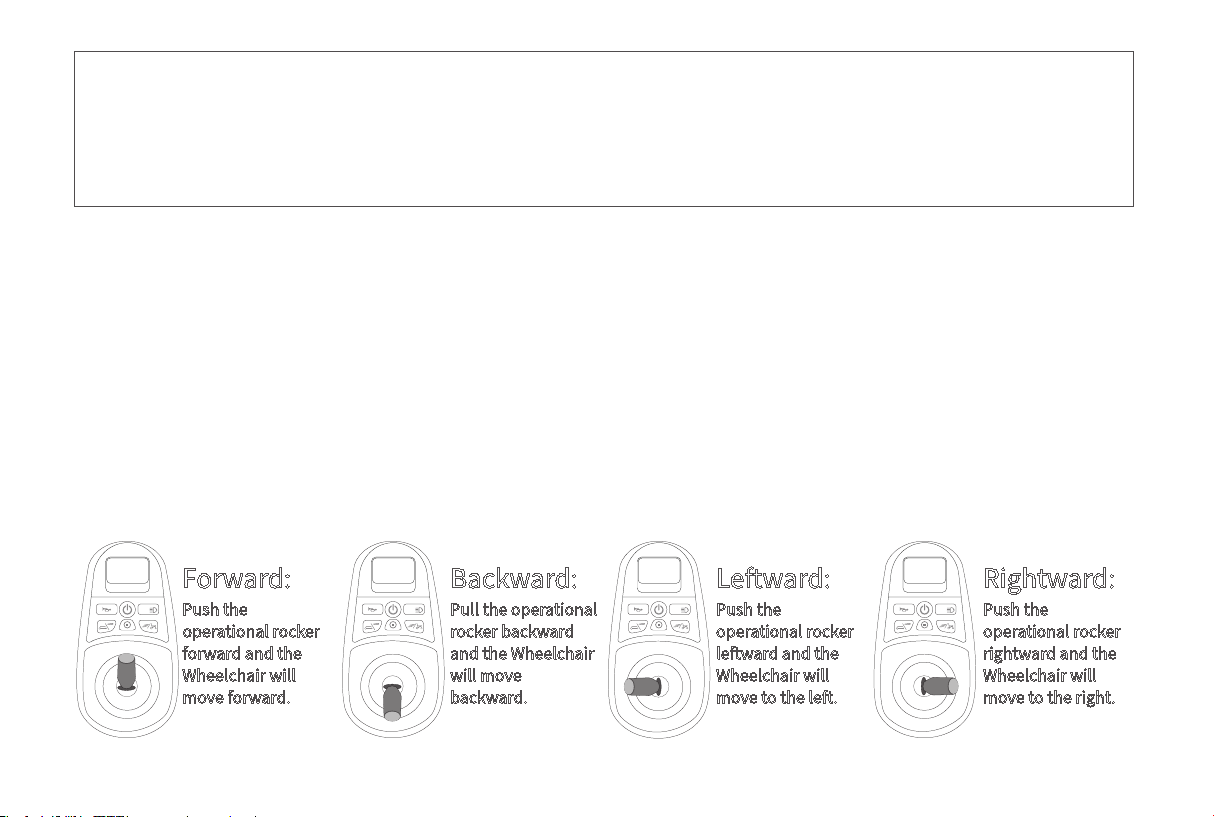

How to use the controller
Forward:
Push the
operational rocker
forward and the
Wheelchair will
move forward.
Backward:
Pull the operational
rocker backward
and the Wheelchair
will move
backward.
Leftward:
Push the
operational rocker
leftward and the
Wheelchair will
move to the left.
Rightward:
Push the
operational rocker
rightward and the
Wheelchair will
move to the right.
• O state: The power switch on the battery box is on, the power button on the controller is o, and the LED
display is o.
• Standby state: Press the power button, the LED display is always on and no operation is performed.
• Riding status: Press the start button, the LED display is always on, and the joystick is used to put the
wheelchair in motion.

- 12 -
Pull the tie rod to the open position, then the brake of H3TS+ will not work, the weelchair can be pushed by people(no
matter the H3TS+ is power on or power o, people can do it), when people pulf the tie rod to the close position, nobody
can push the H3TS+.
6.Operate tie rod of clutch
The clutch lever must be in electric mode, it means the H3TS+ is braking, people can drive the H3TS+.
To ensure the security of people and H3TS+.it is prohibited to use this function when the H3TS+ uphill or
downhill.
Electric modeElectric mode
The electric mode
is as shown in the
left picture, push the
handle up to switch to
manual mode
The electric mode is
as shown in the picture
on the right, push the
handle upwards to
switch to manual push
mode
Left clutch handle Right clutch handle

- 13 -

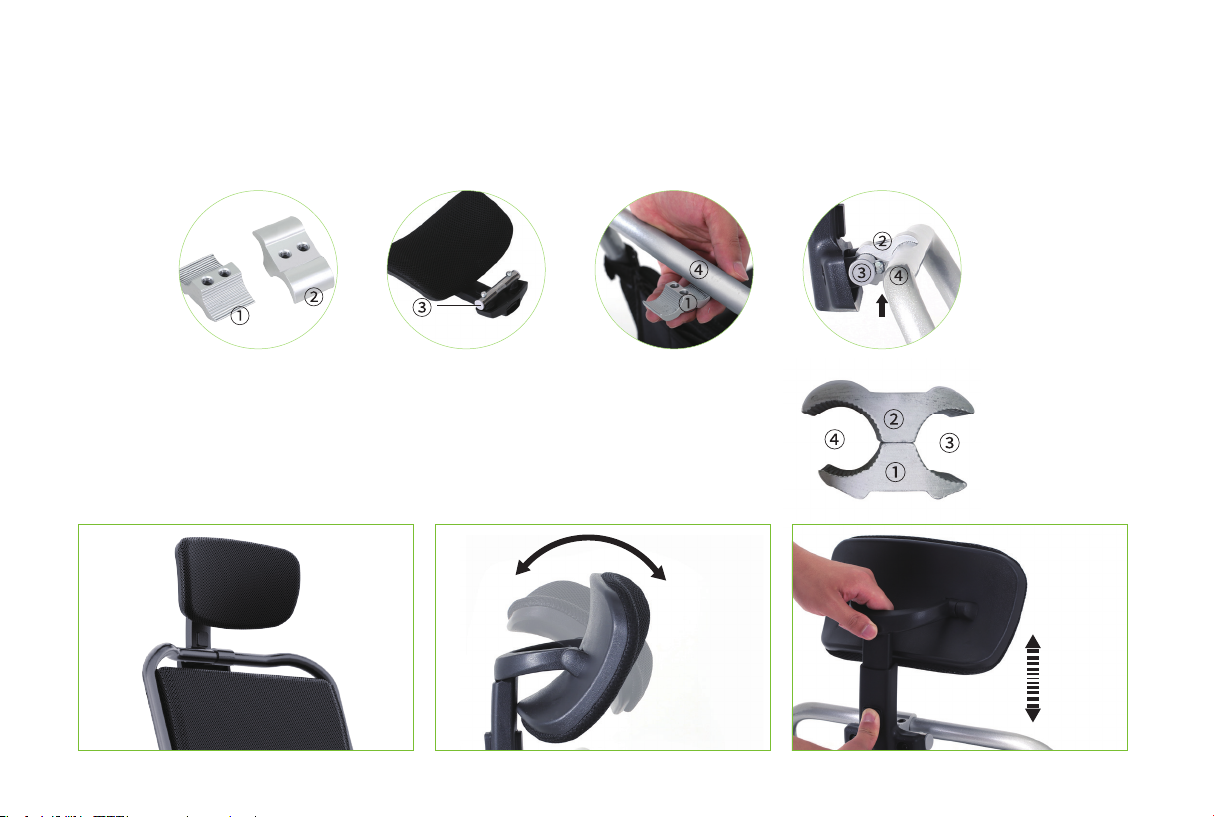

7.headrest installation
Fasten the metal buckles ① and ② to the metal part ③ and ④ respectively.as the picture shows,tighten the screws,
adjust the head restraint to the proper position while tightening, and then fully tighten the screw.
1. When installing, please pay attention to the direction of the metal
buckle,as shown in the picture, the left corresponds to the rod of the
backrest ④ ,the right corresponds to the rod of the headrest ③
2. Part ② is above
Precautions
Adjust
the
height
of the
headrest
Adjust the
headrest
angle

- 14 -

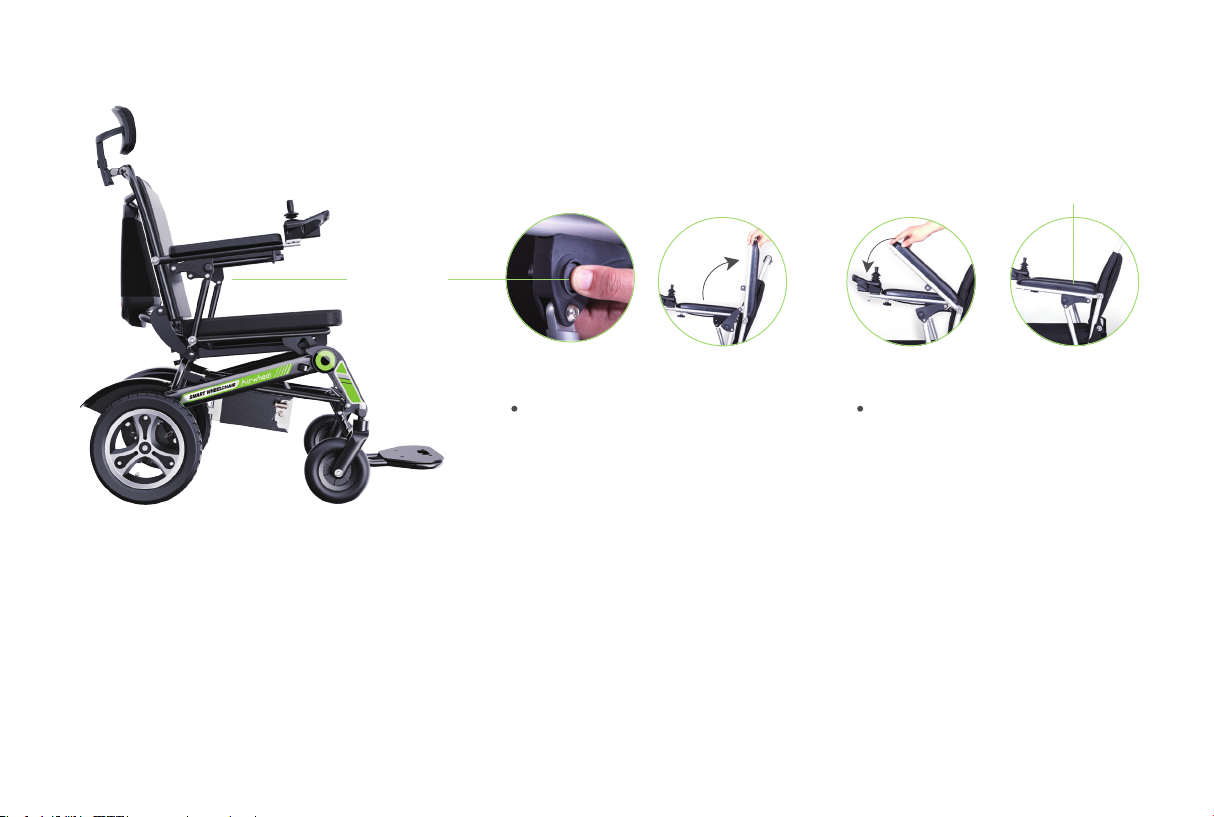

8.Handrail precautions
Press and hold the armrest
button (see Figure 8-1) while
pulling the armrest up 90° (see
Figure 8-2)
Reset the armrest down and
complete the xing (see
Figure 8-3), which is normal
use state.
8-1 8-2 8-3 8-4
Handrail
button
Normal use state

- 15 -
9.Rear support leg (optional)
9-4
Rear support
Install the rear support: press and hold the rear support button (Figure 9-1), insert the rear support into the reserved
hole (Figure 9-1), and release the rear support button after clamping, the installation is complete; Disassembly rear
support: Press and hold the rear support button and pull out the support at the same time.
Note: When the rear support wheel is installed downwards, it can be used as an anti-roll wheel (Figure 9-3); when the
rear support wheel is installed upwards (Figure 9-2), it can be used as a rear support. See the nal use of the foot (Figure
9-4).
Rear support button
Reserved hole
Anti-roll wheel
Rear support
9-1 9-2
9-3

- 16 -
Remote control blutooth pairing
1.Put AAA battery into the handle, power on, The green light ashes once in an instant;
2.Let the remote control close to the wheelchair in 1 meter, Short press "Power button", The green light is always on,
then press the “@” button quickly, the green light starts to breathe slowly and enters the pairing (do not move the
joystick during the pairing process);
10.Bluetooth remote control (optional)
Joystick
@ (pairing)
C (gear-high)
B (folding-shrinking)
D (gear-low)
Power button
Indicator light
A (fold-extension)
① Upper side
big button (horn)
② Lower side big
button (headlights)

- 17 -
3.After the pairing is successful, the green light ashes quickly. After a few seconds, turn on the wheelchair and enters
the remote control mode. Now the remote control stops ashing, and it lights 0.5s and then goes o.
Push the joystick, it could control the wheelchair to run, stop and turn normally, and the remote control indicator
light goes o, short press the “upper side big button”, the horn sounds, short press the “downside big button”, the
headlights turn on; The green light ashes once every 5 seconds when it is in remote control mode.
Short press button“C”, the wheelchair switches to highest speed (5), and press button“D”, the wheelchair switches
to lower speed (2).
Short press or long press "Power button" and release, the wheelchair joystick light will be o and power o, then
short press or long press "Power button" and release, the wheelchair will automatically turn on within 3~5 seconds;
After the above steps, short press or long press the “power button” and release, the wheelchair will be turned o.
At the moment, press and hold the “B” button, the wheelchair automatically enters the folding mode and starts to
fold, then release the button and short press “B”, the folding pauses . and then short press "A", the wheelchair will
be unfolded. After the expansion is completed, short press the "@" button, the wheelchair exits the folding mode,
the joystick turned o and the light is o.
1.
2.
3.
4.
1.
2.
3.
Short press or long press "Power button" and release, the wheelchair is power on, long press "@" button, after a few
seconds, the red light ashes once, it exits the remote control mode and goes to sleep mode;Short press the “Power
button”, the remote control will wake up, the green light will ash quickly, the remote control will automatically
connect the wheelchair after a few seconds, and the wheelchair will automatically turn on.
After power on, push the Bluetooth remote joystick and release, from now on, about 2 minutes later, the remote
control automatically enters the sleep state, and the red light ashes once.
When the dry battery voltage is lower than 2.1V, the Bluetooth remote control will be in a low battery state, and the
red light will continue to ash.
How to use the blutooth remote control
Bluetooth remote indicator
