Airwheel H8 User manual

H8
USER MANUAL
EN

- 01 -
Backrest
Brake handle
Armrest
Joystick
Joystick base
Power switch
Cushion
Frame
Footrest
Front wheel
Upper frame
Storage bag
Battery
Controller
Motor
Wheelchair body 1 unit Charger 1 pcs
Battery 1 pcs User manual / warranty 1 pcs
Backrest cross-bar 1 pcs Seat cushion 1 pcs
Fittings bag 1 pcs

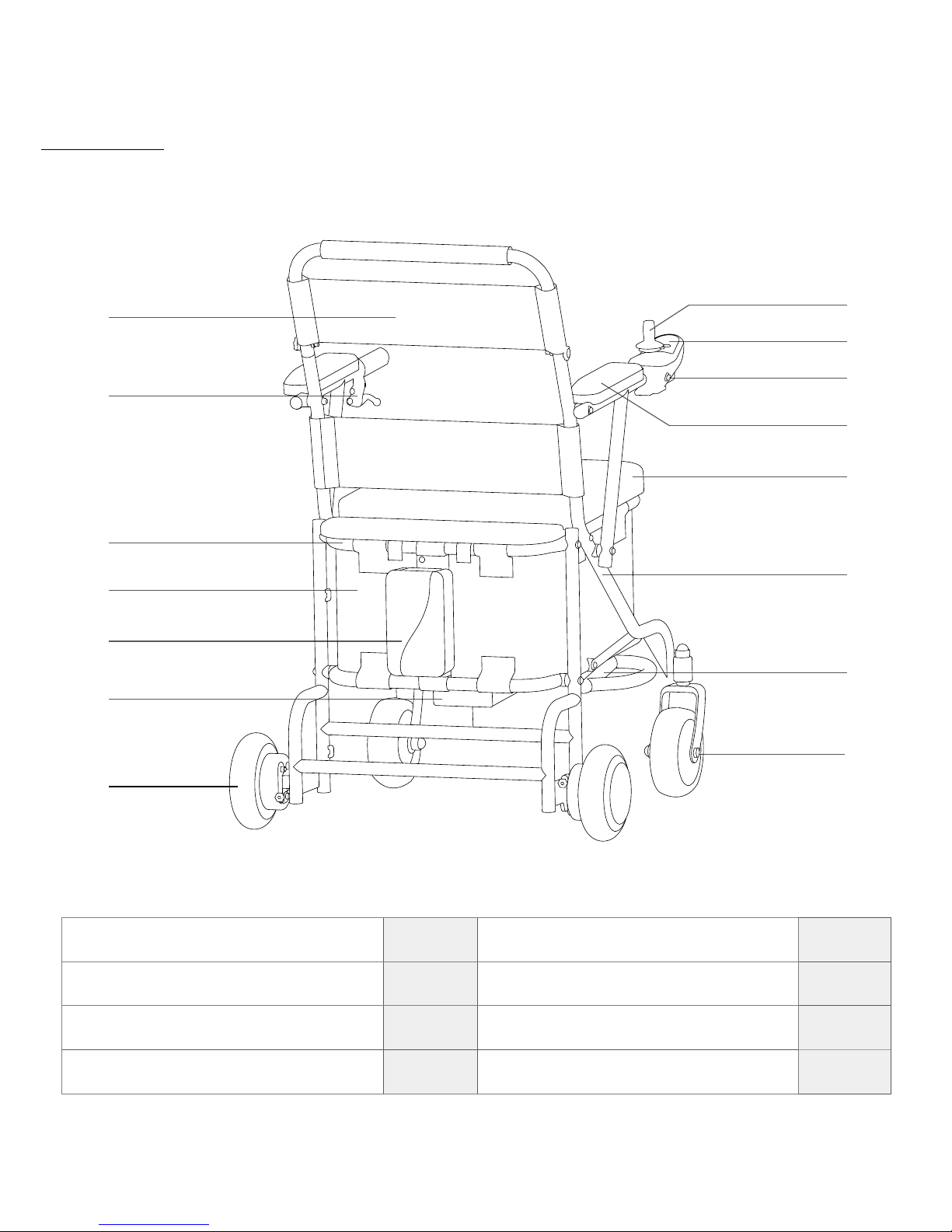

Diagram
Packing list

- 02 -

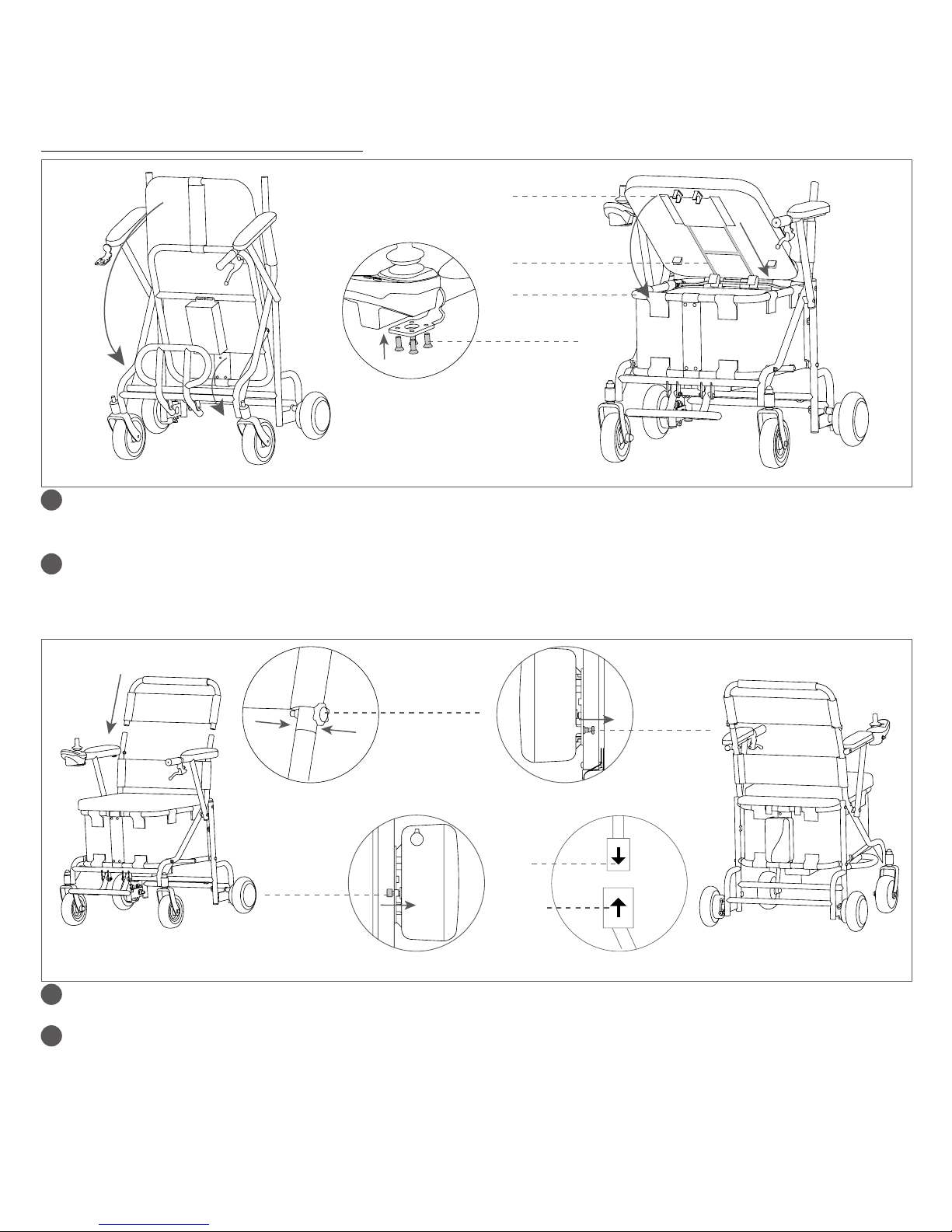

Take H8, cushion and other ttings from the package. First open the footrest (see Figure 1- ①),
then unfold the body (see Figure 1- ②). Align the screw hole below joystick base with the mounting
hole in front of the armrest and then tighten the xing screw to x it (see Figure 2).
Cover the cushion with seat holder (see Figure 3- ③), adjust it to the suitable place and do up the
inner two buttons. Fix the seat cushion on the seat holder and do up the outside two buttons, then
x the seat cushion on the upper frame. Lay flat the cushion and use the buckle stop to x the upper
frame (see Figure 3- ④arrow).
Put the backrest cross bar into the wheelchair body (see Figure 4- ⑤) and use thumb
screw to fix (see Figure5- ⑥).
Pull out the safety pin (see Figure 6- ⑦) and push the battery case along the safety pin to install
the battery. Insert the safety pin at the bottom of the battery mounting holes and tighten the set screw
(see Figure 7- ⑧). Then install the plug and socket together (see Figure 8).
1
Figure 1
Figure 2
Figure 3
Figure 4
Figure 7 Figure 8
Figure 6
Figure 9
Figure 5
②
①
Fixing screw
Seat holder
Buckle stop
Upper frame
Thumb screw
Safety pin
Set screw
⑥
⑧
⑦
⑤
Plug
Socket
2
3
4
Installation and Usage
③
④

- 03 -
Specications
Main Technical Parameters
Warning
Please do not throw away the waste battery, in case of environmental pollution. The waste lithium
battery of the product is to be recycled by the enterprise or dealer, and the government designated
outlets.
Product size 858X630X1016mm Item weight ~27kg
Folding size 534X630X1106mm Max. load 130kg
Rotation radius 0.9m Max. speed 6Km/h
Charging voltage AC100-240V 50-60Hz Motor Dual-drive brushless motor；
Voltage：36V；
Charging time ~120min Rated power 200W
Front wheel 6 inch, pneumatic Rated speed 370±15rpm
Rear wheel 6.5 inch, solid Battery Lithium 36V 162.8Wh
Overcurrent
protection ≤ 18A Applicable
temperature -15℃~50℃

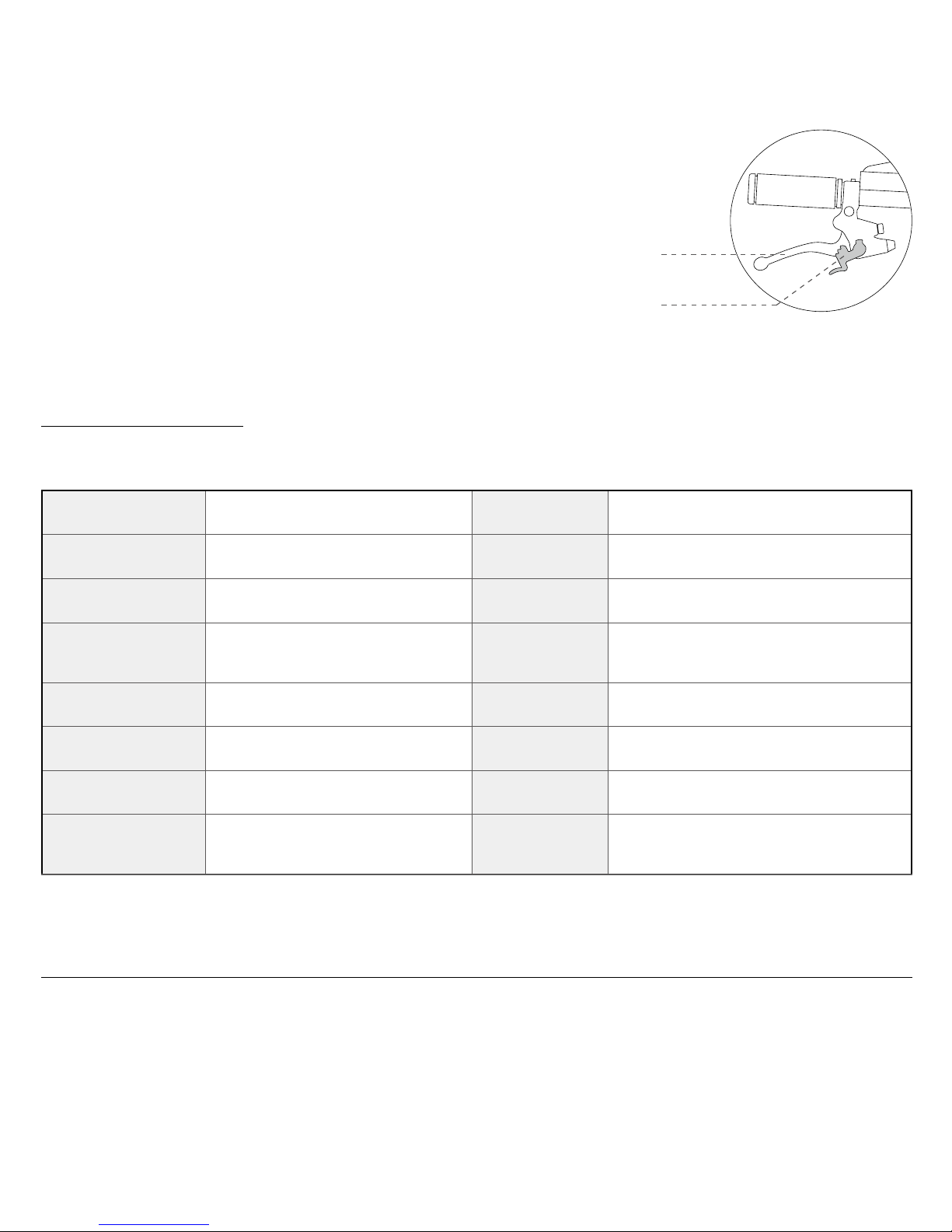

Slowly hold the brake handle and the wheelchair will slow down.
When you need to park for a long time, hold the brake handle rmly
and toggle the parking brake up to the appropriate position. The
brake will be locked and the wheelchair will be stopped. If you want
to start using it again, hold the brake handle and toggle the parking
brake down to unlock the brake.
Brake Handle
Brake
Handle
Parking
Brake

- 04 -
Battery

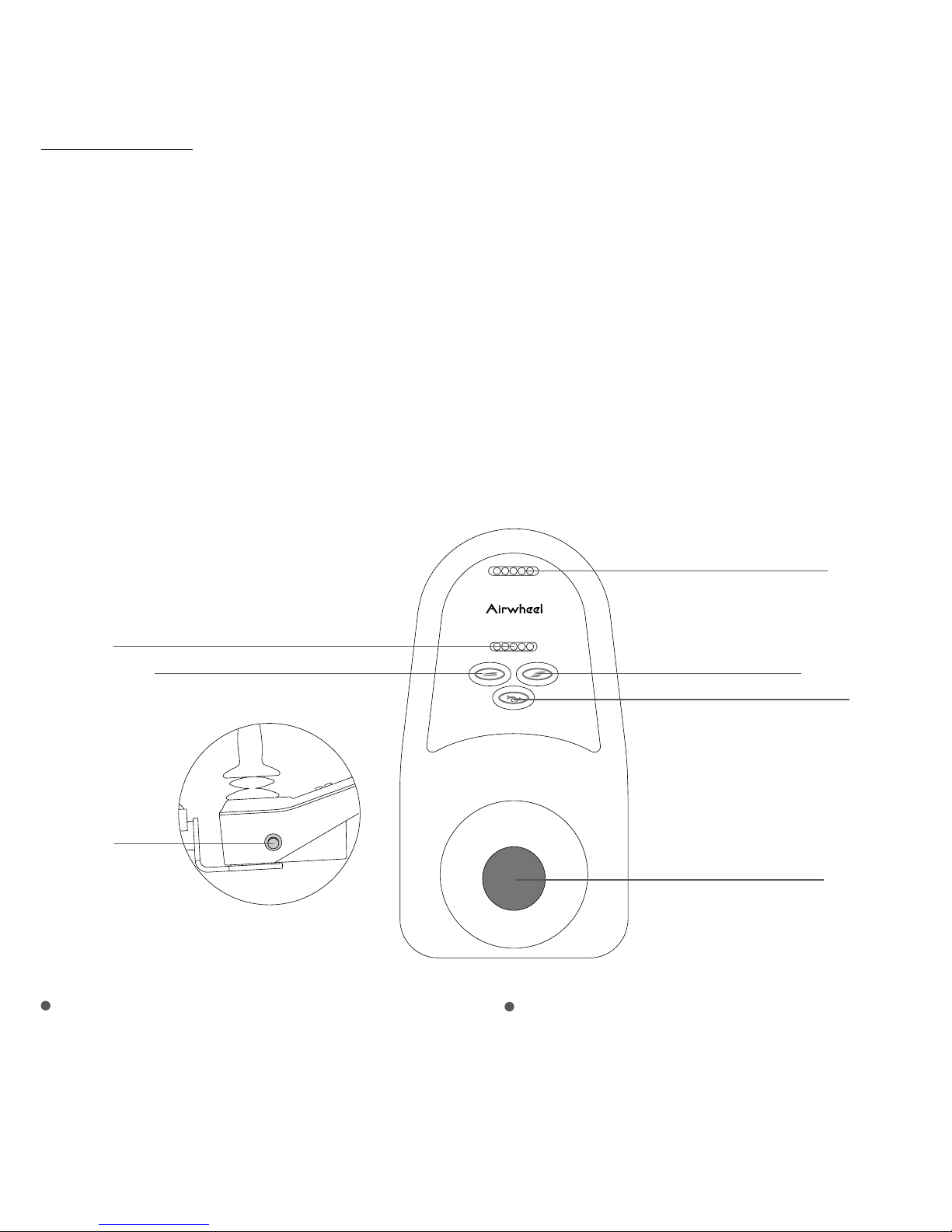

Speed
Decelerate
Power
switch
Horn
Accelerate
Joystick
Control the power supply of the wheelchair.
When pressed, the wheelchair is in power
supply. When released, it is out of power supply.
Power switch
Press the button the buzzer will buzz;
Release the button, the buzzer stop buzzing.
Horn Button
The driver should fasten safety belt after sitting on the seat.
Turn on power and one second later the LED battery power and speed display will be constantly on.
Push the joystick slowly forward and H8 will move forward. Similarly, push or pull the joystick
backward/leftward/rightward, the wheelchair will move backward/leftward/rightward. (Note: during
riding, the smartphone App cannot control it).
Adjust speed according to road condition, surrounding conditions and personal preference.
When you want to brake or stop, release the joystick and it will turn to central position. Hold the
brake handle slowly to make it stop steadily (when the joystick turns to central position, H8 will be in
standby mode after one second.
Pay attention to surrounding conditions when moving backward. Slowly pull the joystick and the
wheelchair will move backward.

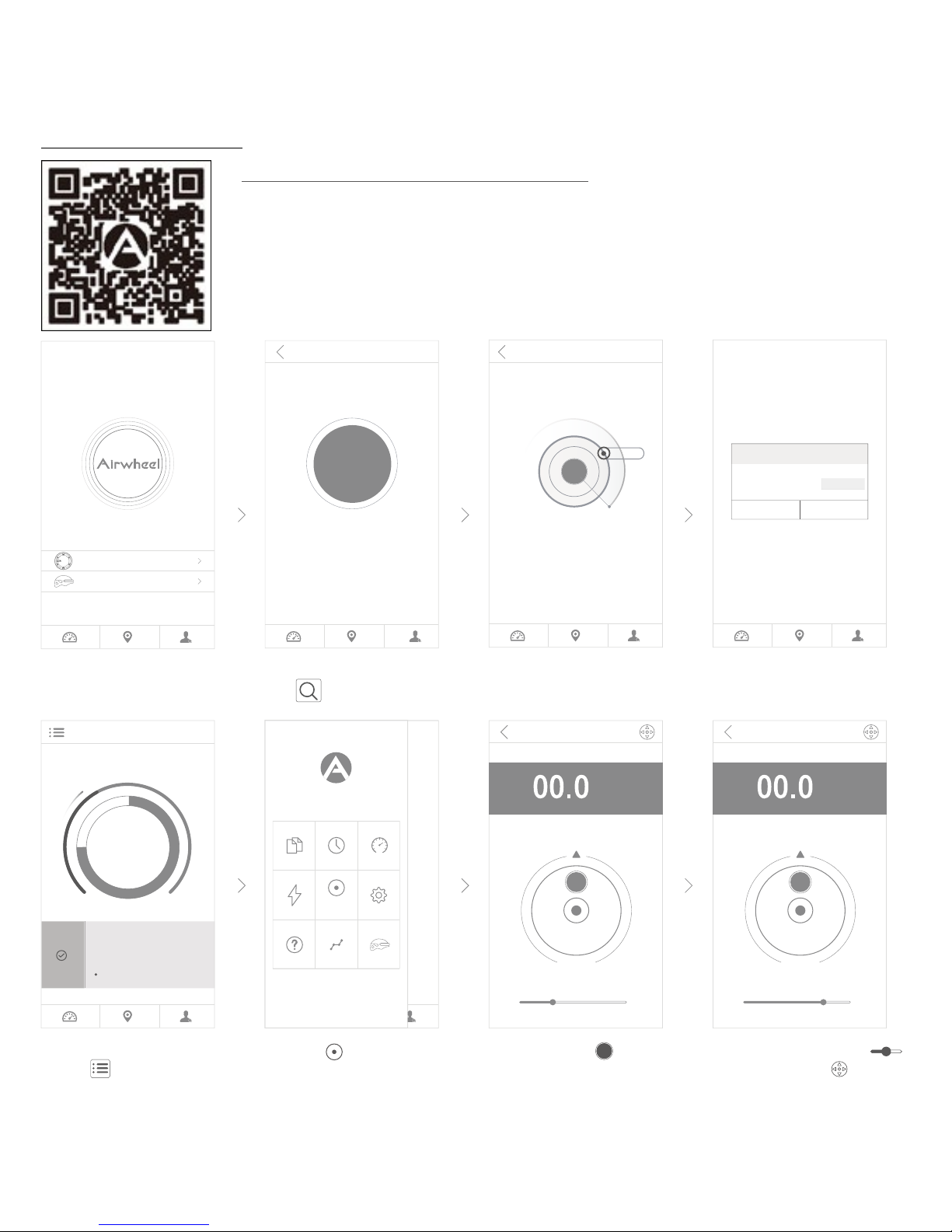

After H8 enters the standby mode, riders can connect the smartphone via the App and control is by
App. (note: if joystick works, it will exit the App control mode).
How to Drive H8
Joystick instruction
1.
2.
3.
4.
5.
6.
7.
Instruction

- 05 -
Press the accelerate button and the speed
indicator will be lit up from left to right by 5
gears. Press the decelerate button and the
speed indicator will die out from right to left
by 5 gears.
When battery is fully charged, the 5 scale
light is on, and each scale represents 20% of
the charge. When only 2-scale light is on, it is
advisable to charge the wheelchair, which is
better for the battery duration.
When only 1-scale light is on, it warns that
battery is under low charge condition. In this
event, it is not allowed to use the wheelchair
continuously; otherwise, the battery will keep
discharging and be damaged.
Press the accelerate button in turn and the
speed will increase by 5 gears. Press the
decelerate button in turn and the speed
will decrease by 5 gears.
Speed Indicator
5-scale LED Power Display
Accelerate/ Decelerate Button
It controls H8 to go forward, backward, and turn left and right, and to accelerate, decelerate and
brake. After opening the switch button, push the joystick forward vertically and H8 moves forward.
More forward, the faster the speed. Release the joystick to slow down and when fully released,
the joystick is reset and H8 stops and is in the braking state. Pull the joystick backward, H8 moves
backwards, more backward, the faster the speed to backward.
Similarly, turn the joystick to left or right, H8 will turn left or right. Pushing more left or right, the
faster the speed towards left or right. Release it to slow down and when fully released, the joystick is
reset and H8 stops and is in the braking state.

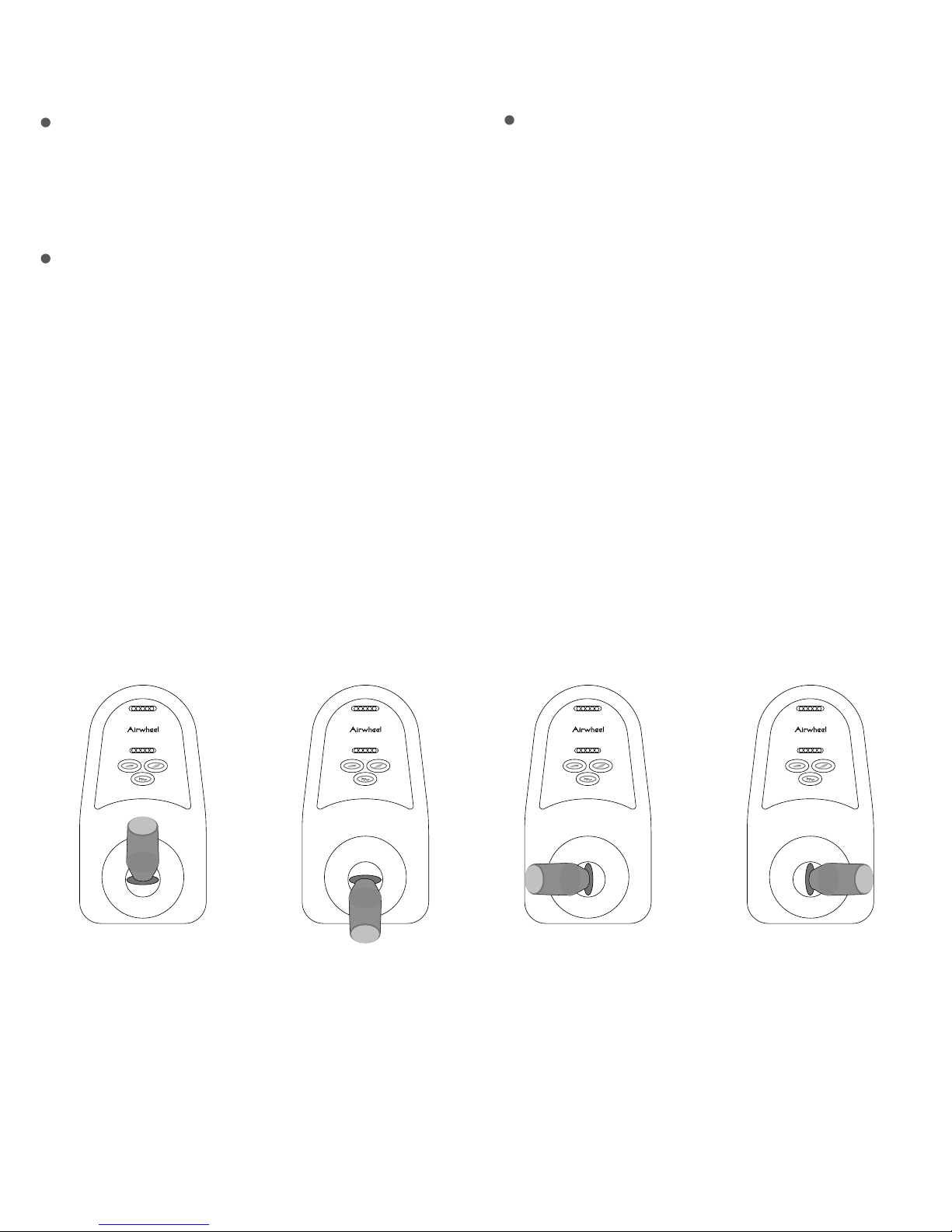

Forward
Push the joystick
forward with
forefinger and H8
will move forward.
Backward
Push the joystick
backward with
forefinger and H8
will move backward.
Leftward
Push the joystick
leftward with
forefinger and H8
will move to the left.
Rightward
Push the joystick
rightward with
forenger and H8 will
move to the right.
How to use the joystick

- 06 -
Please read this chapter as carefully as possible before your rst-time using of this vehicle to fully
understand all the information in order to drive it safely, comfortably and freely, which is important to
you. If you have any question, please contact the manufacturer.
Get familiar with local trafc rules.
H8 belongs to non-motor vehicle, and requires no driving license in accordance with trafc law.
But driver should observe the same trafc rules that are applied to pedestrians. Please drive it in
pedestrian lane or bike lane.
（1）Get familiar with all the trafc signals marks used for pedestrians.
（2）Do not turn direction or cross road suddenly when driving on road.
Practice
Before your first time to operate H8, please get familiar with all the functions of this vehicle.
Practice the operations like moving forward, moving backward, increasing speed, reducing speed,
stopping, moving uphill, moving downhill and turning direction in a safe pace with less people
and good road condition. Then you can ofcially drive on road after getting familiar with all these
operations.
If possible, please nd a person familiar with H8 to accompany you to ensure your safety during
rst on road operation.
Do not drive H8 after you drink, are exhausted or are unconscious to guarantee your safety
Please conrm that the operator of this vehicle is not suffered from any mental disease or other
diseases that may attack during driving and result in the driver's incompetence of driving the
vehicle safely.
If you are taking medicine, please conrm from your doctor that if such medicine will have adverse
influence on your ability to operate H8.
Check the vehicle condition to conrm if the brake, various properties are normal, the saddle is
xed and battery is full.
Do not remove the anti-topple wheel.
Due to limited space, ordinary air pump cannot be directly used to pump up. You only need to
connect the inflatable extension tube to the tire nozzle and use ordinary pump to pump up.
Do not ret H8 without our authorization.
You need lots of practice to grasp the skill before you ride H8 safely. If you are not skilled, or fail to
follow the user guide of this product, it may cause rider or others injury or property loss. Our company
only takes the responsibility for product defects or damage, and we are NOT responsible for physical
injury or property loss related with using products
Attentions before operation：
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Operation
Important Note:

- 07 -
In general, the tire pressure of the H8 front wheel should be consistent to ensure
the stability of the ride; when two tire pressure is inconsistent or even has a
large difference, it will result in wheelchair leaning to one side, affecting your ride
experience or even causing an accident.
Never expose the electrical system of this vehicle to humid environment (such
as rain, snow or fog), do not wash this vehicle with water, which will damage the
electrical system. If the vehicle is wet, it could only be used after being dried and
conrmed for good condition.
Do not drive it under hostile weather conditions, such as rain, snow, fog, strong
wind, temperature lower than -20 ℃ or higher than 40 ℃ . The electrical system
may be damaged under those conditions to cause failures in control.
Do no drive it on desert, beach, muddy road, road with pooled water, iced road,
too smooth road or saline and alkaline land to prevent the driving property of this
vehicle from damage.
H8 is designed with only one seat not allowing for taking passengers
The operator should sit on the seat and control it via joystick or smartphone App.
Do not drive in a zigzag manner, take a sudden turn at high speed or incline your body to prevent
the vehiclefrom inclining to one side.
Please highly concentrate and drive slowly on uneven or soft road (such as grassland), when
making a turn, on streets with a lot of trafc, in shopping centers or parks.
Do not use wireless communication devices such as mobile phone during driving. These devices
could onlybe used when you stop the vehicle in a safe place and cut off the power supply.
When moving backward, pay attention to road conditions and pedestrians and drive at a slow
speed.
Drive at a slow speed when getting out of door or elevator. It is not permitted to sit on it on
escalator.
Keep highly concentrated, buckle up and drive straightly at a slow speed when driving uphill or
downhill.
It does not permit to drive H8 across slopes 5° when across street in high speed.
Do not overcome the excessively high obstacles or steps, and rider should release the joystick.
Do not cross the wide ditch. When crossing the small ditch, please slow down.
Follow traffic rules when driving through cross street and do not run red light. When passing
railway, please stop toobserve the surrounding conditions, and then drive across the railway slowly
in a direction perpendicular to tracks toavoid dropping into the gap between different sleepers.
Do not frequently turn on or turn off the power switch.
Do not lend H8 to anyone who is not familiar with or has never used this vehicle. Do not let
children playwith the power switch or handlebar controller.
Do not use this vehicle with too much load (Max. load 130KG).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Warning
Attentions during operation：

- 08 -
Charger usage：
Carefully check whether the charger's rated input voltage (AC220V) and the grid voltage is
consistent.
Plug the charger into battery before plugging into a grounded AC outlet. Verify that the charging
indicator light(red) to conrm it is charging. When it turns green, it will take 15 minutes to be fully
charged. The charging time is about 2 hours (depending on the quantity of remaining battery).
1.
2.
After parking, when there is nobody on H8, please turn off power.
If you are not going to use H8 for over 48 hours, please disconnect the battery wires. (note
removing it from socket could disconnect power);
When bring H8 to other vehicles, make sure the battery is xed.
Attentions after Operation:
When you release the joystick during driving and it has returned to the central position,
but H8 does not stop, please turn off the power switch immediately and contact
manufacture.
Warning
1.
2.
3.
Battery usage:
Auxiliary charge: such as short delivery time, users can directly use the battery. If the delivery time
is longer (2 months or longer), the battery will lose power during storage and transport. It is better
to charge the battery before use. To charge it requires plugging the exclusive charge to the battery
charging hole and connecting AC220V power source for 2~4 hours until the charger is full.
Ordinary charge: the operation of H8 is also the discharge process of the battery. The battery
should be charged immediately after a long time riding. Always remember to power off after use.
Always keep battery in cool and dry environment. Do not submerge it in water and expose it under
the sun and open re.
Do not disassemble and decompose the intact packaged internal part of the battery.
The waste battery can be recycled. Recycle or dispose of batteries in accordance with local
environmental regulations.
1.
2.
3.
4.
5.

- 09 -
To fold it
When charging, keep it out of children's reach.
It is recommended to use it when battery is fully charged.
The battery must be charged with the charger that is applicable to H8.
Do not disassemble the charger or battery, it can be dangerous and will void the warranty.
Prevent liquid and metal particles from penetrating into the inside and be aware of falling and being
struck in case of damage during use and storage.
When charging the battery, do not cover the battery or charger.
Before long-period storage, make sure it powers off and is fully charged, and charge it every 2 or 3
months.
Charging notes:
1.
2.
3.
4.
5.
6.
7.
Airwheel reserves the right of nal interpretation of all the terms and conditions of this User Manual.
In shutdown mode, open the four xing buttons of H8's cushion from outside to inside and remove
the cushion from the seat holder( see Figure 10- ⑧ arrow). Lift the footrest( see Figure 10- ⑨arrow),
hold the upper frame and fold the body upward( see Figure 11- ⑩ arrow). After folding, riders can pull
it to go.
Figure 11Figure12
Figure 10
⑩
⑧
⑨
Seat holder

- 10 -
A
Airwheel Bluetooth password authenticatio
Intelligent helmet
Intelligent scooter
Search Devices
cancecomfirm
Input verify password 1111111
km
Current mileage
System is normal
28
10.0
km/h
remote
control
km/h
forward
backward
left right
km/h
forward
backward
left right
App download
Scan QR code to download
*Applicable to Android 4.3 or higher, iOS 7.0 or higher.
APP Instructions
1. Turn on H8 power button, and start App as well as Bluetooth.
2. Click the search button and do as the follows to connect
(verify password is 11111111).
3. Refer to ofcial website or give calls for details.
Click the Intelligent scooter
in the App interface.
Click the main interface
button to open the
sidebar.
Click the search button
or .
Click the button in the
sidebar to open the remote
control interface.
Search Airwheel nearby,click
the searched Airwheel model
to connect.
Move the button to operate
the intelligente scooter going
forward, backward or turning.
Input the verify password:
11111111 to connect.
Slide the control speed
and click the icon to switch
to the hand-operationmode.

- 11 -
20 batteries
First loosen the toptightening screws,
pull down the safety pin (as shown in the
figure), remove the battery box to the
negative direction of the safety pin, then
take out the battery box to charge.
Battery box is replaceable.
Separate the battery box wire and frame
line before removing the battery box ( to
install battery, insert the battery box rst
and then connect).
Power connecting wire
Top tightening screws
Safety pin
Uncover the dust cap in the battery box
and connect the charger to charge.
Other Functional Instructions
