S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

CDC-X126

CDC-X136

• BASIC CD MECHANISM: TN–CCD1001–113J • TYPE:YZ<X126>

YH<X136>

S/M Code No. 09–993–400–5T2

STEREO CAR CD RECEIVER

ELECTRICAL MAIN PARTS LIST - 1/4

NOTE: The characters in the suffix column indicate the part usage.

126YZ ..................XX..................................A...................

136YH ..................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 907 87-010-322-080 C-CAP,S 100P-50 CH AB..................

C 912 87-010-194-080 CAP, CHIP 0.047 AB..................

C 913 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 915 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 919 87-010-315-080 C-CAP,S 27P-50 CH AB..................

C 918 87-010-322-080 C-CAP,S 100P-50 CH AB..................

C 917 87-010-322-080 C-CAP,S 100P-50 CH AB..................

C 914 87-010-493-040 CAP,E 0.47-50 GAS AB..................

C 916 87-010-553-040 CAP,E 47-16 GAS AB..................

C 911 87-010-555-040 CAP,E 100-10 GAS AB..................

C 910 87-010-555-040 CAP,E 100-10 GAS AB..................

C 925 87-010-178-080 CHIP CAP 1000P AB..................

C 927 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 920 87-010-314-080 C-CAP,S 22P-50V AB..................

C 921 87-010-322-080 C-CAP,S 100P-50 CH AB..................

D 916 87-017-932-080 ZENER,MTJ6.2B AB..................

D 919 87-017-932-080 ZENER,MTJ6.2B AB..................

D 918 87-017-932-080 ZENER,MTJ6.2B AB..................

D 913 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 924 87-017-932-080 ZENER,MTJ6.2B AB..................

D 921 87-017-932-080 ZENER,MTJ6.2B AB..................

IC 901 87-A21-203-010 C-IC,TC9323F-006 AB..................

IC 902 88-KT1-606-080 IC,PST994D AB..................

LED 101 87-027-262-010 LEDE,TLR-124(RED) AB..................

Q 418 89-324-122-080 TR,2SC2412K AB..................

Q 908 87-026-235-080 CHIP-TR,DTC114EK AB..................

Q 909 87-A30-289-040 C-TR,2SA1037AK(R) AB..................

Q 911 87-026-235-080 CHIP-TR,DTC114EK AB..................

S 110 87-A91-070-010 SW,TACT SKHHLV AB..................

SW 902 87-A91-152-010 SW,SL 1-1-2 SSSS212-11-A AB..................

X 901 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49 AB..................

C 204 87-010-176-080 C-CAP,S 680P-50 SL AB..................

C 201 87-010-178-080 CHIP CAP 1000P AB..................

C 203 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 208 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 205 87-010-198-080 CAP, CHIP 0.022 AB..................

C 207 87-010-213-080 C-CAP,S 0.015-50 B AB..................

C 209 87-010-552-040 CAP,E 22-16 GAS AB..................

C 202 87-010-553-040 CAP,E 47-16 GAS AB..................

C 206 87-010-805-080 CAP, S 1-16 AB..................

C 216 87-010-148-080 CAP, CHIP S 75P SL AB..................

C 217 87-010-194-080 CAP, CHIP 0.047 AB..................

C 211 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 213 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 215 87-010-315-080 C-CAP,S 27P-50 CH AB..................

C 210 87-010-498-040 CAP,E 10-16 GAS AB..................

C 212 87-010-553-040 CAP,E 47-16 GAS AB..................

C 214 87-010-553-040 CAP,E 47-16 GAS AB..................

C 218 87-012-140-080 CAP 470P AB..................

C 228 87-010-180-080 C-CER 1500P AB..................

C 224 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 229 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 226 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 227 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 223 87-010-553-040 CAP,E 47-16 GAS AB..................

C 225 87-010-553-040 CAP,E 47-16 GAS AB..................

C 236 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 237 87-010-198-080 CAP, CHIP 0.022 AB..................

C 239 87-010-494-040 CAP,E 1-50 GAS AB..................

C 238 87-010-498-040 CAP,E 10-16 GAS AB..................

C 235 87-010-498-040 CAP,E 10-16 GAS AB..................

C 231 87-010-553-040 CAP,E 47-16 GAS AB..................

C 230 87-010-553-040 CAP,E 47-16 GAS AB..................

C 242 87-010-184-080 CHIP CAPACITOR 3300P(K) AB..................

C 241 87-010-184-080 CHIP CAPACITOR 3300P(K) AB..................

C 243 87-010-186-080 CAP,CHIP 4700P AB..................

C 244 87-010-188-080 CAP,CHIP 6800P AB..................

C 240 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 247 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 246 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 249 87-010-321-080 CHIP CAPACITOR,82P(J) AB..................

C 248 87-010-321-080 CHIP CAPACITOR,82P(J) AB..................

C 245 87-010-322-080 C-CAP,S 100P-50 CH AB..................

C 255 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 250 87-010-553-040 CAP,E 47-16 GAS AB..................

C 257 87-010-553-040 CAP,E 47-16 GAS AB..................

C 254 87-010-553-040 CAP,E 47-16 GAS AB..................

C 259 87-012-153-080 C-CAP,S 120P-50 CH AB..................

C 253 87-012-153-080 C-CAP,S 120P-50 CH AB..................

C 251 87-012-153-080 C-CAP,S 120P-50 CH AB..................

C 258 87-012-153-080 C-CAP,S 120P-50 CH AB..................

C 264 87-010-494-040 CAP,E 1-50 GAS AB..................

C 266 87-010-494-040 CAP,E 1-50 GAS AB..................

C 269 87-010-553-040 CAP,E 47-16 GAS AB..................

C 268 87-010-553-040 CAP,E 47-16 GAS AB..................

ELECTRICAL MAIN PARTS LIST - 2/4

C 263 87-012-153-080 C-CAP,S 120P-50 CH AB..................

C 262 87-012-153-080 C-CAP,S 120P-50 CH AB..................

C 270 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 272 87-010-315-080 C-CAP,S 27P-50 CH AB..................

C 276 87-010-315-080 C-CAP,S 27P-50 CH AB..................

C 271 87-010-315-080 C-CAP,S 27P-50 CH AB..................

C 274 87-010-315-080 C-CAP,S 27P-50 CH AB..................

C 275 87-010-315-080 C-CAP,S 27P-50 CH AB..................

C 273 87-010-315-080 C-CAP,S 27P-50 CH AB..................

CON 201 87-A60-859-010 CONN,12P TKC-F12X-K1 AB..................

CON 202 87-A60-860-010 CONN,14P TKC-F14X-K1 AB..................

D 201 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 202 87-A40-344-080 ZENER,MTZJ6.2C AB..................

IC 203 87-017-801-080 IC,TA2058F AB..................

IC 205 87-027-842-080 IC,NJM2904M AB..................

IC 202 87-070-336-010 IC,TC9284BF AB..................

IC 204 87-A20-712-040 C-IC,BA6417F AB..................

IC 201 87-A21-204-010 C-IC,TA2065F AB..................

L 201 87-003-149-080 COIL,47UH AB..................

Q 206 87-026-235-080 CHIP-TR,DTC114EK AB..................

Q 205 87-A30-289-040 C-TR,2SA1037AK(R) AB..................

Q 201 87-A30-289-040 C-TR,2SA1037AK(R) AB..................

SFR 202 87-024-432-080 SFR,4.7K RH063EC AB..................

SFR 201 87-024-437-080 SFR100K,RH063EC AB..................

X 201 81-592-641-010 VIB,CER 16.93MHZ AB..................

C 101 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 109 87-010-494-040 CAP,E 1-50 GAS AB..................

C 108 87-010-494-040 CAP,E 1-50 GAS AB..................

C 104 87-010-498-040 CAP,E 10-16 GAS AB..................

C 105 87-010-498-040 CAP,E 10-16 GAS AB..................

C 103 87-012-155-080 C-CAP 180P-50CH AB..................

C 119 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 114 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 115 87-010-495-040 CAP,E 2.2-50 GAS AB..................

C 126 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 120 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 127 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 121 87-010-220-080 C-CAP,S 0.018-25 B ....................

C 122 87-010-220-080 C-CAP,S 0.018-25 B ....................

C 125 87-012-155-080 C-CAP 180P-50CH AB..................

C 121 87-012-365-080 C-CAP,S 0.027-25VBK AB..................

C 122 87-012-365-080 C-CAP,S 0.027-25VBK AB..................

C 280 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 882 87-010-182-080 C-CAP,S 2200P-50 B AB..................

C 881 87-010-182-080 C-CAP,S 2200P-50 B AB..................

C 880 87-010-182-080 C-CAP,S 2200P-50 B AB..................

D 101 88-KC4-607-080 PROTECTOR, DSP-301N-A21F AB..................

L 101 87-003-143-080 COIL 4.7 UH AB..................

L 103 87-005-849-080 COIL,10UH(CECS) AB..................

L 102 8Z-KT1-619-010 COIL,68MH K7-D AB..................

L 202 87-A50-079-080 COIL,22UH (CECS) AB..................

L 401 87-005-849-080 COIL,10UH(CECS) AB..................

Q 101 87-026-235-080 CHIP-TR,DTC114EK AB..................

Q 104 87-026-235-080 CHIP-TR,DTC114EK AB..................

Q 102 87-A30-289-040 C-TR,2SA1037AK(R) AB..................

Q 103 87-A30-289-040 C-TR,2SA1037AK(R) AB..................

Q 106 89-324-122-080 TR,2SC2412K AB..................

Q 105 89-324-122-080 TR,2SC2412K AB..................

Q 111 87-026-235-080 CHIP-TR,DTC114EK AB..................

Q 110 87-A30-289-040 C-TR,2SA1037AK(R) AB..................

TU 101 8Z-KT1-631-010 TU UNIT, FAE347-A02 AB..................

C 406 87-010-494-040 CAP,E 1-50 GAS AB..................

C 408 87-010-494-040 CAP,E 1-50 GAS AB..................

C 407 87-010-494-040 CAP,E 1-50 GAS AB..................

C 401 87-010-494-040 CAP,E 1-50 GAS AB..................

C 405 87-010-494-040 CAP,E 1-50 GAS AB..................

C 402 87-010-494-040 CAP,E 1-50 GAS AB..................

C 409 87-010-498-040 CAP,E 10-16 GAS AB..................

C 412 87-010-494-040 CAP,E 1-50 GAS AB..................

C 411 87-010-494-040 CAP,E 1-50 GAS AB..................

C 413 87-010-498-040 CAP,E 10-16 GAS AB..................

C 419 87-010-498-040 CAP,E 10-16 GAS AB..................

C 417 87-010-498-040 CAP,E 10-16 GAS AB..................

C 418 87-010-498-040 CAP,E 10-16 GAS AB..................

C 415 87-010-498-040 CAP,E 10-16 GAS AB..................

C 414 87-010-498-040 CAP,E 10-16 GAS AB..................

C 416 87-010-498-040 CAP,E 10-16 GAS AB..................

C 410 87-010-498-040 CAP,E 10-16 GAS AB..................

C 420 87-010-221-080 CAP, ELECT 470-10V AB..................

C 423 87-010-494-040 CAP,E 1-50 GAS AB..................

C 422 87-010-494-040 CAP,E 1-50 GAS AB..................

C 421 87-010-494-040 CAP,E 1-50 GAS AB..................

C 424 87-010-494-040 CAP,E 1-50 GAS AB..................

C 429 87-010-498-040 CAP,E 10-16 GAS AB..................

C 425 87-012-140-080 CAP 470P AB..................

C 426 87-012-140-080 CAP 470P AB..................

C 427 87-012-140-080 CAP 470P AB..................

C 428 87-012-140-080 CAP 470P AB..................

C 432 87-010-184-080 CHIP CAPACITOR 3300P(K) AB..................

C 431 87-010-184-080 CHIP CAPACITOR 3300P(K) AB..................

C 439 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 433 87-010-198-080 CAP, CHIP 0.022 AB..................

ELECTRICAL MAIN PARTS LIST - 3/4

C 434 87-010-198-080 CAP, CHIP 0.022 AB..................

C 430 87-010-498-040 CAP,E 10-16 GAS AB..................

C 438 87-A11-177-080 C-CAP,S 0.15-16 K B AB..................

C 437 87-A11-177-080 C-CAP,S 0.15-16 K B AB..................

C 436 87-A11-177-080 C-CAP,S 0.15-16 K B AB..................

C 435 87-A11-177-080 C-CAP,S 0.15-16 K B AB..................

D 401 87-020-465-080 DIODE,1SS133 (110MA) AB..................

IC 401 8Z-KT1-622-010 C-IC,LC75374E AB..................

Q 402 87-A30-279-040 C-TR,DTC314TK AB..................

Q 401 87-A30-279-040 C-TR,DTC314TK AB..................

Q 403 87-A30-279-040 C-TR,DTC314TK AB..................

Q 404 87-A30-279-040 C-TR,DTC314TK AB..................

C 558 87-010-178-080 CHIP CAP 1000P AB..................

C 555 87-010-178-080 CHIP CAP 1000P AB..................

C 557 87-010-178-080 CHIP CAP 1000P AB..................

C 556 87-010-178-080 CHIP CAP 1000P AB..................

C 551 87-010-494-040 CAP,E 1-50 GAS AB..................

C 552 87-010-494-040 CAP,E 1-50 GAS AB..................

C 553 87-010-494-040 CAP,E 1-50 GAS AB..................

C 554 87-010-494-040 CAP,E 1-50 GAS AB..................

C 559 87-010-498-040 CAP,E 10-16 GAS AB..................

C 563 87-010-497-040 CAP,E 4.7-35 GAS AB..................

C 560 8Z-KC1-630-090 CAP,E 3300U-16 M 105 EX AB..................

IC 551 87-A20-876-010 IC,HA13158 AB..................

8Z-KC1-621-010 FUSE,15A 32V AB..................

C 855 87-010-178-080 CHIP CAP 1000P AB..................

C 858 87-010-178-080 CHIP CAP 1000P AB..................

C 856 87-010-178-080 CHIP CAP 1000P AB..................

C 853 87-010-178-080 CHIP CAP 1000P AB..................

C 859 87-010-178-080 CHIP CAP 1000P AB..................

C 854 87-010-178-080 CHIP CAP 1000P AB..................

C 857 87-010-178-080 CHIP CAP 1000P AB..................

C 852 87-010-182-080 C-CAP,S 2200P-50 B AB..................

C 851 87-010-197-080 CAP, CHIP 0.01 DM AB..................

C 860 87-010-178-080 CHIP CAP 1000P AB..................

C 866 87-010-194-080 CAP, CHIP 0.047 AB..................

C 867 87-010-237-080 CAP, ELECT 1000-16V AB..................

C 864 87-010-498-040 CAP,E 10-16 GAS AB..................

C 861 87-010-498-040 CAP,E 10-16 GAS AB..................

C 862 87-010-498-040 CAP,E 10-16 GAS AB..................

C 869 87-010-553-040 CAP,E 47-16 GAS AB..................

C 868 87-010-553-040 CAP,E 47-16 GAS AB..................

C 865 87-010-555-040 CAP,E 100-10 GAS AB..................

C 873 87-010-182-080 C-CAP,S 2200P-50 B AB..................

C 871 87-010-182-080 C-CAP,S 2200P-50 B AB..................

D 855 87-017-932-080 ZENER,MTJ6.2B AB..................

D 852 87-070-136-080 ZENER,MTZJ5.1B AB..................

D 858 87-070-136-080 ZENER,MTZJ5.1B AB..................

D 856 87-A40-189-080 DIODE,1SR139-400 AB..................

D 853 87-A40-523-080 ZENER,MTZJ9.1B AB..................

D 854 87-A40-624-080 ZENER,MTZJ10A AB..................

D 857 87-A40-654-010 DIODE,DSA17C AB..................

D 851 87-A40-654-010 DIODE,DSA17C AB..................

D 861 87-A40-189-080 DIODE,1SR139-400 AB..................

L 851 87-003-143-080 COIL 4.7 UH AB..................

L 852 87-003-149-080 COIL,47UH AB..................

L 853 8Z-KT1-615-010 FLTR,AMORPHOUS -CHOKE AB..................

Q 204 87-A30-298-010 TR,2SD2396 AB..................

Q 854 87-026-235-080 CHIP-TR,DTC114EK AB..................

Q 852 87-026-235-080 CHIP-TR,DTC114EK AB..................

Q 858 87-A30-298-010 TR,2SD2396 AB..................

Q 853 87-A30-299-080 TR,2SB1326 AB..................

Q 851 87-A30-300-080 TR,2SB1277 AB..................

Q 859 87-A30-301-080 TR,2SD1862 AB..................

Q 855 87-A30-302-040 C-TR,2SD1758-F5 AB..................

Q 860 87-A30-289-040 C-TR,2SA1037AK(R) AB..................

Q 861 89-324-122-080 TR,2SC2412K AB..................

CON 851 8Z-KT1-611-010 CONN,16P CAM-B51 AB..................

J 101 8Z-KT1-614-010 ANT,AW-002 AB..................

J 751 88-KTA-604-010 JACK,PIN 4P V-TYPE ....................

J 751 88-KTA-605-010 JACK,PIN 2P V-TYPE AB..................

8Z-KCG-613-010 F-CABLE,3P (AUX) 170MM AB..................

C 803 87-010-178-080 CHIP CAP 1000P AB..................

C 804 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 802 87-010-196-080 CHIP CAPACITOR,0.1-25 AB..................

C 801 87-010-197-080 CAP, CHIP 0.01 DM AB..................

D 802 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 809 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 801 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 807 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 808 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 805 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 804 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 806 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 803 87-020-585-080 CHIP-ZENER,02CZ6.2Y AB..................

D 811 87-020-585-080 CHIP-ZENER,02CZ6.2Y ....................

IC 802 87-A90-951-010 RCR UNIT,SBX1971-52 ....................

IC 801 88-KTD-602-010 C-IC,TC9297F AB..................

J 451 87-A60-249-010 JACK,MOJ-B32 AB..................

LCD 801 8Z-KCG-605-010 LCD,ZKC-G AB..................

PL 805 8Z-KT1-641-010 LAMP,T-3 AB..................

PL 807 8Z-KT1-641-010 LAMP,T-3 AB..................

ELECTRICAL MAIN PARTS LIST - 4/4

PL 808 8Z-KT1-641-010 LAMP,T-3 AB..................

PL 803 8Z-KT1-641-010 LAMP,T-3 AB..................

PL 802 8Z-KT1-641-010 LAMP,T-3 AB..................

PL 801 8Z-KT1-641-010 LAMP,T-3 AB..................

PL 806 8Z-KT1-641-010 LAMP,T-3 AB..................

PL 804 8Z-KT1-641-010 LAMP,T-3 AB..................

SW 805 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 806 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 807 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 802 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 801 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 808 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 804 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 803 87-A90-001-080 C-SW,TACT SKQMAL AB..................

SW 809 87-A90-001-080 C-SW,TACT SKQMAL AB..................

SW 812 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 816 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 817 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 810 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 813 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 815 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 811 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 818 87-A90-001-080 C-SW,TACT SKQMAL AB..................

SW 814 87-A90-001-080 C-SW,TACT SKQMAL AB..................

SW 819 87-A90-001-080 C-SW,TACT SKQMAL AB..................

SW 820 87-036-251-080 SW,T CT 6X3.5 160 AB..................

SW 821 87-A90-001-080 C-SW,TACT SKQMAL AB..................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

126YZ ..................XX..................................A...................

136YH ..................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-KC2-002-110 CABI,REAR -C2 AB..................

8Z-KC2-011-010 CABI,BASE -C2 AB..................

8Z-KC2-012-010 CABI,TRIM -C2 AB..................

8Z-KC3-003-010 RING,OVAL T-C AB..................

8Z-KCG-001-010 WINDOW,LCD NH -C16 ....................

8Z-KCG-003-010 WINDOW,LCD X126 A...................

8Z-KCG-004-010 WINDOW,LCD X136 NIR .B..................

8Z-KCG-005-010 WINDOW,LCD X1400 ....................

8Z-KCG-006-010 WINDOW,LCD X1360 ....................

8Z-KCG-020-110 CABI,FRONT-C16 AB..................

8Z-KC1-006-110 BTN,P.SET -C AB..................

8Z-KC1-007-010 BTN,+/- -C AB..................

8Z-KC1-008-010 BTN,SEL -C AB..................

8Z-KC1-009-010 BTN,MUTE -C AB..................

8Z-KC1-010-010 BTN,H-BASS -C AB..................

8Z-KC1-011-110 BTN,U/D -C AB..................

8Z-KC2-004-010 BTN,PWR -C2 AB..................

8Z-KC2-005-010 BTN,EJ -C2 AB..................

8Z-KC2-008-010 BTN,DETACH -C2 AB..................

8Z-KC5-019-010 BTN,M.INF -C AB..................

8Z-KC5-020-110 HLDR,M.INF -C AB..................

8Z-KCG-002-010 BTN,TETRA BADC -C AB..................

8Z-KCG-007-010 BTN,T/M IN -C AB..................

8Z-KC1-209-010 LENS,IR -C A...................

8Z-KC1-211-010 COVER, TOP -C AB..................

8Z-KC1-212-010 COVER, BOTTOM -C AB..................

8Z-KC1-213-010 CHAS,SIDE L -C AB..................

8Z-KC1-214-010 CHAS,SIDE R -C AB..................

8Z-KC1-215-010 HLDR,P-IC -C AB..................

8Z-KC1-219-010 HLDR,TR -C AB..................

8Z-KC1-220-010 HLDR,JACK -C ....................

8Z-KC1-249-010 COVER, DUST F-C AB..................

8Z-KC1-255-010 HLDR,TR -CA AB..................

8Z-KC1-257-010 HLDR,ISO-WIRE -C A...................

8Z-KC2-202-010 HLDR,LCD -C2 AB..................

8Z-KC2-203-110 LEVER,DFP HOOK -C2 AB..................

8Z-KC2-204-110 LEVER,DFP LOCK -C2 AB..................

8Z-KC2-205-010 PLATE,CD ENT. AB..................

8Z-KC2-211-010 CASE,LCD LENS -C2 AB..................

8Z-KC2-212-010 LENS,LCD -C2 AB..................

8Z-KC2-213-110 LENS,L -C2 AB..................

8Z-KC2-214-110 LENS,R -C2 AB..................

8Z-KC2-217-010 HLDR,JACK -C2 AB..................

8Z-KC2-221-110 SPR-C,DETACH HOOK-C2 AB..................

8Z-KC2-222-010 SPR-T,DETACH LOCK-C2 AB..................

8Z-KC2-223-010 SPR-C,DETACH -C2 AB..................

8Z-KC3-201-010 COVER, CD BLIND -C AB..................

8Z-KC7-201-010 COVER, ISO BLIND -C AB..................

8Z-KT1-236-010 CAP,LAMP BLU AB..................

8Z-KT1-237-010 CAP,LAMP GRN AB..................

87-251-073-410 SCREW,U+2.6-6 AB..................

87-251-075-410 U+2.6-10 AB..................

87-251-096-410 U+3-10 AB..................

87-432-903-010 WASHER,WTE 2.6 AB..................

87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6) AB..................

87-B10-259-010 UT2+3.0-10.0 W/O SLOT (BH TAP) AB..................

8Z-KC1-251-010 S-SCREW,TH2.6-4.0-0.8 AB..................

8Z-KC1-254-010 S-SCREW,PT 2*5 BH+ BLK AB..................

8Z-KC2-220-010 S-SCREW,PT 2*10 BH+ BLK AB..................

8Z-KCG-613-010 F-CABLE,3P (AUX) 170MM AB..................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

126YZ ..................XX..................................A...................

136YH ..................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-KCG-901-110 IB,YU(3L) 116 ....................

8Z-KCG-902-010 IB,INST,YU (3L)116 ....................

8Z-KCG-903-110 IB,YU(3L) 136 ....................

8Z-KCG-904-010 IB,INST,YU (3L)136 ....................

8Z-KCG-905-110 IB,YL(3L) 1360/1400 ....................

8Z-KCG-906-010 IB,INST,YL (3L)1360/1400 ....................

8Z-KCG-907-010 IB,YZ(9L) 126 A...................

8Z-KCG-908-010 IB,INST,YZ (6L) 126 A...................

8Z-KCG-909-010 IB,INST,YZ (CZ-PO-H)126 A...................

8Z-KCG-910-010 IB,YH (E CK CH)136 .B..................

8Z-KCG-911-010 IB,INST,YH (E CK CH)136 .B..................

8Z-KY2-904-010 IB,Y(3L,GIP CK) CD1 -I ....................

87-B10-141-010 NUT,5 TYPE-2 AB..................

87-B10-143-010 UT1+5-15 W/O SLOT AB..................

87-B10-144-010 W,5.2-10-0.5 AB..................

87-B10-145-010 W-SPR,5.3-8.5-1.5 AB..................

87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6) AB..................

8Z-KC1-030-010 CASE,DFP -C AB..................

8Z-KC1-231-010 HLDR,HALF -C AB..................

8Z-KC1-232-010 KEY,REMOVE -C AB..................

8Z-KC1-235-010 HLDR,REAR MTG AB..................

8Z-KC1-244-010 S-SCREW,5*6 TH+ TAPPING ST AB..................

8Z-KC1-250-010 S-SCREW,HEXAGON AB..................

8Z-KC7-691-010 RC UNIT,CD1 ....................

8Z-KT1-616-010 CONN ASSY,16P B52 .B..................

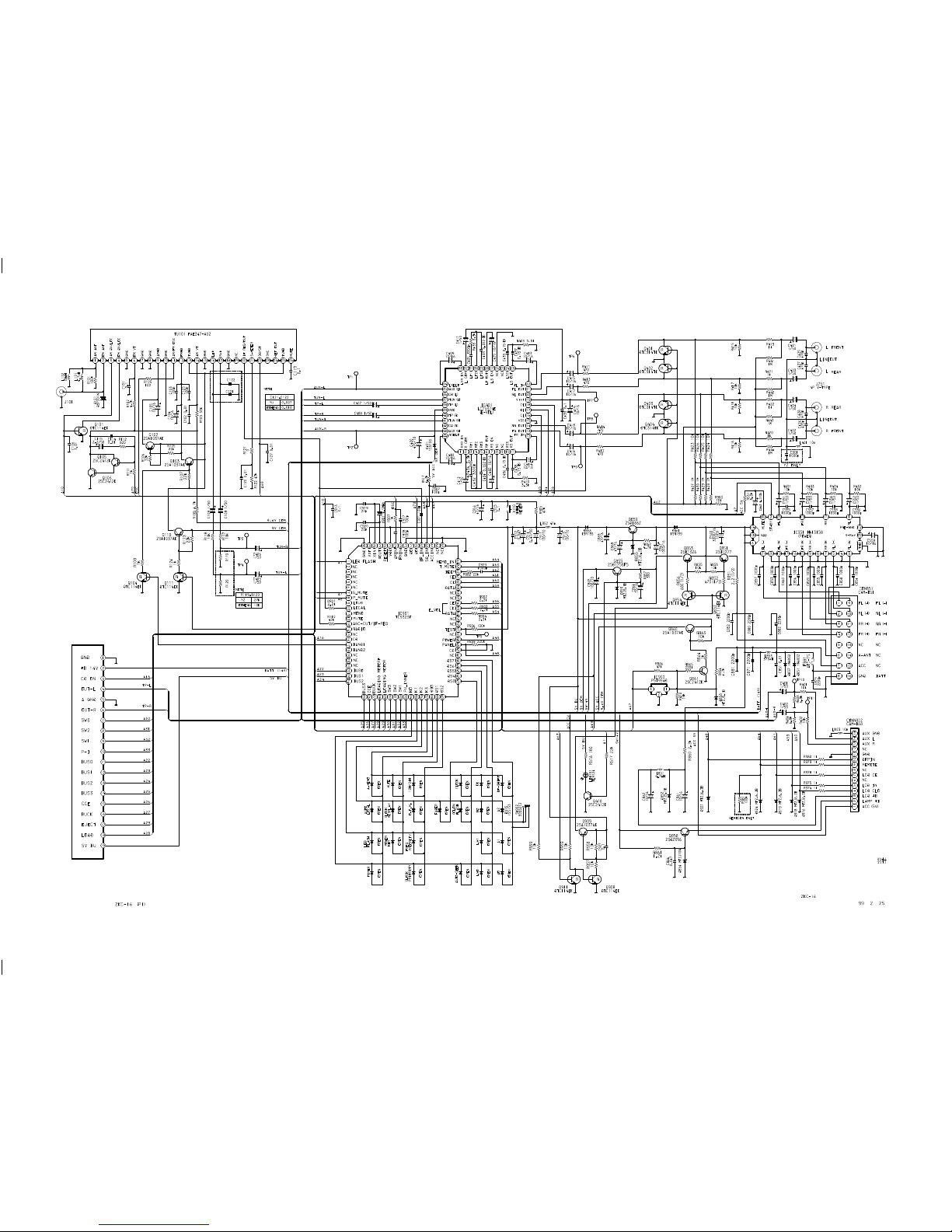

SCHEMATIC DIAGRAM _1 (MAIN)

SCHEMATIC DIAGRAM _2 (MAIN : CD SECTION)

SCHEMATIC DIAGRAM _3 (FRONT)

Other manuals for CDC-X126

This manual suits for next models

Table of contents

Popular Car Receiver manuals by other brands

Linear Series

Linear Series LS5050 Operation and installation manual

Kenwood

Kenwood KRC-160 instruction manual

Sony

Sony XR-CA430X Service manual

T+A Elektroakustik

T+A Elektroakustik K1 CD-RECEIVER operating instructions

SoundMax

SoundMax SM-CDM1052 instruction manual

Xtrons

Xtrons HD107HD user manual

Mopar

Mopar RB3 manual

Clarion

Clarion ADDZEST DMZ615 owner's manual

Sony

Sony XAV-601BT Specifications

PIE

PIE GM12-POD/S Operation manual

Hyundai

Hyundai H-910H instruction manual

Sony

Sony XR-C6100 Service manual

Sony

Sony CDX-L600X - Fm/am Compact Disc Player Installation/connections

Motorola

Motorola VWA63 Service manual

Sound Storm

Sound Storm STM93R user manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Kenwood

Kenwood KDC-X303 quick start guide

Aiwa CDC-X126 User manual

Popular Car Receiver manuals by other brands
