S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

CDC-Z106

• TYPE: YH

S/M Code No. 09–994–405–1T2

STEREO CAR CD RECEIVER

ELECTRICAL MAIN PARTS LIST - 1/4

NOTE: The characters in the suffix column indicate the part usage.

YH .....................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 907 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 912 87-010-194-080 CAP, CHIP 0.047 A...................

C 913 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 915 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 919 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 917 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 918 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 914 87-010-493-040 CAP,E 0.47-50 GAS A...................

C 916 87-010-553-040 CAP,E 47-16 GAS A...................

C 911 87-010-555-040 CAP,E 100-10 GAS A...................

C 910 87-010-555-040 CAP,E 100-10 GAS A...................

C 925 87-010-178-080 CHIP CAP 1000P A...................

C 927 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 920 87-010-314-080 C-CAP,S 22P-50V A...................

C 921 87-010-322-080 C-CAP,S 100P-50 CH A...................

D 913 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 901 87-A21-203-010 C-IC,TC9323F-006 A...................

IC 902 88-KT1-606-080 IC,PST994D A...................

Q 908 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 909 87-A30-289-040 C-TR,2SA1037AK(R) A...................

Q 911 87-026-235-080 CHIP-TR,DTC114EK A...................

SW 902 87-A91-152-010 SW,SL 1-1-2 SSSS212-11-A A...................

X 901 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49 A...................

C 204 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 201 87-010-178-080 CHIP CAP 1000P A...................

C 208 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 203 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 205 87-010-198-080 CAP, CHIP 0.022 A...................

C 207 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 209 87-010-552-040 CAP,E 22-16 GAS A...................

C 202 87-010-553-040 CAP,E 47-16 GAS A...................

C 206 87-010-805-080 CAP, S 1-16 A...................

C 216 87-010-148-080 CAP, CHIP S 75P SL A...................

C 217 87-010-194-080 CAP, CHIP 0.047 A...................

C 213 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 211 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 215 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 210 87-010-498-040 CAP,E 10-16 GAS A...................

C 214 87-010-553-040 CAP,E 47-16 GAS A...................

C 212 87-010-553-040 CAP,E 47-16 GAS A...................

C 218 87-012-140-080 CAP 470P A...................

C 228 87-010-180-080 C-CER 1500P A...................

C 226 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 229 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 224 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 227 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 225 87-010-553-040 CAP,E 47-16 GAS A...................

C 223 87-010-553-040 CAP,E 47-16 GAS A...................

C 236 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 237 87-010-198-080 CAP, CHIP 0.022 A...................

C 239 87-010-494-040 CAP,E 1-50 GAS A...................

C 235 87-010-498-040 CAP,E 10-16 GAS A...................

C 238 87-010-498-040 CAP,E 10-16 GAS A...................

C 230 87-010-553-040 CAP,E 47-16 GAS A...................

C 231 87-010-553-040 CAP,E 47-16 GAS A...................

C 242 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 241 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 243 87-010-186-080 CAP,CHIP 4700P A...................

C 244 87-010-188-080 CAP,CHIP 6800P A...................

C 240 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 247 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 246 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 249 87-010-321-080 CHIP CAPACITOR,82P(J) A...................

C 248 87-010-321-080 CHIP CAPACITOR,82P(J) A...................

C 245 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 255 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 257 87-010-553-040 CAP,E 47-16 GAS A...................

C 250 87-010-553-040 CAP,E 47-16 GAS A...................

C 254 87-010-553-040 CAP,E 47-16 GAS A...................

C 251 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 253 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 258 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 259 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 266 87-010-494-040 CAP,E 1-50 GAS A...................

C 264 87-010-494-040 CAP,E 1-50 GAS A...................

C 268 87-010-553-040 CAP,E 47-16 GAS A...................

C 269 87-010-553-040 CAP,E 47-16 GAS A...................

C 263 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 262 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 270 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 273 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 275 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 272 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 274 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 271 87-010-315-080 C-CAP,S 27P-50 CH A...................

C 276 87-010-315-080 C-CAP,S 27P-50 CH A...................

ELECTRICAL MAIN PARTS LIST - 2/4

CON 201 87-A60-859-010 CONN,12P TKC-F12X-K1 A...................

CON 202 87-A60-860-010 CONN,14P TKC-F14X-K1 A...................

D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 202 87-A40-344-080 ZENER,MTZJ6.2C A...................

IC 203 87-017-801-080 IC,TA2058F A...................

IC 205 87-027-842-080 IC,NJM2904M A...................

IC 202 87-070-336-010 IC,TC9284BF A...................

IC 204 87-A20-712-040 C-IC,BA6417F A...................

IC 201 87-A21-204-010 C-IC,TA2065F A...................

L 201 87-003-149-080 COIL,47UH A...................

Q 206 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 201 87-A30-289-040 C-TR,2SA1037AK(R) A...................

Q 205 87-A30-289-040 C-TR,2SA1037AK(R) A...................

SFR 202 87-024-432-080 SFR,4.7K RH063EC A...................

SFR 201 87-024-437-080 SFR100K,RH063EC A...................

X 201 81-592-641-010 VIB,CER 16.93MHZ A...................

C 101 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 109 87-010-494-040 CAP,E 1-50 GAS A...................

C 108 87-010-494-040 CAP,E 1-50 GAS A...................

C 105 87-010-498-040 CAP,E 10-16 GAS A...................

C 104 87-010-498-040 CAP,E 10-16 GAS A...................

C 103 87-012-155-080 C-CAP 180P-50CH A...................

C 119 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 114 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 115 87-010-495-040 CAP,E 2.2-50 GAS A...................

C 127 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 120 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 126 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 125 87-012-155-080 C-CAP 180P-50CH A...................

C 122 87-012-365-080 C-CAP,S 0.027-25VBK A...................

C 121 87-012-365-080 C-CAP,S 0.027-25VBK A...................

C 280 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 880 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 881 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 882 87-010-182-080 C-CAP,S 2200P-50 B A...................

D 101 88-KC4-607-080 PROTECTOR, DSP-301N-A21F A...................

L 101 87-003-143-080 COIL 4.7 UH A...................

L 102 8Z-KT1-619-010 COIL,68MH K7-D A...................

L 202 87-A50-079-080 COIL,22UH (CECS) A...................

L 401 87-005-849-080 COIL,10UH(CECS) A...................

Q 101 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 104 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 103 87-A30-289-040 C-TR,2SA1037AK(R) A...................

Q 102 87-A30-289-040 C-TR,2SA1037AK(R) A...................

Q 105 89-324-122-080 TR,2SC2412K A...................

Q 106 89-324-122-080 TR,2SC2412K A...................

Q 111 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 110 87-A30-289-040 C-TR,2SA1037AK(R) A...................

TU 101 8Z-KT1-631-010 TU UNIT, FAE347-A02 A...................

C 407 87-010-494-040 CAP,E 1-50 GAS A...................

C 408 87-010-494-040 CAP,E 1-50 GAS A...................

C 401 87-010-494-040 CAP,E 1-50 GAS A...................

C 406 87-010-494-040 CAP,E 1-50 GAS A...................

C 405 87-010-494-040 CAP,E 1-50 GAS A...................

C 402 87-010-494-040 CAP,E 1-50 GAS A...................

C 409 87-010-498-040 CAP,E 10-16 GAS A...................

C 412 87-010-494-040 CAP,E 1-50 GAS A...................

C 411 87-010-494-040 CAP,E 1-50 GAS A...................

C 419 87-010-498-040 CAP,E 10-16 GAS A...................

C 417 87-010-498-040 CAP,E 10-16 GAS A...................

C 413 87-010-498-040 CAP,E 10-16 GAS A...................

C 418 87-010-498-040 CAP,E 10-16 GAS A...................

C 415 87-010-498-040 CAP,E 10-16 GAS A...................

C 414 87-010-498-040 CAP,E 10-16 GAS A...................

C 416 87-010-498-040 CAP,E 10-16 GAS A...................

C 410 87-010-498-040 CAP,E 10-16 GAS A...................

C 420 87-010-221-080 CAP, ELECT 470-10V A...................

C 424 87-010-494-040 CAP,E 1-50 GAS A...................

C 421 87-010-494-040 CAP,E 1-50 GAS A...................

C 423 87-010-494-040 CAP,E 1-50 GAS A...................

C 422 87-010-494-040 CAP,E 1-50 GAS A...................

C 429 87-010-498-040 CAP,E 10-16 GAS A...................

C 425 87-012-140-080 CAP 470P A...................

C 427 87-012-140-080 CAP 470P A...................

C 428 87-012-140-080 CAP 470P A...................

C 426 87-012-140-080 CAP 470P A...................

C 432 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 431 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 439 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 434 87-010-198-080 CAP, CHIP 0.022 A...................

C 433 87-010-198-080 CAP, CHIP 0.022 A...................

C 430 87-010-498-040 CAP,E 10-16 GAS A...................

C 435 87-A11-177-080 C-CAP,S 0.15-16 K B A...................

C 437 87-A11-177-080 C-CAP,S 0.15-16 K B A...................

C 438 87-A11-177-080 C-CAP,S 0.15-16 K B A...................

C 436 87-A11-177-080 C-CAP,S 0.15-16 K B A...................

D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 401 8Z-KT1-622-010 C-IC,LC75374E A...................

Q 401 87-A30-279-040 C-TR,DTC314TK A...................

Q 402 87-A30-279-040 C-TR,DTC314TK A...................

Q 403 87-A30-279-040 C-TR,DTC314TK A...................

Q 404 87-A30-279-040 C-TR,DTC314TK A...................

ELECTRICAL MAIN PARTS LIST - 3/4

C 555 87-010-178-080 CHIP CAP 1000P A...................

C 558 87-010-178-080 CHIP CAP 1000P A...................

C 557 87-010-178-080 CHIP CAP 1000P A...................

C 556 87-010-178-080 CHIP CAP 1000P A...................

C 552 87-010-494-040 CAP,E 1-50 GAS A...................

C 551 87-010-494-040 CAP,E 1-50 GAS A...................

C 553 87-010-494-040 CAP,E 1-50 GAS A...................

C 554 87-010-494-040 CAP,E 1-50 GAS A...................

C 559 87-010-498-040 CAP,E 10-16 GAS A...................

C 562 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 563 87-010-497-040 CAP,E 4.7-35 GAS A...................

C 560 8Z-KC1-630-090 CAP,E 3300U-16 M 105 EX A...................

IC 551 8Z-KTG-622-010 IC,TA8252H A...................

8Z-KC1-621-010 FUSE,15A 32V A...................

C 856 87-010-178-080 CHIP CAP 1000P A...................

C 857 87-010-178-080 CHIP CAP 1000P A...................

C 859 87-010-178-080 CHIP CAP 1000P A...................

C 858 87-010-178-080 CHIP CAP 1000P A...................

C 855 87-010-178-080 CHIP CAP 1000P A...................

C 854 87-010-178-080 CHIP CAP 1000P A...................

C 853 87-010-178-080 CHIP CAP 1000P A...................

C 852 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 851 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 860 87-010-178-080 CHIP CAP 1000P A...................

C 866 87-010-194-080 CAP, CHIP 0.047 A...................

C 867 87-010-237-080 CAP, ELECT 1000-16V A...................

C 862 87-010-498-040 CAP,E 10-16 GAS A...................

C 864 87-010-498-040 CAP,E 10-16 GAS A...................

C 861 87-010-498-040 CAP,E 10-16 GAS A...................

C 868 87-010-553-040 CAP,E 47-16 GAS A...................

C 869 87-010-553-040 CAP,E 47-16 GAS A...................

C 865 87-010-555-080 CAP,E 100-10 GAS ....................

C 873 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 871 87-010-182-080 C-CAP,S 2200P-50 B A...................

D 855 87-017-932-080 ZENER,MTJ6.2B A...................

D 852 87-070-136-080 ZENER,MTZJ5.1B A...................

D 858 87-070-136-080 ZENER,MTZJ5.1B A...................

D 856 87-A40-189-080 DIODE,1SR139-400 A...................

D 853 87-A40-523-080 ZENER,MTZJ9.1B A...................

D 854 87-A40-624-080 ZENER,MTZJ10A A...................

D 851 87-A40-654-010 DIODE,DSA17C A...................

D 857 87-A40-654-010 DIODE,DSA17C A...................

D 861 87-A40-189-080 DIODE,1SR139-400 A...................

L 851 87-003-143-080 COIL 4.7 UH A...................

L 852 87-003-149-080 COIL,47UH A...................

L 853 8Z-KT1-615-010 FLTR,AMORPHOUS -CHOKE A...................

Q 204 87-A30-298-010 TR,2SD2396 A...................

Q 854 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 852 87-026-235-080 CHIP-TR,DTC114EK A...................

Q 858 87-A30-298-010 TR,2SD2396 A...................

Q 853 87-A30-299-080 TR,2SB1326 A...................

Q 851 87-A30-300-080 TR,2SB1277 A...................

Q 859 87-A30-301-080 TR,2SD1862 A...................

Q 855 87-A30-302-040 C-TR,2SD1758-F5 A...................

Q 860 87-A30-289-040 C-TR,2SA1037AK(R) A...................

Q 861 89-324-122-080 TR,2SC2412K A...................

CN 1003 87-A60-912-010 CONN,3P V IMSA-9202B-1 A...................

CON 851 8Z-KT1-611-010 CONN,16P CAM-B51 A...................

J 101 8Z-KT1-614-010 ANT,AW-002 A...................

J 301 87-A60-249-010 JACK,MOJ-B32 A...................

J 751 88-KTA-605-010 JACK,PIN 2P V-TYPE A...................

C 802 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 801 87-010-197-080 CAP, CHIP 0.01 DM A...................

IC 801 88-KTD-602-010 C-IC,TC9297F A...................

LCD 801 8Z-KCG-605-010 LCD,ZKC-G A...................

PL 806 8Z-KT1-641-010 LAMP,T-3 A...................

PL 801 8Z-KT1-641-010 LAMP,T-3 A...................

PL 807 8Z-KT1-641-010 LAMP,T-3 A...................

PL 803 8Z-KT1-641-010 LAMP,T-3 A...................

PL 808 8Z-KT1-641-010 LAMP,T-3 A...................

PL 805 8Z-KT1-641-010 LAMP,T-3 A...................

PL 804 8Z-KT1-641-010 LAMP,T-3 A...................

PL 802 8Z-KT1-641-010 LAMP,T-3 A...................

SW 802 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 806 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 807 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 803 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 808 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 805 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 804 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 801 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 809 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 812 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 817 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 811 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 818 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 813 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 819 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 815 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 810 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 814 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 816 87-036-251-080 SW,T CT 6X3.5 160 A...................

ELECTRICAL MAIN PARTS LIST - 4/4

SW 820 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 821 87-036-251-080 SW,T CT 6X3.5 160 A...................

SW 822 87-036-251-080 SW,T CT 6X3.5 160 A...................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

YH .....................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-KC3-003-010 RING,OVAL T-C A...................

8Z-KCH-001-010 CABI,FRONT -C17 A...................

8Z-KCH-002-010 WINDOW,LCD -C17 A...................

8Z-KCH-010-010 CABI,TRIM -C17 A...................

8Z-KC1-006-010 BTN,P.SET -C A...................

8Z-KC1-007-010 BTN,+/- -C A...................

8Z-KC1-008-010 BTN,SEL -C A...................

8Z-KC1-009-010 BTN,MUTE -C A...................

8Z-KC1-010-010 BTN,H-BASS -C A...................

8Z-KC1-011-010 BTN,U/D -C A...................

8Z-KC2-004-010 BTN,PWR -C2 A...................

8Z-KC2-005-010 BTN,EJ -C2 A...................

8Z-KC5-019-010 BTN,M.INF -C A...................

8Z-KC5-020-010 HLDR,M.INF -C A...................

8Z-KCG-002-010 BTN,TETRA BADC -C A...................

8Z-KCG-007-010 BTN,T/M IN -C A...................

8Z-KCH-011-010 BTN,RESET A...................

86-ZM2-278-010 W-P,1.36-4-0.2 SLT A...................

8Z-KC1-211-010 COVER, TOP -C A...................

8Z-KC1-212-010 COVER, BOTTOM -C A...................

8Z-KC1-213-010 CHAS,SIDE L -C A...................

8Z-KC1-214-010 CHAS,SIDE R -C A...................

8Z-KC1-219-010 HLDR,TR -C A...................

8Z-KC1-249-010 COVER, DUST F-C A...................

8Z-KC1-255-010 HLDR,TR -CA A...................

8Z-KC2-202-010 HLDR,LCD -C2 A...................

8Z-KC2-211-010 CASE,LCD LENS -C2 A...................

8Z-KC2-212-010 LENS,LCD -C2 A...................

8Z-KC2-213-010 LENS,L -C2 A...................

8Z-KC2-214-010 LENS,R -C2 A...................

8Z-KC2-217-010 HLDR,JACK -C2 A...................

8Z-KC3-201-010 COVER, CD BLIND -C A...................

8Z-KC7-201-010 COVER, ISO BLIND -C A...................

8Z-KCG-201-010 CHAS,FRONT -C16 A...................

8Z-KCH-202-010 HLDR,P-IC -C17 A...................

8Z-KCH-211-010 HLDR,AUX A...................

8Z-KCH-215-010 HLDR,PWB -C17 A...................

8Z-KT1-236-010 CAP,LAMP BLU A...................

8Z-KT1-237-010 CAP,LAMP GRN A...................

87-251-073-410 SCREW,U+2.6-6 A...................

87-251-075-410 U+2.6-10 A...................

87-251-096-410 U+3-10 A...................

87-432-903-010 WASHER,WTE 2.6 A...................

87-B10-259-010 UT2+3.0-10.0 W/O SLOT (BH TAP) A...................

8Z-KC1-251-010 S-SCREW,TH2.6-4.0-0.8 A...................

8Z-KC1-254-010 S-SCREW,PT 2*5 BH+ BLK A...................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

YH .....................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-KCH-901-110 IB,YU(3L) 106 ....................

8Z-KCH-902-010 IB,INST,YU (3L)106 ....................

8Z-KCH-905-010 IB,YH (E CK CH)106 A...................

8Z-KCH-906-010 IB,INST,YH (E CK CH)106 A...................

87-B10-141-010 NUT,5 TYPE-2 A...................

87-B10-145-010 W-SPR,5.3-8.5-1.5 A...................

8Z-KC1-231-010 HLDR,HALF -C A...................

8Z-KC1-232-010 KEY,REMOVE -C A...................

8Z-KC1-235-010 HLDR,REAR MTG A...................

8Z-KC1-250-010 S-SCREW,HEXAGON A...................

8Z-KT1-616-010 CONN ASSY,16P B52 A...................

* 87-B10-143-010 UT1+5-15 W/O SLOT A...................

* 8Z-KC1-244-010 S-SCREW,5*6 TH+ TAPPING ST A...................

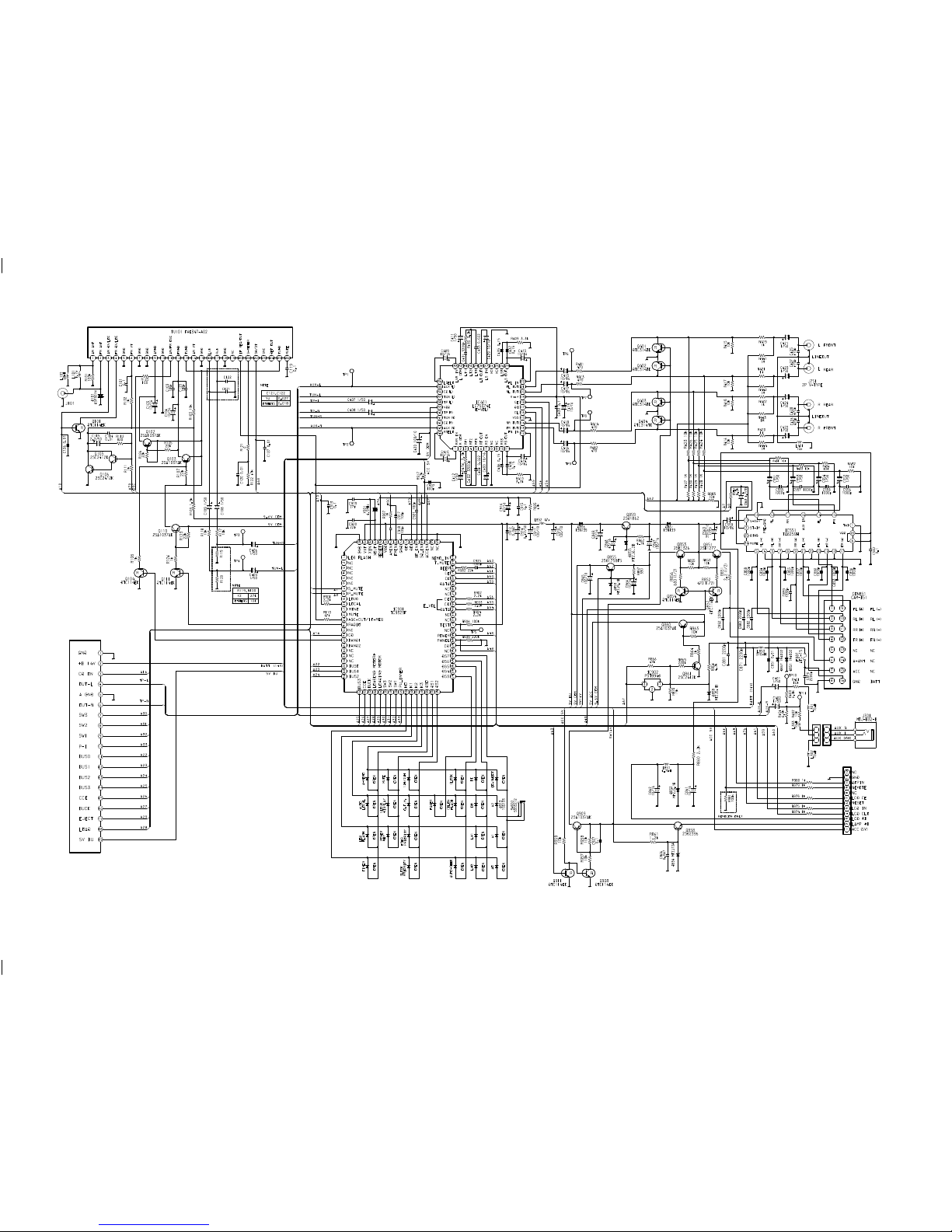

SCHEMATIC DIAGRAM _1 (MAIN)

SCHEMATIC DIAGRAM _2 (MAIN CD )

SCHEMATIC DIAGRAM _3 (FRONT)

Other manuals for CDC-Z106

Table of contents

Popular Car Receiver manuals by other brands

Linear Series

Linear Series LS5050 Operation and installation manual

Kenwood

Kenwood KRC-160 instruction manual

Sony

Sony XR-CA430X Service manual

T+A Elektroakustik

T+A Elektroakustik K1 CD-RECEIVER operating instructions

SoundMax

SoundMax SM-CDM1052 instruction manual

Xtrons

Xtrons HD107HD user manual

Mopar

Mopar RB3 manual

Clarion

Clarion ADDZEST DMZ615 owner's manual

Sony

Sony XAV-601BT Specifications

PIE

PIE GM12-POD/S Operation manual

Hyundai

Hyundai H-910H instruction manual

Sony

Sony XR-C6100 Service manual

Sony

Sony CDX-L600X - Fm/am Compact Disc Player Installation/connections

Motorola

Motorola VWA63 Service manual

Sound Storm

Sound Storm STM93R user manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Kenwood

Kenwood KDC-X303 quick start guide

Aiwa CDC-Z106 User manual

Popular Car Receiver manuals by other brands
