Aiwa HS-TX426 User manual
SERVICE MANUAL
DATA
STEREO RADIO CASSETTE PLAYER
HS-TX426
HS-TX427
HS-TX429
S/M Code No. 09-024-457-4R2
REVISION
YL(S)
YC(S), YU(S)
YL(S)
BASIC TAPE MECHANISM : 8ZM-3 YP8NF
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
HS-TX426 <YL(S)> / HS-TX427 <YC(S), YU(S)> / HS-TX429 <YL(S)>,
(S/M Code No. 09-022-457-4T1).
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
SPECIFICATIONS
Frequency range:
Reception area US1 <HS-TX427 only> AM 530 - 1,710 kHz (10 kHz steps)
FM 87.5 - 108.1 MHz (200 kHz steps)
TV 2 ch - 13 ch
WTHR 1 ch - 7 ch
Reception area US AM 530 - 1,710 kHz (10 kHz steps)
FM1, FM2 87.5 - 108.1 MHz (200 kHz steps)
Reception area JP AM 531 - 1,629 kHz (9 kHz steps)
FM1, FM2 76 - 108 MHz (100 kHz steps in 76 - 90 MHz, 50 kHz steps in 90 - 108 MHz)
Reception area EU AM 531 - 1,602 kHz (9 kHz steps)
FM1, FM2 87.5 - 108 MHz (50 kHz steps)
Maximum output: 10 mW + 10 mW (EIAJ 32 ohms)
Power source: DC 3 V using two R6 (size AA) dry cell batteries
Battery life (EIAJ, 0.2 mW output, playback):
Approx. 7 hours using R6P (size AA) manganese batteries
Approx. 24 hours using LR6 (size AA) alkaline batteries
Maximum outside dimensions (W xH xD):
83 x 111.3 x 29.9 mm, 3 3/8x 4 1/2 x 1 3/16 in. (excluding projecting parts and controls)
Weight: <HS-TX427 only> Approx. 140 g, 4.9 oz (excluding batteries)
<Except HS-TXTX427> Approx. 138 g (excluding batteries)
• Design and specifications are subject to change without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFETY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
– 3 –
ELECTRICAL PARTS LIST
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O 87-A91-728-110 FLTR,KIT KMFC5184-A . b c .
MAIN O 87-A92-386-010 FLTR,KIT KMFC5203A-B0 a . . d
MAIN O BPF0201 87-A91-682-010 FLTR,GFWB7-C1 . b c .
MAIN O BPF0501 87-A91-679-010 FLTR,GTVSB3-C1 a . . d
MAIN O C 0101 87-012-275-080 C-CAP,U 1200P-50 K B GRM a . . d
MAIN O C 0101 87-012-276-080 C-CAP,U 1500P-50 K B GRM . b c .
MAIN O C 0102 87-012-275-080 C-CAP,U 1200P-50 K B GRM a . . d
MAIN O C 0102 87-012-276-080 C-CAP,U 1500P-50 K B GRM . b c .
MAIN O C 0103 87-010-746-080 C-CAP,TN 10-4 M 125 a . . d
MAIN O C 0103 87-010-499-040 CAP,E 22-6.3 M 5L SRE . b c .
MAIN O C 0104 87-010-746-080 C-CAP,TN 10-4 M 125 a . . d
MAIN O C 0104 87-010-499-040 CAP,E 22-6.3 M 5L SRE . b c .
MAIN O C 0105 87-012-273-080 C-CAP,U 820P-50 K B GRM a . . d
MAIN O C 0105 87-012-273-080 C-CAP,U 820P-50 K B GRM . b c .
MAIN O C 0106 87-012-273-080 C-CAP,U 820P-50 K B GRM a . . d
MAIN O C 0106 87-012-273-080 C-CAP,U 820P-50 K B GRM . b c .
MAIN O C 0107 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0107 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0108 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0108 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0109 87-016-296-080 C-CAP,TN 22-4 M a . . d
MAIN O C 0109 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0110 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0110 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0111 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0111 87-012-274-080 C-CAP,U 1000P-50 K B GRM . b c .
MAIN O C 0112 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0112 87-012-274-080 C-CAP,U 1000P-50 K B GRM . b c .
MAIN O C 0113 87-012-274-080 C-CAP,U 1000P-50 K B GRM a . . d
MAIN O C 0113 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0114 87-012-274-080 C-CAP,U 1000P-50 K B GRM a . . d
MAIN O C 0114 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0115 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0115 87-010-502-040 CAP,E 100-4 M 5L SRE . b . .
MAIN O C 0116 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0116 87-010-502-040 CAP,E 100-4 M 5L SRE . b . .
MAIN O C 0118 87-012-172-080 C-CAP,U 10P-50 D CH a . . d
MAIN O C 0119 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0120 87-010-244-040 CAP,E 22-16 M 5L SRE a . . d
MAIN O C 0121 87-015-680-040 CAP,E 47-10 M 7L SRA a . . d
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0121 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0122 87-016-431-080 C-CAP,E 220-4 M WX a . . d
MAIN O C 0122 87-012-271-080 C-CAP,U 560P-50 K B . b c .
MAIN O C 0123 87-010-499-040 CAP,E 22-6.3 M 5L SRE . b c .
MAIN O C 0124 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0124 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0125 87-012-268-080 C-CAP,U 330P-50 K B GRM a . . d
MAIN O C 0125 87-010-503-040 CAP,E 220-4 M 5L SRE . b c .
MAIN O C 0126 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0126 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0127 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0128 87-012-195-080 C-CAP,U 100P-50 J CH GRM a . . d
MAIN O C 0128 87-010-499-040 CAP,E 22-6.3 M 5L SRE . b c .
MAIN O C 0129 87-012-271-080 C-CAP,U 560P-50 K B a . . d
MAIN O C 0129 87-010-501-040 CAP,E 47-4 M 5L SRE . b c .
MAIN O C 0130 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0131 87-A91-667-080 C-F-BEAD, U BLM11B102S a . . d
MAIN O C 0201 87-012-199-080 C-CAP,U 220P-50 J CH GRM . b c .
MAIN O C 0202 87-012-199-080 C-CAP,U 220P-50 J CH GRM . b c .
MAIN O C 0203 87-012-274-080 C-CAP,U 1000P-50 K B GRM . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0204 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0205 87-A12-790-080 C-CAP,U 560P-50 J CH . b c .
MAIN O C 0206 87-012-191-080 C-CAP,U 68P-50 J CH . b c .
MAIN O C 0207 87-010-787-080 C-CAP,U 0.022-25 K B GRM . b c .
MAIN O C 0209 87-012-286-080 C-CAP,U 0.01-25 K B GRM . b c .
MAIN O C 0210 87-012-286-080 C-CAP,U 0.01-25 K B GRM . b c .
MAIN O C 0211 87-A12-173-080 C-CAP,U 330P-50 CH . b c .
MAIN O C 0212 87-012-286-080 C-CAP,U 0.01-25 K B GRM . b c .
MAIN O C 0214 87-A10-047-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0215 87-012-286-080 C-CAP,U 0.01-25 K B GRM . b c .
MAIN O C 0216 87-012-195-080 C-CAP,U 100P-50 J CH GRM . b c .
MAIN O C 0218 87-012-286-080 C-CAP,U 0.01-25 K B GRM . b c .
MAIN O C 0219 87-012-162-080 C-CAP,U 1P-50 C CH GRM . b c .
MAIN O C 0220 87-012-199-080 C-CAP,U 220P-50 J CH GRM . b c .
MAIN O C 0221 87-012-195-080 C-CAP,U 100P-50 J CH GRM . b c .
MAIN O C 0222 87-012-172-080 C-CAP,U 10P-50 D CH . b c .
MAIN O C 0223 87-012-251-080 C-CAP,U 27P-50 J UJ . b c .
MAIN O C 0224 87-012-274-080 C-CAP,U 1000P-50 K B GRM . b c .
MAIN O C 0226 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0227 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFETY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
– 4 –
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0228 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0229 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0230 87-010-502-040 CAP,E 100-4 M 5L SRE . b c .
MAIN O C 0231 87-010-786-080 C-CAP,U 0.018-25 K B GRM . b c .
MAIN O C 0232 87-010-786-080 C-CAP,U 0.018-25 K B GRM . b c .
MAIN O C 0233 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0234 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0235 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0236 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0237 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0238 87-A10-466-080 C-CAP,TN 3.3-6.3 A TCF . b c .
MAIN O C 0239 87-A10-707-080 C-CAP,U 0.47-10 Z F . b c .
MAIN O C 0301 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0302 87-010-503-040 CAP,E 220-4 M 5L SRE . b c .
MAIN O C 0351 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0352 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0353 87-A11-282-080 C-CAP,S 1-16 K B . b c .
MAIN O C 0354 87-012-286-080 C-CAP,U 0.01-25 K B GRM . b c .
MAIN O C 0355 87-012-286-080 C-CAP,U 0.01-25 K B GRM . b c .
MAIN O C 0356 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0401 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0401 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0402 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0402 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0403 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
MAIN X C 0501 88-108-151-080 C-RES,U 150-1/16W J a . . d
MAIN O C 0501 87-012-176-080 C-CAP,U 15P-50 J CH . b c .
MAIN O C 0502 87-012-271-080 C-CAP,U 560P-50 K B a . . d
MAIN O C 0502 87-012-174-080 C-CAP,U 12P-50 J CH . b c .
MAIN O C 0503 87-012-276-080 C-CAP,U 1500P-50 K B GRM a . . d
MAIN O C 0503 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0504 87-012-193-080 C-CAP,U 82P-50 J CH a . . d
MAIN O C 0504 87-012-274-080 C-CAP,U 1000P-50 K B GRM . b c .
MAIN O C 0505 87-012-195-080 C-CAP,U 100P-50 J CH GRM a . . d
MAIN O C 0505 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0506 87-010-502-040 CAP,E 100-4 M 5L SRE a . . d
MAIN O C 0506 87-016-396-080 C-CAP,U 0.22-16 Z F . b c .
MAIN O C 0507 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
MAIN O C 0507 87-012-286-080 C-CAP,U 0.01-25 K B GRM . b c .
MAIN O C 0508 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0508 87-A11-056-080 C-CAP,U 1-10 Z F . b c .
MAIN O C 0509 87-012-164-080 C-CAP,U 2P-50 C CH a . . d
MAIN O C 0509 87-010-831-080 C-CAP,U 0.1-16 Z F . b c .
MAIN O C 0510 87-A12-790-080 C-CAP,U 560P-50 J CH a . . d
MAIN O C 0511 87-012-274-080 C-CAP,U 1000P-50 K B GRM . b c .
MAIN O C 0512 87-012-162-080 C-CAP,U 1P-50 C CH GRM a . . d
MAIN O C 0513 87-012-191-080 C-CAP,U 68P-50 J CH a . . d
MAIN O C 0514 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
MAIN O C 0515 87-012-164-080 C-CAP,U 2P-50 C CH a . . d
MAIN O C 0516 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
MAIN O C 0517 87-012-165-080 C-CAP,U 3P-50 C CH a . . d
MAIN O C 0519 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0520 87-A12-790-080 C-CAP,U 560P-50 J CH a . . d
MAIN O C 0521 87-012-337-080 C-CAP,U 56P-50 J CH GRM a . . d
MAIN O C 0522 87-012-166-080 C-CAP,U 4P-50 C CH a . . d
MAIN O C 0523 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
MAIN O C 0524 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
MAIN O C 0526 87-012-195-080 C-CAP,U 100P-50 J CH GRM a . . d
MAIN O C 0548 87-012-266-080 C-CAP,U 220P-50 K B GRM a . . d
MAIN O C 0601 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0603 87-016-396-080 C-CAP,U 0.22-16 Z F a . . d
MAIN O C 0604 87-012-274-080 C-CAP,U 1000P-50 K B GRM a . . d
MAIN O C 0605 87-010-419-040 CAP,E 4.7-16 M 5L SRE a . . d
MAIN O C 0606 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0607 87-010-787-080 C-CAP,U 0.022-25 K B GRM a . . d
MAIN O C 0608 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0609 87-010-787-080 C-CAP,U 0.022-25 K B GRM a . . d
MAIN O C 0610 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0611 87-010-503-040 CAP,E 220-4 M 5L SRE a . . d
MAIN O C 0612 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0613 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0614 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0616 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0617 87-012-274-080 C-CAP,U 1000P-50 K B GRM a . . d
MAIN O C 0618 87-010-502-040 CAP,E 100-4 M 5L SRE a . . d
MAIN O C 0619 87-012-249-080 C-CAP,U 22P-50 J UJ a . . d
MAIN O C 0620 87-012-172-080 C-CAP,U 10P-50 D CH a . . d
MAIN O C 0621 87-A12-790-080 C-CAP,U 560P-50 J CH a . . d
MAIN O C 0622 87-012-172-080 C-CAP,U 10P-50 D CH a . . d
MAIN O C 0623 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFETY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
– 5 –
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0624 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0625 87-A10-504-080 C-CAP,U 0.047-16 K B a . . d
MAIN O C 0706 87-A12-173-080 C-CAP,U 330P-50 CH a . . d
MAIN O C 0707 87-A11-282-080 C-CAP,S 1-16 K B a . . d
MAIN O C 0708 87-A13-067-080 C-CAP,TN 3.3-16 M (A) a . . d
MAIN O C 0709 87-A11-282-080 C-CAP,S 1-16 K B a . . d
MAIN O C 0802 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0803 87-012-268-080 C-CAP,U 330P-50 K B GRM a . . d
MAIN O C 0804 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0805 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0806 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0807 87-A10-025-080 C-CAP,U 0.22-16 Z F a . . d
MAIN O C 0808 87-010-831-080 C-CAP,U 0.1-16 Z F a . . d
MAIN O C 0809 87-012-286-080 C-CAP,U 0.01-25 K B GRM a . . d
MAIN O C 0810 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
MAIN O C 0811 87-012-176-080 C-CAP,U 15P-50 J CH a . . d
MAIN O C 0812 87-012-174-080 C-CAP,U 12P-50 J CH a . . d
MAIN O C 0813 87-010-503-040 CAP,E 220-4 M 5L SRE a . . d
MAIN O C 0814 87-012-195-080 C-CAP,U 100P-50 J CH GRM a . . d
MAIN O C 0815 87-A11-056-080 C-CAP,U 1-10 Z F a . . d
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O C 0816 87-012-274-080 C-CAP,U 1000P-50 K B GRM a . . d
MAIN O C 0818 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0819 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0820 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0821 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0822 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0823 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0824 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0825 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O C 0829 87-012-278-080 C-CAP,U 2200P-50 K B GRM a . . d
MAIN O CF 0201 87-A91-162-010 FLTR,PFS450A7 . b c .
MAIN O CF 0601 87-A91-162-010 FLTR,PFS450A7 a . . d
MAIN O D 0201 87-A41-065-040 C-VARI-CAP,SVC347 . b c .
MAIN O D 0202 87-A40-957-040 C-VARI-CAP,HVC200A . b c .
MAIN O D 0203 87-A40-957-040 C-VARI-CAP,HVC200A . b c .
MAIN S D 0302 87-A40-360-080 C-DIODE,MA786 . b c .
MAIN S D 0351 87-A40-883-040 C-ZENER,02DZ13-Y . b c .
MAIN S D 0352 87-001-553-080 C-DIODE,1SS322 . b c .
MAIN O D 0501 87-A40-957-040 C-VARI-CAP,HVC200A a . . d
MAIN S D 0501 87-A40-964-040 C-ZENER,02DZ2.0-Z . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O D 0502 87-A40-969-040 C-VARI-CAP,HVC300A TRU a . . d
MAIN O D 0503 87-A40-957-040 C-VARI-CAP,HVC200A a . . d
MAIN O D 0504 87-A40-969-040 C-VARI-CAP,HVC300A TRU a . . d
MAIN O D 0551 87-A41-141-040 C-LED,SML-110MT GRN (M/N) . b c .
MAIN O D 0552 87-A41-141-040 C-LED,SML-110MT GRN (M/N) . b c .
MAIN O D 0601 87-A41-065-040 C-VARI-CAP,SVC347 a . . d
MAIN S D 0701 87-001-553-080 C-DIODE,1SS322 a . . d
MAIN S D 0702 87-A40-883-040 C-ZENER,02DZ13-Y a . . d
MAIN S D 0801 87-A40-964-040 C-ZENER,02DZ2.0-Z a . . d
MAIN S D 0802 87-A40-360-080 C-DIODE,MA786 a . . d
MAIN S IC 0101 87-A21-684-040 C-IC,TA2145AF a . . d
MAIN S IC 0101 87-A21-684-040 C-IC,TA2145AF . b c .
MAIN S IC 0201 87-A21-232-040 C-IC,TA2111FN . b c .
MAIN S IC 0501 87-A20-745-040 C-IC,TA2030FN a . . d
MAIN S IC 0501 8C-HRC-603-030 C-IC,LC72348W-9A84 . b c .
MAIN S IC 0601 87-A21-232-040 C-IC,TA2111FN a . . d
MAIN S IC 0801 8C-HRC-603-030 C-IC,LC72348W-9A84 a . . d
MAIN O IFT0201 87-A90-663-010 IFT,MW 5L H6.4 . b c .
MAIN O IFT0601 87-A90-663-010 IFT,MW 5L H6.4 a . . d
MAIN O J 0101 87-A60-438-010 JACK,3.5 BLK ST W/O SW (1537) a . . d
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O J 0101 87-A60-438-010 JACK,3.5 BLK ST W/O SW (1537) . . c .
MAIN O J 0101 87-A60-437-010 JACK,3.5 BLK ST W/O SW 4P(1637 . b . .
MAIN O L 0101 87-A50-597-080 C-COIL,S 10UH LQG21F100N a . . d
MAIN O L 0101 87-A50-581-080 C-COIL,S FCM2012H 252705 . b c .
MAIN O L 0103 87-A50-581-080 C-COIL,S FCM2012H 252705 . b c .
MAIN O L 0104 87-A50-581-080 C-COIL,S FCM2012H 252705 . b c .
MAIN O L 0105 87-A50-581-080 C-COIL,S FCM2012H 252705 . b . .
MAIN O L 0201 8Z-HRC-605-010 BAR-ANT,MW . b c .
MAIN O L 0202 8C-HRC-607-010 COIL,FMRF . b c .
MAIN O L 0203 8C-HRC-608-010 COIL,FMOSC . b c .
MAIN O L 0204 87-005-742-080 COIL,100UH J SP02 . b c .
MAIN O L 0205 87-A50-597-080 C-COIL,S 10UH LQG21F100N . b c .
MAIN O L 0301 87-A50-691-010 COIL,47UH TROID . b c .
MAIN O L 0351 87-A50-354-080 C-COIL,220UH LQH3C . b c .
MAIN O L 0501 8C-HRC-613-010 COIL,TV RF a . . d
MAIN O L 0502 8C-HRC-611-010 COIL,FM RF a . . d
MAIN O L 0503 8C-HRC-612-010 COIL,TV OSC a . . d
MAIN O L 0504 8C-HRC-610-010 COIL,FM OSC a . . d
MAIN O L 0505 87-A50-495-080 C-COIL,S 2.2UH K LQG21N a . . d
MAIN O L 0506 87-010-322-080 C-CAP,S 100P-50 J CH GRM a . . d
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFETY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
– 6 –
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O L 0508 87-A91-667-080 C-F-BEAD, U BLM11B102S a . . d
MAIN O L 0509 87-A91-667-080 C-F-BEAD, U BLM11B102S a . . d
MAIN O L 0510 87-A91-667-080 C-F-BEAD, U BLM11B102S a . . d
MAIN O L 0601 8Z-HRC-605-010 BAR-ANT,MW a . . d
MAIN O L 0602 87-005-742-080 COIL,100UH J SP02 a . . d
MAIN O L 0702 87-005-575-080 C-COIL, 220UH K FLC32 a . . d
MAIN O L 0801 87-003-089-110 COIL,47UH FL5R200F a . . d
MAIN O LCD0501 8C-HRC-606-010 LCD,ASSY CHR-C (LC72348)LIGHT . b c .
MAIN O LCD0801 8C-HRC-605-010 LCD,ASSY CHR-C (LC72348) a . . d
MAIN S Q 0101 87-026-264-080 C-TR,RN1411 a . . d
MAIN S Q 0101 87-026-264-080 C-TR,RN1411 . b . .
MAIN S Q 0102 87-026-262-080 C-TR,RN1407 a . . d
MAIN S Q 0102 87-026-264-080 C-TR,RN1411 . b c .
MAIN S Q 0103 89-113-625-080 C-TR,2SA1362GR a . . d
MAIN S Q 0104 89-115-884-080 C-TR,2SA1588Y a . . d
MAIN S Q 0201 89-327-143-080 C-TR,2SC2714O . b c .
MAIN S Q 0202 87-026-268-080 C-TR,RN2411 . b c .
MAIN S Q 0301 89-115-884-080 C-TR,2SA1588Y . b c .
MAIN S Q 0302 89-113-625-080 C-TR,2SA1362GR . b c .
MAIN S Q 0303 87-026-262-080 C-TR,RN1407 . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN S Q 0304 89-115-884-080 C-TR,2SA1588Y . b c .
MAIN S Q 0401 87-026-264-080 C-TR,RN1411 a . . d
MAIN S Q 0401 87-026-264-080 C-TR,RN1411 . b c .
MAIN S Q 0402 87-026-264-080 C-TR,RN1411 a . . d
MAIN S Q 0402 87-026-264-080 C-TR,RN1411 . b c .
MAIN S Q 0501 89-327-143-080 C-TR,2SC2714O a . . d
MAIN S Q 0551 87-026-264-080 C-TR,RN1411 . b c .
MAIN S Q 0601 89-115-884-080 C-TR,2SA1588Y a . . d
MAIN S Q 0602 87-026-268-080 C-TR,RN2411 a . . d
MAIN X R 0101 88-108-123-080 C-RES,U 12K-1/16W J a . . d
MAIN X R 0101 88-108-183-080 C-RES,U 18K-1/16W J . b c .
MAIN X R 0102 88-108-123-080 C-RES,U 12K-1/16W J a . . d
MAIN X R 0102 88-108-183-080 C-RES,U 18K-1/16W J . b c .
MAIN X R 0103 88-108-182-080 C-RES,U 1.8K-1/16W J a . . d
MAIN X R 0103 88-108-122-080 C-RES,U 1.2K-1/16W J . b c .
MAIN X R 0104 88-108-182-080 C-RES,U 1.8K-1/16W J a . . d
MAIN X R 0104 88-108-122-080 C-RES,U 1.2K-1/16W J . b c .
MAIN X R 0105 88-108-184-080 C-RES,U 180K-1/16W J a . . d
MAIN X R 0105 88-108-184-080 C-RES,U 180K-1/16W J . b c .
MAIN X R 0106 88-108-184-080 C-RES,U 180K-1/16W J a . . d
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN X R 0106 88-108-184-080 C-RES,U 180K-1/16W J . b c .
MAIN X R 0107 88-108-335-080 C-RES,U 3.3M-1/16W J a . . d
MAIN X R 0107 88-108-335-080 C-RES,U 3.3M-1/16W J . b c .
MAIN X R 0108 88-108-335-080 C-RES,U 3.3M-1/16W J a . . d
MAIN X R 0108 88-108-335-080 C-RES,U 3.3M-1/16W J . b c .
MAIN X R 0109 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0109 88-108-822-080 C-RES,U 8.2K-1/16W J . b c .
MAIN X R 0110 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0110 88-108-822-080 C-RES,U 8.2K-1/16W J . b c .
MAIN X R 0111 88-108-109-080 C-RES,U 1-1/16W J . b c .
MAIN X R 0112 88-108-152-080 C-RES,U 1.5K-1/16W J a . . d
MAIN X R 0112 88-108-109-080 C-RES,U 1-1/16W J . b c .
MAIN X R 0113 88-108-102-080 C-RES,U 1K-1/16W J a . . d
MAIN X R 0115 88-108-102-080 C-RES,U 1K-1/16W J . b . .
MAIN X R 0116 88-108-109-080 C-RES,U 1-1/16W J a . . d
MAIN X R 0116 88-108-102-080 C-RES,U 1K-1/16W J . b . .
MAIN X R 0117 88-108-109-080 C-RES,U 1-1/16W J a . . d
MAIN X R 0119 88-108-562-080 C-RES,U 5.6K-1/16W J a . . d
MAIN X R 0120 88-108-152-080 C-RES,U 1.5K-1/16W J . b c .
MAIN X R 0121 88-108-102-080 C-RES,U 1K-1/16W J . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN O R 0122 87-A00-530-080 C-RES,S 180-1/10W F a . . d
MAIN X R 0122 88-108-103-080 C-RES,U 10K-1/16W J . b c .
MAIN X R 0123 88-108-103-080 C-RES,U 10K-1/16W J . b c .
MAIN X R 0124 88-108-182-080 C-RES,U 1.8K-1/16W J a . . d
MAIN X R 0124 88-108-563-080 C-RES,U 56K-1/16W J . b c .
MAIN X R 0125 88-108-221-080 C-RES,U 220-1/16W J a . . d
MAIN X R 0125 88-108-152-080 C-RES,U 1.5K-1/16W J . b c .
MAIN X R 0126 88-108-103-080 C-RES,U 10K-1/16W J a . . d
MAIN O R 0126 87-A00-530-080 C-RES,S 180-1/10W F . b c .
MAIN X R 0127 88-108-103-080 C-RES,U 10K-1/16W J a . . d
MAIN X R 0128 88-108-182-080 C-RES,U 1.8K-1/16W J . b c .
MAIN X R 0129 88-108-681-080 C-RES,U 680-1/16W J a . . d
MAIN X R 0129 88-108-221-080 C-RES,U 220-1/16W J . b c .
MAIN X R 0130 88-108-152-080 C-RES,U 1.5K-1/16W J a . . d
MAIN X R 0130 88-108-562-080 C-RES,U 5.6K-1/16W J . b c .
MAIN X R 0131 88-108-474-080 C-RES,U 470K-1/16W J a . . d
MAIN X R 0132 88-108-474-080 C-RES,U 470K-1/16W J a . . d
MAIN X R 0201 88-108-102-080 C-RES,U 1K-1/16W J . b c .
MAIN X R 0202 88-108-153-080 C-RES,U 15K-1/16W J . b c .
MAIN X R 0203 88-108-104-080 C-RES,U 100K-1/16W J . b c .
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFETY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
– 7 –
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN X R 0204 88-108-474-080 C-RES,U 470K-1/16W J . b c .
MAIN X R 0205 88-108-104-080 C-RES,U 100K-1/16W J . b c .
MAIN X R 0206 88-108-104-080 C-RES,U 100K-1/16W J . b c .
MAIN X R 0207 88-108-104-080 C-RES,U 100K-1/16W J . b c .
MAIN X R 0208 88-108-330-080 C-RES,U 33-1/16W J . b c .
MAIN X R 0209 88-108-101-080 C-RES,U 100-1/16W J . b c .
MAIN X R 0210 88-108-473-080 C-RES,U 47K-1/16W J . b c .
MAIN X R 0211 88-108-471-080 C-RES,U 470-1/16W J . b c .
MAIN X R 0212 88-108-221-080 C-RES,U 220-1/16W J . b c .
MAIN X R 0215 88-108-153-080 C-RES,U 15K-1/16W J . b c .
MAIN X R 0216 88-108-332-080 C-RES,U 3.3K-1/16W J . b c .
MAIN X R 0217 88-108-822-080 C-RES,U 8.2K-1/16W J . b c .
MAIN X R 0218 88-108-822-080 C-RES,U 8.2K-1/16W J . b c .
MAIN X R 0219 88-108-150-080 C-RES,U 15-1/16W J . b c .
MAIN X R 0220 88-108-153-080 C-RES,U 15K-1/16W J . b c .
MAIN X R 0221 88-108-153-080 C-RES,U 15K-1/16W J . b c .
MAIN X R 0222 88-108-331-080 C-RES,U 330-1/16W J . b c .
MAIN X R 0301 88-108-569-080 C-RES,U 5.6-1/16W J . b c .
MAIN X R 0302 88-108-474-080 C-RES,U 470K-1/16W J . b c .
MAIN X R 0303 88-108-152-080 C-RES,U 1.5K-1/16W J . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN X R 0304 88-108-473-080 C-RES,U 47K-1/16W J . b c .
MAIN X R 0305 88-108-681-080 C-RES,U 680-1/16W J . b c .
MAIN X R 0306 88-108-474-080 C-RES,U 470K-1/16W J . b c .
MAIN X R 0307 88-108-821-080 C-RES,U 820-1/16W J . b c .
MAIN X R 0308 88-108-100-080 C-RES,U 10-1/16W J . b c .
MAIN X R 0351 88-108-220-080 C-RES,U 22-1/16W J . b c .
MAIN X R 0352 88-108-101-080 C-RES,U 100-1/16W J . b c .
MAIN X R 0353 88-108-392-080 C-RES,U 3.9K-1/16W J . b c .
MAIN X R 0354 88-108-153-080 C-RES,U 15K-1/16W J . b c .
MAIN X R 0355 88-108-102-080 C-RES,U 1K-1/16W J . b c .
MAIN X R 0401 88-108-123-080 C-RES,U 12K-1/16W J a . . d
MAIN X R 0401 88-108-823-080 C-RES,U 82K-1/16W J . b c .
MAIN X R 0402 88-108-123-080 C-RES,U 12K-1/16W J a . . d
MAIN X R 0402 88-108-823-080 C-RES,U 82K-1/16W J . b c .
MAIN X R 0403 88-108-152-080 C-RES,U 1.5K-1/16W J a . . d
MAIN X R 0403 88-108-152-080 C-RES,U 1.5K-1/16W J . b c .
MAIN X R 0404 88-108-152-080 C-RES,U 1.5K-1/16W J a . . d
MAIN X R 0404 88-108-152-080 C-RES,U 1.5K-1/16W J . b c .
MAIN X R 0501 88-108-103-080 C-RES,U 10K-1/16W J a . . d
MAIN X R 0501 88-108-335-080 C-RES,U 3.3M-1/16W J . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN X R 0502 88-108-100-080 C-RES,U 10-1/16W J a . . d
MAIN X R 0504 88-108-471-080 C-RES,U 470-1/16W J a . . d
MAIN X R 0504 88-108-335-080 C-RES,U 3.3M-1/16W J . b c .
MAIN X R 0505 88-108-473-080 C-RES,U 47K-1/16W J a . . d
MAIN X R 0505 88-108-335-080 C-RES,U 3.3M-1/16W J . b c .
MAIN X R 0506 88-108-473-080 C-RES,U 47K-1/16W J a . . d
MAIN X R 0507 88-108-473-080 C-RES,U 47K-1/16W J a . . d
MAIN X R 0507 88-108-103-080 C-RES,U 10K-1/16W J . b c .
MAIN X R 0508 88-108-220-080 C-RES,U 22-1/16W J a . . d
MAIN X R 0508 88-108-224-080 C-RES,U 220K-1/16W J . b c .
MAIN X R 0509 88-108-150-080 C-RES,U 15-1/16W J a . . d
MAIN X R 0509 88-108-224-080 C-RES,U 220K-1/16W J . b c .
MAIN X R 0510 88-108-100-080 C-RES,U 10-1/16W J a . . d
MAIN X R 0510 88-108-104-080 C-RES,U 100K-1/16W J . . c .
MAIN O R 0510 87-022-289-080 C-RES,U 180K-1/16W F . b . .
MAIN X R 0511 88-108-473-080 C-RES,U 47K-1/16W J a . . d
MAIN X R 0511 88-108-335-080 C-RES,U 3.3M-1/16W J . b c .
MAIN X R 0512 88-108-473-080 C-RES,U 47K-1/16W J a . . d
MAIN X R 0513 88-108-103-080 C-RES,U 10K-1/16W J a . . d
MAIN O R 0513 87-022-290-080 C-RES,U 220K-1/16W F . b c .
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN X R 0514 88-108-820-080 C-RES,U 82-1/16W J a . . d
MAIN X R 0515 88-108-104-080 C-RES,U 100K-1/16W J a . . d
MAIN X R 0515 88-108-335-080 C-RES,U 3.3M-1/16W J . b c .
MAIN X R 0516 88-108-104-080 C-RES,U 100K-1/16W J a . . d
MAIN X R 0518 88-108-100-080 C-RES,U 10-1/16W J a . . d
MAIN X R 0519 88-108-102-080 C-RES,U 1K-1/16W J a . . d
MAIN X R 0520 88-108-222-080 C-RES,U 2.2K-1/16W J a . . d
MAIN X R 0556 88-108-470-080 C-RES,U 47-1/16W J . b c .
MAIN X R 0557 88-108-470-080 C-RES,U 47-1/16W J . b c .
MAIN X R 0601 88-108-102-080 C-RES,U 1K-1/16W J . b . .
MAIN X R 0607 88-108-122-080 C-RES,U 1.2K-1/16W J a . . d
MAIN X R 0608 88-108-153-080 C-RES,U 15K-1/16W J a . . d
MAIN X R 0609 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0610 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0611 88-108-150-080 C-RES,U 15-1/16W J a . . d
MAIN X R 0612 88-108-332-080 C-RES,U 3.3K-1/16W J a . . d
MAIN X R 0613 88-108-153-080 C-RES,U 15K-1/16W J a . . d
MAIN X R 0614 88-108-100-080 C-RES,U 10-1/16W J a . . d
MAIN X R 0615 88-108-473-080 C-RES,U 47K-1/16W J a . . d
MAIN X R 0616 88-108-224-080 C-RES,U 220K-1/16W J a . . d
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFETY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
– 8 –
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN X R 0617 88-108-102-080 C-RES,U 1K-1/16W J a . . d
MAIN X R 0618 88-108-821-080 C-RES,U 820-1/16W J a . . d
MAIN X R 0619 88-108-474-080 C-RES,U 470K-1/16W J a . . d
MAIN X R 0703 88-108-152-080 C-RES,U 1.5K-1/16W J a . . d
MAIN X R 0704 88-108-563-080 C-RES,U 56K-1/16W J a . . d
MAIN X R 0705 88-108-101-080 C-RES,U 100-1/16W J a . . d
MAIN X R 0706 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0707 88-108-100-080 C-RES,U 10-1/16W J a . . d
MAIN X R 0801 88-108-335-080 C-RES,U 3.3M-1/16W J a . . d
MAIN X R 0802 88-108-335-080 C-RES,U 3.3M-1/16W J a . . d
MAIN X R 0805 88-108-335-080 C-RES,U 3.3M-1/16W J a . . d
MAIN X R 0807 88-108-335-080 C-RES,U 3.3M-1/16W J a . . d
MAIN X R 0808 88-108-335-080 C-RES,U 3.3M-1/16W J a . . d
MAIN X R 0812 88-108-224-080 C-RES,U 220K-1/16W J a . . d
MAIN O R 0813 87-022-290-080 C-RES,U 220K-1/16W F a . . d
MAIN X R 0816 88-108-335-080 C-RES,U 3.3M-1/16W J a . . d
MAIN X R 0817 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0818 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0819 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0820 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
HS-TX427 HS-TX429 HS-TX426 HS-TX427
YCBSC YL1BSC YL1BSC YUBSC
MAIN X R 0821 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0822 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0823 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN X R 0824 88-108-822-080 C-RES,U 8.2K-1/16W J a . . d
MAIN O S 0101 87-A91-077-010 SW,LEAF a . . d
MAIN O S 0301 87-A91-077-010 SW,LEAF . b c .
MAIN O S 0501 87-A90-050-010 SW,SL 2-2-2 NS (BLK) . b c .
MAIN O S 0801 87-A90-050-010 SW,SL 2-2-2 NS (BLK) a . . d
MAIN O SFR0101 87-A92-045-040 C-SFR,K 1K H RH03AEC a . . d
MAIN O SFR0101 87-A92-045-040 C-SFR,K 1K H RH03AEC . b c .
MAIN X SH 0001 8C-HRC-620-010 SH,SHIELD C a . . d
MAIN SH 0002 8C-HRC-621-010 SH,STATIC PT100 B 12X12 . b c .
MAIN O TC 0201 87-011-254-080 TRIMMER,CER 20P 4.0X4.5 ECR . b c .
MAIN O TC 0501 87-A91-762-180 C-TRIMMER,10P TZVY2Z100A a . . d
MAIN O TC 0601 87-011-254-080 TRIMMER,CER 20P 4.0X4.5 ECR a . . d
MAIN O VR 0101 87-A90-981-110 VR,RTRY 20KBX1 a . . d
MAIN O VR 0101 87-A90-981-110 VR,RTRY 20KBX1 . b c .
MAIN O X 0501 87-A70-082-110 VIB,XTAL 75KHZ . b c .
MAIN O X 0801 87-A70-187-010 VIB,XTAL 75KHZ CFV206 a . . d
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 9–
88
A
Resistor Code

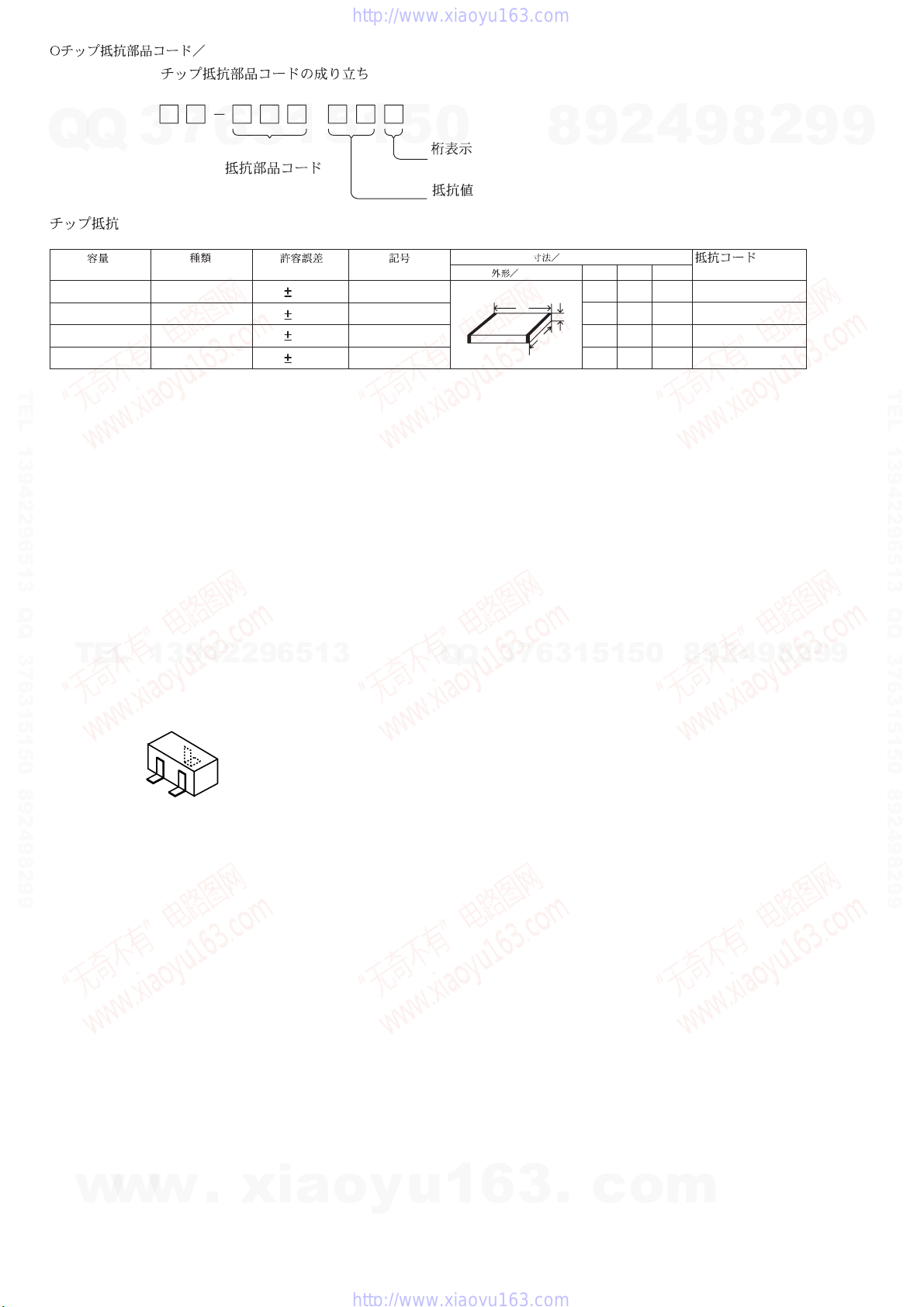

Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
2SA1362GR
2SA1588Y
2SC2714O
RN1407
RN1411
RN2411
E
B
C
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 10 –

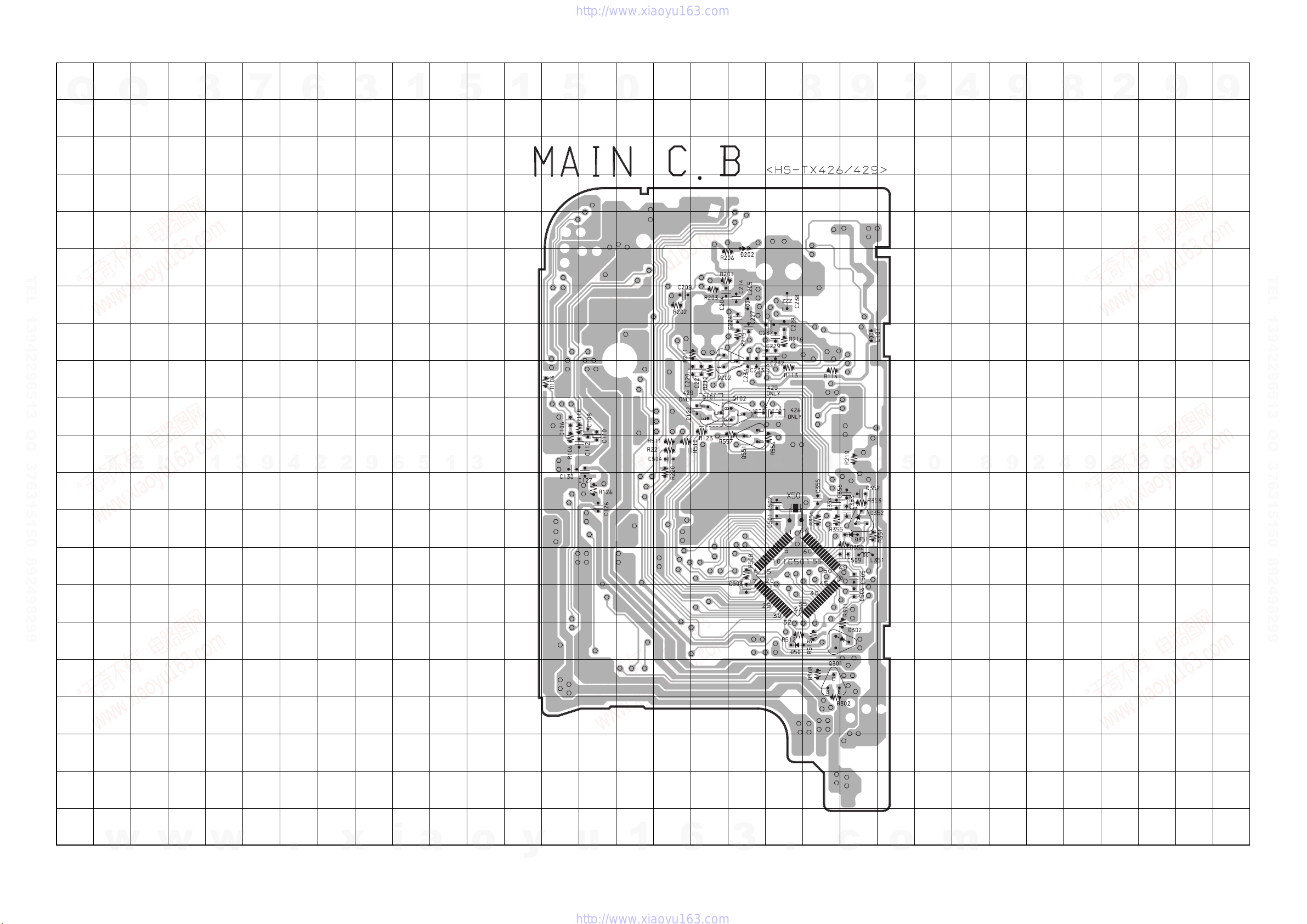

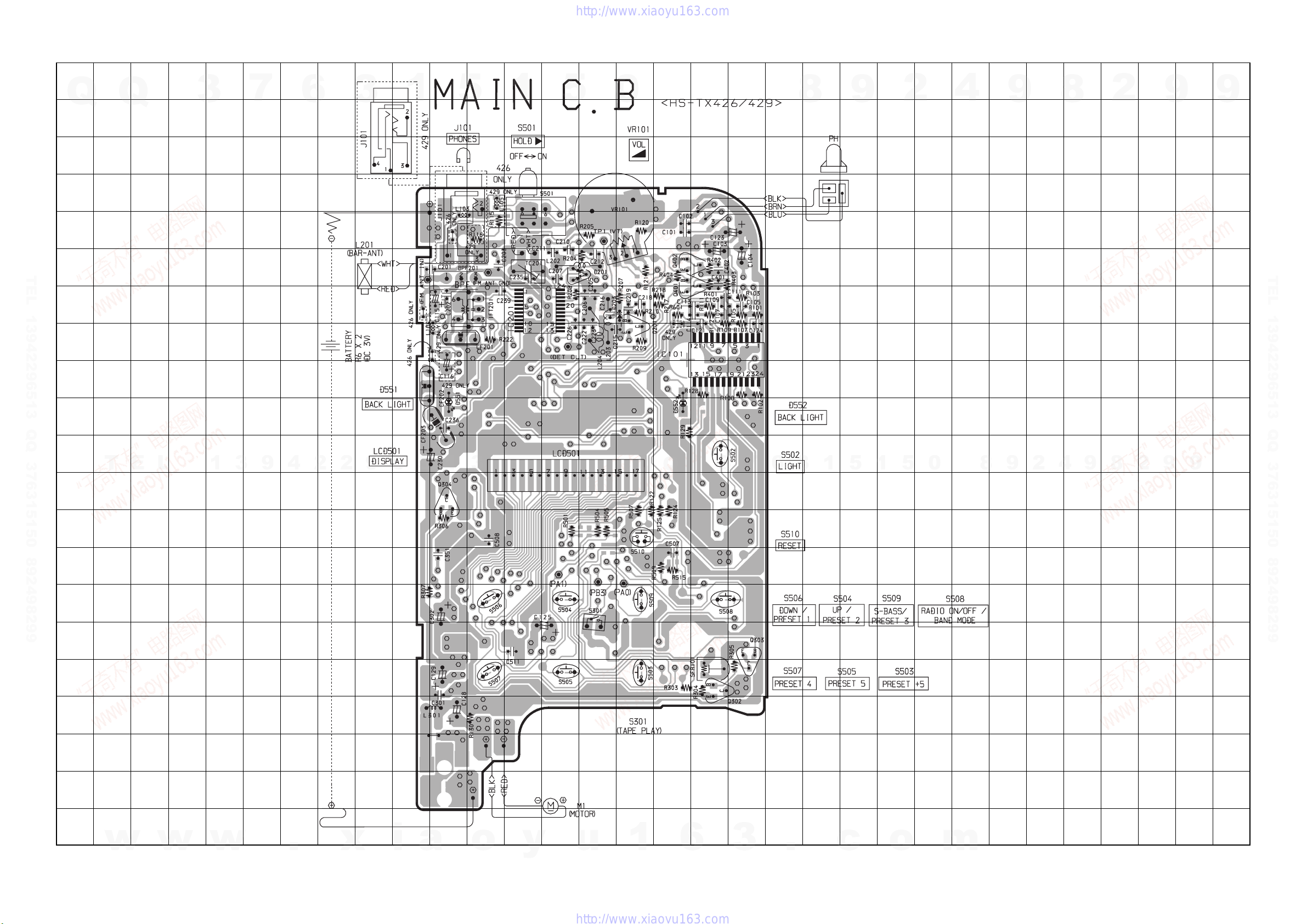

WIRING – 1 (MAIN) <1 / 2> (HS-TX426 / 429)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 11 –
WIRING – 1 (MAIN) <2 / 2> (HS-TX426 / 429)
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 13 –

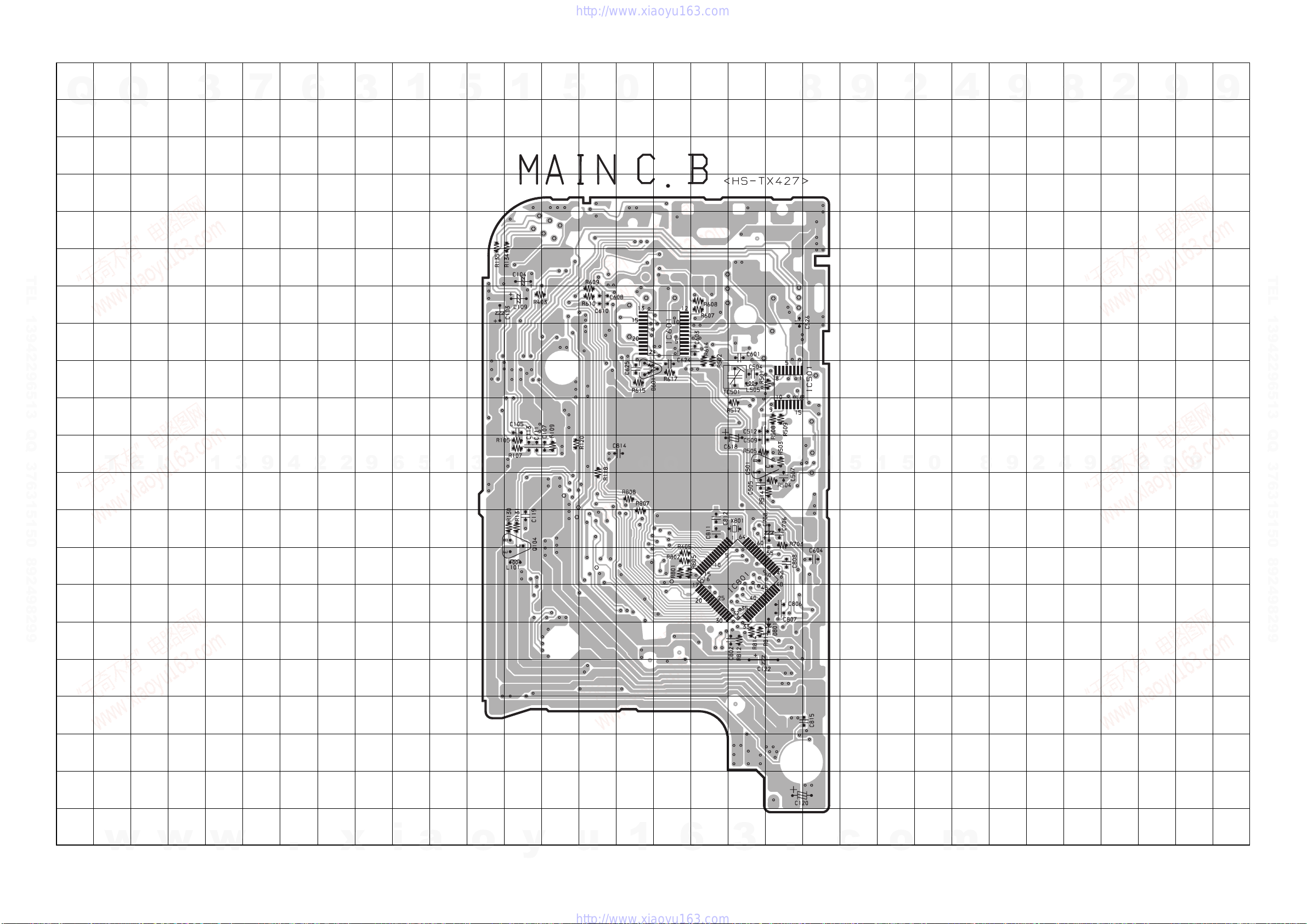

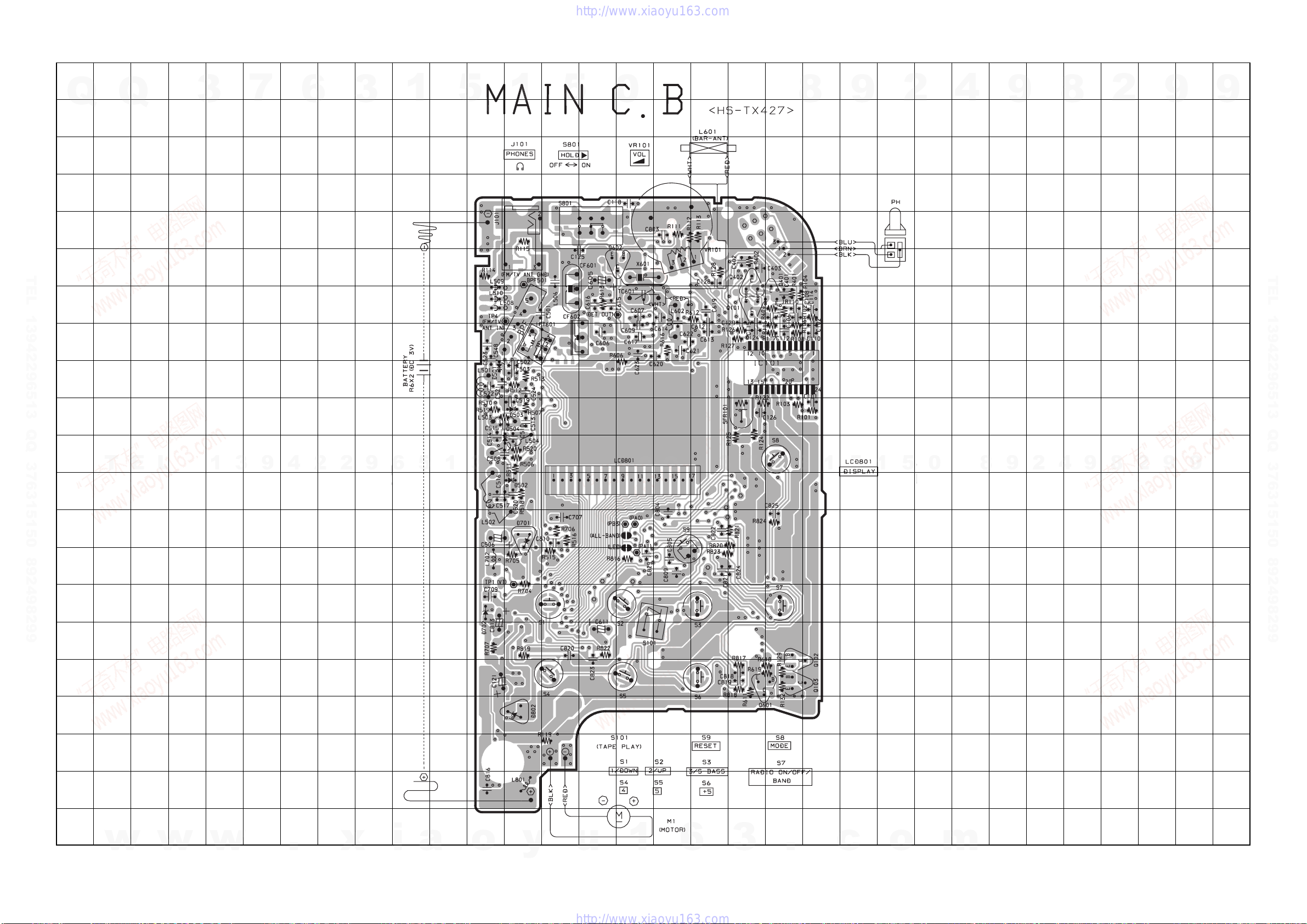

WIRING – 2 (MAIN) <1 / 2> (HS-TX427)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 14 –
WIRING – 2 (MAIN) <2 / 2> (HS-TX427)
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 17 –
IC DESCRIPTION
IC, LC72348W-9A84
Pin No. Pin Name I/O Description
1 XOUT O Crystal oscillator (75kHz) pin.
2 TEST2 I Connected to ground.
3 PA3 I Key return signal input pin.
4 PA2 I Key return signal input pin.
5 PA1 I Key return signal input pin.
6 PA0 I Key return signal input pin.
7 PB3 O Key source signal output pin. (Not used)
8 PB2 O Key source signal output pin. (Not used)
9 PB1 O Key source signal output pin.
10 PB0 O Key source signal output pin.
11 PC3 (FM OUT) O FM signal output control pin. H:FM/TV/WEATHER band, L:AM band/Standby/Telecom mode.
12 PC2 (TV OUT) O
TV/WEATHER signal output control pin.
H:TV(7~13ch)/WEATHER band, L:AM/FM/TV(2~6ch)/Standby/Telecom mode. (Not used)
13 PC1 (S-BASS) O S-BASS circuit signal output control pin. H:S-BASS OFF, L:S-BASS ON/Standby.
Input destination.
14 PC0 (DES1) I Destination 14Pin 15Pin 16Pin
USA L H L
EUROPE L L H
15 PD3 (DES2) I GENERAL L H H
USA WIDE 1 H H H
USA WIDE 2 H H L
16 PD2 (DES3) I JAPAN H L H
17 PD1 (TAPE) I Telecom detect signal input pin. H:Tape display ON, L:Tape display OFF.
18 PD0/INT I Backup detect signal input pin while HALT status. H:Normal, L:Backup.
19 PE1/ SEEKOUT O SEEK mode output pin. OPEN:Mute OFF, SEEK, L:Mute ON.
20 PE0/BEEP O BUZZER output pin.
21 PF2/ADI3 I Backup detect signal input pin. H:Normal, L:Backup.
22 PF1/ADI1 I Input power check (A/D).
23 PF0/ADI0 (REMOTE) I Input remote controller (A/D).
24 VSS - Connected to ground.
25 S20/PG3 (POWER- SW) O AMP circuit control signal output pin. H:AMP circuit OFF, L:AMP circuit ON.
26 S19/PG2 (HOLD) I Main key hold SW input pin. H:Hold OFF, L:Hold ON.
27 S18/PG1 (MUTE) O Mute circuit control signal output pin. H:Mute OFF, L:Mute ON. (Not used)
28 S17/PG0 (TU OUT) O Tuner/Tape select control signal output pin. H:Tape, L:Radio.
29 S16/PH3 (TU IN) I TUNED detect signal input pin. H:TUNED display OFF, L:TUNED display ON.
30 S15/PH2 (PRE SW) O PRE-AMP circuit control signal output pin. H:PRE-AMP circuit OFF, L:PRE-AMP circuit ON.
31 S14/PH1 (LIGHT SW) O LED circuit control signal output pin. H:LED circuit ON, L:LED circuit OFF.
32 S13/PH0 O LCD driver out.
33 S12 O LCD driver out.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 18–
Pin No. Pin Name I/O Description
34 S11 O LCD driver out.
35 S10 O LCD driver out.
36 S9 O LCD driver out.
37 S8 O LCD driver out.
38 S7 O LCD driver out.
39 S6 O LCD driver out.
40 S5 O LCD driver out.
41 S4 O LCD driver out.
42 S3 O LCD driver out.
43 S2 O LCD driver out.
44 S1 O LCD driver out.
45 COM4 O LCD driver common.
46 COM3 O LCD driver common.
47 COM2 O LCD driver common.
48 COM1 O LCD driver common.
49 DBR4 - LCD power supply.
50 DBR3 - LCD power supply.
51 DBR2 - LCD power supply.
52 DBR1 - LCD power supply.
53 RESET I System RESET signal input pin.
54 TU O Tuning voltage generating circuit output pin.
55 VDD - Positive power supply pin.
56 FMIN I FM broadcast input pin.
57 AMIN I AM broadcast input pin.
58 VSS - Connected to ground.
59 EO O Phase comparator output pin.
60 AIN I LPF input pin.
61 AOUT O LPF output pin.
62 AGND - Connected to ground.
63 TEST1 - Connected to ground.
64 XIN I Crystal oscillator (75kHz) pin.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 19 –
ADJUSTMENT
<TAPE PLAYER SECTION>
1. Tape Speed Adjustment
Settings : • Test tape : TTA-100 (TAPE CENTER)
• Test point : PHONES (J101)
• Adjustment location : SFR101
• Super Bass : OFF
• Volume : MAX
Method : Play back the test tape and adjust SFR101 for 3000Hz
± 10Hz (FWD).
Then confirm WOW is less than 0.50%.
2. Azimuth Adjustment
Settings : • Test tape : TTA-330
• Volume : MAX
• Adjustment location : Head azimuth adjustment
screw
Method : Play back (FWD) the test tape and adjust screw so
that the 8kHz signal output is maximum.
< TUNER SECTION >
1. AM IF Adjustment
IFT201 .................................... 450kHz <TX426 / 429>
IFT601 .................................... 450kHz <TX427>
2. AM Tracking Adjustment
L201 ........................................ 630kHz <TX426 / 429>
TC201 ..................................... 1440kHz <TX426 / 429>
L601 ........................................ 630kHz <TX427>
TC601 ..................................... 1440kHz <TX427>
3. FM IF Adjustment
TC501 ..................................... 10.7MHz <TX427>
4. FM Tracking Adjustment
L202 ........................................ 76MHz <TX426 / 429>
L502 ........................................ 71.75MHz (TV 4ch) <TX427>
5. FM VT Adjustment
Settings : • Test point : TP1 (VT)
• Adjustment location : L203 <TX426 / 429>
L504 <TX427>
* Short IC501 Pin 6 (PA0) and Pin 7 (PB3) together. <TX426 / 429>
* Connect cathode of diode to Pin 6 (PA0) and anode to Pin 7 (PB3)
of IC801. <TX427>
Method : Set to FM 76MHz <TX426 / 429>, FM 59MHz <TX427>
and adjust L203 <TX426 / 429>, L504 <TX427> so that
the test point becomes 1.1V ± 0.1V <TX426 / 429>, 1.4V
± 0.1V <TX427>. Then set to FM 108.1MHz and check
that the test point is less than 7V <TX426 / 429>, less
than 11V <TX427>.
6. TV Tracking Adjustment <TX427>
L501 ........................................ 162.4MHz (WEATHER 2ch)
7. TV VT Adjustment <TX427>
Settings : • Test point : TP1 (VT)
• Adjustment location : L503
* Connect cathode of diode to Pin 6 (PA0) and anode to Pin 7
(PB3) of IC801.
Method : Set to 162.4MHz (TV 1ch) and adjust L503 so that the test
point becomes 2.0V ± 0.1V. Then set to 215.75MHz
(TV 5ch) and check that the test point is less than 10V.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 20 –

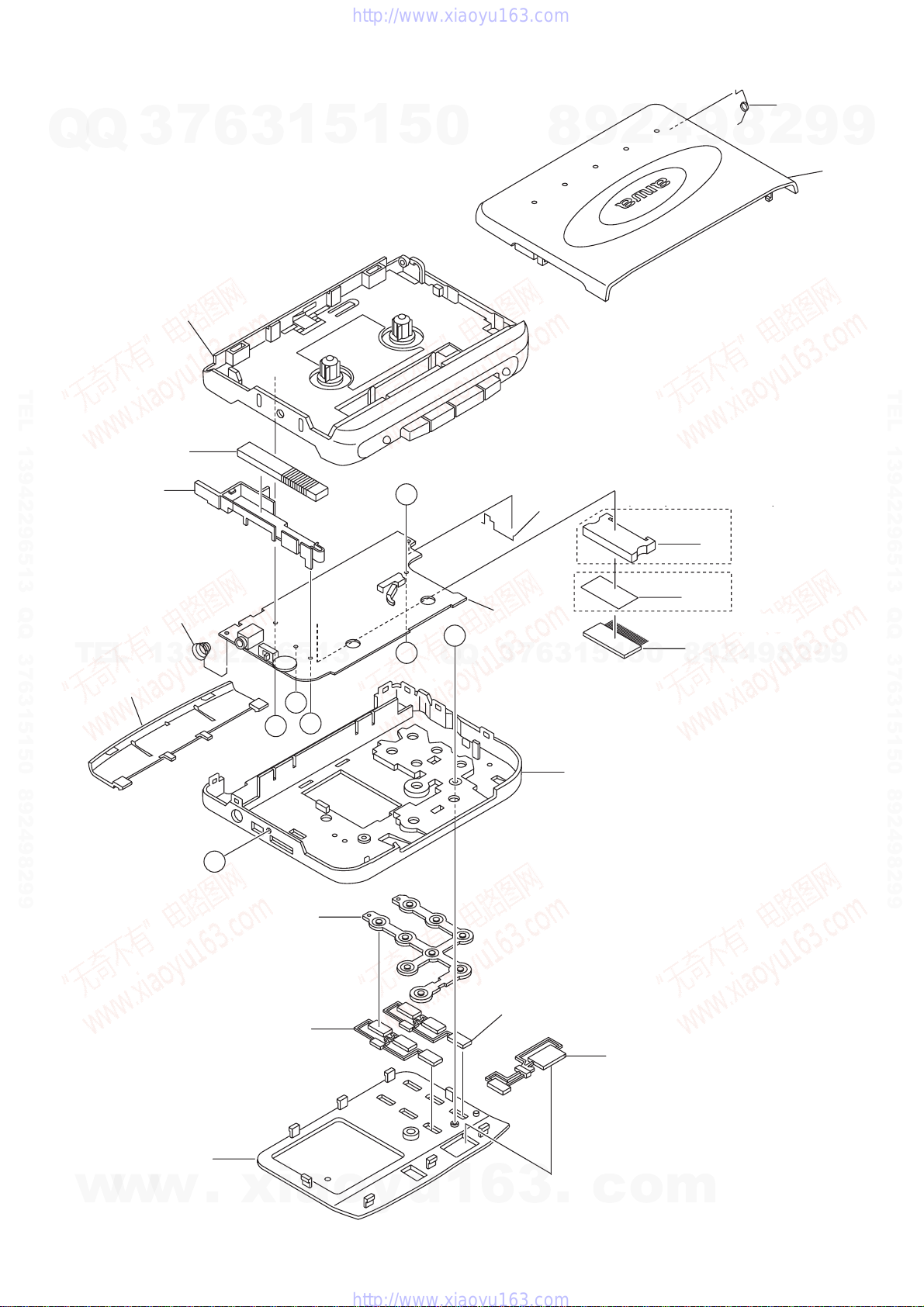

MECHANICAL EXPLODED VIEW
1
2
3
4
5
6
7
8
9
17
(Except for HS-TX427)
(HS-TX427 ONLY)
10
A
B
C
D
D
E
F
11
12
13
14
15
16
16
(Except HS-TX427)
(HS-TX427 only)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
This manual suits for next models
2
Table of contents
Other Aiwa Cassette Player manuals
