SERVICE MANUAL
DATA
NSX-T929 RC-ZAS04
SYSTEM CD
CASSEIVER REMOTE CONTROLLER
CX-NT929
COMPACT DISC STEREO
SYSTEM BASIC TAPE MECHANISM : 2ZM-3MK2 PR7NM BASIC CD MECHANISM : 6ZG-1 ZZRNDM
NSX-T929 LH
S/M Code No. 09-013-440-2R1
•This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
of NSX-T929 (LH), (S/M Code No. 09-00C-440-2T1).
• If requiring information about the CD mechanism, see Service Manual of 6ZG-1,
(S/M Code No. 09-001-338-7N8).
SPEAKER
SX-WNT929
REVISION

– 2 –
SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM Tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated: 250 W + 250 W
(8 ohms, T.H.D. 1 %, 60Hz )
Reference: 320 W + 320 W
(8 ohms, T.H.D. 10 %, 60Hz )
Total harmonic distortion 0.3 % (125 W, 60Hz, 8 ohms,
DIN AUDIO)
Inputs VIDEO/AUX: 300 mV (adjustable)
MD: 300 mV (adjustable)
MIC 1, MIC 2: 1.0 mV (10 kohms)
Outputs LINE OUT: 210 mV
SPEAKERS: accept speakers of
8 ohms or more
SURROUND SPEAKERS:
accept speakers of 8 ohms to 16 ohms
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz – 15000 Hz
Signal-to-noise ratio 60 dB (Dolby B NR ON, CrO2tape
peak level)
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<General>
Power requirements 120 V/ 220V–230V/ 240 V AC
(switchable) 50/60 Hz
Power consumption 390 W
Power consumption in With ECO mode on: 0.9 W
standby mode With ECO mode off: 47 W
Dimensions (W xH xD) 300 x 383.5 x 404.5 mm
Weight of main unit 17.2 kg
<Speaker system SX-WNT929>
Speaker system 3 way,built-in subwoofer
(magnetic shielded type)
Speaker units Woofer: 160 mm X 2 cone
Mid range: 140 mm cone
Super tweeter: 20 mm ceramic
Impedance 8 ohms / 8 ohms
Dimensions (W xH xD) 270 x 495 x 297 mm
Weight 6.5 kg
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY” and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
• The word “BBE” and the “BBE symbol” are trademarks of BBE
Sound, Inc.
Under license from BBE Sound, Inc.
• Design and specifications are subject to change without
notice.

– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.

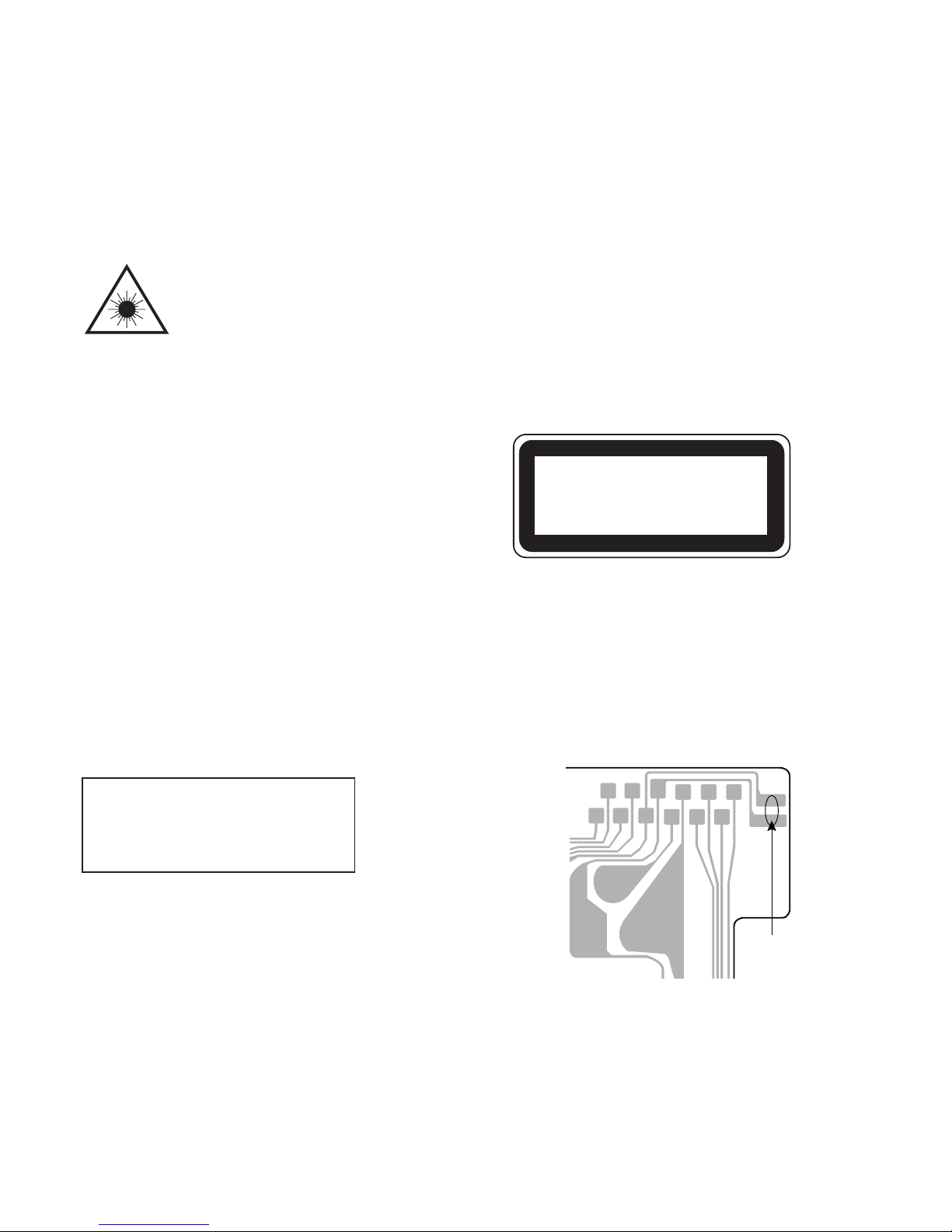

Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy PWB
Solder

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113
*
%
C113
18
15
Short with tweezers.

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-419-040 C-IC,NJM14558MD-TE2
8B-NF4-635-010 C-IC,LC876596W-5T96
87-A21-831-010 IC,SPS-422-1-F1
87-A20-355-010 IC,CXA1553P
87-A20-783-040 C-IC,BA7762AFS
87-A21-021-040 C-IC,BU2099FV
87-070-289-040 IC,BU2092F
87-A21-018-040 C-IC,M65849BFP631D
87-A21-452-130 C-IC,BD3876AKS2
87-A21-051-040 C-IC,BU9990-03FS
87-A21-695-010 IC,LA1845L
87-A21-577-040 C-IC,M61506FP
87-A21-928-010 IC,LC72131D-N
87-A21-269-010 IC,EW732
TRANSISTOR
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-087-080 C-FET,2SK2158
87-A30-455-040 C-TR,DTA144EKA
87-A30-515-080 TR,2SA1979O/Y
87-A30-075-080 C-TR,2SA1235F
87-A30-076-080 C-TR,2SC3052F
87-A30-086-070 C-TR,CSD1306E
89-213-750-010 TR,2SB1375 (25W)
89-110-372-080 C-TR,2SA1037K(R)
87-026-610-080 TR,KTC3198GR
87-A30-495-080 TR,2SA1981Y
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-190-080 TR,CC5551
87-A30-523-010 TR,2SD2562
87-A30-522-010 TR,2SB1649
87-A30-218-080 TR,2SB1237(Q)
87-026-609-080 TR,KTA1266GR
87-A30-447-040 C-TR,DTA114EKA
87-A30-427-040 C-TR,DTC114EKA
87-A30-097-010 TR,FN1016
87-A30-098-010 TR,FP1016
87-A30-276-040 C-TR,DTA143EKA
87-A30-186-010 FET,2SK3053
87-A30-582-080 TR,CDA1585BC
87-A30-318-080 TR,CSA952K
89-327-143-010 C-TR,2SC2714(0)
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-234-080 TR,CSC4115BC
87-026-463-080 TR,2SA933S (0.3W)
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-224-010 DIODE,GBU8DL
87-A40-673-090 DIODE,D10XB20
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
87-A40-784-080 ZENER,UZ39BSB
87-A40-764-080 ZENER,UZ10BSC
87-A40-553-080 DIODE,1N4003 LES
87-A40-488-080 DIODE,1SS244
87-A40-234-080 ZENER,MTZJ5.6A
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-646-010 DIODE,FMB-G16L
87-A40-313-080 C-DIODE,MC2840
87-A40-751-080 ZENER,UZ6.2BSB
87-A40-745-080 ZENER,UZ4.7BSA
87-A40-392-080 DIODE,1N5818-T
87-A40-749-080 ZENER,UZ5.6BSB
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C11 87-A12-317-080 C-CAP,U 0.1-50 Z F
C12 87-A12-317-080 C-CAP,U 0.1-50 Z F
C13 87-A12-317-080 C-CAP,U 0.1-50 Z F
C14 87-A12-317-080 C-CAP,U 0.1-50 Z F
C15 87-A10-122-090 CAP,E 6800-65 VR
C16 87-A10-122-090 CAP,E 6800-65 VR
C19 87-016-035-090 CAP, E 6800-35 VR
C20 87-016-035-090 CAP, E 6800-35 VR
C31 87-A12-062-080 CAP,E 100-10 SMG
C32 87-012-286-080 C-CAP,U 0.01-25 K B
C33 87-A12-071-080 CAP,E 47-25 SMG
C34 87-A12-089-080 CAP,E 3.3-50 SMG
C35 87-012-286-080 C-CAP,U 0.01-25 KB
C36 87-A12-062-080 CAP,E 100-10 SMG
C37 87-A12-072-080 CAP,E 100-25 SMG
C38 87-A12-092-080 CAP,E 22-50 SMG
C39 87-A12-066-080 CAP,E 47-16 SMG
C40 87-A12-074-080 CAP,E 470-25 SMG
C113 87-012-195-080 C-CAP,U 100P-50CH
C114 87-012-195-080 C-CAP,U 100P-50CH
C117 87-A12-317-080 C-CAP,U 0.1-50 Z F
C118 87-A12-317-080 C-CAP,U 0.1-50 Z F
C127 87-A12-317-080 C-CAP,U 0.1-50 Z F
C131 87-A12-087-080 CAP,E 1-50 SMG
C132 87-A12-061-080 CAP,E 47-10 SMG
C133 87-A12-071-080 CAP,E 47-25 SMG
C301 87-012-188-080 C-CAP,U 47P-50 CH
C302 87-012-188-080 C-CAP,U 47P-50 CH
C303 87-012-336-080 C-CAP,U 330P-50 J SL
C304 87-012-336-080 C-CAP,U 330P-50 J SL
C305 87-012-336-080 C-CAP,U 330P-50 J SL
C306 87-012-336-080 C-CAP,U 330P-50 J SL
C307 87-010-759-080 C-CAP,U 0.1-25F
C311 87-010-787-080 CAP, U 0.022-25 K B
C312 87-010-787-080 CAP, U 0.022-25 K B
C313 87-012-276-080 C-CAP,U 1500P-50 B
C314 87-012-276-080 C-CAP,U 1500P-50 B
C315 87-012-274-080 CHIP CAP,U 1000P-50B
C316 87-012-274-080 CHIP CAP,U 1000P-50B
C317 87-A10-706-080 C-CAP,U 0.33U-16 F Z
C318 87-A10-706-080 C-CAP,U 0.33U-16 F Z
C319 87-A10-025-080 C-CAP,U 0.22-16Z F
C320 87-A10-025-080 C-CAP,U 0.22-16Z F
C321 87-A10-025-080 C-CAP,U 0.22-16Z F
C322 87-A10-025-080 C-CAP,U 0.22-16Z F
C324 87-A12-071-080 CAP,E 47-25 SMG
C325 87-A12-057-080 CAP,E 330-6.3 SMG
C327 87-A12-090-080 CAP,E 4.7-50 SMG
C328 87-A12-090-080 CAP,E 4.7-50 SMG
C332 87-010-759-080 C-CAP,U, 0.1-25F
C335 87-A12-087-080 CAP,E 1-50 SMG
C336 87-A12-087-080 CAP,E 1-50 SMG
C337 87-010-759-080 C-CAP,U 0.1-25F
C339 87-010-759-080 C-CAP,U 0.1-25F
C340 87-010-759-080 C-CAP,U 0.1-25F
C351 87-A10-039-080 C-CAP,U 470P-50 J CH
C352 87-A10-039-080 C-CAP,U 470P-50 J CH
C354 87-010-175-080 C-CAP,S 560P-50 J SL
C355 87-012-274-080 CHIP CAP,U 1000P-50B
C356 87-A12-071-080 CAP,E 47-25 SMG
C357 87-012-286-080 CAP, U 0.01-25
C358 87-012-279-080 C-CAP,U 2700P-50 B
C359 87-012-279-080 C-CAP,U 2700P-50 B
C360 87-012-279-080 C-CAP,U 2700P-50 B
C363 87-A12-361-080 CAP,M 5600P-100 J CP
C370 87-010-759-080 C-CAP,U, 0.1-25F
C371 87-012-271-080 C-CAP, U 560P-50
C372 87-012-271-080 C-CAP, U 560P-50
C373 87-012-275-080 C-CAP,U 1200P-50 B

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C374 87-012-275-080 C-CAP,U 1200P-50 B
C375 87-A12-084-080 CAP,E 0.22-50 SMG
C376 87-A12-084-080 CAP,E 0.22-50 SMG
C378 87-010-759-080 C-CAP,U 0.1-25F
C381 87-012-286-080 CAP, U 0.01-25
C382 87-012-188-080 C-CAP,U 47P-50 CH
C383 87-012-286-080 CAP, U 0.01-25
C384 87-A12-088-080 CAP,E 2.2-50 SMG
C385 87-012-280-080 CAP, U 3300P-50
C386 87-010-759-080 C-CAP,U 0.1-25F
C388 87-012-199-080 C-CAP,U 220P-50 J CH
C501 87-A12-062-080 CAP,E 100-10 SMG
C502 87-010-759-080 C-CAP,U 0.1-25F
C503 87-A10-353-080 C-CAP,U 0.22-10KB
C504 87-A10-353-080 C-CAP,U 0.22-10KB
C505 87-A10-025-080 C-CAP,U 0.22-16Z F
C506 87-012-280-080 CAP, U 3300P-50
C507 87-010-986-080 C-CAP,S 820P-25 J CH
C508 87-A12-319-080 C-CAP,U 0.1-25 K B
C509 87-A12-319-080 C-CAP,U 0.1-25 K B
C510 87-012-280-080 CAP, U 3300P-50
C511 87-010-986-080 C-CAP,S 820P-25 J CH
C512 87-A10-025-080 C-CAP,U 0.22-16Z F
C513 87-A12-083-080 CAP,E 0.1-50 SMG
C514 87-A12-061-080 CAP,E 47-10 SMG
C515 87-A12-087-080 CAP,E 1-50 SMG
C516 87-A12-087-080 CAP,E 1-50 SMG
C517 87-012-279-080 C-CAP,U 2700P-50 B
C518 87-012-279-080 C-CAP,U 2700P-50 B
C531 87-A12-091-080 CAP,E 10-50 SMG
C532 87-010-759-080 C-CAP,U 0.1-25F
C533 87-010-759-080 C-CAP,U 0.1-25F
C534 87-012-199-080 C-CAP,U 220P-50 J CH
C535 87-012-274-080 CHIP CAP,U 1000P-50B
C536 87-010-759-080 C-CAP,U 0.1-25F
C537 87-012-188-080 C-CAP,U 47P-50 CH
C538 87-012-188-080 C-CAP,U 47P-50 CH
C539 87-012-188-080 C-CAP,U 47P-50 CH
C541 87-012-274-080 CHIP CAP,U 1000P-50B
C609 87-012-277-080 C-CAP, U 1800P-50 B
C610 87-012-277-080 C-CAP, U 1800P-50 B
C611 87-010-956-080 CHIP-CAP,S 0.068-25B
C612 87-016-369-080 C-CAP,S 0.033-25 B K
C613 87-012-286-080 C-CAP, U 0.01-25
C614 87-012-286-080 C-CAP, U 0.01-25
C615 87-A12-319-080 C-CAP, U 0.1-25 K B
C616 87-A10-260-080 C-CAP, U 0.1-16 K B
C617 87-010-829-080 C-CAP, U 0.047-16
C618 87-A12-087-080 CAP,E 1-50 SMG
C619 87-A12-062-080 CAP,E 100-10 SMG
C620 87-012-277-080 C-CAP, U 1800P-50 B
C622 87-A12-071-080 CAP,E 47-25 SMG
C623 87-A12-087-080 CAP,E 1-50 SMG
C624 87-A12-087-080 CAP,E 1-50 SMG
C626 87-A12-062-080 CAP,E 100-10 SMG
C627 87-A12-086-080 CAP,E 0.47-50 SMG
C628 87-A12-086-080 CAP,E 0.47-50 SMG
C629 87-A10-504-080 C-CAP,U 0.047-16 K B
C630 87-A10-504-080 C-CAP,U 0.047-16 K B
C631 87-012-281-080 C-CAP,U 3900P-50 B
C632 87-012-281-080 C-CAP,U 3900P-50 B
C634 87-010-759-080 C-CAP,U 0.1-25F
C635 87-A12-376-080 CAP,M 0.1-100 J CP
C636 87-A12-376-080 CAP,M 0.1-100 J CP
C637 87-A12-376-080 CAP,M 0.1-100 J CP
C638 87-A12-376-080 CAP,M 0.1-100 J CP
C639 87-A12-091-080 CAP,E 10-50 SMG
C641 87-A12-087-080 CAP,E 1-50 SMG
C642 87-A12-087-080 CAP,E 1-50 SMG
C643 87-010-831-080 C-CAP,U 0.1-16F
C644 87-A12-087-080 CAP,E 1-50 SMG
C645 87-A12-088-080 CAP,E 2.2-50 SMG
C646 87-A12-088-080 CAP,E 2.2-50 SMG
C671 87-012-195-080 C-CAP,U 100P-50CH
C672 87-012-195-080 C-CAP,U 100P-50CH
C673 87-012-286-080 CAP, U 0.01-25
C677 87-010-403-080 CAP, ELECT 3.3-50V
C678 87-010-403-080 CAP, ELECT 3.3-50V
C679 87-010-759-080 C-CAP,U 0.1-25F
C680 87-012-286-080 C-CAP,U 0.01-25
C682 87-010-759-080 C-CAP,U 0.1-25F
C699 87-012-195-080 C-CAP,U 100P-50CH
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C779 87-010-784-080 C-CAP,U 0.012-25 B
C780 87-010-784-080 C-CAP,U 0.012-25 B
C782 87-012-286-080 C-CAP, U 0.01-25
C783 87-012-286-080 C-CAP, U 0.01-25
C784 87-012-286-080 C-CAP, U 0.01-25
C785 87-012-286-080 C-CAP, U 0.01-25
C786 87-012-286-080 C-CAP, U 0.01-25
C788 87-A10-592-080 C-CAP,S 0.015-50 J B
C789 87-A10-592-080 C-CAP,S 0.015-50 J B
C790 87-016-116-080 C-CAP,U 0.015-25 J B CB
C791 87-010-831-080 C-CAP,U 0.1-16F
C792 87-012-286-080 C-CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 C-CAP, U 0.01-25
C796 87-012-286-080 C-CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 C-CAP, U 0.01-25
C799 87-A12-077-080 CAP,E 33-50 SMG
C800 87-010-829-080 C-CAP, U 0.047-16 F
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 C-CAP, U 0.047-16 F
C803 87-010-787-080 C-CAP, U 0.022-25 B
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U 0.1-16F
C811 87-A12-089-080 CAP,E 3.3-50 SMG
C812 87-A12-089-080 CAP,E 3.3-50 SMG
C814 87-012-286-080 C-CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-010-986-080 C-CAP,S 820P-25 J CH
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-A10-504-080 C-CAP,U 0.047-16 K B
C842 87-012-286-080 C-CAP, U 0.01-25 B
C844 87-012-286-080 C-CAP, U 0.01-25 B
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 C-CAP, U 0.01-25 B
C852 87-012-286-080 C-CAP, U 0.01-25 B
C853 87-012-286-080 C-CAP, U 0.01-25 B
C858 87-010-831-080 C-CAP,U 0.1-16F
C901 87-018-145-080 CAP,TC-U 6.8P-50 CH
C904 87-012-286-080 C-CAP, U 0.01-25 B
C905 87-012-286-080 C-CAP, U 0.01-25 B
C907 87-012-286-080 C-CAP, U 0.01-25 B
C908 87-A10-915-080 C-CAP, U 1000P-25 J CH
C909 87-012-286-080 C-CAP, U 0.01-25 B
C910 87-012-174-080 C-CAP, U 12P-50 CH
C911 87-012-170-080 C-CAP, U 8P-50 D CH
C912 87-012-195-080 C-CAP, U 100P-50 J CH
C913 87-012-286-080 C-CAP, U 0.01-25 B
C914 87-012-165-080 CAP 3P
C915 87-012-174-080 C-CAP, U 12P-50 CH
C916 87-012-180-080 C-CAP, U 22P-50 CH

– 8 –
C917 87-012-186-080 C-CAP, U 39P-50 CH
C918 87-A10-039-080 C-CAP, U 470P-50 J CH
C921 87-012-195-080 C-CAP, U 100P-50 CH
C922 87-012-174-080 C-CAP, U 12P-50 CH
C959 87-010-831-080 C-CAP,U 0.1-16F
C960 87-010-831-080 C-CAP,U 0.1-16F
C961 87-012-167-080 C-CAP,U 5P-50 CH
C963 87-015-785-080 C-CAP,0.1-25 Z F C3216
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 C-CAP, U 0.01-25
C974 87-012-286-080 C-CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U 0.1-16F
C983 87-012-286-080 C-CAP, U 0.01-25
C984 87-012-286-080 C-CAP, U 0.01-25
C987 87-012-286-080 C-CAP, U 0.01-25
C991 87-012-176-080 C-CAP,U 15P-50 CH
C992 87-012-176-080 C-CAP,U 15P-50 CH
C993 87-012-274-080 C-CAP,U 1000P-50B
C995 87-012-274-080 C-CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U 0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER,CF SFE10.7MA5-A
CF832 87-008-261-010 FILTER,CF SFE10.7MA5-A
CN11 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN13 87-A61-109-010 CONN,7P V TID-A
CN131 87-A60-619-010 CONN,2P V 2MM JMT
CN132 8A-NHP-643-010 CONN ASSY,2P (FAN)ANHP-390
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CN607 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CNA13 8B-NF4-662-010 CONN ASSY,11P TID-AC
CNA102 8B-NF4-660-010 CONN ASSY,4P TID-A
CNA103 8A-NF8-655-010 CONN,7P V TID-A(250)
D902 87-A40-128-080 C-VARI-CAP,HVA202A
D903 87-A40-128-080 C-VARI-CAP,HVA202A
FB501 87-008-372-080 FILTER, EMI BL 01 RN1
FC602 88-906-481-110 FF-CABLE,6P 1.25 480MM
J101 87-A61-481-010 JACK,DIA6.3 BLK ST W/SW MSC16B
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)
J105 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J106 87-A61-157-010 JACK,PIN 2P R/W/BL V(SEPA) KM
J601 87-A60-885-010 JACK,PIN 6P R/W MSC
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
L301 87-A50-625-010 COIL,TRAP 85KHZ (SANWA)
L302 87-A50-625-010 COIL,TRAP 85KHZ (SANWA)
L351 87-007-342-010 COIL,OSC 85KHZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L821 87-A50-027-010 COIL,1POLE MPX(TOK)
L822 87-A50-027-010 COIL,1POLE MPX(TOK)
L832 87-005-847-080 COIL,2.2UH(CECS)
L902 88-ZA1-602-110 COIL,FM-RF-U2 2G
L903 88-ZA1-601-010 COIL,FM-RF-U1 2G
L904 87-005-847-080 COIL,2.2UH(CECS)
L905 88-ZA1-624-010 COIL,FM IFT 7-6.2(COILS)
L906 88-ZA1-603-010 COIL,FM-OSC-U 2G
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R101 87-A01-002-050 RES,270-1/2W J BLT2J
R102 87-A01-002-050 RES,270-1/2W J BLT2J
R103 87-A01-002-050 RES,270-1/2W J BLT2J
R104 87-A01-002-050 RES,270-1/2W J BLT2J
R790 87-012-286-080 C-CAP, U 0.01-25 B
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR301 87-024-355-080 SFR,33K H EVN DJAA03
SFR302 87-024-355-080 SFR,33K H EVN DJAA03
SFR303 87-024-355-080 SFR,33K H EVN DJAA03
SFR304 87-024-355-080 SFR,33K H EVN DJAA03
SFR305 87-024-436-080 SFR,47K H RH063MC
SFR306 87-024-436-080 SFR,47K H RH063MC
SFR351 87-024-436-080 SFR,47K H RH063MC
SFR352 87-024-436-080 SFR,47K H RH063MC
WH11 87-A91-179-010 HLDR,WIRE 2.5-11P
WH101 87-A90-507-010 HLDR,WIRE 2.5-4P
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST
FRONT C.B
C106 87-012-335-080 C-CAP,U 270P-50 SL
C110 87-012-286-080 C-CAP,U 0.01-25 K B
C112 87-015-696-040 CAP,E 2.2-50 M 7L SRA
C113 87-015-696-040 CAP,E 2.2-50 M 7L SRA
C121 87-010-757-080 C.CAP,U 0.047-25F
C122 87-010-757-080 C.CAP,U 0.047-25F
C141 87-012-274-080 C-CAP,U 1000P-50B
C142 87-012-199-080 C-CAP,U 220P-50 J CH
C151 87-012-274-080 CHIP CAP,U 1000P-50B
C152 87-012-199-080 C-CAP,U 220P-50 J CH
C156 87-010-405-040 CAP,E 10-50 SME
C157 87-012-268-080 C-CAP,U 330P-50 B
C161 87-015-694-040 CAP,E 0.47-50
C162 87-010-785-080 C-CAP,U 0.015-25 K B
C163 87-010-787-080 C-CAP,U 0.022-25
C170 87-010-759-080 C-CAP,U, 0.1-25F
C171 87-012-278-080 C-CAP,U 2200P-50 B
C172 87-010-264-040 CAP,E 100-10
C175 87-010-248-040 CAP,E 220-10 SME
C176 87-010-759-080 C-CAP,U 0.1-25F
C177 87-010-759-080 C-CAP,U 0.1-25F
C178 87-010-759-080 C-CAP,U 0.1-25F
C181 87-010-759-080 C-CAP,U 0.1-25F
C182 87-010-759-080 C-CAP,U 0.1-25F
C184 87-010-757-080 C.CAP,U 0.047-25F
C191 87-012-195-080 C-CAP,U 100P-50CH
C192 87-012-178-080 C-CAP,U 18P-50 CH
C193 87-A11-155-080 CAP,TC U 0.01-16 Z F
C340 87-010-176-080 C-CAP,S 680P-50 SL
C341 87-010-176-080 C-CAP,S 680P-50 SL
C342 87-010-176-080 C-CAP,S 680P-50 SL
C343 87-010-176-080 C-CAP,S 680P-50 SL
C344 87-010-176-080 C-CAP,S 680P-50 SL
C345 87-010-176-080 C-CAP,S 680P-50 SL
C346 87-010-176-080 C-CAP,S 680P-50 SL
C347 87-010-176-080 C-CAP,S 680P-50 SL
C348 87-010-176-080 C-CAP,S 680P-50 SL
C349 87-010-176-080 C-CAP,S 680P-50 SL
C350 87-010-176-080 C-CAP,S 680P-50 SL
C351 87-010-176-080 C-CAP,S 680P-50 SL
C352 87-010-176-080 C-CAP,S 680P-50 SL
C360 87-012-274-080 C-CAP,U 1000P-50B
C361 87-010-757-080 C.CAP,U 0.047-25F
C362 87-010-408-040 CAP,E 47-50 SME
C363 87-010-405-040 CAP,E 10-50 SME
C364 87-010-405-040 CAP,E 10-50 SME
C401 87-010-759-080 C-CAP,U 0.1-25F
C402 87-012-195-080 C-CAP,U 100P-50CH
C411 87-010-759-080 C-CAP,U 0.1-25F
C412 87-012-195-080 C-CAP,U 100P-50CH
C602 87-012-282-080 CAP, U 4700P-50
C603 87-010-112-040 CAP,E 100-16
C604 87-010-405-040 CAP,E 10-50
C605 87-010-546-040 CAP,E 0.33-50
C606 87-012-191-080 C-CAP,U 68P-50 J CH
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 9 –
C608 87-012-268-080 C-CAP,U 330P-50 B
C610 87-010-759-080 C-CAP,U 0.1-25F
C621 87-012-274-080 C-CAP,U 1000P-50B
C801 87-010-986-080 C-CAP,S 820P-50 J CH
C802 87-012-272-080 C-CAP,U 680P-50 K B
C804 87-010-785-080 C-CAP,U 0.015-25 K B
C806 87-010-401-040 CAP,E 1-50 SME
C807 87-012-286-080 C-CAP,U 0.01-25 KB
C809 87-012-198-080 C-CAP,U 180P-50 J CH
C810 87-010-264-040 CAP,E 100-10
C811 87-010-406-040 CAP,E 22-50 SME
C812 87-010-405-040 CAP,E 10-50
C821 87-010-759-080 C-CAP,U 0.1-25 Z F
C833 87-012-195-080 C-CAP,U 100P-50CH
C901 87-010-544-040 CAP,E 0.1-50 SME
C901 87-010-544-040 CAP,E 0.1-50 SME
C902 87-A10-025-080 C-CAP,U 0.22-16Z F
C903 87-A10-025-080 C-CAP,U 0.22-16Z F
C904 87-012-188-080 C-CAP,U 47P-50 CH
C905 87-010-759-080 C-CAP,U 0.1-25F
C906 87-010-759-080 C-CAP,U 0.1-25F
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN102 87-A60-058-010 CONN,10P V 9604S-10C
CN420 87-099-667-010 CONN,8P TUC-P8P-B1
CN430 87-099-565-010 CONN,6P TUC-P6P-B1
CN502 87-A60-059-010 CONN,08P V 9604S-08C
CN701 87-099-750-010 CONN,15P V 9604SC
FC102 88-910-471-110 FF-CABLE,10P 1.25
FC502 88-908-381-110 FF-CABLE,8P 1.25
FC701 88-915-221-110 FF-CABLE,15P 1.25 220MM
FL101 8B-NF4-615-010 FL,HNA-13LM01-BNF4
J601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
J602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
L191 87-A50-333-010 COIL,OSC 9.43MHZ
L601 87-003-098-080 COIL,2.2UH
L801 87-A50-093-010 COIL,CLOCK OSC 5.76MHZ
L802 87-003-098-080 COIL,2.2UH K LAL02
LED401 87-A41-056-040 LED,HLMF-D405 ORANGE
LED402 87-A41-056-040 LED,HLMF-D405 ORANGE
LED403 87-A41-056-040 LED,HLMF-D405 ORANGE
LED404 87-A41-056-040 LED,HLMF-D405 ORANGE
LED405 87-A41-056-040 LED,HLMF-D405 ORANGE
LED406 87-A41-056-040 LED,HLMF-D405 ORANGE
LED407 87-A41-056-040 LED,HLMF-D405 ORANGE
LED408 87-A41-056-040 LED,HLMF-D405 ORANGE
LED411 87-A41-056-040 LED,HLMF-D405 ORANGE
LED412 87-A41-056-040 LED,HLMF-D405 ORANGE
LED413 87-A41-056-040 LED,HLMF-D405 ORANGE
LED414 87-A41-056-040 LED,HLMF-D405 ORANGE
LED415 87-A41-056-040 LED,HLMF-D405 ORANGE
LED416 87-A41-056-040 LED,HLMF-D405 ORANGE
LED417 87-A41-056-040 LED,HLMF-D405 ORANGE
LED418 87-A41-056-040 LED,HLMF-D405 ORANGE
LED441 87-A41-056-040 LED,HLMF-D405 ORANGE
LED442 87-A41-056-040 LED,HLMF-D405 ORANGE
S211 87-A90-095-080 SW,TACT EVQ11G04M
S212 87-A90-095-080 SW,TACT EVQ11G04M
S213 87-A90-095-080 SW,TACT EVQ11G04M
S214 87-A90-095-080 SW,TACT EVQ11G04M
S215 87-A90-095-080 SW,TACT EVQ11G04M
S216 87-A90-095-080 SW,TACT EVQ11G04M
S217 87-A90-095-080 SW,TACT EVQ11G04M
S218 87-A90-095-080 SW,TACT EVQ11G04M
S219 87-A90-095-080 SW,TACT EVQ11G04M
S220 87-A90-095-080 SW,TACT EVQ11G04M
S221 87-A90-095-080 SW,TACT EVQ11G04M
S222 87-A90-095-080 SW,TACT EVQ11G04M
S223 87-A90-095-080 SW,TACT EVQ11G04M
S224 87-A90-095-080 SW,TACT EVQ11G04M
S225 87-A90-095-080 SW,TACT EVQ11G04M
S226 87-A90-095-080 SW,TACT EVQ11G04M
S227 87-A90-095-080 SW,TACT EVQ11G04M
S228 87-A90-095-080 SW,TACT EVQ11G04M
S229 87-A90-095-080 SW,TACT EVQ11G04M
S230 87-A90-095-080 SW,TACT EVQ11G04M
S231 87-A90-095-080 SW,TACT EVQ11G04M
S232 87-A90-095-080 SW,TACT EVQ11G04M
S233 87-A90-095-080 SW,TACT EVQ11G04M
S234 87-A90-095-080 SW,TACT EVQ11G04M
S235 87-A90-095-080 SW,TACT EVQ11G04M
S236 87-A90-095-080 SW,TACT EVQ11G04M
S237 87-A90-095-080 SW,TACT EVQ11G04M
S238 87-A90-095-080 SW,TACT EVQ11G04M
S239 87-A90-095-080 SW,TACT EVQ11G04M
S241 87-A90-095-080 SW,TACT EVQ11G04M
S242 87-A90-095-080 SW,TACT EVQ11G04M
S243 87-A90-095-080 SW,TACT EVQ11G04M
S244 87-A90-095-080 SW,TACT EVQ11G04M
S245 87-A90-095-080 SW,TACT EVQ11G04M
S246 87-A90-095-080 SW,TACT EVQ11G04M
S247 87-A90-095-080 SW,TACT EVQ11G04M
S248 87-A90-095-080 SW,TACT EVQ11G04M
S249 87-A90-095-080 SW,TACT EVQ11G04M
S250 87-A90-095-080 SW,TACT EVQ11G04M
S251 87-A90-095-080 SW,TACT EVQ11G04M
S252 87-A90-095-080 SW,TACT EVQ11G04M
S257 87-A90-095-080 SW,TACT EVQ11G04M
S258 87-A90-095-080 SW,TACT EVQ11G04M
SW141 87-A92-073-010 SW,RTRY EC12E24204-30MM
SW151 87-A92-074-010 SW,RTRY EC12E12204-30MM
AMP 1F C.B
C1 87-A10-712-080 C-CAP, S 0.22-50 Z F
C2 87-A10-712-080 C-CAP, S 0.22-50 Z F
C3 87-A10-712-080 C-CAP, S 0.22-50 Z F
C4 87-A10-712-080 C-CAP, S 0.22-50 Z F
C5 87-A11-729-080 C-CAP, S 0.47-25 Z F
C6 87-A11-729-080 C-CAP, S 0.47-25 Z F
C7 87-A11-729-080 C-CAP, S 0.47-25 Z F
C8 87-A11-729-080 C-CAP, S 0.47-25 Z F
C11 87-010-190-080 C-CAP, S 0.01-50 Z F
C12 87-010-759-080 C-CAP,U 0.1-25 Z F
C13 87-010-759-080 C-CAP,U 0.1-25 Z F
C14 87-010-190-080 C-CAP,S 0.01-25 Z F
C15 87-010-759-080 C-CAP,U 0.1-25 Z F
C16 87-010-759-080 C-CAP,U 0.1-25 Z F
C20 87-A12-068-080 CAP,E 470-16 SMG
C21 87-A12-089-080 CAP,E 3.3-50 SMG
C22 87-A10-301-080 CAP,M 0.033-50 J
C23 87-A12-085-080 CAP,E 0.33-50 SMG
C24 87-A12-086-080 CAP,E 0.47-50 SMG
C25 87-A12-086-080 CAP,E 0.47-50 SMG
C28 87-A12-085-080 CAP,E 0.33-50 SMG
C29 87-A10-301-080 CAP,M 0.033-50 J
C30 87-A12-069-080 CAP,E 22-25 SMG
C99 87-A12-089-080 CAP,E 3.3-50 SMG
C100 87-A12-089-080 CAP,E 3.3-50 SMG
C101 87-012-279-080 C-CAP,U 2700P-50 B
C102 87-012-279-080 C-CAP,U 2700P-50 B
C103 87-A10-303-080 CAP,M 0.047-50 J
C104 87-A10-303-080 CAP,M 0.047-50 J
C105 87-012-282-080 CAP, U 4700P-50
C106 87-012-282-080 CAP, U 4700P-50
C107 87-A12-090-080 CAP,E 4.7-50 SMG
C108 87-A12-090-080 CAP,E 4.7-50 SMG
C109 87-012-195-080 C-CAP,U 100P-50CH
C110 87-012-195-080 C-CAP,U 100P-50CH
C111 87-A12-071-080 CAP,E 47-25 SMG
C112 87-A12-071-080 CAP,E 47-25 SMG
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 10 –
C113 87-012-167-080 C-CAP,U 5P-50 C CH
C114 87-012-167-080 C-CAP,U 5P-50 C CH
C115 87-010-986-080 C-CAP,S 820P-50 J CH
C116 87-010-986-080 C-CAP,S 820P-50 J CH
C117 87-A12-317-080 C-CAP,U 0.1-50 Z F
C118 87-A12-317-080 C-CAP,U 0.1-50 Z F
C119 87-010-956-080 C-CAP,S 0.068-25 K B
C120 87-010-956-080 C-CAP,S 0.068-25 K B
C121 87-A10-596-080 C-CAP,S 100P-100 J CH
C122 87-A10-596-080 C-CAP,S 100P-100 J CH
C123 87-A10-596-080 C-CAP,S 100P-100 J CH
C124 87-A10-596-080 C-CAP,S 100P-100 J CH
C161 87-A12-317-080 C-CAP,U 0.1-50 Z F
C200 87-A12-089-080 CAP,E 3.3-50 SMG
C201 87-012-279-080 C-CAP,U 2700P-50 B
C202 87-012-279-080 C-CAP,U 2700P-50 B
C203 87-A10-303-080 CAP,M 0.047-50 J
C204 87-A10-303-080 CAP,M 0.047-50 J
C205 87-012-282-080 CAP, U 4700P-50
C206 87-012-282-080 CAP, U 4700P-50
C207 87-A12-090-080 CAP,E 4.7-50 SMG
C208 87-A12-090-080 CAP,E 4.7-50 SMG
C209 87-012-195-080 C-CAP,U 100P-50CH
C210 87-012-195-080 C-CAP,U 100P-50CH
C211 87-A12-071-080 CAP,E 47-25 SMG
C212 87-A12-071-080 CAP,E 47-25 SMG
C213 87-012-167-080 C-CAP,U 5P-50CH
C214 87-012-167-080 C-CAP,U 5P-50CH
C215 87-010-986-080 C-CAP,S 820P-50 J CH
C216 87-010-986-080 C-CAP,S 820P-50 J CH
C217 87-A12-317-080 C-CAP,U 0.1-50 Z F
C218 87-A12-317-080 C-CAP,U 0.1-50 Z F
C219 87-010-956-080 C-CAP,S 0.068-25 K B
C220 87-010-956-080 C-CAP,S 0.068-25 K B
C221 87-A10-596-080 C-CAP,S 100P-100 J CH
C222 87-A10-596-080 C-CAP,S 100P-100 J CH
C223 87-A10-596-080 C-CAP,S 100P-100 J CH
C224 87-A10-596-080 C-CAP,S 100P-100 J CH
C300 87-A12-092-080 CAP,E 22-50 SMG
C301 87-012-282-080 C-CAP,U 4700P-50 K B
C302 87-012-282-080 C-CAP,U 4700P-50 K B
C303 87-010-866-080 CAP, ELECT 10-63
C304 87-010-866-080 CAP, ELECT 10-63
C305 87-010-759-080 C-CAP,U 0.1-25F
C307 87-A10-812-080 C-CAP,S 220P-200 J CH
C308 87-A10-812-080 C-CAP,S 220P-200 J CH
C407 87-A10-812-080 C-CAP,S 220P-200 J CH
C408 87-A10-812-080 C-CAP,S 220P-200 J CH
C517 87-010-190-080 C-CAP,S 0.01-50 Z F
C518 87-010-759-080 C-CAP,U 0.1-25 Z F
C519 87-010-759-080 C-CAP,U 0.1-25F
C522 87-010-190-080 C-CAP,S 0.01-50 Z F
C523 87-010-759-080 C-CAP,U 0.1-25F
C524 87-010-759-080 C-CAP,U 0.1-25F
CN12 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN104 87-A61-108-010 CONN,5P V TID-A
L11 87-A50-610-010 COIL,1UH K(MDEC)
L12 87-A50-610-010 COIL,1UH K(MDEC)
L513 87-A50-610-010 COIL,1UH K(MDEC)
L514 87-A50-610-010 COIL,1UH K(MDEC)
R157 87-A00-669-080 RES,M/F 0.22-2W J RA
R158 87-A00-669-080 RES,M/F 0.22-2W J RA
R159 87-A00-669-080 RES,M/F 0.22-2W J RA
R160 87-A00-669-080 RES,M/F 0.22-2W J RA
R161 87-A00-669-080 RES,M/F 0.22-2W J RA
R162 87-A00-669-080 RES,M/F 0.22-2W J RA
R163 87-A00-669-080 RES,M/F 0.22-2W J RA
R164 87-A00-669-080 RES,M/F 0.22-2W J RA
R257 87-A00-669-080 RES,M/F 0.22-2W J RA
R258 87-A00-669-080 RES,M/F 0.22-2W J RA
R259 87-A00-669-080 RES,M/F 0.22-2W J RA
R260 87-A00-669-080 RES,M/F 0.22-2W J RA
R261 87-A00-669-080 RES,M/F 0.22-2W J RA
R262 87-A00-669-080 RES,M/F 0.22-2W J RA
R263 87-A00-669-080 RES,M/F 0.22-2W J RA
R264 87-A00-669-080 RES,M/F 0.22-2W J RA
RY102 87-A91-686-010 RELAY, G5PA-28(OMRON)
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
TH201 87-A91-042-080 C-THMS,100K 55001
TH202 87-A91-042-080 C-THMS,100K 55001
PT C.B
CN101 87-A61-122-010 CONN,11P V TID-A
F101 87-035-459-010 FUSE,5A 250V
F102 87-035-459-010 FUSE,5A 250V
FC101 87-033-147-010 CLAMP, FUSE
FC102 87-033-147-010 CLAMP, FUSE
FC103 87-033-147-010 CLAMP, FUSE
FC104 87-033-147-010 CLAMP, FUSE
PR102 87-026-682-080 PROTECTOR,10A 60V491
PR103 87-026-682-080 PROTECTOR,10A 60V491
PR106 87-026-682-080 PROTECTOR,10A 60V491
PR108 87-026-682-080 PROTECTOR,10A 60V491
PT101 8B-NF4-601-010 PT,LH ET105-60 BNF-4
PT103 8B-MA6-673-010 PT,SUB BMA H (VRK)
RY102 87-A91-300-010 RELAY,AC 12V-ALA2PF12
SW101 87-A90-165-010 SW,SL 1-2-3 SWS2301
T101 87-A60-317-010 TERMINAL, 1P MSC
T102 87-A60-317-010 TERMINAL, 1P MSC
WH12 87-A90-459-010 HLDR,WIRE 2.5-5P
VM C.B
CN1 87-099-043-010 CONN 2P EH
CN2 87-A60-619-010 CONN,2P V 2MM JMT
CN3 87-A60-619-010 CONN,2P V 2MM JMT
CN6 87-A61-108-010 CONN,5P V TID-A
CNA12 8B-NF4-661-010 CONN ASSY,5P TID-A
WH13 87-A90-460-010 HLDR,WIRE 2.5-7P
CD KEY C.B
CN501 87-A60-079-010 CONN,08P H 9604S-08F
LED501 87-A41-055-040 LED,HLMF-K405 ORANGE
LED502 87-A41-055-040 LED,HLMF-K405 ORANGE
LED503 87-A41-055-040 LED,HLMF-K405 ORANGE
LED504 87-A41-055-040 LED,HLMF-K405 ORANGE
LED505 87-A41-055-040 LED,HLMF-K405 ORANGE
LED506 87-A41-055-040 LED,HLMF-K405 ORANGE
LED507 87-A41-055-040 LED,HLMF-K405 ORANGE
LED508 87-A41-055-040 LED,HLMF-K405 ORANGE
LED509 87-A41-055-040 LED,HLMF-K405 ORANGE
LED510 87-A41-055-040 LED,HLMF-K405 ORANGE
S501 87-A90-095-080 SW,TACT EVQ11G04M
S502 87-A90-095-080 SW,TACT EVQ11G04M
S503 87-A90-095-080 SW,TACT EVQ11G04M
S504 87-A90-095-080 SW,TACT EVQ11G04M
S505 87-A90-095-080 SW,TACT EVQ11G04M
S506 87-A90-095-080 SW,TACT EVQ11G04M
S507 87-A90-095-080 SW,TACT EVQ11G04M
DECK LED C.B
CN421 87-099-669-010 CONN,8P TUC-P8X-B1
LED181 87-A40-317-080 LED,SLR-342VCT31 RED
LED182 87-A40-317-080 LED,SLR-342VCT31 RED
LED421 87-A41-055-040 LED,HLMF-K405 ORANGE
LED422 87-A41-055-040 LED,HLMF-K405 ORANGE
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

–11 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
LED423 87-A41-055-040 LED,HLMF-K405 ORANGE
LED424 87-A41-055-040 LED,HLMF-K405 ORANGE
LED425 87-A41-055-040 LED,HLMF-K405 ORANGE
LED426 87-A41-055-040 LED,HLMF-K405 ORANGE
LED427 87-A41-055-040 LED,HLMF-K405 ORANGE
LED428 87-A41-055-040 LED,HLMF-K405 ORANGE
LED429 87-A41-055-040 LED,HLMF-K405 ORANGE
LED430 87-A41-055-040 LED,HLMF-K405 ORANGE
FUNC LED C.B
CN431 87-099-554-010 CONN,6P H TUC-P6X-B1
LED431 87-A41-055-040 LED,HLMF-K405 ORANGE
LED432 87-A41-055-040 LED,HLMF-K405 ORANGE
LED433 87-A41-055-040 LED,HLMF-K405 ORANGE
LED434 87-A41-055-040 LED,HLMF-K405 ORANGE
LED435 87-A41-055-040 LED,HLMF-K405 ORANGE
LED436 87-A41-055-040 LED,HLMF-K405 ORANGE
LED437 87-A41-055-040 LED,HLMF-K405 ORANGE
LED438 87-A41-055-040 LED,HLMF-K405 ORANGE
LED439 87-A41-055-040 LED,HLMF-K405 ORANGE
LED440 87-A41-055-040 LED,HLMF-K405 ORANGE
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
DECK C.B
CON502 87-099-756-010 CONN,15P H 9604S F
SFR1 87-024-581-010 SFR,3.3K DIA6V KOA
SOL1 82-ZM3-621-110 SOL ASSY 27 KO
SOL2 82-ZM3-621-110 SOL ASSY 27 KO
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 PUSH SWITCH
SW5 87-036-110-010 PUSH SWITCH
SW6 87-036-110-010 PUSH SWITCH
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
HEAD-1 C.B
CON301 87-NF6-615-010 CONN ASSY,3P PB
HEAD-2 C.B
CON351 87-NF6-616-010 CONN ASSY,8P RPB

–12 –
TRANSISTOR ILLUSTRATION
2SK2158
E C B
CDA1585BC
CSA952K
CSC4115BC
KTA1266GR
KTC3198GR
E C B
CC5551
2SA1981Y
2SA1979O/Y
B C E
2SB1370
2SB1375
2SB1649
2SD2562
FN1016
FP1016
2SA1235F
2SC2714O
2SC3052F
CMBT5401
CMBT5551
CSD1306E
DTA114EKA
DTA144EKA
DTA143EKA
DTC114EKA
KRA107S
B
C
E
E C B
2SB1237Q
G D S
2SK3053
G
D
S
D
S
G
2SK360E
E
C
B
2SA1037K(R)
E C B
2SA933S

 13 

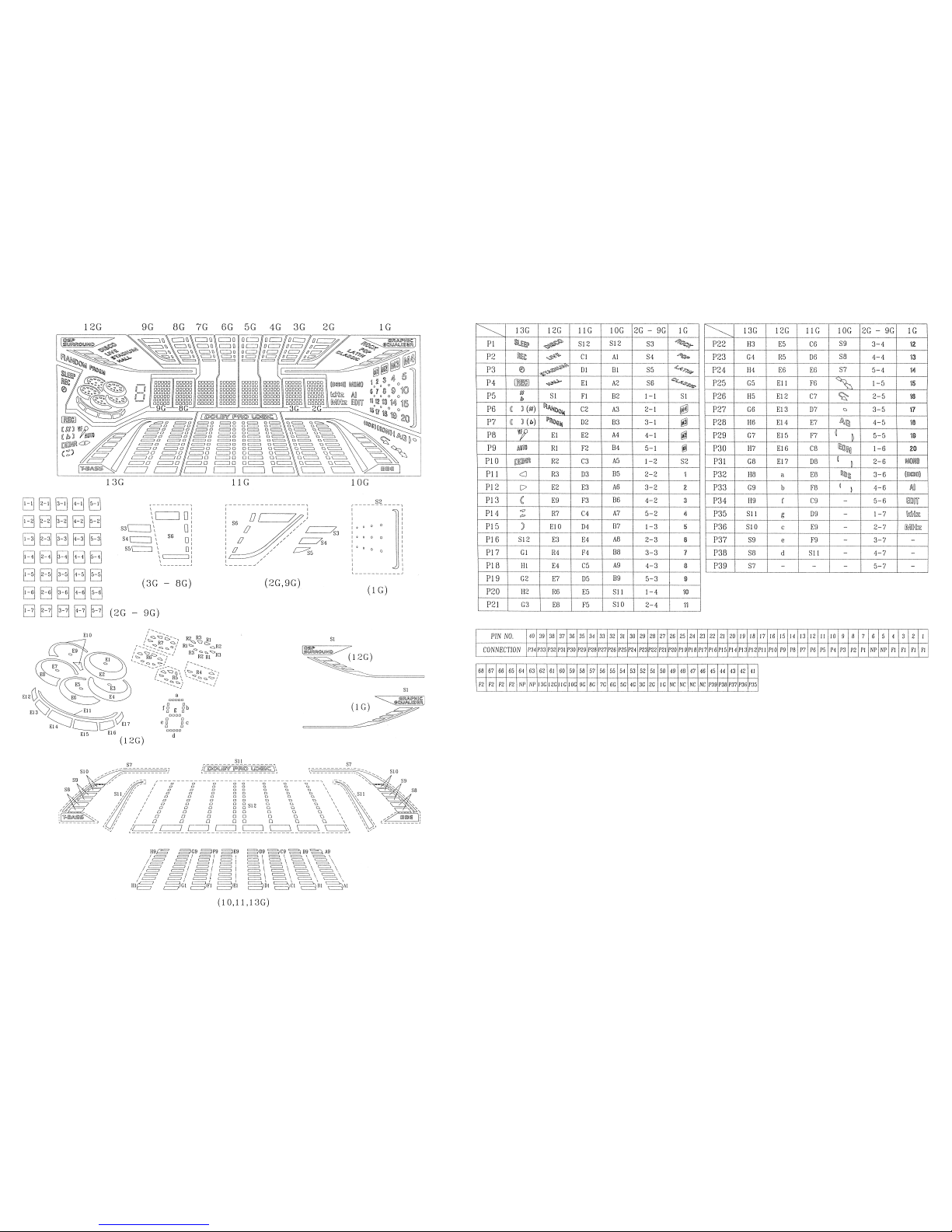

FL (HNA-13LM01-BNF4) GRID ASSIGNMENT / ANODE CONNECTION / PIN CONNECTION
GRID ASSIGNMENT ANODE CONNECTION
PIN CONNECTION

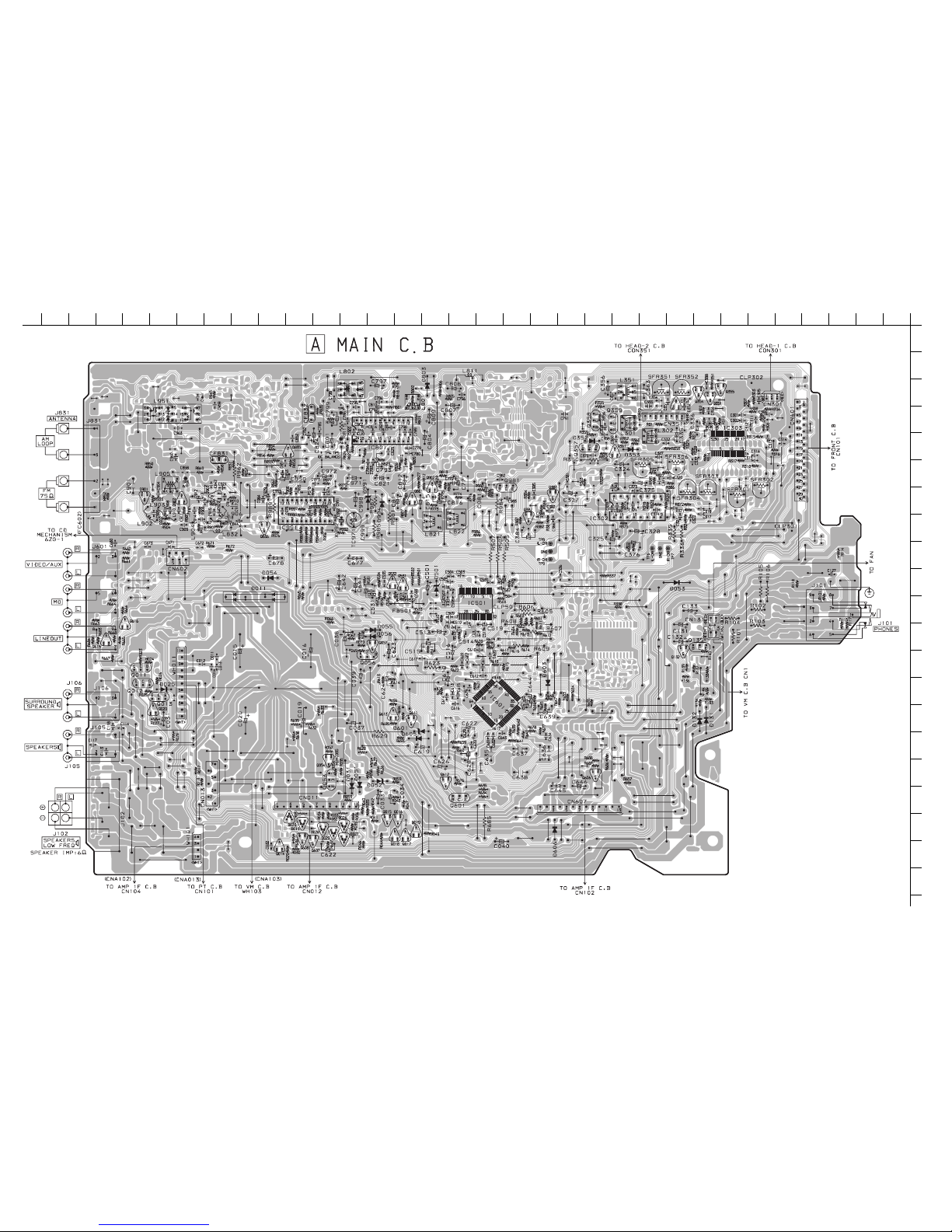

WIRING  1 (MAIN)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 14 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 15 –

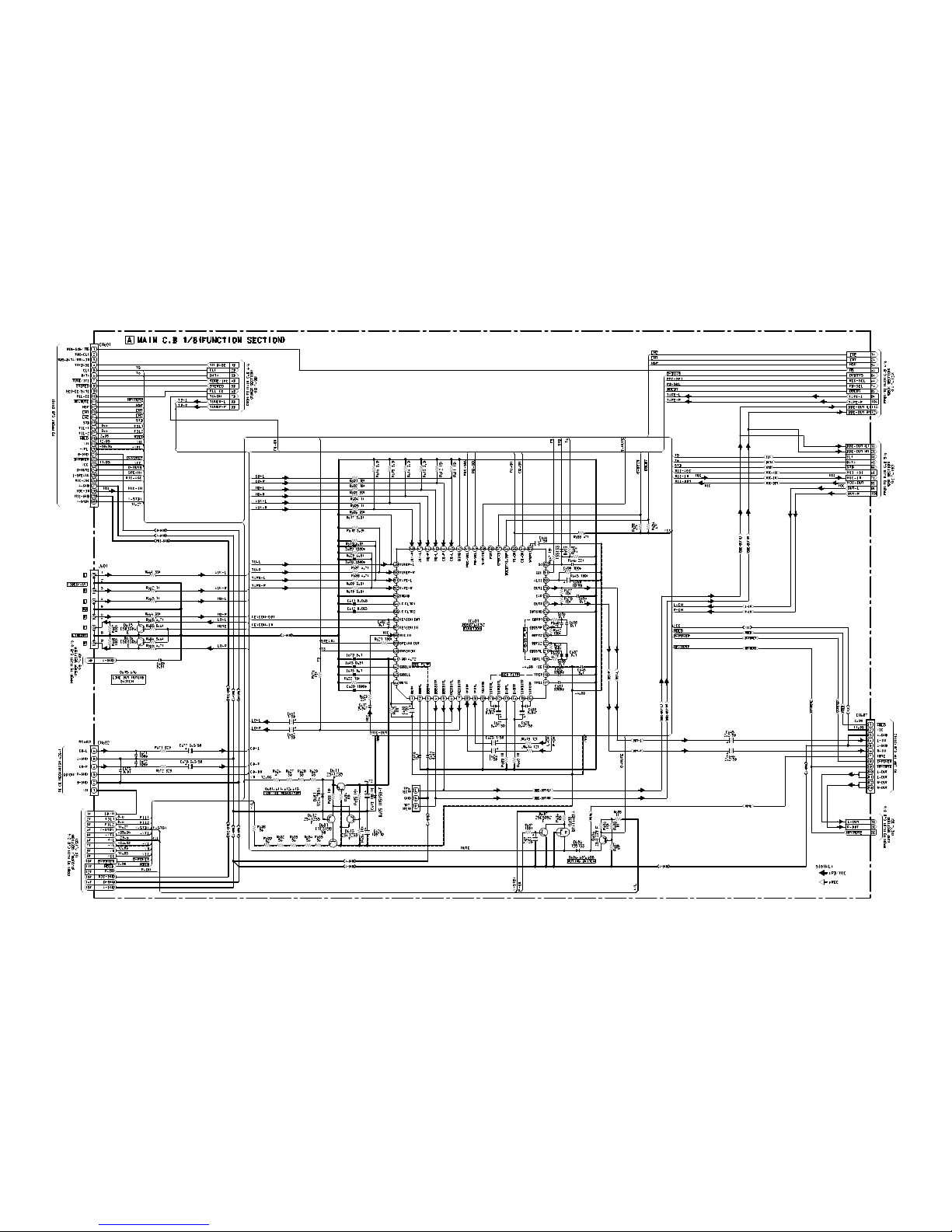

SCHEMATIC DIAGRAM – 1 (MAIN 1/6) <FUNCTION SECTION>

– 16 –
SCHEMATIC DIAGRAM – 2 (MAIN 2/6) <P-SUPPLY SECTION>

– 17 –
SCHEMATIC DIAGRAM – 3 (MAIN 3/6) <AMP SECTION>

– 18 –
SCHEMATIC DIAGRAM – 4 (MAIN 4/6) <DECK SECTION / HEAD-1 / HEAD-2>

– 19 –
SCHEMATIC DIAGRAM – 5 (MAIN 5/6) <DSP SECTION>

– 20 –
SCHEMATIC DIAGRAM – 6 (MAIN 6/6) <TUNER SECTION>
