SERVICE MANUAL
DATA
STEREO AV RECEIVER
AV-D57 HT
S/M Code No. 09-00B-427-9N1

– 2 –
FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
AM tuner section
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
Amplifier section
Power output [Stereo Mode]
Front
Rated: 120 W + 120 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 155 W + 155 W
(8 ohms, T.H.D. 10 %, 1 kHz)
[Dolby Pro Logic or 5.1 CH Mode]
Front
Rated: 90 W + 90 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 100 W + 100 W
(8 ohms, T.H.D. 10 %, 1 kHz)
Rear (Surround)
Rated: 90 W + 90 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 100 W + 100 W
(8 ohms, T.H.D. 10 %, 1 kHz)
Center
Rated: 90 W
(8 ohms, T.H.D. 1 %, 1 kHz)
Reference: 100 W
(8 ohms, T.H.D. 10 %, 1 kHz)
Total harmonic distortion 0.08 % (45 W, 1 kHz, 8 ohms, Front)
Inputs AUDIO IN
PHONO: 2.5 mV,
adjustable (47 kohms)
CD, VIDEO 1/DVD/MD, VIDEO 2/
LD/TV, VIDEO 3: 300 mV,
adjustable (47 kohms)
TAPE MONITOR: 350 mV (47 kohms)
AUX: 250 mV, adjustable (47 kohms)
5.1 INPUT
FRONT, CENTER: 300 mV,
adjustable (47 kohms)
SURROUND: 300mV,
adjustable (47 kohms)
SUB-WOOFER: 300 mV,
adjustable (47 kohms)
VIDEO IN: 1 Vp-p (75 ohms)
SPECIFICATIONS
Outputs AUDIO OUT (REC OUT): 200 mV
(1 kohm)
VIDEO OUT (MONITOR): 1 Vp-p
(75 ohms)
SUB WOOFER: 1.2 V
FRONT SPEAKERS IMP: 8 ohms
(front speakers A and B ): accepts
speakers of 8 ohms or more
SURROUND SPEAKERS IMP: 8 ohms
(surround speakers): accepts
speakers of 8 ohms or more
CENTER SPEAKER IMP: 8 ohms
accepts speaker of 8 ohms or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
Muting -20 dB
General
Power requirements 120/220-230/240 V AC, switchable
50/60 Hz
Power consumption 230 W
Power consumption in ECO OFF: 36 W
standby mode ECO ON: 1.2 W
Dimensions 430 x 155 x 402 mm
(W xH xD)
Weight 11.3 kg
ACCESSORIES / PACKAGE LIST
1 8A-AR3-911-010 IB,H(EC-H)M
2 87-006-225-010 ANT,LOOP ANT NC2
3 87-043-115-010 FEEDER-ANT,FM
4 8A-AR3-704-010 RC UNIT,RC-AAR03
5 87-A91-017-010 PLUG,CONVERSION JT-0476
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
• Design and specifications are subject to change without notice.
• Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
!

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-419-040 C-IC,NJM14558MD-TE2
87-017-022-080 C-IC,NJM2068M D(T1)
87-020-784-080 C-IC,TC4053BF
87-A20-056-010 IC,BA3880S
87-017-726-080 C-IC,BU4052BCF
87-A21-202-040 C-IC,M62445AFP
87-A21-481-040 C-IC,HD74HC4051FP
8A-AR4-601-210 C-IC,UPD780228GF-076-3BA
87-070-083-010 IC,GP1U281X
87-A20-820-010 IC,BA7625
87-017-917-080 C-IC,BU4066BCF
87-A20-913-010 IC,LA1837NL
87-070-127-110 IC,LC72131D
87-A20-437-010 C-IC,M62431FP
87-A20-561-040 C-IC,M65847AFP
87-A21-844-040 C-IC,KIA4558F
87-070-417-010 IC,NJM4558DD
87-A21-097-040 C-IC,M62463AFP
87-A21-015-040 C-IC,M62491FP
TRANSISTOR
87-A30-197-080 TR,KTA1267GR
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
89-110-372-080 C-TR,2SA1037K(R)
87-A30-071-080 C-TR,RT1N 144C
89-213-702-010 TR,2SB1370E
87-A30-083-080 TR,CSD1489B
87-A30-075-080 C-TR,2SA1235F
87-A30-076-080 C-TR,2SC3052F
87-A30-074-080 C-TR,RT1P 141C
87-026-610-080 TR,KTC3198GR
87-A30-086-070 C-TR,CSD1306E
87-026-609-080 TR,KTA1266GR
87-A30-257-080 C-TR,2SD1306E
87-A30-107-070 C-TR,CMBT5401
87-A30-190-080 TR,CC5551
87-A30-097-010 TR,FN1016
87-A30-098-010 TR,FP1016
87-A30-106-070 C-TR,CMBT5551
87-A30-186-010 FET,2SK3053
87-A30-072-080 C-TR,RT1P 144C
87-026-232-080 C-TR,DTA144WK
87-A30-087-080 C-FET,2SK2158
89-327-143-080 C-TR,2SC2714O
87-A30-196-080 TR,2SC4115SRS
87-A30-268-040 C-TR,2SA1514K(S)
87-A30-273-040 C-TR,DTC124EKA
87-026-462-080 TR,2SC1740SRS
87-A30-435-040 C-TR,DTC144EKA
DIODE
87-020-465-080 DIODE,1SS133
87-A40-345-080 ZENER,MTZJ10C
87-A40-269-080 C-DIODE,MC2836
87-A40-115-060 DIODE,RS603M
87-A40-270-080 C-DIODE,MC2838
87-A40-004-080 ZENER,MTZJ16A
87-A40-335-080 ZENER,MTZJ11C T-72
87-A40-224-010 DIODE,GBU8DL
87-070-274-080 DIODE,1N4003 SEM
87-A40-435-080 ZENER,MTZJ30D
87-A40-646-010 DIODE,FMB-G16L
87-070-136-080 ZENER,MTZJ5.1B
87-A40-344-080 ZENER,MTZJ6.2C
87-A40-488-080 DIODE,1SS244
87-A40-438-080 ZENER,MTZJ4.7A
87-017-931-080 ZENER,MTZJ5.6B
87-A40-348-080 ZENER,MTZJ3.3A
87-017-148-080 ZENER,HZS6A1L
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-003-080 ZENER,MTZJ4.3A
MAIN C.B
C001 87-012-368-080 C-CAP,S 0.1-50 ZF
C101 87-010-235-080 CAP,E 470-16 M SME
C102 87-010-235-080 CAP,E 470-16 M SME
C103 87-010-384-080 CAP,E 100-25 M 11L SME
C104 87-010-382-080 CAP,E 22-25 M 11L SME
C105 87-010-247-080 CAP,E 100-50 M SME
C106 87-010-384-080 CAP,E 100-25 M 11L SME
C108 87-012-140-080 C-CAP,S 470P-50 J CH
C109 87-012-368-080 C-CAP,S 0.1-50 Z F
C110 87-012-368-080 C-CAP,S 0.1-50 Z F
C111 87-012-368-080 C-CAP,S 0.1-50 Z F
C112 87-012-368-080 C-CAP,S 0.1-50 Z F
C113 87-A12-300-010 CAP,E 3900-35 LXZ
C114 87-A12-300-010 CAP,E 3900-35 LXZ
C115 87-012-368-080 C-CAP,S 0.1-50 Z F
C116 87-012-368-080 C-CAP,S 0.1-50 Z F
C117 87-012-368-080 C-CAP,S 0.1-50 Z F
C118 87-012-368-080 C-CAP,S 0.1-50 Z F
C119 87-A10-461-090 CAP,E 6800-71 SMG VB
C120 87-A10-461-090 CAP,E 6800-71 SMG VB
C121 87-010-260-080 CAP,E 47-25 M 11L SME
C122 87-010-403-080 CAP,E 3.3-50 M 11L SME
C123 87-010-384-080 CAP,E 100-25 M 11L SME
C124 87-010-384-080 CAP,E 100-25 M 11L SME
C125 87-A10-417-080 CAP,E 47-63 M SME
C126 87-010-263-080 CAP,E 100-10 M 11L SME
C127 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C131 87-010-378-080 CAP,E 10-16 M 11L SME
C133 87-010-378-080 CAP,E 10-16 M 11L SME
C135 87-012-368-080 C-CAP,S 0.1-50 Z F
C136 87-012-368-080 C-CAP,S 0.1-50 Z F
C143 87-A10-712-080 C-CAP,S 0.22-50 Z F
C144 87-A10-712-080 C-CAP,S 0.22-50 Z F
C203 87-010-176-080 C-CAP,S 680P-50 J SL
C204 87-010-176-080 C-CAP,S 680P-50 J SL
C205 87-010-405-080 CAP,E 10-50 M 11L SME
C206 87-010-405-080 CAP,E 10-50 M 11L SME
C209 87-010-392-080 CAP,E 33-35 M 11L SME
C210 87-010-392-080 CAP,E 33-35 M 11L SME
C211 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C212 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C215 87-A10-897-080 CAP,E 100-25 BP SME
C216 87-A10-897-080 CAP,E 100-25 BP SME
C217 87-A10-516-080 C-CAP,S 100P-200 J CH
C218 87-A10-516-080 C-CAP,S 100P-200 J CH
C221 87-016-526-080 C-CAP,S 0.47-16 BK
C222 87-016-526-080 C-CAP,S 0.47-16 BK
C223 87-010-402-080 CAP,E 2.2-50 M 11L SME
C224 87-010-402-080 CAP,E 2.2-50 M 11L SME
C225 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C226 87-016-251-080 CAP,E 220-16 M SMG
C227 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C228 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C229 87-016-251-080 CAP,E 220-16 M SMG
C230 87-A10-354-080 C-CAP,S 0.047-50 K B
C231 87-A10-354-080 C-CAP,S 0.047-50 K B
C285 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C291 87-012-368-080 C-CAP,S 0.1-50 Z F
C292 87-012-368-080 C-CAP,S 0.1-50 Z F
C293 87-012-368-080 C-CAP,S 0.1-50 Z F
C294 87-012-368-080 C-CAP,S 0.1-50 Z F
C295 87-012-368-080 C-CAP,S 0.1-50 Z F

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C296 87-012-368-080 C-CAP,S 0.1-50 Z F
C297 87-012-368-080 C-CAP,S 0.1-50 Z F
C298 87-012-368-080 C-CAP,S 0.1-50 Z F
C303 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C304 87-010-179-080 C-CAP,S 1200P-50 K B GRM
C305 87-010-406-080 CAP,E 22-50 M 11L SME
C306 87-010-406-080 CAP,E 22-50 M 11L SME
C308 87-016-299-080 CAP,E 10-100 M SME
C309 87-010-260-080 CAP,E 47-25 M 11L SME
C310 87-010-260-080 CAP,E 47-25 M 11L SME
C311 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C312 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C315 87-A10-897-080 CAP,E 100-25 BP SME
C316 87-A10-897-080 CAP,E 100-25 BP SME
C317 87-A10-516-080 C-CAP,S 100P-200 J CH
C318 87-A10-516-080 C-CAP,S 100P-200 J CH
C321 87-016-526-080 C-CAP,S 0.47-16 BK
C322 87-016-526-080 C-CAP,S 0.47-16 BK
C323 87-010-402-080 CAP,E 2.2-50 M 11L SME
C324 87-010-402-080 CAP,E 2.2-50 M 11L SME
C325 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C327 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C328 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C330 87-A10-354-080 C-CAP,S 0.047-50 K B
C331 87-A10-354-080 C-CAP,S 0.047-50 K B
C334 87-A10-918-080 CAP,E 100-16 SMG
C335 87-A10-918-080 CAP,E 100-16 SMG
C385 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C391 87-012-368-080 C-CAP,S 0.1-50 Z F
C392 87-012-368-080 C-CAP,S 0.1-50 Z F
C393 87-012-368-080 C-CAP,S 0.1-50 Z F
C394 87-012-368-080 C-CAP,S 0.1-50 Z F
C402 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C403 87-010-405-080 CAP,E 10-50 M 11L SME
C405 87-010-406-080 CAP,E 22-50 M 11L SME
C406 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C408 87-A10-897-080 CAP,E 100-25 BP SME
C409 87-A10-516-080 C-CAP,S 100P-200 J CH
C411 87-016-526-080 C-CAP,S 0.47-16 BK
C412 87-010-402-080 CAP,E 2.2-50 M 11L SME
C413 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C414 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C416 87-016-299-080 CAP,E 10-100 M SME
C420 87-A10-354-080 C-CAP,S 0.047-50 K B
C485 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C491 87-012-368-080 C-CAP,S 0.1-50 Z F
C492 87-012-368-080 C-CAP,S 0.1-50 Z F
C501 87-010-404-080 CAP,E 4.7-50 M 11L SME
C502 87-010-404-080 CAP,E 4.7-50 M 11L SME
C503 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C504 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C511 87-010-404-080 CAP,E 4.7-50 M 11L SME
C512 87-010-404-080 CAP,E 4.7-50 M 11L SME
C513 87-010-260-080 CAP,E 47-25 M 11L SME
C514 87-010-260-080 CAP,E 47-25 M 11L SME
C515 87-010-370-080 CAP,E 330-6.3 M SME
C516 87-010-370-080 CAP,E 330-6.3 M SME
C517 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C518 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C519 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C520 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C531 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C532 87-010-992-080 C-CAP,S 0.047-25 K B MK212
C533 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C535 87-010-404-080 CAP,E 4.7-50 M 11L SME
C536 87-010-404-080 CAP,E 4.7-50 M 11L SME
C539 87-010-401-080 CAP,E 1-50 M 11L SME
C540 87-010-401-080 CAP,E 1-50 M 11L SME
C541 87-010-185-080 C-CAP,S 3900P-50 K B
C542 87-010-185-080 C-CAP,S 3900P-50 K B
C547 87-010-404-080 CAP,E 4.7-50 M 11L SME
C548 87-010-404-080 CAP,E 4.7-50 M 11L SME
C549 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C550 87-016-081-080 C-CAP,S 0.1-16 K R GRM
C554 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C555 87-010-405-080 CAP,E 10-50 M 11L SME
C556 87-010-248-080 CAP,E 220-10 M 11L SME
C557 87-010-405-080 CAP,E 10-50 M 11L SME
C558 87-010-992-080 C-CAP,S 0.047-25 KB MK212
C559 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C561 87-012-140-080 C-CAP,S 470P-50 J CH
C562 87-012-140-080 C-CAP,S 470P-50 J CH
C565 87-010-404-080 CAP,E 4.7-50 M 11L SME
C566 87-010-404-080 CAP,E 4.7-50 M 11L SME
C601 87-010-378-080 CAP,E 10-16 M 11L SME
C602 87-010-378-080 CAP,E 10-16 M 11L SME
C603 87-012-156-080 C-CAP,S 220P-50 J CH
C604 87-012-156-080 C-CAP,S 220P-50 J CH
C605 87-010-405-080 CAP,E 10-50 M 11L SME
C606 87-010-405-080 CAP,E 10-50 M 11L SME
C607 87-012-140-080 C-CAP,S 470P-50 J CH
C608 87-012-140-080 C-CAP,S 470P-50 J CH
C609 87-010-188-080 C-CAP,S 6800P-50 KB C2012
C610 87-010-188-080 C-CAP,S 6800P-50 KB C2012
C611 87-010-197-080 C-CAP,S 0.01-25 KB C2012
C612 87-010-195-080 C-CAP,S 0.068-25 ZF C2012
C613 87-010-195-080 C-CAP,S 0.068-25 ZF C2012
C614 87-010-197-080 C-CAP,S 0.01-25 KB C2012
C615 87-010-404-080 CAP,E 4.7-50 M 11L SME
C616 87-010-404-080 CAP,E 4.7-50 M 11L SME
C617 87-010-404-080 CAP,E 4.7-50 M 11L SME
C618 87-010-404-080 CAP,E 4.7-50 M 11L SME
C619 87-010-404-080 CAP,E 4.7-50 M 11L SME
C620 87-010-101-080 CAP,E 220-16 M SME
C621 87-010-260-080 CAP,E 47-25 M 11L SME
C701 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C702 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C723 87-010-401-080 CAP,E 1-50 M 11L SME
C726 87-010-401-080 CAP,E 1-50 M 11L SME
C745 87-010-190-080 C-CAP,S 0.01-50 ZF C2012
C746 87-012-368-080 C-CAP,S 0.1-50 Z F
C747 87-018-209-080 CAP,TC-U 0.1-50 ZF
C750 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C901 87-010-406-080 CAP,E 22-50 M 11L SME
C902 87-010-406-080 CAP,E 22-50 M 11L SME
C903 87-010-406-080 CAP,E 22-50 M 11L SME
C904 87-010-406-080 CAP,E 22-50 M 11L SME
C905 87-010-406-080 CAP,E 22-50 M 11L SME
C906 87-010-260-080 CAP,E 47-25 M 11L SME
C907 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C908 87-010-387-080 CAP,E 470-25 M SME
C909 87-010-371-080 CAP,E 470-6.3 M SME
C910 87-010-371-080 CAP,E 470-6.3 M SME
C911 87-010-371-080 CAP,E 470-6.3 M SME
C912 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C913 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C914 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C995 87-A12-314-080 CAP,CER 47P-500
C996 87-A12-314-080 CAP,CER 47P-500
C997 87-A12-314-080 CAP,CER 47P-500
C998 87-A12-314-080 CAP,CER 47P-500
C999 87-A12-314-080 CAP,CER 47P-500
CN110 87-A60-621-010 CONN,4P V 2MM JMT
CN501 87-A60-039-010 CONN,32P V 9604S-32C
CN502 87-A60-061-010 CONN,06P V 9604S-06C
CN503 87-A60-056-010 CONN,12P V 9604S-12C
CN504 87-099-567-010 CONN,10P TUC-P10P-B1
CN505 87-099-570-010 CONN,13P V TUC-P13P-B1
CN509 87-099-667-010 CONN,8P H TUC-P08P-B1
CN601 87-A60-627-010 CONN,10P V 2MM JMT

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
CN702 87-099-668-010 CONN,9P TUC-P 9P-B1
CN901 87-A60-619-010 CONN,2P V 2MM JMT
W003 8A-AR3-654-010 CONN ASSY,9P VH
CNA201 8Z-AR4-606-010 CONN ASSY,8P VH
CNA202 8Z-AR4-605-010 CONN ASSY,6P VH
FFC502 8A-AR3-645-010 FF-CABLE,6P 1.25 380MM
J501 87-A60-947-010 JACK,PIN 4P W/R GLD
J502 87-A60-947-010 JACK,PIN 4P W/R GLD
J715 87-A61-059-010 JACK,PIN 1P BLK W/O SW GOLD
J750 87-A61-304-010 JACK,PIN 6P HSP-246V6-58
J901 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J902 87-A60-950-010 JACK,PIN 3P R/W/Y W/E GLD
J903 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J904 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
J905 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD
L291 87-A50-610-010 COIL,1UH K(MDEC)
L292 87-A50-610-010 COIL,1UH K(MDEC)
L293 87-A50-610-010 COIL,1UH K(MDEC)
L294 87-A50-610-010 COIL,1UH K(MDEC)
L391 87-A50-610-010 COIL,1UH K(MDEC)
L392 87-A50-610-010 COIL,1UH K(MDEC)
L491 87-A50-610-010 COIL,1UH K(MDEC)
L901 87-005-239-080 COIL,100UH K LAL03
PR101 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR104 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR107 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR108 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR201 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR202 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR301 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR302 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR401 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR402 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
R109 87-029-060-080 RES,FUSE 33-1/4W J
R211 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R212 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R231 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R232 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R233 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R234 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R281 87-A00-373-050 RES,M/F 270-1W J VTP
R282 87-A00-373-050 RES,M/F 270-1W J VTP
R283 87-A00-373-050 RES,M/F 270-1W J VTP
R284 87-A00-373-050 RES,M/F 270-1W J VTP
R331 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R332 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R333 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R334 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R416 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R417 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R424 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R587 87-A00-126-080 RES,M/F 220-1W J VTP
R590 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R611 87-A00-598-010 RES,M/F 0.15-3W J-8.5MM
R905 87-010-317-080 C-CAP,S 39P-50 J CH
S291 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
S292 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES
TH201 87-A91-081-080 C-THMS,100K-K 20P
TH202 87-A91-081-080 C-THMS,100K-K 20P
TH301 87-A91-081-080 C-THMS,100K-K 20P
TH302 87-A91-081-080 C-THMS,100K-K 20P
TH401 87-A91-081-080 C-THMS,100K-K 20P
WH101 87-A90-510-010 HLDR,WIRE 2.5-9P
FRONT C.B
C707 87-010-382-040 CAP,E 22-25 M 11L SME
C708 87-010-382-040 CAP,E 22-25 M 11L SME
C709 87-010-382-040 CAP,E 22-25 M 11L SME
C710 87-010-382-040 CAP,E 22-25 M 11L SME
C711 87-010-263-040 CAP,E 100-10 M 11L SME
C712 87-010-382-040 CAP,E 22-25 M 11L SME
C714 87-010-560-040 CAP,E 10-50 M 5L MA
C723 87-010-405-040 CAP,E 10-50 M 11L SME
C801 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C803 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C805 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C806 87-010-400-040 CAP,E 0.47-50 M 11L SME
C807 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C808 87-010-498-040 CAP,E 10-16 M 5L SRE
C809 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C811 87-A10-189-040 CAP,E 220-10 M 5L
C812 87-A10-189-040 CAP,E 220-10 M 5L
C813 87-010-401-040 CAP,E 1-50 M 11L
C814 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C815 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C816 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C817 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C818 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C819 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C820 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C821 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C822 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C823 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C824 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C825 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C826 87-010-405-040 CAP,E 10-50 M 11L SME
C827 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C829 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C831 87-A10-189-040 CAP,E 220-10 M 5L
C832 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C833 87-012-368-080 C-CAP,S 0.1-50 Z F
C834 87-012-368-080 C-CAP,S 0.1-50 Z F
C835 87-012-368-080 C-CAP,S 0.1-50 Z F
C836 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C837 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C838 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C839 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C840 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C841 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C842 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C843 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C844 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C845 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C846 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C847 87-015-699-040 CAP,E 10-50 7L
C848 87-010-405-040 CAP,E 10-50 SME
C849 87-012-368-080 C-CAP,S 0.1-50 Z F
C850 87-010-408-040 CAP,E 47-50 M 11L SME
C852 87-010-560-040 CAP,E 10-50 M 5L SMA
C863 87-010-178-080 C-CAP,S 1000P-50 KB C2012
C864 87-012-157-080 C-CAP,S 330P-50 J CH GRM
C866 87-012-140-080 C-CAP,S 470P-50 J CH
C867 87-010-196-080 C-CAP,S 0.1-25 ZF C2012
CN801 87-A60-079-010 CONN,08P H 9604S-08F
CN802 87-A60-064-010 CONN,32P H 9604S-32F
CN803 87-A60-081-010 CONN,06P H 9604S-06F
CN805 87-099-757-010 CONN,16P H 9604
FFC801 88-908-101-110 FF-CABLE,8P 1.25 100MM
FFC802 8A-AR3-643-010 FF-CABLE,32P 1.25 430
FFC805 88-916-101-110 FF-CABLE,16P-1.25 100MM
FL801 8A-AR1-602-010 FL,BJ759GK
L801 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED703 87-A40-317-010 LED,SLR-342VCT31 RED
LED704 87-A40-317-080 LED,SLR-342VCT31 RED
LED705 87-A40-317-080 LED,SLR-342VCT31 RED
LED706 87-A40-317-080 LED,SLR-342VCT31 RED
LED707 87-A40-317-080 LED,SLR-342VCT31 RED
LED708 87-A40-317-080 LED,SLR-342VCT31 RED
!
!
!
!
!
!
!
!
!
!

– 6 –
LED709 87-A40-317-080 LED,SLR-342VCT31 RED
LED710 87-A40-317-080 LED,SLR-342VCT31 RED
LED711 87-A40-317-080 LED,SLR-342VCT31 RED
LED712 87-A40-317-080 LED,SLR-342VCT31 RED
S801 87-A90-095-080 SW,TACT EVQ11G04M
S802 87-A90-095-080 SW,TACT EVQ11G04M
S803 87-A90-095-080 SW,TACT EVQ11G04M
S804 87-A90-095-080 SW,TACT EVQ11G04M
S805 87-A90-095-080 SW,TACT EVQ11G04M
S806 87-A90-095-080 SW,TACT EVQ11G04M
S807 87-A90-095-080 SW,TACT EVQ11G04M
S808 87-A90-095-080 SW,TACT EVQ11G04M
S809 87-A90-095-080 SW,TACT EVQ11G04M
S810 87-A90-095-080 SW,TACT EVQ11G04M
S811 87-A90-095-080 SW,TACT EVQ11G04M
S812 87-A90-095-080 SW,TACT EVQ11G04M
S813 87-A90-095-080 SW,TACT EVQ11G04M
S814 87-A90-095-080 SW,TACT EVQ11G04M
S815 87-A90-095-080 SW,TACT EVQ11G04M
S816 87-A90-095-080 SW,TACT EVQ11G04M
S817 87-A90-095-080 SW,TACT EVQ11G04M
SW801 87-A91-646-010 SW,RTRY EC12E12204
SW802 87-A91-647-010 SW,RTRY EC12E12504
PROLOGIC C.B
C801 87-010-176-080 C-CAP,S 680P-50 SL
C802 87-010-176-080 C-CAP,S 680P-50 SL
C803 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ
C804 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ
C805 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ
C806 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ
C807 87-010-405-080 CAP, ELECT 10-50V
C808 87-010-405-080 CAP, ELECT 10-50V
C809 87-016-081-080 C-CAP,S 0.1-16 RK
C810 87-010-112-080 CAP, ELECT 100-16V
C811 87-010-402-080 CAP, ELECT 2.2-50V
C812 87-010-402-080 CAP, ELECT 2.2-50V
C813 87-010-400-080 CAP, ELECT 0.47-50V
C814 87-010-401-080 CAP, ELECT 1-50V
C815 87-010-546-080 CAP, ELECT 0.33-50V
C816 87-010-546-080 CAP, ELECT 0.33-50V
C817 87-010-263-080 CAP, ELECT 100-10V
C818 87-010-367-080 CAP,E 4.7-25 BP
C819 87-010-188-080 CAP,CHIP 6800P
C820 87-010-374-080 CAP, ELECT 47-10V
C821 87-016-081-080 C-CAP,S 0.1-16 RK
C822 87-016-083-080 C-CAP,S 0.15-16 RK
C823 87-010-263-080 CAP, ELECT 100-10V
C824 87-010-374-080 CAP, ELECT 47-10V
C825 87-016-081-080 C-CAP,S 0.1-16 RK
C826 87-010-166-080 C-CAP,S 100P-50 SL
C827 87-010-166-080 C-CAP,S 100P-50 SL
C828 87-010-166-080 C-CAP,S 100P-50 SL
C829 87-010-401-080 CAP,ELECT 1-50V
C830 87-010-546-080 CAP, ELECT 0.33-50V
C831 87-010-971-080 C-CAP,S 4700P-50 B J
C832 87-012-349-080 C-CAP,S 1000P-50 CH
C837 87-010-971-080 C-CAP,S 4700P-50 B J
C838 87-012-349-080 C-CAP,S 1000P-50 CH
C839 87-010-401-080 CAP, ELECT 1-50V
C840 87-010-401-080 CAP, ELECT 1-50V
C841 87-A10-799-080 C-CAP,S 5600P-16 J B CM
C842 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C843 87-A10-229-080 C-CAP,S 0.68-10 K W5
C844 87-012-393-080 C-CAP,S 0.22-16 R K
C845 87-012-393-080 C-CAP,S 0.22-16 R K
C846 87-010-404-080 CAP, ELECT 4.7-50V
C847 87-010-404-080 CAP, ELECT 4.7-50V
C848 87-012-393-080 C-CAP,S 0.22-16 R K
C849 87-012-393-080 C-CAP,S 0.22-16 R K
C850 87-016-081-080 C-CAP,S 0.1-16 RK
C851 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C852 87-A10-802-080 C-CAP,S 0.047-16 J B CM
C853 87-016-081-080 C-CAP,S 0.1-16 RK
C854 87-016-081-080 C-CAP,S 0.1-16 RK
C855 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C856 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C857 87-016-081-080 C-CAP,S 0.1-16 RK
C861 87-016-081-080 C-CAP,S 0.1-16 RK
C862 87-010-263-080 CAP, ELECT 100-10V
C863 87-016-081-080 C-CAP,S 0.1-16 RK
C864 87-010-263-080 CAP, ELECT 100-10V
C865 87-016-083-080 C-CAP,S 0.15-16 RK
C867 87-A10-201-080 C-CAP,S0.33-16 KB
C868 87-A10-060-080 C-CAP,S 0.18-16 K B
C869 87-010-166-080 C-CAP,S 100P-50 SL
C870 87-010-166-080 C-CAP,S 100P-50 SL
C871 87-010-166-080 C-CAP,S 100P-50 SL
C872 87-016-081-080 C-CAP,S 0.1-16 RK
C873 87-016-081-080 C-CAP,S 0.1-16 RK
C878 87-010-401-080 CAP, ELECT 1-50V
C891 87-010-404-080 CAP, ELECT 4.7-50V
C892 87-010-404-080 CAP, ELECT 4.7-50V
CNA101 8A-AR4-655-010 CONN ASSY,7P V130 MM
CN703 87-A60-060-010 CONN,07P V 9604S-07C
CN801 87-099-556-010 CONN,10P TUC-P10X-B1
CN802 87-099-559-010 CONN,13P TUC-P13X-B1
R832 87-016-552-080 C-CAP,S 0.082-16 K B C2012
R834 87-016-552-080 C-CAP,S 0.082-16 K B C2012
VOLUME C.B
C601 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C602 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C603 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C604 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C605 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C606 87-010-805-080 C-CAP,S 1-16 Z F
C607 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C608 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C610 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C611 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C612 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C613 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C614 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C615 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C634 87-010-374-080 CAP,E 47-10 M 11L SME
CN601 87-099-757-010 CONN,16P H 9604
CN602 87-009-371-010 CONN,6P V BLK BTMK
CN603 87-A60-080-010 CONN,07P H 9604S-07F
FFC603 88-907-301-110 FF-CABLE,7P 1.25
S601 87-A90-095-080 SW,TACT EVQ11G04M
S602 87-A90-095-080 SW,TACT EVQ11G04M
SW601 87-A91-645-010 SW,RTRY EC12E24304NON-CLICK
VIDEO C.B
C501 87-A11-148-080 CAP,TC U 0.1-50 Z F
C502 87-A11-148-080 CAP,TC U 0.1-50 Z F
C503 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C504 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C507 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN604 87-099-201-010 CONN,8P H BLK 6216
CNA605 8A-AR3-652-010 CONN ASSY,2P -VIDEO 3
FB501 87-008-372-080 FLTR,EMI BL01RN1
FB602 87-008-372-080 FLTR,EMI BL01RN1
J501 87-A60-948-010 JACK,PIN 3P R/W/Y GLD
J603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO.KANRI
NO.
KANRI
NO.

– 7 –
GEQ C.B
C758 87-010-404-080 CAP, ELECT 4.7-50V
C759 87-012-368-080 C-CAP,S 0.1-50 F
C761 87-010-198-080 CAP, CHIP 0.022
C762 87-010-197-080 CAP, CHIP 0.01 DM
C764 87-010-185-080 C-CAP,S 3900P-50 B
C765 87-010-194-080 CAP, CHIP 0.047
C766 87-010-181-080 CAP,CHIP S 1800P
C767 87-010-198-080 CAP, CHIP 0.022
C768 87-010-994-080 C-CAP,S 680P-50
C769 87-010-188-080 CAP,CHIP 6800P
C770 87-012-145-080 CAP, CHIP S 270P CH
C771 87-010-183-080 C-CAP,S 2700P-50 B
C772 87-012-145-080 CAP, CHIP S 270P CH
C773 87-010-188-080 CAP,CHIP 6800P
C774 87-010-994-080 C-CAP,S 680P-50 CH
C775 87-010-198-080 CAP, CHIP 0.022
C776 87-010-181-080 CAP,CHIP S 1800P
C777 87-010-194-080 CAP, CHIP 0.047
C778 87-010-185-080 C-CAP,S 3900P-50 B
C780 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-183-080 C-CAP,S 2700P-50 B
C783 87-010-198-080 CAP, CHIP 0.022
C786 87-010-402-080 CAP, ELECT 2.2-50V
C787 87-010-402-080 CAP, ELECT 2.2-50V
C788 87-010-260-080 CAP, ELECT 47-25V
C789 87-010-260-080 CAP, ELECT 47-25V
C790 87-010-260-080 CAP, ELECT 47-25V
C791 87-010-405-080 CAP, ELECT 10-50V
C792 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-368-080 C-CAP,S 0.1-50 F
C794 87-012-368-080 C-CAP,S 0.1-50 F
C797 87-010-322-080 C-CAP,S 100P-50 CH
C798 87-010-322-080 C-CAP,S 100P-50 CH
C799 87-010-322-080 C-CAP,S 100P-50 CH
CN701 87-099-670-010 CONN,9P TUC-P9X-B1
CN702 8A-AR3-653-010 CONN ASSY,10P (GEQ)
TUNER C.B
C701 87-010-260-080 CAP, ELECT 47-25V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-263-080 CAP, ELECT 100-10V
C712 87-010-196-080 CHIP CAPACITOR,0.1-25
C713 87-012-286-080 CAP, U 0.01-25
C714 87-012-286-080 CAP, U 0.01-25
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C755 87-012-286-080 CAP, U 0.01-25
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C761 87-010-196-080 CHIP CAPACITOR,0.1-25
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C769 87-010-408-080 CAP, ELECT 47-50 M 11L
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25 M 11L
C772 87-010-829-080 CAP, U 0.047-16
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. PART NO. KANRI
NO.
KANRI
NO.
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-805-080 CAP, S 1-16
C786 87-010-805-080 CAP, S 1-16
C787 87-012-280-080 CAP, U 3300P-50
C788 87-012-280-080 CAP, U 3300P-50
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-194-080 C-CAP,S 0.047-25 ZF
C796 87-010-403-080 CAP, ELECT 3.3-50V
C797 87-012-276-080 CAP, U 1500P-50
C798 87-012-276-080 CAP, U 1500P-50
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 CAP, U 0.01-25
C813 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-012-286-080 CAP, U 0.01-25
C819 87-010-197-080 CAP, CHIP 0.01 DM
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-170-080 C-CAP,U 8P-50 CH
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN601 87-099-028-010 CONN,11P 6216 H
FFC601 88-912-161-110 FF-CABLE,12P 1.25 160
FFE801 A8-6ZA-191-130 6ZA-1 FEENM
J801 87-A60-657-010 TERMINAL,4P HSP-154V5-02
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A90-733-010 FLTR,PCFAZH-450
L781 87-005-847-080 COIL,2.2UH(CECS)
L791 87-A50-027-010 COIL,1 POLE MPX(TOK)
L792 87-A50-027-010 COIL,1 POLE MPX(TOK)
L832 87-005-847-080 COIL,2.2UH(CECS)
L981 87-NF4-650-010 COIL,AM PACK4N(TOK)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
PT C.B
C1 87-010-387-080 CAP,E 470-25 M SME
C2 87-010-403-080 CAP,E 3.3-50 M 11L SME
C3 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C7 87-A10-922-090 CAP,CER 0.01-250 M F KH
C8 87-A10-922-090 CAP,CER 0.01-250 M F KH
C13 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN101 88-805-042-690 CONN ASSY,4P
CN103 87-A61-057-010 CONN,9P V THL-P09P-A1
PR105 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PR106 87-026-682-080 PROTECTOR,10A 491SERIES 60V
PT2 8Z-NF8-663-010 PT,SUB ZNF-8(H)
PT101 8A-AR3-606-010 PT,AAR-3 (HC)
RY1 87-A90-454-010 RELAY,12V DJ12D2-O(M)
!
!
!
!
!
!
!

– 8 –
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
DESCRIPTIONREF. NO. PART NO. KANRI
NO.
!
!
!
!
!
!
!
!
!
SPEAKER C.B
C1 87-010-190-080 C-CAP,S 0.01-50 ZF
C2 87-010-190-080 C-CAP,S 0.01-50 ZF
C4 87-010-190-080 C-CAP,S 0.01-50 ZF
C5 87-010-190-080 C-CAP,S 0.01-50 ZF
C6 87-010-190-080 C-CAP,S 0.01-50 ZF
C8 87-010-190-080 C-CAP,S 0.01-50 ZF
C9 87-010-190-080 C-CAP,S 0.01-50 ZF
C12 87-010-190-080 C-CAP,S 0.01-50 ZF
C13 87-010-190-080 C-CAP,S 0.01-50 ZF
C16 87-010-190-080 C-CAP,S 0.01-50 ZF
CN201 87-099-799-010 CONN,8P V B 8P-VH
CN202 87-009-663-010 CONN,6P V VH
J901 87-033-210-010 TERMINAL,SPKR 8P LTS0810-1002
J902 87-A61-172-010 TERMINAL,SPKR 6P-LTS0610-1002
AC SW C.B
F101 87-035-370-010 FUSE,6.3A 250V T
F102 87-035-370-010 FUSE,6.3A 250V T
FC101 87-033-147-010 FUSE CLAMP,MT 20
FC102 87-033-147-010 FUSE CLAMP,MT 20
FC103 87-033-147-010 FUSE CLAMP,MT 20
FC104 87-033-147-010 FUSE CLAMP,MT 20
SW101 87-A90-165-010 SW,SL 1-2-3 SWS2301
T101 87-A60-317-010 TERMINAL, 1P MSC
T102 87-A60-317-010 TERMINAL, 1P MSC
MIC C.B
C601 87-010-196-080 C-CAP,S 0.1-25 ZF
C602 87-010-560-040 CAP,E 10-50 M 5L MA
C603 87-010-491-040 CAP,E 0.22-50 M 5L SRE
C604 87-A10-189-040 CAP,E 220-10 M 5L
C605 87-010-322-080 C-CAP,S 100P-50 J CH
C606 87-010-321-080 C-CAP,S 82P-50 J CH
C607 87-010-196-080 C-CAP,S 0.1-25 ZF
C608 87-010-186-080 C-CAP,S 4700P-50 KB
C609 87-010-188-080 C-CAP,S 6800P-50 KB
C610 87-010-560-040 CAP,E 10-50 M 5L MA
C611 87-010-322-080 C-CAP,S 100P-50 J CH
C612 87-010-177-080 C-CAP,S 820P-50 J SL
C613 87-010-552-040 CAP,E 22-16 M 5L SRE
C614 87-016-462-080 C-CAP,S 1-16 ZF
CN601 87-009-362-010 CONN,6P H BLK BTMK
J601 87-A60-188-010 JACK,6.3 BLK MONO W/SW MIC
J602 87-A60-188-010 JACK,6.3 BLK MONO W/SW MIC
KEY CON C.B
C652 87-010-196-080 C-CAP,S 0.1-25 Z F
C653 87-012-154-080 C-CAP,S 150P-50 J CH
C654 87-010-183-080 C-CAP,S 2700P-50 KB
C655 87-010-196-080 C-CAP,S 0.1-25 ZF
C656 87-012-154-080 C-CAP,S 150P-50 J CH
C657 87-010-183-080 C-CAP,S 2700P-50 KB
C658 87-012-145-080 C-CAP,S 270P-50 J CH
C659 87-010-177-080 C-CAP,S 820P-50 K SL
C670 87-012-145-080 C-CAP,S 270P-50 J CH
C671 87-010-177-080 C-CAP,S 820P-50 K SL
C672 87-010-196-080 C-CAP,S 0.1-25 ZF
C674 87-010-196-080 C-CAP,S 0.1-25 ZF
C675 87-010-263-080 CAP,E 100-10 M 11L SME
C676 87-010-374-080 CAP,E 47-10 M 11L SME
CN508 87-099-669-010 CONN,8P H TUC-08PX-B1
PROLOGIC SUB C.B
C101 87-010-405-080 CAP,E 10-50 M 11L SME
C102 87-010-260-080 CAP,E 47-25 M 11L SME
C103 87-010-405-080 CAP,E 10-50 M 11L SME
C104 87-010-404-080 CAP,E 4.7-50 M 11L SME
C105 87-010-402-080 CAP,E 2.2-50 M 11L SME
C106 87-010-402-080 CAP,E 2.2-50 M 11L SME
C107 87-010-404-080 CAP,E 4.7-50 M 11L SME
CN101 87-009-035-010 CONN,7P V WHT PH
DESCRIPTIONREF. NO. PART NO. KANRI
NO.

– 9 –
TRANSISTOR ILLUSTRATION
E C B
CC5551
KTA1266GR
KTC3198GR
2SB1370E
FN1016
FP1016
2SC1740SRS
2SC4115SRS
DTC114ES
KTA1267GR
KTC3199GR
B C E E C B E C B
DGS
2SK3053
E
B
C
2SA1037K(R)
2SA1235F
2SA1514K(S)
2SC2714O
2SC3052F
2SD1306E
CMBT5401
CMBT5551
CSD1306E
DTA144WK
DTC124EKA
DTC144EKA
RT1N144C
RT1P141C
RT1P144C
2SK2158
S
D
G
CSD1489B

WIRING – 1 (MAIN)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 10 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 11 –

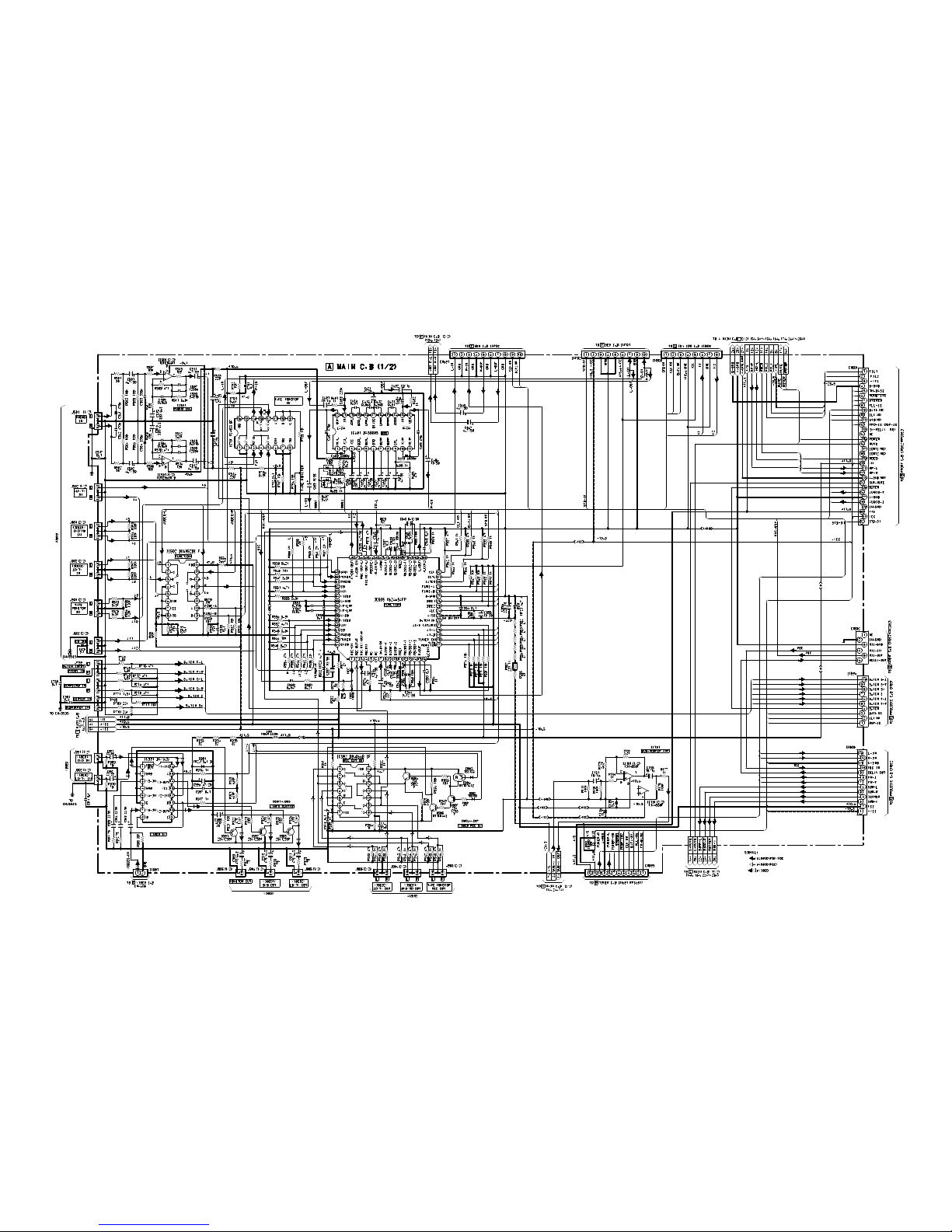

SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2)

– 12 –
SCHEMATIC DIAGRAM – 2 (MAIN 2 / 2)

WIRING – 2 (FRONT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 13 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 14 –
SCHEMATIC DIAGRAM – 3 (FRONT)

PROLOGIC SUB C.B
WIRING – 3 (PROLOGIC)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 15 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 16 –

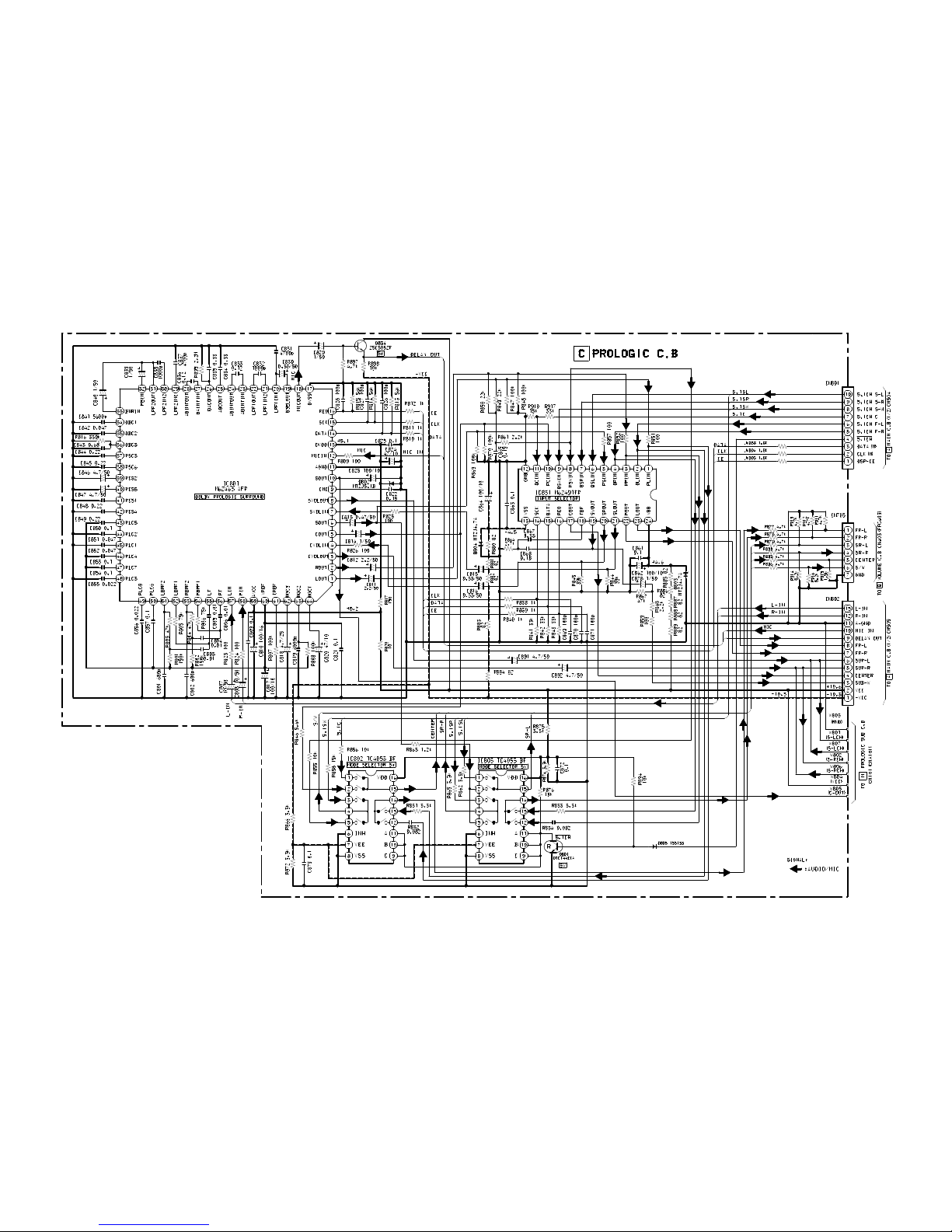

SCHEMATIC DIAGRAM – 4 (PROLOGIC)

WIRING – 4 (VOLUME / VIDEO / GEQ)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 17 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 18 –

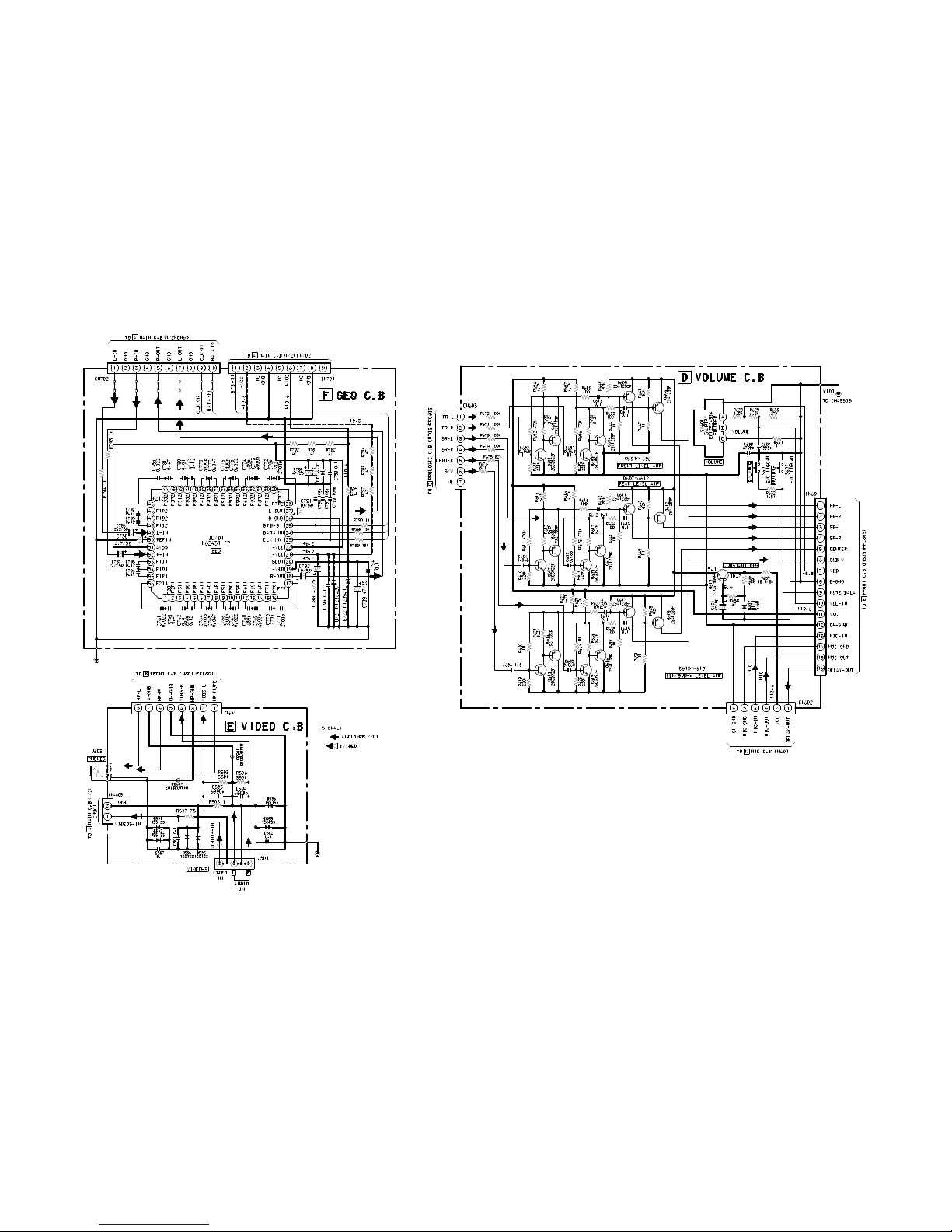

SCHEMATIC DIAGRAM – 5 (VOLUME / VIDEO / GEQ)

WIRING – 5 (TUNER)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 19 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 20 –
SCHEMATIC DIAGRAM – 6 (TUNER)
