S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with "Revision Publishing" when it is issued.
Z-L52
• TYPE: EZ
S/M Code No. 09–995–410–6T2
COMPACT DISC STEREO
CASSETTE RECEIVER

ELECTRICAL MAIN PARTS LIST - 1/5
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NF7-210-110 GUIDE,FL (*) A...................
C 201 87-010-145-080 C-CAP,S 1P-50 CH A...................
C 206 87-010-175-080 CAP 560P A...................
C 207 87-010-178-080 CHIP CAP 1000P A...................
C 208 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 202 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 203 87-010-198-080 CAP, CHIP 0.022 A...................
C 205 87-010-311-080 CAP 12P A...................
C 209 87-010-401-040 CAP,E 1-50 SME A...................
C 204 87-012-140-080 CAP 470P A...................
C 211 87-010-194-080 CAP, CHIP 0.047 A...................
C 217 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 210 87-010-248-040 CAP,E 220-10 SME A...................
C 212 87-010-263-040 CAP,E 100-10 A...................
C 213 87-010-281-040 CAP,E 22-35 5L A...................
C 214 87-010-405-040 CAP,E 10-50 A...................
C 401 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 602 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 604 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 603 87-010-421-040 CAP,E 4.7-50 5L A...................
C 606 87-010-560-040 CAP,E 10-50 GAS A...................
C 605 87-010-560-040 CAP,E 10-50 GAS A...................
C 807 87-010-194-080 CAP, CHIP 0.047 A...................
C 805 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 806 87-010-246-040 CAP,E 47-35 SME A...................
C 804 87-010-405-040 CAP,E 10-50 A...................
C 801 87-010-405-040 CAP,E 10-50 A...................
C 802 87-010-560-040 CAP,E 10-50 GAS A...................
C 803 87-010-560-040 CAP,E 10-50 GAS A...................
C 906 87-012-140-080 CAP 470P A...................
C 907 87-012-140-080 CAP 470P A...................
C 902 87-012-140-080 CAP 470P A...................
C 908 87-012-140-080 CAP 470P A...................
C 904 87-012-140-080 CAP 470P A...................
C 909 87-012-140-080 CAP 470P A...................
C 901 87-012-140-080 CAP 470P A...................
C 905 87-012-140-080 CAP 470P A...................
C 903 87-012-140-080 CAP 470P A...................
C 910 87-012-140-080 CAP 470P A...................
CN 101 87-099-720-010 CONN,30P TYK-B(P) A...................
CN 102 87-A60-139-010 CONN,14P V FE A...................
CN 302 87-099-013-010 CONN,11P 6216 V ....................
CN 301 87-099-017-010 CONN, 15P 6216 V A...................
CNA 401 8Z-MAC-614-010 CONN ASSY,2P V A...................
D 105 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 107 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 106 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 101 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 206 87-017-932-080 ZENER,MTJ6.2B A...................
D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 207 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 204 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 208 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 603 87-017-932-080 ZENER,MTJ6.2B A...................
D 601 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 602 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 801 87-017-932-080 ZENER,MTJ6.2B A...................
FL 301 8Z-MAD-605-010 FL,SVA-10MS13 A...................
IC 202 87-A20-914-010 IC,SPS-442-1-F A...................
IC 201 8Z-MAD-610-010 IC,UPD780228-XXX-XXX A...................
IC 601 87-017-888-080 IC,NJM4558MD A...................
L 201 87-A50-434-010 COIL,CLK 4.19M(TOKO) A...................
Q 202 87-A30-073-080 C-TR,RT1N 141C A...................
Q 201 87-A30-087-080 C-FET,2SK2158 A...................
Q 203 87-A30-087-080 C-FET,2SK2158 A...................
Q 301 87-026-235-080 CHIP-TR,DTC114EK A...................
Q 302 87-A30-240-080 TR,CSA1585BC A...................
Q 303 87-A30-241-080 TR,KTA1272Y A...................
Q 304 87-A30-241-080 TR,KTA1272Y A...................
S 406 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 401 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 407 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 403 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 408 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 405 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 404 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 402 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 409 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 418 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 416 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 411 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 417 87-A90-095-080 SW,TACT EVQ11G04M A...................

ELECTRICAL MAIN PARTS LIST - 2/5
S 413 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 410 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 415 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 414 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 412 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 419 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 422 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 424 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 425 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 420 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 421 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 423 87-A90-095-080 SW,TACT EVQ11G04M A...................
SW 201 87-A90-471-010 SW,RTRY EC16B24304-25 NON A...................
C 1 87-018-209-080 CAP, CER 0.1-50V A...................
FC 1 87-A90-505-080 FUSE CLAMP,TP00351-51 A...................
FC 2 87-A90-505-080 FUSE CLAMP,TP00351-51 A...................
PR 101 87-026-681-080 PROTECTOR,5A 60V 491 A...................
PR 102 87-026-681-080 PROTECTOR,5A 60V 491 A...................
T 1 87-A60-317-010 TERMINAL, 1P MSC A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC A...................
WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
C 108 87-010-381-080 CAP, ELECT 330-16V A...................
C 107 87-010-384-080 CAP, ELECT 100-25V A...................
C 106 87-010-408-080 CAP, ELECT 47-50V A...................
C 101 87-016-495-090 CAP,E 3300-25 SMG A...................
C 105 87-018-127-080 CAP, CER 470P-50V A...................
C 104 87-A10-011-090 CAP,E 2200-25 SMG A...................
C 111 87-010-247-080 CAP, ELECT 100-50V A...................
C 112 87-010-263-080 CAP, ELECT 100-10V A...................
C 114 87-010-374-080 CAP, ELECT 47-10V A...................
C 113 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 115 87-A10-303-080 CAP,M 0.047-50 J A...................
C 116 87-A10-303-080 CAP,M 0.047-50 J A...................
C 123 87-010-384-080 CAP, ELECT 100-25V A...................
C 122 87-010-384-080 CAP, ELECT 100-25V A...................
C 130 87-018-119-080 CAP, CER 100P-50V A...................
D 108 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 109 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 107 87-A40-336-080 ZENER,MTZJ27D T-72 A...................
D 113 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 117 87-070-274-080 DIODE,1N4003 SEM A...................
D 116 87-070-274-080 DIODE,1N4003 SEM A...................
D 110 87-A40-345-080 ZENER,MTZJ10C A...................
D 123 87-A40-535-080 DIODE,1N5393-GOODARK A...................
D 122 87-A40-535-080 DIODE,1N5393-GOODARK A...................
D 121 87-A40-535-080 DIODE,1N5393-GOODARK A...................
D 124 87-A40-535-080 DIODE,1N5393-GOODARK A...................
JW 129 87-008-372-080 FILTER, EMI BL OIRNI A...................
Q 108 87-026-609-080 TR,KTA1266GR A...................
Q 105 87-026-609-080 TR,KTA1266GR A...................
Q 107 87-026-610-080 TR,KTC3198GR A...................
Q 102 87-026-610-080 TR,KTC3198GR A...................
Q 109 87-026-610-080 TR,KTC3198GR A...................
Q 106 87-026-610-080 TR,KTC3198GR A...................
Q 103 87-026-610-080 TR,KTC3198GR A...................
Q 104 87-A30-196-080 TR,2SC4115SRS A...................
Q 115 87-026-219-080 TR,DTA144ES (0.3W) A...................
Q 112 87-026-269-080 TR,DTA114ES A...................
Q 110 87-026-609-080 TR,KTA1266GR A...................
Q 111 89-213-702-010 TR,2SB1370 (1.8W) A...................
RY 101 87-A90-464-010 RELAY, DG12D2-O(M) A...................
W 101 83-NE2-618-110 F-CABEL,5P-2.5 A...................
WH 102 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 208 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 207 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 209 87-018-133-080 CAPACITOR,CER 4700P-16V A...................
C 212 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 211 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 219 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 210 87-018-133-080 CAPACITOR,CER 4700P-16V A...................
C 214 87-A10-899-080 CAP,E 47-25 M BP SME A...................
C 213 87-A10-899-080 CAP,E 47-25 M BP SME A...................
C 220 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 229 87-018-123-080 CAP, CER 220P-50V A...................
C 224 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 223 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 221 87-018-211-080 CAP, CER 0.01-50 A...................
C 222 87-018-211-080 CAP, CER 0.01-50 A...................
C 230 87-018-123-080 CAP, CER 220P-50V A...................
C 237 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 255 87-018-115-080 CAP, CER 47P-50V A...................
C 256 87-018-115-080 CAP, CER 47P-50V A...................
C 257 87-018-119-080 CAP, CER 100P-50V A...................
C 258 87-018-119-080 CAP, CER 100P-50V A...................
C 253 87-018-131-080 CAP, CER 1000P-50V A...................
C 254 87-018-131-080 CAP, CER 1000P-50V A...................
D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 206 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................

ELECTRICAL MAIN PARTS LIST - 3/5
D 204 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 216 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 218 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 217 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 219 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 220 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 221 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 222 87-020-465-080 DIODE,1SS133 (110MA) A...................
J 202 87-A60-238-010 TERMINAL,SP 4P (MSC) A...................
J 204 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC A...................
L 201 87-003-383-010 COIL,1UH-S A...................
L 202 87-003-383-010 COIL,1UH-S A...................
Q 202 87-026-609-080 TR,KTA1266GR A...................
Q 201 87-026-609-080 TR,KTA1266GR A...................
Q 203 87-026-609-080 TR,KTA1266GR A...................
Q 204 87-026-609-080 TR,KTA1266GR A...................
Q 205 87-026-610-080 TR,KTC3198GR A...................
Q 209 87-026-610-080 TR,KTC3198GR A...................
Q 206 87-026-610-080 TR,KTC3198GR A...................
Q 208 87-026-610-080 TR,KTC3198GR A...................
Q 207 87-026-610-080 TR,KTC3198GR A...................
Q 218 87-026-609-080 TR,KTA1266GR A...................
Q 216 87-026-610-080 TR,KTC3198GR A...................
Q 210 87-026-610-080 TR,KTC3198GR A...................
Q 215 87-026-610-080 TR,KTC3198GR A...................
Q 213 87-A30-255-010 TR,2SB1342 A...................
Q 214 87-A30-255-010 TR,2SB1342 A...................
Q 211 87-A30-256-010 TR,2SD1933 A...................
Q 212 87-A30-256-010 TR,2SD1933 A...................
R 249 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 250 87-A00-258-080 RES,M/F 0.22-1W J A...................
C 307 87-010-263-080 CAP, ELECT 100-10V A...................
C 308 87-010-263-080 CAP, ELECT 100-10V A...................
C 309 87-018-115-080 CAP, CER 47P-50V A...................
C 303 87-018-130-080 CAP,TC-U 820P-50 B A...................
C 304 87-018-130-080 CAP,TC-U 820P-50 B A...................
C 301 87-018-195-080 CAP, CER 1200P-16V A...................
C 302 87-018-195-080 CAP, CER 1200P-16V A...................
C 318 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 317 87-010-546-080 CAP, ELECT 0.33-50V A...................
C 310 87-018-115-080 CAP, CER 47P-50V A...................
C 326 87-018-209-080 CAP, CER 0.1-50V A...................
C 325 87-018-209-080 CAP, CER 0.1-50V A...................
C 322 87-018-209-080 CAP, CER 0.1-50V A...................
C 327 87-018-209-080 CAP, CER 0.1-50V A...................
C 350 87-018-209-080 CAP, CER 0.1-50V A...................
C 361 87-010-374-080 CAP, ELECT 47-10V A...................
C 360 87-010-401-080 CAP, ELECT 1-50V A...................
C 399 87-018-127-080 CAP, CER 470P-50V A...................
C 401 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 402 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 403 87-018-118-080 CAP,TC-U 82P-50 B A...................
C 404 87-018-118-080 CAP,TC-U 82P-50 B A...................
C 412 87-010-405-080 CAP, ELECT 10-50V A...................
C 411 87-010-405-080 CAP, ELECT 10-50V A...................
C 452 87-010-382-080 CAP, ELECT 22-25V A...................
C 459 87-018-128-080 CAP, CERA-SOL SS 560P A...................
C 458 87-018-131-080 CAP, CER 1000P-50V A...................
C 461 87-018-126-080 CAP,TC-U 390P-50 B A...................
C 462 87-018-126-080 CAP,TC-U 390P-50 B A...................
CN 301 87-A60-620-010 CONN,3P V 2MM JMT A...................
CN 351 87-A60-625-010 CONN,8P V 2MM JMT A...................
D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................
FB 301 87-008-372-080 FILTER, EMI BL OIRNI A...................
FB 303 87-008-474-080 F-BEAD,EMI BL02RN1 A...................
IC 301 87-017-889-010 IC,NJM4558LD A...................
IC 401 87-017-889-010 IC,NJM4558LD A...................
JW 307 87-008-372-080 FILTER, EMI BL OIRNI A...................
JW 313 87-008-372-080 FILTER, EMI BL OIRNI A...................
JW 317 87-008-474-080 F-BEAD,EMI BL02RN1 A...................
L 451 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 306 87-026-218-080 TR,DTC144ES (0.2W) A...................
Q 309 87-026-609-080 TR,KTA1266GR A...................
Q 303 87-A30-090-080 FET,2SK2541 A...................
Q 304 87-A30-090-080 FET,2SK2541 A...................
Q 307 87-A30-091-080 FET,2SJ460 A...................
Q 305 87-A30-091-080 FET,2SJ460 A...................
Q 301 87-A30-091-080 FET,2SJ460 A...................
Q 308 87-A30-091-080 FET,2SJ460 A...................
Q 302 87-A30-091-080 FET,2SJ460 A...................
Q 310 87-026-609-080 TR,KTA1266GR A...................
Q 443 87-026-609-080 TR,KTA1266GR A...................
Q 444 87-026-609-080 TR,KTA1266GR A...................
Q 455 87-026-610-080 TR,KTC3198GR A...................
Q 453 87-026-610-080 TR,KTC3198GR A...................
Q 454 87-026-610-080 TR,KTC3198GR A...................
Q 451 87-026-610-080 TR,KTC3198GR A...................
SFR 451 87-A90-432-080 SFR,30K H NVZ6TLTA A...................
SFR 452 87-A90-432-080 SFR,30K H NVZ6TLTA A...................
C 602 87-018-195-080 CAP, CER 1200P-16V A...................

ELECTRICAL MAIN PARTS LIST - 4/5
C 601 87-018-195-080 CAP, CER 1200P-16V A...................
C 617 87-010-260-080 CAP, ELECT 47-25V A...................
C 616 87-010-260-080 CAP, ELECT 47-25V A...................
C 612 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 613 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 614 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 611 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 615 87-018-104-080 CAP,TC-U 10P-50 SL A...................
CN 602 87-099-194-010 CONN,6P 6216V A...................
CN 601 87-099-719-010 CONN,30P TYK-B(X) A...................
D 601 87-A40-466-080 ZENER,MTZJ2.7A A...................
D 602 87-A40-466-080 ZENER,MTZJ2.7A A...................
FB 601 87-008-372-080 FILTER, EMI BL OIRNI A...................
FB 603 87-008-372-080 FILTER, EMI BL OIRNI A...................
IC 601 87-A20-715-010 IC,M62439SP A...................
J 601 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN A...................
C 707 87-010-112-080 CAP, ELECT 100-16V A...................
C 709 87-010-248-080 CAP, ELECT 220-10V A...................
C 701 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 704 87-018-131-080 CAP, CER 1000P-50V A...................
C 705 87-018-131-080 CAP, CER 1000P-50V A...................
C 706 87-018-131-080 CAP, CER 1000P-50V A...................
C 703 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 702 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 708 87-A11-144-080 CAP,TC U 0.1-50 K B A...................
C 710 87-010-112-080 CAP, ELECT 100-16V A...................
C 714 87-010-112-080 CAP, ELECT 100-16V A...................
C 715 87-018-119-080 CAP, CER 100P-50V A...................
C 713 87-018-149-080 CAP,TC-U 15P-50 CH A...................
C 712 87-018-149-080 CAP,TC-U 15P-50 CH A...................
D 701 87-017-931-080 ZENER,MTZJ5.6B A...................
D 702 87-020-465-080 DIODE,1SS133 (110MA) A...................
IC 701 87-070-127-110 IC,LC72131 D A...................
L 701 87-005-847-080 COIL,2.2UH(CECS) A...................
Q 701 87-A30-196-080 TR,2SC4115SRS A...................
X 701 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................
C 746 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 758 87-010-112-080 CAP, ELECT 100-16V A...................
C 753 87-010-408-080 CAP, ELECT 47-50V A...................
C 751 87-018-131-080 CAP, CER 1000P-50V A...................
C 759 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 757 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 756 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 752 87-018-143-080 CAP,TC-U 4.7P-50 CH A...................
C 755 87-018-209-080 CAP, CER 0.1-50V A...................
C 762 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 763 87-010-401-080 CAP, ELECT 1-50V A...................
C 764 87-010-401-080 CAP, ELECT 1-50V A...................
C 769 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 761 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 766 87-010-407-080 CAP, ELECT 33-50V A...................
C 765 87-018-115-080 CAP, CER 47P-50V A...................
C 768 87-018-208-080 CAP 0.047-50F A...................
C 774 87-010-405-080 CAP, ELECT 10-50V A...................
C 771 87-010-406-080 CAP, ELECT 22-50 A...................
C 770 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 776 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 773 87-018-196-080 CAP, CER 1500P-16V A...................
C 789 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 786 87-010-405-080 CAP, ELECT 10-50V A...................
C 785 87-010-405-080 CAP, ELECT 10-50V A...................
C 788 87-018-196-080 CAP, CER 1500P-16V A...................
C 787 87-018-196-080 CAP, CER 1500P-16V A...................
C 784 87-018-202-080 CAP.CERAM.6800PF A...................
C 783 87-018-202-080 CAP.CERAM.6800PF A...................
C 790 87-010-403-080 CAP, ELECT 3.3-50V A...................
D 752 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 751 87-020-465-080 DIODE,1SS133 (110MA) A...................
IC 751 87-A20-913-010 IC,LA1837NL A...................
L 771 87-A50-266-010 COIL,FM DET-2N(TOK) A...................
L 772 87-A91-110-010 FLTR,PCFJZH-450 (TOK) A...................
C 855 87-010-405-080 CAP, ELECT 10-50V A...................
C 856 87-010-405-080 CAP, ELECT 10-50V A...................
C 858 87-018-109-080 CAP, CER 22P-50V A...................
C 859 87-018-109-080 CAP, CER 22P-50V A...................
C 852 87-018-123-080 CAP, CER 220P-50V A...................
C 851 87-018-123-080 CAP, CER 220P-50V A...................
C 853 87-018-127-080 CAP, CER 470P-50V A...................
C 857 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 854 87-018-209-080 CAP, CER 0.1-50V A...................
C 860 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
IC 851 87-A20-502-010 IC,BU1920 A...................
L 851 87-005-847-080 COIL,2.2UH(CECS) A...................
Q 851 87-026-610-080 TR,KTC3198GR A...................
X 851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 A...................
C 805 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 807 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 808 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 803 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 809 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 801 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 804 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................

ELECTRICAL MAIN PARTS LIST - 5/5
C 802 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 814 87-010-260-080 CAP, ELECT 47-25V A...................
C 812 87-010-408-080 CAP, ELECT 47-50V A...................
C 813 87-018-131-080 CAP, CER 1000P-50V A...................
C 811 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 810 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 901 87-018-209-080 CAP, CER 0.1-50V A...................
C 924 87-014-049-080 CAP,PP 470P-100 J A...................
C 922 87-018-099-080 CAP CERA 3.9P-50 A...................
C 923 87-018-101-080 CAP,TC-U 5.6P-50 SL A...................
C 921 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 938 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 937 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 943 87-018-209-080 CAP, CER 0.1-50V A...................
CF 802 82-785-747-010 CF MS2 GHY R A...................
CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 A...................
D 921 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 922 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 923 87-020-465-080 DIODE,1SS133 (110MA) A...................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM A...................
J 802 87-A60-427-010 TERMINAL,ANT PAL 2P YKD31-0429 A...................
L 801 87-005-847-080 COIL,2.2UH(CECS) A...................
L 942 87-A50-019-010 COIL,OSC LW(COI) A...................
L 941 87-A50-020-010 COIL,ANT LW(COI) A...................
L 981 8Z-NFA-665-010 COIL,AMPACK 2L(TOK) A...................
Q 801 87-026-214-080 TR,DTA114YS (0.3W) A...................
Q 803 89-305-352-380 TR,2SC535(B/C) A...................
Q 935 87-A30-092-080 FET,2SK439E/F A...................
Q 933 87-A30-164-080 TR,CSC2001K A...................
Q 941 87-026-269-080 TR,DTA114ES A...................
Q 942 87-A30-164-080 TR,CSC2001K A...................
TC 942 87-011-221-080 CAP, TRIMMER 30P A...................
CN 3 87-009-345-010 CONN,2P PH H A...................
S 8 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 9 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 12 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 11 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 10 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 13 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 14 87-A90-095-080 SW,TACT EVQ11G04M A...................

MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N A...................
8Z-MA1-006-010 BOX,CASS L A...................
8Z-MA1-007-010 BOX,CASS R A...................
8Z-MA4-057-010 PANEL,TOP A...................
8Z-MA5-019-010 PANEL,SIDE L(5) A...................
8Z-MA5-020-010 PANEL,SIDE R(5) A...................
8Z-MAD-001-010 CABI,FR(13) LH ....................
8Z-MAD-005-010 CABI,FR(13) EZ1 A...................
8Z-MAD-006-010 CABI,REAR EZ(13) A...................
8Z-MA1-039-010 KNOB,RTRY MAIN A...................
8Z-MA1-040-010 KEY,T-BASS A...................
8Z-MA1-044-010 KEY,DEMO A...................
8Z-MAC-037-010 KEY,DIRECT (12) A...................
8Z-MAD-010-010 KEY,GEQ (13) A...................
8Z-MAD-012-010 KEY,FUN (13) A...................
8Z-MAD-013-010 KEY,PLAY (13) ....................
8Z-MAD-014-010 KEY,POWER (13) A...................
8Z-MAD-016-010 KEY,RDS (13) A...................
8Z-MAD-017-010 KEY,PLAY (13) REV A...................
81-532-080-010 LABEL, CASS. COMPT A...................
86-MA3-042-010 WINDOW,TOP A...................
8Z-MA1-010-010 PANEL,TRAY A...................
8Z-MA1-015-010 WINDOW,CASS L A...................
8Z-MA1-016-010 WINDOW,CASS R A...................
8Z-MA3-024-010 PANEL,CASS(A3) L A...................
8Z-MA3-025-010 PANEL,CASS(A3) R A...................
8Z-MAC-007-010 PANEL,CASS(12) L ....................
8Z-MAC-008-010 PANEL,CASS(12) R ....................
8Z-MAC-009-010 PANEL,DSP (12) A...................
8Z-MAC-034-010 PANEL,CD (12) A...................
8Z-MAD-015-010 PANEL,JOG (13) A...................
8Z-MAD-018-010 PLATE,DISPLAY (13) A...................
8Z-MAD-020-010 WINDOW,AMP (13) EZ ....................
8Z-MAD-021-010 WINDOW,AMP (13) EZ1 A...................
8Z-MAD-022-010 PANEL,FUN(13) A...................
84-ZG1-245-210 CAP,OPTICAL A...................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) A...................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) A...................
82-NF5-229-010 PLATE,LOCK A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-NF4-216-010 HLDR,LOCK 1 A...................
87-NF4-217-110 HLDR,LOCK 2 A...................
87-NF8-220-010 DMPR,150 A...................
88-MA1-208-110 JOINT,CABI A...................
88-NF9-210-010 BUSHING,CORD-E A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-758-010 BVT2+3-12 W/O SLOT A...................
87-078-060-010 BVIT3PB+3-10 A...................
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) A...................
87-721-096-410 QT2+3-10 GLD A...................
87-741-172-410 UT2+4-12 W/O SLOT A...................
85-CF5-660-010 CONN ASSY,8P-RPB A...................
85-MA2-615-010 CONN ASSY,3P PH A...................
87-003-317-010 F-BEAD,F0H2515-LG7 A...................
88-906-221-110 CABLE,FFC 6P-1.25 A...................
88-911-271-110 FF-CABLE,11P 1.25 ....................
88-914-251-110 FF-CABLE,14P 1.25 250 A...................
88-915-111-110 FF-CABLE,15P 1.25 A...................
F 101 87-035-218-010 FUSE, 400MAT A...................
PT 101 8Z-MA6-602-010 PT,ZMA-6 EZ A...................
W 101 87-050-079-010 AC-CORD ASSY,E A...................
82-NF7-210-110 GUIDE,FL (*) A...................
WH 101 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
W 101 83-NE2-618-110 F-CABEL,5P-2.5 A...................
WH 102 87-A90-459-010 HLDR,WIRE 2.5-5P A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-MAD-906-010 IB,EZ(9L)M ....................
8Z-MAD-916-010 IB,EZ(9L)M -52 A...................
87-A90-030-010 ANT,LOOP AM-NC C A...................
87-A90-118-010 ANT,WIRE FM (Z) A...................
8Z-NF8-701-110 RC UNIT,RC-ZAS01 A...................
8Z-NF9-701-110 RC UNIT,ZAS02 ....................

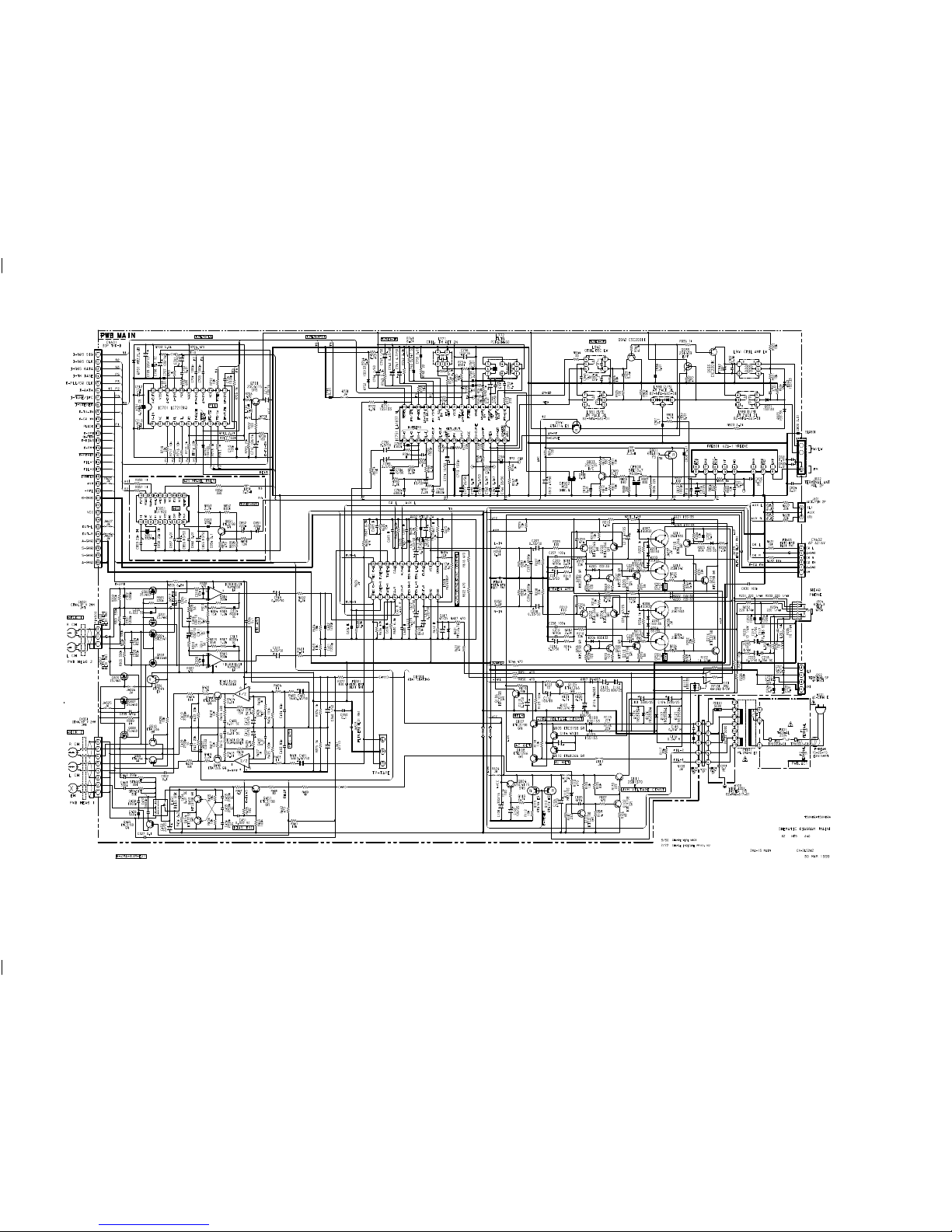

SCHEMATIC DIAGRAM _1 (MAIN)

SCHEMATIC DIAGRAM _2 (FRONT)

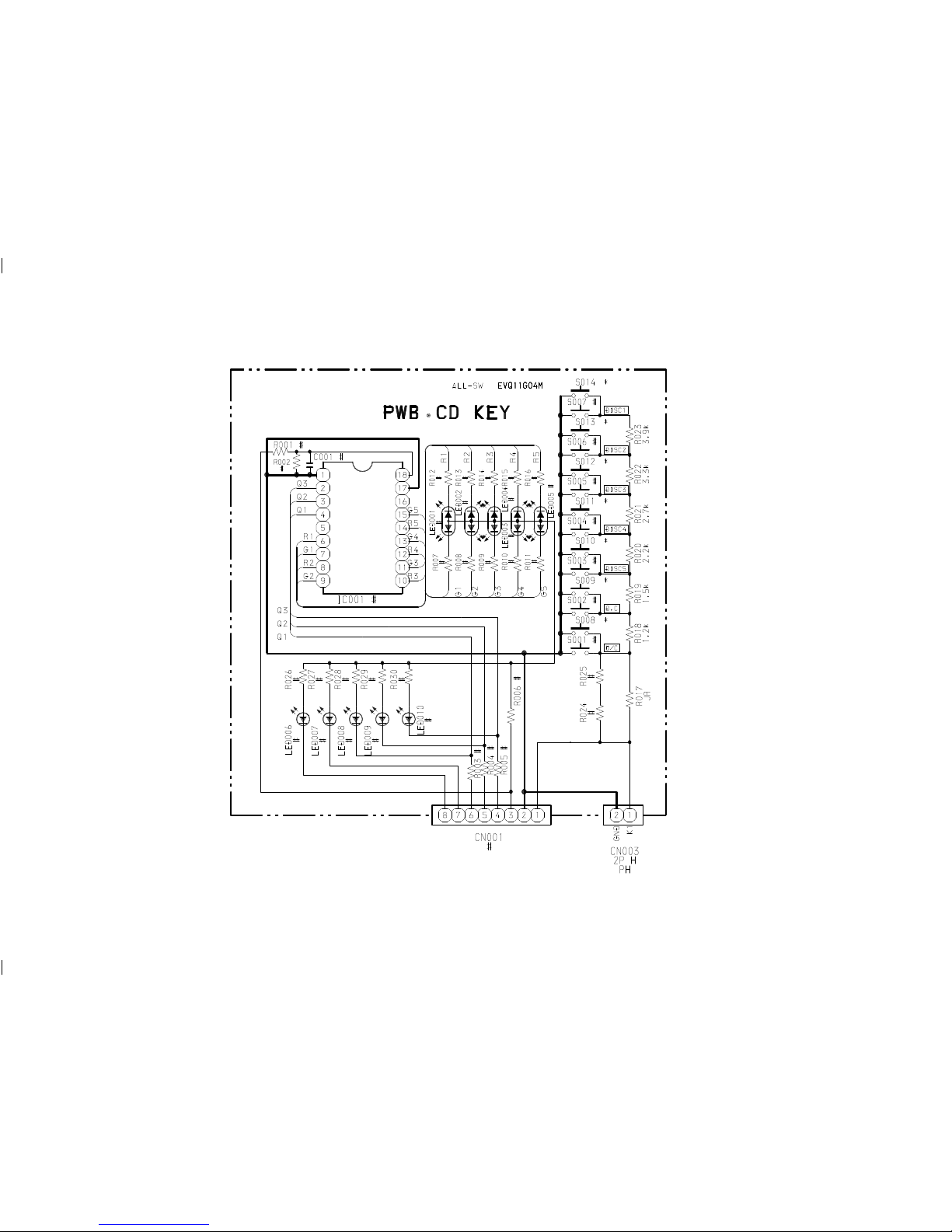

SCHEMATIC DIAGRAM _3 (CD KEY)

PrintedinSingapore
Tokyo Japan
4
9630466
