Aiwa CSD-A190 LHS User manual

SERVICE MANUAL
DATA
LH(S,L)
CD STEREO RADIO
CASSETTE RECORDER
S/M Code No. 09-029-456-0N3
BASIC TAPE MECHANISM:TN-21ZVC-2000
BASIC CD MECHANISM :KSM-213 RDM
CSD-A190

-2-

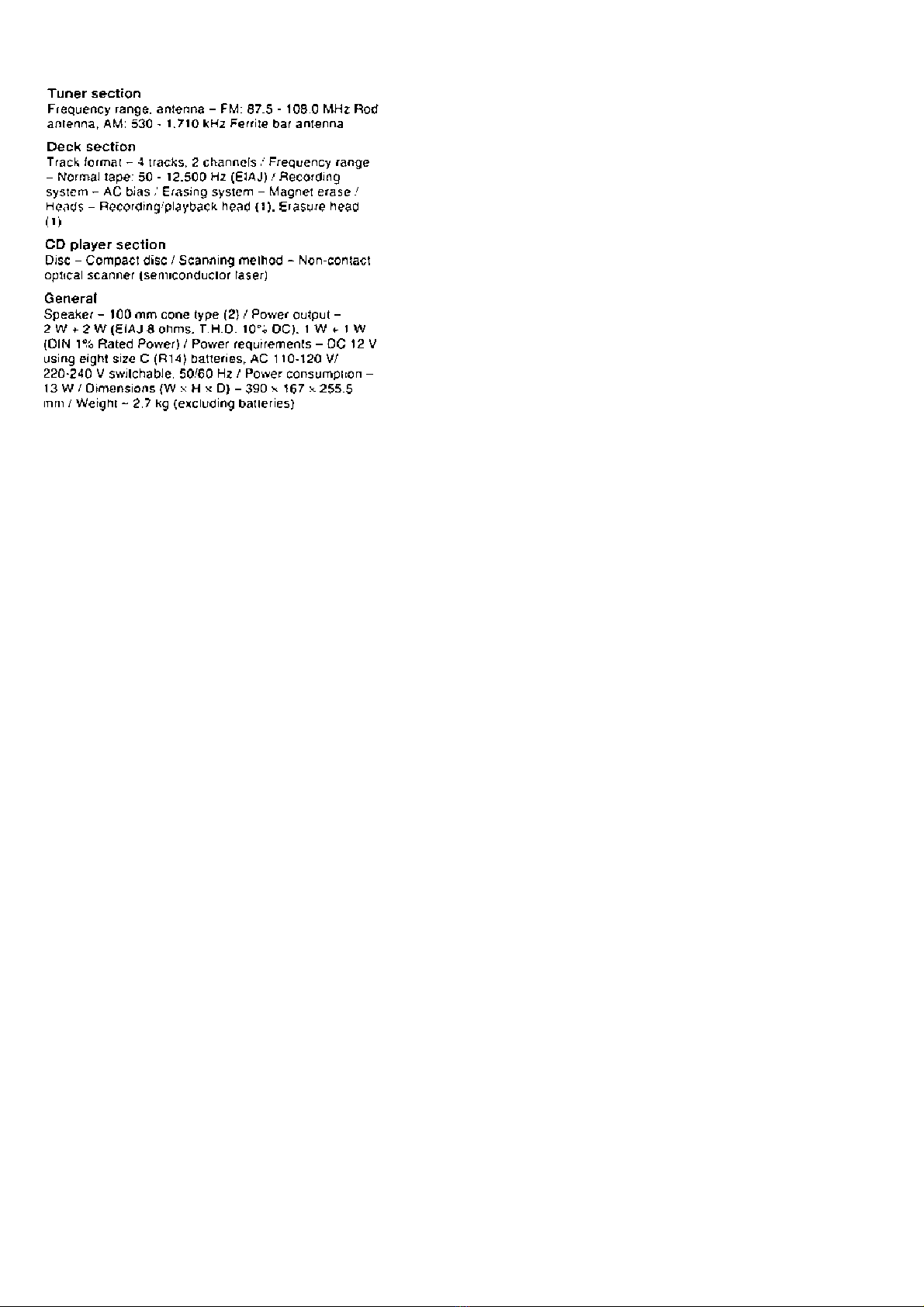

SPECIFICATIONS -1/1
•
Design and specifications are subject to change without
notice.

-3-

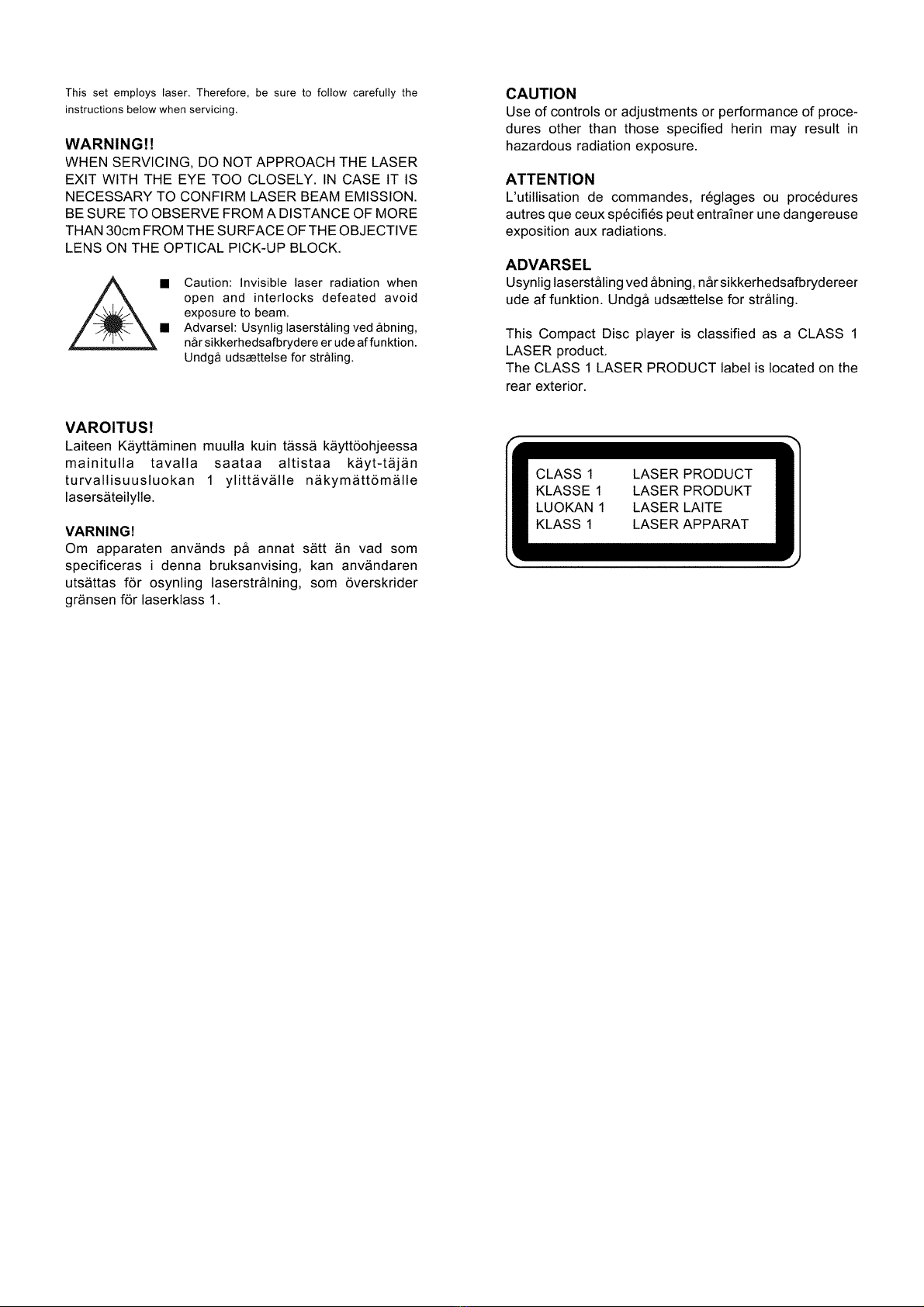

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1

-4-

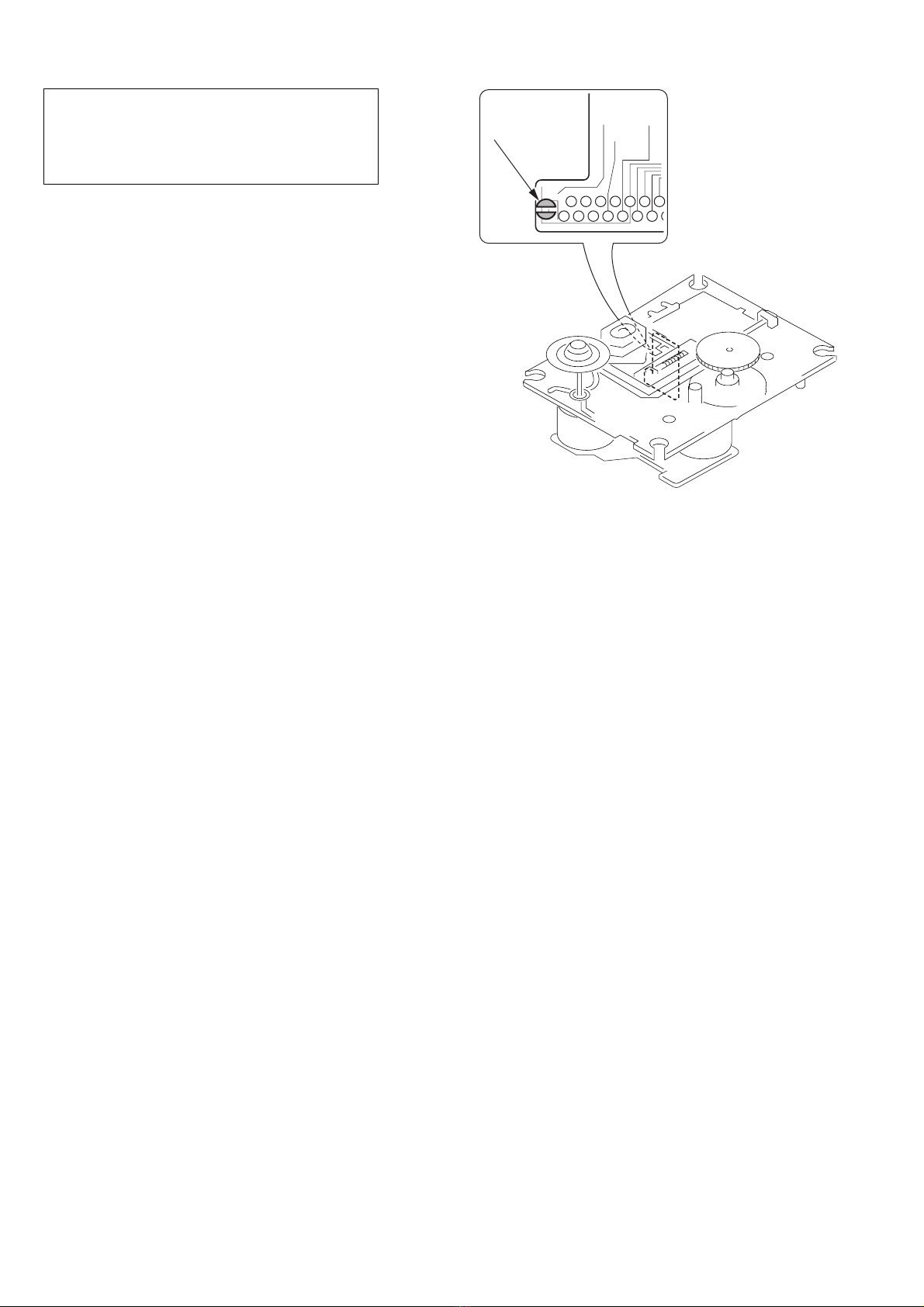

PRECAUTION TO REPALCE OPTICAL BLOCK (KSM-213 RDM) -1/1
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Solder

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-5-
ACCESSORIES PARTS LIST -1/1
CSD-A190 CSD-A190
LHS LHL
O AS1001 SC-CDC-950-300 CASS DOOR CARD CCDC-95-03 S:1 a b
! O AS1002 87-A91-017-110 CONVERTOR,220V-117V a b
O AS1003 8C-CDC-902-110 IB,LH-HA a b
! O AS1004 SA-18A-A20-070 PCA-VDE-6'&&&-VDE-NM BRAZILIA a b

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-6-
ELECTRICAL PARTS LIST -1/7
CSD-A190 CSD-A190
LHS LHL
BEAT CUT O SW 0802 8C-CDC-622-180 SLIDE SW SK22F03G9 a b
CASSETTE O C 0302 87-010-263-080 CAP,E 100-10V a b
CASSETTE O C 0303 87-010-404-010 CAP,E 4.7-50V a b
CASSETTE O C 0304 S0-102-101-000 CAP,M 0.001UF-100V a b
CASSETTE X C 0305 S0-273-101-000 CAP,M 0.027UF-100V a b
CASSETTE O C 0306 87-010-037-010 CAP,E 10-50V a b
CASSETTE O C 0307 87-010-404-010 CAP,E 4.7-50V a b
CASSETTE O C 0308 87-010-263-080 CAP,E 100-10V a b
CASSETTE O C 0310 S0-102-101-000 CAP,M 0.001UF-100V a b
CASSETTE O C 0311 87-010-375-010 CAP,E 330-10V a b
CASSETTE X C 0312 S0-273-101-000 CAP,M 0.027UF-100V a b
CASSETTE X C 0313 S0-222-101-000 CAP,M 0.0022UF-100V a b
CASSETTE O C 0314 S0-102-101-000 CAP,M 0.001UF-100V a b
CASSETTE X C 0315 S0-222-101-000 CAP,M 0.0022UF-100V a b
CASSETTE O C 0316 S0-102-101-000 CAP,M 0.001UF-100V a b
CASSETTE X C 0334 S0-102-800-500 CAP,CER 0.001U-50V a b
CASSETTE O C 0335 87-010-248-080 CAP,E 220-10V a b
CASSETTE O C 0336 S0-103-101-000 CAP,M 0.01UF-100V a b
CASSETTE O C 0337 S0-103-101-000 CAP,M 0.01UF-100V a b
CASSETTE O C 0338 S0-472-101-000 CAP,M 0.0047UF-100V a b
CSD-A190 CSD-A190
LHS LHL
CASSETTE O C 0340 87-010-248-080 CAP,E 220-10V a b
CASSETTE X C 0393 S0-331-100-500 CAP,CER 330PF-50V a b
CASSETTE X C 0394 S0-331-100-500 CAP,CER 330PF-50V a b
CASSETTE O CNH0002 S0-401-68C-010 HSG CD168-103(C) PEC 2507-H-4 a b
CASSETTE O D 0302 82-135-799-010 DIODE,IN4148 a b
CASSETTE O D 0303 82-135-799-010 DIODE,IN4148 a b
CASSETTE O IC 0301 87-020-636-010 IC,BA3308 a b
CASSETTE S Q 0301 89-318-154-080 TR,2SC1815GR a b
CASSETTE S Q 0302 S6-805-000-000 TR,3DA8050 a b
CASSETTE X R 0301 S0-823-510-160 RES,82K-1/16W a b
CASSETTE X R 0302 S0-224-510-160 RES,220K-1/16W a b
CASSETTE X R 0303 S0-823-510-160 RES,82K-1/16W a b
CASSETTE X R 0304 S0-101-510-160 RES,100-1/16W (1 a b
CASSETTE X R 0305 S0-680-510-160 RES,68-1/16W (1/ a b
CASSETTE X R 0306 S0-472-510-160 RES,4.7K-1/16W a b
CASSETTE X R 0307 S0-472-510-160 RES,4.7K-1/16W a b
CASSETTE X R 0308 S0-680-510-160 RES,68-1/16W (1/ a b
CASSETTE X R 0309 S0-472-510-160 RES,4.7K-1/16W a b
CASSETTE X R 0310 S0-223-510-160 RES,22K-1/16W (1 a b
CASSETTE X R 0311 S0-103-510-160 RES,10K-1/16W (1 a b
CSD-A190 CSD-A190
LHS LHL
CASSETTE X R 0312 S0-102-510-160 RES,1K-1/16W (1/ a b
CASSETTE X R 0313 S0-472-510-160 RES,4.7K-1/16W a b
CASSETTE X R 0339 S0-152-101-000 CAP,M 0.0015U-100V a b
CASSETTE X R 0339 S0-103-510-160 RES,10K-1/16W (1 a b
CASSETTE X R 0340 S0-470-510-160 RES,47-1/16W a b
CASSETTE X R 0341 S0-332-510-160 RES,3.3K-1/16W a b
CASSETTE X R 0342 S0-103-510-160 RES,10K-1/16W (1 a b
CASSETTE O T 0301 S0-036-300-100 IFT,4A363R(B) a b
CASSETTE O VR 0301 S1-030-850-000 SFR,10K a b
CONTROL O CN 0501 SF-009-180-000 HSG(2mm)JST PHR-09 a b
CONTROL O CN 0502 SF-008-180-000 HSG(2mm)JST PHR-08 a b
CONTROL O D 0505 82-135-799-010 DIODE,IN4148 a b
CONTROL O D 0506 82-135-799-010 DIODE,IN4148 a b
CONTROL O D 0507 82-135-799-010 DIODE,IN4148 a b
CONTROL O D 0508 82-135-799-010 DIODE,IN4148 a b
CONTROL O D 0509 82-135-799-010 DIODE,IN4148 a b
CONTROL O D 0510 82-135-799-010 DIODE,IN4148 a b
CONTROL O DP 0501 S0-005-050-050 LED,A505RD-DR a b
CONTROL O LED0501 S0-330-400-130 LED,W03304RSD a b
CONTROL X R 0501 S0-222-510-160 RES,2.2K-1/16W a b
CSD-A190 CSD-A190
LHS LHL
CONTROL X R 0506 S0-101-510-160 RES,100-1/16W (1 a b
CONTROL O SW 0301 S0-092-200-000 SW,REC 9P2T 2MM a b
CONTROL O SW 0501 S2-200-410-010 SLIDE SW SS22D07G4/SS22D07G A a b
CONTROL O SW 0502 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b
CONTROL O SW 0503 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b
CONTROL O SW 0504 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b
CONTROL O SW 0505 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b
CONTROL O SW 0506 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b
CONTROL O SW 0507 S1-141-650-000 (F021-KHH902-001) TACT SW EVQ a b
MAIN X C 0201 S4-270-500-500 CAP,CER 27PF-50V a b
MAIN X C 0202 S4-180-500-500 CAP,CER 18P-50 a b
MAIN O C 0203 87-010-400-010 CAP,E 0.47-50V a b
MAIN O C 0204 87-010-404-010 CAP,E 4.7-50V a b
MAIN X C 0205 S0-203-800-500 CAP,CER 0.02U-50V a b
MAIN O C 0206 87-010-401-080 CAP,E 1-50V a b
MAIN O C 0207 87-010-401-080 CAP,E 1-50V a b
MAIN X C 0208 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0209 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN O C 0210 87-010-401-080 CAP,E 1-50V a b
MAIN O C 0211 87-010-544-010 CAP,E 0.1-50V a b

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-7-
ELECTRICAL PARTS LIST -2/7
CSD-A190 CSD-A190
LHS LHL
MAIN O C 0212 87-010-544-010 CAP,E 0.1-50V a b
MAIN O C 0213 87-010-545-010 CAP,E 0.22-50V a b
MAIN X C 0214 S0-102-800-500 CAP,CER 0.001U-50V a b
MAIN X C 0215 S4-408-300-500 CAP,CER 4PF-50V a b
MAIN X C 0216 S4-270-500-500 CAP,CER 27PF-50V a b
MAIN X C 0217 S4-200-500-500 CAP,CER 20P-50V a b
MAIN X C 0218 S0-203-800-500 CAP,CER 0.02U-50V a b
MAIN X C 0220 S4-131-500-500 CAP,CER 130PF-50V a b
MAIN X C 0221 S4-240-500-500 CAP,CER 24P-50V a b
MAIN O C 0222 87-010-101-080 CAP,E 220-16V a b
MAIN O C 0223 87-010-101-080 CAP,E 220-16V a b
MAIN X C 0224 S4-150-500-500 CAP,CER 15PF-50V a b
MAIN X C 0225 S0-203-800-500 CAP,CER 0.02U-50V a b
MAIN X C 0226 S0-203-800-500 CAP,CER 0.02U-50V a b
MAIN O C 0227 87-010-401-080 CAP,E 1-50V a b
MAIN X C 0228 S0-203-800-500 CAP,CER 0.02U-50V a b
MAIN X C 0229 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN O C 0230 87-010-248-080 CAP,E 220-10V a b
MAIN X C 0231 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN X C 0233 S0-183-101-000 CAP,M 0.018-100V a b
CSD-A190 CSD-A190
LHS LHL
MAIN X C 0234 S0-183-101-000 CAP,M 0.018-100V a b
MAIN O C 0322 87-A10-216-080 CAP,E 47-25V a b
MAIN O C 0323 87-010-038-010 CAP,E 22-25V a b
MAIN O C 0330 87-010-384-080 CAP,E 100-25V a b
MAIN O C 0390 87-010-404-010 CAP,E 4.7-50V a b
MAIN O C 0392 87-010-404-010 CAP,E 4.7-50V a b
MAIN X C 0401 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN O C 0402 S0-333-101-000 CAP,M 0.033UF-100V a b
MAIN X C 0403 S0-331-100-500 CAP,CER 330PF-50V a b
MAIN O C 0404 87-010-072-080 CAP,E 2.2-50V a b
MAIN X C 0405 S3-272-1A0-250 CAP,0.0027UF-25V a b
MAIN O C 0406 S0-473-101-000 CAP,M 0.047UF-100V a b
MAIN O C 0407 S0-224-101-000 CAP,M 0.22UF-100V a b
MAIN O C 0408 S0-224-101-000 CAP,M 0.22UF-100V a b
MAIN X C 0409 S0-102-800-500 CAP,CER 0.001U-50V a b
MAIN O C 0410 S0-104-101-000 CAP,M 0.1UF-100V a b
MAIN O C 0411 S0-333-101-000 CAP,M 0.033UF-100V a b
MAIN X C 0412 S0-332-800-500 CAP,CER 0.0033UF-50V a b
MAIN O C 0413 87-010-545-010 CAP,E 0.22-50V a b
MAIN X C 0414 S0-101-100-500 CAP,CER 100P-50V a b
CSD-A190 CSD-A190
LHS LHL
MAIN X C 0415 S0-332-800-500 CAP,CER 0.0033UF-50V a b
MAIN O C 0416 87-010-544-010 CAP,E 0.1-50V a b
MAIN O C 0417 87-010-405-080 CAP,E 10-50V a b
MAIN O C 0418 S0-104-101-000 CAP,M 0.1UF-100V a b
MAIN X C 0420 S4-220-500-500 CAP,CER 22PF-50V a b
MAIN O C 0421 S0-103-101-000 CAP,M 0.01UF-100V a b
MAIN O C 0423 87-010-405-080 CAP,E 10-50V a b
MAIN O C 0424 87-010-405-080 CAP,E 10-50V a b
MAIN X C 0425 S0-682-101-000 CAP,M 0.0068-100V a b
MAIN O C 0426 S0-473-101-000 CAP,M 0.047UF-100V a b
MAIN O C 0427 87-010-546-080 CAP,E 0.33-50V a b
MAIN X C 0428 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN O C 0429 87-010-263-080 CAP,E 100-10V a b
MAIN O C 0430 87-A10-216-080 CAP,E 47-25V a b
MAIN X C 0431 S0-102-800-500 CAP,CER 0.001U-50V a b
MAIN O C 0432 87-010-263-080 CAP,E 100-10V a b
MAIN X C 0433 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0434 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN O C 0435 87-010-263-080 CAP,E 100-10V a b
MAIN X C 0436 S0-203-800-500 CAP,CER 0.02U-50V a b
CSD-A190 CSD-A190
LHS LHL
MAIN O C 0437 87-010-248-080 CAP,E 220-10V a b
MAIN X C 0438 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN O C 0439 87-010-405-080 CAP,E 10-50V a b
MAIN O C 0440 87-010-237-010 CAP,E 1000-16V a b
MAIN O C 0441 87-010-221-010 CAP,E 470-10V a b
MAIN X C 0442 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0443 S4-300-500-500 CAP,CER 30PF-50V a b
MAIN X C 0444 S4-300-500-500 CAP,CER 30PF-50V a b
MAIN X C 0445 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN O C 0446 S0-224-101-000 CAP,M 0.22UF-100V a b
MAIN X C 0447 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN X C 0448 S0-101-100-500 CAP,CER 100P-50V a b
MAIN X C 0449 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN O C 0450 87-010-263-080 CAP,E 100-10V a b
MAIN O C 0451 87-010-375-010 CAP,E 330-10V a b
MAIN O C 0452 87-010-401-080 CAP,E 1-50V a b
MAIN O C 0455 87-010-403-010 CAP,E 3.3-50V a b
MAIN O C 0456 87-010-403-010 CAP,E 3.3-50V a b
MAIN X C 0457 S0-471-100-510 CAP,CER 470PF-50V a b
MAIN X C 0458 S0-471-100-510 CAP,CER 470PF-50V a b

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-8-
ELECTRICAL PARTS LIST -3/7
CSD-A190 CSD-A190
LHS LHL
MAIN X C 0459 S0-681-100-500 CAP,CER 680PF-50V a b
MAIN O C 0460 87-010-038-010 CAP,E 22-25V a b
MAIN X C 0462 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN O C 0463 87-010-221-010 CAP,E 470-10V a b
MAIN X C 0464 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0465 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0468 S0-102-800-500 CAP,CER 0.001U-50V a b
MAIN X C 0469 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0473 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0474 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0475 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0476 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0477 S0-102-800-500 CAP,CER 0.001U-50V a b
MAIN O C 0478 87-010-405-080 CAP,E 10-50V a b
MAIN X C 0479 S0-102-800-500 CAP,CER 0.001U-50V a b
MAIN X C 0480 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN X C 0481 S0-102-800-500 CAP,CER 0.001U-50V a b
MAIN O C 0482 87-010-248-080 CAP,E 220-10V a b
MAIN X C 0483 S0-104-800-160 CAP,CER 0.1-16V a b
MAIN X C 0484 S0-104-800-160 CAP,CER 0.1-16V a b
CSD-A190 CSD-A190
LHS LHL
MAIN X C 0485 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN O C 0486 S0-473-101-000 CAP,M 0.047UF-100V a b
MAIN O C 0487 S0-473-101-000 CAP,M 0.047UF-100V a b
MAIN O C 0801 S0-102-101-000 CAP,M 0.001UF-100V a b
MAIN O C 0802 S0-102-101-000 CAP,M 0.001UF-100V a b
MAIN O C 0805 87-010-544-010 CAP,E 0.1-50V a b
MAIN O C 0806 87-010-544-010 CAP,E 0.1-50V a b
MAIN X C 0807 S0-471-100-510 CAP,CER 470PF-50V a b
MAIN X C 0808 S0-471-100-510 CAP,CER 470PF-50V a b
MAIN O C 0809 87-010-038-010 CAP,E 22-25V a b
MAIN O C 0810 87-010-038-010 CAP,E 22-25V a b
MAIN O C 0811 87-010-112-010 CAP,E 100-16V a b
MAIN O C 0812 87-010-112-010 CAP,E 100-16V a b
MAIN O C 0813 S0-331-002-5C0 CAP,E 330-25V a b
MAIN O C 0814 S0-331-002-5C0 CAP,E 330-25V a b
MAIN O C 0815 S0-224-101-000 CAP,M 0.22UF-100V a b
MAIN O C 0816 S0-224-101-000 CAP,M 0.22UF-100V a b
MAIN O C 0817 S0-331-002-5C0 CAP,E 330-25V a b
MAIN O C 0818 87-010-387-080 CAP,E 470-25V a b
MAIN O C 0819 87-010-072-080 CAP,E 2.2-50V a b
CSD-A190 CSD-A190
LHS LHL
MAIN O C 0820 87-010-388-010 CAP,E 1000-25V a b
MAIN O C 0824 87-010-546-080 CAP,E 0.33-50V a b
MAIN O C 0828 87-010-546-080 CAP,E 0.33-50V a b
MAIN O C 0829 87-010-546-080 CAP,E 0.33-50V a b
MAIN O C 0856 87-010-401-080 CAP,E 1-50V a b
MAIN O C 0858 87-010-546-080 CAP,E 0.33-50V a b
MAIN O C 0859 87-010-546-080 CAP,E 0.33-50V a b
MAIN O C 0860 87-010-403-010 CAP,E 3.3-50V a b
MAIN O C 0872 87-010-112-010 CAP,E 100-16V a b
MAIN O C 0874 87-010-546-080 CAP,E 0.33-50V a b
MAIN O C 0877 S0-393-101-000 (F004-039350-050) CAP,M 0. a b
MAIN O C 0878 S0-393-101-000 (F004-039350-050) CAP,M 0. a b
MAIN O C 0901 87-010-112-010 CAP,E 100-16V a b
MAIN O C 0902 87-010-101-080 CAP,E 220-16V a b
MAIN X C 0904 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN X C 0905 S0-103-800-500 (F003-010380-025) CERAMIC CAP a b
MAIN O CD 0404 S0-601-89B-010 HSG CD189-55-6B(C) PEC 2001H- a b
MAIN O CF 0201 S0-004-550-110 CER,FIL CFSFU455B a b
MAIN O CF 0202 S0-001-070-000 CER,FIL SFE-10.7MA5-M a b
MAIN X CN 0301 S0-052-670-400 HEADER,MOLEX 4P a b
CSD-A190 CSD-A190
LHS LHL
MAIN O CN 0401 S0-061-161-600 FFC CONN SOCKET 16PINS P:1mm a b
MAIN O CN 0402 S0-206-682-000 HSG CD668R-2A JST PHR 2mm WIT a b
MAIN O CN 0403 S2-001-WS0-800 CONN,8P #2001-WS-8 a b
MAIN O CN 0404 SP-HS0-200-200 HEADER CTL 2 PINS PHS-02 PITC a b
MAIN O CN 0405 S2-001-WS0-900 CONN,9P #2001-WS-9 a b
MAIN O CN 0801 S2-507-WS0-400 CONN,4P #2507-WS-4 a b
MAIN O CN 0802 S2-507-WS0-400 CONN,4P #2507-WS-4 a b
MAIN X CN 0901 S0-052-670-300 HEADER,MOLEX 3P a b
MAIN O CON0302 SP-HS0-200-200 HEADER CTL 2 PINS PHS-02 PITC a b
MAIN O CON0501 S0-423-152-500 HSG 2315-4C MOLEX 5264 w/300m a b
MAIN O CON0801 S0-476-9C2-500 HSG 769C-4 PINS MOLEX 5264 YE a b
MAIN O D 0201 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0202 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0203 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0204 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0301 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0401 S0-000-010-040 DIODE,GMB01/GMA01U a b
MAIN O D 0402 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0403 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0404 82-135-799-010 DIODE,IN4148 a b

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
ELECTRICAL PARTS LIST -4/7
CSD-A190 CSD-A190
LHS LHL
MAIN O D 0411 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0418 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0855 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0856 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0901 82-135-799-010 DIODE,IN4148 a b
MAIN O D 0903 87-A40-533-080 ZENER,MTZJ8.2B 1/2W a b
MAIN O D 0904 82-135-799-010 DIODE,IN4148 a b
MAIN S DZ 0401 S0-100-331-210 ZENER BZX55C3V3 3.3V 1/2W a b
MAIN O FFC0001 S1-601-401-010 FFC CABLE 16P a b
MAIN O IC 0201 S8-321-110-010 IC TA2111N (TOSHIBA) a b
MAIN O IC 0401 S1-092-510-000 IC,LA9251M a b
MAIN O IC 0402 S7-178-600-030 IC,LC78602HNE-8612D a b
MAIN S IC 0403 S1-065-410-000 IC,LA6541DLL a b
MAIN O IC 0801 S8-382-270-000 IC,TA8227P a b
MAIN O L 0202 S0-400-500-080 FM COIL 4T,5mm,DIA:0.8mm (CS5 a b
MAIN O L 0203 S0-400-400-080 FM COIL,4T 4MM-0.8MM a b
MAIN O L 0204 S0-300-400-080 FM,COIL 3T 4 a b
MAIN O L 0207 87-003-147-010 COIL,22UH a b
MAIN O L 0208 87-005-730-080 INDUCTOR,10UH a b
MAIN O L 0209 S1-101-231-200 COIL,AM4-120 a b
CSD-A190 CSD-A190
LHS LHL
MAIN O L 0210 S0-100-700-000 FERRI,BAR 10-70MM a b
MAIN O L 0401 87-005-196-080 INDUCTOR,10UH a b
MAIN O L 0404 87-005-196-080 INDUCTOR,10UH a b
MAIN O L 0405 87-005-196-080 INDUCTOR,10UH a b
MAIN O PVC0001 S3-443-040-000 PVC,DF443DF04-B04 AM/FM a b
MAIN S Q 0401 S1-060-800-000 TR,2SA608N a b
MAIN O Q 0402 S1-134-600-000 TR,2SA1346 a b
MAIN O Q 0403 S2-007-640-000 TR,2SB764D/E a b
MAIN S Q 0404 S6-855-000-000 TR,3CA8550 a b
MAIN S Q 0405 S6-855-000-000 TR,3CA8550 a b
MAIN O Q 0408 S1-134-600-000 TR,2SA1346 a b
MAIN O Q 0801 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b
MAIN O Q 0802 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b
MAIN O Q 0803 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b
MAIN O Q 0804 S9-025-410-000 TR,2SK2541-T/2SK2541 ( a b
MAIN S Q 0807 89-318-154-080 TR,2SC1815GR a b
MAIN S Q 0808 89-318-154-080 TR,2SC1815GR a b
MAIN O Q 0851 S2-015-661-000 TR,B1566E (LIGHTNING) a b
MAIN S Q 0852 S6-805-000-000 TR,3DA8050 a b
MAIN O Q 0901 S5-901-300-070 TR,9013G/KTC a b
CSD-A190 CSD-A190
LHS LHL
MAIN O Q 0902 SB-CDC-616-010 TR,3CG9012 a b
MAIN X R 0201 S0-331-510-160 RES,330-1/16W (1 a b
MAIN X R 0202 S0-331-510-160 RES,330-1/16W (1 a b
MAIN X R 0203 S0-472-510-160 RES,4.7K-1/16W a b
MAIN X R 0204 S0-472-510-160 RES,4.7K-1/16W a b
MAIN X R 0205 S0-332-510-160 RES,3.3K-1/16W a b
MAIN X R 0206 S0-332-510-160 RES,3.3K-1/16W a b
MAIN X R 0207 S0-332-510-160 RES,3.3K-1/16W a b
MAIN X R 0208 S0-331-510-160 RES,330-1/16W (1 a b
MAIN X R 0210 S0-568-510-160 RES,5.6-1/16W a b
MAIN X R 0211 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0212 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0217 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0218 S0-331-510-160 RES,330-1/16W (1 a b
MAIN X R 0225 S0-568-510-160 RES,5.6-1/16W a b
MAIN X R 0314 S0-682-510-160 RES,6.8K-1/16W a b
MAIN X R 0315 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0316 S0-102-510-160 RES,1K-1/16W (1/ a b
MAIN X R 0317 S0-682-510-160 RES,6.8K-1/16W a b
MAIN X R 0323 S0-223-510-160 RES,22K-1/16W (1 a b
CSD-A190 CSD-A190
LHS LHL
MAIN X R 0336 S0-183-510-160 RES,18K-1/16W (1 a b
MAIN X R 0343 S0-568-510-160 RES,5.6-1/16W a b
MAIN X R 0344 S0-221-510-160 RES,220-1/16W a b
MAIN X R 0390 S0-333-510-160 RES,33K-1/16W (1 a b
MAIN X R 0397 S0-333-510-160 RES,33K-1/16W (1 a b
MAIN X R 0401 S0-563-510-160 RES,56K-1/16W a b
MAIN X R 0402 S0-563-510-160 RES,56K-1/16W a b
MAIN X R 0403 S0-563-510-160 RES,56K-1/16W a b
MAIN X R 0404 S0-563-510-160 RES,56K-1/16W a b
MAIN X R 0405 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0406 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0407 S0-154-510-160 RES,150K-1/16W ( a b
MAIN X R 0408 S0-223-510-160 RES,22K-1/16W (1 a b
MAIN X R 0409 S0-222-510-160 RES,2.2K-1/16W a b
MAIN X R 0410 S0-561-510-160 RES,560-1/16W a b
MAIN X R 0411 S0-393-510-160 RES,39K-1/16W (1 a b
MAIN X R 0412 S0-183-510-160 RES,18K-1/16W (1 a b
MAIN X R 0413 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0414 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0416 S0-222-510-160 RES,2.2K-1/16W a b

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-10-
ELECTRICAL PARTS LIST -5/7
CSD-A190 CSD-A190
LHS LHL
MAIN X R 0417 S0-273-510-160 RES,27K-1/16W a b
MAIN X R 0418 S0-223-510-160 RES,22K-1/16W (1 a b
MAIN X R 0419 S0-223-510-160 RES,22K-1/16W (1 a b
MAIN X R 0420 S0-223-510-160 RES,22K-1/16W (1 a b
MAIN X R 0421 S0-152-500-160 RES,1.5K-1/16W a b
MAIN X R 0422 S0-273-510-160 RES,27K-1/16W a b
MAIN X R 0424 S0-563-510-160 RES,56K-1/16W a b
MAIN X R 0425 S0-563-510-160 RES,56K-1/16W a b
MAIN X R 0426 S0-102-510-160 RES,1K-1/16W (1/ a b
MAIN X R 0427 S0-333-510-160 RES,33K-1/16W (1 a b
MAIN X R 0428 S0-333-510-160 RES,33K-1/16W (1 a b
MAIN X R 0429 S0-394-510-160 RES,390K-1/16W a b
MAIN X R 0430 S0-153-510-160 RES,15K-1/16W (1 a b
MAIN X R 0431 S0-224-510-160 RES,220K-1/16W a b
MAIN X R 0432 S0-224-510-160 RES,220K-1/16W a b
MAIN X R 0433 S0-392-510-160 RES,3.9K-1/16W (1/8W a b
MAIN X R 0434 S0-682-510-160 RES,6.8K-1/16W a b
MAIN X R 0435 S0-153-510-160 RES,15K-1/16W (1 a b
MAIN X R 0436 S0-223-510-160 RES,22K-1/16W (1 a b
MAIN X R 0437 S0-123-510-160 RES,12K-1/16W (1 a b
CSD-A190 CSD-A190
LHS LHL
MAIN X R 0438 S0-273-510-160 RES,27K-1/16W a b
MAIN X R 0439 S0-331-510-160 RES,330-1/16W (1 a b
MAIN X R 0440 S0-331-510-160 RES,330-1/16W (1 a b
MAIN X R 0441 S0-472-510-160 RES,4.7K-1/16W a b
MAIN X R 0442 S0-564-510-160 RES,560K-1/16W a b
MAIN X R 0443 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0444 S0-220-510-160 RES,22-1/16W (1/ a b
MAIN X R 0445 S0-471-510-160 RES,470-1/16W a b
MAIN X R 0446 S0-153-510-160 RES,15K-1/16W (1 a b
MAIN X R 0447 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0448 S0-333-510-160 RES,33K-1/16W (1 a b
MAIN X R 0449 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0450 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0451 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0452 S0-124-510-160 RES,120K-1/16W ( a b
MAIN X R 0453 S0-124-510-160 RES,120K-1/16W ( a b
MAIN X R 0457 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0458 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0459 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0460 S0-101-510-160 RES,100-1/16W (1 a b
CSD-A190 CSD-A190
LHS LHL
MAIN X R 0461 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0462 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0463 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0464 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0465 S0-392-510-160 RES,3.9K-1/16W (1/8W a b
MAIN X R 0466 S0-392-510-160 RES,3.9K-1/16W (1/8W a b
MAIN X R 0468 S0-150-510-160 RES,15-1/6W a b
MAIN X R 0470 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0473 S0-562-510-160 RES,5.6K-1/16W a b
MAIN X R 0474 S0-223-510-160 RES,22K-1/16W (1 a b
MAIN X R 0477 S0-473-510-160 RES,47K-1/16W (1 a b
MAIN X R 0478 S0-271-510-160 RES,270-1/16W a b
MAIN X R 0479 S0-100-510-160 RES,10-1/16W (1/ a b
MAIN X R 0480 S0-100-510-160 RES,10-1/16W (1/ a b
MAIN X R 0482 S0-102-510-160 RES,1K-1/16W (1/ a b
MAIN X R 0801 S0-332-510-160 RES,3.3K-1/16W a b
MAIN X R 0802 S0-153-510-160 RES,15K-1/16W (1 a b
MAIN X R 0803 S0-153-510-160 RES,15K-1/16W (1 a b
MAIN X R 0804 S0-332-510-160 RES,3.3K-1/16W a b
MAIN X R 0805 S0-822-510-160 RES,8.2K-1/16W a b
CSD-A190 CSD-A190
LHS LHL
MAIN X R 0806 S0-822-510-160 RES,8.2K-1/16W a b
MAIN X R 0807 S0-102-510-160 RES,1K-1/16W (1/ a b
MAIN X R 0808 S0-102-510-160 RES,1K-1/16W (1/ a b
MAIN X R 0809 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0810 S0-101-510-160 RES,100-1/16W (1 a b
MAIN X R 0813 S0-102-510-160 RES,1K-1/16W (1/ a b
MAIN X R 0815 S0-228-507-140 RES,2.2-1/4W a b
MAIN X R 0816 S0-228-507-140 RES,2.2-1/4W a b
MAIN X R 0821 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0822 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0825 S0-682-510-160 RES,6.8K-1/16W a b
MAIN X R 0826 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0828 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0829 S0-102-510-160 RES,1K-1/16W (1/ a b
MAIN X R 0830 S0-102-510-160 RES,1K-1/16W (1/ a b
MAIN X R 0848 S0-223-510-160 RES,22K-1/16W (1 a b
MAIN X R 0849 S0-223-510-160 RES,22K-1/16W (1 a b
MAIN X R 0851 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0852 S0-471-510-160 RES,470-1/16W a b
MAIN X R 0853 S0-682-510-160 RES,6.8K-1/16W a b

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-11-
ELECTRICAL PARTS LIST -6/7
CSD-A190 CSD-A190
LHS LHL
MAIN X R 0854 S0-561-510-160 RES,560-1/16W a b
MAIN X R 0855 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0856 S0-104-510-160 RES,100K-1/16W ( a b
MAIN X R 0857 S0-473-510-160 RES,47K-1/16W (1 a b
MAIN X R 0858 S0-473-510-160 RES,47K-1/16W (1 a b
MAIN X R 0859 S0-222-510-160 RES,2.2K-1/16W a b
MAIN X R 0860 S0-222-510-160 RES,2.2K-1/16W a b
MAIN X R 0861 S0-152-500-160 RES,1.5K-1/16W a b
MAIN X R 0862 S0-152-500-160 RES,1.5K-1/16W a b
MAIN X R 0866 S0-682-510-160 RES,6.8K-1/16W a b
MAIN X R 0867 S0-152-500-160 RES,1.5K-1/16W a b
MAIN X R 0868 S0-152-500-160 RES,1.5K-1/16W a b
MAIN X R 0872 S0-471-510-160 RES,470-1/16W a b
MAIN X R 0901 S0-471-510-160 RES,470-1/16W a b
MAIN X R 0902 S0-103-510-160 RES,10K-1/16W (1 a b
MAIN X R 0903 S0-472-510-160 RES,4.7K-1/16W a b
MAIN X R 0904 S0-681-510-160 RES,680-1/16W (1 a b
MAIN X R 0906 S0-221-510-160 RES,220-1/16W a b
MAIN O SPK0001 S4-080-020-150 SPK,8OHM 2W a b
MAIN O SPK0002 S4-080-020-150 SPK,8OHM 2W a b
CSD-A190 CSD-A190
LHS LHL
MAIN O SW 0401 S0-011-200-020 LEAF SWITCH LSA-1120Y2 a b
MAIN O SW 0801 S6-400-610-000 SW,SLIDE 6P4T a b
MAIN O T 0201 S0-110-300-100 IFT,1A1103R B a b
MAIN O T 0202 S0-022-400-100 IFT,4A-224R,10mm a b
MAIN O T 0203 S0-024-700-100 IFT,A247R(B) 10MM a b
MAIN O VR 0801 SD-165-031-020 RES,VARIABLE 50KA a b
MAIN O X 0401 S0-016-930-000 CER,RESO a b
RECTIFIER X C 0601 S0-203-800-500 CAP,CER 0.02U-50V a b
RECTIFIER X C 0602 S0-203-800-500 CAP,CER 0.02U-50V a b
RECTIFIER X C 0603 S0-203-800-500 CAP,CER 0.02U-50V a b
RECTIFIER X C 0604 S0-203-800-500 CAP,CER 0.02U-50V a b
RECTIFIER O C 0605 87-010-388-010 CAP,E 1000-25V a b
RECTIFIER X C 0606 S0-203-800-500 CAP,CER 0.02U-50V a b
RECTIFIER O CNH0852 S0-302-68C-000 HSG CD268-3B(C) 2507H-3 a b
RECTIFIER O D 0601 82-596-799-010 DI,1N4001B a b
RECTIFIER O D 0602 82-596-799-010 DI,1N4001B a b
RECTIFIER O D 0603 82-596-799-010 DI,1N4001B a b
RECTIFIER O D 0604 82-596-799-010 DI,1N4001B a b
RECTIFIER S F 0602 87-A91-939-080 FUSE,MICRO 2A/60V a b
RECTIFIER O HP 0002 87-A60-178-010 AC SOCKET PSE27 a b
CSD-A190 CSD-A190
LHS LHL
RECTIFIER O PT 0001 SC-8A0-711-000 PT008WEI48/18&F&BIEC 115V/230 a b
RECTIFIER O SW 0601 87-A90-146-110 SW,SLIDE SS12J01M-A-65 ALE a b

-12-

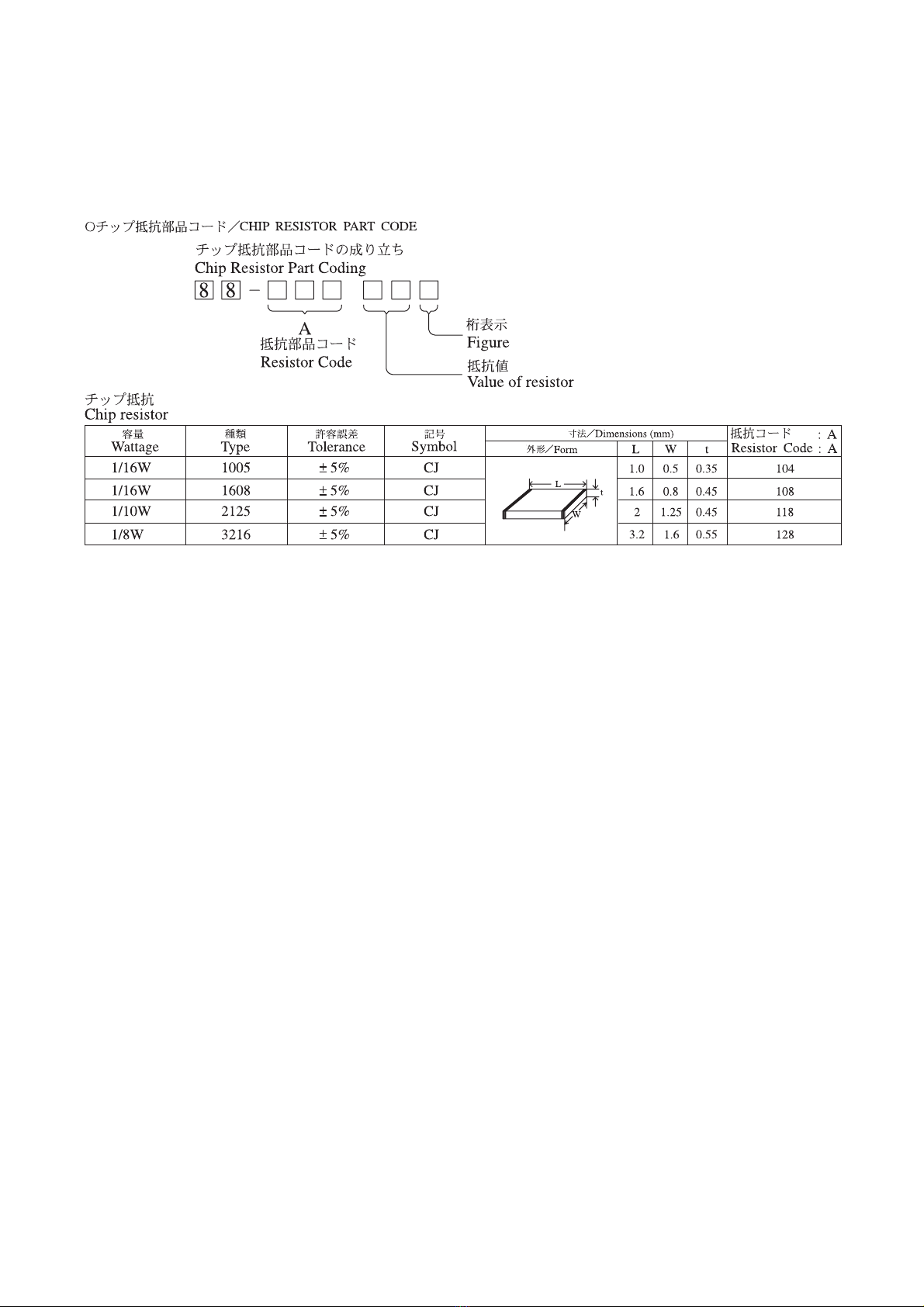

• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
ELECTRICAL PARTS LIST -7/7

-13-
TRANSISTOR ILLUSTRATION -1/1
ECB ECB BCE
B1566E 2SA13462SC1815GR
3CG9012
3DA8050
3CA8550
2SB764D/E
9013G
2SK2541
2SA608N

-14-

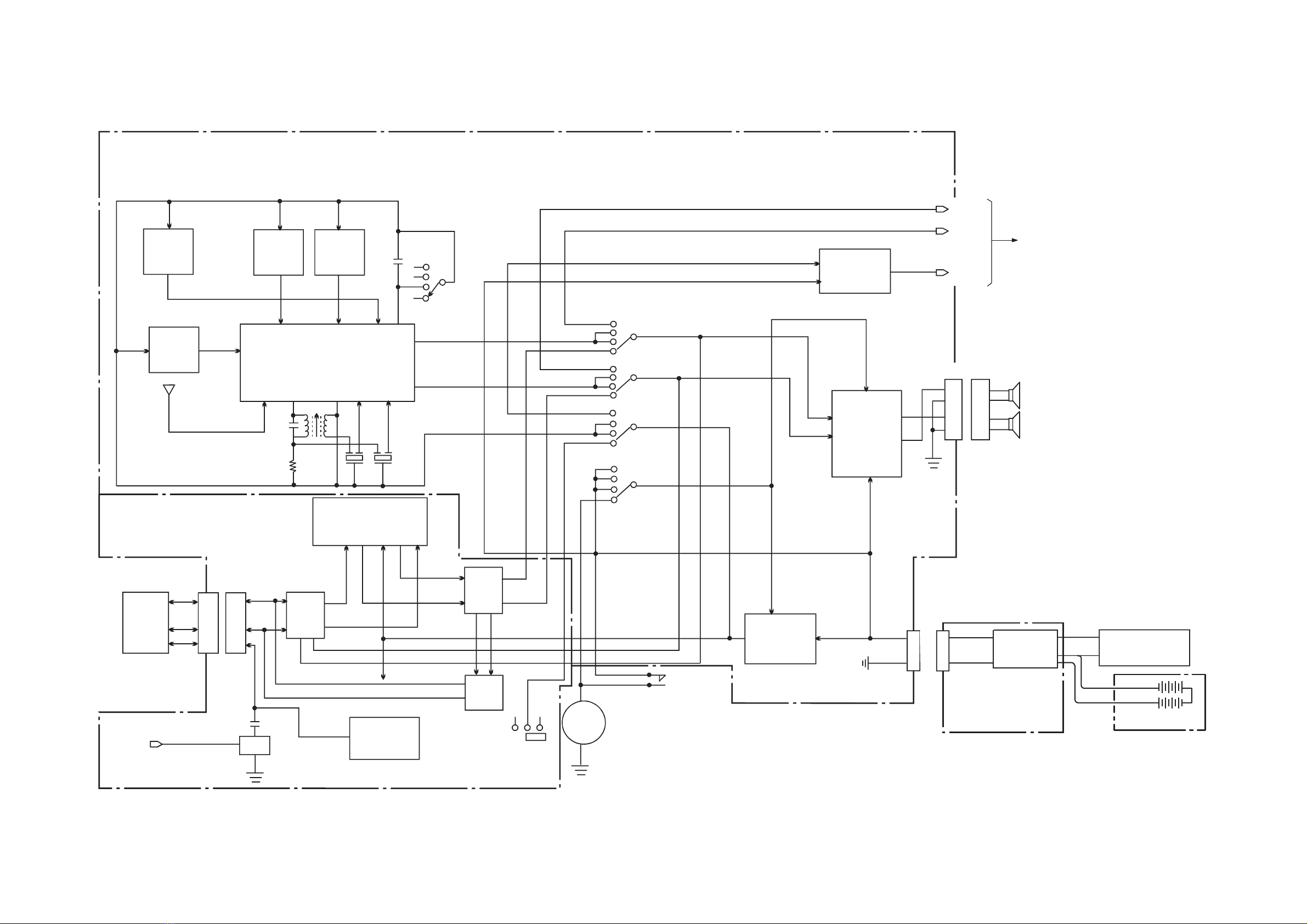

BLOCK DIAGRAM -1/2
AM OSC
T201
PVC1C
FM RF
L206
PVC1B
FM OSC
L205
PVC1A
AM RF
L209
PVC1D AM/FMTUNER SYSTEM
IC201 TA2111N
24
23 21 20 16
14
13
14678
PRE AMP
IC301 BA3308
FM
ANT
P/R
HEAD
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
SW301
SW301
SW301
E,C
G,A
B,F
23 6 78
Q301
BEAT AC BIAS
T301,VR301
+SW801B
SW301
MOTOR
SW801A
SW801C
SW801D
SW801E
REGULATOR
Q901,902
D903
POWER
AMP
IC801
TA8227
1
6
7
3
10
12
REGULATOR
Q851,852
CD/R
CD/L
CD-B+
CN801 CN802
CF202
CF201
T202
+LEAF SW
TUNER, CASSETTE & POWER AMP. SECTION
1
2
3RECTIFIER TRANSFORMER
RECTIFIER C.B BATT-1,2 C.B
1
2
3
MAIN C.B (1/2)
TO FROM MAIN C.B (2/2)

-15-

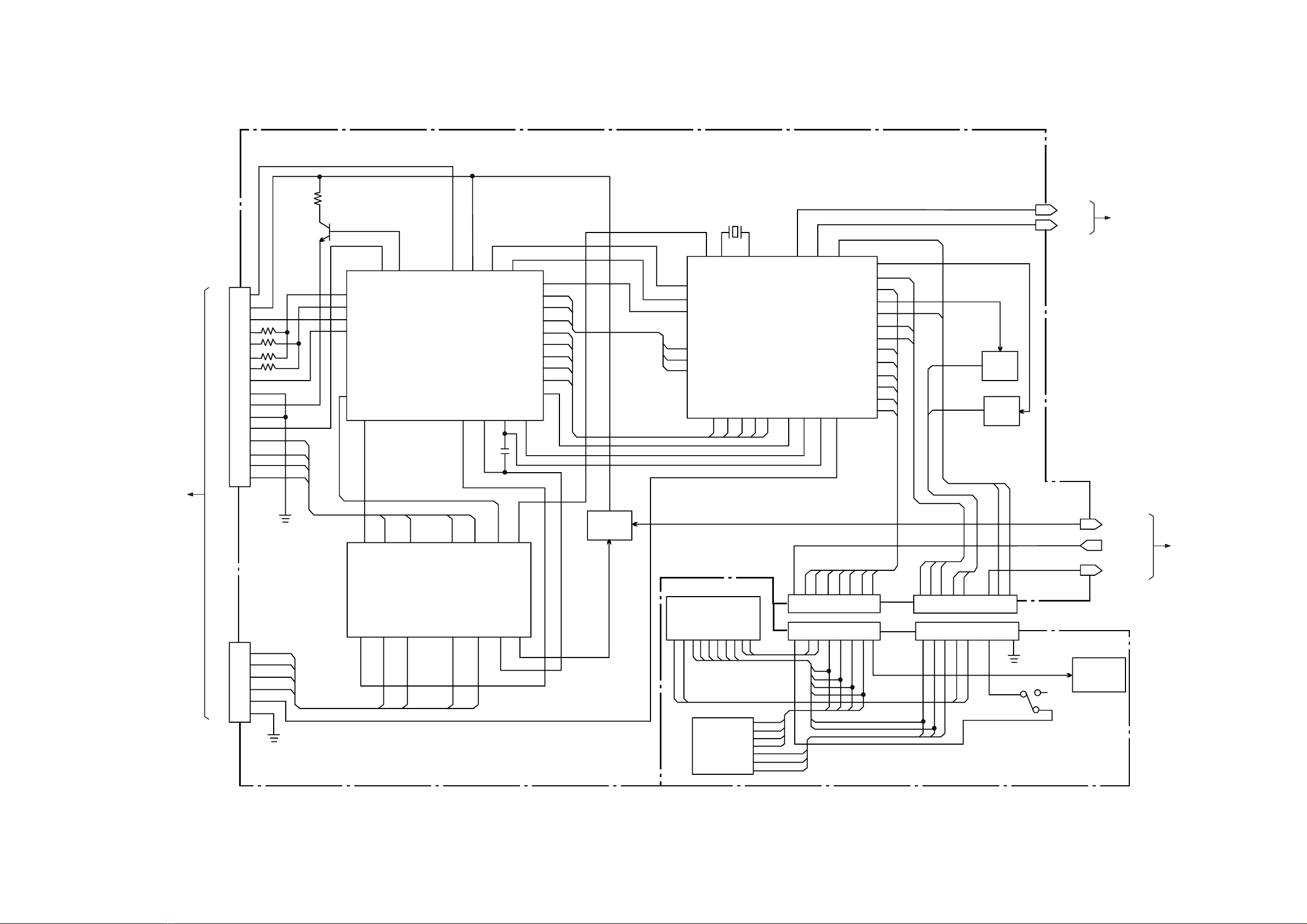

BLOCK DIAGRAM -2/2
SSP DSP
IC401 IC402
LA9251M LC78602HKE
1
2
3
4
15
17 26 28 29 30
45
44
43
42
41
40
38
37
36
33
47
44
43
42
39
38
37
36
35
34
33
32
31
63 62 58 56 50 49 63 61 60 57 54 52
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DRIVER
IC403 LA6541D
28 26 25 21 20 18 16
356 10111315
1
2
3
4
5
6
17 18 20 21 23 25 26 27 28
9
10
12
14
15
16
Q403
Q404
Q405
12345678
12345678
123456789
123456789
LED
KEY
DISPLAY
MATRIX
LED501
T-BASS
VCC
CD-B+
Q401 CD/R
CD/L
DISPLAY SECTION
CN401
CN402
CD & DISPLAY SECTION
CN502
CN403 CN405
CN501
CONTROL C.B
TO FROM MAIN C.B (1/2)
TO CDMECHANISM KSM-213 RDM
TO FROM MAIN C.B (1/2)
MAIN C.B (2/2)

-16-

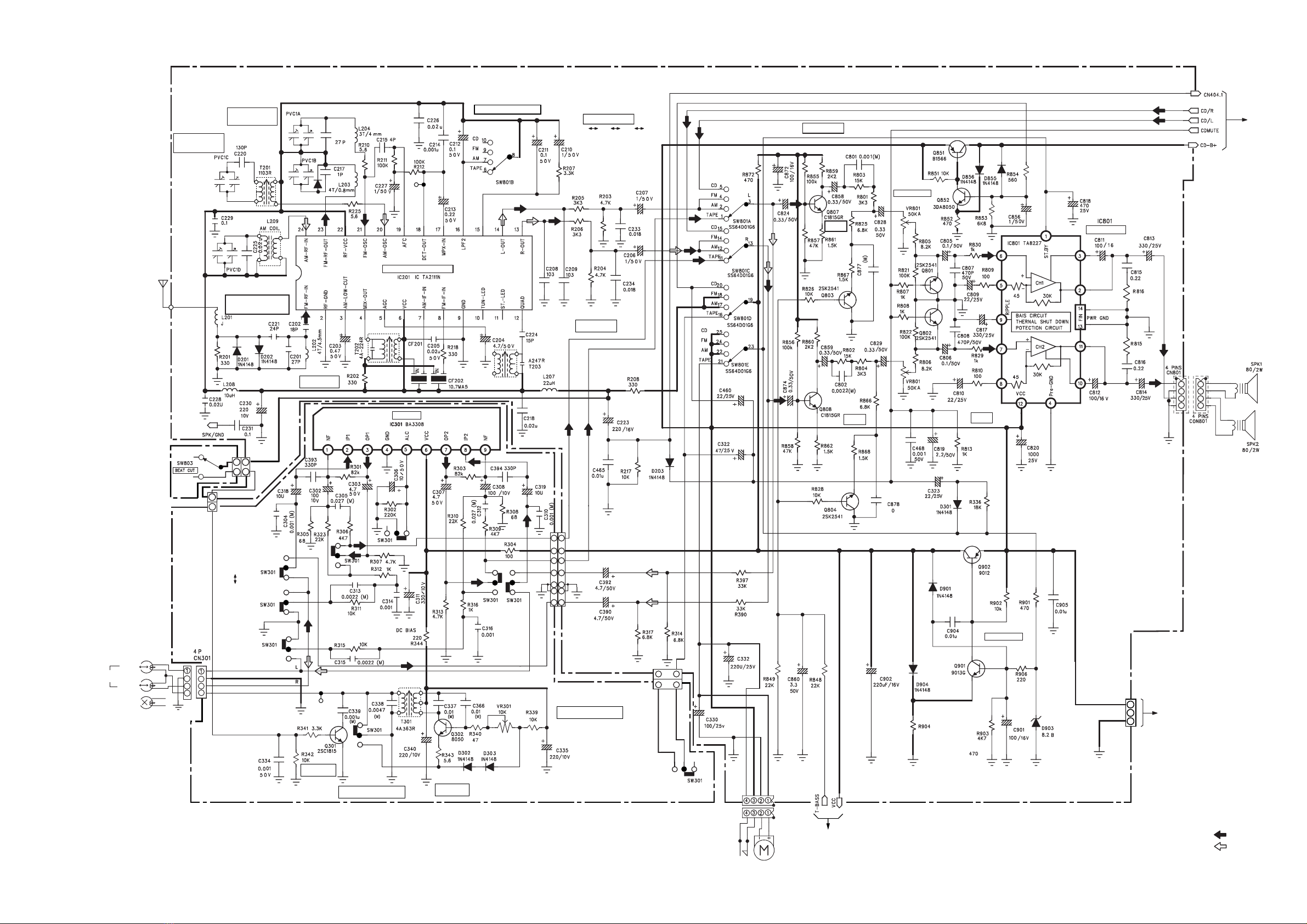

SCHEMATIC DIAGRAM -1/3 (MAIN -1/2)
A
BD
E
H
G
F
C
I

LCH
RCH
CNH
002
CFSFU
455B
LPF1
C216
REC
REC
REC
REC
PB
PB
PB
PB
PB
PB
REC
REC
SIGNAL
:PB/FM
:REC/AM
AM/FM TUNER SYSTEM
PRE AMP
Q901,902
REGULATOR
POWER AMP
Q851,852
REGULATOR
D204
IN4148
TO FROM MAIN C.B (2/2)
1
2
4
3
1
2
4
3
VR 801
AMP
AMP
AMP
Q801,802

L206,PUC1B
FM TRACKING ADJ

T203
FM IF ADJ 
L202
AM IF ADJ 

VR301
BIAS LEVEL ADJ

REC SW
L209,PVC1D
MW TRACKING
ADJ

MAIN C.B(1/2)
T201,PVC1D
MW FREQ.
RANGE ADJ
T301
BIAS FREQ. ADJ


AC BIAS
L205,PVC1A
FM FRED
RANGE ADJ
SW801
TP
TP
TAPE AM FM CD
98
98
CON1(1/3)
CON2(1/3)
CON2(2/3)
CON1(2/3)
CON1(3/3)
CON2(3/3)
SW301
REC
PLAY
ROD
ANT
2
3
4
2
3
4
LCH
RCH
EH
RPH
5
5
1
2
3
TO RECTIFIER C.B CNH852
1
1
22
BEAT CUT C.B
TO/FROM MAIN C.B (2/2)
CN303
FUNCTION
VOLUME
1
1
680

CASSETTE C.B
6 6
66
10 10
4 4
3 3
2 2
7 7
(DECK SW)
(DECK MOTOR)
M501
CN901
CON501
CN802
0.047

-17-

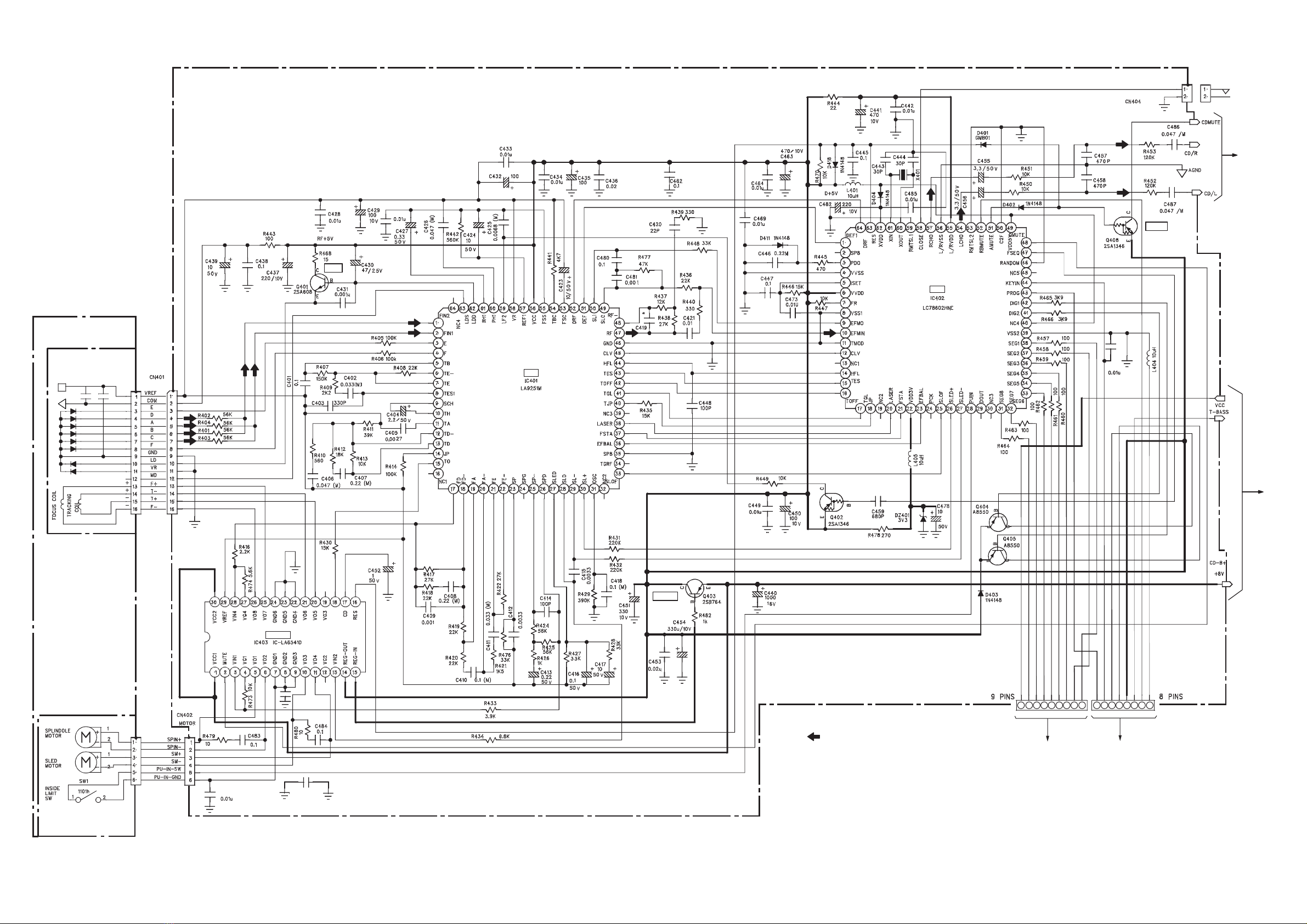

SCHEMATIC DIAGRAM -2/3 (MAIN -2/2)
CER RESO
CON 16PINS
HEADER CTL 2 PINS
C479
0.001
CN405 CN403
SW401
(CD DOOR SW)
CD404
CD402
B
VIN3
TO CONTROL C.B 
CN501
TO CONTROL C.B
CN502
DIGITAL SIGNAL
PROSESSOR
RF SIGNAL/SERVO
PROSESSOR
SIGNAL
:PB
SSP
DRIVER
DSP
C474
C475
C476

C477
0.01u
MUTE
APC
MAIN C.B (2/2)
TB SW
TO FROM MAIN C.B (1/2)
TO FROM MAIN C.B (1/2)

PICK UP ASSY
CD MECHANISH
KSM-213 RDM
FFC001
12345678123456789

-18-
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

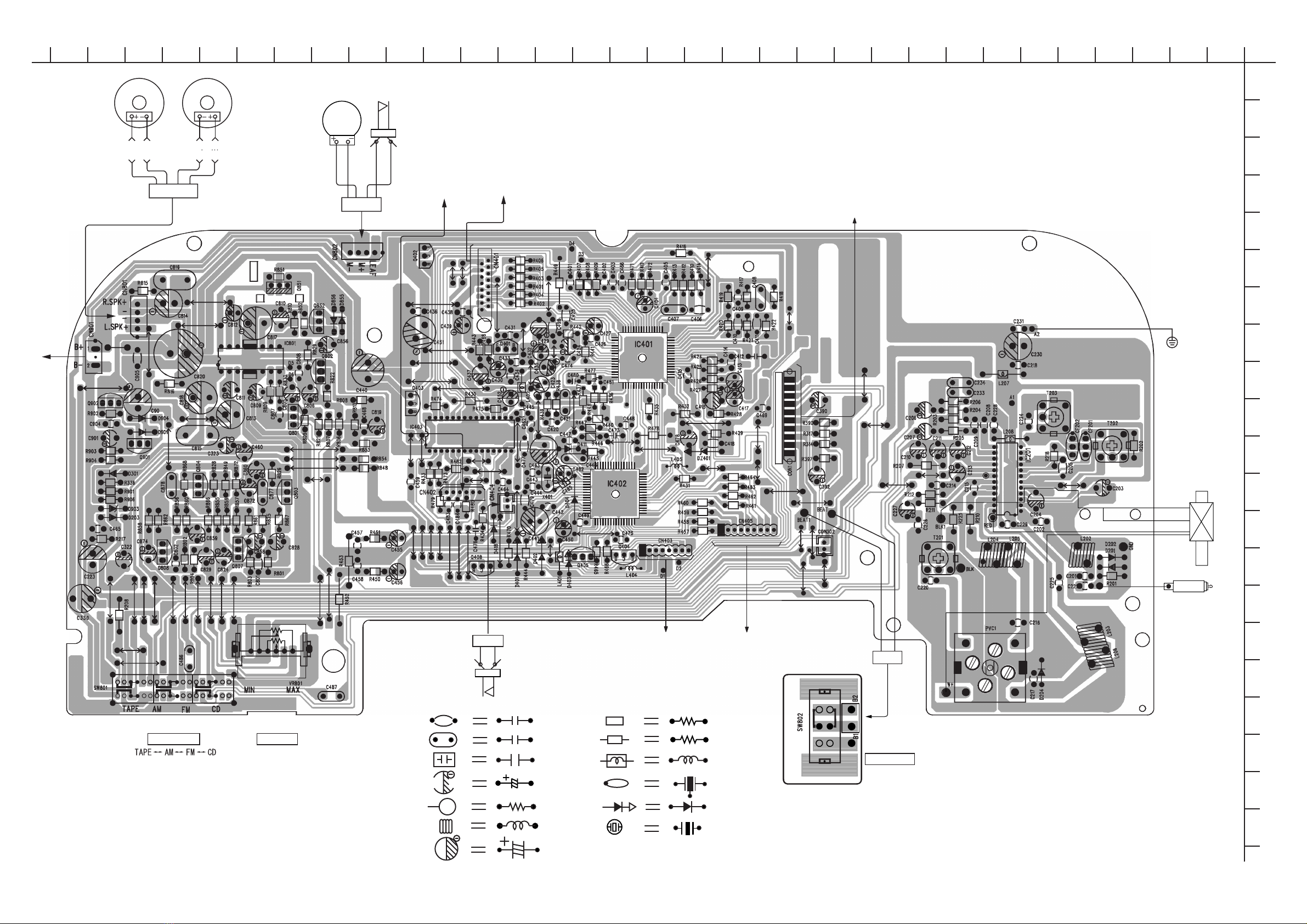

WIRING -1/3 (MAIN/BEAT CUT)
(TP)
124
1213
SW801
FUNCTION SW802
BEAT CUT
12 14 7
6131
21 25 6 10
20 11 15 1 516
PVC1C
PVC1D
PVC1A
PVC1B
1
10
117
49 33
64
32
48
16
1
64 17
33
49
48
32
16
18
19
16
1
30
15
16
1516
12
1
4
(FFC001)
1
2
TO CASSETTE C.B
CON2
TO CD MECHANISM
KSM-213 RDM
TO CONTROL C.B
CN501
TO CONTROL C.B
CN502
BLK
GEN
RED
NATURE
L210
(MW COIL)
FM ANT
MAIN C.B (PARTS SIDE)
BEAT CUT C.B
(PARTS SIDE)
41
1
2
1
2
21
SW401
(CD DOOR SW)
VR801
VOLUME
TO RECTIFIER C.B CNH852
CN303
CD404
14
CON801 CON501
BLK
RED
BLK YEL
RED
BLK
WHT
WHT
BLK BLK
RED
RED
LCH
SPEAKER
RCH
SPEAKER
M501
(DECK MOTOR) (DECK SW)
1
4
RXXX
RXXX
RXXX
LXXX
DXXX
CXXX
CXXX
CXXX
CXXX
CXXX
XXXX
CFXXX
LXXX
NOTE:

-19-
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
WIRING -2/3 (CASSETTE)
110
14 (TP)
ABCD EFGHI
19
TO MAIN C.B
CON1 WHT
RED
YWL
RPH
EH
41
SW301
PB REC
CASSETTE C.B (PARTS SIDE)
CNH002

-20-
SCHEMATIC DIAGRAM -3/3 (CONTROL/RECTIFIER/BATT-1/BATT-2)
HP002
PT001
AC
1
23
456
78
1
23
456
78
9
A505RD-DR
DP401
DISPLAY
SW501
TO MAIN C.B CN403TO MAIN C.B CN405
CN501 CN502
SW502
SW503
SW504
SW505
SW506
SW507
D510
D509
D508
D507
D506
D505
TO MAIN C.B CN851
RECTIFIER C.B
BATT-2
C.B BATT-1
C.B
BATTERY DC12V R14 x 8
AC110-120 220-240V,
50/60Hz
CONTROL C.B
PROGRAM
REPEAT
STOP
PLAY/PAUSE
T-BASS
SW601
AC VOLTAGE
110-120
220-240V
F602
2A/60V
