SERVICE MANUAL

DATA

• Replace this Service Manual with ”Revision Publishing” when it is issued.

COMPACT DISC RECORDER BASIC CD MECHANISM : PH1621011/A

XC-RW500

S/M Code No. 09-002-420-3T1

SIMPLE

ELECTRICAL MAIN PARTS LIST - 1/4

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

88-SX1-203-210 GUIDE,FL A...................

C 803 87-010-178-080 CHIP CAP 1000P A...................

C 801 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 806 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 807 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 804 87-010-498-040 CAP,E 10-16 GAS A...................

C 802 87-010-553-040 CAP,E 47-16 GAS A...................

CN 802 88-803-061-690 CONN ASSY,6P A...................

CN 801 8A-AJ1-634-010 CONN ASSY,4P 400MM-PWFR A...................

D 803 87-001-142-080 DIODE,1SS294 (100MA) A...................

D 802 87-001-142-080 DIODE,1SS294 (100MA) A...................

D 804 87-001-142-080 DIODE,1SS294 (100MA) A...................

D 801 87-001-142-080 DIODE,1SS294 (100MA) A...................

FL 801 8A-AJ1-615-010 FL,BJ725GNK A...................

IC 802 87-070-083-010 IC,GP1U281X A...................

IC 801 87-A20-672-010 C-IC,BU2872AK A...................

LED 803 87-017-733-080 LED,SEL1250SM A...................

LED 801 87-A40-228-040 LED,SLR-342MG T31 GREEN A...................

LED 802 87-A40-228-040 LED,SLR-342MG T31 GREEN A...................

LED 804 87-A40-228-040 LED,SLR-342MG T31 GREEN A...................

Q 801 87-026-267-080 LIGHT EMITTING DIODE,RN2407 A...................

Q 805 87-026-267-080 LIGHT EMITTING DIODE,RN2407 A...................

Q 803 87-026-267-080 LIGHT EMITTING DIODE,RN2407 A...................

Q 802 87-026-267-080 LIGHT EMITTING DIODE,RN2407 A...................

S 801 87-036-397-080 SW,TACT SKQNAB A...................

S 806 87-036-397-080 SW,TACT SKQNAB A...................

S 809 87-036-397-080 SW,TACT SKQNAB A...................

S 802 87-036-397-080 SW,TACT SKQNAB A...................

S 803 87-036-397-080 SW,TACT SKQNAB A...................

S 807 87-036-397-080 SW,TACT SKQNAB A...................

S 804 87-036-397-080 SW,TACT SKQNAB A...................

S 805 87-036-397-080 SW,TACT SKQNAB A...................

S 808 87-036-397-080 SW,TACT SKQNAB A...................

S 810 87-036-397-080 SW,TACT SKQNAB A...................

S 811 87-036-397-080 SW,TACT SKQNAB A...................

S 812 87-036-397-080 SW,TACT SKQNAB A...................

S 813 87-A91-451-010 SW,SL 1-1-3 SSSF013-P06N1 A...................

C 503 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 501 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 502 87-012-349-080 C-CAP,S 1000P-50 CH A...................

CN 501 88-805-031-290 CONN ASSY,3P A...................

J 501 87-A61-102-010 JACK,6.3 BLK ST W/O SW GD JY63 A...................

C 601 87-010-978-010 CAP,CER 4700P-400 KC A...................

CN 602 87-099-674-010 CONN,2P VA V A...................

CN 601 87-099-674-010 CONN,2P VA V A...................

S 601 87-A90-596-010 SW,PUSH 1-1-1 SDDLB1-B1-F-2 A...................

C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 302 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 308 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 301 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 304 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 306 87-010-498-040 CAP,E 10-16 GAS A...................

C 305 87-010-498-040 CAP,E 10-16 GAS A...................

C 303 87-010-553-040 CAP,E 47-16 GAS A...................

CN 301 88-803-101-290 CONN ASSY,10P A...................

IC 301 87-017-585-080 IC,NJM4580E * A...................

IC 302 87-017-585-080 IC,NJM4580E * A...................

R 309 87-022-355-080 C-RES,S10K-1/10W F A...................

R 307 87-022-355-080 C-RES,S10K-1/10W F A...................

R 305 87-022-355-080 C-RES,S10K-1/10W F A...................

R 302 87-022-355-080 C-RES,S10K-1/10W F A...................

R 301 87-022-355-080 C-RES,S10K-1/10W F A...................

R 303 87-022-355-080 C-RES,S10K-1/10W F A...................

R 306 87-022-355-080 C-RES,S10K-1/10W F A...................

R 308 87-022-525-080 C-RES,S 20K-1/10W F A...................

R 304 87-022-525-080 C-RES,S 20K-1/10W F A...................

R 310 87-A00-523-080 C-RES,S 8.25K-1/10W F A...................

VR 301 87-A90-595-010 VR,RTRY 20KAX2 1 V XVO122GPVN2 A...................

C 703 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 708 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 704 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 707 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 706 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 702 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 705 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 701 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 713 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 711 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 710 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 714 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

CN 701 88-805-102-290 CONN ASSY,10P A...................

IC 703 87-001-604-080 IC,TC74HCU04F A...................

IC 701 87-A21-321-010 IC,TOTX178A A...................

IC 702 87-A21-322-010 IC,TORX178A A...................

J 703 87-A60-573-010 JACK,PIN 1P ORN A...................

ELECTRICAL MAIN PARTS LIST - 2/4

J 701 87-A61-103-010 JACK,PIN 4P BLK W/O SW RJ1073 A...................

C 106 87-010-401-040 CAP,E 1-50 SME A...................

C 108 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 104 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 107 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 101 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 105 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 103 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 102 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 109 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 114 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 113 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 115 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 117 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 110 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 116 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 118 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 122 87-010-154-080 CAP CHIP 10P A...................

C 123 87-010-154-080 CAP CHIP 10P A...................

C 125 87-010-831-080 C-CAP,U,0.1-16F A...................

C 126 87-010-831-080 C-CAP,U,0.1-16F A...................

C 124 87-010-831-080 C-CAP,U,0.1-16F A...................

C 129 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 121 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 120 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 128 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 127 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 139 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 138 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 137 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 130 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 131 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 972 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 974 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 977 87-012-153-080 C-CAP,S 120P-50 CH A...................

C 973 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 999 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 995 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 996 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 998 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 997 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

CN 102 87-009-034-010 CONN,6P PH V A...................

CN 101 87-A60-458-010 CONN,40P V IMSA-9031B A...................

CN 151 87-009-034-010 CONN,6P PH V A...................

D 101 87-XM1-603-080 C-DIODE,1SS193 A...................

IC 108 87-017-830-080 IC,TC7W14FU A...................

IC 109 87-017-830-080 IC,TC7W14FU A...................

IC 105 87-A20-696-010 C-IC,AM186EM-33KC/W A...................

IC 103 87-A21-458-040 C-IC,TC74ACT244F A...................

IC 101 87-A21-459-040 C-IC,TC74ACT245F A...................

IC 102 87-A21-459-040 C-IC,TC74ACT245F A...................

IC 106 8A-AJ1-621-010 C-IC ASSY,MBM29F400TC*1 AAJ1 A...................

IC 107 8A-AJ1-626-040 C-IC,AT25160N-10SC A...................

IC 104 8A-AJ1-627-010 C-IC,EPF6016TC144-3 A...................

IC 112 87-A20-185-080 C-IC,PST 600DMT A...................

IC 111 8A-AJ1-625-040 C-IC,KM6164000BLT-7LT A...................

IC 110 8A-AJ1-625-040 C-IC,KM6164000BLT-7LT A...................

IC 113 8A-AJ1-628-010 IC,EPC1441PC8 A...................

L 108 83-XM1-617-080 C-COIL,BK2125HM601 A...................

L 106 83-XM1-617-080 C-COIL,BK2125HM601 A...................

L 107 83-XM1-617-080 C-COIL,BK2125HM601 A...................

L 103 83-XM1-617-080 C-COIL,BK2125HM601 A...................

L 126 83-XM1-617-080 C-COIL,BK2125HM601 A...................

L 125 83-XM1-617-080 C-COIL,BK2125HM601 A...................

L 998 83-XM1-617-080 C-COIL,BK2125HM601 A...................

L 999 83-XM1-617-080 C-COIL,BK2125HM601 A...................

L 997 83-XM1-617-080 C-COIL,BK2125HM601 A...................

X 102 87-A70-236-040 C-VIB,XTAL 33.8688MHZ DSO751SA A...................

X 101 8A-AJ1-619-080 VIB,XTAL 33MHZ AT-49 A...................

C 205 87-010-189-080 C-CAP,S 8200P-50 B A...................

C 201 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 206 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 203 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 209 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 204 87-016-526-080 C-CAP,S 0.47-16 BK A...................

C 208 88-XMY-614-080 C-CAP,TN 10U-10 TCFG A A...................

C 218 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 212 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 214 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 213 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 219 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 215 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 216 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 217 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 210 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 211 88-XMY-614-080 C-CAP,TN 10U-10 TCFG A A...................

C 227 87-010-112-040 CAP,E 100-16 A...................

C 228 87-010-112-040 CAP,E 100-16 A...................

C 221 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 220 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 225 87-010-401-040 CAP,E 1-50 SME A...................

C 226 87-010-401-040 CAP,E 1-50 SME A...................

ELECTRICAL MAIN PARTS LIST - 3/4

C 223 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 222 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 229 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 224 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 235 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 236 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 238 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 237 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 232 87-010-382-040 CAP,E 22-25 SME A...................

C 231 87-010-384-040 CAP,E 100-25 SME A...................

C 233 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 230 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 234 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 247 87-010-378-040 CAP,E 10-16 A...................

C 246 87-010-378-040 CAP,E 10-16 A...................

C 241 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 252 87-010-112-040 CAP,E 100-16 A...................

C 253 87-010-112-040 CAP,E 100-16 A...................

C 251 87-010-112-040 CAP,E 100-16 A...................

C 250 87-010-112-040 CAP,E 100-16 A...................

CN 203 87-009-031-010 CONNECTOR, 3P A...................

CN 202 87-009-038-010 CONN,10P PH A...................

CN 201 87-009-038-010 CONN,10P PH A...................

D 201 87-XM1-603-080 C-DIODE,1SS193 A...................

D 202 87-XM1-603-080 C-DIODE,1SS193 A...................

IC 207 87-002-903-080 IC,TC4W53F A...................

IC 204 87-017-585-080 IC,NJM4580E * A...................

IC 203 87-017-585-080 IC,NJM4580E * A...................

IC 205 87-020-882-080 IC,NJM79LO5 A...................

IC 201 8A-AJ1-616-040 C-IC,CS8420-CS A...................

IC 202 8A-AJ1-617-040 C-IC,CS4222-KS A...................

L 201 87-005-780-080 C-COIL,10UH FLC32C A...................

L 202 87-005-780-080 C-COIL,10UH FLC32C A...................

L 203 87-005-799-080 C-COIL, 1UH FLC32 A...................

L 204 87-005-799-080 C-COIL, 1UH FLC32 A...................

PR 201 87-A91-153-080 FUSE,630MA 125V 251 A...................

Q 204 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 203 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 205 89-324-122-080 TR,2SC2412K A...................

Q 201 89-333-265-080 TR,2SC3326A A...................

Q 202 89-333-265-080 TR,2SC3326A A...................

C 135 87-010-112-040 CAP,E 100-16 A...................

C 132 87-010-252-080 CAP, ELECT 1000-6.3V A...................

C 133 87-010-391-040 CAP,E 10-35 SME A...................

C 134 87-012-142-080 CAP, S 0.33-16 A...................

C 136 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 403 87-010-552-040 CAP,E 22-16 GAS A...................

C 407 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 401 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 402 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 456 87-010-552-040 CAP,E 22-16 GAS A...................

C 453 87-010-552-040 CAP,E 22-16 GAS A...................

C 455 87-010-805-080 CAP, S 1-16 A...................

C 454 87-010-805-080 CAP, S 1-16 A...................

C 457 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 452 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 451 87-012-368-080 C-CAP,S 0.1-50 F A...................

CN 103 87-009-035-010 CONN,7P PH M _ A...................

CN 452 87-A60-457-010 CONN,4P V TID-X A...................

CN 451 8A-AJ1-637-010 CONN ASSY,4P 240MM-PWLMT A...................

D 401 87-XM1-603-080 C-DIODE,1SS193 A...................

D 451 87-XM1-603-080 C-DIODE,1SS193 A...................

D 452 87-XM1-603-080 C-DIODE,1SS193 A...................

IC 401 87-027-842-080 IC,NJM2904M A...................

IC 451 87-027-842-080 IC,NJM2904M A...................

Q 405 87-A30-224-010 TR,2SA1329Y A...................

Q 403 89-115-865-080 C-TR,2SA1586GR A...................

Q 402 89-115-865-080 C-TR,2SA1586GR A...................

Q 404 89-115-865-080 C-TR,2SA1586GR A...................

Q 401 89-341-165-080 CHIP TRANSISTOR 2SC4116GR A...................

Q 455 87-A30-224-010 TR,2SA1329Y A...................

Q 452 89-115-865-080 C-TR,2SA1586GR A...................

Q 457 89-115-865-080 C-TR,2SA1586GR A...................

Q 454 89-115-865-080 C-TR,2SA1586GR A...................

Q 459 89-115-865-080 C-TR,2SA1586GR A...................

Q 453 89-115-865-080 C-TR,2SA1586GR A...................

Q 458 89-115-865-080 C-TR,2SA1586GR A...................

Q 456 89-341-165-080 CHIP TRANSISTOR 2SC4116GR A...................

Q 451 89-341-165-080 CHIP TRANSISTOR 2SC4116GR A...................

Q 460 87-A30-224-010 TR,2SA1329Y A...................

R 403 87-022-356-080 C-RES,S 12K-1/10W F A...................

R 401 87-022-604-010 RES,M/F 0.1-1W J A...................

R 402 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 404 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 405 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 406 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 445 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 453 87-022-356-080 C-RES,S 12K-1/10W F A...................

R 451 87-022-604-010 RES,M/F 0.1-1W J A...................

R 452 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 454 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 456 87-A00-420-080 C-RES,S 100K-1/10W B A...................

ELECTRICAL MAIN PARTS LIST - 4/4

R 469 87-022-356-080 C-RES,S 12K-1/10W F A...................

R 467 87-022-607-010 RES,M/F 0.47-1W J A...................

R 468 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 472 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 471 87-A00-420-080 C-RES,S 100K-1/10W B A...................

R 470 87-A00-420-080 C-RES,S 100K-1/10W B A...................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-B00-002-010 BADGE,AIWA 30 ABS SIL A...................

8A-AJ1-001-010 CABI,FR A...................

8A-AJ1-002-010 CABI,STEEL A...................

8A-AJ1-005-010 PANEL,TRAY A...................

8A-AJ1-008-010 CABI,REAR UST A...................

8A-AJ1-012-010 RING,REC VOL A...................

8A-AJ1-016-010 FOOT,RIGHT A...................

8A-AJ1-017-010 FOOT,LEFT A...................

8A-AJ1-011-010 KNOB,RTRY REC VOL A...................

8A-AJ1-021-110 KEY,REC CONTROL A...................

8A-AJ1-022-010 KEY,POWER ASSY A...................

8A-AJ1-024-010 KEY,REC FUNCTION ASSY A...................

8A-AJ1-027-010 KEY,PLAY ASSY A...................

8A-AJ1-036-110 BTN,INPUT SEL A...................

8A-AJ1-004-010 WINDOW,DISPLAY A...................

8A-AJ1-013-010 LENS,REC A...................

8A-AJ1-014-010 LENS,REMOTE CTRL A...................

87-064-185-010 HLDR,WIRE A...................

87-NF4-221-010 HLDR,CABLE A...................

* 8A-AJ1-202-010 HLDR,CD DRIVER A...................

* 8A-AJ1-203-010 HLDR,PWB 50 A...................

* 8A-AJ1-204-010 HLDR,PWB PU 30 A...................

* 8A-AJ1-206-010 GUIDE,LED PLAY A...................

* 8A-AJ1-208-010 HLDR,INPUT SEL A...................

* 8A-AJ1-209-010 CUSH,FOOT 13.5-13.5-1.5 A...................

81-MK1-210-010 S-SCREW,VFT2+3-16 A...................

87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................

87-067-660-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-688-010 BVTT+3-6 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

87-591-094-410 TAPPING SCREW, QIT+3-6 A...................

87-NF4-224-010 S-SCREW,IT3B+3-8 CU A...................

87-010-193-080 CHIP CAPACITOR,0.033 A...................

87-085-189-010 BUSHING, CORD (U) A...................

87-AV1-624-010 CONN ASSY,2P PS A...................

8A-AJ1-614-010 POWER UNIT, A...................

8A-AJ1-632-010 CONN ASSY,40P 140MM-IDE A...................

8A-AJ1-633-010 CONN ASSY,7P 270MM-PWM A...................

8Z-JBH-618-010 AC CORD,US BLK A...................

CN 0 8A-AJ1-631-010 CONN ASSY,4P 270MM-PD A...................

88-SX1-203-210 GUIDE,FL A...................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-AJ1-903-010 IB,U (ESF)-I A...................

87-A80-032-010 CORD,PIN 2P RED-WHT A...................

87-B30-024-010 CABLE,OPTICAL MC-901 A...................

8A-AJ1-951-010 RC UNIT,RC-AAC01(E) A...................

SCHEMATIC DIAGRAM _1 (MAIN : 1/2)

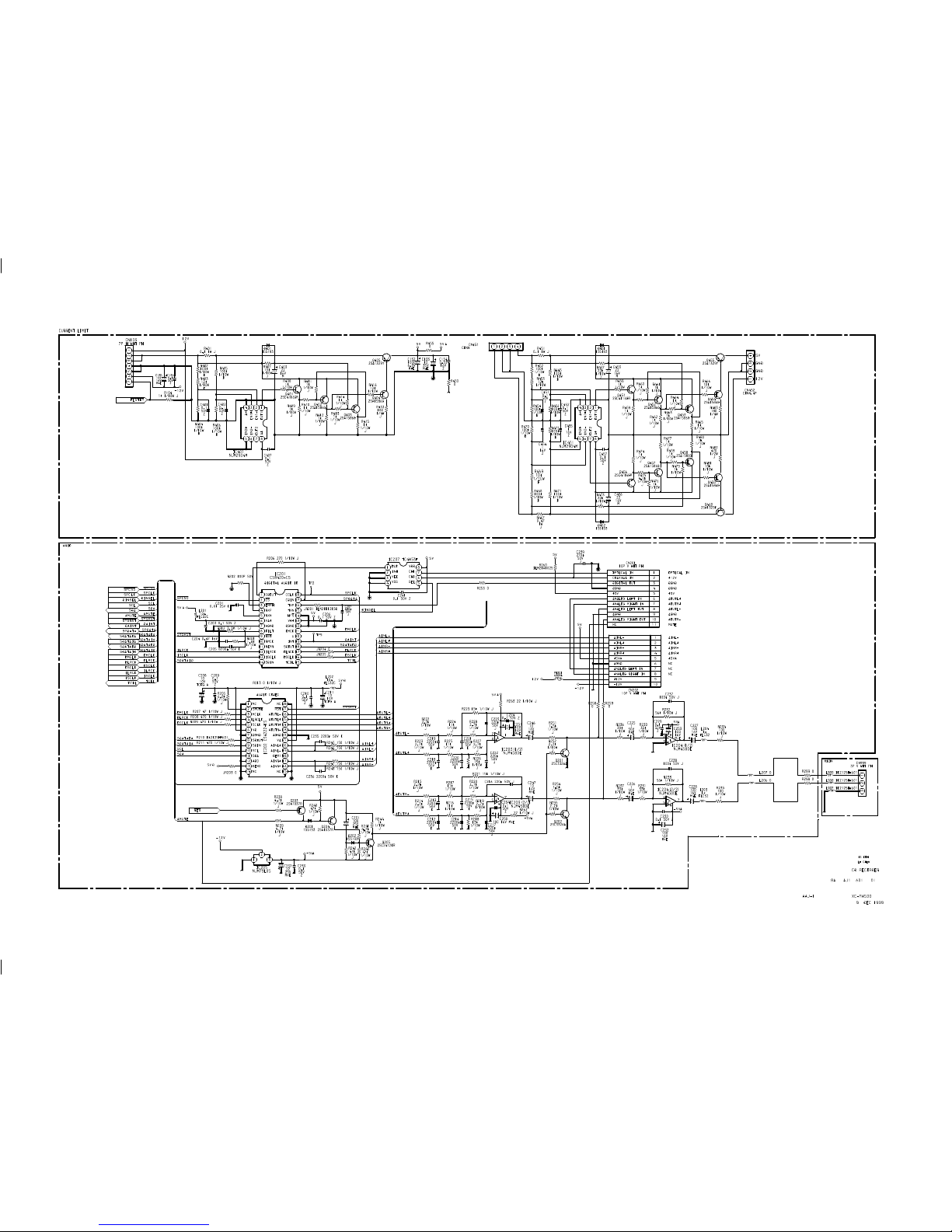

SCHEMATIC DIAGRAM _2 (MAIN : 2/2)

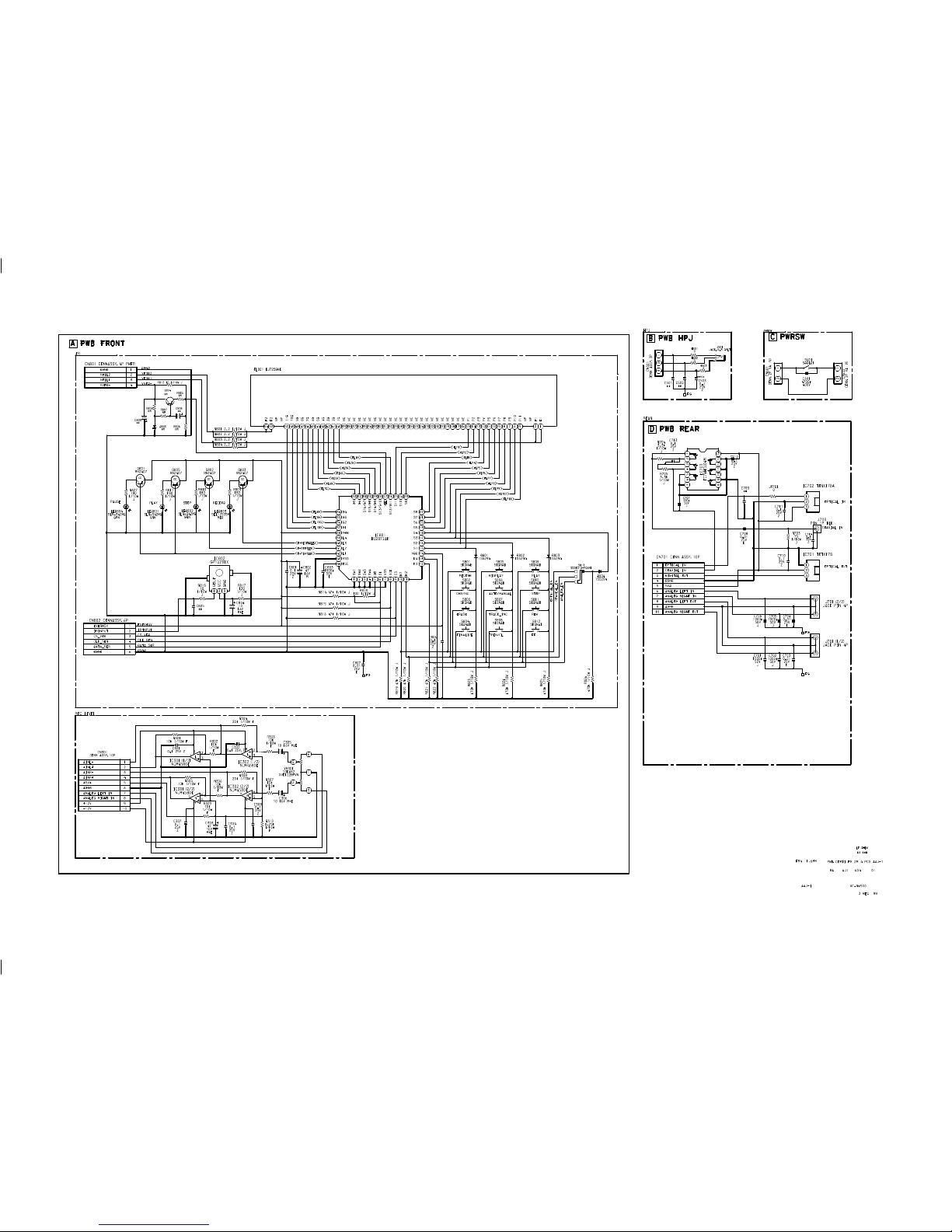

SCHEMATIC DIAGRAM _3 (FRONT)

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111

Printed in Singapore9420025

Other manuals for XC-RW500

Table of contents

Popular Recording Equipment manuals by other brands

foc.us

foc.us Firestore FS-100 user guide

Stealth Tronic

Stealth Tronic Stronic UR225-135 user manual

FOR-A

FOR-A USF-101MDX4-12G Operation manual

Eding CNC

Eding CNC CPU5B user manual

Data Video

Data Video DVK-100 Mk II instruction manual

ICON

ICON Cube 2nano user manual

SignalFire

SignalFire Sentinel-FS-3BIS manual

BOSSCO

BOSSCO GS-10 Brochure & specs

1010music

1010music nanobox | fireball user guide

ICON

ICON iKeyboard 4X user manual

Mark Bass

Mark Bass LITTLE MARK 58R owner's manual

1010music

1010music Toolbox v 1.1.4 user manual

Audiopole

Audiopole CDR 5 user manual

Sound Storm

Sound Storm SSL-EQ7S instruction manual

foc.us

foc.us FS-4/ Frequently asked questions

Data Video

Data Video MS-2800A instruction manual

Abus

Abus AZWG10001 Installation and operating instructions

Pro-face

Pro-face GP-2401T user manual

Aiwa XC-RW500 User manual

Popular Recording Equipment manuals by other brands
