S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
HV-FX6500
• BASIC VIDEO MECHANISM: D27UP4LRH 048A • TYPE: K,EH,Z
S/M Code No. 09–986–285–00A
STEREO VIDEO
CASSETTE RECORDER

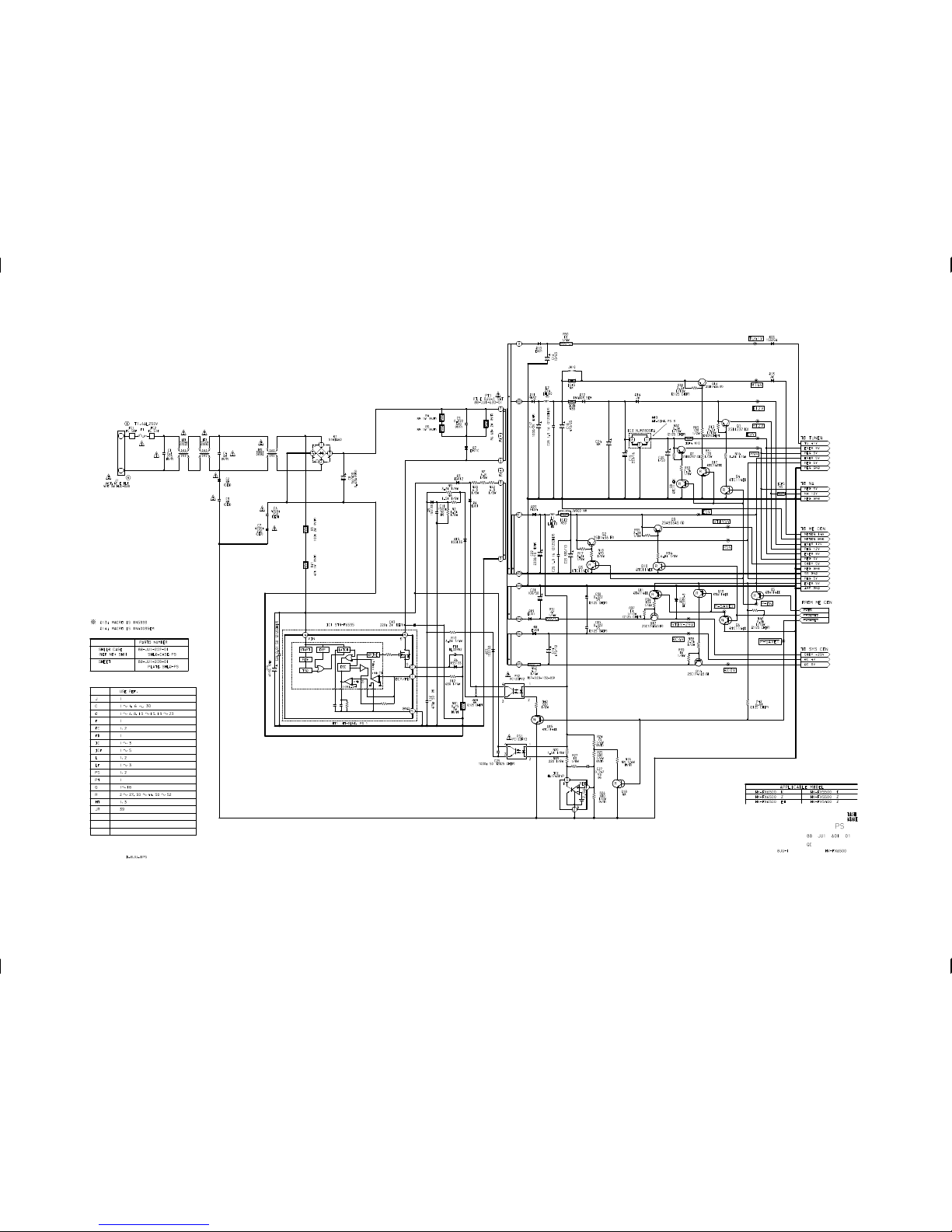

ELECTRICAL MAIN PARTS LIST - 1/10
NOTE: The characters in the suffix column indicate the part usage.
6500K ..................XX..................................A...................
6500Z ..................XX...................................B..................
6500EH .................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................
C 1 87-A10-374-010 CAP,M/P 0.1-275 K RMR ABC.................
C 6 87-A10-480-090 CAP,CER 4700P-250 M E KH ABC.................
C 7 87-A10-480-090 CAP,CER 4700P-250 M E KH ABC.................
C 9 87-A10-490-080 CAP,M/P 0.022-630 K MMC ABC.................
C 8 87-A10-898-090 CAP,E 56-400 SMG 0.43A(RMS) ABC.................
C 19 87-010-101-080 CAP, ELECT 220-16 ABC.................
C 15 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 14 87-010-221-080 CAP, ELECT 470-10V ABC.................
C 18 87-010-387-080 CAP,E 470-25 SME ABC.................
C 16 87-010-866-080 CAP, ELECT 10-63 ABC.................
C 13 87-012-391-080 CAP,CER 220P-2K K B ABC.................
C 10 87-016-501-080 CAP,E 47-35 SXE ABC.................
C 17 87-A10-493-080 CAP,E 1000-25 KMF ABC.................
C 25 87-010-178-080 CHIP CAP 1000P ABC.................
C 26 87-010-190-080 S CHIP F 0.01 ABC.................
C 21 87-010-247-080 CAP, ELECT 100-50V ABC.................
C 23 87-010-375-080 CAP,E 330-10 SME ABC.................
C 20 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 28 87-010-805-080 CAP, S 1-16 ABC.................
C 29 87-010-805-080 CAP, S 1-16 ABC.................
C 22 87-A10-491-080 CAP,E 2200-10 KMF ABC.................
C 30 87-010-198-080 CAP, CHIP 0.022 ABC.................
D 6 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 5 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 1 87-070-173-010 DIODE,S1WBA60 ABC.................
D 3 87-A40-172-080 DIODE,EG01Z ABC.................
D 4 87-A40-367-080 DIODE,EU01 ABC.................
D 8 87-A40-367-080 DIODE,EU01 ABC.................
D 2 87-A40-368-080 DIODE,EG01C ABC.................
D 15 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 12 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 19 87-A40-367-080 DIODE,EU01 ABC.................
D 10 87-A40-367-080 DIODE,EU01 ABC.................
D 11 87-A40-369-090 DIODE,RN3Z ABC.................
D 22 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 20 87-A40-184-090 DIODE,RK34(F) ABC.................
D 21 87-A40-353-080 ZENER,HZS33-3 ABC.................
D 23 87-A40-470-080 DIODE,1SS254 ABC.................
F 1 87-035-454-010 FUSE,1.6A 250V T W/C ABC.................
FB 1 87-003-223-080 FERRITE BEAD BL02RN2 ABC.................
FC 2 87-A90-160-080 FUSE CLAMP,FC 51F ABC.................
FC 1 87-A90-160-080 FUSE CLAMP,FC 51F ABC.................
IC 3 87-A20-389-010 IC,NJM7809FA ABC.................
IC 1 87-A20-619-010 IC,STR-F6535 ABC.................
IC 2 87-A20-649-080 IC,HA17431VP ABC.................
ICF 1 87-001-132-080 ICP-N38 ABC.................
ICF 4 87-001-196-080 FUSE, ICP-N10 ABC.................
ICF 2 87-001-211-080 ICP-N50 ABC.................
ICF 5 87-002-330-080 ICP-N5 ABC.................
J 1 87-A60-021-010 JACK,AC E HJC-028 ABC.................
L 2 87-A50-180-080 COIL,22UH K LHL10 ABC.................
L 1 87-A50-193-080 COIL,10UH K LHL10 ABC.................
LF 3 87-A90-470-010 FLTR,33MH SS10V-03330 ABC.................
LF 2 87-A90-470-010 FLTR,33MH SS10V-03330 ABC.................
LF 1 87-A90-491-010 FLTR,20UH SU9VD-07020 ABC.................
PS 2 87-A90-717-010 P-COUPLER,PC123FY2 ABC.................
PS 1 87-A90-717-010 P-COUPLER,PC123FY2 ABC.................
PT 1 88-JU1-630-010 PT,E 8JU-1 SWT ABC.................
Q 5 87-026-227-080 CHIP-TR,DTA114EK ABC.................
Q 4 87-026-235-080 CHIP-TR,DTC114EK ABC.................
Q 6 87-026-235-080 CHIP-TR,DTC114EK ABC.................
Q 8 87-026-235-080 CHIP-TR,DTC114EK ABC.................
Q 3 87-026-235-080 CHIP-TR,DTC114EK ABC.................
Q 9 87-A30-216-080 TR,2SA933AS(R) ABC.................
Q 2 87-A30-217-010 TR,2SB1436(R) ABC.................
Q 7 87-A30-218-080 TR,2SB1237(Q) ABC.................
Q 1 87-A30-218-080 TR,2SB1237(Q) ABC.................
Q 17 87-026-223-080 TR,DTC143TK ABC.................
Q 13 87-026-227-080 CHIP-TR,DTA114EK ABC.................
Q 11 87-026-227-080 CHIP-TR,DTA114EK ABC.................
Q 10 87-026-235-080 CHIP-TR,DTC114EK ABC.................
Q 15 87-026-235-080 CHIP-TR,DTC114EK ABC.................
Q 16 87-A30-217-010 TR,2SB1436(R) ABC.................
Q 12 87-A30-220-080 TR,2SC1741AS(R) ABC.................
Q 14 87-A30-220-080 TR,2SC1741AS(R) ABC.................
R 6 87-022-567-090 RES,M/O 68K-2W J ABC.................
R 3 87-A00-290-090 RES,M/F 100K-2W J ABC.................
R 11 87-A00-412-090 RES,M/F 0.75-2W J ABC.................
R 26 87-025-365-080 RES,M/F 680-1/6WJ F ABC.................
R 25 87-025-365-080 RES,M/F 680-1/6WJ F ABC.................
R 24 87-A00-279-080 RES,M/F 75-1/6W F ABC.................
R 41 87-022-565-090 RES,M/O 47K-1W J ABC.................
R 50 87-029-115-010 FUSE RESISTER 10 OHM 1/4W ABC.................
ELECTRICAL MAIN PARTS LIST - 2/10

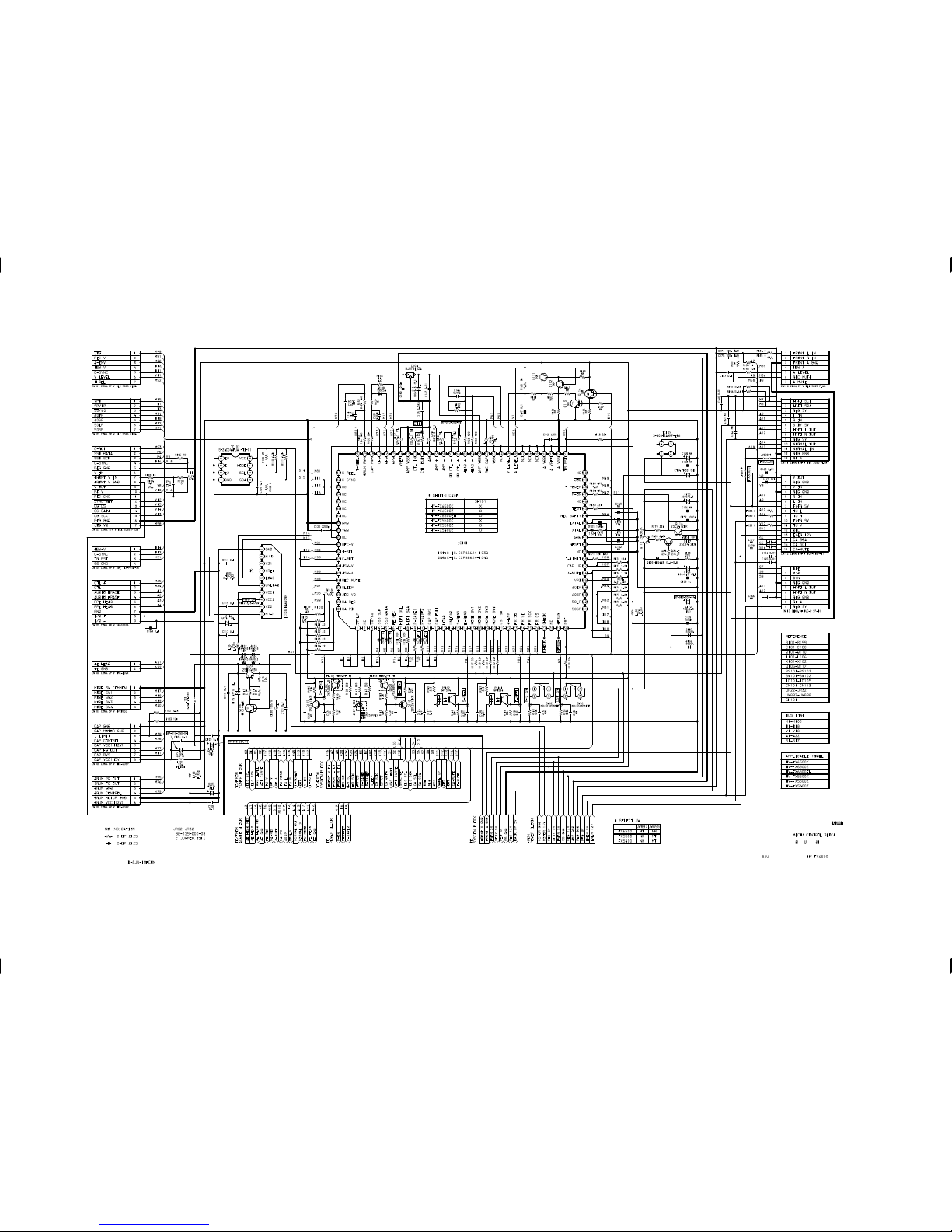

R 52 87-029-132-090 RESTOR FUSE 4.7-1/4W ABC.................
R 51 87-029-374-010 RES,FUSE 47-1/4W ABC.................
C 108 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 103 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 109 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 105 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 104 87-010-263-040 CAP,E 100-10 ABC.................
C 106 87-015-684-040 CAP,E 47-16 7L ABC.................
C 107 87-015-684-080 CAP,E 47-16 7L ABC.................
C 117 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 118 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 115 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 119 87-015-684-080 CAP,E 47-16 7L ABC.................
C 116 87-015-684-080 CAP,E 47-16 7L ABC.................
C 120 87-010-112-080 CAP, ELECT 100-16V ABC.................
C 122 87-010-182-080 C-CAP,S 2200P-50 B ABC.................
C 121 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 127 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 126 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 129 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 128 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 138 87-010-079-080 100UF,6.3V ELECTROLYTIC ABC.................
C 135 87-010-186-080 CAP,CHIP 4700P ABC.................
C 130 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 137 87-015-677-080 CAP,E 100-6.3 7L ABC.................
C 139 87-016-369-080 C-CAP,S 0.033-25 B K ABC.................
C 143 87-010-075-040 CAP,E 10-16 5L ABC.................
C 144 87-010-075-040 CAP,E 10-16 5L ABC.................
C 141 87-010-079-080 100UF,6.3V ELECTROLYTIC ABC.................
C 148 87-010-176-080 C-CAP,S 680P-50 SL ABC.................
C 145 87-010-187-080 CAP CHIP S5600P ABC.................
C 147 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 142 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 140 87-015-677-080 CAP,E 100-6.3 7L ABC.................
C 146 87-015-696-080 CAP,E 2.2-50 7L ABC.................
C 157 87-010-178-080 CHIP CAP 1000P ABC.................
C 159 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 150 87-010-311-080 CAP 12P ABC.................
C 151 87-010-311-080 CAP 12P ABC.................
C 155 87-010-372-080 CAP,E 2200-6.3 SME ABC.................
C 154 87-010-494-080 CAP ELECT GAS 1/50 ABC.................
C 158 87-015-677-080 CAP,E 100-6.3 7L ABC.................
C 167 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 168 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 163 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 160 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 165 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 164 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 179 87-010-178-080 CHIP CAP 1000P ABC.................
C 171 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 173 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 172 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 170 87-010-550-040 CAP,E 100-6.3 GAS ABC.................
C 174 87-018-119-080 CAP, CER 100P-50V ABC.................
C 175 87-018-119-080 CAP, CER 100P-50V ABC.................
C 180 87-010-178-080 CHIP CAP 1000P ABC.................
CN 105 87-A60-257-010 CONN,9P V SD-52556 ABC.................
CN 106 87-A60-258-010 CONN,2P V TMC-E02X ABC.................
CN 109 87-A60-260-010 CONN,6P V TKC-G06P ABC.................
CN 107 87-A60-262-010 CONN,5P V HPC 0750 ABC.................
CN 104 87-A60-405-010 CONN,4P V BGE TKX-P04P-X1 ABC.................
CN 102 87-A60-610-010 CONN,7P V BLK 5085 PLUG ABC.................
CN 101 87-A60-610-010 CONN,7P V BLK 5085 PLUG ABC.................
CN 103 87-A60-614-010 CONN,17P V BLK 5085 PLUG ABC.................
CN 108 87-A60-695-010 CONN,8P V TKC-G08P ABC.................
CN 113 87-099-668-010 CONN,9P TUC-P 9P-B1 ABC.................
CN 111 87-099-842-010 CONN,13P 5085 PLUG ABC.................
CN 112 87-A60-189-010 CONN,16P V TUC-P16P-B1 ABC.................
CN 110 87-A60-610-010 CONN,7P V BLK 5085 PLUG ABC.................
D 109 87-017-079-080 ZENER,HZS4A3 ABC.................
D 101 87-017-110-080 ZENER,HZS7C2 ABC.................
D 105 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 104 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 102 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 103 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 107 87-070-288-010 LED,GL380 ABC.................
D 106 87-A40-470-080 DIODE,1SS254 ABC.................
D 108 87-A40-470-080 DIODE,1SS254 ABC.................
D 110 87-A40-470-080 DIODE,1SS254 ABC.................
HL 101 86-JPS-206-010 HLDR,PHOTO TR2 ABC.................
HL 102 86-JPS-207-010 HLDR,R/S SUPPLY2 ABC.................
HL 103 86-JPS-207-010 HLDR,R/S SUPPLY2 ABC.................
IC 103 87-002-427-010 IC,BA6209N- ABC.................
IC 104 87-020-881-080 IC,NJM78L05A ABC.................
IC 102 87-A20-618-040 C-IC,S-24C04AFJA-TB-01 ABC.................
IC 105 87-A20-965-040 C-IC,S-80842ANNP-ED6 ABC.................
IC 101 88-JU1-654-010 C-IC,CXP88624-104Q ABC.................
L 106 87-003-045-080 CHOKE COIL, 220K ABC.................
L 104 87-005-130-080 COIL,10UH ABC.................
L 103 87-005-429-080 COIL,5.6UH K FLR50 ABC.................
L 101 87-005-432-080 COIL,10UH ABC.................
ELECTRICAL MAIN PARTS LIST - 3/10
L 102 87-005-432-080 COIL,10UH ABC.................
PS 101 87-A90-244-010 SNSR,GP1S94 ABC.................
PS 102 87-A90-244-010 SNSR,GP1S94 ABC.................
Q 106 87-026-210-080 CHIP-TR,DTC144EK ABC.................
Q 108 87-A30-141-010 P-TR,PN268NC-R ABC.................
Q 109 87-A30-141-010 P-TR,PN268NC-R ABC.................
Q 105 87-A30-219-080 TR,2SB1443(Q) ABC.................
Q 107 89-324-122-080 TR,2SC2412K ABC.................
Q 115 89-109-521-080 TR,2SA952 (0.6W) ABC.................
Q 110 89-324-122-080 TR,2SC2412K ABC.................
Q 117 89-324-122-080 TR,2SC2412K ABC.................
Q 116 89-324-122-080 TR,2SC2412K ABC.................
R 112 87-029-142-010 RES 3.3-1/2WJ ABC.................
SW 102 87-A90-207-010 SW,PUSH 1-1-1 MPU10105MMBO ABC.................
SW 101 87-A90-208-010 SW,PUSH 1-1-1 MPU10400MLB0 ABC.................
X 101 87-A70-090-080 VIB,XTAL 16MHZ AT-49 ABC.................
C 806 87-010-178-080 CHIP CAP 1000P ABC.................
C 809 87-010-178-080 CHIP CAP 1000P ABC.................
C 804 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 802 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 803 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 801 87-010-374-040 CAP,E 47-10 ABC.................
C 805 87-010-374-040 CAP,E 47-10 ABC.................
C 808 87-010-374-080 CAP, ELECT 47-10V ABC.................
C 818 87-010-194-080 CAP, CHIP 0.047 .BC.................
C 812 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 819 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 813 87-010-374-080 CAP, ELECT 47-10V ABC.................
C 815 87-010-401-040 CAP,E 1-50 SME ABC.................
C 817 87-010-401-040 CAP,E 1-50 SME ABC.................
C 816 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 810 87-010-408-080 CAP, ELECT 47-50V ABC.................
C 811 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 820 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
CN 801 87-099-016-010 CONN,14P 6216V ABC.................
D 801 87-A40-470-080 DIODE,1SS254 ABC.................
FB 801 87-008-372-080 FILTER, EMI BL OIRNI ABC.................
IC 801 87-A20-371-080 IC,KA33V ABC.................
L 801 87-005-440-080 COIL,47UH FLR50 ABC.................
L 802 87-005-440-080 COIL,47UH FLR50 ABC.................
Q 802 87-026-210-080 CHIP-TR,DTC144EK ABC.................
Q 808 87-026-210-080 CHIP-TR,DTC144EK ABC.................
Q 807 87-A30-216-080 TR,2SA933AS(R) ABC.................
Q 801 87-A30-219-080 TR,2SB1443(Q) ABC.................
Q 809 89-324-122-080 TR,2SC2412K ABC.................
Q 805 89-324-122-080 TR,2SC2412K ABC.................
Q 803 89-324-122-080 TR,2SC2412K ABC.................
Q 804 89-324-122-080 TR,2SC2412K ABC.................
Q 806 89-324-122-080 TR,2SC2412K ABC.................
Q 811 87-026-210-080 CHIP-TR,DTC144EK ABC.................
Q 810 87-A30-216-080 TR,2SA933AS(R) ABC.................
TU 801 88-JU1-674-010 TU UNIT,TMLB2-109A I A...................
TU 801 88-JU1-675-010 TU UNIT,TMLG2-115A BG .BC.................
C 303 87-010-148-080 CAP, CHIP S 75P SL ABC.................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 304 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 301 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 307 87-010-316-080 C-CAP,S 33P-50 CH ABC.................
C 306 87-012-153-080 C-CAP,S 120P-50 CH ABC.................
C 308 87-015-674-080 CAP 22U-6.3V ABC.................
C 305 87-015-697-080 CAP,E 3.3-50 7L ABC.................
C 312 87-010-180-080 C-CER 1500P ABC.................
C 318 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 317 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 315 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 313 87-010-314-080 C-CAP,S 22P-50V ABC.................
C 311 87-010-400-080 CAP, ELECT 0.47-50V ABC.................
C 316 87-010-400-080 CAP, ELECT 0.47-50V ABC.................
C 319 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 310 87-016-369-080 C-CAP,S 0.033-25 B K ABC.................
C 329 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 321 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 324 87-010-400-080 CAP, ELECT 0.47-50V ABC.................
C 326 87-010-402-080 CAP, ELECT 2.2-50V ABC.................
C 327 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 328 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 325 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 322 87-010-545-080 CAP, ELECT 0.22-50V ABC.................
C 323 87-A10-468-080 CAP,E 10-10 M 7L BP SRA ABC.................
C 330 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 337 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 338 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 336 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 333 87-012-154-080 C-CAP,S 150P-50 CH ABC.................
C 339 87-015-677-080 CAP,E 100-6.3 7L ABC.................
C 332 87-015-692-080 CAP,E 0.22-50 7L ABC.................
C 331 87-015-694-080 CAP,E 0.47-50 7L ABC.................
C 335 87-015-695-080 CAP,E 1-50 7L ABC.................
C 349 87-010-181-080 CAP,CHIP S 1800P ABC.................
C 344 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 343 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
ELECTRICAL MAIN PARTS LIST - 4/10
C 342 87-010-312-080 C-CAP,S 15P-50 CH ABC.................
C 347 87-010-314-080 C-CAP,S 22P-50V ABC.................
C 348 87-010-315-080 C-CAP,S 27P-50 CH ABC.................
C 345 87-010-315-080 C-CAP,S 27P-50 CH ABC.................
C 346 87-010-316-080 C-CAP,S 33P-50 CH ABC.................
C 341 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 357 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 356 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 359 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 350 87-010-312-080 C-CAP,S 15P-50 CH ABC.................
C 351 87-010-315-080 C-CAP,S 27P-50 CH ABC.................
C 353 87-010-320-080 CHIP CAP 68P ABC.................
C 355 87-012-155-080 C-CAP 180P-50CH ABC.................
C 354 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 365 87-010-154-080 CAP CHIP 10P ABC.................
C 364 87-010-154-080 CAP CHIP 10P ABC.................
C 367 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 369 87-010-314-080 C-CAP,S 22P-50V ABC.................
C 368 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 362 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 360 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 361 87-010-320-080 CHIP CAP 68P ABC.................
C 366 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 363 87-012-153-080 C-CAP,S 120P-50 CH ABC.................
C 376 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 374 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 378 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 375 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 379 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 370 87-010-317-080 C-CAP,S 39P-50 CH ABC.................
C 371 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 377 87-015-676-080 ELECTROLYTIC CAPACITOR, 47U-6. ABC.................
C 389 87-010-148-080 CAP, CHIP S 75P SL ABC.................
C 387 87-010-178-080 CHIP CAP 1000P ABC.................
C 384 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 388 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 385 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 383 87-012-155-080 C-CAP 180P-50CH ABC.................
C 380 87-015-677-080 CAP,E 100-6.3 7L ABC.................
C 393 87-010-145-080 C-CAP,S 1P-50 CH ABC.................
C 394 87-010-154-080 CAP CHIP 10P ABC.................
C 395 87-010-154-080 CAP CHIP 10P ABC.................
C 391 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 392 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 398 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 399 87-010-248-080 CAP, ELECT 220-10V ABC.................
C 390 87-010-314-080 C-CAP,S 22P-50V ABC.................
C 397 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 408 87-010-148-080 CAP, CHIP S 75P SL ABC.................
C 406 87-010-148-080 CAP, CHIP S 75P SL ABC.................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 405 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 407 87-010-314-080 C-CAP,S 22P-50V ABC.................
C 409 87-010-314-080 C-CAP,S 22P-50V ABC.................
C 400 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 404 87-010-805-080 CAP, S 1-16 ABC.................
C 411 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 415 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 417 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 418 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 412 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 416 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 410 87-010-400-080 CAP, ELECT 0.47-50V ABC.................
C 419 87-018-209-080 CAP, CER 0.1-50V ABC.................
C 420 87-018-209-080 CAP, CER 0.1-50V ABC.................
CN 303 87-A60-247-010 CONN,12P TUC-P12X-C1 ABC.................
CN 302 87-A60-607-010 CONN,7P H BLK 5085 RECE ABC.................
CN 301 87-A60-613-010 CONN,17P H BLK 5085 RECE ABC.................
D 301 87-A40-470-080 DIODE,1SS254 ABC.................
IC 301 87-A20-216-110 C-IC,HA118201CF ABC.................
IC 302 87-A20-575-040 C-IC,MSM7470-79MS ABC.................
IC 303 87-JU1-650-040 C-IC,LC74763M-9655-T ABC.................
L 301 87-003-282-080 COIL,12UH ABC.................
L 305 87-005-440-080 COIL,47UH FLR50 ABC.................
L 304 87-005-440-080 COIL,47UH FLR50 ABC.................
L 302 87-005-684-080 COIL,10UH ABC.................
L 306 87-005-688-080 COIL,22UH ABC.................
L 303 87-005-690-080 COIL,33UH ABC.................
L 309 87-005-692-080 COIL,47UH ABC.................
L 308 87-005-693-080 COIL,56UH ABC.................
L 307 87-005-695-080 COIL,82UH ABC.................
L 310 87-005-684-080 COIL,10UH ABC.................
L 311 87-005-686-080 COIL,15UH ABC.................
L 319 87-005-687-080 COIL 18UH ABC.................
L 318 87-005-689-080 COIL,27UH JLF5.0S ABC.................
L 314 87-005-693-080 COIL,56UH ABC.................
L 315 87-005-698-080 COIL,150UH J LF5S ABC.................
L 326 87-005-440-080 COIL,47UH FLR50 ABC.................
L 328 87-005-440-080 COIL,47UH FLR50 ABC.................
L 321 87-005-685-080 COIL,12UH ABC.................
L 322 87-005-688-080 COIL,22UH ABC.................
Table of contents
Other Aiwa Recording Equipment manuals
