SERVICE MANUAL
DATA
STEREO RADIO
CASSETTE RECEIVER
CS-R230 HT
S/M Code No. 09-007-409-5S3
SUPPLEMENT
BASIC TAPE MECHANISM : TN-51RV-239
• This Service Manual contains information about the difference between
CS-R230 (HT) and CS-R230 (HR). If requiring the other information, see
Service Manual of CS-R230 (HR), (S/M Code No. 09-996-409-5R1).
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
SPECIFICATIONS
ACCESSORIES / PACKAGE LIST
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
Tuner section
Frequency range
FM : 87.5 MHz - 108 MHz
Antenna : Rod antenna
MW : 530 kHz - 1,605 kHz
Antenna : Ferrite bar antenna
SW : 3.9 MHz - 12.1 MHz
Antenna : Rod antenna
Deck section
Track format 4 tracks, 2 channels
Frequency range Normal tape : 50 Hz–12,500 Hz (EIAJ)
Recording system AC bias
Erasing system Magnet erase
Heads Recording/Playback head x 1/
erase head x 1
General
Speaker 100 mm cone type (2)
20 mm ceramic type (2)
Output Headphones jack (stereo mini-jack)
Power output 2.5 W + 2.5 W
(EIAJ 4 ohms, T.H.D. 10 %)
2.0 W + 2.0 W
(DIN 1 % Rated Power)
Power requirements DC 9 V using six R20 (size D) batteries,
AC 110 - 120 V / 220 - 240 V
switchable, 50 / 60 Hz
Power consumption 13 W
Dimensions (W xH xD) 480 (W) x 153 (H) x 146 (D) mm
Weight 2.2 kg
(excluding batteries)
• Design and specifications are subject to change without
notice.
1 8Z-CS3-907-110 IB,SH(ECA)B
2 87-A80-081-010 AC CORD SET ASSY,EZ BLK
3 87-099-789-010 PLUG,ADPTR IR44
!
!
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 3 –
ELETRICAL MAIN PARTS LIST
IC
87-A20-851-040 C-IC,TA2111F
87-A20-569-010 IC,BA3308
87-017-916-010 IC,BU4066BC
87-A20-946-040 C-IC,MM1434XF
87-CD7-602-010 IC,TA8227P
TRANSISTOR
87-026-462-080 TR,2SC1740
89-318-155-080 TR,2SC1815 (0.4W)
87-CD7-603-080 TR,SS8050
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-020-605-080 DIODE,1SS135
87-070-136-080 ZENNR,MTZJ5.1
87-017-931-080 ZENNR,MTZJ5.6
87-001-783-080 DIODE, 1N4002
MAIN C.B
C104 87-018-142-080 CAP,TC-U 3.9P-50 CH
C105 87-A11-097-080 CAP,CER 270P-50 CH
C107 87-A11-120-080 CAP,CER 2200P-50 CH
C110 87-018-161-080 CAP,TC-U 12P-50 CH
C111 87-018-150-080 CAP, TC-U 18P-50V
C112 87-018-142-080 CAP,TC-U 3.9P-50 CH
C113 87-010-401-080 CAP, ELECT 1-50V
C114 87-A10-176-010 CAP,CER 1000P-50 M D
C115 87-018-209-080 CAP, CER 0.1-50V
C116 87-018-209-080 CAP, CER 0.1-50V
C117 87-010-401-080 CAP, ELECT 1-50V
C118 87-010-112-080 CAP, ELECT 100-16V
C119 87-018-150-080 CAP, TC-U 18P-50V
C121 87-A11-136-080 CAP,CER 0.022-25 F
C123 87-A11-074-080 CAP,CER 24P-50 SL
C124 87-018-112-080 CAP,CER 30P-50 SL
C125 87-A11-136-080 CAP,CER 0.022-25 F
C126 87-018-151-010 CAP,TC-U 20P-50 CH
C127 87-015-695-080 CAP,ELECT0.1-50
C128 87-010-404-080 CAP, ELECT 4.7-50V
C129 87-A11-138-080 CAP,CER 0.033-50
C132 87-010-545-080 CAP, ELECT 0.22-50V
C133 87-010-545-080 CAP, ELECT 0.22-50V
C134 87-018-209-080 CAP, CER 0.1-50V
C136 87-A11-136-080 CAP,CER 0.022-25 F
C142 87-018-209-080 CAP, CER 0.1-50V
C301 87-010-545-080 CAP, ELECT 0.22-50V
C302 87-010-402-080 CAP, ELECT 2.2-50V
C303 87-010-402-080 CAP, ELECT 2.2-50V
C306 87-018-109-080 CAP, CER 22P-50V
C307 87-018-109-080 CAP, CER 22P-50V
C308 87-010-260-080 CAP, ELECT 47-25V
C309 87-010-260-080 CAP, ELECT 47-25V
C310 87-010-412-080 CAP, ELECT 10-25V
C311 87-010-412-080 CAP, ELECT 10-25V
C316 87-010-404-080 CAP, ELECT 4.7-50V
C317 87-010-112-080 CAP, ELECT 100-16V
C318 87-010-412-080 CAP, ELECT 10-25V
C319 87-018-205-080 CAP, CERA-SOL 0.022
C320 87-018-205-080 CAP, CERA-SOL 0.022
C321 87-010-112-080 CAP, ELECT 100-16V
C322 87-010-112-080 CAP, ELECT 100-16V
C323 87-018-205-080 CAP, CERA-SOL 0.022
C324 87-A10-176-010 CAP,CER 1000P-50 M D
C325 87-010-101-080 CAP, ELECT 220-16
C329 87-018-209-080 CAP, CER 0.1-50V
C331 87-010-101-080 CAP, ELECT 220-16
C332 87-010-412-080 CAP, ELECT 10-25V
C335 87-018-119-080 CAP, CER 100P-50V
C336 87-018-119-080 CAP, CER 100P-50V
C337 87-018-134-080 CAP, TC-U 0.01-16
C338 87-010-248-080 CAP, E 220-10V
C339 87-018-209-080 CAP, CER 0.1-50V
C340 87-018-209-080 CAP, CER 0.1-50V
C401 87-010-401-080 CAP, ELECT 1-50V
C402 87-010-401-080 CAP, ELECT 1-50V
C403 87-010-545-080 CAP, ELECT 0.22-50V
C404 87-010-545-080 CAP, ELECT 0.22-50V
C405 87-010-401-080 CAP, ELECT 1-50V
C406 87-010-401-080 CAP, ELECT 1-50V
C407 87-010-260-080 CAP, ELECT 47-25V
C408 87-010-112-080 CAP, ELECT 100-16V
C409 87-018-134-080 CAPACITOR,TC-U 0.01-16
C410 87-010-412-080 CAP, ELECT 10-25V
C411 87-010-260-080 CAP, ELECT 47-25V
C412 87-018-134-080 CAPACITOR,TC-U 0.01-16
C413 87-018-134-080 CAPACITOR,TC-U 0.01-16
C414 87-018-134-080 CAPACITOR,TC-U 0.01-16
C415 87-018-134-080 CAPACITOR,TC-U 0.01-16
C416 87-010-402-080 CAP, ELECT 2.2-50V
C417 87-018-127-080 CAP, CER 470P-50V
C418 87-010-402-080 CAP, ELECT 2.2-50V
C419 87-010-402-080 CAP, ELECT 2.2-50V
C420 87-018-127-080 CAP, CER 470P-50V
C501 87-010-401-080 CAP, ELECT 1-50V
C502 87-010-401-080 CAP, ELECT 1-50V
C505 87-010-112-080 CAP, ELECT 100-16V
C506 87-010-112-080 CAP, ELECT 100-16V
C507 87-010-112-080 CAP, ELECT 100-16V
C508 87-010-112-080 CAP, ELECT 100-16V
C509 87-010-235-080 CAP,E 470-16 SME
C510 87-010-235-080 CAP,E 470-16 SME
C513 87-010-101-080 CAP, ELECT 220-16
C514 87-010-112-080 CAP, ELECT 100-16V
C601 87-018-205-080 CAP, CERA-SOL 0.022
C602 87-018-205-080 CAP, CERA-SOL 0.022
C603 87-018-205-080 CAP, CERA-SOL 0.022
C604 87-018-205-080 CAP, CERA-SOL 0.022
C605 87-018-205-080 CAP, CERA-SOL 0.022
C606 87-010-389-090 CAP, ELECT 2200UF-25
CN301 8Z-CS3-617-010 CONN,5P HEAD
CN302 8Z-CS3-619-010 CONN,2P MIC
CN303 8Z-CS3-615-010 CONN,6P MOTOR
CN304 8Z-CS3-621-010 CONN,3P LED
CN305 8Z-CS3-613-010 CONN,2P PLAY SW.
CN501 8Z-CS3-604-010 CONN,3P V SP
CN601 8Z-CS3-607-010 CONN,2P V POWER
CNA301 8Z-CS3-618-010 CONN ASSY,5P HEAD
CNA303 8Z-CS3-616-010 CONN ASSY,6P MOTOR
CNA501 8Z-CS3-605-010 CONN ASSY,3P SP
CNA601 S1-2P3-013-710 CONN,3P BATT
FR301 87-029-019-010 RES, FUSE 2.2-1/2W
IFC1 87-008-582-010 FLTR,SFU455B
IFC2 87-008-261-010 FILTER, SFE10.7MA5-A
IFC3 S2-901-251-000 FILTER, CDA10.7MG77-A
J1 8Z-CS3-603-010 JACK, ST W/SW HP ZCS-3
L102 8Z-CS3-654-010 COIL,SW2 ANT
L104 8Z-CS3-655-010 COIL,MW OSC
L105 8Z-CS3-656-010 COIL,SW OSC
L109 8Z-CS3-650-010 COIL,IFT AM
L111 87-005-641-080 COIL,3.3UH
L301 8Z-CS3-612-010 COIL, BIAS OSC
LED605 87-A40-248-080 LED,SEL2210STP7 RED
LED606 87-A40-248-080 LED,SEL2210STP7 RED
LED607 87-A40-248-080 LED,SEL2210STP7 RED
PVC1 8Z-CS3-641-010 TUN-CAP, H
SW101 8Z-CS3-659-010 SW, TU-3BAND
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
All manuals and user guides at all-guides.com

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 4 –
SW202 8Z-CS3-610-010 SW, BEAT CUT
SW301 8Z-CS3-609-010 SW, PB/REC
SW302 8Z-CS3-611-010 SW, FUNCTION
SW401 8Z-CS3-600-010 SW, Q SOUND
TC102 87-011-252-080 TRIMMER CAP,10P-50
VR501 8Z-CS3-601-010 VR,RTRY 50K MAIN
All manuals and user guides at all-guides.com

SCHEMATIC DIAGRAM
– 5 –
All manuals and user guides at all-guides.com

– 6 –

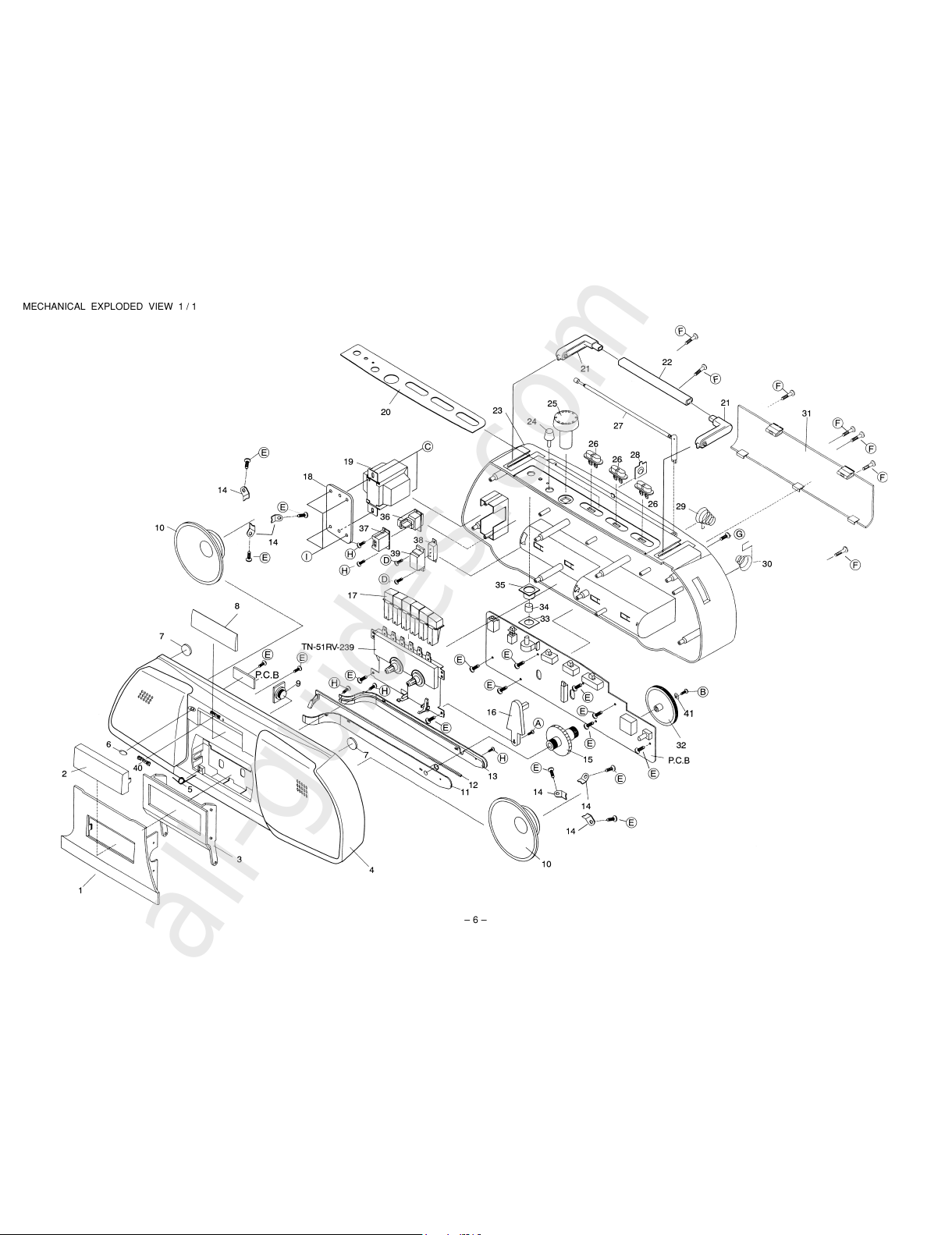

MECHANICAL EXPLODED VIEW 1 / 1
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

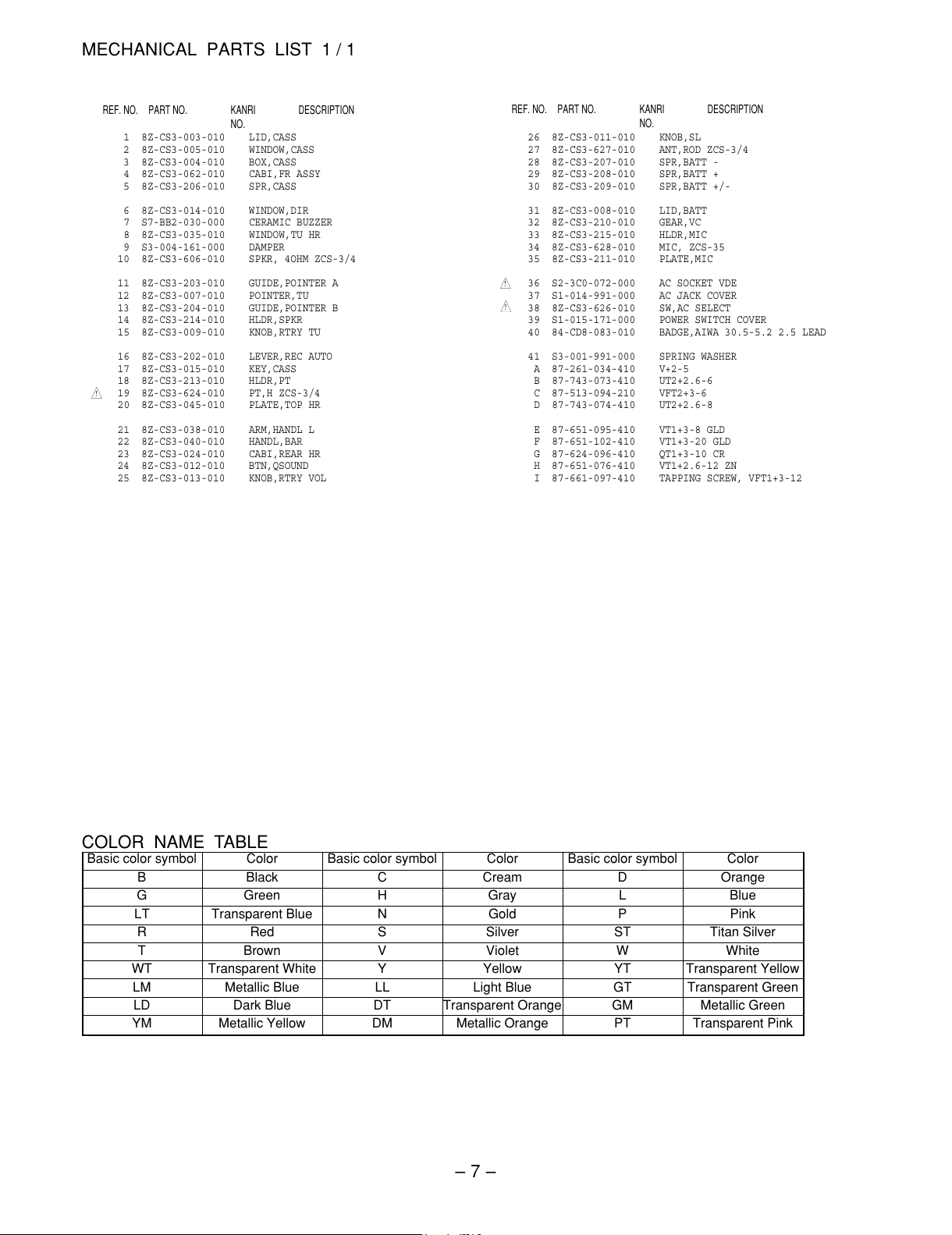

MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
!
!
!
1 8Z-CS3-003-010 LID,CASS
2 8Z-CS3-005-010 WINDOW,CASS
3 8Z-CS3-004-010 BOX,CASS
4 8Z-CS3-062-010 CABI,FR ASSY
5 8Z-CS3-206-010 SPR,CASS
6 8Z-CS3-014-010 WINDOW,DIR
7 S7-BB2-030-000 CERAMIC BUZZER
8 8Z-CS3-035-010 WINDOW,TU HR
9 S3-004-161-000 DAMPER
10 8Z-CS3-606-010 SPKR, 4OHM ZCS-3/4
11 8Z-CS3-203-010 GUIDE,POINTER A
12 8Z-CS3-007-010 POINTER,TU
13 8Z-CS3-204-010 GUIDE,POINTER B
14 8Z-CS3-214-010 HLDR,SPKR
15 8Z-CS3-009-010 KNOB,RTRY TU
16 8Z-CS3-202-010 LEVER,REC AUTO
17 8Z-CS3-015-010 KEY,CASS
18 8Z-CS3-213-010 HLDR,PT
19 8Z-CS3-624-010 PT,H ZCS-3/4
20 8Z-CS3-045-010 PLATE,TOP HR
21 8Z-CS3-038-010 ARM,HANDL L
22 8Z-CS3-040-010 HANDL,BAR
23 8Z-CS3-024-010 CABI,REAR HR
24 8Z-CS3-012-010 BTN,QSOUND
25 8Z-CS3-013-010 KNOB,RTRY VOL
26 8Z-CS3-011-010 KNOB,SL
27 8Z-CS3-627-010 ANT,ROD ZCS-3/4
28 8Z-CS3-207-010 SPR,BATT -
29 8Z-CS3-208-010 SPR,BATT +
30 8Z-CS3-209-010 SPR,BATT +/-
31 8Z-CS3-008-010 LID,BATT
32 8Z-CS3-210-010 GEAR,VC
33 8Z-CS3-215-010 HLDR,MIC
34 8Z-CS3-628-010 MIC, ZCS-35
35 8Z-CS3-211-010 PLATE,MIC
36 S2-3C0-072-000 AC SOCKET VDE
37 S1-014-991-000 AC JACK COVER
38 8Z-CS3-626-010 SW,AC SELECT
39 S1-015-171-000 POWER SWITCH COVER
40 84-CD8-083-010 BADGE,AIWA 30.5-5.2 2.5 LEAD
41 S3-001-991-000 SPRING WASHER
A 87-261-034-410 V+2-5
B 87-743-073-410 UT2+2.6-6
C 87-513-094-210 VFT2+3-6
D 87-743-074-410 UT2+2.6-8
E 87-651-095-410 VT1+3-8 GLD
F 87-651-102-410 VT1+3-20 GLD
G 87-624-096-410 QT1+3-10 CR
H 87-651-076-410 VT1+2.6-12 ZN
I 87-661-097-410 TAPPING SCREW, VFT1+3-12
All manuals and user guides at all-guides.com

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9420208
