Aiwa Z-ht33 User manual

S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

Z-HT33

• TYPE: K

S/M Code No. 09–992–404–1T1

COMPACT DISC STEREO

CASSETTE RECEIVER

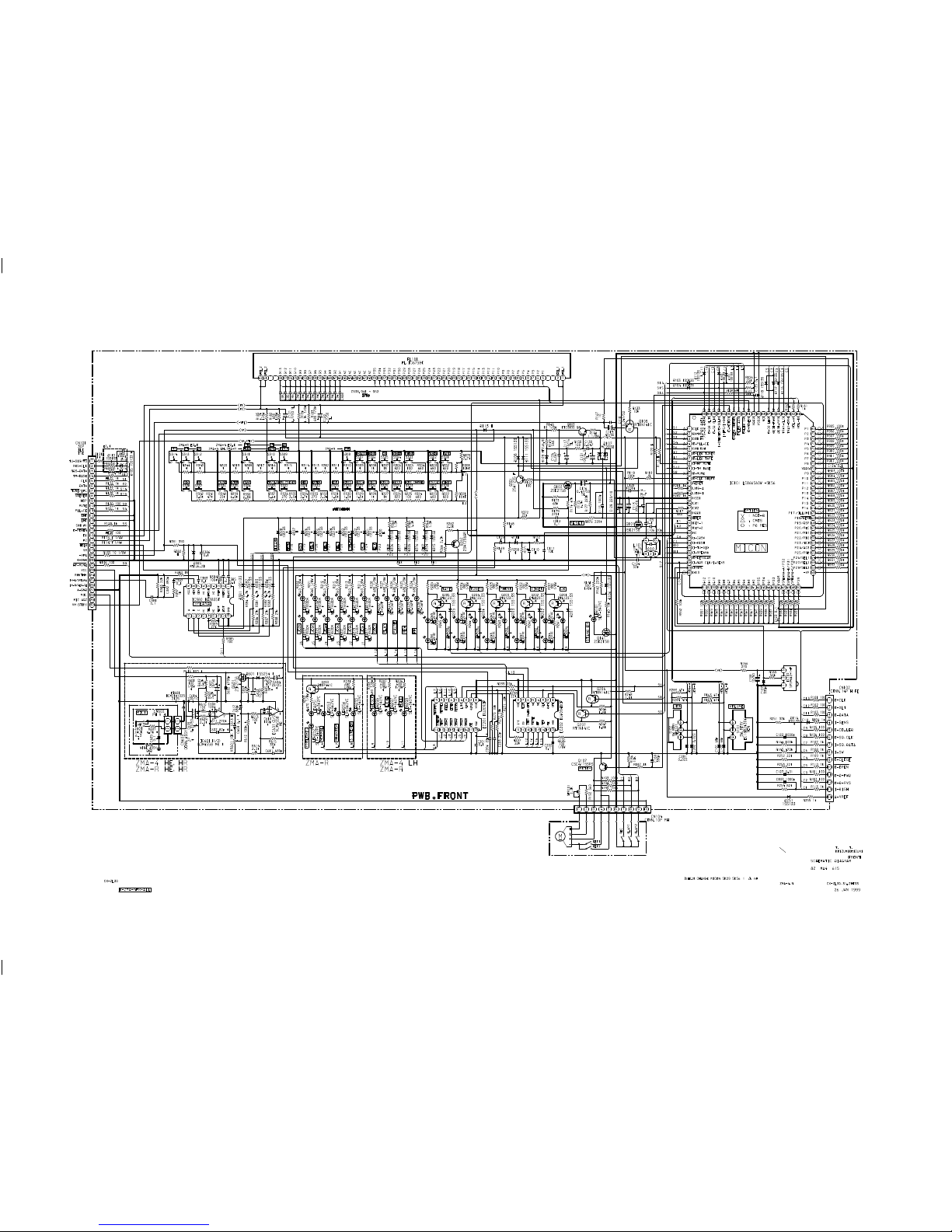

ELECTRICAL MAIN PARTS LIST - 1/7

NOTE: The characters in the suffix column indicate the part usage.

K ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

* 87-MA5-203-010 GUIDE,FL A...................

* 8Z-MA4-205-010 GUIDE,PLAY A...................

C 103 87-010-178-080 CHIP CAP 1000P A...................

C 105 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 104 87-010-316-080 C-CAP,S 33P-50 CH A...................

C 102 87-010-320-080 CHIP CAP 68P A...................

C 101 87-010-320-080 CHIP CAP 68P A...................

C 108 87-010-405-040 CAP,E 10-50 A...................

C 106 87-012-150-080 C-CAP,S 20P-50 CH A...................

C 107 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 115 87-010-178-080 CHIP CAP 1000P A...................

C 112 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 119 87-010-408-080 CAP, ELECT 47-50V A...................

C 116 87-010-493-040 CAP,E 0.47-50 GAS A...................

C 117 87-010-498-040 CAP,E 10-16 GAS A...................

C 118 87-012-369-080 C-CAP,S 0.047-50F A...................

C 113 87-A10-189-040 CAP,E 220-10 A...................

C 128 87-010-178-080 CHIP CAP 1000P A...................

C 122 87-010-178-080 CHIP CAP 1000P A...................

C 127 87-010-190-080 S CHIP F 0.01 A...................

C 126 87-010-194-080 CAP, CHIP 0.047 A...................

C 124 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 121 87-010-421-040 CAP,E 4.7-50 5L A...................

C 120 87-010-421-040 CAP,E 4.7-50 5L A...................

C 131 87-010-079-040 CAP,E 100-6.3 5L A...................

C 130 87-010-194-080 CAP, CHIP 0.047 A...................

C 180 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 201 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 202 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 203 87-010-314-080 C-CAP,S 22P-50V A...................

C 281 87-010-198-080 CAP, CHIP 0.022 A...................

C 282 87-010-198-080 CAP, CHIP 0.022 A...................

C 385 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 381 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 384 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 383 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 382 87-012-158-080 C-CAP,S 390P-50 CH A...................

C 938 87-012-145-080 CAP, CHIP S 270P CH A...................

C 945 87-012-145-080 CAP, CHIP S 270P CH A...................

C 949 87-012-145-080 CAP, CHIP S 270P CH A...................

C 947 87-012-145-080 CAP, CHIP S 270P CH A...................

C 943 87-012-145-080 CAP, CHIP S 270P CH A...................

C 948 87-012-145-080 CAP, CHIP S 270P CH A...................

C 941 87-012-145-080 CAP, CHIP S 270P CH A...................

C 944 87-012-145-080 CAP, CHIP S 270P CH A...................

C 946 87-012-145-080 CAP, CHIP S 270P CH A...................

C 942 87-012-145-080 CAP, CHIP S 270P CH A...................

C 950 87-012-145-080 CAP, CHIP S 270P CH A...................

C 951 87-012-145-080 CAP, CHIP S 270P CH A...................

C 952 87-012-145-080 CAP, CHIP S 270P CH A...................

CN 101 87-099-720-010 CONN,30P TYK-B(P) A...................

CN 102 87-A60-162-010 CONN,14P H FE A...................

D 101 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 106 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 102 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 108 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 105 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 107 87-A40-270-080 C-DIODE,MC2838 A...................

D 109 87-A40-509-080 ZENER,MTZJ6.8C A...................

D 112 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 116 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 117 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 110 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 111 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 114 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 118 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 204 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 251 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 304 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 305 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 317 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 316 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 315 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 322 87-020-465-080 DIODE,1SS133 (110MA) A...................

ELECTRICAL MAIN PARTS LIST - 2/7

D 321 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 325 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 385 87-017-932-080 ZENER,MTJ6.2B A...................

D 381 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 383 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 384 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 382 87-020-465-080 DIODE,1SS133 (110MA) A...................

FL 101 8Z-MA4-604-010 FL,BJ675GK A...................

IC 102 87-A20-914-010 IC,SPS-442-1-F A...................

IC 101 8Z-MA4-602-010 C-IC,LC866560W-5K29 A...................

IC 202 87-017-915-080 IC,BU4094BCF A...................

IC 201 87-070-289-040 IC,BU 2092F A...................

IC 380 87-A21-023-040 C-IC,BA3835F A...................

L 101 87-A50-408-010 COIL,OSC 5.76MHZ A...................

LED 101 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 206 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 208 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 207 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 202 87-A91-052-080 LED,SEL6227S RED A...................

LED 204 87-A91-052-080 LED,SEL6227S RED A...................

LED 201 87-A91-052-080 LED,SEL6227S RED A...................

LED 205 87-A91-052-080 LED,SEL6227S RED A...................

LED 203 87-A91-052-080 LED,SEL6227S RED A...................

LED 216 87-017-350-080 LED,SEL1550CM A...................

LED 217 87-017-350-080 LED,SEL1550CM A...................

LED 218 87-017-350-080 LED,SEL1550CM A...................

LED 219 87-017-350-080 LED,SEL1550CM A...................

LED 226 87-017-350-080 LED,SEL1550CM A...................

LED 227 87-017-350-080 LED,SEL1550CM A...................

LED 225 87-017-350-080 LED,SEL1550CM A...................

LED 220 87-017-350-080 LED,SEL1550CM A...................

LED 223 87-017-350-080 LED,SEL1550CM A...................

LED 222 87-017-350-080 LED,SEL1550CM A...................

LED 224 87-017-350-080 LED,SEL1550CM A...................

LED 221 87-017-350-080 LED,SEL1550CM A...................

LED 228 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................

LED 229 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................

LED 231 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................

LED 230 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................

LED 232 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................

LED 242 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 248 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 249 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 243 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 244 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 245 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 246 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 247 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 241 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 255 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 254 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 253 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 250 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................

LED 252 87-A40-496-040 LED,SLR-342MCT31 GRN A...................

LED 251 87-A40-496-040 LED,SLR-342MCT31 GRN A...................

Q 108 87-A30-073-080 C-TR,RT1N 141C A...................

Q 102 87-A30-087-080 C-FET,2SK2158 A...................

Q 101 87-A30-087-080 C-FET,2SK2158 A...................

Q 103 87-A30-198-080 TR,KTC3199GR A...................

Q 107 87-A30-234-080 TR,CSC4115BC A...................

Q 141 87-A30-087-080 C-FET,2SK2158 A...................

Q 204 87-026-580-080 C-TR,DTA123JK A...................

Q 205 87-026-580-080 C-TR,DTA123JK A...................

Q 203 87-026-580-080 C-TR,DTA123JK A...................

Q 201 87-026-580-080 C-TR,DTA123JK A...................

Q 202 87-026-580-080 C-TR,DTA123JK A...................

Q 206 87-A30-073-080 C-TR,RT1N 141C A...................

Q 207 87-A30-073-080 C-TR,RT1N 141C A...................

Q 262 89-112-965-080 TR,2SA1296 (0.75W) A...................

Q 283 87-A30-202-080 C-TR,RT1P441C A...................

Q 301 87-A30-075-080 C-TR,2SA1235F A...................

R 301 87-022-355-080 C-RES,S10K-1/10W F A...................

R 321 87-022-355-080 C-RES,S10K-1/10W F A...................

S 101 87-A90-535-010 SW,RTRY EC16B24304 A...................

S 102 8Z-MA4-612-010 SW,RTRY REO 121SL10-12 A...................

S 308 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 309 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 302 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 307 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 301 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 305 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 304 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 306 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 303 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 310 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 313 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 312 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 324 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 326 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 327 87-A90-095-080 SW,TACT EVQ11G04M A...................

ELECTRICAL MAIN PARTS LIST - 3/7

S 323 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 328 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 325 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 321 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 322 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 329 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 332 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 337 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 331 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 338 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 333 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 330 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 336 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 335 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 334 87-A90-095-080 SW,TACT EVQ11G04M A...................

SFR 101 87-024-350-080 SFR 2.2K DIA 6H A...................

C 5 87-018-209-080 CAP, CER 0.1-50V A...................

C 3 87-018-209-080 CAP, CER 0.1-50V A...................

C 4 87-018-209-080 CAP, CER 0.1-50V A...................

C 6 87-018-209-080 CAP, CER 0.1-50V A...................

C 7 87-A10-479-080 CAP,CER 2200P-250 M E KH A...................

C 8 87-A10-520-090 CAP,E 3300-35 M SMG A...................

C 9 87-A10-520-090 CAP,E 3300-35 M SMG A...................

C 1 87-A10-831-080 CAP,E 1000-25 M SMG A...................

C 20 87-010-403-080 CAP, ELECT 3.3-50V A...................

CN 1 87-A60-851-010 CONN,9P V VH A...................

D 6 87-017-447-010 DIODE,GBU4DL A...................

D 3 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 1 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 5 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 10 87-020-465-080 DIODE,1SS133 (110MA) A...................

PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) A...................

Q 1 87-026-245-080 TR,DTC114ES A...................

Q 2 87-A30-198-080 TR,KTC3199GR A...................

RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR A...................

T 1 87-A60-317-010 TERMINAL, 1P MSC A...................

T 2 87-A60-317-010 TERMINAL, 1P MSC A...................

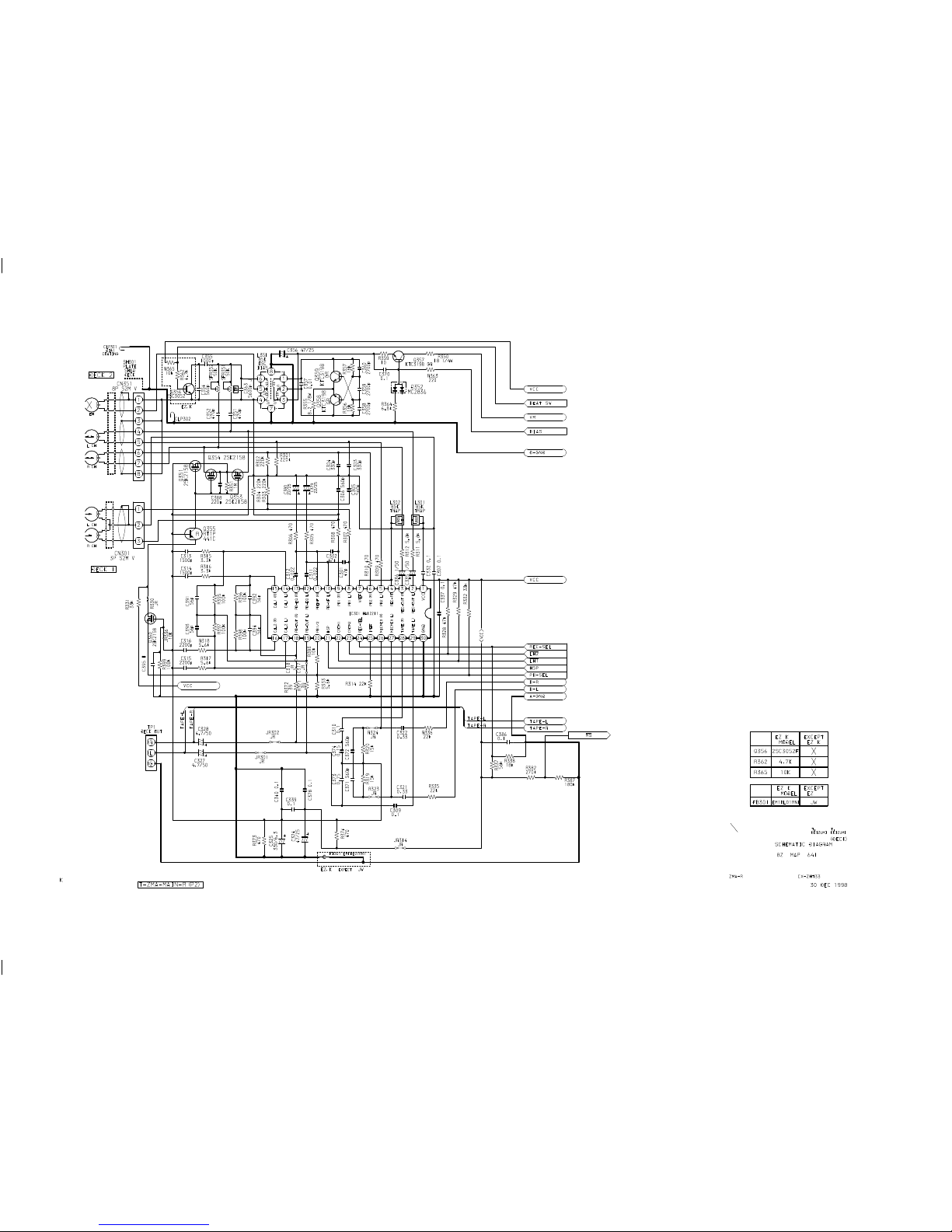

C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 306 87-010-854-080 C-CAP,S 560PCH A...................

C 305 87-010-854-080 C-CAP,S 560PCH A...................

C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 316 87-010-181-080 CAP,CHIP S 1800P A...................

C 315 87-010-181-080 CAP,CHIP S 1800P A...................

C 314 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 313 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 312 87-010-198-080 CAP, CHIP 0.022 A...................

C 311 87-010-198-080 CAP, CHIP 0.022 A...................

C 324 87-010-260-080 CAP, ELECT 47-25V A...................

C 325 87-010-370-080 CAP,E 330-6.3 SME A...................

C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 322 87-012-142-080 CAP, S 0.33-16 A...................

C 321 87-012-142-080 CAP, S 0.33-16 A...................

C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 335 87-010-401-080 CAP, ELECT 1-50V A...................

C 336 87-010-401-080 CAP, ELECT 1-50V A...................

C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 354 87-010-175-080 CAP 560P A...................

C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 356 87-010-260-080 CAP, ELECT 47-25V A...................

C 352 87-012-140-080 CAP 470P A...................

C 351 87-012-140-080 CAP 470P A...................

C 355 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 371 87-010-175-080 CAP 560P A...................

C 372 87-010-175-080 CAP 560P A...................

C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 379 87-010-382-080 CAP, ELECT 22-25V A...................

C 374 87-016-083-080 C-CAP,S 0.15-16 RK A...................

C 373 87-016-083-080 C-CAP,S 0.15-16 RK A...................

C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 380 87-010-382-080 CAP, ELECT 22-25V A...................

C 388 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 392 87-010-319-080 C-CAP,S 56P-50 CH A...................

C 391 87-010-319-080 C-CAP,S 56P-50 CH A...................

C 393 87-010-319-080 C-CAP,S 56P-50 CH A...................

C 394 87-010-319-080 C-CAP,S 56P-50 CH A...................

CN 301 87-099-827-010 CONN,3P S2M-3W A...................

CN 351 87-099-832-010 CONN,8P S2M-8W A...................

ELECTRICAL MAIN PARTS LIST - 4/7

D 352 87-A40-269-080 C-DIODE,MC2836 A...................

FB 301 87-008-372-080 FILTER, EMI BL OIRNI A...................

IC 301 87-A20-455-010 IC,HA12211 A...................

L 302 87-A50-049-010 COIL,TRAP 85K(COI) A...................

L 301 87-A50-049-010 COIL,TRAP 85K(COI) A...................

L 351 87-007-342-010 COIL,OSC 85K BIAS A...................

Q 359 87-026-610-080 TR,KTC3198GR A...................

Q 357 87-026-610-080 TR,KTC3198GR A...................

Q 358 87-026-610-080 TR,KTC3198GR A...................

Q 356 87-A30-076-080 C-TR,2SC3052F A...................

Q 353 87-A30-087-080 C-FET,2SK2158 A...................

Q 351 87-A30-087-080 C-FET,2SK2158 A...................

Q 354 87-A30-087-080 C-FET,2SK2158 A...................

Q 355 87-A30-105-080 C-TR,RT1P 441C A...................

Q 360 87-A30-087-080 C-FET,2SK2158 A...................

SFR 351 87-024-356-080 SFR,47K DIA6 H A...................

SFR 352 87-024-356-080 SFR,47K DIA6 H A...................

C 414 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 413 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 601 87-010-180-080 C-CER 1500P A...................

C 602 87-010-180-080 C-CER 1500P A...................

C 607 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 608 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 605 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 606 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 619 87-010-185-080 C-CAP,S 3900P-50 B A...................

C 613 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 614 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 620 87-010-185-080 C-CAP,S 3900P-50 B A...................

C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 621 87-010-401-080 CAP, ELECT 1-50V A...................

C 622 87-010-401-080 CAP, ELECT 1-50V A...................

C 629 87-010-405-080 CAP, ELECT 10-50V A...................

C 625 87-010-405-080 CAP, ELECT 10-50V A...................

C 626 87-010-405-080 CAP, ELECT 10-50V A...................

C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 630 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 633 87-010-263-080 CAP, ELECT 100-10V A...................

C 632 87-010-263-080 CAP, ELECT 100-10V A...................

C 631 87-010-992-080 C-CAP,S 0.047-25 B A...................

C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 662 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 661 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 663 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 664 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 900 87-012-140-080 CAP 470P A...................

CN 601 87-099-719-010 CONN,30P TYK-B(X) A...................

CN 602 87-A60-131-010 CONN,6P V FE A...................

CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 A...................

D 601 87-A40-002-080 ZENER,MTZJ5.1C A...................

D 602 87-A40-438-080 ZENER,MTZJ4.7A A...................

IC 601 87-A21-011-040 C-IC,M62445FP-600D A...................

J 603 82-MA2-631-010 JACK PIN 4P RVS A...................

Q 601 87-026-609-080 TR,KTA1266GR A...................

C 101 87-010-178-080 CHIP CAP 1000P A...................

C 102 87-010-178-080 CHIP CAP 1000P A...................

C 124 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 123 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 129 87-010-191-080 C-CAP,S 0.015-50 F A...................

C 128 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 127 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 126 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 125 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 130 87-010-191-080 C-CAP,S 0.015-50 F A...................

C 131 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 132 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 134 87-010-553-080 CAP,E 47-16 A...................

C 136 87-012-368-080 C-CAP,S 0.1-50 F A...................

L 101 87-003-383-010 COIL,1UH-S A...................

L 102 87-003-383-010 COIL,1UH-S A...................

Q 101 87-A30-257-080 C-TR,2SD1306E A...................

Q 102 87-A30-257-080 C-TR,2SD1306E A...................

Q 127 87-A30-075-080 C-TR,2SA1235F A...................

C 203 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 204 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 201 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 202 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 229 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 233 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 234 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 237 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 238 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 230 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 252 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 251 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 900 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

CN 201 87-A60-739-010 CONN,13P JL-BT A...................

J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 A...................

ELECTRICAL MAIN PARTS LIST - 5/7

J 202 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................

J 204 87-A60-752-010 JACK,PIN 4P R/W,O/B A...................

L 202 87-003-383-010 COIL,1UH-S A...................

L 201 87-003-383-010 COIL,1UH-S A...................

Q 202 87-A30-257-080 C-TR,2SD1306E A...................

Q 201 87-A30-257-080 C-TR,2SD1306E A...................

Q 223 87-A30-105-080 C-TR,RT1P 441C A...................

Q 230 87-A30-257-080 C-TR,2SD1306E A...................

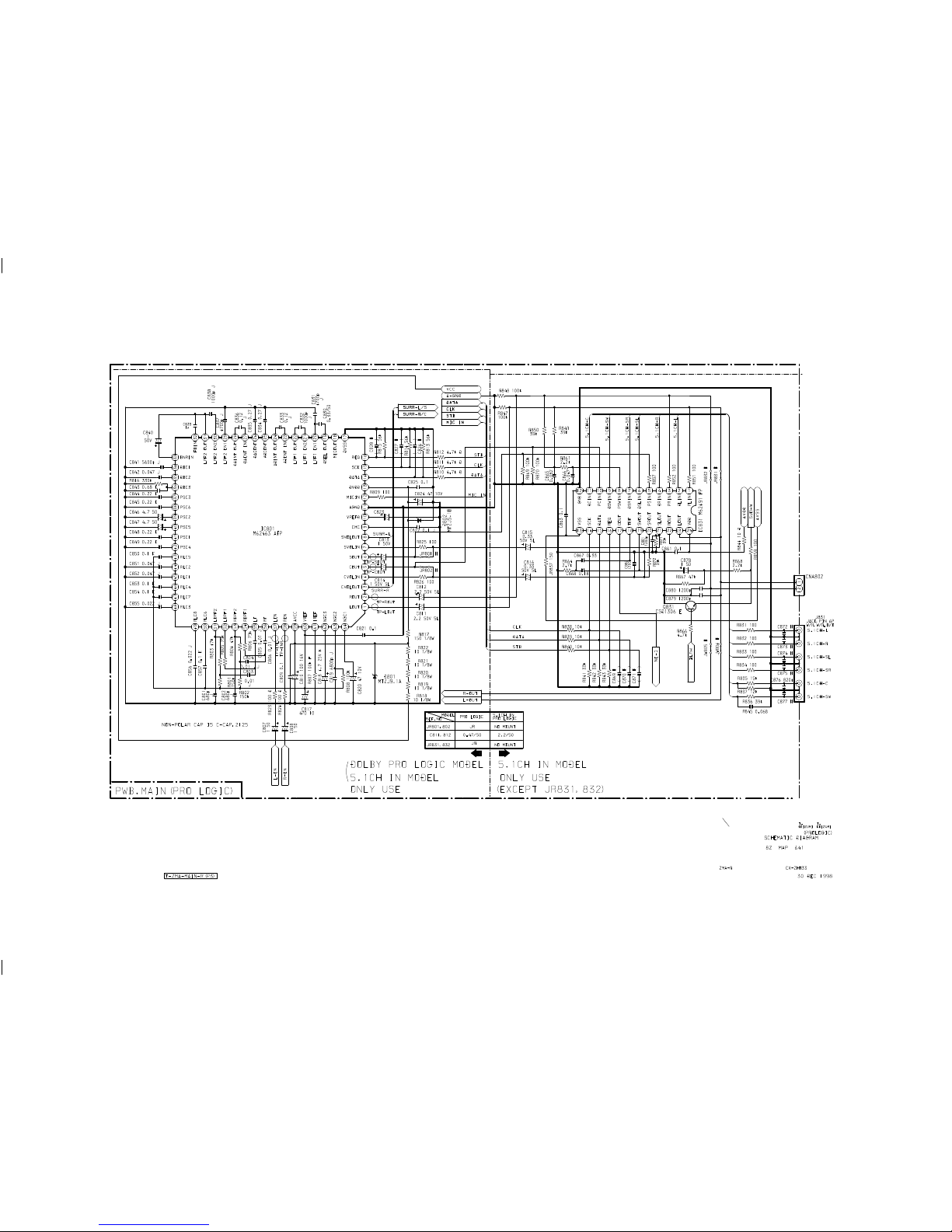

C 801 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 802 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 809 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 808 87-010-401-080 CAP, ELECT 1-50V A...................

C 807 87-010-401-080 CAP, ELECT 1-50V A...................

C 806 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................

C 805 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................

C 804 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................

C 803 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................

C 810 87-010-112-080 CAP, ELECT 100-16V A...................

C 817 87-010-221-080 CAP, ELECT 470-10V A...................

C 813 87-010-401-080 CAP, ELECT 1-50V A...................

C 818 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 815 87-010-492-080 CAP,E 0.33-50 M 5L SRE A...................

C 816 87-010-492-080 CAP,E 0.33-50 M 5L SRE A...................

C 814 87-010-494-080 CAP ELECT GAS 1/50 A...................

C 811 87-010-495-080 CAP,E2.2-50 A...................

C 812 87-010-495-080 CAP,E2.2-50 A...................

C 819 87-A10-800-080 C-CAP,S 6800P-16 J B CM A...................

C 825 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 821 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 824 87-010-374-080 CAP, ELECT 47-10V A...................

C 820 87-010-374-080 CAP, ELECT 47-10V A...................

C 829 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 839 87-010-805-080 CAP, S 1-16 A...................

C 831 87-010-971-080 C-CAP,S 4700P-50 B J A...................

C 837 87-010-971-080 C-CAP,S 4700P-50 B J A...................

C 830 87-012-142-080 CAP, S 0.33-16 A...................

C 832 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 838 87-012-349-080 C-CAP,S 1000P-50 CH A...................

C 834 87-A11-182-080 C-CAP,S 0.27-16 J B A...................

C 835 87-A11-182-080 C-CAP,S 0.27-16 J B A...................

C 836 87-A11-183-080 C-CAP,S 0.12-16 J B A...................

C 833 87-A11-183-080 C-CAP,S 0.12-16 J B A...................

C 840 87-010-401-080 CAP, ELECT 1-50V A...................

C 846 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 847 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 845 87-012-393-080 C-CAP,S 0.22-16 R K A...................

C 849 87-012-393-080 C-CAP,S 0.22-16 R K A...................

C 848 87-012-393-080 C-CAP,S 0.22-16 R K A...................

C 844 87-012-393-080 C-CAP,S 0.22-16 R K A...................

C 843 87-A10-229-080 C-CAP,S 0.68-10 K W5 A...................

C 841 87-A10-799-080 C-CAP,S 5600P-16 J B CM A...................

C 842 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................

C 850 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 857 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 854 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 853 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 855 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................

C 856 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................

C 851 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................

C 852 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................

C 866 87-010-194-080 CAP, CHIP 0.047 A...................

C 861 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 863 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 865 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................

C 868 87-A10-060-080 C-CAP,S 0.18-16 K B A...................

C 878 87-010-401-080 CAP, ELECT 1-50V A...................

C 899 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 898 87-012-361-080 C-CAP,S 0.056-25 Y A...................

D 802 87-070-136-080 ZENER,MTZJ5.1B A...................

D 801 87-A40-442-080 ZENER,MTZJ9.1A A...................

IC 801 87-A21-097-040 C-IC,M62463AFP A...................

IC 831 87-A21-015-040 C-IC,M62491FP A...................

J 831 87-A60-746-010 JACK,PIN 6P R/W,R/W, O/B A...................

L 801 87-003-383-010 COIL,1UH-S A...................

Q 831 87-A30-086-070 C-TR,CSD1306E A...................

R 807 87-022-214-080 C-RES S100K-1/10WF A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

C 3 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 5 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 6 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 4 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 1 87-012-369-080 C-CAP,S 0.047-50F A...................

C 2 87-012-369-080 C-CAP,S 0.047-50F A...................

C 9 87-016-658-090 CAP,E 4700-35 SMG A...................

C 10 87-016-658-090 CAP,E 4700-35 SMG A...................

C 24 87-010-247-080 CAP, ELECT 100-50V A...................

C 29 87-010-247-080 CAP, ELECT 100-50V A...................

C 23 87-010-247-080 CAP, ELECT 100-50V A...................

C 26 87-010-263-080 CAP, ELECT 100-10V A...................

C 22 87-010-406-080 CAP, ELECT 22-50 A...................

C 21 87-010-406-080 CAP, ELECT 22-50 A...................

C 25 87-010-430-080 CAP, ELECT 100-63 A...................

ELECTRICAL MAIN PARTS LIST - 6/7

C 27 87-012-140-080 CAP 470P A...................

C 30 87-010-112-080 CAP, ELECT 100-16V A...................

C 31 87-010-235-080 CAP,E 470-16 SME A...................

C 61 87-010-260-080 CAP, ELECT 47-25V A...................

C 62 87-010-496-080 CAP,E 3.3-50 5L A...................

CN 1 87-A60-739-010 CONN,13P JL-BT A...................

CNA 1 8Z-MA4-623-010 CONN ASSY,9P 480 VH A...................

D 1 87-017-654-060 DIODE,GBU6J A...................

D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 8 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 6 87-070-274-080 DIODE,1N4003 SEM A...................

D 4 87-070-274-080 DIODE,1N4003 SEM A...................

D 3 87-070-274-080 DIODE,1N4003 SEM A...................

D 5 87-070-274-080 DIODE,1N4003 SEM A...................

D 7 87-A40-435-080 ZENER,MTZJ30D A...................

D 10 87-A40-345-080 ZENER,MTZJ10C A...................

D 64 87-070-274-080 DIODE,1N4003 SEM A...................

D 63 87-A40-004-080 ZENER,MTZJ16A A...................

D 62 87-A40-269-080 C-DIODE,MC2836 A...................

D 61 87-A40-270-080 C-DIODE,MC2838 A...................

Q 1 87-026-609-080 TR,KTA1266GR A...................

Q 2 87-026-609-080 TR,KTA1266GR A...................

Q 5 87-026-610-080 TR,KTC3198GR A...................

Q 8 87-A30-075-080 C-TR,2SA1235F A...................

Q 7 87-A30-075-080 C-TR,2SA1235F A...................

Q 6 87-A30-234-080 TR,CSC4115BC A...................

Q 9 87-A30-234-080 TR,CSC4115BC A...................

Q 64 87-A30-075-080 C-TR,2SA1235F A...................

Q 66 87-A30-075-080 C-TR,2SA1235F A...................

Q 65 87-A30-234-080 TR,CSC4115BC A...................

Q 63 87-A30-234-080 TR,CSC4115BC A...................

Q 67 87-A30-234-080 TR,CSC4115BC A...................

WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................

C 451 87-010-401-080 CAP, ELECT 1-50V A...................

C 452 87-010-401-080 CAP, ELECT 1-50V A...................

C 102 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 101 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 205 87-010-186-080 CAP,CHIP 4700P A...................

C 206 87-010-186-080 CAP,CHIP 4700P A...................

C 209 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 208 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 207 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 204 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 203 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 211 87-010-260-080 CAP, ELECT 47-25V A...................

C 212 87-010-260-080 CAP, ELECT 47-25V A...................

C 210 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 219 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 213 87-A10-812-080 C-CAP,S 220P-200 J CH A...................

C 214 87-A10-812-080 C-CAP,S 220P-200 J CH A...................

C 222 87-010-178-080 CHIP CAP 1000P A...................

C 221 87-010-178-080 CHIP CAP 1000P A...................

C 220 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 299 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 305 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 306 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 309 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 308 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 307 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 303 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 304 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 314 87-010-260-080 CAP, ELECT 47-25V A...................

C 313 87-010-260-080 CAP, ELECT 47-25V A...................

C 310 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 319 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 311 87-A10-596-080 C-CAP,S 100P-100 J CH A...................

C 312 87-A10-596-080 C-CAP,S 100P-100 J CH A...................

C 321 87-010-186-080 CAP,CHIP 4700P A...................

C 322 87-010-186-080 CAP,CHIP 4700P A...................

C 320 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 405 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................

C 409 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 407 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 403 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 413 87-010-260-080 CAP, ELECT 47-25V A...................

C 419 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 411 87-A10-946-080 C-CAP,S 220P-100 J CH A...................

C 421 87-010-186-080 CAP,CHIP 4700P A...................

CN 101 87-A60-727-010 CONN,13P JL-R A...................

CN 102 87-A60-727-010 CONN,13P JL-R A...................

D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 206 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 205 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 208 87-A40-488-080 DIODE,1SS244 A...................

D 207 87-A40-488-080 DIODE,1SS244 A...................

D 212 87-020-331-080 CHIP-DIODE,DAN202K A...................

D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 296 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 298 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 297 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 295 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 299 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 305 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 309 87-A40-488-080 DIODE,1SS244 A...................

D 312 87-020-331-080 CHIP-DIODE,DAN202K A...................

D 310 87-A40-488-080 DIODE,1SS244 A...................

D 409 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 405 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 411 87-A40-488-080 DIODE,1SS244 A...................

Q 206 87-A30-076-080 C-TR,2SC3052F A...................

Q 205 87-A30-076-080 C-TR,2SC3052F A...................

Q 203 87-A30-076-080 C-TR,2SC3052F A...................

Q 204 87-A30-076-080 C-TR,2SC3052F A...................

Q 209 87-A30-190-080 TR,CC5551 A...................

Q 207 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 202 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 208 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 201 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 210 87-A30-190-080 TR,CC5551 A...................

Q 223 87-A30-076-080 C-TR,2SC3052F A...................

Q 225 87-A30-076-080 C-TR,2SC3052F A...................

Q 226 87-A30-076-080 C-TR,2SC3052F A...................

Q 224 87-A30-076-080 C-TR,2SC3052F A...................

Q 221 87-A30-106-070 C-TR,CMBT5551 A...................

Q 222 87-A30-106-070 C-TR,CMBT5551 A...................

Q 298 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 301 87-A30-075-080 C-TR,2SA1235F A...................

Q 307 87-A30-075-080 C-TR,2SA1235F A...................

Q 302 87-A30-075-080 C-TR,2SA1235F A...................

Q 308 87-A30-075-080 C-TR,2SA1235F A...................

Q 304 87-A30-076-080 C-TR,2SC3052F A...................

Q 306 87-A30-076-080 C-TR,2SC3052F A...................

Q 303 87-A30-076-080 C-TR,2SC3052F A...................

Q 305 87-A30-076-080 C-TR,2SC3052F A...................

Q 317 87-A30-119-080 C-TR,2SC3906K R A...................

Q 318 87-A30-119-080 C-TR,2SC3906K R A...................

Q 311 87-A30-190-080 TR,CC5551 A...................

Q 312 87-A30-190-080 TR,CC5551 A...................

Q 325 87-A30-076-080 C-TR,2SC3052F A...................

Q 324 87-A30-076-080 C-TR,2SC3052F A...................

Q 323 87-A30-076-080 C-TR,2SC3052F A...................

Q 326 87-A30-076-080 C-TR,2SC3052F A...................

Q 401 87-A30-075-080 C-TR,2SA1235F A...................

Q 407 87-A30-075-080 C-TR,2SA1235F A...................

Q 405 87-A30-076-080 C-TR,2SC3052F A...................

Q 403 87-A30-076-080 C-TR,2SC3052F A...................

Q 417 87-A30-119-080 C-TR,2SC3906K R A...................

Q 411 87-A30-190-080 TR,CC5551 A...................

Q 423 87-A30-076-080 C-TR,2SC3052F A...................

Q 425 87-A30-076-080 C-TR,2SC3052F A...................

Q 506 87-A30-074-080 C-TR,RT1P 141C A...................

Q 507 87-A30-268-040 C-TR,2SA1514K(S) A...................

Q 601 87-A30-074-080 C-TR,RT1P 141C A...................

Q 602 87-A30-268-040 C-TR,2SA1514K(S) A...................

R 226 87-A00-257-080 RES,M/F 0.15-1W J A...................

R 225 87-A00-257-080 RES,M/F 0.15-1W J A...................

R 227 87-A00-257-080 RES,M/F 0.15-1W J A...................

R 228 87-A00-257-080 RES,M/F 0.15-1W J A...................

R 239 87-A00-257-080 RES,M/F 0.15-1W J A...................

R 242 87-A00-257-080 RES,M/F 0.15-1W J A...................

R 325 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 326 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 327 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 328 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 339 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 340 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 429 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 427 87-A00-258-080 RES,M/F 0.22-1W J A...................

R 441 87-A00-258-080 RES,M/F 0.22-1W J A...................

TH 201 87-A91-042-080 C-THMS,100K 55001 A...................

TH 202 87-A91-042-080 C-THMS,100K 55001 A...................

TH 301 87-A91-042-080 C-THMS,100K 55001 A...................

TH 302 87-A91-042-080 C-THMS,100K 55001 A...................

TH 401 87-A91-042-080 C-THMS,100K 55001 A...................

ELECTRICAL MAIN PARTS LIST - 7/7

ELECTRICAL MAIN PARTS LIST - 1/3 (TUNER: ZZA-1)

NOTE: The characters in the suffix column indicate the part usage.

ZRDS ...................XX.......................................F..............

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 701 87-010-381-080 0E CAP, ELECT 330-16V ABCDEFGH............

C 702 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............

C 711 87-010-260-080 0E CAP, ELECT 47-25V ABCD.FGH............

C 711 87-010-553-080 0E CAP,E 47-16 ....E...............

C 712 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGH............

C 718 87-012-179-080 0E C-CAP,U 20P-50 CH .BCD................

C 727 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............

C 728 87-010-248-080 0E CAP, ELECT 220-10V ABCDEFGH............

C 721 87-012-176-080 0E CAP 15P ABCDEFGH............

C 722 87-012-176-080 0E CAP 15P ABCDEFGH............

C 720 87-012-195-080 0E C-CAP,U 100P-50CH ABCDEFGH............

C 729 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGH............

C 725 87-018-131-080 0E CAP, CER 1000P-50V .....FG.............

C 805 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 806 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

CN 701 87-A60-650-010 1A CONN,16P H GRY TUC-P16X-C1 .....F..............

CN 701 87-A60-700-010 0E CONN,13P H GRY TUC-P13X-C1 ABCDE.GH............

D 721 87-017-149-080 0E ZENER,HZS6A2L .BCDEFGH............

D 722 87-020-465-080 0E DIODE,1SS133 (110MA) .....FG.............

D 721 87-A40-234-080 0E ZENER,MTZJ5.6A A...................

IC 721 87-070-127-110 1C IC,LC72131 D ABCDEFGH............

Q 713 87-A30-072-080 0E C-TR,RT1P 144C ....E...............

Q 712 87-A30-072-080 0E C-TR,RT1P 144C ....E...............

Q 711 87-A30-196-080 0E TR,2SC4115SRS A...................

Q 711 87-A30-234-080 0E TR,CSC4115BC .BCDEFGH............

X 721 87-A70-061-010 1A VIB,XTAL 4.500MHZ CSA-309 ABCDEFGH............

C 872 87-010-400-080 0E CAP, ELECT 0.47-50V AB.....H............

C 873 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............

C 877 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............

C 878 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............

C 889 87-010-248-080 0E CAP, ELECT 220-10V AB.....H............

C 884 87-010-260-080 0E CAP, ELECT 47-25V AB.....H............

C 883 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............

C 885 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............

C 886 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............

C 888 87-010-787-080 0E CAP, U 0.022-25 AB.....H............

C 881 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F AB.....H............

C 882 87-012-172-080 0E CAPACITOR CHIP U 10P CH AB.....H............

C 887 87-012-286-080 0E CAP, U 0.01-25 AB.....H............

C 886 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................

C 885 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................

IC 871 87-070-060-040 1F IC,TA2040AF AB.....H............

Q 873 87-026-226-080 0E CHIP-TR,DTA143EK AB.....H............

X 891 87-030-394-010 1B VIB,CER CSA3.6MGF228 AB.....H............

C 705 87-010-213-080 0E C-CAP,S 0.015-50 B ....................

C 706 87-010-213-080 0E C-CAP,S 0.015-50 B ....................

C 705 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............

C 706 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............

C 737 87-010-180-080 0E C-CER 1500P ....................

C 734 87-010-180-080 0E C-CER 1500P ....................

C 733 87-010-180-080 0E C-CER 1500P ....................

C 738 87-010-180-080 0E C-CER 1500P ....................

C 735 87-010-213-080 0E C-CAP,S 0.015-50 B ....................

C 736 87-010-213-080 0E C-CAP,S 0.015-50 B ....................

C 736 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............

C 734 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............

C 733 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............

C 735 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............

C 733 87-012-280-080 0E CAP, U 3300P-50 .....FG.............

C 734 87-012-280-080 0E CAP, U 3300P-50 .....FG.............

C 737 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............

C 738 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............

C 752 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............

C 751 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............

C 758 87-012-167-080 0E C-CAP,U 5P-50 CH ABCDEFGH............

C 757 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGH............

C 753 87-012-195-080 0E C-CAP,U 100P-50CH .....FG.............

C 752 87-012-282-080 0E CAP, U 4700P-50 .....FG.............

C 756 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 752 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................

C 751 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................

C 766 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............

C 769 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............

C 765 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 768 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 764 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDE..H............

C 774 87-010-263-080 0E CAP, ELECT 100-10V ABCDEFGH............

C 771 87-010-383-080 0E CAP, ELECT 33-25V ABCDEFGH............

C 777 87-010-400-080 0E CAP, ELECT 0.47-50V ABCDE..H............

C 775 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............

C 777 87-010-493-040 0E CAP,E 0.47-50 GAS ....................

C 777 87-010-493-080 0E CAP,E 0.47-50 GAS .....FG.............

C 770 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGH............

C 780 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............

C 785 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............

C 786 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............

ELECTRICAL MAIN PARTS LIST - 2/3 (TUNER: ZZA-1)

C 786 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............

C 785 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............

C 786 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............

C 785 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............

C 788 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............

C 787 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............

C 784 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 796 87-010-403-080 0E CAP, ELECT 3.3-50V ABCDEFGH............

C 794 87-010-406-080 0E CAP, ELECT 22-50 ABCDEFGH............

C 795 87-010-596-080 0E CAP, S 0.047-16 ..CDEFG.............

C 793 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFGH............

C 797 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............

C 798 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............

D 771 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............

D 773 87-A40-291-080 0E DIODE,1N4148 (CPT) ....................

IC 771 87-A20-913-010 1D IC,LA1837NL ABCDEFGH............

L 771 87-A50-266-010 1A COIL,FM DET-2N(TOK) ABCDEFGH............

L 772 87-A90-052-010 1C FLTR,CFMT-450A(TOK) ....E...............

L 772 87-A90-053-010 1C FLTR,PCFMT-060(TOK) AB.....H............

L 772 87-A90-733-010 1A FLTR,PCFAZH-450 (TOK) ....................

L 772 87-A91-110-010 1B FLTR,PCFJZH-450 (TOK) ..CD.FG.............

L 781 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............

L 791 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............

L 792 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............

X 771 87-030-354-010 1A VIB,CF BFU 450C ....E...............

C 859 87-012-286-080 0E CAP, U 0.01-25 .....F..............

C 865 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .....F..............

C 866 87-010-405-080 0E CAP, ELECT 10-50V .....F..............

C 864 87-010-405-080 0E CAP, ELECT 10-50V .....F..............

C 869 87-012-180-080 0E C-CAP,U 22P-50 CH .....F..............

C 868 87-012-184-080 0E C-CAP,U 33P-50 CH .....F..............

C 862 87-012-199-080 0E CAP 220P .....F..............

C 861 87-012-199-080 0E CAP 220P .....F..............

C 863 87-012-270-080 0E CAP, U 470P-50 .....F..............

C 867 87-012-286-080 0E CAP, U 0.01-25 .....F..............

IC 851 87-A20-440-040 1H C-IC,BU1920FS .....F..............

L 851 87-005-847-080 0E COIL,2.2UH(CECS) .....F..............

Q 853 87-A30-076-080 0E C-TR,2SC3052F .....F..............

X 851 87-A70-091-010 1B VIB,XTAL 4.332MHZ CSA-309 .....F..............

C 801 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 809 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 802 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 803 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 804 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 808 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 807 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 810 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 820 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............

C 893 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 894 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............

C 942 87-012-168-080 0E C-CAP,U 6P-50 CH .....FG.............

C 942 87-012-172-080 0E CAPACITOR CHIP U 10P CH ....................

C 941 87-012-180-080 0E C-CAP,U 22P-50 CH ....E...............

C 944 87-014-049-080 0E CAP,PP 470P-100 J ....................

C 944 87-014-051-080 0E CAPACITOR (PP), 560P ....E...............

C 949 87-A10-039-080 0E C-CAP,U 470P-50 J CH .....FG.............

C 958 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............

C 956 87-010-263-080 0E CAP, ELECT 100-10V ....E...............

C 959 87-010-831-080 0E C-CAP,U,0.1-16F ....EFG.............

C 954 87-012-358-080 0E C-CAP,S 0.47-10 F Z ....E...............

C 950 87-014-073-080 0E CAP,PP 4700P-100 J ....E...............

C 963 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............

C 962 87-010-401-080 0E CAP, ELECT 1-50V .....FG.............

C 964 87-012-170-080 0E C-CAP,U 8P-50 CH A...................

C 961 87-012-174-080 0E CAP CHIP CERA SS 12P CHJ .BCD...H............

C 960 87-012-350-080 0E C-CAP,1-25 F ....E...............

CF 802 82-785-747-010 1A CF MS2 GHY R .....FG.............

CF 802 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............

CF 801 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............

CF 801 87-008-423-010 1A CERAMIC FILTER, SFE10.7 .....FG.............

D 944 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFG.............

D 942 87-A40-270-080 0E C-DIODE,MC2838 .....FG.............

D 981 87-A40-618-080 1B VARI-CAP,SVC 348(S/T) ....E...............

FFE 801 A8-6ZA-190-030 0E 6ZA-1 FEUNM ....................

FFE 801 A8-6ZA-191-130 6ZA-1 FEENM .....FG.............

FFE 801 A8-6ZA-192-030 2Y 6ZA-1 FEJNM .B..................

FFE 801 A8-6ZA-193-130 6ZA-1 FEVNM ....................

FFE 801 A8-6ZA-199-170 6ZA-1 FEENC ....................

FFE 801 A8-6ZA-19A-070 6ZA-1 FEJNC ....................

FFE 801 A8-6ZA-19D-070 1H 6ZA-1 YFEJNC A......H............

FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ..C.E...............

FFE 801 A8-8ZA-192-070 8ZA-1 FEUNC ....................

FFE 801 A8-8ZA-193-070 1E 8ZA-1 YFEUNC ...D................

J 801 87-033-241-010 1B TERMINAL,ANT AJ-2039 .....FG.............

J 801 87-A60-702-010 1B TERMINAL,ANT 4P CJ-9036 ABCD...H............

J 801 87-A60-703-010 1A TERMINAL,ANT 3P CJ-9037 ....E...............

J 940 81-754-629-010 0E CONNECTOR, 2P ....E...............

L 832 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............

L 943 87-005-372-080 0E COIL S 1MHM ....................

L 942 87-A50-019-010 0E COIL,OSC LW(COI) .....FG.............

L 941 87-A50-020-010 0E COIL,ANT LW(COI) .....FG.............

L 941 87-A50-022-010 0E COIL,ANT SW(COI) ....E...............

Table of contents

Popular Stereo Receiver manuals by other brands

Marantz

Marantz CINEMA 70S owner's manual

Kenwood

Kenwood KMDX92 instruction manual

Yamaha

Yamaha RX-830 owner's manual

Pioneer

Pioneer AVH-Z7250BT owner's manual

Yamaha

Yamaha RX-750 owner's manual

Denon

Denon AVR-1311 owner's manual

Denon

Denon AVR-S760H owner's manual

Denon

Denon AVR-X7200W Service manual

Pioneer

Pioneer SC-LX904 Initial setup guide

Sony

Sony XAV-1500 operating instructions

Radio Shack

Radio Shack DX-399 owner's manual

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver operating instructions

Pioneer

Pioneer SX-1000TA operating instructions

Yamaha

Yamaha MusicCast TSR-5B3D owner's manual

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver operating instructions

Sony

Sony STR-DG500 - Multi Channel Av Receiver Service manual

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Brochure & specs

Pioneer

Pioneer SX-838 Service manual

Aiwa Z-HT33 User manual

Popular Stereo Receiver manuals by other brands
