SERVICE MANUAL
DATA
COMPACT DISC STEREO SYSTEM BASIC TAPE MECHANISM : ZZM-3
BASIC CD MECHANISM : AZG-1
U
LH
LH, HS
LH
HA
HA
S/M Code No. 09-005-426-1R1
REVISION
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual".
NSX-AJ24 <U> / BL24 <LH> (S/M Code No. 09-003-426-1T1)
NSX-BL23 <LH> / BL34 <LH> (S/M Code No. 09-004-426-1T4)
NSX-BL24 <HS> (S/M Code No. 09-004-426-1T5)
• If requiring information about the CD mechanism, see Service Manual of AZG-1.
AZG-1 ZD8RDC (S/M Code No. 09-001-335-3NA)
AZG-1 YZD8RDM (S/M Code No. 09-001-335-3N6)
AZG-1 ZD4RDC (S/M Code No. 09-001-335-3N8)
NSX-AJ24
NSX-BL23
NSX-BL24
NSX-BL34
NSX-BL24E
NSX-BL34E

– 2 –
SYSTEM COMBINATION TABLE
NSX–AJ24
RC–ZAS02
SYSTEM CD
CASSEIVER REMOTE CONTROLLER
SPEAKER
SX–NAJ25
SX–R140
NSX–BL23
NSX–BL24
NSX–BL34
NSX–BL24E
NSX–BL34E
TAPE
MECHANISM CD MECHANISM
CX–NAJ24
CX–NBL23
CX–NBL24
CX–NBL34
CX–NBL24E
CX–NBL34E
SX–NBL25
SX–NBL42
SX–NBL25
SX–NBL42
ZZM–3 YPR1NC
ZZM–3 YPR1NC
ZZM–3 YPR1NM
AZG–1 ZD8RDC
AZG–1 ZD8RDC
AZG–1 YZD8RDM
AZG–1 ZD4RDC

– 3 –
<General>
Power requirements U: 120 V AC, 60 Hz
HS: 220 V AC, 60 Hz
LH, HA: 120 V/220 – 230 V/240 V AC
Switchable, 50/60 Hz
CX-NAJ24 <U>:
Power consumption 75 W
Power consumption 13 W with power-economizing mode off
in standby mode 0.9 W with power-economizing mode on
Dimensions (W xH xD) 260 x 328 x 329 mm
(101/4x 13 x 13 in.)
Weight 6.4 kg (14 lbs 2 oz.)
CX-NBL23/CX-NBL24 <LH>, CX-NBL24E <HA>:
Power consumption 80 W
Power consumption 13 W with power-economizing mode off
in standby mode 0.9 W with power-economizing mode on
Dimensions (W xH xD) 260 x 328 x 329 mm
Weight 6.3 kg
CX-NBL34 <LH>, CX-NBL34E <HA>:
Power consumption 125 W
Power consumption 17 W with power-economizing mode off
in standby mode 0.9 W with power-economizing mode on
Dimensions (W xH xD) 260 x 328 x 329 mm
Weight 7.1 kg
CX-NBL24 <HS>:
Power consumption 70 W
Power consumption 13 W with power-economizing mode off
in standby mode 0.9 W with power-economizing mode on
Dimensions (W xH xD) 260 x 328 x 329 mm
Weight 6.3 kg
Speaker system SX-NAJ25 <NSX-AJ24>
Speaker system SX-NBL25 <NSX-BL23/BL24/BL24E>
Speaker system SX-NBL42 <NSX-BL34/BL34E>
Speaker system 3 way, bass reflex
(magnetic shield type)
Speaker units Woofer:
140 mm (55/8in.) cone type
Tweeter:
60 mm (23/8in.) cone type
Super tweeter:
20 mm (13/16 in.) ceramic type
Impedance 6 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) SX-NAJ25/SX-NBL25:
202 x 324 x 219 mm
(8 x 127/8x 85/8in.)
SX-NBL42:
220 x 324 x 230 mm
Weight SX-NAJ25/SX-NBL25:
3.8 kg (8 lbs 6 oz.)
SX-NBL42:
4.0 kg
SPECIFICATIONS
Main unit
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM Tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
CX-NAJ24 <U>:
Power output 50 W + 50 W (50 Hz – 20 kHz,
T.H.D. less than 1 %, 6 ohms)
62 W + 62 W (1 kHz, T.H.D.
less than 10 %, 6 ohms)
Total harmonic distortion 0.08 %
(25 W, 1 kHz, 6 ohms, DIN AUDIO)
CX-NBL23/CX-NBL24 <LH>, CX-NBL24E <HA>:
Power output Rated: 40 W + 40 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference: 50 W + 50 W
(6 ohms, T.H.D. 10 %, 1 kHz).
Total harmonic distortion 0.05 %
(25 W, 1 kHz, 6 ohms, DIN AUDIO)
CX-NBL34 <LH>, CX-NBL34E <HA>:
Power output Rated: 65 W + 65 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference: 80 W + 80 W
(6 ohms, T.H.D. 10 %, 1 kHz).
Total harmonic distortion 0.05 %
(40 W, 1 kHz, 6 ohms, DIN AUDIO)
CX-NBL24 <HS>:
Power output Rated: 24 W + 24 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference: 30 W + 30 W
(6 ohms, T.H.D. 10 %, 1 kHz).
Total harmonic distortion 0.08 %
(15 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs VIDEO/AUX: 500 mV
Outputs SPEAKERS: accepts speakers of
6 ohms or more
SURROUND SPEAKERS <U only> :
accepts speakers of 8 ohms to
16 ohms
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15 kHz
Recording system AC bias
Heads DECK 1: Playback head x 1
DECK 2: Recording/playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.

– 4 –
Precaution to replace Optical block
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN30cmFROMTHESURFACEOFTHEOBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling ved åbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresque ceuxspécifiés peutentraîner unedangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
(KSS – 213F)
(KSM – 880CAB)
Bodyorclotheselectrostaticpotentialcould
ruinlaserdiodeintheopticalblock.Besure
groundbodyandworkbench, and usecare
the clothes do not touch the diode.

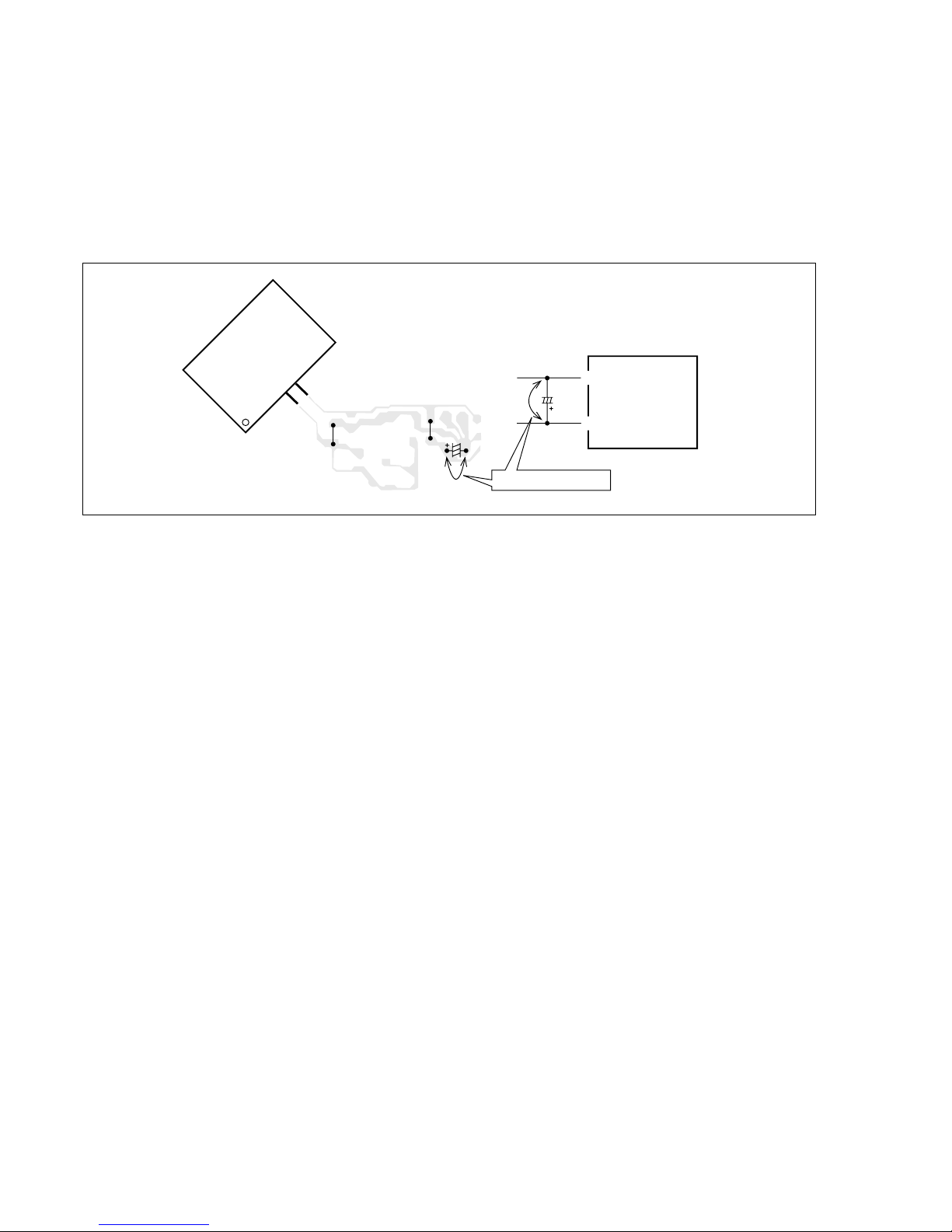

1) After the connection, remove solder
shown in the right figure. Solder
(KSS – 213F)
PICKUP Assy P.C.B.
solder
(KSM – 880CAB)
PICKUP Assy P.C.B.

–5 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
Whenthe HOLD terminal (INPUT) of the MICROCOMPUTERis “H”, theMICROCOMPUTER is judgedto be operatingcorrectly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
•Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34

–6 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: Thereference number or MICROCOMPUTERpin number oftransistor (Q110) and electrolyticcapacitor (C113) canchange depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.

– 7 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-269-010 IC,EW732
87-A21-396-010 IC,STK490-040<24HS>
87-A21-398-010 IC,STK490-110<EXCEPT 24HS>
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-401-040 C-IC,M61503FP
87-A21-415-010 IC,LA1843<24LH,24U>
87-A21-560-010 IC,LA1844L-A<EXCEPT 24LH,24U>
8A-NF9-601-110 C-IC,UPD780226GF-014-3BA
87-A21-482-010 IC,RPM6938-H4
87-070-127-110 IC,LC72131D
TRANSISTOR
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-484-080 C-TR,KRA102S<24LH>
87-A30-074-080 C-TR,RT1P141C<EXCEPT 24LH>
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-026-235-080 C-TR,DTC114EK<24U>
87-026-245-080 TR,DTC114ES<EXCEPT 24U>
87-A30-087-080 C-FET,2SK2158
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
87-A30-318-080 TR,CSA952K
89-333-317-880 TR,2SC3331(T/U)
87-A30-329-080 TR,CD1585BC
89-327-143-080 C-TR,2SC2714O<EXCEPT 24LH,24U>
87-A30-072-080 C-TR,RT1P144C
87-A30-234-080 TR,CSC4115BC
87-A30-198-080 TR,KTC3199GR<EXCEPT 24U>
DIODE
87-A40-736-080 DIODE,1N4148M(SEM)<24LH>
87-A40-393-090 DIODE,1N5402 GW(F20)<24U>
87-020-465-080 DIODE,1SS133<EXCEPT 24LH>
87-A40-455-090 DIODE,RL203 GW<EXCEPT 24HS>
87-A40-535-080 DIODE,1N5393<EXCEPT 24U,34LH,34EHA>
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-854-080 ZENER,UZ15BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-012-368-080 C-CAP,S 0.1-50 F
C10 87-012-368-080 C-CAP,S 0.1-50 F
C11 87-012-368-080 C-CAP,S 0.1-50 F
C12 87-012-368-080 C-CAP,S 0.1-50 F
C19 87-A12-193-090 CAP,E 2200-50 M 85 SAMXON<24HS>
C19 87-A12-036-000 CAP,E 2200-63 M SMG<EXCEPT 24HS>
C20 87-A12-193-090 CAP,E 2200-50 M 85 SAMXON<24HS>
C20 87-A12-036-000 CAP,E 2200-63 M SMG<EXCEPT 24HS>
C21 87-016-495-000 CAP,E 3300-25 M SMG<24U>
C21 87-A12-183-090 CAP,E 3300-25 M 85<24HS>
C21 87-A10-520-000 CAP,E 3300-35 M SMG<23LH,24LH>
C21 87-A12-182-090 CAP,E 3300-35 M85<24EHA,34LH,34EHA>
C22 87-016-495-000 CAP,E 3300-25 M SMG<24U>
C22 87-A12-183-090 CAP,E 3300-25 M 85<24HS>
C22 87-A10-520-000 CAP,E 3300-35 M SMG<23LH,24LH>
C22 87-A12-182-090 CAP,E 3300-35 M85<24EHA,34LH,34EHA>
C25 87-010-385-080 CAP,ELECT 220-25V
C26 87-010-247-080 CAP,ELECT 100-50V
C30 87-010-430-080 CAP,ELECT 100-63
C31 87-010-263-080 CAP,ELECT 100-10V
C32 87-010-197-080 CAP,CHIP 0.01 DM
C33 87-010-263-080 CAP,ELECT 100-10V<24U>
C34 87-010-247-080 CAP,ELECT 100-50V
C35 87-010-380-080 CAP,ELECT 47-16V
C36 87-010-381-080 CAP,ELECT 330-16V
C38 87-010-197-080 CAP,CHIP 0.01 DM
C60 87-010-403-080 CAP,ELECT 3.3-50V
C61 87-010-260-080 CAP,ELECT 47-25V
C97 87-010-196-080 CHIP CAPACITOR,0.1-25
C101 87-010-185-080 C-CAP,S 3900P-50 B
C102 87-010-185-080 C-CAP,S 3900P-50 B
C103 87-010-545-080 CAP,ELECT 0.22-50V
C104 87-010-545-080 CAP,ELECT 0.22-50V
C105 87-010-187-080 CAP,CHIP S5600P
C106 87-010-187-080 CAP,CHIP S5600P
C107 87-010-404-080 CAP,ELECT 4.7-50V
C108 87-010-404-080 CAP,ELECT 4.7-50V
C109 87-010-179-080 C-CAP,S 1200P-50K<23LH,24EHA,34EHA>
C110 87-010-179-080 C-CAP,S 1200P-50K<23LH,24EHA,34EHA>
C111 87-010-391-080 CAP,E 10-35 SME
C112 87-010-391-080 CAP,E 10-35 SME
C113 87-010-405-080 CAP,E 10-50<23LH,24LH,24HS,24EHA>
C113 87-010-866-080 CAP,E 10-63 M VX<24U,34LH,34EHA>
C114 87-010-405-080 CAP,E 10-50<23LH,24LH,24HS,24EHA>
C114 87-010-866-080 CAP,E 10-63 M VX<24U,34LH,34EHA>
C119 87-012-369-080 C-CAP,S 0.047-50 ZF<24U>
C119 87-010-197-080 CAP,CHIP 0.01<23LH,24LH,24HS,24EHA>
C119 87-016-369-080 C-CAP,S 0.033-25 KB GRM<34LH,34EHA>
C120 87-012-369-080 C-CAP,S 0.047-50 ZF<24U>
C120 87-010-197-080 CAP,CHIP 0.01<23LH,24LH,24HS,24EHA>
C120 87-016-369-080 C-CAP,S 0.033-25 KB GRM<34LH,34EHA>
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-010-191-080 C-CAP,S 0.015-50 F
C130 87-010-191-080 C-CAP,S 0.015-50 F
C131 87-010-197-080 CAP,CHIP 0.01 DM
C132 87-010-197-080 CAP,CHIP 0.01 DM
C133 87-010-186-080 CAP,CHIP 4700P
C140 87-010-182-080 C-CAP,S 2200P-50 B
C141 87-010-196-080 CHIP CAPACITOR,0.1-25
C235 87-010-408-080 CAP,ELECT 47-50V<24U>
C236 87-010-408-080 CAP,ELECT 47-50V<24U>
C239 87-010-196-080 CHIP CAPACITOR,0.1-25
C301 87-010-178-080 CHIP CAP,1000P
C302 87-010-178-080 CHIP CAP,1000P
C303 87-010-178-080 CHIP CAP,1000P
C304 87-010-178-080 CHIP CAP,1000P
C305 87-010-198-080 C-CAP,S 0.022-25 KB<34LH,34EHA>
C307 87-010-263-080 CAP,ELECT 100-10V
C308 87-010-263-080 CAP,ELECT 100-10V
C309 87-010-318-080 C-CAP,S 47P-50 CH
C310 87-010-318-080 C-CAP,S 47P-50 CH
C313 87-010-188-080 CAP,CHIP 6800P
C314 87-010-188-080 CAP,CHIP 6800P
C315 87-010-263-080 CAP,ELECT 100-10V
C317 87-010-546-080 CAP,ELECT 0.33-50V

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C318 87-010-546-080 CAP,ELECT 0.33-50V
C326 87-010-198-080 CAP,CHIP 0.022
C327 87-012-368-080 C-CAP,S 0.1-50 F
C360 87-010-401-080 CAP,ELECT 1-50V
C399 87-012-140-080 CAP,470P
C401 87-010-544-080 CAP,ELECT 0.1-50V
C402 87-010-544-080 CAP,ELECT 0.1-50V
C403 87-010-321-080 CHIP CAPACITOR,82P(J)
C404 87-010-321-080 CHIP CAPACITOR,82P(J)
C405 87-010-197-080 CAP,CHIP 0.01 DM
C406 87-010-197-080 CAP,CHIP 0.01 DM
C407 87-010-197-080 CAP,CHIP 0.01 DM
C408 87-010-197-080 CAP,CHIP 0.01 DM
C409 87-010-182-080 C-CAP,S 2200P-50 B
C410 87-010-182-080 C-CAP,S 2200P-50 B
C411 87-010-405-080 CAP,ELECT 10-50V
C412 87-010-405-080 CAP,ELECT 10-50V
C452 87-010-382-080 CAP,ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B
C454 87-010-183-080 C-CAP,S 2700P-50 B
C455 87-010-183-080 C-CAP,S 2700P-50 B
C456 87-010-197-080 CAP,CHIP 0.01 DM
C460 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C605 87-010-184-080 C-CAP,S 3300P-50 KB<24U,34LH,34EHA>
C605 87-010-179-080 C-CAP,S 1200P<23LH,24LH,24HS,24EHA>
C606 87-010-184-080 C-CAP,S 3300P-50 KB<24U,34LH,34EHA>
C606 87-010-179-080 C-CAP,S 1200P<23LH,24LH,24HS,24EHA>
C609 87-010-213-080 C-CAP,S 0.015-25 B
C610 87-010-213-080 C-CAP,S 0.015-25 B
C611 87-010-545-080 CAP,ELECT 0.22-50V
C612 87-010-545-080 CAP,ELECT 0.22-50V
C613 87-010-545-080 CAP,ELECT 0.22-50V
C614 87-010-545-080 CAP,ELECT 0.22-50V
C615 87-010-154-080 CAP,CHIP 10P
C616 87-010-221-080 CAP,ELECT 470-10V
C617 87-010-221-080 CAP,ELECT 470-10V
C618 87-010-405-080 CAP,ELECT 10-50V
C630 87-016-669-080 C-CAP,S 0.1-25 K B
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C633 87-016-369-080 C-CAP,S 0.033-25 B K
C634 87-016-369-080 C-CAP,S 0.033-25 B K
C669 87-010-322-080 C-CAP,S 100P-50 CH
C670 87-010-322-080 C-CAP,S 100P-50 CH
C671 87-010-196-080 CHIP CAPACITOR,0.1-25<24HS>
C672 87-010-196-080 CHIP CAPACITOR,0.1-25<24HS>
C673 87-010-182-080 C-CAP,S 2200P-50KB<24HS>
C677 87-010-197-080 CAP,CHIP 0.01 DM
C771 87-010-263-080 CAP,ELECT 100-10V
C772 87-010-197-080 CAP,CHIP 0.01 DM
C782 87-010-197-080 CAP,CHIP 0.01 DM
C783 87-010-197-080 CAP,CHIP 0.01 DM
C784 87-010-197-080 CAP,CHIP 0.01 DM
C785 87-010-197-080 CAP,CHIP 0.01 DM
C786 87-010-197-080 CAP,CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-801-080 C-CAP,S 0.022-16 JB CM<24HS>
C789 87-A12-052-080 C-CAP,S 0.033-25 JB<EXCEPT 24HS>
C790 87-A10-801-080 C-CAP,S 0.022-16 JB CM<24HS>
C790 87-A12-052-080 C-CAP,S 0.033-25 JB<EXCEPT 24HS>
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP,CHIP 0.01 DM
C793 87-010-404-080 CAP,ELECT 4.7-50V
C795 87-010-197-080 CAP,CHIP 0.01 DM
C796 87-010-197-080 CAP,CHIP 0.01 DM
C797 87-010-405-080 CAP,ELECT 10-50V
C798 87-010-197-080 CAP,CHIP 0.01 DM
C799 87-010-407-080 CAP,ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP,ELECT 3.3-50V
C802 87-010-194-080 CAP,CHIP 0.047
C803 87-010-198-080 CAP,CHIP 0.022
C804 87-010-263-080 CAP,ELECT 100-10V
C807 87-010-400-080 CAP,ELECT 0.47-50V
C808 87-010-401-080 CAP,ELECT 1-50V
C809 87-010-401-080 CAP,ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-010-197-080 CAP,CHIP 0.01 DM
C815 87-010-400-080 CAP,ELECT 0.47-50V
C816 87-010-400-080 CAP,ELECT 0.47-50V
C821 87-010-405-080 CAP,ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 J SL
C824 87-010-405-080 CAP,ELECT 10-50V
C825 87-010-596-080 CAP,S 0.047-16
C842 87-010-197-080 CAP,CHIP 0.01 DM
C844 87-010-197-080 CAP,CHIP 0.01 DM
C850 87-010-260-080 CAP,ELECT 47-25V
C851 87-010-197-080 CAP,CHIP 0.01 DM
C852 87-010-197-080 CAP,CHIP 0.01 DM
C853 87-010-197-080 CAP,CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP,CHIP 0.01 DM
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 D CH GRM
C963 87-015-785-080 CHIP CAPACITOR,0.1FZ-25Z
C971 87-010-381-080 CAP,ELECT 330-16V
C972 87-010-404-080 CAP,ELECT 4.7-50V
C973 87-010-197-080 CAP,CHIP 0.01 DM
C974 87-010-197-080 CAP,CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP,ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP,CHIP 0.01 DM
C984 87-010-197-080 CAP,CHIP 0.01 DM
C987 87-010-197-080 CAP,CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP,1000P
C995 87-010-178-080 CHIP CAP,1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP,ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FLTR,CF SFE10.7MA5
CF832 87-008-261-010 FLTR,CF SFE10.7MA5
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)<EXCEPT 24U>
FFC602 88-906-251-110 FF-CABLE,6P 1.25
FFE831 A8-8ZA-191-030 8ZA-1 YFEUNM<23LH>
FFE831 A8-8ZA-193-070 8ZA-1 YFEUNC<EXCEPT 23LH>
J202 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J205 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN<24U>
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-540-010 COIL,FM DET(TOK)<24U,24LH>
L801 87-A50-608-010 COIL,FM DET-N(TOK)<EXCEPT 24U,24LH>
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)

– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
R129 87-A00-669-080 RES,M/F 0.22-2W JRA<24U,34LH,34EHA>
R130 87-A00-669-080 RES,M/F 0.22-2W JRA<24U,34LH,34EHA>
R131 87-A00-669-080 RES,M/F 0.22-2W JRA<24U,34LH,34EHA>
R131 87-A00-257-080 RES,M/F 0.15-1W J<23LH,24LH,24EHA>
R131 87-A00-258-080 RES,M/F 0.22-1W J<24HS>
R132 87-A00-669-080 RES,M/F 0.22-2W JRA<24U,34LH,34EHA>
R132 87-A00-257-080 RES,M/F 0.22-1W J<23LH,24LH,24EHA>
R132 87-A00-258-080 RES,M/F 0.22-1W J<24HS>
R143 87-A00-440-050 RES,220-1/2W J RP
R144 87-A00-440-050 RES,220-1/2W J RP
R145 87-A00-440-050 RES,220-1/2W J RP
R146 87-A00-440-050 RES,220-1/2W J RP
R653 87-A11-144-080 CAP,TC U 0.1-50 K B
R654 87-A11-144-080 CAP,TC U 0.1-50 K B
R790 87-010-197-080 CAP,CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR451 87-A90-432-080 SFR,30K H NVZ6TLTA
SFR452 87-A90-432-080 SFR,30K H NVZ6TLTA
W99 8A-NF9-609-010 F-CABLE,9P 2.5 480MM<24U>
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-010-196-080 CHIP CAPACITOR,0.1-25
C103 87-010-498-040 CAP,E 10-16 GAS
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C107 87-010-493-040 CAP,E 0.47-50 GAS
C108 87-012-393-080 C-CAP,S 0.22-16 R K
C153 87-010-198-080 CAP,CHIP 0.022
C154 87-010-246-040 CAP,E 47-35 SME
C155 87-010-404-040 CAP,E 4.7-50 SME
C156 87-010-404-040 CAP,E 4.7-50 SME
C361 87-010-178-080 CHIP CAP,1000P
C362 87-010-178-080 CHIP CAP,1000P
C371 87-010-178-080 CHIP CAP,1000P
C372 87-010-178-080 CHIP CAP,1000P
C401 87-010-186-080 C-CAP,S 4700P-50 KB<24HS>
C402 87-010-112-040 CAP,E 100-16 M 11L SME<24HS>
C403 87-010-545-040 CAP,E 0.22-50 M 11L SME<24HS>
C404 87-010-320-080 C-CAP,S 68P-50 J CH GRM<24HS>
C405 87-010-544-040 CAP,E 0.1-50 M 11L SME<24HS>
C406 87-010-544-040 CAP,E 0.1-50 M 11L SME<24HS>
C407 87-010-405-040 CAP,E 10-50 M 11L SME<24HS>
C408 87-010-322-080 C-CAP,S 100P-50 J CH GRM<24HS>
C409 87-010-265-040 CAP,E 33-16 M 11L SME<24HS>
C410 87-012-369-080 C-CAP,S 0.047-50 ZF<24HS>
C413 87-010-177-080 C-CAP,S 820P-50 J SL<24HS>
C601 87-010-382-040 CAP,E 22-25 SME
C801 87-010-195-080 C-CAP,S 0.068-25 F
C802 87-010-195-080 C-CAP,S 0.068-25 F
C803 87-010-402-040 CAP,E 2.2-50 SME
C804 87-010-402-040 CAP,E 2.2-50 SME
C805 87-010-196-080 CHIP CAPACITOR,0.1-25
C806 87-010-196-080 CHIP CAPACITOR,0.1-25
C901 87-010-322-080 C-CAP,S 100P-50 CH
C902 87-010-322-080 C-CAP,S 100P-50 CH
C903 87-010-322-080 C-CAP,S 100P-50 CH
C904 87-010-322-080 C-CAP,S 100P-50 CH
C905 87-010-322-080 C-CAP,S 100P-50 CH
C906 87-010-322-080 C-CAP,S 100P-50 CH
C907 87-010-322-080 C-CAP,S 100P-50 CH
C908 87-010-322-080 C-CAP,S 100P-50 CH
C909 87-010-322-080 C-CAP,S 100P-50 CH
C910 87-010-322-080 C-CAP,S 100P-50 CH
C911 87-010-178-080 CHIP CAP,1000P
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-248-040 CAP,E 220-10 SME
C914 87-010-248-040 CAP,E 220-10 SME
C915 87-010-196-080 CHIP CAPACITOR,0.1-25
C916 87-010-196-080 CHIP CAPACITOR,0.1-25
C917 87-010-196-080 CHIP CAPACITOR,0.1-25
C919 87-010-197-080 CAP,CHIP 0.01 DM
C920 87-012-369-080 C-CAP,S 0.047-50F
C921 87-010-186-080 CAP,CHIP 4700P
C951 87-010-312-080 C-CAP,S 15P-50 CH
C952 87-012-155-080 C-CAP,180P-50CH
C953 87-012-140-080 CAP,470P
C961 87-010-378-040 CAP,E 10-16
C962 87-012-157-080 C-CAP,S 330P-50 CH
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CN104 87-A60-057-010 CONN,11P V 9604S-11C
CN701 87-099-720-010 CONN,30P TYK-B(P)
CN731 87-099-015-010 CONN,13P 6216V
EMI401 87-008-372-080 FLTR,EMIBL01RN1<24HS>
FFC104 88-911-101-110 FF-CABLE,11P 1.25
FFC731 88-913-301-110 FF-CABLE,13P 1.25
FL901 8A-NF9-605-010 FL,HNA-10SS12
J401 87-A61-242-010 JACK 6.3 BLK MONO W/SW VKM<24HS>
L951 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED201 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED202 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED204 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED205 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED209 87-A40-317-080 LED,SLR-342VCT31 RED
LED210 87-A40-619-040 LED,SLR-56PT-T31-W GRN
S301 87-A90-164-080 SW,TACT SKQNAB(N)
S302 87-A90-164-080 SW,TACT SKQNAB(N)
S303 87-A90-164-080 SW,TACT SKQNAB(N)
S304 87-A90-164-080 SW,TACT SKQNAB(N)
S305 87-A90-164-080 SW,TACT SKQNAB(N)
S306 87-A90-164-080 SW,TACT SKQNAB(N)
S307 87-A90-164-080 SW,TACT SKQNAB(N)
S308 87-A90-164-080 SW,TACT SKQNAB(N)
S309 87-A90-164-080 SW,TACT SKQNAB(N)
S321 87-A90-164-080 SW,TACT SKQNAB(N)
S322 87-A90-164-080 SW,TACT SKQNAB(N)
S323 87-A90-164-080 SW,TACT SKQNAB(N)
S324 87-A90-164-080 SW,TACT SKQNAB(N)
S325 87-A90-164-080 SW,TACT SKQNAB(N)
S326 87-A90-164-080 SW,TACT SKQNAB(N)
S341 87-A90-164-080 SW,TACT SKQNAB(N)
S342 87-A90-164-080 SW,TACT SKQNAB(N)
S343 87-A90-164-080 SW,TACT SKQNAB(N)
S344 87-A90-164-080 SW,TACT SKQNAB(N)
S345 87-A90-164-080 SW,TACT SKQNAB(N)
S346 87-A90-164-080 SW,TACT SKQNAB(N)
S347 87-A90-164-080 SW,TACT SKQNAB(N)
S348 87-A90-164-080 SW,TACT SKQNAB(N)
S349 87-A90-164-080 SW,TACT SKQNAB(N)
S350 87-A90-164-080 SW,TACT SKQNAB(N)
S361 87-A91-633-010 SW,RTRY XRE012103PVB25FINA 1-2
S371 87-A91-632-010 SW,RTRY XRE012103PVB25FINB 1-2
VR401 87-NB7-602-010 VR,RTRY 10KAX1 1V<24HS>
PT C.B <24U ONLY>
C183 87-010-387-080 CAP,E 470-25 SME
C184 87-010-403-080 CAP,ELECT 3.3-50V
PT1 8A-NF9-612-010 PT,ANF-9 U
PT181 8A-NF8-661-010 PT,SUB ANF-8(U)
RY181 87-A91-418-010 RELAY,AC12V G5PA-1-M
T181 87-A60-317-010 TERMINAL,1P MSC
T182 87-A60-317-010 TERMINAL,1P MSC
WH181 87-A90-510-010 HLDR,WIRE 2.5-9P
!
!
!
!
!

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
PT C.B <EXCEPT 24U>
C1 87-010-387-080 CAP,E 470-25 M SME
C31 87-010-403-080 CAP,E 3.3-50 M 11L SME
CN1 87-A61-110-010 CPNN,9P V TID-A
PT1 8A-NF9-614-010 PT,ANF-9 HR-HI<23LH,24LH,24EHA>
PT1 8A-NF9-613-010 PT,ANF-9 HR<24HS>
PT1 8A-NF9-616-010 PT,ANF-9 LH-H<34LH,34EHA>
PT2 8A-NF8-673-010 PT,SUB ANF-8(H)KAMI
RY1 87-A91-339-010 RELAY,AC DC12V GSPA-2
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<23LH,24LH,24EHA,34LH,34EHA>
T1 87-A60-317-010 TERMINAL,1P MSC
T2 87-A60-317-010 TERMINAL,1P MSC
DECK C.B
CN1 87-099-753-010 CONN,11P H 9604
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL1 82-ZM3-627-010 SOL ASSY,27 S0
SOL2 82-ZM3-627-010 SOL ASSY,27 S0
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
W1 82-ZM3-601-010 RBN-CORD,4P-75
!
!
!
!
!
!
!
!

– 11 –
TRANSISTOR ILLUSTRATION
E C B
CD1585
CSA952
CSC4115
KTA1266
KTC3198
B
C
E
2SA1235
2SC2714
2SC3052
CMBT5401
CMBT5551
DTC114EK
KRA102S
KRC102S
KRC104S
RT1P141C
RT1P144C
E C B
2SC3331
S D G
2SJ460
2SK2541
B C E
2SB1370
G
D
S
2SK2158
E C B
DTC114ES
KTC3199

– 12 –
FL (HNA–10SS12) GRID ASSIGNMENT / ANODE CONNECTION / PIN CONNECTION
GRID ASSIGNMENT
ANODE CONNECTION
PIN CONNECTION

– 13 –
WIRING – 1 (MAIN)
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 14 –
SCHEMATIC DIAGRAM – 1 (MAIN : 1 / 2 <AMP SECTION>)

– 15 –
SCHEMATIC DIAGRAM – 2 (MAIN : 2 / 2 <TUNER SECTION>)

– 16 –
WIRING – 2 (FRONT)
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 17 –
SCHEMATIC DIAGRAM – 3 (FRONT / DECK)

WIRING – 3 (PT) <24U ONLY>
– 18 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 19 –
SCHEMATIC DIAGRAM–4 (PT)<24U ONLY>

WIRING – 4 (PT) <EXCEPT 24U>
– 20 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
