Aiwa NSX-AJ500 User manual

SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM BASIC TAPE MECHANISM : ZZM-3 PR1NF BASIC CD MECHANISM : BZG-5 YKZD3NF
NSX-AJ500
NSX-AJ503
NSX-SZ500
NSX-SZ505
U
U
LH,EZ
EZ
S/M Code No. 09-012-440-6S1
SUPPLEMENT
• If requiring information about the CD mechanism, see Service Manual of
BZG-5, (S/M Code No. 09-00C-353-3N2).
• This Service Manual is the “Supplement” and replaces “Simple Manual”
of NSX-AJ500(U)/SZ500(LH,EZ)/AJ503(U), (S/M Code No. 09-011-440-6T1)
and NSX-SZ505(EZ), (S/M Code No. 09-011-440-6T2).
• This Service Manual contains information about the difference between
NSX-AJ500(U)/AJ503(U)/SZ500(LH)/SZ500(EZ)/SZ505(EZ) and
NSX-AJ300(U)/AJ305(U)/SZ300(LH)/SZ300(EZ)/SZ305(EZ). If requiring
the other information, see Service Manual of NSX-AJ300/AJ305/SZ300/SZ305
(U,LH,EZ), (S/M Code No. 09-012-440-5R1).
NSX-AJ500<U>
SPEAKERSYSTEM
CX-NAJ500 SX-NAJ502
NSX-AJ503<U>
NSX-SZ500<LH,EZ>
NSX-SZ505<EZ>
CX-NSZ500 RC-ZAS02
CX-NAJ503
CX-NSZ505
SX-NAJ502, SX-R145
SX-NSZ502
CD CASSEIVER REMOTE CONTROLLER
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
SPECIFICATIONS
Main unit CX-NAJ500/CX-NAJ503/CX-NSZ500/CX-NSZ505
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) U,LH: 13.2 dBf
EZ: 16.8 dBf
Antenna terminals 75 ohms (unbalanced)
<AM/MW tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW tuner section><EZ>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated
500U: 80 W + 80 W (50 Hz – 20 kHz,
THD less than 1 %, 6 ohms)
503U: 70 W + 70 W (50 Hz – 20 kHz,
THD less than 1 %, 6 ohms)
LH: 85 W + 85 W
(1 kHz, THD 1 %, 6 ohms)
EZ: 56 W + 56 W
(6 ohms, THD 1 %, 1 kHz/DIN 45500)
Reference
500U: 100 W + 100 W
(1 kHz, THD less than 10 %, 6 ohms)
503U: 95 W + 95 W
(1 kHz, THD less than 10 %, 6 ohms)
LH: 100 W + 100 W
(1 kHz, THD 10 %, 6 ohms)
EZ: 70 W + 70 W
(6 ohms, THD 10 %,1 kHz/DIN 45324)
EZ: DIN MUSIC POWER: 205 W + 205 W
Total harmonic distortion 500U: 0.08 % (40 W, 1 kHz, 6 ohms,
DIN AUDIO)
503U: 0.08 % (35 W, 1 kHz, 6 ohms,
DIN AUDIO)
LH: 0.08 % (40 W, 1 kHz, 6 ohms,
DIN AUDIO)
EZ: 0.08 % (25 W, 1 kHz, 6 ohms,
DIN AUDIO)
Inputs VIDEO/AUX: 500 mV
Outputs SPEAKERS: 6 ohms or more
SURROUND SPEAKERS <503U>
8 ohms to 16 ohms
PHONES: 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15 kHz
Recording system AC bias
Heads Deck 1: Playback x 1
Deck 2: Recording/Playback x 1,
erase x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<General>
Power requirements U: 120 V AC, 60 Hz
LH: 120 V/220-230 V/240 V AC
(switchable), 50/60 Hz
EZ: 230 V AC, 50 Hz
Power consumption 500U: 80 W
503U: 105 W
LH: 100 W
EZ: 90 W
Power consumption With ECO mode on: 0.6 W
in standby mode With ECO mode off: 20 W
Dimensions of main unit 260 x 326 x 340 mm
(W xH xD) (101/4x 127/8x 131/2in.)
Weight of main unit 500U: 6.7 kg (14 lbs 12 oz.)
503U: 7.3 kg (16 lbs 2 oz.)
LH: 7.1 kg
EZ: 6.4 kg
Front Speakers SX-NAJ502/SX-NSZ502
<U: SX-NAJ502>
<LH,EZ: SX-NSZ502>
Speaker system 3 way, bass reflex (magnetic
shielded type)
Speaker units Woofer: 160 mm (63/8 in.) cone
Tweeter: 60 mm (23/8in.) cone
Super tweeter: 20 mm (13/16 in.) ceramic
Impedance 6 ohms
Dimensions (W xH xD) 230 x 324 x 253 mm
(91/8x 127/8 x 14 in.)
Weight U: 3.5 kg (7 lbs 11 oz.)
LH: 4.5 kg
EZ: 4.3 kg
Surround Speakers SX-R145 (NSX-AJ503 only)
Speaker system 1 way, bass reflex
Speaker units Full range: 80 mm (31/4 in.) cone
Impedance 8 ohms
Dimensions (W xH xD) 100 x 132 x 116 mm
(4 x 51/4 x 45/8in.)
Weight 0.5 kg (1 lbs 2 oz.)
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
All manuals and user guides at all-guides.com

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-893-040 C-IC,NJM14558V-TE2
87-A21-695-010 IC,LA1845L
87-A21-928-010 IC,LC72131D-N
87-A20-440-040 C-IC,BU1920FS<505EZ>
87-A21-218-110 IC,NJL64H380A
87-A21-401-040 C-IC,M61503FP
8B-NF9-602-030 C-IC,UPD780228GF-078-3BA<505EZ>
8B-NF9-601-030 C-IC,UPD780226GF-021-3BA<U,LH,500EZ>
87-A21-269-010 IC,EW732
TRANSISTOR
87-A30-559-010 TR,CSB1370EF
87-A30-492-080 TR,2SC5343G<U,505EZ>
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-107-070 C-TR,CMBT5401
87-A30-484-080 C-TR,KRA102S
87-026-610-080 TR,KTC3198GR<LH,500EZ>
87-A30-190-080 TR,CC5551
87-A30-106-040 C-TR,CMBT5551
87-A30-162-010 FET,2SK2937
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
87-A30-495-080 TR,2SA1981Y
87-A30-234-080 TR,CSC4115BC
89-327-143-080 C-TR,2SC2714(O)
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-086-040 C-TR,CSD1306E<505EZ>
87-A30-494-080 TR,2SA1980G
87-A30-528-010 TR,2SB1686
87-A30-529-010 TR,2SD2642
87-A30-087-080 C-FET,2SK2158
87-A30-074-080 C-TR,RT1P141C
87-A30-582-080 TR,CDA1585BC
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-615-080 TR,STC250<LH,500EZ>
87-A30-490-080 C-TR,KRC107S
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-291-080 DIODE,1N4148M(CPT)
87-A40-749-080 ZENER,UZ5.6BSB
87-017-149-080 ZENER,HZS6A2L
87-A40-454-090 DIODE,1N5393 GW 12.5<EZ>
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-739-080 ZENER,UZ2.7BSA
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-455-090 DIODE,RL203GW<EZ>
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 Z F
C4 87-012-368-080 C-CAP,S 0.1-50 Z F
C5 87-012-368-080 C-CAP,S 0.1-50 Z F
C6 87-012-368-080 C-CAP,S 0.1-50 Z F
C9 87-010-759-080 C-CAP,U 0.1-25 Z F
C10 87-010-759-080 C-CAP,U 0.1-25 Z F
C11 87-010-759-080 C-CAP,U 0.1-25 Z F
C12 87-010-759-080 C-CAP,U 0.1-25 Z F
C19 87-A12-382-000 CAP, E 2200-63 M 85<500U,LH,EZ>
C19 87-A12-776-090 CAP, E 2200-50 M 85 SKR<503U>
C20 87-A12-382-000 CAP, E 2200-63 M 85<500U,LH,EZ>
C20 87-A12-776-090 CAP, E 2200-50 M 85 SKR<503U>
C21 87-A12-777-090 CAP, E 3300-25 M 85 SKR<500U>
C21 87-A12-778-090 CAP, E 3300-35 M 85 SKR<503U,LH,EZ>
C22 87-A12-778-090 CAP, E 3300-35 M 85 SKR
C25 87-A12-072-080 CAP, E 100-25 SMG
C26 87-A12-072-080 CAP, E 100-25 SMG
C27 87-A12-072-080 CAP, E 100-25 SMG
C28 87-A12-072-080 CAP, E 100-25 SMG
C30 87-A12-095-080 CAP, E 100-50 SMG<500U,EZ>
C30 87-010-430-080 CAP, E 100-63<503U,LH>
C31 87-A12-062-080 CAP,E 100-10 SMG
C32 87-012-286-080 C-CAP, U 0.01-25
C33 87-A12-062-080 CAP,E 100-10 SMG<U>
C34 87-A12-072-080 CAP, E 100-25 SMG
C35 87-A12-071-080 CAP, E 47-25 SMG
C36 87-A12-067-080 CAP, E 330-16 SMG
C38 87-012-286-080 C-CAP, U 0.01-25
C60 87-A12-089-080 CAP,E 3.3-50 SMG
C61 87-A12-071-080 CAP,E 47-25 SMG
C83 87-A12-074-080 CAP, E 470-25 SMG<U,LH,500EZ>
C83 87-A12-068-080 CAP, E 470-16 SMG<505EZ>
C97 87-010-831-080 C-CAP,U 0.1-16 Z F
C101 87-012-279-080 C-CAP,U 2700P-50 B
C102 87-012-279-080 C-CAP,U 2700P-50 B
C103 87-A12-084-080 CAP,E 0.022-50 SMG
C104 87-A12-084-080 CAP,E 0.022-50 SMG
C105 87-012-277-080 C-CAP,U 1800P-50 K B GRM
C106 87-012-277-080 C-CAP,U 1800P-50 K B GRM
C107 87-A12-089-080 CAP,E 3.3-50 SMG
C108 87-A12-089-080 CAP,E 3.3-50 SMG
C109 87-012-195-080 C-CAP,U 100P-50 CH<EZ>
C110 87-012-195-080 C-CAP,U 100P-50 CH<EZ>
C111 87-A12-077-080 CAP,E 33-35 SMG
C112 87-A12-077-080 CAP,E 33-35 SMG
C113 87-A10-596-080 C-CAP,S 100P-100 J CH<500U,LH,EZ>
C113 87-010-322-080 C-CAP,S 100P-50 J CH<503U>
C114 87-A10-596-080 C-CAP,S 100P-100 J CH<500U,LH,EZ>
C114 87-010-322-080 C-CAP,S 100P-50 J CH<503U>
C117 87-A12-368-080 C-CAP,S 0.1-50 Z F
C118 87-A12-368-080 C-CAP,S 0.1-50 Z F
C119 87-012-286-080 C-CAP,U 0.01-25
C120 87-012-286-080 C-CAP,U 0.01-25
C123 87-010-177-080 C-CAP,S 820P-25 J SL C2012
C124 87-010-177-080 C-CAP,S 820P-25 J SL C2012
C133 87-012-282-080 C-CAP,U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50
C186 87-010-759-080 C-CAP,U, 0.1-25F
C187 87-010-866-080 CAP,E 10-63 M VX<500U,LH,EZ>
C187 87-A12-091-080 CAP,E 10-50 SMG<503U>
C188 87-010-866-080 CAP,E 10-63 M VX<500U,LH,EZ>
C188 87-A12-091-080 CAP,E 10-50 SMG<503U>
C223 87-012-272-080 C-CAP,U 680P-50 B<EZ>
C224 87-012-272-080 C-CAP,U 680P-50 B<EZ>
C225 87-012-368-080 C-CAP,S 0.1-50 Z F<500U,LH,EZ>
C225 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<503U>
C226 87-012-368-080 C-CAP,S 0.1-50 Z F<500U,LH,EZ>
C226 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<503U>
C227 87-012-368-080 C-CAP,S 0.1-50 Z F<500U,LH,EZ>
C227 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<503U>
C228 87-012-368-080 C-CAP,S 0.1-50 Z F<500U,LH,EZ>
C228 87-010-196-080 C-CAP,S 0.1-25 Z F C2012<503U>
C229 87-012-191-080 C-CAP,U 0.015-50 Z F GRM<EZ>
C230 87-012-191-080 C-CAP,U 0.015-50 Z F GRM<EZ>
C231 87-012-286-080 CAP, U 0.01-25<EZ>
C232 87-012-286-080 CAP, U 0.01-25<EZ>
C235 87-A12-094-080 CAP,E 47-50 SMG<503U>
C236 87-A12-094-080 CAP,E 47-50 SMG<503 U>
All manuals and user guides at all-guides.com

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C241 87-010-831-080 C-CAP,U 0.1-16 Z F
C301 87-012-275-080 C-CAP,U 1200P-50 K B GRM
C302 87-012-275-080 C-CAP,U 1200P-50 K B GRM
C303 87-012-275-080 C-CAP,U 1200P-50 K B GRM
C304 87-012-275-080 C-CAP,U 1200P-50 K B GRM
C307 87-A12-062-080 CAP,E 100-10 SMG
C308 87-A12-062-080 CAP,E 100-10 SMG
C309 87-012-188-080 C-CAP,U 47P-50 J CH
C310 87-012-188-080 C-CAP,U 47P-50 J CH
C313 87-012-284-080 CAP, U 6800P-50
C314 87-012-284-080 CAP, U 6800P-50
C315 87-A12-062-080 CAP,E 100-10 SMG
C317 87-A12-085-080 CAP,E 0.33-50 SMG
C318 87-A12-085-080 CAP,E 0.33-50 SMG
C326 87-010-787-080 C-CAP,U 0.022-25 K B
C327 87-010-831-080 C-CAP,U 0.1-16 Z F
C350 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C360 87-A12-087-080 CAP,E 1-50 SMG
C399 87-A10-039-080 C-CAP, U 470P-50 J CH
C401 87-A12-083-080 CAP,E 0.1-50 SMG
C402 87-A12-083-080 CAP,E 0.1-50 SMG
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C452 87-A12-069-080 CAP,E 22-25 SMG
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 CAP, U 560P-50
C460 87-010-831-080 C-CAP,U 0.1-16 Z F
C461 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C462 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C470 87-A11-104-080 CAP,TC U 470P-50 J CH<U>
C470 87-018-127-080 CAP,CER 470P-50V<LH,EZ>
C605 87-012-280-080 C-CAP,U 3300P-50 K B
C606 87-012-280-080 C-CAP,U 3300P-50 K B
C609 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C610 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C611 87-A12-084-080 CAP,E 0.22-50 SMG
C612 87-A12-084-080 CAP,E 0.22-50 SMG
C613 87-A12-084-080 CAP,E 0.22-50 SMG
C614 87-A12-084-080 CAP,E 0.22-50 SMG
C615 87-012-172-080 CAPACITOR CHIP U 10P CH
C616 87-016-459-080 CAP,E 470-10 M SMG
C617 87-016-459-080 CAP,E 470-10 M SMG
C618 87-A12-091-080 CAP,E 10-50 SMG
C620 87-A12-062-080 CAP,E 100-10 SMG
C623 87-A12-372-080 CAP,M 0.047-100 JP
C624 87-A12-372-080 CAP,M 0.047-100 JP
C630 87-A10-260-080 C-CAP,U 0.1-16 K B
C631 87-012-281-080 C-CAP,U 3900P-50 K B GRM
C632 87-012-281-080 C-CAP,U 3900P-50 K B GRM
C633 87-A11-070-080 C-CAP,U 0.033-16 K B
C634 87-A11-070-080 C-CAP,U 0.033-16 K B
C661 87-012-336-080 C-CAP,U 330P-50 J SL
C662 87-012-336-080 C-CAP,U 330P-50 J SL
C669 87-012-274-080 C-CAP,U 1000P-50 K B<EZ>
C670 87-012-274-080 C-CAP,U 1000P-50 K B<EZ>
C677 87-012-286-080 CAP, U 0.01-25
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C779 87-010-949-080 C-CAP,S 0.01-50 J B<EZ>
C780 87-010-949-080 C-CAP,S 0.01-50 J B<EZ>
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-A12-052-080 C-CAP,S 0.033-25 J B<U,LH>
C789 87-016-118-080 C-CAP,U 0.022-25 J B GRM<EZ>
C790 87-A12-052-080 C-CAP,S 0.033-25 J B<U,LH>
C790 87-016-118-080 C-CAP,U 0.022-25 J B GRM<EZ>
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 CAP, U 0.01-25
C799 87-A12-093-080 CAP,E 33-50 SMG
C800 87-010-829-080 CAP, U 0.047-16
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25 K B
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C818 87-012-276-080 C-CAP,U 1500P-50 K B<EZ>
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-010-177-080 C-CAP,S 820P-50 J SL C2012<U,LH>
C823 87-A10-915-080 C-CAP,U 1000P-25 J CH<EZ>
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-010-596-080 C-CAP,S 0.047-16 K R C2012
C831 87-A12-092-080 CAP,E 22-50 SMG<EZ>
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-831-080 C-CAP,U 0.1-16 Z F
C859 87-010-831-080 C-CAP,U 0.1-16 Z F<EZ>
C860 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C869 87-012-286-080 C-CAP,U 0.01-25 K B<505EZ>
C870 87-012-274-080 C-CAP,U 1000P-50 K B<505EZ>
C871 87-012-199-080 C-CAP,U 220P-50 J CH<505EZ>
C872 87-012-199-080 C-CAP,U 220P-50 J CH<505EZ>
C873 87-A10-039-080 C-CAP,U 470P-50 J CH<505EZ>
C874 87-A12-091-080 CAP,E 10-50 SMG<505EZ>
C875 87-010-759-080 C-CAP,U 0.1-25 Z F<505EZ>
C876 87-A12-091-080 CAP,E 10-50 SMG
C877 87-012-286-080 C-CAP,U 0.01-25 K B<505EZ>
C878 87-012-184-080 C-CAP,U 33P-50 J CH<505EZ>
C879 87-012-180-080 C-CAP,U 22P-50 J CH<505EZ>
C901 87-018-145-080 CAP,TC-U 6.8P-50 CH<U,LH>
C904 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C905 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C907 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C908 87-A10-915-080 C-CAP,U 1000P-25 J CH<U,LH>
C909 87-012-286-080 C-CAP,U 0.01-25<U,LH>
C910 87-012-174-080 C-CAP,U 12P-50 J CH<U,LH>
C911 87-012-170-080 C-CAP,U 8P-50 CH<U,LH>
C912 87-012-195-080 C-CAP,U 100P-50CH<U,LH>
C913 87-012-286-080 C-CAP,U 0.01-25<U,LH>
All manuals and user guides at all-guides.com

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C914 87-012-166-080 C-CAP,U 4P-50 C CH<U,LH>
C915 87-012-174-080 C-CAP,U 12P-50 J CH<U,LH>
C916 87-012-180-080 C-CAP,U 22P-50 CH<U,LH>
C917 87-012-186-080 C-CAP,U 39P-50 CH<U,LH>
C918 87-A10-039-080 C-CAP,U 470P-50 J CH<U,LH>
C921 87-012-195-080 C-CAP,U 100P-50CH<U,LH>
C922 87-012-174-080 C-CAP,U 12P-50 J CH CHJ<U,LH>
C940 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C942 87-012-165-080 C-CAP,U 3P-50 C CH<EZ>
C947 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C948 87-A10-039-080 C-CAP,U 470P-50 J CH<EZ>
C952 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C957 87-012-174-080 C-CAP,U 12P-50 J CH<EZ>
C958 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C959 87-010-831-080 C-CAP,U,0.1-16F
C960 87-010-831-080 C-CAP,U,0.1-16F
C961 87-012-167-080 C-CAP,U 5P-50 CH<U,LH>
C962 87-A12-087-080 CAP,E 1-50 SMG<EZ>
C963 87-015-785-080 CHIP CAPACITOR, 0.1-25 Z F
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-012-286-080 CAP, U 0.01-25 K B
C984 87-012-286-080 CAP, U 0.01-25 K B
C985 87-012-195-080 C-CAP,U 100P-50 J CH<EZ>
C987 87-012-286-080 CAP, U 0.01-25 K B
C989 87-012-286-080 C-CAP, U 0.01-25 K B<EZ>
C991 87-012-176-080 C-CAP,U 15P-50 J CH
C992 87-012-176-080 C-CAP,U 15P-50 J CH
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A<U,LH>
CF831 87-008-423-010 FILTER, CF SFE10.7MS3G-A<EZ>
CF832 87-008-261-010 FILTER, SFE10.7MA5-A<U,LH>
CF832 82-785-747-010 CF,MS2 GHY,R<EZ>
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA001 8A-NF8-653-010 CONN ASSY,9P TID-A(480)<503U,LH>
D902 87-A40-128-080 C-VARI-CAP,HVU202A<U,LH>
D903 87-A40-128-080 C-VARI-CAP,HVU202A<U,LH>
FC602 88-906-251-110 FF-CABLE, 6P 1.25
FFE831 A8-6ZA-19M-030 6ZA-1 YFEMENM<EZ>
J201 87-A61-480-010 JACK,DIA 6.3BLK ST W/SW
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J205 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN<503U>
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02<U,LH>
J832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05<EZ>
JR123 87-A10-596-080 C-CAP,S 100P-100 J CH<500U,LH,EZ>
JR123 87-010-322-080 C-CAP,S 100P-50 J CH<503U>
JR124 87-A10-596-080 C-CAP,S 100P-100 J CH<500U,LH,EZ>
JR124 87-010-322-080 C-CAP,S 100P-50 J CH<503U>
L201 87-A50-610-010 COIL,1UH K(MDEC)
L202 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85KHZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH CECS
L832 87-005-847-080 COIL,2.2UH CECS
L861 87-005-847-080 COIL,2.2UH K CECS<505EZ>
L902 88-ZA1-602-110 COIL,FM-RF-U2 2G<U,LH>
L903 88-ZA1-601-010 COIL,FM-RF-U1 2G<U,LH>
L904 87-005-847-080 COIL,2.2UH(CECS)<U,LH>
L905 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS)<U,LH>
L906 88-ZA1-603-010 COIL,FM-OSC-U 2G<U,LH>
L941 87-A50-020-010 COIL,ANT LW (COI) 252KHZ<EZ>
L942 87-A50-019-010 COIL,OSC LW (COI) 856KHZ<EZ>
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)<U,LH>
L951 8A-NF8-668-010 COIL,AM PACK 2(TOK)<EZ>
R129 87-A00-262-080 RES,M/F 0.15-2W J<U,LH>
R129 87-A00-257-080 RES,M/F 0.15-1W J<EZ>
R130 87-A00-262-080 RES,M/F 0.15-2W J<U,LH>
R130 87-A00-257-080 RES,M/F 0.15-1W J<EZ>
R131 87-A00-262-080 RES,M/F 0.15-2W J<U,LH>
R131 87-A00-257-080 RES,M/F 0.15-1W J<EZ>
R132 87-A00-262-080 RES,M/F 0.15-2W J<U,LH>
R132 87-A00-257-080 RES,M/F 0.15-1W J<EZ>
R243 87-A00-439-050 RES,180-1/2W J RP<500U,LH>
R243 87-A00-440-050 RES,220-1/2W J RP<503U,EZ>
R244 87-A00-439-050 RES,180-1/2W J RP<500U,LH>
R244 87-A00-440-050 RES,220-1/2W J RP<503U,EZ>
R245 87-A00-439-050 RES,180-1/2W J RP<500U,LH>
R245 87-A00-441-050 RES,270-1/2W J RP<503U>
R245 87-A00-440-050 RES,220-1/2W J RP<EZ>
R246 87-A00-439-050 RES,180-1/2W J RP<500U,LH>
R246 87-A00-441-050 RES,270-1/2W J RP<503U>
R246 87-A00-440-050 RES,220-1/2W J RP<EZ>
R790 87-012-286-080 CAP, U 0.01-25
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR451 87-024-355-080 SFR,33K H EVN DJAA03
SFR452 87-024-355-080 SFR,33K H EVN DJAA03
TC942 87-A91-774-080 TRIMMER, PLY 30P 6.8X5.4 CDYL<EZ>
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
W99 8A-NF9-609-010 F-CABLE,9P 2.5 480MM<500U,EZ>
X862 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST<505EZ>
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST
FRONT C.B
C108 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C153 87-010-787-080 C-CAP,U 0.022-25 K B
C154 87-A12-078-040 CAP,E 47-35 SMG
C155 87-010-404-040 CAP,E 4.7-50 M 11L SME
C156 87-010-404-040 CAP,E 4.7-50 M 11L SME
C301 87-012-278-080 C-CAP,U 2200P-50 K B
C351 87-A10-353-080 C-CAP,U 0.22-10 K B
C361 87-012-274-080 C-CAP,U 1000P-50 K B
C362 87-012-274-080 C-CAP,U 1000P-50 K B
C371 87-012-274-080 C-CAP,U 1000P-50 K B
C372 87-012-274-080 C-CAP,U 1000P-50 K B
C601 87-010-382-040 CAP,E 22-25 SME
C801 87-A10-804-080 C-CAP,S 0.1-25 J B
C802 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C803 87-012-280-080 C-CAP,U 3300P-50 K B
C804 87-A10-592-080 C-CAP,S 0.015-50 J B
C805 87-012-184-080 C-CAP,U 33P-50 J CH
C806 87-012-274-080 C-CAP,U 1000P-50 K B
C807 87-012-274-080 C-CAP,U 1000P-50 K B
C808 87-010-544-040 CAP,E 0.1-50 M 11L SME
C809 87-010-404-040 CAP,E 4.7-50 SME
C810 87-016-114-080 C-CAP,U 0.01-25 J B GRM
C811 87-A12-052-080 C-CAP,S 0.033-25 J B
C901 87-012-195-080 C-CAP,U 100P-50 CH
C902 87-012-195-080 C-CAP,U 100P-50 CH
C903 87-012-195-080 C-CAP,U 100P-50 CH
C904 87-012-195-080 C-CAP,U 100P-50 CH
C905 87-012-195-080 C-CAP,U 100P-50 CH
All manuals and user guides at all-guides.com

– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C906 87-012-195-080 C-CAP,U 100P-50 CH
C907 87-012-195-080 C-CAP,U 100P-50 CH
C908 87-012-195-080 C-CAP,U 100P-50 CH
C909 87-012-195-080 C-CAP,U 100P-50 CH
C910 87-012-195-080 C-CAP,U 100P-50 CH
C911 87-012-274-080 C-CAP,U 1000P-50 K B
C912 87-010-831-080 C-CAP,U 0.1-16 Z F
C913 87-A10-189-040 CAP,E 220-10 M 5L
C914 87-A10-189-040 CAP,E 220-10 M 5L
C915 87-010-831-080 C-CAP,U 0.1-16 Z F
C916 87-010-831-080 C-CAP,U 0.1-16 Z F
C917 87-010-831-080 C-CAP,U 0.1-16 Z F
C919 87-012-286-080 C-CAP,U 0.01-25 K B
C920 87-010-829-080 C-CAP,U 0.047-16 Z F
C921 87-012-282-080 C-CAP,U 4700P-50 K B
C951 87-012-172-080 C-CAP,U 10P-50 D CH
C952 87-010-854-080 C-CAP,S 560P-50 J CH
C953 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C961 87-010-378-040 CAP,E 10-16 M 11L SME
C962 87-012-336-080 C-CAP,U 330P-50 J SL
C963 87-010-831-080 C-CAP,U 0.1-16 Z F
CN104 87-A60-057-010 CONN,11P V 9604S-11C
CN701 87-099-720-010 CONN,30P BLK TYK-B(P)
CN731 87-099-196-010 CONN,8P V BLK 6216
FC104 88-911-101-110 FF-CABLE,11P 1.25
FC731 88-908-301-110 FF-CABLE,8P 1.25
FL901 8B-NFK-605-010 FL,BJ814GNAK
L951 87-A50-655-010 COIL,CLK 4.19M (TOKO)7KLY
LED201 87-A40-606-040 LED,SLR-332VC
LED202 87-A40-606-040 LED,SLR-332VC
LED203 87-A40-606-040 LED,SLR-332VC
LED204 87-A40-606-040 LED,SLR-332VC
LED209 87-A40-317-080 LED,SLR-342VCT31 RED
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S325 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
S327 87-A90-095-080 SW,TACT EVQ11G04M
S328 87-A90-095-080 SW,TACT EVQ11G04M
S329 87-A90-095-080 SW,TACT EVQ11G04M
S330 87-A90-095-080 SW,TACT EVQ11G04M
S331 87-A90-095-080 SW,TACT EVQ11G04M
S332 87-A90-095-080 SW,TACT EVQ11G04M
S333 87-A90-095-080 SW,TACT EVQ11G04M
S334 87-A90-095-080 SW,TACT EVQ11G04M
S341 87-A90-095-080 SW,TACT EVQ11G04M
S342 87-A90-095-080 SW,TACT EVQ11G04M
S343 87-A90-095-080 SW,TACT EVQ11G04M
S344 87-A90-095-080 SW,TACT EVQ11G04M
S345 87-A90-095-080 SW,TACT EVQ11G04M
S346 87-A90-095-080 SW,TACT EVQ11G04M
S347 87-A90-095-080 SW,TACT EVQ11G04M
S348 87-A90-095-080 SW,TACT EVQ11G04M
S349 87-A90-095-080 SW,TACT EVQ11G04M
S350 87-A90-095-080 SW,TACT EVQ11G04M<505EZ>
S351 87-A90-095-080 SW,TACT EVQ11G04M<505EZ>
S352 87-A90-095-080 SW,TACT EVQ11G04M<505EZ>
S361 87-A92-056-010 SW,RTRY EC12E24504-25MM OFF
S371 87-A92-057-010 SW,RTRY EC12E12504-25MM OFF
PT C.B
C85 87-010-831-080 C-CAP,U 0.1-16 Z F<EZ>
CN1 87-A61-110-010 CONN,9P V TID-A<503U,LH>
PT1 8B-NFK-612-010 PT, BNF-19 U<500U>
PT1 8B-NFK-616-010 PT, BNF-19 U (SUR)<503U>
PT1 8B-NFK-615-010 PT, BNF-19 LH<LH>
PT1 8B-NFK-613-010 PT, BNF-19 EZ<EZ>
PT2 8B-NF9-661-010 PT,SUB BNF U (TAM)<503U>
PT2 8B-NF9-663-010 PT,SUB BNF H (TAM)<LH>
PT81 8B-NF9-661-010 PT,SUB BNF U (TAM)<500U>
PT81 8B-NF9-665-010 PT,SUB BNF E (TAM)<EZ>
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2<LH>
RY2 87-A91-418-010 RELAY,AC 12V G5PA-1-M<503U>
RY81 87-A91-418-010 RELAY,AC 12V G5PA-1-M<500U,EZ>
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH>
T1 87-A60-317-010 TERMINAL, 1P MSC<503U,LH>
T2 87-A60-317-010 TERMINAL, 1P MSC<503U,LH>
T81 87-A60-317-010 TERMINAL, 1P MSC<500U,EZ>
T82 87-A60-317-010 TERMINAL, 1P MSC<500U,EZ>
WH81 87-A90-510-010 HLDR,WIRE 2.5-9P<500U,EZ>
DECK C.B
CN1 87-099-753-010 CONN,11P 9604
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY, 27
SOL2 82-ZM1-618-410 SOL ASSY, 27
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
88
A

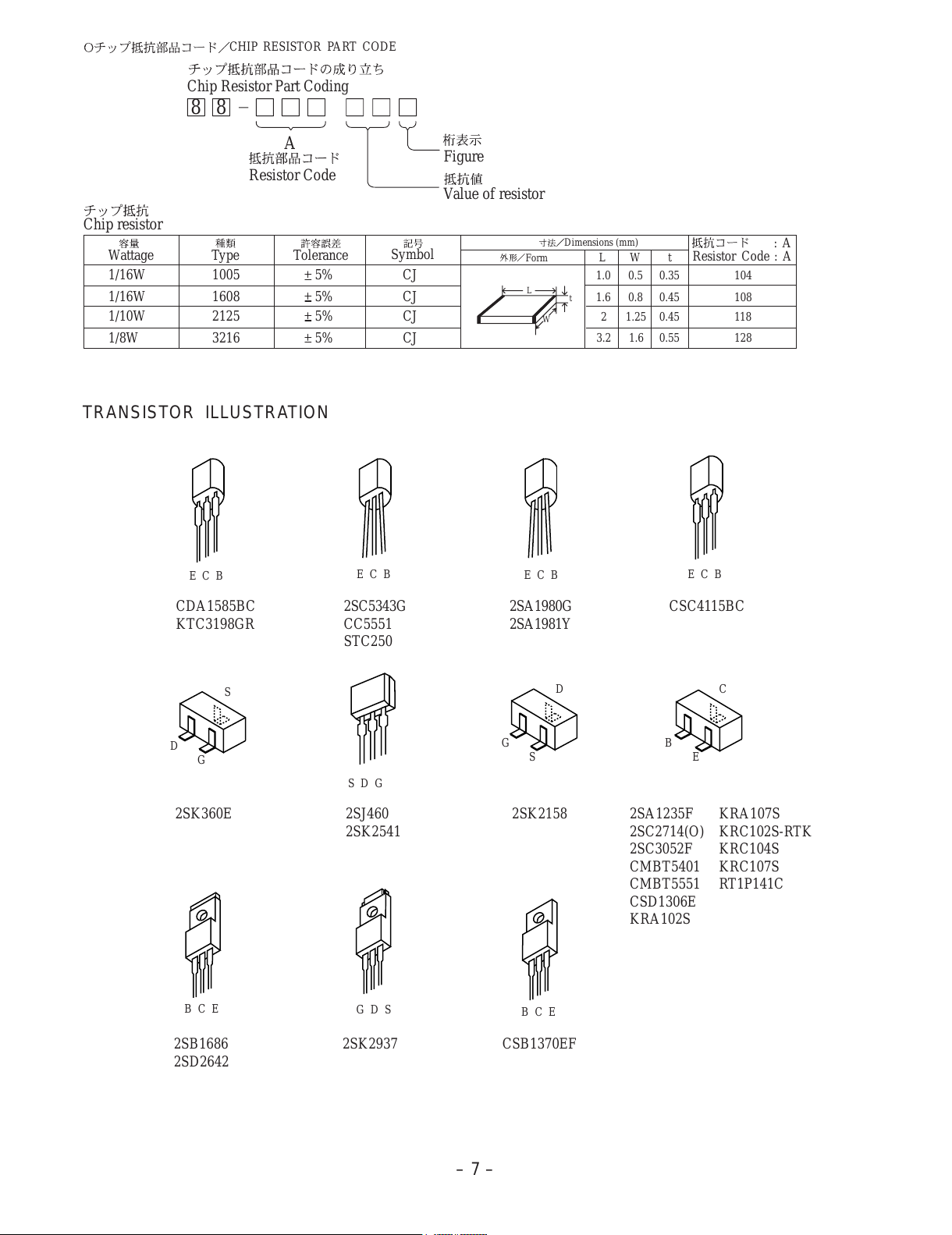

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
E C B
CDA1585BC
KTC3198GR
E C B
2SC5343G
CC5551
STC250
2SB1686
2SD2642
CSC4115BC
E C B
B C E
E
B
C
2SA1235F
2SC2714(O)
2SC3052F
CMBT5401
CMBT5551
CSD1306E
KRA102S
S
G
D
2SK21582SJ460
2SK2541
S D G
KRA107S
KRC102S-RTK
KRC104S
KRC107S
RT1P141C
G
D
S
2SK360E
E C B
2SA1980G
2SA1981Y
G D S
2SK2937
B C E
CSB1370EF
All manuals and user guides at all-guides.com

 8 
FL (BJ814GNAK) GRID ASSIGNMENT AND ANODE CONNECTION
GRID ASSIGNMENT
All manuals and user guides at all-guides.com

 9 
ANODE CONNECTION
All manuals and user guides at all-guides.com

WIRING  1 (MAIN) <U, LH>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 10 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

– 11 –
SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2 : AMP) <U, LH>
All manuals and user guides at all-guides.com
all-guides.com

– 12 –

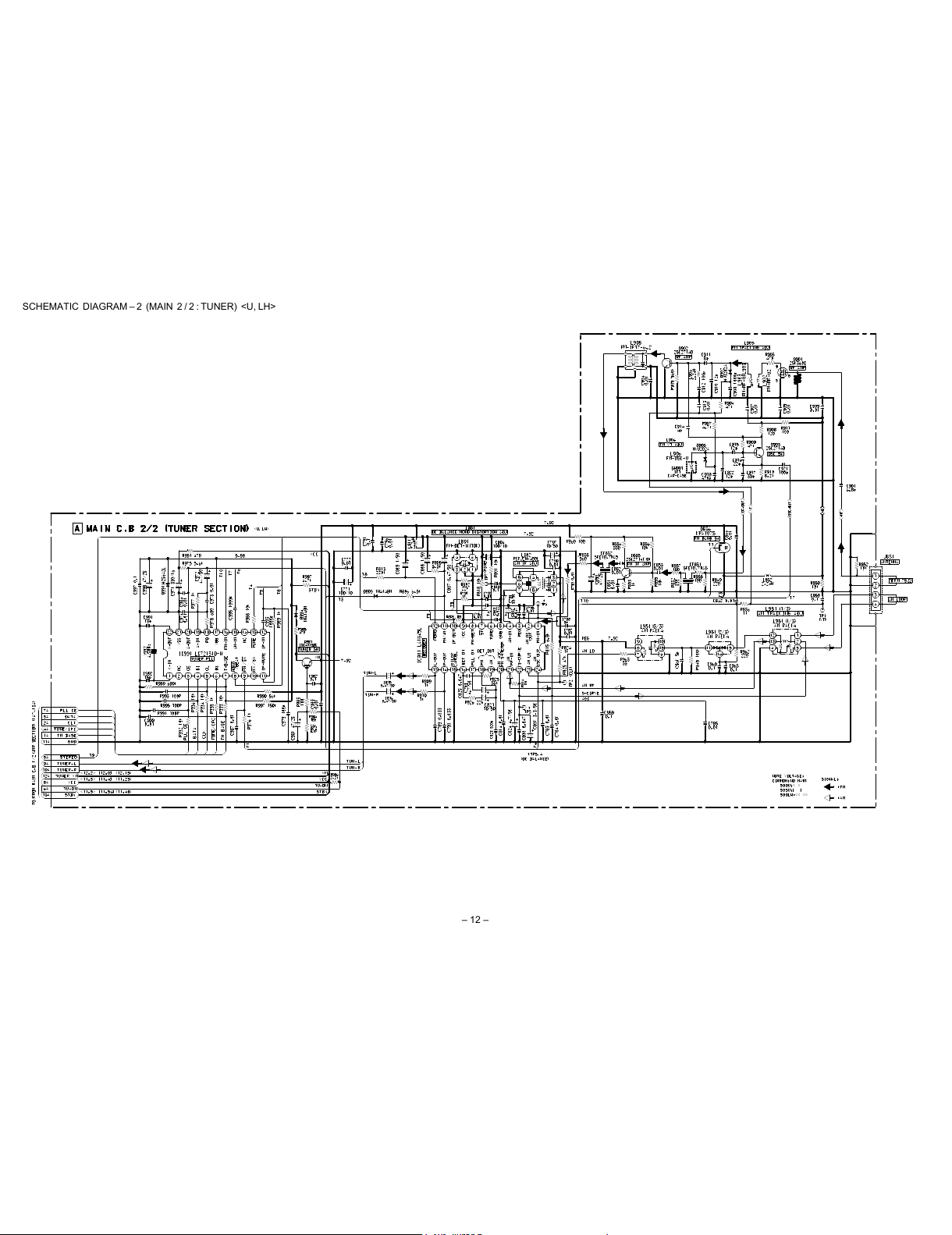

SCHEMATIC DIAGRAM – 2 (MAIN 2 / 2 : TUNER) <U, LH>
All manuals and user guides at all-guides.com

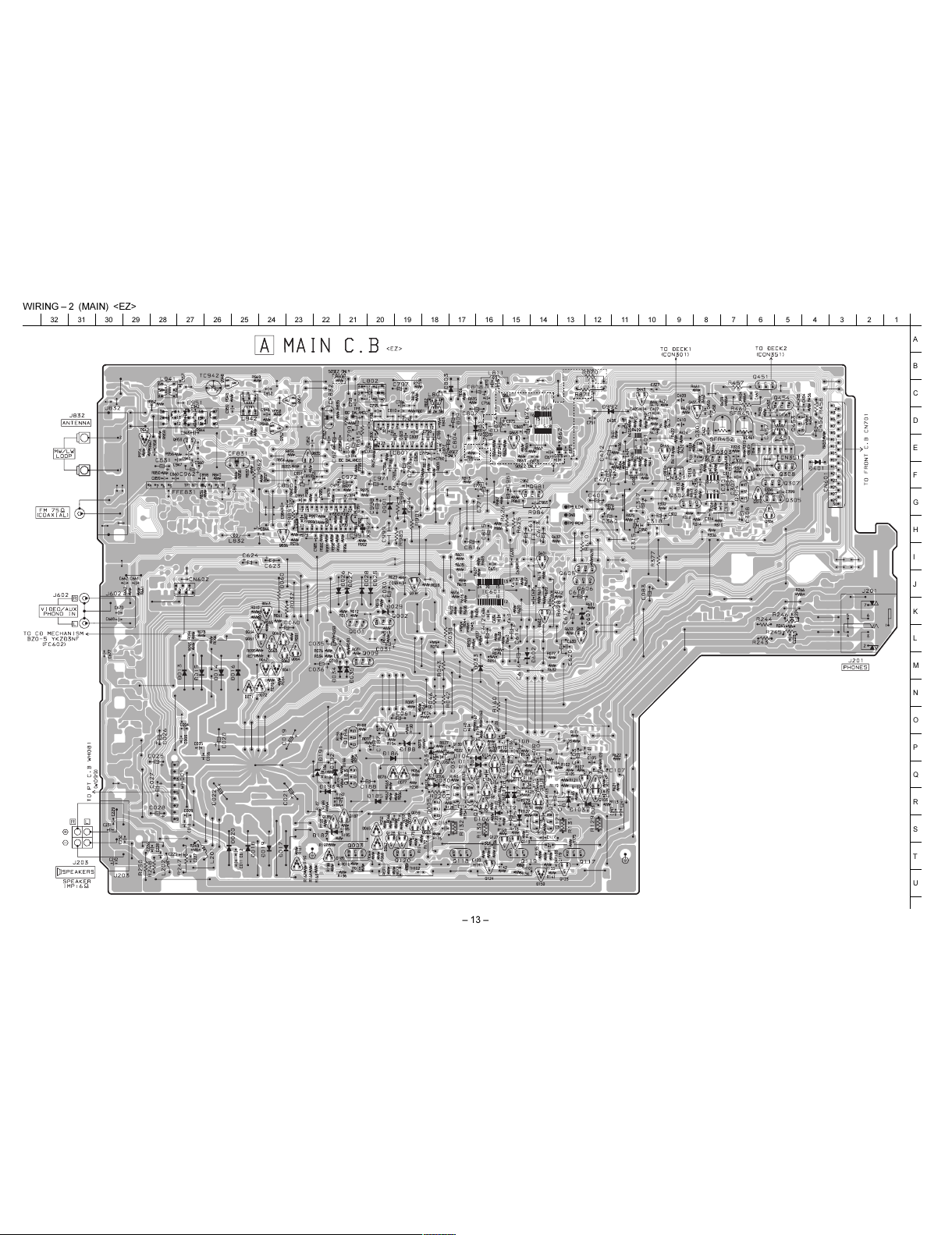

WIRING  2 (MAIN) <EZ>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 13 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

– 14 –

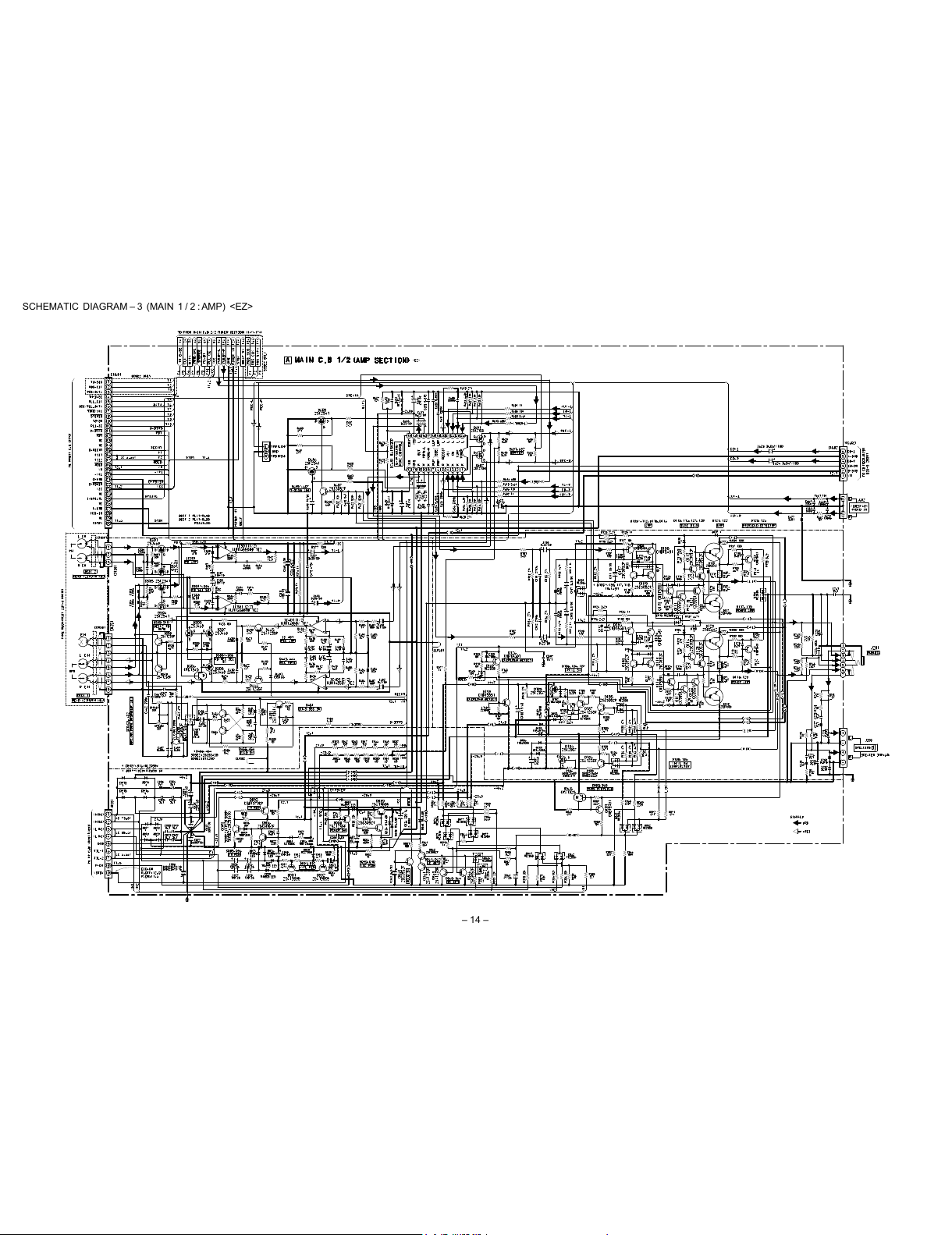

SCHEMATIC DIAGRAM – 3 (MAIN 1 / 2 : AMP) <EZ>
All manuals and user guides at all-guides.com

– 15 –
SCHEMATIC DIAGRAM – 4 (MAIN 2 / 2 : TUNER) <EZ>
All manuals and user guides at all-guides.com

GND
TP11
(KEY-SCAN)
WIRING  3 (FRONT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 16 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com
all-guides.com

– 17 –
SCHEMATIC DIAGRAM – 5 (FRONT)
All manuals and user guides at all-guides.com

WIRING  4 (PT) <500U, EZ>
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
 18 
All manuals and user guides at all-guides.com

– 19 –
SCHEMATIC DIAGRAM – 6 (PT) <500U, EZ>
All manuals and user guides at all-guides.com

WIRING – 5 (PT) <503U>
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 20 –
All manuals and user guides at all-guides.com
