SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
BASIC TAPE MECHANISM : ZZM-3, 6ZM-3
BASIC CD MECHANISM : AZG-1
NSX-SZ30 LH,HR,HS,HT
S/M Code No. 09-011-423-3S4
SUPPLEMENT
• This Service Manual contains information about the difference between
NSX-SZ30 (VA model) and NSX-SZ20 / SZ30. If requiring the other
information, see Service Manual as listed on page 2.
• This Service Manual is for VA model.
• Refer to MAIN C.B parts number for difference of model.
8A-NF9-701-010 is for NSX-SZ30<LH,HR,HS,HT> VA model.
• If requiring information about the CD mechanism, see Service Manual
of AZG-1, (S/M Code No. 09-001-335-3N8)
NSX-SZ30
<LH>
SPEAKERSYSTEM
CX-NSZ30
TAPE
MECHANISM
CD
MECHANISM
NSX-SZ30
<HR,HS,HT> CX-NSZ30
ZZM-3 PR1NF AZG-1 YKZD3RDF
RC-ZAS016ZM-3 PR2NM AZG-1 ZD3RDM
RC-ZAS02
SX-NSZ52
CD
CASSEIVER
REMOTE
CONTROLLER
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
Precaution to replace Optical block
(KSS-213F)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Solder
(KSS – 213F)
CD PICK-UP Assy. PWB
NSX-SZ30<HR>
VA MODEL
NSX-SZ30<LH>
NSX-SZ30<HS,HT> NSX-SZ30<HS,HT>
BASE MODEL
MODEL NAME S/M Code No.
NSX-SZ20<LH> 09-001-423-4R1
09-005-423-4R3
09-007-423-3R1
NSX-SZ20<HR>
All manuals and user guides at all-guides.com

– 3 –

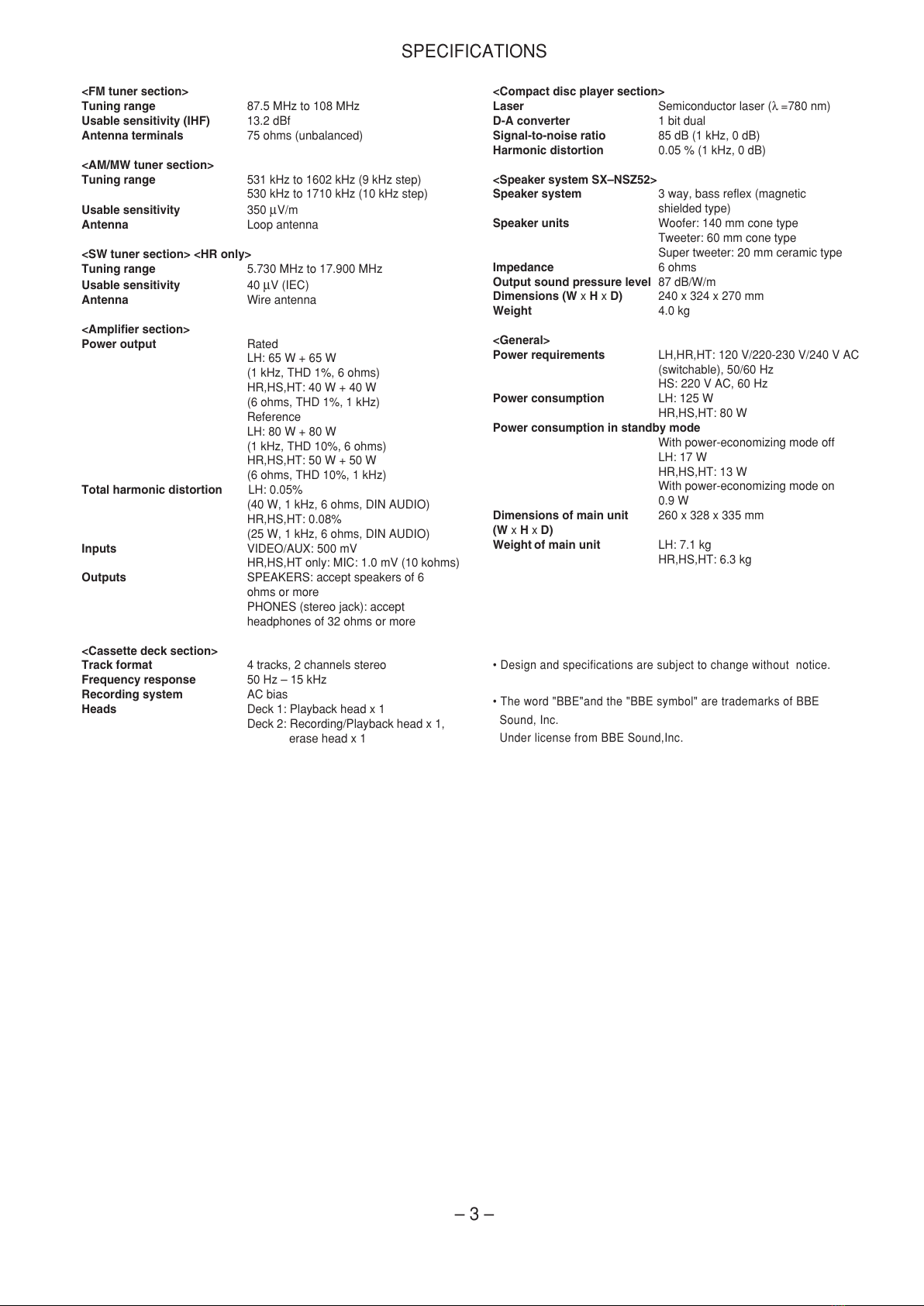

SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM/MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<SW tuner section> <HR only>
Tuning range 5.730 MHz to 17.900 MHz
Usable sensitivity 40 µV (IEC)
Antenna Wire antenna
<Amplifier section>
Power output Rated
LH: 65 W + 65 W
(1 kHz, THD 1%, 6 ohms)
HR,HS,HT: 40 W + 40 W
(6 ohms, THD 1%, 1 kHz)
Reference
LH: 80 W + 80 W
(1 kHz, THD 10%, 6 ohms)
HR,HS,HT: 50 W + 50 W
(6 ohms, THD 10%, 1 kHz)
Total harmonic distortion LH: 0.05%
(40 W, 1 kHz, 6 ohms, DIN AUDIO)
HR,HS,HT: 0.08%
(25 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs VIDEO/AUX: 500 mV
HR,HS,HT only: MIC: 1.0 mV (10 kohms)
Outputs SPEAKERS: accept speakers of 6
ohms or more
PHONES (stereo jack): accept
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15 kHz
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<Speaker system SX–NSZ52>
Speaker system 3 way, bass reflex (magnetic
shielded type)
Speaker units Woofer: 140 mm cone type
Tweeter: 60 mm cone type
Super tweeter: 20 mm ceramic type
Impedance 6 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 270 mm
Weight 4.0 kg
<General>
Power requirements LH,HR,HT: 120 V/220-230 V/240 V AC
(switchable), 50/60 Hz
HS: 220 V AC, 60 Hz
Power consumption LH: 125 W
HR,HS,HT: 80 W
Power consumption in standby mode
With power-economizing mode off
LH: 17 W
HR,HS,HT: 13 W
With power-economizing mode on
0.9 W
Dimensions of main unit 260 x 328 x 335 mm
(W xH xD)
Weight of main unit LH: 7.1 kg
HR,HS,HT: 6.3 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
All manuals and user guides at all-guides.com

– 4 –

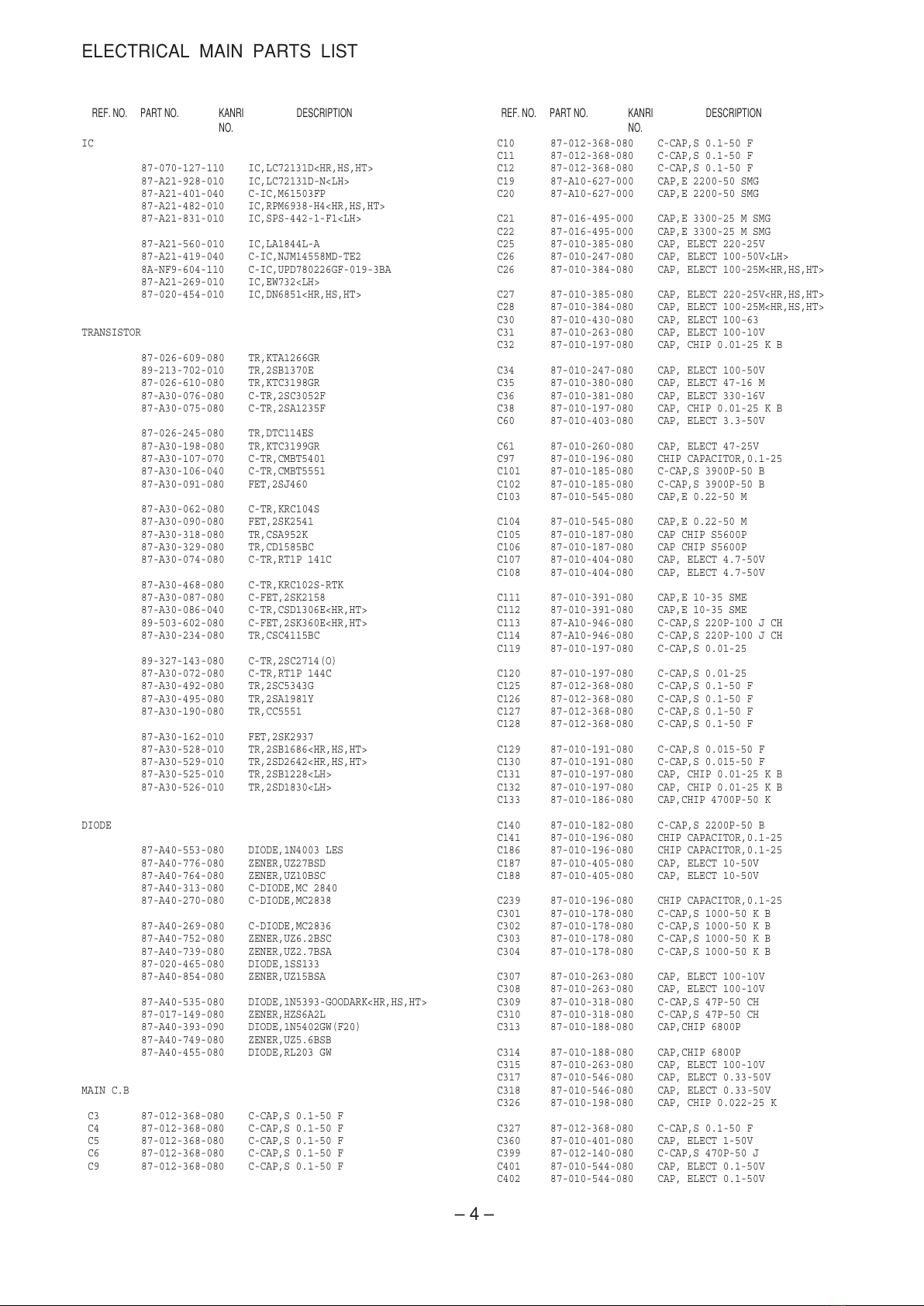

ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-070-127-110 IC,LC72131D<HR,HS,HT>
87-A21-928-010 IC,LC72131D-N<LH>
87-A21-401-040 C-IC,M61503FP
87-A21-482-010 IC,RPM6938-H4<HR,HS,HT>
87-A21-831-010 IC,SPS-442-1-F1<LH>
87-A21-560-010 IC,LA1844L-A
87-A21-419-040 C-IC,NJM14558MD-TE2
8A-NF9-604-110 C-IC,UPD780226GF-019-3BA
87-A21-269-010 IC,EW732<LH>
87-020-454-010 IC,DN6851<HR,HS,HT>
TRANSISTOR
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-091-080 FET,2SJ460
87-A30-062-080 C-TR,KRC104S
87-A30-090-080 FET,2SK2541
87-A30-318-080 TR,CSA952K
87-A30-329-080 TR,CD1585BC
87-A30-074-080 C-TR,RT1P 141C
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-087-080 C-FET,2SK2158
87-A30-086-040 C-TR,CSD1306E<HR,HT>
89-503-602-080 C-FET,2SK360E<HR,HT>
87-A30-234-080 TR,CSC4115BC
89-327-143-080 C-TR,2SC2714(O)
87-A30-072-080 C-TR,RT1P 144C
87-A30-492-080 TR,2SC5343G
87-A30-495-080 TR,2SA1981Y
87-A30-190-080 TR,CC5551
87-A30-162-010 FET,2SK2937
87-A30-528-010 TR,2SB1686<HR,HS,HT>
87-A30-529-010 TR,2SD2642<HR,HS,HT>
87-A30-525-010 TR,2SB1228<LH>
87-A30-526-010 TR,2SD1830<LH>
DIODE
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-020-465-080 DIODE,1SS133
87-A40-854-080 ZENER,UZ15BSA
87-A40-535-080 DIODE,1N5393-GOODARK<HR,HS,HT>
87-017-149-080 ZENER,HZS6A2L
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-749-080 ZENER,UZ5.6BSB
87-A40-455-080 DIODE,RL203 GW
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-012-368-080 C-CAP,S 0.1-50 F
C10 87-012-368-080 C-CAP,S 0.1-50 F
C11 87-012-368-080 C-CAP,S 0.1-50 F
C12 87-012-368-080 C-CAP,S 0.1-50 F
C19 87-A10-627-000 CAP,E 2200-50 SMG
C20 87-A10-627-000 CAP,E 2200-50 SMG
C21 87-016-495-000 CAP,E 3300-25 M SMG
C22 87-016-495-000 CAP,E 3300-25 M SMG
C25 87-010-385-080 CAP, ELECT 220-25V
C26 87-010-247-080 CAP, ELECT 100-50V<LH>
C26 87-010-384-080 CAP, ELECT 100-25M<HR,HS,HT>
C27 87-010-385-080 CAP, ELECT 220-25V<HR,HS,HT>
C28 87-010-384-080 CAP, ELECT 100-25M<HR,HS,HT>
C30 87-010-430-080 CAP, ELECT 100-63
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01-25 K B
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-380-080 CAP, ELECT 47-16 M
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-197-080 CAP, CHIP 0.01-25 K B
C60 87-010-403-080 CAP, ELECT 3.3-50V
C61 87-010-260-080 CAP, ELECT 47-25V
C97 87-010-196-080 CHIP CAPACITOR,0.1-25
C101 87-010-185-080 C-CAP,S 3900P-50 B
C102 87-010-185-080 C-CAP,S 3900P-50 B
C103 87-010-545-080 CAP,E 0.22-50 M
C104 87-010-545-080 CAP,E 0.22-50 M
C105 87-010-187-080 CAP CHIP S5600P
C106 87-010-187-080 CAP CHIP S5600P
C107 87-010-404-080 CAP, ELECT 4.7-50V
C108 87-010-404-080 CAP, ELECT 4.7-50V
C111 87-010-391-080 CAP,E 10-35 SME
C112 87-010-391-080 CAP,E 10-35 SME
C113 87-A10-946-080 C-CAP,S 220P-100 J CH
C114 87-A10-946-080 C-CAP,S 220P-100 J CH
C119 87-010-197-080 C-CAP,S 0.01-25
C120 87-010-197-080 C-CAP,S 0.01-25
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-010-191-080 C-CAP,S 0.015-50 F
C130 87-010-191-080 C-CAP,S 0.015-50 F
C131 87-010-197-080 CAP, CHIP 0.01-25 K B
C132 87-010-197-080 CAP, CHIP 0.01-25 K B
C133 87-010-186-080 CAP,CHIP 4700P-50 K
C140 87-010-182-080 C-CAP,S 2200P-50 B
C141 87-010-196-080 CHIP CAPACITOR,0.1-25
C186 87-010-196-080 CHIP CAPACITOR,0.1-25
C187 87-010-405-080 CAP, ELECT 10-50V
C188 87-010-405-080 CAP, ELECT 10-50V
C239 87-010-196-080 CHIP CAPACITOR,0.1-25
C301 87-010-178-080 C-CAP,S 1000-50 K B
C302 87-010-178-080 C-CAP,S 1000-50 K B
C303 87-010-178-080 C-CAP,S 1000-50 K B
C304 87-010-178-080 C-CAP,S 1000-50 K B
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-010-318-080 C-CAP,S 47P-50 CH
C310 87-010-318-080 C-CAP,S 47P-50 CH
C313 87-010-188-080 CAP,CHIP 6800P
C314 87-010-188-080 CAP,CHIP 6800P
C315 87-010-263-080 CAP, ELECT 100-10V
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C326 87-010-198-080 CAP, CHIP 0.022-25 K
C327 87-012-368-080 C-CAP,S 0.1-50 F
C360 87-010-401-080 CAP, ELECT 1-50V
C399 87-012-140-080 C-CAP,S 470P-50 J
C401 87-010-544-080 CAP, ELECT 0.1-50V
C402 87-010-544-080 CAP, ELECT 0.1-50V
All manuals and user guides at all-guides.com

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C403 87-010-321-080 CHIP CAPACITOR,82P(J)
C404 87-010-321-080 CHIP CAPACITOR,82P(J)
C405 87-010-197-080 CAP, CHIP 0.01-25 K B
C406 87-010-197-080 CAP, CHIP 0.01-25 K B
C407 87-010-197-080 CAP, CHIP 0.01-25 K B
C408 87-010-197-080 CAP, CHIP 0.01-25 K B
C409 87-010-182-080 C-CAP,S 2200P-50 B
C410 87-010-182-080 C-CAP,S 2200P-50 B
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B
C454 87-010-183-080 C-CAP,S 2700P-50 B
C455 87-010-183-080 C-CAP,S 2700P-50 B
C456 87-010-197-080 CAP, CHIP 0.01-25 K B
C457 87-A12-361-080 CAP, M 5600P-100 J CP
C460 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-010-184-080 CAP,CHIP S 3300P-50 KB<LH>
C605 87-010-179-080 CAP,CHIP S 1200P-50 KB<HR,HS,HT>
C606 87-010-184-080 CAP,CHIP S 3300P-50 KB<LH>
C606 87-010-179-080 CAP,CHIP S 1200P-50 KB<HR,HS,HT>
C609 87-010-213-080 C-CAP,S 0.015-50 B
C610 87-010-213-080 C-CAP,S 0.015-50 B
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-010-154-080 CAP CHIP 10P-50 CH
C616 87-010-221-080 CAP, ELECT 470-10 M
C617 87-010-221-080 CAP, ELECT 470-10 M
C618 87-010-405-080 CAP, ELECT 10-50V
C630 87-016-669-080 C-CAP,S 0.1-25 K B
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C633 87-016-369-080 C-CAP,S 0.033-25 K B
C634 87-016-369-080 C-CAP,S 0.033-25 K B
C669 87-010-322-080 C-CAP,S 100P-50 CH
C670 87-010-322-080 C-CAP,S 100P-50 CH
C671 87-010-196-080 CHIP CAPACITOR,0.1-25 Z F<HR,HS,HT>
C672 87-010-196-080 CHIP CAPACITOR,0.1-25 Z F<HR,HS,HT>
C673 87-010-182-080 C-CAP,S 2200P-50 B<HR,HS,HT>
C677 87-010-197-080 CAP, CHIP 0.01-25 K B
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01-25 K B
C782 87-010-197-080 CAP, CHIP 0.01-25 K B
C783 87-010-197-080 CAP, CHIP 0.01-25 K B
C784 87-010-197-080 CAP, CHIP 0.01-25 K B
C785 87-010-197-080 CAP, CHIP 0.01-25 K B
C786 87-010-197-080 CAP, CHIP 0.01-25 K B
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A12-052-080 C-CAP,S 0.033-25 J B<LH>
C789 87-A10-801-080 C-CAP,S 0.022-16 J B<HR,HS,HT>
C790 87-A12-052-080 C-CAP,S 0.033-25 J B<LH>
C790 87-A10-801-080 C-CAP,S 0.022-16 J B<HR,HS,HT>
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01-25 K B
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01-25 K B
C796 87-010-197-080 CAP, CHIP 0.01-25 K B
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01-25 K B
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-010-194-080 CAP, CHIP 0.047-25 Z F
C803 87-010-198-080 CAP, CHIP 0.022-25 K B
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-010-197-080 CAP, CHIP 0.01-25 K B
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-404-080 CAP, ELECT 4.7-50 M
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01-25 K B
C844 87-010-197-080 CAP, CHIP 0.01-25 K B
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-010-197-080 CAP, CHIP 0.01-25 K B
C852 87-010-197-080 CAP, CHIP 0.01-25 K B
C853 87-010-197-080 CAP, CHIP 0.01-25 K B
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01-25 K B
C940 87-010-197-080 CAP, CHIP 0.01-25 K B<HR,HT>
C941 87-010-314-080 C-CAP,S 22P-50V J CH<HR,HT>
C943 87-010-197-080 CAP, CHIP 0.01-25 K B<HR,HT>
C945 87-010-197-080 CAP, CHIP 0.01-25 K B<HR,HT>
C946 87-010-971-080 C-CAP,S 4700P-50 J B<HR,HT>
C947 87-010-197-080 CAP, CHIP 0.01-25 K B<HR,HT>
C948 87-010-148-080 CAP, CHIP S 4P-50<HR,HT>
C952 87-010-197-080 CAP, CHIP 0.01 DM<HR,HT>
C953 87-010-197-080 CAP, CHIP 0.01 DM<HR,HT>
C954 87-010-400-080 CAP, ELECT 0.47-50V<HR,HT>
C956 87-010-263-080 CAP, ELECT 100-10V<HR,HT>
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25<LH,HS>
C961 87-010-152-080 C-CAP,S 8P-50 CH<LH,HS>
C962 87-010-401-080 CAP, ELECT 1-50V<HR,HT>
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C964 87-010-854-080 C-CAP,S 560PCH<HR,HT>
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01-25 K B
C974 87-010-197-080 CAP, CHIP 0.01-25 K B
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01-25 K B
C984 87-010-197-080 CAP, CHIP 0.01-25 K B
C987 87-010-197-080 CAP, CHIP 0.01-25 K B
C989 87-010-197-080 CAP, CHIP 0.01-25 K B<HR,HT>
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P-50 K B
C995 87-010-178-080 CHIP CAP 1000P-50 K B
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CON351 86-ZM3-605-110 CON ASSY,8P-PB
D951 87-A40-618-080 VARI-CAP,SVC 348(S/T)<HR,HT>
FC602 88-906-251-110 FF-CABLE,6P 1.25
FFE831 A8-8ZA-195-030 8ZA-1 YFEMUNM<LH>
FFE831 A8-8ZA-194-030 8ZA-1 FEMUNM<HR,HS,HT>
J202 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
All manuals and user guides at all-guides.com

– 6 –

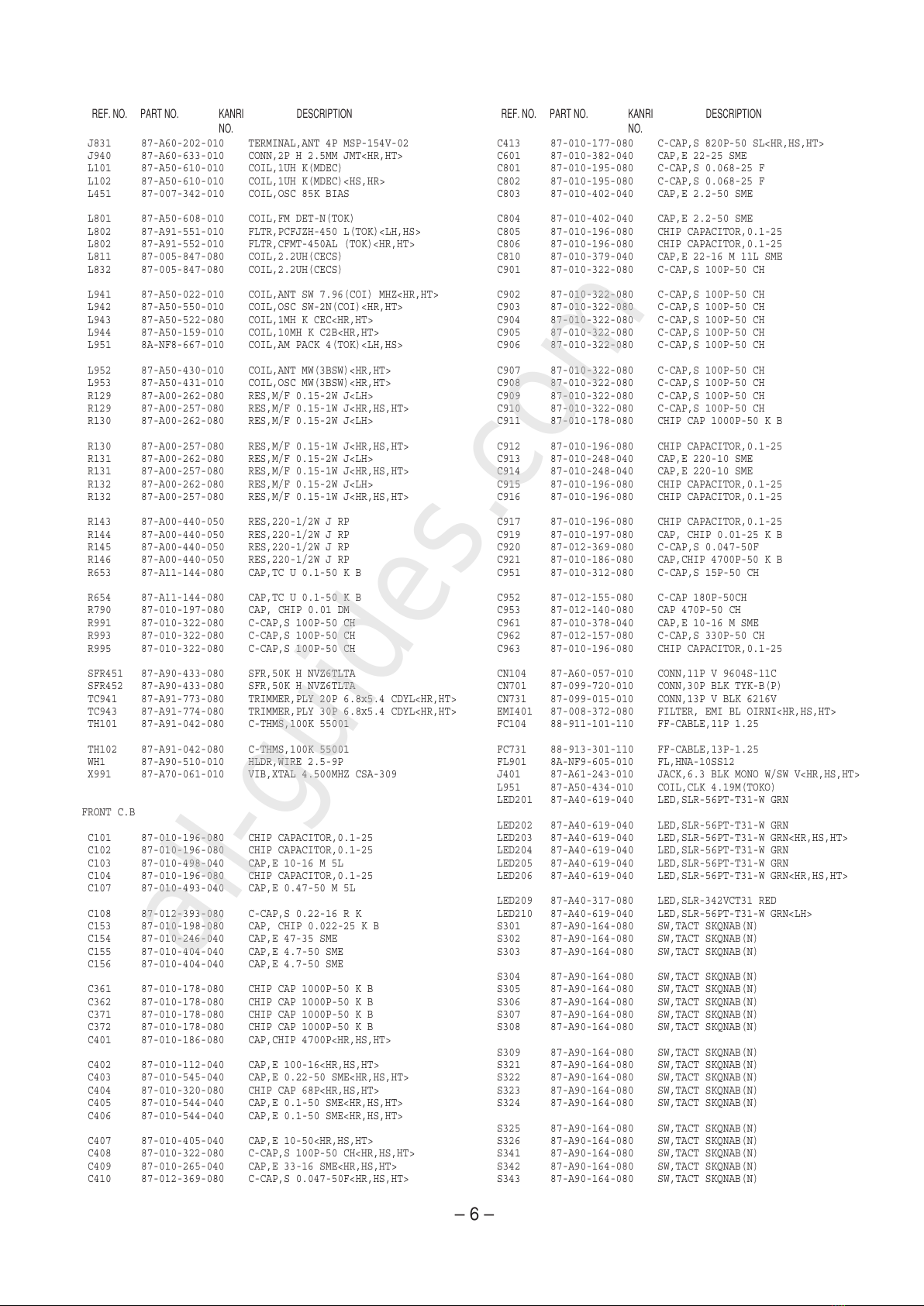

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
J940 87-A60-633-010 CONN,2P H 2.5MM JMT<HR,HT>
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)<HS,HR>
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)<LH,HS>
L802 87-A91-552-010 FLTR,CFMT-450AL (TOK)<HR,HT>
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L941 87-A50-022-010 COIL,ANT SW 7.96(COI) MHZ<HR,HT>
L942 87-A50-550-010 COIL,OSC SW-2N(COI)<HR,HT>
L943 87-A50-522-080 COIL,1MH K CEC<HR,HT>
L944 87-A50-159-010 COIL,10MH K C2B<HR,HT>
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)<LH,HS>
L952 87-A50-430-010 COIL,ANT MW(3BSW)<HR,HT>
L953 87-A50-431-010 COIL,OSC MW(3BSW)<HR,HT>
R129 87-A00-262-080 RES,M/F 0.15-2W J<LH>
R129 87-A00-257-080 RES,M/F 0.15-1W J<HR,HS,HT>
R130 87-A00-262-080 RES,M/F 0.15-2W J<LH>
R130 87-A00-257-080 RES,M/F 0.15-1W J<HR,HS,HT>
R131 87-A00-262-080 RES,M/F 0.15-2W J<LH>
R131 87-A00-257-080 RES,M/F 0.15-1W J<HR,HS,HT>
R132 87-A00-262-080 RES,M/F 0.15-2W J<LH>
R132 87-A00-257-080 RES,M/F 0.15-1W J<HR,HS,HT>
R143 87-A00-440-050 RES,220-1/2W J RP
R144 87-A00-440-050 RES,220-1/2W J RP
R145 87-A00-440-050 RES,220-1/2W J RP
R146 87-A00-440-050 RES,220-1/2W J RP
R653 87-A11-144-080 CAP,TC U 0.1-50 K B
R654 87-A11-144-080 CAP,TC U 0.1-50 K B
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR451 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR452 87-A90-433-080 SFR,50K H NVZ6TLTA
TC941 87-A91-773-080 TRIMMER,PLY 20P 6.8x5.4 CDYL<HR,HT>
TC943 87-A91-774-080 TRIMMER,PLY 30P 6.8x5.4 CDYL<HR,HT>
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-010-196-080 CHIP CAPACITOR,0.1-25
C103 87-010-498-040 CAP,E 10-16 M 5L
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C107 87-010-493-040 CAP,E 0.47-50 M 5L
C108 87-012-393-080 C-CAP,S 0.22-16 R K
C153 87-010-198-080 CAP, CHIP 0.022-25 K B
C154 87-010-246-040 CAP,E 47-35 SME
C155 87-010-404-040 CAP,E 4.7-50 SME
C156 87-010-404-040 CAP,E 4.7-50 SME
C361 87-010-178-080 CHIP CAP 1000P-50 K B
C362 87-010-178-080 CHIP CAP 1000P-50 K B
C371 87-010-178-080 CHIP CAP 1000P-50 K B
C372 87-010-178-080 CHIP CAP 1000P-50 K B
C401 87-010-186-080 CAP,CHIP 4700P<HR,HS,HT>
C402 87-010-112-040 CAP,E 100-16<HR,HS,HT>
C403 87-010-545-040 CAP,E 0.22-50 SME<HR,HS,HT>
C404 87-010-320-080 CHIP CAP 68P<HR,HS,HT>
C405 87-010-544-040 CAP,E 0.1-50 SME<HR,HS,HT>
C406 87-010-544-040 CAP,E 0.1-50 SME<HR,HS,HT>
C407 87-010-405-040 CAP,E 10-50<HR,HS,HT>
C408 87-010-322-080 C-CAP,S 100P-50 CH<HR,HS,HT>
C409 87-010-265-040 CAP,E 33-16 SME<HR,HS,HT>
C410 87-012-369-080 C-CAP,S 0.047-50F<HR,HS,HT>
C413 87-010-177-080 C-CAP,S 820P-50 SL<HR,HS,HT>
C601 87-010-382-040 CAP,E 22-25 SME
C801 87-010-195-080 C-CAP,S 0.068-25 F
C802 87-010-195-080 C-CAP,S 0.068-25 F
C803 87-010-402-040 CAP,E 2.2-50 SME
C804 87-010-402-040 CAP,E 2.2-50 SME
C805 87-010-196-080 CHIP CAPACITOR,0.1-25
C806 87-010-196-080 CHIP CAPACITOR,0.1-25
C810 87-010-379-040 CAP,E 22-16 M 11L SME
C901 87-010-322-080 C-CAP,S 100P-50 CH
C902 87-010-322-080 C-CAP,S 100P-50 CH
C903 87-010-322-080 C-CAP,S 100P-50 CH
C904 87-010-322-080 C-CAP,S 100P-50 CH
C905 87-010-322-080 C-CAP,S 100P-50 CH
C906 87-010-322-080 C-CAP,S 100P-50 CH
C907 87-010-322-080 C-CAP,S 100P-50 CH
C908 87-010-322-080 C-CAP,S 100P-50 CH
C909 87-010-322-080 C-CAP,S 100P-50 CH
C910 87-010-322-080 C-CAP,S 100P-50 CH
C911 87-010-178-080 CHIP CAP 1000P-50 K B
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-248-040 CAP,E 220-10 SME
C914 87-010-248-040 CAP,E 220-10 SME
C915 87-010-196-080 CHIP CAPACITOR,0.1-25
C916 87-010-196-080 CHIP CAPACITOR,0.1-25
C917 87-010-196-080 CHIP CAPACITOR,0.1-25
C919 87-010-197-080 CAP, CHIP 0.01-25 K B
C920 87-012-369-080 C-CAP,S 0.047-50F
C921 87-010-186-080 CAP,CHIP 4700P-50 K B
C951 87-010-312-080 C-CAP,S 15P-50 CH
C952 87-012-155-080 C-CAP 180P-50CH
C953 87-012-140-080 CAP 470P-50 CH
C961 87-010-378-040 CAP,E 10-16 M SME
C962 87-012-157-080 C-CAP,S 330P-50 CH
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CN104 87-A60-057-010 CONN,11P V 9604S-11C
CN701 87-099-720-010 CONN,30P BLK TYK-B(P)
CN731 87-099-015-010 CONN,13P V BLK 6216V
EMI401 87-008-372-080 FILTER, EMI BL OIRNI<HR,HS,HT>
FC104 88-911-101-110 FF-CABLE,11P 1.25
FC731 88-913-301-110 FF-CABLE,13P-1.25
FL901 8A-NF9-605-010 FL,HNA-10SS12
J401 87-A61-243-010 JACK,6.3 BLK MONO W/SW V<HR,HS,HT>
L951 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED201 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED202 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED203 87-A40-619-040 LED,SLR-56PT-T31-W GRN<HR,HS,HT>
LED204 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED205 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED206 87-A40-619-040 LED,SLR-56PT-T31-W GRN<HR,HS,HT>
LED209 87-A40-317-080 LED,SLR-342VCT31 RED
LED210 87-A40-619-040 LED,SLR-56PT-T31-W GRN<LH>
S301 87-A90-164-080 SW,TACT SKQNAB(N)
S302 87-A90-164-080 SW,TACT SKQNAB(N)
S303 87-A90-164-080 SW,TACT SKQNAB(N)
S304 87-A90-164-080 SW,TACT SKQNAB(N)
S305 87-A90-164-080 SW,TACT SKQNAB(N)
S306 87-A90-164-080 SW,TACT SKQNAB(N)
S307 87-A90-164-080 SW,TACT SKQNAB(N)
S308 87-A90-164-080 SW,TACT SKQNAB(N)
S309 87-A90-164-080 SW,TACT SKQNAB(N)
S321 87-A90-164-080 SW,TACT SKQNAB(N)
S322 87-A90-164-080 SW,TACT SKQNAB(N)
S323 87-A90-164-080 SW,TACT SKQNAB(N)
S324 87-A90-164-080 SW,TACT SKQNAB(N)
S325 87-A90-164-080 SW,TACT SKQNAB(N)
S326 87-A90-164-080 SW,TACT SKQNAB(N)
S341 87-A90-164-080 SW,TACT SKQNAB(N)
S342 87-A90-164-080 SW,TACT SKQNAB(N)
S343 87-A90-164-080 SW,TACT SKQNAB(N)
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
!
!
!
!
!
!
!
S344 87-A90-164-080 SW,TACT SKQNAB(N)
S345 87-A90-164-080 SW,TACT SKQNAB(N)
S346 87-A90-164-080 SW,TACT SKQNAB(N)
S347 87-A90-164-080 SW,TACT SKQNAB(N)
S348 87-A90-164-080 SW,TACT SKQNAB(N)
S349 87-A90-164-080 SW,TACT SKQNAB(N)
S350 87-A90-164-080 SW,TACT SKQNAB(N)
S361 87-A91-633-010 SW,RTRY XRE012103PVB25FINA 1-2
S371 87-A91-632-010 SW,RTRY XRE012103PVB25FINB 1-2
VR401 86-NFA-607-010 VR,RTRY 10K15AX1 1V XV0121PVN<HR,HS,HT>

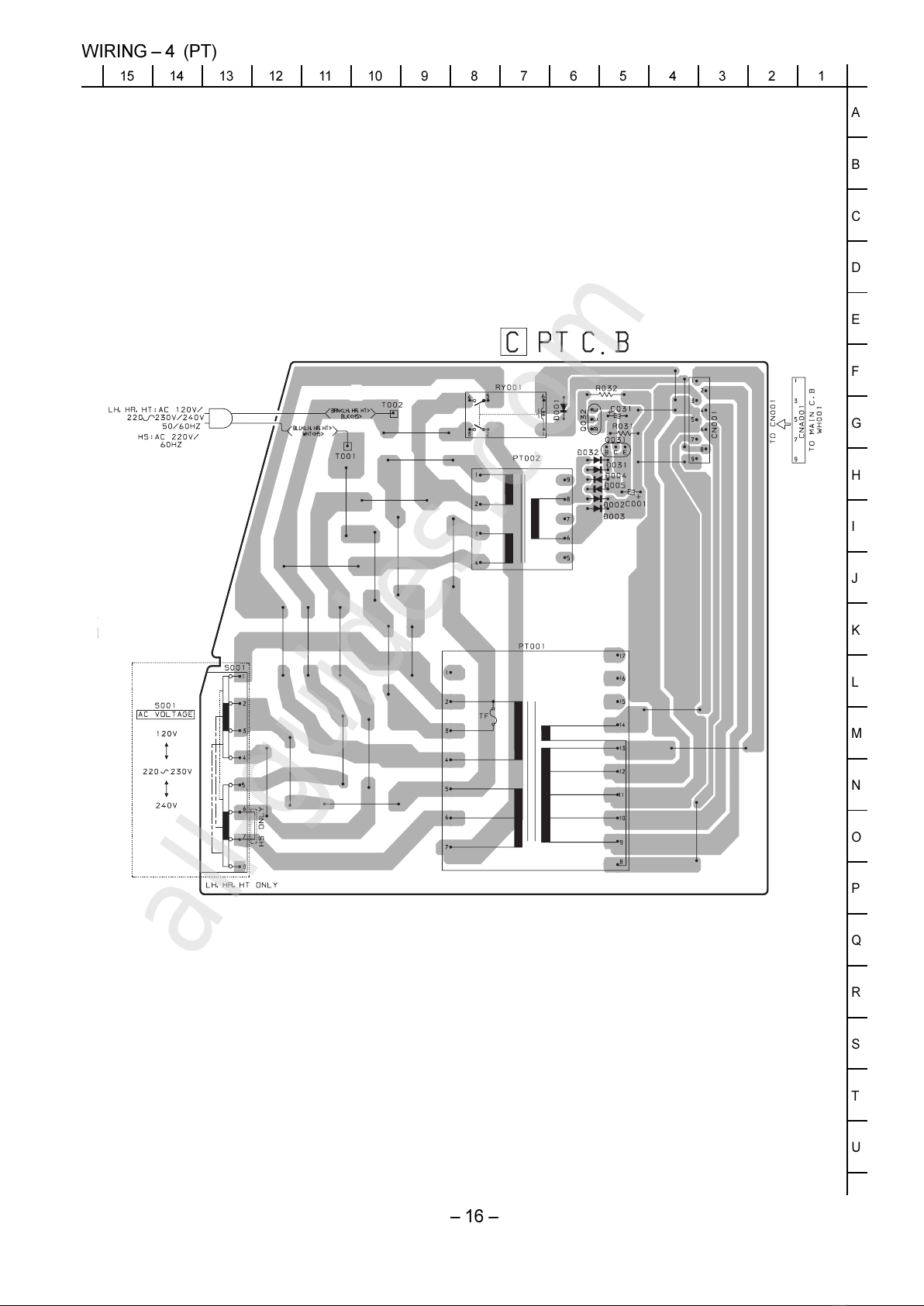

PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C31 87-010-403-080 CAP, ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
PT1 8A-NF9-711-010 PT,ANF-9H-LOW VA<HR,HS,HT>
PT1 8A-NF9-712-010 PT,ANF-9H-HI VA<LH>
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<LH,HR,HT>
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC

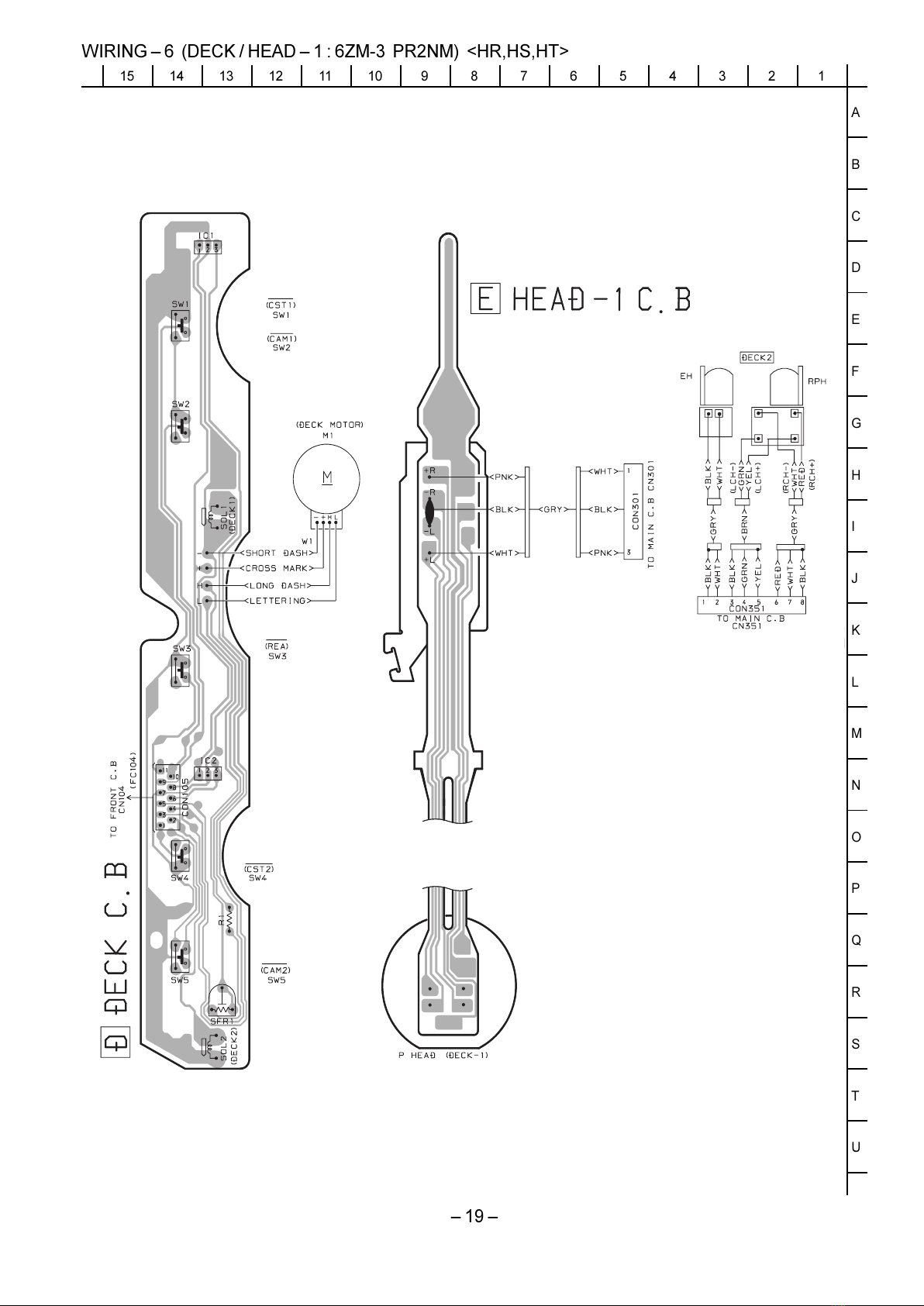

DECK C.B<LH>
CN1 87-099-753-010 CONN,11P 9604
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY, 27
SOL2 82-ZM1-618-410 SOL ASSY, 27
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
DECK C.B<HR,HS,HT>
CON105 87-099-753-010 CONN,11P H 9604
M1 87-045-347-010 MOT,SHU2L 70
SFR1 87-024-581-010 SFR,3.3K DIA6V K0A
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW5 87-A90-248-010 SW,MICRO ESE11SH2CXQ
HEAD-1 C.B<HR,HS,HT>
CON301 85-MA2-615-010 CONN,ASSY 3P-PB
All manuals and user guides at all-guides.com

– 8 –

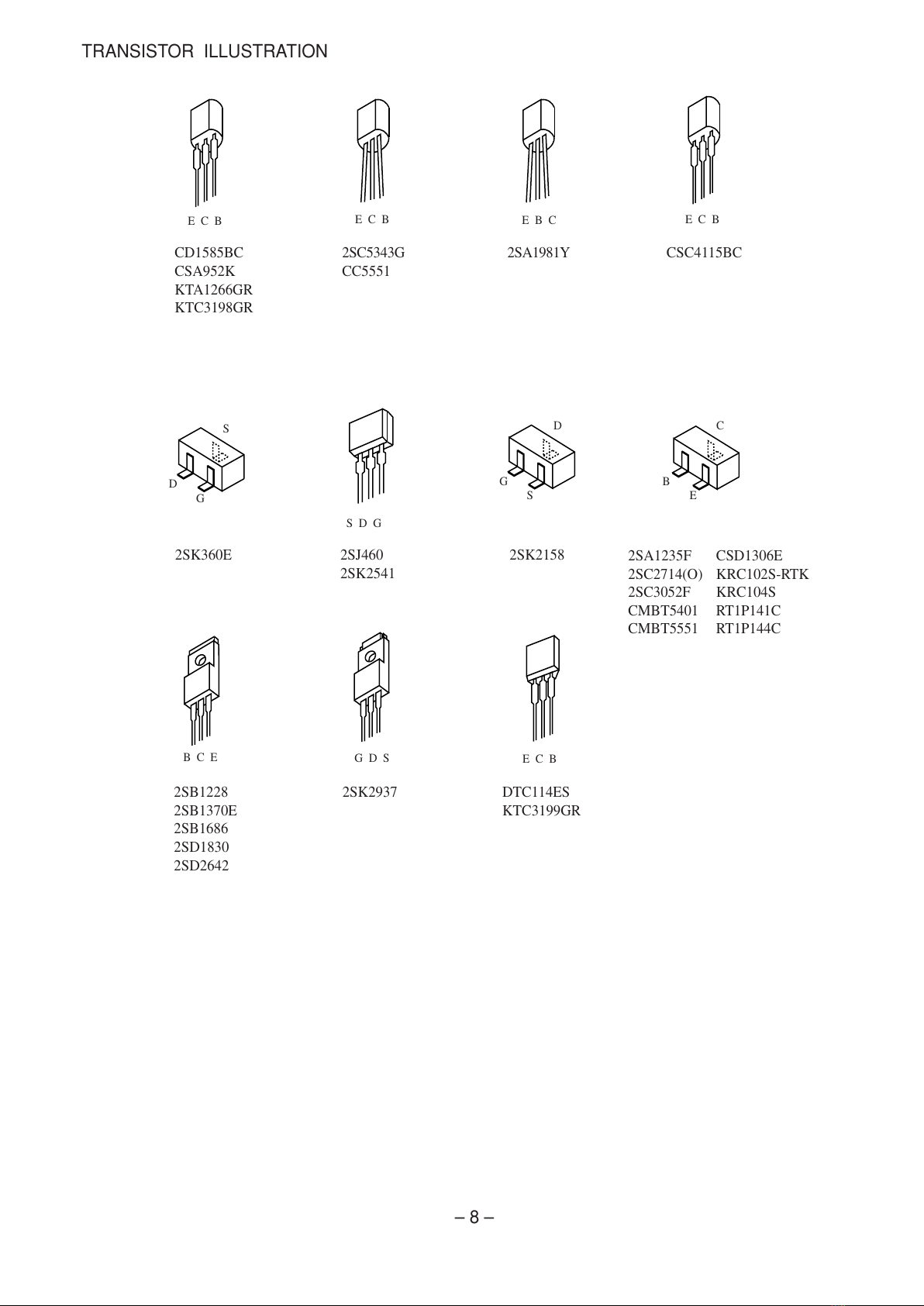

TRANSISTOR ILLUSTRATION
E C B
CD1585BC
CSA952K
KTA1266GR
KTC3198GR
E C B
2SC5343G
CC5551
2SB1228
2SB1370E
2SB1686
2SD1830
2SD2642
CSC4115BC
E C B
B C E
E
B
C
2SA1235F
2SC2714(O)
2SC3052F
CMBT5401
CMBT5551
S
G
D
2SK21582SJ460
2SK2541
S D G
CSD1306E
KRC102S-RTK
KRC104S
RT1P141C
RT1P144C
G
D
S
2SK360E
E B C
2SA1981Y
G D S
2SK2937 DTC114ES
KTC3199GR
E C B
All manuals and user guides at all-guides.com

WIRING  1 (MAIN) <LH, HS>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 9 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

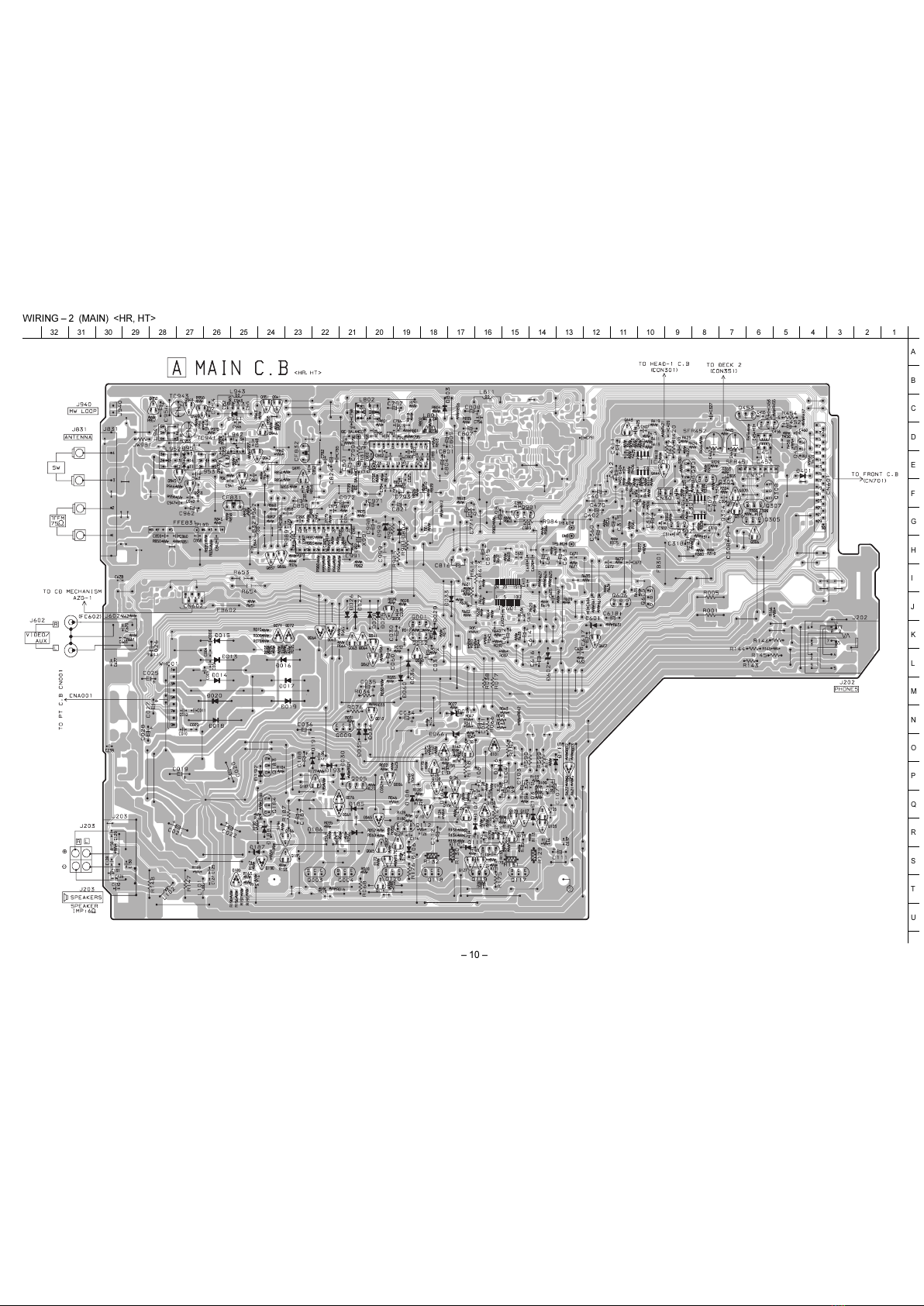

WIRING  2 (MAIN) <HR, HT>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 10 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com
