SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
XR-M120 HC
S/M Code No. 09-009-426-2S1
SUPPLEMENT
BASIC TAPE MECHANISM: 2ZM-1 R8NF
BASIC CD MECHANISM: 3ZG-3 E2NF
•This Service Manual is the “Supplement” and replace the “Simple Manual”
XR-M120(HC) (S/M Code No. 09-008-432-5T3).
•This Service Manual contains informations about the difference between
XR-M120(HC) and XR-M130(HR). If requring the other information, see
Service Manual of XR-M130(HR) (S/M Code No. 09-007-426-2R2).
REMOTE
CONTROLLER
RC-AAT11
SYSTEM
XR-M120

SPECIFICATIONS
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity(IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM Tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 uV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated: 8 W +8 W
(16 ohms, T.H.D. 1%,1 kHz)
Reference: 10 W + 10 W
(16 ohms, T.H.D. 10 %,1 kHz)
Total harmonic distortion 0.07 % (7.5 W, 1 kHz, 16 ohms,
DIN AUDIO)
Inputs VIDEO/AUX: 0.4 V
Outputs SUB WOOFER: 1.0 V
SPEAKERS: accept speakers of
16 ohms or more
PHONES (stereo minijack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response Normal tape: 50 Hz – 15000 Hz
Signal-to-noise ratio 50 dB
Recording system AC bias
Heads Recording/Playback head x 1
Erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 75 dB (1 kHz, 0 dB)
Harmonic distortion 0.1 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<Speaker system>
Cabinet type 2 way, bass reflex
Speaker Woofer:
120 mm (4 3/4in) cone type
Tweeter:
20 mm ( 13/16 in) ceramic type
Impedance 16 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 150 x 256 x 205 mm
(6x 10 1/8x 8 1/8in.)
Weight 2.0 kg (4 lbs 7 oz)
<General>
Power requirements AC: 120 V/ 220 V -240 V,
Switchable 50/60 Hz
Power consumption 38 W
Dimensions (W xH xD) 168 x 256 x 255 mm
(6 5/8x 10 1/8x 10 1/8in)
Weight of main unit 3.5 kg (7 lbs 11 oz.)
Standby power consumption If the power-economizing mode is
on: 1.0 W
If the power-economizing mode is
off: 10 W
• Design and specifications are subject to change without
notice.
– 2 –
ACCESSORIES / PACKAGE LIST
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
1 8A-CLK-917-010 IB,HC (CE)-FM
2 87-043-115-010 ANT,FEEDER FM
3 87-A90-030-010 ANT,LOOP AM-NC C
4 87-A91-015-010 PLUG,CONVERSION JT-0475A
5 8A-CLB-961-010 RC UNIT,RC-AAT11
!

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 3 –
ELECTRICAL MAIN PARTS LIST
IC
87-070-127-110 IC,LC72131D
87-A20-913-010 IC,LA1837NL
87-A20-446-010 C-IC,LA9241ML
87-A20-459-010 C-IC,LC78622ED
87-A20-157-010 IC,TA2092N
87-001-536-010 IC,NJM78M05FA
87-001-982-010 IC,TA7291S
8A-CL9-681-010 C-IC,M38B57MCH-P239FP
87-017-889-010 IC,NJM4558LD
87-A20-914-010 IC,SPS-442-1-F
87-A21-520-040 C-IC,M61509FP
87-020-454-010 IC,DN6851
TRANSISTOR
87-A30-072-080 RT1P144C
89-327-143-080 2SC2714
87-026-463-080 TR,2SA933SRS
87-026-297-080 C-TR,DTA144TK
87-026-239-080 C-TR,DTC114TK
89-109-521-080 TR,2SA952K
89-318-155-080 TR,2SC1815GR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
89-333-317-080 TR,2SC3331T
87-A30-196-080 TR,2SC4115SRS
89-113-187-880 TR,2SA1318(T/U)
87-A30-198-080 TR,KTC3199GR
87-A30-197-080 TR,KTA1267GR
87-026-219-080 TR,DTA144ES
87-A30-127-010 TR,2SD2478
87-A30-126-010 TR,2SB1616
89-406-555-080 TR,2SD655E
87-026-609-080 TR,KTA1266GR
87-026-245-080 TR,DTC114ES
89-112-965-080 TR,2SA1296GR
89-327-125-080 C-TR,2SC2712GR
87-A30-090-080 FET,2SK2541
89-111-624-080 C-TR,2SA1162Y
87-A30-076-080 C-TR,2SC3052F
87-026-235-080 C-TR,DTC114EK
87-A30-074-080 C-TR,RT1P 141C
87-A30-087-080 C-FET,2SK2158
87-026-502-080 TR,DTC144TS
87-A30-436-040 C-TR,DTC144TKA
87-A30-234-080 TR,CSC4115BC
89-505-434-540 C-FET,2SK543-TB(4/5)
87-A30-086-070 C-TR,CSD1306E
87-A30-515-080 TR,2SA1979O/Y
DIODE
87-A40-454-080 DIODE,1N5393 GW
87-020-465-080 DIODE,1SS133
87-A40-553-080 DIODE,1N4003 LES
87-A40-781-080 ZENER,UZ36BSA
87-A40-764-080 ZENER,UZ10BSC
87-001-731-080 ZENER,HZS6C2L
87-020-027-080 C-DIODE,1SS184
87-A40-739-080 ZENER,UZ2.7BSA
87-A40-270-080 C-DIODE,MC2838
MAIN C.B
C101 87-016-495-000 CAP,E 3300-25 M SMG
C102 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C104 87-A10-011-090 CAP,E 2200-25 SMG
C105 87-012-140-080 C-CAP,S 470P-50 J CH
C106 87-010-408-080 CAP,E 47-50 M 11L SME
C107 87-010-384-080 CAP,E 100-25 M 11L SME
C108 87-010-381-080 CAP,E 330-16 M SME
C109 87-010-260-080 CAP,E 47-25 M 11L SME
C110 87-010-260-080 CAP,E 47-25 M 11L SME
C111 87-010-247-080 CAP,E 100-50 M SME
C112 87-010-263-080 CAP,E 100-10 M 11L SME
C113 87-010-403-080 CAP,E 3.3-50 M 11L SME
C114 87-010-374-080 CAP,E 47-10 M 11L SME
C115 87-A11-007-080 CAP,M 0.047-50 J DE
C116 87-A11-007-080 CAP,M 0.047-50 J DE
C122 87-010-260-080 CAP,E 47-25 M 11L SME
C123 87-010-260-080 CAP,E 47-25 M 11L SME
C131 87-012-368-080 C-CAP,S 0.1-50 Z F
C132 87-012-368-080 C-CAP,S 0.1-50 Z F
C151 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C200 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C201 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C207 87-010-546-080 CAP,E 0.33-50 M 11L SME
C208 87-010-546-080 CAP,E 0.33-50 M 11L SME
C209 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C210 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C211 87-010-403-080 CAP,E 3.3-50 M 11L SME
C212 87-010-403-080 CAP,E 3.3-50 M 11L SME
C213 87-010-260-080 CAP,E 47-25 M 11L SME
C214 87-010-260-080 CAP,E 47-25 M 11L SME
C217 87-010-993-080 C-CAP,S 0.056-25 K B MK212
C218 87-010-993-080 C-CAP,S 0.056-25 K B MK212
C219 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C220 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C221 87-010-189-080 C-CAP,S 8200P-50 K B
C222 87-010-189-080 C-CAP,S 8200P-50 K B
C227 87-010-260-080 CAP,E 47-25 M 11L SME
C229 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C230 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C261 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C273 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C303 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C304 87-010-177-080 C-CAP,S 820P-50 J SL C2012
C307 87-010-263-080 CAP,E 100-10 M 11L SME
C308 87-010-263-080 CAP,E 100-10 M 11L SME
C311 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C312 87-010-195-080 C-CAP,S 0.068-25 Z F C2012
C313 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C314 87-010-184-080 C-CAP,S 3300P-50 K B C2012
C315 87-010-374-080 CAP,E 47-10 M 11L SME
C317 87-010-546-080 CAP,E 0.33-50 M 11L SME
C318 87-010-546-080 CAP,E 0.33-50 M 11L SME
C320 87-010-401-080 CAP,E 1-50 M 11L SME
C321 87-010-405-080 CAP,E 10-50 M 11L SME
C340 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C361 87-010-374-080 CAP,E 47-10 M 11L SME
C362 87-010-401-080 CAP,E 1-50 M 11L SME
C401 87-010-401-080 CAP,E 1-50 M 11L SME
C402 87-010-401-080 CAP,E 1-50 M 11L SME
C403 87-010-321-080 C-CAP,S 82P-50 J CH
C404 87-010-321-080 C-CAP,S 82P-50 J CH
C405 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C406 87-010-188-080 C-CAP,S 6800P-50 K B C2012
C407 87-010-426-080 C-CAP,S 0.012-25 K B
C408 87-010-426-080 C-CAP,S 0.012-25 K B
C451 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C452 87-010-382-080 CAP,E 22-25 M 11L SME
C453 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C454 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C455 87-010-183-080 C-CAP,S 2700P-50 K B GRM
C456 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C457 87-A10-772-080 CAP,M 5600P-50 J
C458 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C459 87-010-175-080 C-CAP,S 560P-50 J SL
C461 87-012-158-080 C-CAP,S 390P-50 J CH GRM

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 4 –
!
!
!
C462 87-012-158-080 C-CAP,S 390P-50 J CH GRM
C601 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C602 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C603 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C604 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C609 87-012-287-080 C-CAP,U 0.015-25 Z F
C610 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C611 87-010-545-080 CAP,E 0.22-50 M 11L SME
C612 87-010-545-080 CAP,E 0.22-50 M 11L SME
C613 87-010-545-080 CAP,E 0.22-50 M 11L SME
C614 87-010-545-080 CAP,E 0.22-50 M 11L SME
C615 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C616 87-010-408-080 CAP,E 47-50 M 11L SME
C617 87-010-408-080 CAP,E 47-50 M 11L SME
C619 87-010-401-080 CAP,E 1-50 M 11L SME
C620 87-010-401-080 CAP,E 1-50 M 11L SME
C627 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C628 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C631 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C635 87-015-785-080 C-CAP, 0.1-25 Z F C3216
C670 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C697 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C698 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C705 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C901 87-A10-207-080 CAP,TC U 0.01-50 K B UP050
CN202 87-099-719-010 CONN,30P H BLK TYK-B(X)
CON351 88-CL4-701-010 CONN ASSY,7P RPEH
CN351 87-A60-624-010 CONN,7P V 2MM JMT
CN702 87-099-570-010 CONN,13P V
FB101 87-A90-896-080 F-BEAD, 035600STY7
FB102 87-A90-896-080 F-BEAD, 035600STY7
J231 87-A60-420-010 JACK,3.5 ST (MSC)
J241 87-A60-217-010 TERMINAL,SPKR 4P
J601 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J603 87-099-801-010 JACK,PIN 1P BLK W/O SW
JW50 87-A90-896-080 F-BEAD, 035600STY7
JW69 87-A90-896-080 F-BEAD, 035600STY7
JW568 87-A90-896-080 F-BEAD, 035600STY7
JW569 87-A90-896-080 F-BEAD, 035600STY7
L201 87-005-366-010 COIL,1UH K
L202 87-005-366-010 COIL,1UH K
L451 87-007-342-010 COIL,OSC 85KHZ BIAS
PN101 87-A90-510-010 HLDR,WIRE 2.5-9P
PR201 87-A90-473-080 PROTECTOR,3.5A 491SERIES 60V
PR202 87-A90-473-080 PROTECTOR,3.5A 491SERIES 60V
R223 87-A00-258-080 RES,M/F 0.22-1W J
R224 87-A00-258-080 RES,M/F 0.22-1W J
R249 87-A00-258-080 RES,M/F 0.22-1W J
R250 87-A00-258-080 RES,M/F 0.22-1W J
WH101 8A-CL9-671-010 F-CABLE,9P 2.5
FRONT C.B
C300 87-012-153-080 C-CAP,S 120P-50 J CH GRM
C301 87-012-145-080 C-CAP,S 270P-50 J CH GRM
C302 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C304 87-010-405-040 CAP,E 10-50 M 11L SME
C305 87-A10-797-040 CAP,E 47-35 M 5L SRM
C307 87-010-421-040 CAP,E 4.7-50 M 5L SRE
C308 87-010-421-040 CAP,E 4.7-50 M 5L SRE
C309 87-010-787-080 C-CAP,U 0.022-25 K B
C313 87-010-112-040 CAP,E 100-16 M 11L SME
C314 87-A10-189-040 CAP,E 220-10 M 5L
C315 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C316 87-012-286-080 C-CAP,U 0.01-25 K B
C317 87-010-787-080 C-CAP,U 0.022-25 K B
C318 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C319 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C320 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C321 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C322 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C323 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C324 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C325 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C326 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C327 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C328 87-010-320-080 C-CAP,S 68P-50 J CH GRM
C329 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C330 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C331 87-010-312-080 C-CAP,S 15P-50 J CH GRM
C333 87-015-695-040 CAP,E 1-50 7L SRA
C335 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C338 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C339 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C340 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C341 87-010-263-040 CAP,E 100-10 M 11L SME
C352 87-010-194-080 C-CAP,S 0.047-25 Z F
C395 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C397 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C399 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C400 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C420 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C421 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C422 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C423 87-010-403-040 CAP,E 3.3-50 M 11L SME
CN004 87-099-032-010 CONN,15P H BLK 6216
CN301 87-099-720-010 CONN,30P BLK TYK-B(P)
CN302 87-CL4-704-010 CONN ASSY,9P DECK
FL301 8A-CL9-682-010 FL,11-BT-179GNK
JW405 87-A90-896-080 F-BEAD, 035600STY7
JW472 87-A90-896-080 F-BEAD, 035600STY7
LED301 87-A40-229-040 LED,SLR-342VR TB7 RED
LED302 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED303 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED304 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED305 87-A40-619-040 LED,SLR-56PT-T31-W GRN
PR301 87-026-689-080 PROTECTOR,1A 491SERIES 60V
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M
S310 87-A90-095-080 SW,TACT EVQ11G04M
S311 87-A90-095-080 SW,TACT EVQ11G04M
S312 87-A90-095-080 SW,TACT EVQ11G04M
S313 87-A90-095-080 SW,TACT EVQ11G04M
S314 87-A90-095-080 SW,TACT EVQ11G04M
S315 87-A90-095-080 SW,TACT EVQ11G04M
S316 87-A90-095-080 SW,TACT EVQ11G04M
S317 87-A90-095-080 SW,TACT EVQ11G04M
S318 87-A90-095-080 SW,TACT EVQ11G04M
S320 87-A90-095-080 SW,TACT EVQ11G04M
S351 87-A91-690-010 SW,RTRY JOG RE0121PVB25FINB
X301 87-030-375-080 VIB,CER 4.194MHZ CSA MG200
CD C.B
C001 87-010-403-080 CAP,E 3.3-50 M 11L SME
C002 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C003 87-010-263-080 CAP,E 100-10 M 11L SME
C004 87-010-248-080 CAP,E 220-10 M 11L SME
C005 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C006 87-010-374-080 CAP,E 47-10 M 11L SME
C007 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C008 87-010-198-080 C-CAP,S 0.022-25 K B C2012
C009 87-010-263-080 CAP,E 100-10 M 11L SME

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 5 –
!
!
!
!
!
!
!
!
!
!
!
C010 87-010-263-080 CAP,E 100-10 M 11L SME
C012 87-010-401-080 CAP,E 1-50 M 11L SME
C013 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C014 87-010-405-080 CAP,E 10-50 M 11L SME
C016 87-010-545-080 CAP,E 0.22-50 M 11L SME
C017 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C018 87-010-213-080 C-CAP,S 0.015-25 K B GRM
C020 87-010-193-080 C-CAP,S 0.033-25 Z F C2012
C021 87-A10-306-080 CAP,M 0.082-50 J
C023 87-010-992-080 C-CAP,S 0.047-25 K B MK212
C029 87-010-186-080 C-CAP,S 4700P-50 K B C2012
C030 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C031 87-010-545-080 CAP,E 0.22-50 M 11L SME
C032 87-010-374-080 CAP,E 47-10 M 11L SME
C033 87-010-401-080 CAP,E 1-50 M 11L SME
C034 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C035 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C036 87-010-374-080 CAP,E 47-10 M 11L SME
C037 87-010-405-080 CAP,E 10-50 M 11L SME
C038 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C039 87-012-349-080 C-CAP,S 1000P-50 J CH GRM
C040 87-010-148-080 C-CAP,S 4P-50 C CH GRM
C041 87-A10-294-080 CAP,M 8200P-50 J
C042 87-010-313-080 C-CAP,S 18P-50 J CH GRM
C045 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C046 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C047 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C048 87-010-315-080 C-CAP,S 27P-50 J CH GRM
C050 87-012-140-080 C-CAP,S 470P-50 J CH
C051 87-010-994-080 C-CAP,S 680P-50 J CH
C057 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C058 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C059 87-010-263-080 CAP,E 100-10 M 11L SME
C060 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C061 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C062 87-010-370-080 CAP,E 330-6.3 M SME
C065 87-010-404-080 CAP,E 4.7-50 M 11L SME
C066 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C067 87-010-263-080 CAP,E 100-10 M 11L SME
C075 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C076 87-A10-102-080 CAP,E 1000-10 REA
C077 87-010-263-080 CAP,E 100-10 M 11L SME
C078 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C079 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C080 87-010-112-080 CAP,E 100-16 M 11L SME
C081 87-010-405-080 CAP,E 10-50 M 11L SME
C082 87-010-405-080 CAP,E 10-50 M 11L SME
C083 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C084 87-010-181-080 C-CAP,S 1800P-50 K B GRM
C090 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C091 87-010-404-080 CAP,E 4.7-50 M 11L SME
C092 87-010-387-080 CAP,E 470-25 M SME
C093 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C094 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C095 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C096 87-010-221-080 CAP,E 470-10 M SME
C097 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C098 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C104 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C105 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C110 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C162 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C902 87-018-119-080 CAP,TC U 100P-50 K B UP050
C903 87-018-119-080 CAP,TC U 100P-50 K B UP050
CN001 87-A60-424-010 CONN,16P V TOC-B
CN003 87-A60-131-010 CONN,6P V FE
CN004 87-099-032-010 CONN,15P H BLK 6216
CN006 87-A60-153-010 CONN,5P H FE
FFC001 88-CL4-704-010 FF-CABLE, 16P 1.0
FFC003 88-906-131-110 FF-CABLE,6P 1.25
FFC004 88-915-231-110 FF-CABLE, 15P 1.25 230MM
FFC006 88-905-231-110 FF-CABLE, 5P 1.25 230MM
JR161 83-XM1-617-080 C-COIL,BK2125HM601
L001 87-003-102-080 COIL,10UH J LAL02
R070 87-029-124-090 RES,FUSE 2.2-1/4W J
R073 87-029-361-090 RES,FUSE 3.3-1/2W J
X001 87-A70-046-010 VIB,XTAL 16.934MHZ
PT C.B
C101 87-010-387-080 CAP,E 470-25 M SME
CN101 87-A61-110-010 CONN,9P V TID-A
F101 87-035-454-010 FUSE,1.6A 250V T 218
FC101 87-033-213-080 FUSE CLAMP,PFC5000
FC102 87-033-213-080 FUSE CLAMP,PFC5000
PR101 87-026-681-080 PROTECTOR,5A 491SERIES 60V
PR102 87-026-681-080 PROTECTOR,5A 491SERIES 60V
PT101 8A-CL9-644-010 PT,LH
PT102 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI
RY102 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5
SW101 87-A90-234-010 SW,SL 1-2-2 SWS2201
T101 87-A60-317-010 TERMINAL, 1P MSC
T102 87-A60-317-010 TERMINAL, 1P MSC
TUNER C.B
C701 87-010-381-080 CAP, ELECT 330-16V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C703 87-012-286-080 CAP, U 0.01-25
C704 87-012-286-080 CAP, U 0.01-25
C705 87-A10-592-080 C-CAP,S 0.015-50 J B
C706 87-A10-592-080 C-CAP,S 0.015-50 J B
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-260-080 CAP, ELECT 47-25V
C712 87-010-831-080 C-CAP,U,0.1-16F
C714 87-012-286-080 CAP, U 0.01-25
C717 87-012-286-080 CAP, U 0.01-25
C719 87-012-286-080 CAP, U 0.01-25
C720 87-012-195-080 C-CAP,U 100P-50CH
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C723 87-012-274-080 CHIP CAP,U 1000P-50B
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C729 87-012-274-080 CHIP CAP,U 1000P-50B
C731 87-012-286-080 CAP, U 0.01-25
C733 87-010-987-080 C-CAP,S 1500P-50 CH
C734 87-010-987-080 C-CAP,S 1500P-50 CH
C735 87-010-987-080 C-CAP,S 1500P-50 CH
C736 87-010-987-080 C-CAP,S 1500P-50 CH
C737 87-A10-592-080 C-CAP,S 0.015-50 J B
C738 87-A10-592-080 C-CAP,S 0.015-50 J B
C751 87-010-220-080 C-CAP,S 0.018-25 KB
C752 87-010-220-080 C-CAP,S 0.018-25 KB
C756 87-012-286-080 CAP, U 0.01-25
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C765 87-012-286-080 CAP, U 0.01-25
C768 87-012-286-080 CAP, U 0.01-25
C769 87-010-260-080 CAP, ELECT 47-25V
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25V
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C776 87-012-286-080 CAP, U 0.01-25

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 6 –
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C780 87-010-196-080 CHIP CAPACITOR,0.1-25
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-010-401-080 CAP, ELECT 1-50V
C786 87-010-401-080 CAP, ELECT 1-50V
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 CAP, S 0.047-16
C796 87-010-403-080 CAP, ELECT 3.3-50V
C799 87-010-829-080 CAP, U 0.047-16
C812 87-012-286-080 CAP, U 0.01-25
C820 87-010-260-080 CAP, ELECT 47-25V
C821 87-012-286-080 CAP, U 0.01-25
C822 87-012-286-080 CAP, U 0.01-25
C823 87-012-286-080 CAP, U 0.01-25
C828 87-010-196-080 CHIP CAPACITOR,0.1-25
C829 87-010-196-080 CHIP CAPACITOR,0.1-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-174-080 C-CAP,U 12P-50 CH
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN701 87-A60-700-010 CONN,13P H GRY TUC-P13X-C1
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-702-010 TERMINAL,ANT 4P CJ-9036
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A91-110-010 FLTR,PCFJZH-450 (TOK)
L981 8Z-ZA1-664-010 COIL,AM PACK 4(TOM)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309PT C.B
RELAY C.B
CN301 88-CL4-701-010 CONN ASSY,7P RPEH
DECK C.B
CON1 87-009-352-010 CONN,9P PH H
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
SOL2 82-ZM1-618-410 SOL ASSY,27
SW2 87-036-110-010 SW,MICRO SPPB62
SW3 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM1-625-010 RBN-CORD,4P-5S
CD LOAD C.B
CON6 87-099-210-010 CONN,5P 6216H
FC6 88-905-231-110 FF-CABLE,5P 1.25 23
M1 87-045-305-010 MOTOR,RF-500TB DC-5V(2MA)
SW1 87-036-110-010 PUSH SWITCH
SW2 87-036-110-010 PUSH SWITCH
CD DRIVE C.B
CON3 87-A60-086-010 CONN,6P H 6216
FC3 88-906-261-110 FF-CABLE,6P 1.25 26
M20 87-045-358-010 MOT,RF-310TA 43
M21 87-045-356-010 MOT,RF-310TA 30
SW1 87-A90-042-010 SW,LEAF MSW-17310MVP0
TRANSISTOR ILLUSTRATION
B
C
E
DTC114TKA 2SA1979
E C B

WIRING - 1 (MAIN)
–7 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

SCHEMATIC DIAGRAM - 1 (MAIN / RELAY)
 8 

WIRING - 2 (TUNER)
– 9 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 10 
SCHEMATIC DIAGRAM - 2 (TUNER)

WIRING - 3 (FRONT / RELAY / DECK)
–11 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

SCHEMATIC DIAGRAM - 3 (FRONT / DECK)
 12 

WIRING - 4 (CD / CD LOAD / CD DRIVE)
–13 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

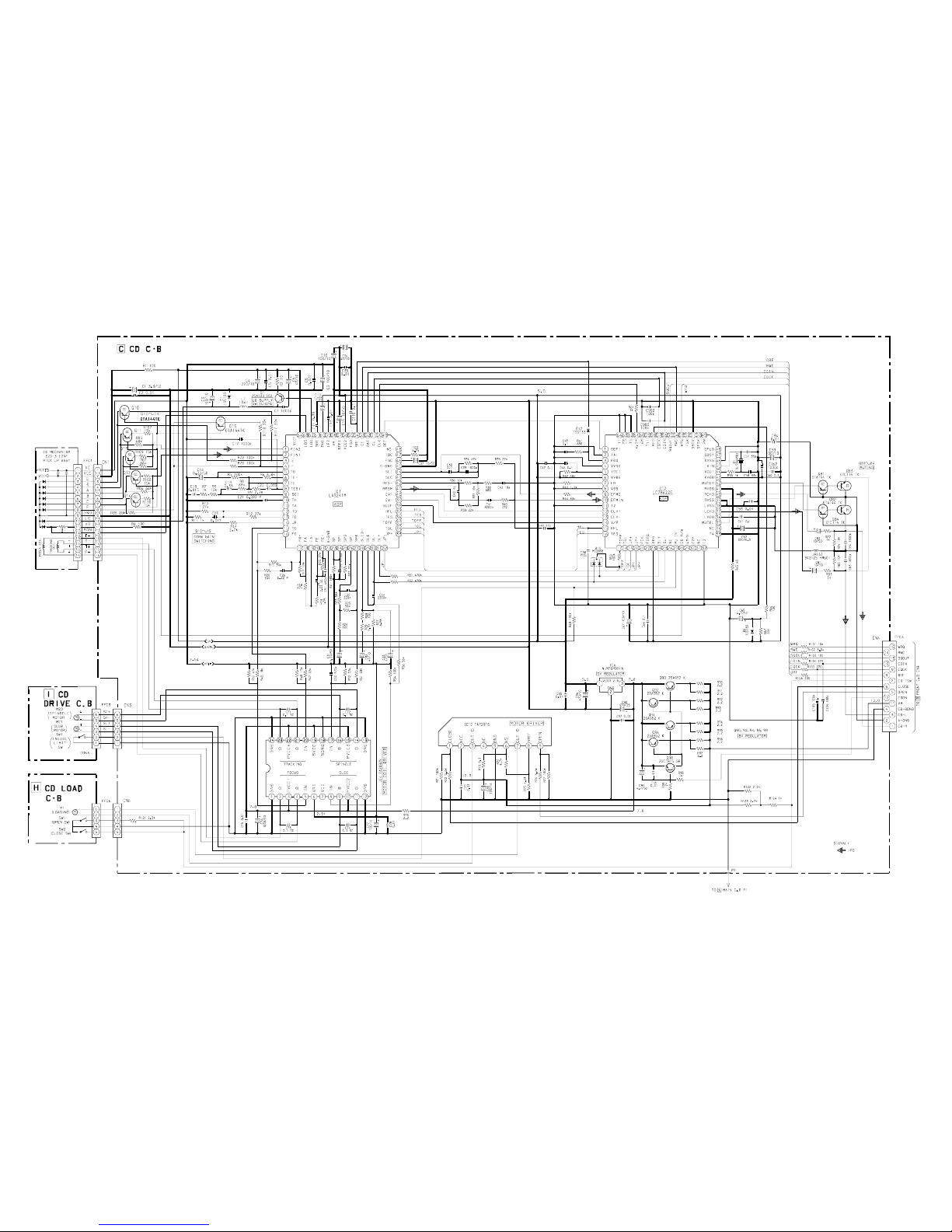

SCHEMATIC DIAGRAM - 4 (CD / CD LOAD / CD DRIVE )
 14 

WIRING - 5 (PT)
– 15 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

SCHEMATIC DIAGRAM - 5 (PT)
 16 

MECHANICAL EXPLODED VIEW 1 / 1
– 17 –

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
MECHANICAL PARTS LIST 1 / 1
– 18 –
!
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
1 82-ZM1-264-010 LVR,EJECT R
2 88-CL4-215-010 CUSH,FOOT FR
3 8A-CLK-046-010 BOX,CASS U
4 8A-CLK-054-010 WINDOW,CASS SB
5 8A-CL9-080-010 KNOB,RTRY VOLUME
6 8A-CLK-053-010 WINDOW,DISP SB
7 8A-CL9-077-010 RING,VOLUME
8 8A-CL9-088-110 LENS,REMOTE-C
9 8A-CLK-030-010 PANEL,TRAY SB
10 8A-CL9-062-010 KEY,POWER
11 8A-CLK-001-210 CABI,FR SI-MS S
12 8A-CL9-063-010 KEY,FUNC ASSY
13 8A-CL9-206-010 GUIDE,LED-FUNC
14 8A-CL9-085-010 REFLECTOR,LED-FUNC
15 8A-CL9-066-010 KEY,CONTROL
16 8A-CL9-065-010 KEY,OPEN
17 8A-CL9-067-010 KEY,Q-SOUND
18 8A-CL9-068-010 KEY,JOGMODE
19 8A-CL9-069-010 KEY,DEMO
20 82-NF5-229-010 PLATE,LOCK
21 86-NF9-224-010 SPR-C,LOCK
22 87-NF4-217-110 HLDR,LOCK 2
23 87-NF8-220-010 DMPR,150
24 88-CL4-220-010 SPR-T,CASS
25 8A-MA6-203-010 PLATE,FL
26 82-NF7-210-110 GUIDE,FL(*)
27 8A-CL9-203-010 HLDR,CD U
28 87-A80-083-010 AC CORD,HC BLK
29 8A-CL9-026-010 CABI,TOP
30 8A-CLK-017-010 PANEL,REAR HCSC1C
31 8A-CL9-211-110 HLDR,TRANS
32 88-CL4-216-010 CUSH,FOOT REAR
A 87-067-703-010 TAPPING SCREW, BVT2+3-10
B 87-571-032-410 VIT+2-3
C 87-581-170-410 UIT+4-8
D 87-B10-231-010 QT1+3-12 SILVER CR
E 87-B10-230-010 BVT2+3-10 W/O SLOT SILVER CR
F 87-B10-250-010 BVT2+3-12 W/O SLOT CR SILVER

TAPE MECHANISM EXPLODED VIEW 1 / 1
– 19 –
a
a
13
14
12
15
10
9
8
16
17
7
18
6
5
19
4
22
23
21
25
20 20
26
27
3
2
P.C.B
HLDR WIRE 3
C
C
B
24
1
11
A
A
ab
a
b
29
48
47
46
30
31
32
33
34
45
35
35
44
36
43
HLDR,MOTOR
42
HLDR,IC
SH
P.C.B
40
39
38 41
c
c
G
D
D
E
E
28
H
F

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
TAPE MECHANISM PARTS LIST 1 / 1
– 20 –
1 82-ZM1-327-310 CHAS ASSY,RM
2 82-ZM1-258-210 SPR-T,PINCH L
3 82-ZM1-341-210 LVR ASSY,PINCH L2
4 82-ZM1-266-310 LVR,DIR
5 82-ZM1-214-010 SPR-T,DIR
6 82-ZM1-333-210 PLATE,LINK2
7 82-ZM1-269-210 SPR-T,BRG
8 82-ZM1-219-110 SPR-T,LINK
9 82-ZM1-210-110 GEAR,H T
10 82-ZM3-353-010 SPR-T,HEAD 2
11 82-ZM1-298-010 SPR-P EARTH
12 82-ZM1-314-110 PLATE,HEAD
13 87-046-399-110 HEAD,RPH YK56R-BS411
14 82-ZM1-208-310 HLDR,HEAD
15 82-ZM1-207-910 GUIDE,TAPE
16 82-ZM1-218-010 SPR-E,HB
17 82-ZM1-206-910 CHAS,HEAD
18 82-ZM1-222-310 LVR,PLAY(*)
19 82-ZM1-217-410 REEL TABLE
20 82-ZM1-240-110 LVR,REC(*)
21 82-ZM1-257-010 SPR-T,CAS
22 82-ZM1-285-410 SPR-C,BT L
23 82-ZM1-244-510 SPR-C,BT
24 82-ZM1-242-010 LVR,CAS
25 82-ZM1-243-010 LVR,STOP
26 82-ZM1-344-210 LVR ASSY,PINCH R2
27 82-ZM1-259-210 SPR-T,PINCH R
28 82-ZM3-627-010 SOL ASSY,27 SO
29 82-ZM1-255-310 SPR-E,LVR DIR
30 82-ZM1-221-310 GEAR,CAM(*)
31 82-ZM1-224-410 LVR,FR
32 82-ZM1-227-310 LVR,TRIG
33 82-ZM1-305-210 SPR-E,TRIG 2
34 82-ZM1-225-210 GEAR,FR
35 82-ZM1-216-510 GEAR,REEL
36 82-ZM1-226-010 GEAR,REW
37 82-ZM1-338-110 BELT,FR 4
38 82-ZM1-234-310 FLY-WHL L ASSY
39 82-ZM1-237-610 FLY-WHL ASSY RW
40 82-ZM1-354-010 BELT,SBU MAIN2 EPDM
41 87-009-352-010 CONN,9P PH H
42 87-045-347-010 MOT,SHU2L 70
43 82-ZM1-247-210 PULLEY,MOTOR
44 82-ZM1-223-010 GEAR,PLAY
45 82-ZM3-333-310 SLIP DISK ASSY 2
46 82-ZM3-616-010 RING MAGNET 4
47 82-ZM1-220-210 GEAR,IDLER
48 82-ZM1-322-010 SPR-T,FR 60
A 82-ZM1-283-310 S-SCREW,AZIMUTH
B 82-ZM1-315-010 S-SCREW GUIDE TAPE
C 80-ZM6-207-010 V+1.6-7
D 87-741-073-410 UT2+2.6-6 GLD
E 87-251-070-410 U+2.6-3
F 82-ZM3-334-010 PW 2.16-6-0.4
G 87-B10-008-010 W-P,2.08-8-0.4-SLIP
H 80-ZM6-243-010 SH 1.75-3.6-0.5 SLT
