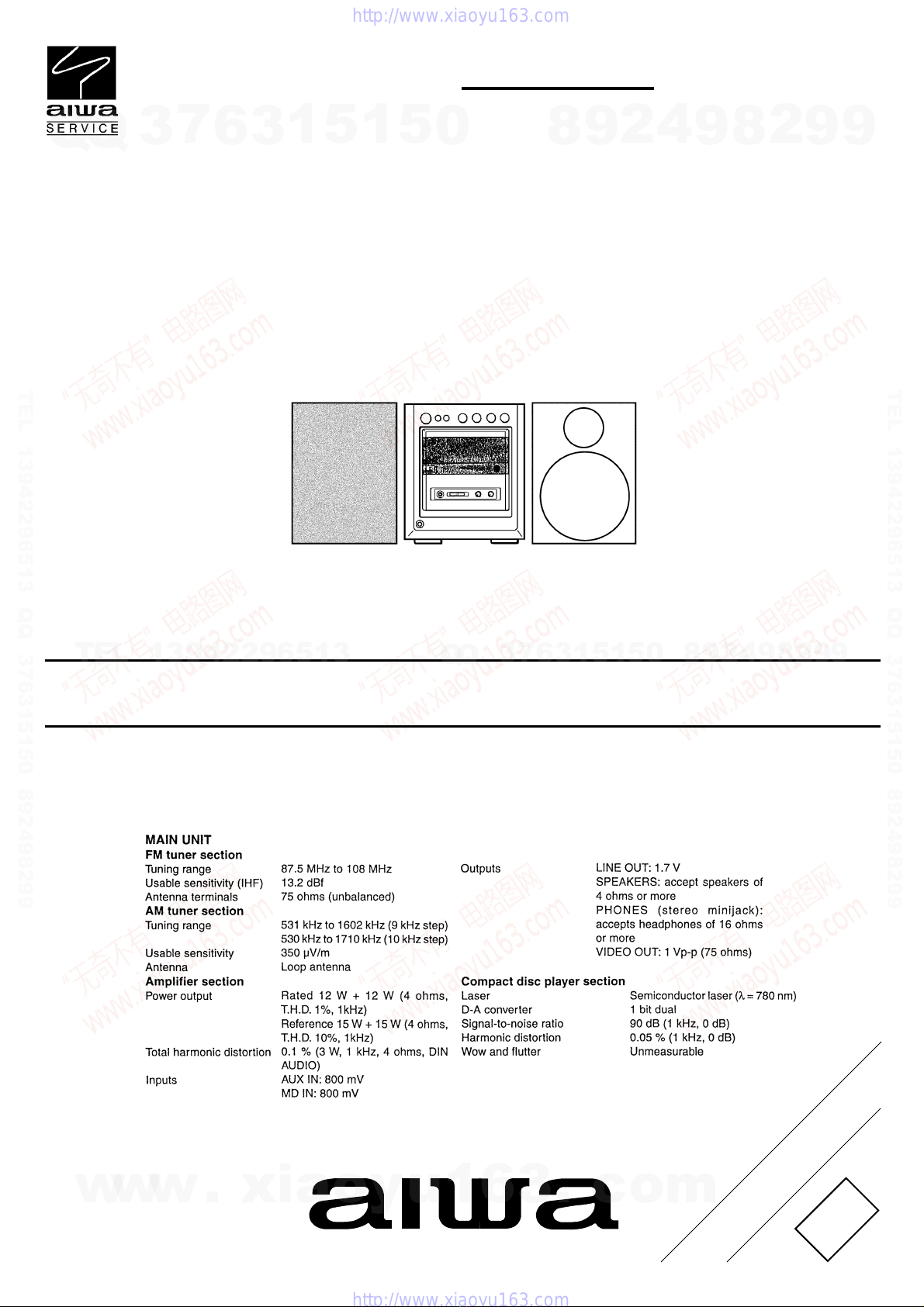

Aiwa XR-MK7 User manual
SERVICE MANUAL
DATA
BASIC CD MECHANISM : DA11T3C
COMPACT DISC STEREO
SYSTEM
XR-MK7
S/M Code No. 09-001-337-9R1
HR HC
REVISION
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-99B-337-9T1).
SPECIFICATIONS
•
Design and specifications are subject to change without
notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2
TABLE OF CONTENTS

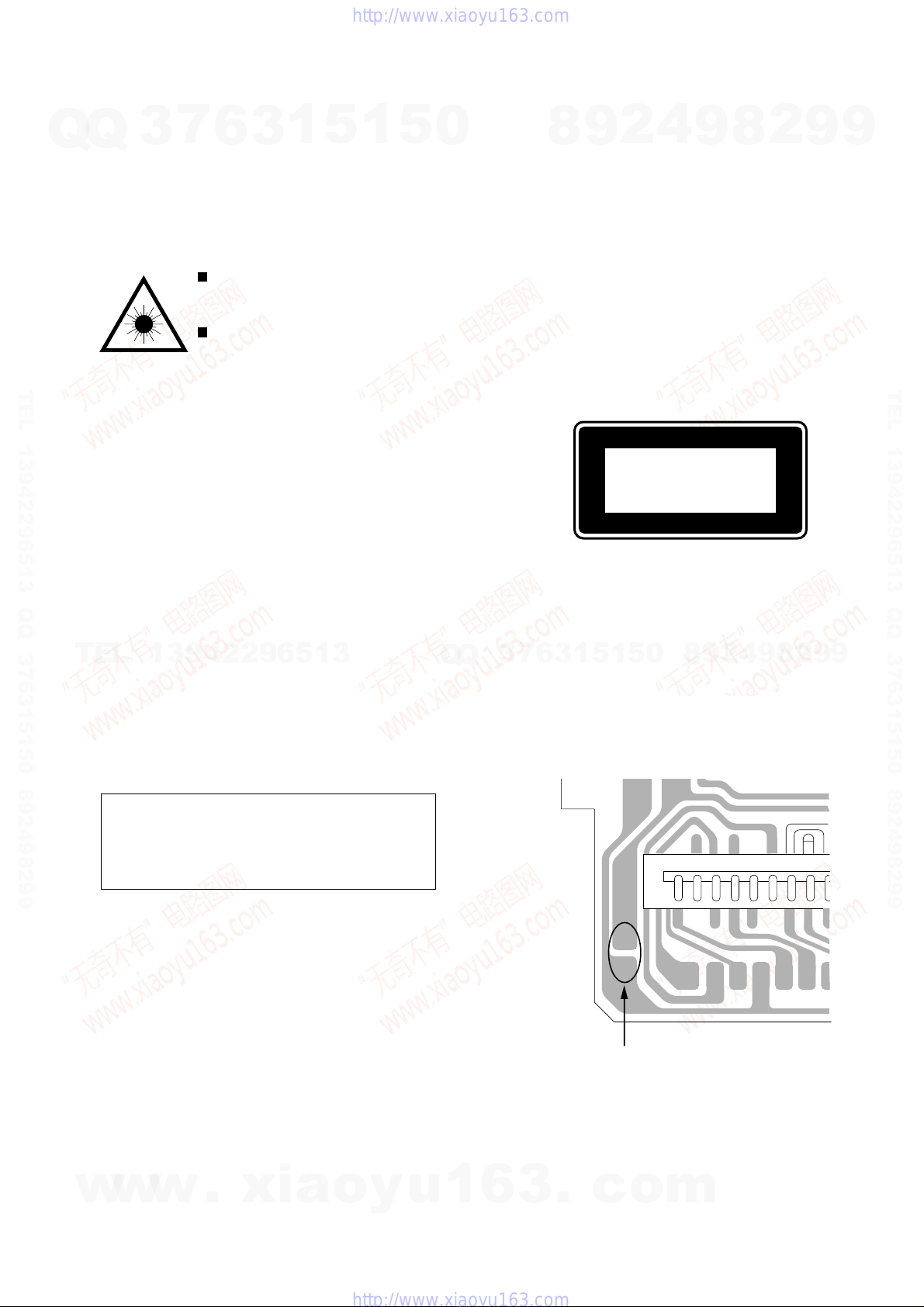

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING/
Precaution to replace Optical block......................................................................................................... 3
ELECTRICAL MAIN PARTS LIST ....................................................................................................... 4-8
TRANSISTOR ILLUSTRATION .............................................................................................................. 8
BLOCK DIAGRAM-1 (CD/CONTROL).............................................................................................. 9, 10
BLOCK DIAGRAM-2 (POWER/AMP) ............................................................................................. 11, 12
BLOCK DIAGRAM-3 (VIDEO/DISPLAY) ........................................................................................ 13, 14

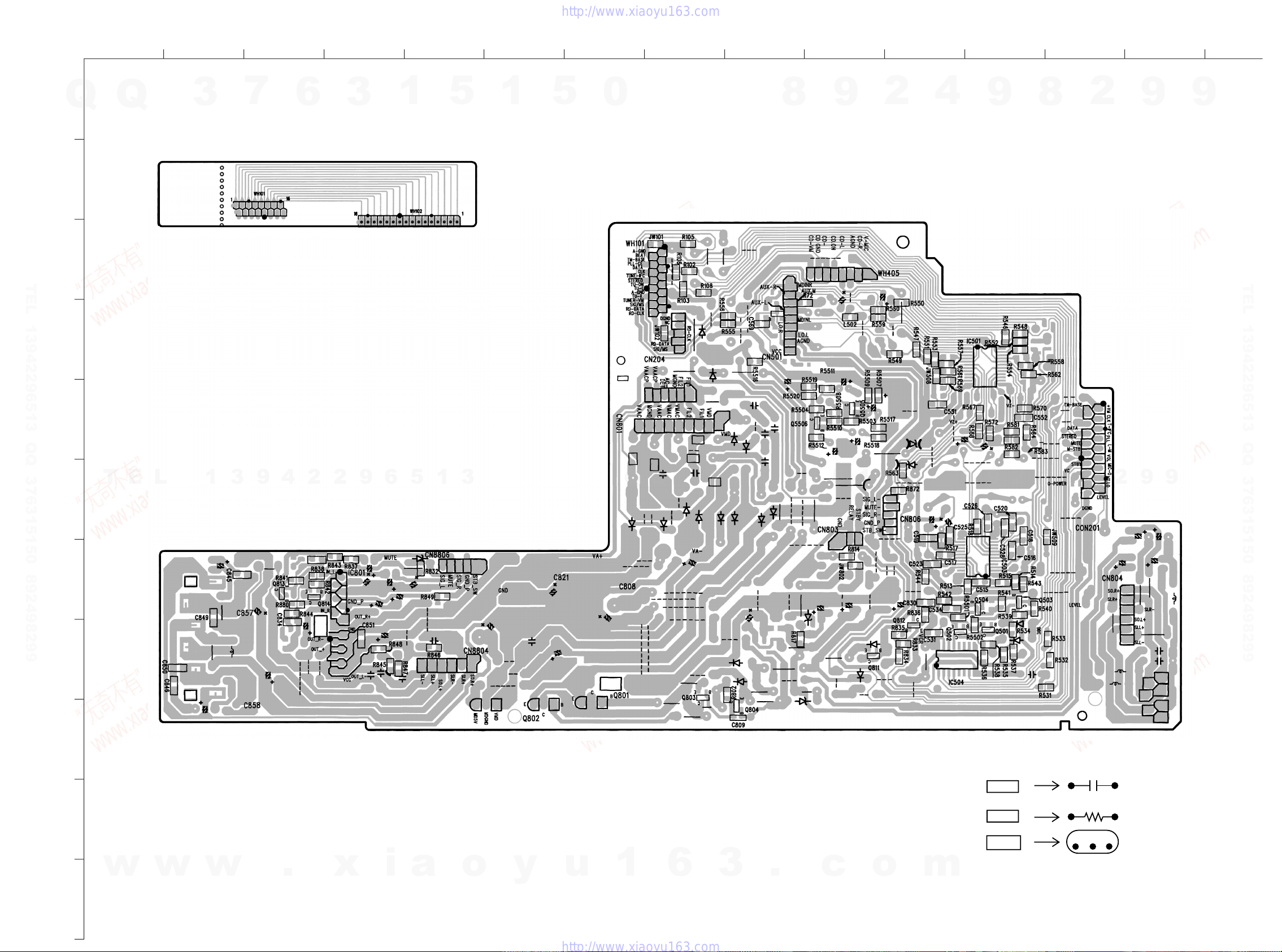

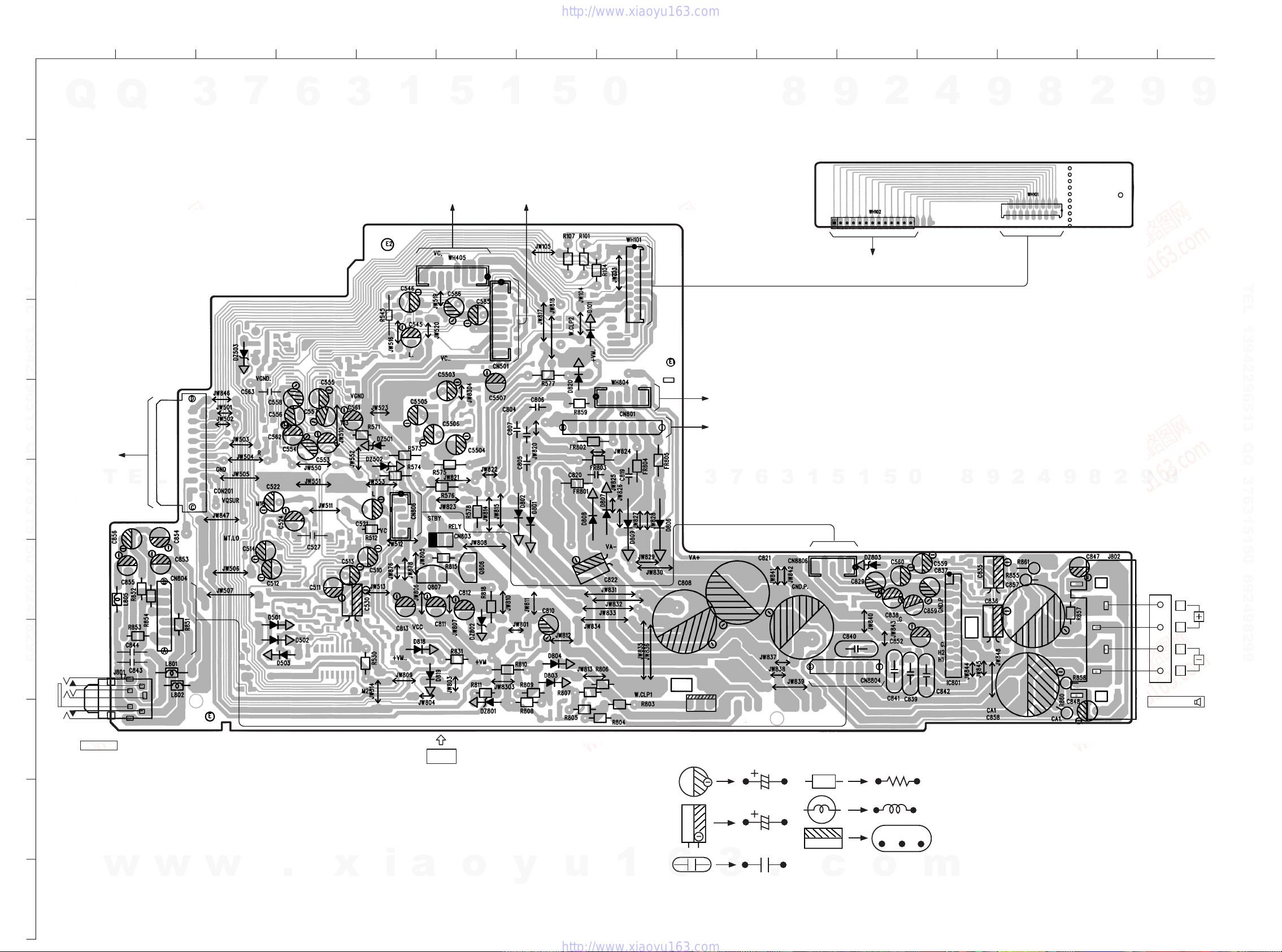

WIRING-1 (MAIN: COMPONENT SIDE) ........................................................................................ 15, 16
WIRING-2 (MAIN: CONDUCTOR SIDE) ........................................................................................ 17, 18

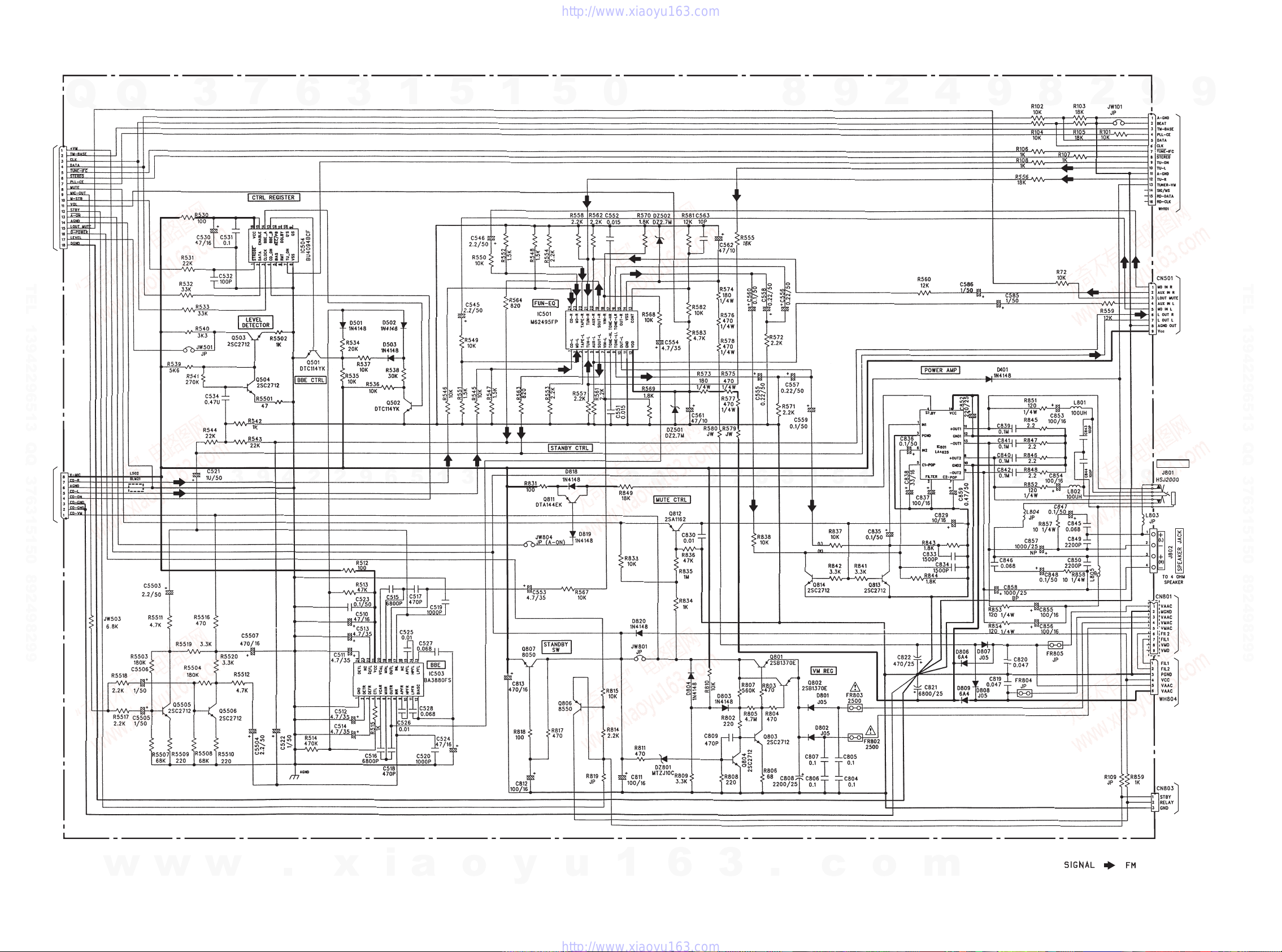

SCHEMATIC DIAGRAM-1 (MAIN).................................................................................................. 19, 20
SCHEMATIC DIAGRAM-2 (VCD 1/3) ............................................................................................. 21, 22
SCHEMATIC DIAGRAM-3 (VCD 2/3) ............................................................................................. 23, 24
SCHEMATIC DIAGRAM-4 (VCD 3/3) ............................................................................................. 25, 26

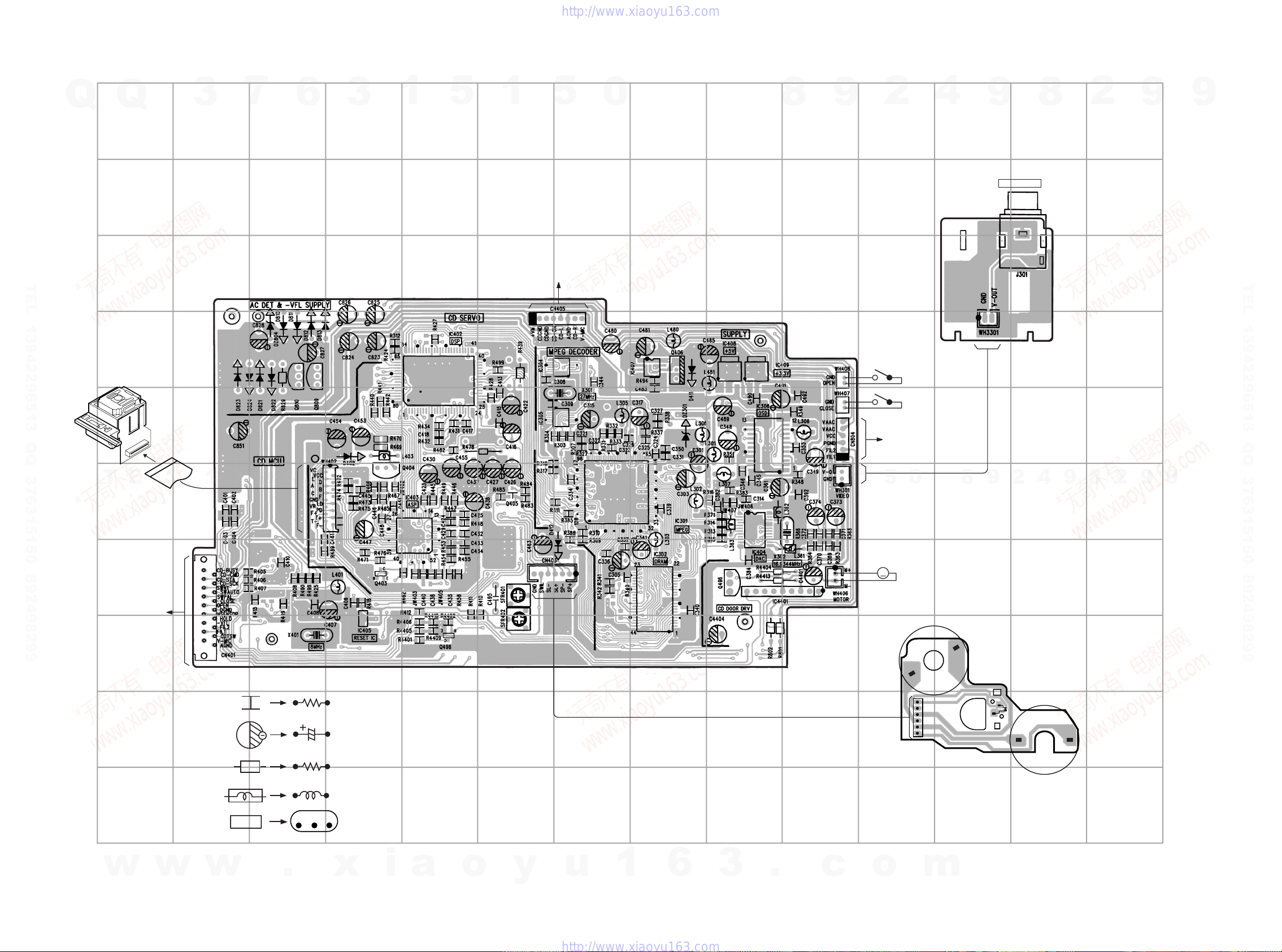

WIRING-3 (VCD: COMPONENT SIDE).......................................................................................... 27, 28
WIRING-4 (VCD: CONDUCTOR SIDE).......................................................................................... 29, 30
WIRING-5 (TUNER)........................................................................................................................ 31, 32
SCHEMATIC DIAGRAM-5 (TUNER) .............................................................................................. 33, 34
WIRING-6 (DISPLAY: COMPONENT SIDE) .................................................................................. 35, 36
WIRING-7 (DISPLAY: CONDUCTOR SIDE) .................................................................................. 37, 38
SCHEMATIC DIAGRAM-6 (DISPLAY) ........................................................................................... 39, 40
WIRING-8 (PT)................................................................................................................................ 41, 42
SCHEMATIC DIAGRAM-7 (PT) ...................................................................................................... 43, 44
VOLTAGE CHART........................................................................................................................... 45-50
FL GRID ASSIGNMENT/ANODE CONNECTION .......................................................................... 51, 52
ELECTRICAL ADJUSTMENT/PRACTICAL SERVICE FIGURE .................................................... 53, 54
IC DESCRIPTION............................................................................................................................ 55-68
IC BLOCK DIAGRAM....................................................................................................................... 69-74
MECHANICAL EXPLODED VIEW 1/1............................................................................................ 75, 76
MECHANICAL PARTS LIST 1/1 ........................................................................................................... 77
CD MECHANISM EXPLODED VIEW 1/1 ............................................................................................. 78
CD MECHANISM PARTS LIST 1/1 ...................................................................................................... 78
SPEAKER DISASSEMBLY INSTRUCTIONS....................................................................................... 79
SPEAKER PARTS LIST 1/1.................................................................................................................. 80
ACCESSORIES/PACKAGE LIST ......................................................................................................... 81
