Aiwa XR-M800 User manual
SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM BASIC TAPE MECHANISM : AZM-1 A2NM
BASIC CD MECHANISM : DA23LN
XR-M800
XR-M801
K
EZ
S/M Code No. 09-00B-437-1S1
SUPPLEMENT
•This Service Manual contains the additional information “DISASSEMBLY
INSTRUCTIONS” and “TEST MODE” for the model XR-M800/M801 (K,EZ).
If requiring the other information, see Service Manual of
XR-M800/801 (K,EZ), (S/M Code No. 09-00B-437-1R1).
XR-M800
SYSTEM STEREO
RECEIVER
RX-LM800
REMOTE
CONTROLLER
RC-AAT22
CASSETTE DECK/
CD PLAYER SPEAKER
XR-M801 RX-LM801
FD-LM800
FD-LM801 SX-LM810
-2-
DISASSEMBLY INSTRUCTIONS <FD-LM800/LM801>
1. Removing the Ornament Parts
1) Remove the two screws.
2) Remove the two screws.
3) Remove the eight screws 1and remove the PANEL, REAR.
4) Remove the FFC from the connector 1and remove PANEL,
TOP 2.
-3-
2. Removing the CD Block
1) Remove the two screws and remove the entire CD block.
2) The figure shows the status after the CD block is removed.
3. Removing the DECK Block
1) Remove the screw.
2) Remove the screw.
-4-
3) Remove the four screws 1, remove the FRONT block 2and
remove the DECK block.
4) The figure shows the status after the DECK block is removed.
-5-
3. Function Descriptions and Application of the CD Test Mode
*1: The driver IC heats up and the protection circuit starts working when the focus search is continued for 10 minutes or longer. There can be a
case that operations cannot be performed correctly.
In such a case, turn off the main power. After cooling down the machine, restart the machine.
*2: Before performing the visual check of the lens operation, slightly open the CD lid by hand. If you press the OPEN button and open the CD
lid, the search mode exists.
*3: Be careful not to damage the gear because the sled motor rotates while the FF or REW button is being pressed even if the pick-up is located
in the innermost track or the outermost track.

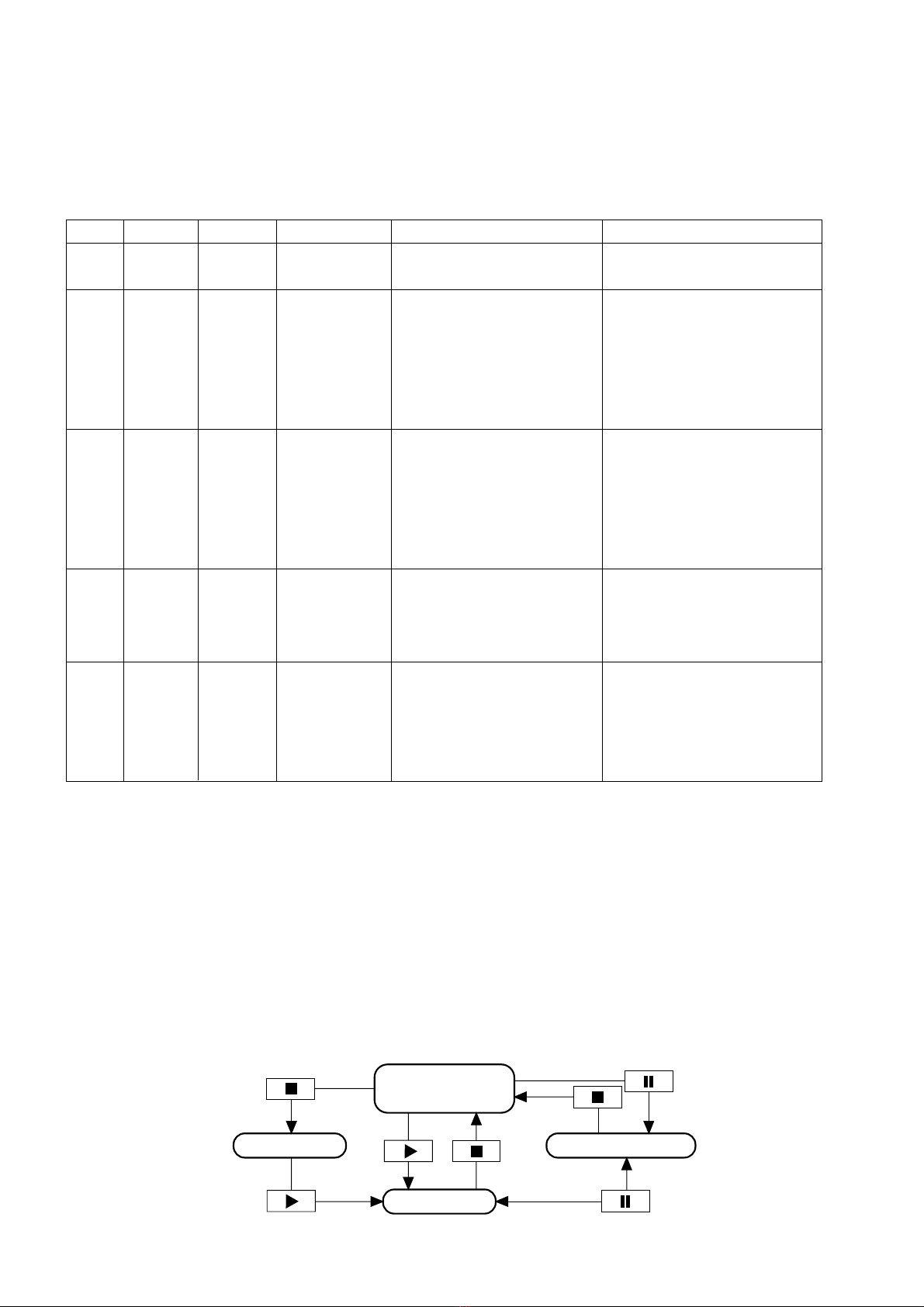

4. Overview of Operation
Each operation mode can be operated one mode after another using each button in the order starting from the “Start” mode that is shown by the
arrow mark in the illustration.
CD TEST MODE
1. How to Start the CD Test Mode
While pressing the function button, insert the AC plug to the
wall outlet. All the indicators on the display light, which means
that the test mode starts up.
2. How to Exit the CD Test Mode
Disconnect the AC plug.
Mode
Start mode
Search
mode
Play mode
Traverse
mode
Sled mode
Operation
9
1 2
;
5
6
FL indication
All indicators light
CD
Normal time
display
Normal time
display
CD TEST
Function
•FL lights
• Continuous focus search *1 *2
• Normal playback
• If TOC cannot be read, focus
search of “2” is continued
• Tracking servo OFF/ON.
• Each time ;is pressed, the
tracking servo repeats turning
off/on.
• Pickup moves to the outermost
track *3
• Pickup moves to the innermost
track (normal operation during
playback)
Checking item
• Checking FL
• Checking microprocessor
• APC circuit
• Laser current
• Focus search waveform
• Focus error waveform
(FOK and FZC are not monitored
in the search mode)
• Focus servo
• Tracking servo
• Sled servo
• Spindle servo
• FOK
• RF waveform
• Tracking servo
• Traverse waveform
• Sled circuit
• Mechanism
No
1
2
3
4
5
Play mode
Start mode
All indicators light
Search mode Traverse mode
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
Printed in Singapore9301978 0251431
PARTS LIST
-2-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O ACCESSORY 87-006-225-010 ANT,LOOP ANT NC2 KSM RX-SLM800
O ACCESSORY 87-006-225-010 ANT,LOOP ANT NC2 EZSM RX-SLM801
O ACCESSORY 87-006-225-010 1D ANT,LOOP ANT NC2 KSM RX-SLM800
O ACCESSORY 87-006-225-010 1D ANT,LOOP ANT NC2 EZSM RX-SLM801
O ACCESSORY 87-A90-118-010 ANT,WIRE FM(Z KSM RX-SLM800
O ACCESSORY 87-A90-118-010 ANT,WIRE FM(Z EZSM RX-SLM801
O ACCESSORY 87-A90-118-010 0E ANT,WIRE FM(Z KSM RX-SLM800
O ACCESSORY 87-A90-118-010 0E ANT,WIRE FM(Z EZSM RX-SLM801
O ACCESSORY 8A-CL2-950-010 RC UNIT,RC-AAT22 KSM RX-SLM800
O ACCESSORY 8A-CL2-950-010 RC UNIT,RC-AAT22 EZSM RX-SLM801
O ACCESSORY 8A-CL2-950-010 -- RC UNIT,RC-AAT22 KSM RX-SLM800
O ACCESSORY 8A-CL2-950-010 -- RC UNIT,RC-AAT22 EZSM RX-SLM801
X ACCESSORY 8Z-CL1-951-010 1B C-IC,KS51850-H1DS KSM RX-SLM800
X ACCESSORY 8Z-CL1-951-010 1B C-IC,KS51850-H1DS EZSM RX-SLM801
O X ACCESSORY 8Z-CL1-951-010 C-IC,KS51850-H1DS KSM RX-SLM800
O X ACCESSORY 8Z-CL1-951-010 C-IC,KS51850-H1DS EZSM RX-SLM801
O APPEARANCE 8A-CU2-001-010 CABI,FR(AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-001-010 CABI,FR(AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-001-010 -- CABI,FR(AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-001-010 -- CABI,FR(AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-003-010 CABI,TOP(AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-003-010 CABI,TOP(AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-003-010 -- CABI,TOP(AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-003-010 -- CABI,TOP(AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-004-010 CABI,BOTTOM (AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-004-010 CABI,BOTTOM (AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-004-010 -- CABI,BOTTOM (AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-004-010 -- CABI,BOTTOM (AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-005-010 PANEL,FR(AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-005-010 PANEL,FR(AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-005-010 -- PANEL,FR(AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-005-010 -- PANEL,FR(AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-006-010 PANEL,TOP(AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-006-010 PANEL,TOP(AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-006-010 -- PANEL,TOP(AMP KSM RX-SLM800
O APPEARANCE 8A-CU2-006-010 -- PANEL,TOP(AMP EZSM RX-SLM801
O APPEARANCE 8A-CU2-007-010 WINDOW,LCD KSM RX-SLM800
O APPEARANCE 8A-CU2-007-010 WINDOW,LCD EZSM RX-SLM801
O APPEARANCE 8A-CU2-007-010 -- WINDOW,LCD KSM RX-SLM800
O APPEARANCE 8A-CU2-007-010 -- WINDOW,LCD EZSM RX-SLM801
O APPEARANCE 8A-CU2-008-010 REFLECTOR,FR KSM RX-SLM800
O APPEARANCE 8A-CU2-008-010 REFLECTOR,FR EZSM RX-SLM801
O APPEARANCE 8A-CU2-008-010 -- REFLECTOR,FR KSM RX-SLM800
O APPEARANCE 8A-CU2-008-010 -- REFLECTOR,FR EZSM RX-SLM801
O APPEARANCE 8A-CU2-009-010 WINDOW,ST-BY KSM RX-SLM800
O APPEARANCE 8A-CU2-009-010 WINDOW,ST-BY EZSM RX-SLM801
O APPEARANCE 8A-CU2-009-010 -- WINDOW,ST-BY KSM RX-SLM800
O APPEARANCE 8A-CU2-009-010 -- WINDOW,ST-BY EZSM RX-SLM801
O APPEARANCE 8A-CUC-005-010 CABI,REAR AMP(12 KSM RX-SLM800
O APPEARANCE 8A-CUC-005-010 CABI,REAR AMP(12 EZSM RX-SLM801
O APPEARANCE 8A-CUC-005-010 -- CABI,REAR AMP(12 KSM RX-SLM800
O APPEARANCE 8A-CUC-005-010 -- CABI,REAR AMP(12 EZSM RX-SLM801
O ELECTRICAL 87-003-317-010 F-BEAD,15-25-15 E2515MRT KSM RX-SLM800
O ELECTRICAL 87-003-317-010 F-BEAD,15-25-15 E2515MRT EZSM RX-SLM801
O ELECTRICAL 87-012-199-080 C-CAP,U 220P-50 J CH KSM RX-SLM800
O ELECTRICAL 87-012-199-080 C-CAP,U 220P-50 J CH EZSM RX-SLM801
O ELECTRICAL 87-012-199-080 0E C-CAP,U 220P-50 J CH KSM RX-SLM800
O ELECTRICAL 87-012-199-080 0E C-CAP,U 220P-50 J CH EZSM RX-SLM801
O ELECTRICAL 87-085-185-010 BUSHING,AC CORD(E CM-22B KSM RX-SLM800
O ELECTRICAL 87-085-185-010 BUSHING,AC CORD(E CM-22B EZSM RX-SLM801
! O ELECTRICAL 87-085-185-010 0E BUSHING,AC CORD(E CM-22B KSM RX-SLM800
! O ELECTRICAL 87-085-185-010 0E BUSHING,AC CORD(E CM-22B EZSM RX-SLM801
O ELECTRICAL 87-099-811-010 PLUG,ADPTR CONV(K KSM RX-SLM800
! O ELECTRICAL 87-099-811-010 1E PLUG,ADPTR CONV(K KSM RX-SLM800
O ELECTRICAL 87-A11-132-080 CAP,TC U 0.01-50 K B KSM RX-SLM800
O ELECTRICAL 87-A11-132-080 CAP,TC U 0.01-50 K B EZSM RX-SLM801
O ELECTRICAL 87-A11-132-080 0E CAP,TC U 0.01-50 K B KSM RX-SLM800
O ELECTRICAL 87-A11-132-080 0E CAP,TC U 0.01-50 K B EZSM RX-SLM801
O ELECTRICAL 87-A80-092-010 AC CORD ASSY,E BLK SUN FAI EZSM RX-SLM801
! O ELECTRICAL 87-A80-092-010 1C AC CORD ASSY,E BLK SUN FAI EZSM RX-SLM801
PARTS LIST
-3-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O ELECTRICAL 87-A80-143-010 AC CORD ASSY,E BLK KSM RX-SLM800
! O ELECTRICAL 87-A80-143-010 1C AC CORD ASSY,E BLK KSM RX-SLM800
O ELECTRICAL 87-A90-978-010 1A F-BEAD,7.94-12.7-12.7 HF70RH KSM RX-SLM800
O ELECTRICAL 87-A90-978-010 1A F-BEAD,7.94-12.7-12.7 HF70RH EZSM RX-SLM801
X ELECTRICAL 89-990-030-110 WIRE,U24X0-3-3 KSM RX-SLM800
X ELECTRICAL 89-990-030-110 WIRE,U24X0-3-3 EZSM RX-SLM801
X ELECTRICAL 89-990-030-110 0E WIRE,U24X0-3-3 KSM RX-SLM800
X ELECTRICAL 89-990-030-110 0E WIRE,U24X0-3-3 EZSM RX-SLM801
O ELECTRICAL 8A-CJ6-620-010 LCD ASSY,ACJ-6 KSM RX-SLM800
O ELECTRICAL 8A-CJ6-620-010 LCD ASSY,ACJ-6 EZSM RX-SLM801
O ELECTRICAL 8A-CJ6-620-010 2C LCD ASSY,ACJ-6 KSM RX-SLM800
O ELECTRICAL 8A-CJ6-620-010 2C LCD ASSY,ACJ-6 EZSM RX-SLM801
O ELECTRICAL 8Z-CL1-663-010 FAN,MF40D-12-200MM KSM RX-SLM800
O ELECTRICAL 8Z-CL1-663-010 FAN,MF40D-12-200MM EZSM RX-SLM801
! O ELECTRICAL 8Z-CL1-663-010 2M FAN,MF40D-12-200MM KSM RX-SLM800
! O ELECTRICAL 8Z-CL1-663-010 2M FAN,MF40D-12-200MM EZSM RX-SLM801
X ELECTRICAL 8Z-CL1-677-010 SHLD-PLATE,TU KSM RX-SLM800
X ELECTRICAL 8Z-CL1-677-010 SHLD-PLATE,TU EZSM RX-SLM801
X ELECTRICAL 8Z-CL1-677-010 0E SHLD-PLATE,TU KSM RX-SLM800
X ELECTRICAL 8Z-CL1-677-010 0E SHLD-PLATE,TU EZSM RX-SLM801
X ELECTRICAL A8-ZZA-193-030 ZZA-1 ZRDS RPNM EZSM RX-SLM801
X ELECTRICAL A8-ZZA-193-030 -- ZZA-1 ZRDS RPNM EZSM RX-SLM801
X ELECTRICAL A8-ZZA-194-030 ZZA-1 EZKG RPNM KSM RX-SLM800
X ELECTRICAL A8-ZZA-194-030 -- ZZA-1 EZKG RPNM KSM RX-SLM800
X ELECTRICAL * 8Z-CL1-662-010 TUBE,UL 12-140 KSM RX-SLM800
X ELECTRICAL * 8Z-CL1-662-010 TUBE,UL 12-140 EZSM RX-SLM801
X ELECTRICAL * 8Z-CL1-662-010 0E TUBE,UL 12-140 KSM RX-SLM800
X ELECTRICAL * 8Z-CL1-662-010 0E TUBE,UL 12-140 EZSM RX-SLM801
X ELECTRICAL * 8Z-CL1-664-010 TUBE,UL 8-190 KSM RX-SLM800
X ELECTRICAL * 8Z-CL1-664-010 TUBE,UL 8-190 KSM RX-SLM800
X ELECTRICAL * 8Z-CL1-664-010 TUBE,UL 8-190 EZSM RX-SLM801
X ELECTRICAL * 8Z-CL1-664-010 TUBE,UL 8-190 EZSM RX-SLM801
X ELECTRICAL * 8Z-CL1-664-010 0E TUBE,UL 8-190 KSM RX-SLM800
X ELECTRICAL * 8Z-CL1-664-010 0E TUBE,UL 8-190 KSM RX-SLM800
X ELECTRICAL * 8Z-CL1-664-010 0E TUBE,UL 8-190 EZSM RX-SLM801
X ELECTRICAL * 8Z-CL1-664-010 0E TUBE,UL 8-190 EZSM RX-SLM801
O ELECTRICAL PT 0001 8Z-CL1-623-010 PT,E KSM RX-SLM800
O ELECTRICAL PT 0001 8Z-CL1-623-010 PT,E EZSM RX-SLM801
O ELECTRICAL PT 0001 8Z-CL1-623-010 2P PT,E KSM RX-SLM800
O ELECTRICAL PT 0001 8Z-CL1-623-010 2P PT,E EZSM RX-SLM801
O KEY FRONT C 0301 87-010-405-080 CAP,E 10-50 M 11L SME KSM RX-SLM800
O KEY FRONT C 0301 87-010-405-080 CAP,E 10-50 M 11L SME EZSM RX-SLM801
O KEY FRONT C 0301 87-010-405-080 0E CAP,E 10-50 M 11L SME KSM RX-SLM800
O KEY FRONT C 0301 87-010-405-080 0E CAP,E 10-50 M 11L SME EZSM RX-SLM801
O KEY FRONT C 0305 87-010-194-080 C-CAP,S 0.047-25 Z F KSM RX-SLM800
O KEY FRONT C 0305 87-010-194-080 C-CAP,S 0.047-25 Z F EZSM RX-SLM801
O KEY FRONT C 0305 87-010-194-080 0E C-CAP,S 0.047-25 Z F KSM RX-SLM800
O KEY FRONT C 0305 87-010-194-080 0E C-CAP,S 0.047-25 Z F EZSM RX-SLM801
O KEY FRONT CN 0301 87-099-553-010 CONN,4P H TUC-P KSM RX-SLM800
O KEY FRONT CN 0301 87-099-553-010 CONN,4P H TUC-P EZSM RX-SLM801
O KEY FRONT CN 0301 87-099-553-010 0E CONN,4P H TUC-P KSM RX-SLM800
O KEY FRONT CN 0301 87-099-553-010 0E CONN,4P H TUC-P EZSM RX-SLM801
O KEY FRONT CN 0302 87-A60-619-010 CONN,2P V 2MM JMT KSM RX-SLM800
O KEY FRONT CN 0302 87-A60-619-010 CONN,2P V 2MM JMT EZSM RX-SLM801
O KEY FRONT CN 0302 87-A60-619-010 0E CONN,2P V 2MM JMT KSM RX-SLM800
O KEY FRONT CN 0302 87-A60-619-010 0E CONN,2P V 2MM JMT EZSM RX-SLM801
O KEY FRONT CN 0303 87-A60-619-010 CONN,2P V 2MM JMT KSM RX-SLM800
O KEY FRONT CN 0303 87-A60-619-010 CONN,2P V 2MM JMT EZSM RX-SLM801
O KEY FRONT CN 0303 87-A60-619-010 0E CONN,2P V 2MM JMT KSM RX-SLM800
O KEY FRONT CN 0303 87-A60-619-010 0E CONN,2P V 2MM JMT EZSM RX-SLM801
O KEY FRONT CN 0306 87-A60-899-010 CONN,6P V BLK FMN-BTRK KSM RX-SLM800
O KEY FRONT CN 0306 87-A60-899-010 CONN,6P V BLK FMN-BTRK EZSM RX-SLM801
! O KEY FRONT CN 0306 87-A60-899-010 0E CONN,6P V BLK FMN-BTRK KSM RX-SLM800
! O KEY FRONT CN 0306 87-A60-899-010 0E CONN,6P V BLK FMN-BTRK EZSM RX-SLM801
O KEY FRONT CN 0307 87-099-564-010 CONN,4P V TUC-P4P-B1 KSM RX-SLM800
O KEY FRONT CN 0307 87-099-564-010 CONN,4P V TUC-P4P-B1 EZSM RX-SLM801
! O KEY FRONT CN 0307 87-099-564-010 0E CONN,4P V TUC-P4P-B1 KSM RX-SLM800
! O KEY FRONT CN 0307 87-099-564-010 0E CONN,4P V TUC-P4P-B1 EZSM RX-SLM801
O KEY FRONT CNA0301 88-805-020-790 CONN ASSY,2P 70MM KSM RX-SLM800
O KEY FRONT CNA0301 88-805-020-790 CONN ASSY,2P 70MM EZSM RX-SLM801
PARTS LIST
-4-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O KEY FRONT CNA0301 88-805-020-790 0E CONN ASSY,2P 70MM KSM RX-SLM800
O KEY FRONT CNA0301 88-805-020-790 0E CONN ASSY,2P 70MM EZSM RX-SLM801
O KEY FRONT CNA0302 88-805-020-790 CONN ASSY,2P 70MM KSM RX-SLM800
O KEY FRONT CNA0302 88-805-020-790 CONN ASSY,2P 70MM EZSM RX-SLM801
O KEY FRONT CNA0302 88-805-020-790 0E CONN ASSY,2P 70MM KSM RX-SLM800
O KEY FRONT CNA0302 88-805-020-790 0E CONN ASSY,2P 70MM EZSM RX-SLM801
S KEY FRONT D 0301 87-070-345-080 DIODE,1N4148 KSM RX-SLM800
S KEY FRONT D 0301 87-070-345-080 DIODE,1N4148 EZSM RX-SLM801
S KEY FRONT D 0301 87-070-345-080 0E DIODE,1N4148 KSM RX-SLM800
S KEY FRONT D 0301 87-070-345-080 0E DIODE,1N4148 EZSM RX-SLM801
S KEY FRONT D 0302 87-017-931-080 ZENER,MTZJ5.6B KSM RX-SLM800
S KEY FRONT D 0302 87-017-931-080 ZENER,MTZJ5.6B EZSM RX-SLM801
S KEY FRONT D 0302 87-017-931-080 0E ZENER,MTZJ5.6B KSM RX-SLM800
S KEY FRONT D 0302 87-017-931-080 0E ZENER,MTZJ5.6B EZSM RX-SLM801
X KEY FRONT JR 0301 88-118-000-080 C-JUMPER,S KSM RX-SLM800
X KEY FRONT JR 0301 88-118-000-080 C-JUMPER,S EZSM RX-SLM801
X KEY FRONT JR 0301 88-118-000-080 0E C-JUMPER,S KSM RX-SLM800
X KEY FRONT JR 0301 88-118-000-080 0E C-JUMPER,S EZSM RX-SLM801
O KEY FRONT LED0301 87-A40-317-080 LED,SLR-342VCT31 RED KSM RX-SLM800
O KEY FRONT LED0301 87-A40-317-080 LED,SLR-342VCT31 RED EZSM RX-SLM801
O KEY FRONT LED0301 87-A40-317-080 0E LED,SLR-342VCT31 RED KSM RX-SLM800
O KEY FRONT LED0301 87-A40-317-080 0E LED,SLR-342VCT31 RED EZSM RX-SLM801
O KEY FRONT LED0302 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB KSM RX-SLM800
O KEY FRONT LED0302 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB EZSM RX-SLM801
O KEY FRONT LED0302 87-A40-786-080 1E LED,SMLS1BE16WTP4 BLU/UMB KSM RX-SLM800
O KEY FRONT LED0302 87-A40-786-080 1E LED,SMLS1BE16WTP4 BLU/UMB EZSM RX-SLM801
O KEY FRONT LED0303 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB KSM RX-SLM800
O KEY FRONT LED0303 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB EZSM RX-SLM801
O KEY FRONT LED0303 87-A40-786-080 1E LED,SMLS1BE16WTP4 BLU/UMB KSM RX-SLM800
O KEY FRONT LED0303 87-A40-786-080 1E LED,SMLS1BE16WTP4 BLU/UMB EZSM RX-SLM801
O KEY FRONT LED0331 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF KSM RX-SLM800
O KEY FRONT LED0331 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF EZSM RX-SLM801
O KEY FRONT LED0331 87-A40-678-010 1D LED,SELU1E10CXM BLUE-DEF KSM RX-SLM800
O KEY FRONT LED0331 87-A40-678-010 1D LED,SELU1E10CXM BLUE-DEF EZSM RX-SLM801
O KEY FRONT LED0332 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF KSM RX-SLM800
O KEY FRONT LED0332 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF EZSM RX-SLM801
O KEY FRONT LED0332 87-A40-678-010 1D LED,SELU1E10CXM BLUE-DEF KSM RX-SLM800
O KEY FRONT LED0332 87-A40-678-010 1D LED,SELU1E10CXM BLUE-DEF EZSM RX-SLM801
S KEY FRONT Q 0301 87-A30-087-080 C-FET,2SK2158 KSM RX-SLM800
S KEY FRONT Q 0301 87-A30-087-080 C-FET,2SK2158 EZSM RX-SLM801
S KEY FRONT Q 0301 87-A30-087-080 0E C-FET,2SK2158 KSM RX-SLM800
S KEY FRONT Q 0301 87-A30-087-080 0E C-FET,2SK2158 EZSM RX-SLM801
S KEY FRONT Q 0302 87-026-580-080 C-TR,DTA123JK KSM RX-SLM800
S KEY FRONT Q 0302 87-026-580-080 C-TR,DTA123JK EZSM RX-SLM801
S KEY FRONT Q 0302 87-026-580-080 0E C-TR,DTA123JK KSM RX-SLM800
S KEY FRONT Q 0302 87-026-580-080 0E C-TR,DTA123JK EZSM RX-SLM801
S KEY FRONT Q 0303 87-026-580-080 C-TR,DTA123JK KSM RX-SLM800
S KEY FRONT Q 0303 87-026-580-080 C-TR,DTA123JK EZSM RX-SLM801
S KEY FRONT Q 0303 87-026-580-080 0E C-TR,DTA123JK KSM RX-SLM800
S KEY FRONT Q 0303 87-026-580-080 0E C-TR,DTA123JK EZSM RX-SLM801
S KEY FRONT Q 0304 87-026-580-080 C-TR,DTA123JK KSM RX-SLM800
S KEY FRONT Q 0304 87-026-580-080 C-TR,DTA123JK EZSM RX-SLM801
S KEY FRONT Q 0304 87-026-580-080 0E C-TR,DTA123JK KSM RX-SLM800
S KEY FRONT Q 0304 87-026-580-080 0E C-TR,DTA123JK EZSM RX-SLM801
S KEY FRONT Q 0305 87-026-610-080 TR,KTC3198GR KSM RX-SLM800
S KEY FRONT Q 0305 87-026-610-080 TR,KTC3198GR EZSM RX-SLM801
S KEY FRONT Q 0305 87-026-610-080 0E TR,KTC3198GR KSM RX-SLM800
S KEY FRONT Q 0305 87-026-610-080 0E TR,KTC3198GR EZSM RX-SLM801
S KEY FRONT Q 0306 87-A30-075-080 C-TR,2SA1235F KSM RX-SLM800
S KEY FRONT Q 0306 87-A30-075-080 C-TR,2SA1235F EZSM RX-SLM801
S KEY FRONT Q 0306 87-A30-075-080 0E C-TR,2SA1235F KSM RX-SLM800
S KEY FRONT Q 0306 87-A30-075-080 0E C-TR,2SA1235F EZSM RX-SLM801
S KEY FRONT Q 0307 87-A30-073-080 C-TR,RT1N 141C KSM RX-SLM800
S KEY FRONT Q 0307 87-A30-073-080 C-TR,RT1N 141C EZSM RX-SLM801
S KEY FRONT Q 0307 87-A30-073-080 0E C-TR,RT1N 141C KSM RX-SLM800
S KEY FRONT Q 0307 87-A30-073-080 0E C-TR,RT1N 141C EZSM RX-SLM801
S KEY FRONT Q 0308 87-026-580-080 C-TR,DTA123JK KSM RX-SLM800
S KEY FRONT Q 0308 87-026-580-080 C-TR,DTA123JK EZSM RX-SLM801
S KEY FRONT Q 0308 87-026-580-080 0E C-TR,DTA123JK KSM RX-SLM800
S KEY FRONT Q 0308 87-026-580-080 0E C-TR,DTA123JK EZSM RX-SLM801
PARTS LIST
-5-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
S KEY FRONT Q 0309 87-026-236-080 C-TR,DTC124EK KSM RX-SLM800
S KEY FRONT Q 0309 87-026-236-080 C-TR,DTC124EK EZSM RX-SLM801
S KEY FRONT Q 0309 87-026-236-080 0E C-TR,DTC124EK KSM RX-SLM800
S KEY FRONT Q 0309 87-026-236-080 0E C-TR,DTC124EK EZSM RX-SLM801
S KEY FRONT Q 0310 87-026-236-080 C-TR,DTC124EK KSM RX-SLM800
S KEY FRONT Q 0310 87-026-236-080 C-TR,DTC124EK EZSM RX-SLM801
S KEY FRONT Q 0310 87-026-236-080 0E C-TR,DTC124EK KSM RX-SLM800
S KEY FRONT Q 0310 87-026-236-080 0E C-TR,DTC124EK EZSM RX-SLM801
X KEY FRONT R 0301 88-118-102-080 C-RES,S 1K-1/10W J KSM RX-SLM800
X KEY FRONT R 0301 88-118-102-080 C-RES,S 1K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0301 88-118-102-080 0E C-RES,S 1K-1/10W J KSM RX-SLM800
X KEY FRONT R 0301 88-118-102-080 0E C-RES,S 1K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0302 88-118-102-080 C-RES,S 1K-1/10W J KSM RX-SLM800
X KEY FRONT R 0302 88-118-102-080 C-RES,S 1K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0302 88-118-102-080 0E C-RES,S 1K-1/10W J KSM RX-SLM800
X KEY FRONT R 0302 88-118-102-080 0E C-RES,S 1K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0303 88-118-102-080 C-RES,S 1K-1/10W J KSM RX-SLM800
X KEY FRONT R 0303 88-118-102-080 C-RES,S 1K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0303 88-118-102-080 0E C-RES,S 1K-1/10W J KSM RX-SLM800
X KEY FRONT R 0303 88-118-102-080 0E C-RES,S 1K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0307 88-118-224-080 C-RES,S 220K-1/10W J KSM RX-SLM800
X KEY FRONT R 0307 88-118-224-080 C-RES,S 220K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0307 88-118-224-080 0E C-RES,S 220K-1/10W J KSM RX-SLM800
X KEY FRONT R 0307 88-118-224-080 0E C-RES,S 220K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0308 88-118-103-080 C-RES,S 10K-1/10W J KSM RX-SLM800
X KEY FRONT R 0308 88-118-103-080 C-RES,S 10K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0308 88-118-103-080 0E C-RES,S 10K-1/10W J KSM RX-SLM800
X KEY FRONT R 0308 88-118-103-080 0E C-RES,S 10K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0309 88-121-331-080 RES,330-1/8W J KSM RX-SLM800
X KEY FRONT R 0309 88-121-331-080 RES,330-1/8W J EZSM RX-SLM801
X KEY FRONT R 0309 88-121-331-080 0E RES,330-1/8W J KSM RX-SLM800
X KEY FRONT R 0309 88-121-331-080 0E RES,330-1/8W J EZSM RX-SLM801
X KEY FRONT R 0316 88-118-561-080 C-RES,S 560-1/10W J KSM RX-SLM800
X KEY FRONT R 0316 88-118-561-080 C-RES,S 560-1/10W J EZSM RX-SLM801
X KEY FRONT R 0316 88-118-561-080 0E C-RES,S 560-1/10W J KSM RX-SLM800
X KEY FRONT R 0316 88-118-561-080 0E C-RES,S 560-1/10W J EZSM RX-SLM801
X KEY FRONT R 0318 88-121-100-080 RES,10-1/8W J KSM RX-SLM800
X KEY FRONT R 0318 88-121-100-080 RES,10-1/8W J EZSM RX-SLM801
X KEY FRONT R 0318 88-121-100-080 0E RES,10-1/8W J KSM RX-SLM800
X KEY FRONT R 0318 88-121-100-080 0E RES,10-1/8W J EZSM RX-SLM801
X KEY FRONT R 0319 88-118-101-080 C-RES,S 100-1/10W J KSM RX-SLM800
X KEY FRONT R 0319 88-118-101-080 C-RES,S 100-1/10W J EZSM RX-SLM801
X KEY FRONT R 0319 88-118-101-080 0E C-RES,S 100-1/10W J KSM RX-SLM800
X KEY FRONT R 0319 88-118-101-080 0E C-RES,S 100-1/10W J EZSM RX-SLM801
X KEY FRONT R 0320 88-121-109-080 RES,1-1/8W J KSM RX-SLM800
X KEY FRONT R 0320 88-121-109-080 RES,1-1/8W J EZSM RX-SLM801
X KEY FRONT R 0320 88-121-109-080 0E RES,1-1/8W J KSM RX-SLM800
X KEY FRONT R 0320 88-121-109-080 0E RES,1-1/8W J EZSM RX-SLM801
X KEY FRONT R 0321 88-118-103-080 C-RES,S 10K-1/10W J KSM RX-SLM800
X KEY FRONT R 0321 88-118-103-080 C-RES,S 10K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0321 88-118-103-080 0E C-RES,S 10K-1/10W J KSM RX-SLM800
X KEY FRONT R 0321 88-118-103-080 0E C-RES,S 10K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0322 88-118-102-080 C-RES,S 1K-1/10W J KSM RX-SLM800
X KEY FRONT R 0322 88-118-102-080 C-RES,S 1K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0322 88-118-102-080 0E C-RES,S 1K-1/10W J KSM RX-SLM800
X KEY FRONT R 0322 88-118-102-080 0E C-RES,S 1K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0323 88-130-331-080 RES,330-1/4W J KSM RX-SLM800
X KEY FRONT R 0323 88-130-331-080 RES,330-1/4W J EZSM RX-SLM801
X KEY FRONT R 0323 88-130-331-080 0E RES,330-1/4W J KSM RX-SLM800
X KEY FRONT R 0323 88-130-331-080 0E RES,330-1/4W J EZSM RX-SLM801
X KEY FRONT R 0324 88-130-121-080 RES,120-1/4W J KSM RX-SLM800
X KEY FRONT R 0324 88-130-121-080 RES,120-1/4W J EZSM RX-SLM801
X KEY FRONT R 0324 88-130-121-080 0E RES,120-1/4W J KSM RX-SLM800
X KEY FRONT R 0324 88-130-121-080 0E RES,120-1/4W J EZSM RX-SLM801
X KEY FRONT R 0325 88-130-101-080 RES,100-1/4W J KSM RX-SLM800
X KEY FRONT R 0325 88-130-101-080 RES,100-1/4W J EZSM RX-SLM801
X KEY FRONT R 0325 88-130-101-080 0E RES,100-1/4W J KSM RX-SLM800
X KEY FRONT R 0325 88-130-101-080 0E RES,100-1/4W J EZSM RX-SLM801
X KEY FRONT R 0326 88-130-121-080 RES,120-1/4W J KSM RX-SLM800
X KEY FRONT R 0326 88-130-121-080 RES,120-1/4W J EZSM RX-SLM801
PARTS LIST
-6-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X KEY FRONT R 0326 88-130-121-080 0E RES,120-1/4W J KSM RX-SLM800
X KEY FRONT R 0326 88-130-121-080 0E RES,120-1/4W J EZSM RX-SLM801
X KEY FRONT R 0327 88-130-101-080 RES,100-1/4W J KSM RX-SLM800
X KEY FRONT R 0327 88-130-101-080 RES,100-1/4W J EZSM RX-SLM801
X KEY FRONT R 0327 88-130-101-080 0E RES,100-1/4W J KSM RX-SLM800
X KEY FRONT R 0327 88-130-101-080 0E RES,100-1/4W J EZSM RX-SLM801
X KEY FRONT R 0328 88-130-221-080 RES,220-1/4W J KSM RX-SLM800
X KEY FRONT R 0328 88-130-221-080 RES,220-1/4W J EZSM RX-SLM801
X KEY FRONT R 0328 88-130-221-080 0E RES,220-1/4W J KSM RX-SLM800
X KEY FRONT R 0328 88-130-221-080 0E RES,220-1/4W J EZSM RX-SLM801
X KEY FRONT R 0329 88-130-221-080 RES,220-1/4W J KSM RX-SLM800
X KEY FRONT R 0329 88-130-221-080 RES,220-1/4W J EZSM RX-SLM801
X KEY FRONT R 0329 88-130-221-080 0E RES,220-1/4W J KSM RX-SLM800
X KEY FRONT R 0329 88-130-221-080 0E RES,220-1/4W J EZSM RX-SLM801
X KEY FRONT R 0334 88-121-103-080 RES,10K-1/8W J KSM RX-SLM800
X KEY FRONT R 0334 88-121-103-080 RES,10K-1/8W J EZSM RX-SLM801
X KEY FRONT R 0334 88-121-103-080 0E RES,10K-1/8W J KSM RX-SLM800
X KEY FRONT R 0334 88-121-103-080 0E RES,10K-1/8W J EZSM RX-SLM801
X KEY FRONT R 0335 88-118-392-080 C-RES,S 3.9K-1/10W J KSM RX-SLM800
X KEY FRONT R 0335 88-118-392-080 C-RES,S 3.9K-1/10W J EZSM RX-SLM801
X KEY FRONT R 0335 88-118-392-080 0E C-RES,S 3.9K-1/10W J KSM RX-SLM800
X KEY FRONT R 0335 88-118-392-080 0E C-RES,S 3.9K-1/10W J EZSM RX-SLM801
X MECHANICAL 8A-CU2-211-010 CHAS,MAIN(AMP KSM RX-SLM800
X MECHANICAL 8A-CU2-211-010 CHAS,MAIN(AMP EZSM RX-SLM801
X MECHANICAL 8A-CU2-211-010 -- CHAS,MAIN(AMP KSM RX-SLM800
X MECHANICAL 8A-CU2-211-010 -- CHAS,MAIN(AMP EZSM RX-SLM801
X OTHER 8A-CU2-619-010 PWB,LED 1 KSM RX-SLM800
X OTHER 8A-CU2-619-010 PWB,LED 1 EZSM RX-SLM801
X OTHER 8A-CU2-619-010 -- PWB,LED 1 KSM RX-SLM800
X OTHER 8A-CU2-619-010 -- PWB,LED 1 EZSM RX-SLM801
X OTHER 8A-CU2-620-010 PWB,LED 2 KSM RX-SLM800
X OTHER 8A-CU2-620-010 PWB,LED 2 EZSM RX-SLM801
X OTHER 8A-CU2-620-010 -- PWB,LED 2 KSM RX-SLM800
X OTHER 8A-CU2-620-010 -- PWB,LED 2 EZSM RX-SLM801
X OTHER 8A-CU2-621-010 PWB,LED 3 KSM RX-SLM800
X OTHER 8A-CU2-621-010 PWB,LED 3 EZSM RX-SLM801
X OTHER 8A-CU2-621-010 -- PWB,LED 3 KSM RX-SLM800
X OTHER 8A-CU2-621-010 -- PWB,LED 3 EZSM RX-SLM801
X OTHER * 8A-CU2-611-010 PWB,COMB MAIN KSM RX-SLM800
X OTHER * 8A-CU2-611-010 PWB,COMB MAIN EZSM RX-SLM801
X OTHER * 8A-CU2-611-010 1F PWB,COMB MAIN KSM RX-SLM800
X OTHER * 8A-CU2-611-010 1F PWB,COMB MAIN EZSM RX-SLM801
X OTHER * 8A-CU2-612-010 PWB,POWER KSM RX-SLM800
X OTHER * 8A-CU2-612-010 PWB,POWER EZSM RX-SLM801
X OTHER * 8A-CU2-612-010 -- PWB,POWER KSM RX-SLM800
X OTHER * 8A-CU2-612-010 -- PWB,POWER EZSM RX-SLM801
X OTHER * 8A-CU2-613-010 PWB,POW AMP KSM RX-SLM800
X OTHER * 8A-CU2-613-010 PWB,POW AMP EZSM RX-SLM801
X OTHER * 8A-CU2-613-010 -- PWB,POW AMP KSM RX-SLM800
X OTHER * 8A-CU2-613-010 -- PWB,POW AMP EZSM RX-SLM801
X OTHER * 8A-CU2-614-010 PWB,MAIN PT KSM RX-SLM800
X OTHER * 8A-CU2-614-010 PWB,MAIN PT EZSM RX-SLM801
X OTHER * 8A-CU2-614-010 -- PWB,MAIN PT KSM RX-SLM800
X OTHER * 8A-CU2-614-010 -- PWB,MAIN PT EZSM RX-SLM801
X OTHER * 8A-CU2-615-010 PWB,SUB PT KSM RX-SLM800
X OTHER * 8A-CU2-615-010 PWB,SUB PT EZSM RX-SLM801
X OTHER * 8A-CU2-615-010 -- PWB,SUB PT KSM RX-SLM800
X OTHER * 8A-CU2-615-010 -- PWB,SUB PT EZSM RX-SLM801
X OTHER * 8A-CU2-616-010 PWB,TU INT KSM RX-SLM800
X OTHER * 8A-CU2-616-010 PWB,TU INT EZSM RX-SLM801
X OTHER * 8A-CU2-616-010 -- PWB,TU INT KSM RX-SLM800
X OTHER * 8A-CU2-616-010 -- PWB,TU INT EZSM RX-SLM801
X OTHER * 8A-CU2-617-010 PWB,FRONT KSM RX-SLM800
X OTHER * 8A-CU2-617-010 PWB,FRONT EZSM RX-SLM801
X OTHER * 8A-CU2-617-010 -- PWB,FRONT KSM RX-SLM800
X OTHER * 8A-CU2-617-010 -- PWB,FRONT EZSM RX-SLM801
X OTHER * 8A-CU2-618-010 PWB,JACK KSM RX-SLM800
X OTHER * 8A-CU2-618-010 PWB,JACK EZSM RX-SLM801
X OTHER * 8A-CU2-618-010 -- PWB,JACK KSM RX-SLM800
X OTHER * 8A-CU2-618-010 -- PWB,JACK EZSM RX-SLM801
PARTS LIST
-7-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O OTHER C 0182 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0182 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0182 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0182 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0183 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0183 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0183 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0183 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0184 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0184 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0184 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0184 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0185 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0185 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0185 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0185 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0186 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0186 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0186 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0186 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0187 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0187 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0187 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0187 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0188 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0188 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0188 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0188 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0189 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0189 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0189 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0189 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0190 87-010-322-080 C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0190 87-010-322-080 C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0190 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM KSM RX-SLM800
O OTHER C 0190 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM EZSM RX-SLM801
O OTHER C 0501 87-010-198-080 C-CAP,S 0.022-25 K B C2012 KSM RX-SLM800
O OTHER C 0501 87-010-198-080 C-CAP,S 0.022-25 K B C2012 EZSM RX-SLM801
O OTHER C 0501 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 KSM RX-SLM800
O OTHER C 0501 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 EZSM RX-SLM801
O OTHER C 0502 87-010-198-080 C-CAP,S 0.022-25 K B C2012 KSM RX-SLM800
O OTHER C 0502 87-010-198-080 C-CAP,S 0.022-25 K B C2012 EZSM RX-SLM801
O OTHER C 0502 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 KSM RX-SLM800
O OTHER C 0502 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 EZSM RX-SLM801
O OTHER C 0504 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 KSM RX-SLM800
O OTHER C 0504 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 EZSM RX-SLM801
O OTHER C 0504 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 KSM RX-SLM800
O OTHER C 0504 87-010-190-080 0E C-CAP,S 0.01-50 Z F C2012 EZSM RX-SLM801
O OTHER CN 0104 87-099-563-010 CONN,20P TUC-P20X-B1 EZSM RX-SLM801
O OTHER CN 0104 87-099-563-010 1A CONN,20P TUC-P20X-B1 EZSM RX-SLM801
O OTHER CN 0105 87-099-562-010 CONN,18P TUC-P18X-B1 KSM RX-SLM800
O OTHER CN 0105 87-099-562-010 1A CONN,18P TUC-P18X-B1 KSM RX-SLM800
O OTHER CN 0114 87-099-570-010 CONN,13P V TUC-P13P-B1 KSM RX-SLM800
! O OTHER CN 0114 87-099-570-010 1A CONN,13P V TUC-P13P-B1 KSM RX-SLM800
O OTHER CN 0115 87-A60-624-010 CONN,7P V 2MM JMT KSM RX-SLM800
O OTHER CN 0115 87-A60-624-010 CONN,7P V 2MM JMT EZSM RX-SLM801
O OTHER CN 0115 87-A60-671-010 0E CONN,7P H 2MM JMT KSM RX-SLM800
O OTHER CN 0115 87-A60-671-010 0E CONN,7P H 2MM JMT EZSM RX-SLM801
O OTHER CN 0116 87-099-574-010 CONN,20P TUC-P20P-B1 EZSM RX-SLM801
O OTHER CN 0116 87-099-574-010 0E CONN,20P TUC-P20P-B1 EZSM RX-SLM801
O OTHER CN 0117 87-A60-189-010 CONN,16P V TUC-P16P-B1 EZSM RX-SLM801
! O OTHER CN 0117 87-A60-189-010 0E CONN,16P V TUC-P16P-B1 EZSM RX-SLM801
O OTHER CN 0118 87-099-573-010 CONN,18P TUC-P18P-B1 KSM RX-SLM800
O OTHER CN 0118 87-099-573-010 0E CONN,18P TUC-P18P-B1 KSM RX-SLM800
O OTHER CN 0119 87-A60-675-010 CONN,11P H 2MM JMT KSM RX-SLM800
O OTHER CN 0119 87-A60-675-010 CONN,11P H 2MM JMT EZSM RX-SLM801
O OTHER CN 0119 87-A60-675-010 0E CONN,11P H 2MM JMT KSM RX-SLM800
O OTHER CN 0119 87-A60-675-010 0E CONN,11P H 2MM JMT EZSM RX-SLM801
O OTHER J 0502 87-A60-782-010 CONN,19P H FG KSM RX-SLM800
O OTHER J 0502 87-A60-782-010 CONN,19P H FG EZSM RX-SLM801
PARTS LIST
-8-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O OTHER J 0502 87-A60-782-010 1B CONN,19P H FG KSM RX-SLM800
O OTHER J 0502 87-A60-782-010 1B CONN,19P H FG EZSM RX-SLM801
X OTHER JR 0501 88-118-000-080 C-JUMPER,S KSM RX-SLM800
X OTHER JR 0501 88-118-000-080 C-JUMPER,S EZSM RX-SLM801
X OTHER JR 0501 88-118-000-080 0E C-JUMPER,S KSM RX-SLM800
X OTHER JR 0501 88-118-000-080 0E C-JUMPER,S EZSM RX-SLM801
X OTHER JR 0502 88-118-000-080 C-JUMPER,S KSM RX-SLM800
X OTHER JR 0502 88-118-000-080 C-JUMPER,S EZSM RX-SLM801
X OTHER JR 0502 88-118-000-080 0E C-JUMPER,S KSM RX-SLM800
X OTHER JR 0502 88-118-000-080 0E C-JUMPER,S EZSM RX-SLM801
S OTHER Q 0510 87-A30-087-080 C-FET,2SK2158 KSM RX-SLM800
S OTHER Q 0510 87-A30-087-080 C-FET,2SK2158 EZSM RX-SLM801
S OTHER Q 0510 87-A30-087-080 0E C-FET,2SK2158 KSM RX-SLM800
S OTHER Q 0510 87-A30-087-080 0E C-FET,2SK2158 EZSM RX-SLM801
X OTHER R 0189 88-118-102-080 C-RES,S 1K-1/10W J KSM RX-SLM800
X OTHER R 0189 88-118-102-080 C-RES,S 1K-1/10W J EZSM RX-SLM801
X OTHER R 0189 88-118-102-080 0E C-RES,S 1K-1/10W J KSM RX-SLM800
X OTHER R 0189 88-118-102-080 0E C-RES,S 1K-1/10W J EZSM RX-SLM801
X OTHER R 0190 88-118-102-080 C-RES,S 1K-1/10W J KSM RX-SLM800
X OTHER R 0190 88-118-102-080 C-RES,S 1K-1/10W J EZSM RX-SLM801
X OTHER R 0190 88-118-102-080 0E C-RES,S 1K-1/10W J KSM RX-SLM800
X OTHER R 0190 88-118-102-080 0E C-RES,S 1K-1/10W J EZSM RX-SLM801
X OTHER R 0501 88-118-183-080 C-RES,S 18K-1/10W J KSM RX-SLM800
X OTHER R 0501 88-118-183-080 C-RES,S 18K-1/10W J EZSM RX-SLM801
X OTHER R 0501 88-118-183-080 0E C-RES,S 18K-1/10W J KSM RX-SLM800
X OTHER R 0501 88-118-183-080 0E C-RES,S 18K-1/10W J EZSM RX-SLM801
X OTHER R 0502 88-121-223-080 RES,22K-1/8W J KSM RX-SLM800
X OTHER R 0502 88-121-223-080 RES,22K-1/8W J EZSM RX-SLM801
X OTHER R 0502 88-121-223-080 0E RES,22K-1/8W J KSM RX-SLM800
X OTHER R 0502 88-121-223-080 0E RES,22K-1/8W J EZSM RX-SLM801
X OTHER R 0510 88-118-104-080 C-RES,S 100K-1/10W J EZSM RX-SLM801
X OTHER R 0510 88-118-104-080 0E C-RES,S 100K-1/10W J EZSM RX-SLM801
X OTHER R 0511 88-118-105-080 C-RES,S 1M-1/10W J EZSM RX-SLM801
X OTHER R 0511 88-118-105-080 0E C-RES,S 1M-1/10W J EZSM RX-SLM801
X OTHER W 0502 8Z-CL1-668-010 WIRE,FASTON ASSY CL1 KSM RX-SLM800
X OTHER W 0502 8Z-CL1-668-010 WIRE,FASTON ASSY CL1 EZSM RX-SLM801
X OTHER W 0502 8Z-CL1-668-010 1A WIRE,FASTON ASSY CL1 KSM RX-SLM800
X OTHER W 0502 8Z-CL1-668-010 1A WIRE,FASTON ASSY CL1 EZSM RX-SLM801
O OTHERS 86-NF6-211-010 HLDR,IC T1.6 KSM RX-SLM800
O OTHERS 86-NF6-211-010 HLDR,IC T1.6 EZSM RX-SLM801
O OTHERS 86-NF6-211-010 0E HLDR,IC T1.6 KSM RX-SLM800
O OTHERS 86-NF6-211-010 0E HLDR,IC T1.6 EZSM RX-SLM801
O OTHERS 8A-CJ6-021-010 REFLECTOR,LCD KSM RX-SLM800
O OTHERS 8A-CJ6-021-010 REFLECTOR,LCD EZSM RX-SLM801
O OTHERS 8A-CJ6-021-010 1C REFLECTOR,LCD KSM RX-SLM800
O OTHERS 8A-CJ6-021-010 1C REFLECTOR,LCD EZSM RX-SLM801
O OTHERS 8A-CJ6-212-010 HLDR,LCD KSM RX-SLM800
O OTHERS 8A-CJ6-212-010 HLDR,LCD EZSM RX-SLM801
O OTHERS 8A-CJ6-212-010 0E HLDR,LCD KSM RX-SLM800
O OTHERS 8A-CJ6-212-010 0E HLDR,LCD EZSM RX-SLM801
X OTHERS 8A-CJ6-218-010 SH, 23-3.5-0.15 W/ADH KSM RX-SLM800
X OTHERS 8A-CJ6-218-010 SH, 23-3.5-0.15 W/ADH EZSM RX-SLM801
X OTHERS 8A-CJ6-218-010 0E SH, 23-3.5-0.15 W/ADH KSM RX-SLM800
X OTHERS 8A-CJ6-218-010 0E SH, 23-3.5-0.15 W/ADH EZSM RX-SLM801
O OTHERS 8A-CU2-202-010 HLDR,ST-BY KSM RX-SLM800
O OTHERS 8A-CU2-202-010 HLDR,ST-BY EZSM RX-SLM801
O OTHERS 8A-CU2-202-010 -- HLDR,ST-BY KSM RX-SLM800
O OTHERS 8A-CU2-202-010 -- HLDR,ST-BY EZSM RX-SLM801
O OTHERS 8A-CU2-203-010 HLDR,PT KSM RX-SLM800
O OTHERS 8A-CU2-203-010 HLDR,PT EZSM RX-SLM801
O OTHERS 8A-CU2-203-010 -- HLDR,PT KSM RX-SLM800
O OTHERS 8A-CU2-203-010 -- HLDR,PT EZSM RX-SLM801
O OTHERS 8A-CU2-205-010 GUIDE,LED A KSM RX-SLM800
O OTHERS 8A-CU2-205-010 GUIDE,LED A EZSM RX-SLM801
O OTHERS 8A-CU2-205-010 -- GUIDE,LED A KSM RX-SLM800
O OTHERS 8A-CU2-205-010 -- GUIDE,LED A EZSM RX-SLM801
X OTHERS 8A-CU2-207-010 HT-SINK,A KSM RX-SLM800
X OTHERS 8A-CU2-207-010 HT-SINK,A EZSM RX-SLM801
X OTHERS 8A-CU2-207-010 -- HT-SINK,A KSM RX-SLM800
X OTHERS 8A-CU2-207-010 -- HT-SINK,A EZSM RX-SLM801
PARTS LIST
-9-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O OTHERS 8A-CU2-210-010 FOOT,ACJ-2 KSM RX-SLM800
O OTHERS 8A-CU2-210-010 FOOT,ACJ-2 EZSM RX-SLM801
O OTHERS 8A-CU2-210-010 0E FOOT,ACJ-2 KSM RX-SLM800
O OTHERS 8A-CU2-210-010 0E FOOT,ACJ-2 EZSM RX-SLM801
X OTHERS 8A-CU2-213-010 HT-SINK,FIN KSM RX-SLM800
X OTHERS 8A-CU2-213-010 HT-SINK,FIN EZSM RX-SLM801
X OTHERS 8A-CU2-213-010 -- HT-SINK,FIN KSM RX-SLM800
X OTHERS 8A-CU2-213-010 -- HT-SINK,FIN EZSM RX-SLM801
X OTHERS 8A-CU2-214-010 HT-SINK,ASSY KSM RX-SLM800
X OTHERS 8A-CU2-214-010 HT-SINK,ASSY EZSM RX-SLM801
X OTHERS 8A-CU2-215-010 SH,SUB-PT KSM RX-SLM800
X OTHERS 8A-CU2-215-010 SH,SUB-PT EZSM RX-SLM801
X OTHERS 8A-CU2-216-010 PLATE,SHLD TOP A KSM RX-SLM800
X OTHERS 8A-CU2-216-010 PLATE,SHLD TOP A EZSM RX-SLM801
X OTHERS 8A-CU2-217-010 PLATE,SHLD TOP B KSM RX-SLM800
X OTHERS 8A-CU2-217-010 PLATE,SHLD TOP B EZSM RX-SLM801
X OTHERS 8A-CU2-218-010 PLATE,SHLD PT KSM RX-SLM800
X OTHERS 8A-CU2-218-010 PLATE,SHLD PT EZSM RX-SLM801
O OTHERS * 8A-CJ6-202-010 GUIDE,LCD KSM RX-SLM800
O OTHERS * 8A-CJ6-202-010 GUIDE,LCD EZSM RX-SLM801
O OTHERS * 8A-CJ6-202-010 0E GUIDE,LCD KSM RX-SLM800
O OTHERS * 8A-CJ6-202-010 0E GUIDE,LCD EZSM RX-SLM801
X OTHERS * 8A-CJ6-214-010 SH,LCD KSM RX-SLM800
X OTHERS * 8A-CJ6-214-010 SH,LCD KSM RX-SLM800
X OTHERS * 8A-CJ6-214-010 SH,LCD EZSM RX-SLM801
X OTHERS * 8A-CJ6-214-010 SH,LCD EZSM RX-SLM801
X OTHERS * 8A-CJ6-214-010 1A SH,LCD KSM RX-SLM800
X OTHERS * 8A-CJ6-214-010 1A SH,LCD KSM RX-SLM800
X OTHERS * 8A-CJ6-214-010 1A SH,LCD EZSM RX-SLM801
X OTHERS * 8A-CJ6-214-010 1A SH,LCD EZSM RX-SLM801
O OTHERS * 8A-CU2-206-010 GUIDE,LED B KSM RX-SLM800
O OTHERS * 8A-CU2-206-010 GUIDE,LED B KSM RX-SLM800
O OTHERS * 8A-CU2-206-010 GUIDE,LED B EZSM RX-SLM801
O OTHERS * 8A-CU2-206-010 GUIDE,LED B EZSM RX-SLM801
O OTHERS * 8A-CU2-206-010 -- GUIDE,LED B KSM RX-SLM800
O OTHERS * 8A-CU2-206-010 -- GUIDE,LED B KSM RX-SLM800
O OTHERS * 8A-CU2-206-010 -- GUIDE,LED B EZSM RX-SLM801
O OTHERS * 8A-CU2-206-010 -- GUIDE,LED B EZSM RX-SLM801
X PACKING 87-B40-092-010 0E BAG,PV 0.025-440-500 PL KSM RX-SLM800
X PACKING 87-B40-092-010 0E BAG,PV 0.025-440-500 PL EZSM RX-SLM801
G X PACKING 87-B40-092-010 BAG,PV 0.025-440-500 PL KSM RX-SLM800
G X PACKING 87-B40-092-010 BAG,PV 0.025-440-500 PL EZSM RX-SLM801
X PACKING 8A-CU2-855-010 -- CUSHION,LEFT ACU2M KSM RX-SLM800
X PACKING 8A-CU2-855-010 -- CUSHION,LEFT ACU2M EZSM RX-SLM801
G X PACKING 8A-CU2-855-010 CUSHION,LEFT ACU2M KSM RX-SLM800
G X PACKING 8A-CU2-855-010 CUSHION,LEFT ACU2M EZSM RX-SLM801
X PACKING 8A-CU2-856-010 -- CUSHION,RIGHT ACU2M KSM RX-SLM800
X PACKING 8A-CU2-856-010 -- CUSHION,RIGHT ACU2M EZSM RX-SLM801
G X PACKING 8A-CU2-856-010 CUSHION,RIGHT ACU2M KSM RX-SLM800
G X PACKING 8A-CU2-856-010 CUSHION,RIGHT ACU2M EZSM RX-SLM801
X PACKING 8A-CU2-857-010 -- BOX,ACCESS ACU2M KSM RX-SLM800
X PACKING 8A-CU2-857-010 -- BOX,ACCESS ACU2M EZSM RX-SLM801
G X PACKING 8A-CU2-857-010 BOX,ACCESS ACU2M KSM RX-SLM800
G X PACKING 8A-CU2-857-010 BOX,ACCESS ACU2M EZSM RX-SLM801
X PACKING 8A-CUC-851-010 1A SLEEVE,RX-SLM800 KSM KSM RX-SLM800
G X PACKING 8A-CUC-851-010 SLEEVE,RX-SLM800 KSM KSM RX-SLM800
X PACKING 8A-CUC-852-010 1A SLEEVE,RX-SLM801 EZSM EZSM RX-SLM801
G X PACKING 8A-CUC-852-010 SLEEVE,RX-SLM801 EZSM EZSM RX-SLM801
X PACKING 93-704-325-010 0E SH,FOAMED-MAT 0.31-300-300 KSM RX-SLM800
X PACKING 93-704-325-010 0E SH,FOAMED-MAT 0.31-300-300 EZSM RX-SLM801
G X PACKING 93-704-325-010 SH,FOAMED-MAT 0.31-300-300 KSM RX-SLM800
G X PACKING 93-704-325-010 SH,FOAMED-MAT 0.31-300-300 EZSM RX-SLM801
X PLATE 87-B40-016-010 0E BAG,PP (BAR-CODE KSM RX-SLM800
X PLATE 87-B40-016-010 0E BAG,PP (BAR-CODE EZSM RX-SLM801
G X PLATE 87-B40-016-010 BAG,PP (BAR-CODE KSM RX-SLM800
G X PLATE 87-B40-016-010 BAG,PP (BAR-CODE EZSM RX-SLM801
X PLATE 87-B40-283-010 0E LBL,BAR-CODE B 35X8 KSM RX-SLM800
X PLATE 87-B40-283-010 0E LBL,BAR-CODE B 35X8 EZSM RX-SLM801
G X PLATE 87-B40-283-010 LBL,BAR-CODE B 35X8 KSM RX-SLM800
G X PLATE 87-B40-283-010 LBL,BAR-CODE B 35X8 EZSM RX-SLM801
PARTS LIST
-10-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X PLATE 8A-CUC-003-010 LBL,SPEC KSM(800 KSM RX-SLM800
X PLATE 8A-CUC-003-010 -- LBL,SPEC KSM(800 KSM RX-SLM800
X PLATE 8A-CUC-004-010 LBL,SPEC EZSM(801 EZSM RX-SLM801
X PLATE 8A-CUC-004-010 -- LBL,SPEC EZSM(801 EZSM RX-SLM801
O POWER 87-067-579-010 BVT2+3-8 W/0 SL0T KSM RX-SLM800
O POWER 87-067-579-010 BVT2+3-8 W/0 SL0T EZSM RX-SLM801
O POWER 87-067-579-010 0E BVT2+3-8 W/0 SL0T KSM RX-SLM800
O POWER 87-067-579-010 0E BVT2+3-8 W/0 SL0T EZSM RX-SLM801
X POWER * 8A-CU2-208-010 HT-SINK,B KSM RX-SLM800
X POWER * 8A-CU2-208-010 HT-SINK,B EZSM RX-SLM801
X POWER * 8A-CU2-208-010 -- HT-SINK,B KSM RX-SLM800
X POWER * 8A-CU2-208-010 -- HT-SINK,B EZSM RX-SLM801
O POWER C 0102 87-016-051-090 CAP,E 2200-35 M SMG KSM RX-SLM800
O POWER C 0102 87-016-051-090 CAP,E 2200-35 M SMG EZSM RX-SLM801
O POWER C 0102 87-016-051-090 1B CAP,E 2200-35 M SMG KSM RX-SLM800
O POWER C 0102 87-016-051-090 1B CAP,E 2200-35 M SMG EZSM RX-SLM801
O POWER C 0103 87-016-051-090 CAP,E 2200-35 M SMG KSM RX-SLM800
O POWER C 0103 87-016-051-090 CAP,E 2200-35 M SMG EZSM RX-SLM801
O POWER C 0103 87-016-051-090 1B CAP,E 2200-35 M SMG KSM RX-SLM800
O POWER C 0103 87-016-051-090 1B CAP,E 2200-35 M SMG EZSM RX-SLM801
X POWER C 0104 88-700-850-080 CAP,M 0.047-50 J AMZ KSM RX-SLM800
X POWER C 0104 88-700-850-080 CAP,M 0.047-50 J AMZ EZSM RX-SLM801
X POWER C 0104 88-700-850-080 0E CAP,M 0.047-50 J AMZ KSM RX-SLM800
X POWER C 0104 88-700-850-080 0E CAP,M 0.047-50 J AMZ EZSM RX-SLM801
X POWER C 0105 88-700-850-080 CAP,M 0.047-50 J AMZ KSM RX-SLM800
X POWER C 0105 88-700-850-080 CAP,M 0.047-50 J AMZ EZSM RX-SLM801
X POWER C 0105 88-700-850-080 0E CAP,M 0.047-50 J AMZ KSM RX-SLM800
X POWER C 0105 88-700-850-080 0E CAP,M 0.047-50 J AMZ EZSM RX-SLM801
O POWER C 0106 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 KSM RX-SLM800
O POWER C 0106 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 EZSM RX-SLM801
O POWER C 0106 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 KSM RX-SLM800
O POWER C 0106 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 EZSM RX-SLM801
O POWER C 0107 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 KSM RX-SLM800
O POWER C 0107 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 EZSM RX-SLM801
O POWER C 0107 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 KSM RX-SLM800
O POWER C 0107 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 EZSM RX-SLM801
O POWER C 0108 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 KSM RX-SLM800
O POWER C 0108 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 EZSM RX-SLM801
O POWER C 0108 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 KSM RX-SLM800
O POWER C 0108 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 EZSM RX-SLM801
O POWER C 0109 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 KSM RX-SLM800
O POWER C 0109 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 EZSM RX-SLM801
O POWER C 0109 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 KSM RX-SLM800
O POWER C 0109 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 EZSM RX-SLM801
O POWER C 0110 87-010-928-090 CAP,E 4700-25 M SMG KSM RX-SLM800
O POWER C 0110 87-010-928-090 CAP,E 4700-25 M SMG EZSM RX-SLM801
! O POWER C 0110 87-010-928-090 1B CAP,E 4700-25 M SMG KSM RX-SLM800
! O POWER C 0110 87-010-928-090 1B CAP,E 4700-25 M SMG EZSM RX-SLM801
O POWER C 0111 87-012-140-080 C-CAP,S 470P-50 J CH KSM RX-SLM800
O POWER C 0111 87-012-140-080 C-CAP,S 470P-50 J CH EZSM RX-SLM801
O POWER C 0111 87-012-140-080 0E C-CAP,S 470P-50 J CH KSM RX-SLM800
O POWER C 0111 87-012-140-080 0E C-CAP,S 470P-50 J CH EZSM RX-SLM801
O POWER C 0113 87-010-247-080 CAP,E 100-50 M SME KSM RX-SLM800
O POWER C 0113 87-010-247-080 CAP,E 100-50 M SME EZSM RX-SLM801
O POWER C 0113 87-010-247-080 0E CAP,E 100-50 M SME KSM RX-SLM800
O POWER C 0113 87-010-247-080 0E CAP,E 100-50 M SME EZSM RX-SLM801
O POWER C 0114 87-010-112-080 CAP,E 100-16 M 11L SME KSM RX-SLM800
O POWER C 0114 87-010-112-080 CAP,E 100-16 M 11L SME EZSM RX-SLM801
O POWER C 0114 87-010-112-080 0E CAP,E 100-16 M 11L SME KSM RX-SLM800
O POWER C 0114 87-010-112-080 0E CAP,E 100-16 M 11L SME EZSM RX-SLM801
O POWER C 0115 87-010-235-080 CAP,E 470-16 M SME KSM RX-SLM800
O POWER C 0115 87-010-235-080 CAP,E 470-16 M SME EZSM RX-SLM801
O POWER C 0115 87-010-235-080 0E CAP,E 470-16 M SME KSM RX-SLM800
O POWER C 0115 87-010-235-080 0E CAP,E 470-16 M SME EZSM RX-SLM801
O POWER C 0132 87-010-260-080 CAP,E 47-25 M 11L SME KSM RX-SLM800
O POWER C 0132 87-010-260-080 CAP,E 47-25 M 11L SME EZSM RX-SLM801
O POWER C 0132 87-010-260-080 0E CAP,E 47-25 M 11L SME KSM RX-SLM800
O POWER C 0132 87-010-260-080 0E CAP,E 47-25 M 11L SME EZSM RX-SLM801
O POWER C 0133 87-010-403-080 CAP,E 3.3-50 M 11L SME KSM RX-SLM800
O POWER C 0133 87-010-403-080 CAP,E 3.3-50 M 11L SME EZSM RX-SLM801
PARTS LIST
-11-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
O POWER C 0133 87-010-403-080 0E CAP,E 3.3-50 M 11L SME KSM RX-SLM800
O POWER C 0133 87-010-403-080 0E CAP,E 3.3-50 M 11L SME EZSM RX-SLM801
O POWER C 0135 87-010-381-080 CAP,E 330-16 M SME KSM RX-SLM800
O POWER C 0135 87-010-381-080 CAP,E 330-16 M SME EZSM RX-SLM801
O POWER C 0135 87-010-381-080 0E CAP,E 330-16 M SME KSM RX-SLM800
O POWER C 0135 87-010-381-080 0E CAP,E 330-16 M SME EZSM RX-SLM801
O POWER C 0136 87-010-101-080 CAP,E 220-16 M SME KSM RX-SLM800
O POWER C 0136 87-010-101-080 CAP,E 220-16 M SME EZSM RX-SLM801
O POWER C 0136 87-010-101-080 0E CAP,E 220-16 M SME KSM RX-SLM800
O POWER C 0136 87-010-101-080 0E CAP,E 220-16 M SME EZSM RX-SLM801
O POWER C 0137 87-010-235-080 CAP,E 470-16 M SME KSM RX-SLM800
O POWER C 0137 87-010-235-080 CAP,E 470-16 M SME EZSM RX-SLM801
O POWER C 0137 87-010-235-080 0E CAP,E 470-16 M SME KSM RX-SLM800
O POWER C 0137 87-010-235-080 0E CAP,E 470-16 M SME EZSM RX-SLM801
O POWER C 0219 87-010-184-080 C-CAP,S 3300P-50 K B C2012 KSM RX-SLM800
O POWER C 0219 87-010-184-080 C-CAP,S 3300P-50 K B C2012 EZSM RX-SLM801
O POWER C 0219 87-010-184-080 0E C-CAP,S 3300P-50 K B C2012 KSM RX-SLM800
O POWER C 0219 87-010-184-080 0E C-CAP,S 3300P-50 K B C2012 EZSM RX-SLM801
O POWER C 0220 87-010-184-080 C-CAP,S 3300P-50 K B C2012 KSM RX-SLM800
O POWER C 0220 87-010-184-080 C-CAP,S 3300P-50 K B C2012 EZSM RX-SLM801
O POWER C 0220 87-010-184-080 0E C-CAP,S 3300P-50 K B C2012 KSM RX-SLM800
O POWER C 0220 87-010-184-080 0E C-CAP,S 3300P-50 K B C2012 EZSM RX-SLM801
O POWER C 0281 87-010-401-080 CAP,E 1-50 M 11L SME KSM RX-SLM800
O POWER C 0281 87-010-401-080 CAP,E 1-50 M 11L SME EZSM RX-SLM801
O POWER C 0281 87-010-401-080 0E CAP,E 1-50 M 11L SME KSM RX-SLM800
O POWER C 0281 87-010-401-080 0E CAP,E 1-50 M 11L SME EZSM RX-SLM801
O POWER C 0282 87-010-263-080 CAP,E 100-10 M 11L SME KSM RX-SLM800
O POWER C 0282 87-010-263-080 CAP,E 100-10 M 11L SME EZSM RX-SLM801
O POWER C 0282 87-010-263-080 0E CAP,E 100-10 M 11L SME KSM RX-SLM800
O POWER C 0282 87-010-263-080 0E CAP,E 100-10 M 11L SME EZSM RX-SLM801
O POWER C 0283 87-010-380-080 CAP,E 47-16 M 11L SME KSM RX-SLM800
O POWER C 0283 87-010-380-080 CAP,E 47-16 M 11L SME EZSM RX-SLM801
O POWER C 0283 87-010-380-080 0E CAP,E 47-16 M 11L SME KSM RX-SLM800
O POWER C 0283 87-010-380-080 0E CAP,E 47-16 M 11L SME EZSM RX-SLM801
O POWER C 0284 87-010-260-080 CAP,E 47-25 M 11L SME KSM RX-SLM800
O POWER C 0284 87-010-260-080 CAP,E 47-25 M 11L SME EZSM RX-SLM801
O POWER C 0284 87-010-260-080 0E CAP,E 47-25 M 11L SME KSM RX-SLM800
O POWER C 0284 87-010-260-080 0E CAP,E 47-25 M 11L SME EZSM RX-SLM801
O POWER CN 0101 87-A60-813-010 CONN,8P H BLK TAC-L8P KSM RX-SLM800
O POWER CN 0101 87-A60-813-010 CONN,8P H BLK TAC-L8P EZSM RX-SLM801
O POWER CN 0101 87-A60-813-010 0E CONN,8P H BLK TAC-L8P KSM RX-SLM800
O POWER CN 0101 87-A60-813-010 0E CONN,8P H BLK TAC-L8P EZSM RX-SLM801
O POWER CN 0102 87-A60-813-010 CONN,8P H BLK TAC-L8P KSM RX-SLM800
O POWER CN 0102 87-A60-813-010 CONN,8P H BLK TAC-L8P EZSM RX-SLM801
O POWER CN 0102 87-A60-813-010 0E CONN,8P H BLK TAC-L8P KSM RX-SLM800
O POWER CN 0102 87-A60-813-010 0E CONN,8P H BLK TAC-L8P EZSM RX-SLM801
O POWER CN 0203 87-A60-109-010 CONN,2P V S2M-2W KSM RX-SLM800
O POWER CN 0203 87-A60-109-010 CONN,2P V S2M-2W EZSM RX-SLM801
! O POWER CN 0203 87-A60-109-010 0E CONN,2P V S2M-2W KSM RX-SLM800
! O POWER CN 0203 87-A60-109-010 0E CONN,2P V S2M-2W EZSM RX-SLM801
O POWER CNA0101 8A-CU2-660-010 CONN ASSY,11P 2MM KSM RX-SLM800
O POWER CNA0101 8A-CU2-660-010 CONN ASSY,11P 2MM EZSM RX-SLM801
O POWER CNA0101 8A-CU2-660-010 1B CONN ASSY,11P 2MM KSM RX-SLM800
O POWER CNA0101 8A-CU2-660-010 1B CONN ASSY,11P 2MM EZSM RX-SLM801
O POWER CNA0303 8A-CU2-661-010 CONN ASSY,7P 2MM KSM RX-SLM800
O POWER CNA0303 8A-CU2-661-010 CONN ASSY,7P 2MM EZSM RX-SLM801
O POWER CNA0303 8A-CU2-661-010 -- CONN ASSY,7P 2MM KSM RX-SLM800
O POWER CNA0303 8A-CU2-661-010 -- CONN ASSY,7P 2MM EZSM RX-SLM801
S POWER D 0108 87-070-178-090 DIODE,1N5402-BD54 KSM RX-SLM800
S POWER D 0108 87-070-178-090 DIODE,1N5402-BD54 EZSM RX-SLM801
S POWER D 0108 87-070-178-090 0E DIODE,1N5402-BD54 KSM RX-SLM800
S POWER D 0108 87-070-178-090 0E DIODE,1N5402-BD54 EZSM RX-SLM801
S POWER D 0109 87-070-178-090 DIODE,1N5402-BD54 KSM RX-SLM800
S POWER D 0109 87-070-178-090 DIODE,1N5402-BD54 EZSM RX-SLM801
S POWER D 0109 87-070-178-090 0E DIODE,1N5402-BD54 KSM RX-SLM800
S POWER D 0109 87-070-178-090 0E DIODE,1N5402-BD54 EZSM RX-SLM801
S POWER D 0110 87-070-178-090 DIODE,1N5402-BD54 KSM RX-SLM800
S POWER D 0110 87-070-178-090 DIODE,1N5402-BD54 EZSM RX-SLM801
S POWER D 0110 87-070-178-090 0E DIODE,1N5402-BD54 KSM RX-SLM800
S POWER D 0110 87-070-178-090 0E DIODE,1N5402-BD54 EZSM RX-SLM801
PARTS LIST
-12-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
S POWER D 0111 87-070-178-090 DIODE,1N5402-BD54 KSM RX-SLM800
S POWER D 0111 87-070-178-090 DIODE,1N5402-BD54 EZSM RX-SLM801
S POWER D 0111 87-070-178-090 0E DIODE,1N5402-BD54 KSM RX-SLM800
S POWER D 0111 87-070-178-090 0E DIODE,1N5402-BD54 EZSM RX-SLM801
S POWER D 0112 87-070-274-080 DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0112 87-070-274-080 DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0112 87-070-274-080 0E DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0112 87-070-274-080 0E DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0113 87-070-274-080 DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0113 87-070-274-080 DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0113 87-070-274-080 0E DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0113 87-070-274-080 0E DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0114 87-070-345-080 DIODE,1N4148 KSM RX-SLM800
S POWER D 0114 87-070-345-080 DIODE,1N4148 EZSM RX-SLM801
S POWER D 0114 87-070-345-080 0E DIODE,1N4148 KSM RX-SLM800
S POWER D 0114 87-070-345-080 0E DIODE,1N4148 EZSM RX-SLM801
S POWER D 0115 87-A40-345-080 ZENER,MTZJ10C KSM RX-SLM800
S POWER D 0115 87-A40-345-080 ZENER,MTZJ10C EZSM RX-SLM801
S POWER D 0115 87-A40-345-080 0E ZENER,MTZJ10C KSM RX-SLM800
S POWER D 0115 87-A40-345-080 0E ZENER,MTZJ10C EZSM RX-SLM801
S POWER D 0131 87-A40-269-080 C-DIODE,MC2836 KSM RX-SLM800
S POWER D 0131 87-A40-269-080 C-DIODE,MC2836 EZSM RX-SLM801
S POWER D 0131 87-A40-269-080 0E C-DIODE,MC2836 KSM RX-SLM800
S POWER D 0131 87-A40-269-080 0E C-DIODE,MC2836 EZSM RX-SLM801
S POWER D 0132 87-A40-270-080 C-DIODE,MC2838 KSM RX-SLM800
S POWER D 0132 87-A40-270-080 C-DIODE,MC2838 EZSM RX-SLM801
S POWER D 0132 87-A40-270-080 0E C-DIODE,MC2838 KSM RX-SLM800
S POWER D 0132 87-A40-270-080 0E C-DIODE,MC2838 EZSM RX-SLM801
S POWER D 0133 87-A40-004-080 ZENER,MTZJ16A KSM RX-SLM800
S POWER D 0133 87-A40-004-080 ZENER,MTZJ16A EZSM RX-SLM801
S POWER D 0133 87-A40-004-080 0E ZENER,MTZJ16A KSM RX-SLM800
S POWER D 0133 87-A40-004-080 0E ZENER,MTZJ16A EZSM RX-SLM801
S POWER D 0134 87-070-274-080 DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0134 87-070-274-080 DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0134 87-070-274-080 0E DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0134 87-070-274-080 0E DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0136 87-070-345-080 DIODE,1N4148 KSM RX-SLM800
S POWER D 0136 87-070-345-080 DIODE,1N4148 EZSM RX-SLM801
S POWER D 0136 87-070-345-080 0E DIODE,1N4148 KSM RX-SLM800
S POWER D 0136 87-070-345-080 0E DIODE,1N4148 EZSM RX-SLM801
S POWER D 0151 87-070-274-080 DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0151 87-070-274-080 DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0152 87-070-274-080 DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0152 87-070-274-080 DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0153 87-070-274-080 DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0153 87-070-274-080 DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0154 87-070-274-080 DIODE,1N4003 SEM KSM RX-SLM800
S POWER D 0154 87-070-274-080 DIODE,1N4003 SEM EZSM RX-SLM801
S POWER D 0281 87-070-345-080 DIODE,1N4148 KSM RX-SLM800
S POWER D 0281 87-070-345-080 DIODE,1N4148 EZSM RX-SLM801
S POWER D 0281 87-070-345-080 0E DIODE,1N4148 KSM RX-SLM800
S POWER D 0281 87-070-345-080 0E DIODE,1N4148 EZSM RX-SLM801
S POWER D 0282 87-070-345-080 DIODE,1N4148 KSM RX-SLM800
S POWER D 0282 87-070-345-080 DIODE,1N4148 EZSM RX-SLM801
S POWER D 0282 87-070-345-080 0E DIODE,1N4148 KSM RX-SLM800
S POWER D 0282 87-070-345-080 0E DIODE,1N4148 EZSM RX-SLM801
S POWER D 0286 87-070-345-080 DIODE,1N4148 KSM RX-SLM800
S POWER D 0286 87-070-345-080 DIODE,1N4148 EZSM RX-SLM801
S POWER D 0286 87-070-345-080 0E DIODE,1N4148 KSM RX-SLM800
S POWER D 0286 87-070-345-080 0E DIODE,1N4148 EZSM RX-SLM801
O POWER J 0201 87-A60-420-010 JACK,3.5 ST (MSC KSM RX-SLM800
O POWER J 0201 87-A60-420-010 JACK,3.5 ST (MSC EZSM RX-SLM801
O POWER J 0201 87-A60-420-010 1A JACK,3.5 ST (MSC KSM RX-SLM800
O POWER J 0201 87-A60-420-010 1A JACK,3.5 ST (MSC EZSM RX-SLM801
O POWER J 0202 87-099-801-010 JACK,PIN 1P BLK W/O SW KSM RX-SLM800
O POWER J 0202 87-099-801-010 JACK,PIN 1P BLK W/O SW EZSM RX-SLM801
! O POWER J 0202 87-099-801-010 0E JACK,PIN 1P BLK W/O SW KSM RX-SLM800
! O POWER J 0202 87-099-801-010 0E JACK,PIN 1P BLK W/O SW EZSM RX-SLM801
! O POWER J 0501 87-009-065-010 1B CONN,15P H FG KSM RX-SLM800
! O POWER J 0501 87-009-065-010 1B CONN,15P H FG EZSM RX-SLM801
PARTS LIST
-13-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
X POWER J 0501 87-009-065-010 CONN,15P H FG KSM RX-SLM800
X POWER J 0501 87-009-065-010 CONN,15P H FG EZSM RX-SLM801
X POWER JR 0101 88-118-000-080 C-JUMPER,S KSM RX-SLM800
X POWER JR 0101 88-118-000-080 C-JUMPER,S EZSM RX-SLM801
X POWER JR 0101 88-118-000-080 0E C-JUMPER,S KSM RX-SLM800
X POWER JR 0101 88-118-000-080 0E C-JUMPER,S EZSM RX-SLM801
X POWER JR 0202 88-129-000-080 C-JUMPER,3216 KSM RX-SLM800
X POWER JR 0202 88-129-000-080 C-JUMPER,3216 EZSM RX-SLM801
X POWER JR 0202 88-129-000-080 0E C-JUMPER,3216 KSM RX-SLM800
X POWER JR 0202 88-129-000-080 0E C-JUMPER,3216 EZSM RX-SLM801
X POWER JR 0203 88-129-000-080 C-JUMPER,3216 KSM RX-SLM800
X POWER JR 0203 88-129-000-080 C-JUMPER,3216 EZSM RX-SLM801
X POWER JR 0203 88-129-000-080 0E C-JUMPER,3216 KSM RX-SLM800
X POWER JR 0203 88-129-000-080 0E C-JUMPER,3216 EZSM RX-SLM801
X POWER JR 0204 88-129-000-080 C-JUMPER,3216 KSM RX-SLM800
X POWER JR 0204 88-129-000-080 C-JUMPER,3216 EZSM RX-SLM801
X POWER JR 0204 88-129-000-080 0E C-JUMPER,3216 KSM RX-SLM800
X POWER JR 0204 88-129-000-080 0E C-JUMPER,3216 EZSM RX-SLM801
X POWER JR 0205 88-129-000-080 C-JUMPER,3216 KSM RX-SLM800
X POWER JR 0205 88-129-000-080 C-JUMPER,3216 EZSM RX-SLM801
X POWER JR 0205 88-129-000-080 0E C-JUMPER,3216 KSM RX-SLM800
X POWER JR 0205 88-129-000-080 0E C-JUMPER,3216 EZSM RX-SLM801
X POWER JR 0206 88-118-000-080 C-JUMPER,S KSM RX-SLM800
X POWER JR 0206 88-118-000-080 C-JUMPER,S EZSM RX-SLM801
X POWER JR 0206 88-118-000-080 0E C-JUMPER,S KSM RX-SLM800
X POWER JR 0206 88-118-000-080 0E C-JUMPER,S EZSM RX-SLM801
X POWER JR 0209 88-118-000-080 C-JUMPER,S KSM RX-SLM800
X POWER JR 0209 88-118-000-080 C-JUMPER,S EZSM RX-SLM801
X POWER JR 0209 88-118-000-080 0E C-JUMPER,S KSM RX-SLM800
X POWER JR 0209 88-118-000-080 0E C-JUMPER,S EZSM RX-SLM801
X POWER JR 0213 88-118-000-080 C-JUMPER,S KSM RX-SLM800
X POWER JR 0213 88-118-000-080 C-JUMPER,S EZSM RX-SLM801
O POWER L 0203 87-003-098-080 COIL,2.2UH K LAL02 KSM RX-SLM800
O POWER L 0203 87-003-098-080 COIL,2.2UH K LAL02 EZSM RX-SLM801
X POWER L 0203 88-100-000-010 0E PLATING-JW, 0.58 SN95 KSM RX-SLM800
X POWER L 0203 88-100-000-010 0E PLATING-JW, 0.58 SN95 EZSM RX-SLM801
O POWER L 0205 87-003-098-080 COIL,2.2UH K LAL02 KSM RX-SLM800
O POWER L 0205 87-003-098-080 COIL,2.2UH K LAL02 EZSM RX-SLM801
X POWER L 0205 88-100-000-010 0E PLATING-JW, 0.58 SN95 KSM RX-SLM800
X POWER L 0205 88-100-000-010 0E PLATING-JW, 0.58 SN95 EZSM RX-SLM801
O POWER L 0206 87-003-098-080 COIL,2.2UH K LAL02 KSM RX-SLM800
O POWER L 0206 87-003-098-080 COIL,2.2UH K LAL02 EZSM RX-SLM801
X POWER L 0206 88-100-000-010 0E PLATING-JW, 0.58 SN95 KSM RX-SLM800
X POWER L 0206 88-100-000-010 0E PLATING-JW, 0.58 SN95 EZSM RX-SLM801
X POWER PIN0003 87-A60-884-010 PIN,DIA1 COATING-SHS KSM RX-SLM800
X POWER PIN0003 87-A60-884-010 PIN,DIA1 COATING-SHS EZSM RX-SLM801
X POWER PIN0003 87-A60-884-010 0E PIN,DIA1 COATING-SHS KSM RX-SLM800
X POWER PIN0003 87-A60-884-010 0E PIN,DIA1 COATING-SHS EZSM RX-SLM801
S POWER Q 0101 89-213-702-010 TR,2SB1370E KSM RX-SLM800
S POWER Q 0101 89-213-702-010 TR,2SB1370E EZSM RX-SLM801
S POWER Q 0101 89-213-702-010 1A TR,2SB1370E KSM RX-SLM800
S POWER Q 0101 89-213-702-010 1A TR,2SB1370E EZSM RX-SLM801
S POWER Q 0102 89-213-702-010 TR,2SB1370E KSM RX-SLM800
S POWER Q 0102 89-213-702-010 TR,2SB1370E EZSM RX-SLM801
S POWER Q 0102 89-213-702-010 1A TR,2SB1370E KSM RX-SLM800
S POWER Q 0102 89-213-702-010 1A TR,2SB1370E EZSM RX-SLM801
S POWER Q 0103 87-026-610-080 TR,KTC3198GR KSM RX-SLM800
S POWER Q 0103 87-026-610-080 TR,KTC3198GR EZSM RX-SLM801
S POWER Q 0103 87-026-610-080 0E TR,KTC3198GR KSM RX-SLM800
S POWER Q 0103 87-026-610-080 0E TR,KTC3198GR EZSM RX-SLM801
S POWER Q 0104 87-A30-076-080 C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0104 87-A30-076-080 C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0104 87-A30-076-080 0E C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0104 87-A30-076-080 0E C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0106 87-A30-075-080 C-TR,2SA1235F KSM RX-SLM800
S POWER Q 0106 87-A30-075-080 C-TR,2SA1235F EZSM RX-SLM801
S POWER Q 0106 87-A30-075-080 0E C-TR,2SA1235F KSM RX-SLM800
S POWER Q 0106 87-A30-075-080 0E C-TR,2SA1235F EZSM RX-SLM801
S POWER Q 0107 87-A30-234-080 TR,CSC4115BC KSM RX-SLM800
S POWER Q 0107 87-A30-234-080 TR,CSC4115BC EZSM RX-SLM801
PARTS LIST
-14-
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
K NO. = Only use japanese.
C UNIT NAME REF NO. MODEL NAME!DESCRIPTIONK NO.PARTS CODE SUFFIX
S POWER Q 0107 87-A30-234-080 0E TR,CSC4115BC KSM RX-SLM800
S POWER Q 0107 87-A30-234-080 0E TR,CSC4115BC EZSM RX-SLM801
S POWER Q 0131 87-A30-076-080 C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0131 87-A30-076-080 C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0131 87-A30-076-080 0E C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0131 87-A30-076-080 0E C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0132 87-A30-075-080 C-TR,2SA1235F KSM RX-SLM800
S POWER Q 0132 87-A30-075-080 C-TR,2SA1235F EZSM RX-SLM801
S POWER Q 0132 87-A30-075-080 0E C-TR,2SA1235F KSM RX-SLM800
S POWER Q 0132 87-A30-075-080 0E C-TR,2SA1235F EZSM RX-SLM801
S POWER Q 0133 87-A30-076-080 C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0133 87-A30-076-080 C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0133 87-A30-076-080 0E C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0133 87-A30-076-080 0E C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0134 87-A30-075-080 C-TR,2SA1235F KSM RX-SLM800
S POWER Q 0134 87-A30-075-080 C-TR,2SA1235F EZSM RX-SLM801
S POWER Q 0134 87-A30-075-080 0E C-TR,2SA1235F KSM RX-SLM800
S POWER Q 0134 87-A30-075-080 0E C-TR,2SA1235F EZSM RX-SLM801
S POWER Q 0135 87-A30-076-080 C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0135 87-A30-076-080 C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0135 87-A30-076-080 0E C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0135 87-A30-076-080 0E C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0136 87-A30-083-080 TR,CSD1489B KSM RX-SLM800
S POWER Q 0136 87-A30-083-080 TR,CSD1489B EZSM RX-SLM801
S POWER Q 0136 87-A30-083-080 0E TR,CSD1489B KSM RX-SLM800
S POWER Q 0136 87-A30-083-080 0E TR,CSD1489B EZSM RX-SLM801
S POWER Q 0281 87-A30-076-080 C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0281 87-A30-076-080 C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0281 87-A30-076-080 0E C-TR,2SC3052F KSM RX-SLM800
S POWER Q 0281 87-A30-076-080 0E C-TR,2SC3052F EZSM RX-SLM801
S POWER Q 0282 87-026-609-080 TR,KTA1266GR KSM RX-SLM800
S POWER Q 0282 87-026-609-080 TR,KTA1266GR EZSM RX-SLM801
S POWER Q 0282 87-026-609-080 0E TR,KTA1266GR KSM RX-SLM800
S POWER Q 0282 87-026-609-080 0E TR,KTA1266GR EZSM RX-SLM801
S POWER Q 0286 87-026-609-080 TR,KTA1266GR KSM RX-SLM800
S POWER Q 0286 87-026-609-080 TR,KTA1266GR EZSM RX-SLM801
S POWER Q 0286 87-026-609-080 0E TR,KTA1266GR KSM RX-SLM800
S POWER Q 0286 87-026-609-080 0E TR,KTA1266GR EZSM RX-SLM801
X POWER R 0103 88-118-471-080 C-RES,S 470-1/10W J KSM RX-SLM800
X POWER R 0103 88-118-471-080 C-RES,S 470-1/10W J EZSM RX-SLM801
X POWER R 0103 88-118-471-080 0E C-RES,S 470-1/10W J KSM RX-SLM800
X POWER R 0103 88-118-471-080 0E C-RES,S 470-1/10W J EZSM RX-SLM801
X POWER R 0104 88-118-471-080 C-RES,S 470-1/10W J KSM RX-SLM800
X POWER R 0104 88-118-471-080 C-RES,S 470-1/10W J EZSM RX-SLM801
X POWER R 0104 88-118-471-080 0E C-RES,S 470-1/10W J KSM RX-SLM800
X POWER R 0104 88-118-471-080 0E C-RES,S 470-1/10W J EZSM RX-SLM801
X POWER R 0106 88-118-680-080 C-RES,S 68-1/10W J KSM RX-SLM800
X POWER R 0106 88-118-680-080 C-RES,S 68-1/10W J EZSM RX-SLM801
X POWER R 0106 88-118-680-080 0E C-RES,S 68-1/10W J KSM RX-SLM800
X POWER R 0106 88-118-680-080 0E C-RES,S 68-1/10W J EZSM RX-SLM801
X POWER R 0107 88-118-473-080 C-RES,S 47K-1/10W J KSM RX-SLM800
X POWER R 0107 88-118-473-080 C-RES,S 47K-1/10W J EZSM RX-SLM801
X POWER R 0107 88-118-473-080 0E C-RES,S 47K-1/10W J KSM RX-SLM800
X POWER R 0107 88-118-473-080 0E C-RES,S 47K-1/10W J EZSM RX-SLM801
X POWER R 0108 88-118-221-080 C-RES,S 220-1/10W J KSM RX-SLM800
X POWER R 0108 88-118-221-080 C-RES,S 220-1/10W J EZSM RX-SLM801
X POWER R 0108 88-118-221-080 0E C-RES,S 220-1/10W J KSM RX-SLM800
X POWER R 0108 88-118-221-080 0E C-RES,S 220-1/10W J EZSM RX-SLM801
X POWER R 0109 88-118-472-080 C-RES,S 4.7K-1/10W J KSM RX-SLM800
X POWER R 0109 88-118-472-080 C-RES,S 4.7K-1/10W J EZSM RX-SLM801
X POWER R 0109 88-118-472-080 0E C-RES,S 4.7K-1/10W J KSM RX-SLM800
X POWER R 0109 88-118-472-080 0E C-RES,S 4.7K-1/10W J EZSM RX-SLM801
X POWER R 0110 88-118-103-080 C-RES,S 10K-1/10W J KSM RX-SLM800
X POWER R 0110 88-118-103-080 C-RES,S 10K-1/10W J EZSM RX-SLM801
X POWER R 0110 88-118-103-080 0E C-RES,S 10K-1/10W J KSM RX-SLM800
X POWER R 0110 88-118-103-080 0E C-RES,S 10K-1/10W J EZSM RX-SLM801
X POWER R 0112 88-118-471-080 C-RES,S 470-1/10W J KSM RX-SLM800
X POWER R 0112 88-118-471-080 C-RES,S 470-1/10W J EZSM RX-SLM801
X POWER R 0112 88-118-471-080 0E C-RES,S 470-1/10W J KSM RX-SLM800
X POWER R 0112 88-118-471-080 0E C-RES,S 470-1/10W J EZSM RX-SLM801
Other manuals for XR-M800
3
This manual suits for next models
3
Table of contents
Other Aiwa Stereo System manuals
