Akai AK-9000WIFI User manual

Wi-Fi Reverse Cycle
Split System Air Conditioner
INSTALLATION MANUAL
PROTECT YOUR WARRANTY
This unit must be installed by a registered,
licensed installer as required by
Government regulations.
N13275
Model Number AK-9000WIFI
Model Number AK-12000WIFI
Model Number AK-18000WIFI

2
Contents
Important Safety Instructions 3
Product Overview 5
Selecting the Installation Place 6
Installation 8
Technical Specifications 18
After Sales Support
1300 886 649 | [e-mail]

3
Important Safety Instructions
FOR THE INSTALLER
Read this guide before installation. The appliance must be installed by
a professional installer according to the instructions in this manual and
in accordance with all applicable regulations.
Electrical connections
• All wiring work must be done by a qualified electrician. The voltage must be
within the range of 90–110% of its rated voltage. The switch or power plug
must be kept clean.
• Before accessing the terminals, all the power circuits must be disconnected
from the power supply.
• The air conditioner must be grounded. Incomplete grounding may result
in electric shocks. Do not connect the earth wire to the gas pipeline, water
pipeline, lightning rod or telephone earth wire.
• If the air conditioner is not fitted with a supply cord and a plug, an all-pole
switch must be installed in the fixed wiring and the distance between
contacts should be no less than 3mm.
• If the air conditioner is permanently connected to the fixed wiring and has
a leakage current that may exceed 10 mA, a leakage protector must be
installed in the fixed wiring.
• An earth leakage breaker with a rated capacity of more than 1.5 times the
maximum current must be installed to avoid possible electric shocks.
• If the power supply cord is damaged, it must be replaced by the
manufacture or its service agent or a similar qualified person in order to
avoid a hazard.
• For the method of connection of the appliance to the electrical supply and
interconnection of separate components, please see the electric connection
elements chart attached to the outdoor unit.
• Make sure that after installation the power plug can easily be reached.
PROTECT YOUR WARRANTY
These installation instructions are for use by an appropriately
qualified installer. Do not try to install the air conditioner on your
own; doing so will expose you to danger and void the warranty.
Contact a licensed installer.
After Sales Support
1300 886 649 | [e-mail]

4
Installation
• The air conditioner’s outdoor unit must be installed on suitably strong
supports.
• During installation of the indoor and outdoor units, do not allow children
access to the working area.
• Make sure that the base of the outdoor unit is firmly fixed, otherwise it will
produce abnormal noise and vibration during use.
• Do NOT install the outdoor unit:
XIn an area where the running noise could disturb neighbours
XIn environments where the air could contain gas, oil or sulphur
XNear sources of heat, including in areas where it is directly exposed to
sunshine
XAt a distance of less than 1m from flammable substances (e.g. alcohol or
other flammable liquids or gases) and pressurised containers (e.g. spray
cans).
• If the appliance is used in areas without the possibility of ventilation,
precautions must be taken to prevent any leaks of refrigerant gas from
remaining in the environment and creating a fire danger.
• Check that air cannot enter the refrigerant system and check for refrigerant
leaks when moving the air conditioner.
• Carry out a test cycle after installing the air conditioner and record the
operating data. Make sure that air cannot enter the refrigerant system and
check for refrigerant leaks when moving the air conditioner.
Important Safety Instructions (Cont.)
Important Notice: Refrigerant Gas R-410A
This air conditioner uses the refrigerant R-410A in a closed cooling circuit.
While this coolant has zero ozone depletion potential, it is a so-called
greenhouse gas under the Kyoto Protocol and may thus contribute to
global warming, if it is released into the atmosphere. Therefore only trained
technicians with an appropriate refrigerant certificate may service the
appliance for filling or emptying.
After Sales Support
1300 886 649 | [e-mail]

5
After Sales Support
1300 886 649 | [e-mail]
Product Overview
Installation hardware
(not pictured):
Connection pipe
Plastic strap
Pipe protection ring
Rubber feet
Luting (putty)
Documentation
(not pictured):
User manual,
Installation manual,
Certificates

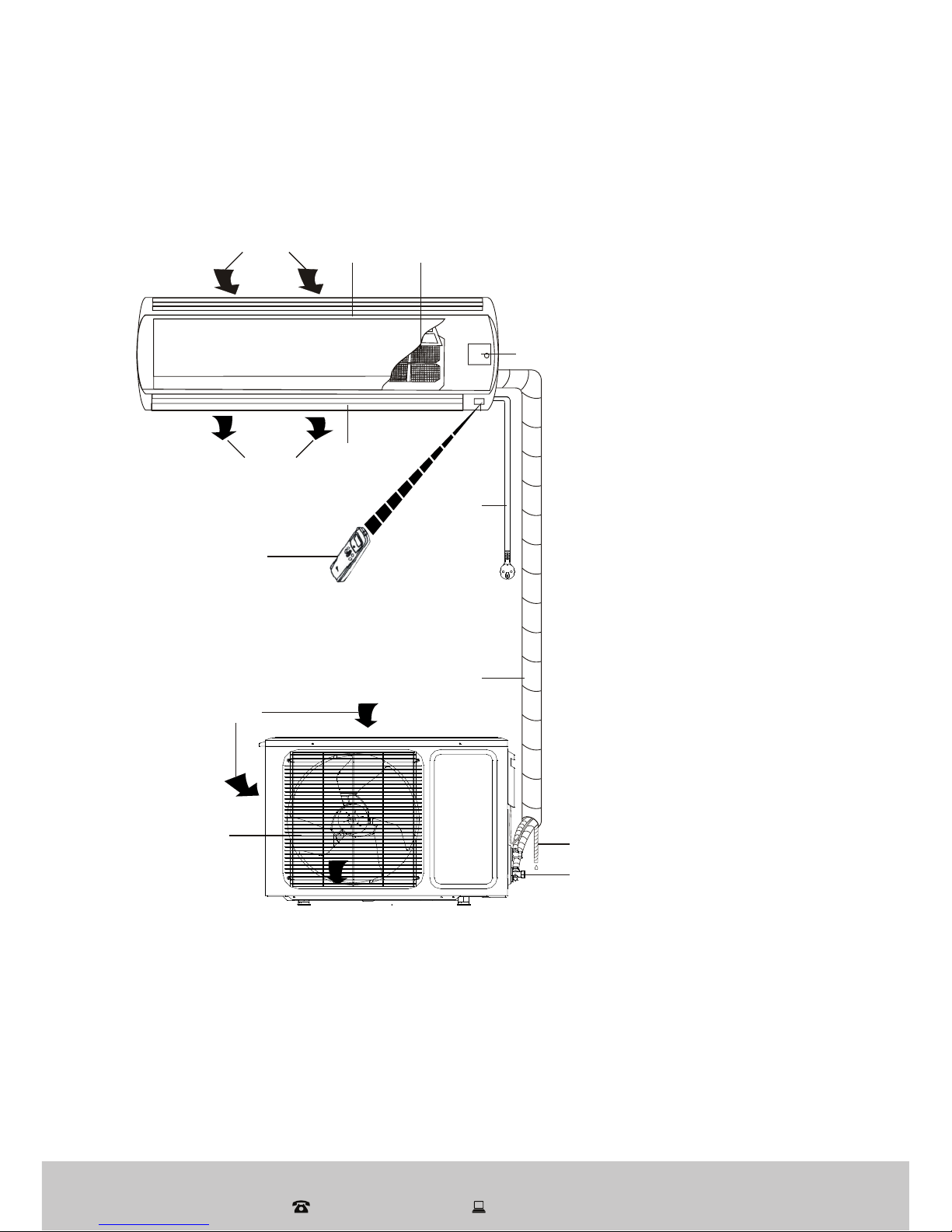

Scope of Delivery
Indoor unit (Fig. 1)
1 Front panel
2 Air filter
3 LC display and
signal receptor
4 Louvres
5 Supply cord
6 Remote controller
Outdoor unit (Fig. 2)
7 Drain hose
8 Refrigerant gas/
liquid pipe
9 Cut-off valve
10 Air outlet cover
Indoor Unit
Outdoor Uni t
Air inlet
Air outlet
Air inlet
Air outlet
5
12
3
4
6
7
8
9
10
11
5
6
7
10
9
8
Fig. 1
Fig. 2
Note:
• If the power is supplied from the outdoor unit, the power supply cord is
fitted in the outdoor unit.
• Figures and descriptions throughout this user manual are for explanatory
and illustrative purposes only and may differ slightly from the appearance of
the product purchased.

6After Sales Support
1300 886 649 | [e-mail]
Selecting the Installation Place
Indoor Unit
The AKAI Wi-Fi Reverse Cycle Split System Air Conditioner systems are
suitable for cooling or heating rooms/areas of the following size:
AK-9000WIFI: up to 20m2
AK-12000WIFI: 13–27m2
AK-18000WIFI: 20–40m2
Before starting installation, decide on the position of the indoor and outdoor
units, taking into account the minimum space required around the units.
Install the indoor unit:
3Level, on a strong wall that is not subject to vibrations
3Near an electrical socket or private circuit
3So that the inlet and outlet ports are not be obstructed, the air should be
able to blow all over the room

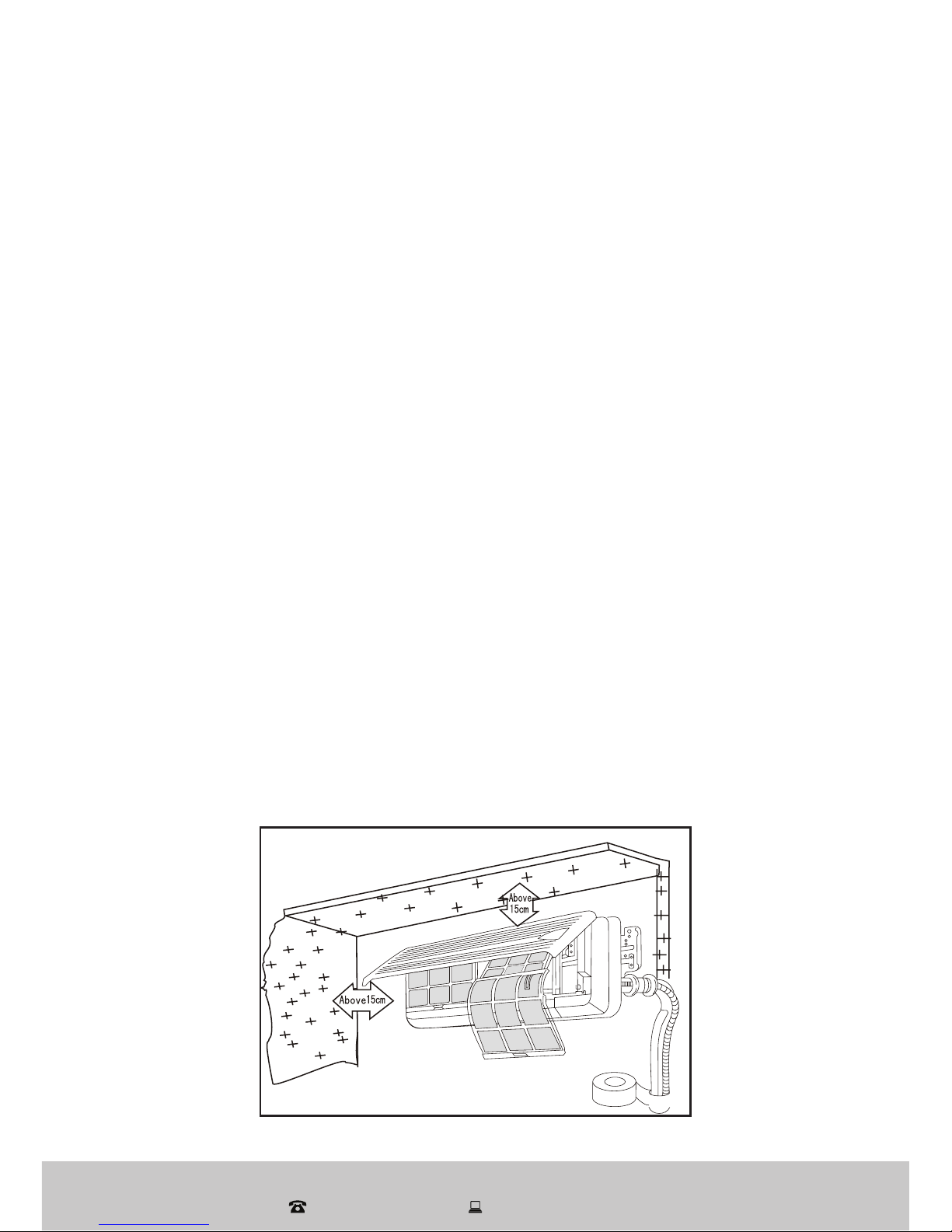

3Where the minimum clearances can be maintained (as illustrated) and at
least 2m above floor height
3Where connection between the indoor and outdoor units is as easy as
possible
3Where the filter is easily accessible
3Where it is easy to drain any condensation water.
Do NOT install the indoor unit:
2Near a source of heat, steam or flammable gas
2Near a doorway
2Where it will be exposed to direct sunlight

7
After Sales Support
1300 886 649 | [e-mail]
Selecting the Installation Place (Cont.)
Outdoor Unit
If you put up a canopy to protect the outdoor unit from rain and sun rays,
make sure you do not create any obstacles for proper heat dispersion from
the condenser.
Install the outdoor unit:
3In a safe place and solid place
3Level, on a strong and secure installation
base and supporting frame
3In the room to be air conditioned — avoid
installation in corridors or communal
areas
3Where the air discharge and operating
sound level will not disturb neighbours

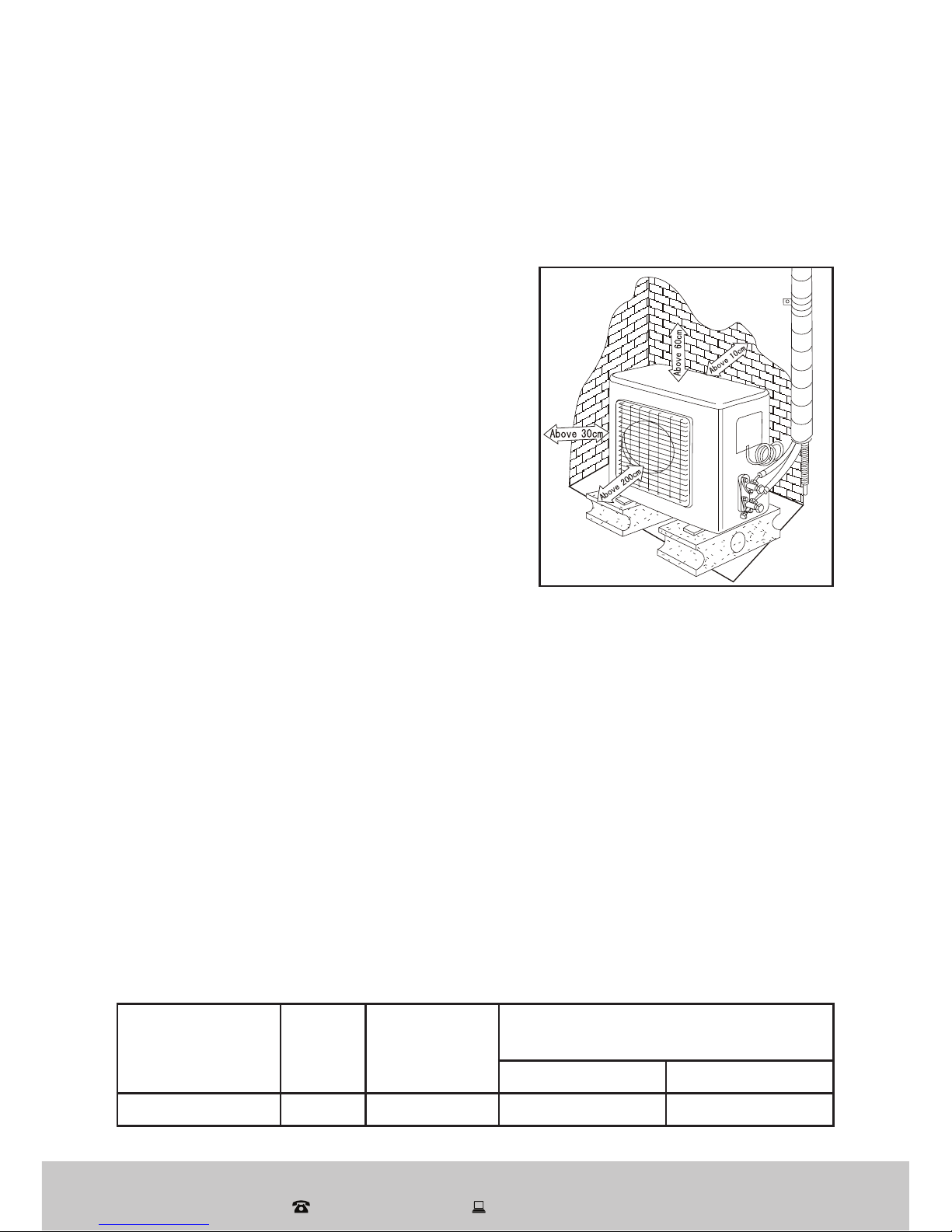

3Where the minimum clearances can be
maintained (as illustrated) for free air
circulation.
Do NOT install the indoor unit:
2Near sources of heat, steam or
flammable gas
2Where it is exposed to high winds or
excessive dust
2Where people often pass
2Where it will be exposed to direct sunlight — if such position cannot be
avoided, use a protection that will not interfere with the airflow
2Where animals are kept or plants are grown, as exposure to cold and hot
air will affect them
2Where it will be subject to vibration — if such position cannot be avoided,
place rubber gaskets on the feet of the unit.
The distance between the indoor and outdoor units should be 5 metres,
and the pipe length can go up to a maximum of 15 metres with additional
refrigerant charge.
Max. Allowable
Tubing Length
at Shipment
Limit of
Tubing
Length
Limit of
Elevation
Difference H
Required Amount of Additional
Refrigerant (g/m)
CC ≤12000BTU CC ≥18000BTU
5m 15m 5m 20 30

8
Installation
After Sales Support
1300 886 649 | [e-mail]
Installing the Indoor Unit
• First ensure the wall is strong and solid
enough to hold the unit safety.

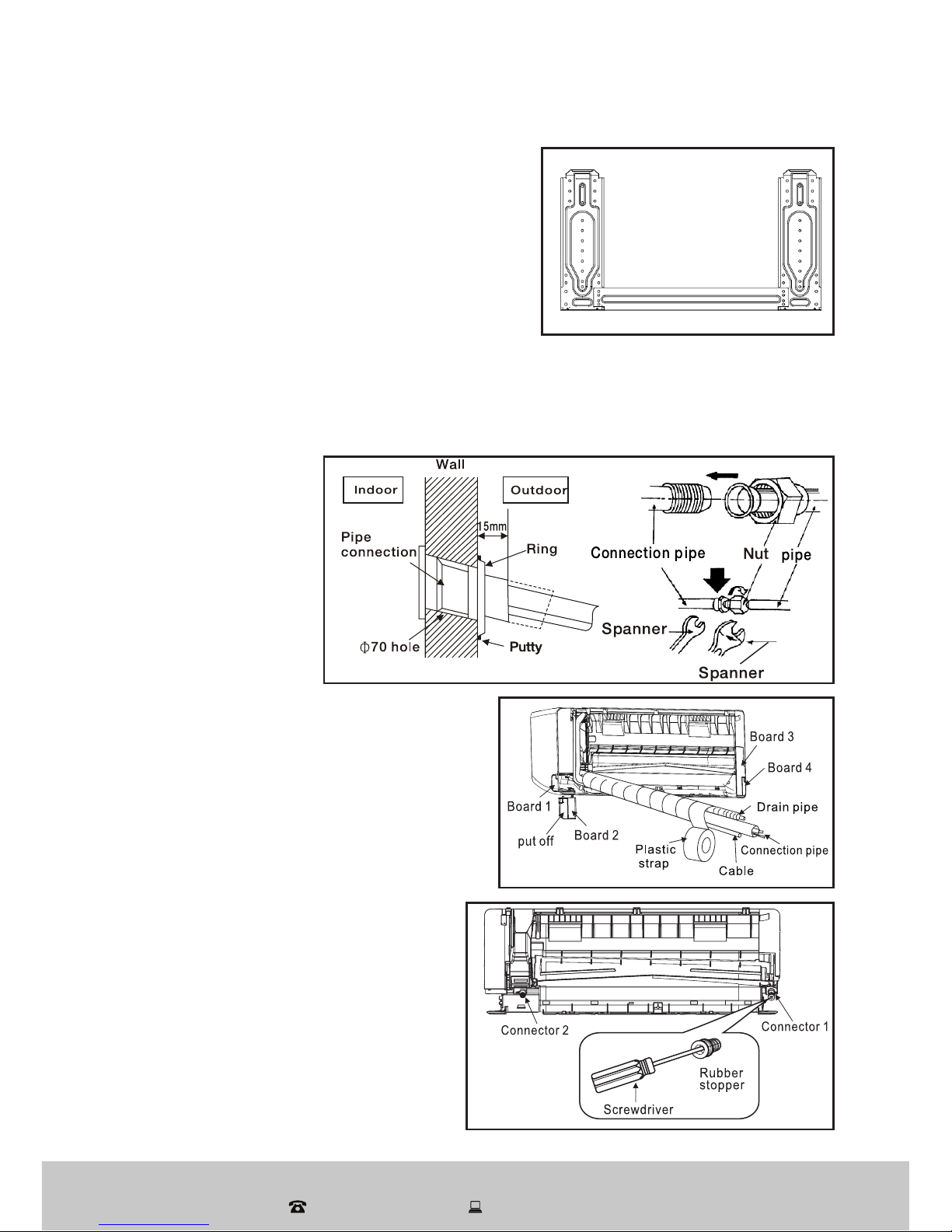

• Attach the installation board to the wall using
4 (+) type screws. Use a spirit level to ensure
it is in a perfectly level position vertically and
horizontally, otherwise it might cause water
drops when the unit is cooling.

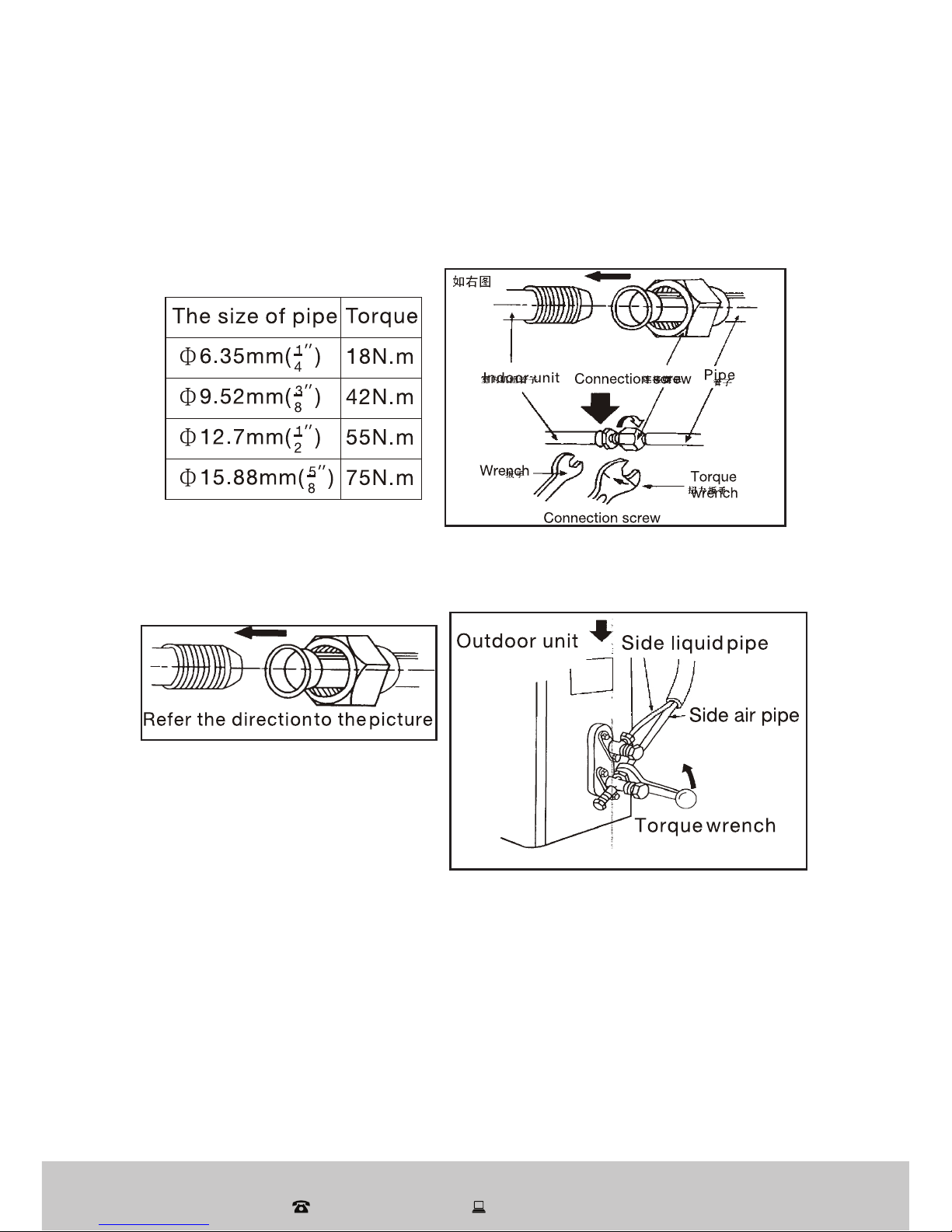

• Pull out the indoor unit pipes after detaching the fixed parts on them. Connect
the interconnected pipes to the indoor unit: point to the centre of the pipe and
fasten the connection screw, at first by hand and then by wrench, until you hear
a click sound. Fastening direction is shown in the picture below.
• Drill a 70mm
diameter pipe hole
(slanting slightly
outward) at the left
or right down side
of the installation
board.
• Before installation,
confirm the direction
of the connection
pipes. Remove Board 1 and Board 2 on
the correct connecting side. Press the
connection pipes to the board gap, then
install Board 2 to the original location.
If the connection pipes are on the other
side, install them as pictured.
• The drainage pipe can be connected
to Connector 1 and Connector 2. If it
is necessary to adjust the drainage
pipe to the other connector, remove
the rubber stopper from this side
and fix the drainage pipe to it, then
fix the rubber stopper to the other
connector to block it up.
• Note: To block up the connector, use
a tool like a screwdriver to plug the
rubber stopper into the connector, as
pictured.

9
Installation (Cont.)
After Sales Support
1300 886 649 | [e-mail]
Note: The installed air
conditioner will not be
tightly affixed to the wall
unless it is installed as
pictured. The outflow
tube must be at the bot-
tom and its highest point
not higher than the water
basin.
Checking the Water Discharge
• For maintenance, take off the front frame according to the following steps:
• Turn the perpendicular airflow
direction handle from [ I ] to
horizontal direction.
• As shown in the picture on the
right, take off the two covers from
the front frame and then unfasten
the two fixture screws.
• Pull the front frame towards
yourself and take it off.
• To put the front frame back, turn
the perpendicular airflow direction
handle from [ I ] to horizontal, then
proceed according to the fourth
and third steps above.
• You should check whether the
front frame is firmly inside the
fixture groove on the top.
• To check the water discharge, put a cup of water into the groove and check
whether the water flows through the water discharge hole.

10
Installation (Cont.)
Outdoor Unit
Size of Shape (mm) A (mm) B (mm)
720x260x540 540 271
802x298x535 546 316
After Sales Support
1300 886 649 | [e-mail]
Installing the Outdoor Unit
• The outdoor unit must be firmly fixed so it does not fall over in strong wind.
• Install the unit on a cement base, as illustrated below.
• If the unit is to be installed in areas with strong wind, such as in coastal
areas or at places high above sea level, the outdoor unit should be installed
against a wall to ensure normal fan operation, and the blocking plate should
be used.
• Make sure the mounting surface is made of solid materials and is strong
enough to support the unit in operation. Otherwise, measures such as
reinforcement, support or vibration damping should be adopted.
=

11
Installation (Cont.)
After Sales Support
1300 886 649 | [e-mail]
Pipe Connection
• Connect the pipe to the unit as illustrated below.
• Pointing to the centre of the pipe, fasten by wrench in the direction
indicated in the illustration below, until it is tightly fastened.
• Pointing towards the centre of the pipe, fasten the screw with strength.
• Wrench the screw in the end until it clicks securely into place.

12
Installation (Cont.)
After Sales Support
1300 886 649 | [e-mail]

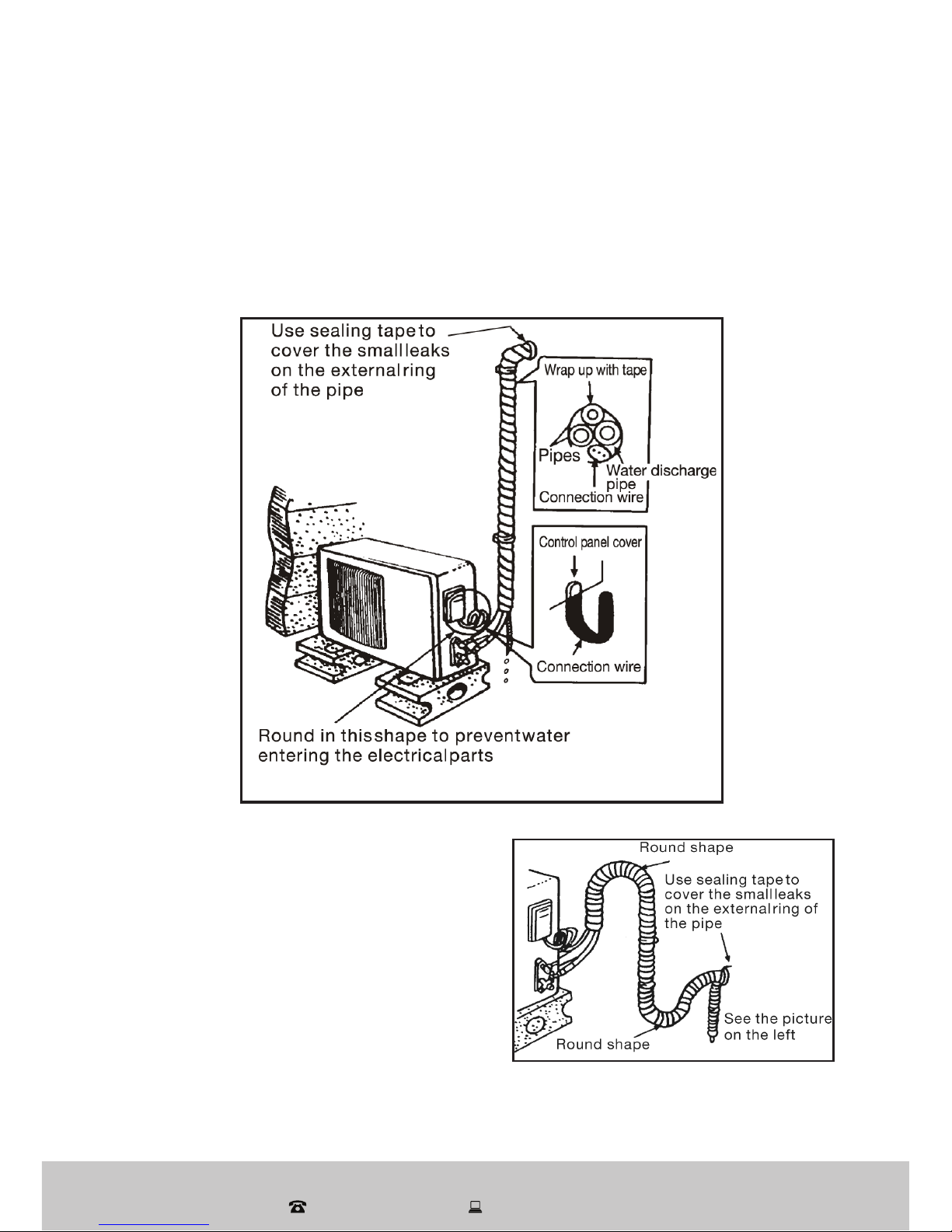

Shape and form of the pipe
• Wrap up all pipe, water discharge and connection wire from top to below.
• Cover the connections and fix them with two plastic rings.
• Wrap up the pipes with tape alongside the wall and fix them to the wall with
clips. These steps are usually adopted when the outdoor unit is installed
below the indoor unit.
• In case that you want to have an
additional water discharge pipe, the
end of the pipe should be within a
certain distance towards the surface
(don’t let it drop under water, fix it onto
the wall so it won’t be swayed by wind).
• Wrap the pipes and connection wire
well from bottom to top.
• To prevent water entering the room,
wrap up the pipes that are rounded up
by the wall corners, as illustrated.
• Use clips or other fixture to fasten the pipes to the walls.

13
Installation (Cont.)
After Sales Support
1300 886 649 | [e-mail]

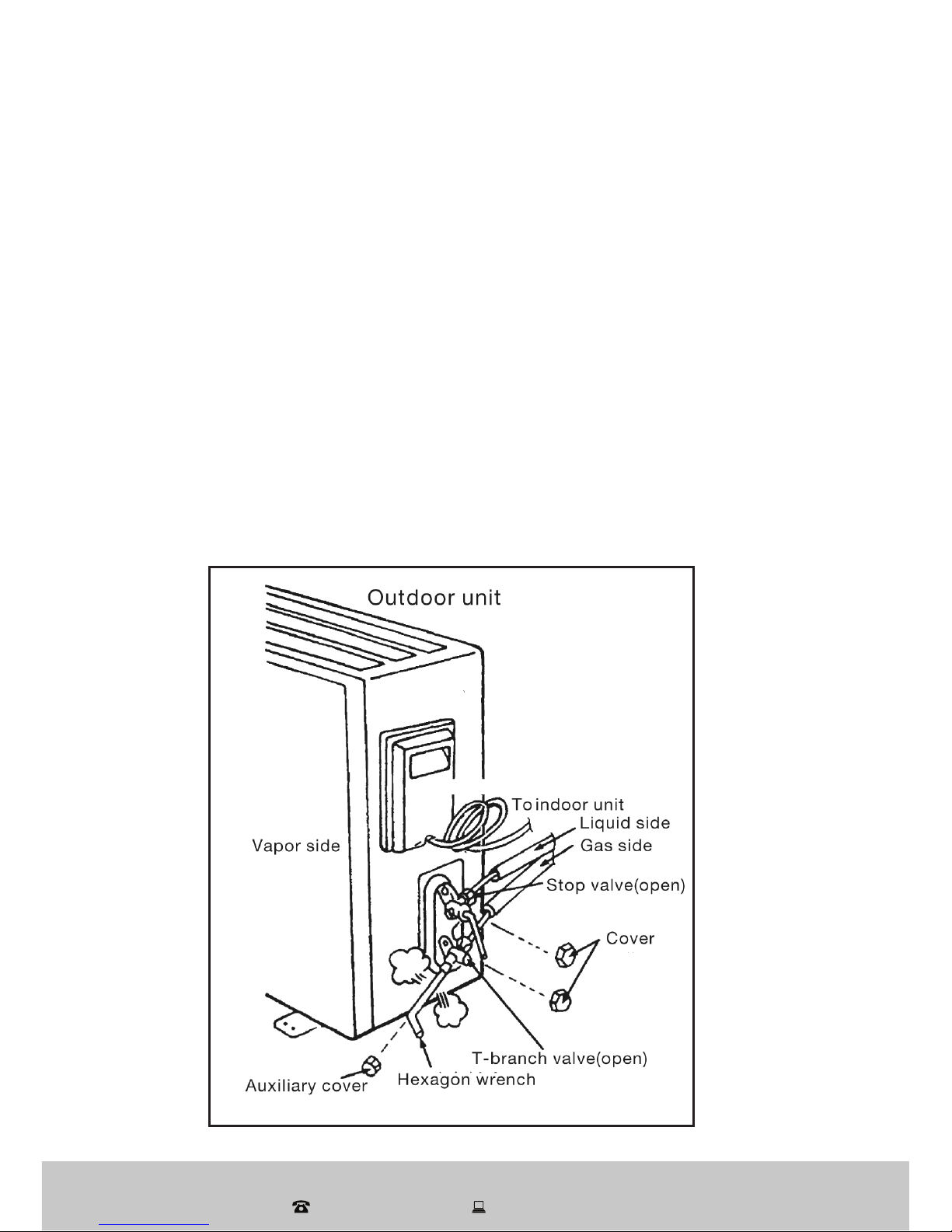

Expelling Air from Pipes
Air and humidity left inside the refrigerant circuit can cause compressor
malfunction. After having connected the indoor and outdoor units, bleed the
air and humidity from the refrigerant circuit by following the below steps.
1. Take off the cover from the stop valve and T-branch valve.
2. Take off the auxiliary cover from the T-branch valve.
3. Turn the stop valve rod anticlockwise to an angle of 90 degrees, keep it
open for 8 seconds and then close the valve.
4. Check whether there is air leakage at all connection parts of the pipes.
5. Push the top rod of the T-branch valve with a hexagon wrench to expel air.
6. Repeat the third and fifth steps.
7. Open the stop and T-branch valve with a hexagon wrench to start
operation of the unit.
IMPORTANT: Check all piping and connections and ensure there is no
leakage. Test the unit with soapy water for leakage.

14
Installation (Cont.)
After Sales Support
1300 886 649 | [e-mail]
As the air conditioner is filled with the refrigerant R-410A, any air and
moisture remaining in the refrigerant system must be discharged with a
vacuum pump. (For method of using a manifold valve, refer to its operation
manual.)
1. Completely tighten the flare nuts A, B, C, D (as illustrated below) and
connect the manifold valve charge hose to a charge port of the low-
pressure valve on the gas pipe side.
2. Connect the charge hose connection to the vacuum pump.
3. Fully open the handle Lo of the manifold valve.
4. Operate the vacuum pump to evacuate. After starting evacuation, slightly
loose the flare nut of the Lo valve on the gas pipe side and check that
the air is entering. (Operation noise of the vacuum pump changes and a
compound meter indicates 0 instead of minus.)
5. After the evacuation is complete, fully close the handle Lo of the manifold
valve and stop the operation of the vacuum pump. Make evacuation
for 15 minutes or more and check that the compound meter indicates
-76cmHg (-1 x 105Pa).
6. Turn the stem
of the packed
valve B about 45°
counterclockwise
for 6~7 seconds
after the gas starts
coming out, then
tighten the flare
nut again. Make
sure the pressure
display in the
pressure indicator
is a little higher than
the atmosphere
pressure.
7. Remove the charge
hose from the Low
pressure charge
hose.
8. Fully open the
packed valve stems
B and A.
9. Securely tighten the cap of the packed valve.

15
Installation (Cont.)
After Sales Support
1300 886 649 | [e-mail]
Electrical Connection
Use the following cables depending on the model (capacity) of your air
conditioner. Connect the cables to their terminals according to their number.
Model ≤9000BTU
(≤2500W)
≤12000BTU
(≤3500W)
≤18000BTU
(≤5100W)
Specification of
interconnection cables (mm2)1.0 1.0 1.0
Specification of
input power cables (mm2)1.0 1.5 1.5
Indoor connection
Open the front panel, inset the connection cables from the base of the air
conditioner, connecting to the terminal board as illustrated, using the pressing
board to fasten the connection cables.
Open the front panel, if the indoor unit is fitted with the signal wire, detach the
mid-frame and insert the signal wire through the bottom frame, then connect
the signal wire quick plug of the indoor to the outdoor unit.

16
Installation (Cont.)
After Sales Support
1300 886 649 | [e-mail]
Outdoor connection
Unscrew the screw and take the control panel cover off the unit. Connect the
cable to their terminals according to their number.
To connect the grounded wire, loosen the grounded screw of the electrical
bracket and connect the grounded wire with the grounded screw, then set the
screw in the mark. Fix the cable to the terminal board with the fastening
piece, then reinstall the cover with the screw.
Important notes
• Don’t reverse the power polarity.
• Wrong connection of the grounded wire will lead to malfunction of some
electrical parts.
• Fix the screw nail firmly to the wire, then drag the wire lightly to confirm that
it is fixed firmly. If the wire is loose, fix it firmly. Self-tapping screws cannot
be used for electrical connections.
• If there is a connector, connect it directly.

17
Installation (Cont.)
• The connection of the connection cables of the indoor unit and outdoor
units must correspond to the graph below. Wrong connection may cause
electric shock or fire.
Note: This manual includes all wiring modes for different air conditioner
models. Please refer to the corresponding guide and instruction when
wiring. We cannot exclude the possibility that the product has been
improved, which could have caused a change of wiring, therefore
please refer to the wiring diagram attached to the unit purchased.
Test Run
• Make sure that pipes and wires are properly connected.
• Make sure that both the liquid side valve and air side valve are completely
open.
Power source connection
• Connect the wire to an independent power source socket.
• Prepare the remote control.
• Run the air conditioner in cooling operation mode for 30 minutes or longer.
Performance evaluation
• Test the temperature going into and coming out of the air conditioner. Make
sure that the air conditioner can achieve a temperature difference between
the outside air and the air at the indoor outlet of at least 10°C.
After Sales Support
1300 886 649 | [e-mail]

18
Technical Specifications
Technical specification AK-9000WIFI AK-12000WIFI AK-18000WIFI
General data
Cooling capacity (W) 2500 (1500-3400) 3400 (1700-4100) 5300 (1000-5600)
Heating capacity (W) 2800 (1400-3700) 3800 (1700-4300) 5300 (900-6500)
AEER/ACOP (W/W) 3.82 / 4.14 3.81 / 4.01 ≥3.25 / ≥3.25
Energy stars Cooling 3 3 2
Heating 3.5 3.5 2
Moisture removal (L/h) 0.8 1.1 1.6
Max. discharge pressure (MPa) 4.15 4.15 4.15
Max. suction pressure (MPa) 1.15 1.15 1.15
Indoor noise level (L/M/H/Turbo)
(dbA) 29/ 34 / 38.5 / 40 34 / 38 / 39.5 / 41 35 / 40 / 45 / 47
Outdoor noise level (dbA) 51 52 54
Electrical data
Power supply 220-240VAC ~ 50Hz
Rated current (A) Cooling 4.2 (2.0-6.8) 4.5 (2.1-6.5) 8.2 (2.3-9.2)
Heating 3.4 (1.7-4.8) 4.3 (1.9-5.6) 8.2 (2-11)
Rated input power (W) Cooling 720 (330-1550) 980 (360-1600) 1520 (450-2100)
Heating 650 (310-1080) 950 (330-1300) 1500 (450-2500)
Max. current input (A) 7.5 8.5 12.8
Max. power input (W) 1700 1900 2900
Refrigeration system
Refrigerant (g) R410A 830 1050 1230
Compressor type Rotary
Fan system
Indoor air circulation
(m3/h)
High/
Cooling 650 700 1050
Fan type Indoor Cross flow
Outdoor Axial
Fan speed (rpm)
Indoor
(T/H/M/L)
1280/1130/1000/800
(DC Motor)
1300/1150/1000/800
(DC Motor)
1230/1080/970/850
(DC Motor)
Outdoor 800±30 (DC Motor)
After Sales Support
1300 886 649 | [e-mail]

19
Technical Specifications (Cont.)
Technical specification AK-9000WIFI AK-12000WIFI AK-18000WIFI
Connections
Connecting pipe (inch) Liquid 1/4”Dg4
Gas 3/8”Dg8 3/8”Dg8 1/2”Dg10
Other specifications
Condensate drainage pipe (OD*L)
(mm) Ø16.5x2000
Dimensions (mm) Indoor 800*198*300 850*198*300 970*235*315
Outdoor 720*260*540 802*298*535 802*298*535
Weight (kg) Indoor 9.5 10 14
Outdoor 27.5 30 41
After Sales Support
1300 886 649 | [e-mail]

After Sales Support
1300 886 649 | [e-mail]
