Akai TEM-35CHSABH User manual

After Sales Support
TEL: [phone]
Reverse cycle Split
System Air Conditioner
Instruction manual
Model Number TEM-35CHSABH
N13275
PROTECT YOUR WARRANTY
This unit must be installed by a registered,
licensed installer as required by
Government regulations.
FOR THE USER

1
After Sales Support 1300 886 649
Contents
2 Safety rules and recommendations for the installer
3 Safety rules and recommendations for the user
5 Safety rules and prohibitions
6 Parts list
7 Indoor unit display
8 Emergency function and Auto-Restart function

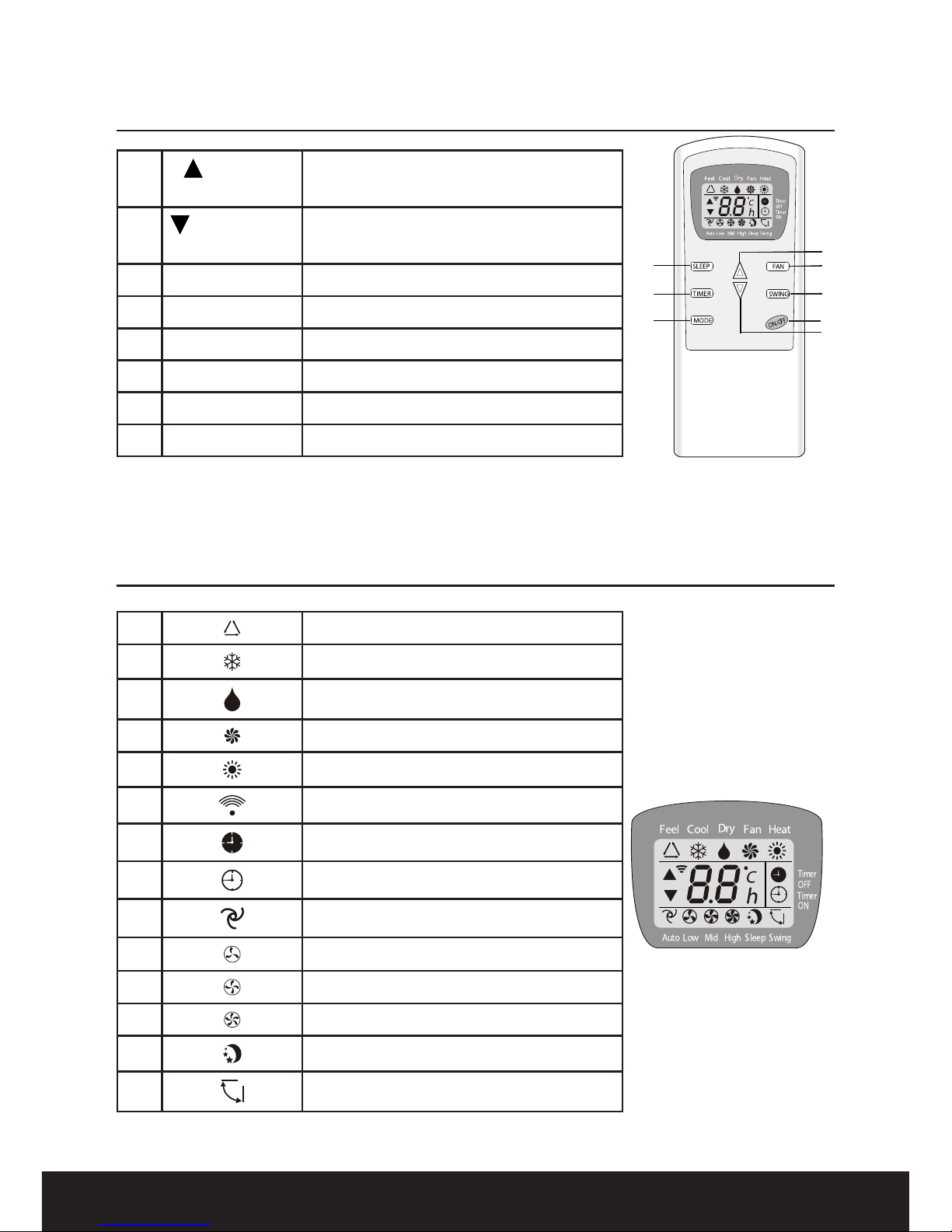

9 Remote control and remote control display
10 Preliminary instructions How to insert the batteries
DIP switch on position function
11 Modes of operation Swing control of the air ow

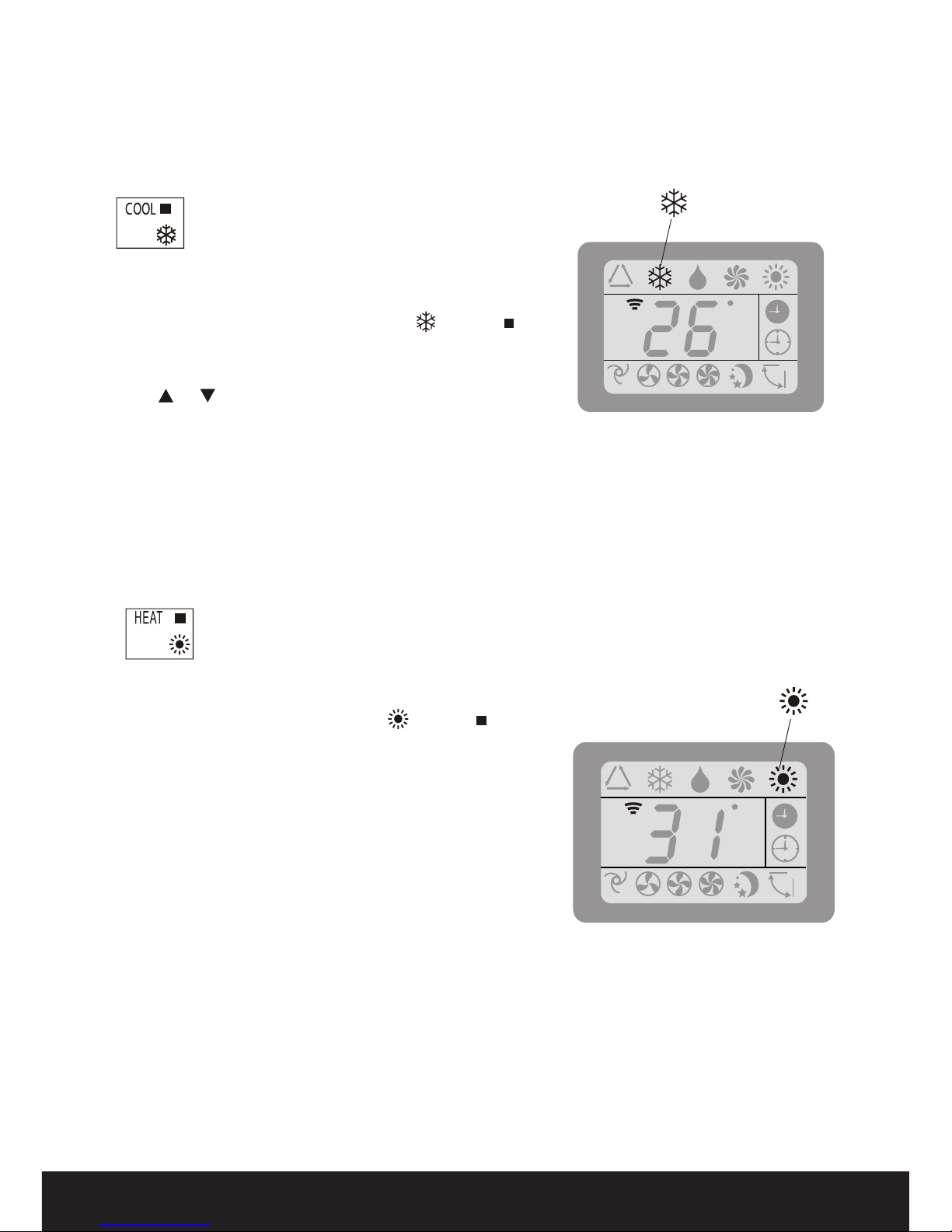

13 Cooling mode
Heating mode
14 Timer mode - Timer ON
Timer mode - Timer OFF

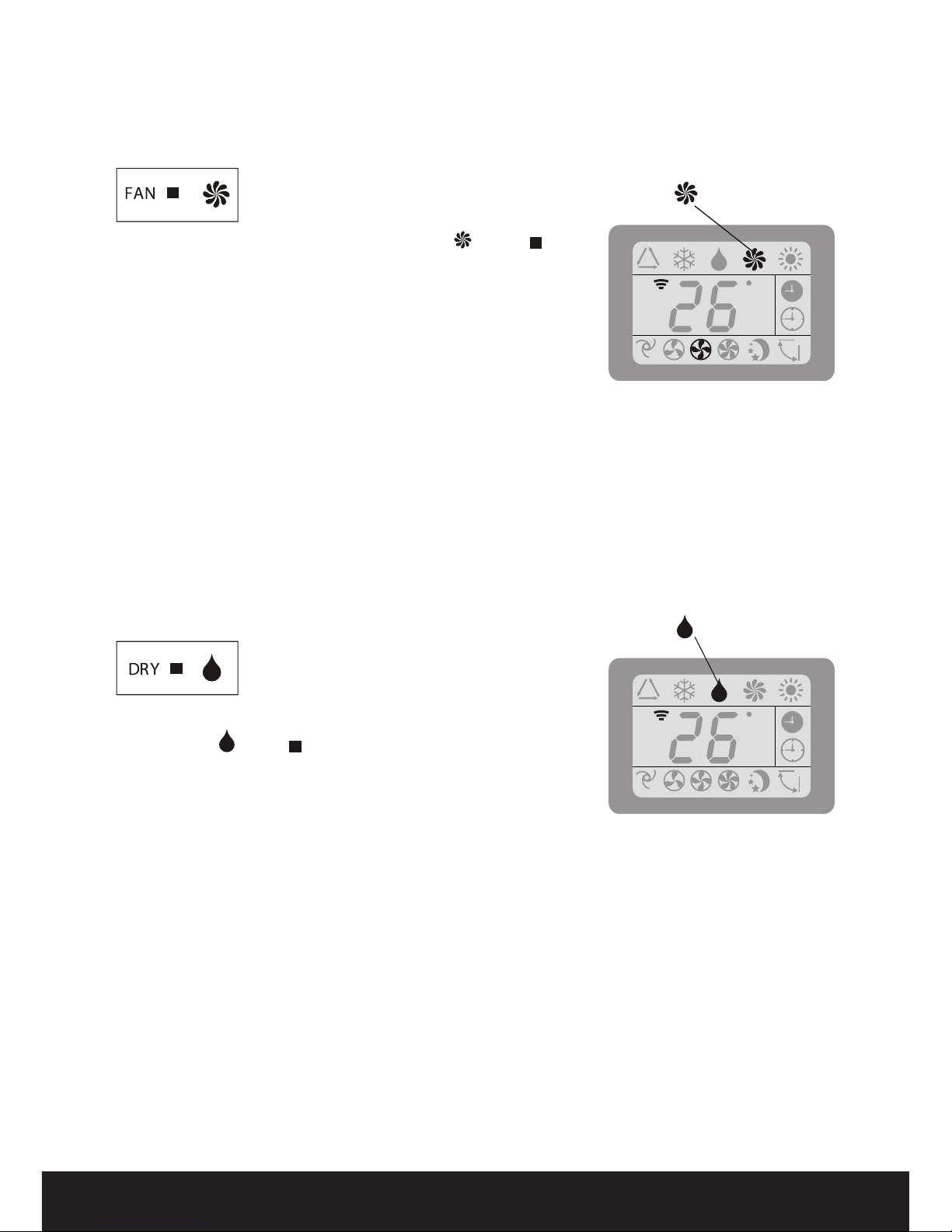

15 Fan mode
Dry mode
16 Feel mode
Sleep mode
17 Protection

2
After Sales Support 1300 886 649
• Read this guide before installing and using the appliance.
• During the installation of the indoor and outdoor units, access to
the working area should be forbidden to children.
Unforeseeable accidents could happen.
Make sure that the base of the outdoor unit is rmly xed.
• Check that air cannot enter the refrigerant system and check for refrigerant
leaks when moving the air conditioner.
• Carry out a test cycle after installing the air conditioner and record the
operating data.
•The ratings of the fuse installed in the built in control unit are 3.15A / 250V
for 220V type and 3.15A/125V for 110V type.
• The user must protect the indoor unit with a fuse of suitable capacity for
the maximum input current or with another overload protection device.
• Ensure that the mains voltage corresponds to that stamped on the rating
plate. Keep the switch or power plug clean. Insert the power plug correctly
and rmly into the socket, thereby avoiding the risk of electric shock or re
due to insucient contact.
• Check that the socket is suitable for the plug, otherwise have the socket
changed.
• Do not install the appliance at a distance of less than 50cm from
inammable substances (alcohol, etc.). Or from pressurised containers
(e.g. spray cans).
• If the appliance is used in areas without the possibility of ventilation,
precautions must be taken to prevent any leaks of refrigerant gas
from remaining in the environment and creating a danger of re.
• The packaging materials are recyclable and should be disposed of in the
separate waste bins. Take the air conditioner at the end of its
useful life to a special waste collection centre for disposal.
• Only use the air conditioner as instructed in this booklet. These
instructions are not intended to cover every possible condition and
situation. As with any electrical household appliance, common sense and
caution are therefore always recommended for installation, operation and
maintenance.
• The appliance must be installed in accordance with applicable national
regulations.
• Before accessing the terminals, all the power circuits must be disconnected
from the power supply.
Safety rules and recommendations for the installer

3
After Sales Support 1300 886 649
Safety rules and recommendations for the user
• Do not try to install the conditioner alone; always contact specialised
technical personnel.
• Cleaning and maintenance must be carried out by specialised technical
personnel. In any case disconnect the appliance from the mains electricity
supply before carrying out any cleaning
or maintenance.
• Ensure that the mains voltage corresponds to that stamped on the rating
plate. Keep the switch or power plug clean. Insert the power plug correctly
and rmly into the socket, thereby avoiding the risk of electric shock or re
due to insucient contact.
• Do not pull out the plug to switch o the appliance when it is in operation,
since this could create a spark and cause a re, etc.
• Never remain directly exposed to the ow of cold air for a long time. The
direct and prolonged exposition to cold air could be dangerous
for your health. Particular care should be taken in the rooms where there
are children, old or sick people.
• If the appliance gives o smoke or there is a smell of burning, immediately
cut o the power supply and contact the Service Centre.
• Have repairs carried out only by an authorised Service Centre of the
manufacturer. Incorrect repair could expose the user to the risk
of electric shock, etc. The prolonged use of the device in such
conditions could cause re or electrocution.
• This appliance has been made for air conditioning domestic environments
and must not be used for any other purpose, such as for drying clothes,
cooling food, etc.
• The packaging materials are recyclable and should be disposed of in the
separate waste bins . Take the air conditioner at the end of its
useful life to a special waste collection centre for disposal.
• Always use the appliance with the air lter mounted. The use of the
conditioner without air lter could cause an excessive accumulation
of dust or waste on the inner parts of the device with possible subsequent
failures.
• The user is responsible for having the appliance installed by a qualied
technician, who must check that it is earthed in accordance with current
legislation and insert a thermomagnetic circuit breaker.

4
After Sales Support 1300 886 649
• Unhook the automatic switch if you foresee not to use the device for a
long time. The airow direction must be properly adjusted.
• The aps must be directed downwards in the heating mode and upwards
in the cooling mode.
• Only use the air conditioner as instructed in this booklet. These
instructions are not intended to cover every possible condition and
situation. As with any electrical household appliance, common sense and
caution are therefore always recommended for installation, operation and
maintenance.
• Ensure that the appliance is disconnected from the power supply when
it will remain inoperative for a long period and before carrying out any
cleaning or maintenance.
• Selecting the most suitable temperature can prevent damage to the
appliance.

5
After Sales Support 1300 886 649
Safety rules and prohibitions
• Do not bend, tug or compress the power cord as this could damage it.
Electrical shocks or re are usually due to a damaged power cord.
Only specialised technical personnel must replace a damaged power cord.
• Do not use extensions or gang modules.
• Do not touch the appliance when barefoot or parts of the body are wet or
damp.
• Do not obstruct the air inlet or outlet of the indoor or the outdoor unit.
The obstruction of these openings causes a reduction in the operative
eciency of the conditioner with possible consequent failures or
damages.
• In no way alter the characteristics of the appliance.
• Do not install the appliance in environments where the air could contain
gas, oil or sulphur or near sources of heat.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Do not climb onto or place any heavy or hot objects on top of the
appliance.
• Do not leave windows or doors open for long when the air conditioner is
operating.
• Do not direct the airow onto plants or animals.
• A long direct exposition to the ow of cold air of the conditioner could
have negative eects on plants and animals.
• Do not put the conditioner in contact with water. The electrical insulation
could be damaged and thus causing electrocution.
• Do not climb onto or place any objects on the outdoor unit.
• Never insert a stick or similar object into the appliance.
It could cause injury.
• Children should be supervised to ensure that they do not play with the
appliance. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in order to
avoid a hazard.

6
After Sales Support 1300 886 649
13
15
16
17
14
NOTE: The above gures are only intended to be a simple diagram of the appliance and may
not correspond to the appearance of the units that have been purchased.

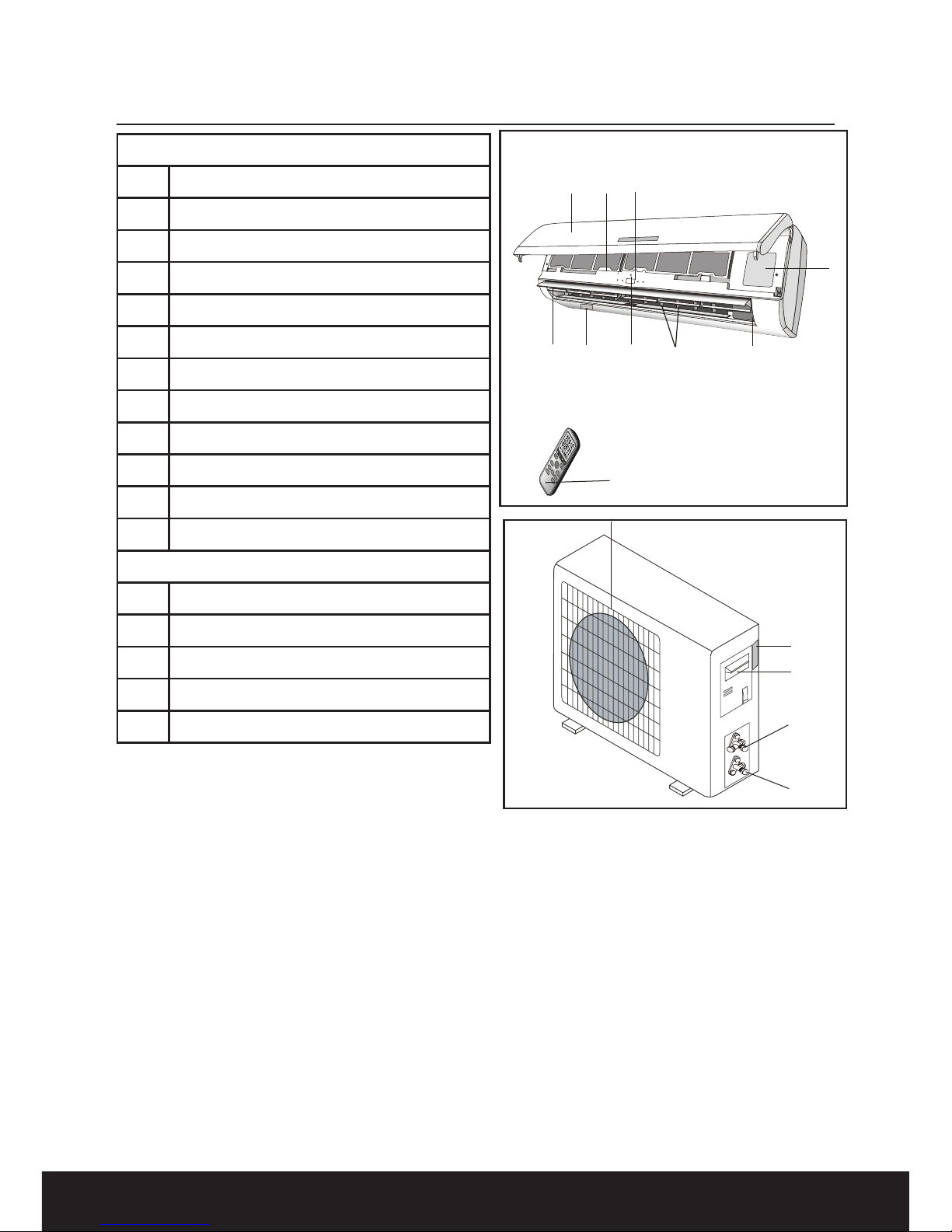

Indoor Unit
1 Front panel
2 Air lter
3Optional lter (if installed)
4 LED Display
5 Signal receiver
6 Terminal block cover
7Ionizer generator (if installed)
8 Deectors
9 Emergency button
10 Indoor unit rating label
11 Airow direction aps
12 Remote control
Outdoor Unit
13 Air outlet grille
14 Outdoor unit rating label
15 Cover
16 gas valve
17 liquid valve
WALL AIR-CONDITIONER
• The conditioner is made up of two or more units connected between themselves
through copper pipes (properly insulated) and an electrical connecting cable.
• The indoor unit is installed on the walls of the room to be conditioned.
• The outdoor unit is installed on the oor or on the wall on suitable brackets.
• Technical data of the air conditioner are printed on the labels placed on the indoor
and outdoor units.
• The remote control has been designed for an easy and fast use.
12-3
6
4-5
9
11 8
10 7
DISPL AY HEAL TH Y
3D
ON/OFF
SWING
FAN
TIMERSUPER
SLEEP MODE
ECO
CLOCK
12
13
14
15
16
17
Parts list

7
After Sales Support 1300 886 649
1
2
5
3
4
12 345
124 5
3
1
2
3
4
5
Indoor unit display
No. Led Function
1 POWER Shows that the unit is powered
2 SLEEP SLEEP mode
3 Temperature display
(if present)
Indicates the set temperature in C° or F°
4 TIMER TIMER mode
5 RUN Unit working
The shape and position of switches and indicators may vary according to
the model, but their function is the same.

8
After Sales Support 1300 886 649
Auto-restart function
The appliance is preset to auto-restart
function by manufacturer. With this
function, the air conditioner can keep
the selected settings after a blackout
or a voltage drop.
To deactivate the AUTO-RESTART
function, proceed as follows:
1. Switch the air conditioner o and
remove the plug.
2. Press the emergency button
meanwhile plug it in.
3. Keep pressing the emergency button
for more than 10 seconds until you
hear four short beeps from the unit.
The AUTO-RESTART function is o.
To activate the AUTO-RESTART
function, follow the same procedure
until you hear three short beeps from
the unit.

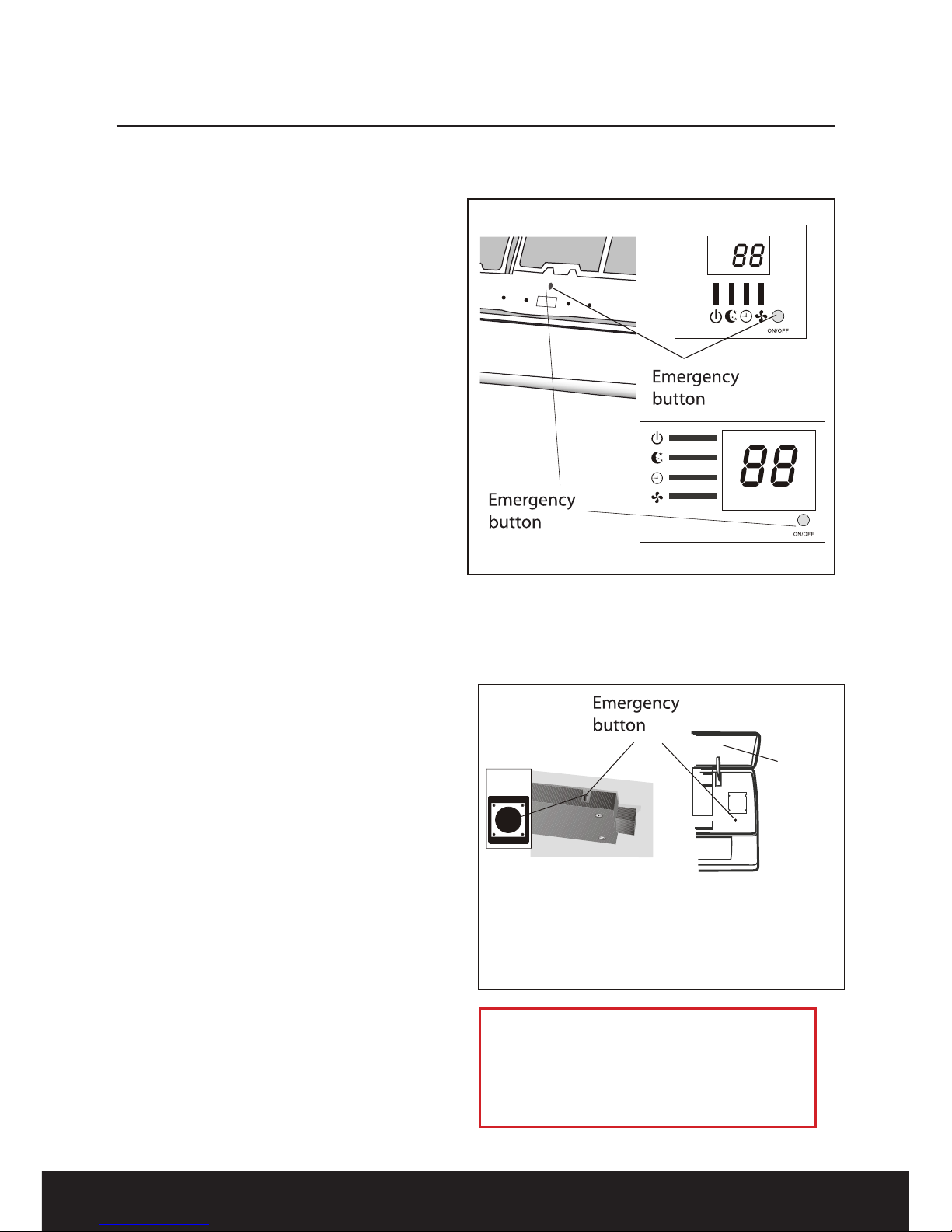

Emergency function
If the remote control is lost, proceed as
follows:
Lift the unit’s front panel to reach the
emergency button of the air conditioner
1. If you press the button once (one
beep), the air conditioner will work in
forced cooling function.
2. If you press the button twice (two
beeps), the unit will work in forced
heating function.
3. To switch o the unit , you just need
to press the button again (a single
long beep). After 30 minutes in forced
function, the air conditioner will
automatically start working in FEEL
mode. The FEEL function is described in
page 18.
ON / OFF
POWER
SLEEP
TIMER
RUN
display PCB
front panel
The emergency button in some models
could be on the right part of the unit
under the front panel.
The shape and position of the emergency
button may vary according to the model,
but their function is the same.
NOTE: The external static pressure of the
heat pumps is 0Pa for all models.
ON/OFF
Emergency function and Auto-Restart function

9
After Sales Support 1300 886 649
1temp up Increase the temperature or time
by 1 unit
2temp down Decrease the temperature or time
by 1 unit
3ON/OFF To switch the conditioner ON and OFF
4FAN To select the fan speed
5 TIMER To set automatic switching ON/OFF
6 SLEEP To activate the SLEEP function
7 MODE To select the mode of operation
8 SWING To control the deectors
1 FEEL mode indicator
2 COOLING indicator
3Dehumidifying indicator
4 Fan only operation indicator
5 Heating indicator
6 Signal reception
7 Timer OFF indicator
8 Timer ON indicator
9 Auto fan indicator
10 Low fan speed indicator
11 Medium fan speed indicator
12 High fan speed indicator
13 SLEEP indicator
14 Deector SWING indicator
8
5
4
61
2
3
7
Remote control
Remote control display
NOTE: The unit conrms the correct reception of each press button with a beep.

10
After Sales Support 1300 886 649
Preliminary Instructions
How to insert the batteries
Remove the cover from the battery compartment,
by sliding it in the direction of the arrow. Insert
the new batteries, ensuring that the (+) and (-)
directions are correct.
Ret the cover by sliding it into place.
• Use 2 LRO 3 AAA (1.5V) batteries. Do not use
rechargeable batteries. Replace the old batteries
with new ones of the same type when the display
is no longer legible.
The remote control batteries must be disposed of
in accordance with the applicable laws in force in
the country of use.
Refer to picture 1:
• When you insert the batteries for the rst time
in the remote control or if you change them, you
will see a DIP switch under the back cover.
DIP switch on position Function
CThe display is adjusted in degree Celsius
FThe display is adjusted in degree
Fahrenheit.
COOL The remote control is adjusted in only
cooling mode
HEAT The remote control is adjusted in only
heating mode
NOTE: After adjusting the function, you need to
take out the batteris and repeat again the
procedure described above.
+
+
+

11
After Sales Support 1300 886 649
Refer to picture 2:
When you insert the batteries for the rst time in
the remote control or if you change them, you need
to program the remote control of only cooling or
heat pump air conditioners.
This is very easy: as soon as you insert the batteries,
the symbols ( COOL ) and ( HEAT ) start
ashing. If you push any button when the symbol
( COOL ) is displayed, the remote control is adjusted
in only cooling mode.
If you push whatever button when the symbol
( HEAT ) is displayed, the remote control is
adjusted in heating mode.
NOTE: If you adjust the remote control in cooling
mode, it will not be possible to activate the
heating function in units with heating pump.
You need to take out the batteries and repeat
the procedure again as described above.
1. Direct the remote control toward the conditioner.
2. Check that there are no objects between
the remote control and the receiver on
the conditioner.
3. Never leave the remote control exposed to
the rays of the sun.
4. Keep the remote control at a distance of at
least 1m from the television or other electrical
appliances.
Recommendations for locating and using the remote control (if present).
The remote control may be kept in a wall-mounted holder.
remote controller holder
SIGNAL
RECEPTOR

12
After Sales Support 1300 886 649
The conditioner is designed to create comfortable
climatic conditions for the people in the room.
It can cool and dehumidify (and heat in models
with heat pump) the air in a completely automatic
way. The air sucked by the fan enters from the grill
of the front panel and passes through the lter,
which keeps the dust. Then it is conveyed to the
heat exchanger and cooled and dehumidied or
heated through the heat exchanger.
The heat removed from the room is drained outside.
When the cycle has nished the fan gives back the
fresh air in the room; the direction of the air outlet is
regulated by the aps, which are motorised up and
down, and manually moved right and left by the
vertical deectors.
Modes of operation
SWING control of the air ow
• The air outlet ow is evenly distributed
in the room.
• It is possible to position the direction
of the air in the optimal solution.
The key SWING activates the FLAP, the air ow
is directed alternatively from up to down.
In order to guarantee an even diusion of the air
in the room.
• In cooling mode, orient the aps in horizontal
direction;
• In heating mode, orient the aps downward as
the warm air tends to rise upwards.
The deectors are positioned manually and placed
under the aps. They allow to direct the air ow
rightward or leftward.
NOTE: Never position Flaps manually, the delicate
mechanism activating them could be
seriously damaged.
Never insert your hand or objects in the air
outlet of the units. These units contain a
fan that turns at high speed.
NOTE: The adjustment must
be done with the
appliance switched o.
C
h

13
After Sales Support 1300 886 649
Cooling mode
The cooling function allows the air
conditioner to cool the room and at the
same time reduces the humidity in the air.
To activate the cooling function ( COOL ), press
the MODE button until the symbol ( COOL )
appears on the display.
The cooling cycle is activated by setting the
keys or at a temperature lower than that
of the room. To optimise the functioning of the
conditioner, adjust the temperature (1), the speed
(2) and the direction of the air ow (3) by pressing
the keys indicated.
Heating mode
The heating function allows the air
conditioner to produce hot air.
To activate the heating function ( HEAT ), press the
MODE button until the symbol ( HEAT )
appears on the display.
With the keys or set a temperature higher than that
of the room.
To optimise the functioning of the conditioner
adjust the temperature ( 1 ), the speed ( 2 ) and the
direction of the air ow ( 3 ) by pressing the keys
indicated.
• The appliance is tted with a Hot Start function,
which delays appliance to startup in a few seconds
to ensure an immediate output of hot air.
• In HEATING operation, the appliance can
automatically activate a defrost cycle, which is
essential to free the condenser from an excessive
deposit of frost. This procedure usually lasts
for 2-10 minutes during defrosting, fans stop
operation. After defrosting, it returns to HEATING
mode automatically.
C
h
C
h

14
After Sales Support 1300 886 649
Timer mode - Timer ON
To set the automatic
switching-on of
the air conditioner.
To program the time start, the appliance
should be o.
Press TIMER, set the temperature with
pressing the key or . Press TIMER again,
set the time with pressing the key or
Press the key more times till on the display
you can read the time which passes between
the programming and the timed start.
NOTE: Before proceeding with the timed
start, program the working mode
with the key MODE (2) and the fan
speed with the key FAN (3). Switch
the conditioner o (with the key ON/
OFF ).
NOTE: To cancel the set function, press the
TIMER button again.
NOTE: When turning the power o, it is
necessary to set TIMER ON again.
Timer mode - Timer OFF
To set the automatic
switching-o of
the air conditioner.
The timed stop is programmed with the
appliance on. Press TIMER, set the time
pressing the key or , press the key more
times till on the display you can read the time
which passes between the programming and
the timed stop.
NOTE: To cancel the set function, press the
TIMER button again.
NOTE: In case of power o, it is necessary to
set TIMER ON again.
NOTE: While the time was right
settled, the TIMER function
of this remote (clock
function) can set by half
hours.
C
h
C
h

15
After Sales Support 1300 886 649
Fan mode
The conditioner works only in
ventilation.
To set the FAN mode, press MODE until ( FAN )
appears in the display.
With pressing FAN button the speed changes in the
following sequence: LOW/ MEDIUM/HIGH/AUTO in
FAN mode.
The remote control also stores the speed that was
set in the previous mode of operation.
In FEEL mode (automatic) the air conditioner
automatically chooses the fan speed and the mode
of operation (COOLING or HEATING).
Dry mode
This function reduces the humidity
of the air to make the room
more comfortable. To set the DRY mode, press
MODE until ( DRY ) appears in the display. An
automatic function of alternating cooling cycles and
air fan is activated.
C
h
C
h

16
After Sales Support 1300 886 649
Feel mode
Automatic mode.
To activate the FEEL (automatic) mode of operation,
press the MODE button on the remote control until the
symbol ( FELL ) appears in the display.
In the FEEL mode the fan speed and the
temperature are set automatically according to the
room temperature (tested by the probe which is
incorporated in the indoor unit) to ensure user comfort.
Ambient temp Operation mode Auto temp.
< 20°C Heating
( for heat pump type)
Fan
(for cool only type)
23°C
20°C ~26°C DRY 18°C
>26°C COOL 23°C
To optimise the working of the conditioner, adjust
the temperature (only 2 °C )(1), the speed (2) and the
direction of the air ow (3) by pressing the buttons
indicated.
C
h
C
h
Sleep mode
To activate the SLEEP mode of operation, press the
SLEEP button on the remote control until the symbol
(AUTOQUIET ) appears in the display. The function
SLEEP automatically adjusts the temperature to make
the room more comfortable during the night sleep.
In cooling or dry mode, the set temperature will
automatically raise by 1 °C every 60 minutes, to achieve
a total rise of 2 °C during the rst 2 hours of work.
In heating mode the set temperature is gradually
decreased by 2 °C during the rst 2 hours of work.
After 10 hours running in sleep mode the air
conditioner is switched o automatically.

17
After Sales Support 1300 886 649
The protective device may trip and stop the appliance in the cases listed below.
For T1 Climate condition models:
No. MODEL
1 Heating Outdoor air temperature is over 24 °C
Outdoor air temperature is below -7 °C
Room temperature is over 27 °C
2 Cooling Outdoor air temperature is over 43 °C
Room temperature is below 21 °C
3 Dry Room temperature is below 18 °C
For Tropical (T3) Climate condition models:
No. MODEL
1 Heating Outdoor air temperature is over 24 °C
Outdoor air temperature is below -7 °C
Room temperature is over 27 °C
2 Cooling Outdoor air temperature is over 43 °C
Room temperature is below 21 °C
3 Dry Room temperature is below 18 °C
NOTE: After stopping and restarting the air conditioner or after changing the mode
during operation, the system does not restart immediately.
Wait 3 minutes (protection function for the compressor).
Protection

18
After Sales Support 1300 886 649
Notes:

After Sales Support 1300 886 649
Tempo (Aust) Pty Ltd ABN 70 106 100 252
AKAI Authorised Distributor
PO Box 6056 Frenchs Forest NSW 2086
Customer Help Line : 1300 886 649 (AU) | 0800 836 761 (NZ)
Email: [e-mail] | www.tempoaustralia.com.au
