Akai ACR-48MP User manual

SERVICE MANUAL
Models:
ACR-48MP
CD/MP3/USB/RDS–RECIVER
www.akai.ru

2
CONTENTS
Page
Disassembly Instructions.......................................................................................................................................3
Disassembly Diagram............................................................................................................................................4
Operation Check....................................................................................................................................................5
Block Diagram .......................................................................................................................................................6
Alignment Locations ..............................................................................................................................................7
Alignment Procedures ...........................................................................................................................................8
Printed Circuit Boards............................................................................................................................................9
Exploded Views (Panel).......................................................................................................................................15
Exploded View Parts Lists (Panel) ......................................................................................................................16
Exploded Views (Cabinet) ...................................................................................................................................17
Exploded View Parts Lists (Cabinet)...................................................................................................................18
Exploded Views (Deck)........................................................................................................................................19
Exploded View Parts Lists (Deck) .......................................................................................................................20
Schematic Diagram .............................................................................................................................................22
Electrical Parts List ..............................................................................................................................................25
Specifications.......................................................................................................................................................32

3
DISASSEMBLY INSTRUCTIONS
1. Using the unlock key that came with the unit or a similar tool, unlock the Mounting Box and remove toward
the rear of the unit.
2. Remove two screws (A) located on the rear of the top cabinet then remove the Top Cabinet.
3. Remove two screws (B) located on the rear of the bottom cabinet then remove the Bottom Cabinet.
4. Take out the Front Panel and the Ring.
Remove two screws (C) from on the front side of the Base.
5. Remove two screws (D) from on the right side of the U bracket.
Remove two screws (E) from on the left side of the U bracket.
6. Remove two screws (F) from under the deck front bracket then remove the Deck Front Bracket.
Remove two screws (G) from under the deck rear bracket then remove the Deck Rear Bracket.
7. Remove two screws (H) from on the left side of the heat sink then remove the Spring Sheet.
8. Remove five screws (I) from on the left side of the heat sink then remove the Heat Sink.
9. Remove the screw (J) from on the back of the U bracket and remove two screws (K) from on the main board
then remove the Heat Sink (7809/DB435).
10. Remove two screws (L) from on the back of the U bracket then remove Wire Clip.
11. Remove two screws (M) from each side of the base then remove the Base.
12. Remove three screws (N) from under the main board then remove the U Bracket and the Main Board.

4
DISASSEMBLY DIAGRAM

5
OPERATION CHECK
GENERAL SPECIFICATIONS OF SIGNAL
Standard frequency
Signal output
Modulation
FM
MW
FM
MW
MW
FM Stereo
98.1 MHz (65.0, 74.0MHz) (87.5, 107.9 MHz)
1000 kHz (530, 1710 kHz)
1mV
5 mV
400 Hz 30% MOD.
1 kHz 75kHz DEV.
46% for L only or
Ronlypilotlevel8%
AF output level FM/MW
Power source voltage DC 14.0V (Backup voltage is the same as this)
AF load impedance 4 ohm pure resistance
Balance Center position of level
Tone Center position
The signal strength read in this section is voltage on the antenna.
TestDiagram
4-SPEAKER
VTVM
DISTORTION
METER
2-SPEAKER
FRONT
SPK.
SPK.
FL.
RL.
SPR.
MAIN UNIT
AM SG
VTVM ANTANNA
DUMMY
FM SG
MODULATOR
STEREOS
MPX
ANT
FRONT
SPK.
SPE.
FR.
RR.
4-SPEAKER
SPK.
2-SPEAKER
POWER ANTANNA
ACC (DV14.4V)
GROUND
BACK UP (14.4V)

6
BLOCK DIAGRAM

7
ALIGNMENT LOCATIONS
MITSUMI TUNER

8
ALIGNMENT PROCEDURES
FM ADJUSTMENT
Equipment Required
zAM IF/RF signal generator
zSolid-state voltmeter (SSVM)
zRegulated DC power supply
z2-CH voltmeter
zDistortion meter
FM Alignment Using FM Signal Generator
Note: Press the radio power switch to on the radio. Signal generator output must be kept as low as possible
to avoid overload and clipping.
Step Generator
Coupling Generator Display Setting Adjustment Remarks
Stereo
Separation Signal Generator
to antenna
receptacle
98.1 MHz
Int. 1 kHz
Dev. 75 kHz
L+R = 90 %
pilot = 10 %
98.1 MHz VR1 Adjust AF output power
at maximum
separating
more than 30 dB
FM SNC
Adjustment 98.1 MHz Dev. 75 kHz
L+R=90 %
Int. 1 kHz
60dBµV output
98.1 MHz
@ 40 dBµ
98.1 MHz VR2 Stereo Separation
25 dB (±5 dB)
Stop
SENS. Signal Generator to antenna
receptacle
98.1 MHz
Mod. 1kHz
Dev 75kHz
98.1 MHz VR3 Adjust AF to stop station.
Note: The tuner module is well-adjust and adjustment is not recommended.

9
PRINTED CIRCUIT BOARDS
MAIN BOARD
TOP VIEW

10

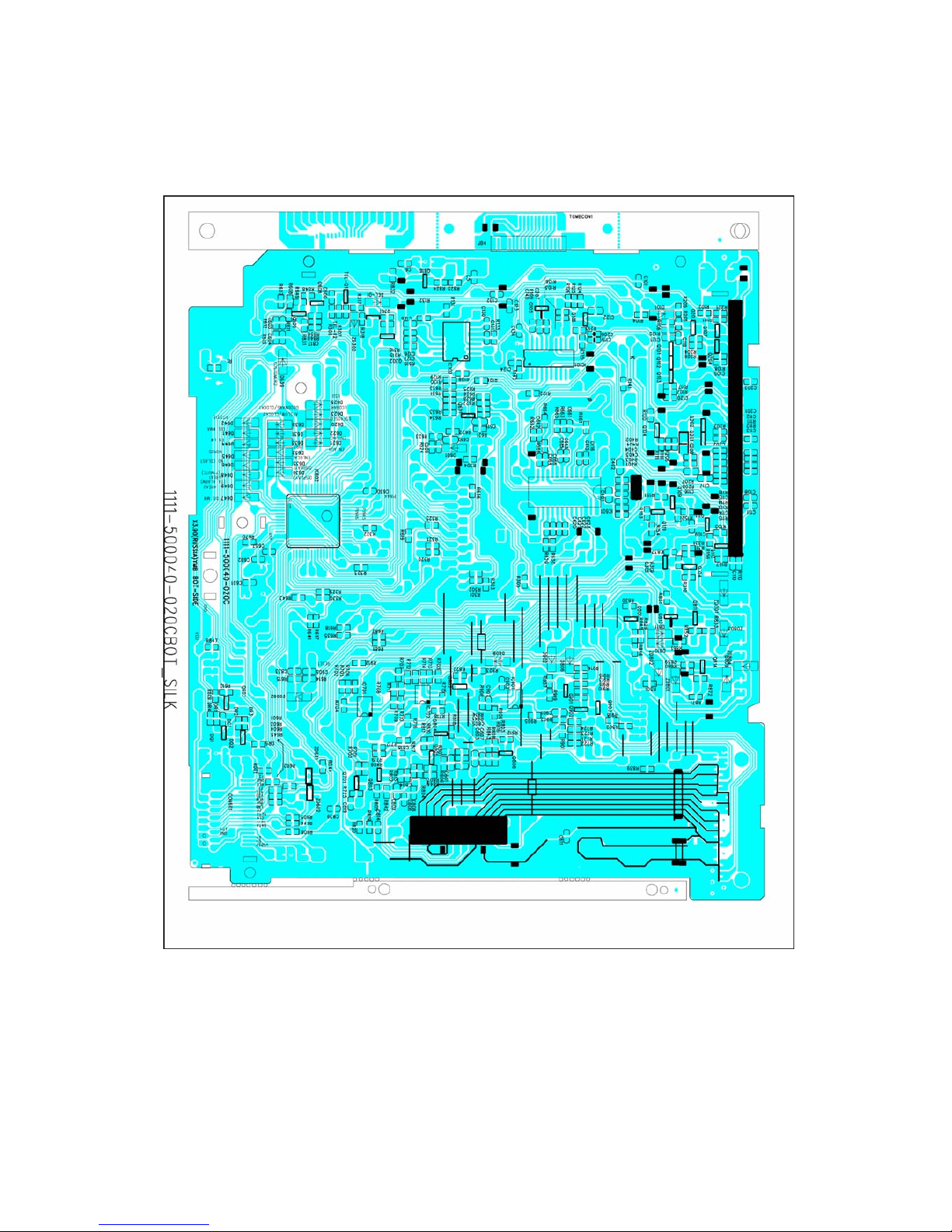

MAIN BOARD
BOTTOM VIEW

11

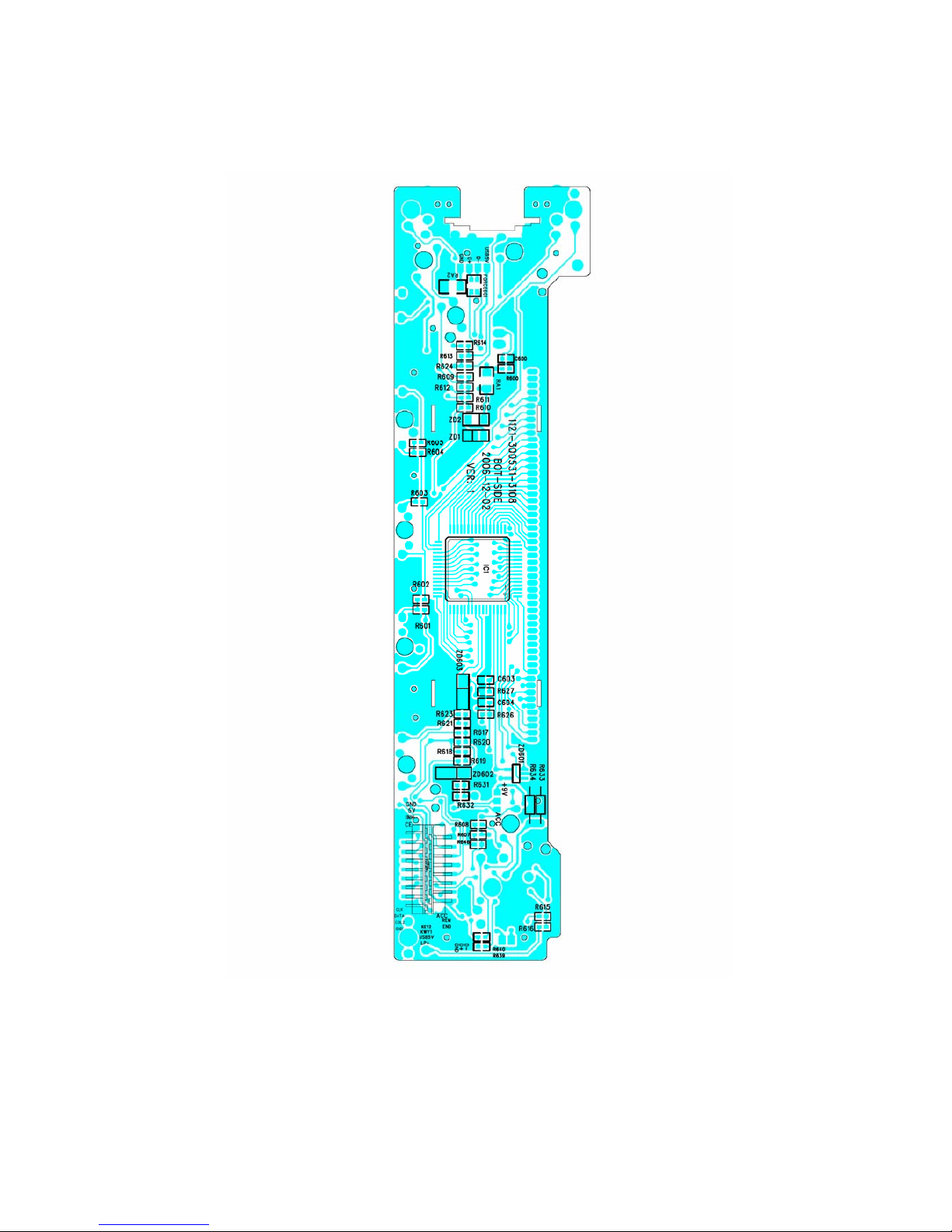

KEY BOARD
TOP VIEW

12
KEY BOARD
BOTTOM VIEW

13
CD SERVO BOARD
TOP VIEW

14
CD SERVO BOARD
BOTTOM VIEW

15
EXPLODED VIEW
PANEL

16
EXPLODED VIEW PARTS LIST
PANEL
Ref. No. Description RS Part No. Mfr’s Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Lens; (S.N0000/WHT)X82.25 W/WMA/RDS N/IR ROHS
T. Panel (S.0000/WHT) W/O D ROHS
Panel Bottom ROHS
Release Key (S. N0000) ROHS
Release Spring ROHS
Power Key (L-Up) (S.N0000) ROHS
PWR Knob Adaptor ROHS
Decorate Ring (S.N1202) ROHS
+/- Key (L-Up) (S.N1202)ROHS
SEL Key (L-Up) (S.N1202)ROHS
Eject R Key (L-Up) (S.N0000) ROHS
EJ Knob Adaptor ROHS
BND Key (L-Up) (S.N0000) ROHS
BND Knob Adaptor ROHS
Eject/LOU/ENT (S.N0000/WHT) ROHS
MUT/LOC/MON Key (L-Up) (S. N0000) ROHS
MUT Knob Back Light ROHS
1PAU/3RPT/5 Key (L-Up) (S. N0000) ROHS
2SCN/4SHF/6 Key (L-Up) (S. N0000) ROHS
PAU Knob Back Light ROHS
8TUNE SKIP Key (L-Up) (S. N0000) ROHS
9TUNE SKIP/DISP/EQ Key (L-Up) (S. N0000) ROHS
EQ Knob Back Light ROHS
MOD Key (Crystal/Blue PMS285C) ROHS
AMS Key (Crystal/Blue PMS285C) ROHS
MOD Knob Adaptor ROHS
MOD Knob Back Light ROHS
Key Board
LCD Bracket Real (E) ROHS
CD3001 LCD TN NEG COLOR Black mask 22X84 PIN
ROHS
CD1007 B. Light /White ROHS
Screw Ø2X8 BA/ST Black ROHS
AKAI Logo (S.N0000) Silver Hot Stamp ROHS
5300-0C2520-357
5100-0C2520-31W
5100-0C2522-00
5200-0C2535-31W
3600-0C2501-00
5200-0C2522-01
5200-0C2548-00
5200-0C2531-80
5200-0C2523-81
5200-0C2524-81
5200-0C2520-01
5200-0C2546-00
5200-0C2521-01
5200-0C2547-00
5200-0C2533-33W
5200-0C2525-02
5200-0C2539-00
5200-0C2526-02
5200-0C2527-02
5200-0C2540-00
5200-0C2528-01
5200-0C2529-01
5200-0C2542-00
5200-0C2536-71B
5200-0C2537-71B
5200-0C2530-00
5200-0C2541-00
1121-300531-3108
3900-0E2004-00
2700-300200-110Y
0200-001007-09
4000-012008-21
5200-0G6240-31

17
EXPLODED VIEW
CABINET

18
EXPLODED VIEW PARTS LIST
CABINET
Ref. No. Description RS Part No. Mfr’s Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Panel
Ring ABS (S. N0000) ROHS
Base Real (E) /777 ROHS
U Bracket (CD200/Wire) ROHS
CD MECH. MG205 (205) ROHS
Heat Sink (For Wire) ROHS
Top Cabinet ROHS
Bottom Cabinet (For Wire) ROHS
Main Fiber ROHS
Main Board
Mounting Box (072) ROHS
Shade ROHS
CD Windows Sheet ROHS
Lock Panel Knob ROHS
Spring For EJ Panel CD200 ROHS
Hook Knob ROHS
Spring For Hook Knob CD200 ROHS
Deck Front Bracket (CDN200) ROHS
Deck Rear Bracket ROHS
FM Cover ROHS
M.FAE347/P21/P22 East Furepe 1 Pack 65-108MHJ
ROHS
Spring Sheet ROHS
Heat Sink (7809/DB435) ROHS
Wire Clip 1.0MM ROHS
Screw Ø5X18 HH ROHS
Spring Washer M5 ROHS
Hexagon Nut M5 ROHS
Screw Ø2.6 X 4 BH/MS ROHS
Screw Ø2.6 X 5 BH/TAPTITE ROHS
Screw Ø2.6 X 6 BH/MS ROHS
Screw Ø2.6 X 6 BH/MS Black ROHS
Screw Ø2.6 X 8 BH/MS ROHS
Screw Ø2.6 X 10 BH/MS ROHS
Screw M2.6 X 20 PH/MS ROHS
5100-0E2022-30
5100-0E2020-00
6100-0N0201-00
9400-002050-01
6100-0N0204-00
6100-0B0105-01
6100-0B0114-01
3500-0B0101-00
1111-500040-020C
6100-007211-03
8100-069005-03
4300-0A3103-00
5200-0E2041-00
3600-0E2001-00
5200-0E2040-01
3600-0E2002-00
3900-0N0201-00
3900-0B0101-01
3900-0W2001-00
2900-000347-03
3900-0E2003-00
3900-0B0118-00
3900-0B1415-00
4000-005018-04
3500-050001-00
3500-040005-00
4000-002604-01
4000-002605-03
4000-002606-01
4000-012606-01
4000-002608-01
4000-002610-01
4000-002620-00

19
EXPLODED VIEW (DECK)

20
EXPLODED VIEW PARTS LIST (DECK)
Ref. No. Description Parts No. Q’ty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
SENSOR
SENSOR PCB
SCREW
COVER-UPPER
LEVER DISC
GUIDE UP
BUSHING ROLLER
ROLLER DISC
SHAFT ROLLER
PIN ROLLER
PVC CAP
B/K ROLLER
PIN PULLEY
PIN IDLE
GEAR IDLE
GEAR PULLEY
BELT PULLEY
GEAR ROLLEY
LOCKER (L)
CAM (L)
S/P CAM (L)
S/P RACK
CAM (R)
LOCKER ®
GEAR RACK
GEAR LOAD ©
GEAR LOAD (D)
GEAR LOAD (B)
GEAR LOAD (A)
PIN LOAD
B/K GEAR
MOTOR
GEAR WORM
SERVO PCB ASSY
SPECIAL SCREW
S/P RO (L)
SUPPORT DAMPER
S/P RO ®
CHASSIS MAIN
ST-23G
FR
CA/H 0” TT 2*3
SECC T1.0
POM (F20-03)
POM (F20-03)
POM (F20-03)
SLICON
SUS 303
SUM24L-NI (PLATE)
PVC
SECC T1.0
SUM24L-NI (PLATE)
SUM24L-NI (PLATE)
POM (F20-03)
POM (F20-03)
CR-WRT
POM (F20-03)
POM (F20-03)
POM (F20-03)
SUS304WPB
SUS304WPB
POM (F20-03)
POM (F20-03)
POM (F20-03)
POM (F20-03)
POM (F20-03)
POM (F20-03)
POM (F20-03)
SUM24L-NI (PLATE)
SECC T1.0
FF-050SH-11190
POM (F20-03)
GLASS EPOXY 1.2T
P/H TTS 2*2
SUS304WPB
POM (F20-03)
SUS304WPB
SEEC T1.0
2
1
12
1
1
1
2
2
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
4
1
3
1
1
