SERVICE MANUAL
Model:
ACR-143MP
CD/MP3–RECIVER
www.akai.ru

2
CONTENTS
Page
Disassembly Instructions........................................................................................................................................ 3
Disassembly Diagram............................................................................................................................................. 4
Operation Check..................................................................................................................................................... 5
Block Diagram ........................................................................................................................................................ 6
Alignment Locations ............................................................................................................................................... 7
Alignment Procedures ............................................................................................................................................ 8
Printed Circuit Boards........................................................................................................................................... 10
Exploded Views (Panel)........................................................................................................................................ 17
Exploded View Parts Lists (Panel)........................................................................................................................ 18
Exploded Views (Cabinet) .................................................................................................................................... 19
Exploded View Parts Lists (Cabinet) .................................................................................................................... 20
Exploded Views (Deck)......................................................................................................................................... 22
Exploded View Parts Lists (Deck)......................................................................................................................... 23
Schematic Diagram .............................................................................................................................................. 25
Electrical Parts List............................................................................................................................................... 28
Specifications........................................................................................................................................................ 35

3
DISASSEMBLY INSTRUCTIONS
1. Using the unlock key that came with the unit or a similar tool, unlock the Mounting Box and remove
toward the rear of the unit.
2. Remove two screws (A) located on the rear of the top cabinet then remove the Top Cabinet.
3. Remove two screws (B) located on the rear of the bottom cabinet then remove the Bottom Cabinet.
4. Take out the Front Panel and the Ring.
Remove the screw (C) from on the front side of the Base.
5. Remove two screws (D) from on the right side of the Rear-right Cabinet.
Remove the screw (E) from on the left side of the Rear-right Cabinet and the screw (F) on the right side of the
heat sink.
6. Remove two screws (G) from under the deck front bracket then remove the Deck Front Bracket.
Remove two screws (H) from under the deck rear bracket then remove the Deck Rear Bracket and the Deck.
7. Remove two screws (I) from on the back of the Rear-right Cabinet then remove the Power IC Bracket
8. Remove two screws (J) from on the left side of the heat sink.
9. Remove two screws (K) from on the left side of the heat sink then remove the IC Bracket.
10. Remove the screw (L) from on the back of the side bracket then remove Wire Clip.
11. Remove two screws (M) from each side of the base then remove the Base.
12. Remove three screws (N) from under the main board then remove the Heat Sink, Rear-right Cabinet and the
Main Board.

4
DISASSEMBLY DIAGRAM

5
OPERATION CHECK
GENERAL SPECIFICATIONS OF SIGNAL
Standard frequency
Signal output
Modulation
FM
MW
FM
MW
MW
FM Stereo
98.1 MHz (65.0, 74.0MHz) (87.5, 107.9 MHz)
1000 kHz (522, 1620 kHz)
1mV
5 mV
400 Hz 30% MOD.
1 kHz 75kHz DEV.
46% for L only or
R only pilot level 8%
AF output level FM/MW
Power source voltage DC 14.0V (Backup voltage is the same as this)
AF load impedance 4 ohm pure resistance
Balance Center position of level
Tone Center position
The signal strength read in this section is voltage on the antenna.
TestDiagram
4-SPEAKER
VTVM
DISTORTION
METER
2-SPEAKER
FRONT
SPK.
SPK.
FL.
RL.
SPR.
MAIN UNIT
AM SG
VTVM ANTANNA
DUMMY
FM SG
MODULATOR
STEREOS
MPX
ANT
FRONT
SPK.
SPE.
FR.
RR.
4-SPEAKER
SPK.
2-SPEAKER
POWER ANTANNA
ACC (DV14.4V)
GROUND
BACK UP (14.4V)

6
BLOCK DIAGRAM

7

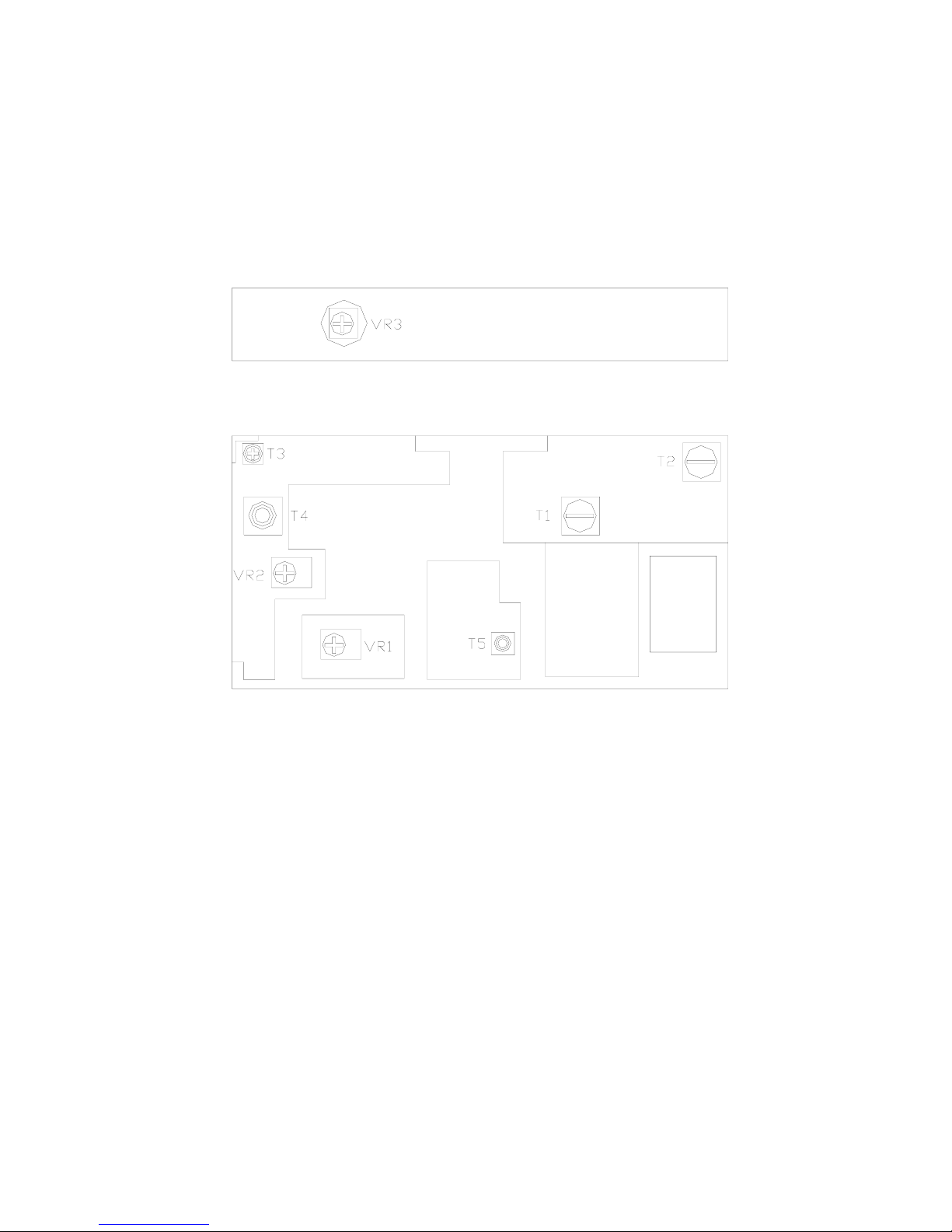

ALIGNMENT LOCATIONS
MITSUMI TUNER

8
ALIGNMENT PROCEDURES
FM ADJUSTMENT
Equipment Required
zAM IF/RF signal generator
zSolid-state voltmeter (SSVM)
zRegulated DC power supply
z2-CH voltmeter
zDistortion meter
FM Alignment Using FM Signal Generator
Note: Press the radio power switch to on the radio. Signal generator output must be kept as low as possible
to avoid overload and clipping.
Step Generator
Coupling Generator Display Setting Adjustment Remarks
Stereo
Separation Signal Generator
to antenna
receptacle
98.1 MHz
Int. 1 kHz
Dev. 75 kHz
L+R = 90 %
pilot = 10 %
98.1 MHz VR1 Adjust AF output power
at maximum
separating
more than 30 dB
FM SNC
Adjustment 98.1 MHz Dev. 75 kHz
L+R=90 %
Int. 1 kHz
60dBµV output
98.1 MHz
@ 40 dBµ
98.1 MHz VR2 Stereo Separation
25 dB (±5 dB)
Stop
SENS. Signal Generator to antenna
receptacle
98.1 MHz
Mod. 1kHz
Dev 75kHz
98.1 MHz VR3 Adjust AF to stop station.
Note: The tuner module is well-adjust and adjustment is not recommended.

9
PRINTED CIRCUIT BOARDS
MAIN BOARD
TOP VIEW

10
MAIN BOARD
BOTTOM VIEW

11
KEY BOARD
TOP VIEW

12
KEY BOARD
BOTTOM VIEW

13

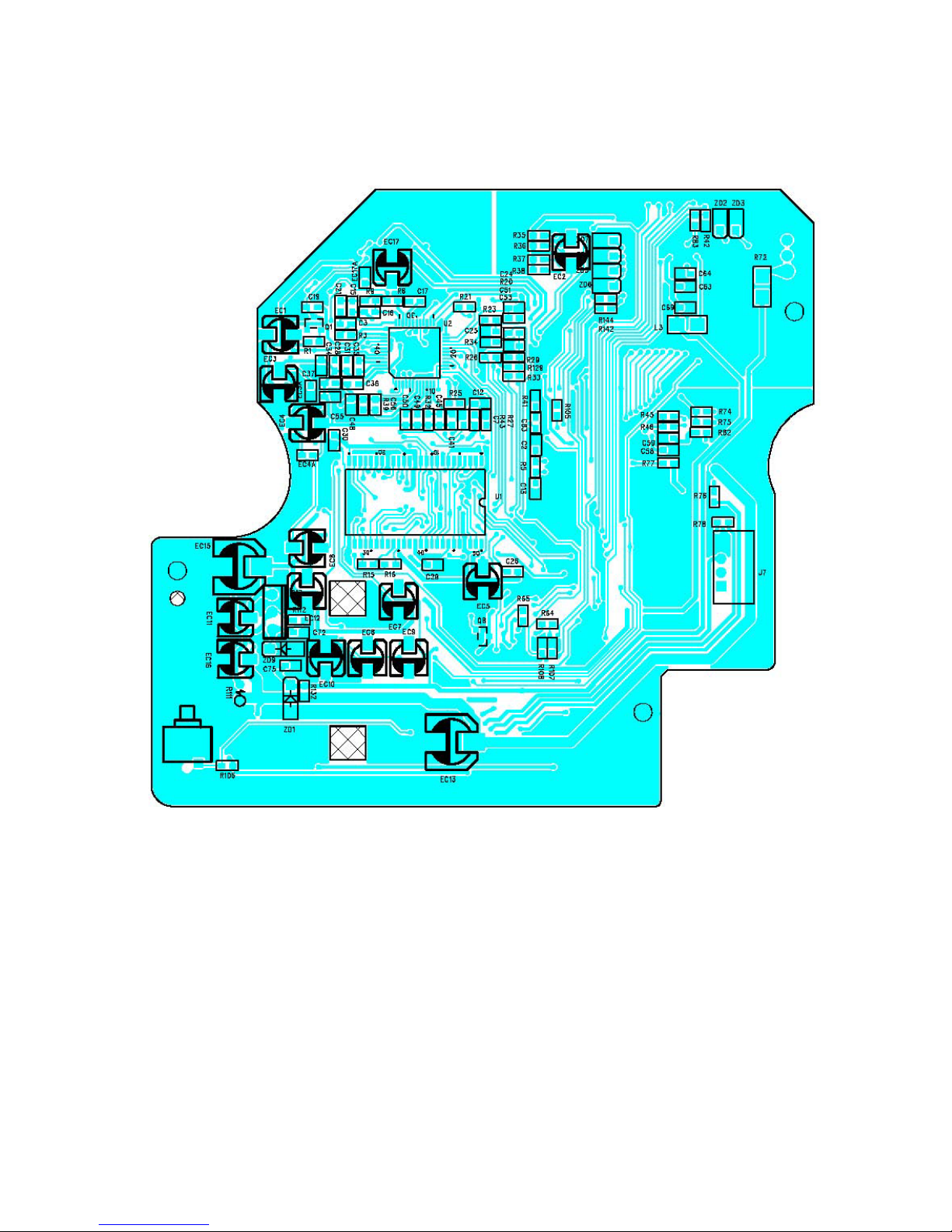

CD SERVO BOARD
TOP VIEW

14
CD SERVO BOARD
BOTTOM VIEW

15

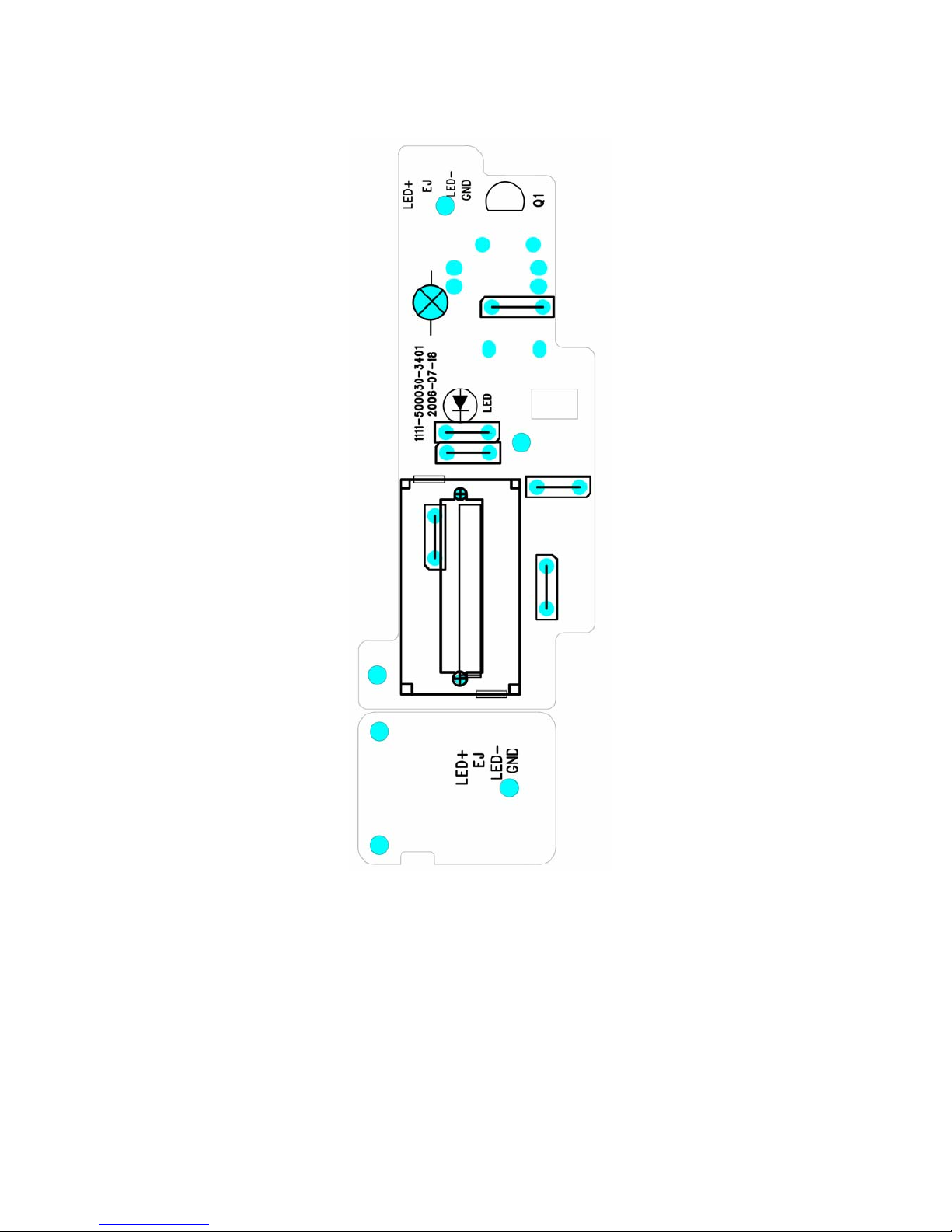

FRONT BOARD
TOP VIEW

16
FRONT BOARD
BOTTOM VIEW

17
EXPLODED VIEW
PANEL

18
EXPLODED VIEW PARTS LIST
PANEL
Ref. No. Description RS Part No. Mfr’s Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Lens: (L)(CD)X3.82.25;N/IR W/WMA(S.N1202/BLK) (AKAII
ACR-143MP)ROHS
T. Panel (F)X3.59.16 N/SW (S.N1202/PMS426C) ROHS
Panel Bottom (F)
Open Knob (F) (S.N1202/426C) ROHS
Release Spring
VOL Knob (Electron-Plate -Silver)
EQ~MUT Knob (L-UP)(S.N1202) ROHS
LOC/MON Knob (L-UP)(S.N1202) ROHS
1PAU~6 Knob (L-UP)(S.N1202) ROHS
8/9 TRK Knob (L-UP)(S.N1202) ROHS
Power Knob (S.N1202/426C) ROHS
BAND/MENU/ST/LOC/TITEL Knob (L-UP) (S.N1202) ROHS
AKAI Logo(S.N0000) Silver Hot Stamp ROHS
Decoration (F) W/O USB (S.N1202) ROHS
Key Board
LCD Cover ROHS
LCD CD5002TN NEG Black Mask Color Pin 99X25.3MM
ROHS
LED B.L QB02002-09 23.5X99 White ROHS
Axis Post ROHS
Right Side Block ROHS
Contact Spring ROHS
Left Side Block ROHS
E-Ring Ø1.5X4X0.4MM ROHS
Screw Ø2X8 BA/ST Black ROHS
AS/PS Knob (L-UP) (S.N1202) ROHS
7MOD Knob (L-UP)(S.N1202) ROHS
RESET Knob (S.N1202) ROHS
LING For VOL Knob ROHS
5300-NK7137-89Y
5100-NK7121-711
5100-NK7123-00
5200-NK7126-81Y
3600-065001-00
5200-NK7128-90E
5200-NK7134-81
5200-NK7135-81
5200-NK7136-82
5200-NK7133-81
5200-NK7127-81Y
5200-NK7131-81
5200-0G6240-31
5200-NK7124-80
1121-501030-3208
3900-0E2104-01
2700-500200-110Y
0200-0A1560-09
3400-0-24601-00
5200-0E2128-00
3600-078008-00
5200-0E2129-00
3500-000001-00
4000-012008-21
5200-NK7130-81
5200-NK7132-81
5200-NK7129-80
5200-NK7140-00

19
EXPLODED VIEW
CABINET

20
EXPLODED VIEW PARTS LIST
CABINET
Ref. No Description RS Part No. Mfr’s Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Panel
Ring (S.N0000) ROHS
Base (F) (MMS+SD) ROHS
Rear-right Cabinet W/Spring FOR CD-WIRE ROHS
CD MECH. MG205 (205) ROHS (9400-022050-01/9700-
012265-00X1/9700-011190-00X2)
Left Cabinet-heat Sink W/Spring ROHS
Top Cabinet ROHS
Bottom Cabinet ROHS
Main Fiber ROHS
Main Board
Mounting Box ROHS
Shade ROHS
CD Windows Sheet ROHS
Hook Shaft ROHS
Hook Spring ROHS
Hook ROHS
Push Out Spring ROHS
Panel Pole ROHS
B-Light (F) (White) ROHS
Front Board
Connector Female 20PIN P=2.0MM V-Type East SUN ROHS
Eject Key (S. N0000) (L-Up) ROHS
Eject Board
Right Bracket ROHS
Damper Gear Assy /19-24 T/Q ROHS
Middle Gear (F) ROHS
Left Bracket ROHS
Deck Front Bracket ROHS
Deck Rear Bracket For CD ROHS
M.FAE347/P21/P22 East Furepe 1 Pack 65-108MHJ ROHS
Shield Cover (Mitsumi Tuner)(0.045KG) ROHS
Wire Clip 1.0MM ROHS
Power IC BKT ROHS
Screw Ø5X18 HH ROHS
Spring Washer M5 ROHS
Hexagon Nut M5 ROHS
IC Bracket For Regulntor ROHS
Screw Ø2.6X4 BH/MS ROHS
Screw Ø2.6X5 BH/TAPTITE ROHS
5100-016227-30
5100-0E2124-00
6100-300003-002
9400-002050-01
6100-300004-003
6100-300001-000
6100-300002-000
3500-300001-000
1111-500041-020C
6100-300005-000
8100-069005-03
4300-0A3103-00
3400-0D2101-00
3600-0E2101-00
5200-0E2127-00
3600-0E2102-00
5200-0E2126-00
5200-0W2049-00W
1111-500030-3401
2500-0F0217-20A
5200-NK7138-31
1111-500030-3401
3900-0E2101-01
9300-012246-01S
5200-0E2130-00
3900-0E2102-01
3910-300001-000
3900-300002-000
2900-000347-03
3900-0W2001-00
3900-0B1415-00
3900-300006-000
4000-005018-04
3500-050001-00
3500-040005-00
3900-300007-000
4000-002604-01
4000-002605-03
