Akai MPC1000BK User manual

SPECIFICATION
SERVICE MANUAL
MODEL:MPC1000BK
General
Display / 240 x 64 dot graphic LCD w/back light
Memorycardslot/CompactFlash(Thesizeofthecompactflashcard
thatMPC1000canhandleisfrom
32MB to 2GB)
Dimentions(WxHxD)/330x75.5x228.2(Max234.6)
Weight 3.45kg
Power reqirement / 19W
Sound generator
Sampling rate / 44.1kHz
Memory capacity / 16MB standard (11.5MB for sound memory),
expandableto128MB
Recording time / 136sec. (16MB, MONO), 24m28sec. (128MB,
MONO)
Memoryexpansionslot/1xforoptionalEXM128
Data format / 16-bit linear
Polyphony / 32
Dynamicfiltering/2x2-polefilterpervoice
Filter type / Low pass, Band pass, High pass
Preset sound memory / 5MB
Numberofprograms/24
Effects
Effects/2stereoeffectsandMastereffect
Effect type / Chorus, Flanger, Bit grunger, 4 band EQ, Compressor,
Phase shifter, Tremolo, Flyingpan, Reverb,
DelayMaster effect: 4 band EQ, Compressor
Sequencer
Maximumevents100,000notes
Resolution 96 parts per 1/4-note
Sequences 99
Trackspersequence64
MIDIoutputchannels32(16channelsx2outputs)
Song mode 20 songs, 250 steps per song
Drum pad 16 (velocity and pressure sensitive)
Drum pad banks 4
Sync mode MIDI clock
Inputs/Outputs
Record input (L and R) / 1/4-inch stereo phone x 2, balanced -40dBu,
input impedance 11k ohms;Max. Input level
+10dBu
Digital input / RCA-pin x 1 S/PDIF
Stereo output (L and R) / 1/4-inch phone x 2 unbalanced +11dBu,
output impedance 1k Ohms,
Max. output level +17dBu
4 individual outputs / 1/4-inch phone x 4 unbalanced +11dBu, output
impedance 1k Ohms,Max. output level
+17dBu
Phones output / 1/4-inch stereo phone x 1, 200mW / 100 ohms
Digital output / RCA-pin x 1 S/PDIF
MIDI inputs / 5-pin DIN x 2
MIDI outputs / 5-pin DIN x 2
USB / Slave connector x 1, USB MASS STORAGE CLASS support
(You need Windows 2000/Me/XP or later version, or MacOS
9.x/10.x or later version. )
Footswitches / 1/4-inch phone x 2
Standard accessories
Standardaccessories/CompactFlashcard,Powercable,
Operator's manual

Options
EXM128 / 128MB expansion memory card
Kit - HDM10 The installation kit for Internal Hard Disk drive
Data Compatibility
MPC1000 / SEQ, WAV, PGM
MPC2000/2000XL/ SEQ, WAV, SND, PGM (Most parameters of
PGM file can be loaded.)
MPC2500 / SEQ, WAV, PGM
MPC4000 / SEQ, WAV, PGM (DRUM program only. Only note
assign and tune are loaded.)
MPC3000 SND (THRU Computer)
Z4/Z8 / WAV, PGM (DRUM program only. Only note assign and
tune are loaded.)
S5000/6000 / WAV only (THRU Computer)
S1000/3000 / No compatibility


DISASSEMBLY PROCEDURES

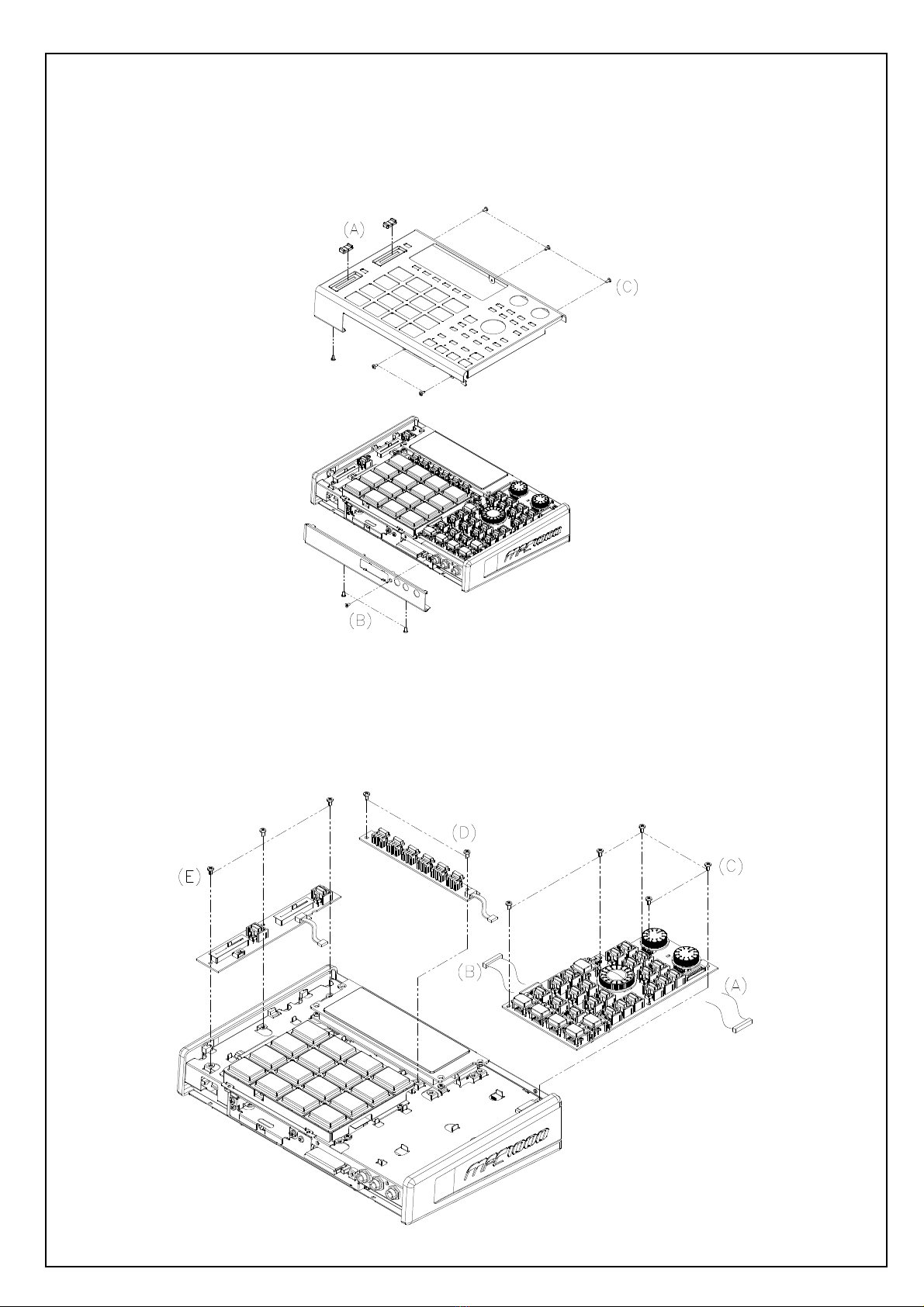

1. DISASSEMBLE THE TOP PANEL AND COVER HD .
(A) REMOVE THE 2 PCS KNOBS FROM TOP PANEL.
(B) REMOVE THE 3 PCS SCREWS FROM COVER HD,AND REMOVE COVER HD.
(C) REMOVE THE 3 PCS SCREWS FROM TOP PANEL.
(Fig1)
2. DISASSEMBLE THE MAIN PCB ASS’Y AND LCM-SW PCB AND ASS’Y AND
S-VR PCB ASS’Y
(A)(B) REMOVE THE CABLE.
(C) REMOVE THE 3 PCS SCREWS, AND REMOVE MAIN PCB ASS’Y.
(D) REMOVE THE 2 PCS SCREWS, AND REMOVE LCM-SW PCB ASS’Y.
(E) REMOVE THE 3 PCS SCREWS, AND REMOVE S-VR PCB ASS’Y.
(Fig2)

3. DISASSEMBLE THE PAD SENOR ASS’Y AND PAD PCB ASS’Y.
(A) REMOVE THE PAD.
(B) REMOVE THE 4 PCS SCREWS.
(C) REMOVE THE CABLE.
(D) REMOVE THE 2 PCS SCREWS
(E) REMOVE THE CABLE.
(Fig3)

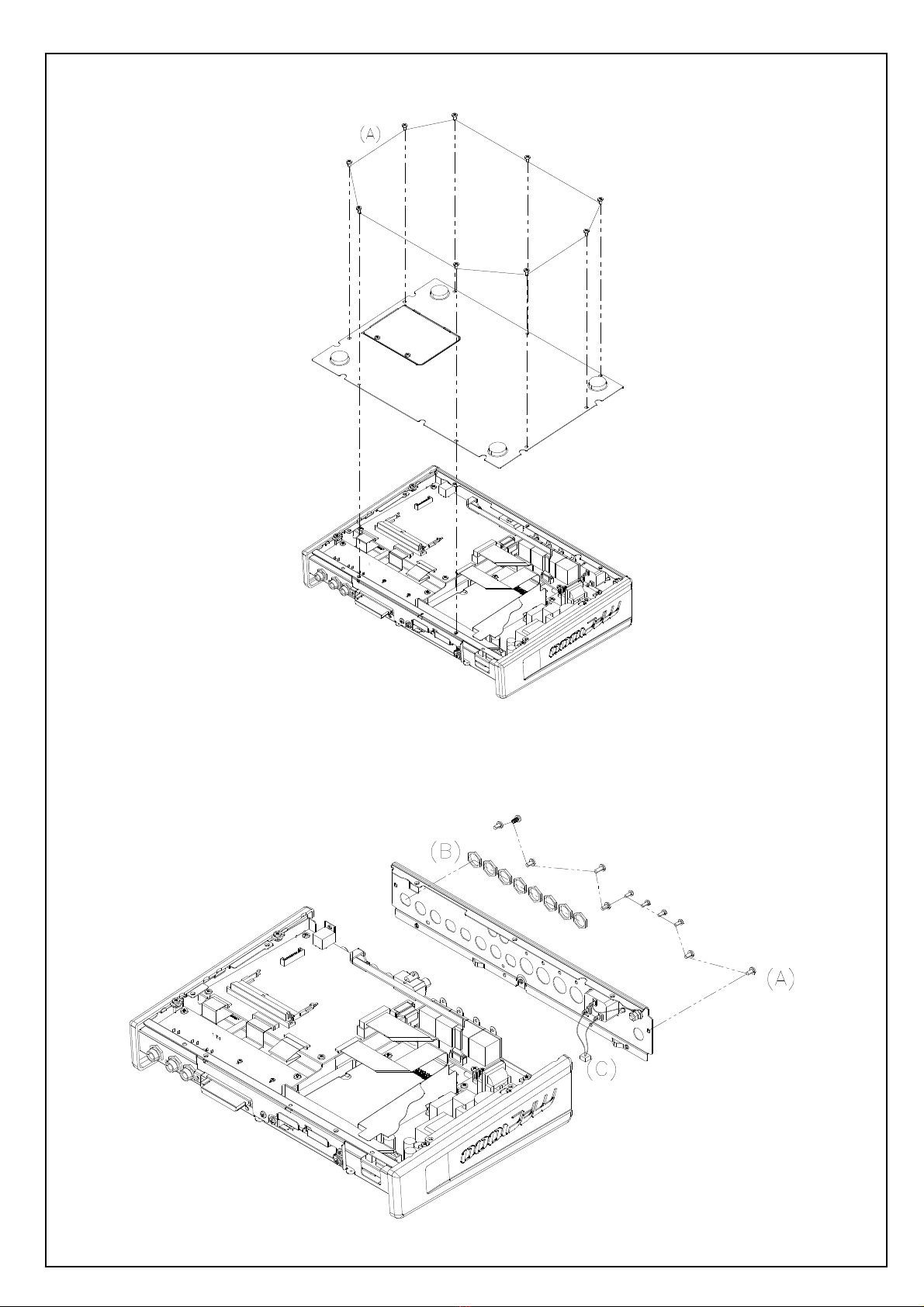

4. DISASSEMBLE THE BOTTOM COVER.
(A) REMOVE THE 9 PCS SCREWS.
(Fig4)
5. DISASSEMBLE REAR PANEL.
(A) REMOVE THE 11 PCS SCREWS AND NUTS.
(B) REMOVE THE 8 PCS NUTS.
(C) REMOVE THE CABLE
(Fig5)

6. DISASSEMBLE THE POWER SWITCH PCB ASS’Y AND SWITCH POWER.
(A) REMOVE THE CABLE.
(B) REMOVE THE 2 PCS SCREWS.
(C) REMOVE THE CABLE.
(D) REMOVE THE 4 PCS SCREWS.
(Fig6)
7. DISASSEMBLE THE MIDI PCB ASS’Y .
(A) REMOVE THE CABLE.
(B) REMOVE THE 2 PCS SCREW.
(Fig7)

8. DISASSEMBLE THE MAIN PCB ASS’Y .
(A) REMOVE THE 6 PCS CABLES.
(B) REMOVE THE 3 PCS SCREWS.
(Fig8)
9. DISASSEMBLE THE HD PCB ASS’Y AND I/O PCB ASS’Y .
(A) REMOVE THE 2 PCS SCREWS.
(B) REMOVE THE CABLE.
(C) REMOVE THE 2 PCS SCREWS.
(Fig9)

10. DISASSEMBLE THE CF PCB ASS’Y .
(A) REMOVE THE 3 PCS NUTS.
(B) REMOVE THE 4 PCS SCREWS.
(Fig10)
11.DISASSEMBLE THE LCM .
(A) REMOVE THE CABLE .
(B) REMOVE THE 2 PCS SCREWS
(Fig11)

WIRING DIAGRAM
(US/EU/UK/JIS/AUS NZ)

EXPLODE DIAGRAM
(US/EU/UK/JIS/AUS NZ)

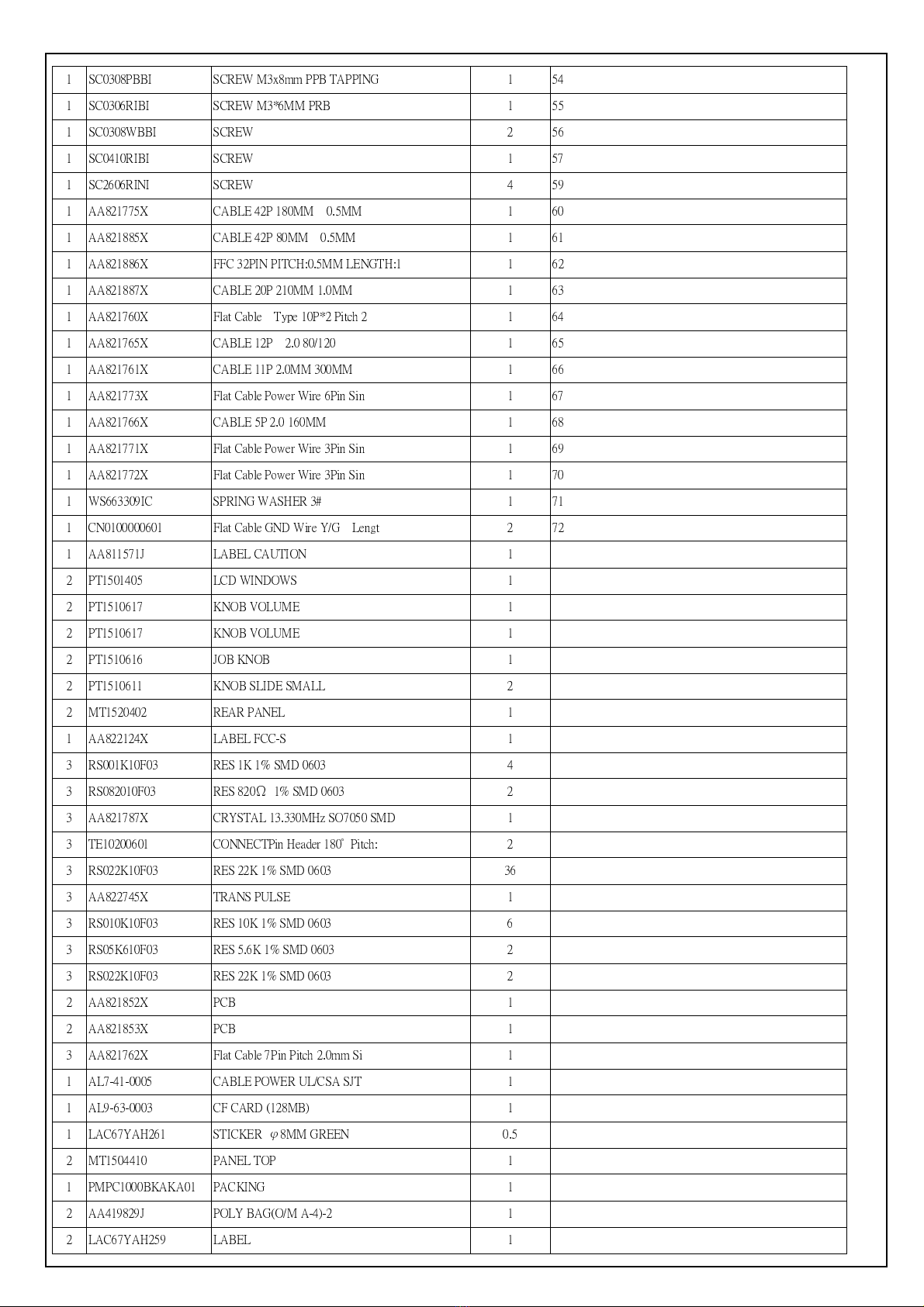

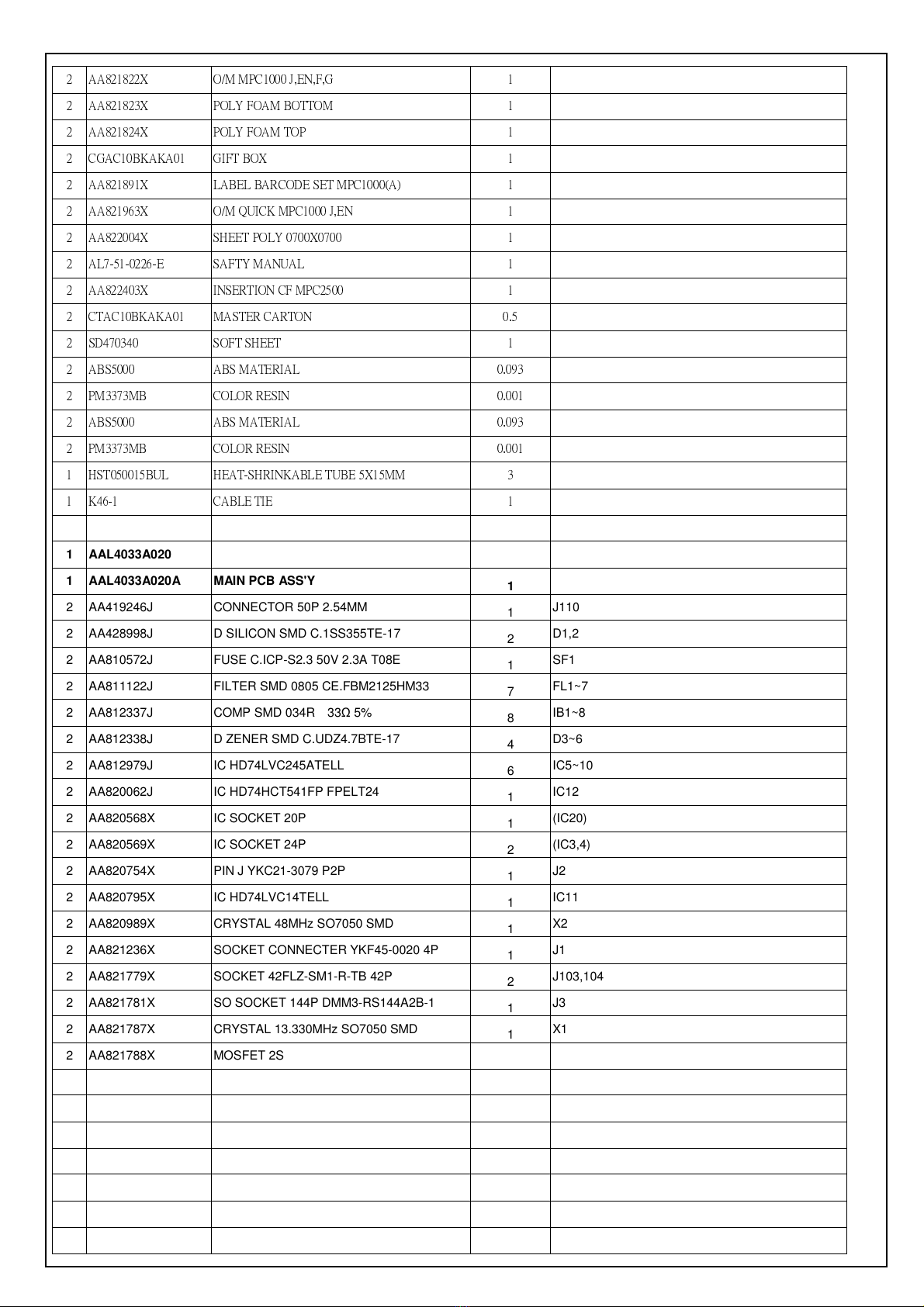

EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST

EXPLODE DIAGRAM
(US/EU/UK/JIS/AUS NZ)
EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST
