Akai ALD1915H User manual

LCD TV/DVD Combi
GB 2
NL 24
FR 47
ES 70
DE 93
EL 118
User manual
Gebruiksaanwijzing
Manuel de l’utilisateur
Manual de instrucciones
Gebrauchsanleitung
Οδηγίες χρήσεως
ALD1915H/ALD2215H

Table of contents
Copyright notice
Design and specications are subject to change without notice.
1. Safety........................................................................... 3
1.1 Intended use ....................................................................3
1.2 Labels in this manual .......................................................3
1.3 General safety instructions ..............................................3
2. Preparations for use................................................... 4
2.1 Unpacking ........................................................................4
2.2 Package contents ............................................................5
3. Installation................................................................... 5
3.1 Mounting the foot .............................................................6
3.2 Wall mounting ..................................................................6
3.3 Connecting random equipment ........................................7
3.4 Connecting to the mains ..................................................8
3.5 Remote control.................................................................8
4. Functions..................................................................... 9
4.1 LCD TV/DVD Combi ........................................................9
4.2 Remote control...............................................................10
5. Operation................................................................... 12
5.1 Quick start ......................................................................12
5.2 TV setup menu operation...............................................13
5.3 TV-functions ...................................................................15
5.4 DVD functions ................................................................15
5.5 DVD setup menu operation............................................17
5.6 PC monitor settings........................................................19
6. Cleaning and maintenance ...................................... 20
6.1 Handle and care of a disc ..............................................20
7. Troubleshooting........................................................ 20
8. Technical data........................................................... 22
9. Disposal of used electrical and electronic
equipment.................................................................. 23

3
15-series
Safety1.
Intended use1.1
The LCD TV/DVD Combi plays lm and photos from DVD. The appliance
also plays music from CD. The appliance can also be used as a monitor for
a personal computer. Read the manual carefully before the rst use.
2 DVDs and DVD appliances are manufactured under the worldwide
agreed DVD regional code system that the appliance will operate
only with corresponding disc of the same regional code. If the code
number on the label of a DVD does not match that on the label
alongside, the DVD will not play on this appliance.
i The appliance has built in copyright protection technology that
prevents copying from a disc to any media. If a video recorder is
connected to the appliance, the video output image will be distorted
during recording.
Labels in this manual1.2
! WARNING
A warning means that injury or death is possible if the instructions
are not obeyed.
! CAUTION
A caution means that damage to the equipment is possible.
i A note gives additional information, e.g. for a procedure.
General safety instructions1.3
! WARNING
Do not put force on the appliance. The appliance can fall and can
cause serious injury.

4
! CAUTION
Do not spill any liquid on the appliance.
! WARNING
Do not insert any objects in the ventilation holes.
! CAUTION
Do not block the ventilation holes.
i This appliance is double insulated; therefore no earth wire is
required. Always check that the mains voltage corresponds to the
voltage on the rating plate. Never attempt to replace the adaptor
plug with a regular mains plug.
L This appliance employs a laser system. To prevent direct exposure
to the laser beam, do not open the appliance.
Visible laser radiation when open and interlock defeated.
Preparations for use2.
Unpacking2.1
● Unpack the appliance carefully.
● Check the package contents as described below. If any item is missing,
please contact your reseller.
● Remove the labels from the front panel carefully if present.
i We recommend that you retain the original carton and packing
materials in case it ever becomes necessary to return your product
for service. This is the only way to safely protect the product
against damage in transit. If you do dispose of the carton and the
packing materials, please remember to recycle with due care to the
environment.

5
15-series
Package contents2.2
The following items are included in the received package:
1 LCD TV/DVD Combi
1 Foot
1 Set of screws
1 AC/DC adaptor + cable
1 Remote control
2 Batteries (AAA)
1 Operator manual
i If any item is missing, please contact your reseller.
Installation3.
● Install the appliance in the conguration or your choice.
- If the appliance is to be placed on its foot, read the paragraph "Mounting
the foot".
- If the appliance is to be hung to a wall, read the paragraph "Wall
mounting".
● Connect the random equipment to the appliance.
Read the paragraph "Connecting random equipment".
● Connect the appliance to the mains.
Read the paragraph "Connecting to the mains".
● Install the batteries in the remote control.
Read the paragraph "Remote control".
! CAUTION
● Do not put the appliance near a heat source.
● Do not expose the appliance to direct sunlight.

6
i This appliance is equipped with rubber feet to prevent it from
moving. The feet are made from non-migrating material specially
formulated to avoid leaving any marks or stains on furniture.
However, certain types of furniture polishes, wood preservatives or
cleaning sprays cause the rubber to soften and leave marks or a
residue on the furniture, and potentially risk the surface to become
damaged.
To prevent damage to wooden surfaces, we recommend that you
apply self-adhesive pads to the bottom of the rubber feet before
installation.
Mounting the foot3.1
● Put the foot on a horizontal at surface.
● Hold the appliance over the foot. Lower the appliance steadily until it ts in
the mounting socket.
● Insert the screws into the holes. Tighten the screws securely.
● Put the appliance on a horizontal at surface.
Wall mounting3.2
The appliance can be attached to wall brackets complying with VESA
standard. For this purpose, screw holes have been provided in the back.
● Mount the wall bracket to a wall. Refer to the mounting instructions
supplied with the wall bracket.
● Remove the stand from the appliance.
● Hold the appliance in front of the wall bracket. Align the screw holes with
the holes in the socket.
● Insert the screws into the holes. Tighten the screws securely.

7
15-series

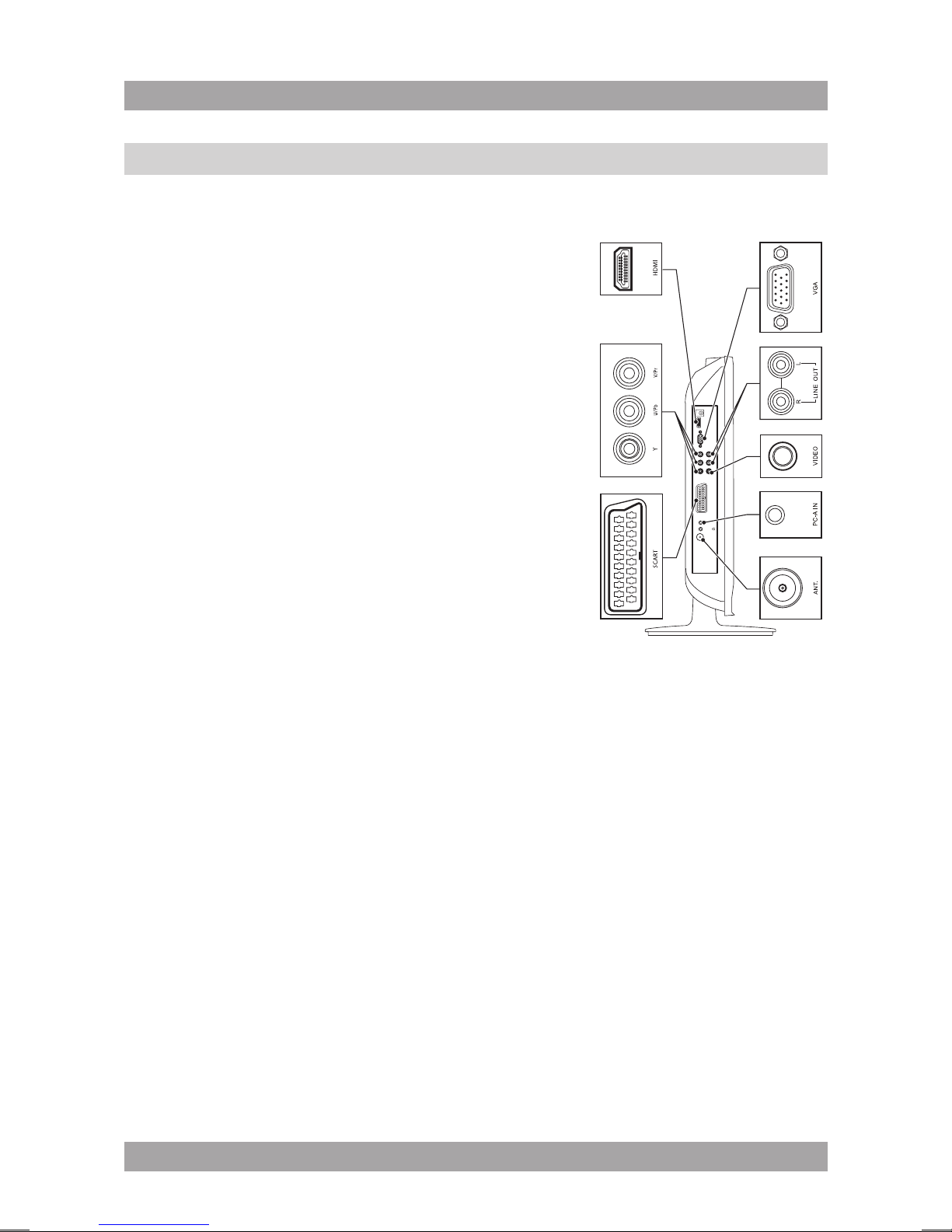

Connecting random equipment3.3
The appliance includes various options for
permanent connection of random equipment.
Suitable cables can be purchased at your
reseller.
Audio connections (input)
● L/R AUDIO: Connect a suitable cable to the
L/R channels of the AUDIO connection.
Video connections
The appliance has the following video outputs
(in order of preference):
● HDMI: Connect a suitable cable into the HDMI
connection.
● COMPONENT: Connect a suitable cable to
the Y/Pb/Pr channels of the COMPONENT
connection.
● SCART: Insert a suitable cable into the
SCART connection.
● COMPOSITE: Insert a suitable cable into the VIDEO connection.
PC connections
The appliance has the following inputs to connect to your personal computer.
● Audio connection: Connect a suitable cable into the PC-A IN connection.
● Video connection: Connect a suitable cable into the VGA video
connection.
Cable connection
● Insert a suitable cable into the ANT. connection.
ANT. VGAPC-A IN SCART VIDEO L R
Y Pb Pr
HDMI DC-12V

88 9
15-series

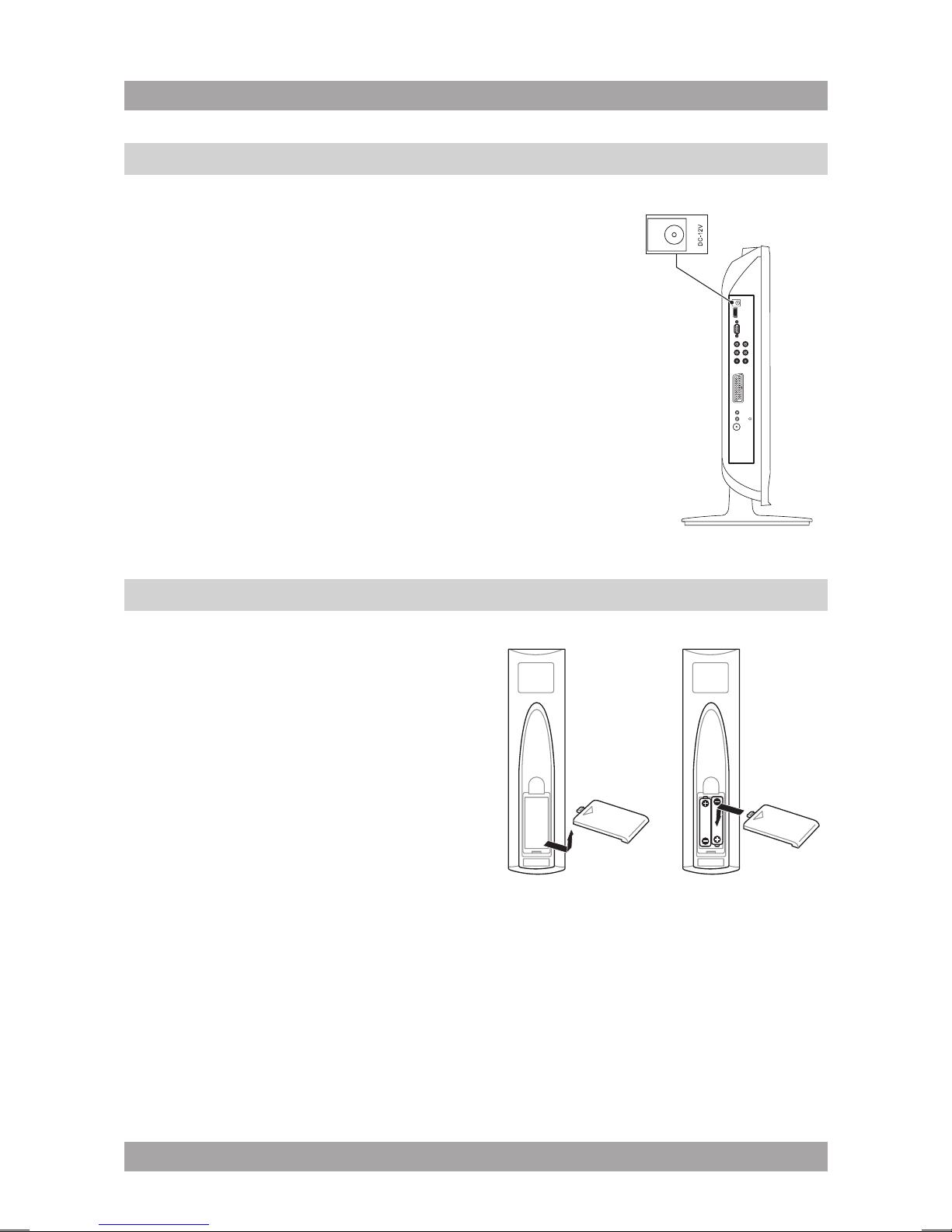

Connecting to the mains3.4
● Connect the adaptor plug on the adaptor cable to
the DC-12V connection.
● Connect the mains plug to a wall socket.
Remote control3.5
Install batteries
● Remove the battery cover.
● Insert the batteries matching the (+)
and (-) polarity markings.
● Re-install the battery cover.
! CAUTION
Incorrect installation can
cause battery leakage and
corrosion which will damage
the appliance.
Corrosion, oxidation, battery leakage and any other gradually
acidic defect of this nature will invalidate the guarantee.
ANT. VGAPC-A IN SCART VIDEO L R
Y Pb Pr
HDMI DC-12V

8 9
15-series
Functions4.

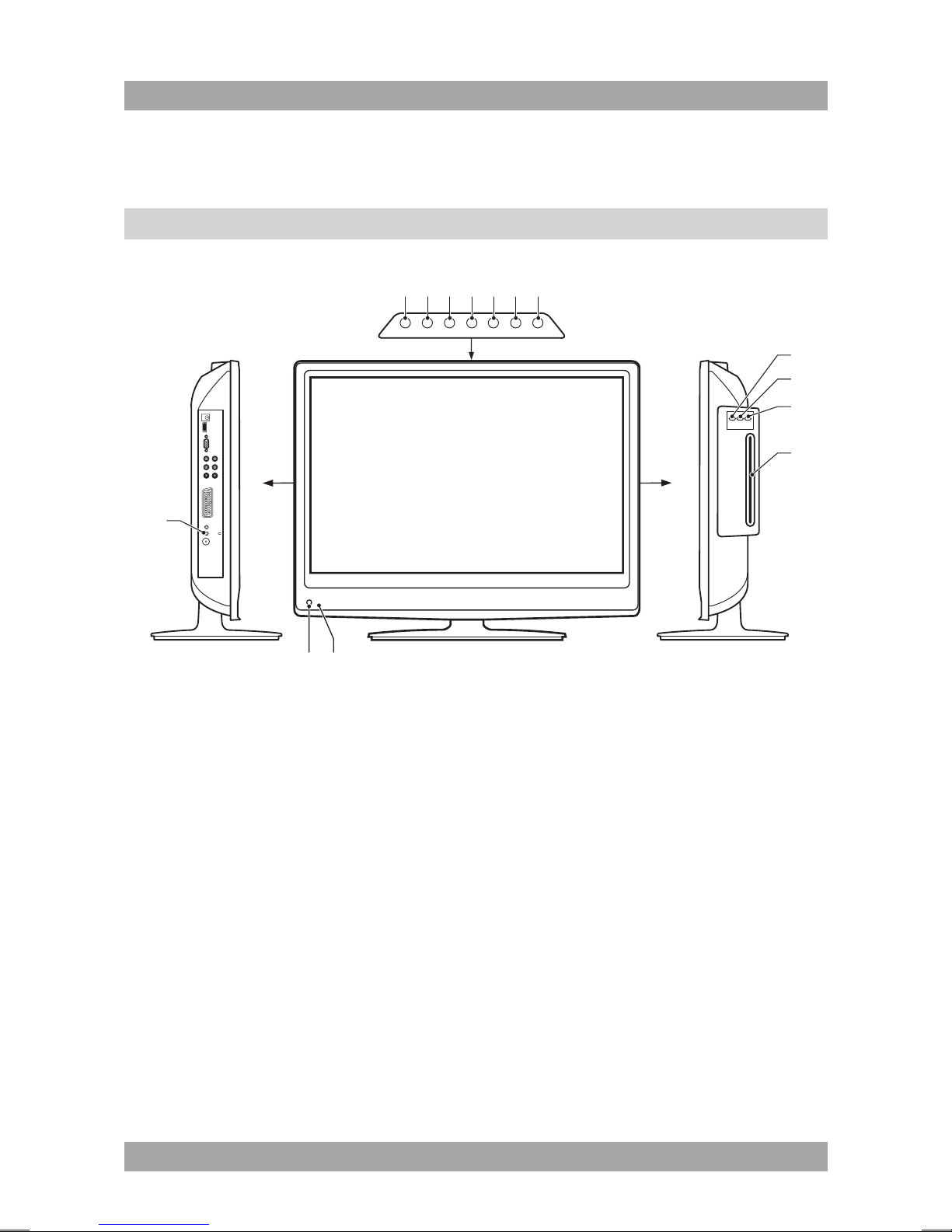

LCD TV/DVD Combi4.1
V- V+ P- P+ STANDBY
MENU
SOURCE
ANT. VGAPC-A IN SCART VIDEO L R
Y Pb Pr
HDMI DC-12V
1 2
14
13121110 9 8 7
3
4
5
6
1 Remote sensor
2 LED indicator lamp
3 DVD slot
4 Open/close (DVD) button
5 Stop button
6 Play/pause button
Top panel
7 STANDBY button
8 Source button
9 Menu button
10 PROG + button
11 PROG - button
12 VOL + button
13 VOL - button
Back panel
14 Headphone jack

10 11
15-series
10 11
15-series

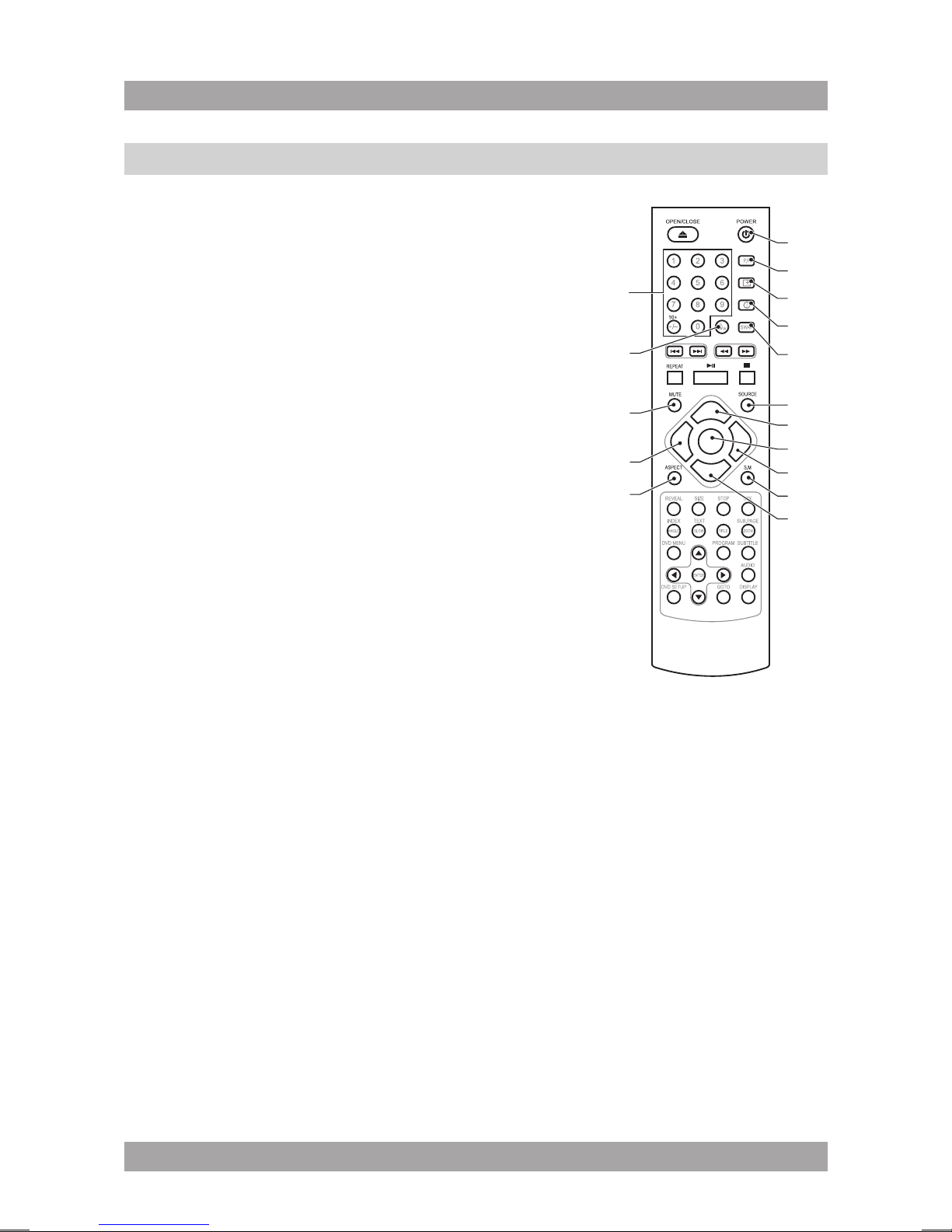

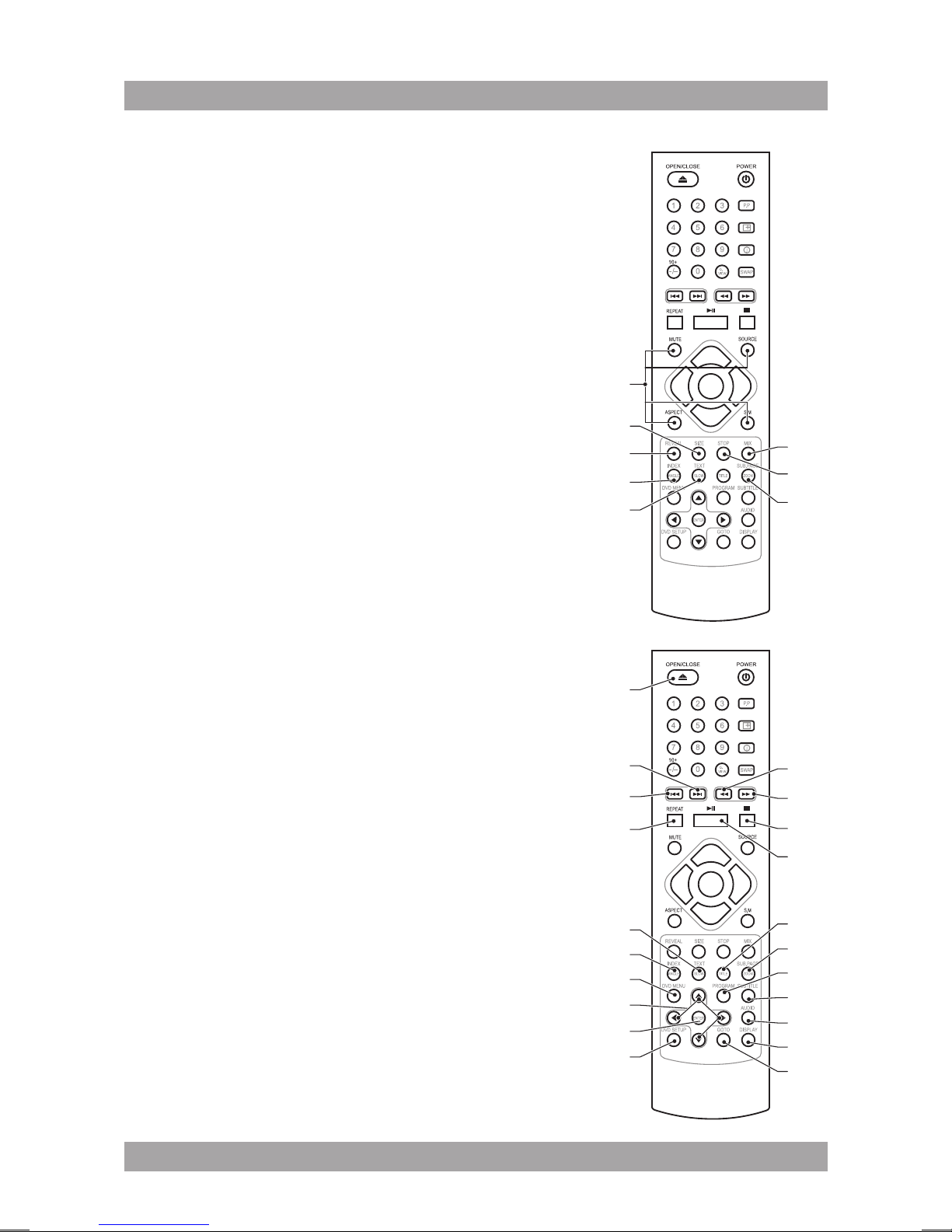

Remote control4.2
General functions
15 Digit buttons (0-10+)
16 Q.VIEW button
17 MUTE button
18 VOL - button
19 ASPECT button
20 PROG - button
21 SM button
22 VOL + button
23 MENU button
24 PROG + button
25 SOURCE button
26 SWAP button
27 SLEEP button
28 DISPLAY button
29 PP button
30 POWER button
i The PROG +/- and VOL +/-buttons are
buttons for navigation in the television
and teletext menus.
30
25
29
28
27
26
24
23
22
21
20
15
19
17
18
16
