Model PS2/3/5
Power Supply / Battery Charger
Operating and Installation Instructions
52-133 Rev B.01

I. Warnings and Notices
yWARNING - To reduce the risk of fire or electric shock, do not expose this product
to rain or moisture
yWARNING - This installation and all servicing should be made by qualified service
personnel and should conform to all local codes
yNOTICE - This equipment shall be installed in a manner which prevents
unintentional operation from employees or other personnel working about the
premises, by falling objects, by building vibration and by similar causes
yNOTICE - This equipment is not intended for use within the patient care areas of a
Health Care Facility
Symbol Definitions
WARNING - Read the instruction manual to avoid personal injury or
property damage
ᏘWARNING - Risk of electric shock. Service to be performed by a qualified
service person
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 2 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Table of Contents
Section Page
I. Warnings and Notices 2
1 Introduction 4
2 Applicable Standards / Documents 5
3 System Overview 6
3.1 Electrical Ratings and Specifications 6
3.2 Terminal Descriptions and Electrical Ratings 7
3.3 AC Input Connection 8
3.4 Battery Terminals 8
3.5 DC Output Terminals 9
3.6 Fault Reporting Terminals 9
3.7 Fusing 9
4 Installation 10
4.1 Mounting 10
4.2 Wiring 11
5 Operating the PS2/3/5 12
5.1 Setting the DIP Switches 12
5.2 Visual Indicators 13
5.3 Troubleshooting 13
6 Specifications 14
6.1 Electrical Specifications 14
6.2 Temperature Specifications 14
6.3 Mechanical Specifications 14
Appendix A 15
Wiring an AlarmSaf RBKS Module to a PS2/3/5 Voltage Fault Output 15
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 3 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Section 1
Introduction
The PS2/3/5 is a linear power supply designed for use in the access control, fire industry, and related
industries by the systems integrator.
Features:
yOutput voltage of 12V or 24VDC
yUnits can charge up to a maximum 38AH of battery within 48 hours
yAll units employ full fault detection with an optional Form-C relay output
yFault conditions monitored include:
yLow or missing AC
yHigh or low output / battery
yBlown fuse
yReversed Battery
yInternal Power Supply failure
yVisual indicators include:
yAC Presence (Green)
ySystem OK or System Trouble (Green or Yellow)
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 4 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Section 2
Applicable Standards / Documents
NFPA Standards
NFPA 72 National Fire Alarm Code
NFPA 70 National Electrical Code
NFPA 731 Standard for the Installation of Electronic Premises Security Systems
UL Standards (Applies to model numbers ending in “-UL” only)
UL 294 Access Control System Units
UL 1481 Power Supplies for Fire Protective Signaling System
Other
MEA Listed
California State Fire Marshal (CSFM) Listed
Applicable Local and State Building Codes
Requirements of the Local Authority Having Jurisdiction (LAHJ)
Product Use
When installed in accordance with all standards listed in Section 2 of this document, the PS2/3/5
provides power for use with typical 12 or 24VDC devices as used in the access control, fire, or security
industries such as, but not limited to, mag locks, door strikes, door holders, smoke dampers, four
wire smoke detectors, card readers, keypads, etc.
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 5 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Section 3
System Overview
3.1 Electrical Ratings and Specifications
Manufactured By
www.alarmsaf.com
Fax: [phone]
Wilmington, MA 01887
Tel: [phone]
65A Industrial Way
Tel: [phone]
AlarmSaf
Model Numbers and Electrical Ratings
Table 3.1
Form-C38AH4A24VDC2.50A120VAC11x15x401314PS5-24040-B03-UL
Form-C38AH4A12VDC1.25A120VAC11x15x401313PS5-12040-B03-UL
Form-C38AH2.5A24VDC2.50A120VAC11x15x401318PS5-24025-B03-UL
Form-C38AH2.5A12VDC1.25A120VAC11x15x401317PS5-12025-B03-UL
Voltage38AH4A24VDC2.50A120VAC11x15x401304PS5-BFS-24-UL
Voltage38AH4A12VDC1.25A120VAC11x15x401303PS5-BFS-12-UL
Form-C38AH4A24VDC2.50A120VAC11x15x400836PS5-24040-B03
Form-C38AH4A12VDC1.25A120VAC11x15x400834PS5-12040-B03
Voltage38AH4A24VDC2.50A120VAC11x15x400812PS5-BFS-24
Voltage38AH4A12VDC1.25A120VAC11x15x400811PS5-BFS-12
Voltage20AH3A24VDC2.50A120VAC11x15x400810PS3-BFS-24
Voltage20AH
3A12VDC1.25A120VAC11x15x400809PS3-BFS-12
Form-C38AH4A24VDCT24V5A28.2VACNone01312PS5-24040-UL-BD
Form-C38AH4A12VDCT12V5A17.5VACNone01311PS5-12040-UL-BD
Form-C38AH2.5A24VDCT24V5A28.2VACNone01327PS5-24025-UL-BD
Form-C38AH2.5A12VDCT12V5A17.5VACNone01326PS5-12025-UL-BD
Voltage38AH4A12VDCT24V5A28.2VACNone01302PS5-UL-24-BD
Voltage38AH4A12VDCT12V5A17.5VACNone01301PS5-UL-12-BD
Form-C38AH4A24VDCT24V5A28.2VACNone00845PS5-24040-BD
Form-C38AH4A12VDCT12V5A17.5VACNone00844PS5-12040-BD
Voltage38AH4A12/24VDCT12V5A, T24V5ANote 1None00806PS5-BD
Voltage20AH3A12/24VDCT12V5A, T24V5ANote 1None00805PS3-BD
Voltage14AH2A12/24VDC
16V50, T24V4ANote 1None00804PS2-BD
Fault Output
Type
Max
Battery
Max Output
Current
Output Voltage
Max Input Current
or TXFMR Rqd.
Input
Voltage
Enclosure
(Note 2)
Order
Number
Model
Note 1: Input Voltage is dependent on the desired output voltage setting. For a 12V output, a
17.5VAC transformer is required. For a 24V output, a 28.2VAC transformer is required.
Note 2: Some PS5-12xxx and PS5-24xxx models have optional enclosure sizes not covered in this
manual.
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 6 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

3.2 PS2/3/5 Board Terminal Descriptions and Electrical Ratings
Low-Current Fault Output -FAULT OUTPUT -
For connection to AlarmSaf RBKS module ONLY - See
Section 3.6 and Appendix A
Low-Current Fault Output +FAULT OUTPUT +
Units with Voltage Fault Output
Fault Relay Output Normally OpenFAULT OUTPUT NO
Fault Relay Output CommonFAULT OUTPUT C 1 Amp at 24VDC (Resistive) - Contacts are labeled in
the non-powered (Fault) condition
Fault Relay Output Normally ClosedFAULT OUTPUT NC
Units with Relay Fault Output
DC Common OutputDC OUTPUT -
12VDC or 24VDC at full output current of supply - See
Table 3.1 for ratings.
DC Positive OutputDC OUTPUT +
TB2 - DC Output and Fault Output
Negative Battery ConnectionBATTERY CONNECT -
12VDC or 24VDC at 14AH - 38AH - See Table 3.1 for
Ratings
Positive Battery ConnectionBATTERY CONNECT +
LOW VOLT AC
CONNECT
17.5VAC or 28.2VAC - See Table 3.1 for RatingsLow voltage AC input
LOW VOLT AC
CONNECT
TB1 - Low Voltage AC Input and Battery Output
RatingDescriptionTerminal / Connector
Figure 3.2
AC FUSE
BAT
FUSE
LVAC
CONNECT
BAT
CONNECT
DC
OUTPUT
FAULT
OUTPUT
W5
D12
R21
R7
F2
F1
TB2
TB1
A1
S1
R16
ACFLT
DCFLT
24/12V
AC
CONNECT
BATTERY CONNECT
VOLTAGE AC
LOW
REF
ADJREG
ADJ
BFF
ADJ
DC
OUTPUT
FAULT
OUTPUT
PS2
PS3 PS5 PS5-UL
AlarmSaf
1
2
3
4
1,2 OPEN=24V
3 OPEN=DCFLT DISABLE 4 OPEN=ACFLT DISABLE
AC
FUSE
BAT FUSE
FUSE RATINGS
AGC-10
+
-
+
-
+
-
FLT
RED LED
A VISUAL INDICATOR
NOT
Note: Wire should be sized appropriately for voltage drop and current carrying capability. All
terminals are labeled for polarity where appropriate.
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 7 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

3.3 AC Input Connection
3.3.1 Board-Level Supplies
Board-level units need to be connected to an appropriate low-voltage AC supply voltage of a
sufficient VA rating (See Table 3.1). The connection is made on TB1 at the terminals labeled “Low
Voltage AC Connect.” The phase of this connection is not important.
3.3.2 Cabinet-Level Supplies
Cabinet-level supplies are pre-fitted with a hardwired transformer of the correct voltage. The
connections should be made as follows:
yBlack Hot
yWhite Neutral
yGreen Earth Ground
Note - The Green or Green/Yellow earth ground wire should always be connected first or
disconnected last for safety.
Note - All wiring should be installed in accordance with (NEC760) NFPA70, NFPA72, and all local
code requirements. Power limited wiring requires that power limited and non-power limited wiring
remain physically separated. All power limited circuits must remain at least one quarter inch (¼”)
away from any non-power limited circuit wiring. All power limited circuit wiring must enter and exit
the cabinet through different knockouts than non-power limited wiring.
3.4 Battery Terminals
The PS2/3/5 has one set of battery terminals labeled Battery Connect +/- which will charge a sealed
lead acid / gel cell battery set for backup of the output voltage. The battery terminals are fuse
protected.
Caution - Observe the polarity of the battery terminals with respect to the battery set or damage to
the load, power supply, or battery set may occur.
Note - The DC output current deducts from the current available to charge the battery set. For
example, a PS5 with a 3.5ADC output load, would only have 0.5A available to charge the battery set.
This will impact the recharge time of the battery set.
Note - Series-connected batteries should always be of the same amphour capacity, age, and
state-of-charge to prevent battery / system damage.
Note - It is the responsibility of the installer to determine the minimum battery requirement for the
particular application in which the supply is being used. Backup batteries should be serviced at
regular intervals as determined by local and/or national codes.
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 8 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

3.5 DC Output Terminals
The PS2/3/5 has one set of output terminals labeled DC Output +/- which provides a constant output
of either 12VDC or 24VDC. See Section 5.1 for additional information on output voltage selection on
board-level units.
Caution - Observe the polarity of the output terminals with respect to the load or damage to the
load may occur.
3.6 Fault Reporting Terminals
The PS2/3/5 utilize either a low-current voltage fault output for connection to an AlarmSaf RBKS
module or an integral Form-C fault relay output (optionally available in the PS5 only). See Table 3.1
to determine the Fault Output style for a particular model number. Fault conditions indicated include:
yLow Output VoltageyHigh Output Voltage
yLow Battery VoltageyHigh Battery Voltage
yBlown Fuse (AC or Battery)yLow or missing AC
NOTE - The PS2/3/5 does NOT detect battery presence. If battery presence detection is required with
a PS2/3/5, the addition of a BP-001 module will add this feature. AlarmSaf also manufactures
supplies with integral battery presence detection.
3.6.1 Low-Current Voltage Fault Output (See also Appendix A)
The voltage fault output is for connection to an AlarmSaf RBKS module for remote or local fault
reporting. The following RBKS modules may be used with the voltage fault output:
yRBKS-124P NOT Fail Safe
yRBKS-124N Fail Safe
yRBKS-10 Fail Safe when using the Negative Trip Input only
Note - The RBKS-124P does not provide a fail safe indication - the relay will only indicate a fault
condition if a source of power (Battery / AC power) is present. If a total loss of battery and AC power
occurs, the relay will not indicate a fault.
Note - The voltage fault output will only supply a very low current. It will not power a relay coil -
even a low-current relay coil. This output must be used with a sensitive trip relay.
3.6.2 Form-C Relay Fault Output
The integral relay output provides a fail-safe, Form-C relay output rated at 1A at 24VDC.
Terminals are labeled in the unpowered (fault) state.
3.7 Fusing
The PS2/3/5 contains two replaceable fuses - The AC Fuse and the Battery Fuse. When replacing
these fuses, only the equivalent type and rating are to be used. Both fuses are rated at 10A
(AGC-10). See Figure 3.2 for locations.
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 9 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Section 4
Installation
4.1 Mounting
The PS2 is available only as a board level supply, while the PS3 and PS5 are available in either
board-level or cabinet level versions.
4.1.1 Mounting a Cabinet-Level Supply
If the PS3/5 is provided in a wall mount enclosure, use #8 hardware minimum in four locations.
Use an appropriate fastening system for the mounting surface.
Cabinet Mounting:
1. Mark and predrill two holes for the top keyhole mounting screws
2. Install two fasteners in the mounting wall leaving screwheads protruding approximately ¼
inch
3. Using the two upper keyholes, mount the cabinet over the two screws
4. Mark the two lower holes, remove the cabinet and drill the lower mounting holes
5. Mount the cabinet, install the remaining fasteners, and tighten all fasteners
BN
ABC
Figure 4.1.1
4.1.2 Mounting a Board-Level Supply
Board-level, supplies can be mounted either with the provided double-sided tape or by using
nylon standoffs and hardware (not included). Replacement boards for a listed supply must reuse
the existing hardware to maintain the listing.
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 10 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

4.2 Wiring
4.2.1 Wire Routing
All wiring must be installed in accordance with NFPA70, NFPA72, and all local code requirements.
Power Limited wiring requires that power limited and non-power limited wiring remain physically
separated. Any power limited circuit entering the enclosure must remain at least one quarter inch
(¼”) away from any non-power limited circuit wiring. Any power limited circuit wiring must enter
and exit the enclosure through different knockouts than non-power limited circuit wiring. Wiring
within the enclosure should be routed around the perimeter of the cabinet. It should not be
routed across the circuit boards.
4.2.2 AC Input
4.2.2.1 Cabinet Level Supplies
Connection should be made via an approved method. AC mains wiring should be no smaller
than 14 AWG. See Section 3.3 for details.
4.2.2.2 Board-Level Supplies
Locate the LVAC Input terminals. These terminals are non-removable and accept wire sizes
between #12 and #22 AWG. Phasing of the LVAC input is not important on the PS2/3/5. See
Section 3.1 for Transformer requirements.
4.2.3 Output Wiring
Locate the output terminals. These terminals are non-removable and accept wire sizes between
#12 and #22 AWG. Polarity is marked on the PCB, and on the supporting documentation.
4.2.4 Battery Wiring
Locate the battery terminals. These terminals are non-removable and accept wire sizes between
#12 and #22 AWG. Polarity is marked on the PCB. If the PS2/3/5 is set for 12VDC, connect a
single 12V battery to the terminals. If the PS2/3/5 is set for 24VDC, connect two 12V batteries in
series to the terminals.
CAUTION - A lead-acid battery has the capability of producing extremely high current.
Personal or property damage can occur if the batteries are shorted or improperly
connected.
4.2.5 Fault Output Wiring
4.2.5.1 Supplies with Integral Relay
Locate the Fault Output relay terminals. These terminals are non-removable and accept wire
sizes between #12 and #22 AWG. The relay terminals are marked in the non-powered (fault)
state (In a normal (non-fault) condition, there is a connection between C and NO).
4.2.5.2 Supplies with a Voltage Fault Output
See Appendix A for details on wiring the voltage Fault Output.
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 11 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Section 5
Operating the PS2/3/5

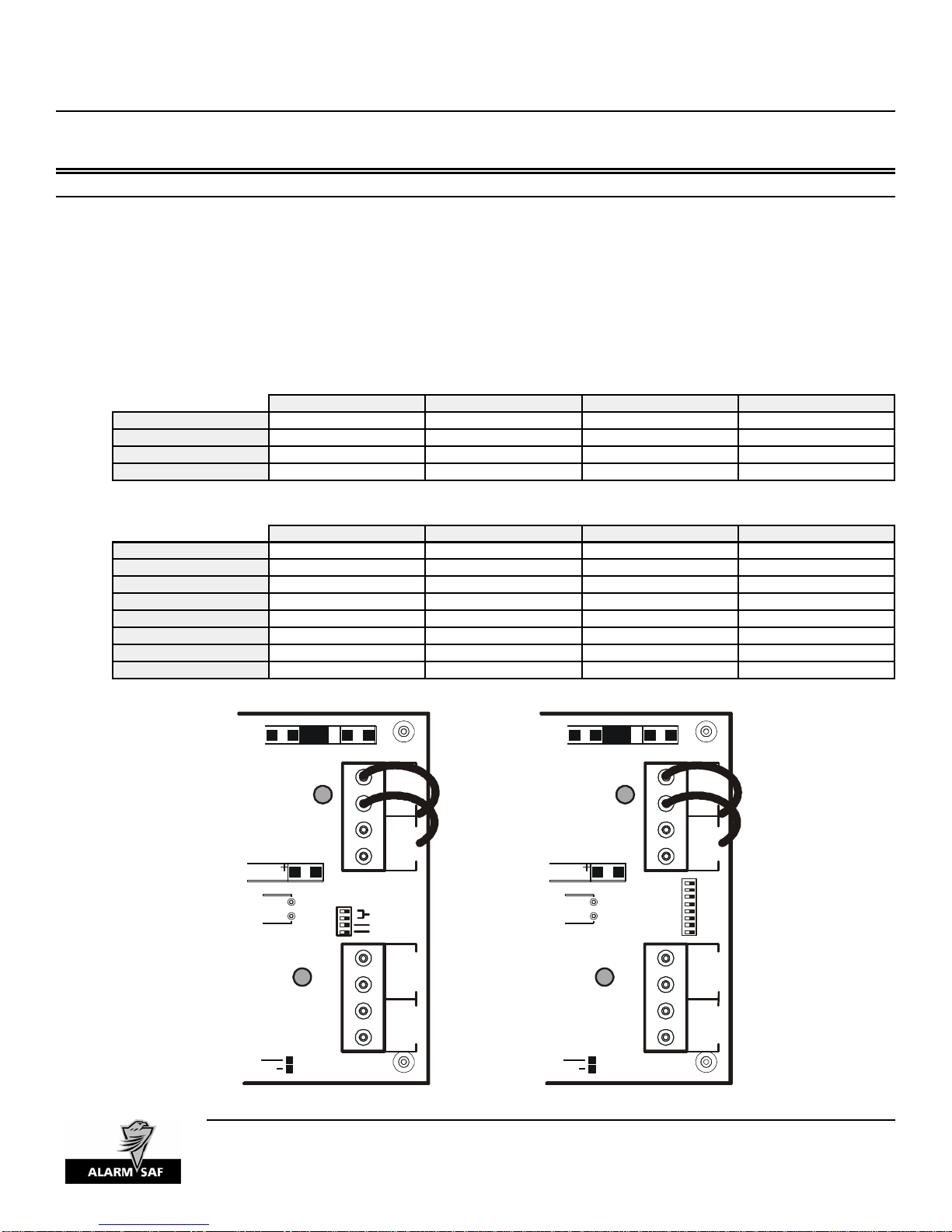

5.1 Setting the DIP Switches (Non-Listed supplies only)
Before powering a system containing a PS2/3/5, the DIP Switches should be set for proper operation.
The PS2/3/5 board may have either 4 switches or 8 switches, depending on the age of the supply.
Note - Due to inconsistencies by the manufacturers of DIP switches in the labeling of switch numbers
and ON and OFF positions, AlarmSaf indicates switch settings visually and descriptively.
Note - All switch settings shown below are indicated with the board positioned so that the terminal
strips are to the right and the large heatsink is to the left as seen in Figure 5.1.
5.1.1 Supplies with Four Switches
Right (On / Closed)N/AN/AN/ABottom Switch
N/ARight (On / Closed)N/AN/A
Third Switch
N/AN/ALeft (Off / Open)Right (On / Closed)
Second Switch
N/AN/ALeft (Off / Open)Right (On / Closed)
Top Switch
AC Faults EnableDC Faults Enable24V Output12V Output
5.1.2 Supplies with Eight Switches
N/ALeft (On / Closed)N/AN/ABottom Switch
Left (On / Closed)N/AN/AN/A
Seventh Switch
N/AN/ARight (Off / Open)Left (On / Closed)
Sixth Switch
N/AN/ARight (Off / Open)Left (On / Closed)
Fifth Switch
N/AN/ARight (Off / Open)Right (Off / Open)
Fourth Switch
N/AN/ARight (Off / Open)Left (On / Closed)
Third Switch
N/AN/ARight (Off / Open)Left (On / Closed)
Second Switch
N/AN/ARight (Off / Open)Right (Off / Open)
Top Switch
AC Faults EnableDC Faults Enable24V Output12V Output
W5
R21
F1
TB2
TB1
S1
ACFLT
DCFLT
24/12V
AC
CONNECT
BATTERY CONNECT
VOLTAGE AC
LOW
DC
OUTPUT
FAULT
OUTPUT
AlarmSaf
1
2
3
4
1,2 OPEN=24V 3 OPEN=DCFLTDISABLE
4 OPEN=ACFLT DISABLE
AC
FUSE
BAT FUSE
+
-
+
-
+
-
FLT
W5
R21
F1
TB2
TB1
S1
ACFLT
DCFLT
AC
CONNECT
BATTERY CONNECT
VOLTAGE AC
LOW
DC
OUTPUT
FAULT
OUTPUT
AlarmSaf
AC
FUSE
BAT FUSE
+
-
+
-
+
-
FLT
1
8
Figure 5.1
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 12 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

5.2 Visual Indicators
The PS2/3/5 contains two visual status indicators.
NOTE - The RED LED is not a visual indicator. It serves no user function and can be disregarded.
5.2.1 AC ON (Green)
This LED lights when Low Voltage AC is present AND the AC fuse on the PS2/3/5 is intact.
CAUTION - Always check for AC presence with an AC volt meter before servicing
5.2.2 FAULT / FLT (Green / Yellow)
The color and operation of this LED varies depending on the type of Fault output present on the
supply.
5.2.2.1 Supplies with an Integral Relay Fault Output
The Fault LED on supplies with an integral fault relay is Green in color and is lit in a normal (no
fault) condition. This LED extinguishes when a fault condition is detected.
5.2.2.2 Supplies with a Voltage Fault Output
The FLT output on supplies with a voltage fault output is yellow in color and is extinguished in
a normal (no fault) condition. This LED will flash when a fault condition is detected.
5.3 Troubleshooting
Contact AlarmSafInternal problem with PS2/3/5
Verify fuse is intact - Check wiring
integrity and disconnect main AC
power before replacing fuse
Blown AC fuse
Verify the presence of at least
102VAC on the primary of the
Transformer
Low or Missing AC
Verify that a good battery set of the
proper voltage is connected to the
PS2/3/5
Damaged, Incorrect, or Missing
Battery Set
Verify that output current is less than
the rated current
Excessive loading on output
Verify fuse is intact - Check wiring
integrity before replacing fuse
Blown battery fuse
The fault LED is indicating a fault
condition
Contact AlarmSafInternal problem with PS2/3/5
Verify that a good battery set of the
proper voltage is connected to the
PS2/3/5
Bad / Incorrect Battery Set
Verify presence of AC voltageAC trouble
Verify that output current is less than
rated current
Excessive loading on output
Verify proper switch settingIncorrect switch settings
The output voltage of the PS2/3/5 is
incorrect or missing
SolutionPossible CauseCondition
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 13 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Section 6
Specifications
6.1 Electrical Specifications
6.1.1 Input Voltage See Section 3.1
6.1.2 Input Power See Section 3.1
6.1.3 Output Voltage 12 or 24VDC Nominal - See Section 3.1
6.1.4 Output Current See Section 3.1
6.1.5 Maximum Battery Charger Capacity See Section 3.1
6.1.7 Maximum Battery Charge Current See Section 3.1
6.2 Temperature Specifications
6.2.1 Ambient Temperature Range 0ºC to 49ºC (32ºF to 120ºF)
6.2.2 Ambient Humidity 93% at 32ºC (90ºF) Maximum
6.3 Mechanical Specifications
6.3.1 Weight (PCB Only) 0.85lbs.
6.3.2 Size (PCB Only) 7.00”L x 5.10”W x 1.50”H Max.
6.3.3 CAD Drawing
Figure 6.3
AC FUSE
BAT
FUSE
LVAC
CONNECT
BAT
CONNECT
DC
OUTPUT
FAULT
OUTPUT
W5
D12
R21
R7
F2
F1
TB2
TB1
A1
S1
R16
ACFLT
DCFLT
24/12V
AC
CONNECT
BATTERY CONNECT
VOLTAGE AC
LOW
REF
ADJ
REG
ADJ
BFF
ADJ
DC
OUTPUT
FAULT
OUTPUT
PS2
PS3 PS5 PS5-UL
AlarmSaf
1
2
3
4
1,2 OPEN=24V
3 OPEN=DCFLT DISABLE 4 OPEN=ACFLT DISABLE
AC
FUSE
BAT FUSE
FUSE RATINGS
AGC-10
+
-
+
-
+
-
FLT
RED LED
AVISUAL INDICATOR
NOT
7.00”
6.62”
4.75”
5.10”
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 14 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Appendix A
Wiring an AlarmSaf RBKS module to a PS2/3/5 Voltage Fault Output
In order to get a usable signal from the voltage fault output on a PS2/3/5, it must be connected to an
AlarmSaf RBKS module in the proper configuration. The following RBKS modules may be used with
the voltage fault output:
yRBKS-124P NOT Fail Safe
yRBKS-124N Fail Safe
yRBKS-10 Fail Safe when using the Negative Trip Input only
Note - The RBKS-124P does not provide a fail safe indication - the relay will only indicate a fault
condition if a source of power (Battery / AC power) is present. If a total loss of battery and AC power
occurs, the relay will not indicate a fault.
Note - The voltage fault output will only supply a very low current. It will not power a relay coil -
even a low-current relay coil. This output must be used with a sensitive trip relay.
Note - When wiring a fail safe relay configuration, the resistor shown is essential to the operation of
the relay and cannot be omitted. The resistor value can be between 1K and 100K 1/4W.
Figure A.1
TB2
S1
ACFLT
DCFLT
24/12V
DC
OUTPUT
FAULT
OUTPUT
AlarmSaf
1
2
3
4
1,2 OPEN=24V
3 OPEN=DCFLT DISABLE
4 OPEN=ACFLT DISABLE
+
-
+
-
T
PWR-
C
C
NCNC
NONO
PWR+
FORM ‘C’
FAULT
OUTPUT
RBKS-124P
TB2
S1
ACFLT
DCFLT
24/12V
DC
OUTPUT
FAULT
OUTPUT
AlarmSaf
1
2
3
4
1,2 OPEN=24V
3 OPEN=DCFLT DISABLE 4 OPEN=ACFLT DISABLE
+
-
+
-
T
PWR-
C
C
NCNC
NONO
PWR+
FORM ‘C’
FAULT
OUTPUT
10K-1/4W
RESISTOR
RBKS-124N
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 15 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Appendix B
Addendum A - Compatible Device List
The notification appliances listed below are to be employed in conjunction with Listed control modules which are part of a Listed Fire Alarm System. The
notification appliances are to be interconnected as described in the installation instructions referenced in the marking of the product.
Wheelock Inc. - Models 34T-24-R, 46T-G10-24-R,
46T-G10-24-WH-24-HF-R, 46T-G10-24-WS-24-HF-R,
46T-G4-24-R, 46T-G6-24-R, 46T-G6-24-WH-24-HF-R,
46T-G6-24-WS-24-HF-R, 46T-G8-24-R, AES-DL1-R, AES-DL1-W,
AES-DL1-WH-24-VF-R, AES-DL1-WM-24-VF-R,
AES-EL1-WM-24-VF-R, AES-DL1-WS-24-VF-R, AES-EL1-R,
AES-EL1-W, AES-EL1-WH-24-VF-R, AES-EL1-WS-24-VF-R,
CH-BF1-R, CH-BF1-WS-24-HF-R, CH-CF1-W,
CH-CF1-WS-24-CF-W, CH-DF1-R, CH-DF1-WM-24-VF-R,
CH-DF1-WS-24-VF-R, E-7025-WH-24-VF-R,
E-7025-WH-24-VF-W, E-7025-WM-24-VF-R,
E-7025-WM-24-VF-W, E-7025-WS-24-VF-R,
E-7025-WS-24-VF-W, E-7070-WH-24-VF-R,
E-7070-WH-24-VF-W, E-7070-WM-24-VF-R,
E-7070-WM-24-VF-W, E-7070-WS-24-VF-R,
E-7070-WS-24-VF-W, E-9025-WH-24-CF-W,
E-9025-WS-24-CF-W, E-9070-WH-24-CF-W,
E-9070-WS-24-CF-W, EH-DL1,EH-EL1, EH-DL1-WH-24-VF-R,
EH-DL1-WM-24-VF-R, EH-EL1-WM-24-VF-R,
EH-DL1-WS-24-VF-R,EH-EL1-WH-24-VF-R,EH-EL1-WS-24-VF-R,
EHS-24, EHS-24F, EHS-DL1-W-VF-R, EHS-EL1-W-VF-R,
ET-1010-WS-24-HF-R, ET-1070-WM-24-VF-R,
ET-1070-WM-24-VF-W, ET-1070-WS-24-VF-R,
ET-1080-WM-24-VF-R, ET-1080-WM-24-VF-W,
ET-1080-WS-24-VF-R, ET-1090-WS-24-CF-W, MB-G10-24-R,
MB-G6-24-R, MBS-G10-24-W-HF-R, MBS-G6-24-W-HF-R,
MIZ-24-R, MIZ-24-W, MIZ-24-WH-VF-R, MIZ-24-WM-VF-R,
MIZ-24-WS-VF-R, MIZ-24-WS-VF-W, MT-24-WH, MT-24-WM,
VL-24-W-VF-R, VL1-24-W-VF-R, VLPM-24-W-VF-R, WH1T-24-FR,
WH3T-24-FR, WHT-24-FR, WM1T-24-FR, WM3T-24-FR,
WMT-24-FR, WS1T-24-FR, WS3T-24-FR, WST-24-FR, LS-24-VFR,
LS1-24-VFR, LS3-24-VFR, LSP-24-HFR, LSM-24-VFR,
LS1M-24-VFR, LS3M-24-VFR, LSPM-24-VFR, MS-24-VFR,
MS1-24-VFR, MS3-24-VFR, MSP-24-HFR, IS-24-VFR, IS1-24-VFR,
IS3-24-VFR, ISP-24-HFR, HSW-24-HFR, HS2W-24-HFR,
SPW-24-HFR, MIZ-24-LS-VFR, MIZ-24-LSM-VFR, MIZ-24-MS-VFR,
MIZ-24-IS-VFR, MIZ-24-HSW-HFR, MT-24-LS-VFR,
MT-24-LSM-VFR, MT-24-MS-VFR, MT-24-IS-VFR, MT4-24-LS-VFR,
MT4-24-LSM-VFR, MT4-24-MS-VFR, MT4-24-IS-VFR,
AES-DL1-LSM-24-VFR, AES-EL1-LSM-24-VFR,
CH-CF1-LS-24-CFW, CH-CF1-MS-24-CFW, CH-CF1-IS-24-CFW,
CH-DF1-LS-24-VFR, CH-DF1-LSM-24-VFR, CH-DF1-MS-24-VFR,
CH-DF1-IS-24-VFR, E-7025-LS-24-VFR, E-7025-LSM-24-VFR,
E-7025-MS-24-VFR, E-7025-IS-24-VFR, E-9025-LS-24-CFW,
E-9025-MS-24-CFW, E-9025-IS-24-CFW, E-7070-LS-24-VFR,
E-7070-LSM-24-VFR, E-7070-MS-24-VFR, E-7070-IS-24-VFR,
E-9070-LS-24-CFW, E-9070-MS-24-CFW, E-9070-IS-24-CFW,
ET-1070-LS-24-VFR, ET-1070-LSM-24-VFR, ET-1070-MS-24-VFR,
ET-1070-IS-24-VFR, ET-1080-LS-24-VFR, ET-1080-LSM-24-VFR,
ET-1080-MS-24-VFR, ET-1080-IS-24-VFR, ET-1090-LS-24-CFW,
ET-1090-MS-24-CFW, ET-1090-IS-24-CFW
The 24V unit may be used with any UL Listed Access Control
device with an input voltage rating over the range of 23.5 to
25VDC.
Federal Signal Corp. - Models VALS Series, 450 Series,
460-024
Fire Control Instruments, Inc. - Models 130-3117C,
130-3118C, 130-3146C, 130-3147C, 30-3184C, BP-4-24-R,
BP-6-24-R, BP-8-24-R, BP-10-24-R, HP-24, HMS, HEF, HES,
HEF/STW, HEF/STS, STW/4F, STS/4F, STW/4S, STS/4S, STW/1G,
STS/1G
Fire Lite Alarms, Inc. - Models STH-71-24VDC,
STH-72-24VDC, WBDP-G4-24, WBDP-G6-24, WBDP-G8-24,
WBDP-G10-24
Gamewell Company - Models 68460-01, 68461-01, 70381,
70382, 70383, 70384, 70389, 70390, 70393, 70394, 70398,
70401, 70402, 70403, 70672, 70673, 70674, 70675, 70676,
70677, 70871, 70872, 70873, 70874, 70875, 70921, 70922,
70923, 70924, 70925, 70926, 70991, 70992, 70986, 70987,
70988, 70989, 70990, 70993, 70994, 70995, 70996
Gentex - Models GX90S-4H, GX90-4L, GX904, GXS-4H,
GXS-4L, SHG24H, GXS-4-15, GXS-4-15/75, GXS-4-110,
GX90-4, GX90S-4-15, GX90S-4-15/75, GX90S-4-110,
SHG-4-15, SHG-4-15/75, SHG-4-110
Grinnell Fire Protective Systems - Models 34T-24,
46T-G4-24, 46T-G6-24, 46T-G8-24, 46T-G10-24, WST-24
Mirtone - Models 74400, 74401, 74402, 74403, 74404,
74405
Monaco Enterprises - Models 581-421-00, 581-422-00,
581-461-00, 581-463-00, 582-400-00, 582-421-00,
582-463-00, 585-020-00, 585-022-00, 585-027-00
National Time and Signal Corp. - Models 204, 206, 206-AV,
210, 210-AV, 424, 424-AV, 424-AV-F, 510-AV, 570-AV,
580-AV, 590-AV, EH-F, EH-F-AV, EH-S, EH-S-AV
Notifier Company - Models 34T-24, 7001T-24, 7002T-24
Potter Electronic Signals Co. - Models AES-24, AES-24F,
AES-24S, AES-24SF, AES-24S-70, CH-24, CH-24FR, CH-24FS,
CH-24S, CH-24SFR, CH-24SFS, EH-24, EH-24F, EHS-24,
EHS-24D, EHS-24F, EHS-24FD, ES-25SR, ES-25SS, ES-25SR-70,
ES-25SS-70, ETD-25, ETD-25F, ETD-25FR, ETD-25FS, FH-24,
FHS-24, FHS-24D, FHS-24F, FHS-24FV, MH-24, MH-24S,
MH-24S-70, STR-241, STR-241-70, STR-244, STR-244-70,
STR-244WP, STR-244-70WP, VL1-241, VL-244, VLP-244
Pyrotrol Inc. - Models EH-DL1-R, EH-DL1-WS-24-VF-R,
EH-EL1-WS-24-VF-R, EHS-DL1-W-VF-R, EHS-EL1-W-VF-R
Radionics - Models D430, D434, D439, D441, D443, D449,
D453
Rauland Borg - Models FA501, FA502
Securiplex - Models AES-DL1-R, AES-EL1-R,
AES-DL1-WH-24-VF-R, AES-EL1-WH-24-VF-R,
AES-DL1-WS-24-VF-R, AES-EL1-WS-24-VF-R, MB-G6-24-R,
MB-G10-24-R, MBS-G6-24-W-HF-R, MBS-G10-24-W-HF-R,
MIZ-24-R, MIZ-24-W, MIZ-24-WH-VF-R, MIZ-24-WS-VF-R,
MIZ-24-WS-VF-W, WHT-24-FR, WST-24-FR, WH1T-24-FR,
WS1T-24-FR, WH3T-24-FR, WH3T-24-XR, WS3T-24-FR
Simplex - Models 2098-9536 (4 wire), 2098-9207
Thorn Automated Systems Inc. - Models 34T-24-R,
46T-G4-24-R, 46T-G6-24-R, 46T-G10-24-R,
46T-G6-WS-24-HF-R, 46T-G10-WS-24-HF-R, CH-CF1, CH-DF1,
CH-CF1-WS-24, CH-DF1-WS-24, EH-DL1-R, EH-EL1-R,
EH-DL1-WS-24-VF-R, EH-EL1-WS-24-VF-R, EHS-DL1-W-VF-R,
EHS-EL1-W-VF-R, ET-1010-WS-24-HF-R, ET-1010-WS-24-HF-PR,
ET-1010-WS-24-HF-PW, ET-1070-WS-24-VF-R,
ET-1080-WS-24-VF-R, ET-1080-WS-24-VF-PR,
ET-1080-WS-24-VF-PW, ET-1090-WS-24-CF-W, WST-24-FR,
WS1T-24-FR, WS3T-24-FR
Tork Inc. - Models TA434-6G1, TA434-10G1, TA434-G5R,
TA435-6G1, TA435-10G1, TA871-G1, TA873-G1, TA875-G1,
TA875F-G1, TA877-G1, TA880-AD, TA880-G1, TA880-G1R,
TA880F-E1, TA880F-G1, TA890F-G1, TA891F-G1, TA5348-G1,
TA5507-AD, TA5508-AD, TA5508F-G1, TA5508HF-G1,
TA5509-AD, TA5509HF-G1, TA5520-AD, TA5520-AQ,
TA5520F-AQ, TA5550-G1
12V Devices
Faraday - Models 5310-0-14-12-DC, 5311-0-14-12-DC,
5508B-N-14-12-DC, 5521B-N-14-12-DC, 5522B-N-14-12-DC,
5508B-W-14-12-DC, 5521B-W-14-12-DC, 5522B-W-14-12-DC,
5508B-D-14-12-DC, 5521B-D-14-12-DC, 5522B-D-14-12-DC,
5508B-S-14-12-DC, 5521B-S-14-12-DC, 5522B-S-14-12-DC,
6226B-N-14-12-DC, 6227B-N-14-12-DC, 6228B-N-4-12-DC,
6226B-W-14-12-DC, 6227B-W-14-12-DC, 6228B-W-4-12-DC,
5336B-N-14-12-DC, 5337B-N-14-12-DC, 5338B-N-4-12-DC,
5336B-W-14-12-DC, 5337B-W-14-12-DC, 5338B-W-4-12-DC,
5336B-D-14-12-DC, 5337B-D-14-12-DC, 5336B-S-14-12-DC,
5337B-S-14-12-DC
Gentex - Model GXS-2L, GXS-2-15, GXS-2-15/75, GX90-2,
GX90S-2-15, GX90S-2-15/75, SHG-2-15, SHG-2-15/75
Wheelock - Models AES-DL2-R, AES-DL2-W, AES-EL2-R,
AES-EL2-W, CH-BF2-R, CH-CF2-W, CH-DF2-R, EH-DL2-R,
EH-EL2-R, EH-DL2-WS-12-VF-R, EH-EL2-WS-12-VF-R,
EHS-DL2-W-VF-R, EHS-EL2-W-VF-R, MIZ-12-R, MIZ-12-W,
MT-12-WH, 34T-12-R, LS1-12-VFR, MS1-12-VFR, LSP-12-HFR,
MSP-12-HFR, LS1M-12-VFR, LSPM-12-VFR, MIZ-12-LS-VFR,
MIZ-12-MS-VFR, MIZ-12-LSM-VFR, MT-12-LS-VFR,
MT-12-MS-VFR, MT-12-LSM-VFR, MT4-12-LS-VFR,
MT4-12-MS-VFR, MT4-12-LSM-VFR
Detection Systems, Inc. - Model MB4W (4 wire)
The 12V unit may be used with any UL Listed Access
Control device with an input voltage range over the range of
11.75 to 12.5VDC.
24V Devices
Ansul Company - Models 24744, 24746, 24750, 24753,
57549, 74646, 74647
Autocall - Models EH-DL1-R, EH-EL1-R, EHS-DL1-W-VF-R,
EHS-EL1-W-VF-R, EH-DL1-WS-24-VF-R, EH-EL1-WS-24-VF-R
Cerberus Pyrotronics - Models AEB-24, AEB-24S, AEB-24SH,
AEBM-E, AES-24, AES-24S, AES-24SH, AESM-D, BCD-6, BCD-6S,
BCD-10, BCD-10S, CEC-24, CEC-S24, CES-24, CES-S24,
CHM-D, EH-24, EH-24S, EH-24SH, EH-24FSH, EHM-D, EHM-E,
EHO-24, EHO-24S, EHS-24, EHS-24F,HDC-24, HM-24, HM-24S,
HM-24SH, HM-24W, HMM-FS, MBCD-6, MBCD-6S, MBCD-10,
MBCD-10S, SEA-3, SPKM-7025R,SPKM-7025W, SPKM-7070R,
SPKM-7070W, SSPK-7070, SSPK-7070H, SSPK-9070HW,
SSPK-9070W, SVD-24, SVD3-24, SVMT-F, SVM1T-F, SVM3T-F,
VL
Ellenco Inc. - Models 45, 45S, 45S-H, 45S-V, 61, 61H, 62, 62H,
63, 63H, 604-T, 606, 606S, 606M, 606MS, 610, 610S, 610M,
610MS
Electro Signal Laboratories - Models 106-28, 106-29, 106-30,
106-31, 107-70, 107-71, 107-80, 108-61, 108-62, 108-63,
108-64, 109-11, 109-12, 110-01, 110-02, 110-03, 110-04,
110-11, 110-12, 110-13, 110-14, 110-21, 110-22, 110-23,
110-24
Faraday - Models 5310-0-14-24-DC, 5311-0-14-24-DC,
5508B-N-14-24-DC, 5521B-N-14-24-DC, 5522B-N-14-24-DC,
5508B-W-14-24-DC, 5521B-W-14-24-DC, 5522B-W-14-24-DC,
5508B-D-14-24-DC, 5521B-D-14-24-DC, 5522B-D-14-24-DC,
5508B-S-14-24-DC, 5521B-S-14-24-DC, 5522B-S-14-24-DC,
6226B-N-14-24-DC, 227B-N-14-24-DC,
6228B-N-4-24-DC,6146B-N-14-24-DC, 6147B-N-14-24-DC,
6148B-N-4-24-DC, 6226B-W-14-24-DC, 6227B-W-14-24-DC,
6228B-W-4-24-DC, 6146B-W-14-24-DC, 6147B-W-14-24-DC,
6148B-W-4-24-DC, 5336B-N-14-24-DC, 5337B-N-14-24-DC,
5338B-N-4-24-DC, 5336B-W-14-24-DC, 5337B-W-14-24-DC,
5338B-W-4-24-DC, 5336B-D-14-24-DC, 5337B-D-14-24-DC,
5336B-S-14-24-DC, 5337B-S-14-24-DC
PS2/3/5 Installation Instructions
8/23/2007, 2:51:41 PM
52-133 Rev B.01
Page 16 of 16
AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com
