Alberici HopperOne S11 User manual

HopperOne S11
ccTalk
Operator’s Manual
Operator’s manual
Rev. 1.02
HopperOne S11 ccTalk

NOTICE
This manual has been drafted with the utmost care. Nevertheless, it is not possible to guarantee at all times the
absolute correspondence of the descriptions contained therein with the actual characteristics of the product.
Alberici S.p.A. declines any and all responsibility towards the User with reference to damages, losses, or claims of
third parties, resulting from the use of the product or caused by incorrect interpretations of this manual.
Alberici S.p.A. reserves the right to modify, without prior notice and in any way, any part of this manual and the
technical specifications of this product, as part of the continuous pursuit of improvement of its products.

CONTENTS
1. General description 5
2. Main Features 5
3. Electrical Features 8
4. ccTalk Italy communication protocol 9
STORICO REVISIONI
Revisione n°
Data
Modifica
Note
Creazione 1.00
21.09.05
Creazione HopperOne
Rev. 1.01
16.04.16
Modifica testata e nome S11
Rev. 1.02
30.01.17
Sensori livello ottici

1. Introduction
Congratulations for having purchased of our HopperOne S11! This HopperOne S11 has been designed and realized in the
Alberici’s research laboratories and fulfils all the requirements of the coin-op market. This belt-drive single-denomination
dispensing device makes use of the most modern electronic and mechanical technologies. It is secure, enduring, and reliable.
1.1 Range of use
The technology implemented makes the HopperOne S11 able to manage different operations, i.e. to count up the coins paid
out, and to stop automatically when empty. To this purpose it makes use of a significant quantity of control routines for the
management of the internal and external events.
It builds-ups easily into Gaming machines, Money Changers, Kiosks and Vending Dispensers.
These features make it easily compatible with all the cards normally available on the market.
1.2 Safety
The HopperOne S11 can be connected to and disconnected from its slide connector only when power supply is off. The
installation must be carried out as specified in paragraph 2.3. Guarantee shall not apply if such instructions are not
complied with.
This device includes mechanical parts
moving fast during operation: DO NOT
put your fingers inside it while the
device is connected to power supply.
.
2. Main Features
The HopperOne S11 is available in 2 different versions, according to the respective positions of the electrical connector and
the coins outlet. When they are located at opposite sides, the version is named “STANDARD”; when they are located at the
same side, the version is named “REVERSE”.
The standard features of the HopperOne S11 make it interchangeable with similar devices already existing in the market.
It can handle any coins whose diameter ranges between 16 mm and 32 mm (choose the most convenient belt for your
purpose: 16-24mm, or else 22-32mm). Coin thickness can range between 2,0 mm and 3,4 mm.
DANGER!
MECHANICAL PARTS
IN MOTION

2.1 Overall dimensions
2.2 Position of the Chinch connector
Reverse version
(connector on the same
side of the output of the
coins)
Standard version
(connector on the
opposite side of
the output of the
coins)

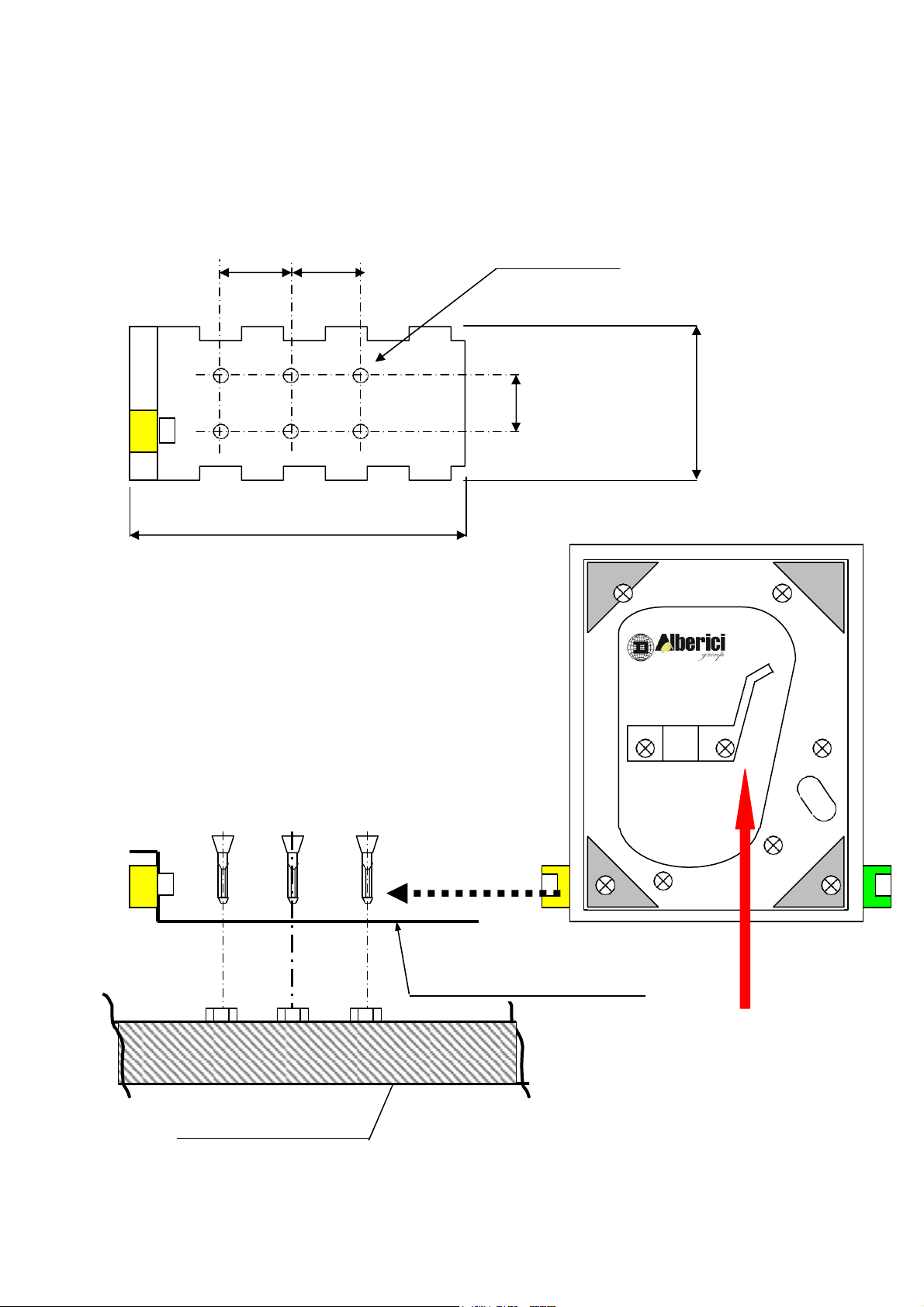

2.3 Installation
. fasten the slide support,
. slide the hopper in
. for electrical connections , please see chapter 3
92mm 92mm ø 5.5 mm
68.5mm 118mm
245mm
Please use conical head bolts
slide hopper in
Base fixing plate of the hopper
(included with the hopper)
Floor plate of the cabinet
ALWAYS CONNECT
THIS METAL PLATE TO
THE MACHINE GROUND
TERMINAL

3. Electrical Features
All the signals handled by the hopper are by negative logic: each signal is considered active when its voltage is
LOW (GND).
3.1 CINCH connector pin-out
The connector can be located on the opposite side (Standard version) of the coins outlet, or on the same side
(Reverse version).
PLEASE NOTE: the pc board of the model with plate level sensors is different from the pc board of the model
with optic level sensors.
When the hopper level controls are made through optic sensors, do connect the electrode plates to the machine
ground terminals.
3.2 Power Supply
This equipment must be supplied with 24Vd.c.. If CINCH socket is used, connect +24V to pin9 /(GND = pin 1). If the
10-pin connector is used, power pin 7 with +24V (GND = pin 8). Max. Payout speed is 240 pcs. per minute.
DO ALWAYS CONNECT THE PINPOINTED METAL PLATE OF
THE HOPPER TO THE MACHINE GROUND TERMINAL, TO
PREVENT ANY POTENTIAL DAMAGE CAUSED BY HEAVY
ELECTRO-STATIC CHARGE INTRODUCED WITH THE COINS.
SETTING SERIAL ADDRESS BY DIP-SWITCHES
Please be aware: the hopper reads the address
only at power up or after reset.
Current draw:
Stand-by
No load
Normal
operation
Stuck motor
(*)
Pcb
(+24Vdc)
20mA/0,24W
20mA/0,24W
40mA/0,48W
40mA/0,48W
Motor
(+24Vdc)
0mA/0m W
70mA/1,4W
1,2 A/28.8W
1,5mA*/30W
Total
20mA/0,24 W
90mA/1,64W
1,24A/29,28W
1,54A/30,48W
*The motor overload current draw shall always be limited by the electronic circuit. The current draw, corresponding to the
hold-up of the motor, will therefore be reached only for a few msec.

4. ccTalk Italy communication protocol
cctalk® communication protocol is the Money Controls serial communication protocol for low speed control
networks.
It was designed to allow the interconnection of various cash handling devices (Hoppers, Bill validators, Coin
selectors etc.), mostly in AWP and gaming Industry, but allso in other devices that use those components.
cctalk® is an open standard.
All documentation is available at web site: www.cctalk.org. The communication protocol of the Alberici ccTalk
HopperCD is implemented according to the generic specification 4.2.
1 Communication specifications
Serial communication was derivated from RS232 standard.
Low data rate NRZ (Non Return to Zero) asyncronous communication:
Baud rate 9600, 1 start bit, 8 data bits, no parity, 1 stop bit.
RS232 handshaking signals (RTS, CTS, DTR, DCD, DSR) are not supported.
Message integrity is controlled by means of checksum calculation.
1.1 Baud rate
The baud rate of 9600 was chosen as compromise between cost and speed.
Timing tolerances is same as in RS232 protocol and it should be less than 4%.
1.2 Voltage level
To reduce the costs of connections the “Level shifted “ version of RS232 is used. The idle state on serial
connector is 5V, and active state is 0V.
Mark state (idle) +5V nominal from 3.5V to 5V
Space state (active) 0V nominal from 0.0V to 1.0V
Data I/O line is “open collector” type, so it is possible to use device in systems with different voltage.
1.3 Connection
The connection of Hopper at network is achieved by means of its 10-pin connector . Connector is used for
power supply and for communication as well.
For schematics and and connector appearance see picture at page 4.
1.4 Message structure
Each communication sequence consists of two message packets.
Message packets for simple checksum case is structured as follows:
[ Destination address ]
[ Nr. of data bytes ]
[ Source address ]
[ Header ]
[ Data 1 ]
...
[ Data n ]
[ Checksum ]
There is an exeption of message structure when device answer to instruction Address poll and Address clash.
The answer consists of only one byte representing address delayed for time proportional to address value. For
CRC checksum case format is:
[ Destination address ]
[ Nr. of data bytes ]
[ CRC 16 LSB ]
[ Header ]
[ Data 1 ]
...
[ Data n ]
[ CRC 16 MSB ]

1.4.1 Address
Address range is from address 0 to address 255. Address 0 is special case or so called “broadcast” address
and address 1 is default host address. Recommended address values of different devices are shown in Table 1
below.
Device category
Address
Additional addr.
Note
Coin Acceptor
2
11 - 17
Coin validator, coin selector, coinmech...
Payout
3
4 - 10
Hopper
Bill validator
40
41 - 47
Banknote reader
Card Reader
50
Display
60
Alphanumeric LC display
Keypad
70
Dongle
80
85
Safety equipment
Meter
90
Replacement for el.mec. counters
Power
100
Power supply
Table 1 Standard address for different types of devices
Address for Alberici Hopper is factory set as 3; the user can change the default address by using the MDCES
commands Address change or Address random or by setting Hopper dip-switches. For details see cctalk 42-
2.pdf, Address poll.
1.4.2 Number of data byte
Number of data byte in each transfer could be from 0 to 252.
Value 0 means that there are no data bytes in the message, and total length of message packet will be 5 bytes.
Although theoretically it will be possible to send 255 bytes of data because of some limitations in small micro
controllers the number is limited to 252 (252 bytes of data, source address, header and checksum: total of 255
bytes).
1.4.3 Command headers (Instructions)
Total amount of cctalk command header is 255 with possibility to add sub-headers using headers 100, 101,
102, 103.
Header 0 stands for ACK (acknowledge) replay of device to host.
Header 5 stands for NAK (No acknowledge) replay of device to host.
Header 6 is BUSY replay of device to host.
In all three cases no data bytes are transferred. Use of ACK and NAK headers are explained later on, for each
specific message transfer.
Commands are divided in to several groups according to application specifics:
- Basic general commands
- Additional general commands
- Commands for Coin acceptors
- Commands for Bill validators
- Commands for Payout mechs
- MDCES commands
Details for use of all instruction are explained in chapter 2.
1.4.4 Data
There is no restrictions data formats use. Data could be BCD (Binary Coded Decimal)numbers, Hex numbers
or ASCII strings. Interpretation as well as format is specific to each header use, and will be explained in
separate chapter.
1.4.5 Checksum
Message integrity during transfer is checked by use of simple zero checksum calculation.
Simple checksum is made by 8 bit addition (modulus 256) of all the bytes in the message. If message is
received and the addition of all bytes are non-zero then an error has occurred (See Error handling).
For noisy environment or higher security application it is possible to use more complex, 16 bit CRC CCITT
checksum based on a polynomial of:
x16 + x12 + x5 + 1 and initial value of CRC register 0x0000.
Hopper are using simple checksum, but they could be set to operate with CRC-16 checksum on customer
demand.

1.5 Timing specification
The timing requirements of cctalk are not very critical but there are some recommendations.
1.5.1 Time between two bytes
When receiving bytes within a message packet, the communication software must wait up to 50 ms for next byte if it
is expected. If time out occurs, the software should reset all communication variables and get ready to receive next
message. The inter-byte delay during transmission should be ideally less than 2 ms and not greater than 10 ms.
1.5.2 Time between command and replay
The time between command and reply is dependent on application specific for each command. Some
commands return data immediately, and maximum time delay should be within 10 ms. Other commands
that must activate some actions in device may return reply after the action is finished
1.5.3 Start-up time
After the power-up sequence Hopper should be ready to accept and answer to a cctalk message
within time period of less than 250 ms. During that period all internal check-up and system settings
must be done, and Hopper should be able works fine.
1.6 Error handling
If slave device receive the message with bad checksum or missing data no further action is taken
and receive buffer will be cleared. Host software should decide to re-transmit message immediately
or after a fixed amount of time. In case when host receive message with error it has same options.
2. Hopper Command header set
254 FE Simple poll Return ACK
253 FD Address poll MDCES support
252 FC Address clash MDCES support
251 FB Address change MDCES support, non volatile
250 FA Address random MDCES support, non volatile
246 F6 Request manufacturer id ’Alberici group’
245 F5 Request equipment category id ‘Payout’
244 F4 Request product code ‘HopperTwo ccTalk’
242 F2 Request serial number From 0 to 16.777.215
241 F1 Request software revision ‘X.xx’
219 DB Enter new PIN number Supported, non volatile
218 DA Enter PIN number ACK return if PIN is correct
217 D9 Request payout high/low stat. Return empty/full status
216 D8 Request data storage availability [00][00][00][00][00] ,not
available
192 C0 Request build code ‘ALH02v00’
172 AC Emergency stop Return ACK
169 A9 Request address mode [B7] add. changed with serial command
(nv)
168 A8 Request hopp. dispense count From 0 to 16.777.215
167 A7 Dispense hopper coins Data = Serial number + N° of coin to disp.
166 A6 Request hopper status Return dispensed coin counters
164 A4 Enable hopper Data must be A7
163 A3 Test hopper Return hardware status
Table 2 List of Hopper cctalk command header
Command header set, that host could use in communication with Hopper is given in the table 2 above.
Command headers are divided in to 3 different groups:
- Common command headers
- Hopper command headers
- MDCES command headers
2.1 Common command headers
Common commands are used in all type of devices to detect their presence on cctalk network or to describe them.
Information like: manufacturer or product type id, serial number, different settings etc. are transmitted to host.

2.1.1 Command header 254 [hexFE], Simple poll
The fastest way for host to detect all attached devices in cctalk network.
Addressed device - Hopper answer with ACK (Acknowledge).
If within predicted amount of time Hopper does not answer, probably it is not connected, or not powered, or
simply not working properly.
Message format is:
Host sends: [Dir] [00] [01] [FE] [Chk]
Hopper answer: [01] [00] [Dir] [00] [Chk]
Hopper default address is 3, example of message packet is:
Host sends: [03] [00] [01] [FE] [FE]
Hopper answer: [01] [00] [03] [00] [FC] ACK message
2.1.2 Command header 246 [hexF6], Request manufacturer ID
Hopper answer with ASCII string representing manufacturer name. Message format is:
Host sends: [Dir] [00] [01] [F6] [Chk]
Hopper answer: [01] [Nr.b] [Dir] [00] [a1] [a2] . . . . [an] [Chk]
Nr.b is number of data bytes-characters sent by Hopper, and a1 to an are ASCII characters.
Host sends: [03] [00] [01] [F6] [06]
Hopper answer [01] [0E] [03] [00] [41] [6C] [62] [65] [72] [69] [63] [69] [20] [67] [72] [6F] [75] [70] [86]
2.1.3 Command header 245 [hexF5], Request equipment category ID
Answer to command header is standardized name for Hopper. It answer with ASCII string of
characters representing standardized name for that type of device Payout.
Message format is:
Host sends: [Dir] [00] [01] [F5] [Chk]
Hopper answer: [01] [06] [Dir] [00] [50][61][79][6F][75][74][Chk]
Number of data byte is always 6, hex [06].
Example of message packets for coin selector (address 3) is:
Host sends: [03] [00] [01] [F5] [07]
Hopper answer: [01] [06] [03] [00] ] [50][61][79][6F][75][74] [74]
2.1.4 Command header 244 [hexF4], Request product code
Hopper answer with ASCII string of character, representing its factory type. For Alberici Hopper it’s HopperTwo
ccTalk. Message format is:
Host sends: [Dir] [00] [01] [F4] [Chk]
Hopper answer: [01] [10] [Dir] [00] [a1][a2] . . . [an] [Chk]
Number of data bytes sent by Hopper is 16, hex [10].
Example of message packets for Hopper (address 3) is :
Host sends: [03] [00] [01] [F4] [08]
Hopper answer: [01][10][03][00][48][6F][70][65][72][54][77][6F][20][63][63][54][61][6C] [6B][D2]
2.1.5 Command header 242 [hexF2], Request serial number
Hopper answer with three byte serial number.
Message format is:
Host sends: [Dir] [00] [01] [F2] [Chk]
Hopper answer: [01] [03] [Dir] [00] [Serial 1 - LSB] [Serial 2] [Serial 3 - MSB] [Chk]
Serial 1 –first data byte sent is LSB of serial number.
Example of message packets for Hopper (address 3) and serial number 1-2-34567, hex [BC][61][4E] is:
Host sends: [03] [00] [01] [F2] [0A]
Hopper answer: [01] [03] [03] [00] [4E][61][BC] [8E]
2.1.6 Command header 241 [hexF1], Request software revision
Hopper return ASCII string of character representing software version and revision. Message
format is:
Host sends: [Dir] [00] [01] [F1] [Chk]
Hopper answer: [01] [Nr.b] [Dir] [00] [a1] [a2].... [an] [Chk]
Number of data bytes in ASCII string is not limited and each producer has it’s own system of labelling.
Example of message packets for Hopper (address 3) is:
Host sends: [03] [00] [01] [F1] [0B]
Hopper answer: [01] [04] [03] [00] [31] [2E] [32] [31] [36]
Hopper answer is ‘1.21’.

2.1.7 Command header 192 [hexC0], Request build code
Hopper answer with ASCII string of character representing it’s hardware version and revision (usually label
printed on electronic circuit board).
Last revision of printed circuit board for Hopper is ALH02v00.
Message format is:
Host sends: [Dir] [00] [01] [C0] [Chk]
Hopper answer: [01] [Nr.b] [Dir] [00] [a1] [a2].... [an] [Chk]
Example of message packets for Hopper (address 3) is:
Host sends: [03] [00] [01] [C0] [3C]
Hopper answer: [01] [08] [03] [00 [41] [4C] [48] [30] [32] [76] [30] [30] [E7]
2.1.8 Command header 169 [hexA9], Request address mode
Hopper answer with one data byte7 information about address mode and options (for details of description see
public document cctalk42-2.pdf).
Address could be stored in different type of memory (RAM. ROM or EEPROM). Some devices support address
change with MDCES command headers (Address change, Address random). Message format is:
Host sends: [Dir] [00] [01] [A9] [Chk]
Hopper answer: [01] [01] [Dir] [00] [Address mode] [Chk]
Example of message packets for Hopper (address 3) is:
Host sends: [03] [00] [01] [A9] [53]
Hopper answer: [01] [01] [03] [00] [B7] [44]
Hopper answer with data [B7]. It means that address may be changed with serial command (non volatile).If
answer is [B3], mean that address is selected via interface connector.
2.1.9 Command header 4 [hex04], Request comms revision
Hopper answer with three byte data information about level of cctalk protocol implementation, major and minor
revision. Message format is:
Host sends: [Dir] [00] [01] [04] [Chk]
Hopper answer: [01] [03] [Dir] [00] [Level] [Mag.rev.] [min. rev.] [Chk]
Example of message packets for Hopper (address 3), cctalk protocol issue 4.2, is:
Host sends: [03] [00] [01] [04] [F8]
Hopper answer: [01] [03] [03] [00] [01][04][02] [F2]
2.1.10 Command header 1 [hex01], Reset device
After acceptance of command Reset coin selector execute software reset and clear all variables in RAM or set
them at the default value, including different counters, and any buffers. After reset coin selector replay with ACK
message..
Host software must re enable hopper to perform a new payout:
Message format is:
Host sends: [Dir] [00] [01] [01] [Chk]
Hopper answer: [01] [00] [Dir] [00] [Chk] ACK message
Example of message packets for hopper (address 3) AL06V-c is:
Host sends: [03] [00] [01] [01] [FB]
Hopper answer: [01] [00] [03] [00] [FC] ACK message
2.2 Hopper command headers
Hopper use some specific commands, for paying or read itself status.
Some of commands are shared with other device like banknote reader or coin selector devices.
2.2.0 Command header 219 [hexDB], Enter new PIN number
Host send four byte data of new PIN number. If correct PIN was previously received (See next chapter), Hopper
will
accept the new PIN and answer with ACK message . Hopper has PIN number stored in EEPROM.
Message format is:
Host sends: [Dir] [04] [01] [DB] [PIN1-LSB][PIN2][PIN3][PIN4-MSB] [Chk]
Hopper answer: [01] [00] [03] [00] [FC] ACK if PIN is correct
Hopper answer: no answer if PIN is incorrect or not received
Example of message packets for Hopper (address 3), with default PIN, hex[00][00][00][00] previously received
and NEW pin hex[01][02][03][04] is:
Host sends: [03] [04] [01] [DB] [01][02][03][04] [13]
Hopper answer: [01] [00] [03] [00] [FC] ACK message

2.2.1 Command header 218 [hexDA], Enter PIN number
Host send four byte data of PIN number. If PIN is correct, Hopper will answer immediately with ACK message.
If PIN is incorrect
the NAK message will be sent with time delay of 100 ms. Hopper has PIN number stored in EEPROM.
Message format is:
Host sends: [Dir] [04] [01] [DA] [PIN1-LSB][PIN2][PIN3][PIN4-MSB] [Chk]
Hopper answer: [01] [00] [Dir] [00] [Chk] ACK if PIN is correct
Hopper answer: [01] [00] [Dir] [05] [Chk] dly 100 ms ->NAK if PIN is incorrect
Example of message packets for Hopper (address 3), with default PIN, hex[00][00][00][00] and wrong pin is:
Host sends: [03] [04] [01] [DA] [01][00][00][00] [1E]
Hopper answer: [01] [00] [03] [05] [F7] dly 100 ms ->NAK if PIN is incorrect
2.2.2 Command header 217 [hexD9],Request Payout Hi-Lo status
This command allow the reading of High/low level sensor in payout systems.
Hopper answer with one byte that describe the sensors status.
The meaning of bits in that byte is the following:
BIT0 - Low level sensor status.
0 –Higher than or equal to low level trigger
1 –Lower than low level trigger
BIT1 –High level sensor status
0 - Lower than high level trigger
1 - Higher than or equal to high level trigger
BIT4 - Low level sensor support
0 –Features not supported or fitted
1 - Features supported and fitted
BIT 5 - High level sensor support
0 - Features not supported or fitted
1 - Features supported and fitted
BIT2,3,6,7 are reserved bits
Trigger level is set by fixed sensor into hopper mechanism.
Message format is:
Host sends: [Dir] [00] [01] [D9] [Chk]
Hopper answer: [01] [01] [Dir] [00] [d1] [Chk]
Example of message packets for Hopper (address 3) is
Host sends: [03] [00] [01] [D9] [23]
Hopper answer: [01] [01] [03] [00] [31] [CA]
Data byte Hex[31] mean that Hopper high and low sensor are supported, and hopper is empty.
2.2.3 Command header 216 [hexD8], Request data storage availability
Hopper answer with five byte of data that describes type of memory and availability for host to read and to
write. Message format is:
Host sends: [Dir] [00] [01] [D8] [Chk]
Hopper answer: [01] [05] [Dir] [00] [d1][d2][d3][d4][d5] [Chk]
Alberici Hopper, at the moment, does not support write or read to memory. Answer to command is always as in
example:
Host sends: [03] [00] [01] [D8] [24]
Hopper answer: [01] [05] [03] [00] [00][00][00][00][00] [F7]
2.2.4 Command header 172 [hexAC], Emergency stop.
This command immediately halts the payout sequence and reports back the number of coins which failed to be
paid out. After Emergency stop command hopper is disabled.
To perform new payout sequence, hopper must be re-enabled.
Message format is:
Host sends: [Dir] [00] [01] [AC] [Chk]
Hopper answer: [01] [01] [Dir] [00] [d1] [Chk]
Example of message packets for Hopper (address 3) is
Host sends: [03] [00] [01] [AC] [50]
Hopper answer: [01] [01] [03] [01] [01] [FA]
Data byte Hex[01] mean that hopper remain one coin to be paid.

2.2.5 Command header 168 [hexA8], Request hopper dispense count.
This command show the total number of coin dispensed by hopper.
Message format is:
Host sends: [Dir] [00] [01] [A8] [Chk]
Hopper answer: [01] [03] [Dir] [00] [d1] [d2] [d3] [Chk]
Example of message packets for Hopper (address 3) is
Host sends: [03] [00] [01] [A8] [54]
Hopper answer: [01] [03] [03] [03] [54] [00] [00] [A5]
In this example hopper dispensed 84 coins (decimal of Hex 54).
Maximum value of dispensed coin stored in hopper EEPROM is 16’777’215 (3Bytes).
2.2.6 Command header 167 [hexA7], Dispense hopper coin
This command dispenses coin from the hopper. Maximum number of coins that the hopper can dispense with a
single command is 255.
Before Dispense hopper coin command, hopper need to be enabled, else dispense action is not performed.
Alberici hopper answer correctly to two format of dispense coin command.
First message format is
Host sends: [Dir] [04] [01] [A7] [sn1] [sn2] [sn3] [N°Coin][Chk]
Hopper answer: [01] [00] [Dir] [00] [Chk] ACK or NAK
Example of first type of message packets for Hopper (address 3) is
Host sends: [03] [04] [01] [A7] [12] [34] [56] [64][Chk]
Hopper answer: [01] [00] [03] [05] [F7] NAK
Command try to pay 100 coins (64H) but serial number sent to hopper isn’t correct.
Second command format is
Host sends: [Dir][0A][01] [A7] [00] [00] [00] [00] [00] [00] [00] [00] [00] [N°Coin][Chk]
Hopper answer: [01] [00] [Dir] [00] [Chk] ACK or NAK
Example of second type of message packets for Hopper (address 3) is
Host sends: [03][09][01] [A7] [00] [00] [00] [00] [00] [00] [00] [00] [01][4B]
Hopper answer: [01] [00] [03] [00] [FC] ACK
One token is paid.
2.2.7 Command header 166 [hexA6], Request hopper status
This command return four counters that explain the status of payment.
These four bytes are:
Event Counter that show the number of good dispense events since last reset.
Payout coins remaining that show how many coins are still to pay.
Last Payout: coins paid, that show how many coins paid out since last dispence command
(increments with each coin dispensed )
Last Payout: coins unpaid, that show how many coins was unpaid during last payout.
First two counters are saved in ram, while last two are saved in eeprom.
Default value of Event Counter and Payout coins remaining is 0, at reset and after Emergency stop command.
If a reset occurs, Event Counter and Payout coins remaining values are saved in two Last Payout counters, in
eeprom. Thus, after reset or power-off, hopper can return coin paid and unpaid during last payout.
Command format is
Host sends: [Dir] [00] [01] [A6] [Chk]
Hopper answer: [01] [04] [Dir] [00] [d1] [d2] [d3] [d4] [Chk]
Example of message packets for Hopper (address 3) is
Host sends: [03] [00] [01] [A6] [56]
Hopper answer: [01] [04] [03] [00] [00] [00] [07] [03] [EE]
In this example hopper is not perform a payout. During last payout the hopper was power off while paying. It
had to pay 10 coin, but only 7 was really paid. Three remained.
Another example of message packets for Hopper (address 3) is
Host sends: [03] [00] [01] [A6] [56]
Hopper answer: [01] [04] [03] [00] [0B] [09] [02] [00] [E2]
In this example hopper is performing a payout. It’s the 11th payout before last reset. A coin is paid (9 are
remaining) and during last payout 2 coin was paid.

2.2.8 Command header 164 [hexA4], Enable Hopper
This command enable hopper before paying out coin.
Command format is
Host sends: [Dir][01][01] [A4] [d1][Chk]
Hopper answer: [01] [00] [Dir] [00] [Chk] ACK
d1 must be Hex [A5] in order to enable hopper.
Example of message packets for Hopper (address 3) is
Host sends: [03][01][01] [A4] [A5][B2]
Hopper answer: [01] [00] [03] [00] [FC] ACK
2.2.9 Command header 163 [hexA3], Test Hopper
This command is used to test hopper hardware. It reports back a bit mask that show various hopper errors.
Bit meaning is shown here :
BIT0 –Absolute maximum current exceeded
BIT1 –Payout timeout occurred
BIT2 –Motor reverse during last payout to clear a jam
BIT3 –Opto fraud attempt, path blocked during idle
BIT4 –Opto fraud attempt, short circuit during idle
BIT5 –Opto blocked permanently during payout
BIT6 –Power up detected
BIT7 –Payout disabled
Command format is
Host sends: [Dir][00][01] [A3][Chk]
Hopper answer: [01] [00] [Dir] [00] [d1] [d2] [Chk]
Example of message packets for Hopper (address 3) is
Host sends: [03][00][01] [A3][59]
Hopper answer: [01] [02] [03] [00] [C0] [00] [3A]
The data byte Hex[60] mean that Opto are blocked permanently during payout and Power up was detected.
2.3 MDCES command headers
MDCES stands for Multi-Drop Command Extension Set, or so called Multi-drop buss commands.
Multi-drop buss commands gives additional functionality to systems that require change of address for devices
in cctalk network.
Some of commands has different message format than usual cctalk message.
Commands are:
- Address poll
- Address clash
- Address change
- Address random
Because host always use address 1 and address 0 is for broadcast message all commands that changes the
address should not accept this settings.
All changes are stored in non-volatile memory, EEPROM !
2.3.1 Command header 253 [hexFD], Address poll
This is a broadcast message used by host to determinate all address of device attached on cctalk network.
Hopper answer with only one byte (non-standard message format), after a delay that is proportional to address
value multiplied by 4 milliseconds.
Message format is:
Host sends: [00] [00] [01] [FD] [Chk] Brodcast message
Hopper answer: Dly -> [Address]
Example of message packets for Hopper (address 3) is:
Host sends: [00] [00] [01] [FD] [02]
Hopper answer: Dly=12 ms -> [03] Address is 3
Example of message packets for Hopper (address 250) is:
Host sends: [00] [00] [01] [FD] [02]
Hopper answer: Dly=1 s -> [FA] Address is 250

2.3.2 Command header 252 [hexFC], Address clash
Command Address clash has same answer from Hopper, like address poll command, but host issue this
command with specific device address and not using broadcast address. Hopper answer with only one byte
(non-standard message format), after a random value of time delay to prevent collision if two devices share
same address. Message format is:
Host sends: [Dir] [00] [01] [FC] [Chk]
Hopper answer: Random Dly -> [Address]
Example of message packets for Hopper (address 3) is:
Host sends: [03] [00] [01] [FC] [00]
Hopper answer: Random Dly -> [03] Address is 3
2.3.3 Command header 251 [hexFB], Address change
Command Address change is issued to a specified device only. Hopper answer with ACK message. Message
format is:
Host sends: [Dir] [01] [01] [FB] [Address] [Chk]
Hopper answer: [01] [00] [03] [00] [FC] ACK
Example of message packets for Hopper (address 3) and change in to address 20:
Host sends: [03] [01] [01] [FB] [14] [EC]
Hopper answer: [01] [00] [03] [00] [FC] ACK Address is now 20
Hopper does not answer to attempt of change an address to 0 or 1.
2.3.4 Command header 250 [hexFA], Address random
Command Address random has the same answer from coin selector. New address is not sent because each
device set its own random address.
Host software sometime can issue this command as broadcast. This will cause change of all device addresses.
Hopper answer with ACK message. Message format is:
Host sends: [Dir] [00] [01] [FA] [Chk]
Hopper answer: [01] [00] [03] [00] [FC] ACK
Example of message packets for Hopper (address 3) is:
Host sends: [03] [00] [01] [FA] [02]
Hopper answer: [01] [00] [03] [00] [FC] ACK Address is changed
Example of broadcast message packets for Hopper is:
Host sends: [00] [00] [01] [FA] [05] Brodcast message
Hopper answer: [01] [00] [00] [00] [FD] ACK Address is changed
Hopper has internal mechanism that prevents setting of address 0 or 1.
