Alcatel OmniSwitch 9000 User manual

High Performance, Converged Enterprise Solutions
From the industry leader in triple play
Alcatel OmniSwitch 9000

The award winning Alcatel OmniSwitch 9000 family (OS9000s) offers a range of full-featured,
high-performance 10-Gigabit Ethernet switches, including a low-cost entry point chassis. The
OS9000s deliver future-proof solutions with advanced security and QoS features for use in
small-to-large enterprise cores, in the aggregation layer and in wiring closets with flexible
power-over-Ethernet support. The OS9000s are a part of Alcatel’s end-to-end enterprise
switch family.
The Alcatel OmniSwitch 9000s are designed to anticipate future network needs with wire-rate
processing for IPv4/IPv6 and support for unicast and multicast applications such as voice-over-IP and
video collaboration. The switches support future edge requirements as Gigabit Ethernet to the desktop
becomes commonplace and demand for power-over-Ethernet (PoE) capability increases.
High performance for converged networks
The OS9000 family is designed for resiliency and exceptional network performance to support real-time
triple-play applications such as voice-over-IP (VoIP), data, and video applications. Applications are
supported by:
• High-port density
• High-capacity switching and traffic aggregation for business network cores
• Highly-available switching fabric with a unique load sharing capability1
• Multi-layer security
• Wire speed packet classification
Simplified network management
Network management is simplified by providing users with commands and user interfaces they are
familiar with through use of the same Alcatel Operating System (AOS) that is available on all Alcatel
OmniSwitch plus complete integration with the Alcatel OmniVista Network Management System
(NMS). Alcatel also offers other management options such as WebView, which is a web-based
user-friendly element manager and SNMP for third-party network management systems.
Security
Alcatel secures the network with proactive and reactive capabilities that are provided through Alcatel
Access Guardian and the Alcatel OmniVista 2770 Quarantine Manager. Alcatel’s Access Guardian
enables proactive, network-wide security through auto-sense authentication that runs on the AOS,
preventing unauthorized network access. The Alcatel OmniVista 2770 Quarantine Manager provides
reactive security by automatically handling malicious attacks by taking intrusion information and
dynamically reconfiguring the network to contain the attack.
> 2 ALCATEL
1Requires dual CMMs in either the OS9700 or the OS9800
“This switch best
supports the SNMP
standard and was the
only participant to
supply a web interface
from which we could
perform many tasks
normally accomplished
on a CLI.”
OS9700, Winner of
Network Computing’s
Editor’s Choice Award

Alcatel OmniSwitch 9000
The OmniSwitch 9000 Family
OmniSwitch 9600
The OmniSwitch 9600 (OS9600) is Alcatel’s low-cost, entry-point LAN switch solution that
provides the small enterprise the best performance-to-price available today. It also future-
proofs the investment since the network can be expanded to support a larger core
inexpensively by reusing its current OS9000 cards in the larger chassis offered by the
OS9700 and OS9800. By offering the same features and capabilities as the other
OmniSwitch 9000 switches, more enterprise networks are able to afford a core that supports
converged voice, video and data and other applications.
The Alcatel OmniSwitch 9600 is a five-slot chassis supporting one chassis management module
(CMM) and four network interface (NI) modules. It offers a wide range of GigE and 10GigE
interfaces providing the industry’s most flexible combination of Ethernet interfaces for use in a
wiring closet. It also offers power-over-Ethernet to support IP telephones, WLAN access points
and video cameras. VoIP and video performance is also enhanced in an OmniSwitch-based
network through the use of policy-based QoS using OmniVista NMS PolicyView.
OmniSwitch 9700
The OmniSwitch 9700 is a high-density chassis with two slots for control and 8 slots for
network interfaces supporting an aggregation of up to 192 GigE ports or 48 10GigE ports.
Designed for smart continuous switching operation, the two center slots are dedicated to
chassis management modules (CMMs) allowing redundant configurations. CMMs provide two
critical functions – active/standby resiliency for control and active/active redundancy for the
switching fabric. The Alcatel OmniSwitch 9700 was recently named as Network Computing’s
Editor’s Choice for its superb manageability and ease of use.
OmniSwitch 9800
For those applications where a much larger port density is required, the OS9800 doubles the
OS9700 capabilities with 16 available slots supporting an aggregation of up to 384 GigE
ports or 96 10GigE ports along with two slots for control (Plus, the OS9800 has sub-
components such as the power supply unit (PSU), fan tray and network interface cards (NICs)
that are all compatible and interchangeable with other OS9000s, reducing the cost of
keeping spares and lowering total cost of ownership.)
ALCATEL 3 >
OmniSwitch 9700
OmniSwitch 9600
OmniSwitch 9800

PRODUCT FEATURES AND BENEFITS
The new OS9000 switch family addresses the needs of converged
networks: high availability, wire-speed performance, high density GigE and
10GigE, and dramatically improved network response time. The OS9000
family provides an easy and economical way to upgrade or deploy a new
Ethernet network. The large number of ports makes the OmniSwitch 9000s
suitable for two- or three-tier network designs. This is possible because of
the high performance capability and density of GigE and 10GigE. The
OS9000s also future proofs the network with native and full support of
IPv4/IPv6 for addressing migration from IPv4 to IPv6 or new IPv6 deployments.

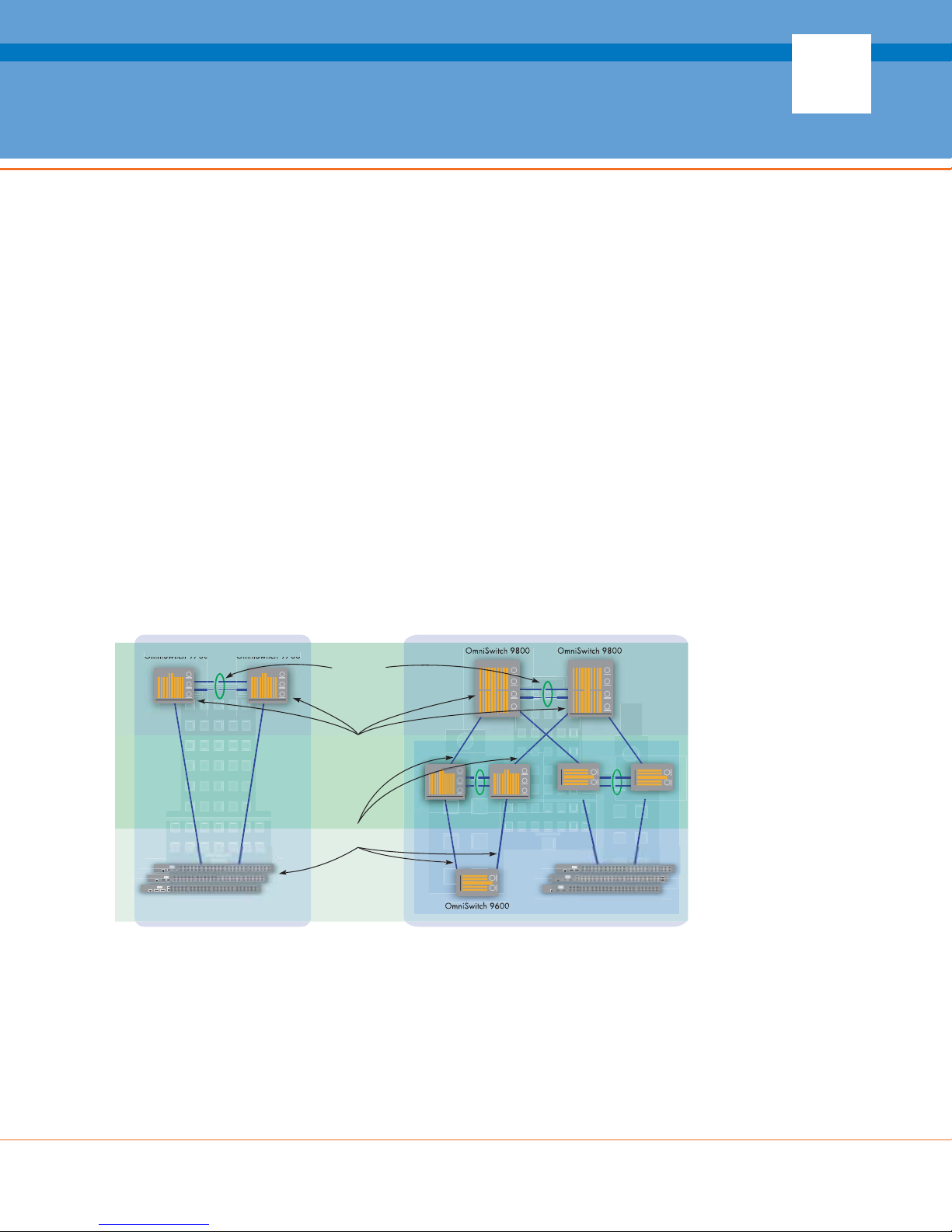

The OS9000s are engineered to be deployed in the:
• Enterprise core • Data center
• Wiring closet • Aggregation layer
Enterprise core / Data center
The OS9000s address enterprise network core requirements with:
• Enhanced VoIP and video performance with policy-based QoS using OmniVista PolicyView
• Future-proof support for multi-media applications with wire-rate multicast
• Enhanced forwarding - improves network response time through hardware-based forwarding at first
packet and elimination of CPU solicitation for ACL/QoS demands
• High-availability in network designs with dual-aggregation switch through extensive support of L2/L3
protocols for smart use of network topology redundancy
Aggregation layer
The OS9000s address aggregation requirements with:
• Higher 10G port density than competitive products
• Increased options for wire-rate GigE ports (copper, fiber, PoE)
Wiring closet connectivity
The OS9000 addresses wiring closet requirements with:
• Full power-over-Ethernet support for IP telephones, WLAN access points and video cameras with up to
2400W of power through dedicated power shelves
• Isolation of intruders with OmniVista 2770 Quarantine Manager
• Extensive support of AOS user-oriented features such as user authentication, learned port security (LPS),
group mobility, and port mapping
> 4 ALCATEL

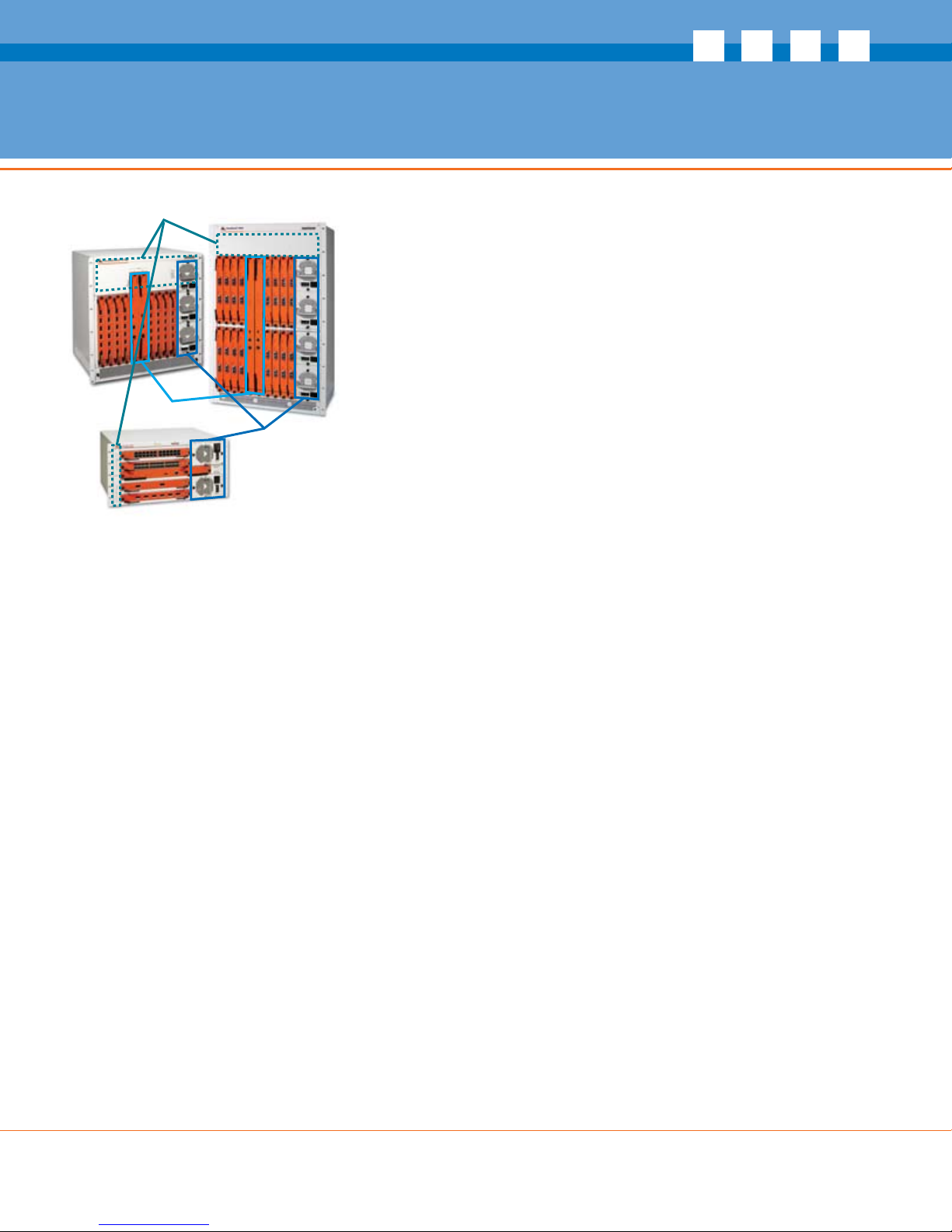

PowerRedundancy
CMM Redundancy
Fans Redundancy
OmniSwitch 9000 full redundancy

Highest availability for the enterprise
The OmniSwitch 9000s carry on Alcatel’s tradition of providing the highest availability possible to support the
demands of IP communications and mission-critical applications, all at an enterprise price. Providing the
highest availability to the enterprise ensures that users have constant access to resources and services at all
times. To ensure the highest levels of availability, the OmniSwitch 9000s provide:
• Distributed architecture, where each NI autonomously supports functions, such as source learning, Spanning
Tree functions, and L2/L3 forwarding
• Redundant modules and sub-components (CMMs1, fans and PSUs)
• Hot swappable modules and sub-components (NIs, CMMs1, fan trays, PSUs, SFPs and XFPs)
• Hitless loading of optional software (routing / security), without re-booting
• Image rollback to automatically re-load previous configurations and software versions
Resiliency – maximized network uptime
Network resiliency is critical to providing network availability. The OS9000s offer a superior architecture with
no single point of failure and a sub-second fail-over in its redundant configuration. If there is a CMM failure
the OmniSwitch 9700 and 9800 are able to provide continuous operation with no loss of connections when
configured with dual CMMs. Existing L2/L3 traffic, including voice conversations, will continue seamlessly
without interruption.
For single CMM configurations, network resiliency is achieved through switch redundancy, network path
redundancy, and the L2/L3 protocols for smart use of the switch and path redundancy. In this configuration,
the OS9600 has the best price / performance ratios.
ALCATEL 5 >
Alcatel OmniSwitch 9000
OmniSwitch 9700
CPU
CPU CPU
CPU
X
X
X
X

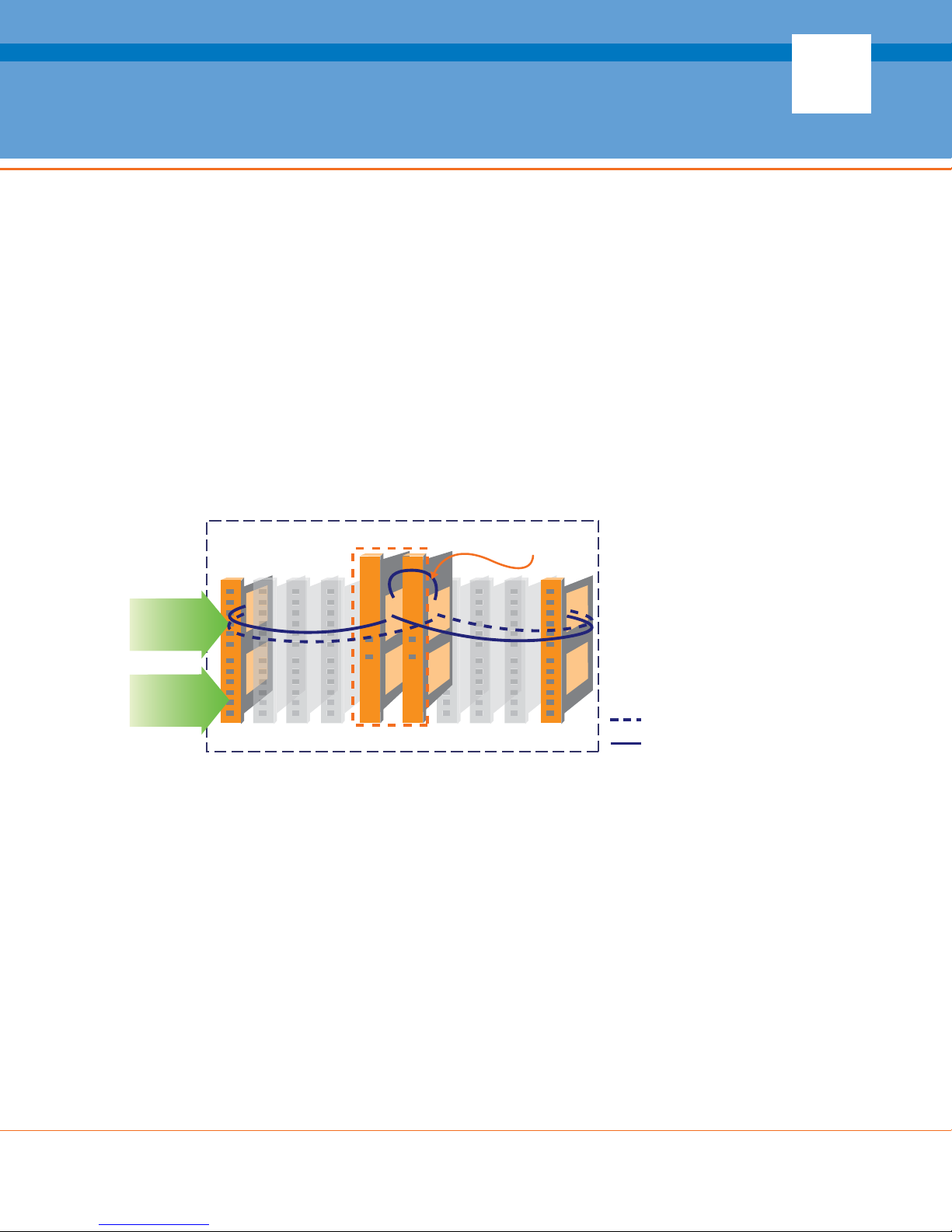

Virtual Switching Fabric CMM Monitoring
& Sychronization
CMM A
Active Control Standby Control Standby Gigabit
Ethernet Connection
Active Gigabit
Ethernet Connection
CMM B NI 8NI1
STP BPDU
ARP Request
Locally Processed
Requests
Centrally Processed
Requests
Routing Update
Management Access
Principle of operation for distributed intelligence
1Requires dual CMMs in either the OS9700 or the OS9800

Distributed intelligence
Unlike other switches on the market, Alcatel OmniSwitch are unique in that they are able to provide
Smart Continuous Switching by using a design where most processes are distributed and handled on the
network interfaces themselves, relegating the CMM to a coordination role. A bottleneck is avoided by not
using a centralized control plane architecture where the CMM – the key management module – is
responsible for all processing. The distributed design allows key processes such as Spanning Tree to
maintain a fully operational state, even during a sub-second CMM failover.
Multi-layer security
With networks under constant attack from the outside world and even from within the company, a
network needs to provide easy access to users and resources, yet possess extensive security features that
can be managed across a global enterprise. The OS9000s provide multi-layer security with a range of
security features that can be implemented in the wiring closet, the core, and throughout the network.
These include:
• User authentication
• Virtual local area networks (VLANs)
• Quarantine VLANs
• Access control lists (ACLs)
• Restricts user ports from sending control traffic (BPDU, RIP, OSPF, BGP)
• Prevents IP source address spoofing
• Authenticated switch access
• Encryption for secure management (SSHv2 / HTTPs / SNMPv3)
• Denial of service protection
Multi-layer security enables the building of sophisticated hardware and software-based solutions that can
be integrated with policy-based management and other technologies such as smart cards, PKI, and
biometrics for enhanced security implementations. For secure management there are many features
integrated into the architecture including authenticated user access, SNMPv3 and SSL for encrypted
sessions, and partitioned management for multi-tiered access and granular network administration.
Advanced network policies for secure & converged networks
Advanced network policies ensure that users and applications get the priority and performance they need
with ease of use management that extends across the enterprise. The OS9000s feature state-of-the-art
ASIC-based technology for intelligent, wire-speed everything including switching, routing, ACLs, QoS,
traffic redirection and load balancing.
The OS9000s provide application aware switching for layers 2, 3, and 4 and the most advanced
classification, prioritization, and queuing schemes in the industry. It also supports industry classification
standards including 802.1Q/p, TOS, and DiffServ, and is enhanced with complementary features such
as extensive QoS mappings and re-tagging of prioritization. And, the OS9000s don’t require additional
hardware or specialized software to operate at wire-speed – from the first packet!
> 6 ALCATEL

ALCATEL 7 >
Alcatel OmniVista and OneTouch manageability
OmniVista, the Alcatel voice and data network management platform, is a comprehensive set of network
management applications and tools that simplify the management of Alcatel networking devices.
OmniVista allows managers to monitor network activity, configure and troubleshoot each device, as well
as manage an entire network from a single platform. It offers unified management, network-wide visibility,
element management, VLAN management, policy-based QoS, centralized management of secure switch
access, quarantine capabilities to prevent security breaches by isolating potential threats – all within a
scalable architecture.
OmniVista features OneTouch manageability enabling network managers to quickly configure and
manage the switches in their network. For example, OneTouch QoS, a feature of the Alcatel policy
management software, allows network managers to quickly assign QoS priorities to network traffic based
on the characteristics of different applications. With “one-click,” every Alcatel switch in the network is
automatically configured.
Alcatel’s OmniVista Quarantine Manager proactively and defensively identifies and isolates viruses and
network attacks before they wreak havoc on the network and automates the response for a self-healing network.
The OS9000s offer service level and policy-based configurations with support for LDAP directories
enabling flexible integration with existing platforms and allowing extended offerings. RMON and sFlow
(TM) support is also included with a choice of interfaces for administrators – a command line interface
(CLI), SNMPv3, a fully editable text-based configuration file, and WebView, our standard web-browser
interface.
Alcatel OmniSwitch 9000
Core Aggregation Edge
OmniSwitch 9700
OmniSwitch 9700
10 GigE Link
Aggregation
10 GigE Dual Attachments
(L2/L3 based on design)
Dual core network
for maximal redundancy OS9700 OS9600
O iS i h 9800
O iS i h 9800
Simple Network
Two tier, single data center/building
Complex Network
Three tier, Multi data center/building
OmniSwitch 6850 OmniSwitch 6850

IPv6 support
The OS9000 family provides full IPv6 support with hardware-based forwarding for wire-rate speeds,
classification and tunneling to address various corporate and government requirements for IPv6. Unlike
most switches that support IPv6, the performance of the OS9000s is unaffected by enabling IPv6
processing whether deploying IPv4, IPv6, or IPv4/IPv6. These switches address the U.S. Federal
government Department of Defense (DoD) requirement that IPv6 be supported for migration by 2008 and
addresses other countries’ requirements including:
• Ability to connect to the IPv6 backbone
• Use of IPv6 across public organizations
• Ability to interconnect the IPv6 “island” through an existing IPv4 network through hardware-based tunneling
• Ability to control IPv6 flows with extensive QoS/ACL policies
The OS9000 family provides hardware-based classification (access control lists (ACLs) and quality of
service (QoS), forwarding and management for IPv6. More importantly, it provides a way to transition
from an existing IPv4 network with support of tunneling (configured, 6-in-4, and ISATAP2). The OS9000s
are able to work with the existing AOS switches, and support the full suite of unicast routing protocols,
multicast registration and routing protocols, QoS/ACLs and tunneling.
First Green switch in the market – RoHS compliancy
With the OmniSwitch 9000 family, Alcatel will be the first switch manufacturer to be in compliance with
the new European Community’s directive - Restriction on Hazardous Substances in Electrical and
Electronic Equipment (RoHS) – which requires electronic equipment to be free of six hazardous
substances by July 2006. Although only required for European Union countries, the rest of the world will
benefit from these “green” switches by lessening the amount of hazardous substances that find its way
into the environment.
> 8 ALCATEL
The OmniSwitch 9000s
are certified as
“IPv6 Ready”.
2Check with Alcatel for availability

Ordering information
Bundles
OS9600-CB-A OS9600 base bundle, to include OS9600 chassis, fan tray, 1 CMM, 1 PSU
OS9600-RCB-A OS9600 redundant bundle, to include OS9600 chassis, fan tray, 1 CMM, 2 PSUs
OS9700-CB-A OS9700 base bundle, to include OS9700 chassis, fan tray, 1 CMM, 2 PSUs
OS9700-RCB-A OS9700 redundant bundle, to include OS9700 chassis, fan tray, 2 CMM, 3 PSUs
OS9800-CB-A OS9800 base bundle, to include OS9800 chassis, fan tray, 1 CMM, 3 PSUs
OS9800-RCB-A OS9800 redundant bundle, to include OS9800 chassis, fan tray, 2 CMM, 4 PSUs
Chassis and power supplies
OS9600-CHASSIS OS9600 chassis & fan tray
OS9700-CHASSIS OS9700 chassis & fan tray
OS9800-CHASSIS OS9800 chassis & fan tray
OS9-PSU-0600A 600W AC PSU (100-240V) for OS9000
OS9-PSU-0600D 600W DC PSU (48V) for OS9000
OS9-IP-SHELF External PoE rack for the OS9000 chassis. Rack to include 1 PSU
OS9-IPS-0600A 600W AC Power over Ethernet PSU (100-240V) for use with OS9-IPSHELF only
OS9-IPS-0390A 390W AC Power over Ethernet PSU (100-240V) for standalone use with OS9600
only (mounting brackets included)
OS9-IPS-0230A 230W AC Power over Ethernet PSU (100-240V) for standalone use with OS9600
only (mounting brackets included)
Management and fabric modules
OS9600-CMM3 Chassis Management Module for the OS9600 & OS9700
OS9700-CMM3Chassis Management Module for the OS9600 & OS9700
OS9800-CMM Chassis Management Module for the OS9800
Network interface cards
OS9-GNI-U24 24-port GigE SFP
OS9-GNI-C24 24-port GigE (10/100/1000) RJ45
OS9-GNI-P24 24-port GigE (10/100/1000) RJ45 w/PoE
OS9-XNI-U2 2-port 10GigE XFP
OS9-XNI-U6 6-port 10GigE XFP
Transceivers
SFP-GIG-EXTND Gigabit Ethernet optical transceiver (SFP MSA - Gigabit extender up to 2km)
SFP-GIG-LH70 Gigabit Ethernet optical transceiver (SFP MSA – up to 70km)
SFP-GIG-xxCWD60 Gigabit Ethernet CWDM optical transceiver (SFP MSA – up to 60km – 8 wavelengths)
SFP-GIG-LH40 Gigabit Ethernet optical transceiver (SFP MSA – up to 40km)
SFP-GIG-LX Gigabit Ethernet optical transceiver (SFP MSA – up to 10km)
SFP-GIG-SX Gigabit Ethernet optical transceiver (SFP MSA – up to 550m)
XFP-10G-ZR80 10 Gigabit Ethernet optical transceiver (XFP MSA – up to 80km)
XFP-10G-ER40 10 Gigabit Ethernet optical transceiver (XFP MSA – up to 40km)
XFP-10G-LR 10 Gigabit Ethernet optical transceiver (XFP MSA – up to 10km)
XFP-10G-SR 10 Gigabit Ethernet optical transceiver (XFP MSA – up to 2km)
ALCATEL 9 >
Alcatel OmniSwitch 9000
3The CMM for the OS9600 and OS9700 are identical.

> 10 ALCATEL
Technical Specifications
Layer-2 Switching
VLAN Port based, IEEE 802.1Q VLANs
Advanced VLAN Classification: MAC, protocol, IP subnet
IEEE 802.1ad VLAN Stacking (aka QinQ)
Spanning Tree IEEE 802.1D Spanning Tree Protocol (STP) – 1998 / 2004 edition
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) – 2001 edition
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) – 2002 / 2005 edition
Support of single and multiple instances for STP & RSTP
BPDU Watch guard
Link aggregation Support for static aggregate (a.k.a., OmniChannel)
Support for dynamic aggregate (IEEE 802.3ad)
Auto-negotiation Speed (10, 100 and 1000 Mbps) and duplex mode (half or full)
Traffic control IEEE 802.3x
DHCP DHCP Relay, Option 82 & Snooping (including port-MAC-IP binding)
Layer-3 Routing (IPv4)
IP Routing Static routing
RIP v1 & v2
OSPF v2
BGP v4 (including graceful restart)
Multicast IGMP v1, v2 & v3 snooping
PIM-SM
PIM-DM
DVMRP
Network Protocol Generic UDP relay (including DHCP Relay)
TCP/IP stack
ARP
Resilience VRRP v3
Layer-3 Routing (IPv6)
IP Routing Static routing
RIP ng
OSPF v3
Multiprotocol Extensions for BGP-42
Multicast MLD snooping
PIM-SM2
PIM-DM2
Network Protocol DHCP Relay (including generic UDP relay)
TCP/IP stack
NDP
Resilience VRRP v3
2Check with Alcatel for availability

ALCATEL 11 >
Layer-3 Routing (IPX)
IP Routing Static routing
RIP/SAP
Convergence
Priority queues Eight hardware based queues per port
Traffic prioritization Flow-based QoS in hardware (L1-L4)
Internal & external (a.k.a., remarking) prioritization
Traffic redirection Policy-based routing
Server load balancing (including health monitoring of servers)
Bandwidth management Flow based bandwidth management, ingress policing / egress shaping
Port based egress shaping
Queue management Configurable de-queuing algorithm
Strict Priority
Weighted Round Robin
Deficient Round Robin
Power-over-Ethernet IEEE 802.3af (requires OS9-GNI-P24 & PoE shelf)
Maximum power of 2400W (600W per PSU) using the OS9-IP-SHELF
Maximum power of 230W / 390W using the OS9-IPS-0230A4/
OS9-IPS-0390A4
Security
Traffic filtering Flow-based filtering in hardware (L1-L4)
User authentication IEEE 802.1X, with Group Mobility & Guest VLAN support
MAC Based Authentication for non 802.1X host
Authenticated VLAN (web and telnet based authentication)
Switch protocol security MD5 for RIPv2, OSPFv2 and SNMPv3
SSHv2 for secure CLI session (including Secure Copy)
SSL for secure HTTP session
Switch management Local authentication database
Remote authentication RADIUS, TACACS+, LDAP and ACE servers
Management
Configuration mode Command Line Interface,
Telnet/SSH for remote CLI access
Web-base (HTTP / HTTPS)
SNMP v1/v2c/v3 for complete NMS integration
Management access type Serial console port for local & remote (modem dial up) access (RJ45)
Out-of-band Ethernet access (10/100/1000 RJ45)
In-band Ethernet access
System maintenance Port mirroring (one-to-one, many-to-one)
RMON (Remote Monitoring): statistics, history, alarm & events
sFlow (TM)
Local & remote logging (Syslog)
Detailed statistics / alarm/debug information per process
L3 OAM (ICMP Ping and Traceroute)
NTP (Network Time Protocol)
Internal flash (Compact Flash) to feature:
working directory
certified directory
System file transfer Xmodem
FTP (File Transfer Protocol)
Alcatel OmniSwitch 9000
4Only supported with OS9600

Service and support
Default warranty 1 year on hardware, 90 days on software
Support Basic One year - 7x24 phone. Includes e-service web access, software releases and
repair and return of hardware to be completed in 10 business days from receipt.
Support Plus One year - 7x24 phone. Includes e-service web access, software releases and
advanced shipment for next business day arrival of replacement hardware.
> 12 ALCATEL
2Check with Alcatel for availability

Specifications
Network Interface
All modules are hot swappable and can be used in any
available NIs slot
24--port 1000BaseX (SFP)
24-port 10/100/1000 BaseT (RJ45)
24-port PoE 10/100/1000BaseT (RJ45)
2-port 10GBaseX (XFP)
6-port 10GBaseX (XFP)
Dimensions
OmniSwitch 9600
• Height: 9.6 in (24.4 cm – 5.5 RU)
• Width: 17.45 in (44.3 cm)
• Depth: 14.45 in (36.7 cm)
• Weight (fully loaded chassis): <55 lbs (25 kg)
OmniSwitch 9700
• Height: 19.25 in (48.9 cm – 11 RU)
• Width: 17.4 in (44.2 cm)
• Depth: 14.75 in (37.5 cm)
• Weight (fully loaded chassis): <130 lbs (60 kg)
OmniSwitch 9800
• Height: 29.75 in (75.6 cm – 17 RU)
• Width: 17.4 in (44.2 cm)
• Depth: 14.75 in (37.5 cm)
• Weight (fully loaded chassis): <190 lbs (85 kg)
Power Supply & Power Consumption
600 W AC Power Supply
• Input voltage: 100-240 VAC auto-ranging
• Operating frequency: 47-63 Hz
• Maximum input current:
• 7.5A at 110 VAC; 3.65 A at 220 VAC
Power Consumption
• OS9600 Chassis & fan trays: <42 W
• OS9700 / OS9800 Chassis & fan trays: <80 W
• OS9600-CMM / OS9700-CMM: <27W
• OS9800-CMM: <40W
• OS9-GNI C24/P24/U24 : <55W
• OS9-XNI-U2: <36W
• OS9-XNI-U6: <67W
• PSU efficiency: > 0.75
Environmental requirements
Operating temperature:
• 32° to 113°F (0° to 45°C)
Storage temperature:
• 14° to 158°F (-10° to 70°C)
• Humidity (operating and storage):
• 10% to 90% non-condensing
Heat dissipation (fully loaded w/ U6 & redundancy):
• OmniSwitch 9600: 1,715 BTU/hr, max
• OmniSwitch 9700: 3,412 BTU/hr, max
• OmniSwitch 98002: 6,870 BTU/hr, max
IEEE Standards
• IEEE 802.1ad (VLAN Stacking)
• IEEE 802.1D (STP)
• IEEE 802.1p (CoS)
• IEEE 802.1Q (VLANs)
• IEEE 802.1s (MSTP)
• IEEE 802.1w (RSTP)
• IEEE 802.1X (Port based NAC)
• IEEE 802.3i (10BaseT)
• IEEE 802.3u (Fast Ethernet)
• IEEE 802.3x (Flow Control)
• IEEE 802.3z (Gigabit Ethernet)
• IEEE 802.3ab (1000BaseT)
• IEEE 802.3ac (VLAN Tagging)
• IEEE 802.3ad (Link Aggregation)
• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3ae (10G Ethernet)
IETF Standards
BGP
• RFC 1771-1774/2842/2918/3392 BGP v4
• RFC 1269/1657 BGP v3 & v4 MIB
• RFC 3065 BGP AS Confederations
• RFC 2385 BGP MD5 Signature
• RFC 2042 BGP New Attribute
• RFC 2439 BGP Route Flap Damping
• RFC 2796 BGP Route Reflection
• RFC 1965 BGP AS Confederations
• RFC 1997/1998 BGP Communities Attribute
• RFC 1966 BGP Route Reflection
• RFC 1403/1745 BGP/OSPF Interaction
ALCATEL 13 >

OSPF
• RFC 1253/1850/2328 OSPF v2 & MIB
• RFC 1765 OSPF Database Overflow
• RFC 3623 OSPF Graceful Restart
• RFC 2154 OSPF MD5 Signature
• RFC 1587/3101 OSPF NSSA Option
• RFC 2370/3630 OSPF Opaque LSA
RIP
• RFC 1058 RIP v1
• RFC 1722/1723/2453/1724 RIP v2 & MIB
• RFC 1812/2644 IPv4 Router Requirement
• RFC 2080 RIP ng
IP Multicast
• RFC 1112 IGMP v1
• RFC 2236/2933 IGMP v2 & MIB
• RFC 3376 IGMPv3
• RFC 1075 DVMRP
• RFC 2934 PIM MIB for IPv4
• RFC 2362 PIM-SM
• RFC 2365 Multicast
• RFC 2715/2932 Multicast Routing MIB
IPv6
• RFC 2292/2373/2374/2460/2462 IPv6
• RFC 2464/2553/2893/3493/3513 IPv6
• RFC 3542/3587 IPv6
• RFC 2461 NDP
• RFC 2463/2466 ICMP v6 & MIB
• RFC 1886 DNS for IPv6
• RFC 2452/2454 IPv6 TCP/UDP MIB
• RFC 2740 OSPF for IPv6
• RFC 2858 MP Extensions for BGP-42
• RFC 3056 IPv6 Tunneling
Manageability
• RFC 854/855 Telnet & Telnet options
• RFC 1215 Convention for SNMP Traps
• RFC 2616 /2854 HTTP & HTML
• RFC 2096 IP MIB
• RFC 1212/2737 MIB & MIB-II
• RFC 1643/2665 Ethernet MIB
• RFC 2668/3636 IEEE 802.3 MAU MIB
• RFC 1573/2233/2863 Private Interface MIB
• RFC 1155/2578-2580 SMI v1 & SMI v2
• RFC 1157/2271 SNMP
• RFC 1213/2011-2013 SNMP v2 MIB
• RFC 1901-1908/3416-3418 SNMP v2c
• RFC 2570-2576/3411-3415 SNMP v3
• RFC 2667 IP Tunneling MIB
• RFC 2674 VLAN MIB
Security
• RFC 2104 HMAC Message Authentication
• RFC 1321 MD5
• RFC 2284 PPP EAP
• RFC 2139/2866/2867/2620 RADIUS
Accounting & Client MIB
• RFC 2138/2865/2868/3575/2618 RADIUS
Authentication & Client MIB
• RFC 2869/2869bis RADIUS Extension
• RFC 2228 sFTP
• RFC 959/2640 FTP
Quality of Services
• RFC 896 Congestion control
• RFC 3635 Pause Control
• RFC 1122 Internet Hosts
• RFC 2474/2475/2597/3168/3246 DiffServ
Others
• RFC 3176 sFlow
• RFC 826/903 ARP & Reverse ARP
• RFC 925/1027 Multi LAN ARP / Proxy ARP
• RFC 951 Bootp
• RFC 1493 Bridge MIB
• RFC 919/922 Broadcasting internet datagram
• RFC 1518/1519 CIDR
• RFC 1541/1542/2131/3396/3442 DHCP
• RFC 2132 DHCP Options
• RFC 2131/3046 DHCP/BootP Relay
• RFC 792 ICMP
• RFC 791/894/1024/1349 IP & IP / Ethernet
• RFC 2251 LDAP v3
• RFC 1305/2030 NTP v3 & Simple NTP
• RFC 1191 Path MTU Discovery
• RFC 3060 Policy Core
• RFC 1151 RDP
• RFC 1757/2819 RMON & MIB
• RFC 950 Subnetting
• RFC 793/1156 TCP/IP & MIB
• RFC 768 UDP
• RFC 2338/3768/2787 VRRP & MIB
• RFC 1256 ICMP Router Discovery
> 14 ALCATEL
2Check with Alcatel for availability

Emissions / Agency Approvals
• CISPR 22 Class A
• FCC Part 15 Class A
• EN 55022 Class A
• ICES-003 Class A
• AS/NZS 3548 / EN55022 Class A
• EN 61000-3-2, EN 61000-3-3
• VCCI Class A
Immunity
• EN 55024: 1998
• EN 61000-4-2 to 61000-4-6, EN 61000-4-8,
EN 61000-4-11
Safety Agency Certifications
• UL 60950
• IEC 60950-1:2001; all national deviations
• EN 60950-1: 2001; all deviations
• CAN/CSA-C22.2 No. 60950-1-03
• NOM-019 SCFI, Mexico;
• AS/NZ TS-001 and 60950:2000, Australia
• UL-AR, Argentina
• UL-GS Mark, Germany
• EN 60825-1 Laser, EN60825-2 Laser
• CDRH Laser
Warranty
1 year on hardware, 90 days on software
Additional and optional support available
ALCATEL 15 >

www.alcatel.com/enterprise
Alcatel
26801 West Agoura Road
Calabasas, CA 91301 USA
Contact Center
[phone] US/Canada
[phone] Outside US
www.alcatel.com/enterprise
Alcatel
26801 West Agoura Road
Calabasas, CA 91301 USA
Contact Center
[phone] US/Canada
[phone] Outside US
www.alcatel.com/enterprise
Product specifications contained in this document are subject to change without notice. Contact
your local Alcatel representative for the most current information. Copyright © 2006 Alcatel
Internetworking, Inc. All rights reserved. This document may not be reproduced in whole or in
part without the expressed written permission of Alcatel Internetworking, Inc. Alcatel®and the
Alcatel logo are registered trademarks of Alcatel. All other trademarks are the property of their
respective owners.
P/N 031803-00 10/06
