alduro BM-14 User manual

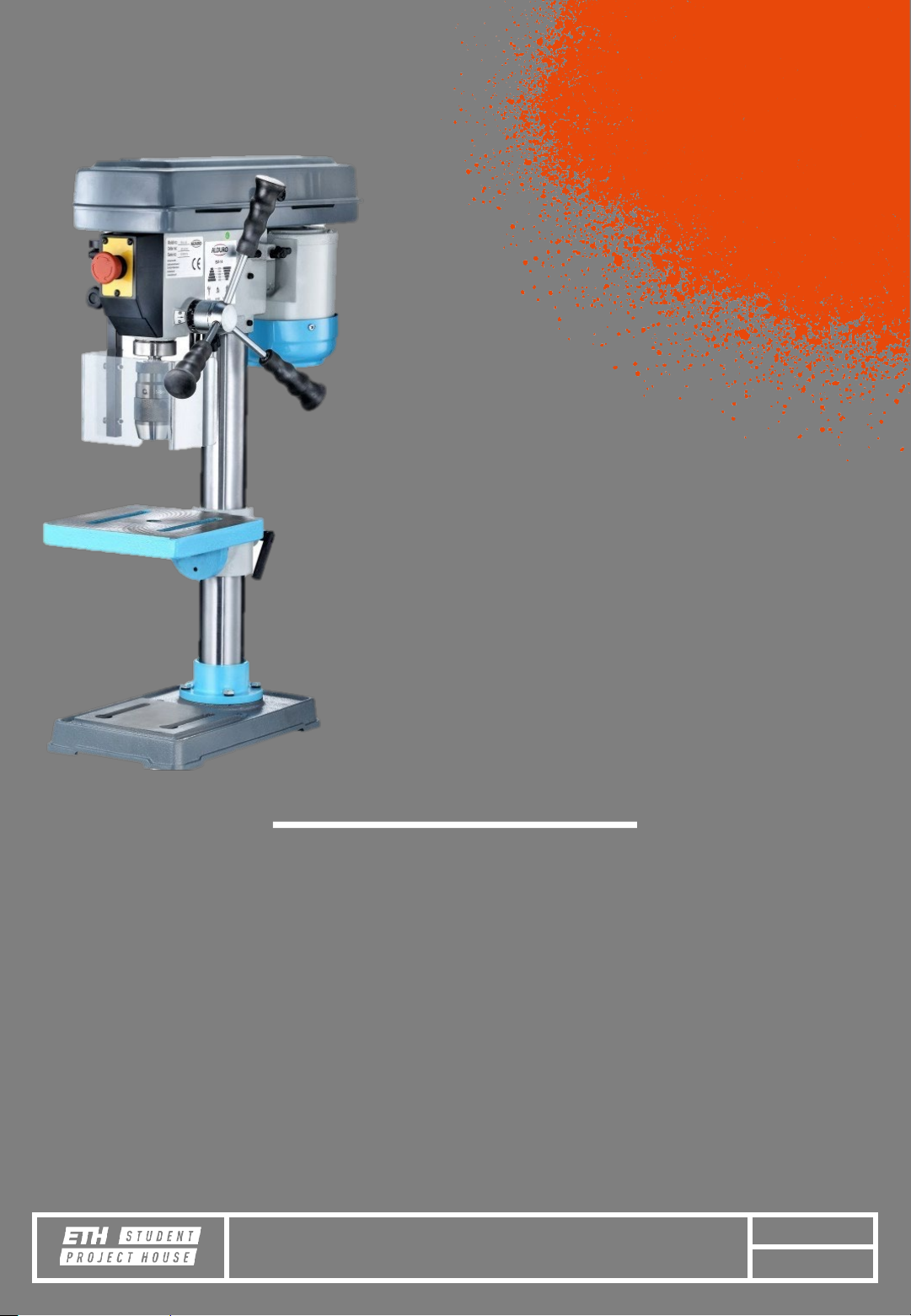

Alduro BM-14
•Drill press
•Max 30kg workpiece
weight
•Up Ø 16 mm drilling in
steel (S235JR)
•490 -2510 min-1
•Make sure your workpiece is secured
•Do not change tools when spindle is moving
•Never touch moving spindle
•Always keep your hands away from the moving
spindle
•No towels near moving parts
•No measuring or marking when machine is running
•Only clean the machine when turned off
•Never change the safety systems
Safety Rules

Safety goggles
No baggy clothing
No open hair
No jewellery
Including watches and
rings
No gloves
Safety Rules
Terms
Feed Lever
Table
Safety shield
Safety off
On Off Switch
Spindle &
tool

Workpiece Holding
For workpiece holding a vise must be used. It is not allowed
to use the machine without the vise. Be carefull not to cut
into the vise or the table.
Shield Adjustment
The shield can be moved by untightening this screw. Make
sure do have the shield in place when drilling.

Depending on your material you will need a special drill bit.
All metal drill bits can also be used on plastics.
.
Tool Change
Place atowel underneath the tool, then place the tool in the
collet and tighten it while holding it with one hand.
Aftwerwards tighten the tool holder with both hands. Make
sure the tool is inserted as far as possible.
Tools
Bigger holes Sinking
(max 300rpm)
Wood Metal Metal
Metal
Metal
Tapping
(by hand)

There are different kinds of chip. Illustrated bellow you can
see which we want an which not. The right combination of
speed and feed creates the correct kind of chip.
.
Cutting Values
Different materials and tool diameters require different
cutting speed. Please use the following table to get the right
settings.
Chip Formation
GOOD BAD

Walk trough Alduro BM-14
•Select material and tool
•Secure your material on the table
•Insert and secure your tool
•Check cuttings speed
•Make sure all the safety measures are
taken
•Clothing
•Jewellery
•Safety equipment
•No Gloves
•Safety goggles
Trouble Shooting
•Machine does not turn on
•Legi System
•On button (left side under the drip tray)
•Safety off
•Tool wobbles around
•Tool not inserted properly

Safety Rules
•Make sure your workpiece is secured
•Do not change tools when spindle is
moving
•Never touch moving spindle
•Always keep your hands away from the
moving spindle
•No towels near moving parts
•No measuring or marking when machine is
running
•Only clean the machine when turned off
•Never change the safety systems
