Allegion Schlage L-Series User manual

L-Series
Service manual

Contents
5 Introduction
6 Dot charts
6 Changes and additions
6 Additions
7 Lock assembly drawing index
25 Trim assemblies
26 L400-Series deadbolt trim
28 L9000-Series single dummy trim
29 L9000-Series double dummy trim
30 Passage latch trim
32 Exit trim
34 Emergency button x turn trim
36 Privacy x turns both sides trim
38 Coin turn outside x turn trim
40 Cylinder x turn trim
42 Double cylinder trim
44 Double cylinder storeroom trim
46 Cylinder outside trim
48 Electrically locked/unlocked both sides trim
50 Electrically locked/unlocked outside trim
52 Electrically locked/unlocked both sides trim
56 Electrically locked/unlocked both sides trim, single
cylinder
58 Electrically locked/unlocked outside trim, double
cylinder
60 Electrically locked/unlocked both sides trim, double
cylinder
62 Active double dummy trim
64 Single dummy with case trim
66 Double dummy with case trim
68 Deadbolt trim
70 Deadbolt with fixed double dummy trim
72 Fixed outside x turn trim
74 Institution deadbolt trim
76 Prison lock trim
78 Hotel with indicator trim
80 Passage and electrically locked/unlocked, two-point
latch trim
82 Outside lever only, two-point latch trim
84 Cylinder x turn, two-point latch trim
86 Outside cylinder and electrically locked/unlocked
outside cylinder, two-point latch trim
88 Double cylinder and electrically locked/unlocked
outside cylinder, two-point latch trim
91 Lock case assemblies
92 L460, L462, L463, L464, L480, L496
93 L9010
94 LM9310, LM9325
95 L9040, L9040 x XL11-446, L9044
96 LV9040, LV9040 x XL11-446, LV9044
97 L9050, L9060, L9066 x XL11-897, L9070, L9071
98 LV9050, LV9060, LV9070, LV9071
99 LM9350, LM9370, LM9371
100 LMV9350, LMV9370, LMV9371
101 L9056
102 LV9056
103 L9076, L9077
104 LV9076, LV9077
105 L9080
106 LV9080
107 LM9380
108 LMV9380
109 L9080EL, L9080EL-RX
110 LV9080EL
111 L9080EU, L9080EU-RX
112 LV9080EU
113 L9082
114 LV9082
115 L9082EL
116 L9082EU
117 L9090EL/EU, L9092EL/EU, L9094EL/EU
118 L9091EL/EU, L9093EL/EU, L9095 EL/EU
119 L9492EL/EU, L9494 EL/EU
120 L9493 EL/EU, L9495 EL/EU
121 L9110 x XL11-741
122 L9175
123 L9176
124 L9440, L9444
125 LV9440, LV9444
126 L9453
127 LV9453
128 L9456, L9457, L9496
129 LV9456, LV9457, LV9496
130 L9458
131 LV9458
132 L9460, L9462, L9463, L9464
133 L9460 x XL11-635
134 L9460 x XL11-886, L9462 x XL11-886,
L9464 x XL11-886
135 L9465, L9466, L9473
136 L9480, L9485, L9486, L9486 x L583-375,
L9412 x XL11-907
137 LV9480, LV9485, LV9486, LV9486 x L583-375
138 L9482 x XL11-543
139 LV9482 x XL11-543
140 L9485 x XL11-557
141 LM9210, LM9225
142 LM9256
143 LM9250, LM9270, LM9271, LM9280
144 LM9290 EL/EU, LM9292 EL/EU, LM9294 EL/EU
145 LM9291 EL/EU, LM9293 EL/EU, LM9295 EL/EU
146 Lock case assembly compatibility


147 Assembly of lock case parts
147 Turn hub spring and transfer lever
147 Locking catch/retractor catch and locking link
148 L functions only: fire door fuse, fire door catch
and hub spring
148 LV functions only: fire door fuse, fire door catch
and hub spring
149 Trim options
149 Cast or forged levers, standard lever designs
150 Decorative trim
150 Decorative levers
150 Decorative roses
151 M collection levers
151 Inside lever assembly
151 Outside lever assembly
152 Danmark stainless steel levers
153 Wrought knob designs
154 Rose trim A or B
155 L escutcheon trim
157 N escutcheon trim
158 Indicator trim options
158 Indicator kits
158 Indicator parts
159 Additional trim options
160 Trim assembly parts
163 Armor fronts
164 Strikes
165 Cylinders
165 How to measure cylinder lengths
165 L-Series, LV-Series cylinder and length requirements
166 Full face cylinders
167 Concealed cylinders
168 Full size interchangeable core cylinders
170 Small format interchangeable core cylinders
172 Blocking and compression rings
173 Special trim options
176 Installation tools and kits
178 Electrified locks
180 LM9200 Series two point lock
181 LM9300 Series multipoint lock
182 Lubrication specifications
184 Door handing
184 Changing the lock hand
184 Changing cylinder turn hand
185 Ordering procedures
186 Finishes
187 Limited warranty
188 L9000-Series installation instructions
204 L400-Series installation instructions
206 L9000-Series 180 degree indicator
installation instructions – escutcheon trim
214 L9000-Series 180 degree indicator
installation instructions – sectional trim
222 L400-Series 180 degree indicator
installation instructions
228 L9000-Series electrified installation
instructions

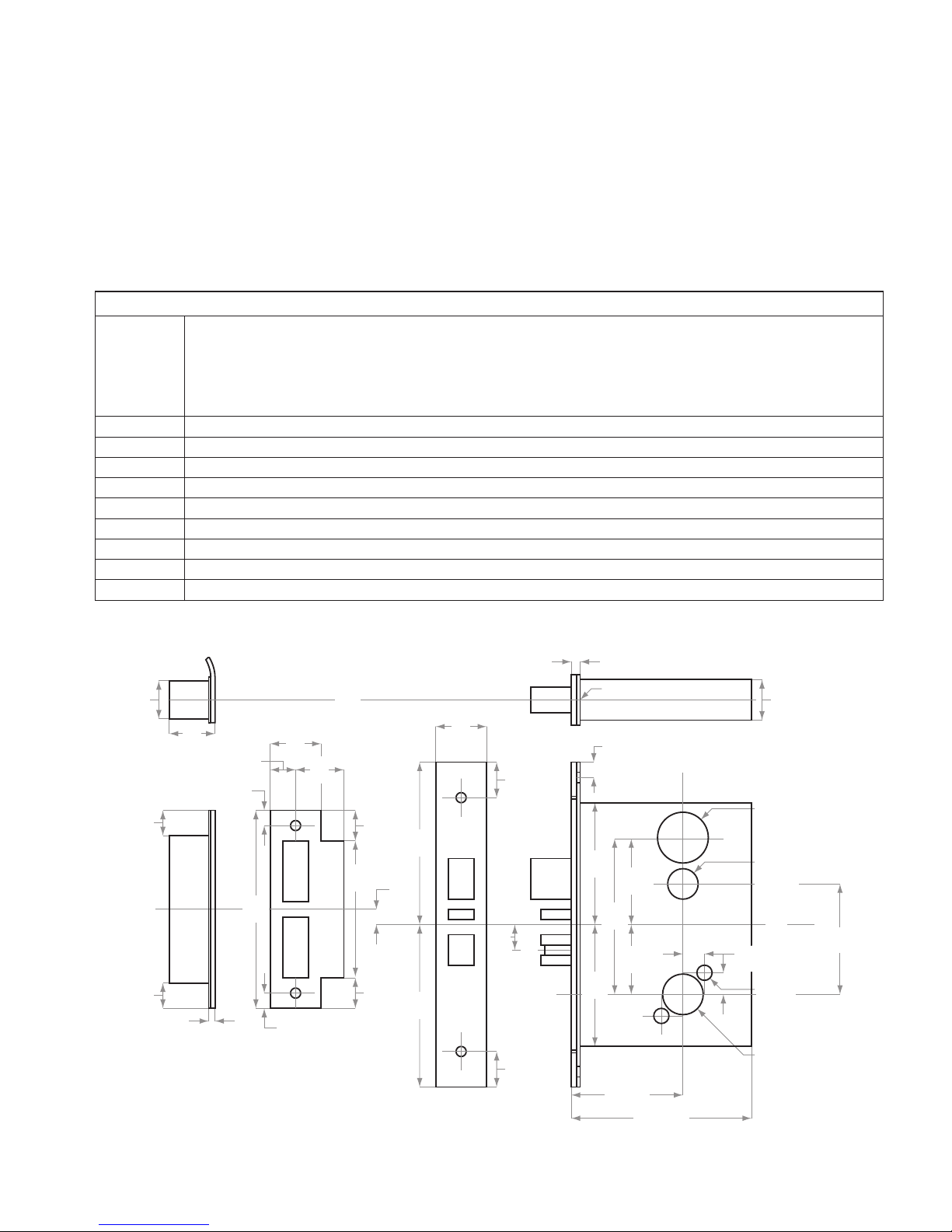

Introduction

Introduction







Standard features
Certifications 





Case size M\znZ\zn M\znB\, X>\nvZ>\cx
Armor front Z\v Z\v>\zn Z\vBB\nv"
Deadbolt 
Latchbolt C\v
Strike Z\vM\,C\znZ\,B\,
Backset C\v"
Cylinder 
Door range C\v
Keys 


Strike
1¹⁄₄" (32)
or
1¹⁄₁₆"
(27)
1¹⁄₄"
(32)
1³⁄₁₆"
(30)
⁵⁄₈"
(16)
³⁄₈"
(10)
³⁄₈"
(10)
⁵⁄₈"
(16)
³⁄₈"
(10)
⁵⁄₃₂"
(4)
3"
(76) 2⁹⁄₆₄"
(54)
1²³⁄₃₂"
(44)
Cylinder
cut-out
Height
Line
2²³⁄₃₂
"
(69)
¹⁵⁄₁₆"
(24)
1¹⁄₈"
(29)
⁷⁄₃₂"
(6)
1" (25)
Bevel ¹⁄₈" in 2" (3 in 51)
2³⁄₄" (70)
Backset
4⁷⁄₁₆" (113)
⁵⁄₈"
(16)
³⁄₄"
(19)
³⁄₄"
(19)
⁵⁄₈"
(16) Lock
Front
C
L
¹⁷⁄₃₂"
(14)
Mounting
Holes
Knob or Lever
Cut-out
Turn Piece
and
Occupancy
Indicator
3⁵⁵⁄₆₄"
(98)
3"
(76)
4"
(102)
4⁷⁄₈"
(124)
⁷⁄₈"
(22)
⁷⁄₈"
(22)
C
L
³⁄₈"
(10) C
L
4"
(102)
C
L
C
L
3³⁄₈"
(86)
(Standard)
(Optional)
L/LV9000 shown


Changes and additions
Dot charts
 

P/N Description
L9110/XL11-741 L9175 L9176 L9177 (disc) L9178 (disc) L9410 (disc) L9440 LV9440 L9444* LV9444* L9453 LV9453 L9456 LV9456 L9457 LV9457 L9458 LV9458 L9460 L9460/XL11-635 L9460/XL11-886 L9462 L9462/XL11-886 L9463 L9464 L9464/XL11-886 L9465 L9466 L9473 L9480 LV9480 L9482/XL11-543 LV9482/XL11-543 L9485 LV9485 L9485/XL11-557** LV9485/XL11-557
 


• ••••2222 • • • 2 2 • • • • 2•••2 2 • •


Changes and additions
Additions
L909X, L949X electrified locks

 
 
 

 
 
 

LM92XX multipoint locks


 

 
 
 
 
 
 

L-Series with indicator option

 

 


Lock assembly drawing index

Lock assembly drawing index



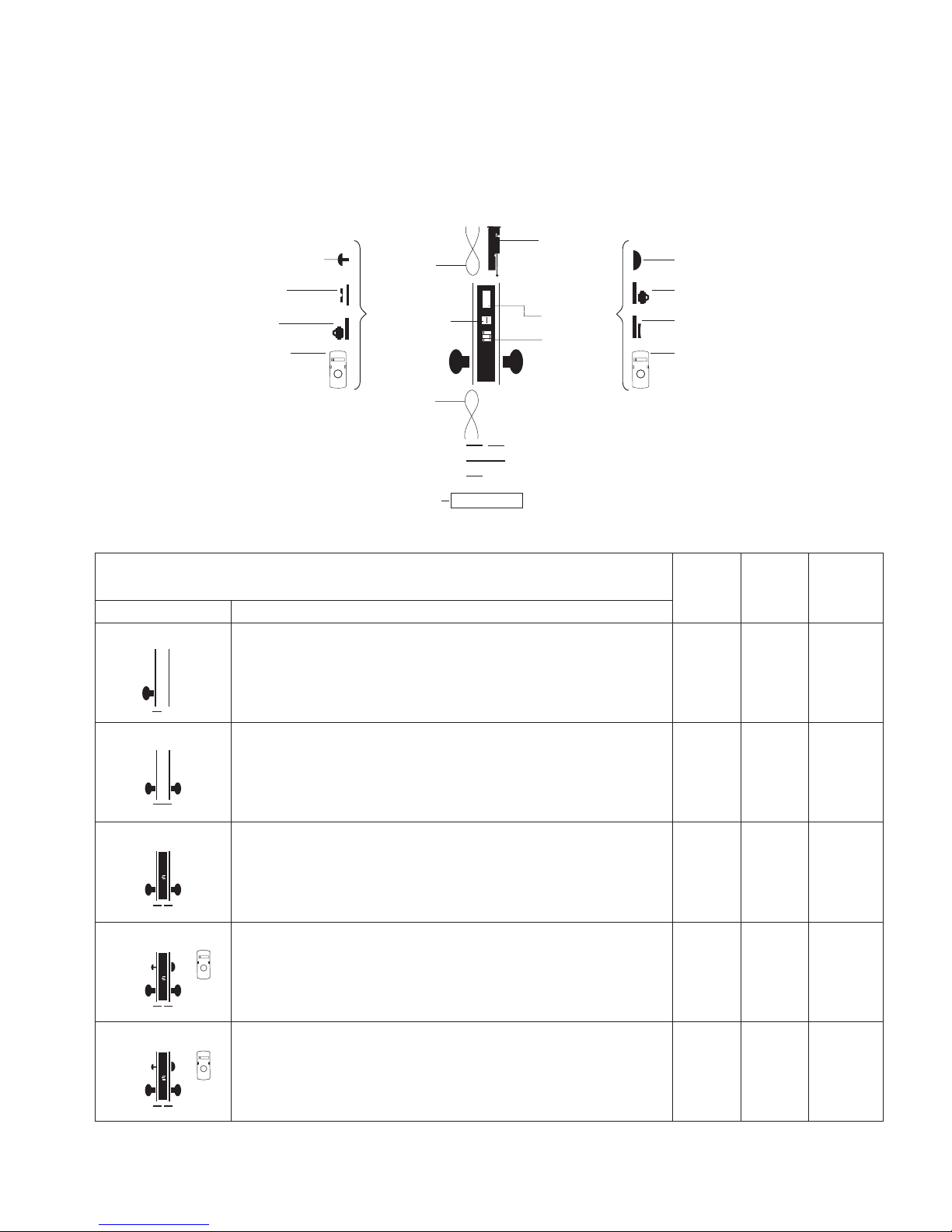

Outside Inside
Emergency Turn
Latchbolt
Coin Turn
Deadbolt
Two-point
latchThumbturn
Cylinder Auxiliary
Latch
Electrified
Cylinder
Cylinder Turn
Legacy
Occupancy
Indicator
Two-piece Spindle
Solid Spindle
One-piece Outside Spindle
DO NOT DISTURB
RX
Messaging
indicator
available
Messaging
indicator
available
LOCKEDLOCKED
L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L0170 Half dummy trim


  
L0172 Full dummy trim

  
L9010 F01 Passage latch

  
L9040 F22
LOCKED
Bath/bedroom privacy lock




  
LV9040 F22
LOCKED
Bath/bedroom privacy lock with Vandlgard�





  



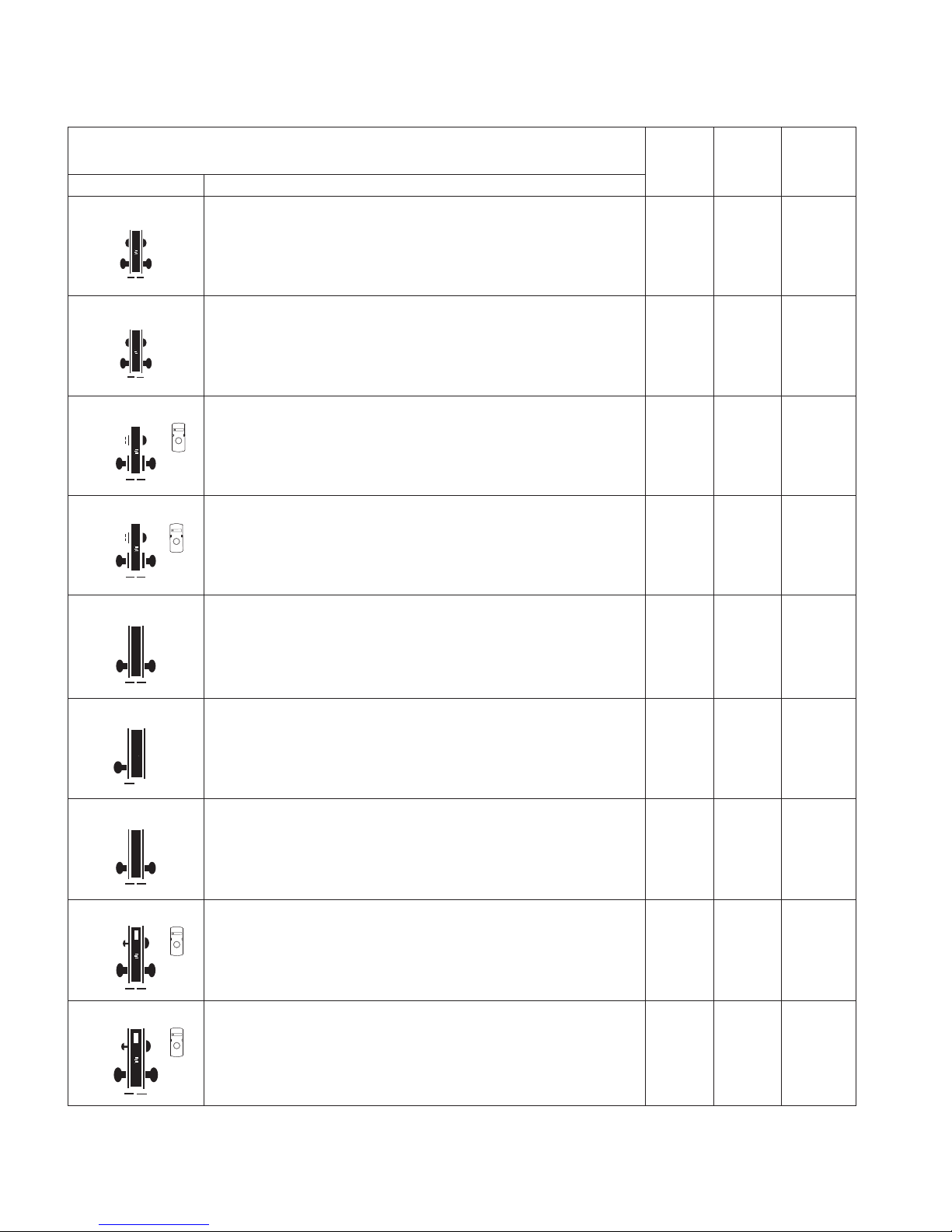

Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9040 x XL11-446 Privacy with turns both sides



  
LV9040 x XL11-446 Privacy with turns both sides with Vandlgard�




  
L9044
LOCKED
Privacy with coin turn outside



®

  
LV9044
LOCKED
Privacy with coin turn outside with Vandlgard�

 



  
L9110 x XL11-741 Double dummy with active trim



  
L9175 Single dummy with lock case

  
L9176 Double dummy with lock case

  
L9440 F19
LOCKED
Privacy with deadbolt





  
LV9440 F19
LOCKED
Privacy with deadbolt with Vandlgard�






  

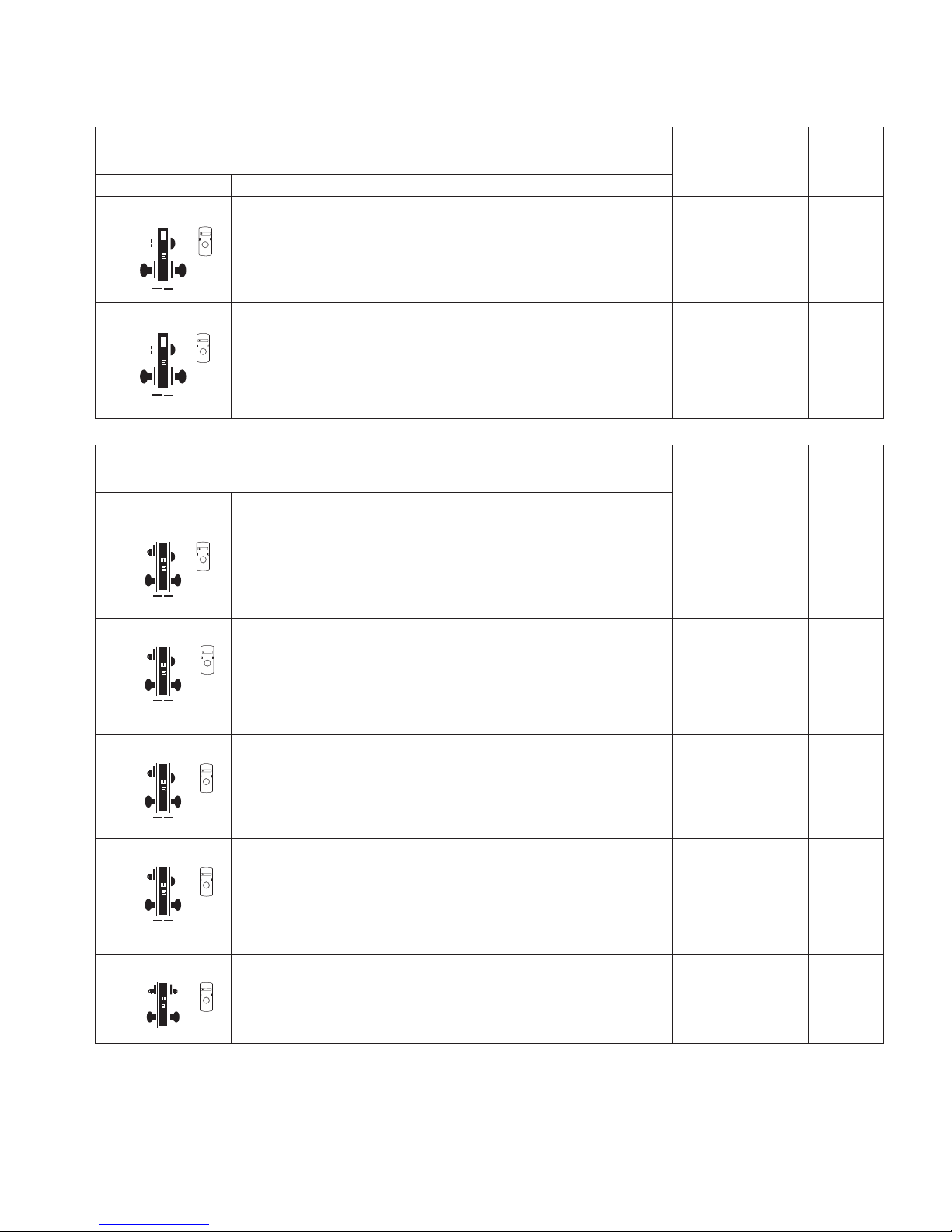

Lock assembly drawing index

L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9444
LOCKED
Privacy with deadbolt and coin turn outside





®
  
LV9444
LOCKED
Privacy with deadbolt and coin turn outside with Vandlgard�







  
L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9050 F04
LOCKED
Entrance/oce and inner entry lock






  
LV9050 F04
LOCKED
Entrance/oce and inner entry lock with Vandlgard







  
L9056
LOCKED
L9050 with automatic unlocking






  
LV9056
LOCKED
LV9050 with automatic unlocking with Vandlgard®







  
L9060 F09
LOCKED
Apartment entrance lock




  
 
 

 


Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
LV9060 F09
LOCKED
Apartment entrance lock with Vandlgard





  
L9066 x XL11-897 Storeroom lock with double cylinders*


  
L9070 F05
LOCKED
Classroom lock



  
LV9070 F05
LOCKED
Classroom lock with Vandlgard®





  
L9071 F32
LOCKED
Classroom security lock




  
LV9071 F32
LOCKED
Classroom security lock with Vandlgard





  
L9076 F06 Classroom holdback lock ◊





  
LV9076 F06 Classroom holdback lock with Vandlgard◊






  
L9077 Classroom security holdback lock ◊




  
 
 

 

Lock assembly drawing index

L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
LV9077 Classroom security holdback lock with Vandlgard®◊





  
L9080 F07 Storeroom lock



  
LV9080 F07 Storeroom Lock with Vandlgard®




  
L9080EL Electrically locked (fail safe)




Discontinued December 2014. See page 177 for electrified options.
  
LV9080EL Electrically locked (fail safe) with Vandlgard®





Discontinued December 2014. See page 177 for electrified options.
  
L9080EU Electrically unlocked (fail secure)



Discontinued December 2014. See page 177 for electrified options.
  
LV9080EU Electrically unlocked (fail secure) with Vandlgard





Discontinued December 2014. See page 177 for electrified options.
  
L9080EL-RX Request to exit electrically locked (fail safe)





Discontinued December 2014. See page 177 for electrified options.
  


 
 

 



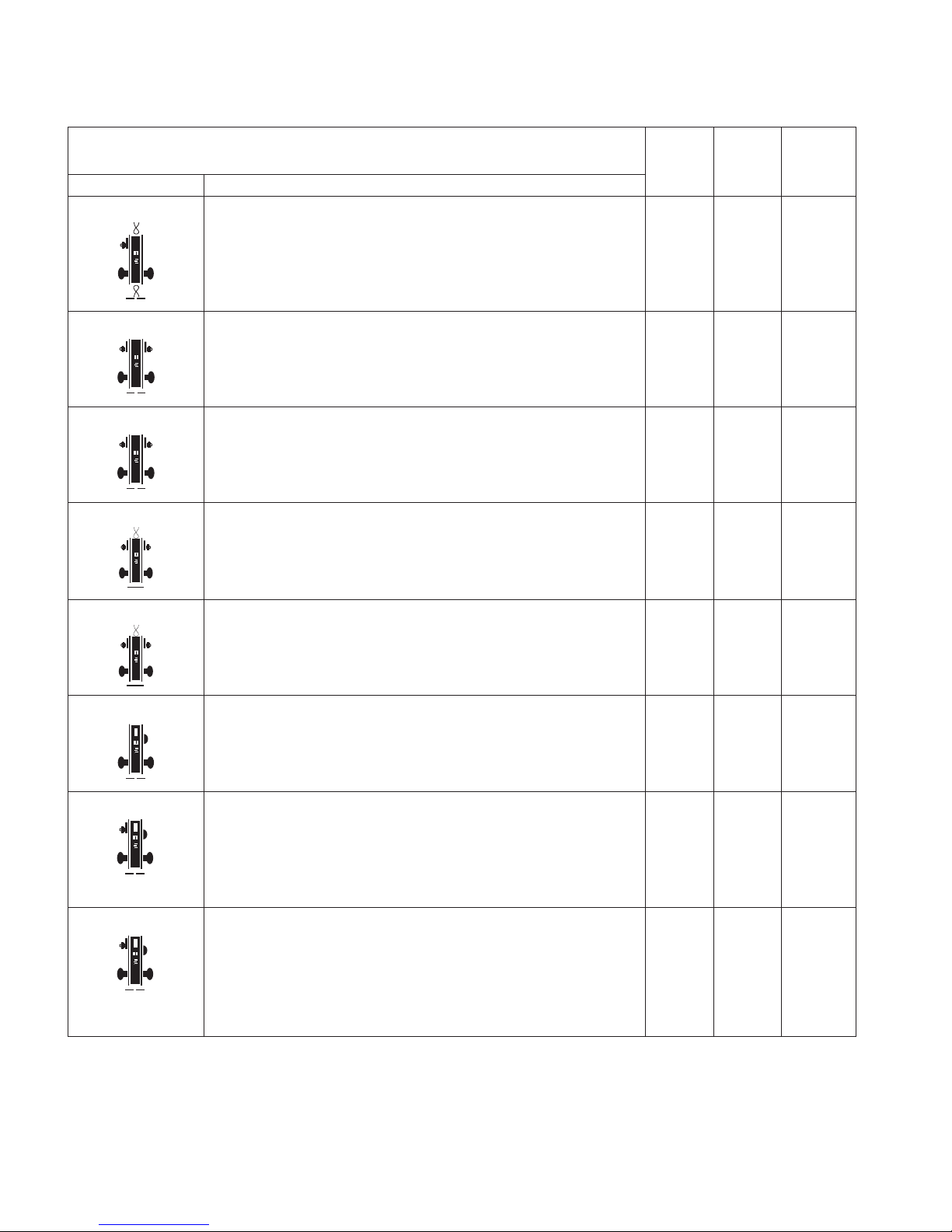

Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9080EU-RX Request to exit electrically unlocked (fail secure)




Discontinued December 2014. See page 177 for electrified options.
  


L9082 F30 Institution lock*


  
LV9082 F30 Institution lock with Vandlgard




  
L9082EL Electrically locked (fail safe) both sides *




Discontinued December 2014.
  
L9082EU Electrically unlocked (fail secure) both sides 



Discontinued December 2014.
  
L9412 x XL11-907 Exit lock with deadbolt




  
L9453 F20 Entrance/oce lock with deadbolt







  
LV9453 F20 Entrance lock with deadbolt and Vandlgard








  
 
 

 

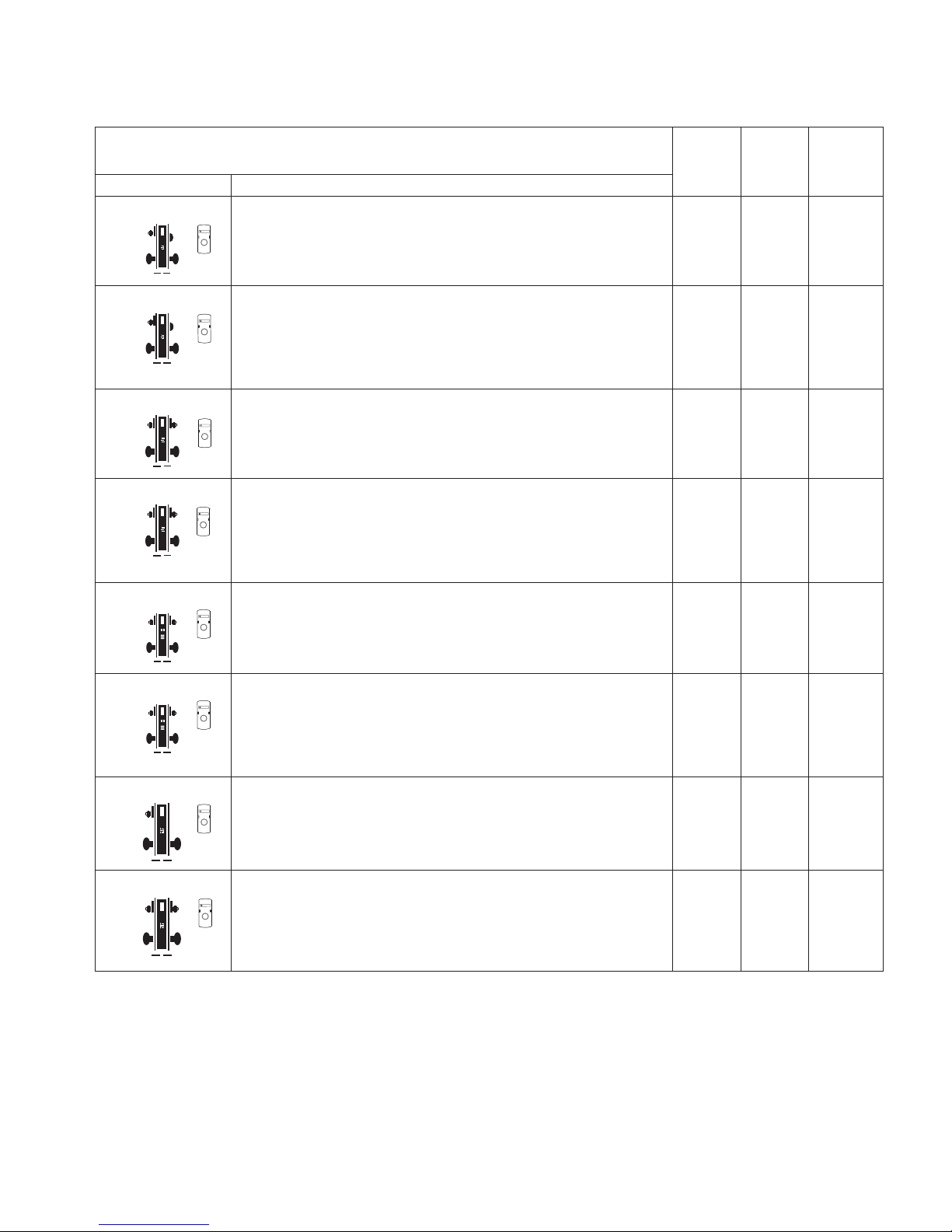

Lock assembly drawing index

L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9456 F13
LOCKED
Corridor lock with deadbolt




  
LV9456 F13
LOCKED
Corridor lock with deadbolt and Vandlgard®






  
L9457 F33
LOCKED
Classroom security lock with deadbolt




  
LV9457 F33
LOCKED
Classroom security lock with deadbolt and Vandlgard






  
L9458 F34
LOCKED
Classroom security lock with auxiliary latch





  
LV9458 F34
LOCKED
Classroom security lock with auxiliary latch and Vandlgard






  
L9465
LOCKED
Closet/storeroom lock


  
L9466 F14
LOCKED
Storeroom/utility room lock*


  
 
 

 


Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9473 F21
LOCKED
Dormitory/bedroom lock


  
L9480 Storeroom lock with deadbolt





  
LV9480 Storeroom lock with deadbolt and Vandlgard�






  
L9482 x XL11-543 Institution lock with deadbolt*



  
LV9482 x XL11-543 Institution lock with deadbolt* and Vandlgard�




  
L9485
LOCKED
Faculty restroom lock with deadbolt





  
LV9485
LOCKED
Faculty restroom lock with deadbolt and Vandlgard®







  
L9485 x XL11-557 Prison lock



®

  
 
 

 

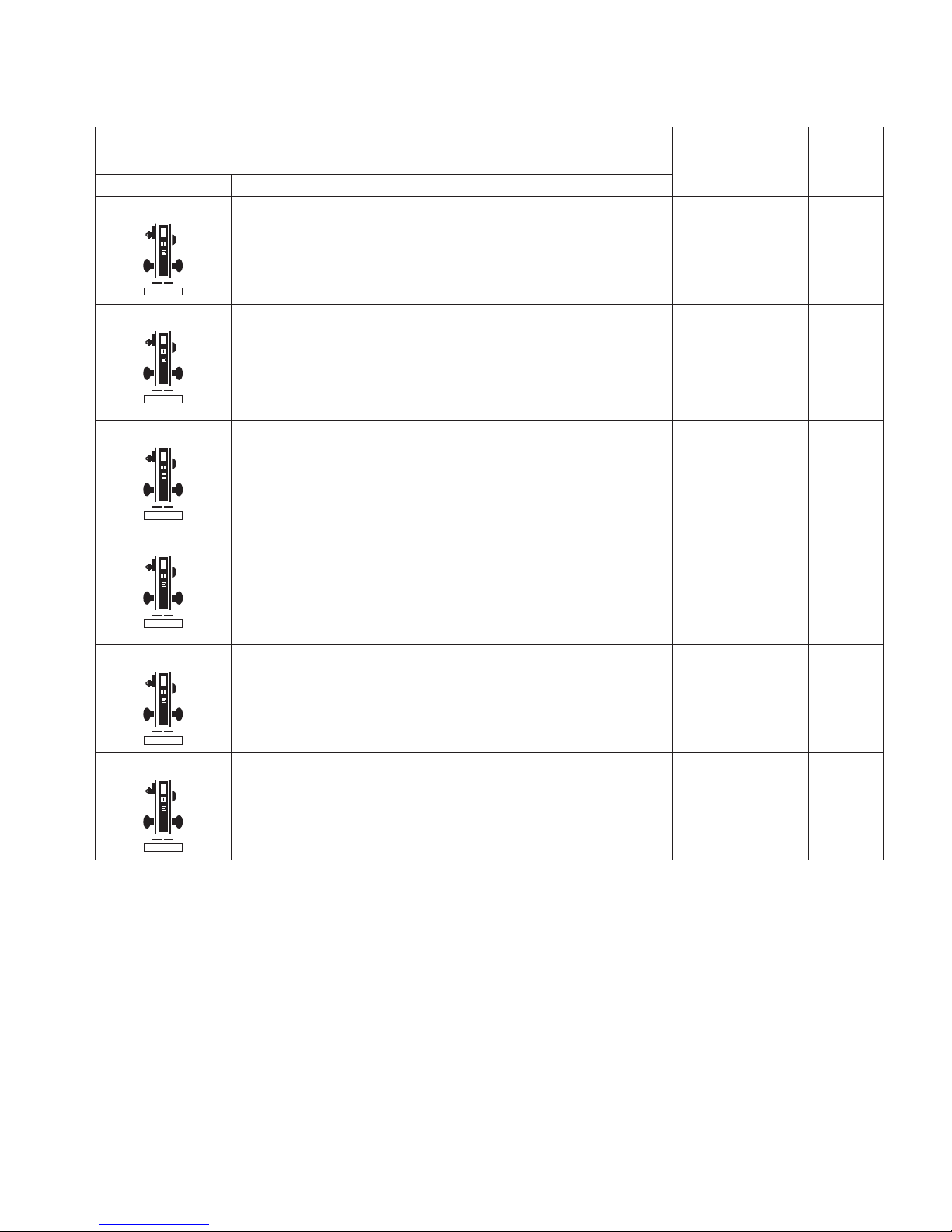

Lock assembly drawing index

L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9486 F15
DO NOT DISTURB
Hotel lock with 09-611 "Do not disturb" indicator






  
LV9486
DO NOT DISTURB
Hotel lock with 09-611 "Do not disturb" indicator with Vandlgard®







  
L9486 x L583-375
OCCUPIED
Hotel lock with 09-611 "Occupied" indicator






  
LV9486 x L583-375
OCCUPIED
Hotel lock with 09-611 "Occupied" indicator with Vandlgard®







  
L9496
OCCUPIED
Privacy lock with "Occupied" indicator





  
LV9496
OCCUPIED
Privacy lock with "Occupied" indicator with Vandlgard®






  
 
 

 



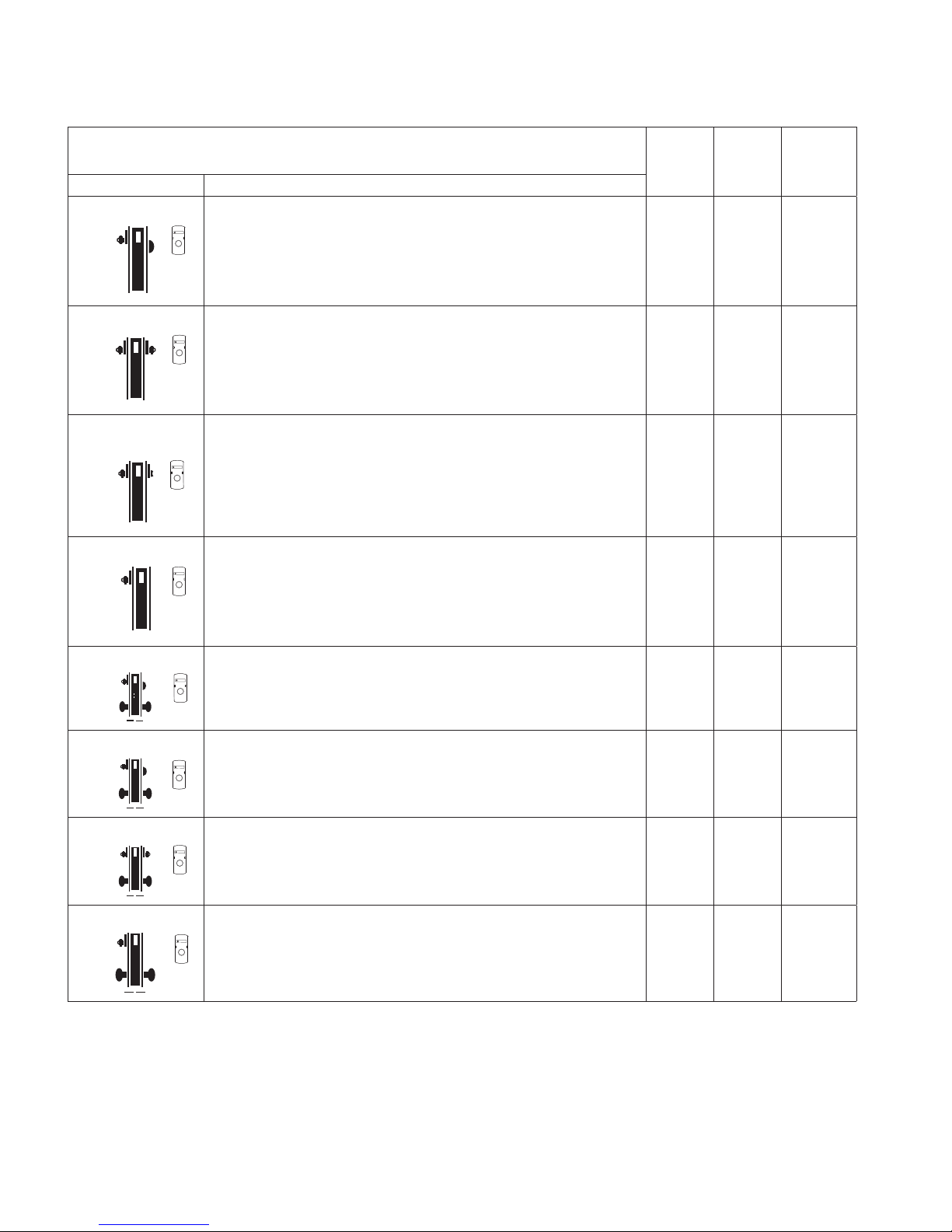

Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 2012, Series 1000, Grade 1
Keyed L9000-Series deadbolts
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9460 F17
LOCKED
Cylinder by thumbturn lock

  
L9462 F16
LOCKED
Double cylinder lock*

  
L9463 F29
LOCKED
Classroom lock


  
L9464 F18
LOCKED
Cylinder lock


  
L9460 x XL11-635
LOCKED
L9460 with fixed dummy trim


  
L9460 x XL11-886
LOCKED
Deadbolt with retraction by inside knob/lever



  
L9462 x XL11-886
LOCKED
Double cylinder deadbolt* with retraction by inside knob/lever




  
L9464 x XL11-886
LOCKED
Single cylinder deadbolt with retraction by inside knob/lever



  
 


Lock assembly drawing index

L909X Electrified functions
ANSI/BHMA A 156.25, 2014
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE Description
L9090 EL/EU Electrically locking and unlocking outside lever (no cylinder)






  
L9091 EL/EU Electrically locking and unlocking both levers (no cylinder)






  
 
 
L909X Electrified functions
ANSI/BHMA A 156.25, 2014
Keyed Locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE Description
L9092 EL/EU Electrically locking and unlocking outside lever (outside cylinder)






  
L9093 EL/EU Electrically locking and unlocking both levers (outside cylinder)






  
L9094 EL/EU Electrically locking and unlocking outside lever (inside and outside cylinders)






  
L9095 EL/EU Electrically locking and unlocking both levers (inside and outside cylinders)*






  
 
 
 




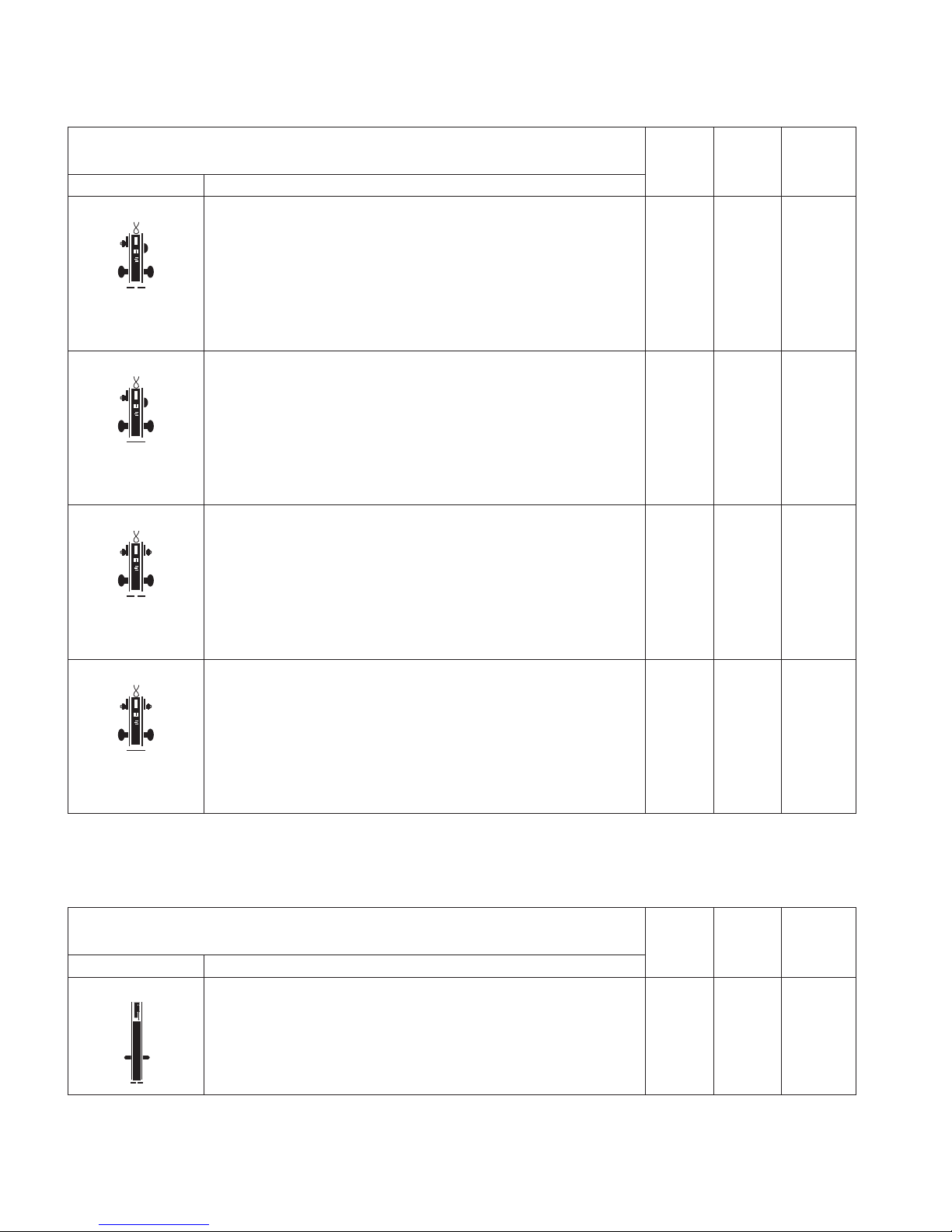

Lock assembly drawing index
L949X Electrified functions
ANSI/BHMA A 156.25, 2014
Keyed locks with deadbolt
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE Description
L9492 EL/EU Electrically locking and unlocking outside lever (outside cylinder, inside
thumbturn with deadbolt)









  
L9493 EL/EU Electrically locking and unlocking both levers (outside cylinder, inside
thumbturn with deadbolt)*









  
L9494 EL/EU Electrically locking and unlocking outside lever (inside and outside cylinder
with deadbolt)









  
L9495 EL/EU Electrically locking and unlocking both levers (inside and outside cylinder
with deadbolt)*









  
 
 

LM9200 Two-point functions
ANSI/BHMA A 156.37, 2014
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE Description
LM9210 Passage lock two-point latch



  

Lock assembly drawing index

LM9200 Two-point functions
ANSI/BHMA A 156.37, 2014
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE Description
LM9225 Exit lock two-point latch



  
LM9200 Multipoint functions
ANSI/BHMA A 156.37, 2014
Keyed Locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE Description
LM9250 Oce, entry lock two-point latch






  
LM9256 LM9250 Oce, entry with automatic unlocking two-point latch







  
LM9270 Classroom lock two-point latch




  
LM9271 Classroom security lock* two-point latch




  
LM9280 Storeroom lock two-point latch



  
 



Lock assembly drawing index
LM9200 Multipoint functions
ANSI/BHMA A 156.37, 2014
Keyed Locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE Description
LM9290 EL/EU Electrified outside lever lock, two-point latch




  
LM9291 EL/EU Electrified both levers lock, two-point latch *



  
LM9292 EL/EU Electrified outside lever lock, two-point latch (outside cylinder)




  
LM9293 EL/EU Electrified both levers lock two-point latch (outside cylinder) *



  
LM9294 EL/EU Electrified outside levers lock two-point latch (inside and outside cylinder)




  
LM9295 EL/EU Electrified both levers lock two-point latch (inside and outside cylinder) *




  
 

