Allegion FALCON M Series User manual

M-Series
Service manual

Contents
5 Trim assemblies
6 Replacement parts for early LM-Series lever trim
7 LM-Series mortise trim
8 L-900 Series mortise trim
9 MM-Series mortise trim
11 Lock assemblies and functions
12 LM12 single dummy trim
13 M101 passage latchset
14 M161 Connecting Room/Exit Latch
15 M301 Privacy Lock
16 M311 Privacy Lock
17 M321 Privacy Lock
18 M371 Store Door Lock
18 M541 Entry/Oce Lock
19 M381 Entry/Restroom Lock
19 M441 Classroom Security
19 M561 Classroom Lock
20 M411 Asylum Lock
21 M431 Classroom Security and Deadbolt
21 M571 Dormitory Lock
22 M451 Hotel/Motel Lock
22 M641 Dormitory Lock
22 M711 Privacy Lock w/Cyl
23 M521 Entry/O ce Lock
24 M531 Apartment Lock
25 M581 Storeroom/Exit Lock
26 M621 Front Door Lock
27 M851 Lock
28 M881 Lock
29 M911/921/931/941 Deadbolt
31 Parts and accessories
32 Mortise Locking Units
32 Roses
32 Electrified Mortise Chassis - Maxim W/ 030173-004-*
Screws
33 Levers
33 Lever Trim Springs
33 Armor fronts and faceplates
34 Cams for mortise cylinders
36 Escutcheons
37 Mortise cylinders
37 Strikes
38 Cylinder collars for mortise cylinders

Trim assemblies
6 Replacement parts for early LM-Series lever trim
7 LM-Series mortise trim
8 L-900 Series mortise trim
9 MM-Series mortise trim

6 • Falcon • M-Series service manual
Trim assemblies
Replacement parts for early LM-Series lever trim
44
6
24
23
22
7
1
15
8
Inside
No. Description Part No.
1Bushing 030067-000-50
6Hex Nut 030282-000-30
7Inner Insert 030051-001-55
8Inner Insert Assy, All Other Levers A30073-003-00
15 Inner Trim Shank 030053-001-30
No. Description Part No.
22 Lever Return Spring, Green 030057-002-30
23 Lever Stop 030054-001-30
24 Lock Washer 030284-000-60
44 Spindle & Spring Assembly A21245-000-00

Trim assemblies
Falcon • M-Series service manual • 7
LM-Series mortise trim
44
6
24
23
22
7
1
15
10
Inside
44
6
24
23
32
30 or 31
33
2
36 1
26 22
38
17
13
36
42
2
2
4
40 46
39
2
3
25
45
5
No. Description Part No.
1Bushing 030067-000-50
2Collar 030059-000 *
3Collar Assy, Sectional A08794-000 *
4Escutcheon w/T-Turn, Napa A30203-000 *
5Escutcheon, Napa 030066-005 *
6Hex Nut 030282-000-30
7Inner Insert 030051-001-55
10 Inner Insert Assy A30073-001-00
13 Inner Lever Assy, Dane (shown)** A30202-00D *
15 Inner Trim Shank 030053-001-30
17 Inner Washer 030205-001-50
22 Lever Return Spring 030057-002-30
23 Lever Stop 030054-001-30
24 Lock Washer 030284-000-60
No. Description Part No.
25 Mortise Cylinder w/9894-1 Cam 985 w/9894-1
26 Outer Insert, Tapped 030051-000-55
30 Outer Lever Assy, Dane Gala A30068-00D *
31 Outer Lever Assy, Dane Napa A30072-05D *
32 Outer Lever, Dane 021280-000 *
33 Outer Washer 030205-002-50
36 Rose 030052-000 *
38 Screw, 10-32 x 2 FHMS 030069-032-30
39 Screw, 6 x 1/2 FHSMS 002073-000 *
40 Screw, 6 x 3/4 OHSMS 002074-012 *
42 Set Screw, 1/4-28 x 1/4 030283-004-30
44 Spindle & Spring Assembly A21245-000-00
45 Spring Washer, Cylinder 008789-001-60
46 T-Turn Assy, Sectional A20336-000 *
* Finish or Specify Finish on All ** For other lever options, see page

8 • Falcon • M-Series service manual
Trim assemblies

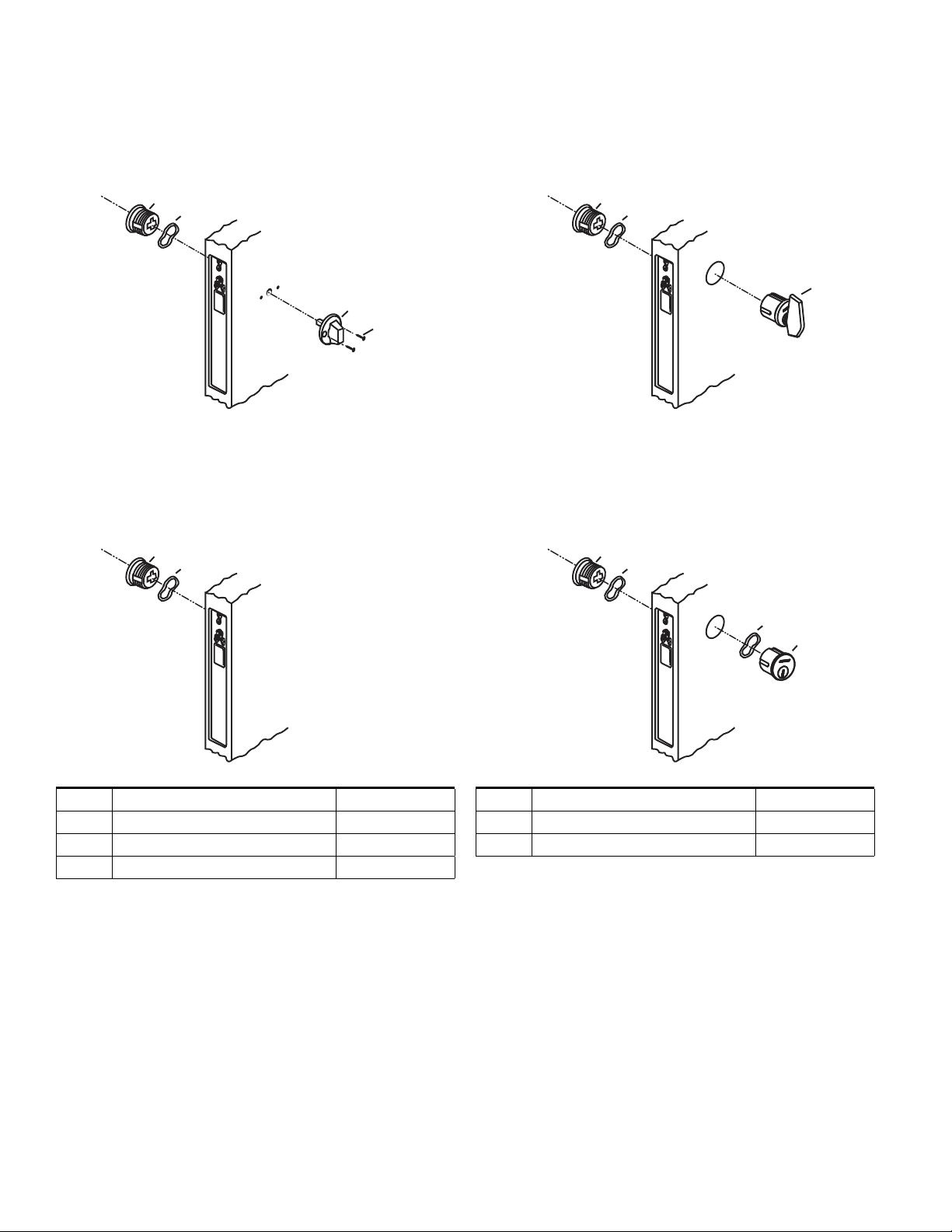

L-900 Series mortise trim
Inside
46
39
25
45
Inside
49
25
45
Inside
Inside
25
45
25
25
45
941
13912
9
911
45
No. Description Part No.
25 Mortise Cylinder w/9894-1 Cam 985 w/9894-1
39 Screw, 6 x 1/2 FHSMS 002073-000 *
45 Spring Washer, Cylinder 008789-001-60
No. Description Part No.
46 T-Turn Assy, Sectional A20336-000 *
49 M911 Classroom Thumbturn 973 (RH) 974 (LH)
* Finish or Specify Finish on All

Trim assemblies
Falcon • M-Series service manual • 9
MM-Series mortise trim
2
4
40 46
39
2
3
25
45
5
44
38
35
47
43
17
12
36
42
71
14
11
2
44
35
47
27
28 or 29
33
2
36 1
26 43
No. Description Part No.
1Bushing 030067-000-50 2
2Collar 030059-000 *
3Collar Assy, Sectional A08794-000 *
4Escutcheon w/T-Turn, Napa A30203-000 *
5Escutcheon, Napa 030066-005
7Inner Insert 030051-001-55
11 Inner Insert Assy, Knob A30078-000-00
12 Inner Knob Assy, Hana A30065-00H *
14 Inner Trim Shank 030053-000-30
17 Inner Washer 030205-001-50
25 Mortise Cylinder w/9894-1 Cam 985 w/9894-1
26 Outer Insert, Tapped 030051-000-55
27 Outer Knob Assy, Hana A30138-00H *
No. Description Part No.
9Outer Knob Assy, Hana Napa A30074-05H *
33 Outer Washer 030205-002-50
35 Retainer Ring 002939-000-30
36 Rose 030052-000 *
38 Screw, 10-32 x 2 FHMS 030069-032-30
39 Screw, 6 x 1/2 FHSMS 002073-000 *
40 Screw, 6 x 3/4 OHSMS 002074-012 *
42 Set Screw, 1/4-28 x 1/4 030283-004-30
43 Spacer 030063-000-30
44 Spindle & Spring Assembly A21245-000-00
45 Spring Washer, Cylinder 008789-001-60
46 T-Turn Assy, Sectional A20336-000 *
47 Washer 030163-000-60
* Finish or Specify Finish on All

Lock assemblies and functions
12 LM12 single dummy trim
13 M101 passage latchset
14 M161 Connecting Room/Exit Latch
15 M301 Privacy Lock
16 M311 Privacy Lock
17 M321 Privacy Lock
18 M371 Store Door Lock
18 M541 Entry/Oce Lock
19 M381 Entry/Restroom Lock
19 M441 Classroom Security
19 M561 Classroom Lock
20 M411 Asylum Lock
21 M431 Classroom Security and Deadbolt
21 M571 Dormitory Lock
22 M451 Hotel/Motel Lock
22 M641 Dormitory Lock
22 M711 Privacy Lock w/Cyl
23 M521 Entry/O ce Lock
24 M531 Apartment Lock
25 M581 Storeroom/Exit Lock
26 M621 Front Door Lock
27 M851 Lock
28 M881 Lock
29 M911/921/931/941 Deadbolt

LM12 single dummy trim
20
2
36
37
15
1
19
34
24
6
18
42
Part List— LM12 AG
No. Description Part No.
1Bushing 030067-000-50
2Collar 030059-000 *
6Hex Nut 030282-000-30
15 Inner Trim Shank 030053-001-30
18 Insert Assembly A30257-04L-00
19 Insert, Dummy 030051-004-55
No. Description Part No.
20 Lever Assembly, Avalon** A30202-00A *
24 Lock Washer 030284-000-60
34 Plate, Dummy 030054-002-30
36 Rose 030052-000 *
37 Screw, 10 x 1 FHSM (2) 030220-016-30
42 Set Screw, 1/4-28 x 1/4 030283-004-30
* Finish or Specify Finish on All
** For other lever options, see page
12 • Falcon • M-Series service manual
Lock assemblies and functions

M101 passage latchset
A20800-000-626
129
90
102
130
80
59
131
105
137
105
114
50
77
153
159
RIGHT HAND OR LEFT HAND REVERSE SHOWN
Parts List - A20800-30F * Locking Unit M101
No. Description Part No.
50 Arm, Lower Retract 020645-000-30
59 Case Assy A20580-001-00
77 Coupling 020646-000-30
80 Cover Assy, Not Tapped A30875-000-00
90 Faceplate 020100-000 *
102 Front Plate 1-1/4” Wide 021349-000-30
105 Hub, Non-Locking (2) 020642-000-30
No. Description Part No.
114 Latch Bolt Assy A20639-004-626
129 Screw 8-32 x 1/4 K110-020
130 Screw 8-32 x 3/8 (4) 002801-006-30
131 Screw 8-32 x 3/8 (2) 002932-000-30
137 Spacer Hub 020674-000-30
153 Spring, Retract Arm 020666-000-60
159 Washer, Flat 002900-000-30
* Finish or Specify Finish on All
Lock assemblies and functions
Falcon • M-Series service manual • 13

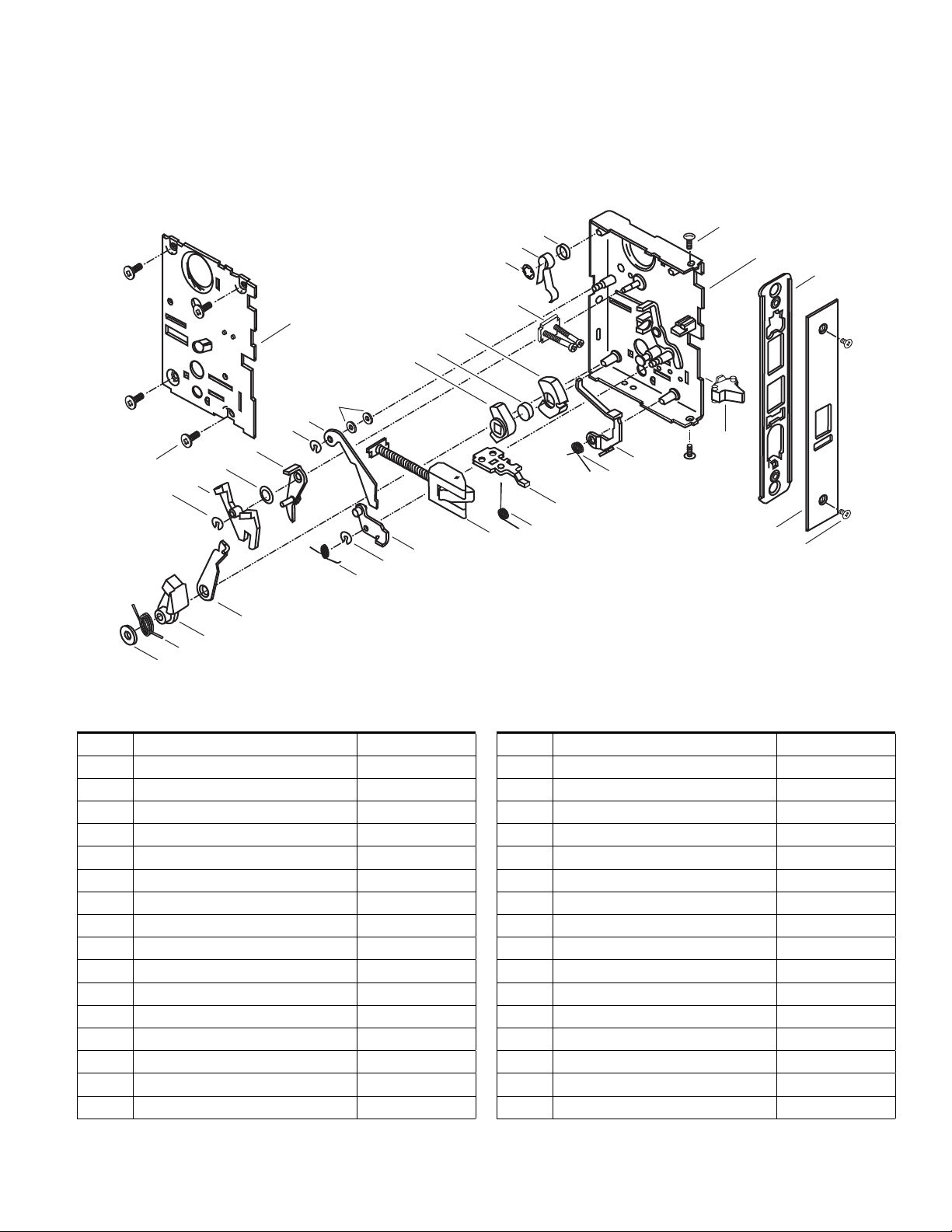

M161 Connecting Room/Exit Latch
A30842-000-626
130
80
129
89
102
RIGHT HAND OR LEFT HAND REVERSE SHOWN
68
131
105
137
105
114
147
115
54
55
142
128
52
50
77
153
Parts List - A30842-30F* Locking Unit M161
No. Description Part No.
50 Arm, Lower Retract 020645-000-30
52 Arm, Upper Retract 020633-000-30
54 Bar, Deadlocking 020579-000-630
55 Blocker Assy A20957-000-00
68 Case Assy A30877-00-00
77 Coupling 020646-000-30
80 Cover Assy, Not Tapped A30875-000-00
89 Faceplate 020099-01U *
102 Front Plate 1-1/4” Wide 021349-000-30
105 Hub, Non-Locking (2) 020642-000-30
No. Description Part No.
114 Latch Bolt Assy A20639-004-626
115 Lever 020575-000-30
128 Ring, Truarc 005347-000-30
129 Screw 8-32 x 1/4 (2) K110-020
130 Screw 8-32 x 3/8 (4) 002801-006-30
131 Screw 8-32 x 3/8 (2) 002932-000-30
137 Spacer Hub 020674-000-30
142 Spring, Blocker 020492-000-60
147 Spring, DL 020595-001-60
153 Spring, Retract Arm 020666-000-60
* Finish or Specify Finish on All
14 • Falcon • M-Series service manual
Lock assemblies and functions

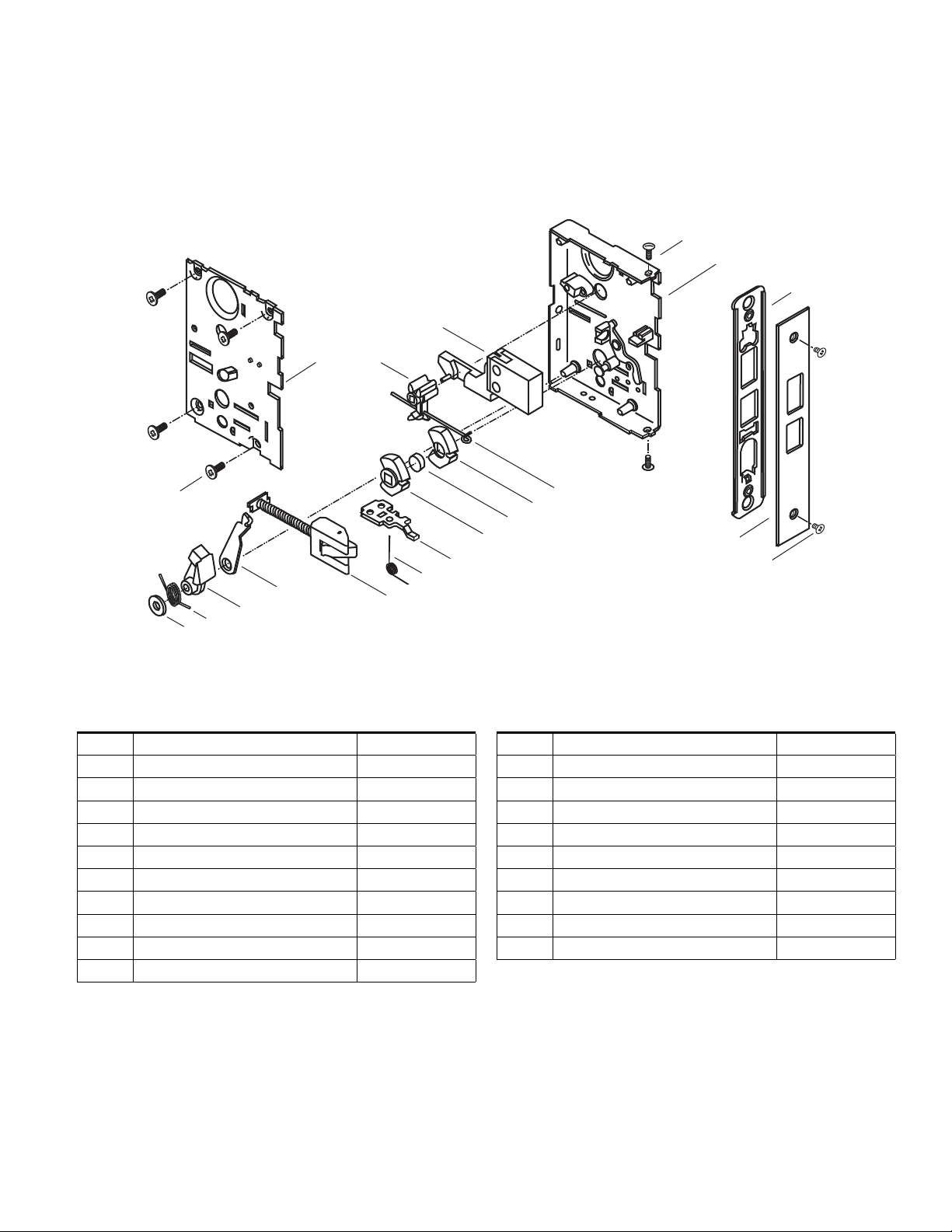

M301 Privacy Lock
A20806-000-XXX
130
79
129
91
102
RIGHT HAND OR LEFT HAND REVERSE SHOWN
64
131
104
144
104
137
158
134
84
109
159
50 114
77
153
Parts List - A20806-000-626 Locking Unit M301
No. Description Part No.
50 Arm, Lower Retract 020645-000-30
64 Case Assy A20588-001-00
77 Coupling 020646-000-30
79 Blocker Assy A23204-000-00
84 Deadbolt 1” 030147-000-626
91 Faceplate UL 020109-000 *
102 Front Plate 1-1/4” Wide 021349-000-30
104 Hub, Locking 020643-000-30
109 Hub, T-Turn 020652-001-30
114 Latch Bolt Assy A20639-004-626
No. Description Part No.
129 Screw 8-32 x 1/4 (2) K110-020
130 Screw 8-32 x 3/8 (4) 002801-006-30
131 Screw 8-32 x 3/8 (2) 002932-000-30
134 Slide, Locking Hub 020572-000-30
137 Spacer Hub 020674-000-30
144 Spring, Deadbolt 020641-000-30
153 Spring, Retract Arm 020666-000-60
158 Torsion Spring 021111-001-60
159 Washer, Flat 002900-000-30
* Finish or Specify Finish on All
Lock assemblies and functions
Falcon • M-Series service manual • 15

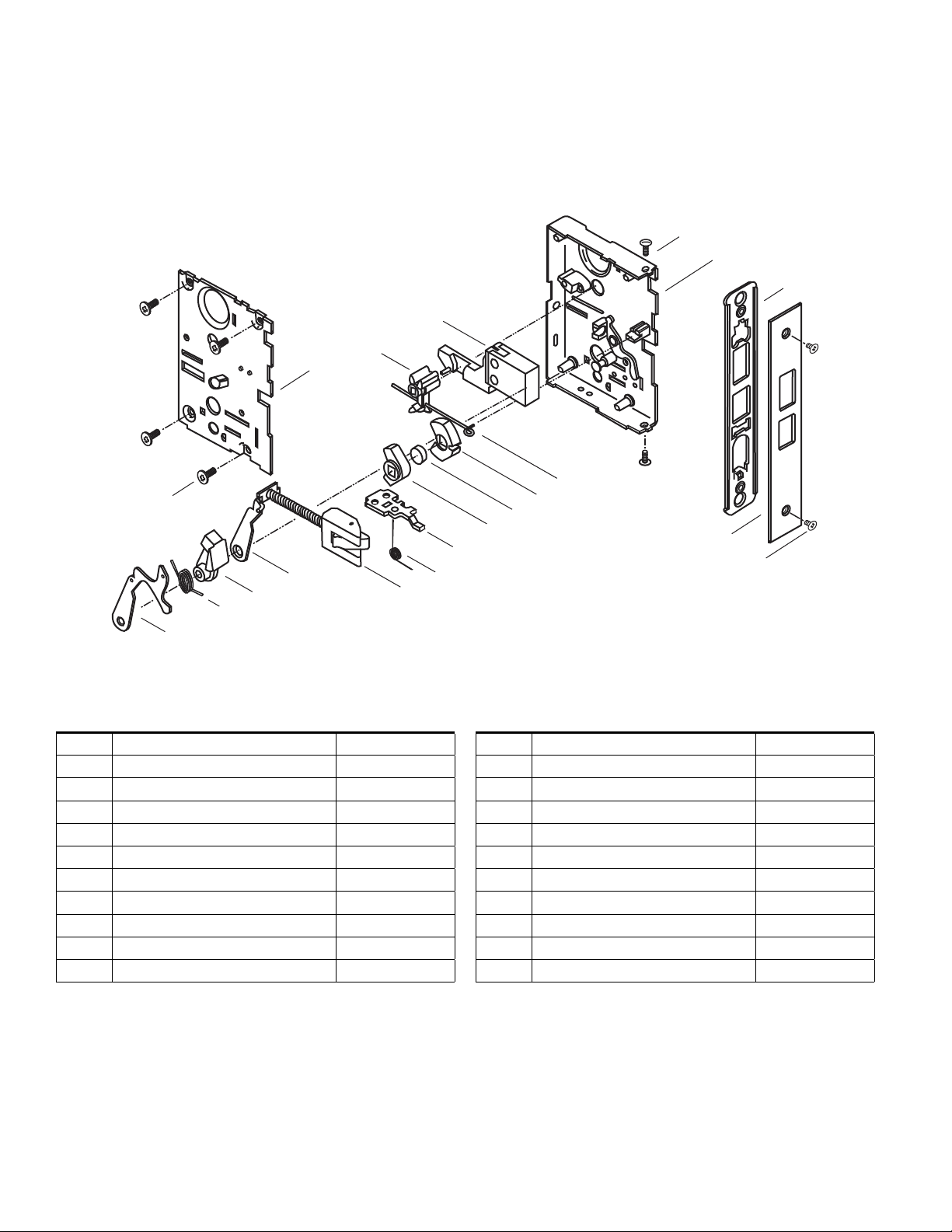

M311 Privacy Lock
A21841-000-626
130
79
129
91
102
RIGHT HAND SHOWN
64
131
104
144
105
137
158
134
84
109
50
114
77
52
153
Parts List - A21863-30F * Locking Unit M311
No. Description Part No.
50 Arm, Lower Retract 020645-000-30
52 Arm, Upper Retract 020633-000-30
64 Case Assy, Not Tapped A20588-001-00
77 Coupling 020646-000-30
79 Cover Assy, Threaded A23204-000-00
84 Deadbolt 1” 030147-000-626
91 Faceplate UL 020109-000 *
102 Front Plate 1-1/4” Wide 021349-000-30
104 Hub, Locking 020643-000-30
105 Hub, Non-Locking 020642-000-30
No. Description Part No.
109 Hub, T-Turn 020652-001-30
114 Latch Bolt Assy A20639-004-626
129 Screw 8-32 x 1/4 (2) K110-020
130 Screw 8-32 x 3/8 (4) 002801-006-30
131 Screw 8-32 x 3/8 (2) 002932-000-30
134 Slide, Locking Hub 020572-000-30
137 Spacer Hub 020674-000-30
144 Spring, Deadbolt 020641-000-30
153 Spring, Retract Arm 020666-000-60
158 Torsion Spring 021111-001-60
* Finish or Specify Finish on All
16 • Falcon • M-Series service manual
Lock assemblies and functions

M321 Privacy Lock
A30539-000-626
130
79
RIGHT HAND SHOWN
72
131
104
151
105
137
158
134
159
50 114
133
103
77
153
129
90
102
Parts List - A30539-30F * Locking Unit M321
No. Description Part No.
50 Arm, Lower Retract 020645-000-30
72 Case Assy, Not Tapped A30544-000-00
77 Coupling 020646-000-30
79 Cover Assy, Not Tapped A23204-000-00
90 Faceplate 020100-000 *
102 Front Plate 1-1/4” Wide 021349-000-30
103 Hub & Pin Assy A30534-000-00
104 Hub, Locking 020643-000-30
105 Hub, Non-Locking 020642-000-30
114 Latch Bolt Assy A20639-004-626
No. Description Part No.
129 Screw 8-32 x 1/4 (2) K110-020
130 Screw 8-32 x 3/8 (4) 002801-006-30
131 Screw 8-32 x 3/8 (2) 002932-000-30
133 Slide, Locking 030535-000-55
134 Slide, Locking Hub 020572-000-30
137 Spacer Hub 020674-000-30
151 Spring, Locking Slide 030382-000-30
153 Spring, Retract Arm 020666-000-60
158 Torsion Spring 021111-001-60
159 Washer, Flat 002900-000-30
* Finish or Specify Finish on All
Lock assemblies and functions
Falcon • M-Series service manual • 17

M371 Store Door Lock
M541 Entry/Oce Lock
A20809-000-626
129
91
102
50 114
158
134
104
137
104
144
109
84
121
77
159
153
64
131
RIGHT HAND OR LEFT HAND REVERSE SHOWN
130
79
Parts List - A20809-000-626 Locking Unit M371/541
No. Description Part No.
50 Arm, Lower Retract 020645-000-30
64 Case Assy A20588-001-00
77 Coupling 020646-000-30
79 Cover Assy A23204-000-00
84 Deadbolt 1” 030147-000-626
91 Faceplate 020109-000 *
102 Front Plate 1-1/4” Wide 021349-000-30
104 Hub, Locking (2) 020643-000-30
109 Hub, T-Turn 020652-001-30
114 Latch Bolt Assy A20639-004-626
No. Description Part No.
121 Retainer Assy, Cyl A21209-000-00
129 Screw 8-32 x 1/4 (2) K110-020
130 Screw 8-32 x 3/8 (4) 002801-006-30
131 Screw 8-32 x 3/8 (2) 002932-000-30
134 Slide, Locking Hub 020572-000-30
137 Spacer Hub 020674-000-30
144 Spring, Deadbolt 020641-000-30
153 Spring, Retract Arm 020666-000-60
158 Torsion Spring 021111-001-60
159 Washer, Flat 002900-000-30
* Finish or Specify Finish on All
18 • Falcon • M-Series service manual
Lock assemblies and functions

M381 Entry/Restroom Lock
M441 Classroom Security
M561 Classroom Lock
A30812-000-626
129
89
102
RIGHT HAND SHOWN
51
142
54
128
128
12848
105
137
104
140
118
160
159
82
55
158
134
147
115
114
77
153
60
131
121
122
117
136
130
79
Parts List - A30812-30F * Locking Unit M381/561
No. Description Part No.
48 Arm, Blocker Release 020491-000-30
51 Arm, Lower Retract 021185-000-30
54 Bar, Deadlocking 020579-000-630
55 Blocker Assy A20957-000-00
60 Case Assy A20583-002-00
77 Coupling 020646-000-30
79 Cover Assy A23204-000-00
82 Cylinder Lever Assy A20598-000-00
89 Faceplate 020099-01U *
102 Front Plate 1-1/4” Wide 021349-000-30
104 Hub, Locking 020643-000-30
105 Hub, Non-Locking 020642-000-30
114 Latch Bolt Assy A20639-004-626
115 Lever 020575-000-30
117 Lever Spring 020086-000-30
118 Lever, Cyl 020660-000-30
No. Description Part No.
121 Retainer Assy, Cyl A21209-000-00
122 Retaining Ring 002975-000-30
128 Ring, Truarc (3) 005347-000-30
129 Screw 8-32 x 1/4 (2) K110-020
130 Screw 8-32 x 3/8 (4) 002801-006-30
131 Screw 8-32 x 3/8 (2) 002932-000-30
134 Slide, Locking Hub 020572-000-30
136 Spacer, Spring 021026-000-10
137 Spacer Hub 020674-000-30
140 Spacer, Washer (2) 020447-000-10
142 Spring, Blocker 020492-000-60
147 Spring, DL 020595-001-60
153 Spring, Retract Arm 020666-000-60
158 Torsion Spring 021111-001-60
159 Washer, Flat 002900-000-30
160 Washer, Flat 004315-000-60
* Finish or Specify Finish on All
Lock assemblies and functions
Falcon • M-Series service manual • 19

M411 Asylum Lock
A30815-000-626
RIGHT HAND OR LEFT HAND REVERSE SHOWN
129
89
102
142
128
128
128 48
104
137
104
140
82
55
114
147
115
132
61
131
121
54
130
79
Parts List - A30815-30F * Locking Unit M411
No. Description Part No.
48 Arm, Blocker Release 020491-000-30
54 Bar, Deadlocking 020579-000-630
55 Blocker Assy A20957-000-00
61 Case Assy A20584-002-00
79 Cover Assy A23204-000-00
82 Cylinder Lever Assy A20598-000-00
89 Faceplate 020099-01U *
102 Front Plate 1-1/4” Wide 021349-000-30
104 Hub, Locking (2) 020643-000-30
114 Latch Bolt Assy A20639-004-626
No. Description Part No.
115 Lever 020575-000-30
121 Retainer Assy. Cyl A21209-000-00
128 Ring, Truarc (3) 005347-000-30
129 Screw 8-32 x 1/4 (2) K110-020
130 Screw 8-32 x 3/8 (4) 002801-006-30
131 Screw 8-32 x 3/8 (2) 002932-000-30
132 Sleeve, Lever Post 020659-000-10
137 Spacer Hub 020674-000-30
140 Spacer, Washer (2) 020447-000-10
142 Spring, Blocker 020492-000-60
* Finish or Specify Finish on All
20 • Falcon • M-Series service manual
Lock assemblies and functions
