Allen-Bradley ArmorBlock 1732E User manual

Installation Instructions
1732E ArmorBlock 2 Port Ethernet Module
Catalog Numbers 1732E-IB16M12R, 1732E-OB16M12R,
1732E-IB16M12DR, 1732E-OB16M12DR, 1732E-16CFGM12R,
1732E-IB16M12SOEDR, 1732E-8X8M12DR
Topic Page
Important User Information 2
Environment and Enclosure 3
Prevent Electrostatic Discharge 3
About the ArmorBlock 2 Port Ethernet Module 4
Catalog Number Explanation 5
Install the Module 5
Set the Network Address 6
Mount the Module 7
Product Dimensions 7
Connect the I/O, Network and Auxiliary Cables to the ArmorBlock Module 8
Interpret LED Indicators 13
Specifications 15

21732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009
Important User Information
Solid state equipment has operational characteristics differing from those of electromechanical
equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls
(publication SGI-1.1 available from your local Rockwell Automation sales office or online at
http://literature.rockwellautomation.com) describes some important differences between solid state
equipment and hard-wired electromechanical devices. Because of this difference, and also because of
the wide variety of uses for solid state equipment, all persons responsible for applying this equipment
must satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages
resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the
many variables and requirements associated with any particular installation, Rockwell Automation, Inc.
cannot assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,
equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell
Automation, Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNING Identifies information about practices or circumstances that can cause an
explosion in a hazardous environment, which may lead to personal injury or death,
property damage, or economic loss.
IMPORTANT Identifies information that is critical for successful application and understanding
of the product.
ATTENTION Identifies information about practices or circumstances that can lead to personal
injury or death, property damage, or economic loss. Attentions help you to identify
a hazard, avoid a hazard, and recognize the consequences.
SHOCK HAZARD
Labels may be on or inside the equipment, for example, a drive or motor, to alert
people that dangerous voltage may be present.
BURN HAZARD Labels may be on or inside the equipment, for example, a drive or motor, to alert
people that surfaces may reach dangerous temperatures.

1732E ArmorBlock 2 Port Ethernet Module 3
Publication 1732E-IN004A-EN-E - November 2009
Environment and Enclosure
Follow these guidelines for environment and enclosure information for this
equipment.
Prevent Electrostatic Discharge
Follow these guidelines when you handle this equipment.
ATTENTION This equipment is intended for use in overvoltage Category II applications (as
defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according
to IEC/CISPR 11. Without appropriate precautions, there may be difficulties
with electromagnetic compatibility in residential and other environments due
to conducted and radiated disturbances.
This equipment is supplied as enclosed equipment. It should not require
additional system enclosure when used in locations consistent with the
enclosure type ratings stated in the Specifications section of this publication.
Subsequent sections of this publication may contain additional information
regarding specific enclosure type ratings, beyond what this product provides,
that are required to comply with certain product safety certifications.
In addition to this publication, see:
•Industrial Automation Wiring and Grounding Guidelines, Rockwell
Automation publication 1770-4.1, for additional installation
requirements.
•NEMA Standards 250 and IEC 60529, as applicable, for explanations of
the degrees of protection provided by different types of enclosure.
ATTENTION This equipment is sensitive to electrostatic discharge that can cause internal
damage and affect normal operation. Follow these guidelines when you
handle this equipment.
•Touch a grounded object to discharge potential static.
•Wear an approved grounding wrist strap.
•Do not touch connectors or pins on component boards.
•Do not touch circuit components inside the equipment.
•Use a static-safe workstation if available.
•Store the equipment in appropriate static-safe packaging when not in
use.

41732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009
About the ArmorBlock 2 Port Ethernet Module
The EtherNet/IP ArmorBlock is a 24V DC I/O module that communicates
via EtherNet/IP. The sealed IP65, IP67 and IP69K housing of these modules
requires no enclosure. Note that environmental requirements other than IP65,
IP67 and IP69K may require an additional appropriate enclosure. I/O
connectors are sealed M12 style.
EtherNet/IP networks use advanced network technology, for example,
producer/consumer communication, to increase network functionality and
throughput.

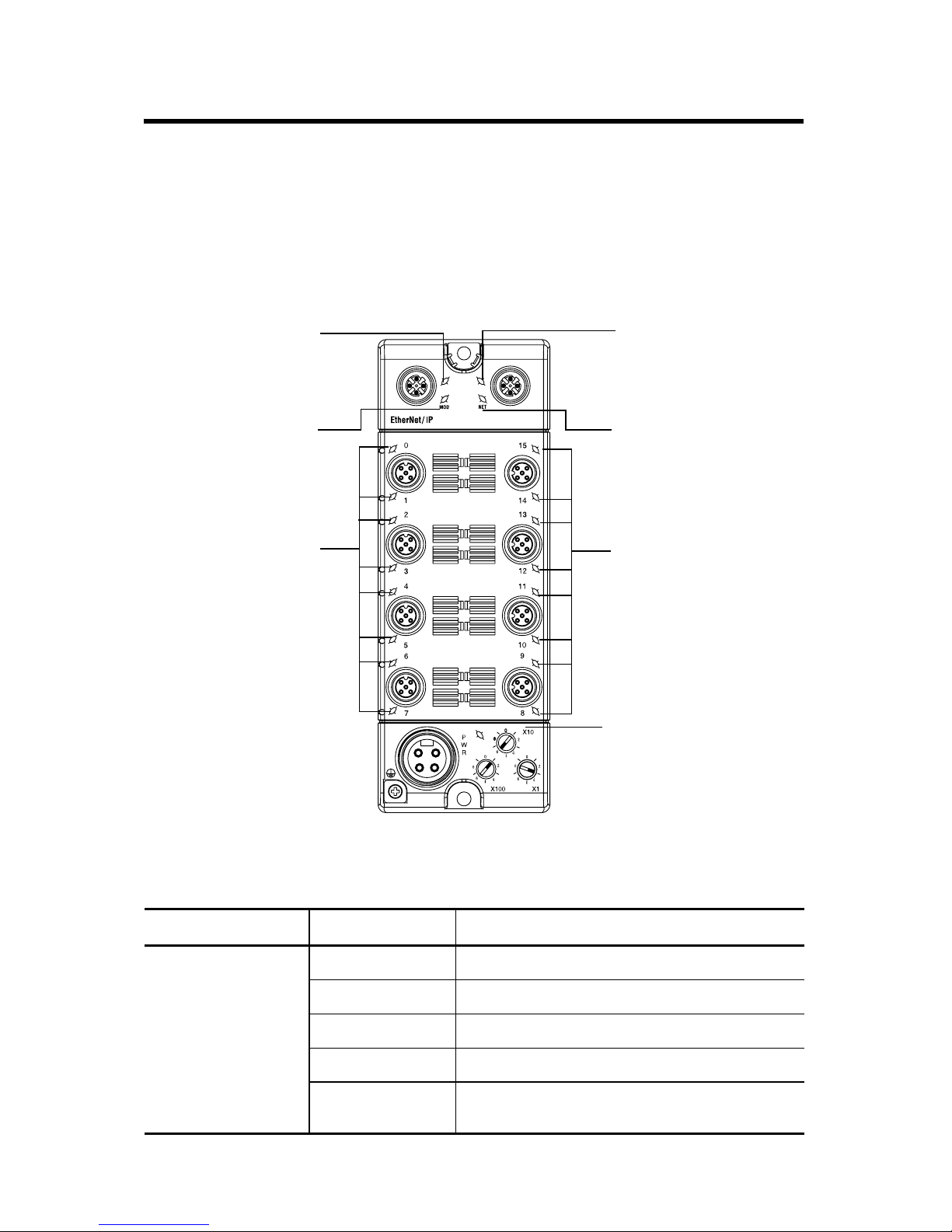

EtherNet/IP ArmorBlock 16-Point I/O Module
(1) Functional Earth grounds the I/O block’s EtherNet/IP communication circuitry which is designed to
mitigate the effect of noise on the network. Refer to EtherNet/IP Connectors on page 9 for
connections.
(2) Protective Earth is provided for the grounding of field devices and is internally connected to each Pin 5 of
the M12 I/O connectors. Refer to I/O Connectors on page 8 for connections.
LINK 1 LINK 2
44945
Status LEDs
Auxiliary power
Functional Earth(1)
Node address
switches
Protective Earth(2)
EtherNet/IP D-Code
M12 connector
EtherNet/IP D-Code
M12 connector
M12 I/O connectors M12 I/O connectors

1732E ArmorBlock 2 Port Ethernet Module 5
Publication 1732E-IN004A-EN-E - November 2009
Catalog Number Explanation
Refer to the table for a description of the modules’ catalog numbers.
Install the Module
Refer to the following sections to install your module.
•Set the Network Address
•Mount the Module
•Connect the I/O, Network and Auxiliary cables to the ArmorBlock
Module
Cat. No. Description Network
Connector
Auxiliary
Power
1732E-IB16M12R 16 Channel 24V DC Digital Input Dual-Port
Ethernet Module Dual D-Code M12 Single 4-pin mini
1732E-OB16M12R 16 Channel 24V DC Digital Output Dual-Port
Ethernet Module
1732E-16CFGM12R 16 Channel 24V DC Configurable Digital I/O
Dual-Port Ethernet Module
1732E-IB16M12DR Diagnostic 16 Channel 24V DC Digital Input
Dual-Port Ethernet Module Dual D-Code M12 Single 4-pin mini
1732E-OB16M12DR Diagnostic 16 Channel 24V DC Digital Output
Dual-Port Ethernet Module
1732E-8X8M12DR Diagnostic 8-Input/8-Output 24V DC Digital I/O
Dual-Port Ethernet Module Dual D-Code M12 Single 4-pin mini
1732E-IB16M12SOEDR Diagnostic Sequence of Events 16 Channel 24V
DC Digital Input Dual-Port Ethernet Module Dual D-Code M12 Single 4-pin mini

61732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009
Set the Network Address
The I/O block ships with the rotary switches set to 999 and DHCP enabled.
To change the network address, you can do one of the following:
•adjust the switches on the front of the module.
•use a Dynamic Host Configuration Protocol (DHCP) server, such as
Rockwell Automation BootP/DHCP.
•retrieve the IP address from nonvolatile memory.
The I/O block reads the switches first to determine if the switches are set to a
valid number. Set the network address by adjusting the 3 switches on the front
of the module (refer to the illustration on page 6). Use a small blade
screwdriver to rotate the switches. Line up the small notch on the switch with
the number setting you wish to use. Valid settings range from 001...254.
Network Address Example
When the switches are set to a valid number, the I/O block’s IP address is
192.168.1.xxx (where xxx represents the number set on the switches). The
I/O block’s subnet mask is 255.255.255.0 and the gateway address is set to
0.0.0.0. When the I/O block uses the network address set on the switches, the
I/O block does not have a host name assigned to it or use any Domain Name
Server.
If the switches are set to an invalid number (for example, 000 or a value
greater than 254 excluding 888), the I/O block checks to see if DHCP is
enabled. If DHCP is enabled, the I/O block asks for an address from a
DHCP server. The DHCP server also assigns other Transport Control
Protocol (TCP) parameters.
If DHCP is not enabled, the I/O block uses the IP address (along with other
TCP configurable parameters) stored in nonvolatile memory.
This example shows
the network address
set at 63.
44233

1732E ArmorBlock 2 Port Ethernet Module 7
Publication 1732E-IN004A-EN-E - November 2009
Mount the Module
Two sets of mounting holes are used to mount the module directly to a panel
or machine. Mounting holes accommodate #8 (M4) pan head screws. The
torque specification is 1.13 Nm (10 in-lb).
Product Dimensions
Refer to the mounting dimensions illustration to help you mount the modules.
LINK 1 LINK 2
44946
43.25 mm
(1.70 in.)
26.5 mm
(1.04 in.)
65 mm
(2.56 in.)
179 mm
(7.05 in.) 169 mm
(6.64 in.)
Front view Side view

81732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009
Mount the Module in High Vibration Areas
If you mount the module in an area that is subject to shock or vibration, we
recommend you use a flat and a lock washer to mount the module. Mount the
flat and the lock washer as shown in the mounting illustration. Torque the
mounting screws to 1.13 Nm (10 in-lb).
High Vibration Area Mounting
Connect the I/O, Network and Auxiliary Cables to the ArmorBlock Module
The ArmorBlock EtherNet/IP family has 5-pin micro-style connectors. We
provide caps to cover the unused connectors on your module. Connect the
quick-disconnect cord sets you selected for your module to the appropriate
ports.
I/O Connectors
Refer to the pinout diagrams for the I/O connectors.
44766
Lock washer
Flat washer
1 2
4
5
3
Micro-style 5-Pin Input Female Connector
(View into connector)
Pin 1 Sensor source voltage
Pin 2 Input B
Pin 3 Return
Pin 4 Input A
Pin 5 PE
44807

1732E ArmorBlock 2 Port Ethernet Module 9
Publication 1732E-IN004A-EN-E - November 2009
EtherNet/IP Connectors
Refer to the pinout diagrams for the network connectors.
IMPORTANT Use the 1585D–M4DC–H: Polyamide small body unshielded or the
1585D–M4DC–SH: Zinc die-cast large body shielded mating connectors
for the D-Code M12 female network connector.
1 2
4
5
3
Micro-style 5-Pin Output Female Connector
(View into connector)
Pin 1 Not used
Pin 2 Output B
Pin 3 Return
Pin 4 Output A
Pin 5 PE
44807
1 2
4
5
3
Self-configuring Connector
(View into connector)
Pin 1 Sensor source voltage
Pin 2 Input or output B
Pin 3 Return
Pin 4 Input or output A
Pin 5 PE
44807
4
2
31
5
D-Code M12 Network Female Connector
(View into connector)
Pin 1 M12_Tx+
Pin 2 M12_Rx+
Pin 3 M12_Tx-
Pin 4 M12_Rx-
Pin 5 Connector shell shield FE
44808

10 1732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009
The 1732E-16CFGM12R self-configuring module contains both input and
output functionality.
•If an I/O point is to be an output, dedicate that point as an output
with a wired load and energize it through a control program.
•Energized outputs show an associated active input that can be used as
a feedback mechanism to make certain that the output is on.
•If an I/O point is to be an input, wire the input device as normal and
leave the associated output de-energized at all times.

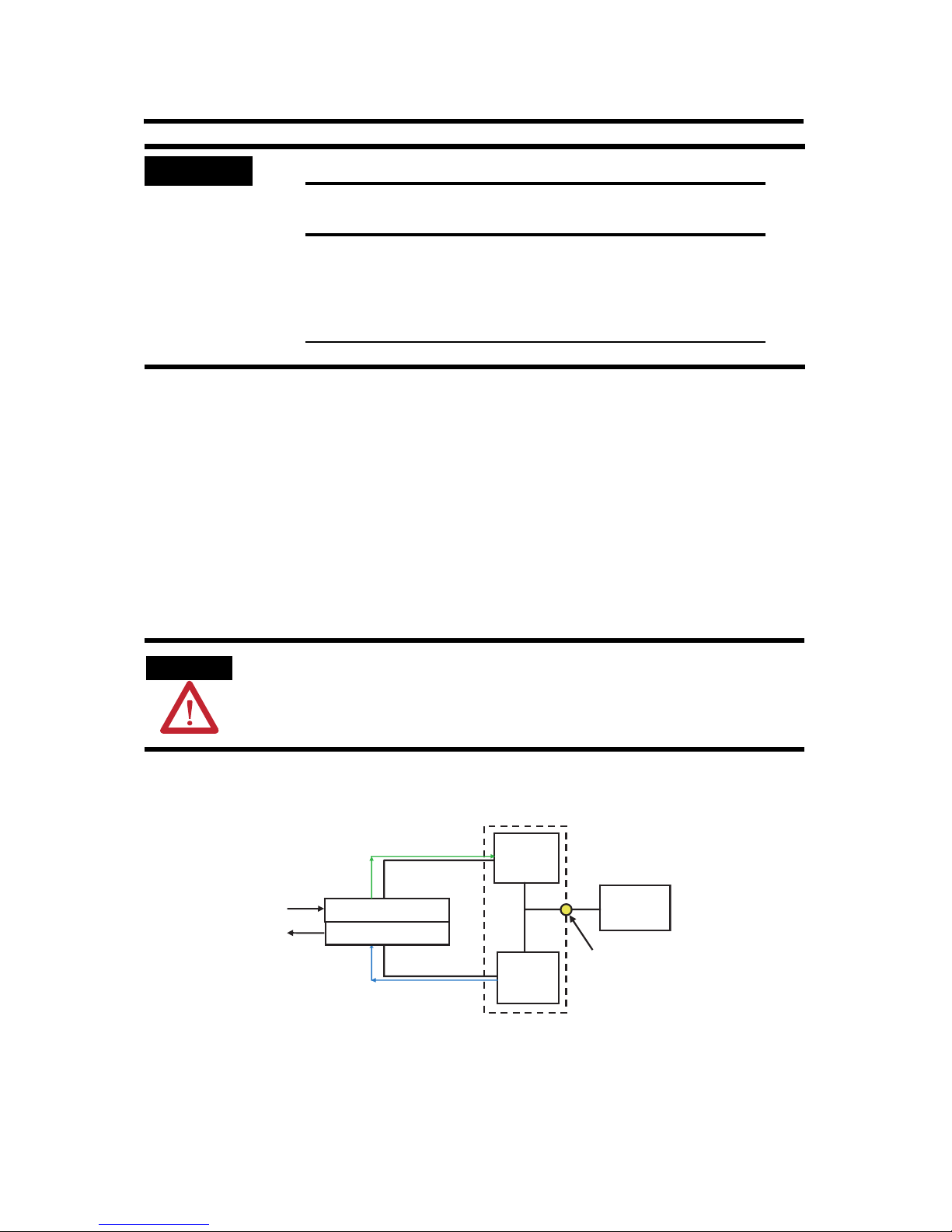

I/O Self-configure Circuitry
IMPORTANT Use two twisted pair CAT5E UTP or STP cables.
ATTENTION Make sure all connectors and caps are securely tightened to properly seal the
connections against leaks and maintain IP enclosure type requirements.
D-Code
M12 Pin
Wire Color Signal 8-way Modular
RJ45 Pin
1 White-Orange TX+ 1
2 White-Green RX+ 3
3 Orange TX- 2
4 Green RX- 6
Output scan list
Turn output on Output
circuit
Sensor or
actuator
Connector pin
Input is on
(Or output is on)
Input
circuit
43601
Input scan list
From PLC
To PLC

1732E ArmorBlock 2 Port Ethernet Module 11
Publication 1732E-IN004A-EN-E - November 2009

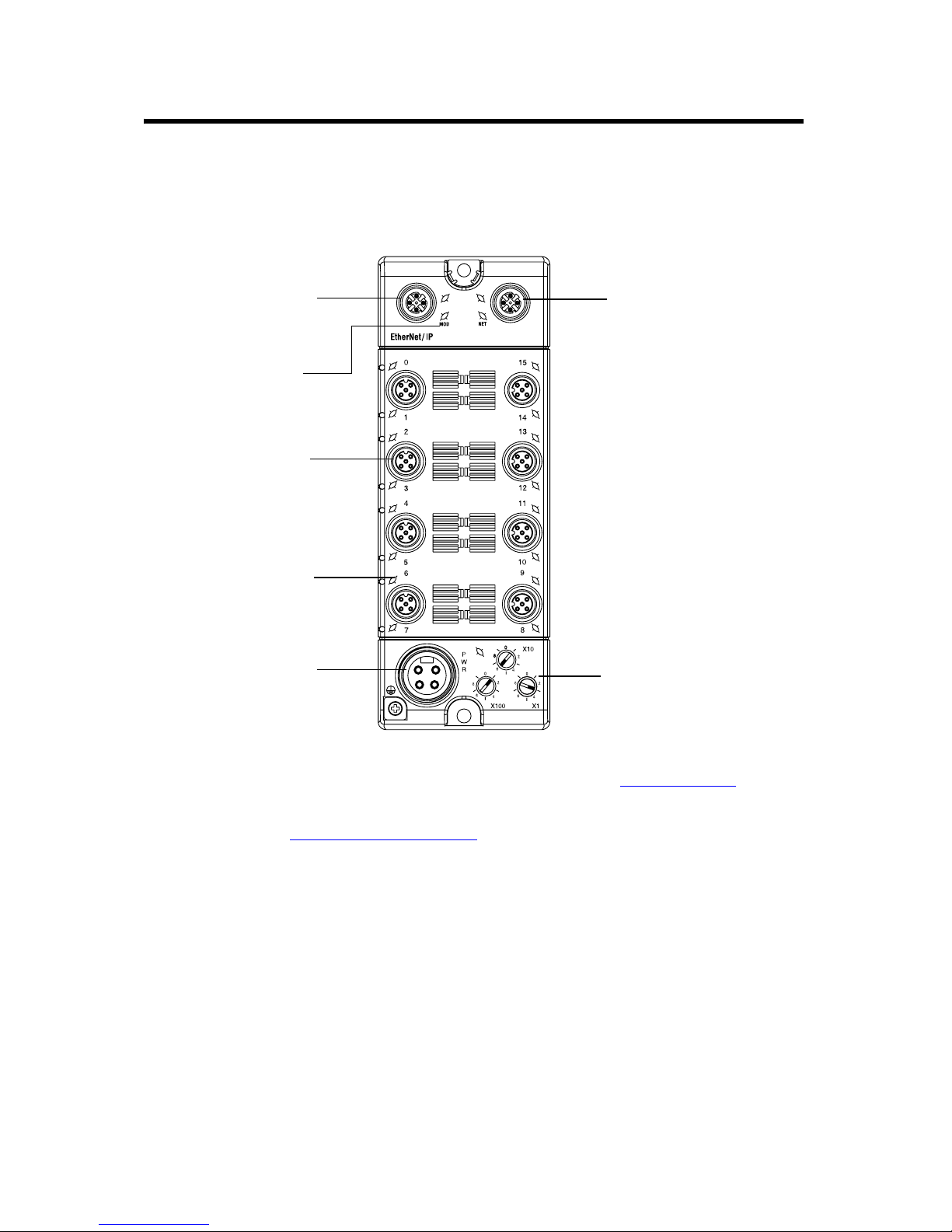

Refer to the illustration for configuration operations.
Configure Operations
Refer to On-Machine Connectivity Catalog, publication M116-CA001, for
Rockwell Automation cable and cord set offerings or use the configuration
tools available at www.ab.com/e-tools/.
LINK 1 LINK 2
EtherNet/IPD-Code
M12 connector
Network address switches
Module/network
status LED indicators
I/O status LED
indicators
Auxiliary power
44945
Eight M12 I/O
connectors
EtherNet/IPD-Code
M12 connector

12 1732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009

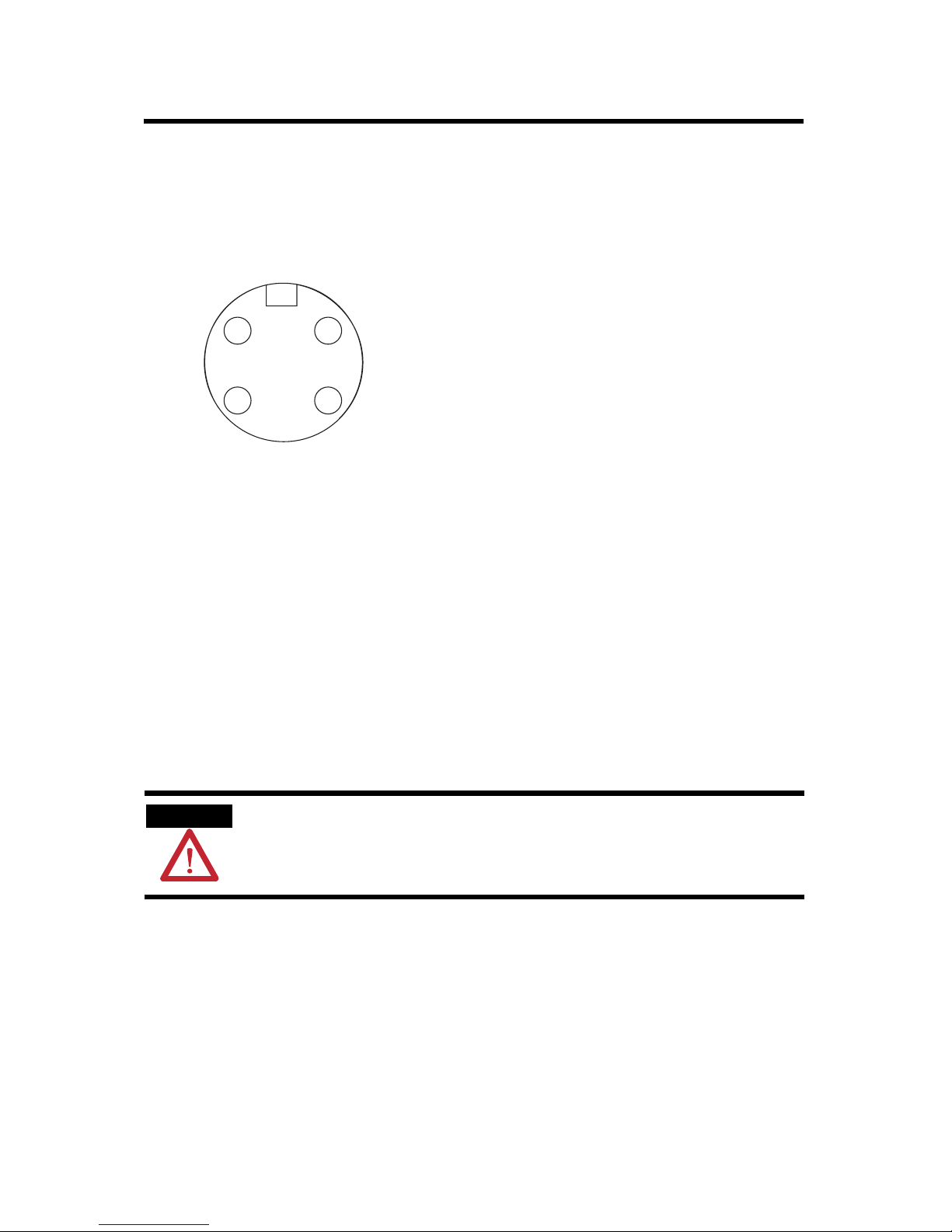

Auxiliary Power Cable
Attach the mini-style 4-pin connector to the mini-style 4-pin receptacle as
shown below.
Auxiliary Power is based on a 4-pin connector system and is used to provide
24V DC power to I/O modules and other devices. Running separate power to
these devices is most typically used for I/O devices with output connections
to prevent power supply interruption due to switching of outputs. However,
some devices require separate auxiliary power to power them regardless of the
presence of outputs.
Depending on the devices used, it may be possible to provide power through
only one pair of the four available pins, and in this case the other available pair
may be used for single channel E-stop through the use of special E-stop drop
or power T-ports and shorting plugs. Allen-Bradley E-stop T-ports and
shorting plugs are red in color for easy identification.
ATTENTION To comply with the CE Low Voltage Directive (LVD), this equipment and all
connected I/O must be powered from a source compliant with the following:
Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).
4 2
3 1
Mini-style 4-Pin Input Male Receptacle
(View into receptacle)
Pin 1 Output power+
Pin 2 Sensor/MDL power+
Pin 3 Sensor/MDL power-
Pin 4 Output power-
44809

1732E ArmorBlock 2 Port Ethernet Module 13
Publication 1732E-IN004A-EN-E - November 2009
Interpret LED Indicators
This module has the following indicators:
•Network, Module, and Link status indicators for EtherNet/IP
•Auxiliary Power indicator
•Individual I/O status indicators for inputs and outputs
Indicator Status for Modules
Status Description
Module status Off No power applied to device.
Flashing red/green Device is in self-test.
Green Device operating normally.
Flashing red Recoverable fault.
Red Unrecoverable fault – may require device
replacement.
LINK 1 LINK 2
Link
status
indicator
Auxiliary power
status indicator
Module
status
indicator
44945
I/O status
indicators
Link
status
indicator
Network
status
indicator
I/O status
indicators

14 1732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009
Network status Off The device is not initialized or the module does not
have an IP address.
Flashing green The device has no CIP connections.
The device has an IP address, but no CIP connections
are established.
Green The device is online, has an IP address, and CIP
connections are established.
Flashing red One or more connections have timed out.
Red The module has detected that its IP address is
already in use.
Flashing red/green The module is performing a powerup self-test.
Network link status Off No link established.
Green Link established on indicated port at 100 Mbps.
Flashing green Link activity present on indicated port at 100 Mbps.
Yellow Link established on indicated port at 10 Mbps.
Flashing yellow Link activity present on indicated port at 10 Mbps.
Auxiliary status Off No auxiliary power to device or input not valid.
Green Auxiliary power applied to device.
Digital output status(1) Off Output not energized.
Yellow Output energized.
Red Output shorted.
Flashing red Output open load.
Digital input status(1) Off No valid input.
Yellow Valid input.
Red Sensor source voltage shorted.
Flashing red Sensor source open wire.
(1) Only diagnostic modules 1732E-*DR have red I/O status LEDs.
IMPORTANT The Module Status LED indicator will flash red and green for a maximum
30 s while the module completes its POST (Power-On Self Test).
Indicator Status for Modules
Status Description

1732E ArmorBlock 2 Port Ethernet Module 15
Publication 1732E-IN004A-EN-E - November 2009
Specifications
ArmorBlock 2 Port Ethernet Module Input – 1732E-8X8M12DR, 1732E-IB16M12R,
1732E-IB16M12DR, 1732E-IB16M12SOEDR, 1732E-16CFGM12R
Attributes Value
Number of inputs 8 – 1732E-8X8M12DR
16 – all other modules
Input type Sink, 24V DC
Voltage, off-state input, max 5V DC
Voltage, on-state input, max 30V DC
Voltage, on-state input, nom 24V DC
Voltage, on-state input, min 11V DC
Current, off-state input, max 1.5 mA @ 5V DC
Current, on-state input, max 5 mA @ 30V DC
Voltage, sensor source, max 30V DC
Voltage, sensor source, min 10V DC
Input delay time
ON to OFF
OFF to ON
0…16000 μs
Isolation voltage 50V (continuous), Basic Insulation Type, Inputs and Sensor Power to
Network
No isolation between individual Inputs or between Network channels
Type tested at 707V DC for 60s
ArmorBlock 2 Port Ethernet Module Output – 1732E-8X8M12DR,
1732E-OB16M12R, 1732E-OB16M12DR, 1732E-16CFGM12R
Attributes Value
Number of outputs 8 – 1732E-8X8M12DR
16 – all other modules
Output type Source, 24V DC
Voltage drop, on-state output,
max 0.5V DC
Voltage off-peak blocking, min 30V DC
Voltage, on-state output, max 30V DC

16 1732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009
Voltage, on-state output, min 11V DC
Voltage, on-state output, nom 24V DC
Current on-state output, max 2 A – 1732E-OB16M12R
0.5 A – all other modules
Current per module, max 4.0 A – 1732E-8X8M12DR
8.0 A – all other modules
Leakage current, off-state
output, max 50 μA
Surge current per output, max 4.8 A for 10 ms, repeatable every 2 s – 1732E-OB16M12R
1.2 A for 10 ms, repeatable every 2 s – all other modules
Isolation voltage 50V (continuous), Basic Insulation Type, Outputs and Output Power to
Network
No isolation between individual Outputs or between Outputs and
Output power or between Network channels
Type tested at 707V DC for 60s
Pilot duty rating DC-14
General Specifications
Attributes Value
Voltage, auxiliary power, max 30V DC
Voltage, auxiliary power, min 12V DC
Current, Ethernet system power, max
(pins 2, 3 sensor source/module power) 0.4 A – 1732E-OB16M12R, 1732E-OB16M12DR 0.8 A – 1732E-8X8M12DR
1.2 A – 1732E-IB16M12R, 1732E-IB16M12DR,
1732E-IB16M12SOEDR, 1732E-16CFGM12R
Current, auxiliary power, max per output module
(pins 2, 3 sensor source/module power plus
pins 1, 4 for output loads)
4 A – 1732E-8X8M12DR
8 A – all other modules
Current, sensor source, per input, max 50 mA
Current, sensor source, per connector, max 100 mA
Communication rate EtherNet/IP
10/100 Mbps
Full or half-duplex
100 meter per segment
ArmorBlock 2 Port Ethernet Module Output – 1732E-8X8M12DR,
1732E-OB16M12R, 1732E-OB16M12DR, 1732E-16CFGM12R
Attributes Value

1732E ArmorBlock 2 Port Ethernet Module 17
Publication 1732E-IN004A-EN-E - November 2009
LED indicators Module Status - red/green
Network Status - red/green
Link Status - green/yellow
Auxiliary Power - green
I/O LED - yellow
I/O LED - yellow/red – 1732E-*DR modules only
Dimensions (HxWxD), approx. 179 x 65 x 43.25 mm (7.05 x 2.56 x 1.70 in.)
Weight, approx. 0.34 kg (0.75 lb)
Enclosure type rating Meets IP65/66/67/69K (when marked)
Wiring category(1) 1 - on signal ports
1 - on power ports
1 - on communications ports
(1) Use this Conductor Category information for planning conductor routing. Refer to publication 1770-4.1,
Industrial Automation Wiring and Grounding Guidelines.
Environmental Specifications
Attribute Value
Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold),
IEC 60068-2-2 (Test Bd, Operating Dry Heat),
IEC 60068-2-14 (Test Nb, Operating Thermal Shock):
-20…60 °C (-4…140 °F)
Temperature, storage IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold),
IEC 60068-2-2 (Test Bb, Unpackaged Non-operating Dry Heat),
IEC 60068-2-14 (Test Na, Unpackaged Non-operating Thermal Shock):
-40…85 °C (-40…185 °F)
Relative humidity IEC 60068-2-30 (Test Db, Unpackaged Damp Heat):
5…95% non-condensing
Vibration IEC60068-2-6 (Test Fc, Operating):
5 g @ 10…500 Hz
Shock, operating IEC60068-2-27 (Test Ea, Unpackaged Shock):
30 g
Shock, non-operating IEC60068-2-27 (Test Ea, Unpackaged Shock):
50 g
Emissions CISPR 11:
Group 1, Class A
General Specifications
Attributes Value

18 1732E ArmorBlock 2 Port Ethernet Module
Publication 1732E-IN004A-EN-E - November 2009
ESD immunity IEC 61000-4-2:
6 kV contact discharges
8 kV air discharges
Radiated RF immunity IEC 61000-4-3:
10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz
10V/m with 200 Hz 50% Pulse 100% AM @ 900 Mhz
10V/m with 200 Hz 50% Pulse 100% AM @ 1890 Mhz
3V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz
EFT/B immunity IEC 61000-4-4:
±4 kV @ 5 kHz on power ports
±3 kV @ 5 kHz on signal ports
±3 kV @ 5 kHz on communications ports
Surge transient immunity IEC 61000-4-5:
±1 kV line-line(DM) and ±2 kV line-earth(CM) on power ports
±1 kV line-line(DM) and ±2 kV line-earth(CM) on signal ports
±2 kV line-earth(CM) on communications ports
Conducted RF immunity IEC 61000-4-6:
10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz
Certifications
Certification (when
product is marked)(1)
Value
c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See
UL File E322657.
CE European Union 2004/108/EC EMC Directive, compliant with:
EN 61326-1; Meas./Control/Lab., Industrial Requirements
EN 61000-6-2; Industrial Immunity
EN 61000-6-4; Industrial Emissions
EN 61131-2; Programmable Controllers (Clause 8, Zone A & B)
C-Tick Australian Radiocommunications Act, compliant with:
AS/NZS CISPR 11; Industrial Emissions
EtherNet/IP ODVA conformance tested to Ethernet/IP specifications.
(1) See the Product Certification link at http://www.ab.com for Declarations of Conformity, Certificates,
and other certification details.
Environmental Specifications
Attribute Value

1732E ArmorBlock 2 Port Ethernet Module 19
Publication 1732E-IN004A-EN-E - November 2009
Notes:

Rockwell Automation Support
Rockwell Automation provides technical information on the Web to assist you in using
its products. At http://support.rockwellautomation.com, you can find technical
manuals, a knowledge base of FAQs, technical and application notes, sample code and
links to software service packs, and a MySupport feature that you can customize to
make the best use of these tools.
For an additional level of technical phone support for installation, configuration, and
troubleshooting, we offer TechConnect support programs. For more information,
contact your local distributor or Rockwell Automation representative, or visit
http://support.rockwellautomation.com.
Installation Assistance
If you experience a problem within the first 24 hours of installation, please review the
information that's contained in this manual. You can also contact a special Customer
Support number for initial help in getting your product up and running.
New Product Satisfaction Return
Rockwell Automation tests all of its products to ensure that they are fully operational
when shipped from the manufacturing facility. However, if your product is not
functioning and needs to be returned, follow these procedures.
Allen-Bradley, Rockwell Automation, ArmorBlock and TechConnect are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
United States 1.440.646.3434
Monday – Friday, 8 a.m. – 5 p.m. EST
Outside United States Please contact your local Rockwell Automation representative for any
technical support issues.
United States Contact your distributor. You must provide a Customer Support case number
(see phone number above to obtain one) to your distributor in order to
complete the return process.
Outside United States Please contact your local Rockwell Automation representative for the return
procedure.
Publication 1732E-IN004A-EN-E - November 2009
Copyright © 2009 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
