Allen-Bradley 2711P-RDT12H User manual

Installation Instructions
Original Instructions
High-bright Display Modules
Catalog Number 2711P-RDT12H
Topic Page
Important User Information 2
Summary of Changes 3
About the Module 3
Environment and Enclosure 4
Outdoor Installation 4
Hazardous Locations 5
Environnements dangereux 6
Wiring and Safety Guidelines 8
About the Terminals 9
Install the Terminal 9
Logic Module Compatibility 13
External Power Supply For Nonisolated DC Terminals 13
External Power for Isolated DC Terminals 14
Remove and Install the Power Terminal Block 15
DC Power Connections 16
Ethernet Cable 17
Troubleshooting 18
Specifications 20
Additional Resources 22

2Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and operation of
this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with
installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be
carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or
application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual
use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous
environment, which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death,
property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the
consequence.
IMPORTANTIdentifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
dangerous voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
surfaces may reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert
people to potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective
Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and for Personal Protective
Equipment (PPE).

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 3
High-bright Display Modules
Summary of Changes
This document contains new and updated information as indicated in the following table.
About the Module
This document provides instructions on how to install the PanelView™ Plus, PanelView Plus CE,
and PanelView Plus 6 high-bright display module in a panel or enclosure.
Refer to the installation instructions shipped with the logic module and communication module
for field installation of these components.
For complete information on installing , wiring , and troubleshooting the terminals, refer to the
publications listed under Additional Resources.
Topic Page
Updated the Attention note in the section titled External Power Supply for Nonisolated DC Terminals. 13
Removed outdated error messages from the Troubleshooting section and added references to appropriate user
manuals. 18

4Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
Environment and Enclosure
See the Outdoor Installation section for additional enclosure and certification information on
the high-bright display modules.
Outdoor Installation
When using the high-bright display module, catalog number 2711P-RDT12H, outdoors,
considerations in maximizing the field life of the front bezel and display are the following:
• Selecting the proper enclosure
• Orientation of the terminal
Both ultraviolet and infrared radiation can reduce the field life of any electronic device. While
the materials used in the terminal bezels provide long field life, that life can be improved by
proper installation.
Ultraviolet (UV) radiation from the sun causes all plastics to fade or yellow and become brittle
over time. Using an antiglare overlay, catalog number 2711P-RGT12, will protect the front of
the terminal from direct exposure to UV radiation and greatly increase its field life.
When installing the high-bright display module in an environment where the front of the
terminal will be in direct sunlight during the hottest part of the day and the external ambient
temperature can exceed 40 °C (104 °F), use the visor kit, catalog number 2711P-RVT12. The
visor reduces the solar load on the front of the display and helps to maintain internal
temperatures within specification.
ATTENTION: This equipment is intended for use in a Pollution Degree 2 industrial environment, in
overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to
2000 m (6561 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR
Publication 11. Without appropriate precautions, there may be potential difficulties ensuring
electromagnetic compatibility in other environments due to conducted as well as radiated
disturbance.
This equipment is supplied as open-type equipment. It must be mounted within an enclosure that
is suitably designed for those specific environmental conditions that will be present and
appropriately designed to prevent personal injury resulting from accessibility to live parts. The
interior of the enclosure must be accessible only by the use of a tool. The terminals meet specified
NEMA Type and IEC ratings only when mounted in as panel or enclosure with the equivalent rating.
Subsequent sections of this publication may contain additional information regarding specific
enclosure type ratings that are required to comply with certain product safety certifications.
In addition to this publication, see:
• Industrial Automation Wiring and Grounding Guidelines, for additional installation
requirements, Allen-Bradley publication 1770-4.1.
• NEMA Standards publication 250 and IEC publication 60529, as applicable, for explanations of
the degrees of protection provided by different types of enclosure.

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 5
High-bright Display Modules
The high-bright display module has a built-in temperature sensor that automatically reduces the
backlight intensity if the temperature inside the cabinet exceeds 55 °C (131 °F). This reduces the
risk of damage to the display.
The paint color, size, and power dissipated by the internal components of an enclosure affect the
temperature rise inside the cabinet. Hoffman, a Rockwell Automation Encompass Partner, has
information to assist you with enclosure selection and heating/cooling accessories to meet the
temperature requirements of the installed equipment. See website
http://www.hoffmanonline.com.
Stirring fans or active cooling may be required in high altitude and high ambient temperature
locations to keep the internal enclosure temperature below 55 °C (131 °F). Use a heater in
installations where the ambient temperature is below 0 °C (32 °F).
The backlight of the high-bright display generates a significant amount of heat when set to full
intensity. To minimize the amount of heat generated and extend the life of the backlight,
decrease the display intensity by using the screen saver with a 5…10 minute delay.
Avoid placing the terminal on the south (north in the southern hemisphere) or west side of the
cabinet, if possible. This will reduce the heat rise due to solar loading during the hottest part of
the day.
Mount the terminal vertically to minimize solar loading on the display. Do not mount the
terminal in a sloped enclosure if it will be exposed to direct sunlight.
Hazardous Locations
This equipment is suitable for these locations:
• Class I, Division 2 Groups A, B, C, D
• Class II, Division 2 Groups F, G
• Class III
• Ordinary, nonhazardous locations only
The following statement applies to use in hazardous locations.
The PanelView Plus, PanelView Plus CE, or PanelView Plus 6 terminals have a temperature code
of T4 when operating in a 55 °C (131 °F) maximum ambient temperature. Do not install the
WARNING: Explosion Hazard
• Substitution of components may impair suitability for hazardous locations.
• Do not disconnect equipment unless power has been switched off and area is known to be
nonhazardous.
• Do not connect or disconnect components unless power has been switched off.
• All wiring must comply with N.E.C. articles 501, 502, 503, and/or C.E.C. section 18-1J2 as
appropriate.
• Peripheral equipment must be suitable for the location in which it is used.

6Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
terminals in environments where atmospheric gases have ignition temperatures less than 135 °C
(275 °F).
Environnements dangereux
Cet équipement ne peut être utilisé que dans les environnements suivants :
• Classe I, Division 2, Groupes A, B, C, D
•ClasseII,Division2,GroupesF,G
• Classe III
• ou environnements non-dangereux
La mise en garde suivante s'applique à une utilisation en environnement dangereux.
Le code de température de fonctionnement des terminaux PanelView Plus, PanelView Plus CE,
ou PanelView Plus 6 est T4 pour une température ambiante maximale de 55 °C (131 °F).
N'installez pas les terminaux dans des environnements contenant des gaz atmosphériques
inflammables à moins de 135 °C (275 °F).
USB Ports
The terminals contain universal serial bus (USB) ports that comply with hazardous location
environments. This section details the field-wiring compliance requirements and is provided in
accordance with the National Electrical Code, article 500.
WARNING: DANGER D'EXPLOSION
• La substitution de composants peut rendre cet équipement impropre à une utilisation en
environnement dangereux.
• Ne pas déconnecter l'équipement sans s'être assuré que l'alimentation est coupée ou que
l'environnement est classé non dangereux.
• Ne pas connecter ou déconnecter des composants sans s'être assuré que l'alimentation est
coupée.
• L'ensemble du câblage doit être conforme, selon le cas, aux articles 501-4(b), 502-4(b) et 503-
3(b) du Code national de l'électricité des Etats-Unis.
• L'équipement périphérique doit être adapté à l'environnement dans lequel il est utilisé.

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 7
High-bright Display Modules

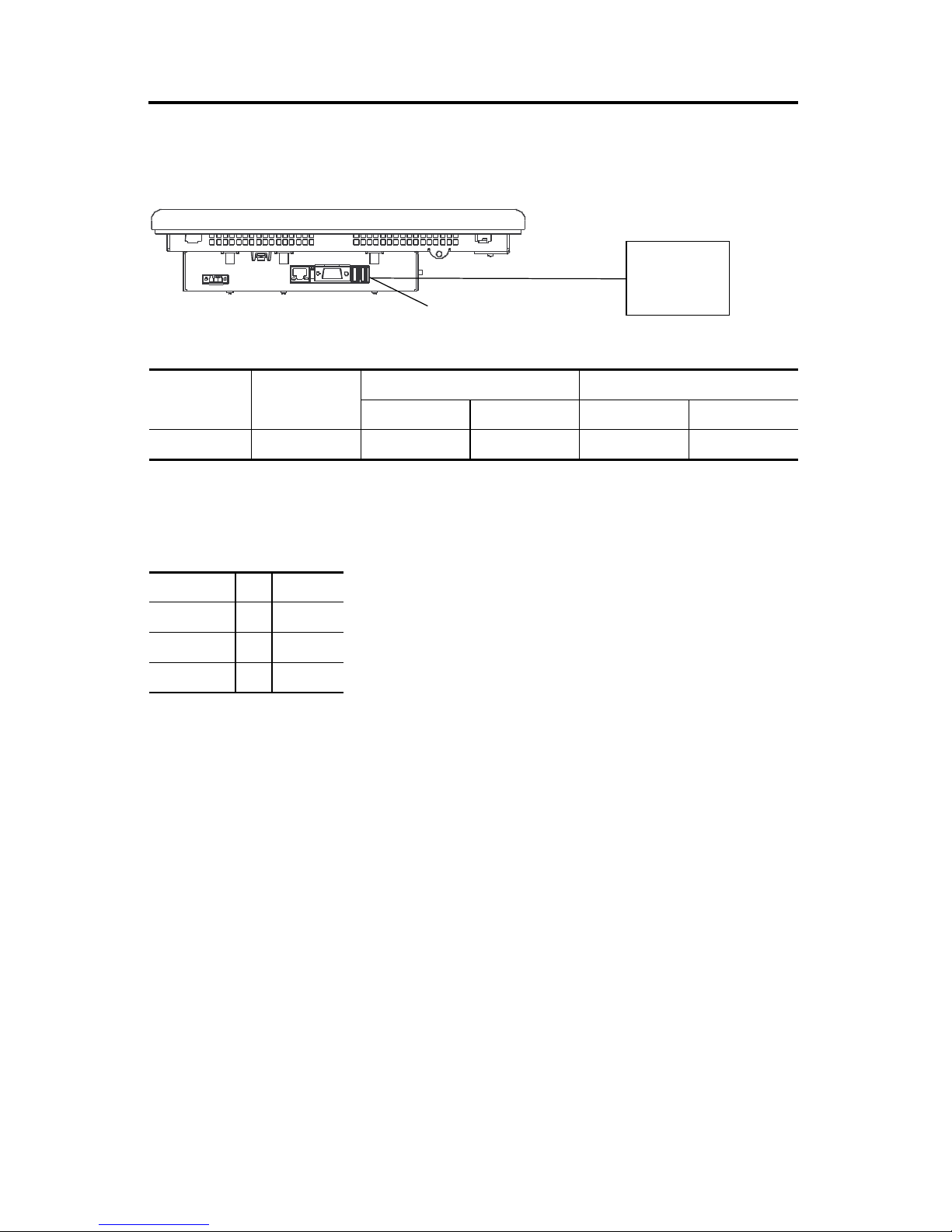

PanelView Plus 700 to 1500 Terminals Control Drawing
Selected nonincendive field wiring apparatus must have nonincendive circuit parameters
conforming with Table 2.
Application Information
Per the National Electrical Code the circuit parameters of nonincendive field wiring apparatus
for use in hazardous locations shall be coordinated with the associated nonincendive field wiring
apparatus such that their combination remains nonincendive. The PanelView Plus 700 to 1500
and the USB peripheral device shall be treated in this manner.
The circuit parameters of the PanelView Plus 700 to 1500 USB port are given in Table 1. The
USB peripheral device and its associated cabling shall have circuit parameters with the limits
given in Table 2 for them to remain nonincendive when used with the PanelView Plus 700 to
1500 USB port. If cable capacitance and inductance are not known the following values from
ANSI/ISA-RP 12.06.01-2003 may be used:
Ccable = 60 pF/ft
Lcable = 0.20 μH/ft
Nonincendive field wiring must be wired and separated in accordance with 501.10(B)(3) of the
National Electrical Code (NEC) ANSI/NFPA 70 or other local codes as applicable.
This associated nonincendive field wiring apparatus has not been evaluated for use in
combination with another associated nonincendive field wiring apparatus.
Table 1 - PanelView Plus 700 to 1500 USB Port Circuit Parameters
Voc Isc
CaLa
Groups A and B Groups C and D Groups A and B Groups C and D
5.25V DC 1.68 A 10 μF 10 μF 15 μH 15 μH
Table 2 - Required Circuit Parameters for the USB Peripheral Device
Vmax ≥V
oc
Imax ≥I
sc
Ci + Ccable ≤C
a
Li+ Lcable ≤L
a
Associated Nonincendive Field Wiring Apparatus
PanelView Plus 700 to 1500 Host Product
Nonincendive Field
Wiring Apparatus
Nonincendive Field Wiring
USB Port
USB
Peripheral
Device

8Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
Symbol Definitions
Wiring and Safety Guidelines
Use publication NFPA 70E, Electrical Safety Requirements for Employee Workplaces, IEC
60364 Electrical Installations in Buildings, or other applicable wiring safety requirements for the
country of installation when wiring the devices. In addition to the NFPA guidelines:
• connect the device and other similar electronic equipment to its own branch circuit.
• protect the input power by a fuse or circuit breaker rated at no more than 15 A.
• route incoming power to the device by a separate path from the communication lines.
• cross power and communication lines at right angles if they must cross.
• Communication lines can be installed in the same conduit as low level DC I/O lines
(less than 10V).
• shield and ground cables appropriately to avoid electromagnetic interference (EMI).
• Grounding minimizes noise from EMI and is a safety measure in electrical installations.
For more information on grounding recommendations, refer to the National Electrical Code
published by the National Fire Protection Association.
For more information, refer to Wiring and Grounding Guidelines for PanelView Plus Devices
Technical Data, publication 2711P-TD001. You can locate this publication in the literature
library at this website a http://www.rockwellautomation.com/literature/.
Voc Open circuit voltage of the host USB port.
Isc Maximum output current of the host USB port.
Vmax
Maximum applied voltage rating of the USB peripheral device.
Vmax shall be greater than or equal to Voc in Table 1 (Vmax ≥ Voc ).
Imax
Maximum current to which the USB peripheral device can be subjected.
Imax shall be greater than or equal to Isc in Table 1 (Imax ≥ Isc).
CiMaximum internal capacitance of the USB peripheral device.
CaMaximum allowed capacitance of the USB peripheral device and its associated cable. The sum of Ci of the USB
peripheral device and Ccable of the associated cable shall be less than or equal to Ca(Ci + Ccable ≤ Ca).
LiMaximum internal inductance of the USB peripheral device.
LaMaximum allowed inductance of the USB peripheral device and its associated cable. The sum of Liof the USB
peripheral device and Lcable of the associated cable shall be less than or equal to La(Li+ Lcable ≤ La).

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 9
High-bright Display Modules
About the Terminals
High-bright display modules are available only as separate components. Logic modules and
communication modules must be ordered separately.
Attach the logic module and communication module to the display module before panel
installation. See the instructions shipped with each module.
Parts List
These items are shipped with the terminals:
• Power terminal block
• Mounting clips
• FactoryTalk View software preloaded
• Installation instructions and panel cutout template
Required Tools
These tools are required for installation:
• Panel cutout tools
• Small, slotted screwdriver
• Torque wrench (lb•in)
Install the Terminal
Before installing the terminal in a panel, review these topics:
• Mounting clearances
• Panel cutout dimensions
• Product dimensions
Logic Module
Display Module
Power Input, DC
Ethernet Port
Serial Port
USB Ports

10 Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
Mounting Clearances
Allow adequate clearance around the terminal, inside the enclosure, for adequate ventilation.
Consider heat produced by other devices in the enclosure. The ambient temperature around the
terminals must be between 0…55 °C (32…131 °F).
These minimum clearances are required for ventilation:
• Top clearance: 51 mm (2 in.)
• Bottom clearance: 102 mm (4 in.)
• Side clearances: 25 mm (1 in.)
• Back clearance: 25 mm (1 in.)
Minimum side clearance for insertion of memory card is 102 mm (4 in.).
Panel Cutout Dimensions
Use the full size template shipped with your terminal to mark the cutout dimensions.
The 1250 Touch PanelView Plus, PanelView Plus CE, and PanelView Plus 6 Terminals are 257
mm (10.11 in.) high and 338 mm (13.29 in.) wide.
Mount the Terminal in a Panel
Four mounting clips secure the terminal to the panel.
Follow these steps to mount the terminal in a panel.
1. Cut an opening in the panel by using the panel cutout shipped with the terminal.
ATTENTION: Disconnect all electrical power from the panel before making the panel cutout.
Make sure the area around the panel cutout is clear.
Take precautions so metal cuttings do not enter any components already installed in the panel.
Failure to follow these instructions may result in personal injury or damage to panel components.

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 11
High-bright Display Modules
2. Make sure the terminal sealing gasket is properly positioned on the terminal.
This gasket forms a compression type seal. Do not use sealing compounds.
3. Place the terminal in the panel cutout.
4. Slide the ends of the mounting clips into the slots on the terminal.
5. Tighten the mounting clip screws by hand until the gasket seal contacts the mounting
surface uniformly.
Sealing Gasket
Mounting Clip Slot
Mounting Clip

12 Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
6. Tighten the mounting clip screws to a torque of 0.90…1.1 N•m (8…10 lb•in) by using
the specified torque sequence, making sure not to over-tighten.
Product Dimensions
The illustration shows product dimensions for the PanelView Plus , PanelView Plus CE 1250,
and PanelView Plus 6 touch screen terminals with the high-bright display module. Depth
dimensions are shown for:
• base configured unit (display module and logic module).
• base configured unit with communication module.
Measurements are in mm (in).
ATTENTION: Tighten the mounting clips to the specified torque to provide a proper seal and
prevent damage to the product. Rockwell Automation assumes no responsibility for water or
chemical damage to the product or other equipment within the enclosure because of improper
installation.
1250
High-bright Touch Screen
282
(11.12)
363
(14.30)
a 74 (2.90) Display to Logic Module
b 101 (3.99) Display to Communication Module
a
b

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 13
High-bright Display Modules
Logic Module Compatibility
The high-bright display module is only compatible with the following DC logic modules.
PanelView Plus, PanelView Plus CE, and PanelView Plus 6 Logic Modules
The high-bright display module is not compatible with AC logic modules catalog number
2711P-RPxAx.
External Power Supply For Nonisolated DC Terminals
Use a single, 24V DC power supply, such as catalog number 2711P-RSACDIN, to power each
PanelView Plus device. Using a separate, isolated and ungrounded source to power each terminal
prevents ground loop currents from damaging the terminals.
The output on the power supply must be isolated from the input and not connected to earth/
ground.
Cat. No. Description
PanelView Plus 700 to 1500 Logic Modules
2711P-RP2 Logic module with 128 MB flash/128 MB RAM, DC input
PanelView Plus CE 700 to 1500 Logic Modules
2711P-RP6 PanelView Plus CE logic module with 128 MB flash/128 MB RAM, DC input
PanelView Plus 6 700 to 1500 Logic Modules
2711P-RP8D PanelView Plus 6 logic module with 1 GB flash/512 MB RAM, DC input
2711P-RP9D PanelView Plus 6 logic module with 1 GB flash/512 MB RAM, DC input, extended features
TIP To identify nonisolated DC logic modules refer to the PanelView Plus Terminals User Manual,
publication 2711P-UM001.
ATTENTION: Use a safety extra-low voltage (SELV) or protective extra-low voltage (PELV) power
supply as required by local wiring codes for your installation. The SELV or PELV power sources
provide protection so that under normal and single-fault conditions, the voltage between the
conductors, and between the conductors and functional earth or protective earth does not exceed
a safe value.

14 Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
Multiple AC Power Supplies to Power Multiple DC Terminals
External Power for Isolated DC Terminals
Use an SELV or PELV 24V DC power supply, such as catalog number 2711P-RSACDIN, to
power the isolated DC PanelView Plus terminal.
The isolated DC terminals may be powered by the same power source as other equipment.
Earth/Ground Connection
PanelView Plus devices with a DC power input have an earth/ground terminal that you must
connect to a low-impedance earth/ground. The earth/ground connection is on the rear of the
display module.
The earth/ground terminal requires a minimum wire gauge.
TIP Isolated DC logic modules are identified by catalog number 2711P-RPxDx.
ATTENTION: Use an SELV or PELV supply as required by local wiring codes for your installation. The
SELV and PELV power sources provide protection so that under normal and single fault conditions,
the voltage between conductors and earth ground does not exceed a safe value.
IMPORTANT The earth/ground connection to ground is mandatory. This connection is required for noise
immunity, reliability, and Electromagnetic Compliance (EMC) with the European Union (EU)
EMC directive for CE-mark conformance. This connection is required for safety by Underwriters
Laboratory.
Attribute Value
Symbol GND
Wire Type Stranded or solid, Cu 90 °C (194 °F)
Wire Gauge 14…10 AWG
Terminal Screw Torque 1.13…1.36 N•m (10…12 lb•in)
Circuitry Circuitry
dc+
PanelView Plus PanelView Plus
AC/DC Power Supply
L1L2
dc- dc+ dc-
L1L2
(2711P-RSACDIN) (2711P-RSACDIN)
AC/DC Power Supply

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 15
High-bright Display Modules
On most PanelView Plus devices, the earth/ground terminal is internally connected to the DC-
terminal within the product.
The PanelView Plus devices have isolated and nonisolated communication ports.
For more information refer to the PanelView Plus Terminals User Manual, publication 2711P-
UM001.
Remove and Install the Power Terminal Block
The terminals ship with a power terminal block installed. You can remove and reinstall the
terminal block for ease of installation, wiring, and maintenance.
• Series A to D, DC logic modules use a three-position terminal block.
• Series E or later, DC logic modules use a two-position terminal block.
Follow these steps to remove the terminal block.
1. Loosen the two screws that secure the terminal block.
ATTENTION: Damage or malfunction can occur when a voltage potential exists between two
separate ground points. Make sure the terminal does not serve as a conductive path between
ground points at different potentials.
WARNING: Explosion Hazard
• Substitution of components may impair suitability for hazardous locations.
• Do not disconnect equipment unless power has been switched off and area is known to be
nonhazardous.
• Do not connect or disconnect components unless power has been switched off.
• All wiring must comply with N.E.C. articles 501, 502, 503, and/or C.E.C. section 18-1J2 as
appropriate.
• Peripheral equipment must be suitable for the location in which it is used.
ATTENTION: Disconnect all power before installing or replacing components. Failure to disconnect
power may result in electrical shock or damage to the terminal.

16 Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
2. Gently pull the terminal block away from the connector.
Follow these steps to install the terminal block.
1. Reattach the terminal block to the connector until seated.
2. Tighten the two screws that secure the terminal block to the connector.
DC Power Connections
DC-powered PanelView Plus devices have an integrated 24V DC power supply. Both isolated
and nonisolated power supplies have these ratings:
• 24V DC nominal (18…32V DC)
• 70 W maximum (2.9 A at 24V DC)
The power supply is internally protected against reverse polarity of the DC+ and DC-
connections.
The input power terminal block supports these wire sizes.
Wire Specifications for DC Input Power Terminal Block
Attribute Value
Wire Type Stranded or solid,
Cu 90 °C (194 °F)
Dual-wire Gauge(1)
(1) Two-wire max per terminal.
22…16 AWG
Single-wire Gauge 22…14 AWG
Terminal Screw Torque
Logic module, series A to D
Logic module, series E and later
0.23…0.34 N•m (2…3 lb•in)
0.56 N•m (5 lb•in)
Two-position Terminal Block
(Series E or later logic module)
Three-position Terminal Block
(Series A to D logic modules)

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 17
High-bright Display Modules
Connect DC Power
Follow these steps to connect the terminal DC power.
1. Verify that the terminal is not connected to a power source.
2. Secure the DC power wires to the terminal block.
Follow the markings on the terminal blocks and the terminal for proper connections.
3. Secure the earth/ground wire to the earth/ground terminal screw at the bottom of the
display.
DC Power Supply Connections
Ethernet Cable
For PanelView Plus 700 to 1500 terminals, use Belden 7921A shielded Ethernet Category 5e
cable according to TIA 568-B.1 and RJ45 connector according to IEC 60603-7 for compliance
with the European Union 89/336/EEC EMC Directive.
WARNING: Explosion Hazard
Do not disconnect equipment unless power has been switched off and the area is known to be
nonhazardous.
Disconnect all power before installing or replacing components. Failure to disconnect power may
result in electrical shock or damage to the terminal.
Three-position Terminal Block
(Series A to D logic modules)
Two-position Terminal Block
(Series E or later logic modules)
Earth/Ground to Ground Bus
DC-
DC-
DC+
DC+
GND

18 Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
The maximum cable length between the terminal's Ethernet port and a 10/100 Base-T port on
an Ethernet hub (without repeaters or fiber) is 100 m (328 ft). For additional information, refer
to the EtherNet/IP Media Planning and Installation Manual, publication ENET-IN001.
Troubleshooting
If the terminal is not operating correctly, check the power, status indicators, and display settings.
For additional troubleshooting techniques, see the following user manuals:
• PanelView Plus Terminals User Manual, publication 2711P-UM001
• PanelView Plus 6 Terminals User Manual, publication 2711P-UM006
Check for Adequate Power
A terminal that does not receive adequate power could cause unpredictable behavior. Verify the
power requirements in the Specifications table.
Check Status Indicators
The terminal has two status indicators to isolate operating problems.
• COMM indicator (green) for communication
• FAULT indicator (red) for hardware faults
When the terminal starts, the fault indicator should be off, except for a few brief flashes, and the
comm indicator on. If the indicators remain off, the power supply or logic module has failed.
Check the power cable. If the power is not within range, replace the power supply. If the power is
within range, replace the logic module. After a successful startup, both indicators are off and
controlled by the application running on the terminal.
WARNING: Do not connect or disconnect any communication cable with power applied to this
device or any device on the network. An electrical arc could cause an explosion in hazardous
location installations. Be sure that power is removed or the area is nonhazardous before
proceeding.
COMM
FAULT
DEFAULT
RESET
COMM Indicator
FAULT Indicator

Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018 19
High-bright Display Modules
The table shows indicator states if the terminal powers up and stops during startup.
Check the Display
If the terminal display is dim or unreadable:
• check the brightness setting of the display. From Configuration mode on the terminal,
access Terminal Settings>Display Intensity.
• check the Screen Saver settings. The backlight may be turning off or dimming the display
unexpectedly. From Configuration mode on the terminal, access Terminal
Settings>Display>Screen Saver.
• check the display temperature. From the Configuration mode on the terminal, access
Terminal Settings>Display>Display Temperature. The high-bright display module has a
built-in temperature sensor that automatically reduces the backlight intensity if the
temperature inside the cabinet exceeds 55 °C (131 °F).
Indicator States if the Terminal Stops During Startup
Fault (Red)
Indicator
Comm (Green)
Indicator Description Recommended Action
Blinking red indicator identifies a recoverable error.
Blinking Off Last firmware download failed. Reload firmware by using Firmware
Upgrade Wizard (FUW) utility.
Blinking Blinking EBC boot loader firmware failed or is
missing.
Reload firmware by using Firmware
Upgrade Wizard (FUW) utility.
Blinking On Windows CE OS firmware failed or is
missing.
Reload firmware by using Firmware
Upgrade Wizard (FUW) utility.
Solid red indicator identifies a nonrecoverable or fatal error.
On Off Fatal hardware error occurred. Replace the logic module.
On Blinking Fatal hardware error in display. Replace the display module.

20 Rockwell Automation Publication 2711P-IN026H-EN-P - May 2018
High-bright Display Modules
Specifications
PanelView Plus, PanelView Plus CE, and PanelView Plus 6 Terminals with High-bright
Display Module
Attribute 2711P-RDT12H
Display
Display type Color active matrix, thin film transistor (TFT) liquid crystal display
(LCD)
Display size 12.1 in.
Display area (W x H) 246 x 184 mm (9.7 x 7.2 in.)
Display resolution 800 x 600
Luminance 1000 cd/m2(Nits)
Backlight Not replaceable
Touch screen Analog resistive
Electrical
Input voltage, DC 24V DC nom (18… 32V DC)
Power consumption, DC 70 W max (2.9 A @24V DC)
Mechanical
Dimensions, (HxWxD) approx. for based configured unit without communication module
1250 high-bright touch 282 x 363 x 74 mm (11.12 x 14.30 x 2.90 in.)
Weight for base configured unit without communication module
1250 high-bright touch 3.2 kg (7.1 lb)
General
Battery life 4 years min. at 25 °C (77 °F)
Clock Battery-backed, ±2 minutes per month
Status indicators COMM (green), Fault (red)
External CompactFlash storage 512 MB max
