Allen-Bradley FLEX Ex 1797-OE8 User manual

Installation Instructions
FLEX Ex 8 Output and HART Analog Modules
Catalog Numbers 1797-OE8, 1797-OE8H
Topic Page
Important User Information
3
Environment and Enclosure 4
Prevent Electrostatic Discharge 5
Removal and Insertion Under Power 5
European Communities (EC) Directive Compliance 6
Installation in Zone 1 8
Installation in Zone 22 8
Install the Module 9
Wire the Module to a 1797-TB3 or 1797-TB3S Terminal Base Unit 11
Ground the Module 13
Outputs 14
1797-OE8 Input Map (Read Words) 16
1797-OE8H Input Map (Read Words) 16
1797-OE8 Output Map (Write Words) 17
1797-OE8H Output Map (Write Words) 17
1797-OE8H Configuration Map 18
Data Format - Write Words 2 and 3 19
Cyclic HART Input DataCyclic HART Input Data 20

2FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
HART Input Data 20
HART Input Data Descriptions 24
HART Read Back Threshold 25
1797-OE8 Configuration Map 26
1797-OE8H Extended Configuration Data Table 27
1797-OE8H Secondary Master Enable (SME)/ Primary Master Inhibit (PMI) 27
Field Descriptions 28
1797-OE8 FLEX Ex Output Module Operation 33
Cooperative Operation of the Adapter and the 1797-OE8H Output Module 34
Specifications 35
Topic Page

FLEX Ex 8 Output and HART Analog Modules 3
Publication 1797-IN003J-EN-P - August 2017
Important User Information
Solid state equipment has operational characteristics differing from those of electromechanical
equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls
(Publication SGI-1.1 available from your local Rockwell Automation sales office or online at
http://literature.rockwellautomation.com) describes some important differences between solid state
equipment and hard-wired electromechanical devices. Because of this difference, and also because of the
wide variety of uses for solid state equipment, all persons responsible for applying this equipment must
satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages
resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the
many variables and requirements associated with any particular installation, Rockwell Automation, Inc.
cannot assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,
equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell
Automation, Inc., is prohibited.
Throughout this manual we use notes to make you aware of safety considerations.
WARNING
Identifies information about practices or circumstances that can cause an explosion in
a hazardous environment, which may lead to personal injury or death, property
damage, or economic loss.
IMPORTANT
Identifies information that is critical for successful application and understanding of
the product.
ATTENTION
Identifies information about practices or circumstances that can lead to personal injury
or death, property damage, or economic loss. Attentions help you: identify a hazard,
avoid a hazard, and recognize the consequence
SHOCK HAZARD
Labels may be located on or inside the equipment to alert people that dangerous
voltage may be present.
BURN HAZARD
Labels may be located on or inside the equipment to alert people that surfaces may be
dangerous temperatures.

4FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
Environment and Enclosure
ATTENTION
This equipment is intended for use in a Pollution Degree 2 industrial
environment, in overvoltage Category II applications (as defined in IEC 60664-1),
at altitudes up to 2000 m (6562 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according
to IEC/CISPR 11. Without appropriate precautions, there may be difficulties with
electromagnetic compatibility in residential and other environments due to
conducted and radiated disturbances.
This equipment is supplied as open-type equipment. It must be mounted within
an enclosure that is suitably designed for those specific environmental
conditions that will be present and appropriately designed to prevent personal
injury resulting from accessibility to live parts. The enclosure must have suitable
flame-retardant properties to prevent or minimize the spread of flame,
complying with a flame spread rating of 5VA, V2, V1, V0 (or equivalent) if
non-metallic. The interior of the enclosure must be accessible only by the use of
a tool. Subsequent sections of this publication may contain additional
information regarding specific enclosure type ratings that are required to comply
with certain product safety certifications.
In addition to this publication, see:
• Industrial Automation Wiring and Grounding Guidelines, for additional
installation requirements, Allen-Bradley publication 1770-4.1.
• NEMA Standards 250 and IEC 60529, as applicable, for explanations of
the degrees of protection provided by different types of enclosure.
ATTENTION
This product is grounded through the DIN rail to chassis ground. Use zinc plated
yellow-chromate steel DIN rail to assure proper grounding. The use of other DIN
rail materials (for example, aluminum or plastic) that can corrode, oxidize, or are
poor conductors, can result in improper or intermittent grounding. Secure DIN
rail to mounting surface approximately every 200 mm (7.8 in.) and use
end-anchors appropriately.

FLEX Ex 8 Output and HART Analog Modules 5
Publication 1797-IN003J-EN-P - August 2017
Prevent Electrostatic Discharge
Removal and Insertion Under Power
ATTENTION
This equipment is sensitive to electrostatic discharge, which can cause internal
damage and affect normal operation. Follow these guidelines when you handle
this equipment:
• Touch a grounded object to discharge potential static.
• Wear an approved grounding wriststrap.
• Do not touch connectors or pins on component boards.
• Do not touch circuit components inside the equipment.
• Use a static-safe workstation, if available.
• Store the equipment in appropriate static-safe packaging when not in
use.
• Post a sign near these modules:
Attention! Avoid electrostatic charging.
ATENÇÃO! PREVENIR CONTRA O ACÚMULO DE CARGA
ELETROSTÁTICA
For your convenience, a sign that can be cut out and posted is included
in this publication.
WARNING
These modules are designed so you can remove and insert them under
power. However, take special care when removing or inserting modules in an
active process. I/O attached to any module being removed or inserted can
change states due to its input/output signal changing conditions.
If you insert or remove the terminal base while backplane power is on, an
electrical arc can occur. This could cause an explosion in hazardous location
installations.
Be sure that power is removed or the area is nonhazardous before proceeding.

6FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
European Communities (EC) Directive Compliance
If these products have the CE mark they are approved for installation within
the European Union and EEA regions. They have been designed and tested
to meet the following directives.
EMC Directive
These products are tested to meet the Council Directive 2014/30/EU by
applying the following standards:
• EN 61000-6-4:2007, Electromagnetic Compatibility (EMC) - Part 6-4:
Generic Standard for Industrial Environments (Class A)
• EN 61000-6-2:2005, Electromagnetic Compatibility (EMC) - Part 6-2:
Generic Standards - Immunity for Industrial Environments
• EN 61326-1:2013 (Industrial), Electrical Equipment For
Measurement, Control, and Laboratory Use - Industrial EMC
Requirements
European Hazardous Location Approval
The following applies to products marked II (1)2 G and
II (1) D
•Are Equipment Group II, Equipment Category (1)2, and comply with
the Essential Health and Safety Requirements relating to the design
and construction of such equipment given in Annex II to Directive
2014/34/EU. See the EC Declaration of Conformity at
http://www.rockwellautomation.com/products/certification
for details.
•The type of protection is “Ex ib[ia] IIC T4” and “[Ex iaD]” according
to EN 60079-11.
•Comply to Standards EN 60079-0:2006, EN 60079-11:2007,
EN 60079-26:2004, EN 61241-0:2006, and EN 61241-11:2006,
reference certificate number DMT 00 ATEX E 042 X.

7FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
•Are intended for use in areas in which explosive atmospheres caused
by gases, vapors, mists, or air are likely to occur occasionally. Such
locations correspond to Zone 1 or 2 classification according to ATEX
directive 2014/34/EU.
IEC Hazardous Location Approval
The following applies to products with the IECEx certification:
•Are intended for use in areas in which explosive atmospheres caused
by gases, vapors, mists, or air are likely to occur only infrequently and
for short periods. Such locations correspond to Zone 1 or 2
classification to IEC 60079-0.
•The type of protection is “[Zone 0] Ex ib[ia] IIC T4” according to
IEC 60079-11 and “[Ex iaD]” according to IEC 60079-11.
•Comply to Standards IEC 60079-0:2004, IEC 60079-11:2006,
IEC 60079-26:2004, IEC 61241-0:2004, and IEC 61241-11:2005,
reference IECEx certificate number IECEx BVS 09.0023X.
Special Conditions for Safe Use:
The intrinsically safe circuits (ch0 to ch7) may extend into areas with
combustible dust. However it shall be ensured that the apparatus, connected
to these intrinsically safe circuits, meet the requirements for category 1D
respectively 2D and are marked accordingly.
All the other intrinsically safe circuits may also extend into areas with
combustible dust. However it shall be ensured that the apparatus, connected
to these intrinsically safe circuits, meet the requirements for category 2D and
are marked accordingly.
The module may only be used with the terminal base type 1797-TB3/* or
type 1797-TB3S/* (DMT 98 ATEX E012U)
A warning label shall be installed in immediate proximity of these apparatus:
ATTENTION! Avoid electrostatic charging.

8FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
Installation in Zone 1
These modules must not be exposed to the environment. Provide a suitable
metal enclosure. This module has a protection factor of IP20.
Installation in Zone 22
When the module is installed in Zone 22, the following cabinets must be used:
IVK-ISRPI-V16LC; IVK-ISRPI-V8HYW; or IVK-ISRPI-V8LC. These
cabinets can be purchased from:
Pepperl+Fuchs GmbH
Konigsberger Allee 85-87, D-68307
Mannheim, Germany
Attn: PA Sales Dept.
Kirsten Becker
Telephone [phone]
www.pepperl-fuchs.com
The IS-RPI cabinets (type IVK2-ISRPI-V8LC, IVK2-ISRPI-V8HYW, or
IVK2-ISPRI-V16LC) ensures the basic protection for the intrinsically safe
apparatus of the FLEX Ex system for use in Zone 22. It corresponds with
category 3D according to RL 94/9 EG and with the type label marked with
the following information:
Pepperl+Fuchs GmbH
68307 Mannheim
IVK2-ISRPI-V8LC (or IVK2-ISRPI-V8HYW or
IVK2-ISRPI-V16LC)
II 3 D Ex tD A22 IP54 T70 °C
CE
Serial (manufacturing) number
Model year
WARNING
These modules cannot be used in an intrinsically safe
environment after they have been exposed to nonintrinsically
safe signals.

FLEX Ex 8 Output and HART Analog Modules 9
Publication 1797-IN003J-EN-P - August 2017
Install the Module
Read this for information about how to install the module which must be
used with a 1797-TB3 or 1797-TB3S intrinsically safe terminal base unit.
ATTENTION
This equipmment is considered Group 1, Class A industrial equipement
according to IEC/CISPR Publication 11. Without appropriate precautions, there
may be potential difficulties ensuring electromagnetic compatibility in other
environments due to conducted as well as radiated disturbance.
This equipment is supplied as open-type equipment. It must be mounted within
an enclosure that is suitably designed for those specific environmental
conditions that will be present and appropriately designed to prevent personal
injury resulting from accessiblity to live parts. The interior of the enclosure must
be accessible only by the use of a tool. Subsequent sections of this publication
may contain additional infromation regarding specific enclosure type ratings
that are required to comply with certain productsafety certifications.
ATTENTION
During mounting of all devices, be sure that all debris (such as metal chips or
wire strands) is kept from falling into the module. Debris that falls into the
module could cause damage on power up.
7
1
8
2
6
5
Labelhereorunderhere
4
3
41439

10 FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
To install the module on a 1797 terminal base, see the figure and complete the
following.
1. Rotate the keyswitch (1) on the terminal base (2) clockwise to position
4 as required for this type of module.
2. Make certain the flexbus connector (3) is pushed all the way to the left
to connect with the neighboring terminal base or adapter.
3. Make sure the pins on the bottom of the module are straight so they
align properly with the connector in the terminal base.
4. Position the module (4) with its alignment bar (5) aligned with the
groove (6) on the terminal base.
5. Press firmly and evenly to seat the module in the terminal base unit,
noting that the module is seated when the latching mechanism (7) is
locked into the module.
6. Remove cap plug (8) and attach another intrinsically safe terminal base
unit to the right of this terminal base unit if required.
ATTENTION
Do not remove or replace a Terminal Base unit while power is applied.
Interruption of the backplane can result in unintentional operation or machine
motion.
IMPORTANT
Do not change the position of the keyswitch after wiring the terminal base
unit.
IMPORTANT
You cannot install the module unless the connector is fully extended.
IMPORTANT
Make certain that you only connect terminal base units to other intrinsically
safe system modules or adapters to maintain the integrity of the intrinsically
safe backplane.

FLEX Ex 8 Output and HART Analog Modules 11
Publication 1797-IN003J-EN-P - August 2017

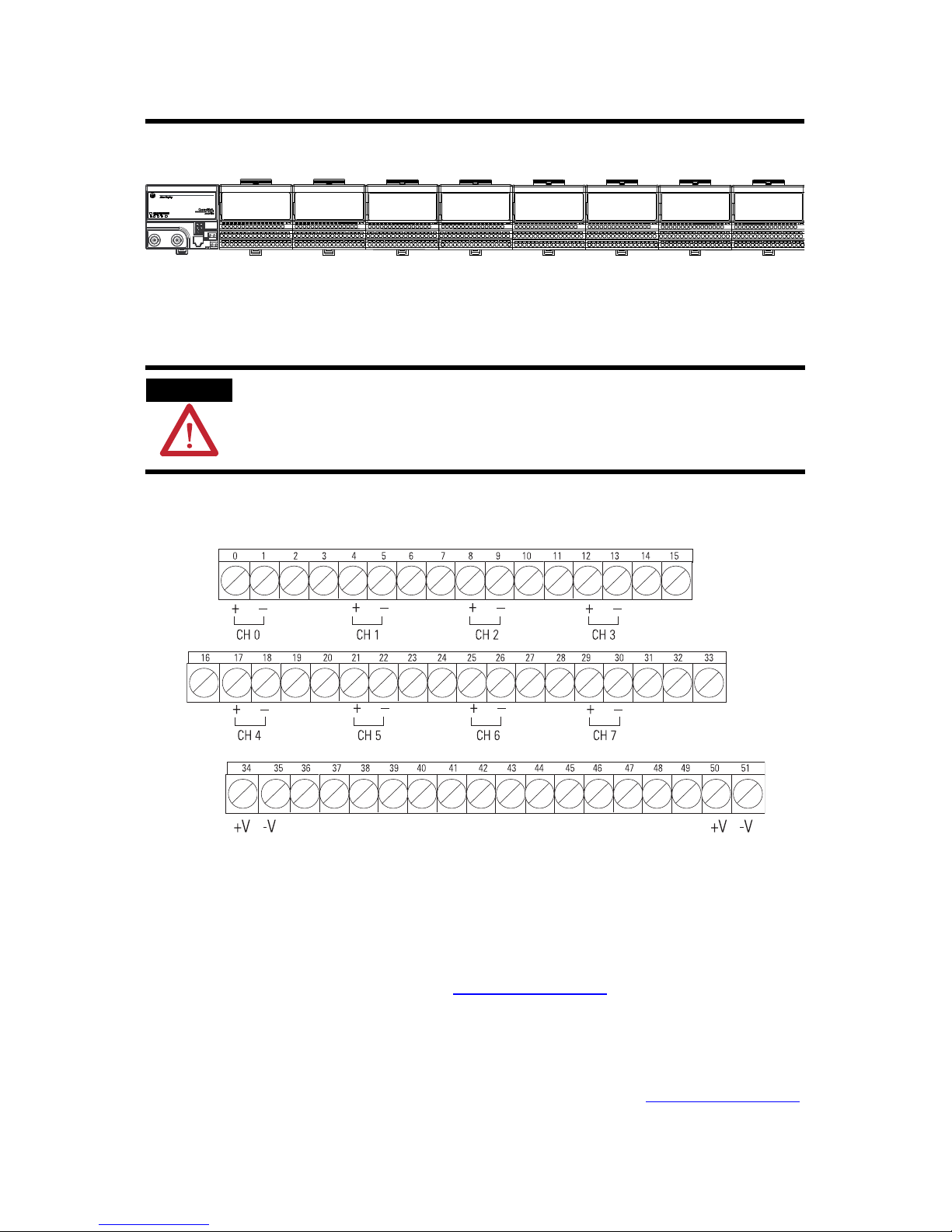

Wire the Module to a 1797-TB3 or 1797-TB3S Terminal Base Unit
Module Wiring
1. Connect the individual output wiring to (+) terminals (0, 4, 8, 12) on
the 0…15 row (A) and on the 16…33 row (B) (terminals 17, 21, 25,
29) as indicated in the table, Wire Connections.
1. Connect the associated output to the corresponding (-) terminal (1, 5,
9, 13) on the 0…15 row (A), and on the 16…33 row (B) (terminals 18,
22, 26, 30) for each output as indicated in the table, Wire Connections.
WARNING
If you connect or disconnect wiring while the field-side power is on, an electrical
arc can occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
41307
41440B
Row A
Row B
Row C
No connections allowed to terminals 2, 3, 6, 7, 10, 11, 14, 15, 19, 20,
23, 24, 27, 28, 31, 32, 36, 37, 38, 39, 46, 47, 48, 49.

12 FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
2. Connect +V DC power to terminal 34 on the 34…51 row (C).
3. Connect -V to terminal 35 on the 34…51 row (C).
4. If continuing power to the next terminal base unit, connect a jumper
from terminal 50 (+V) on this base unit to terminal 34 on the next
base unit.
5. If continuing common to the next terminal base unit, connect a
jumper from terminal 51 (-V) on this base unit to terminal 35 on the
next base unit.
WARNING
Make certain that you power these modules with an intrinsically safe power
supply. Do not exceed the values listed in the specifications for these modules.
If you connect or disconnect wiring while the field-side power is on, an electrical
arc can occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
ATTENTION
To reduce susceptibility to noise, power analog modules and digital modules
from separate power supplies.
Wire Connections
Output Output + Output - Output Output + Output -
Output 0 A-0 A-1 Output 4 B-17 B-18
Output 1 A-4 A-5 Output 5 B-21 B-22
Output 2 A-8 A-9 Output 6 B-25 B-26
Output 3 A-12 A-13 Output 7 B-29 B-30
+V Terminals 34 and 50
-V Terminals 35 and 51
ATTENTION
Do not use the unused terminals on this terminal base unit. Using these
terminals as supporting terminals can result in damage to the module, or
unintended operation of your system, or both.

FLEX Ex 8 Output and HART Analog Modules 13
Publication 1797-IN003J-EN-P - August 2017
Ground the Module
All I/O wiring must use shielded wire. Shields must be terminated external to
the module, such as bus bars and shield-terminating feed-throughs.
44862

14 FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
Outputs
Each output channel can operate an analog field device. Do not apply any
nonintrinsically safe signals to these modules.
When using an intrinsically safe electrical apparatus according to EN50020,
the European Community directives and regulations must be followed.
The channels in these modules are electrically connected to each other.

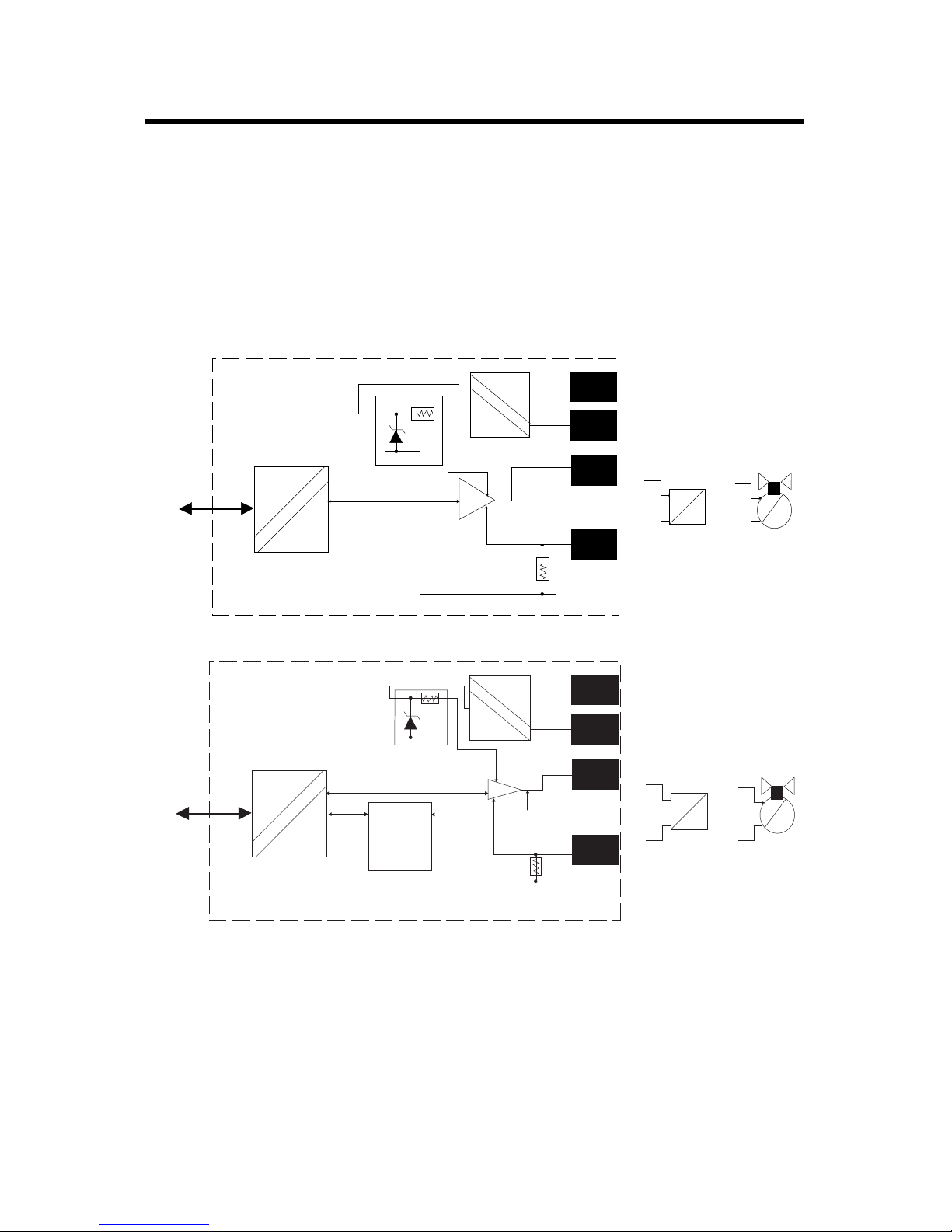

Flexbus Bus
uC
+V
-V
+
-
Power
Supply
4…20 mA
Actuator
4…20 mA
Valve
41441
IF
1797-OE8
45 Ω
160 Ω
15.5V
Flexbus Bus
uC
+V
-V
+
-
Power
Supply
4…20 mA
Actuator
4…20 mA
Valve
43849
IF
1797-OE8H/B
HART
Modem
21.6V
250 Ω
45 Ω

FLEX Ex 8 Output and HART Analog Modules 15
Publication 1797-IN003J-EN-P - August 2017
Output Voltage versus Current Capability
Output Voltage versus Current Capability for the 1797-OE8 Module
Output Voltage versus Current Capability for the 1797-OE8H Module
Voltage
16
14
12
10
8
6
4
0510 15 20 25
43002
2
0
V DC
mA
Voltage
mA
20.5
15
0 5 10 15 20 25
43850
0
V DC

16 FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
1797-OE8 Input Map (Read Words)
Bit
Word 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0FA
Ch7
FA
Ch6
FA
Ch5
FA
Ch4
FA
Ch3
FA
Ch2
FA
Ch1
FA
Ch0
Reserved Diagnostic Status
1 Res Module Command Response Module Response Data
Where: Ch = channel
FA = fault
Res = Reserved
1797-OE8H Input Map (Read Words)
Bit
Word 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0FA
Ch7
FA
Ch6
FA
Ch5
FA
Ch4
FA
Ch3
FA
Ch2
FA
Ch1
FA
Ch0
HR Reserved Diagnostic Status
1 Reserved
2HCF
Ch7
HCF
Ch6
HCF
Ch5
HCF
Ch4
HCF
Ch3
HCF
Ch2
HCF
Ch1
HCF
Ch0
HF
Ch7
HF
Ch6
HF
Ch5
HF
Ch4
HF
Ch3
HF
Ch2
HF
Ch1
HF
Ch0
3HP
Ch7
HP
Ch6
HP
Ch5
HP
Ch4
HP
Ch3
HP
Ch2
HP
Ch1
HP
Ch0
HC
Ch7
HC
Ch6
HC
Ch5
HC
Ch4
HC
Ch3
HC
Ch2
HC
Ch1
HC
Ch0
Where: Ch = channel
FA = fault
HR = HART rebuilding
HCF = HART current fault
HF = HART communication fault
HP = HART present
HC = HART communication

FLEX Ex 8 Output and HART Analog Modules 17
Publication 1797-IN003J-EN-P - August 2017
1797-OE8 Output Map (Write Words)
Bit
Word 15 14 13 12 11 10 9876543210
0 OE FR Reserved DD
Ch7
DD
Ch6
DD
Ch5
DD
Ch4
DD
Ch3
DD
Ch2
DD
Ch1
DD
Ch0
1 Channel 0 Output Data
2 Channel 1 Output Data
3 Channel 2 Output Data
4 Channel 3 Output Data
5 Channel 4 Output Data
6 Channel 5 Output Data
7 Channel 6 Output Data
8 Channel 7 Output Data
Where: Res = reserved, Ch = channel
DD = digital data, FR = fault reset
OE = output enable
1797-OE8H Output Map (Write Words)
Bit
Word 15 14 13 12 11 10 9876543210
0 Res FR Reserved DD
Ch7
DD
Ch6
DD
Ch5
DD
Ch4
DD
Ch3
DD
Ch2
DD
Ch1
DD
Ch0
1 Channel 0 Output Data
2 Channel 1 Output Data
3 Channel 2 Output Data
4 Channel 3 Output Data
5 Channel 4 Output Data
6 Channel 5 Output Data
7 Channel 6 Output Data
8 Channel 7 Output Data
Where: Res = reserved, Ch = channel
DD = digital data, FR = fault reset

18 FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
1797-OE8H Configuration Map
Bit
Word 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0 LFM VR FE
Ch7
FE
Ch6
FE
Ch5
FE
Ch4
Byte
Order
Group B
HS
LEDs
HSI FE
Ch3
FE
Ch2
FE
Ch1
FE
Ch0
Byte
Order
Group A
1HD
Ch7
HD
Ch6
HD
Ch5
HD
Ch4
HD
Ch3
HD
Ch2
HD
Ch1
HD
Ch0
HHE
Ch7
HHE
Ch6
HHE
Ch5
HHE
Ch4
HHE
Ch3
HHE
Ch2
HHE
Ch1
HHE
Ch0
2 Data Format Ch3 Data Format Ch2 Data Format Ch1 Data Format Ch0
3 Data Format Ch7 Data Format Ch6 Data Format Ch5 Data Format Ch4
4 HART Read Back
Threshold Ch1
FLE
Ch1
AFM
Ch1
HART Read Back
Threshold Ch0
FLE
Ch0
AFM
Ch0
5 HART Read Back
Threshold Ch3
FLE
Ch3
AFM
Ch3
HART Read Back
Threshold Ch2
FLE
Ch2
AFM
Ch2
6 HART Read Back
Threshold Ch5
FLE
Ch5
AFM
Ch5
HART Read Back
Threshold Ch4
FLE
Ch4
AFM
Ch04
7 HART Read Back
Threshold Ch7
FLE
Ch7
AFM
Ch7
HART Read Back
Threshold Ch6
FLE
Ch6
AFM
Ch06
8DF
Ch7
DF
Ch6
DF
Ch5
DF
Ch4
DF
Ch3
DF
Ch2
DF
Ch1
DF
Ch0
DM
Ch7
DM
Ch6
DM
Ch5
DM
Ch4
DM
Ch3
DM
Ch2
DM
Ch1
DM
Ch0
9 Fault Value Ch0
10 Fault Value Ch1
11 Fault Value Ch2
12 Fault Value Ch3
13 Fault Value Ch4
14 Fault Value Ch5
15 Fault Value Ch6
16 Fault Value Ch7
17 HR
Ch7
HR
Ch6
HR
Ch5
HR
Ch4
HR
Ch3
HR
Ch2
HR
Ch1
HR
Ch0
HC
Ch7
HC
Ch6
HC
Ch5
HC
Ch4
HC
Ch3
HC
Ch2
HC
Ch1
HC
Ch0
Where LFM = local fault mode VR = verify replacement
FE = fault enable HD = HART disable
HHE = HART handheld enable FLE = fault latch enabled
AFM = analog fault mode DF = digital fault mode
DM = digital mode HR = HART rebuild
HC = HART CMD3 disable

FLEX Ex 8 Output and HART Analog Modules 19
Publication 1797-IN003J-EN-P - August 2017
Data Format - Write Words 2 and 3
Data
Format
Bits Format Signal Range User Range Resolution
15 14 13 12
11 10 9 8
7654 LO HI LO HI
3210
0 00000…20mAas
Milliamps
0.00 22.00 0
(0.000 mA)
22000
(22.000 mA)
0.1% of
0...20 mA
1 00010…20mAas
%
0.00 22.00 0
(0%)
11000
(110.00%)
0.2% of
0...20 mA
2 0010Notassigned
3 00110…20mAas
unsigned
integer
0.00 20.00 0
(0.000 mA)
65535
(22.000 mA)
0.03% of
0...20 mA
4 01004…20mAas
mA
2.00 22.00 2000
(2.000 mA)
22000
(22.000 mA)
0.01% of
4...20 mA
5 0101Notassigned
6 0110
7 01114…20mAas
unsigned
integer
4.00 20.00 0
(4 mA)
65535
(20 mA)
0.03% of
4...20 mA
8 1000Notassigned
9 1001
10 1010
11 10110...20mAas
D/A count
0.00 22.00 0
(0 mA)
8000
(22 mA)
0.28% of
0...20 mA
12 1100Notassigned
13 11014...20mAas
%
3.00 21.00 -625
(-6.25%)
10625
(106.25%)
0.16% of
4...20 mA
14 11104...20mAas
%
2.00 22.00 -1250
(-12.50%)
11250
(112.50%)
0.16% of
4...20 mA
15 1111Notassigned

20 FLEX Ex 8 Output and HART Analog Modules
Publication 1797-IN003J-EN-P - August 2017
Cyclic HART Input Data
The HART input data holds the primary variables for the "live" HART
device, and other information gathered during the normal HART scan.
Additional "documentary" data is available through the pass through message
interface in the device information tables. Pass through messages are defined
in detail in the User Manual.
IMPORTANT
The HART Input Data for a channel may be zeroes if HART communications is
disabled for that channel. For more information on disabling HART
communications, refer to the Disable HART communications and HART CMD
3 Disable functions in the Configuration Map table.
HART Input Data
Word Bit
15 14 13 12 11 10 9876543210
0 Reserved Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1 Ch0
(HART Communications Status)
1 Reserved
2 Ch0 HART Field Device Status Ch0 HART Comm Status
3 Reserved Ch0 HART Loop Status
4 Ch0 HART Primary Value
(IEEE 754-1985 Single-Precision 32 bit floating point)
5
6 Ch0 HART Secondary Value
(IEEE 754-1985 Single-Precision 32 bit floating point)
7
8 Ch0 HART Tertiary Value
(IEEE 754-1985 Single-Precision 32 bit floating point)
9
10 Ch0 HART Fourth (Quaternary) Value
(IEEE 754-1985 Single-Precision 32 bit floating point)
11
12 Ch0 Secondary Value Units Code Ch0 Primary Value Units Code
13 Ch0 Fourth Value Units Code Ch0 Tertiary Value Units Code
14 Ch1 HART Field Device Status Ch1 HART Communication Status
15 Reserved Ch1 HART Loop Status
16 Ch1 HART Primary Value
17
