Allen-Bradley 1606-XLE480FP-D User manual

Reference Manual Original Instructions
Switched Mode Power Supply
Catalog Number 1606-XLE480FP-D

2Rockwell Automation Publication 1606-RM047A-EN-P - September 2021
Switched Mode Power Supply Reference Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
These labels may also be on or inside the equipment to provide specific precautions.
The following icon may appear in the text of this document.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).
Identifies information that is useful and can help to make a process easier to do or easier to understand.

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 1
Table of Contents
Terminology and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Input Inrush Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hold-up Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DC-OK Relay Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Efficiency and Power Losses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front Side and User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Terminals and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Lifetime Expectancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mean Time Between Failure (MTBF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Protection Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Dielectric Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Certifications and Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . 15
Physical Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Peak Current Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Back-feeding Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Inductive and Capacitive Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Charging of Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Output Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
External Input Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Parallel Use to Increase Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Parallel Use for Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Daisy Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Series Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Use in a Tightly Sealed Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Mounting Orientations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2Rockwell Automation Publication 1606-RM047A-EN-P - September 2021
Table of Contents
Notes:

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 3
Terminology and
Abbreviations
All values in this document are specified under the following conditions unless
otherwise noted:
• 48V, 10 A, 300V AC input voltage
• 25 °C (77 °F) ambient temperature
• After a 5 minutes run-in time
Product Overview
Product features include:
• 88…360V DC wide-range input
• Width 65 mm (2.56 in.)
• Efficiency up to 94.6%
• ATEX and IECEx approved
• Partial load efficiency
• 20% output power reserves
• Safe HiccupPLUS overload mode
Terms Descriptions
PE The abbreviation for Protective Earth. PE has the same meaning as the symbol.
The symbol for Protective Earth.
Earth, Ground This document uses the term “earth”, which is the same as the U.S. term “ground”.
DC 300V A value that is displayed with the AC or DC before the value represents a nominal voltage with standard tolerances (usually ±15%) included. For example, DC 12V
describes a 12V battery, no matter if it is full (13.7V) or flat (10V).
300V DC A value with the unit (V DC) at the end is a momentary value without any additional
tolerances included.
Nom Indicates a nominal value.
Typ Indicates a typical value.
—A dash alone in a table cell indicates that there is no information to be included in that
cell.
Figure 1 - 1606-XLE480FP-D The 1606-XLE480FP-D is a cost-
optimized power supply unit and
DC/DC converter. Features of these
units include a wide DC-input range,
electronic inrush current limitation, and
a wide operational temperature range.
Power reserves of 20% can be used
continuously at temperature up to
45 °C (113 °F). Additionally, the
1606-XLE480FP-D DC/DC converter
delivers about 4 times the nominal
output current for 15 ms, which can trip
fuses on faulty output branches.
The 1606-XLE480FP-D DC/DC converter
has a high immunity to transients and
power surges, and has low
electromagnetic emissions and a DC-OK
relay contact.
The 1606-XLE480FP-D DC/DC converter
features a large international approval
package for various applications.

4Rockwell Automation Publication 1606-RM047A-EN-P - September 2021
• Easy fuse tripping due to high overload current (typ 45 A for 15 ms)
• Minimal inrush current surge
• Full power -25…+60 °C (-13…+140 °F)
•DC-OKrelaycontact
• Reverse input polarity protected
• Current sharing feature for parallel use
Specifications
Catalog Numbers
AC Input Do not operate this DC/DC converter with AC-input voltage. Use the
1606-XLE480EP unit instead.
DC Input Use a battery or a similar DC source. We do not recommend using a supply
from the intermediate DC-bus of a frequency converter as it can cause a
malfunction or damage the unit.
Attributes Values Notes
Output voltage DC 48V —
Adjustment range 48…56V —
Output current
10 A At 48V, ambient <60 °C (140 °F)
12 A At 48V, ambient <45 °C (113 °F)
8.6 A At 56V, ambient <60 °C (140 °F)
10.3 A At 56V, ambient <45 °C (113 °F)
Output power 480 W Ambient <60 °C (140 °F)
576 W Ambient <45 °C (113 °F)
Output ripple <50 mVpp 20 Hz…20 MHz
AC input voltage — —
DC input voltage DC 110…300V ± 20%
DC input current 4.68/1.69 A At 110/300V DC
Inrush current Typ 6/4 A peak At 110/300V DC
Efficiency 93.1/94.6% At 110/300V DC
Losses 35.6/27.4 W At 110/300V DC
Temperature range -25…+70 °C
(-13…+158 °F) Operational
Derating 12 W/1 °C
(12 W/1.8 °F) 60…70 °C (140…158 °F)
Hold-up time Typ 26/26 ms At 110/300V DC
Dimensions 65 x 124 x 127 mm
(2.56 x 4.88 x 5 in.) W x H x D
Weight 940 g (2.1 lb) —
Cat. No. Descriptions
1606-XLE480FP-D DC/DC converter
(48…56V standard unit)
1606-XLC Wall mount bracket
1606-XLA-S63 Side mount bracket
1606-XLSRED40HF Redundancy module

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 5

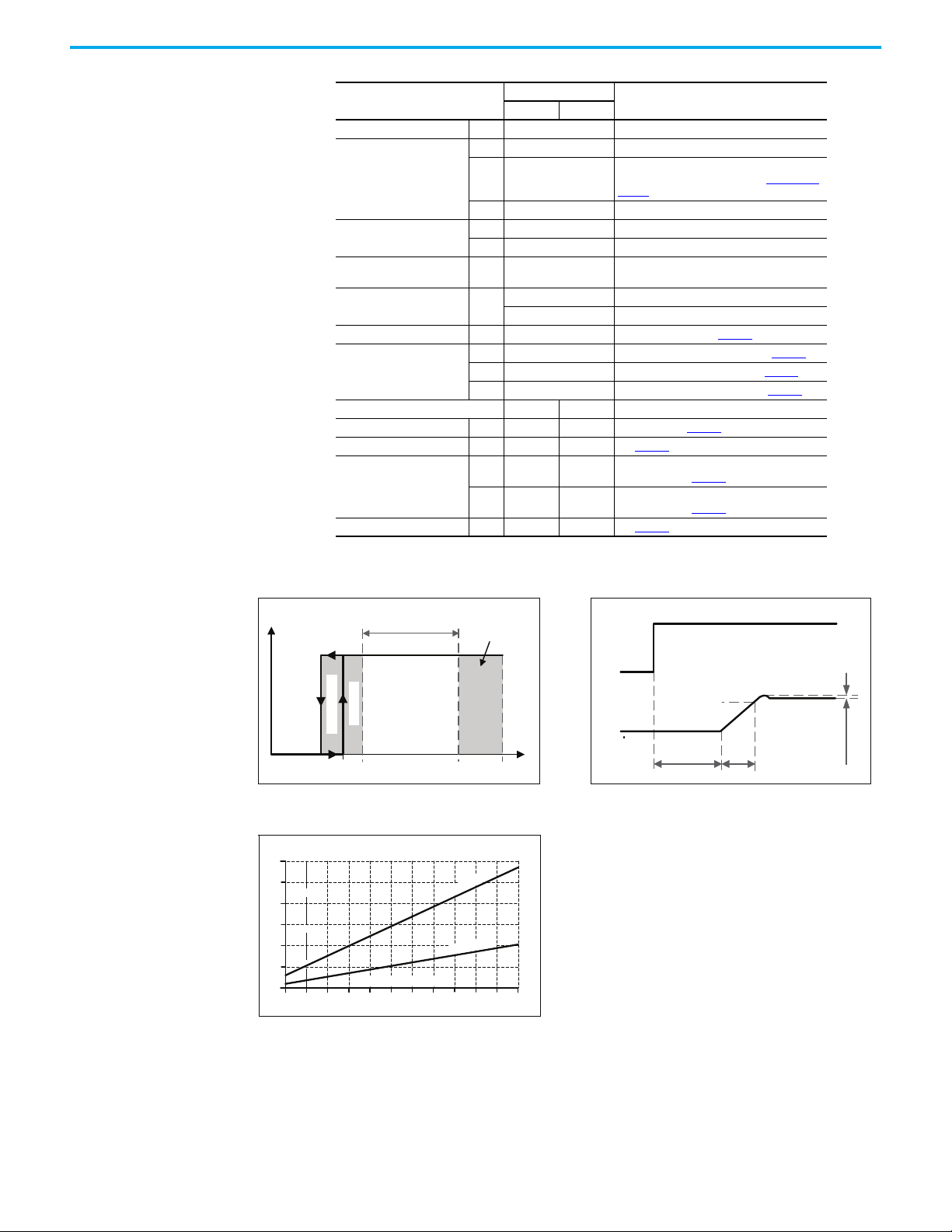

Attributes Values Notes
DC 110V DC 300V
Input voltage Nom DC 110…300V —
Input voltage range
Min 88…360V DC —
Min 88…100V DC Short term, with output derating (1%/V), or with reduced ambient temperature, see Figure 19 on
page 13, no damage between 0…88V DC
Min 360…425V DC Short term, <500 ms
Allowed voltage between input
and earth
Max 360V DC Continuous, IEC 62103
— ± 600V Peak value, allowed for transients
Slew rate for voltage between
input to earth Max 1000V/µs —
Allowed input ripple voltage Max 50Vpp 50 Hz…10 kHz
15Vpp 10…50kHz
Turn-on voltage Typ 85V DC Steady-state value, see Figure 2
Shut-down voltage
Typ 37V DC Steady-state value at 2.5 A load, see Figure 2
Typ 50V DC Steady-state value at 5 A load, see Figure 2
Typ 69V DC Steady-state value at 10 A load, see Figure 2
DC 110V DC 300V
Input current Typ 4.68 A 1.69 A At 48V, 10 A, see Figure 4
Startup delay Typ 1100 ms 830 ms See Figure 3
Rise time
Typ 90 ms 90 ms At 48V, 10 A, constant current load, 0 mF load
capacitance, see Figure 3
Typ 230 ms 230 ms At 48V, 10 A, constant current load, 10 mF load
capacitance, see Figure 3
Turn-on overshoot Max 200 mV 200 mV See Figure 3
Figure 2 - Input Voltage Range Figure 3 - Turn-on Behavior, Definitions
Figure 4 - Input Current Versus Output Load at 48V
Turn-on
88V
OUT
Rated
Input Range
Max
500 ms
V
IN
P
425V DC
360V
Shut-down
Startup
Delay Rise Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
g
12 A
123456789
0
1
2
3
4
5
6 A
Output Current
Input Current, Typ
30V DC
110V DC
10 11

6Rockwell Automation Publication 1606-RM047A-EN-P - September 2021

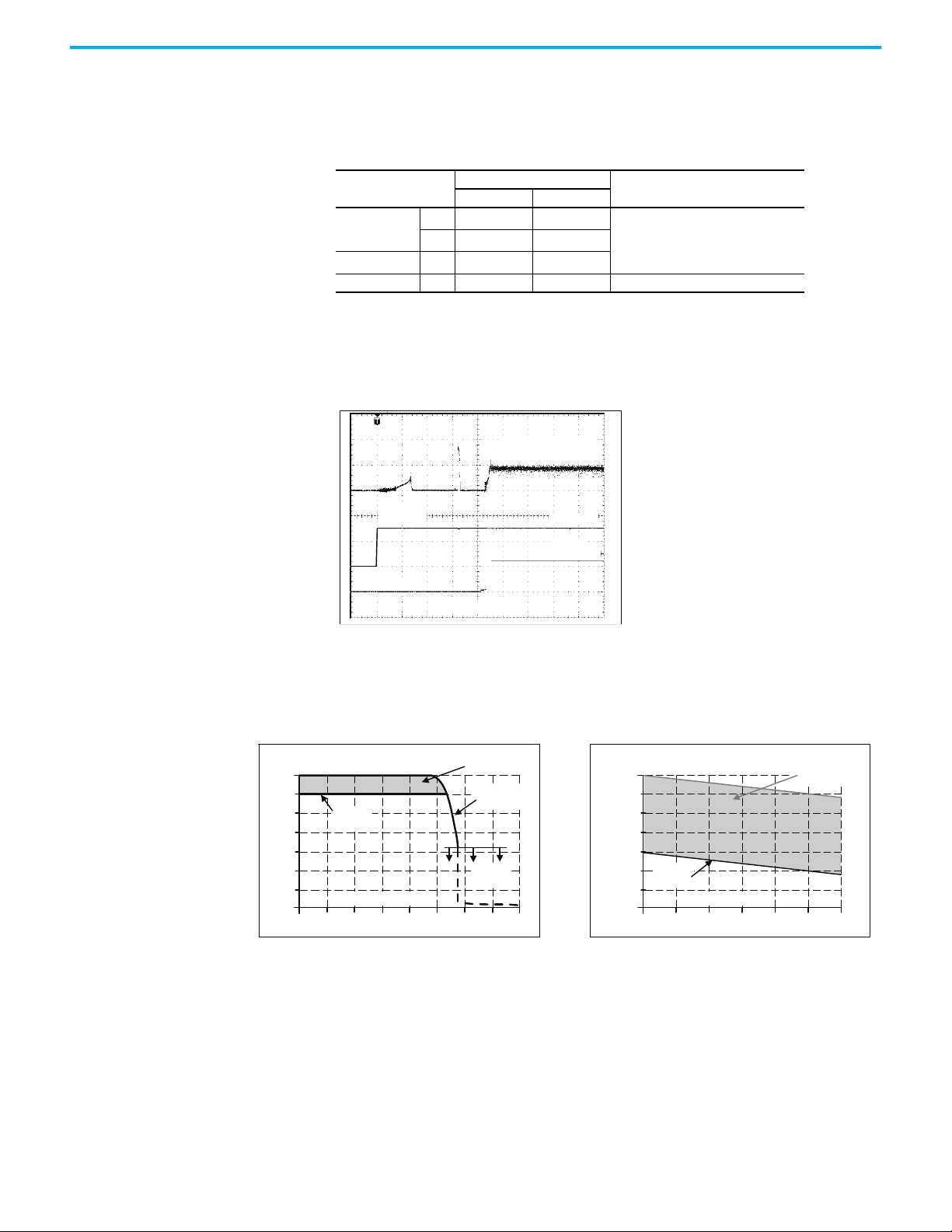

Input Inrush Current An active inrush limitation circuit limits the input inrush current after turn-on
of the input voltage and after short input voltage interruptions.
The charging current into EMI suppression capacitors is disregarded in the
first microseconds after switch-on.
Output Output
Attributes Values Notes
DC 110V DC 300V
Inrush current (1)
(1) Mains interruptions >500 ms
Max 13 Apeak 10 Apeak
Temperature independent
Typ 6 Apeak 4 Apeak
Inrush energy Max 1 A2s1A
2s
Inrush delay Typ 1190 ms 920 ms Startup delay plus rise time
Figure 5 - Typical Input Inrush Current Behavior At
Nominal Load - 25 °C (77 °F) Ambient
Temperature
Input Current
2 A/DIV
Input
Output
48V DC
300V DC
200 ms/DIV
Figure 6 - Output Voltage Versus Output Current, Typ Figure 7 - Output Voltage in Parallel Use Mode, Typ
y
Output Voltage (Single Use, Typ)
0
0 12.5
8
16
24
56V
32
40
48
20 A
7.52.5 5 10 15 17.5
Adjustment
Range
Output Current
Continuous
Current
Factory
Setting
Hiccup
Mode
y
Output Voltage (Parallel Use, Typ)
42
04 8
44
46
48
56V
50
52
54
12 A1062
Adjustment
Range
Factory
Setting
Output Current

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 7
Figure 8 - Short-circuit on Output, HiccupPLUS Mode, Typ Figure 9 - Dynamic Overcurrent Capability, Typ
Output
Current
0
20 A
18 s 18 s
18 s 2 s 2 s
2 s
t
Short-circuit Normal
Operation
Normal
Operation
Output Voltage (Dynamic Behavior, <15 ms)
0
0
8
16
24
56 V
32
40
48
50 A
20
10 30 40515253545
Adjustment
Range
Output Current
Attributes Values Notes
Output voltage Nom 48V —
Adjustment range Min 48…56V Guaranteed
Max 60V (1)
(1) Max output voltage that can occur at the clockwise end position of the potentiometer, due to tolerances. It is not a
guaranteed value that can be achieved. The typical value is about 57.0V (in Single Use mode).
At clockwise end position of potentiometer
Factory setting
Typ 48V ±0.2%, at full load, cold unit, in Single Use mode
Typ 46V ±0.5%, at full load, cold unit, in Parallel Use mode
Typ 48V At no load, cold unit, in Parallel Use mode
Line regulation Max 10 mV 88…370V DC
Load regulation
Max 150 mV In Single Use mode: static value, 0 A 10 A, see Figure 6 on
page 6
Typ 2000 mV In Parallel Use mode: static value, 0 A 10 A, see Figure 7 on
page 6
Ripple and noise voltage Max 50 mVpp 20 Hz…20 MHz, 50 Ω
Output current
Nom 10 A At 48V, ambient temperature <60 °C (140 °F), see Figure 6 on
page 6
Nom 12 A (2)
(2) Power Boost: Power or current is continuously allowed up to an ambient temperature of 45 °C (113 °F). Above 45 °C (113 °F), do
not use this power or current longer than a duty cycle of 10% and/or not longer than 1 minute every 10 minutes.
At 48V, ambient temperature <45 °C (113 °F), see Figure 6 on page 6
Nom 8.6 A At 56V, ambient temperature <60 °C (140 °F), see Figure 6 on
page 6
Nom 10.3 A (2) At 56V, ambient temperature <45 °C (113 °F), see Figure 6 on page 6
Typ 40 A Up to 15 ms, output voltage stays above 40V, see Figure 9. This peak current is available once every 5 seconds. See Peak Current
Capability on page 18.
Output power Nom 480 W Continuously available
Nom 576 W (2) Power Boost (2)
Overload behavior — Continuous current Output voltage >25V DC, see Figure 6 on page 6
—HiccupPLUS mode (3)
(3) At heavy overloads (when output voltage falls below 13V), the DC/DC converter delivers continuous output current for 2 s.
After which, the output switches off for approximately 18 s before automatically attempting a new start. The cycle repeats as
long as the overload exists. The device operates normally once the overload is cleared. See Figure 8 on page 7.
Output voltage <25V DC, see Figure 6 on page 6
Short-circuit current
Min 18 A (4)
(4) Discharge current of output capacitors is not included.
Load impedance <10 mΩ, see Figure 8
Max 22 A (4) Load impedance <10 mΩ, see Figure 8
Max 7 A (4) Average (RMS) current, load impedance 100 mΩ, see Figure 8
Min 40 A <15 ms, load impedance <10 mΩ, see Figure 9
Typ 50 A <15 ms, load impedance <10 mΩ, see Figure 9
Output capacitance Typ 2450 µF Included inside the DC/DC converter

8Rockwell Automation Publication 1606-RM047A-EN-P - September 2021

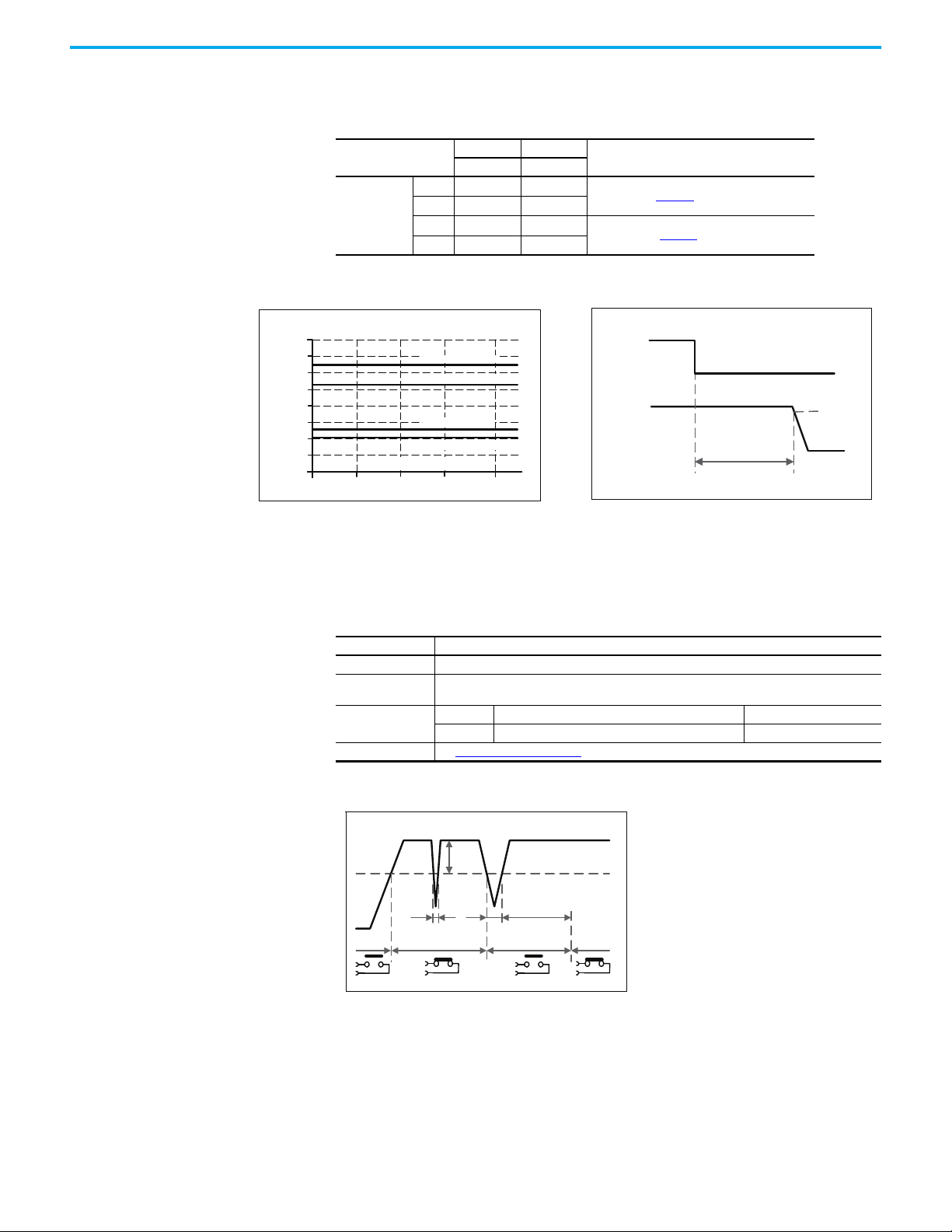

Hold-up Time A diode to the input voltage isolates the internal capacitor that supplies the
energy for the hold-up time. A short on the input line does not discharge the
internal hold-up capacitor.
DC-OK Relay Contact This feature monitors the output voltage that the DC/DC converter produces.
It is independent of any back-fed voltage from a unit that is connected in
parallel to the DC/DC converter output.
Attributes Values Notes
DC 110V DC 300V
Hold-up Time
Typ 65 ms 65 ms At 48V, 5 A, see Figure 10
Min 54 ms 54 ms
Typ 26 ms 26 ms At 48V, 10 A, see Figure 10
Min 21 ms 21 ms
Figure 10 - Hold-up Time Versus Input Voltage Figure 11 - Shutdown Behavior Definitions
0
10
20
30
40
80 ms
120 180 240 300 360V DC
Input Voltage
50
60
Hold-up Time
48V, 10 A, Typ
48V, 5 A, Min
48V, 5 A, Typ
70
48V, 10 A, Min
- 5%
Hold-up Time
Output
Voltage
Input
Voltage
Action Notes
Contact closes Once the output voltage reaches 90% of the adjusted output voltage
Contact opens Once the output voltage dips more than 10% below the adjusted output voltage. Short dips are extended
to a signal length of 100 ms. Dips shorter than 1 ms are ignored.
Contact ratings Max 60V DC at 0.3 A, 30V DC at 1 A, 30V AC at 0.5 A Resistive load
Min 1 mA at 5V DC Min permissible load
Isolation voltage See Dielectric Strength on page 14.
Figure 12 - DC-OK Relay Contact Behavior
100 ms
0.9* V
ADJ
<
1 ms
10%
open
V
OUT
= V
ADJ
openclosed closed
>
1 ms

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 9

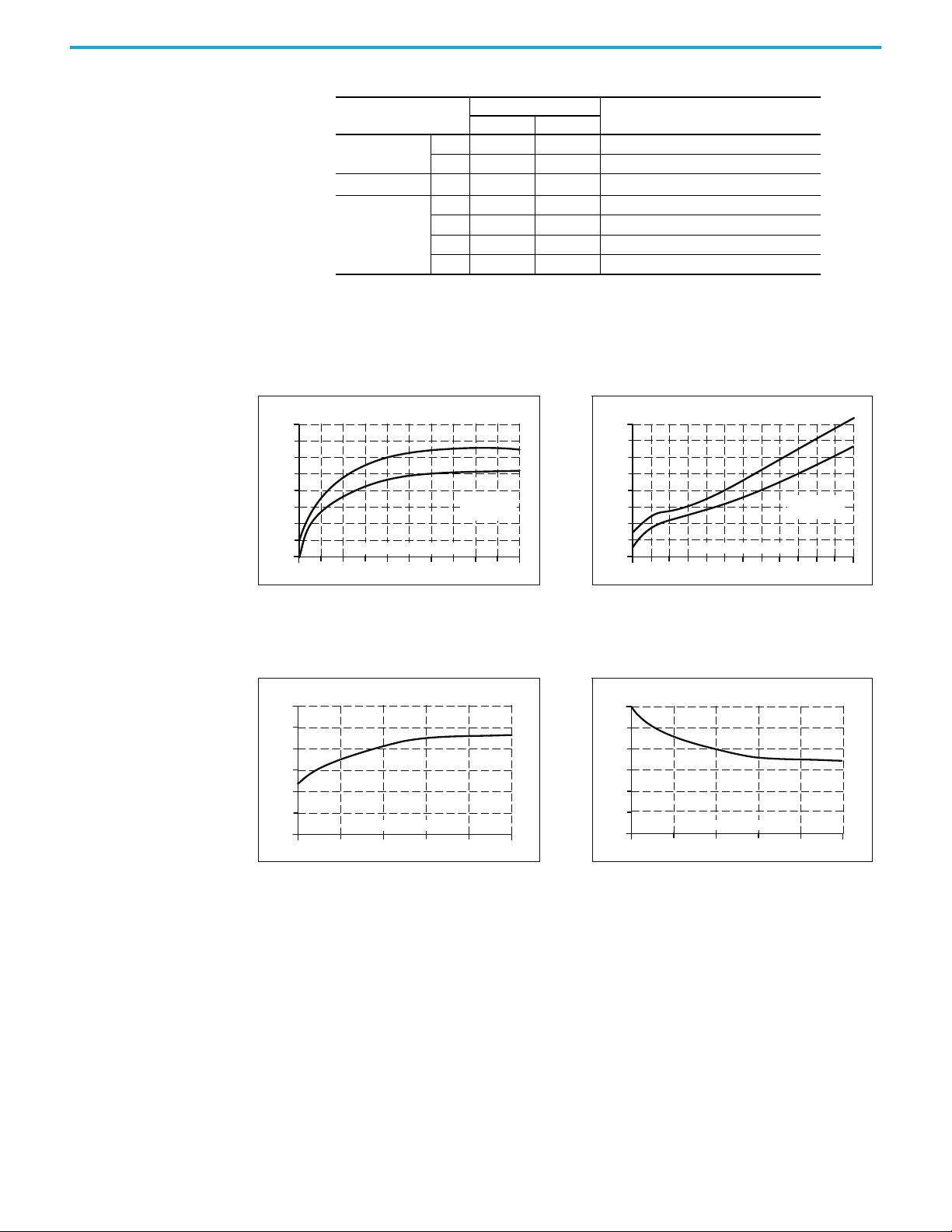

Efficiency and Power
Losses Attributes Values Notes
AC 110V AC 300
Efficiency Typ 93.1% 94.6% At 48V, 10 A
Typ 93.1% 94.5% At 48V, 12 A (Power Boost)
Average efficiency (1)
(1) An assumption for a typical application, where the DC/DC converter is loaded with 25% of the nominal load for
25% of the time, 50% of the nominal load for another 25% of the time, 75% of the nominal load for another
25% of the time, and with 100% of the nominal load for the rest of the time.
Typ 92.1% 93.3% 25% at 2.5 A, 25% at 5 A, 25% at 7.5 A, 25% at 10 A
Power losses
Typ 7.4 W 2.5 W At 48V, 0 A
Typ 20.0 W 15.9 W At 48V, 5 A
Typ 35.6 W 27.4 W At 48V, 10 A
Typ 42.7 W 33.5 W At 48V, 12 A (Power Boost)
Figure 13 - Efficiency Versus Output Current at 48V,
Typ Figure 14 - Losses Versus Output Current at 48V, Typ
Eciency
234567 910 12A
88
89
90
91
92
93
94
95
96%
Output Current
811
a: 110V DC
b: 300V DC
b
a
Power Losses
01 34 67 12 A
10
0
15
20
25
40 W
910
30
25 8
Output Current
11
b
a
35
5
a: 110V DC
b: 300V DC
Figure 15 - Efficiency Versus Input Voltage at 48V,
10 A, Typ Figure 16 - Losses Versus Input Voltage at 48V, 10 A, Typ
Eciency
80 140 200 260 320 380V DC
90
91
92
93
94
95
96%
Input Voltage
Power Losses
10
15
20
25
30
35
40 W
80 140 200 260 320 380V DC
Input Voltage

10 Rockwell Automation Publication 1606-RM047A-EN-P - September 2021
Functional Diagram Figure 17 - Functional Diagram
Front Side and User
Elements
+
+
-
-
Output
Overvoltage
Protection
Boost
Converter
Output
Voltage
Regulator
Power
Converter
Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temperature
Shut-
down
Input Fuse
Input Filter
Active Inrush Limiter
Reverse Polarity
Protection
V
OUT
+
-
DC-OK
Contact
DC-OK
LED
Single /
Parallel
DC-OK
Relay
Figure 18 - Front Side User Elements
A
Input terminals (screw terminals)
+ Positive output
- Negative (return) output
…PE (protective earth) input
BOutput terminals (screw terminals, two pins per pole) + Positive output
- Negative (return) output
COutput voltage potentiometer
Open the flap to set the output voltage. Factory setting is 48.0V.
DDC-OK status indicator (green) Shows on when the output voltage is >90% of the adjusted output
voltage.
EDC-OK relay contact (quick-connect spring-clamp terminals) The DC-OK relay contact is synchronized with the DC-OK status
indicator. See DC-OK Relay Contact on page 8.
F
Parallel Use/Single Use selector
Set the jumper to Parallel Use when the DC/DC converters are
connected in parallel to increase the output power. To achieve a
sharing of the load current between the individual units, the Parallel
Use regulates the output voltage in such a manner that the voltage at
no load is approximately 4% higher than at nominal load. See Parallel
Use to Increase Output Power on page 20. A missing jumper is equal to
a Single Use mode.
A
D
F
E
C
B
-D

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 11
Terminals and Wiring The terminals are IP20 fingersafe constructed and suitable for field and
factory wiring.
Wiring instructions:
• Use the appropriate copper cables that are designed for the minimum
operating temperatures:
- 60 °C (140 °F) for an ambient temperature up to 45 °C (113 °F).
- 75 °C (167 °F) for an ambient temperature up to 60 °C (140 °F).
- 90 °C (194 °F) for an ambient temperature up to 70 °C (158 °F).
• Follow national installation codes and installation regulations.
• Confirm that all strands of a stranded wire enter the terminal
connection.
• Do not use the unit without PE connection.
• Unused terminal compartments must be securely tightened.
• Ferrules are allowed.
Lifetime Expectancy
Attributes Values
Input and Output DC-OK Signal
Type Screw termination Spring clamp terminals
Solid wire 0.5…6 mm20.15…1.5 mm2
Stranded wire 0.5…4 mm20.15…1.5 mm2
American Wire Gauge 20…10 AWG 26…14 AWG
Max wire diameter 2.8 mm (0.11 in.) (1)
(1) Includes ferrules.
1.5 mm (0.06 in.) (1)
Wire stripping length 7 mm (0.28 in.) 7 mm (0.28 in.)
Screwdriver 3.5 mm (0.138 in.), slotted
or cross-head, No 2 3 mm (0.12 in.), to open the spring
Recommended torque 1 N•m (9 lb•in) —
Attribute Values Notes
DC 110V DC 300V
Calculated lifetime expectancy (1)
(1) The minimum operating hours (service life). The lifetime expectancy of the built-in electrolytic
capacitors determines the service life. Lifetime expectancy is specified in operational hours and is
calculated according to the manufacturer specification of the capacitor. The manufacturer of the
electrolytic capacitors lists a maximum life of up to 15 years (131,400 hr). Any number that exceeds this
value is a calculated theoretical lifetime, which can be used to compare devices.
156,000 hr (1) 179,000 hr (1) At 48V, 5 A and 40 °C (104 °F)
440,000 hr (1) 506,000 hr (1) At 48V, 5 A and 25 °C (77 °F)
85,000 hr 110,000 hr At 48V, 10 A and 40 °C (104 °F)
241,000 hr (1) 313,000 hr (1) At 48V, 10 A and 25 °C (77 °F)
58,000 hr 76,000 hr At 48V, 12 A and 40 °C (104 °F)
164,000 hr (1) 214,000 hr (1) At 48V, 12 A and 25 °C (77 °F)

12 Rockwell Automation Publication 1606-RM047A-EN-P - September 2021
Mean Time Between Failure
(MTBF)
MTBF is calculated according to statistical device failures, and indicates the
reliability of a device. It is the statistical representation of the likelihood of a
unit to fail; it does not necessarily represent the life of a product. An MTBF
value of, for example, 1,000,000 hr means that statistically one unit fails every
100 hours if 10,000 units are installed in the field. However, the running time
of individual failed units cannot be determined.
Electromagnetic
Compatibility
The DC/DC converter is suitable for applications in an industrial environment
and in a residential, commercial, and light industry environment without any
restrictions.
The DC/DC converter has two converters with two different switching
frequencies, which are included.
Attribute Values Notes
DC 110V DC 300V
MTBF SN 29500, IEC 61709 468,000 hr 537,000 hr At 48V, 10 A and 40 °C (104 °F)
770,000 hr 882,000 hr At 48V, 10 A and 25 °C (77 °F)
MTBF MIL HDBK 217F
254,000 hr 290,000 hr At 48V, 10 A and 40 °C (104 °F);
Ground Benign GB40
355,000 hr 395,000 hr At 48V, 10 A and 25 °C (77 °F);
Ground Benign GB25
56,000 hr 64,000 hr At 48V, 10 A and 40 °C (104 °F);
Ground Fixed GB40
75,000 hr 86,000 hr At 48V, 10 A and 25 °C (77 °F);
Ground Fixed GB25
EMC Immunity According to Generic Standards EN 61000-6-1 and EN 61000-6-2
Attributes Standards Values Criteria (1)
(1) Criterion A: DC/DC converter shows normal operation behavior within the defined limits.
Electrostatic discharge EN 61000-4-2 Contact discharge 8 kV Criterion A
Air discharge 15 kV Criterion A
Electromagnetic RF field EN 61000-4-3 80 MHz…2.7 GHz 20V/m Criterion A
Fast transients (burst) EN 61000-4-4
Input lines 4 kV Criterion A
Output lines 2 kV Criterion A
DC-OK signal (coupling clamp) 2 kV Criterion A
Surge voltage on input EN 61000-4-5 + -2kVCriterionA
+PE, - PE 4 kV Criterion A
Surge voltage on output EN 61000-4-5 + -1kVCriterionA
+ / -  PE 2 kV Criterion A
Surge voltage on DC-OK EN 61000-4-5 DC-OK signal PE 1 kV Criterion A
Conducted disturbance EN 61000-4-6 0.15…80 MHz 20V Criterion A
EMC Emission According to Generic Standards EN 61000-6-3 and EN 61000-6-4
Attributes Standards Notes
Conducted emission input lines CISPR 16-1-2, CISPR 16-2-1 Limits for DC power port according to EN 61000-6-3
fulfilled
Conducted emission output lines (1)
(1) Information only, not mandatory for EN 61000-6-3.
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Limits for DC power port according to EN 61000-6-3
fulfilled
Radiated emission EN 55011, EN 55022 Class B
This device complies with FCC Part 15 rules.
Operation is subjected to following conditions:
• This device must not cause harmful interference.
• This device must accept any interference received, including interference that can cause undesired operation.
Switching Frequency
Switching Frequency Values Notes
1 70…130 kHz PFC converter, input voltage, and output power dependent
2 80...140 kHz Main converter, output power dependent

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 13
Environment
Protection Features
Attributes Values Notes
Operational temperature (1)
(1) The same as the ambient temperature and is defined as the air temperature 20 mm (0.79 in.) below the unit.
-25…+70 °C (-13…+158 °F) Reduce output power according to Figure 19
Storage temperature -40…+85 °C (-40…+185 °F) For storage and transportation
Output derating 6.4 W/1 °C (6.4 W/1.8 °F) Between 45…60 °C (113…140 °F)
12 W/1 °C (12 W/1.8 °F) Between 60…70 °C (140…158 °F)
Humidity (2)
(2) Do not energize while condensation is present.
5…95% r.H. IEC 60068-2-30
Vibration sinusoidal 2…17.8 Hz: ±1.6 mm (0.063 in.) (3)
17.8…500 Hz: 2 g (0.07 oz)
2 hours/axis
(3) Tested in combination with DIN rails, according to EN 60715, with a height of 15 mm (0.59 in.) and a thickness of 1.3 mm
(0.51 in.) and standard orientation. Higher levels are allowed when using the 1606-XLC wall mounting bracket.
IEC 60068-2-6
Shock
30 g (1.06 oz) 6 ms,
20 g (0.71 oz) 11 ms (3)
3 bumps/direction,
18 bumps in total
IEC 60068-2-27
Altitude
0…2000 m (0…6560 ft) Without any restrictions
2000…6000 m (6560…20,000 ft) Reduce output power or ambient temperature, see Figure 20
IEC 62103, EN 50178, overvoltage category II
Altitude derating 30 W/1000 m (3.75 W/3280 ft), or
5 °C/1000 m (9 °F/3280 ft) >2000 m (6500 ft), see Figure 20
Overvoltage category III IEC 62103, EN 50178, altitudes up to 2000 m (6500 ft)
II Altitudes 2000…6000 m (6500…20,000 ft)
Degree of pollution 2 IEC 62103, EN 50178, not conductive
LABS compatibility The unit does not release silicone or other LABS-critical substances and is suitable for use in paint
shops.
Audible noise At load currents below 1 A, some audible noise is emitted from the DC/DC converter

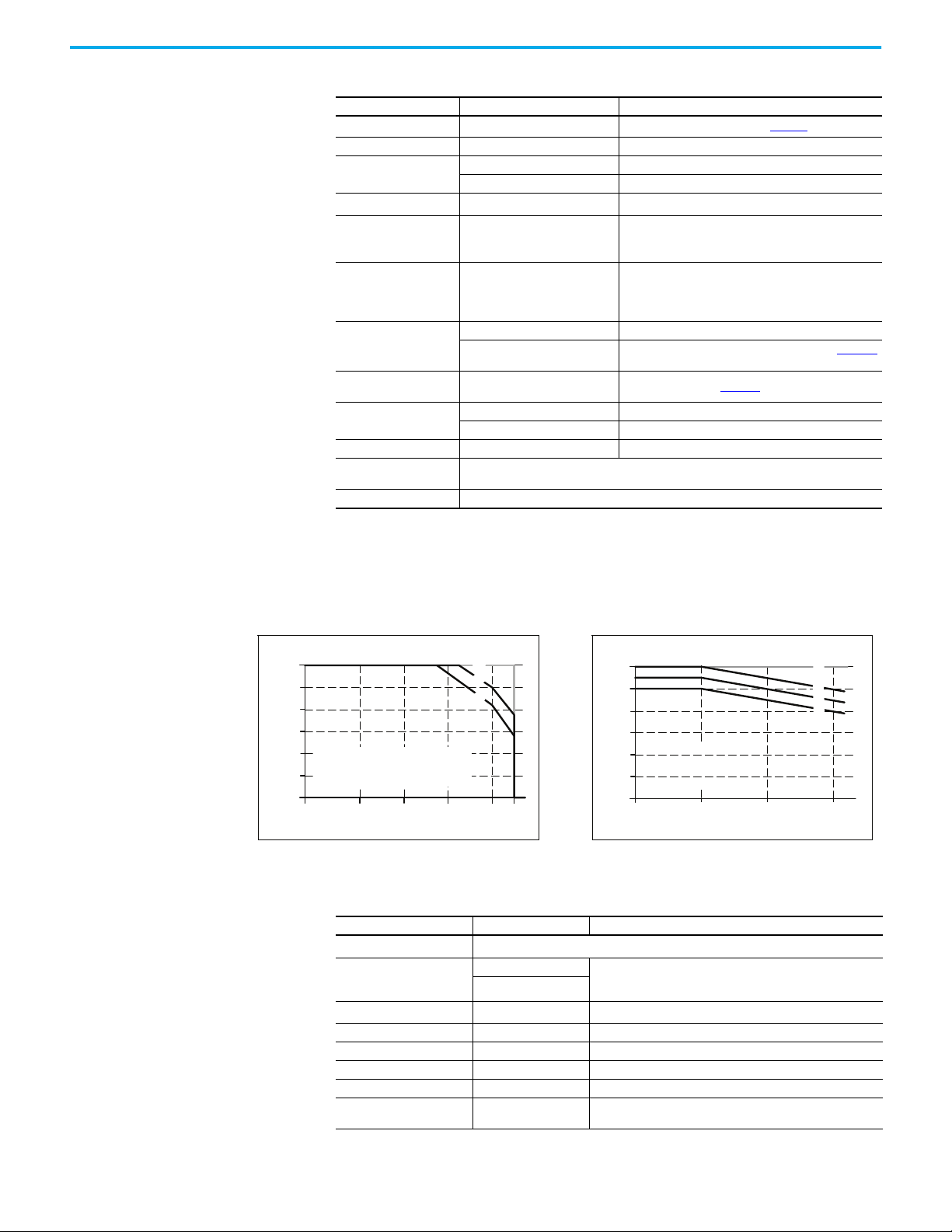

Figure 19 - Output Current Versus Ambient
Temperature Figure 20 - Output Current Versus Altitude
Allowed Output Current at 48V
0
-25 0 20 40 70 °C
2
4
6
8
10
12 A
60
A: 100…360V DC, continuous
B: 88V DC, continuous
C: Short-term
B
A
Ambient Temperature
C
0
0 2000 4000 6000 m
2
4
6
8
10
12 A
B
A
C
A: Tamb <60 °C
B: Tamb <50 °C
C: Tamb<40 °C
D: Short-term
D
Allowable Output Current at 48V
Altitude
Attributes Values Notes
Output protection Electronically protected against overload, no-load, and short-circuits (1)
(1) An audible noise occurs if there is a protection event.
Output overvoltage protection 58.5V DC typ If there is an internal DC/DC converter anomaly, a redundant circuit limits the maximum output voltage. The output shuts down and
automatically attempts to restart.
60V DC max
Degree of protection IP 20 EN/IEC 60529 (2)
Penetration protection >5 mm (0.2 in.) For example, screws and small parts
Over-temperature protection Yes Output shutdown with automatic restart
Input transient protection MOV Metal Oxide Varistor
Internal input fuse DC suitable fuse included Not user-replaceable
Reverse input polarity
protection Yes Unit does not start, no signaling

14 Rockwell Automation Publication 1606-RM047A-EN-P - September 2021
Safety Features
Dielectric Strength The output voltage is floating and has no ohmic connection to the ground. The
manufacturer conducts type and factory tests. Field tests can be conducted
with the appropriate test equipment, which applies the voltage with a slow
ramp (2 s up and 2 s down). Connect all input terminals together and connect
all output poles before conducting the test. When testing, set the cutoff
current settings to the values in the following table.
(2) For use in a controlled environment according to CSA 22.2 No 107.1-01.
Attributes Values Notes
Input/output separation (1)
(1) Double or reinforced insulation.
SELV IEC/EN 60950-1
PELV IEC/EN 60204-1, EN 50178, IEC 62103, IEC 60364-4-41
Class of protection I PE connection required.
Isolation resistance >5 MΩInput to output, 500V DC
PE resistance <0.1 Ω—
Touch current
(leakage current)
The leakage current that the DC/DC converter produces depends on the input voltage ripple and
needs investigation in the final application.
For a smooth DC input voltage, the produced leakage current is less than 100 µA.
Figure 21 - Dielectric Strength Test or Setting Time A B C D
Type test 60 s 2500V AC 3000V AC 1000V AC 500V AC
Factory test 5 s 2500V AC 2500V AC 500V AC 500V AC
Field test 5 s 2000V AC 2000V AC 500V AC 500V AC
Cutoff current setting — >15 mA >15 mA >20 mA >1 mA
To fulfill the PELV requirements according to
EN60204-1 § 6.4.1, we recommend that you connect
the protective earth system to the + pole, the – pole,
or any other part of the output circuit. This
connection helps to avoid situations in which a load
starts unexpectedly or cannot be switched off when
unnoticed earth faults occur.
DA
C
B
B
-
+
Input DC-OK
Earth, PE Output
-
+
(a)
When input to DC-OK is tested, confirm that the max voltage between DC-OK
and the output is not exceeded (column D). We recommend connecting DC-OK
pins and the output pins together when performing the test.
(a)

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 15
Certifications and
Standards Compliance
Physical Dimensions and
Weight
Names Symbols Notes (1)
UL 508
UL Certificate
Listed equipment for category NMTR - Industrial Control
Equipment
Applicable for US (UL 508) and Canada (C22.2 No. 107-1-01)
E-File: E198865
UL 60950-1
2nd Edition
UL Certificate
Recognized component for category QQGQ - Information
Technology Equipment
Level 5
Applicable for US (UL 60950-1) and Canada (C22.2 No. 60950-1)
E-File: E137006
Applicable for altitudes up to 2000 m (6561.66 ft)
EN 60079-0, EN 60079-15 ATEX Approval for use in hazardous locations Zone 2 Category 3G ATEX certificate: EPS 13 ATEX 1 555 X
Unit must be built in, in an IP54 enclosure
IEC 60079-0
IEC 60079-15 Suitable for use in Class 1 Zone 2 Groups IIa, IIb, and IIc locations IECEx certificate: IECEx EPS 13.0016X
ANSI/ISA 12.12.01-2007
Class I Div 2
CSA Certificate
Power Supplies for Hazardous Location
Class I Div 2
Applicable for Canada and US
CSA Class: C22.2 No. 213-M1987 (Canada),
ANSI/ISA 12.12.01-2007 (US)
Temperature Code: T3
Groups: A, B, C, and D
EC Declaration of Conformity
The CE marking indicates conformance with the following:
EMC Directive 2004/108/EC
Low Voltage Directive (LVD) 2006/95/EC
RoHS directive 2011/65/EU
ATEX directive 94/9/EC (for use in explosive atmospheres)
EAC TR Registration Registration for the Eurasian Customs Union market (Russia,
Kazakhstan, Belarus)
(1) Product certification information (including Certificates and Declarations of Conformity) can be found at rok.auto/certifications.
IND. CONT. EQ.
II 3G Ex nA nC II T3 Gc
Attributes Values and Descriptions
Width 65 mm (2.56 in.)
Height 124 mm (4.88 in.)
Depth 127 mm (0.5 in.) (1)
(1) Add the DIN rail height to the unit depth to calculate the total required installation depth.
Weight 940 g (2.1 lb)
DIN rail Use 35 mm (1.38 in.) DIN rails according to EN 60715 or EN 50022 with a height of
7.5 mm (0.30 in.) or 15 mm (0.59 in.).

16 Rockwell Automation Publication 1606-RM047A-EN-P - September 2021
Accessories 1606-XLC Wall Mounting Bracket
This bracket is used to mount the DC/DC converter onto a flat surface without
using a DIN rail.
Figure 22 - Front View [mm (in.)] Figure 23 - Side View [mm (in.)]
19.1
(0.75) 25.4 (1)
Width 65 (2.56)
3
(0.12)
3
(0.12)
DIN Rail Depth
Width 127 (5.0)
Height 124 (4.88)
Figure 24 - Wall Mounting Bracket Attached
to Unit Figure 25 - Wall Mounting Bracket

Rockwell Automation Publication 1606-RM047A-EN-P - September 2021 17
1606-XLA-S63 Side-mounting Bracket
The 1606-XLA-S63 side-mounting bracket is used to mount units sideways,
with or without the use of a DIN rail. Detach the two aluminum brackets and
the black plastic slider of the unit to mount the steel brackets.
For sideway DIN rail mounting, mount the aluminum brackets and the black
plastic slider onto the steel bracket.
1606-XLSRED40HF Redundancy Module
The 1606-XLSRED40HF redundancy module is equipped with two input
channels, which use mosfet technology to decouple individually. The use of
mosfets instead of diodes reduces the heat generation and the voltage drop
between input and output. The module does not require an additional
auxiliary voltage and is self-powered, even if there is a short circuit across the
output.
Due to the low-power losses, the unit is slender and requires a 46 mm (1.81 in.)
wide DIN rail.
Figure 26 - Side Mounting with DIN Rail Brackets Figure 27 - Side Mounting without DIN Rail Brackets
Figure 28 - Redundancy Module Figure 29 - Typical 1+1 Redundant Configuration for 48V, 10 A
with a Dual Redundancy Module
2x 20 A inputs
1x 40 A output
48V
10 A
Load
Failure
Monitor
L
N
PE
48…56V 480 W
1606-XLE480FP-D
DC/DC
Converter
+ +
- -
48V 10 A
DC-
OK
DC Input Output
PE
+
-
1606-XLSRED40HF
Redundancy
Module
Input
1Input 2
Output
+
-
+
-
+
-
+ +
- -
48V 10 A
DC-
OK
Output
48…56V 480 W
1606-XLE480FP-D
DC/DC
Converter
PE
+
-
Fuse Fuse
DC Input
(a)
2x 1606-XLERED or 1606-XLSRED redundancy modules are also possible
(a)

18 Rockwell Automation Publication 1606-RM047A-EN-P - September 2021
Peak Current Capability The DC/DC converter can deliver peak currents (up to several milliseconds)
which are higher than the specified short-term currents.
Peak current capability helps to start current-demanding loads. Solenoids,
contactors, and pneumatic modules often have a steady state coil and a pickup
coil. The inrush current demand of the pick-up coil is several times higher than
the steady-state current and usually exceeds the nominal output current
(including the Power Boost). The same situation applies when starting a
capacitive load.
The peak current capability also achieves the safe operation of subsequent
circuit breakers of load circuits. The load branches are often individually
protected with circuit breakers or fuses. If there is a short or an overload in one
branch circuit, the fuse or circuit breaker needs a certain amount of
overcurrent to open in a timely manner. This safety avoids voltage loss in
adjacent circuits.
The extra current (peak current) is supplied by the power converter and the
built-in large-sized output capacitors of the DC/DC converter. The capacitors
get discharged during such an event, which causes a voltage dip on the output.

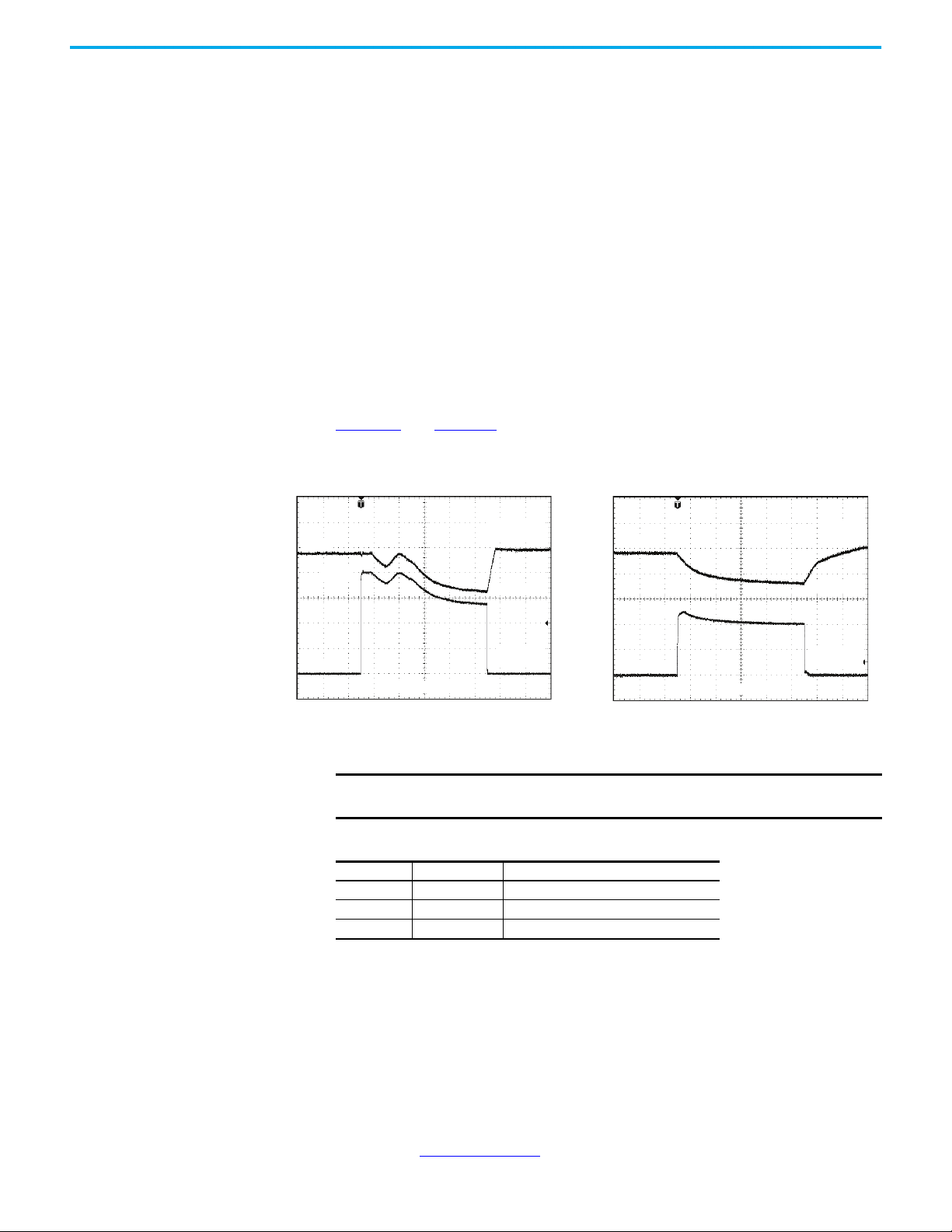

Figure 30 and Figure 31 show typical voltage dips.
Back-feeding Loads Loads such as decelerating motors and inductors can feed voltage back to the
DC/DC converter. This feature is also called return voltage immunity, or
resistance against Back Electromagnetic Force (Back EMF).
This DC/DC converter is resistant and does not show malfunctions when a
load feeds back voltage to the unit, regardless of whether the unit is on or off.
The maximum allowed feed back voltage is 63V DC. The absorbing energy can
be calculated according to the built-in large-sized output capacitor, which is
specified in Output on page 6.
Figure 30 - Peak Loading with 2x the Nominal
Current for 50 ms, Typ Figure 31 - Peak Loading with 5x the Nominal Current for 5 ms, Typ
Peak load 20 A (resistive load) for 50 ms.
Output voltage: 48V dips to 32V
Peak load 50 A (resistive load) for 5 ms.
Output voltage: 48V dips to 37V
10 ms/DIV
Output
Voltage
Output
Current
48V
0 A
20 A
32V
1 ms/DIV
Output
Voltage
Output
Current
48V
0 A
50 A
37V
IMPORTANT The DC-OK relay triggers when the voltage dips more than 10% for
longer than 1 ms.
Peak Current Voltage Dips
Attributes Values Notes
Typ 48…32V At 20 A for 50 ms, resistive load
Typ 48…39V At 50 A for 2 ms, resistive load
Typ 48…37V At 50 A for 5 ms, resistive load
