Allen + Roth 42623 User manual

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected].
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
ITEM # 5024109, 5134414
WALL SCONCE
MODEL # 42623, 42825
Español p. 13
SC22227
welcoming • sophisticated • inspiring
1
ALLEN + ROTH and logo design are
trademarks or registered trademarks of LF, LLC.
All rights reserved.
RATED FOR
DAMP
LOCATIONS

TABLE OF CONTENTS
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Hardware Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preparation ......................................................................3
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly Instructions for Plug-in Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly Instructions for Hardwire Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1-Year Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2

3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Fixture 1
B Shade 1
C Screw Cap 2
D Switch (preassembled to Fixture [A]) 1
E Wall Plate (preassembled to Fixture [A]) 1
F Mounting Screws (preassembled to Wall Plate [E]) 2
G Power Cord (preassembled to Fixture [A]) 1
H Plug (preassembled to Power Cord [G]) 1
I Hex Nut (preassembled to Mounting Screws [F] 2
J Grommet (preassembled to Fixture [A]) 1
K Socket Ring (preassembled to Fixture [A]) 1
L Tube 1
A
B
C
D
L
F
I
E
J
K
H
G
PREPARATION
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included):
1/4”
Helpful Tools (not included)
HARDWARE CONTENTS
Mounting Bracket
Qty. 1
Mounting
Bracket Screw
Qty. 2
Plug Button
Qty. 1
Anchor
Qty. 2
Anchor Screw
Qty. 2
FF AG
RR EE AH
(not drawn to scale)
(hardwire installation only) (plug-in installation only)
7mm

4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product. Failure to do so could lead to electrical shock, re or other injuries that could be hazardous
or even fatal.
• Before you begin installing the light xture, disconnect the power by removing fuses or turning o󰀨
the circuit breakers.
• The net weight of the light kit is 1.43 lbs.
• This xture is intended for indoor or damp locations. It is not suitable for outdoor locations.
DANGER:
• DO NOT connect this xture to an electrical system that does not provide a means for equipment
grounding. Never use a xture in a two-wire system that is not grounded. Installing a xture into
an electrical system not having a proper grounding means could cause metal parts of the xture
to carry electrical currents if any of the xture wires, wire connections or splices were to become
broken, cut or loose during the mounting or normal operation of the xture. Under this condition,
anyone coming in contact with the xture would be subject to electrical shock, which could cause
serious injury or death.
• DO NOT connect the bare or green insulation xture ground wire to the black (hot) current-carrying
wire or the white neutral house wire. Connection of the bare or green xture ground wire to the
black or white house wires may cause metal parts of the xture to carry electrical currents. Under
this condition anyone coming in contact with the xture will receive electrical shock, which could
cause serious injury or death.
• DO NOT damage or cut the wire insulation (covering) during installation of the xture. DO NOT
permit wires to contact any surface having a sharp edge. To do so may damage or cut the wire
insulation, which could cause serious injury or death from electrical shock.
WARNING:
• All electrical connections must be in agreement with local codes and ordinances, the National
Electric Code (NEC) and ANSI/NFPA 70-1999. Contact your municipal building department to learn
about your local codes, permits and/or inspections. Risk of re - most dwellings built before 1985
have supply wire rated for 140°F. Consult a qualied electrician before installation.
• To avoid personal injury, the use of gloves may be necessary while handling xture parts with sharp
edges.
• DO NOT suspend any xture by the house wires. A xture must always be mounted directly to an
outlet box. Wire connectors will not support the weight of a xture. Suspending a xture by the
house wires and wire connectors will result in the xture falling, with the possibility of personal
injury and the danger of electrical shock or re.
• To reduce the risk of re, electrical shock, or personal injury, each wire connector used with this
xture should accept only one 18-gauge wire from the light xture and one 18-gauge wire from the
outlet box. If there are three or more wires to connect or any of the wires is larger than 18 gauges,
consult an electrician for the proper size wire connectors to use.

ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION
1. Turn o󰀨 the circuit breakers and the wall switch to the
supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. This xture has two options for installation. To install
the xture using the plug-in method, continue to the
next step.
To install the xture without the plug, skip to
ASSEMBLY INSTRUCTIONS FOR HARDWIRE
INSTALLATION, page 8. Note: Hardwire installation
requires an outlet box at the installation location.
3. Determine the desired location of the xture assembly
(A) making sure you have access to an electrical
outlet and there are no electrical lines or plumbing
where you intend to attach the mounting hardware.
Mark the anchor (AG) locations on wall and drill each
hole 7 mm in diameter. Insert the anchors (AG) and
tap into the wall until secure. Using a screwdriver,
set two screws (AH) into the anchors (AG) leaving
enough exposed to set into the keyhole slots on the
preassembled wall plate (E).
Hardware Used
AG Anchor x 2
Anchor Screw x 2
1
2
Plug-in Hardwire
5
3
AG
AH
AH

6
ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION
4. Align the keyhole slots on the wall plate (E) with the
screws (AH) on the wall and then gently push the wall
plate (E) against the wall and slide down until secure.
5. Insert tube (L) into the threaded hole in the bottom
of xture (A) and twist in a clockwise direction until
secure.
6. Turn socket ring (K) counterclockwise to remove
from the socket of xture (A). Place shade (B) over
socket and secure with socket ring (K) by turning in a
clockwise direction.
4
AH
E
6
A
B
K
L
A
5

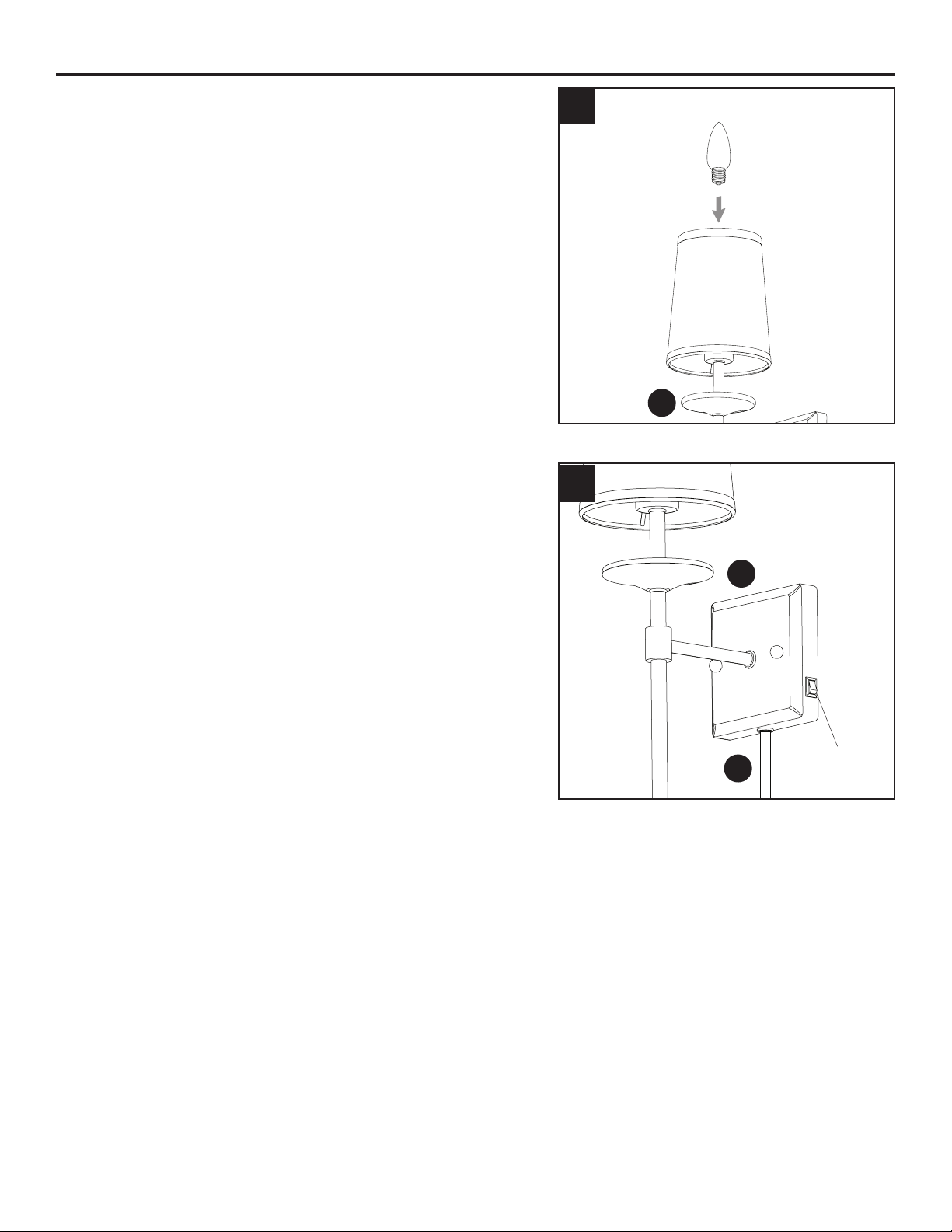

ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION
7. Install candelabra-base (E12) bulb (sold separately) in
socket of xture (A).
Important: Make sure you allow the bulb and xture
(A) to cool before you replace the bulb.
Assembly is complete.
Turn ON the electrical power at the main fuse or
circuit breaker.
8. Insert plug preassembled to power cord (G) into
nearby electrical outlet and move switch on underside
of xture (A) to ON position.
8
A
GSwitch
7
7
A
Bulb (sold
separately)

ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION
1. Turn o󰀨 the circuit breakers and the wall switch to the
supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. This xture has two options for installation. To install
the xture using the hardwire method, continue to
the next step. Note: Hardwire installation requires an
outlet box at the installation location.
To install the xture using the plug-in method, return
to ASSEMBLY INSTRUCTIONS FOR PLUG-IN
INSTALLATION, page 5.
3. To remove the wall plate (E) from the back of the
xture (A), unscrew and remove the two screw caps
(C) from the front of the xture (A). The wall plate (E)
will not be used for hardwire installation.
Then, insert tube (L) into the threaded hole in the
bottom of xture (A) and twist in a clockwise direction
until secure.
1
2
Plug-in Hardwire
8
1
2
3
A
C
L
E
Threaded
Hole

ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION
4. Use the two mounting bracket screws (RR) to attach
the mounting bracket (FF) to the outlet box (sold
separately). Note: Ensure the mounting bracket
screws (RR) are parallel to the horizon.
Hardware Used
FF Mounting
Bracket x 1
Mounting
Bracket Screw x 2
5. Loosen the ground screw preassembled to the
mounting bracket (FF). Wrap the green/bare (ground)
supply wire from the outlet box around the ground
screw. Tighten the ground screw to secure the ground
wire.
6. To remove the power cord (G) from the xture (A),
locate the two wires extending from the power
cord (G). Lift the lever on the wire connectors
preassembled to the xture wires to release each plug
wire. Use a Phillips screwdriver to remove the cable
clamp. Once both wires of the power cord (G) are
released, pull it through the grommet (J) at the bottom
of the xture (A) to remove.
4
6
RR
FF
FF
5
Ground Screw
Ground Wire
Outlet
Box
Lever
Cable
Clamp
A
G
J
RR
9

ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION
7. Remove the hex nut preassembled to plug button
(EE). Then insert the plug button (EE) through
grommet (J) and secure with the hex nut.
Hardware Used
EE Plug Button x 1
8. Make the following wire connections using the wire
connectors preassembled to the xture (A) wires:
• Push the Bare/Green (ground) supply wire into the
empty wire hole of the wire connector preassembled
to the Copper wire. Lower the lever to secure.
• Push the White (neutral) supply wire into the empty
wire hole of the wire connector preassembled to the
White wire. Lower the lever to secure.
• Push the Black (hot) supply wire into the empty
wire hole of the wire connector preassembled to
the Black wire from the switch. Lower the lever to
secure.
Note: If household supply wires are di󰀨erent
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
9. Insert the two screws preassembled to the mounting
bracket (FF) through the two holes in the xture (A)
and secure with the two screw caps (C).
Note: It may be necessary to adjust the hex nuts, and
long screws preassembled to the mounting bracket
(FF), to ensure the xture (A) will t securely on the
long screws.
9
8
White
(neutral)
White
Black (hot)
Black
Copper
Outlet
Box
Hex Nut
Bare/Green
(ground)
7
A
EE
J
Hole
Screw A
C
FF
10

12
11
A
A
Bulb (sold
separately)
10
ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION
10. Turn socket ring (K) counterclockwise to remove
from the socket of xture (A). Place shade (B) over
socket and secure with socket ring (K) by turning in a
clockwise direction.
11. Install candelabra-base (E12) bulb (sold separately) in
socket of xture (A).
Important: Make sure you allow the bulbs and xture
(A) to cool before you replace the bulb.
Assembly is complete.
Turn ON the electrical power at the main fuse or circuit
breaker.
12. Move switch on side of xture (A) to on position.
Switch
A
B
K
11

TROUBLESHOOTING
ONE-YEAR LIMITED WARRANTY
The manufacturer warrants all of its lighting xtures against defects in materials and workmanship
for one (1) year from the date of purchase. If within this period the product is found to be defective,
take a copy of the bill of sale as a proof of purchase and the product in its original carton to the place
of purchase. The manufacturer will, at its option, repair, replace or refund the purchase price to the
consumer. All costs of installation and removal of the xture is the responsibility of the consumer. This
warranty does not cover xtures becoming defective due to misuse, accidental damage or improper
handling and/or installation and specically excludes liability for direct, incidental or consequential
damages. As some states do not allow exclusions of limitations on an implied warranty, the above
exclusion and limitation may not apply. This warranty gives you specic rights and you may also have
other rights which may vary from state to state.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Bulb will not light. 1. Fixture may be wired
incorrectly.
2. Worn or broken bulb.
1. Check wiring.
2. Replace bulb.
3. Ensure switch is in ON position.
9792 PB · 070122 Printed in China
12
