Alliance Laundry Systems 602004144 Instruction Manual

Operation/Maintenance
www.comlaundry.com
Tumble Dryers
Stacked 30 Pound Capacity
Stacked 45 Pound Capacity
Starting Serial No. 0602004144
Refer to Page 3 for Model Numbers
Part No. 70400101R9EN
July 2011
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT70400101 (EN) 1
Installation must conform with local codes or in the absence of local codes with:
In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/
NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”
In Canada, installation must comply with Standards CAN/CSA-B149.1 or Natural Gas and Propane Code
CSA C22.1, latest edition, Canadian Electric Code, Part I.
In Australia, installation must comply with the Australian Gas Association Installation Code for Gas
Burning Appliances and Equipment.
IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the
user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the
above safety information must be posted in a prominent location near the tumble dryer for customer use.
FOR YOUR SAFETY, the information in this
manual must be followed to minimize the
risk of fire or explosion or to prevent
property damage, personal injury or death.
W033
WARNING
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
W052
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
W053
• Ne pas entreposer ou utiliser d’essence
ou toutes autres vapeurs et liquides
inflammables à proximité de cette
machine ou de tout autre appareil.
• QUE FAIRE EN CAS D’ODEUR DE GAZ :
– Ne pas mettre d’appareil en marche.
– Ne pas toucher aux interrupteurs
électriques ; ne pas utiliser le téléphone
des lieux.
– Évacuer la pièce, le bâtiment ou la zone
de tous les occupants.
– Appeler immédiatement le fournisseur
de gaz de la maison d’un voisin.
Respecter les instructions
communiquées par le fournisseur.
– Si vous ne pouvez pas joindre le
fournisseur de gaz, appeler le service
d’incendie.
• L’installation et l’entretien doivent être
effectués par un installateur, service
d’entretien qualifiés ou par le fournisseur
de gaz.
W052R5QU
•POUR VOTRE SÉCURITÉ
Ne pas entreposer ou utiliser d’essence ou
toutes autres vapeurs et liquides
inflammables à proximité de cette unité ou
de tout autre appareil.
W053R2QU
POUR VOTRE SÉCURITÉ, les informations
de ce guide doivent être respectées afin de
réduire les risques d’incendie, d’explosion
ou d’éviter les dommages matériels,
personnels ou blessures mortelles.
W033R3QU
MISE EN GARDE

© Copyright 2011, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
270400101 (EN)
Table of
Contents
Introduction......................................................................................... 3
Model Identification ............................................................................. 3
Customer Service.................................................................................. 4
Serial Plate Location............................................................................. 4
Wiring Diagram .................................................................................... 4
Safety Information.............................................................................. 5
Explanation of Safety Messages........................................................... 5
Important Safety Instructions ............................................................... 6
Operating Instructions ....................................................................... 8
Emergency Stop Button on CE Models................................................ 8
Operating Instructions .......................................................................... 8
Control Instructions .............................................................................. 9
LED OPL Control ............................................................................ 9
Dual Digital Timer Control.............................................................. 10
Single Drop Control......................................................................... 13
DX4 Coin Control............................................................................ 15
DX4 OPL Control ............................................................................ 16
Ignition Control Operation for Non-CE Models .................................. 17
Ignition Control Operation for CE Models........................................... 18
Maintenance ........................................................................................ 20
Daily ..................................................................................................... 20
Monthly................................................................................................. 22
Quarterly ............................................................................................... 22
Bi-Annually .......................................................................................... 22
Annually ............................................................................................... 22
Before You Call for Service ............................................................... 26
Customer Service.................................................................................. 26

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
70400101 (EN)
Introduction
Model Identification
Information in this manual is applicable to these models:
Includes models with control suffixes:
Gas Steam Electric
T30
CHD30STG2-CAT30L
CHD30STG2-CAT30N
CHD30STG2-CTT30L
CHD30STG2-CTT30N
CHD30STG2-CUT30L
CHD30STG2-CUT30N
DRST30G2-BAT30L
DRST30G2-BAT30N
DRST30G2-BTT30D
DRST30G2-BTT30L
DRST30G2-BTT30N
DRST30G2-BUT30L
DRST30G2-BUT30N
IPD30STG2-ITT30L
IPD30STG2-ITT30N
CHD30STS2-CTT30S
CHD30STS2-CUT30S
DRST30S2-BTT30S
DRST30S2-BUT30S
IPD30STS2-ITT30S
CHD30STE2-CTT30E
CHD30STE2-CUT30E
DRST30E2-BTT30E
DRST30E2-BUT30E
IPD30STE2-ITT30E
T45
CTT45L
CTT45N
DRST45G2-BAT45L
DRST45G2-BAT45N
DRST45G2-BTT45D
DRST45G2-BTT45L
DRST45G2-BTT45N
DRST45G2-BUT45L
DRST45G2-BUT45N
IPD45STG2-ITT45L
IPD45STG2-ITT45N
Not Applicable Not Applicable
3O – DX4 OPL
3V – DX4 vended
3X – DX4 prep for coin
EO – LED OPL
QT – dual digital timer
SD – single drop
SX – single drop, prep for coin

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
70400101 (EN)
4
Customer Service
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call [phone].
Serial Plate Location
When calling or writing for information about your
product, be sure to mention model and serial numbers.
Model and serial numbers are found on serial plate on
the rear of machine and inside door. Refer to Figure 1.
Wiring Diagram
The wiring diagram is located in the upper junction or
upper contactor box. The wiring diagram part number
is located in the lower portion of the electrical data on
the serial plate.
Figure 1
TMB1974N
1Serial Plate
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
70400101 (EN)
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
IMPORTANT: Warranty is void unless tumble
dryer is installed according to instructions in the
Installation Manual. Compliance with minimum
specifications and requirements detailed herein,
and with applicable local gas fitting regulations,
municipal building codes, water supply regulations,
electrical wiring regulations, and any other
relevant statutory regulations. Because of varied
requirements, applicable local codes should be
thoroughly understood and all pre-installation
work arranged for accordingly.
NOTE: The WARNING and IMPORTANT
instructions appearing in this manual are not
meant to cover all possible conditions and
situations that may occur. It must be understood
that common sense, caution and carefulness are
factors which CANNOT be built into this tumble
dryer. These factors MUST BE supplied by the
person(s) installing, maintaining or operating the
tumble dryer.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
Failure to install, maintain, and/or operate
this machine according to manufacturer’s
instructions may result in conditions which
can produce serious injury, death and/or
property damage.
W051R1
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
70400101 (EN)
6
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the tumble
dryer.
2. Refer to the GROUNDING INSTRUCTIONS
for the proper grounding of the tumble dryer.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children on or in the tumble dryer.
This appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
5. Before the tumble dryer is removed from service
or discarded, remove the door to the drying
compartment and the door to the lint
compartment.
6. Do not reach into the tumble dryer if the cylinder
is revolving.
7. Do not install or store the tumble dryer where it
will be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumble
dryer, or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter daily.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the tumble dryer and the exhaust
duct should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Tumble dryer will not operate with the loading
door open. DO NOT bypass the door safety
switch to permit the tumble dryer to operate with
the door open. The tumble dryer will stop
tumbling when the door is opened. Do not use the
tumble dryer if it does not stop tumbling when
the door is opened or starts tumbling without
pressing or turning the START mechanism.
Remove the tumble dryer from use and call for
service.
17. Tumble dryer will not operate with lint panel
open. DO NOT bypass lint panel safety switch to
permit the tumble dryer to operate with the lint
panel open.
18. Do not put articles soiled with vegetable or cooking
oil in the tumble dryer, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
19. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumble dryer.
20. Use the tumble dryer only for its intended
purpose, drying fabrics.
21. ALWAYS disconnect and lockout the electrical
power to the tumble dryer before servicing.
Disconnect power by shutting off appropriate
breaker or fuse.
22. Install this tumble dryer according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding, and
gas supply must comply with local codes and be
made by licensed personnel when required.
Hazardous Voltage. Can cause shock, burn
or cause death. Allow machine power to
remain off for two minutes prior to working
in and around AC inverter drive.
W359
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
7
70400101 (EN)
23. Remove laundry immediately after tumble dryer
stops.
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
26. Always follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the tumble dryer with any guards
and/or panels removed.
28. DO NOT operate the tumble dryer if it is
smoking, grinding, has missing or broken parts.
29. DO NOT bypass any safety devices.
30. Solvent vapors from dry-cleaning machines
create acids when drawn through the heater of the
drying unit. These acids are corrosive to the
tumble dryer as well as to the laundry load being
dried. Be sure make-up air is free of solvent
vapors.
31. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
WARNING
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumble dryers.
W055R1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70400101 (EN)
8
Operating Instructions
Emergency Stop Button on CE
Models
All CE approved OPL tumble dryers are factory
equipped with an emergency stop button located on
the front panel. Refer to Figure 2.
Figure 2
To operate emergency stop button:
a. Press red emergency stop button to stop all
action.
b. To restart machine, pull red emergency stop
button out and press START pad or button.
NOTE: Activation of the emergency stop button
stops all machine control circuit functions, but
DOES NOT remove all electrical power from
machine.
Operating Instructions
Step 1: Clean Lint Screen/Compartment
Remove any accumulated lint from the lint screen and
compartment. Close panel tightly against tumble dryer
frame and lock panel securely, if applicable.
IMPORTANT: Clean lint screen and lint
compartment daily. Failure to clean the lint screen
daily will result in higher than normal
temperatures that may damage laundry.
Step 2: Load Laundry
Open loading door and load cylinder with laundry. DO
NOT OVERLOAD.
NOTE: Overloading causes slow drying and
wrinkling.
Close loading door. Tumble dryer will not operate with
the door open.
Step 3: Determine Control Type and
Temperature Setting
Refer to the various controls, pages 9-16, follow
instructions for the appropriate control type.
Use the correct coin slot and control panel for the top
or bottom cylinder.
The type of fabric being dried will determine the
temperature setting. Consult the fabric care label or
fabric manufacturer to determine proper temperature
setting.
IMPORTANT: Always follow the fabric care
instructions supplied by the garment manufacturer.
Step 4: Remove Laundry
When the cycle is complete, open door and remove the
laundry.
WARNING
To reduce the risk of fire:
• DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials.
• DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning
cloths, or anything dry-cleaned at home with a dry-cleaning solvent.
• DO NOT TUMBLE fiberglass curtains and draperies unless the label says it can be done. If
they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass.
W076
To reduce the risk of serious injury, allow cylinder to stop before cleaning lint screen.
W412
TMB2264N
1Emergency Stop Button
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
9
70400101 (EN)
Control Instructions
Figure 3

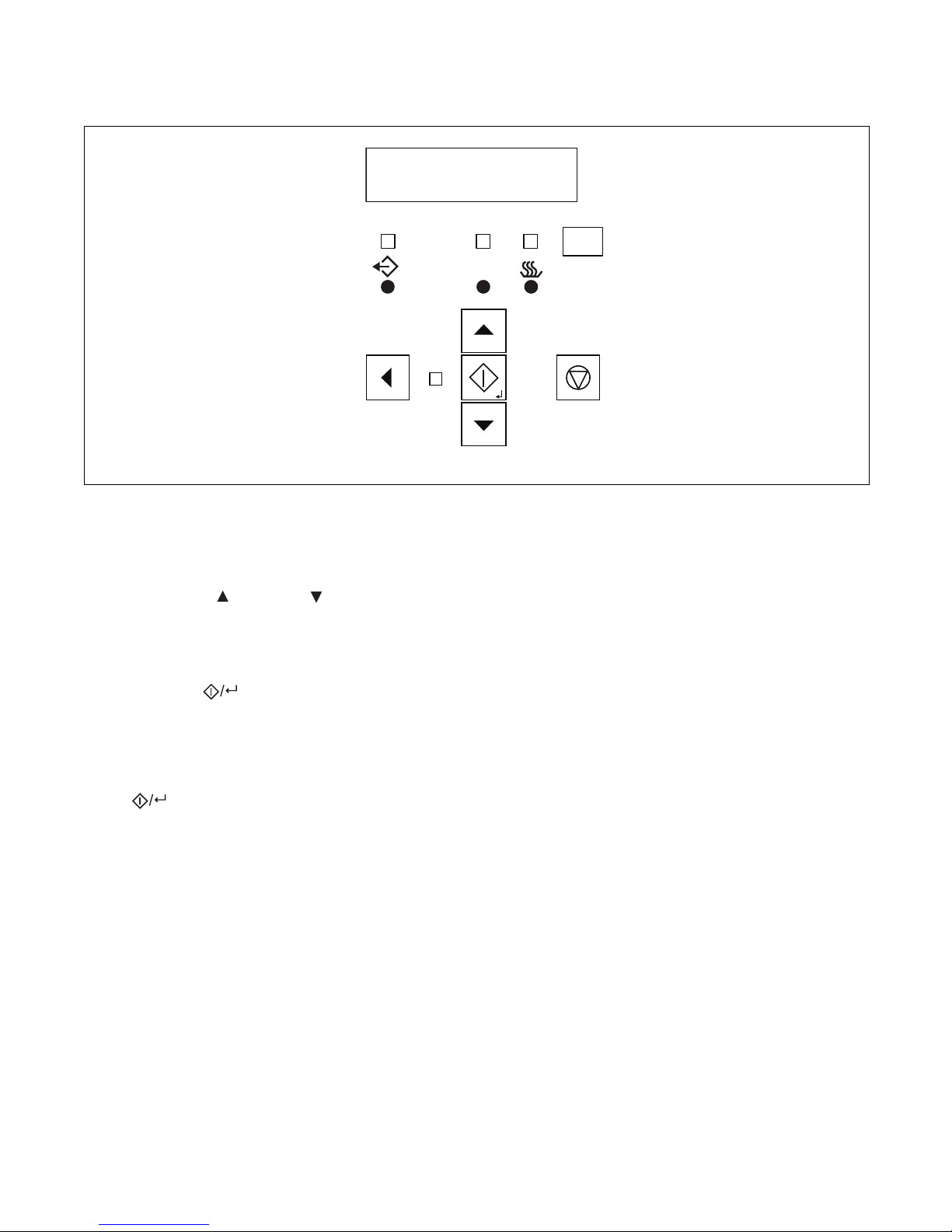

LED OPL Control
EO Control Suffix
1. Press the Up ( ) or Down ( ) keypad to change
cycles.
To customize a cycle, refer to the Programming
Manual.
2. Press Start ( ) to start selected cycle.
IMPORTANT: If the loading door or lint panel
door is opened during the cycle, the heating system
will shut off and the motor will stop. To restart the
cycle, both doors must be closed and the
Start ( ) pad must be pressed.
3. When the cycle is complete, open door and
remove laundry.
NOTE: This machine includes an anti-wrinkle/
extended tumble feature. After the drying cycle is
complete, the cylinder will tumble without heat
every few minutes. The intermittent tumbling will
continue for one hour or until the door is opened.
After an hour the machine enters delayed tumble
and will tumble for two minutes every hour for up
to 18 hours or until the door is opened.
ECO
TMB2345N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400101 (EN)
10
Figure 4

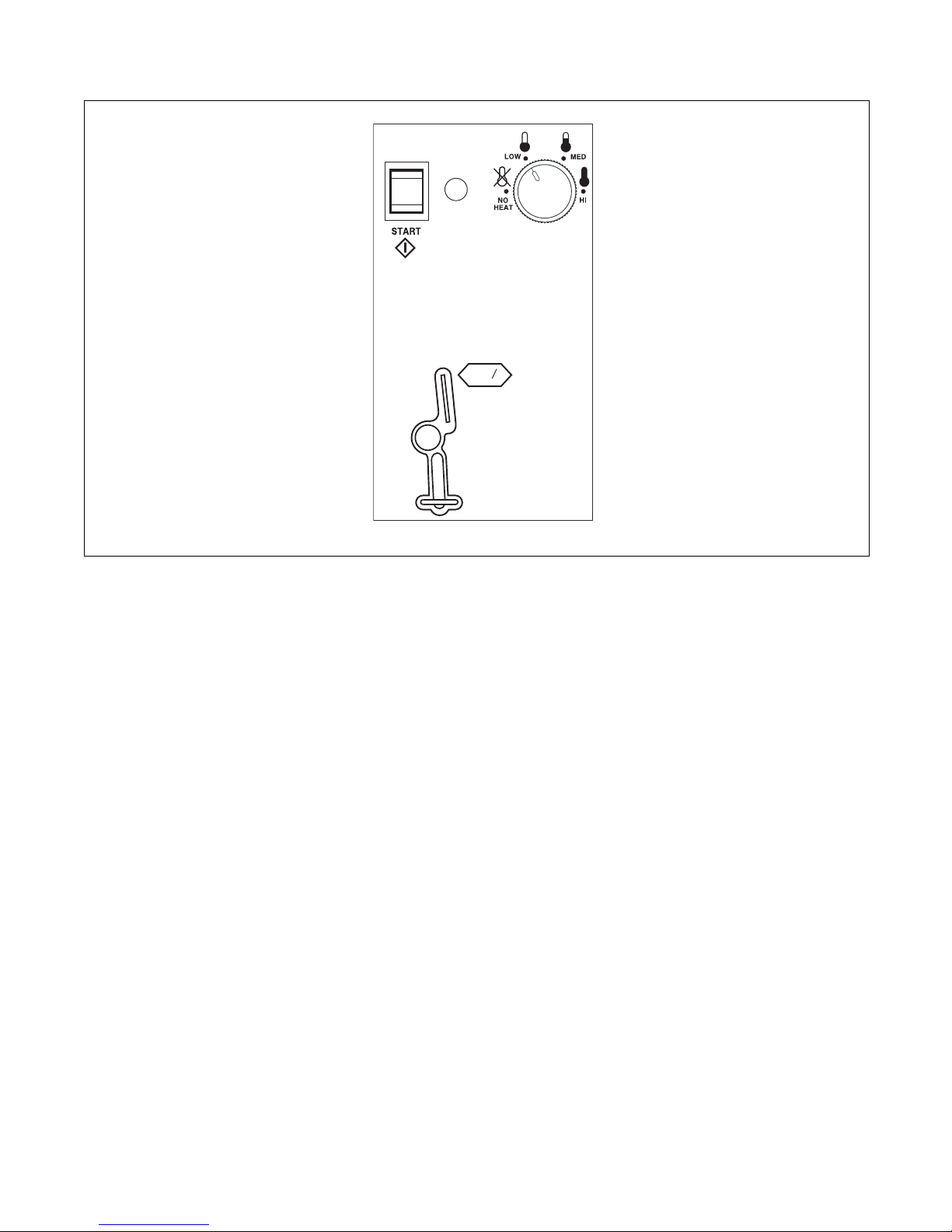

Dual Digital Timer Control
QT Control Suffix
1. Select HIGH, MED, LOW or NO HEAT by
turning the temperature knob.
HIGH temperature 190°F (87°C)
MED temperature 170°F (77°C)
LOW temperature 120°F (49°C)
2. Set the HEAT TIME for the number of minutes
(from 0-60) desired.
3. Set the COOL DOWN TIME for the number of
minutes (from 0-15) desired.
4. Press and release START button to start tumble
dryer. Display will show minutes remaining
before end of cycle.
NOTE: One touch drying is available for repetitive
loads. If the START button is pressed while the
machine is in Idle Mode, when the display is dark,
the tumble dryer will repeat the last drying cycle. If
the cycle time is adjusted before the cycle is started,
the time displayed when the start button was
pressed will be used for future cycles.
TMB2119N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
11
70400101 (EN)
IMPORTANT: To stop the tumble dryer at any
time during the cycle, OPEN DOOR. If the loading
door or lint panel door is opened during the cycle,
the heating system will shut off and the motor will
stop. To restart the cycle, both doors must be closed
and the START button must be pressed in.
If the load cools to 90°F before cool down time
expires, the control will flash “Lr” (load ready) in the
heat time display. If the door is not opened, the tumble
dryer completes the selected cool down time. If the
door is opened after reaching “Lr” temperature, the
cycle will be terminated.
NOTE: If display show an error code, refer to
Error Codes section.
5. When the cycle is complete, open door and
remove the laundry. Anti-wrinkle feature will
tumble the load without heat for 30 seconds
every 2 minutes for 1 hour OR until the loading
door is opened.
NOTE: This machine includes an anti-wrinkle/
extended tumble feature. After the drying cycle is
complete, the cylinder will tumble without heat
every few minutes. The intermittent tumbling will
continue for one hour or until the door is opened.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400101 (EN)
12
Error Codes
Display Definition Corrective Action
OP
Open thermistor error • Check thermistor. Replace if inoperative.
• Check wiring diagram between control and thermistor.
Refer to wiring diagram for proper wiring.
• Check control. Replace if inoperative.
SH
Shorted thermistor error • Check thermistor. Replace if inoperative.
• Check wiring between control and thermistor. Refer to
wiring diagram for proper wiring.
• Check control. Replace if inoperative.
AF - 1 Airflow switch closed when cycle
started
• Check airflow switch. Replace if inoperative.
AF - 2 Airflow switch failed to close after cycle
started
• Check airflow switch. Replace if inoperative.
AF
(Flashing)
Bouncing Airflow Switch • Check airflow switch to ensure that it is properly
aligned and securely mounted in the mounting bracket.
• Make sure airflow switch can open and close freely.
• Check installation and make sure there is adequate
airflow.
• Make sure exhaust is not blocked.
• Clean the lint screen.
• Replace airflow switch if inoperative.
AF
(Solid)
Airflow Switch Closed when Resuming
Cycle
• Allow up to 20 seconds for this condition to clear.
• Check if airflow switch opens at end of cycle.
• Replace airflow switch if inoperative.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumble dryer before servicing.
• Close gas shut-off valve to gas tumble dryer before servicing.
• Close steam valve to steam tumble dryer before servicing.
• Never start the tumble dryer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumble dryer is properly grounded.
W002R1
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
13
70400101 (EN)
Figure 5
Single Drop Control
SD and SX Control Suffixes
1. Select HIGH, MED, LOW or NO HEAT by
turning the temperature knob.
HIGH temperature 190°F (87°C)
MED temperature 160°F (71°C)
LOW temperature 130°F (54°C)
2. Insert the coin(s) in the coin slot.
3. Press START button to start tumble dryer.
IMPORTANT: To stop the tumble dryer at any
time during the cycle, OPEN DOOR. To restart the
tumble dryer, CLOSE door and press START
button.
NOTE: If display show an error code, refer to
Error Codes section.
4. When the cycle is complete, open door and
remove the laundry.
NOTE: This machine includes an extended tumble
feature. Starting 20 minutes after a cycle ends, the
cylinder will tumble for two minutes every hour
without heat, up to 18 hours or until door is
opened.
Preliminary Control Information
Power-Up Mode
When power is applied to the tumble dryer the control
will enter Ready Mode, unless a cycle was in process
prior to a disruption of power. If a power disruption is
less than 5 seconds, with a cycle in process, the control
will enter Run Mode once power is restored and
continue the cycle. If a power disruption is more than
5 seconds, with a cycle in process, the control will
enter Start Mode once power is restored.
If the dry time dipswitch settings have not changed
from the factory default, the IN USE LED will flash
two to five times, depending on model.
Ready Mode
In Ready Mode, the control waits for the vend to be
satisfied before entering Start Mode.
Start Mode
In Start Mode, the vend has been satisfied, but the
Start button has not been pressed. The IN USE LED
will be lit. The timer will not count down until the
Start button is pressed.
Run Mode
In Run Mode, the control is running a cycle. The IN
USE LED is lit.
TMB2120N
25
C

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400101 (EN)
14
Door Open Mode
In Door Open Mode, the control turns off the heater
and motor when the door is opened during a run cycle.
The timer will continue to count down time and the
IN USE LED is lit.
End of Cycle Mode
In End of Cycle Mode, a cycle is complete and the
IN USE LED is off. The control remains in this mode
until the door is opened or additional vend has been
satisfied
Topoffs
Any time the control receives a coin drop pulse during
a cycle it will add the programmed dry time to the time
currently remaining in the cycle. The maximum cycle
time is 99 minutes, the control will not add time
beyond 99 minutes. The cool down time will not
change.
If the control receives a coin drop pulse during cool
down the IN USE LED will flash briefly to indicate the
coin input, the machine will exit cool down and it will
start heating. The cycle time will be equal to the
programmed dry time
Temperature Selector Switch
For five minutes after the control is powered up, there
is a diagnostic feature that allows the temperature
selector switches to be tested.
When the temperature selector is changed, the new
setting is displayed by flashing the IN USE LED as
follows:
High/Normal: 4 flashes
Medium/PP: 3 flashes
Low/Delicate: 2 flashes
No Heat: 1 flash
NOTE: To change dipswitch settings refer to
Installation Manual.
To Program a Short Test Cycle:
1. Unplug machine power cord.
2. Write down machine control dip switch settings,
then set them all to the off position. Refer to
Figure 6.
3. Plug machine in and start a cycle.
NOTE: With all control dip switches off, the total
cycle time will be 2 minutes long (1 minute of heat
and 1 minute of cool down).
4. Once all testing is complete, unplug machine and
re-set dip switches to their original settings.
5. Plug machine in.
Figure 6
Error Codes
TMB2216N
1 2 3 4 5 6 7 8O
N
12345678
Display Definition Corrective Action
AF (Flashing) Airflow switch opened/closed 5 or more
times in a running cycle.
•Check airflow switch. Replace if inoperative.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumble dryer before servicing.
• Close gas shut-off valve to gas tumble dryer before servicing.
• Close steam valve to steam tumble dryer before servicing.
• Never start the tumble dryer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumble dryer is properly grounded.
W002R1
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
15
70400101 (EN)

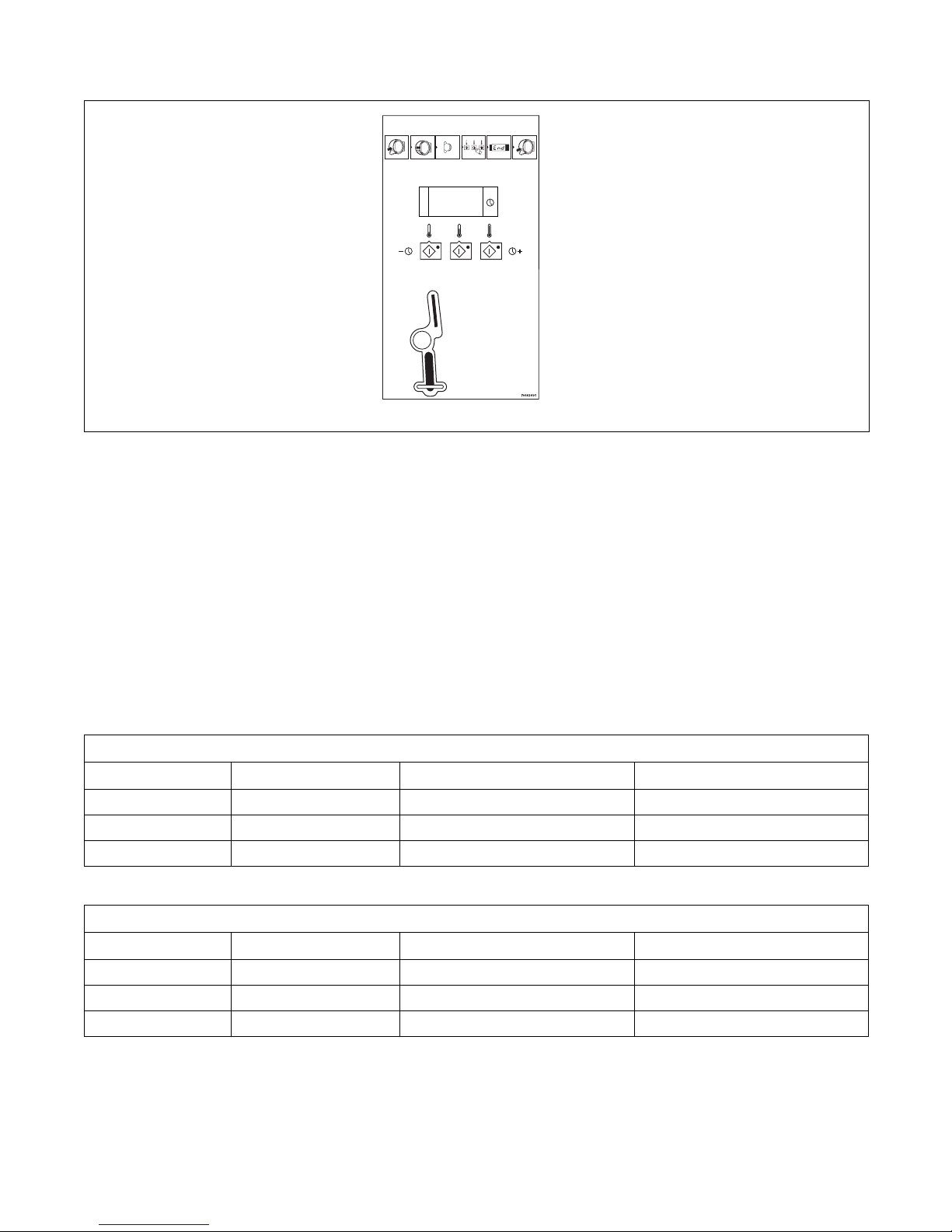

Figure 7
DX4 Coin Control
3V and 3X Control Suffixes
1. Open door and fill drum with clothes.
2. Close door.
3. Insert the coin(s) in the coin slot.
4. Press and release one of the cycle buttons to
select a cycle and start the tumble dryer. Refer to
Table 1 and Table 2.
To use a custom cycle, refer to the Programming
Manual.
NOTE: Drying times will be dependent on the
number of coins that are inserted in the coin slot.
IMPORTANT: To stop the tumbler at any time
during the cycle, OPEN DOOR. To restart the
tumbler, CLOSE door and press START button.
5. When the cycle is complete, open door and
remove the laundry.
Table 2
TMB2352N
Non-CE and Non-Australian Units
Temperature Drying Time Cool Down Time
Left Button 135°F (57.2°C) Varies 2 min.
Middle Button 150°F (65.5°C) Varies 2 min.
Right Button 180°F (82.2°C) Varies 2 min.
Table 1
CE and Australian Units
Temperature Drying Time Cool Down Time
Left Button 104°F (40°C) Varies 2 min.
Middle Button 140°F (60°C) Varies 2 min.
Right Button 176°F (80°C) Varies 2 min.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400101 (EN)
16

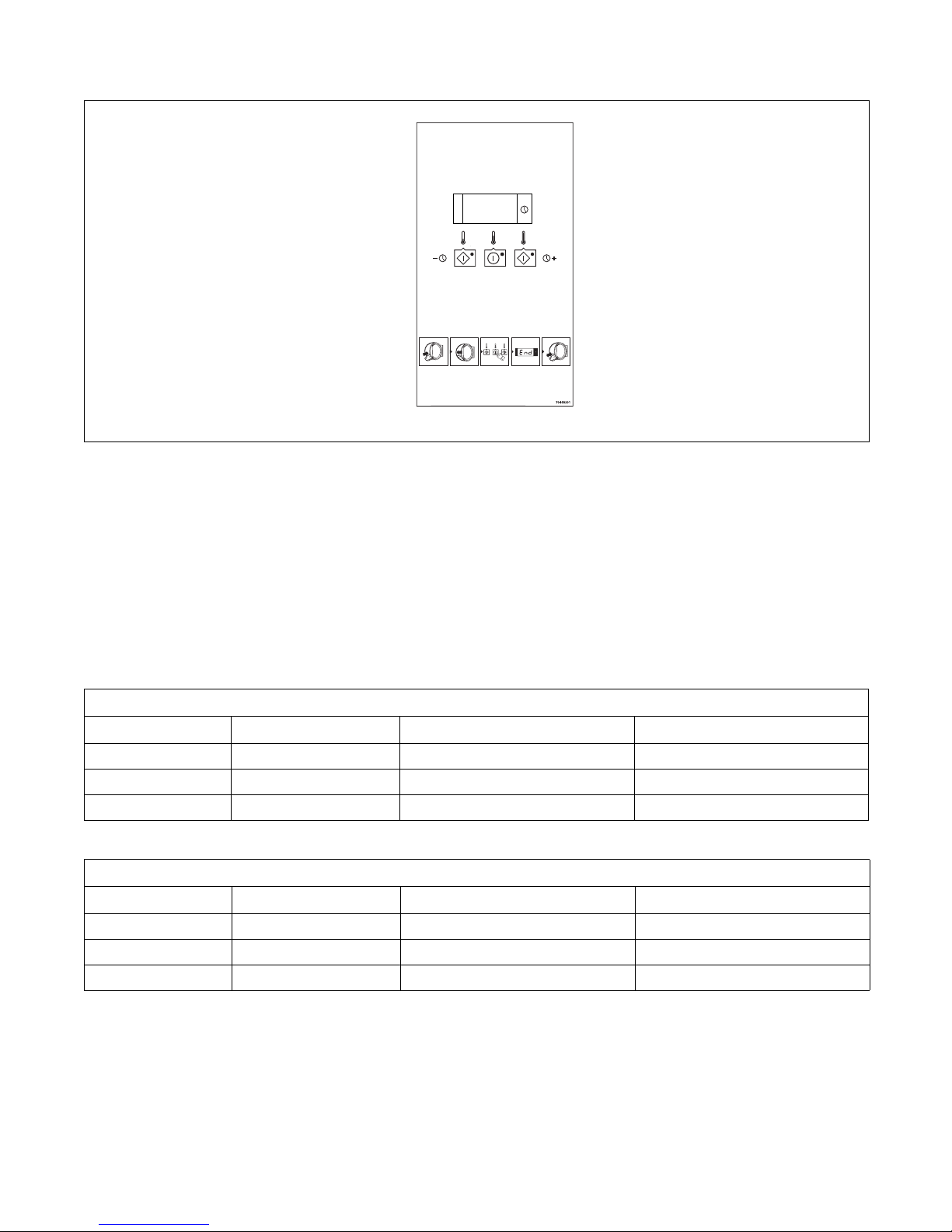

Figure 8
DX4 OPL Control
3O Control Suffix
1. Open door and fill drum with clothes.
2. Press and release one of the cycle buttons to
select a cycle and start the tumble dryer. Refer to
Table 3 and Table 4.
To use a custom cycle, refer to the Programming
Manual.
IMPORTANT: To stop the tumble dryer at any
time during the cycle, OPEN DOOR. To restart the
tumble dryer, CLOSE door and press START
button.
3. When the cycle is complete, open door and
remove the laundry.
Table 4
TMB2353N
Non-CE and Non-Australian Units
Temperature Drying Time Cool Down Time
Left Button 135°F (57.2°C) Varies 2 min.
Middle Button 150°F (65.5°C) Varies 2 min.
Right Button 180°F (82.2°C) Varies 2 min.
Table 3
CE and Australian Units
Temperature Drying Time Cool Down Time
Left Button 104°F (40°C) 30 min. 2 min.
Middle Button 140°F (60°C) 30 min. 2 min.
Right Button 176°F (80°C) 35 min. 2 min.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
17
70400101 (EN)
Ignition Control Operation for Non-
CE Models
Power Up
When power is applied to the ignition control, the
control will begin the ignition sequence within 1 – 3
seconds prepurge waiting time.
Ignition Sequence
The control begins the ignition sequence after
prepurge by powering the ignitor and opening the gas
valve. The ignitor will remain on either until a flame is
sensed or until a maximum of ten (10) seconds
(10 +0/-4 sec) has elapsed. If a flame is established
and lost during the 10 second period, the ignitor will
be powered up again in an attempt to re-ignite the gas.
If no flame is detected within the ten (10) second
ignition sequence, the control will terminate power to
the gas valves, ignitor, and enter lockout within 5
seconds.
Normal Operation
Once a flame has been established, the spark ignitor
will stop sparking and the control will continually
monitor all inputs. If the controller senses a loss of
flame after flame is established, the gas valve will
remain energized and sparking will commence within
one second of the flame loss. If flame reattempt fails,
lockout will occur within 11 seconds of initial flame
loss.
Termination of Flame
Normal flame termination occurs when the thermostat
has been satisfied, meaning there is no immediate need
for more heat. The thermostat will disconnect power
from the ignition control, which will cause the gas
valve to close and the flame to go out. After a short
period of time, not less than 1 second, the thermostat
will cool down and close causing power to be
reapplied to the ignition control. When this occurs, the
control must complete the same prepurge and ignition
sequence specified above.
Control Lockout
When the control locks out, the gas valve will be
closed and all requests for heat will be ignored. The
lockout mode may only be discontinued by
interrupting power to the control or cycling the
thermostat. After this occurs, the control will restart
with its normal power up and ignition sequence.
Low Voltage Detection
Low Voltage Detection The control will have
capability for detection of a low voltage input
condition. If input voltage on power up is below
1 9 . 0 VA C + 0 . 8 VA C / - 0 .5 VA C , the control will disable
output to gas valve control relay. If input voltage rises
above 19.8VAC for at least three (3) seconds, the
control will then re-enable function of the gas valve
control relay and ignition sequence may begin. On
powerup, the control function must always be disabled
if greater than 19.8VAC.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400101 (EN)
18
Ignition Control Operation for CE
Models
Power Up
After 24VAC is applied to the ignition control pins
24V and GND, the Diagnostic LED on the ignition
control will turn orange/yellow. If a fault is detected
the ignition control will enter Lockout Mode. If no
faults are detected, the Diagnostic LED will turn
Green and the ignition control will enter Standby
Mode.
Standby Mode
While in Standby Mode, the ignition control will
continually monitor the system for faults. Once
24VAC is applied to terminals TH and GND on the
control, the ignition control will enter Start Up Mode.
Start Up Mode
During Start Up Mode, the ignition control will
monitor the system for faults and begin the ignition
sequence. If no faults are present, the ignition control
will begin the ignition sequence by entering an 18
second waiting period. During this time the Green
LED on the ignition control will switch between Red
and Green, before maintaining a Green color.
After the waiting period, the ignition control will turn
on the igniter and gas valve. The igniter will remain on
until a flame is sensed, or up to 10 seconds.
Once a flame has been sensed the ignition control will
stop sparking, the gas valve will remain on and
ignition control will enter Run Mode.
If a flame is not sensed, the ignition control will then
begin two additional retrials for ignition. The ignition
control will re-enter the 18 seconds waiting period
before the ignition control makes another attempt at
ignition. If the three attempts at ignition fail, the
ignition control will enter Lockout Mode.
Run Mode
While in Run Mode the ignition control leaves the gas
valve on, monitors the flame signal, and leaves the
igniter off.
If a flame signal is lost during Run Mode, one
additional retrial for ignition will take place within one
second. The ignition control will restore the spark for
approximately 10 seconds. If the ignition re-attempt
fails, the ignition control will enter Lockout Mode.
The ignition control will remain in Run Mode until
24VAC is removed from terminals TH and GND on
the control.
Termination of Flame
The flame will go out when power is removed from
ignition control. The ignition control will turn off the
gas valve and enter Standby Mode.
Lockout Mode
When Lockout Mode is entered, the ignition control
will remove power to the gas valve, the igniter will
turn off, the Lockout/Reset Light will turn on, and the
Diagnostic LED will display the appropriate Error
Code.
Lockout Manual Reset
Lockout Mode is cleared by pressing an external reset
switch for three seconds. The ignition control will
clear all error codes and enter Standby Mode. During
Lockout Manual Reset, the Diagnostic LED on the
ignition control flashes red and orange, and the Reset
Light remains on until the ignition control is reset.
After the Reset Light turns off, stop pressing the
switch. Holding the reset for three seconds after
lockout has been cleared will cause a fault and result in
entering Lockout Mode again.
