Alliance Laundry Systems Dryer Tumblers User manual

Installation/Operation Supplement
Part No. 70392201R8
September 2008
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Drying Tumblers
25 Pound Capacity
30 Pound Capacity
35 Pound Capacity
Stacked 30 Pound Capacity
Stacked 45 Pound Capacity
55 Pound Capacity
Starting Serial No. 0602004144
Refer to page 3 for Model Identification

Installation/Operation Supplement
70392201 (EN) 1
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation must conform with local codes.
IMPORTANT: Information must be obtained from
a local gas supplier on instructions to be followed if
the user smells gas. These instructions must be
posted in a prominent location. Step-by-step
instructions of the above safety information must
be posted in a prominent location near the tumbler
for customer use.
FOR YOUR SAFETY, the information in
this manual must be followed to minimize
the risk of fire or explosion or to prevent
property damage, personal injury or
death. W033
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer,
service agency or the gas supplier. W052
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance. W053
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using the tumbler unit, follow these basic
precautions:
• Read all instructions before using
tumbler.
• DO NOT tamper with controls.
• DO NOT bypass any safety devices.
• Always follow the fabric care
instructions supplied by the garment
manufacturer.
• Remove laundry immediately after the
tumbler stops.
• DO NOT reach into tumbler if cylinder is
revolving.
To avoid creating any flammable vapors
which may explode, ignite or cause
corrosive damage, DO NOT dry the
following materials:
• Articles that have been cleaned in,
soaked in, washed in or spotted with
gasoline, dry-cleaning solvents or other
flammable/explosive substances.
• Plastics or articles containing foam
rubber or similarly textured rubberlike
materials.
• Articles that have traces of flammable
substances like cooking oil, machine
oil, flammable chemicals or thinner.
• Articles containing wax or cleaning
chemicals.
• Fiberglass curtains or draperies (unless
the label says it can be done). W440R1
WARNING

© Published by permission of the copyright owner.
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
Installation/Operation Supplement
2© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 70392201 (EN)
Table of
Contents
Introduction......................................................................................... 3
Model Identification ............................................................................. 3
Serial Plate Location............................................................................. 4
Wiring Diagram .................................................................................... 4
Safety Information.............................................................................. 5
Important Safety Instructions ............................................................... 5
Installation........................................................................................... 7
Specifications and Dimensions............................................................. 7
Cabinet Dimensions — 25, 30, 35 and 55 Pound Models.................... 8
Cabinet Dimensions – T30 and T45 Model.......................................... 9
Exhaust Outlet Locations...................................................................... 10
Gas Connection Locations.................................................................... 11
Electrical Connection Locations........................................................... 12
Steam Connection Locations ................................................................ 13
Position and Level the Tumbler............................................................ 14
Gas Requirements................................................................................. 15
Natural Gas and Liquefied Petroleum.............................................. 15
European Gas ................................................................................... 15
General Information......................................................................... 15
Exhaust Requirements .......................................................................... 19
Make-Up Air.................................................................................... 19
Venting............................................................................................. 19
Electrical Requirements........................................................................ 20
Grounding Instructions .................................................................... 20
Steam Requirements ............................................................................. 21
Operation............................................................................................. 23
Emergency Stop Button........................................................................ 23
Operating Instructions .......................................................................... 23
Step 1: Clean Lint Screen/Compartment ......................................... 23
Step 2: Load Laundry....................................................................... 23
Step 3: Determine Control Type and Temperature Setting ............. 23
Step 4: Remove Laundry ................................................................. 23
Control Instructions .............................................................................. 24
Dual Digital Timer Control.............................................................. 24
Electronic OPL Micro Control......................................................... 25
Single Drop Control......................................................................... 26
MDC Coin and Card Control........................................................... 27
Ignition Control Operation ................................................................... 28
Disposal of Unit ................................................................................... 29

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 3
70392201 (EN)
Installation/Operation Supplement
Introduction
Model Identification
Information in this manual is applicable to these models.
Includes models with the following control suffixes:
Gas Steam Electric
25 Pound
GU025L
GU025N
HU025L
HU025N
KU025L
KU025N
LU025L
LU025N
PU025L
PU025N
SU025L
SU025N
UU025L
UU025N
GU025S
HU025S
KU025S
LU025S
PU025S
SU025S
UU025S
GU025E
HU025E
KU025E
LU025E
PU025E
SU025E
UU025E
30 Pound
GU030L
GU030N
HU030L
HU030N
LU030L
LU030N
PU030L
PU030N
SU030L
SU030N
UU030L
UU030N
GU030S
HU030S
LU030S
PU030S
SU030S
UU030S
GU030E
HU030E
LU030E
PU030E
SU030E
UU030E
T30
GUT30L
GUT30N
HUT30L
HUT30N
KUT30L
KUT30N
LUT30L
LUT30N
PUT30L
PUT30N
SUT30L
SUT30N
UUT30L
UUT30N
GUT30S
HUT30S
KUT30S
LUT30S
PUT30S
SUT30S
UUT30S
GUT30E
HUT30E
KUT30E
LUT30E
PUT30E
SUT30E
UUT30E
35 Pound
GU035L
GU035N
HU035L
HU035N
KU035L
KU035N
LU035L
LU035N
PU035L
PU035N
SU035L
SU035N
UU035L
UU035N
GU035S
HU035S
KU035S
LU035S
PU035S
SU035S
UU035S
YU035S
GU035E
HU035E
KU035E
LU035E
PU035E
SU035E
UU035E
YU035E
T45 HUT45L
HUT45N
SUT45L
SUT45N Not Applicable Not Applicable
55 Pound HU055L
HU055N
SU055L
SU055N
UU055L
UU055N
Not Applicable
HU055E
SU055E
UU055E
BC – basic electronic, coin BX – basic electronic, prep for coin QT – dual digital timer
BG – basic electronic, OPL mode BY – basic electronic, prep for card SD – single drop
BL – basic electronic, central pay OM – OPL micro SX – single drop, prep for coin

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70392201 (EN)
4

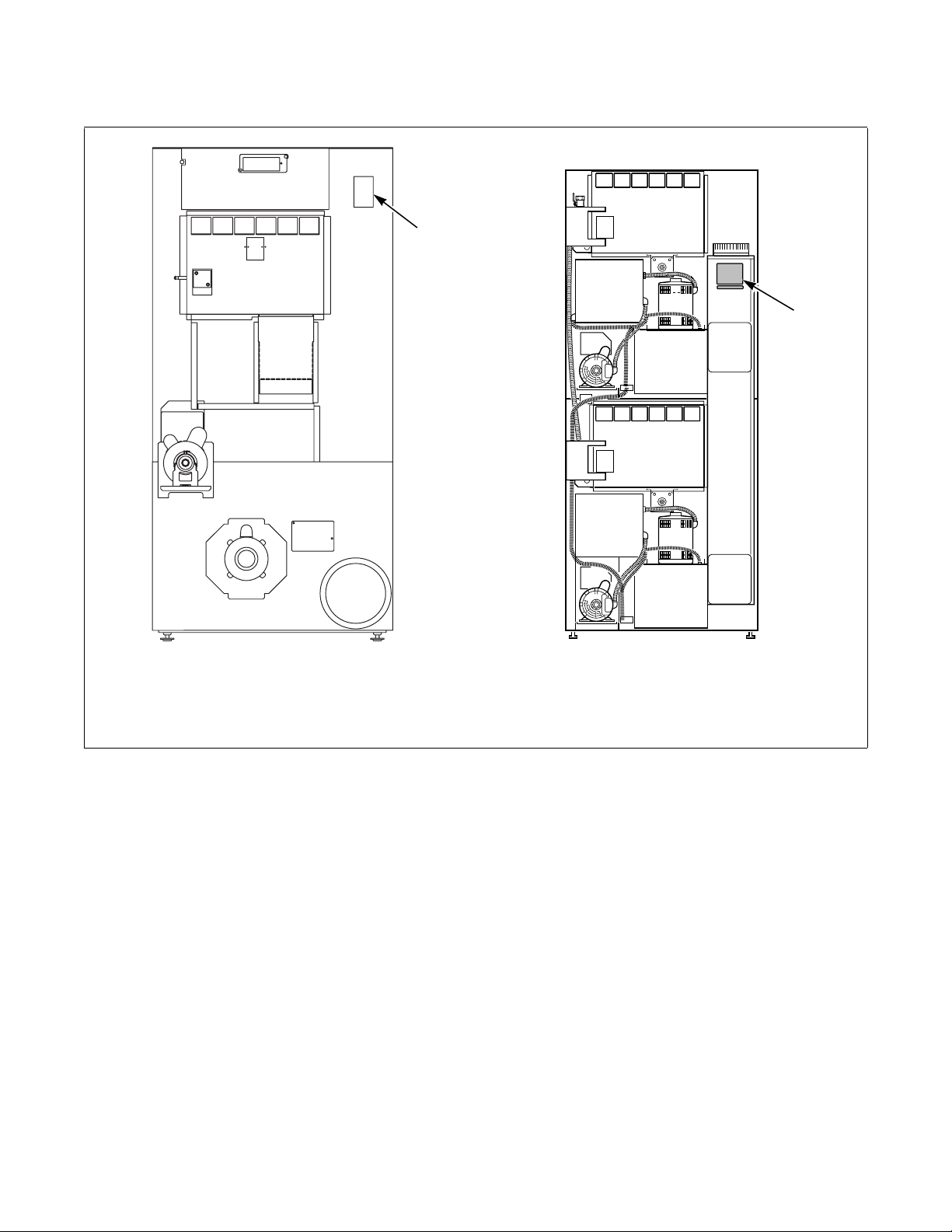

Serial Plate Location
Wiring Diagram
The wiring diagram is located inside the junction or
contactor box.
TMB2098N TMB1974N
1Serial Plate
TMB1974N
1
1
25, 30, 35 AND 55 POUND T30 AND T45

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 5
70392201 (EN)
Installation/Operation Supplement
Safety Information
Save These Instructions
Important Safety Instructions
1. Read all instructions before using the tumbler.
2. Refer to the GROUNDING INSTRUCTIONS
for the proper grounding of the tumbler.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
4. Do not allow children on or in the tumbler. This
appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
5. Before the tumbler is removed from service or
discarded, remove the door to the drying
compartment and the door to the lint
compartment.
6. Do not reach into the tumbler if the cylinder is
revolving.
7. Do not install or store the tumbler where it will
be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler,
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter daily.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the tumbler and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Tumbler will not operate with the loading door
open. DO NOT bypass the door safety switch to
permit the tumbler to operate with the door open.
The tumbler will stop tumbling when the door is
opened. Do not use the tumbler if it does not stop
tumbling when the door is opened or starts
tumbling without pressing or turning the START
mechanism. Remove the tumbler from use and
call for service.
17. Tumbler will not operate with lint panel open.
DO NOT bypass lint panel safety switch to
permit the tumbler to operate with the lint panel
open.
18. Do not put articles soiled with vegetable or cooking
oil in the tumbler, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
19. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumbler.
20. Use the tumbler only for its intended purpose,
drying fabrics.
21. ALWAYS disconnect and lockout the electrical
power to the tumbler before servicing.
Disconnect power by shutting off appropriate
breaker or fuse.
Hazardous Voltage. Can cause shock, burn
or cause death. Allow machine power to
remain off for two minutes prior to working
in and around AC inverter drive. W359
WARNING

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70392201 (EN)
6
22. Install this tumbler according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding, and
gas supply must comply with local codes and be
made by licensed personnel when required.
23. Remove laundry immediately after tumbler stops.
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
26. Always follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the tumbler with any guards and/or
panels removed.
28. DO NOT operate the tumbler if it is smoking,
grinding, has missing or broken parts.
29. DO NOT bypass any safety devices.
30. Solvent vapors from dry-cleaning machines
create acids when drawn through the heater of the
drying unit. These acids are corrosive to the
tumbler as well as to the laundry load being
dried. Be sure make-up air is free of solvent
vapors.
31. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
WARNING
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers. W055

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 7
70392201 (EN)
Installation/Operation Supplement
Installation
Specifications and Dimensions
Specifications 25 Pound 30 Pound T30 35 Pound T45 55 Pound
Noise level measured during
operation at operator position
of 1 meter (3.3 feet) in front of
machine and 1.6 meters (5.2
feet) from floor
60 dBA 61 dBA 66 dBA 63 dBA 67 dBA 63 dBA
Net Weight (approximate):
kg (pounds) 137
(300)
150
(330)
247
(544)
163
(360)
305
(673)
197
(435)
Cylinder Size:
mm (inches) 673 x 610
(26.5 x 24)
673 x 762
(26.5 x 30)
762 x 660
(30 x 26)
762 x 762
(30 x 30)
838 x 762
(33 x 30)
838 x 889
(33 x 35)
Cylinder Capacity (dry
weight):
kg (pounds)
11.3
(25)
13.6
(30)
2 x 13.6
(2 x 30)
15.9
(35)
2 x 20.5
(2 x 45)
24.9
(55)
Drive Motor Horsepower** 1/41/41/41/41/21/2
Fan Motor Horsepower** 1/41/41/41/41/21/2
Maximum Airflow
per Pocket**:
l/sec (C.F.M.)
50 Hertz 203
(430)
203
(430)
160
(340)
260
(550) N/A 283 (600)
60 Hertz 236
(500)
236
(500)
189
(400)
307
(650)
283
(600)
330
(700)
Maximum Static
Back Pressure*:
mbar (inches W.C.)
50 Hertz 1.5
(0.6)
1.5
(0.6)
2.0
(0.8)
1.3
(0.5) N/A 1.3 (0.5)
60 Hertz 2.0
(0.8)
2.0
(0.8)
2.3
(0.9)
1.5
(0.6)
2.3
(0.9)
1.5
(0.6)
Gas Models
Gas Connection 1/2 in. NPT 1/2 in. NPT 1/2 in. NPT 1/2 in. NPT 1/2 in. NPT 1/2 in. NPT
Gas Burner Rating**:
kW, Mj/hr (Btu/hr) 18.7, 67.5
(64,000)
21.4, 77
(73,000)
21.4, 77
(73,000)
26.4, 95
(90,000)
27.8, 100.2
(95,000)
32.8, 118.2
(112,000)
Electric Models
Heating Element
Rating**: 400/50/3 10 kW 21 kW 21 kW 24 kW N/A 27 kW
Standard 12 kW
Steam Models
Steam Connection 3/4 in. NPT 3/4 in. NPT 3/4 in. NPT 3/4 in. NPT N/A N/A
Steam Coil Rating at 100
psig**:
Boiler Horsepower (Btu/hr)
3.9
(134,700)
3.9
(134,700)
3.2
(111,000)
4.8
(166,000) N/A N/A
Steam Coil Rating at 15 psig**:
Boiler Horsepower (Btu/hr) 2.6
(89,940)
2.6
(89,940)
2.2
(74,000)
3.7
(129,000) N/A N/A
* T30 and 45 models – both pockets running
** T30 and 45 models – each pocket
N/A = Not Applicable

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70392201 (EN)
8

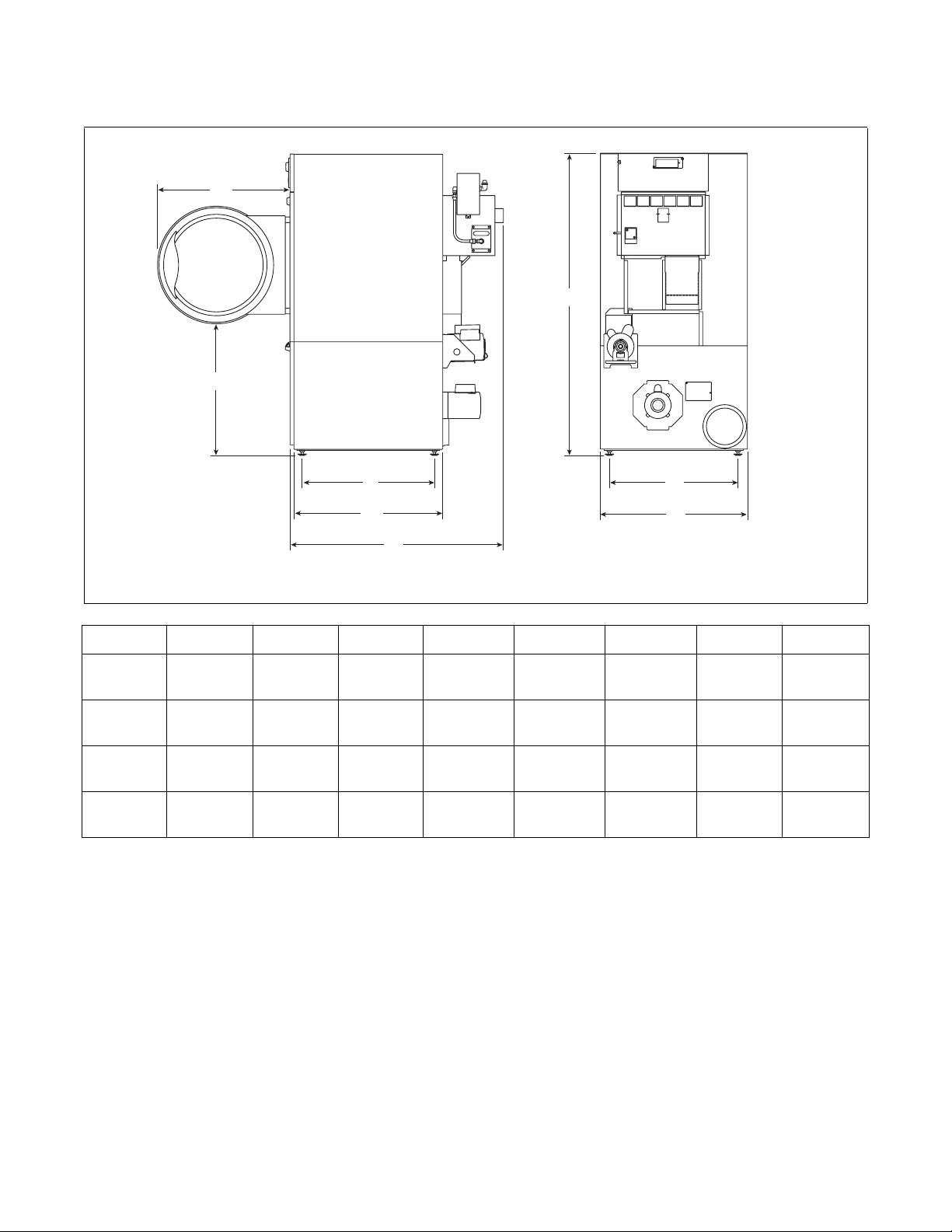

Cabinet Dimensions — 25, 30, 35 and 55 Pound Models
NOTE: Facia panels available to increase height of
single pocket models to 1835 mm (72.25 inches) and
1938 mm (76.25 inches).
TMB2209N
TMB2209N
B
A
C
H
E
F
D
G
Models A B C D E F G H
25 Pound 667 mm
(26.25 in.)
699 mm
(27.5 in.)
593 mm
(23.35 in.)
654 mm
(25.75 in.)
1038 mm
(40.875 in.)
1622 mm
(63.875 in.)
626 mm
(24.64 in.)
711 mm
(28 in.)
30 Pound 667 mm
(26.25 in.)
699 mm
(27.5 in.)
720 mm
(28.35 in.)
806 mm
(31.75 in.)
1191 mm
(46.875 in.)
1622 mm
(63.875 in.)
626 mm
(24.64 in.)
711 mm
(28 in.)
35 Pound 711 mm
(28 in.)
699 mm
(27.5 in.)
720 mm
(28.35 in.)
806 mm
(31.75 in.)
1191 mm
(46.875 in.)
1622 mm
(63.875 in.)
695 mm
(27.38 in.)
800 mm
(31.5 in.)
55 Pound 810 mm
(31.88 in.)
682.5 mm
(26.87 in.)
857.25 mm
(33.75 in.)
971.5 mm
(38.25 in.)
1365 mm
(53.62 in.)
1694.7 mm
(66.75 in.)
774.7 mm
(30.5 in.)
876 mm
(34.5 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
9
70392201 (EN)
Cabinet Dimensions – T30 and T45
Models
N/A = Not Applicable
NOTE: To meet ADA compliance, install a 102 mm
(4 inch) riser on T30 models only.
TMB2230N
TMB2230N
C
E
FH
J
B
D
G I
A
ModelsABCDE
T30 711 mm
(28 in.)
1219 mm
(48 in.)
1118 mm
(44 in.)
279 mm
(11 in.)
254 mm
(10 in.)
T45 810 mm
(31.88 in.)
1245 mm
(49 in.) N/A N/A 229 mm (9 in.)
Models F G H I J
T30 636 mm
(25.02 in.)
1086 mm
(42.76 in.)
695 mm
(27.38 in.)
800 mm
(31.5 in.)
1937 mm
(76.25 in.)
T45 746 mm
(29.37 in.)
1235 mm
(48.62 in.)
775 mm
(30.50 in.)
876 mm
(34.5 in.)
2063.75 mm
(81.25 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70392201 (EN)
10

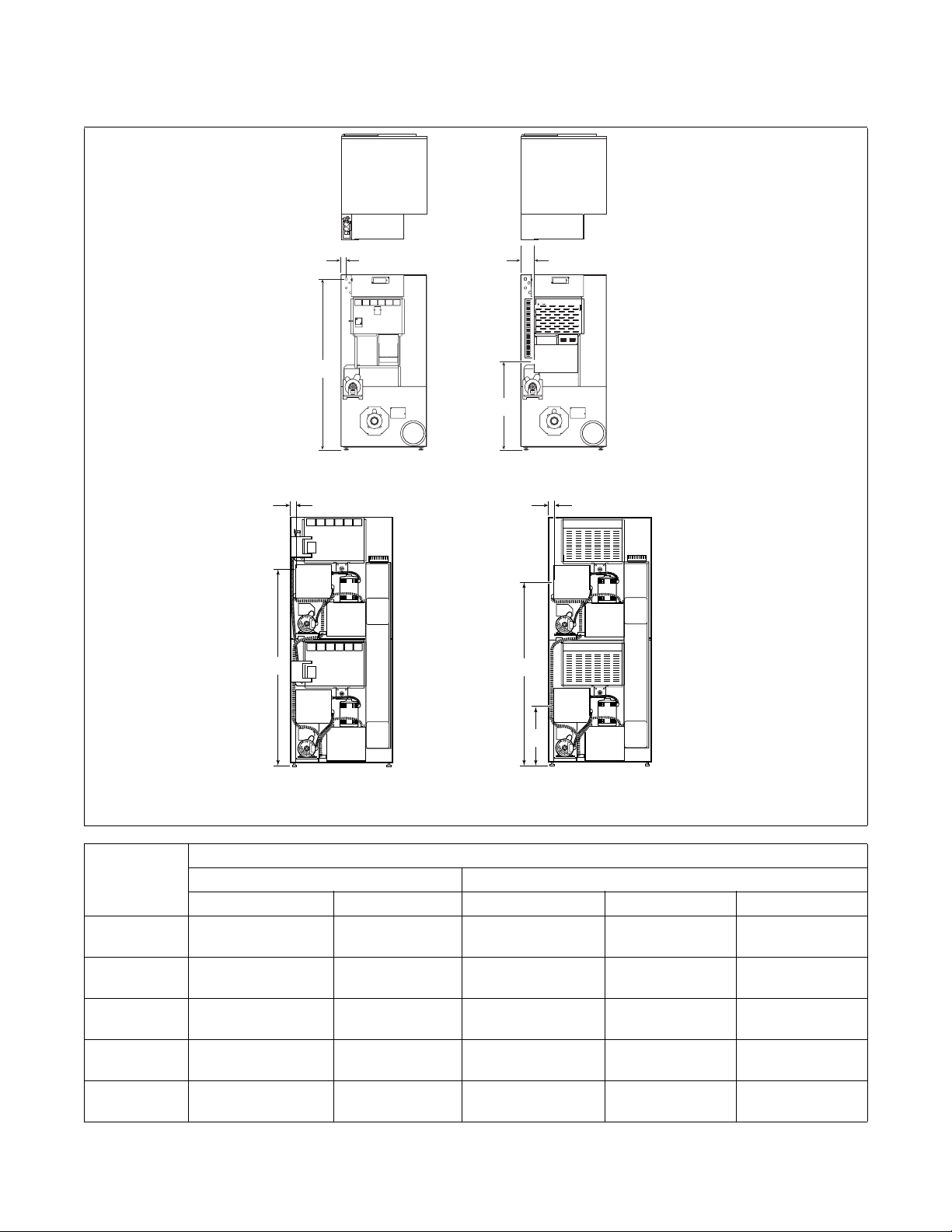

Exhaust Outlet Locations
TMB2132N TMB1969N
TMB2132N
TMB1969N
C
A
B
B
A
25, 30, 35 AND 55 POUND T30 AND T45
Models Rear Exhaust
Diameter A B C
25/30 Pound 152 mm
(6 in.)
99 mm
(3.875 in.)
117 mm
(4.625 in.) N/A
T30 Elliptical Fits
203 mm
(8 in.)
928 mm
(36.54 in.)
108 mm
(4.25 in.)
1585 mm
(62.42 in.)
35 Pound 203 mm
(8 in.)
124 mm
(4.875 in.)
143 mm
(5.625 in.) N/A
T45 Elliptical Fits
254 mm
(10 in.)
1038 mm
(40.88 in.)
121 mm
(4.75 in.)
1676 mm
(66 in.)
55 Pound 203 mm
(8 in.)
122 mm
(4.808 in.)
156.3 mm
(6.156 in.) N/A
N/A = Not Applicable

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
11
70392201 (EN)

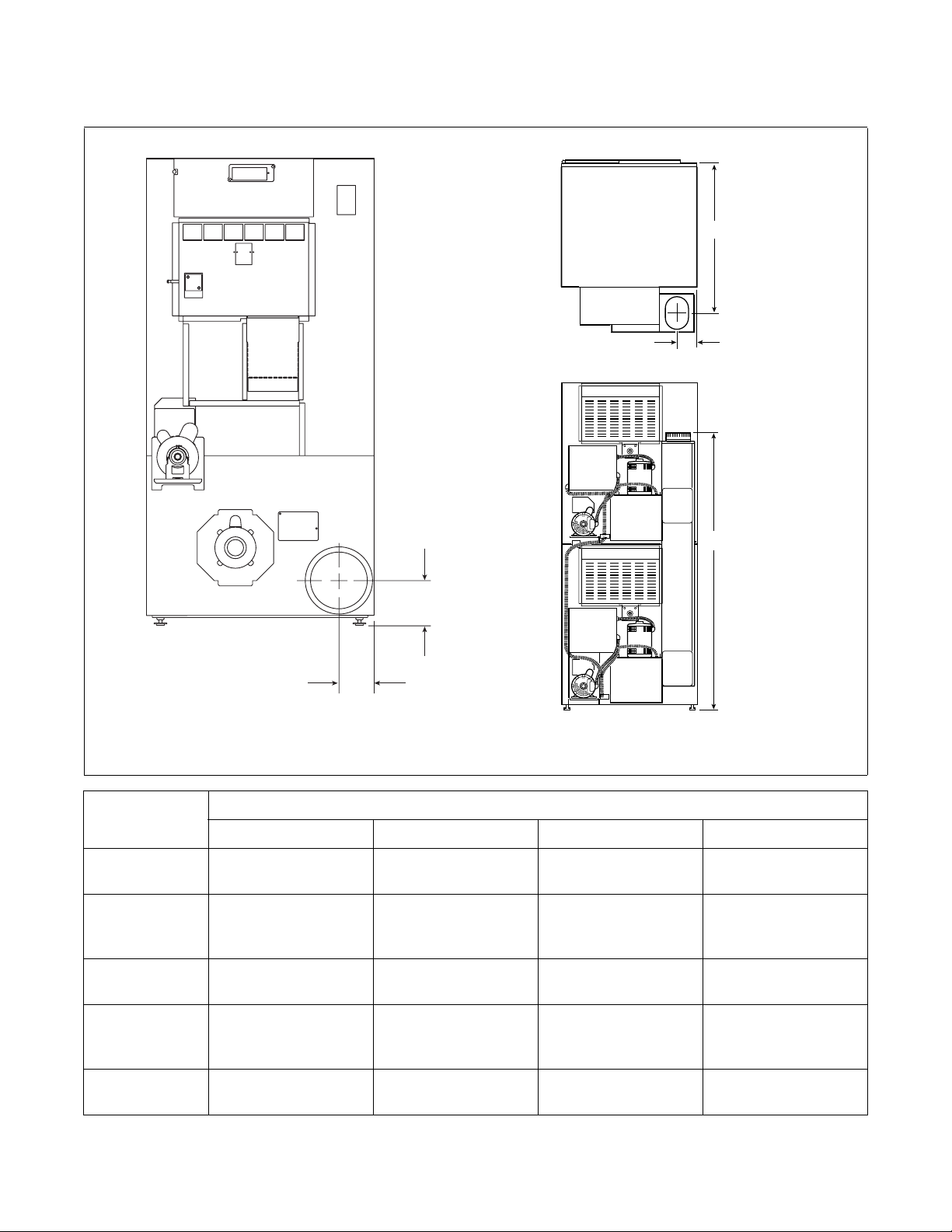

Gas Connection Locations
TMB2106N TMB1970N
11/2 in. NPT
TMB1970N
TMB2106N
B
CC
B
A
A
T30 AND T45
1
1
25, 30, 35 AND 55 POUND
Models Gas Connection
ABC
25 Pound 1500 mm
(59 in.)
38.1 mm
(1.5 in.)
737 mm
(29 in.)
30 Pound 1500 mm
(59 in.)
38.1 mm
(1.5 in.)
889 mm
(35 in.)
T30 1912 mm
(75.28 in.)
64 mm
(2.5 in.)
777 mm
(30.60 in.)
35 Pound 1500 mm
(59 in.)
64 mm
(2.5 in.)
889 mm
(35 in.)
T45 2000 mm
(78.75 in.)
105 mm
(4.12 in.)
1089 mm
(42.88 in.)
55 Pound 1500 mm
(59 in.)
64 mm
(2.5 in.)
889 mm
(35 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70392201 (EN)
12
Electrical Connection Locations
TMB1971N
TMB2204N
D
B
A
C
25, 30, 35 AND 55 POUND
GAS AND STEAM
TMB1971N
T30 GAS AND STEAM
T45 GAS
A
TMB2204N
C
D
BE
25, 30, 35 AND 55 POUND
ELECTRIC
T30 ELECTRIC
Models Electrical Service Gas and Steam Models Electric Models
ABCDE
25/30
Pound 1581 mm
(62.25 in.)
51 mm
(2 in.)
711 mm
(28 in.)
83 mm
(3.25 in.) N/A
T30 1498 mm
(59 in.)
44 mm
(1.75 in.)
905 mm
(35.63 in.)
1859 mm
(73.21 in.)
58 mm
(2.28 in.)
35 Pound 1581 mm
(62.25 in.)
76 mm
(3 in.)
711 mm
(28 in.)
108 mm
(4.25 in.) N/A
T45 1588 mm
(62.5 in.)
44 mm
(1.75 in.) N/A N/A N/A
55 Pound 1655.75 mm
(65.187 in.)
44.83 mm
(1.765 in.)
826.16 mm
(32.526 in.)
166.3 mm
(6.547 in.) N/A
N/A = Not Applicable

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
13
70392201 (EN)
Steam Connection Locations
NOTE: All connections use 3/4 inch NPT pipe.
TMB2108N TMB1972N
TMB1972N
TMB2108N
C
D
C
D
A
B
A
B
B
A
25, 30 AND 35 POUND T30
Models Inlet Outlet
ACBD
25/30/35 Pound 1365 mm
(53.75 in.)
198 mm
(7.8 in.)
1080 mm
(42.5 in.)
165 mm
(6.5 in.)
T30 (Upper) 1877 mm
(73.93 in.)
160 mm
(6.29 in.)
1592 mm
(62.71 in.)
61 mm
(2.39 in.)
T30 (Lower) 923 mm
(36.35 in.)
160 mm
(6.29 in.)
638 mm
(25.13 in.)
61 mm
(2.39 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70392201 (EN)
14

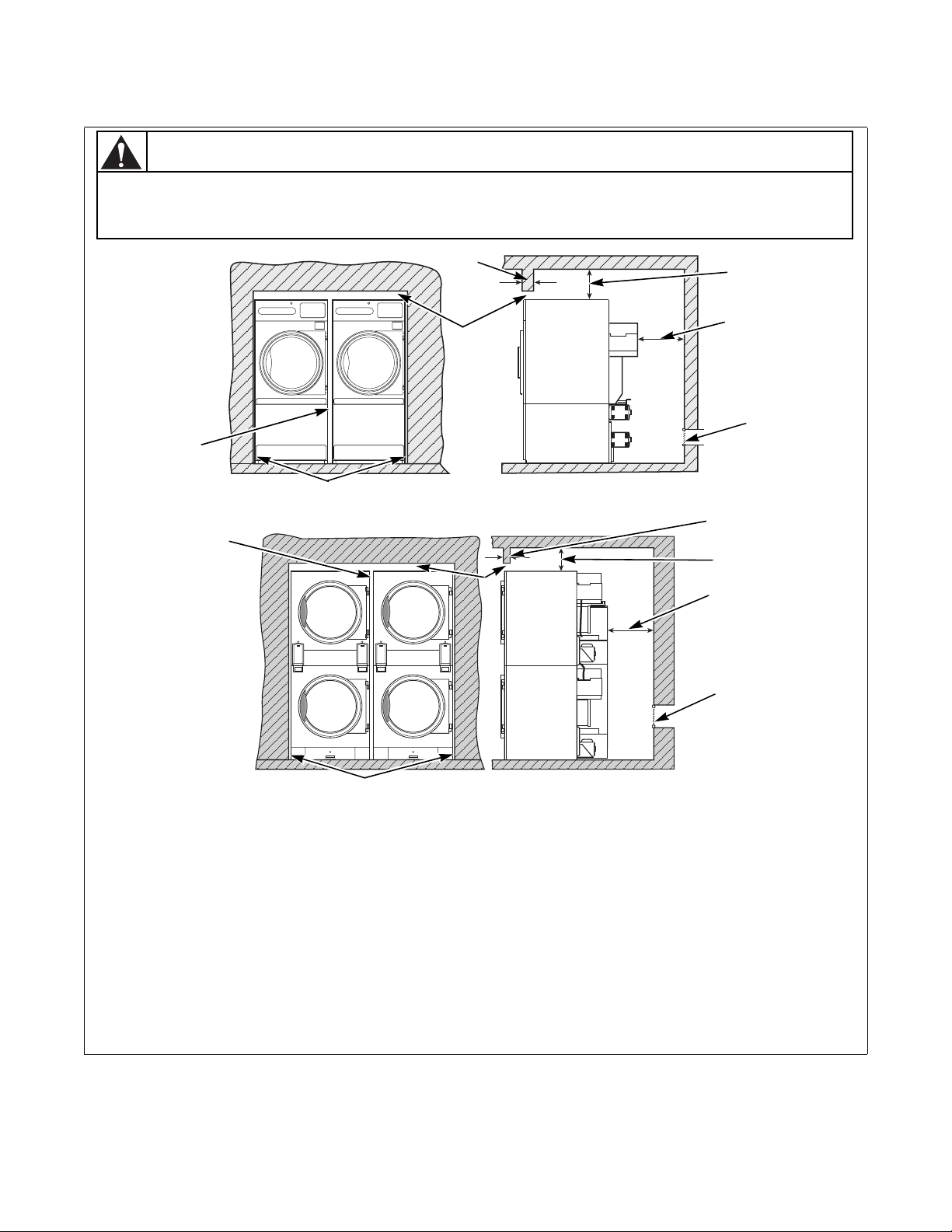

Position and Level the Tumbler
Figure 1
TMB2110N
NOTE: Shaded areas indicate adjacent structure.
113 mm (0.5 in.) recommended between machines for removal or installations.
2Allow 51-102 mm (2-4 in.) opening at top of machine to aid in removal or installation. A removable trim piece may
be used to conceal the opening; zero clearance allowed for trim.
3102 mm (4 in.) Maximum Header Thickness
4305 mm (12 in.) Minimum Clearance
5610 mm (24 in.) minimum, 914 mm (36 in.) recommended for maintenance purposes.
6Provision for make-up air: Minimum 709 cm2(110 in.2) required per tumbler for 25 and 30, 928 cm2 (144 in.2) for
35 and 55 pound models, 1418 cm2(220 in.2) for T30 models and 1856 cm2(288 in.2) for T45 models. Location
for reference only. May be anywhere behind tumbler.
6 mm (0.25 in.) recommended for removal or installation purposes, zero clearance allowed.
TMB211
0
N
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible
construction must conform to the minimum clearances. W056
WARNING
TMB2021N
2
4
5
6
7
3
2
4
3
1
TMB2021N
1
7
25, 30, 35 AND 55 POUND
5
6
T30 AND T45

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
15
70392201 (EN)
Gas Requirements
Natural Gas and Liquefied Petroleum
IMPORTANT: Any product revisions or
conversions must be made by the Manufacturer’s
Authorized Dealers, Distributors, or local service
personnel.
IMPORTANT: The tumbler must be isolated from
the gas supply piping system by closing its
individual manual shut-off valve during any
pressure testing of the gas supply piping system at
test pressure equal to or less than 3.45 kPa,
34.5 mbar (0.5 psi).
IMPORTANT: The tumbler and its manually
operated appliance gas valve must be disconnected
from the gas supply piping system during any
pressure testing of that system at test pressures in
excess of 3.45 kPa, 34.5 mbar (0.5 psi).
IMPORTANT: The installation must comply with
local codes.
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
European Gas
General Information
This information is to be used when installing gas
tumblers in countries, and/or on gases, different than
the machine’s factory configuration. Tumblers are
supplied from the factory for operation on Natural Gas
or L.P. Gas in the countries of GB/IE/PT/ES/IT/GR/
LU/CH. To install machines in any other country, or
on any other gas, requires some level of modification.
Models are built in two different configurations:
●Regulated Natural Gas – Burner orifice is sized
for Natural Gas, second family, group H (E) at
20 mbar inlet pressure. Regulator/governor is
operational. Gas valve CAN be field-converted to
a non-regulating type.
●Unregulated Liquefied Petroleum (L.P.) Gas –
Burner orifice is sized for L.P., third family,
group 3+ at 28.37 mbar inlet pressure. Regulator/
governor is blocked open. Gas valve CANNOT
be field-converted to a regulating type.
Serial plates supplied from the factory are configured
for the countries of GB/IE/PT/ES/IT/GR/LU/CH.
These instructions pertain to the situations when the
country of use or gas supply is different than that on
the serial plate.
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
To reduce the risk of fire or explosion, DO
NOT CONNECT THE GAS LINE TO THE
TUMBLER IF THE GAS SERVICE IS NOT
THE SAME AS THAT SPECIFIED ON THE
TUMBLER SERIAL PLATE! It will first be
necessary to convert the gas burner
orifice and gas valve. Appropriate
conversion kits are available. W060
WARNING
To reduce the risk of fire or explosion, if
the tumbler is to be connected to
Liquefied Petroleum (L.P.) gas, a vent to
the outdoors must be provided in the
room where the tumbler is installed. W062
WARNING
WARNING
To reduce the risk of electric shock, fire,
explosion, serious injury or death:
• Disconnect electric power to the
tumbler before servicing.
• Close gas shut-off valve to gas tumbler
before servicing.
• Close steam valve to steam tumbler
before servicing.
• Never start the tumbler with any guards/
panels removed.
• Whenever ground wires are removed
during servicing, these ground wires
must be reconnected to ensure that the
tumbler is properly grounded. W002

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70392201 (EN)
16
Gases and Configurations
Burner orifice information at 0-600 meters (0-2000 feet) altitude.
Country
Code Gas Type Group Supply
Pressure,
mbar
Burner
Orifice
Pressure,
mbar
Capacity/
Model Diameter, mm Quantity Burner
Orifice
Part No.
DK/NO/
SE/FI/CZ/
EE/LV/LT/
SI/SK
Natural Gas H 20 7.6
8.0
8.0
8.0
8.0
8.0
25
30
T30
35
T45
55
3.9
4.0
4.0
4.6
4.6
5.2
1
1
2
1
2
1
M402980
M402992
M402992
M411511
M411371
M402993
L.P. Gas B/P 30 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
3.0
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M401017
DE
Natural Gas E 20 7.6
8.0
8.0
8.0
8.0
8.0
25
30
T30
35
T45
55
3.9
4.0
4.0
4.6
4.6
5.2
1
1
2
1
2
1
M402980
M402992
M402992
M411511
M411371
M402993
L.P. Gas LL 30 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
3.0
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M401017
NL
Natural Gas L 25 11.0 25
30
T30
35
T45
55
3.9
4.0
4.0
4.6
4.6
4.8
1
1
2
1
2
1
M402980
M402992
M402992
M411511
M411371
M411372
L.P. Gas B/P 30 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
3.0
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M401017
Table 1 (continued)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
17
70392201 (EN)
Burner orifice information at 0-600 meters (0-2000 feet) altitude.
*For Natural Gas, Group E+ applications, convert using L.P. Gas
model and replace burner orifice.
Table 1 (continued)
Country
Code Gas Type Group Supply
Pressure,
mbar
Burner
Orifice
Pressure,
mbar
Capacity/
Model Diameter, mm Quantity Burner
Orifice
Part No.
BE/FR*
Natural Gas E+ 20 or 25 No Governor 25
30
T30
35
T45
55
3.9
3.3
3.3
3.7
3.7
4.0
1
1
2
1
2
1
M402980
M401021
M401021
M400998
M401000
M401012
L.P. Gas + 28 or 37 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
2.8
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M411512
GB/IE/PT/
ES/IT/GR/
LU/CH
Natural Gas H 20 7.6
8.0
8.0
8.0
8.0
8.0
25
30
T30
35
T45
55
3.9
4.0
4.0
4.6
4.6
5.2
1
1
2
1
2
1
M402980
M402992
M402992
M411511
M411371
M402993
L.P. Gas + 28 or 37 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
2.8
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M411512
AT
Natural Gas H 20 7.6
8.0
8.0
8.0
8.0
8.0
25
30
T30
35
T45
55
3.9
4.0
4.0
4.6
4.6
5.2
1
1
2
1
2
1
M402980
M402992
M402992
M411511
M411371
M402993
L.P. Gas B/P 30 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
3.0
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M401017
CY/IS/MT
L.P. Gas B/P 30 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
3.0
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M401017
Table 1 (continued)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70392201 (EN)
18
Tabl e 1
Burner orifice information at 0-600 meters (0-2000 feet) altitude.
Table 1 (continued)
Country
Code Gas Type Group Supply
Pressure,
mbar
Burner
Orifice
Pressure,
mbar
Capacity/
Model Diameter, mm Quantity Burner
Orifice
Part No.
HU
Natural Gas H 25 7.6
8.0
8.0
8.0
8.0
8.0
25
30
T30
35
T45
55
3.9
4.0
4.0
4.6
4.6
5.2
1
1
2
1
2
1
M402980
M402992
M402992
M411511
M411371
M402993
L.P. Gas B/P 30 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
3.0
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M401017
PL
Natural Gas H 20 7.6
8.0
8.0
8.0
8.0
8.0
25
30
T30
35
T45
55
3.9
4.0
4.0
4.6
4.6
5.2
1
1
2
1
2
1
M402980
M402992
M402992
M411511
M411371
M402993
L.P. Gas 3P 37 No Governor 25
30
T30
35
T45
55
2.1
2.2
2.2
2.5
2.5
2.8
1
1
2
1
2
1
M401003
M401011
M401011
M406361
M401007
M411512
