ADEE8B BLACK (ELECTRIC)
ADGE8B BLACK (GAS)
INSTALLATION GUIDE
DRYER

Installation Instructions
for Dryers
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. D514685R5
August 2017

WARNING
Risk of fire. Highly flammable material.
W881
IMPORTANT: The electrical installation in the site shall
comply with the Australian Electrical Standards,
AS3000, SAA wiring rules, and such local regulations
that might apply. In Australia and New Zealand, instal-
lation must comply with the Gas Installations Standard
AS/NZS 5601 Part 1: General Installations.
The maximum drying load (dry weight) shall not exceed 9 kg [20
pounds].
Read all instructions before using unit.
WARNING
FOR YOUR SAFETY, the information in this manual
must be followed to minimize the risk of fire or ex-
plosion or to prevent property damage, personal in-
jury or death.
W033
WARNING
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Clear the room, building or area of all occu-
pants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s in-
structions.
• If you cannot reach your gas supplier, call the
fire department.
• Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
W052
IMPORTANT: Purchaser must consult the local gas
supplier for suggested instructions to be followed if
the dryer user smells gas. The gas utility instructions
plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer
for customer use.
WARNING
• Installation of unit must be performed by a quali-
fied installer.
• Install clothes dryer according to manufacturer’s
instructions and local codes.
• DO NOT install a clothes dryer with flexible plas-
tic venting materials. If flexible metal (foil type)
duct is installed, it must be of a specific type
identified by the appliance manufacturer as suita-
ble for use with clothes dryers. Refer to section
on connecting exhaust system. Flexible venting
materials are known to collapse, be easily crush-
ed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
W729R1
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. D514685R5

WARNING
To reduce the risk of severe injury or death, follow all
installation instructions. Save these instructions.
W894
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
W053
This product uses FreeRTOS V7.2.0 (www.freertos.org).
NOTE: For Australian models, the energy consumption
is measured as used once per week using the Perm
Press Automatic cycle with High Temperature and Dry-
ness Dry at the rated load capacity of 7 kg.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. D514685R5

Table of Contents
Dimensions............................................................................................. 6
Installation............................................................................................. 8
Before You Start............................................................................................. 8
Supplies..................................................................................................... 8
Order of Installation Steps............................................................................8
Position and Level the Dryer............................................................................8
Connect Dryer Exhaust System...................................................................... 10
Exhaust Direction......................................................................................11
Exhaust System.........................................................................................12
Gas Dryers - Connect Gas Supply Pipe........................................................... 12
Reverse Door, if Desired................................................................................14
Wipe Out Inside of Dryer...............................................................................15
Plug In the Dryer.......................................................................................... 15
Electrical Requirements............................................................................. 15
Earth/Ground Instructions.......................................................................... 17
Recheck Steps.............................................................................................. 17
Check Heat Source........................................................................................17
Electric Dryers.......................................................................................... 17
Gas Dryers................................................................................................17
All Dryers.................................................................................................18
Installer Checklist.................................................................................19
© Copyright 2017, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. D514685R5

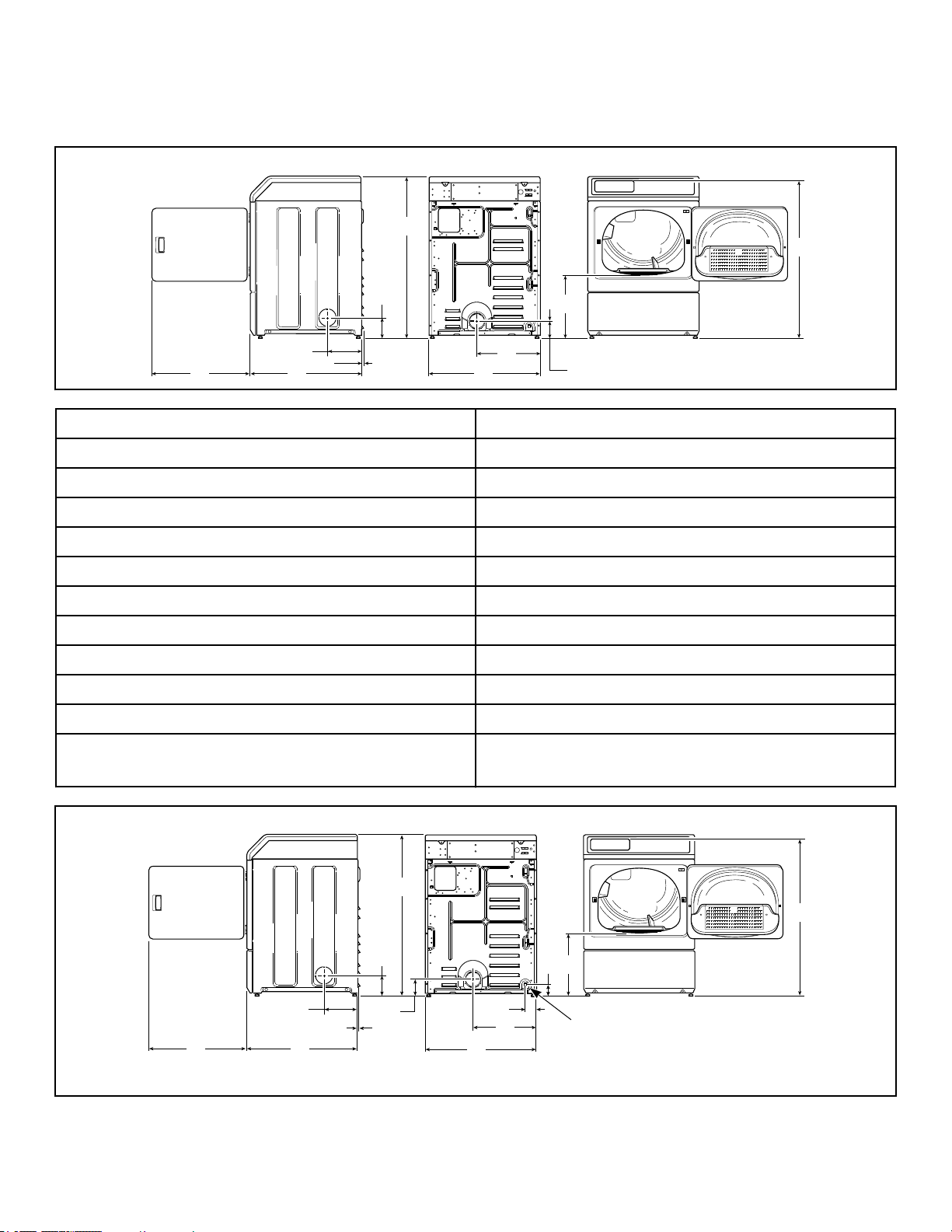

Dimensions
Electric Models
DRY2638N_SVG
JK
IH
G
F
E
D
C
B
A
A * 1027 mm [40.42 in.]
B * 1006 mm [39.61 in.]
C * 392 mm [15.44 in.]
D * 102 mm [4 in.]
E 391 mm [15.4 in.]
F 683 mm [26.875 in.]
G * 114 mm [4.5 in.]
H 10 mm [0.4 in.]
I 203 mm [8 in.]
J 711 mm [28 in.]
K 597 mm [23.5 in.]
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
* With leveling legs turned into base.
Gas Models
DRY2639N_SVG
F
E
DC
B
A
J
K
M L
I
H
G
1
1. 3/8 in. NPT Gas Connection
Dimensions
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. D514685R5

A *1027 mm [40.42 in.]
B *1006 mm [39.61 in.]
C *392 mm [15.44 in.]
D *70 mm [2.8 in.]
E 60 mm [2.3 in.]
F 391 mm [15.4 in.]
G 683 mm [26.875 in.]
H 102 mm [4 in.]
I *114 mm [4.5 in.]
J 10 mm [0.4 in.]
K 203 mm [8 in.]
L 711 mm [28 in.]
M 597 mm [23.5 in.]
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
* With leveling legs turned into base.
NOTE: Gas models cannot be vented out left side of
cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient clear-
ance around it for needed ventilation and for the ease
of installation and servicing. For maximum drying per-
formance, we recommend that more clearance be al-
lowed around the dryer than the clearances that are lis-
ted throughout this manual.
Dimensions
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. D514685R5

Installation
Before You Start
Supplies

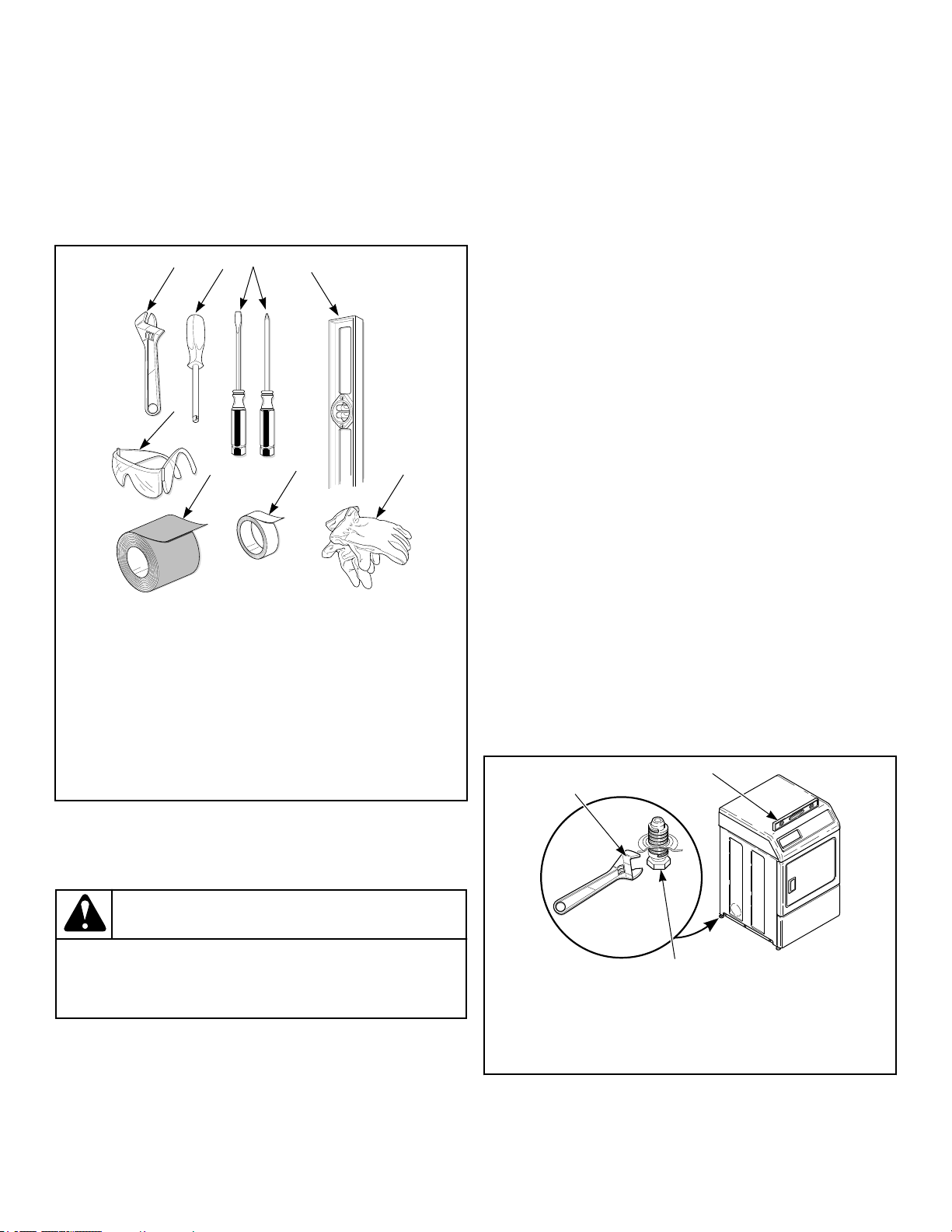

For most installations, the basic supplies you will need are:
DRY2586N_SVG
8
765
4
3
2
1
1. Wrench
2. 1/4 inch Driver
3. Screwdrivers
4. Level
5. Gloves
6. Teflon Tape
7. Duct Tape
8. Safety Glasses
Figure 1
NOTE: This appliance is suitable for use in countries
having a warm, damp climate.
WARNING
Any disassembly requiring the use of tools must be
performed by a suitably qualified service person.
W299
Order of Installation Steps
1. Position and level the dryer.
2. Connect dryer to exhaust system.
3. For gas models only, connect the gas supply pipe. Check for
gas leaks.
4. Reverse the door, if desired.
5. Wipe out the inside of the dryer.
6. Plug in the dryer.
7. Recheck steps.
8. Start and run the dryer in a heat setting to verify dryer is heat-
ing.
Position and Level the Dryer
1. Install dryer before washer. This allows room for attaching
exhaust duct.
2. Select a location with a solid floor. Dryers installed in resi-
dential garages must be elevated 457 mm [18 inches] above
the floor.
No other fuel burning appliance should be installed in the same
closet with the dryer.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
The dryer needs sufficient clearance and an adequate air supply
for proper operation and ventilation, and for easier installation
and servicing. (Minimum clearances are shown in Figure 3 ).
The dryer must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the dry-
er, in such a way that a full opening of the dryer door is restricted.
3. Place the dryer in position, and adjust the legs until the dryer
is level from side to side and front to back. Leveling legs can
be adjusted from inside the dryer with a 1/4 in. driver.
4. All four legs must rest firmly on the floor so the weight of the
dryer is evenly distributed. The dryer must not rock.
DRY2500N_SVG
3
2
1
1. Dryer Base
2. Level
3. Leveling Leg
Figure 2
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. D514685R5

Front View (Without Closet Door)
DRY2640N_SVG
A
B
A
Side View (Closet Door)
DRY2641N_SVG
H
E
D
C
A
3
1
Front View (Closet Door)
DRY2637N_SVG
F
F
2 (G)
1. Closet Door
2. Centered Air Openings (G) (2 Openings minimum)
3. Outer Wall of Enclosure
Figure 3
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. D514685R5

Area Description
Free Standing/Alcove In-
stallation Closet Installation
A* Dryer sides and rear clearance 0 mm [0 in.] 0 mm [0 in.]
B Dryer top clearance 305 mm [12 in.] 305 mm [12 in.]
C Dryer front clearance Not Applicable 51 mm [2 in.]
D Exhaust duct clearance to com-
bustible material
51 mm [2 in.] 51 mm [2 in.]
E Weather hood to ground clear-
ance
305 mm [12 in.] 305 mm [12 in.]
F Distance from floor or ceiling
to air opening edge
Not Applicable 76 mm [3 in.]
G Area of centered air openings
in closet door. Louvered door
with equivalent air openings is
acceptable. (Minimum clearan-
ces are shown.)
Not Applicable 1016 sq. mm/open [40 sq. in./
open]
H For new installations, it is sug-
gested to locate top of wall vent
1067 mm [42 inches] above
floor to make venting easier to
connect.
1067 mm [42 in.] 1067 mm [42 in.]
* Rear clearance is minimum. 51 mm [2 inches] is recommended for utility connection. 152 mm [6
inches] is recommended when venting through rear of unit.
Table 1
IMPORTANT: In mobile home installations, gas dryers
MUST be permanently attached to the floor at the time
of installation. Order No. 526P3 Hold Down Kit (availa-
ble at extra cost) for a manufactured (mobile) home in-
stallation. Follow the instructions supplied with the kit.
Connect Dryer Exhaust System
WARNING
To reduce the risk of fire and combustion gas accu-
mulation the dryer MUST be exhausted to the out-
doors.
W604
WARNING
To reduce the risk of fire and the accumulation of
combustion gases, DO NOT exhaust dryer air into a
window well, gas vent, chimney or enclosed, unven-
tilated area, such as an attic, wall, ceiling, crawl
space under a building or concealed space of a
building.
W045
WARNING
To reduce the risk of fire, DO NOT use plastic or thin
foil ducting to exhaust the dryer.
W354
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. D514685R5

WARNING
To reduce the risk of fire, the exhaust duct and
weather hood MUST be fabricated of a material that
will not support combustion. Rigid or flexible metal
pipe is recommended for a clothes dryer.
W048
WARNING
To reduce the risk of fire due to increased static
pressure, we do not recommend installation of in-
line secondary lint filters or lint collectors. If secon-
dary systems are mandated, frequently clean the
system to assure safe operation.
W749
IMPORTANT: Installing in-line filters or lint collectors
will cause increased static pressure. Failure to main-
tain the secondary lint system will decrease dryer effi-
ciency and will void machine warranty.

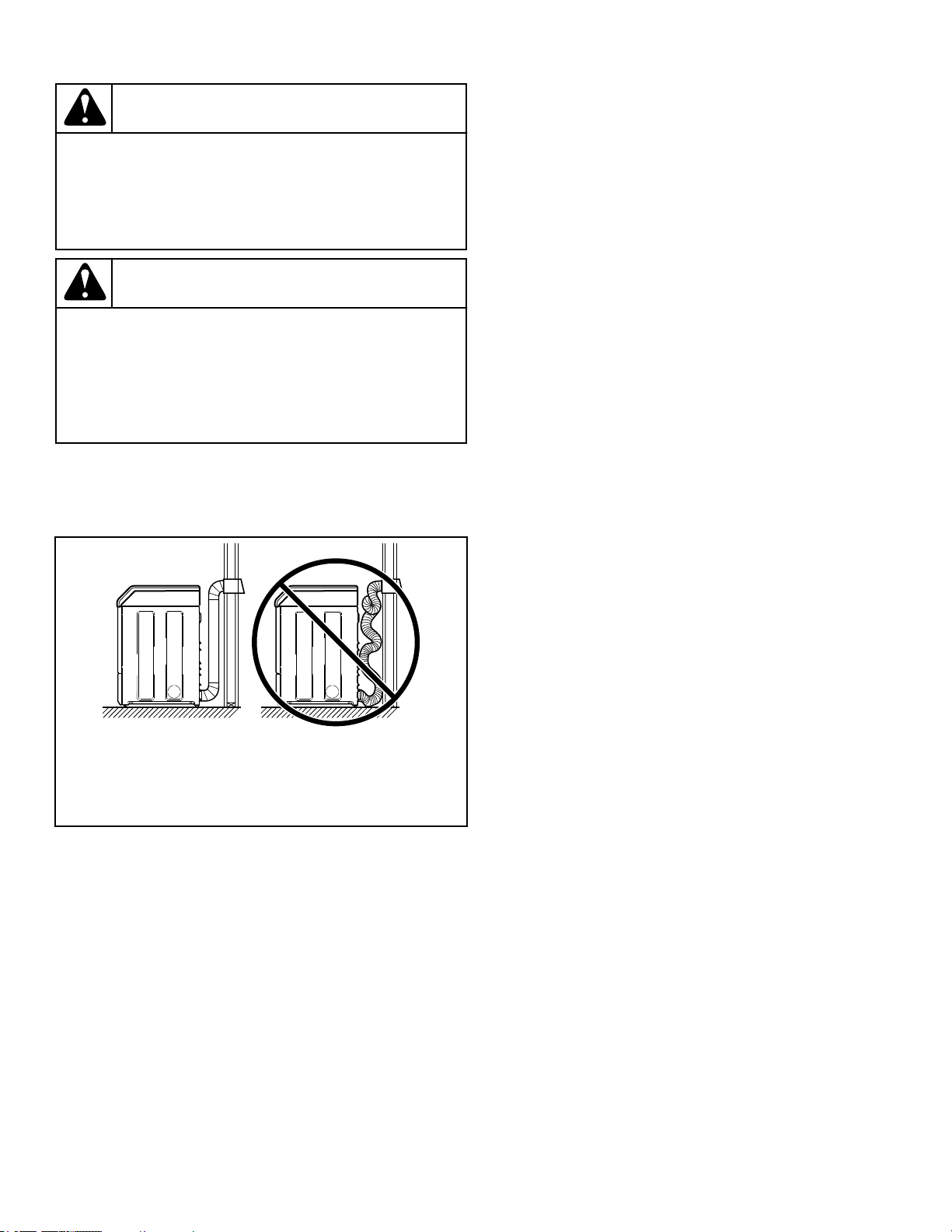

DRY2501N_SVG
1 2
1. Correct
2. Incorrect
Figure 4
• DO NOT use plastic, thin foil or type B ducting. Rigid metal
duct is recommended.
• Locate dryer so exhaust duct is as short as possible.
• Be certain old exhaust ducts are cleaned before installing your
new dryer.
• Use 102 mm [4 inch] diameter rigid or flexible metal duct.
• The male end of each section of duct must point away from
the dryer.
• Use as few elbows as possible.
• Use of duct tape or pop-rivets on all seams and joints is rec-
ommended, if allowed by local codes. DO NOT use sheet
metal screws or fasteners on exhaust pipe joints which extend
into the duct and catch lint.
• Ductwork that runs through unheated areas must be insulated
to help reduce condensation and lint build-up on pipe walls.
• Install backdraft dampers in multi-dryer installations.
• In mobile home installations, dryer exhaust duct must be se-
cured to mobile home structure.
• Dryer exhaust duct MUST NOT terminate under mobile
home.
• Exhaust duct must not be connected to any other duct, vent, or
chimney.
• Dryer exhausts 5.09 cmm (180 cfm) (measured at back of
dryer).
• DO NOT install flexible duct in concealed spaces, such as a
wall or ceiling.
• Static pressure in exhaust duct should not be greater than 10
mm water column [0.4 inches water column], measured with
manometer placed on exhaust duct 610 mm [two feet] from
dryer (check with dryer running and no load). In multi-dryer
installations, all dryers connected to the main collector duct
should be operating when pressure is checked.
• Exhausting dryer in hard-to-reach locations can be done by
installing 521P3 Flexible Metal Vent Kit (available as option-
al equipment at extra cost).
• Sufficient make-up air must be supplied to replace the air ex-
hausted by the dryer. The free area of any opening for outside
air must be at least 25806 mm2 [40 in.2].
• Energy efficient buildings with low air infiltration rates
should be equipped with an air exchanger that can accommo-
date on demand make-up air needs in the laundry room. These
devices can be obtained through your building contractor or
building material suppliers.
• Do not draw make-up air from a room containing a gas fired
water heater, a dry cleaner or a hair salon.
• Failure to exhaust dryer properly will void warranty.
• A dryer will dissipate 681,392 J/m2 [60 Btu/ft2] of surface
area exposed to the conditioned air.
NOTE: Venting materials are not supplied with the dry-
er (obtain locally).
IMPORTANT: DO NOT block the airflow at the bottom of
the dryer’s front panel with laundry, rugs, etc. Blockage
will decrease airflow through the dryer, thus reducing
the efficiency of the dryer.
Exhaust Direction
The dryer can be exhausted to the outdoors through the back, left,
right or bottom of the dryer. EXCEPTION: Gas dryers cannot be
vented out the left side because of the burner housing.
Dryer is shipped from factory ready for rear exhaust.
Exhausting the dryer through sides or bottom can be accomplish-
ed by installing a Directional Exhaust Kit, 528P3, available as
optional equipment at extra cost.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. D514685R5

IMPORTANT: DO NOT block the airflow at the bottom of
the dryer’s front panel with laundry, rugs, etc. Blockage
will decrease airflow through the dryer, thus reducing
the efficiency of the dryer.
Exhaust System
For best drying results, recommended maximum length of ex-
haust system is shown in Table 2 .
To prevent backdraft when dryer is not in operation, outer end of
exhaust pipe must have a weather hood with hinged dampers (ob-
tain locally).
NOTE: Weather hood should be installed at least 305
mm [12 inches] above the ground. Larger clearances
may be necessary for installations where heavy snow-
fall can occur.

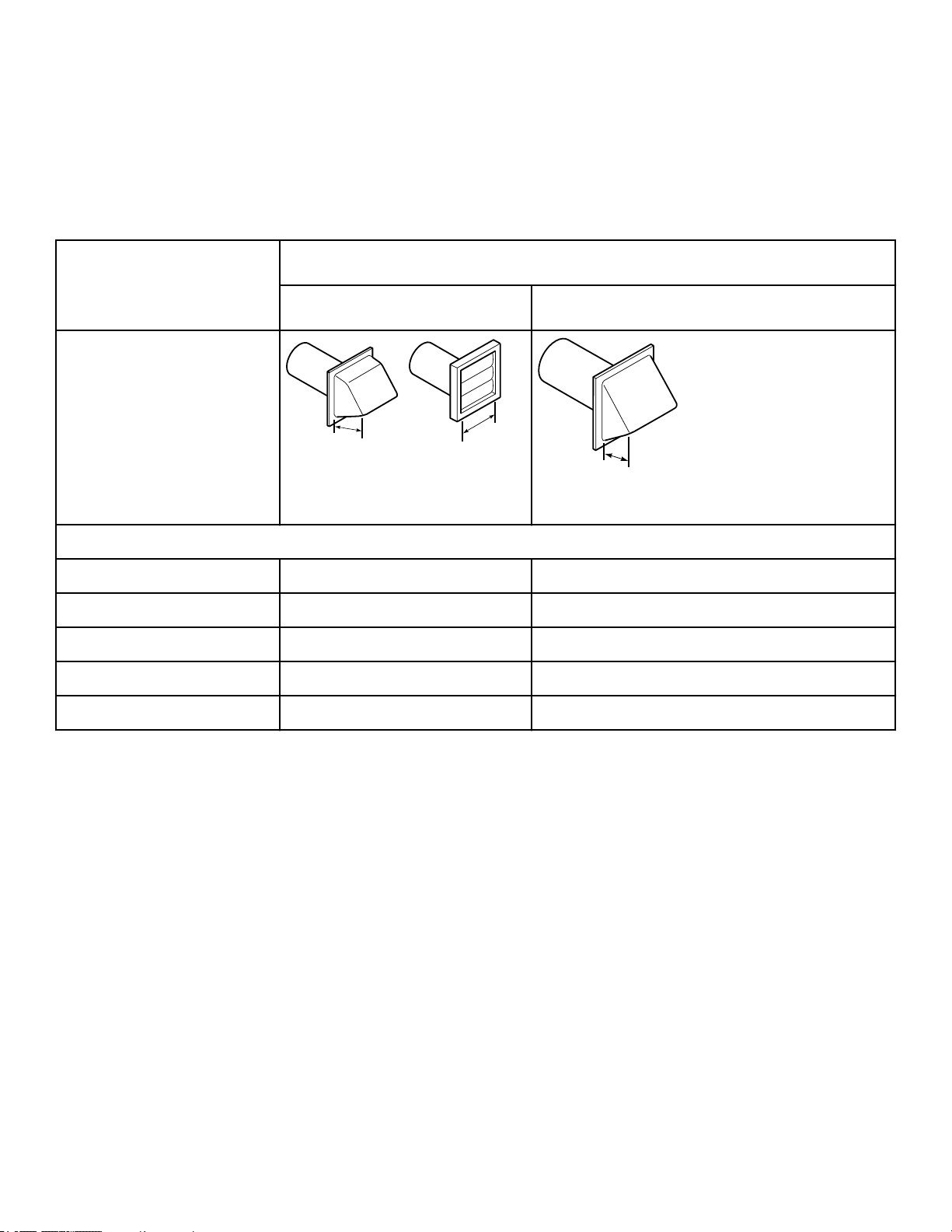

Number of 90° Elbows
Weather Hood Type
Recommended Use Only for Short Run Installations
D673I_SVG
1
1
1. 102 mm [4 in.]
D802I_SVG
1
1. 64 mm [2.5 in.]
Maximum length of 102 mm [4 in.] diameter rigid metal duct.
0 19.8 m [65 feet] 16.8 m [55 feet]
1 16.8 m [55 feet] 14.3 m [47 feet]
2 14.3 m [47 feet] 12.5 m [41 feet]
3 11.0 m [36 feet] 9.1 m [30 feet]
4 8.5 m [28 feet] 6.7 m [22 feet]
Table 2
NOTE: Deduct 1.8 m [6 feet] for each additional elbow.
NOTE: The maximum length of a 102 mm [4 in.] diame-
ter flexible metal duct must not exceed 2.4 m [7.87 ft.],
as required to meet UL2158, clause 7.3.2.A.
Gas Dryers - Connect Gas Supply Pipe
NOTE: The gas service to a gas dryer must conform
with the local codes and ordinances and in Australia
and New Zealand, installation must comply with the
Gas Installations Standard AS/ NZS 5601 Part 1: Gener-
al Installations. In the absence of local codes and ordi-
nances, applicable National codes should be followed.
1. Install the dryer with sufficient clearance for adequate air cir-
culation, and for the ease of the dryer installation, servicing
and operation. For maximum drying performance, we recom-
mend you allow more clearance than the clearances that are
listed throughout this manual.
2. Remove the shipping cap from the gas connection at the rear
of the dryer. Make sure you do not damage the pipe threads
when removing the cap.
NOTE: If gas supply connection is British Standard
Pipe Tapered thread (BSPT), order 44178804 brass
female NPT (FPT) to male BSPT gas pipe thread
adapter, available at extra cost.
3. Make certain your dryer is equipped for use with the type of
gas in your laundry room.
NOTE: Natural gas, 37.3 MJ/m3 [1000 Btu/ft3], serv-
ice must be supplied at 1.13 kPa [4.54 inch]water
column pressure. Do not connect the dryer to L.P.
(Liquefied Petroleum) gas service without convert-
ing the gas valve. A No. 401P3 L.P. Gas Conversion
Kit must be installed by the Manufacturer’s Author-
ized Dealers, Distributors, or local service person-
nel.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. D514685R5

NOTE: L.P. gas, 93.1 MJ/m3 [2500 Btu/ft3], service
must be supplied at 2.75 kPa [11.04 inch] water col-
umn pressure and a vent to the outdoors must be
provided.
4. If local codes allow the use of flexible gas tubing, connect the
9.5 mm [3/8 inch] NPT (National Pipe Thread) gas connec-
tion at the rear of the dryer to the laundry room’s gas line with
new flexible stainless steel tubing (using design certified Aus-
tralian Gas Association connector only).
IMPORTANT: Use local codes of practice for gas in-
stallation.
This dryer is equipped with jet for Natural gas.
Gas Consump-
tion
Natural 21.9 MJ
L.P. 21.9 MJ
Gas Supply Pres-
sure
Natural 1.13 kPa
L.P. 2.75 kPa
WARNING
To reduce the risk of gas leaks, fire or explosion:
• The dryer must be connected to the type of
gas as shown on nameplate located in the
door recess.
• Use a new flexible stainless steel connector.
• Use pipe joint compound insoluble in L.P. (Liq-
uefied Petroleum) Gas, or Teflon tape, on all
pipe threads.
• Purge air and sediment from gas supply line
before connecting it to the dryer. Before tight-
ening the connection, purge remaining air from
gas line to dryer until odor of gas is detected.
This step is required to prevent gas valve con-
tamination.
• Do not use an open flame to check for gas
leaks. Use a non-corrosive leak detection fluid.
• Any disassembly requiring the use of tools
must be performed by a suitably qualified serv-
ice person.
W316
D246I_SVG
1
4
2
3
1. New Stainless Steel Flexible Connector – Use Only If Al-
lowed By Local Codes (Use design AGA certified connec-
tor)
2. Pressure Test Point
3. External Shut-Off Valve
4. 3/8 in. NPT Gas Connection
Figure 5
NOTE: When connecting gas supply line, a pressure
test point must be installed downstream from the
shutoff valve for checking inlet gas pressure.
5. The gas line to your laundry room should be made of black
iron pipe. A 9.5 mm [3/8 inch] pipe with an inside diameter of
11.7 mm [0.46 inch] will be adequate if length of supply line
is not over 6 m [20 feet]. If length exceeds this, use 12.7 mm
[1/2 inch] pipe. If copper semi-rigid tubing is used it must be
internally tinned or equivalently treated to resist sulfur corro-
sion.
NOTE: The dryer and its individual gas valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of 3.45 kPa [1/2 psig].
6. Check all pipe connections (internal and external) for gas
leaks with a soapy solution. Gas connections should be
checked annually for leakage.
7. The dryer gas valve is equipped with a pressure test point for
checking manifold pressure.
For proper operation at altitudes above 760 m [2500 feet] the gas
valve spud orifice size must be reduced to ensure complete com-
bustion. Refer to Table 3 and Table 4 .
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. D514685R5

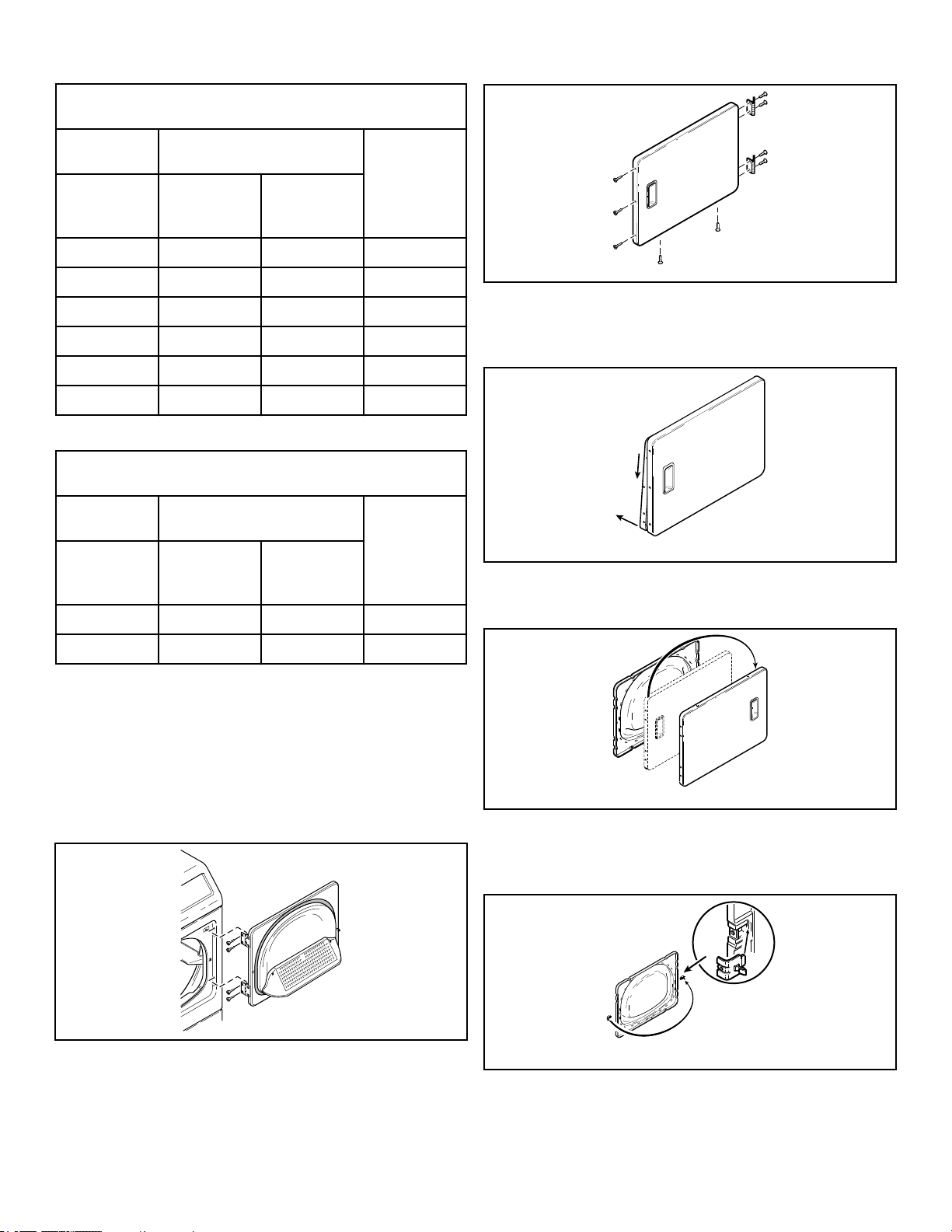

Natural Gas Altitude Adjustments
Altitude Orifice Size
Part Num-
berm [ft] No.
mm [in-
ches]
760 [2500] 45 2.08 [0.0820] D503779
1370 [4500] 46 2.06 [0.0810] D503780
1830 [6000] 47 1.99 [0.0785] D503781
2290 [7500] 48 1.93 [0.0760] D503782
2900 [9500] 49 1.85 [0.0730] D503783
3355 [11000] 50 1.78 [0.0700] D503784
Table 3
L.P. Altitude Adjustments
Altitude Orifice Size
Part Num-
berm [ft] No.
mm [in-
ches]
1370 [4500] 56 1.2 [0.0465] D503786
3000 [9500] 57 1.1 [0.0430] 60941
Table 4
Reverse Door, if Desired
NOTE: Doors with windows cannot be reversed.

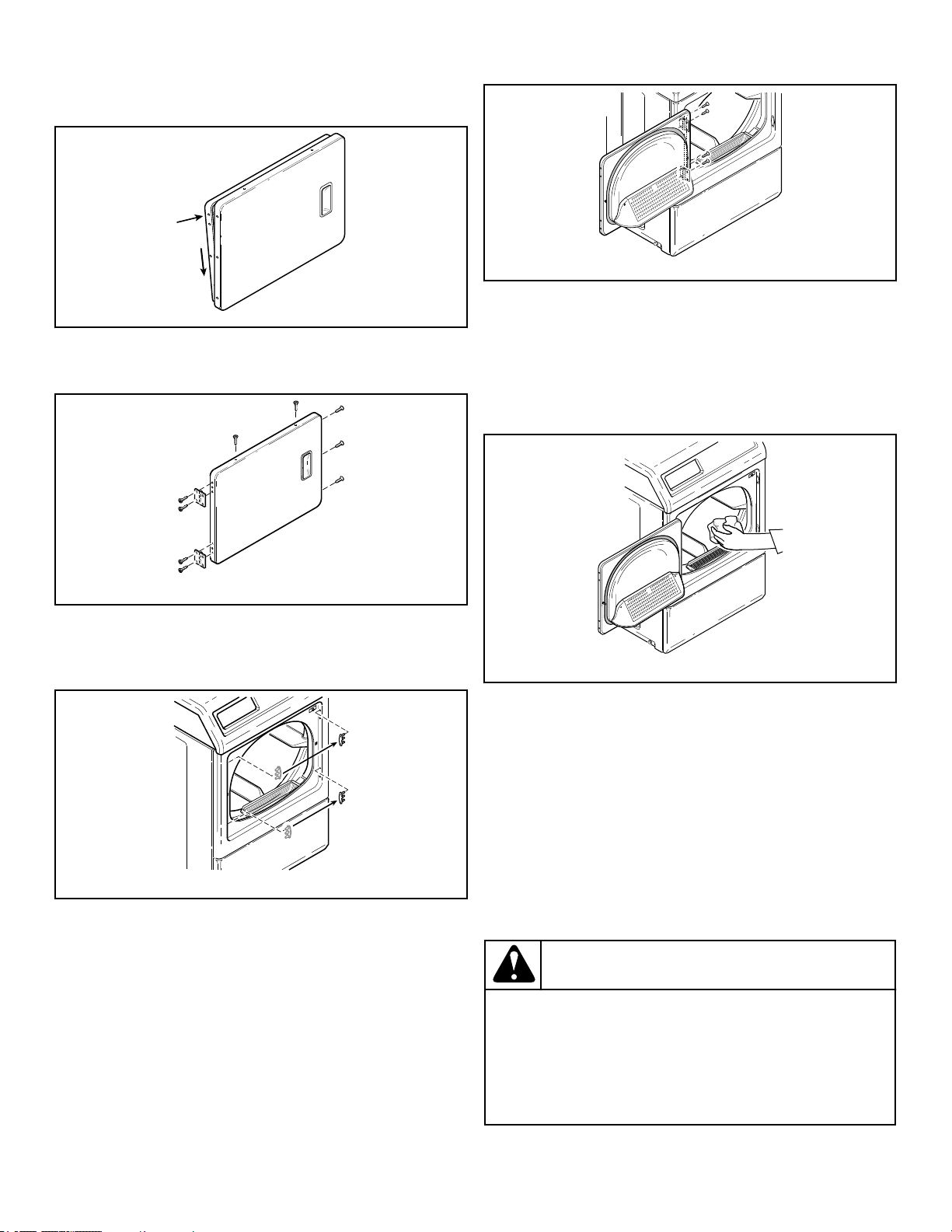

The door on this dryer is completely reversible. To reverse door
proceed as follows:
1. Remove four hinge attaching screws.
DRY2052N_SVG
Figure 6
2. Remove all nine screws.
D272P_SVG
Figure 7
3. Pull bottom of door liner out, then pull down, removing door
liner from door panel.
DRY1916N_SVG
B
A
Figure 8
4. Rotate door panel 180 degrees as shown.
D273P_SVG
Figure 9
5. Remove door strike from door liner and reinstall on opposite
side.
DRY1917N_SVG
Figure 10
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. D514685R5

6. Insert liner under flange on bottom of door, then push top of
door liner into place.
DRY1918N_SVG
B
A
Figure 11
7. Reinstall nine screws removed in Step 2.
DRY1919N_SVG
Figure 12
8. Using screwdriver, remove two door plugs, and reinstall on
opposite side of door opening.
DRY2503N_SVG
Figure 13
9. Reinstall four hinge attaching screws, removed in Step 1.
D606I_SVG
Figure 14
Wipe Out Inside of Dryer
Before using dryer for the first time, use an all-purpose clean-
er, or a detergent and water solution, and a damp cloth to re-
move shipping dust from inside dryer drum.
DRY2504N_SVG
Figure 15
Plug In the Dryer
This appliance is to be supplied through a residual current device
(RCD) having a rated residual operating current not exceeding 30
mA.
Electrical Requirements
Electric Dryer
NOTE: The wiring diagram is located in the control cab-
inet.
WARNING
To reduce the risk of fire, electric shock or personal
injury, all wiring and earthing to the dryer MUST con-
form with the latest edition of the Australian Electri-
cal Standards, AS3000, SAA wiring rules, and such
local regulations that might apply.
W478
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. D514685R5

This dryer is designed to be operated on a two-wire, plus earth/
ground, 240 Volt, 50 Hertz, single-phase circuit, fused at 20 Am-
peres.
Insert the dryer’s lead-in cord plug into an earthing three-slot-
plus earth/ground, wall receptacle on a separate circuit. Do not
operate other appliances on the same circuit.
CAUTION
If this appliance is supplied from a cord extension
set or an electrical portable outlet device, the cord
extension set or electrical portable outlet device
must be positioned so that it is not subject to
splashing or ingress of moisture.
W563
If the supply cord is damaged, it must be replaced by the manu-
facturer, its special agent or similarly qualified persons in order to
avoid a hazard.

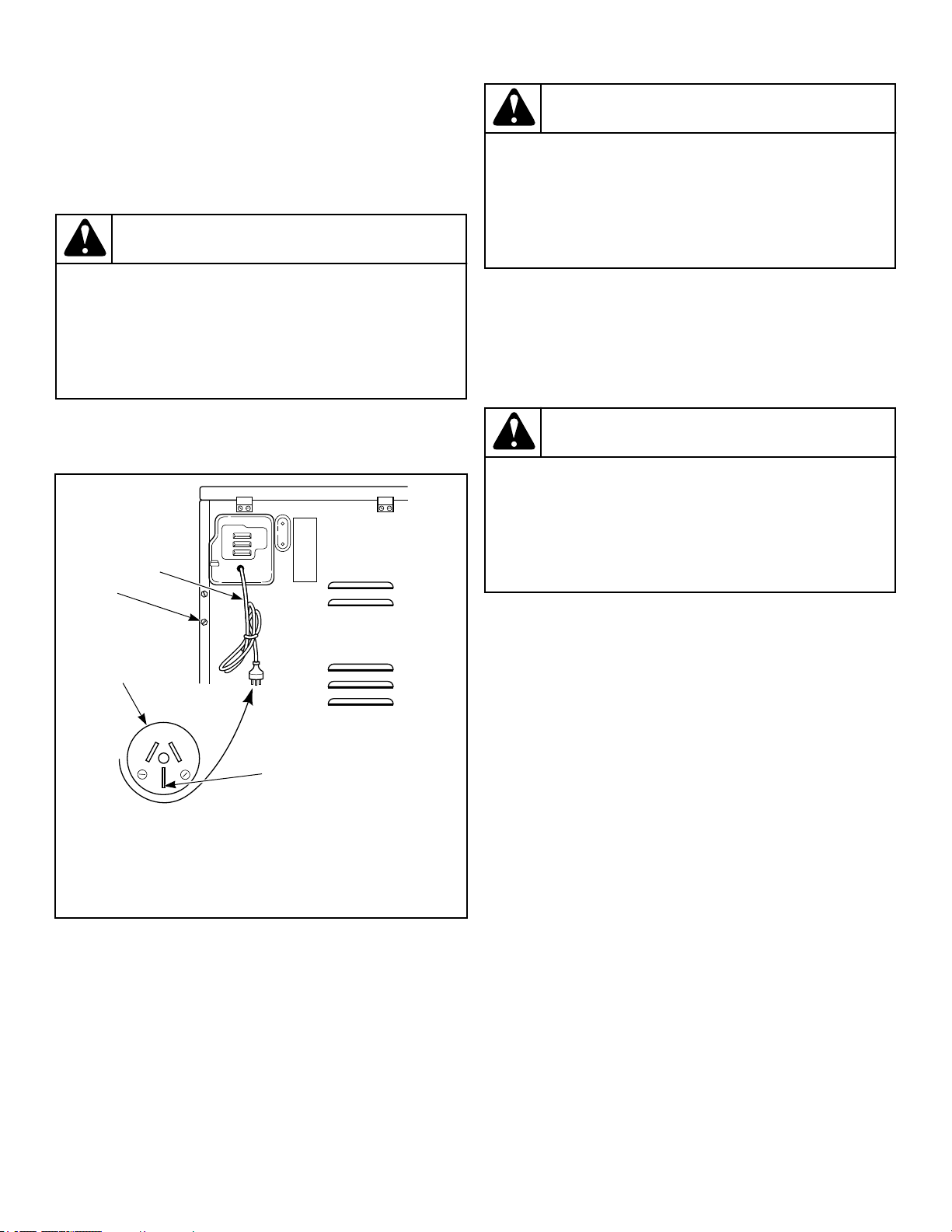

DRY2587N_SVG
20 A
250 V
1
3
4
2
1. Lead-In Cord
2. Earth/Ground Screw
3. Lead-In Cord Plug
4. Earth/Ground
Figure 16
Gas Dryer
NOTE: The wiring diagram is located in the control cab-
inet.
WARNING
To reduce the risk of fire, electric shock or personal
injury, all wiring and earthing to the dryer MUST con-
form with the latest edition of the Australian Electri-
cal Standards, AS3000, SAA wiring rules, and such
local regulations that might apply.
W478
This dryer is designed to be operated on a two-wire, plus earth/
ground, 240 Volt, 50 Hertz, single-phase circuit, fused at 10 Am-
peres.
Insert the dryer’s lead-in cord plug into an earthing three-slot-
plus earth/ground, wall receptacle on a separate circuit. Do not
operate other appliances on the same circuit.
CAUTION
If this appliance is supplied from a cord extension
set or an electrical portable outlet device, the cord
extension set or electrical portable outlet device
must be positioned so that it is not subject to
splashing or ingress of moisture.
W563
IMPORTANT: Remove all objects from pockets such as
lighters and matches.
If the supply cord is damaged, it must be replaced by the manu-
facturer, its special agent or similarly qualified persons in order to
avoid a hazard.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. D514685R5

DRY2612N_SVG
10A
250 V
1
3
4
2
1. Lead-In Cord
2. Earth/Ground Screw
3. Lead-In Cord Plug
4. Earth/Ground
Figure 17
Earth/Ground Instructions
This appliance must be properly connected to protective earth/
ground. In the event of malfunction or breakdown, the earth/
ground will reduce the risk of electric shock by providing a path
of least resistance for electric current.
The dryer is equipped with a cord having an equipment-earth/
ground conductor and a 3 prong earth/ground plug. The plug
must be plugged into an appropriate outlet that is properly instal-
led and connected to a protective earth/ground in accordance with
all local codes and ordinances.
Do not modify the plug provided with the dryer – if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
WARNING
Improper connection of the equipment earth/ground
conductor can result in a risk of electric shock.
Check with a qualified electrician or service person if
you are in doubt as to whether the dryer is properly
connected to a protective earth/ground.
W886
If the electrical supply does not meet the above specifications
and/or you are not sure your building has an effective earth/
ground, have a qualified electrician or your local electrical utility
company check it and correct any problems.
Recheck Steps
Refer to Installer Checklist on the back cover of this manual and
make sure that dryer is installed correctly.
Check Heat Source
Electric Dryers
1. Close the loading door and start the dryer in a heat setting (re-
fer to the operation instructions).
2. After the dryer has operated for three minutes, the exhaust air
or exhaust pipe should be warm.
Gas Dryers
IMPORTANT: This operation is to be conducted by
qualified personnel only.
1. To view the burner flame, remove the lower front panel of the
dryer.
2. Close the loading door and start the dryer in a heat setting (re-
fer to the operation instructions). The dryer will start, the ig-
niter will glow red and the main burner will ignite.
IMPORTANT: If all air is not purged out of gas line,
gas igniter may go off before gas is ignited. If this
happens, after approximately two minutes igniter
will again attempt gas ignition.
IMPORTANT: If igniter does not light, make sure gas
is turned on.
3. After the dryer has operated for approximately five minutes,
observe burner flame through lower front panel.
4. Adjust the air shutter to obtain a soft, uniform blue flame. (A
lazy, yellow-tipped flame indicates lack of air. A harsh, roar-
ing, very blue flame indicates too much air.) Adjust the air
shutter as follows:
a. Loosen the air shutter lockscrew.
b. Turn the air shutter to the left to get a luminous yellow-
tipped flame, then turn it back slowly to the right to obtain
a steady, soft blue flame.
c. After the air shutter is adjusted for proper flame, tighten
the air shutter lockscrew securely.
5. Reinstall the lower front panel.
WARNING
To reduce the risk of serious injury or death, low-
er front panel must be in place during normal op-
eration.
W158
6. After the dryer has operated for approximately three minutes,
exhaust air or exhaust pipe should be warm.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. D514685R5

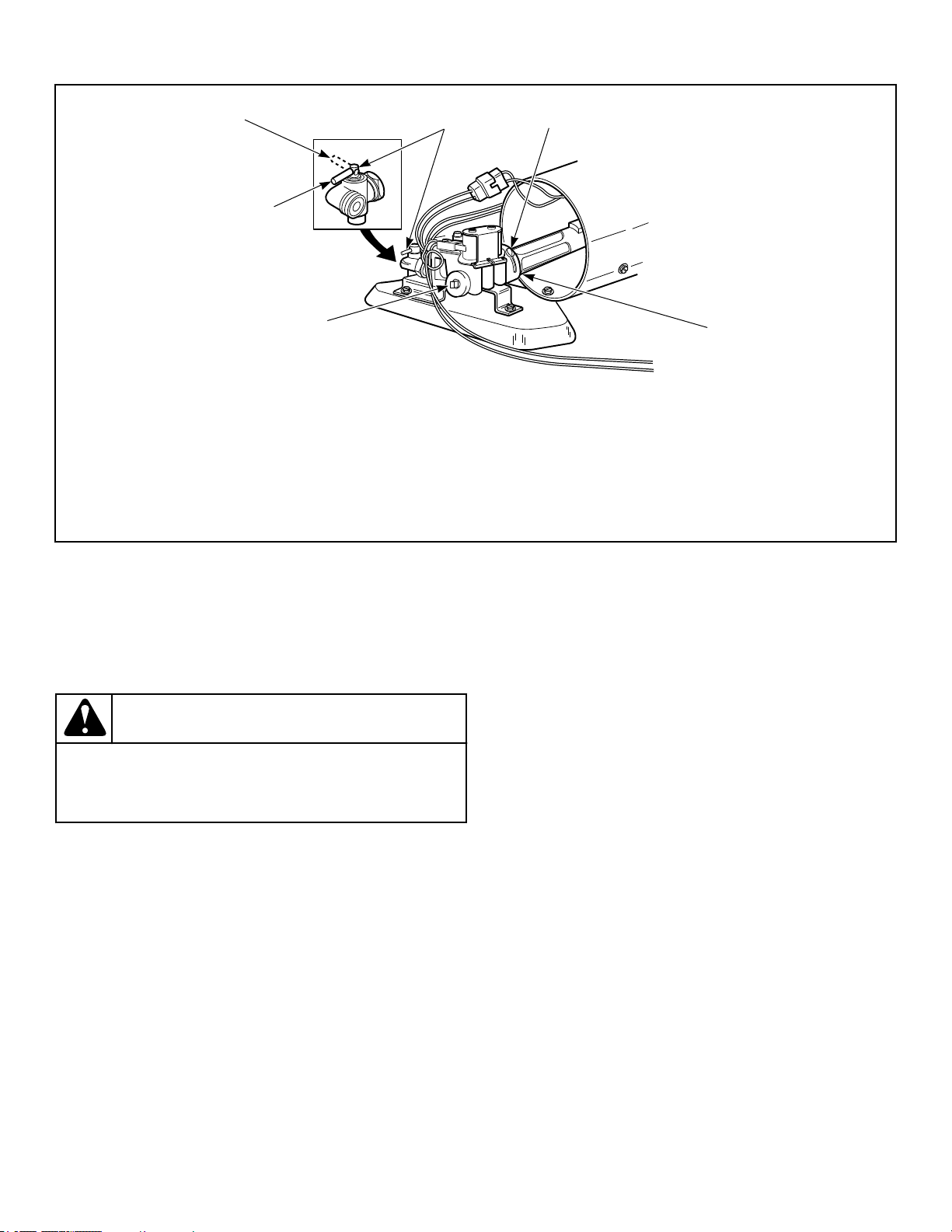

Shut-off Valve Only Applicable on Certain Models
DRY2753N_SVG
3
1
6
5
4
2
1. Air Shutter Lockscrew
2. Air Shutter
3. 3.1 mm [1/8 in.] Pipe Plug (For checking manifold pressure)
4. Shut-off Valve Open Position
5. Shut-off Valve Closed Position
6. Shut-off Valve Handle
Figure 18
All Dryers
If the dryer heat source is not functioning correctly, refer to the
Troubleshooting section of the Dryer User’s Guide for corrective
action.
WARNING
Any disassembly requiring the use of tools must be
performed by a suitably qualified service person.
W299
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. D514685R5

Installer Checklist
Fast Track for Installing the Dryer
1 Position and Level
the Dryer.
DRY2634N_SVG
5 Wipe Out Inside of
Dryer.
DRY2504N_SVG1
CHECK CHECK
2 Connect Dryer Exhaust
System.
DRY2501N_SVG1
6 Plug In the Dryer.
TLW2170N_SVG
CHECK CHECK
3 GAS ONLY
• Connect Gas Sup-
ply Pipe.
• Check for Gas
Leaks.
NOTE: Must be
connected by a li-
censed professio-
nal.
D233I_SVG1
7 Recheck Steps.
NOTE: Refer to User's Guide for proper opera-
tion.
CHECK CHECK
4 Reverse Door, if De-
sired.
DRY2052N_SVG1
8 Start and Run Dryer in Heat Setting to Verify Dryer is
Heating.
NOTE: Refer to Installation manual for correc-
tive action, if necessary.
CHECK CHECK
Refer to the manual for more detailed information
Installer Checklist
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. D514685R5
