Alliance Laundry Systems 510988R3 Guide

Installation/Operation
www.comlaundry.com
Home Laundry
Automatic
Clothes Dryers
Part No. 510988R3
January 2009
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
D715I

510988 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• Installation and service must be performed by a qualified installer or service agency.
W257
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
• Installation of unit must be performed by a qualified installer.
• Install clothes dryer according to manufacturer’s instructions and local codes.
• DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil
type) duct is installed, it must be of a specific type identified by the appliance manufacturer
as suitable for use with clothes dryers. Refer to section on connecting exhaust system.
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct clothes dryer airflow and increase the risk of fire.
W729R1
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510988
2
© Copyright 2008, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
Table of
Contents
Replacement Parts .............................................................................. 4
Safety Information.............................................................................. 5
Explanation of Safety Messages........................................................... 5
Important Safety Instructions ............................................................... 5
Installation........................................................................................... 7
Roughing In Dimensions ...................................................................... 7

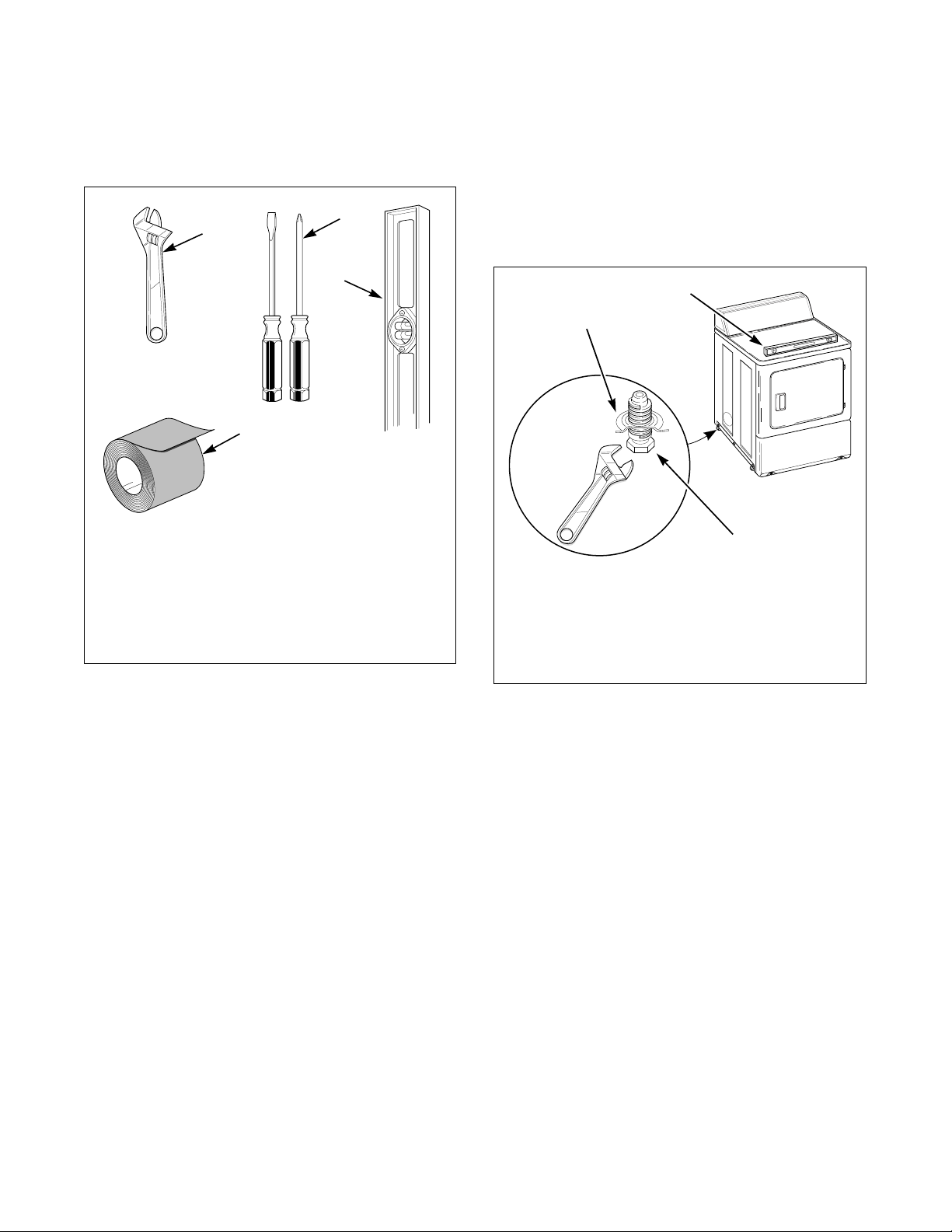

Tools ..................................................................................................... 8
Installing the Dryer ............................................................................... 8
Step 1: Position and Level the Dryer ............................................... 8
Step 2: Connect Dryer Exhaust System ........................................... 9
Step 3: Connect Electrical Cord....................................................... 10
Step 4: Wipe Out Inside of Dryer .................................................... 10
Step 5: Connect the Dryer to Electrical Power ................................ 10
Heat Source Check ............................................................................... 10

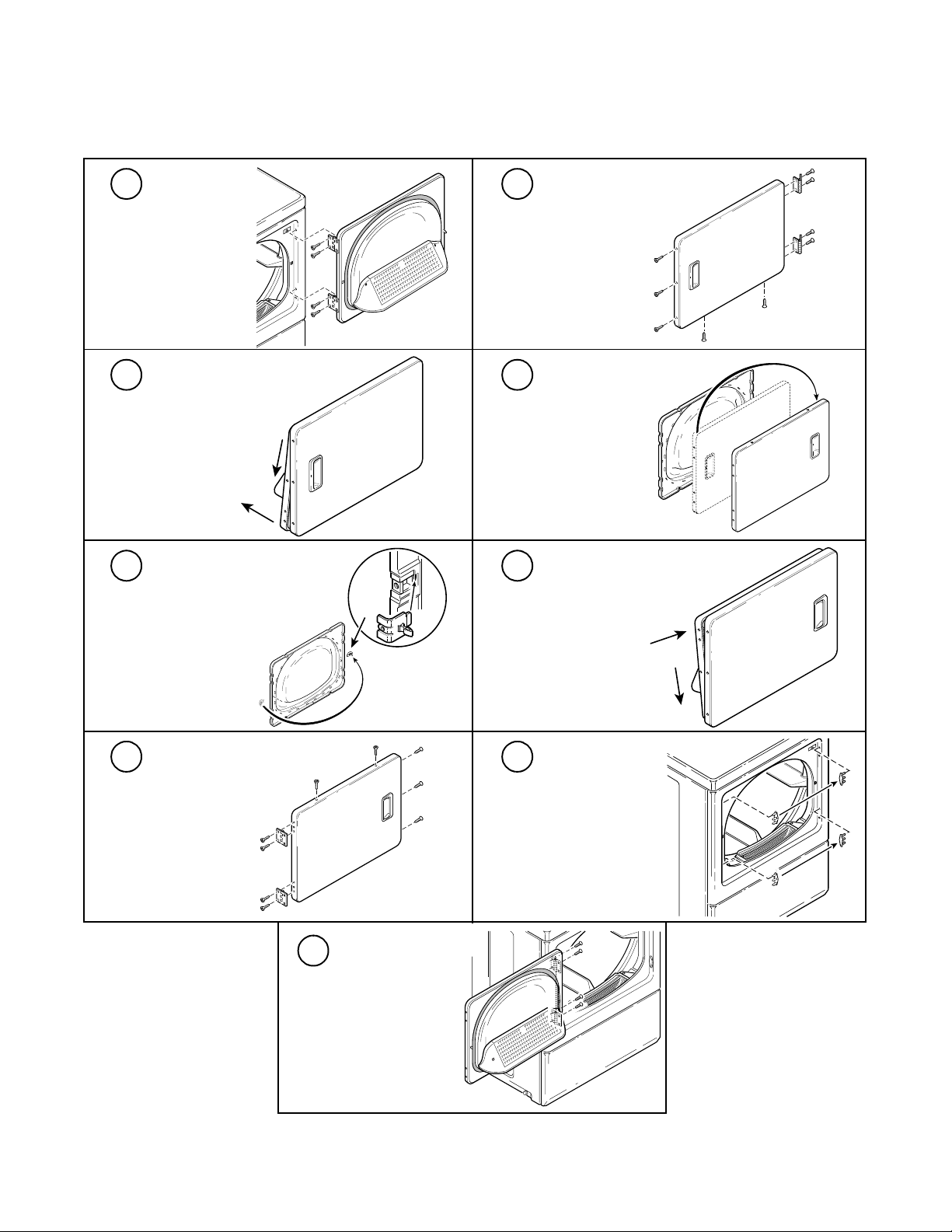

Reversing Door Procedure.................................................................... 11
Electrical Requirements........................................................................ 12
240 Volt, 60 Hertz, 2-Wire
Plus Grounded (Earth) Wire Installation........................................ 12
240 Volt, 60 Hertz, 3-Wire .............................................................. 14
Location Requirements......................................................................... 16
Dryer Exhaust Requirements................................................................ 17
Exhaust System Materials................................................................ 17
Make-Up Air Requirements............................................................. 17
Exhaust Direction............................................................................. 17
Exhaust System................................................................................ 18
Dryer Airflow................................................................................... 19
Operation............................................................................................. 20
Before Drying ....................................................................................... 20
Energy Saving Tips.......................................................................... 20
Helps and Hints................................................................................ 20
Load ................................................................................................. 20
Available Drying Cycles....................................................................... 21
Automatic Regular/Delicate Cycle .................................................. 21
Time Dry Cycle................................................................................ 21
Automatic Permanent Press/Knits Cycle ......................................... 21
To Dry Clothes ..................................................................................... 22
End of Cycle Signal ......................................................................... 23
Optional Equipment ......................................................................... 23
Maintenance ........................................................................................ 24
Care of Your Dryer............................................................................... 24
Dryer Interior ................................................................................... 24
Cabinet ............................................................................................. 24
Control Panel ................................................................................... 24
Exhaust System................................................................................ 24

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
510988
Motor Overload Protector..................................................................... 25
Lint Filter .............................................................................................. 25
Before You Call for Service ................................................................. 26
If Service Is Required ........................................................................... 27
Information for Handy Reference......................................................... 28

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
4510988
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your dryer or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

5
510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the dryer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the dryer.
3. Do not dry articles that have been previously
cleaned in, soaked in, washed in, or spotted with
gasoline, dry-cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. This is a safety
rule for all appliances.
5. Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
6. Do not reach into the dryer if the cylinder is
revolving.
7. Do not install or store the dryer where it will be
exposed to the water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the dryer, or
attempt any servicing unless specifically
recommended in the User-Maintenance
Instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
or injury to persons when using your
dryer, follow these basic precautions:
W034
WARNING

Safety Information
510988
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
12. Always clean the lint filter after every load. A
layer of lint in the filter reduces drying efficiency
and prolongs drying time.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. Dryer will not operate with the loading door
open. DO NOT by-pass the door safety switch by
permitting the dryer to operate with the door
open. The dryer will stop tumbling when the door
is opened. Do not use the dryer if it does not stop
tumbling when the door is opened or starts
tumbling without pressing or turning the START
mechanism. Remove the dryer from use and call
the service person.
16. Do not put articles soiled with vegetable or
cooking oil in the dryer, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
17. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the dryer.
18. Use the dryer only for its intended purpose,
drying clothes.
19. Always disconnect the electrical power to the
dryer before attempting service. Disconnect the
power cord by grasping the plug, not the cord.
20. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
21. Install this dryer according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power and grounding
must comply with local codes and be made by
licensed personnel when required. Do not do it
yourself unless you know how!
22. Remove laundry immediately after the dryer
stops.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
24. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
25. ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
26. Never operate the dryer with any guards and/or
panels removed.
27. DO NOT operate the dryer with missing or
broken parts.
28. DO NOT by-pass any safety devices.
29. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING AND IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the dryer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

7
510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
Roughing In Dimensions
*With leveling legs turned into base.
DRY2262N
DRY2262N
59.7 cm
(23.5 in.)
*11.4 cm
(4.5 in.)
71.1 cm
(28 in.)
*91.4 cm (36 in.)
*109.2 cm (43 in.)
68.3 cm
(26.9 in.)
1.1 cm
(0.4 in.)
20.3 cm
(8.0 in.)
*10.2 cm
(4.0 in.)
*39.2 cm
(15.44 in.)
*102.24 cm (40.25 in.)
56.85 cm
(22.38 in.)
39.1 cm
(15.4 in.)

Installation
510988
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tools
For most installations, the basic tools you will need
are:
Figure 1
Installing the Dryer
Step 1: Position and Level the Dryer
For further assistance refer to section on Location
Requirements.
Place the dryer in position, and adjust the legs until the
dryer is level from side to side and front to back.
Figure 2
D822I
1Wrench
2 Screwdrivers
3Level
4 Duct Tape
1
2
3
4
D669I
1DryerBase
2Level
3 Leveling Leg
D669I
D259I
2
1
3

Installation
9
510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 2: Connect Dryer Exhaust System
Refer to sections on Location Requirements and
Dryer Exhaust Requirements.
NOTE: Failure to exhaust dryer properly will void
warranty.
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
Figure 3
D314I D315I
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
WARNING
DO DON’T

Installation
510988
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 3: Connect Electrical Cord
(240 Volt/60 Hertz)
Refer to section on Electrical Requirements.
Figure 4
Step 4: Wipe Out Inside of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
Figure 5
Step 5: Connect the Dryer to Electrical
Power
Refer to section on Electrical Requirements, and
connect the dryer to an electrical power source.
Heat Source Check
Close the loading door and start the dryer in a heat
setting (refer to the Operation section). After the dryer
has operated for three minutes, the exhaust air or
exhaust pipe should be warm.
D703I D679I
NOTE: Dryer is shown with access cover removed for illustration purposes only. NEVER operate dryer with access
cover removed.
D703I
D679I
TWO-WIRE CONNECTION THREE-WIRE CONNECTION
D618I
D618I

Installation
11
510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Reversing Door Procedure
The door on this dryer is completely reversible. To
reverse door proceed as follows:
D675I
1
D675I
D311S
2
D311S
B
A
D312S
3
D312S
4
D273P
D314S
5
D314S
D315S
A
B
6
D315S
D316S
7
D316S
D620I
8
D620I
D623I
9
D623I

Installation
510988
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Electrical Requirements
240 Volt, 60 Hertz, 2-Wire
Plus Grounded (Earth) Wire Installation
This dryer is designed to be operated on a two-wire
plus grounded (earth) wire, 240 Volt, 60 Hertz, single
phase supply circuit. It is designed to be fused at
30 Amperes. Consult nameplate for model and
electrical ratings.
NOTE: Branch circuit wire size requirements to
laundry room dryer outlet are shown in Table 1.
Use U.L. (Underwriters Laboratories) listed wire.
Allow sufficient slack in wiring so dryer can be moved
from its normal location when necessary.
1. Remove the screw and terminal block access
cover from the rear of dryer cabinet.
2. Insert ends of direct wire through power supply
hole (containing proper strain relief) in rear of
dryer cabinet. Connect the power cord, or direct
wiring, to the two outer terminal block
terminals using the two wire-binding (10 - 32 x
3/8 inch) screws from the accessories pack in the
envelope shipped inside the dryer cylinder.
IMPORTANT: Use only a U.L. listed No. 10
(copper wire only) two conductor power supply
cord kit rated 240 Volts (minimum) 30 Amperes for
electric dryers, and labeled as suitable for use in a
clothes dryer.
3. Tighten these wire-binding screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
4. Attach ground (earth) wire to rear bulkhead as
shown in Figure 6 with grounding screw (obtain
locally).
5. Secure the strain relief to the power cord, or
wires, where they enter the dryer cabinet.
6. Reinstall access cover and screw.
Wire Length Dryer
Less than
4.5 m (15 ft.)
Listed 10 A.W.G. Copper wire only
Longer than
4.5 m (15 ft.)
Listed 8 A.W.G. Copper wire only
Table 1
To reduce the risk of fire, electric shock,
serious injury or death, the electrical
installation should conform to the National
Electrical Code, ANSI/NFPA 70, and such
local regulations as might apply.
W155
WARNING

Installation
13
510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Figure 6
Figure 7
D703I
1 Earth (Ground) Wire (Green/Yellow)
2 Not Used on Gas Models
3 “L” Terminal
4 Terminal Block
5 Hex Head Screws (Slotted)
6 Power Cord Wiring
7 Direct Wiring
8 Strain Relief (Not supplied with dryer)
9 Power Cord or Direct Wire
(Not supplied with dryer)
10 Access Cover
11 Earth (Ground) Wire
12 Earth (Ground) Screw (Not supplied with
dryer)
13 “N” Terminal
D703I
1
4
2
3
6
5
7
9
8
10
12
WIRE
CONNECTION
DETAIL
11
13
To reduce the risk of electric shock,
serious injury or death, earth (ground) the
dryer frame externally by connecting one
end of a grounding wire under ground
screw on cabinet rear (see above) and the
other end to a known effective ground.
W156
WARNING
D821I
1 30 Amp Fuse
2 240 Volt Supply
3 Terminal Block in Dryer
4 Rear Bulkhead
Dryer is shown with the access cover
removed for illustration purposes only. To
reduce the risk of an electric shock,
serious injury or death, NEVER operate the
dryer with the access cover removed.
W157
WARNING
1
4
2
3

Installation
510988
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
240 Volt, 60 Hertz, 3-Wire
NOTE: The wiring diagram is located inside the
control hood.
Grounding Instructions
This dryer must be connected to a grounded metal,
permanent wiring system; or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or
lead on the dryer.
Figure 8
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses checked by a qualified electrician
to make sure your home has adequate
electrical power to operate the dryer.
W113
WARNING
D816I
1 3-Wire Grounded Neutral 120/240 Volt, 60 Hertz
AC 1 Phase Service Entrance Switch Box
(Refer to NOTE above)
4 Metallic or Non-Metallic Sheathed Cable
(Copper Wire Only)
5 Pigtail to Dryer (Refer to NOTE above)
2 30 Ampere Fuses or Circuit Breaker 6 Neutral
3 Neutral Wire 7 Terminal Block in Dryer
NOTE: The power cord (pigtail) is NOT supplied with the electric dryer.
Type of pigtail and gauge of wire must conform to local codes and
instructions.
The method of wiring the dryer is optional and subject to local code
requirements.
NOTE: Connect the dryer to the power supply with the MAXIMUM RATED
VOLTAGE listed on the nameplate.
1
2
3
4
5
6
7
POWER SUPPLY POWER SUPPLY
INTERMEDIATE
FUSE BOX (May
be omitted if
service entrance
box is fused)
WALL RECEPTACLE
PIGTAIL CONNECTION
L1 L2 L1 L2
DIRECT CONNECTION
INTERMEDIAT
E
SHUT-OFF BOX
(May or may no
t
be fused)
120 ± 12
V.A.C.
A typical
30-Amp
Three-wire
Receptacle
NEMA Type
10-30R
120 ± 12
V.A.C.
240 ± 12
V.A.C.
NOTE: Use COPPER WIRE only.
Shorter than 4.5 m (15 ft.) use 10 A.W.G.
Longer than 4.5 m (15 ft.) use 8 A.W.G.

Installation
15
510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
1. Remove access cover from rear of dryer.
2. Use a strain relief and insert end of power cord
through power supply hole.
3. Use the three screws from the envelope located in
the cylinder to attach the power cord wires to the
terminal block.
4. Tighten all screws and reinstall access cover
removed in step 1.
Figure 9
D286I
1 “L1” Terminal
2 Neutral Terminal
3 “L2” Terminal
1
3
2

Installation
510988
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Location Requirements
Select a location with a solid floor. Dryers installed in
residential garages must be elevated 46 cm (18 inches)
above the floor.
No other fuel burning appliance should be installed in
the same closet with the dryer.
The dryer must not be installed or stored in an area
where it will be exposed to water and/or weather.
The dryer needs sufficient clearance and an adequate
air supply for proper operation and ventilation, and for
easier installation and servicing. (Minimum clearances
are shown in Figure 10.)
Figure 10
**NOTE: For new installations, locate top of wall vent 106.7 cm (42 in.) above floor to make venting easier to connect.
1 Closet Door 3 Centered Air Openings
2 Outer Wall of Enclosure (2 Openings Minimum)
B
AC
D
A
E
2
FRONT VIEW
(w/o Closet Door)
Area Free Standing/Alcove Installation Closet Installation
A 0 cm (0 in.) 0 cm (0 in.)
B 30.5 cm (12 in.) 30.5 cm (12 in.)
C Not Applicable 5.1 cm (2 in.)
D 5.1 cm (2 in.) 5.1 cm (2 in.)
E 30.5 cm (12 in.) 30.5 cm (12 in.)
F Not Applicable 7.6 cm (3 in.)
G* Not Applicable 260 cm2/open (40 in2/open)
*Louvered door with equivalent air openings is acceptable. (Minimum clearances are shown.)
SIDE VIEW
A
FRONT VIEW
(Closet Door)
**106.7 cm
(42 in.)
F
F
1
3 (G)
D317I

Installation
17
510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Dryer Exhaust Requirements
Exhaust System Materials
Exhaust duct must be 10.2 cm (4 inches) in diameter
having no obstructions. Rigid metal duct is
recommended. Non-combustible flexible metal duct is
acceptable. Do not use plastic or thin foil ducting
because it contributes to poor drying performance and
collects lint, which can lead to a fire hazard.
Never install flexible duct in concealed spaces, such as
a wall or ceiling.
DO NOT use sheet metal screws on exhaust pipe joints
or other fastening means which extend into the duct
that could catch lint and reduce the efficiency of the
exhaust system. Secure all joints with duct tape. Use as
few elbows as possible.
Make-Up Air Requirements
For proper operation it is important that you locate the
dryer in an area that has an ample amount of make-up
air to replace the amount exhausted by the dryer.
Energy efficient homes with low air infiltration rates
should be equipped with an air exchanger that can
accommodate on demand make-up air needs in the
home. These devices can be obtained through your
building contractor or building material suppliers.
Figure 11
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom of the dryer.
Dryer is shipped from factory ready for rear exhaust;
no kits required.
Exhausting the dryer through sides or bottom can be
accomplished by installing a DK1 Sales Accessory
(Directional Exhaust Kit 528P3) available as optional
equipment at extra cost.
Figure 12
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
To reduce the risk of fire and the
accumulation of combustion gases, DO NOT
exhaust dryer air into a window well, gas
vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building.
W045
To reduce the risk of fire, DO NOT use
plastic or thin foil ducting to exhaust the
dryer.
W354
WARNING
D314I D315I
D328I
DO DON’T
528P3 DIRECTIONAL EXHAUST KIT

Installation
510988
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Exhaust System
IMPORTANT: Keep exhaust duct as short as
possible.
NOTE: Be certain old ducts are cleaned before
installing your new dryer.
For best drying results, recommended maximum
length of exhaust system is shown in table below.
To prevent backdraft when dryer is not in operation,
outer end of exhaust pipe must have a weather hood
with hinged dampers (obtain locally).
NOTE: Weather hood should be installed at least
30.5 cm (12 inches) above the ground.
Figure 13
NOTE: The maximum length of a 10.2 cm (4 in.)
diameter flexible metal duct must not exceed 2.4 m
(7.87 ft.), as required to meet UL2158, clause
7.3.2A.
Number of
90° Elbows
Weather Hood Type
Recommended Use Only for Short Run Installations
D673I D802I
Maximum length of 10.2 cm (4 in.) diameter rigid metal duct.
0 19.8 m (64 ft.) 16.8 m (55 ft.)
1 16.8 m (55 ft.) 14.3 m (47 ft.)
2 14.3 m (47 ft.) 12.5 m (41 ft.)
3 11.0 m (36 ft.) 9.1 m (30 ft.)
4 8.5 m (28 ft.) 6.7 m (22 ft.)
NOTE: Deduct 1.8 m (6 ft.) for each additional elbow.
10.2 cm
(4 in.)
10.2 cm
(4 in.) 6.35 cm
(2-1/2 in.)
