Alliance Laundry Systems CA120L Owner's manual

Installation/Operation/Maintenance
Tumble Dryers
120 Pound (54 Kilogram) Capacity
170 Pound (77 Kilogram) Capacity
200 Pound (91 Kilogram) Capacity
Starting Serial No. 0907003062
Refer to Page 6 for Model Identification
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. 70458101ENR7
January 2014

Front Matter
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 3
Front Matter
Installation must conform with local codes or, in the absence of local codes, with:
In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/ NFPA 54 “National Fuel Gas
Code” and Standard ANSI/NFPA 70 “National Electric Code.”
In Canada, installation must comply with Standards CAN/CSA-B149.1 or Natural Gas and Propane Installation Code and CSA C22.1,
latest edition, Canadian Electric Code, Part I.
In Australia and New Zealand, installation must comply with the Gas Installations Standard AS/NZS 5601 Part 1: General
Installations.
WARNING
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury or death.
W033
WARNING
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
• WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas supplier.
W052
IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the user
smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the above
safety information must be posted in a prominent location near the tumble dryer for customer use.
IMPORTANT: The installer must fully test the tumble dryer after installation and demonstrate to the owner how to
operate the machine.
WARNING
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumble dryer before servicing.
• Close gas shut-off valve to gas tumble dryer before servicing.
• Close steam valve to steam tumble dryer before servicing.
• Never start the tumble dryer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure
that the tumble dryer is properly grounded.
W002R1

Front Matter
4 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7
WARNING
• Installation of unit must be performed by a qualified installer.
• Install tumble dryer according to manufacturer’s instructions and local codes.
• DO NOT install a tumble dryer with flexible plastic venting materials. If flexible metal (foil type) duct is
installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with
tumble dryer. Refer to section on connecting exhaust system. Flexible venting materials are known to
collapse, be easily crushed, and trap lint. These conditions will obstruct tumble dryer airflow and increase
the risk of fire.
W752R1
The following information applies to the state of Massachusetts, USA.
• This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
• This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
• A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.
• This appliance must not be installed in a bedroom or bathroom.

©Copyright 2014, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 5
Table of Contents
Introduction..........................................................................................8
Model Identification......................................................................................8
Contact Information.....................................................................................10
Safety Information..............................................................................12
Safety Information.......................................................................................12
Important Safety Instructions........................................................................12
Specifications and Dimensions.............................................................14
Specifications and Dimensions.....................................................................14
120 Series Tumble Dryer Dimensions and Exhaust Outlet Locations................16
170 and 200 Series Tumble Dryer Dimensions and Exhaust Outlet
Locations..................................................................................................18
Electric and Gas Connection Locations for Gas Models Through 3/10/13......... 20
Electric and Gas Connection Locations for Gas Models Starting 3/11/13.......... 21
Electric and Steam Connection Locations for Steam Models Through
3/10/13.....................................................................................................22
Electric and Steam Connection Locations for Steam Models Starting
3/11/13.....................................................................................................24
Electric Connection Location for Electric Models.......................................... 26
Installation..........................................................................................27
Pre-Installation Inspection............................................................................27
Location Requirements................................................................................27
Position and Level the Tumble Dryer........................................................... 29
Fire Suppression System..............................................................................30
Check Local Codes and Permits................................................................30
Water Requirements.................................................................................30
Water Connections...................................................................................30
Electrical Requirements............................................................................32
Auxiliary Alarm...................................................................................... 32
Before Placing Tumble Dryer into Service.................................................... 32
Required for CE Models Only..................................................................34
Installing CE Gas Drying Tumble Dryer....................................................... 34
General Information.................................................................................34
CE Orifices.............................................................................................35
Properties of CE Gases............................................................................ 36
Changing Gas Configuration.....................................................................37
Specific Conversion Procedures................................................................38
Exhaust Requirements........................................................................ 40

6 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7
Exhaust Requirements................................................................................. 40
Layout........................................................................................................40
Make-Up Air.............................................................................................. 40
Venting.......................................................................................................40
Alternate Venting for 120 Series Tumble Dryers........................................42
Individual Venting...................................................................................42
Manifold Venting.................................................................................... 43
Gas Requirements...............................................................................46
Gas Requirements....................................................................................... 46
Gas Supply Pipe Sizing and Looping............................................................48
High Altitude Orifice Sizing........................................................................ 50
Electrical Requirements...................................................................... 53
Electrical Requirements...............................................................................53
Wiring Diagram..........................................................................................53
Grounding Instructions................................................................................ 53
For CE Models Only............................................................................... 54
Service/Ground Location..........................................................................54
To Connect Electrical Service To The Tumble Dryer..................................... 56
Jumper Configuration Instructions................................................................56
Ferrite Ring Installation...............................................................................56
Electrical Specifications...............................................................................58
Steam Requirements........................................................................... 62
Steam Requirements....................................................................................62
Piping Recommendations.............................................................................66
Installing Steam Trap and Making Condensate Return Connections................. 66
Thermal Oil Prep........................................................................................ 66
Operating Instructions........................................................................67
Operating Instructions..................................................................................67
Emergency Stop Button On CE Models........................................................67
Operating Instructions..................................................................................67
Reversing Operation....................................................................................68
Control Instructions.....................................................................................68
Dual Digital Timer Control...................................................................... 68
Electronic OPL Micro Control..................................................................70
LED OPL Control................................................................................... 71
UniLinc Control...................................................................................... 72
DX4 OPL Control................................................................................... 73
Diagnostic Microprocessor Control........................................................... 73
DMP OPL Models...................................................................................74
Ignition Control Operation and Troubleshooting for Models Starting
3/11/13.....................................................................................................77
Internal Control Failure............................................................................77
Troubleshooting.......................................................................................77
Proper Electrode Location........................................................................78
Flame Current Measurement.....................................................................78

Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 7
Ignition Control Operation for Non-CE Models Through 3/10/13.....................78
Ignition Control Operation for CE Models Through 3/10/13............................79
System Tests...........................................................................................80
Diagnostic LED (DGN LED)/Error Codes.................................................80
Adjustments........................................................................................82
Adjustments................................................................................................82
Gas Burner Air Shutter................................................................................82
Airflow Switch............................................................................................82
Loading Door Switch.................................................................................. 83
Loading Door Catch (120 and 170 Series Models)......................................... 83
Loading Door Strike (200 Series Models)..................................................... 83
Belt Drive...................................................................................................84
Maintenance........................................................................................86
Daily..........................................................................................................86
Monthly......................................................................................................86
Quarterly.................................................................................................... 86
Bi-Annually................................................................................................86
Annually.....................................................................................................87
Fire Suppression System Maintenance Test...................................................87
Before You Call for Service................................................................ 89
Removing Tumble Dryer from Service................................................90
Disposal of Unit.................................................................................. 91

Introduction
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 8
Introduction
Model Identification
Information in this manual is applicable to these models:
Gas Steam/Thermal Oil Electric
120 Series CA120L
CA120N
CK120N
CT120L
CT120N
CU120L
CU120N
DR120G2-BA120L
DR120G2-BA120N
DR120G2-BK120N
DR120G2-BT120L
DR120G2-BT120N
DR120G2-BU120L
DR120G2-BU120N
HA120L
HA120N
HK120N
HT120L
HT120N
HU120L
HU120N
IPD120G2
IT120L
IT120N
SA120L
SA120N
SK120N
ST120L
ST120N
SU120L
SU120N
UA120L
UA120N
UK120N
UT120L
UT120N
UU120L
UU120N
XT120L
XT120N
XU120L
XU120N
YT120L
YT120N
YU120L
YU120N
CT120S
CT120T
CU120S
CU120T
DR120S2-BT120S
DR120S2-BT120T
DR120S2-BU120S
DR120S2-BU120T
HT120S
HT120T
HU120S
HU120T
IPD120S2
IT120S
IT120T
ST120S
ST120T
SU120S
SU120T
UT120S
UT120T
UU120S
UU120T
XT120S
XT120T
XU120S
XU120T
YT120S
YT120T
YU120S
YU120T
CT120E
CU120E
DR120E2-BT120E
DR120E2-BU120E
HT120E
HU120E
IT120E
ST120E
SU120E
UT120E
UU120E
YT120E
YU120E

Introduction
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 9
Gas Steam/Thermal Oil Electric
170 Series CA170L
CA170N
CK170N
CT170L
CT170N
CU170L
CU170N
DR170G2-BA170L
DR170G2-BA170N
DR170G2-BK170N
DR170G2-BT170L
DR170G2-BT170N
DR170G2-BU170L
DR170G2-BU170N
HA170L
HA170N
HK170N
HT170L
HT170N
HU170L
HU170N
IPD170G2
IT170L
IT170N
SA170L
SA170N
SK170N
ST170L
ST170N
SU170L
SU170N
UA170L
UA170N
UK170N
UT170L
UT170N
UU170L
UU170N
XT170L
XT170N
XU170L
XU170N
YT170L
YT170N
YU170L
YU170N
CT170S
CT170T
CU170S
CU170T
DR170S2-BT170S
DR170S2-BT170T
DR170S2-BU170S
DR170S2-BU170T
HT170S
HT170T
HU170S
HU170T
IPD170S2
IT170S
IT170T
ST170S
ST170T
SU170S
SU170T
UT170S
UT170T
UU170S
UU170T
XT170S
XT170T
XU170S
XU170T
YT170S
YT170T
YU170S
YU170T
Not Applicable
200 Series CA200L
CA200N
CT200L
CT200N
CU200L
CU200N
DR200G2-BA200L
DR200G2-BA200N
DR200G2-BT200L
DR200G2-BT200N
DR200G2-BU200L
DR200G2-
BU200N
HA200L
HA200N
HT200L
HT200N
HU200L
HU200N
IT200L
IT200N
SA200L
SA200N
ST200L
ST200N
SU200L
SU200N
UA200L
UA200N
UT200L
UT200N
UU200L
UU200N
CT200S
CT200T
CU200S
CU200T
DR200S2-BT200S
DR200S2-BT200T
DR200S2-BU200S
DR200S2-BU200T
HT200S
HT200T
HU200S
HU200T
IT200S
IT200T
ST200S
ST200T
SU200S
SU200T
UT200S
UT200T
UU200S
UU200T
Not Applicable
Explanation of digit in 6th position of model number:
E = Electric
L = Liquid Petroleum (L.P.) Gas
N = Natural Gas

Introduction
10 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7
S = Steam
T = Thermal Oil
Includes models with the following control suffixes
R3 – reversing DX4 OPL RE – reversing LED OPL RQ – reversing dual digital timer
RD – reversing DMP OPL RM – reversing OPL micro RU – reversing UniLinc OPL
Contact Information
If service is required, contact the nearest Factory Authorized
Service Center.
If you are unable to locate an authorized service center or are
unsatisfied with the service performed on your unit, contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
www.alliancelaundry.com
Phone: [phone] Ripon, Wisconsin
[phone] Wevelgem, Belgium
When calling or writing about your unit, PLEASE GIVE THE
MODEL AND SERIAL NUMBERS. The model and serial
numbers are located on the nameplate. The nameplate will be in
the location shown in Figure 1 .
Date Purchased ______________________________
Model Number ______________________________
Serial Number _______________________________
Please include a copy of your bill of sale and any service
receipts you have.
WARNING
To reduce the risk of serious injury or death, DO
NOT repair or replace any part of the unit or attempt
any servicing unless specifically recommended in
the user-maintenance instructions or in published
user-repair instructions that you understand and
have the skills to carry out.
W329
If replacement parts are required, contact the source from where
you purchased your tumble dryer or call [phone]
or [phone] for the name and address of the nearest
authorized parts distributor.

Introduction
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 11

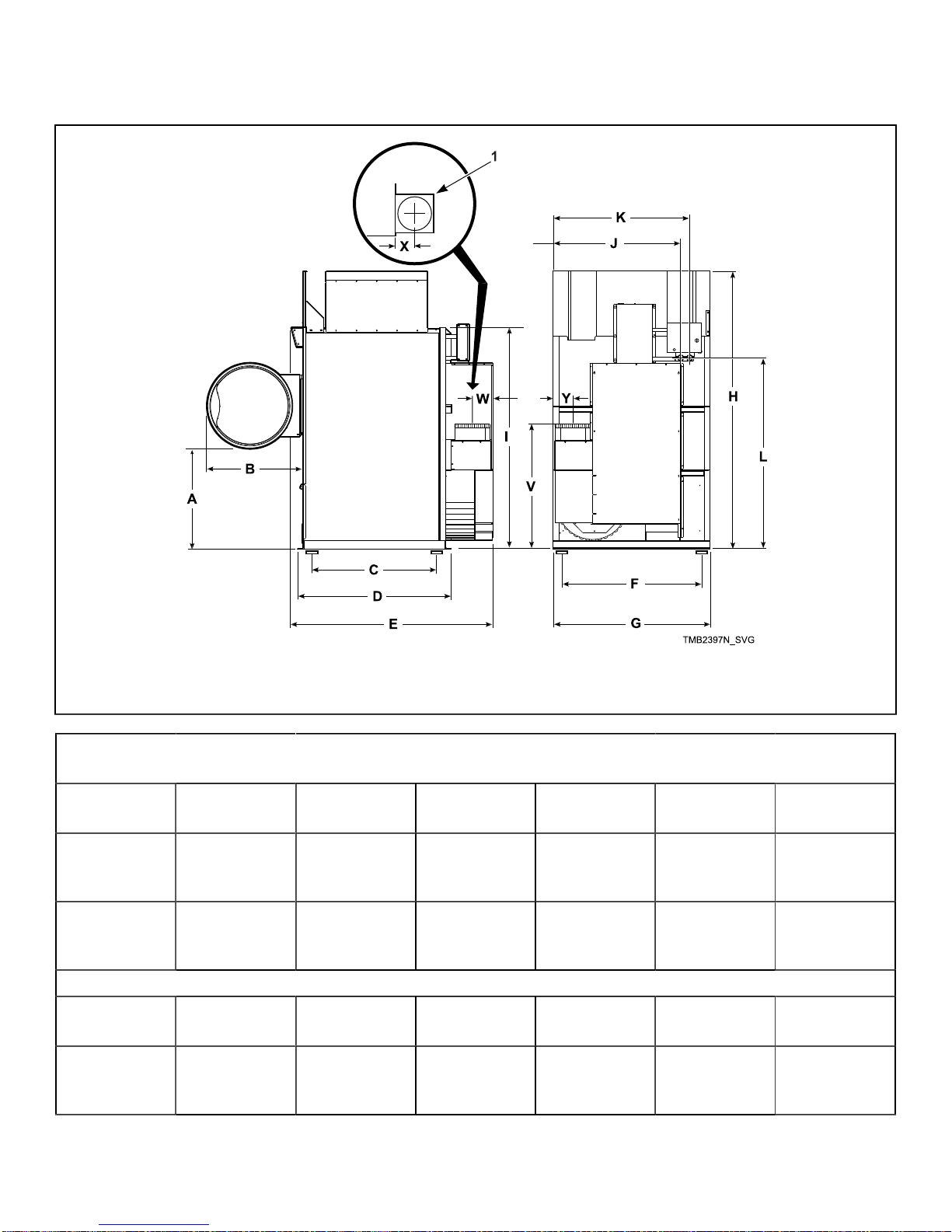

1 Serial Plate
Figure 1

Safety Information
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 12
Safety Information
Safety Information
Precautionary statements (“DANGER,” “WARNING,” and
“CAUTION”), followed by specific instructions, are found
in this manual and on machine decals. These precautions are
intended for the personal safety of the operator, user, servicer,
and those maintaining the machine.
DANGER
Indicates an imminently hazardous situation that,
if not avoided, will cause severe personal injury or
death.
WARNING
Indicates a hazardous situation that, if not avoided,
could cause severe personal injury or death.
CAUTION
Indicates a hazardous situation that, if not avoided,
may cause minor or moderate personal injury or
property damage.
Additional precautionary statements (“IMPORTANT” and
“NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used to
inform the reader of specific procedures where minor
machine damage will occur if the procedure is not
followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard related.
WARNING
Failure to install, maintain, and/or operate this
machine according to manufacturer’s instructions
may result in conditions which can produce serious
injury, death and/or property damage.
W051R1
NOTE: The WARNING and IMPORTANT instructions
appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It
must be understood that common sense, caution and
carefulness are factors which CANNOT be built into
this tumble dryer. These factors MUST BE supplied by
the person(s) installing, maintaining or operating the
tumble dryer.
Always contact your dealer, distributor, service agent or
the manufacturer on any problems or conditions you do not
understand.
Important Safety Instructions
WARNING
To reduce the risk of fire, electric shock, serious
injury or death to persons when using your tumbler,
follow these basic precautions.
W776
Save These Instructions
• Read all instructions before using the tumble dryer.
• Install the tumble dryer according to the INSTALLATION
instructions. Refer to the EARTHING (grounding)
instructions for the proper earthing (grounding) of the
tumble dryer. All connections for electrical power, earthing
(grounding) and gas supply must comply with local codes
and be made by licensed personnel when required. It is
recommended that the machine be installed by qualified
technicians.
• Do not install or store the tumble dryer where it will be
exposed to water and/or weather. The tumble dryer cannot be
used in a closed room where the air supply is insufficient. If
necessary, ventilation grids must be installed in the doors or
the windows.
• This appliance must not be activated without lint/foam filter.
• When you perceive a gas odor, immediately switch off
the gas supply and ventilate the room. Do not switch on
electrical appliances and do not pull electrical switches.
Do not use matches or lighters. Do not use a phone in the
building. Warn the fitter, and if so desired, the gas company,
as soon as possible.
• To avoid fire and explosion, keep surrounding areas free of
flammable and combustible products. Regularly clean the
dryer drum and exhaust tube should be cleaned periodically
by competent maintenance personnel. Daily remove piled up
dust from filter and inside of filter compartment.
• Do not use or store flammable materials near this appliance.

Safety Information
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 13
• Do not dry articles that have been previously cleaned in,
washed in, soaked in or spotted with gasoline or machine
oils, vegetable or cooking oils, cleaning waxes or chemicals,
dry-cleaning solvents, thinner or other flammable or
explosive substances as they give off vapors that could
ignite, explode or cause fabric to catch on fire by itself.
• Do not spray aerosols in the vicinity of this appliance while it
is in operation.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows filled with foam rubber pads should not be dried in
the tumble dryer. Do not use the appliance to dry materials
with a low melting temperature (PVC, rubber, etc.).
• Do not tumble fiberglass curtains and draperies unless the
label says it can be done. If they are dried, wipe out the
cylinder with a damp cloth to remove particles of fiberglass.
• Do not allow children on or in the tumble dryer. This
appliance is not intended for use by young children or infirm
persons without supervision. Young children should be
supervised to ensure that they do not play with the appliance.
• Do not reach into the tumble dryer if the cylinder is
revolving.
• Use tumble dryer only for its intended purpose, drying
fabrics. Always follow the fabric care instructions supplied
by the textile manufacturer and only use the dryer drum to
dry textiles that have been washed in water. Only insert spin-
dried linen in the dryer.
• Always read and follow manufacturer’s instructions on
packages of laundry and cleaning aids. Heed all warnings
or precautions. To reduce the risk of poisoning or chemical
burns, keep them out of the reach of children at all times
(preferably in a locked cabinet).
• Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
• Remove laundry immediately after tumble dryer stops.
• DO NOT operate the tumble dryer if it is smoking, grinding
or has missing or broken parts or removed guards or panels.
DO NOT tamper with the controls or bypass any safety
devices.
• Tumble dryer will not operate with the loading door open.
DO NOT bypass the door safety switch to permit the tumble
dryer to operate with the door open. The tumble dryer will
stop tumbling when the door is opened. Do not use the
tumble dryer if it does not stop tumbling when the door is
opened or starts tumbling without pressing or turning the
START mechanism. Remove the tumble dryer from use and
call for service.
• Tumble dryer(s) will not operate with lint panel open. DO
NOT bypass lint panel safety switch to permit the tumble
dryer to operate with the lint panel open.
• Do not modify this appliance.
• Always clean the lint filter daily. Keep area around the
exhaust opening and adjacent surrounding area free from the
accumulation of lint, dust and dirt. The interior of the tumble
dryer and the exhaust duct should be cleaned periodically by
qualified service personnel.
• Solvent vapors from dry-cleaning machines create acids
when drawn through the heater of the drying unit. These
acids are corrosive to the tumble dryer as well as the laundry
load being dried. Be sure make-up air is free of solvent
vapors.
• At the end of each working day, close off all main supplies
of gas, steam and current.
• Do not repair or replace any part of the tumble dryer, or
attempt any servicing unless specifically recommended in
the user-maintenance instructions or in published user-repair
instructions that the user understands and has the skills to
carry out. ALWAYS disconnect and lockout the electrical
power to the tumble dryer before servicing. Disconnect
power by shutting off appropriate breaker or fuse.
• Before the tumble dryer is removed from service or
discarded, remove the door to the drying compartment and
the door to the lint compartment.
• Failure to install, maintain, and/or operate this tumble dryer
according to the manufacturer’s instructions may result in
conditions which can produce bodily injury and/or property
damage.
NOTE: The WARNINGS and IMPORTANT SAFETY
INSTRUCTIONS appearing in this manual are not
meant to cover all possible conditions and situations
that may occur. Common sense, caution and care
must be exercised when installing, maintaining, or
operating the tumble dryer.
Always contact your dealer, distributor, service agent or
the manufacturer on any problems or conditions you do not
understand.

Specifications and Dimensions
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 14
Specifications and Dimensions
Specifications and Dimensions
Specifications 120 Series 170 Series 200 Series
Noise level measured during operation
at operator position of 3.3 feet (1 meter)
in front of machine and 5.2 feet (1.6
meters) from floor.
66 dBA 66 dBA 66 dBA
Cylinder Size: Inches (mm) 44 x 41 (1,118 x 1,041) 50.75 x 42.5
(1,289 x 1,080) 50.75 x 50 (1,289 x 1,270)
Cylinder Capacity dry weight: Pounds
(kg) 120 (54.4) 170 (77.1) 200 (90.7)
Gas and Electric 1,338 (607) 1,667 (756) 1,718 (779)Standard
Packaging
Weight: Pounds
(kg) Steam 1,446 (656) 1,776 (806) 1,818 (825)
Standard Packaging Shipping
Dimensions: Inch (mm) 48.5 x 72 x 90 (1,232 x 1,829 x 2,286) 58 x 74.5 x 99 (1,473 x 1,892 x 2,515) 56 x 80 x 99 (1,422 x 2,032 x 2,515)
Gas and Electric 1,447 (656) 1,791 (812) 1,868 (848)Slat Crate
Packaging
Weight: Pounds
(kg) Steam 1,547 (702) 1,891 (858) 1,968 (893)
Slat Crate Shipping Dimensions: Inch
(mm) 51.5 x 74 x 90.75 (1,308 x 1,880 x 2,305) 61 x 76.5 x 99.75 (1,549 x 1,943 x 2,534) 61 x 83 x 101 (1,549 x 2,108 x 2,565)
Cylinder Motor: HP (kW) 0.75 (0.560) 0.75 (0.560) 0.75 (0.560)
Fan Motor: HP (kW) 1 (0.746) 3 (2.238) 3 (2.238)
Air Outlet Diameter: Inches (mm) 10 (254) 12 (300) 12 (300)
Maximum Static Back Pressure: W.C.I.
(mbar, kPa) 0.8 (2.0, 0.2) 0.8 (2.0, 0.2) 0.8 (2.0, 0.2)
Maximum Airflow: C.F.M. (L/sec.) 1,600 (755) 2,450 (1,156) 2,450 (1,156)
Gas Models

Specifications and Dimensions
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 15
Specifications 120 Series 170 Series 200 Series
Net Weight (approximate): Pounds (kg) 1,275 (578) 1,575 (716) 1,707 (774)
Gas Connection Models through 3/10/13:
3/4 in. NPT
Models Starting 3/11/13:
1 in. NPT
1 in. NPT 1 in. NPT
Gas Burner Rating:
Btu/hr. (Mj/hr., kW)
270,000 (285, 79.13) 395,000 (417, 115.77) 425,000 (448, 124.56)
Steam Models
Net Weight (approximate): Pounds (kg) 1,375 (624) 1,675 (761) 1,807 (820)
Steam Connection 3/4 in. NPT inlet
3/4 in. NPT outlet
3/4 in. NPT inlet
1 in. NPT outlet
3/4 in. NPT inlet
1 in. NPT outlet
Steam Coil Rating at 100 psig:
Btu/hr. (kg/hr.) (recommended
operating pressure 80-100 psig)
405,000 (183.1) 648,000 (294.2) 648,000 (294.2)
Electric Models
Heating Element Rating: Kilowatts
(kW) 60 kW Not Applicable Not Applicable
NOTE: All machines are shipped with extra nipple to
convert to metric thread (from Standard).

Specifications and Dimensions
16 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7
120 Series Tumble Dryer Dimensions and Exhaust Outlet Locations
TMB2396N
1 Top View of Exhaust Duct
Cabinet Dimensions
Models A B C D E F
120L/N/E 31.38 in.
(797 mm) 32.5 in. (826 mm) 48.91 in. (1,242 mm) 49.91 in. (1,268 mm) 67.92 in. (1,725 mm) 45.38 in. (1,153 mm)
120S 31.38 in.
(797 mm) 32.5 in. (826 mm) 48.91 in. (1,242 mm) 49.91 in. (1,268 mm) 67.92 in. (1,725 mm) 45.38 in. (1,153 mm)
Models G H I J* K* L*
120L/N/E 46.38 in.
(1,178 mm) 85.7 in. (2,177 mm) 70 in. (1,778 mm) 41.6 in. (1,057 mm) 43.2 in. (1,097 mm) 61.5 in. (1,562 mm)

Specifications and Dimensions
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 17
Cabinet Dimensions
120S 46.38 in.
(1,178 mm) 83.5 in. (2,121 mm) 70 in. (1,778 mm) 41.6 in. (1,057 mm) 43.2 in. (1,097 mm) 61.5 in. (1,562 mm)
* Fire suppression system optional - may not be on machine.
Refer to Position and Level the Tumble Dryer to temporarily
reduce the heights of these models.
Exhaust Outlet Dimensions and Locations
Models U V W X Y Z
120L/N/E 63.45 in.
(1,612 mm) 8.44 in. (214 mm) 5 in. (127 mm) 8.18 in. (208 mm) 6.82 in. (173 mm) 8.18 in. (208 mm)
120S 60.7 in.
(1,542 mm) 8.44 in. (214 mm) 5 in. (127 mm) 8.18 in. (208 mm) 6.82 in. (173 mm) 8.18 in. (208 mm)

Specifications and Dimensions
18 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7
170 and 200 Series Tumble Dryer Dimensions and Exhaust Outlet Locations
TMB2397N
1 Top View of Exhaust Duct
Cabinet Dimensions
Models A B C D E F
170L/N/S 33.86 in.
(860 mm) 32.5 in. ( 826 mm) 50.75 in. (1,289 mm) 51.75 in. (1,314 mm) 68.85 in. (1,749 mm) 52.12 in. (1,324 mm)
200L/N/S 32.1 in.
(815 mm) 35.6 in. ( 904 mm) 58 in. (1,473 mm) 59.25 in. (1,505 mm) 76.35 in. (1,939 mm) 52.12 in. (1,324 mm)
Models G H I J* K* L*
170L/N/S 53.12 in.
(1,349 mm) 94 in. (2,388 mm) 75.12 in. (1,908 mm) 48.86 in. (1,241 mm) 50.45 in. (1,281 mm) 62.5 in. (1,588 mm)

Specifications and Dimensions
Part No. 70458101ENR7 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 19
Cabinet Dimensions
200L/N/S 53.12 in.
(1,349 mm) 94 in. (2,388 mm) 75.12 in. (1,908 mm) 48.86 in. (1,241 mm) 50.45 in. (1,281 mm) 62.5 in. (1,588 mm)
* Fire suppression system optional - may not be on machine.
Refer to Position and Level the Tumble Dryer to temporarily
reduce the heights of these models.
Exhaust Outlet Dimensions and Locations
Models V W X Y
170L/N/S 42.38 in. (1,076 mm) 6.75 in. (171 mm) 6 in. (152 mm) 7 in. (178 mm)
200L/N/S 42.38 in. (1076 mm) 6.75 in. (171 mm) 6 in. (152 mm) 7 in. (178 mm)

Specifications and Dimensions
20 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7
Electric and Gas Connection Locations for Gas Models Through 3/10/13
TMB2255NTMB2382N
1 120L/N
2 170L/N
3 200L/N
Electrical Connection Gas Connection
Models A B C D Diameter
120L/N 18.34 in.
(466 mm) 77.84 in. (1,977 mm) 12.5 in. (318 mm) 70.5 in. (1,791 mm) 3/4 in. NPT
170L/N 21 in. (533 mm) 81 in. (2,057 mm) 14.85 in.
(377 mm) 77.4 in. (1,966 mm) 1 in. NPT
200L/N 21 in. (533 mm) 81 in. (2,057 mm) 13.7 in. (348 mm) 77.4 in.
(1,966 mm) 1 in. NPT
