Alliance Laundry Systems Stacked Drying Tumbler Operating manual

www.comlaundry.com
Installation/Operation/Maintenance
Stacked Drying
Tumbler
Models with Electronic Control
Part No. M412060R2
May 2006
Keep These Instructions For Future Reference.
(If this tumbler changes ownership, be sure this manual accompanies the tumbler).

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMITM412060 1
IMPORTANT: Information must be obtained from your local gas supplier on instructions to be followed if
the user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of
the above information must be posted in a prominent location near the tumbler for customer use.
FOR YOUR SAFETY, the information in this
manual must be followed to minimize the
risk of fire or explosion or to prevent
property damage, personal injury or death.
W033
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
W052
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
W053
WARNING
POUR VOTRE SÉCURITÉ, les informations
de ce guide doivent être respectées afin de
réduire les risques d’incendie, d’explosion
ou d’éviter les dommages matériels,
personnels ou blessures mortelles.
W033Q3
• Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
• QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ :
– Ne pas tenter d’allumer d’apareil.
– Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment où vous vous
trouvez.
– Évacuez la pièce, le bâtiment ou la
zone.
– Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
– Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
• L’installation et l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualifié ou par le fournisseur
de gaz.
W052Q
POUR VOTRE SÉCURITÉ
Ne pas entreposer ou utiliser d’essence ou
toutes autres vapeurs et liquides
inflammables à proximité de cette unité ou
de tout autre appareil.
W053Q2
MISE EN GARDE

2M412060© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
IMPORTANT: Warranty is void unless drying tumbler is installed according to instructions in this manual.
Compliance with minimum specifications and requirements detailed herein, and with applicable local gas
fitting regulations, municipal building codes, water supply regulations, electrical wiring regulations, and any
other relevant statutory regulations. Because of varied requirements, applicable local codes should be
thoroughly understood and all pre-installation work arranged for accordingly.
In the U.S.A. installation must conform to the latest edition of the American National Standard Z223.1 “National
Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code”.
In Canada installation must comply with Standards CAN1-B149.1 or CAN1-B149.2 codes for gas burning
appliances and equipment and CSA C22.1, latest edition, Canadian Electric Code, Part I. Steam models are not
certified by the Canadian Gas Association. The 150 lb. models are not certified by the Canadian Gas Association.
In Australia installation must comply with the Australian Gas Association Installation Code for Gas Burning
Appliances and Equipment. The 150 lb. models are not certified in Australia.
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense, caution and
carefulness are factors which CANNOT be built into this tumbler. These factors MUST BE supplied by the
person(s) installing, maintaining, or operating the tumbler.
Always contact your dealer, distributor, service agent or the manufacturer on any problems or conditions you do
not understand.
Information For Handy Reference
Date Purchased Model No. Serial No.
Dealer’s Name
NOTICE: For your own convenience and protection, record the above information and retain your sales slip
for this appliance. The model and serial numbers will be found on the serial plate located at the rear of the
tumbler. Refer to page 7.
Failure to install, maintain, and/or operate this machine according to manufacturer’s
instructions may result in conditions which can produce serious injury, death and/or property
damage.
W644
WARNING
To reduce the risk of fire, electrical shock, serious injury or death to persons, do not operate
tumbler if it does not perform according to these instructions. Immediately disconnect
electrical service, shut off gas supply, and contact an authorized service representative.
Service and repairs are to be performed by authorized service representatives only.
W645
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2006, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
M412060 3
Table of
Contents
Information For Handy Reference.................................................... 2
Important Safety Instructions ........................................................... 5
Introduction......................................................................................... 7

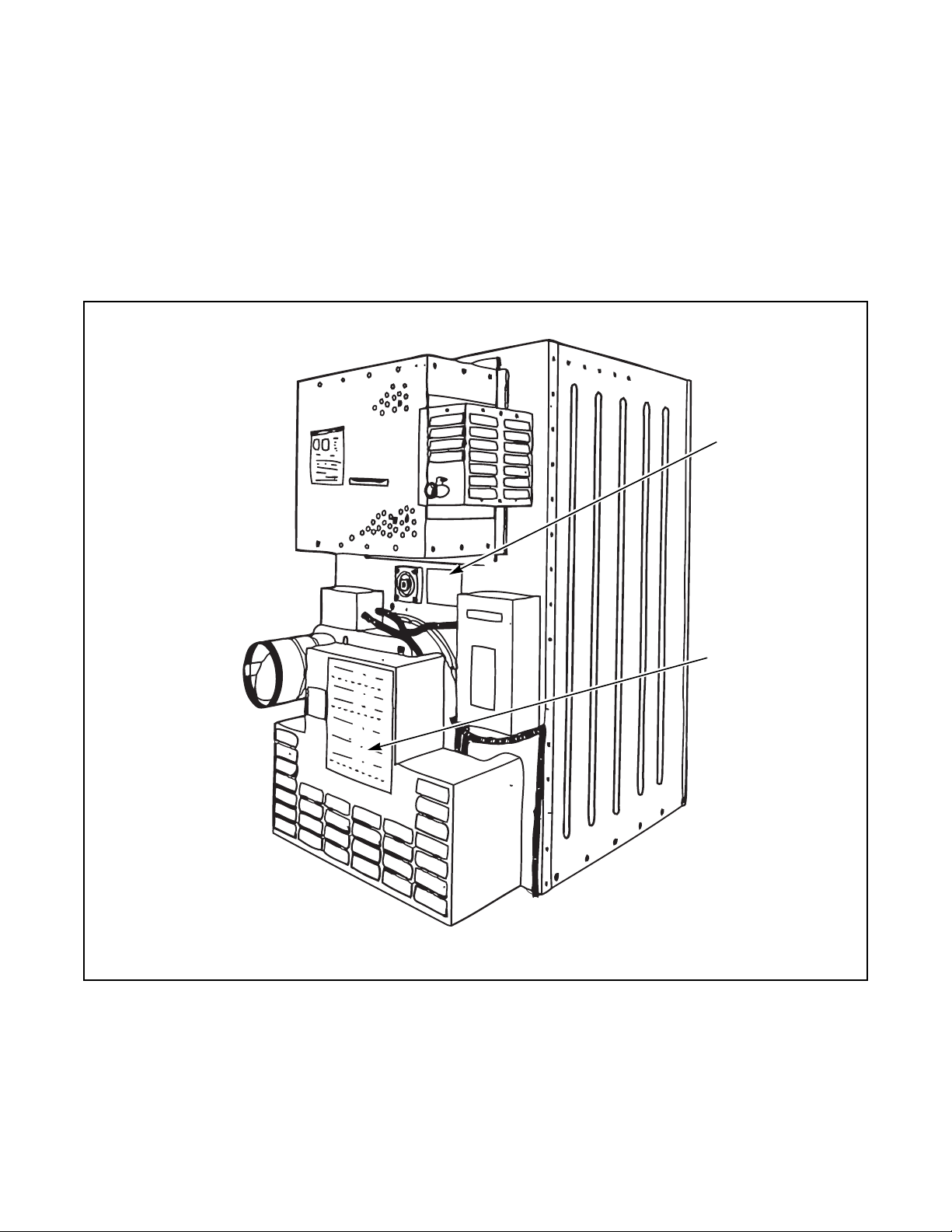

Nameplate Information......................................................................... 7
Replacement Parts Information ............................................................ 7
Clearances........................................................................................ 9
Dimensions and Specifications........................................................... 9

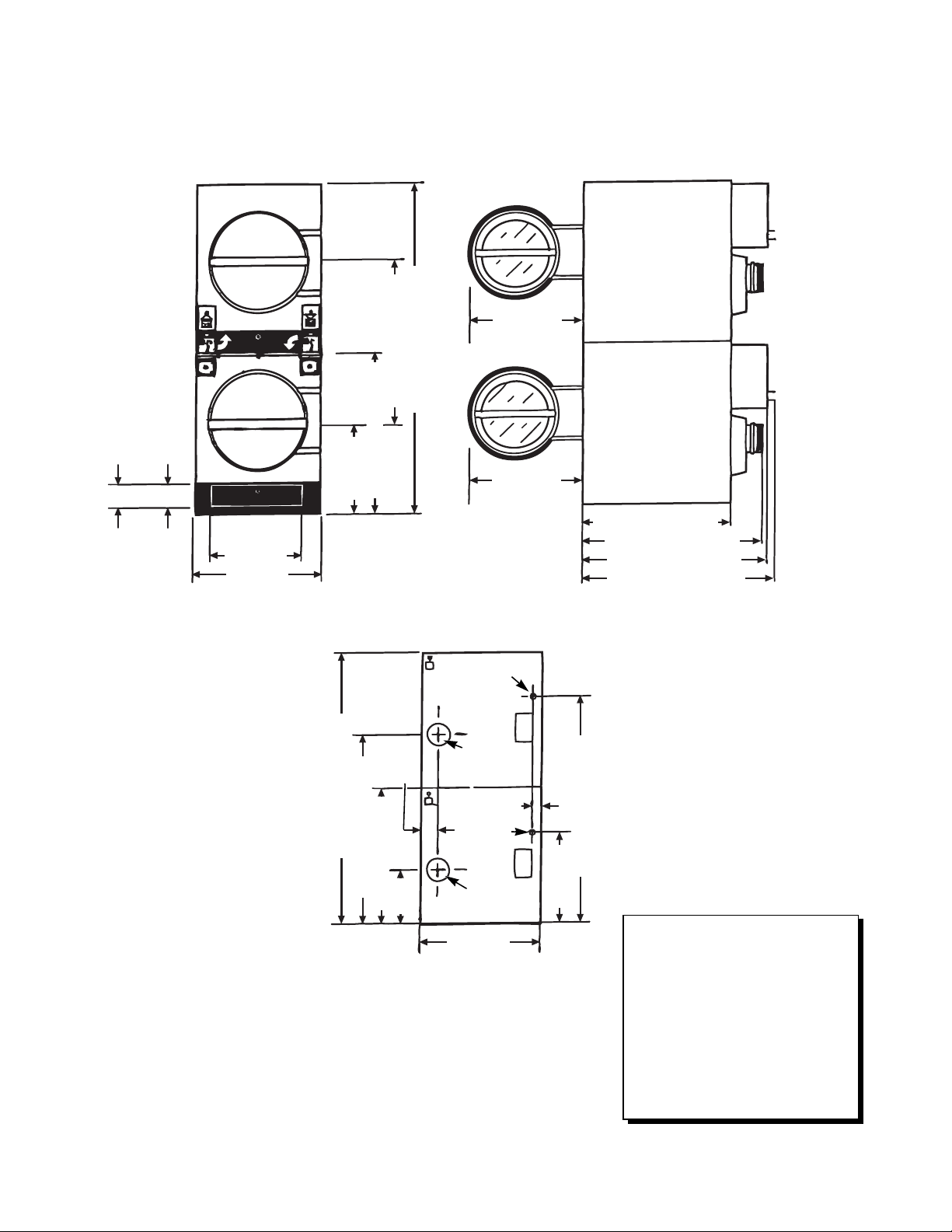

Cabinet Dimensions.............................................................................. 9
Specifications........................................................................................ 10
Conversion Table ................................................................................. 10
Installation Instructions ..................................................................... 11
Receiving Inspection ............................................................................ 11
Materials Required................................................................................ 11
Facilities Required................................................................................ 11
Layout .............................................................................................. 11
Floor................................................................................................. 11
Shipping Braces ............................................................................... 11

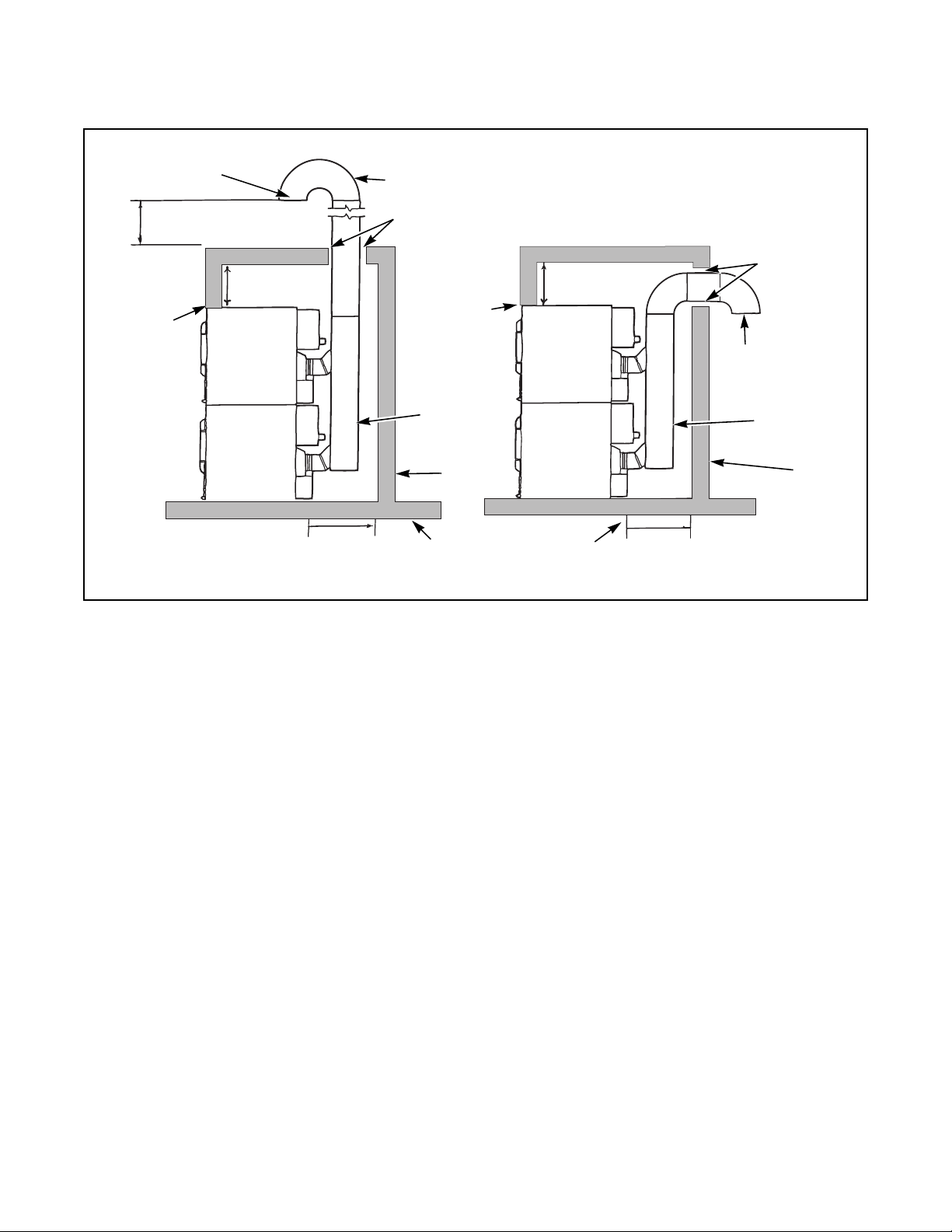

Venting ................................................................................................. 11
Individual Venting ........................................................................... 12
Combined Exhaust Manifold Venting ............................................. 12
Collector Venting............................................................................. 12
Individual Exhaust................................................................................ 13
Collector Duct.................................................................................. 13
Manifold Construction.......................................................................... 14
Combined Exhaust Manifold................................................................ 15
Make-Up Air......................................................................................... 16
Positioning the Drying Tumbler........................................................... 16
Drying Tumbler Enclosure Construction.............................................. 16
Leveling the Drying Tumbler ............................................................... 17
Gas Requirements (Gas Drying Tumblers) .......................................... 18
Example Of Gas Supply Piping............................................................ 21
Electrical Requirements........................................................................ 22
Grounding Instructions ......................................................................... 23
Instructions for Lighting and Shutting Down Instant
Electronic Ignition System................................................................. 25
Adjustments......................................................................................... 27
Air Flow Switch.................................................................................... 27
Cylinder Door Switch and Strike.......................................................... 27
Drive V-Belt ......................................................................................... 27
Operating Checks ............................................................................... 29
Electronic Control................................................................................. 29
Preliminary Operating Check ............................................................... 29
Operating Instructions ....................................................................... 31
(continued)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
4M412060
Preventive Maintenance Instructions ............................................... 33
Daily ..................................................................................................... 33
Lint Removal ................................................................................... 33
Monthly................................................................................................. 33
Lubrication....................................................................................... 33
Lint Removal ................................................................................... 33
Every Six Months ................................................................................. 35
Lint Removal and Cylinder Belt Inspection .................................... 35
Drive System.................................................................................... 35
Front Panel....................................................................................... 35
Overall Check .................................................................................. 35

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
M412060
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the tumbler.
2. Refer to the GROUNDING INSTRUCTIONS
in the INSTALLATION manual for the proper
grounding of the tumbler.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children to play on or in the
tumbler. Close supervision of children is
necessary when the tumbler is used near children.
This is a safety rule for all appliances.
5. Before the tumbler is removed from service or
discarded, remove the door to the drying
compartment.
6. Do not reach into the tumbler if the cylinder is
revolving.
7. Do not install or store the tumbler in an area
where it will be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler,
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
13. The interior of the tumbler and the exhaust duct
should be cleaned periodically by qualified
service personnel.
14. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
15. Tumbler will not operate with the loading door
open. DO NOT by-pass the door safety switch by
permitting the tumbler to operate with the door
open. The tumbler will stop tumbling when the
door is opened. Do not use the tumbler if it does
not stop tumbling when the door is opened or
starts tumbling without pressing or turning the
START mechanism. Remove the tumbler from
use and call the serviceman.
16. Do not put articles soiled with vegetable or
cooking oil in the tumbler, as these oils may not
be removed during washing. Due to the
remaining oil, the fabric may catch on fire by
itself.
17. To reduce the risk of fire, DO NOT put cloths
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumbler.
18. Use the tumbler only for its intended purpose,
drying clothes.
19. ALWAYS disconnect the electrical power to the
tumbler before attempting service. Disconnect
power by shutting off appropriate breaker or fuse.
20. Install this tumbler according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding, and
gas supply must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
21. Remove laundry immediately after the tumbler
stops.
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your tumbler, follow these basic
precautions:
W054
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Important Safety Instructions
M412060
6
22. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet.)
23. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
24. Always follow the fabric care instructions
supplied by the garment manufacturer.
25. Never operate the tumbler with any guards and/or
panels removed.
26. DO NOT operate the tumbler with missing or
broken parts.
27. DO NOT by-pass any safety devices.
28. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce serious injury and/or property damage.
29. Run tumbler with a load before putting tumbler
into service.
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers.
W055
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7
M412060
Introduction
Nameplate Information
When writing for information on any tumbler, be sure
to mention model and serial numbers. The model and
serial numbers will be found on the nameplate as
shown.
Replacement Parts Information
If replacement parts are required, contact the source
from whom you purchased your tumbler or, contact
the Ripon Service Parts Center, P.O. Box 990, Ripon,
Wisconsin 54971-0990, for the name and address of
the nearest authorized parts distributor.
TMB2151N
Serial Plate
(Name Plate)
Also located inside
loading door hinge
Wiring
Diagram
TMB22151N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT M412060
8
Notes

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9
M412060
Dimensions and Specifications
Cabinet Dimensions
TMB2152N
28-1/4 in
(71.8 cm)
Clearances
Minimum to nearest combustible
material.
Top - 12 in (30.5 cm) minimum.
0 in permitted for first 4 in (10.2
cm) along front of machine.
Back - 0 in - 24 in (0 - 61 cm)
minimum recommended for
service access.
Sides - 0 in (0 cm) permitted.
31-5/8 in
(80.3 cm)
31-5/8 in
(80.3 cm)
20-3/4 in
(62.7 cm)
33-3/4 in (85.7 cm)
42-5/8 in (108.3 cm)
43-1/2 in (110.5 cm)
46-1/2 in (118.1 cm)
28-1/4 in
(71.8 cm)
4-5/32 in
(10.2 cm)
3-9/32 in
(8.3 cm)
20-1/16 in
(51.0 cm)
36-1/8 in (91.8 cm)
72-1/4 in (183.5 cm)
36-1/8 in (91.8 cm)
36-1/8 in (91.8 cm)
72-1/4 in (183.5 cm)
50-1/8 in (127.3 cm)
60-3/4 in (154.3 cm)
24-5/8 in
(62.5 cm)
3/8 in (.95 cm)
NPT
6 in (15.2 cm)
Diameter Duct
1/2 in
(1.27
cm)
NPT
4 in
(10.2
cm)
6 in
(15.2 cm)
Diameter
Duct
14 in
(35.6
cm)
2 in
(5.1 cm)
TMB2152N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Dimensions and Specifications
M412060
10
Specifications
Conversion Table
Cabinet Finish: Electrostatically applied thermosetting polyester
Cylinder Size: 30 in x 25 in (76.2 x 63.5 cm) perforated galvanized steel with three baffles
Air Outlet: 6 in (15.24 cm)
Total Dry Weight Capacity: 60 lbs. (27.2 kg) both cylinders
Width 31-5/8 in (80.3 cm)
Depth 46-1/2 in (118 cm)
Height 72-1/4 in (183.5 cm)
Motor: 1/2 H.P., lifetime lubricated, internal overload protected
Electrical Specifications:
120/60/1 (17.3 Amp) 2-wire grounded system (Line 1, Neutral & Ground)
208-240/60/1 (10 Amp) 3-wire grounded system (Line 1 & 2, Neutral &
Ground)
120/50/1 (17.3 Amp) 2-wire grounded system (Line 1, Neutral & Ground)
240/50/1 (10 Amp) 2-wire grounded system (Line 1, Neutral & Ground)
220/60/1 (10 Amp) 2-wire grounded system (Line 1, Neutral & Ground)
Energy Data: 63,000 BTU per hour (per pocket - 15,876 Kcal)
Types of Gas: Factory equipped with Natural Gas (6-1/2 ± 1-1/2 inches water column line pressure); Liquefied Petroleum gas (11 ± .3 inches water column line pressure);
Hong Kong Town Gas (High and Low Pressure), or Korean LNG.
Gas Connection: 1/2 in (1.27 cm) supply line reduced to a 3/8 in (.95 cm) N.P.T. connection
Air Flow: 375 C.F.M. (177 liters/sec.)
Approx. Net Weight: 722 Pounds (310.5 kg)
Multiply By To Obtain
BTU .252 Kcal
BTU 1055 Joules
Inch 2.54 Centimeters
Inches W.C. . 036 Pounds/sq. in
Pounds/sq. in . 06895 Bars
Pounds/sq. in . 070 kg/sq. cm.
Pounds (lbs.) .454 Kilograms
Boiler Horsepower 33,479 BTU /lb.
Boiler Horsepower 34.5 Ibs. Steam/hr.
Inches W.C. . 249 kPa

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 11
M412060
Installation Instructions
Receiving Inspection
Upon delivery, visually inspect crate, carton and parts
for any visible shipping damage. If the crate, carton or
cover are damaged, or signs of possible damage are
evidence, have the carrier note the condition on the
shipping papers before the shipping receipt is signed,
or advise the carrier of the condition as soon as it is
discovered.
Remove the crate and protective cover as soon as
possible and check the items listed on the packing list.
A written claim should be filed as soon as possible
with the carrier if items are damaged or missing.
IMPORTANT: Remove the shipping tape from the
two back draft dampers located in the exhaust
thimble.
Materials Required
•One disconnect switch with fuses or Fusetron(s)
(acceptable for 120 Volt installations).
NOTE: For voltages higher than 120 Volts, a circuit
breaker must be used.
•Two gas shut-off valves for stacked tumblers.
Facilities Required
Layout
Whenever possible, tumblers should be installed along
an outside wall where duct length can be kept to a
minimum, and make-up air can be easily accessed.
Construction must not block the airflow at the top rear
of the tumbler. Doing so would prevent adequate air
supply to the tumbler’s combustion chamber.
The stacked drying tumbler has been specifically
designed to provide twice the drying capacity utilizing
the same floor space as the standard 30 lb. (31-5/8
inches wide) drying tumbler.
The only thing common between the stacked drying
tumbler and the standard drying tumbler is the floor
space requirements. Twice the drying capacity means
two separate heat sources, two separate cylinders/
drives, and two separate controls.
Floor
The drying tumbler may be installed on any level floor
capable of supporting 100 pounds per square foot (488
kg/square meter). Floor covering materials such as
carpeting or tile should be removed.
Shipping Braces
To facilitate installation, the shipping braces located
on the lower left and right rear corners may be
removed. To remove, simply remove the four round
head screws from each brace, remove and discard
brace, and replace the screws in the same holes they
were removed from.
NOTE: The shipping brace need not be removed if
it does not interfere with installation. If you do not
remove the shipping brace, you will need to add an
additional 5/32 inch (4 mm) to your installation
space.
Venting
For maximum efficiency and minimum lint
accumulation, tumbler air must be exhausted to the
outdoors by the shortest possible route.
Proper sized ducts are essential for proper installation.
All elbows should be sweep type. Do not install
elbows with a radius less than shown in the table
below. Exhaust ducts must be assembled so the interior
surfaces are smooth, and so the joints do not permit the
accumulation of lint. Do not use sheet metal screws to
join vent sections. Improperly sized or assembled
ductwork causes excess back pressure which results in
slow drying, lint collecting in the duct, lint blowing
back into the room, and increased fire hazard.
NOTE: Exhaust ducts must be constructed of sheet
metal or other non-combustible material. Such
ducts must be equivalent in strength and corrosion
resistance to ducts made of galvanized sheet steel
not less than 0.0195 inch (0.495 mm) thick.
Where the exhaust duct pierces a combustible wall or
ceiling, an opening having a diameter of four inches
(10.2 cm) larger than the diameter of the exhaust duct
shall be provided, with the duct centered in the
opening. When ducts pass through walls, ceilings,
floors or partitions, the space around the duct shall be
sealed with non-combustible material. Refer to
Figures 1 and 2.
A tumbler produces combustible lint. To
reduce the risk of fire, and the
accumulation of combustion gases, the
tumbler must be exhausted to the
outdoors.
W646
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation Instructions
M412060
12
Individual Venting
For maximum efficiency and performance, it is
preferred to exhaust tumbler(s) individually to the
outdoors. Refer to Figure 1 and 2. AT NO POINT
MAY THE CROSS AREA OF INSTALLED
VENTING BE LESS THAN THE CROSS AREA
OF THE EXHAUST THIMBLE OF THE
TUMBLER.
THE MAXIMUM ALLOWABLE LENGTH OF
VENTING IS 14 FEET (4.3 M) AND TWO 90°
ELBOWS, OR EQUIVALENT. The table below
shows how to determine equivalent length of venting
for 90° elbows:
If the equivalent length of a duct required for an
installation exceeds the maximum allowable
equivalent length, the diameter of a round duct must be
increased by 10 percent for each additional 20 feet.
The cross area of a rectangular duct must be increased
20% for each additional 20 feet (6.1 m).
With the tumbler in operation, airflow at any point in
the duct must be at least 1200 feet (366 m) per minute
to ensure that the lint remains airborne.
Combined Exhaust Manifold Venting
The upper and lower units may be exhausted into a
combined exhaust manifold, refer to Figure 2. Refer to
Figure 3 for proper manifold duct construction. THE
MAXIMUM LENGTH OF 10 INCHES (25.4 cm)
DIAMETER EXHAUST DUCT BEYOND THE
MANIFOLD DUCT IS 14 FEET (4.3 m) AND
TWO 90° ELBOWS, OR EQUIVALENT.
Collector Venting
While it is preferable to exhaust tumblers individually
to the outdoors, a main collector duct may be used if it
is sized according to Figure 4. These illustrations
indicate minimum diameters, and should be increased
if the collector length exceeds 20 feet (6.1 m). The
collector duct may be rectangular in cross section, as
long as the area is not reduced. Provisions should be
made for lint removal and cleaning of the collector
duct.
The collector duct must be tapered, as shown in
Figures 4 and 5. The individual tumbler ducts must
enter the collector duct at a 45° angle in the direction
of airflow. Never connect a tumbler duct at a 90° angle
to the collector duct. Doing so will cause excessive
back pressure, resulting in poor performance. Never
connect two tumbler exhaust ducts directly across
from each other at the point of entry to the
collector duct.
The collector system must be designed so the static
back pressure measured 12 inches (30.48 cm) from the
exhaust thimble does not exceed the maximum
allowable pressure specified on the installation sticker
on the rear of the tumbler. This must be measured with
all tumblers running that are vented into the collector.
DUCT DIAMETER EQUIVALENT LENGTH OF
STRAIGHT DUCT
6 in (15.3 cm) One 90° elbow = 7 ft (2.1 m)
8 in (20.3 cm) One 90° elbow = 9.3 ft (2.8 m)
10 in (25.4 cm) One 90° elbow = 11.6 ft (3.5 m)
12 in (30.5 cm) One 90° elbow = 14 ft (4.3 m)
FORMULA: Equivalent Length (feet or meters) =
1.17 x Duct Diameter (inches or centimeters)
EXAMPLE: A 6 inch diameter duct’s equivalent
length of 14 feet of vent and two 90° elbows is:
Equivalent
Length: =14
ft (4.3 m) + (2) 90° elbows
=14
ft + 7 ft + 7 ft (4.3 m + 2.1 m + 2.1 m)
= 28' (8.5 m)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation Instructions
13
M412060
Individual Exhaust
Collector Duct
Figure 1
VERTICAL EXHAUST INSTALLATION HORIZONTAL EXHAUST INSTALLATION
180°
Sweep Elbow
No Screen
or Cap
2 in (5.1 cm)
Minimum
Clearance
30 in (76.2 cm)
Minimum
Clearance
0 in
Clearance
Permitted
for First
4 in
(10.2 cm)
12 in (30.5 cm)
Minimum
Clearance
0 in Clearance
Permitted
for First
4 in (10.2 cm)
12 in (30.5 cm)
Minimum
Clearance
2 in (5.1 cm)
Minimum
Clearance
No
Screen
Or
Cap
Wall
NOTE: Maximum length
of exhaust duct is 14
feet (4.3 meters).
NOTE: Maximum length
of exhaust duct is 14
feet (4.3 meters).
Clearance permitted to combustible material
36 in (91.4 cm) recommended for maintenance purposes
24 in (61.0 cm) minimum
Wall
TMB2153N
30 in (76.2 cm)
Minimum
Clearance
Figure 2
2 in
(5.1 cm)
Minimum
Clearance
30 in (76.2 cm)
Minimum Clearance
2 in (5.1 cm) Minimum Clearance
2 in (5.1 cm)
Minimum
Clearance
No Screen
or Cap
Wall
Air Out
Inspection or
Cleanout
Cover
31.62 in
(80.3 cm)
L Dia K Dia J Dia I Dia H Dia G Dia F Dia E Dia D Dia C Dia B Dia A Dia
Ceiling
180°
Sweep Elbow
NOTE: This collector duct is sized for individually
ducted units as shown. Refer to Figure 1.
Where the exhaust duct pierces the wall or ceiling, an
opening having a diameter four inches larger than the
diameter of the exhaust duct shall be provided, and the
exhaust duct centered within the opening.
Duct
Station
Min. Diameter
for Individual
Exhaust
Duct
Station
Min. Diameter
for Individual
Exhaust
A7.00 in (17.8 cm) G19.00 in (48.3 cm)
B10.00 in (25.4 cm) H20.00 in (50.8 cm)
C12.00 in (30.5 cm) I22.00 in (55.9 cm)
D14.00 in (35.6 cm) J23.00 in (58.4 cm)
E16.00 in (40.6 cm) K24.00 in (61.0 cm)
F18.00 in (45.7 cm) L25.00 in (63.5 cm)
TMB2154N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation Instructions
M412060
14
Manifold Construction
Figure 3
TMB2155N
10 in
(25.4 cm)
Inside
Diameter
17.50 in (44.5 cm)
36.10 in (91.7 cm)
2 in (5.1 cm) TYP
Standard
Stove Pipe
Crimp
6 in (15.2 cm)
Inside
Diameter
(2) Places
Rivet to Duct
(8) Rivets
(2) Places
Flush
Bottom
Removable Cover
for Lint Removal
45°
(2) Places
3 in (7.6 cm)
(3) Places
60 in (152.4 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation Instructions
15
M412060
Combined Exhaust Manifold
Figure 4
VERTICAL EXHAUST INSTALLATION HORIZONTAL EXHAUST INSTALLATION
180°
Sweep Elbow
No Screen
or Cap
2 in (5.1 cm)
Minimum
Clearance
30 in (76.2 cm)
Minimum
Clearance
0 in
Clearance
Permitted
for First
4 in (10.2 cm)
12 in (30.5 cm)
Minimum
Clearance 0 in Clearance
Permitted
for First
4 in (10.2 cm)
2 in (5.1 cm)
Minimum
Clearance
No
Screen
or Cap
Wall
NOTE: Maximum length of
exhaust duct is 14 feet (4.3
meters) beyond manifold duct.
NOTE: Maximum length
of exhaust duct is
14 feet (4.3 meters)
beyond manifold duct.
Clearance permitted to combustible material
36 in (91.4 cm) recommended for maintenance purposes
24 in (61.0 cm) minimum
Wall
TMB2153N
12 in (30.5 cm)
Minimum
Clearance
Manifold
Duct Manifold
Duct
0 in

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation Instructions
M412060
16
Make-Up Air
A tumbler is forced-air exhausted and requires
provisions for make-up air to replace the air exhausted
by the tumbler.
The manufacturer’s recommended make up air
opening for each tumbler is 144 square inches (929 sq.
cm) of free area. At a minimum, the National Fuel
Gas Code requires tumblers to have at least one
square inch (6.5 sq. cm) of opening for every 1000
BTU/hr. of input rating for proper combustion.
EXAMPLE: A tumbler with a rated input of 120,000
BTU/hr. (30,240 Kcal) requires 120 square inches
(774.2 sq. cm) of free opening.
Protective louvers in the opening to the outdoors can
reduce air movement by approximately 40 percent.
The opening must compensate for the area taken up by
the louvers.
NOTE: The make-up air openings into a room
containing tumblers, and a gas fired hot water
heater or other gravity vented appliances must be
increased sufficiently to prevent downdrafts in any
of the vents when all tumblers are in operation. Do
not install gravity vented appliances between
tumblers and air inlet openings.
Positioning the Drying Tumbler
The tumbler may be removed from the skid before
moving it to the installation location, or it may be
moved while still attached to the skid. To remove
tumbler from the skid, unscrew the four shipping
capscrews (one at each corner) and lift the tumbler
from the skid.
The leveling legs will be in a bag inside the cylinder.
Screw the four leveling legs into the level adjusting
fittings from the bottom.
IMPORTANT: The tumbler should be slid in place
using the wooden crate pad supplied on the
shipping crate to prevent damage to the flooring.
Slide the tumbler to its permanent location and level.
Keep the tumbler as close to the floor as possible. The
tumbler must rest firmly on the floor so weight of
tumbler is evenly distributed. Tumbler must not rock.
Shim under the corners to level and stabilize the unit.
Drying Tumbler Enclosure
Construction
IMPORTANT: DO NOT block the airflow at the
top rear of the tumbler with laundry, etc. Doing so
would prevent adequate air supply to the tumbler’s
heat chamber.
A typical enclosure is shown in Figure 5. Note that the
enclosure does touch the tumbler top and side panels.
Note, too, the minimum and maximum dimensions. Be
aware that there may be local codes and ordinances
which must be complied with.
IMPORTANT: Install tumblers with sufficient
clearance for servicing and operation. Refer to
Figure 5.
TO FACILITATE INSTALLATION: To ensure room
for leveling, adjusting and lining up the tumblers, size
the enclosure opening three inches (7.6 cm) larger than
the tumbler dimensions. After the tumblers are lined
up and level, close the gap with a trim board.
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers.
W055
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation Instructions
17
M412060
IMPORTANT: Do not lift under the belt guard or
tip the unit. Serious drive train damage will occur.
Leveling the Drying Tumbler
Each tumbler should be leveled within 1/8 inch (3
mm) from front to rear and 1/8 inch (3 mm) from side
to side. Check front to rear level by rotating the clothes
cylinder until one rib is at the bottom, then place a
level on the rib. Check side to side level by placing a
level across the center of the top panel.
IMPORTANT: An unleveled tumbler can cause
rapid bearing wear, internal misalignment,
scraping, noise, and possible clothes damage.
Figure 5
TMB2157N
Clearance of tumbler cabinet from combustible construction must be a minimum of
12 inches (30.5 cm) at top.
W647
WARNING
NOTE: Shaded areas indicate
adjacent structure.
0 in Clearance
Permitted
for First
4 in (10.2 cm)
Clearance
0 in to
Combustible
Material
12 in (30.5 cm)
Minimum Clearance
Guard
0 in Clearance Permitted 24 in
(61.0 cm) Recommended for
Maintenance Purposes
0 in Clearance
Clearances shown are minimum to nearest combustible material.
0 in (0 cm) Minimum clearance to combustible material.
24 in (61.0 cm) Minimum recommended for service access.
Tumbler exhaust duct must be smooth inside and be sized based on the following air flow data:
450 CFM maximum and 350 CFM minimum at .3 W.C. (See information on VENTING in this
manual for duct dimensions).
For proper combustion, supply a two square foot (.19 sq. meter) opening for outside makeup air.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation Instructions
M412060
18
Gas Requirements (Gas Drying Tumblers)
Before connecting the gas piping to the tumbler, make
certain that gas service is the same as that specified on
the serial plate.
IMPORTANT: Any product revisions or
conversions must be made by the Manufacturer’s
Authorized Dealers, Distributors or local service
personnel.
IMPORTANT: The installation must comply with
local codes or, in the absence of local codes:
- with the latest edition of the “National Fuel Gas
Code”, ANSI Z223.1 in the U.S.A.
- with CAN1-B149.1 or CAN1-B149.2 in Canada
- and Australian Gas Association/Australian L.P.
Gas Association requirements in Australia
The size of gas service pipe is dependent upon many
variables (lengths, tees, etc.). Specific pipe size
information should be obtained from the gas supplier.
Refer to table in Figure 7 for general pipe size.
A dirt and water vapor pipe trap must be furnished and
installed by customer. Refer to Figure 6.
It is important that equal pressure be maintained at all
tumbler gas connections. This can best be done by
installing a one inch (2.54 cm) pipe gas loop as shown
in Figures 8 and 9.
Before connecting the gas piping to the tumbler, make
certain gas service is the same as that specified on the
serial plate.
NATURAL GAS service must be supplied at 6-1/2 ±
1-1/2 inch water column pressure (1.62 ± .37 kPa).
L.P. GAS service must be supplied at 11 ±.3 inch
water column pressure (2.74 ±.07 kPa).
Pressure checks can be made at the shut-off valve.
Refer to Figure 6.
To reduce the risk of fire or explosion, DO
NOT CONNECT THE GAS LINE TO THE
TUMBLER IF THE GAS SERVICE IS NOT
THE SAME AS THAT SPECIFIED ON THE
TUMBLER SERIAL PLATE! It will first be
necessary to convert the gas burner orifice
and gas valve. Appropriate conversion kits
are available.
W060
WARNING
To reduce the risk of fire or explosion, if the
tumbler is to be connected to Liquefied
Petroleum (L.P.) gas, a floor level vent to
the outdoors must be provided in the room
where the tumbler is installed.
W098
WARNING
Figure 6
TMB2158N
1/8 in (.32 cm) N.P.T. plugged
tapping accessible for
pressure testing. Gauge
connection located upstream
from dryer main manual
shut-off
Gas Line to
Dryer Controls
1/2 in Reduced
to 3/8 in 1/2 in Gas
Supply Piping
System
Gas “T”
Fitting
6 Inches (15.2 cm)
Minimum Gas
Pipe
Gas
Pipe Cap
Shut-Off
Valve
Dirt and
Water Vapor
Trap
