Alliance Laundry Systems DRY2024N User manual

for your dryer
www.comlaundry.com
Inside …
Safety Information. . . . 3
Before Drying . . . . . . . . 6
Drying Special Items . . 8
Operating Your Dryer . . 11
Clothing Care Labels . . 14
Maintenance . . . . . . . . . 15
Troubleshooting . . . . . . 17
Part No. 802716
December 2006
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

-2-
802716
FOR YOUR SAFETY, the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury or death.
W033
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Clear the room, building or area of all occupants.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
- If you cannot reach your supplier call the fire department.
• Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
W052
WARNING

-3-
802716
DRY2024N
Safety Information
Explanation of Safety
Messages
Throughout this manual and on machine decals,
you will find precautionary statements
(“DANGER,” “WARNING,” and “CAUTION”) followed
by specific instructions. These precautions are
intended for the personal safety of the operator,
user, servicer, and those maintaining the machine.
Additional precautionary statements
(“IMPORTANT” and “NOTE”) are followed by
specific instructions.
IMPORTANT: The word “IMPORTANT” is used to
inform the reader of specific procedures where
minor machine damage will occur if the
procedure is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or
servicing information that is important but not
hazard related.
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the dryer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the dryer.
3. Do not dry articles that have been previously
cleaned in, soaked in, washed in, or spotted
with gasoline, dry-cleaning solvents, other
flammable or explosive substances as they
give off vapors that could ignite or explode.
4. Do not allow children to play on or in the
dryer. Close supervision of children is
necessary when the dryer is used near
children. This is a safety rule for all
appliances.
5. Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
6. Do not reach into the dryer if the cylinder is
revolving.
7. Do not install or store the dryer where it will
be exposed to the water and/or weather.
8. Do not tamper with the controls.
Indicates an imminently hazardous
situation that, if not avoided, will
cause severe personal injury or death.
DANGER
Indicates a hazardous situation that, if
not avoided, could cause severe
personal injury or death.
WARNING
Indicates a hazardous situation that, if
not avoided, may cause minor or
moderate personal injury or property
damage.
CAUTION
To reduce the risk of fire, electric
shock, serious injury or death to
persons when using your dryer, follow
these basic precautions:
W130
WARNING
© Copyright 2006, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or
transmitted in any form or by any means without the expressed written
consent of the publisher.

-4-
802716
9. Do not repair or replace any part of the
dryer, or attempt any servicing unless
specifically recommended in the User-
Maintenance Instructions or in published
user-repair instructions that you
understand and have the skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or
product.
11. To reduce the risk of fire, DO NOT DRY
plastics or articles containing foam rubber
or similarly textured rubberlike materials.
12. Always clean the lint filter after every load. A
layer of lint in the filter reduces drying
efficiency and prolongs drying time.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the dryer and the exhaust
duct should be cleaned periodically by
qualified service personnel.
15. This gas appliance contains or produces a
chemical or chemicals which can cause death
or serious illness and which are known to the
State of California to cause cancer, birth
defects, or other reproductive harm. To
reduce the risk from substances in the fuel
or from fuel combustion, make sure this
appliance is installed, operated, and
maintained according to the manufacturer’s
instructions.
16. Dryer will not operate with the loading door
open. DO NOT bypass the door safety switch
by permitting the dryer to operate with the
door open. The dryer will stop tumbling when
the door is opened. Do not use the dryer if it
does not stop tumbling when the door is
opened or starts tumbling without pressing
or turning the START mechanism. Remove
the dryer from use and call the service
person.
17. Do not put articles soiled with vegetable
or cooking oil in the dryer, as these oils
may not be removed during washing.
Due to the remaining oil, the
fabric may catch on fire by
itself.
18. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable
substances such as machine oil, flammable
chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops
and cleaning cloths, or anything dry-cleaned
at home with dry-cleaning solvent in the
dryer.
19. Use the dryer only for its intended purpose,
drying clothes.
20. Always disconnect the electrical power to
the dryer before attempting service.
Disconnect the power cord by grasping the
plug, not the cord.
21. If supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer or its
service agent.
22. Install this dryer according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding
and gas supply must comply with local codes
and be made by licensed personnel when
required. Do not do it yourself unless you
know how!
23. Remove laundry immediately after the dryer
stops.
24. Always read and follow manufacturer’s
instructions on packages of laundry and
cleaning aids. Heed all warnings or
precautions. To reduce the risk of poisoning
or chemical burns, keep them out of reach of
children at all times (preferably in a locked
cabinet).
25. Do not tumble fiberglass curtains and
draperies unless the label says it can be
done. If they are dried, wipe out the cylinder
with a damp cloth to remove particles of
fiberglass.

-5-
802716
DRY2024N
26. ALWAYS follow the fabric care
instructions supplied by the garment
manufacturer.
27. Never operate the dryer with any
guards and/or panels removed.
28. DO NOT operate the dryer
with missing or broken parts.
29. DO NOT bypass any safety devices.
30. Failure to install, maintain, and/or operate
this machine according to the
manufacturer’s instructions may result in
conditions which can produce bodily injury
and/or property damage.
NOTE: The WARNING AND IMPORTANT SAFETY
INSTRUCTIONS appearing in this manual are not
meant to cover all possible conditions and
situations that may occur. Observe and be
aware of other labels and precautions that are
located on the machine. They are intended to
provide instructions for safe use of the
machine. Common sense, caution and care
must be exercised when installing, maintaining,
or operating the dryer.
Always contact your dealer, distributor, or service
agent about any problems or conditions you do
not understand.

-6-
802716
Before Drying
Energy Saving Tips
•Make sure the lint filter is always clean.
•Do not overload the dryer.
•Do not overdry items.
•Remove items to be ironed while still damp.
•Large loads of similar fabrics dry the most
efficiently. However, dry permanent press in
smaller loads to prevent wrinkling.
•Use the correct cycle for the type of fabric
being dried.
•Locate your dryer so the exhaust duct is as
short and straight as possible.
•Do not open the door during the drying cycle.
•Plan to do your laundry on low humidity days;
your clothes will dry faster.
•Dry multiple loads of clothes one right after
another so dryer interior does not have to be
reheated for each load.
Helps and Hints
•The directions for installation and proper
exhausting are given in the Installation
Instructions which are included with the
dryer.
•Static electricity may cause garments of
synthetic fibers (as in lingerie) to cling
together, especially if they are overdried. The
use of a liquid fabric softener in the rinse
water of the washer, or a fabric softener
sheet in the dryer, will soften clothes and
reduce static electricity.
•Do not wash or dry clothes that shed lint in
the same load with permanent press or knit
garments.
•Remove permanent press loads immediately
after dryer stops.
•Follow the care labels on FLAME
RETARDANT, SCOTCH- GUARD™, etc.,
garments for the proper washing and drying.
•If loads should be damp for ironing, turn
timer knob to the ENERGY SAVER setting,
marked with a dot (•), in AUTOMATIC or TIME
DRY cycles.
Sort
If you have correctly sorted the items for
washing, they should be properly sorted for drying
too.
1. Sort by color.
2. Separate lint shedding fabrics and lint
receiving fabrics.
Towels, flannels, chenille, cottons, rugs, etc., shed
lint. Corduroys, knits (including socks), permanent
press, and synthetics attract lint.
3. Separate no heat, low heat and high heat
items.
In any kind of drying, lightweight fabrics will dry
faster than heavyweight fabrics. If mixed loads
are dried together (such as sheets and towels),
remove the lighter weight fabrics when they are
dry to prevent overdrying and wrinkling. The best
method is to dry clothes which require the same
time and temperature in the same load.
TLW1991N
TLW1991N

-7-
802716
DRY2024N
Load
•Do not overload your dryer. Bulk, not weight,
determines the load size. If the dryer is
overloaded, it could cause discoloration or
permanent heat damage to the load.
•There should be space in the dryer for the
clothes to tumble freely and help to reduce
wrinkles.
•Large and small pieces together make up
loads which will tumble well. Permanent press
loads should be smaller to provide room for
tumbling. Proper tumbling allows for fewer
wrinkles.
•A load can be too small. Just a few small
pieces will not tumble properly. They will take
longer to dry and they may be wrinkled. For
small loads, add a couple of large towels or
non lint shedding items to aid in tumbling.
•The following illustrations show the ideal load
sizes for fabrics. The average load will fill the
cylinder one third to half full when wet.
Do not wash or dry items soiled with
vegetable or cooking oils. Some oils
may remain after washing and may
cause the fabric to catch on fire by
itself.
W527
WARNING
DRY2031N
DRY2031N
Cylinder with wet linens and cottons
DRY2032N
DRY2032N
Cylinder with wet permanent press items

-8-
802716
Drying Special Items
Type of Load Special Instructions
Bedspreads • Choose heat for fabric.
• Dry one double or two single spreads.
• Chenille and tufted spreads will shed lint and should be dried by themselves.
• New spreads will contain loose lint. Tumble on NO HEAT Fabric Selector setting before
washing to remove loose lint.
• Dry completely.
Blankets
Electric
Synthetic Fibers
Thermal Cotton
Wool
• Choose DELICATE or NO HEAT Fabric Selector setting.
• If drying items in dryer is recommended by the manufacturer, dry as for wool.
• Do not stretch the blanket because of the wiring.
• Some electric blankets may have an insulation on the thermostats or on the wiring
which will not withstand dryer heat. Do not dryer dry unless the blanket
manufacturer says it can be done.
• Choose DELICATE or NO HEAT Fabric Selector setting.
• Some blankets are fluffy and will shed lint. Tumble on NO HEAT Fabric Selector
setting before washing to remove loose lint.
• Dry in dryer until just dry.
• Clean lint filter half way through drying cycle.
• Choose AUTOMATIC REGULAR/DELICATE cycle.
• Agitation and tumbling contribute to the shrinkage and felting of wool. Follow blanket
manufacturer’s instructions for proper care.
• Use approximately five dry bath towels and place them between folds in blanket to
lessen the tumbling.
• Set dryer for 20 minutes on the TIME DRY cycle. Use REGULAR Fabric Selector
setting. Check blanket when timer reaches 10. Wool blankets must be removed from
the dryer when damp.
• Stretch item gently to shape and finish drying in a flat position.
Curtains
Cotton
Fiberglass
Synthetic Fibers
• Choose AUTOMATIC REGULAR/DELICATE or TIME DRY cycle.
• Remove damp items for ironing or dry completely and then steam iron.
• DO NOT dry in the dryer unless recommended by the manufacturer.
• Fiberglass may shred. Particles may remain in the dryer and rub off on the next load.
• “Beta” fiberglass may be dryer dried if recommended by the manufacturer.
• Choose DELICATE or NO HEAT Fabric Selector settings.
• Allow room for tumbling to prevent wrinkling.
• Delicate or sheer curtains must be dried by themselves so they will not be snagged by
hooks or crushed by other clothes in the load.
• Some sheer curtains are heat sensitive. Dry 10 minutes only, plus the cool down
period. Remove from dryer immediately and hang.
• If the dryer has been heated from a previous load, the NO HEAT Fabric Selector
setting may be sufficient.
Denim, Corduroy • Choose AUTOMATIC REGULAR/DELICATES cycle.
• Dry completely and remove from dryer when seams are slightly wet to minimize
shrinkage.

-9-
802716
Draperies • Remove hooks and weights before washing.
• Choose heat for fabric and allow space in the dryer for tumbling.
• Some draperies may be removed when slightly damp and hung immediately.
• Lined draperies should be dry-cleaned because they have a tendency to pucker.
Knit Articles
Cottons
Synthetic Fibers
Wool
Knit fabrics are usually manufactured under tension (stretching). Cotton knits especially
may relax or draw together if every bit of moisture is removed from them. It is best to take
them out of the dryer with a trace of moisture remaining, then stretch to shape. If items
shrink from overdrying, rewet them and dry properly.
• Choose AUTOMATIC REGULAR/DELICATE or TIME DRY cycle.
• Remove slightly damp to minimize ironing.
• Reshape, smooth seams and pockets, etc.
• Choose AUTOMATIC REGULAR/DELICATE or AUTOMATIC PERMANENT PRESS/KNITS
cycle.
• Turn inside out to prevent pilling.
• Dry sweaters only with similar fabrics because they are lint receivers.
• Make sure the load is large enough for tumbling.
• Dry completely and remove from dryer immediately to minimize wrinkling.
• Choose DELICATE or NO HEAT Fabric Selector setting.
• For wool labeled “machine washable,” follow manufacturer’s directions. For other wool,
use wool blanket method.
• Do not dryer dry loosely knit wool or hand knits.
• Dry flat and stretch to shape from a pattern drawn before washing.
Lingerie
Cotton
Elastic
Foam Rubber
(Bras, bathing suits,
sun suits, etc.)
Spandex
Stretch Fabrics
Synthetic Fibers
• Choose AUTOMATIC REGULAR/DELICATE cycle.
• Elastic may be dried as for fabric.
•Donotoverdry.
• DO NOT dry foam rubber items in the dryer with heat. Fire may result. Use NO HEAT
Fabric Selector setting only.
• Choose DELICATE or NO HEAT Fabric Selector setting.
•Donotoverdry.
• Choose heat for the most delicate fiber.
• Dry completely as stretch fabrics will stretch into shape.
• Avoid drying with lint shedding fabrics.
• Choose TIME DRY cycle. Use DELICATE Fabric Selector setting.
• Some sheer fabrics, especially sheer knits, can be heat sensitive. Dry until just dry
(about 10 minutes) and remove from dryer immediately.
• Sheer fabrics should not be washed and dried with garments containing hooks or
zippers.
• Manufactured fabrics will create static electricity if overdried.
• Use fabric softener and avoid overdrying.
Type of Load Special Instructions
continued

-10-
802716
Mattress Pads • Read and carefully follow the fabric care instructions supplied by the mattress pad
manufacturer.
• Some mattress pads made of synthetic fibers are very heat sensitive. These pads
can be flammable if over-heated or over-dried. To avoid a fire hazard do not over-dry
mattress pads.
• Remove mattress pads from the dryer while they are still damp.
Pillows
Feather and
Down-Filled
Fiber-Filled (polyester)
Foam Rubber
• Ticking must be strong and seams secure.
• After washing, shake pillow to fluff feathers.
• Dry one large or two smaller pillows. Use TIME DRY cycle. Use DELICATE or PERM
PRESS Fabric Selector setting.
• Shake and reposition pillows several times during drying.
• Pillows must be dry in the center to prevent mildew.
• Drying may take two hours or longer. Reset dryer timer if necessary.
• Follow manufacturer’s directions.
• Do not dry in the dryer.
Quilts • Choose heat and cycle for fabric.
• Old quilts may be too fragile to machine wash or dry.
• Quilts filled with cotton may become lumpy.
• Remove from dryer slightly damp and stretch gently to shape. Quilted articles may
shrink if overdried.
Rugs
Cotton With Cotton
Backing
Rubber-Backed
Synthetic Fibers
• Choose AUTOMATIC REGULAR/DELICATE or TIME DRY cycle.
• Dry one large or several small rugs. For one small rug, add towels.
• Heat tends to deteriorate many types of rubber.
• Some types of rubber-like materials are flammable under certain conditions. DO NOT
dry foam rubber and rubber-like materials with heat. Use NO HEAT Fabric Selector
setting only.
• Choose DELICATE or NO HEAT Fabric Selector setting.
• Follow manufacturer’s suggestions.
• Some rugs are heat sensitive and should be removed from the dryer when damp, or
dried with no heat.
Slip Covers • Choose heat for fabric.
• Close zippers.
• Dry one couch cover, two chair covers or five or six pillow covers at one time.
• Remove from dryer when slightly damp.
• Press pleats, if necessary, and replace on furniture immediately.
• Stretch fabrics and knits should be dried completely so they will fit snug when
replaced on furniture.
Stuffed Animals and Toys • Make sure the filling and covering can be dryer dried.
• Cotton filling may become lumpy.
• Protect glass eyes by covering with a stocking or tie toy into a pillowcase.
• Choose heat for most sensitive fiber.
• Dry enough clothes in the load for good tumbling. DO NOT dry toys stuffed with foam
rubber or kapok in the dryer with heat.
• Use no HEAT Fabric Selector setting only.
Tennis Shoes • Choose DELICATE or NO HEAT Fabric Selector setting.
• Use a drying rack or tumble with at least four old bath towels.
Type of Load Special Instructions

-11-
802716
DRY2024N
Operating Your Dryer
Available Drying Cycles
NOTE: Use the automatic cycles for drying
items that can be dried with heat. These cycles
automatically dry loads to the dryness level
selected.
MORE DRY will dry very small loads and some
heavy items, such as blue jeans, but will overdry
lightweight items, such as sheets and shirts.
Overdrying can cause wrinkling, shrinking,
excessive lint conditions, and will use more energy
than necessary.
LESS DRY, which uses the least energy, will dry
large loads and lightweight items, such as sheets
and shirts, but might leave other items, such as
denim and heavy bath towels, more damp.
To increase energy savings and to make sure
loads are dried without overdrying, set your loads
on LESS DRY. If items are damp at the end of a
cycle, the timer knob needs to be set closer to
the MORE DRY setting the next time these loads
are dried. If items are overdry at the end of a
cycle, the timer knob should be set closer to
COOL DOWN when these loads are dried again.
Remember the settings that work best to get
ideal drying results.
The COOL DOWN period at the end of each cycle
provides items a chance to tumble with no heat
and cool down to room temperature. This
prevents wrinkles from setting if items cannot be
cared for immediately.
NOTE: The timer knob will not advance as quickly
in the AUTOMATIC cycles as it does in the TIME
DRY cycle. The time it takes for the timer to
advance depends on the type and size of the
load being dried.
The ENERGY SAVER settings, marked with a dot
(•), show which settings will use the least energy
and will leave items damp for easier ironing.
Automatic Regular/Delicate Cycle
Use for sturdy items like play or work clothes and
also for delicate items. The type of heat is
determined by choosing the proper Fabric
Selector option. There are two settings in the
AUTOMATIC REGULAR/DELICATE cycle — MORE
DRY and LESS DRY.
Time Dry Cycle
This cycle will operate dryer for up to 75 minutes.
Cottons and heavyweight items dry best between
50 and 75 minutes, and lightweight items dry
best between 20 and 40 minutes.
Automatic Permanent Press/Knits Cycle
Use for permanent press items and synthetics.
The type of heat is determined by selecting the
proper Fabric Selector option. There are two
settings in the AUTOMATIC PERMANENT PRESS/
KNITS cycle — MORE DRY and LESS DRY.
To reduce the risk of fire, electric
shock, serious injury or death to
persons, read the Safety Information
section before operating the dryer.
W520
WARNING

-12-
802716

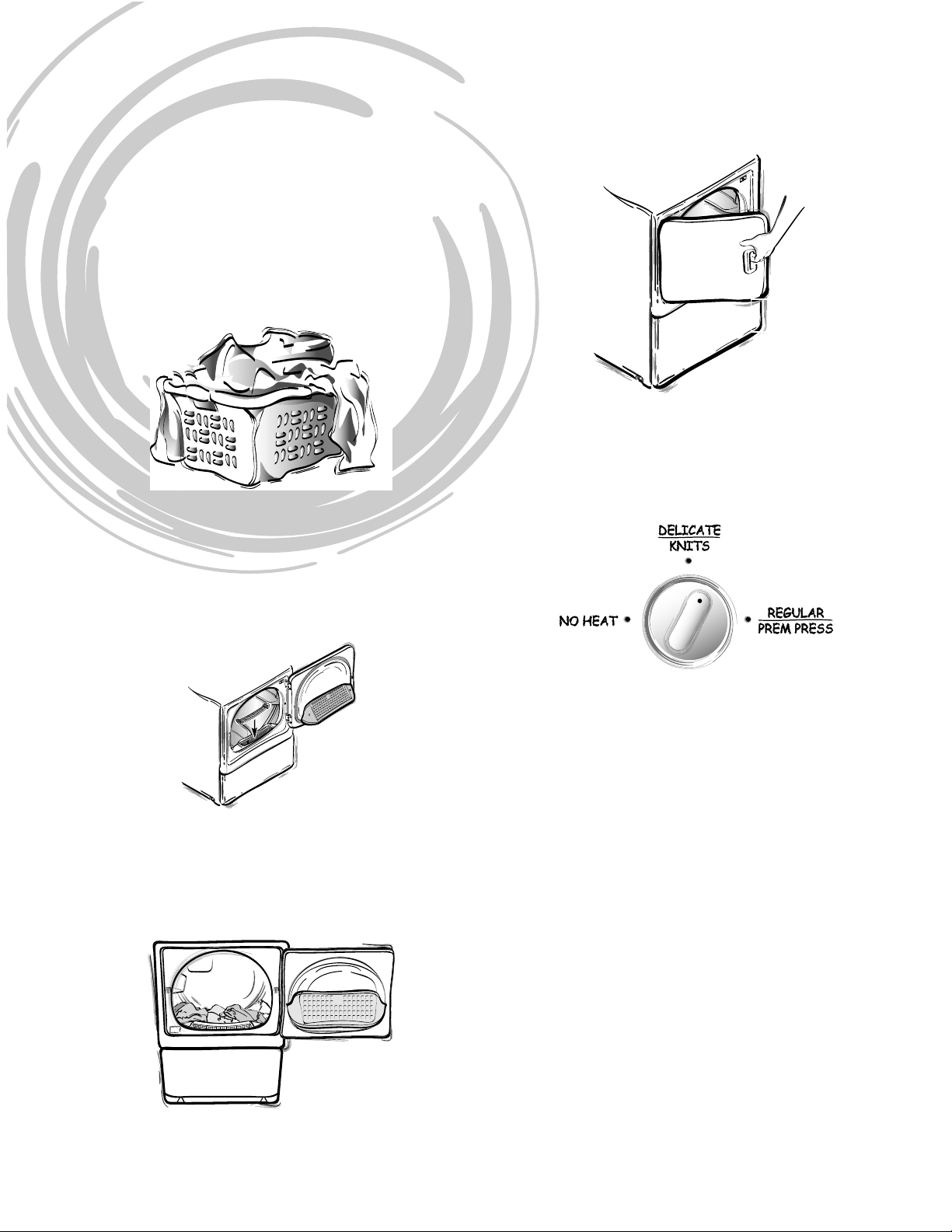

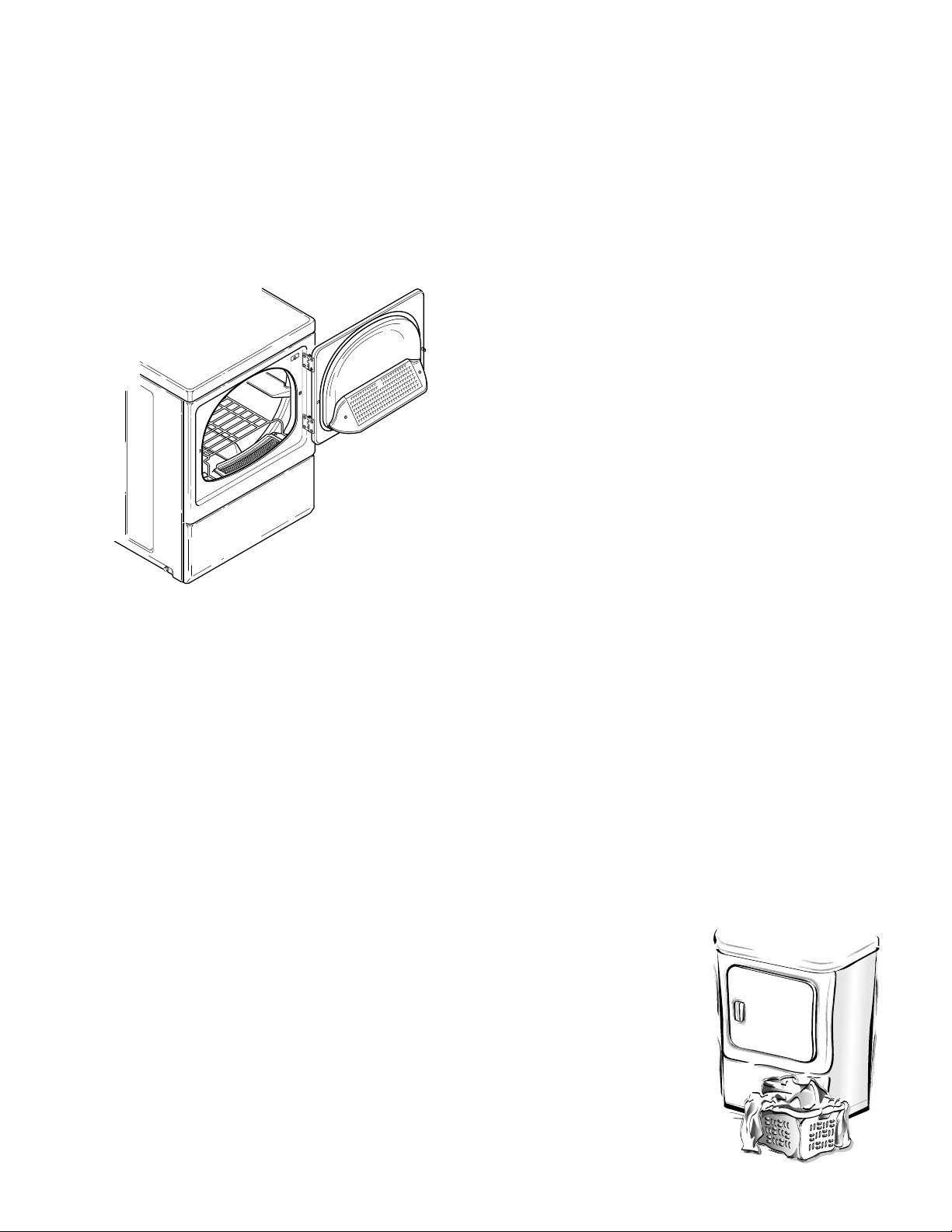

To Dry Clothes
IMPORTANT: Refer to the INSTALLATION
INSTRUCTIONS before using dryer.
IMPORTANT: Before using dryer for the first
time, use an all-purpose cleaner or a detergent
and water solution and a damp cloth to remove
shipping dust from inside of dryer drum.
1. Sort items into separate loads.
IMPORTANT: Remove all sharp objects from
laundry to avoid tears and rips to items during
normal machine operation.
2. Remove lint filter cover, clean lint filter and
replace cover.
3. Add clothes loosely into dryer drum. Add
fabric softener sheet, if desired.
NOTE: To avoid damage to dryer, do not use
more than one fabric softener sheet per load.
4. Close loading door. Dryer will not operate with
the door open.
5. Select Fabric Selector (available settings
vary by model). Follow garment
manufacturer’s care labels for recommended
temperature settings.
6. Select timer setting in cycle desired. These
cycles control the drying time.
The ENERGY SAVER settings, marked with a dot
(•), show which dryer settings will use the least
energy and will leave items damp for easier
ironing.
7. Push timer knob in to start dryer.
NOTE: To stop dryer at any time, open the door
or turn timer knob to an OFF position. To
restart dryer, close door, reset timer if
necessary, and push in the timer knob.
TLW1991N
TLW1991
DRY2025
TLW2032N
DRY2026N
DRY2026N
SWD850N

-13-
802716
DRY2024N
Optional Drying Rack
A drying rack, Part No. 512082, is available at
extra cost through your Factory Authorized
Service Center.
The drying rack can be used for no-tumble drying
of articles such as tennis shoes, sweaters,
stuffed toys or other delicate items.
DRY2086NDRY2086N
DRY2086N

-14-
802716
Clothing Care Labels
The symbols below appear on many clothing care
labels. Following the instructions on each label will
help ensure the best laundry results.
WASH
BLEACH
IRON
TLW2010N
Machine Wash Cycle
Normal
TLW2011N
Pe r m a n e n t
Press/Wrinkle
Resistant
TLW2012N
Gentle/
Delicate
TLW2013N
Hand wash
Warning
Signs
TLW2015N
Hot TLW2016N
Warm
TLW2017N
Cold
TLW2018
Do not wring
TLW2014N
Do not wash
TLW2019N
TLW2020N TLW2021N
Bleach Symbols
Any bleach
(when needed)
Warning
Signs
Only
non-chlorine
bleach
(when needed)
Do not bleach
TLW2027N
TLW2024N
TLW2025N
Iron - Dry or Steam
Low
Warning
Signs
TLW2022N
Iron
TLW2023N
High Medium
No steam
Do not iron
DRY
DRYCLEAN
DRY2033N
DRY2034N
DRY2035N
DRY2036N
DRY2037N
DRY2038NDRY2039N
DRY2040N
DRY2041N
DRY2042N
DRY2045N
DRY2046N
Tumble Dry Cycle Warning
Signs
Dry Do not
tumble dry
Normal Pe r m a n e n t
Press/Wrinklle
Resistant
Gentle/
Delicate
High Medium Low No heat/Air
Do not dry
(used with
Do not
wash)
DRY2043N
Line dry/
Hang to dry In the shade
Special Instructions
DRY2044N
Drip dry Dry flat
Heat Setting
DRY2048N
Dryclean Warning
Signs
DRY2047N
Dryclean
Do not dryclean

-15-
802716
DRY2024N
Maintenance
Lubrication
All moving parts are sealed in a permanent supply
of lubricant or are equipped with oilless bearings.
Additional lubrication will not be necessary.
Care of Your Dryer
Dryer Interior
Wipe the surfaces using a soft cloth and
household cleaner or a non-abrasive paste of
powdered laundry detergent and hot water,
followed by a short heat cycle with a load of rags.
To remove crayon or ball point ink off the dryer
drum, put the heat on high and use old rags in the
dryer to absorb the crayon or ink. If unsuccessful,
contact the appliance dealer. DO NOT use any
chemicals in the dryer.
IMPORTANT: The use of chlorine bleach for
removing any discolorations should be avoided
because bleach could damage the finish.
Cabinet
Wipe the dryer cabinet as needed. If detergent,
bleach or other washing products have been
spilled on the dryer, wipe immediately. Some
products will cause permanent damage if spilled
on the cabinet.
Control Panel
Use only a damp or sudsy cloth for cleaning the
control panel. Some spray pretreat products may
harm the finish on the control panel.
NOTE: The wiring diagram is located inside the
control panel.
Exhaust System
The exhaust duct should be inspected after one
year of use and cleaned if necessary. Inspect and
clean exhaust duct every one to two years as
required thereafter.
The weather hood should be checked frequently to
make sure the dampers move freely, dampers are
not pushed in and that nothing has been set
against them.
Keep dryer area clear and free from combustible
materials, gasoline and other flammable vapors
and liquids.
Do not obstruct the flow of combustion and
ventilation air.
NOTE: Verify proper operation after servicing.
Motor Overload Protector
The dryer’s motor overload protector stops the
motor automatically in the event of an overload.
After cooling, the overload protector will reset
itself. Dryer can be restarted by pushing the
timer knob in. If overload protector cycles again,
remove the dryer from use and call the service
person to correct the problem.
To reduce the risk of an electric shock,
serious injury or death, disconnect the
electrical service to the dryer before
cleaning the interior.
W132
WARNING
To reduce the risk of electric shock,
disconnect the electrical service to the
dryer before cleaning.
W043
WARNING

-16-
802716
Lint Filter
The lint filter is located at the front of the dryer
in the lower part of the door opening.
CLEAN THE LINT FILTER BEFORE DRYING EACH
LOAD. Remove lint filter cover, clean lint filter and
replace cover. Annually remove lint filter and screw
to vacuum the duct under it.
DRY2025N

-17-
802716
Troubleshooting
Try these troubleshooting tips before making a
service call – You may save time and money!
Dryer Symptom Possible Cause/Solution
Dryer won’t start • For dryers equipped with a power cord, make sure the power cord is plugged all
the way into the electrical outlet.
• Make sure loading door is closed.
• Push timer knob in to start dryer.
• Make sure the laundry room fuse(s) isn’t blown or loose, or circuit breakers
aren’t open. The dryer itself does not have an electrical fuse. An electric dryer
has an electrical circuit with two fuses.
• Check if motor overload protector has cycled. Wait 10 minutes and try again.
Dryer won’t heat • Make sure timer is not in COOL DOWN setting or that Fabric Selector is not set
at NO HEAT.
• Electric dryers only – Some homes may have two fuses or circuit breakers for an
electric dryer; both fuses or circuit breakers should be checked. Make sure the
laundry room fuse(s) isn’t blown or loose, or that the circuit breakers aren’t
open. The electric dryer itself does not have an electrical fuse.
• Gas dryer only – Make sure equipment and main gas line valve is turned on.
• Check exhaust duct to outside to see if it is kinked, blocked or needs cleaning.
• Check weather hood to make sure flapper moves freely, has not been pushed in or
has not been blocked.
Dryer doesn’t dry clothes
satisfactorily
• Check exhaust duct to outside to see if it is kinked, blocked or needs cleaning.
• Check weather hood to make sure flapper moves freely, has not been pushed in or
has not been blocked.
• Automatic cycle – Adjust to MORE or LESS DRY setting.
• Timed cycle – Allow more or less time.
• Clean the lint filter.
• Make sure the load isn’t too small. Small loads may not tumble properly or dry
evenly.
• Check load being dried. Heavy items dried with lightweight items will not dry as
quickly as the rest of the load. Refer to Sort section for proper sorting
information.
Dryer is noisy • Check dryer for foreign objects (nails, coins, bobby pins, metal, plastic toys, etc.).
Remove items from dryer.
• Make sure dryer is level. Uneven leveling can cause vibration.
• Normal operating sounds include the tick of timer advancing, heat source going
on and off, and humming of air moving through the dryer and exhaust system.
Cycle advances too slowly • Automatic cycles advance slower than the Time Dry cycle. When in an Automatic
cycle, the time it takes for the timer to advance depends on the type and size of
the load being dried. When clothing has more moisture, the timer advances
slower than when the clothes are more dry.
Clothes are too wrinkled • Check heat setting. Overdrying can cause wrinkling.
• Check load size. Large loads may not tumble properly and may cause wrinkling.
Clothes have odor • Check room for odors before drying clothes. Any odor (fried foods, paint, varnish,
cleaners, burning wood, etc.) will transfer to clothing as the dryer draws air from
the room. Ventilate room before drying clothes.

-18-
802716
Contact Information
If service is required, contact the nearest Factory
Authorized Service Center.
If you are unable to locate an authorized service
center or are unsatisfied with the service
performed on your dryer, contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, Wisconsin 54971
www.comlaundry.com
Phone: [phone]
Date Purchased___________________________
Model Number____________________________
Serial Number____________________________
When calling or writing about your dryer, PLEASE
GIVE THE MODEL AND SERIAL NUMBERS. The
model and serial numbers are located on the
nameplate. The nameplate will be in the location
shown in the illustration below. Please include a
copy of your bill of sale and any service receipts
you have.
If replacement parts are required, contact the
source from which you purchased your dryer, or
contact us at [phone] for the name and
address of the nearest authorized parts
distributor.
DRY2030N
DRY2029N
Nameplate
To reduce the risk of serious injury or
death, DO NOT repair or replace any
part of the dryer or attempt any
servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and
have the skills to carry out.
W133
WARNING
