Alliance Laundry Systems 504523R3 Owner's manual

Metered and
Nonmetered
Commercial Single
Dryers
(Electric and Gas Models)
Part No. 504523R3
November 1998
Installation and Operation
REMARQUE: Le guide
est rédigé en anglais et en
français. La version
française figure à la suite
de la version anglaise.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the
dryer changes ownership, be sure this manual accompanies the dryer.)

504523 1
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed
if the dryer user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly
above must be posted in a prominent location near the dryer for customer use.
Electric models are not approved by the Canadian Gas Association.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
–Do not try to light any appliance.
–Do not touch any electrical switch; do not use any phone in your building.
–Clear the room, building or area of all occupants.
–Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
–If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
FOR YOUR SAFETY, the information in this manual must be followed to minimize the
risk of fire or explosion or to prevent property damage, personal injury or death.
WARNING
W033
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.

2504523
Table of
Contents
Replacement Parts ...............................................................................3
Important Safety Instructions .............................................................4
Roughing In Dimensions .....................................................................6
Meter Case ............................................................................................8
Timer Cams ..........................................................................................8
Dryer Slide Extension ..........................................................................9
Before You Start
Tools ..............................................................................................10
Exhaust ...........................................................................................10
Electrical.........................................................................................10
Gas..................................................................................................10
Location..........................................................................................10
Installing the Dryer
STEP 1 (Position and Level the Dryer) .........................................11
STEP 2 (Connect Dryer Exhaust System)......................................11
STEP 3 (Connect Gas Supply Pipe)...............................................12
STEP 4 (Wipe Out Inside of Dryer)...............................................13
STEP 5 (Plug in the Dryer) ............................................................13
STEP 6 (Check Installation)...........................................................13
Heat Source Check .............................................................................14
Reversing Door Procedure ................................................................15
Electrical Requirements (Electric Dryers) .......................................16
Electrical Requirements (Gas Dryers) .............................................17
Gas Requirements .............................................................................19
Location Requirements .....................................................................20
Dryer Exhaust Requirements
Exhaust System Materials ..............................................................21
Make Up Air Requirements............................................................22
Exhaust System ..............................................................................22
Exhaust Direction...........................................................................22
Exhaust System Maintenance.........................................................23
Dryer Airflow .................................................................................23
Reduced Clearance Elbow..............................................................23
Multi-Dryer Installation Exhaust Requirements ............................24
Manufactured (Mobile) Home Installation ......................................27
Lint Filter ............................................................................................28
Motor OverLoad Protector ...............................................................28
User-Maintenance Instructions
Lubrication .....................................................................................29
Care of Your Dryer.........................................................................29
Exhaust System ..............................................................................29
For Energy Conservation ..................................................................29
Before You Call for Service ...............................................................30
Additional Dryer Security .................................................................31
Operation Instructions for Electromechanical Dryers ...................32
Operation Instructions for Electronic Control Dryers ...................34
Information for Handy Reference ....................................................37
Installer Check .................................................................... Back Cover
©Copyright 1998, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without
the expressed written consent of the publisher.

504523 3
Replacement Parts . . .
If replacement parts are required, contact the source
where you purchased your dryer, or contact
Alliance Laundry Systems LLC
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
Phone: [phone]
for the name and address of the nearest authorized parts
distributor.

4504523
IMPORTANT SAFETY INSTRUCTIONS
(SAVE THESE INSTRUCTIONS)
1. Read all instructions before using the dryer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the dryer.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. This is a safety
rule for all appliances.
5. Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
6. Do not reach into the dryer if the cylinder is
revolving.
7. Do not install or store the dryer where it will be
exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the dryer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. ALWAYS clean the lint filter after every load. A
layer of lint in the filter reduces drying efficiency
and prolongs drying time.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Dryer will not operate with the loading door
open. DO NOT by-pass the door safety switch by
permitting the dryer to operate with the door
open. The dryer will stop tumbling when thedoor
is opened. Do not use the dryer if it does not stop
tumbling when the door is opened or starts
tumbling without pressing the START
mechanism. Remove the dryer from use and call
the service person.
17. Do not put articles soiled with vegetable or
cooking oil in the dryer, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
18. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with a dry-
cleaning solvent in the dryer.
19. Use the dryer only for its intended purpose,
drying clothes.
20. Always disconnect the electrical power to the
dryer before attempting service. Disconnect the
power cord by grasping the plug, not the cord.
21. Replace worn power cords and/or loose plugs.
22. Install this dryer according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding and
gas supply must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
23. Remove laundry immediately after the dryer
stops.
To reduce the risk of fire, electric shock, or
injury to persons when using your dryer,
follow these basic precautions: W034
WARNING

504523 5
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiber glass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiber glass.
26. ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the dryer with any guards and/or
panels removed.
28. DO NOT operate the dryer with missing or
broken parts.
29. DO NOT by-pass any safety devices.
30. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
IMPORTANT: Solvent vapors from dry-cleaning
machinescreate acidswhendrawnthroughthe heater
of the drying unit. These acids are corrosive to the
dryer as well as to the laundry load being dried. Be
sure make-up air is free of solvent vapors.
IMPORTANT: Have your dryer installed properly.
Don’t do it yourself unless you know how!
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearingin this manual
are not meant to cover all possible conditions and
situations that may occur. Common sense, caution
and care must be exercised when installing,
maintaining, or operating the dryer.
Always contact your dealer, distributor, service agent or
the manufacturer about any problems or conditions you
do not understand.

6504523

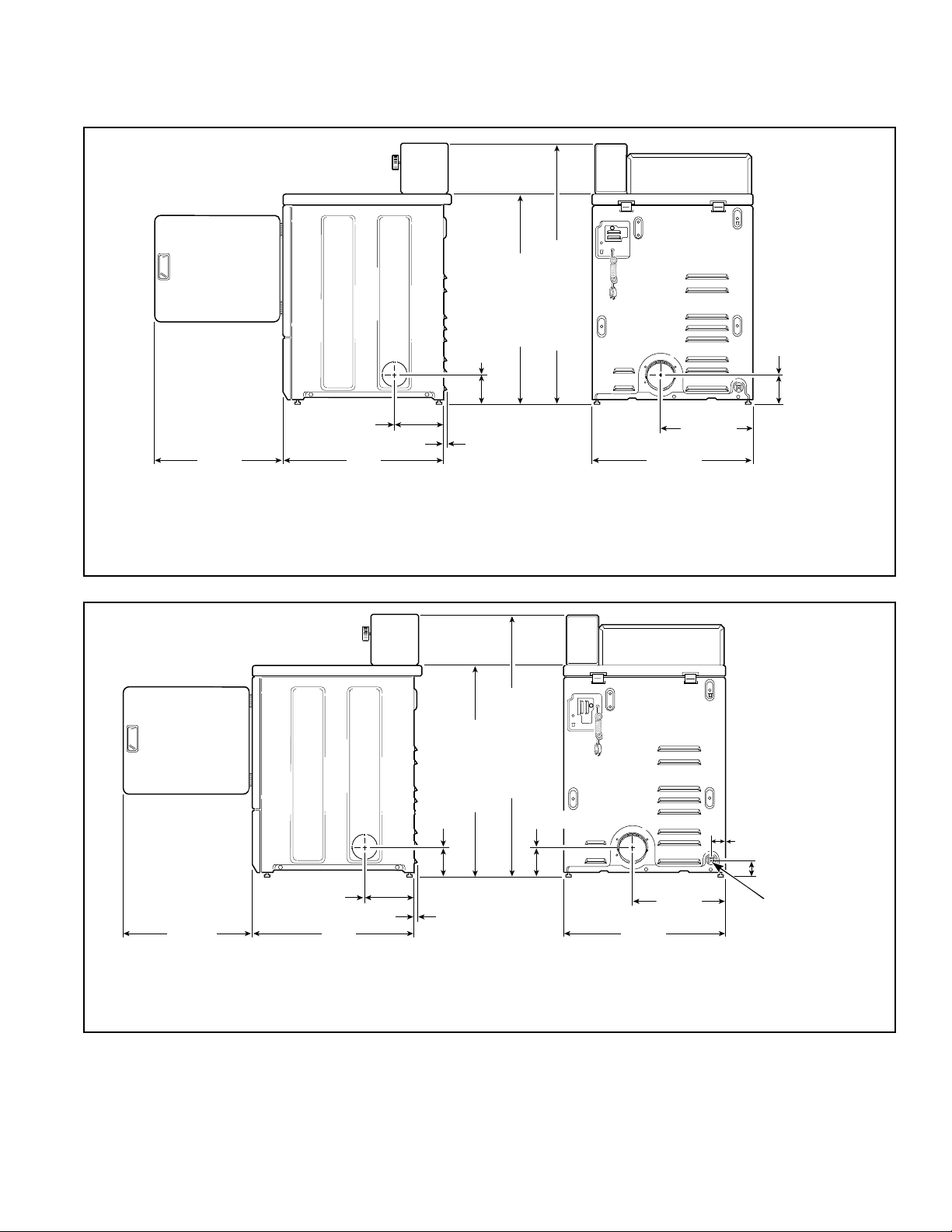

Roughing In Dimensions . . .
(Metered Models)
NOTE: Side, rear and bottom exhaust openings are
10.2 cm (four inch) ducting. Gas models cannot be
vented out left side of cabinet because of burner
housing.
IMPORTANT: The dryer should have sufficient
clearance around itfor needed ventilation and for the
ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
D329IE3F
59.7 cm
(23.5")
*91.4 cm (36")
*109.7 cm (43.2")
71.1 cm
(28")
1.0 cm
(.4") 68.3 cm
(26.9")
19.6 cm
(7.7")
10.2 cm
(4.0")
39.1 cm
(15.4")
10.2 cm
(4.0")
* WITH LEVELING LEGS TURNED INTO BASE.
ELECTRIC MODELS
D330IE3F
59.7 cm
(23.5")
*91.4 cm (36")
*109.7 cm (43.2")
71.1 cm
(28")
1.0 cm
(.4") 68.3 cm
(26.9")
19.6 cm
(7.7") 39.1 cm
(15.4")
10.2 cm
(4.0")
* WITH LEVELING LEGS TURNED INTO BASE.
7 cm
(2.8")
6 cm
(2.3")
10.2 cm
(4.0")
3/8"
NPT GAS
CONNECTION
GAS MODELS

504523 7
Roughing In Dimensions . . .
(Nonmetered Models)
NOTE: Side, rear and bottom exhaust openings are
10.2 cm (four inch) ducting. Gas models cannot be
vented out left side of cabinet because of burner
housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for the
ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
D331IE3D
* WITH LEVELING LEGS TURNED INTO BASE.
ELECTRIC MODELS
59.7 cm
(23.5")
*91.4 cm (36")
*109.7 cm (43.2")
71.1 cm
(28") 1.0 cm
(.4") 68.3 cm
(26.9")
19.6 cm
(7.7")
10.2 cm
(4.0")
39.1 cm
(15.4")
10.2 cm
(4.0")
D332IE3D
* WITH LEVELING LEGS TURNED INTO BASE.
3/8"
NPT GAS
CONNECTION
GAS MODELS
59.7 cm
(23.5")
*91.4 cm (36")
*109.7 cm (43.2")
71.1 cm
(28") 1.0 cm
(.4")
6 cm
(2.3")
68.3 cm
(26.9")
19.6 cm
(7.7")
10.2 cm
(4.0")
39.1 cm
(15.4")
10.2 cm
(4.0")

8504523
Meter Case . . .
(Metered Models)
The factorymounted coin meter case does notinclude the
service door lock, coin drawer, coin drawer lock and
keys. These parts must be ordered (at extra cost)
according to the purchaser’s requirements direct from the
manufacturer of your choice.
NOTE:You have theoptionof usinga screw type lock
or a 1/4 turn lock on the meter case service door. If
you choose to use a screw lock, then the special
bracket (located inside the meter case) must be used.
DO NOT use the special bracket if a 1/4 turn lock is
used.
Coin Drawer Security — for additional security, drill
outthe twopilotholeson each frontside of themetercase
to 1/4 or 5/16 inch (6.4 or 8.0 mm) holes and install a
bicycle lock through these holes.
Timer Cams . . .
(Metered Models)
The dryer timer is factory equipped with a 45 minute
timing cam. If this drying time is not suitable to your installation, the following cams can be found in the envelope located in the cylinder:
Electric Dryers Gas Dryers
1-53242 Cams (30 Minutes) 1-53242 Cams (30 Minutes)
1-53240 Cams (60 Minutes)
A 60 minute timing cam, Part No. 53240, is available for gas
dryers as optional equipment at extra cost.

504523 9
Dryer Slide Extension . . .

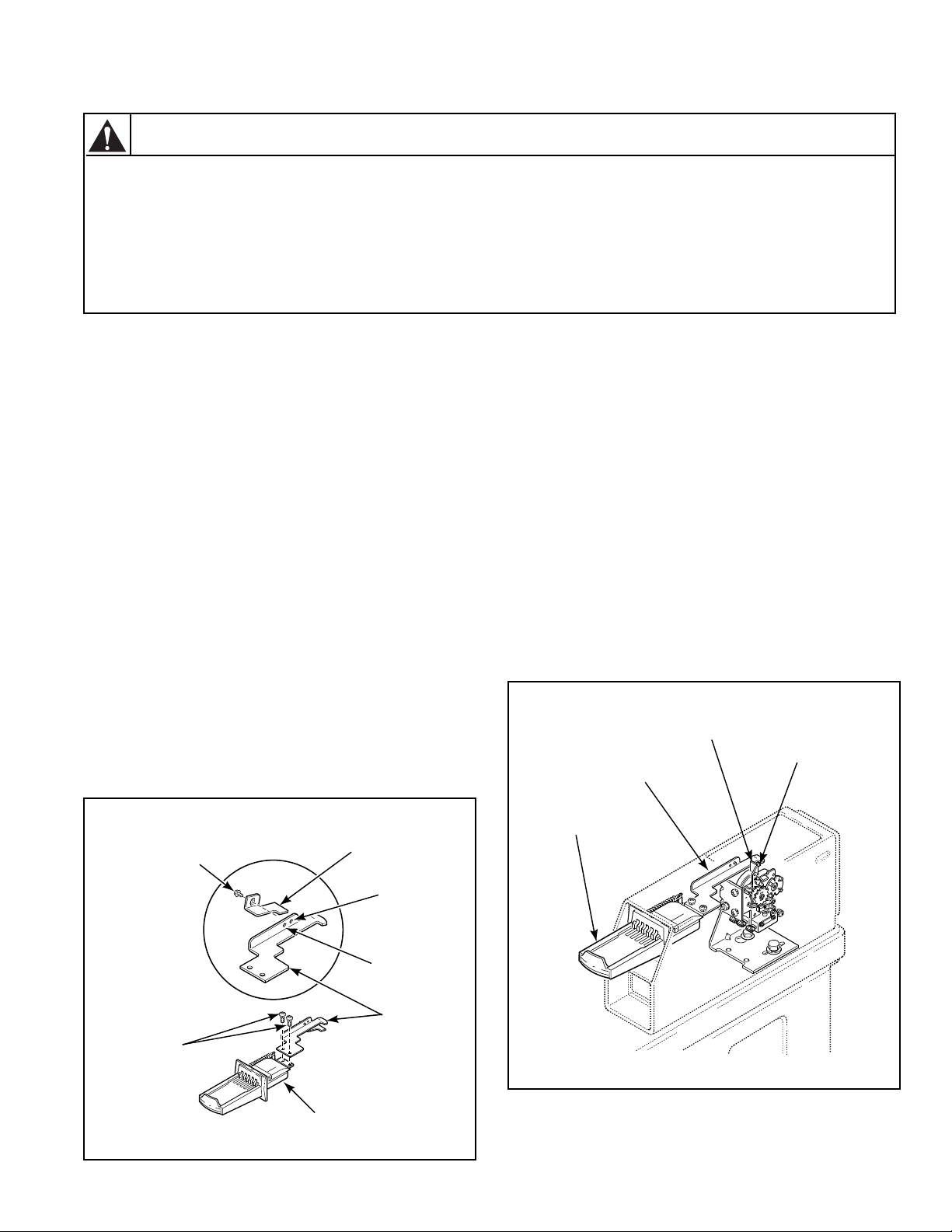

1. Assemble coin slide extension, No. 503733, to top
side of coin slide using two Phillips head screws and
lockwashers, No. 03950. Tighten firmly.
2. Install slide extension modifier, No. 501796, as
follows:
NOTE: Dryers equipped with Greenwald coin slides
(except for Greenwald Comet Slide or Greenwald
Tokette Slide) do not require the use of the slide
extension modifier.
•ESD Coin Slide – Mount slide extension
modifier, No. 501796, to the underside of slide
extension, No.503733. Align the hole in the slide
extension modifier with hole “A” in the slide
extension and install self-tapping screw, No.
501086. Tighten firmly.
•GREENWALD Comet Slide, GREENWALD
Tokette Slide or MONARCH Coin Slide –
Mount slide extension modifier, No. 501796, to
the underside of slide extension, No. 503733.
Alignthe holeintheslideextensionmodifierwith
hole “B” in the slide extension and install self-
tapping screw, No. 501086. Tighten firmly.
3. Reinstall coin slide in dryer meter case.
4. CHECK DRYER OPERATION – Connect electrical
power to dryer. Place required number of coins in
coin slide. Push slidein, and observe through service
door opening in meter case. The slide extension
should be contacting the accumulator actuator arm
and moving back with slide travel.
When slide is pushed all theway in, slide is retracted.
Accumulator actuator arm should remain back until
slide extension is moved forward and contacts
actuatorarm agian,returningarmtostartingposition.
5. After completing the dryer check, reinstall service
door on top of meter case.
NOTE: When reinstalling service door, front of door
mustbe insertedatabouta45°angleinorderto engage
notched tabs with internal rib at top of meter case.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the dryer(s) before servicing.
• Close gas shut-off valve to gas dryer(s) before servicing.
• Never start the dryer(s) with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the dryer is properly grounded.
W001R1
WARNING
D019KE1C
COIN
SLIDE
03950
PHILLIPS
HEAD
SCREWS
AND
LOCKWASHERS
HOLE "B"
503733
SLIDE
EXTENSION
HOLE "A"
501796
SLIDE EXTENSION
MODIFIER
501086
SELF-TAPPING
SCREW
D044KE1A
ACCUMULATOR
ACTUATOR ARM SLIDE
EXTENSION
MODIFIER
SLIDE
EXTENSION
COIN
SLIDE

10 504523
Before You Start . . .

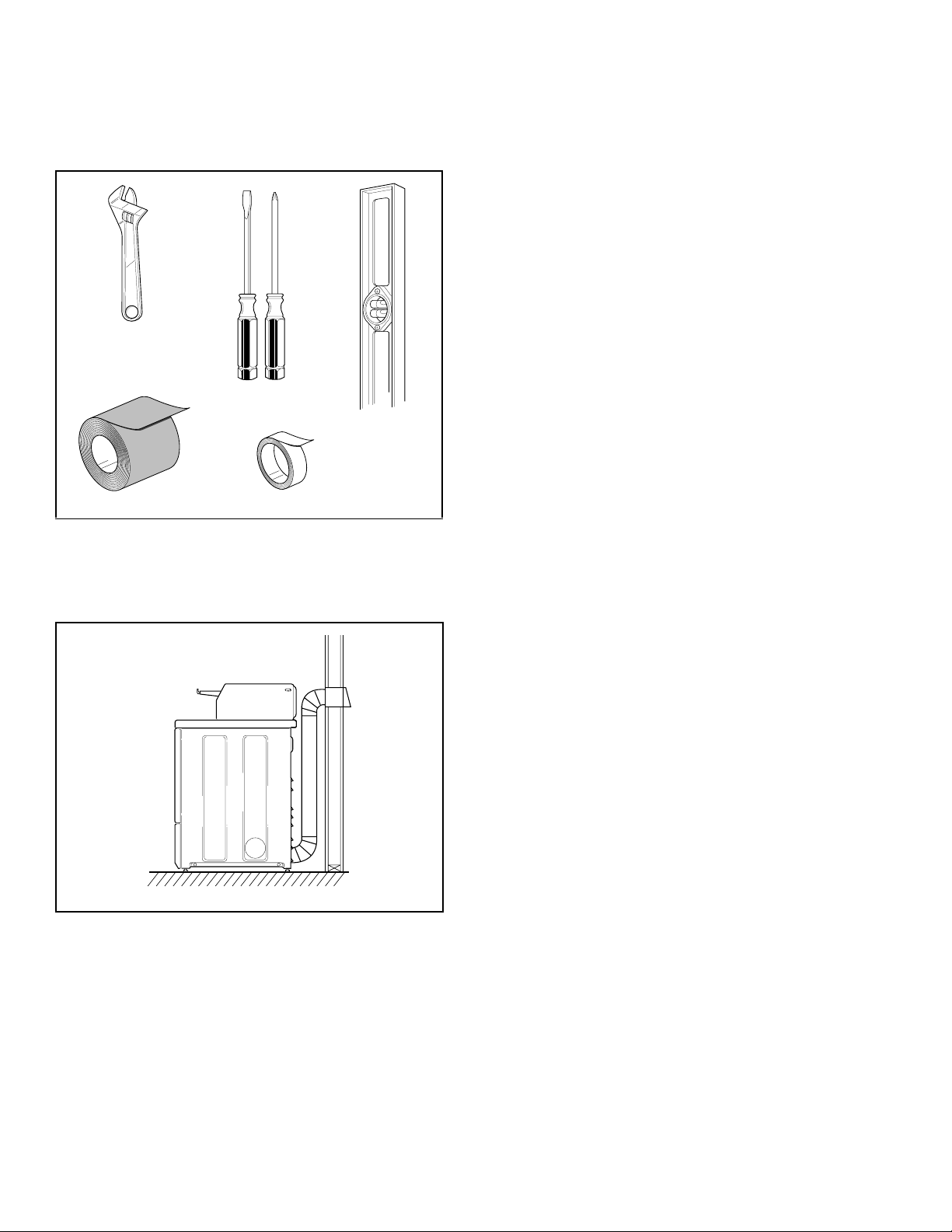

Tools
For most installations, the basic tools you will need are:
Exhaust
Use rigid metal duct and exhaust the dryer to the outside
by the shortest route possible.
NOTE: For more detailed information, refer to
Section on Dryer Exhaust Requirements.
Electrical
•ELECTRIC DRYER
Dryer needs a 3 wire and ground, 120/240 or 120/208
Volt, 30Amp., 60 Hertz, AC single Phase electrical
supply.
•GAS DRYER
Dryer needs a 120 Volt, 15 Amp., 60 Hertz, polarized
3-slot effectively grounded receptacle.
NOTE: For more detailed information, refer to
Section on Electrical Requirements.
Gas
Dryer is equipped for Natural Gas with a 3/8"NPT gas
supply connection. For more detailed information, refer
to Section on Gas Requirements.
Location
Place the dryer on a solid floor with an adequate air
supply.Formoredetailedinformation,refertoSectionon
Location Requirements.
D074IE1F
DUCT TAPE TEFLON TAPE
WRENCH
LEVEL
SCREWDRIVERS
D333I

504523 11
Installing the Dryer . . .
STEP 1:
Position and Level
the Dryer
For further assistance refer to Section on Location
Requirements.
Install dryer before washer. This allows room for
attaching exhaust duct.
Install the four rubber cups found in the accessory bag.
Place the dryer in position, and adjust the legs until the
dryer is level.
STEP 2:
Connect Dryer Exhaust System
For further assistance refer to Sections on Location
Requirements and Dryer Exhaust Requirements.
• DO NOT use plastic or thin foil flexible ducting.
• Locate dryer so exhaust duct is as short as possible.
• Be certain old ducts are cleaned before installing your
new dryer.
• Use 10.2 cm (4") diameter rigid or flexible metal duct.
• Use as few elbows as possible.
• Use duct tape on all joints.
• Failure to exhaust dryer properly will void
warranty.
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
IMPORTANT: DO NOT block the airflow at the
bottom of the dryer’s front panel with laundry, rugs,
etc. Blockage will decrease airflow through the dryer,
thus reducing the efficiency of the dryer.
D334IE1A
LEVEL
DRYER
BASE
LEVELING
LEG
RUBBER
CUP

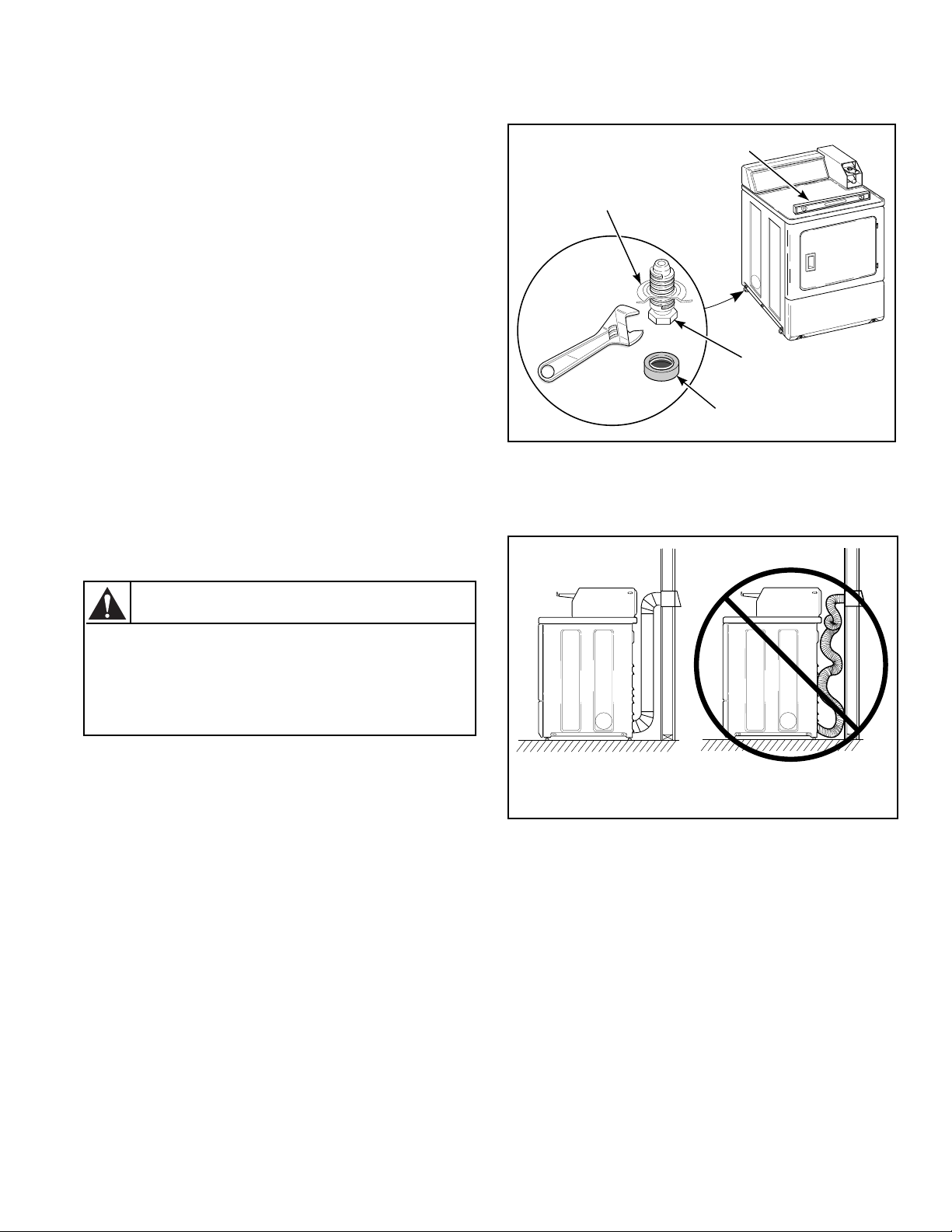

A clothes dryer produces combustible lint. To
reduce the risk of fire and combustion gas
accumulation the dryer MUST be exhausted to
the outdoors. W116
WARNING
DO
D333IE1A
DON’T
D335IE1A

12 504523
STEP 3: (Gas Dryer ONLY)
Connect Gas Supply Pipe
For further assistance, refer to Section on Gas Requirements.
1. Make certain dryer is equipped for use with the type
of gas in laundry room. Dryer is equipped at the
factory for Natural Gas with a 3/8" NPT gas
connection.
2. Remove the shipping cap from the gas connection at
the rear of the dryer. Make sure you do not damage
the pipe threads when removing the cap.
3. Connect to gas supply pipe.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external) for
gas leaks with a non-corrosive leak detection fluid.
5. For L.P.(Propane)gasconnection,refertoSectionon
Gas Requirements.

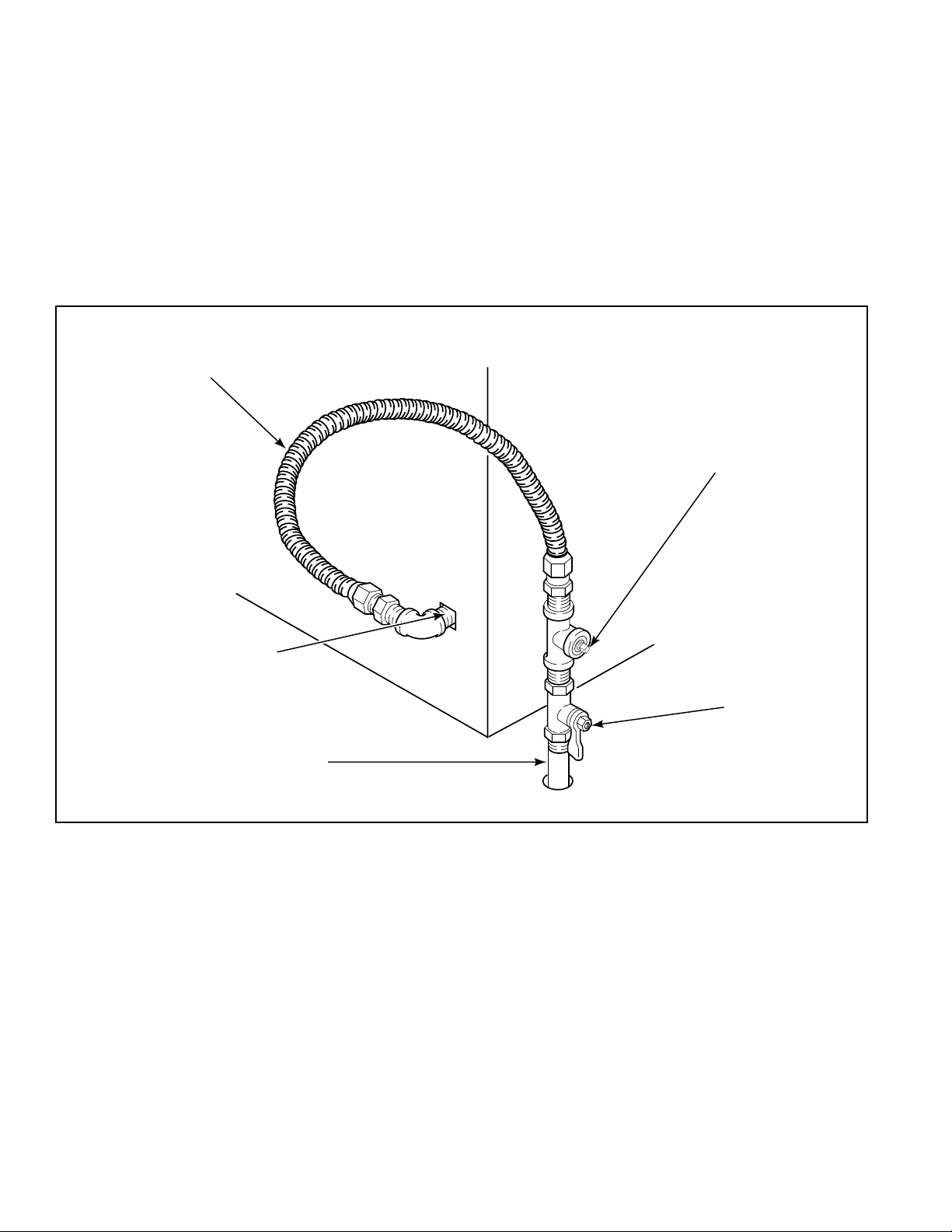

3/8" NPT
GAS CONNECTION
1/8" NPT
PIPE PLUG
(For checking
inlet gas pressure)
NEW
STAINLESS STEEL
FLEXIBLE
CONNECTOR
USE ONLY
IF ALLOWED
BY LOCAL
CODES
(Use
Design A.G.A.
Certified
Connector)
EQUIPMENT
SHUT-OFF
VALVE
Install within
1.8 m (6') of dryer
D233IE3H
BLACK IRON PIPE
Shorter than 6.1 m (20') - use 3/8" pipe
Longer than 6.1 m (20') - use 1/2" pipe

504523 13
STEP 4:
Wipe Out Inside Of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
STEP 5:
Plug in the Dryer
Refer to Section on Electrical Requirements, and
connect the dryer to an electrical power source.
STEP 6:
Check Installation
Refer to InstallerCheckon the back cover of this manual
and make sure that dryer is installed correctly.
D340I
D006IE0B
ELECTRIC
D254IE0B
GAS
Plug core into seperately fused
15 Amp circuit.
Connect to 30 Amp circuit.

14 504523
Heat Source Check . . .
(Electric Dryers)
Metered Models
Set the proper FABRIC SELECTOR switch at
NORMAL. Place coins in the slide and carefully push
slide in as far as possible. IN USE light will come on
indicating the dryer is ready to operate.Close the loading
door and press the PUSH-TO-START button firmly to
start the dryer. After the dryer has operated for three
minutes, the exhaust air or exhaust pipe should be warm.
Nonmetered Models
Set FABRIC SELECTOR switch at NORMAL and turn
timer knob to 50. Close the loading door and press the
PUSH-TO-START button. IN USE light will come on
indicating start of cycle. After the dryer has operated for
three minutes, the exhaust air or exhaust pipe should be
warm.
(Gas Dryers)
During the gas heatcheck, observe the burner flame. The
flame can be viewed by removing the lower frontpanel of
the dryer.
Metered Models
Set FABRIC SELECTOR switch at NORMAL. Place
coins in the slide and carefully push slide in as far as
possible. IN USE light will come on indicating the dryer
is ready to operate. Close the loading door and press the
PUSH-TO-START button firmly. The dryer will start, the
igniter will glow red and the main burner will ignite.
Nonmetered Models
Set FABRIC SELECTOR switch at NORMAL and turn
timer knob to 50. Close the loading door and press the
PUSH-TO-START button. IN USE light will come on
indicating start of cycle, igniter will glow red and main
burner will ignite.
IMPORTANT: If all air is not purged out of the gas
line, the gas igniter may go off before the gas is
ignited. If this happens, after approximately two
minutes the igniter will again attempt gas ignition.
All Models
After the dryer has operated for approximately five
minutes, observe burner flame. Adjust the air shutter to
obtain a soft, uniform blue flame. (A lazy, yellow tipped
flame indicates lack of air. A harsh, roaring, very blue
flame indicates too much air.) Adjust the air shutter as
follows:
1. Loosen the air shutter lockscrew.
2. Turn the air shutter to the left to get a luminous
yellow tipped flame, then turn it back slowly to the
right to obtain a steady soft blue flame.
3. After the air shutter is adjusted for proper flame,
tighten the air shutter lockscrew securely.
4. Reinstall the lower front panel.
After the dryer has operated for approximately three
minutes, the exhaust air or exhaust pipe should be warm.
For personal safety, lower front panel must
be in place during normal operation. W046
WARNING
D157IE3B

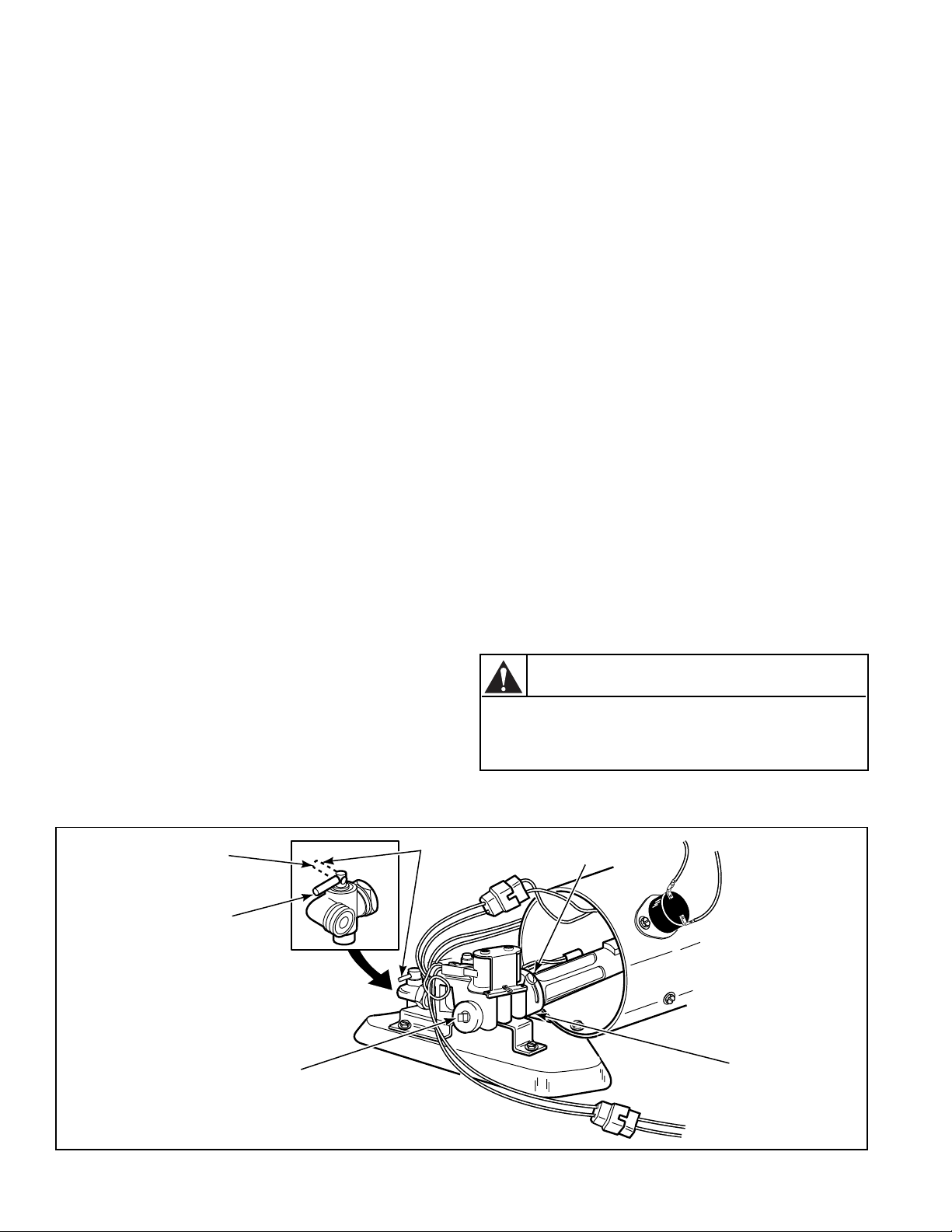

AIR SHUTTER
LOCKSCREW
AIR
SHUTTER
1/8"
PIPE PLUG
(For checking
manifold pressure)
OPEN
POSITION
CLOSED
POSITION SHUT-OFF
VALVE
HANDLE

504523 15
Reversing Door Procedure . . .
The door on this dryer is completely reversible. To reverse door proceed as follows:
Remove four
hinge attaching
screws.
D347IE1B
12
D348IE1B
Remove all
nine screws.
D268PE1C
Pull bottom of
door liner out,
then pull down,
removing door
liner from door
panel.
B
A
3
D273PE1B
Rotate door panel
180 degrees
as shown.
4
D276PE1B
Remove door strike
from door liner
and reinstall on
opposite side.
5
D269PE1D
6
Insert liner under
flange on bottom of
door, then push
top of door
liner into place.
B
A
D270PE1B
Reinstall nine screws
removed in Step 2.
78
D345IE1B
Using a screwdriver,
remove two door
plugs, and reinstall
on opposite side
of door opening.
D346IE1A
9
Reinstall four
hinge attaching
screws removed
in Step 1.

16 504523
Electrical Requirements . . .
(Electric Dryers)
(120/240 Volt, 60 Hertz, 3-Wire and Ground Installation)
(120/208 Volt, 60 Hertz, 3-Wire and Ground Installation)
NOTE: The wiring diagram is located inside the
control hood. Grounding and Wiring Instructions
The electric service must be a separate branch,
polarized, three-wire and ground, 120/240 Volt, or 120/
208 Volt, 60 Hz, AC single phase circuit fused with
30 ampere fuses.
The cord and plug assembly (supplied with dryer) should
be plugged into an approved receptacle that is mounted
on the wall adjacent to the dryer. This receptacle should
be accessible to the user or service person when the dryer
is in position, to permit disconnecting when necessary.
If thebranch circuit to the dryer is4.57 mt (15 fee)or less
in length, use No. 10 AWG wire or as required by local
codes. If over 4.57 m (15 feet), a No. 8 AWG wire should
be used, or as required by local codes.
To reduce the risk of fire, electric shock or
personal injury, all wiring and grounding
MUST conform with the latest edition of the
National Electrical Code ANSI/NFPA 70 or the
Canadian Electrical Code, CSA C22.1, and
such local regulations as might apply. It is
the customer’s responsibility to have the
wiring and fuses checked by a qualified
electrician to make sure the laundry room
has adequate electrical power to operate the
dryer. W035
WARNING

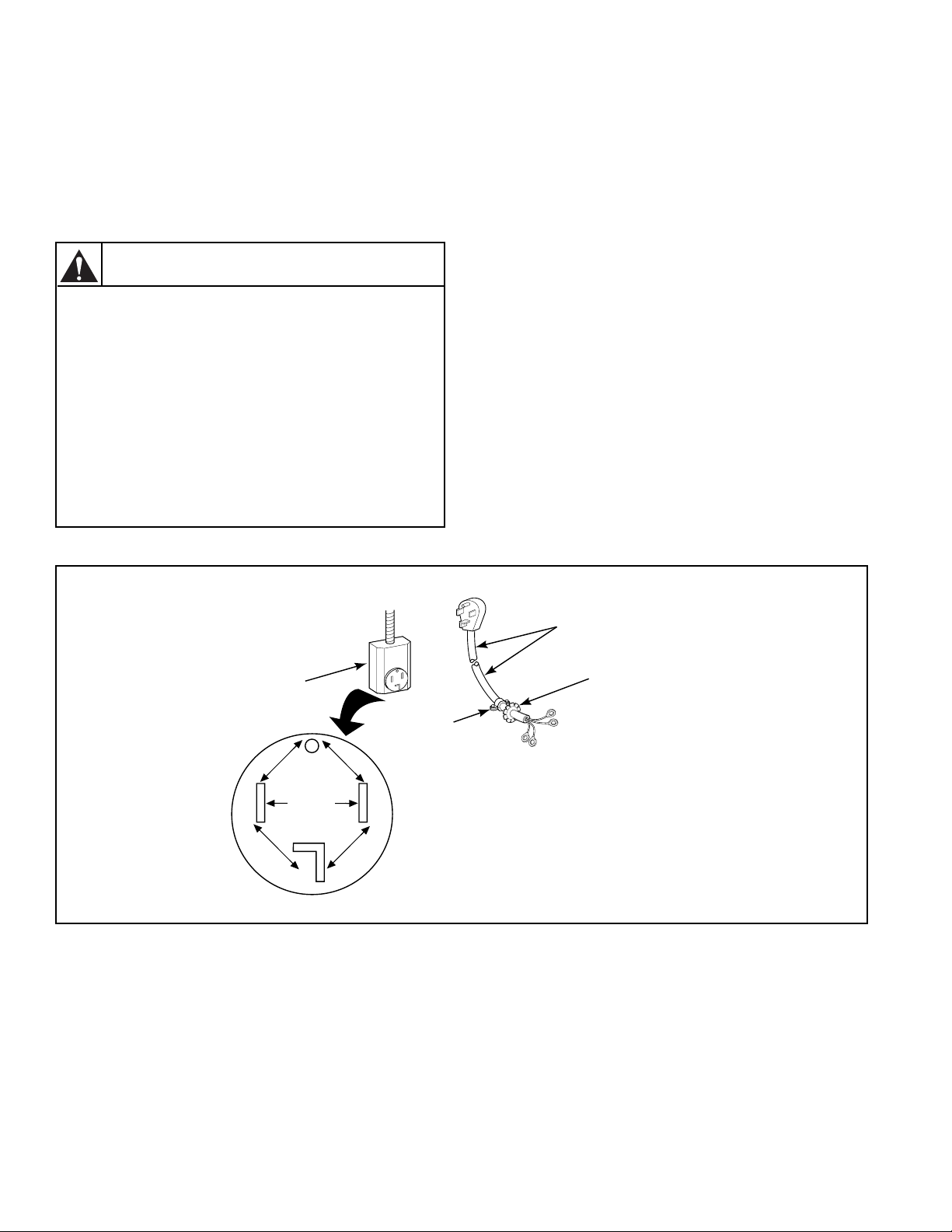

STRAIN
RELIEF
NUT
TYPICAL
FOUR-WIRE
RECEPTACLE
POWER CORD
(Four-Wire)
STRAIN
RELIEF D006IE2B
D106GE2A
120 ± 12
V.A.C.
120 ± 12
V.A.C.
120 ± 12
V.A.C.
120 ± 12
V.A.C.
240 ± 12
V.A.C.

504523 17
Electrical Requirements . . .
(Gas Dryers)
(120 Volt, 60 Hertz, With 3-Prong Grounding Plug)
NOTE: The wiring diagram is located inside the
control hood.
• The dryer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current) circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
• The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 120 Volts AC
(alternating current) 15 Amps. See illustration for
determining correct polarity of the wall receptacle.
.
NOTE: A qualified electrician should check the
polarity of the wall receptacles. If a voltage reading is
measured other than that illustrated, the qualified
electrician should correct the problem.
• DO NOT OPERATEOTHERAPPLIANCES ON THE
SAME CIRCUIT WHEN THIS APPLIANCE IS
OPERATING. DO NOT OVERLOAD CIRCUITS!
See illustration below.
To reduce the risk of fire, electric shock or
personal injury, all wiring and grounding
MUST conform with the latest edition of the
National Electrical Code ANSI/NFPA 70 or the
Canadian Electrical Code, CSA C22.1, and
such local regulations as might apply. It is
the customer’s responsibility to have the
wiring and fuses checked by a qualified
electrician to make sure the laundry room
has adequate electrical power to operate the
dryer. W035
WARNING
This dryer is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged directly
into a properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this plug. W036
WARNING
D090IE1C
STANDARD
120 VOLT,
60 HERTZ,
3-WIRE EFFECTIVELY
GROUNDED CIRCUIT
NEUTRAL
SIDE
ROUND
GROUNDING PRONG
GROUND NEUTRAL
L1
0
V.A.C.
115 ±12
V.A.C.
115 ±12
V.A.C.
D009IE0B
DO NOT
OVERLOAD
CIRCUITS
To reduce the risk of an electric shock or fire,
DO NOT use an extension cord or an adapter
to connect the dryer to the electrical power
source. W037
WARNING

18 504523
Grounding Instructions
• The dryer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dryer is equipped
with a cord having an equipment-grounding conductor
and a three prong grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
•DO NOT modify the plug provided with the dryer—if
it will not fit the outlet,have a proper outlet installed by
a qualified electrician.
• If the laundry room’s electrical supply does not meet
the above specifications and/or if you are not sure the
laundry room has an effective ground, have a qualified
electrician or your local electrical utility company
check it and correct any problems.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the dryer is properly
grounded.
WARNING
W038
