Alliance Laundry Systems UL15F069 Guide

Installation/Operation
www.comlaundry.com
Chest Heated
Finishers
15 inch (370 mm) Models and 20 inch (500 mm) Models
Refer to Page 2 for Model Identification
Part No. 1800001R1
September 2007
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
1800001 1
Table of
Contents
Introduction......................................................................................... 2
Model Identification ............................................................................. 2
Serial Plate Location............................................................................. 3
Replacement Parts ................................................................................ 3
Customer Service.................................................................................. 3
Safety.................................................................................................... 4
Explanation of Safety Messages........................................................... 4
Important Safety Instructions ............................................................... 5
Installation........................................................................................... 7
Dimensions and Specifications............................................................. 7
UL15 Models ................................................................................... 7
UL20 Models ................................................................................... 7
Dimensions ...................................................................................... 8
Dimensions ...................................................................................... 9
Pre-Installation Inspection .................................................................... 10
Location Requirements......................................................................... 10

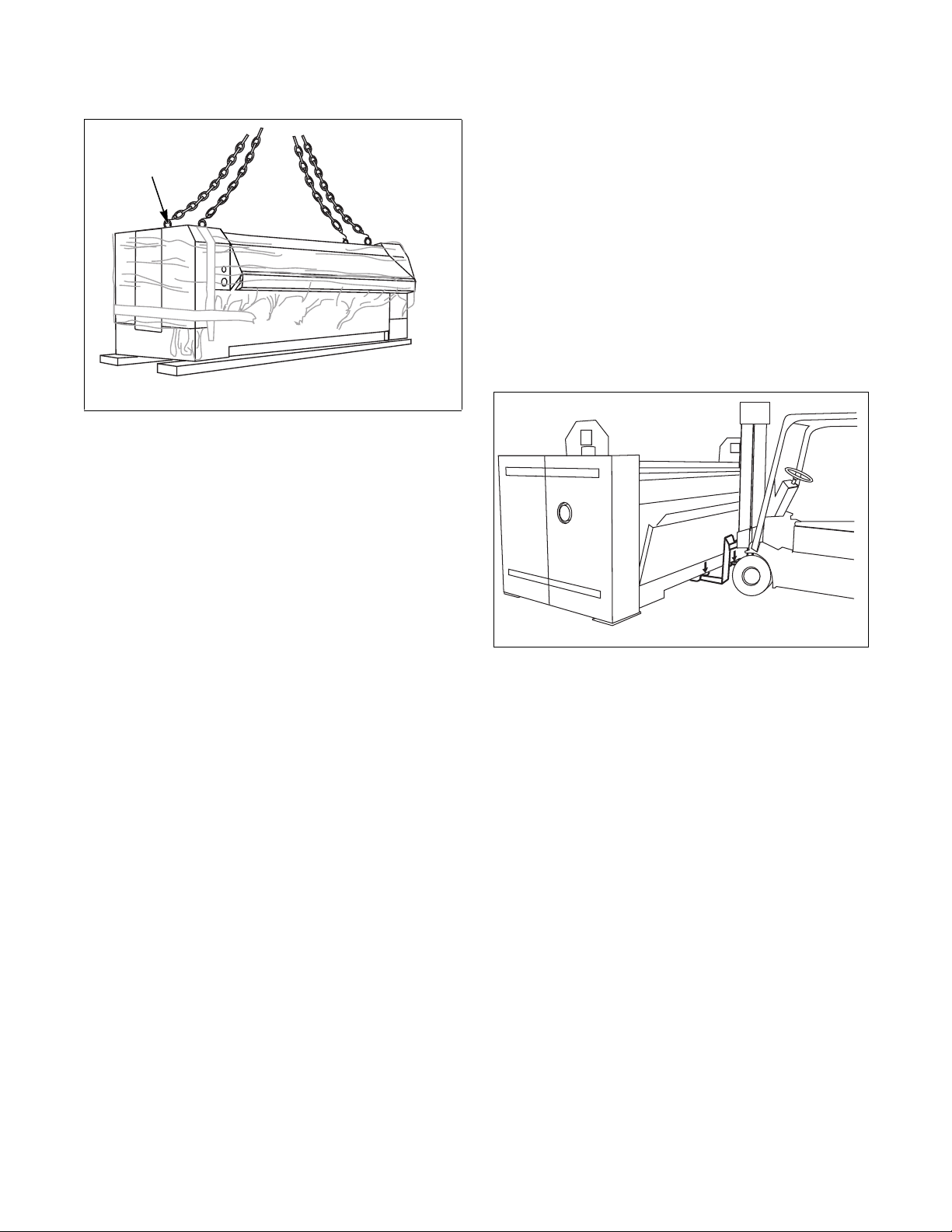

Moving Finisher with Crane................................................................. 11
Moving Finisher with Forklift .............................................................. 11
Electrical Connection............................................................................ 12
Gas Connection..................................................................................... 13
Inlet Pressure.................................................................................... 14
Manifold Pressure ............................................................................ 14
Exhaust Requirements .......................................................................... 15
Commissioning Procedures .................................................................. 16
Purging Moisture ............................................................................. 16
Operation Instructions ....................................................................... 17
Pre-Operation........................................................................................ 17
Daily Check Points .......................................................................... 17
Operating Instructions .......................................................................... 18
Temperature Setting.............................................................................. 18
Maintenance ........................................................................................ 19
General Maintenance ............................................................................ 19
Cleaning the Beds ................................................................................. 20
Cleaning Beds .................................................................................. 20
Padding Specification ...................................................................... 20
Reclothing Roll ................................................................................ 20
Baking of Roll Padding.................................................................... 21
Hydraulic Pressure Settings.................................................................. 22
Scrapers............................................................................................ 23
Extended Periods of Non-Use .............................................................. 23
Troubleshooting .................................................................................. 24
Troubleshooting Guide ......................................................................... 24
Troubleshooting Undesirable Finishes ................................................. 25

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1800001
2
Introduction
Model Identification
Information in this manual is applicable to these
models:
UL15F069 UL20F079
UL15F079 UL20F099
UL15F099 UL20F118
UL15F118 UL20F130
UL15R069 UL20R079
UL15R079 UL20R099
UL15R099 UL20R118
UL15R118 UL20R130
UL20A118
UL20A130

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
3
1800001
Serial Plate Location
Always provide the machine’s serial number and
model number when ordering parts or when seeking
technical assistance. Refer to Figure 1 for serial plate
location.
Figure 1
Replacement Parts
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
Customer Service
For technical assistance, call the following number:
[phone]
Ripon, Wisconsin
P101119
1Serial Plate
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1800001
4
Safety
Explanation of Safety Messages
Safe operating and maintenance practices presented in
this manual are emphasized with special safety
messages. These messages are categorized as
DANGER, WARNING and CAUTION. Explanations
of these categories are listed below.
These safety messages are used throughout this
manual to identify safe practices. Signal words are
placed with descriptions or steps where the need to
maintain safe conditions is critical.
Safety signs and labels are also placed on the unit.
Those signs and labels are limited messages. These
signs are to be inspected for readability and replaced
when missing, damaged, or unreadable. Refer to the
Maintenance section of this manual for the periodic
maintenance schedule. Refer to the parts manual for
ordering information.
IMPORTANT: The word "IMPORTANT" is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word "NOTE" is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
The WARNING and IMPORTANT instructions
appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It
must be understood that common sense, caution and
carefulness are factors which CANNOT be built into
this finisher. These facts MUST BE supplied by the
person(s) installing, maintaining or operating the
finisher.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety
5
1800001
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the finisher.
2. Do not finish articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
3. Do not allow children to play on or around the
finisher. Close supervision of children is
necessary when the finisher is used near children.
This is a safety rule for all appliances.
4. Check the operation of the safety finger guard at
the beginning of every shift. Operating the safety
guard should stop the finisher immediately. If this
safety feature is not working properly, employees
must shut off the finisher and notify the
supervisor. Do not operate the finisher until the
safety finger guard is repaired and working
properly. Be sure that all other safety features,
including guards and panels, are in place before
operating the finisher.
5. Never service the finisher while it is running.
Never reach over, under, or behind the safety
finger guard or into any area near hot surfaces or
moving parts without first shutting off the
finisher at the switch and power source. Follow
this rule whenever working on the finisher to
avoid serious injury from the finisher’s heat and/
or pressure.
6. Never try to remove, adjust, or straighten jammed
or misfed linen while the finisher is running.
Attempting to clear the jammed linen item can
result in the user being caught in the linen and
pulled into the finisher. If something is jammed
in the finisher, turn off the power before
attempting to correct the problem. Avoid contact
with heated parts.
7. Protect yourself and fellow workers by making
sure that everyone follows all the rules. Read and
follow all safety labels and warnings. Learn all
aspects of the equipment such as what is hot,
which parts move, all safety shut-offs, and all
emergency procedures. Do not come close to
moving or heated parts. Do not wear loose
clothing, sweaters, jewelry, or neck ties when
near the finisher.
8. Frequent scheduled safety meetings are a must to
review and update rules. If anyone is observed
breaking the rules, the supervisor or manager
should be notified immediately. Reporting people
for rule breaking could save their lives or limbs.
9. Emergency shut-offs such as finger bars and
emergency stop switches, should be painted red
and clearly labeled.
10. Maintenance personnel should work in a buddy
system for mutual protection when working on a
finisher.
11. If in doubt, don’t. Do not do anything until the
supervisor or service-maintenance department
has been contacted. Only qualified personnel
should service the finisher.
12. Do not install or store the finisher where it will be
exposed to water and/or weather.
13. Do not tamper with the controls.
14. Do not repair or replace any part of the finisher or
attempt any servicing unless specifically
recommended in this installation/operation
manual.
15. To reduce the risk of fire, DO NOT FINISH
plastics or articles containing foam rubber or
similarly textured rubber-like materials.
16. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust, and dirt.
17. The interior of the finisher and the exhaust duct
should be cleaned periodically by qualified
service personnel.
18. If not installed, operated, and maintained in
accordance with the manufacturer’s instructions,
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects, or other
reproductive harm.
WARNING
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your press, follow these basic
precautions: W372

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety
1800001
6
19. To reduce the risk of fire, DO NOT FINISH put
articles which have traces of any flammable
substances such as machine oil, vegetable oil or
cooking oil, flammable chemicals, thinner, etc. or
anything containing wax or chemicals such as in
mops and cleaning cloths, or anything dry-
cleaned at home with dry-cleaning solvent.
20. ALWAYS disconnect the electrical power to the
finisher before servicing. Disconnect power by
shutting off appropriate breaker or fuse.
21. Install this finisher according to the Installation
instructions in this manual. All connections for
electrical power, grounding, and gas supply must
comply with local codes and be made by licensed
personnel when required.
22. Do not turn hard or meltable materials into the
machine.
23. Do not operate the machine without feed sheets.
24. Do not crawl or walk on the machine.
25. Always wear protective gloves when working at
the machine. The beds are hot and hot linen exits
the machine.
To prevent serious injury or death, read
finisher manuals before installing,
operating, maintaining, or cleaning the
finisher. W676
WARNING
To AVOID possible serious injury,
BEFORE maintenance or repair tasks:
• Disconnect all utilities such as gas,
electricity and steam.
• Allow heated parts and surfaces to cool.
W677
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7
1800001
Installation
Dimensions and Specifications
UL15 Models
UL20 Models
UL15*069 UL15*079 UL15*099 UL15*118
Roll Motor
*Optional High Speed
.24 hp
(.37 kW)
*.5 hp
*(.37 kW)
.24 hp
(.37 kW)
*.5 hp
*(.37 kW)
.5 hp
(.37 kW)
*2.01 hp
*(1.5 kW)
.5 hp
(.37 kW)
*2.01 hp
*(1.5 kW)
Exhaust Motor .34 hp
(.25kW)
.34 hp
(.25 kW)
.34 hp
(.25 kW)
.34 hp
(.25 kW)
Hydraulic Pump
Motor
.5 hp
(.37 kW)
.5 hp
(.37 kW)
.5 hp
(.37 kW)
.5 hp
(.37 kW)
Circulation Pump
Motor
2.95 hp
(2.2 kW)
2.95 hp
(2.2 kW)
2.95 hp
(2.2 kW)
2.95 hp
(2.2 kW)
Approx. Shipping Weight 1874 lb.
(850 kg)
2050 lb.
(930 kg)
2491 lb.
(1130 kg)
2976 lb.
(1350 kg)
Approx. Net Weight 1543 lb.
(700 kg)
1720 lb.
(780 kg)
2161 lb.
(980 kg)
2646 lb.
(1200 kg)
UL20*079 UL20*099 UL20*118 UL20*130
Roll Motor
*Optional High Speed
.5 hp
(.37 kW)
*2.01 hp
*(1.5 kW)
.5 hp
(.37 kW)
*2.01 hp
*(1.5 kW)
.5 hp
(.37 kW)
*2.01 hp
*(1.5 kW)
.5 hp
(.37 kW)
*2.01 hp
*(1.5 kW)
Exhaust Motor .34 hp
(.25kW)
.34 hp
(.25 kW)
.34 hp
(.25 kW)
.34 hp
(.25 kW)
Hydraulic Pump
Motor
.5 hp
(.37 kW)
.5 hp
(.37 kW)
.5 hp
(.37 kW)
.5 hp
(.37 kW)
Circulation Pump
Motor
2.95 hp
(2.2 kW)
2.95 hp
(2.2 kW)
2.95 hp
(2.2 kW)
2.95 hp
(2.2 kW)
Approx. Shipping Weight 3197 lb.
(1450 kg)
3527 lb.
(1600 kg)
3803 lb.
(1725 kg)
4078 lb.
(1850 kg)
Approx. Net Weight 2645 lb.
(1200 kg)
2976 lb.
(1350 kg)
3252 lb.
(1475 kg)
3527 lb
(1600 kg)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
1800001
8
Dimensions
UL15 Models
FWF54N
FWF55N
With Delivery Table
Without Delivery Table
41 in.
(1050 mm)
14o
Gas Inlet
.5 in.
(12.7 mm)
Gas Outlet
3.5 in.
(90 mm)
A
Refer to
Table 1
Roll Exhaust
3 in.
(75 mm)
60 in.
(1529 mm)
47 in.
(1199 mm)
Electrical Connection
B
Refer to
Table 1
C
Refer to
Table 1
SIDE VIEW
BACK VIEW
FRONT VIEW
TOP VIEW
Dimension
UL15*069 UL15*079 UL15*099 UL15*118
A97 in.
(2463.8 mm)
107 in.
(2717.8 mm)
127 in.
(3225.8 mm)
147 in.
(3733.8 mm)
B69 in.
(1750 mm)
79 in.
(2000 mm)
99 in.
(2500 mm)
118 in.
(3000 mm)
C 15 in.
(370 mm)
15 in.
(370 mm)
15 in.
(370 mm)
15 in.
(370 mm)
Table 1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9
1800001
Dimensions
UL20 Models
FWF54N
FWF55N
With Delivery Table
Without Delivery Table
43 in.
(1091 mm)
14o
A
Refer to
Table 2
68 in.
(1723 mm)
47 in.
(1199 mm)
Gas Inlet
.5 in.
(12.7 mm)
Gas Outlet
3.5 in.
(90 mm)
Roll Exhaust
3 in.
(75 mm)
B
Refer to
Table 2
C
Refer to
Table 2
SIDE VIEW
BACK VIEW
TOP VIEW
FRONT VIEW
Dimension
UL20*079 UL20*099 UL20*118 UL15*130
A112 in.
(2850 mm)
132 in.
(3350 mm)
152 in.
(3850 mm)
163 in.
(4150 mm)
B79 in.
(2000 mm)
99 in.
(2500 mm)
118 in.
(3000 mm)
130 in.
(3300 mm)
C 20 in.
(500 mm)
20 in.
(500 mm)
20 in.
(500 mm)
20 in.
(500 mm)
Table 2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
1800001
10
Pre-Installation Inspection
Upon delivery, visually inspect the packaging and
portions of the finisher that are visible through the
packaging for shipping damage.
If the package or finisher is damaged or if signs of
possible damage are evident, have the carrier note the
condition on the shipping papers before the shipping
receipt is signed, or advise the carrier of the condition
as soon as it is discovered.
IMPORTANT: Lift the box cover off the finisher
and check the items listed on the packing list.
Advise the carrier of any damaged or missing articles
as soon as possible. A written claim should be filed
with the carrier immediately if articles are damaged or
missing.
IMPORTANT: Warranty is void unless the finisher
is installed according to instructions in this manual.
Installation should comply with minimum
specifications and requirements detailed in this
manual and applicable local gas fitting regulations,
municipal building codes, water supply regulations,
electrical wiring regulations, and any other
relevant statutory regulations. Due to varied
requirements, applicable local codes should be
thoroughly understood and all pre-installation
arranged accordingly.
Location Requirements
It is strongly recommended that the purchaser be
present during installation and the first tests.
To assure compliance, consult and adhere to building/
local code requirements and comply with the
following:
●The finisher must be installed in a very well
ventilated room (especially when using gas
heating) with correct lighting and an ambient
temperature in the range from 32°F (0°C) to
104°F (40°C).
●Leveling should be carried out correctly on a hard
and stable floor surface, capable of supporting
the weight of the finisher. Contact your
mechanical engineer for foundation
requirements.
●The finisher MUST NOT be installed or stored in
an area where it will be exposed to water and/or
weather.
IMPORTANT: DO NOT block the airflow at the
rear of the finisher with laundry or other articles.
Doing so would cause inadequate air supply to the
combustion chamber of the finisher.
Leave sufficient space around the finisher to allow for
correct functioning.
FOR FRONT RETURN MODELS ONLY:
●Allow at least 4 inches (102 mm) in the back to
allow for ventilation.
●Allow 32 inches (813 mm) on each side for
upkeep and maintenance.
●Allow sufficient space in front so operator can
work efficiently and safely.
FOR REAR RETURN MODELS
●Allow sufficient space in front and rear so
operator can work efficiently and safely.
To prevent fire, explosion, or personal
injury, this finisher may only be installed,
adjusted, and started up by qualified
technicians. W678
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
11
1800001
Moving Finisher with Crane
1. Remove any obstacles under machine placement
area.
2. Fasten lifting cables to lifting eyebolts. Refer to
Figure 2.
3. Lift machine.
4. Make sure cable is positioned correctly so that
machine hangs horizontally.
5. Lift machine carefully, without sudden shocks or
movements.
6. Place machine on ground, as close to the
permanent location as possible.
7. If the machine needs further moving, use forklift
or rollers. Refer to Moving Finisher with Forklift
section.
IMPORTANT: To use rollers place rollers in four
corners, distributing weight evenly.
8. Once finisher is in final position, open hydraulic
valve to release chest.
9. Remove all packing materials.
10. Level finisher.
Moving Finisher with Forklift
The finisher should be moved with a forklift as close
as possible to the area where it will be installed. Use a
forklift of sufficient capacity to lift the packaged unit
according to the following procedures.
IMPORTANT: DO NOT lift finisher with slings.
1. Position the forklift arms beneath the center of
the unit in the built-in forklift slots. Refer to
Figure 3.
IMPORTANT: Lifting the finisher from either side
could cause misalignment and/or damage to the
finisher.
Figure 3
2. Use the forklift to carefully lift the packaged
finisher off wooden skids. Refer to Figure 2.
3. Move the packaged unit as close as possible to
the area where the finisher will be installed.
IMPORTANT: DO NOT lift the unit more than 8
inches (203 mm) off the ground.
4. If the machine needs further moving, place
rollers in all four corners off finisher, distributing
weight evenly, and roll into place.
5. Once finisher is in final position, open hydraulic
valve to release chest.
6. Remove all packing materials.
7. Level finisher.
FWF49N
Figure 2
FWF49N
Lifting
Eyebolts
FWF56N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
1800001
12
Electrical Connection
Electrical connections should be made by a qualified
electrical contractor in accordance with all applicable
local and national requirements. A differential circuit
breaker (obtain locally), correctly sized for the power
consumption of the finisher, must be installed near
finisher. Refer to Table 3 and Table 4 .
IMPORTANT: Electrical specifications in Tabl e 3
and Table 4 are subject to change without notice.
Always refer to product serial plate for most
current specifications of product being installed.
NOTE: Use copper conductors only.
NOTE: Connect to individual branch circuit.
Before preceding, check for proper rotation of exhaust
fan, hydraulic pump, and circulation pump. All three
should be moving in the direction indicated by the
arrow on part. If all three are rotating properly
proceed. If they are not, reverse polarity of component
not rotating properly.
Electrical Models
(CE Approved)
Serial Plate Rating Model Recommended
Circuit Breaker Heater Element
All Voltages
UL15*069 50 Amp 40 hp (30 kW)
UL15*079 50 Amp 40 hp (30 kW)
UL15*099 57 Amp 47 hp (35 kW)
UL15*118 63 Amp 54 hp (40 kW)
UL20*079 50 Amp 40 hp (30 kW)
UL20*099 63 Amp 54 hp (40 kW)
UL20*118 70 Amp 60 hp (45 kW)
UL20*130 70 Amp 60 hp (45 kW)
Tabl e 3
All Gas Models
(CSA and CE Approved)
Serial Plate Rating Recommended
Circuit Breaker Full Load Amps
230/50/3
208-240/60/3 30 Amp 28 Amp
400/50/3 20 Amp 16 Amp
440-480/60/3 15 Amp 14 Amp
Table 4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
13
1800001
Gas Connection
IMPORTANT: The installation must comply with
local codes, the current National Fuel Gas Code,
ANSI Z223.1 in the U.S.A., or the current CAN/
CSA B149, Installation Codes in Canada.
Install a shut-off valve to isolate gas connections from
rest of installation. Gas models must be connected to
the existing gas pipes. The gas supply pipe size must
have sufficient dimensions to minimize pressure loss.
Obtain specific gas supply pipe size from the gas
supplier. Refer to Table 5 for general pipe size.
When connecting to a gas line, an equipment shut-off
valve must be installed within 6 feet (1.8 m) of the
finisher. A 1/8 inch N.P.T. pipe plug must be installed
as shown. Refer to Figure 4.
Gas Pipe Size Required for 1,000 BTU Natural Gas
0.64 Specific Gravity at 6.5 ± 1.5 inch (1.62 ± .37 kPa) Water Column Pressure
EQUIVALENT LENGTH
Gas
Appliances
Total Btu/hr.
25 feet
(7.63 m) 50 feet (15.25 m) 75 feet (22.88 m) 100 feet (30.50 m) 125 feet (38.13 m) 150 feet (45.75 m)
Based on 0.3" Water Column Pressure Drop for Length Given
100,000 .75 in.
(19.05 mm)
.75 in.
(19.05 mm)
1 in.
(25.4 mm)
1 in.
(25.4 mm)
1 in.
(25.4 mm)
1 in.
(25.4 mm)
200,000 1 in.
(25.4 mm)
1 in.
(25.4 mm)
1.25 in.
(31.8 mm)
1.25 in.
(31.8 mm)
1.25 in.
(31.8 mm)
1.25 in.
(31.8 mm)
300,000 1 in.
(25.4 mm)
1.25 in.
(31.8 mm)
1.25 in.
(31.8 mm)
1.5 in.
(38.1 mm)
1.5 in.
(38.1 mm)
1.5 in.
(38.1 mm)
400,000 1 in.
(25.4 mm)
1 in.
(25.4 mm)
1.5 in.
(38.1 mm)
1.5 in.
(38.1 mm)
1.5 in.
(38.1 mm)
2 in.
(50.8 mm)
500,000 1 in.
(25.4 mm)
1.5 in.
(38.1 mm)
1.5 in.
(38.1 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
600,000 1.5 in.
(38.1 mm)
1.5 in.
(38.1 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
700,000 1.5 in.
(38.1 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2.5 in.
(63.5 mm)
800,000 1.5 in.
(38.1 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2.5 in.
(63.5 mm)
2.5 in.
(63.5 mm)
900,000 2 in.
(50.8 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2.5 in.
(63.5 mm)
2.5 in.
(63.5 mm)
2.5 in.
(63.5 mm)
1,000,000 2 in.
(50.8 mm)
2 in.
(50.8 mm)
2 in.
(50.8 mm)
2.5 in.
(63.5 mm)
2.5 in.
(63.5 mm)
2.5 in.
(63.5 mm)
IMPORTANT: For L.P. (Liquefied Petroleum) gas, correct the total BTU/hour by multiplying it by 0.6. The
answer is the equivalent BTU on the above chart.
Tabl e 5

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
1800001
14
Inlet Pressure
Use a manometer to verify that the inlet pressure meets
the following requirements:
Natural Gas service must be supplied at 7.0 ±1.5 inch
water column pressure (1.74 ±0.37 kPa).
L.P. (Liquefied Petroleum) Gas service must be
supplied at 11 ±0.3 inch water column pressure
(2.74 ±0.07 kPa).
Manifold Pressure
To check manifold pressure, use a manometer to verify
that the settings of the gas valve correspond with the
type of gas being used.
1. Connect the manometer to the pressure
connection located on top of the gas valve while
the burner is ignited.
2. Read the manometer to determine the pressure of
the gas. The measured gas pressure must be equal
to the pressure indicated on the finisher’s serial
plate.
3. Install a pressure regulator valve (obtain locally),
suited for the nature and flow rate of the gas used,
in the tube system near the finisher.
IMPORTANT: Before proceeding, check gas
connection for leaks.
D233I
1New stainless Steel Flexible Connector -
Use only if allowed by local codes
(Use Design A.G.A. Certified Connector)
2Pipe Plug
(For checking inlet gas pressure)
3Equipment Shut-Off Valve - Installed within
6 ft. (1.8 m) of finisher
4Black Iron Pipe
5Gas Connection
Figure 4
3
1
4
2
5
Gas Requirements
UL15*069 UL15*079 UL15*099 UL15*118 UL20*079 UL20*099 UL20*118 UL20*130
Maximum
Gas Input 178,110 Btu
(52 kW)
178,110 Btu
(52 kW)
178,110 Btu
(52 kW)
178,110 Btu
(52 kW)
178,110 Btu
(52 kW)
178,110 Btu
(52 kW)
178,110 Btu
(52 kW)
178,110 Btu
(52 kW)
Burner
Exhaust 40 cfm 40 cfm 40 cfm 61 cfm 40 cfm 61 cfm 64 cfm 67 cfm
Burner
Exhaust
Inches of
Water
Column
2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4
Tabl e 6

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
15
1800001
Exhaust Requirements
Whenever possible, install the finisher along an
outside wall where duct length can be kept to a
minimum and make-up air can be easily accessed.
Construction must not block the airflow at the rear of
the finisher. Doing so would cause inadequate air
supply to the finisher combustion chamber.
IMPORTANT: Provisions must be made for make-
up air.
IMPORTANT: Do not obstruct flow of combustion
and ventilation air.
Using the shortest possible path, connect the exhaust
outlet to an outlet duct. For gas models, use two
separate outlets.
IMPORTANT: Outlet ducts used for the finisher’s
exhaust may under no circumstances be shared
with other devices.
Finisher produces combustible lint. To
reduce the risk of fire, the finisher must be
exhausted to the outdoors.
To reduce the risk of fire and accumulation
of combustible gases, DO NOT exhaust
finisher air into a window well, gas vent,
chimney or enclosed, unventilated area
such as an attic wall, ceiling, crawl space
under a building, or concealed space of a
building. W679
WARNING
Do not connect vents together. Gas and
ventilation outlets must be separate to
prevent fire.
Insulate all ducts to prevent fire. W680
WARNING
Exhaust Requirements
Vapor Exhaust 206 cfm
Vapor Exhaust
(Inches of Water Column) 2.4 in.
Exhaust Roll Duct*
3 in. (75 mm)
*For ducts longer
than 15 ft. (4.57 m)
continue with
3.5 in. (90 mm)
Table 7

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
1800001
16
Commissioning Procedures
1. Bake open gas valve and check machine for
leaks.
2. Purge moisture out of machine. Refer to Purging
Moisture.
Purging Moisture
At the first heating of the machine, air a moisture must
be purged out of the system. To do this:
1. Take off existing hose. Do not throw away. Refer
to Figure 5.
2. Connect the teflon hose provided on top of the
machine in its place.
3. Heat the machine fully.
4. Place one end of the teflon hose into a tub. Refer
to Figure 6.
5. Let teflon hose drain into tub.
6. Remove the teflon hose.
7. Replace original hose.
1Existing Hose
Figure 5
1Drain into tub
Figure 6
1
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 17
1800001
Operation Instructions
Pre-Operation
Daily Check Points
1. Check to ensure all safety guards are in position
and closed.
2. Before starting, check that area is free of
obstructions that could cause safety issues.
3. Check that there are no foreign objects between
the roll and the bed.
4. Check to ensure the opening between the feed
band and finger guard is not more than .6 inch
(15 mm) and that it is working properly.
5. Check the condition of the padding.
6. If the wire the padding is stitched with becomes
visible, replace the padding.
7. Check the condition of the feed bands.
8. Check for proper function of the emergency stop
buttons.
9. Clean dust off machine.
10. Check the machine for leaks.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation Instructions
1800001
18
Operating Instructions
The machine is suitable for ironing linen such as
sheets, pillow cases and table linens.
Start
1. Push green "Tension" button: the circulation
pump starts to work, the burner starts.
2. Set to desired temperature.
IMPORTANT: The working temperature varies
depending on the fabric being ironed. It must be at
least 302oF (150oC) but never to exceed 365oF
(180oC).
3. Push the green "Start" button to start machine.
Green pilot comes on. Bed is pressed against
roller, exhaust is started, and roll starts to turn.
For best results, adjust speed.
Stop
1. Push red stop button, bed opens and roll stops at
once. The machine remains on temperature.
IMPORTANT: When pushing emergency stop
button, all motors and the burner are cut off and
bed opens automatically. Restarting is only possible
by resetting the emergency stop button (turn
clockwise) and pushing the power/tension button
again. Touching the finger guard will stop the roll
at once, but temperature will remain constant. To
start again, push start button.
IMPORTANT: When the finger guard is tripped
the bed remains pressed against the roll. It is
strongly recommended to start the roll as soon as
possible or to stop the machine completely.
Temperature Setting
NOTE: Set temperature to read in degrees
Fahrenheit.
SET:Push to display the set point valve. The set point
can be changed within 3 seconds with the "UP" or
"DOWN" button. The control will automatically
switch back to normal operating mode within 3
seconds; the last entered set point sill stay in memory.
UP:Used to increase the set point value, as well as the
parameter when in programming. Pushing the button
for several seconds will accelerate the change rate.
DOWN: Used to decrease the set point valve, as well
as the parameter when in programming. Pushing the
button for several seconds will accelerate the change
rate.
LED "OUT":Status light of the output. Blinks when
in set point display/change mode or during
programming.
FWF50N
POWER/TENSION
ON/OFF
START BUTTON
ROLL
EMERGENCY
STOP
SPEED
ADJUSTMENT
STOP BUTTON
ROLL
GAS BURNER
OFF
TEMPERATURE
ADJUSTMENTS
