Alliance Laundry Systems AWNA11SP111TW01 Programming manual

www.alliancelaundry.com
Troubleshooting
Part No. 201520R6
November 2016
Home
Topload
Washers
Refer to Page 5 for Model Numbers
TLW2C

© Copyright 2016, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without
the expressed written consent of the publisher.
201520R6 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Section 1 – Safety Information ...............................................................3
Section 2 – Introduction..........................................................................5
Model Identification..............................................................................5
How Your Washer Works .....................................................................6
Customer Service...................................................................................8

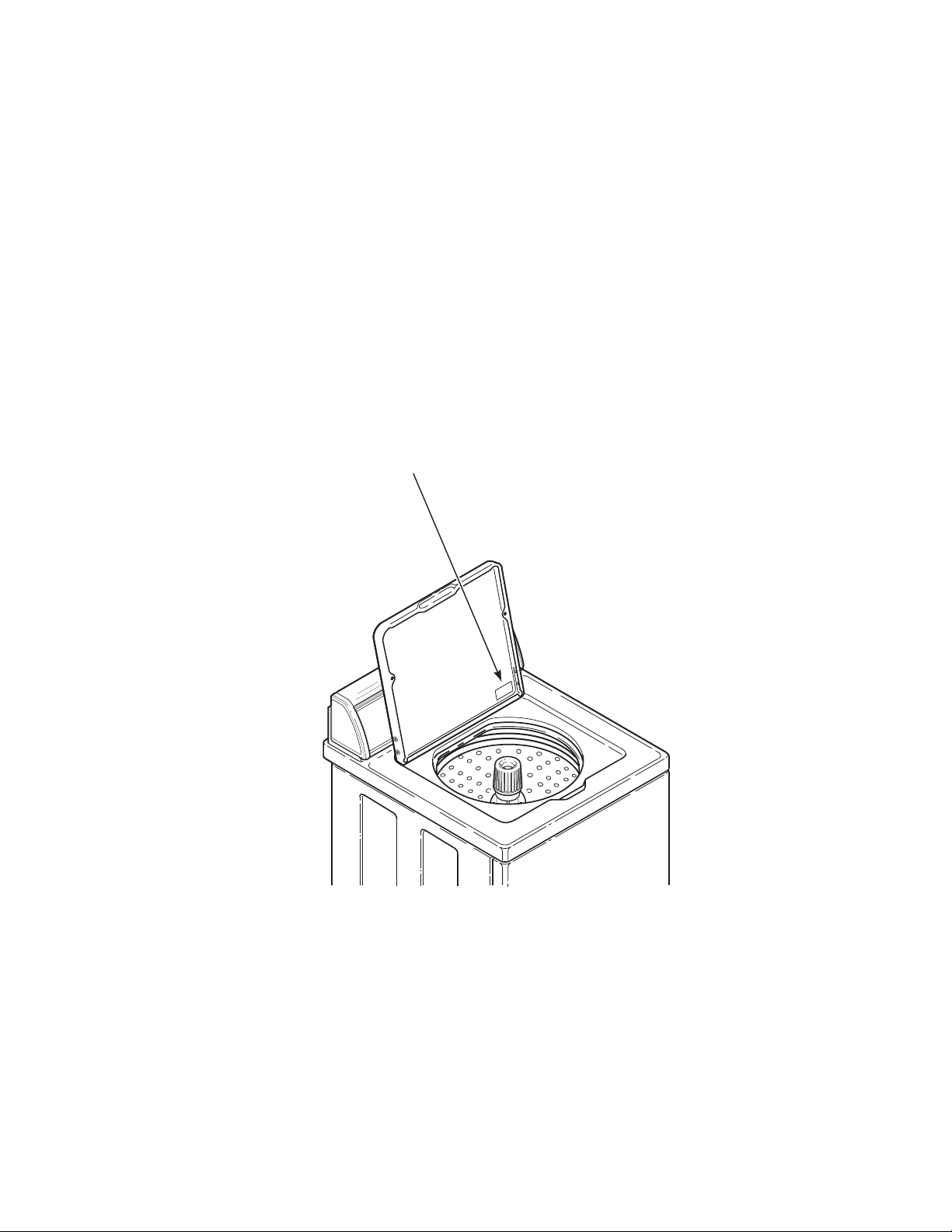

Nameplate Location...............................................................................8
Section 3 – Troubleshooting....................................................................9
1. Low Water Level on High Fill Setting..........................................9
2. Clicking Noise During Operation on NEWLY Installed Units....9
3. Motor Hums................................................................................10
4. No Hot Water..............................................................................11
5. No Cold Water............................................................................12
6. No Warm Water..........................................................................13
7. Slow Hot Fill or Warm Fill is Too Cold.....................................14
8. Water Fill Does Not Stop At Proper Level.................................15
9. Washer Fills, Motor Hums..........................................................16
10. Timer Does Not Advance ...........................................................17
11. Motor Does Not Run...................................................................18
12. No Agitation................................................................................19
13. Constant Agitation ......................................................................20
14. Washer Overheats, Cycles On Motor Thermal Protector,
Switch Actuator Kicks In And Out.............................................21
15. Slow Spin Or No Spin.................................................................22
16. Constant Spin..............................................................................23
17. Washer Stops In Cycle; Quits After A Couple Loads;
Is Intermittent..............................................................................24
18. Washer Is Locked Up Or Binding...............................................25
19. Outer Tub Does Not Empty........................................................26
20. Excessive Vibration ....................................................................27
21. Water Leaking From Outer Tub..................................................28
Section 4 – Control Troubleshooting
Model AWNA11SP111TW01 ...............................................................29
22. Error Mode..................................................................................29
23. Washer Will Not Fill (Pressure Switch Diagnostic)...................30
24. Washer Will Not Fill (Mixing Valve Diagnostic) ......................32
25. Washer Over Fills (Pressure Switch Open) ................................34
26. No Agitation – Low and High Speed..........................................36
27. Washer Will Not Spin – Low Speed...........................................38
28. Washer Will Not Spin – High Speed..........................................40
Section 5 – Adjustments........................................................................42
29. Leveling Legs..............................................................................42
30. Belt (Agitate And Spin) ..............................................................42

2201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 6 – Test Procedures..................................................................43
31. Motor Test Procedure..................................................................43
32. Mixing Valve Solenoid Test Procedure......................................44
33. Temperature Switch Test Procedure...........................................44
Section 7 – Cycle Sequence Charts.......................................................45
Section 8 – Internal Wiring of Washer Motor Switch........................55

201520R6 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 1
Safety Information
Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION,”
“WARNING” and “DANGER”) followed by specific instructions. These precautions are intended for the personal
safety of the operator, user, servicer, and those maintaining the machine.
DANGER
Danger indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.
WARNING
Warning indicates a hazardous situation that, if not avoided, could cause severe personal injury or death.
CAUTION
Cautionindicatesa hazardous situation that, if notavoided,may cause minor or moderate personal injury or property
damage.
Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.
IMPORTANT
The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will
occur if the procedure is not followed.
NOTE
The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is
important but not hazard related.
In the interest of safety, some general precautions relating to the operation of this machine follow.
• Failure to install, maintain and/or operate this product according to the manufacturer’s
instructions may result in conditions which can produce serious injury, death and/or
property damage.
• Do not repair or replace any part of the product or attempt any servicing unless specifically
recommended or published in this Service Manual and unless you understand and have the
skills to carry out the servicing.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the product is properly grounded and to reduce the risk of fire,
electric shock, serious injury or death. W006R2
WARNING

Safety Information
4201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: The WARNINGS and IMPORTANT INSTRUCTIONS appearing in this manual are not meant to
cover all possible conditions and situations that may occur. Common sense, caution and care must be
exercised when installing, maintaining or operating the washer.
Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do
not understand.
Locating an Authorized Servicer
Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper
service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized
technician and using authorized factory parts.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded. W003
WARNING
Repairs that are made to your products by unqualified persons can result in hazards due to
improper assembly or adjustments subjecting you, or the inexperienced person making such
repairs, to the risk of serious injury, electrical shock, or death. W007
WARNING
If you or an unqualified person perform service on your product, you must assume the
responsibility for any personal injury or property damage which may result. The manufacturer
will not be responsible for any injury or property damage arising from improper service and/or
service procedures. W008
WARNING

201520R6 5
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 2
Introduction
Model Identification
Information in this manual is applicable to these washer models.
AWNA11SP111TW01
AWN311SP111TW01
AWN402PP111TW01
AWN412SP111TW01
AWN432SP111TW01
AWN432SP113CW04
AWN432SP113TW01
AWN432SP113TW04
AWN542SP111TW01
AWN542SP111TWAH
AWS01NW
AWS17NW
AWS44NW
AWS45NW
AWS48NW
AWS51NW
AWS52NW
AWS53NW
AWS75NW
AWS76NW

Introduction
6201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
How Your Washer Works
TLW306S
Temperature
Switch
Pressure
Switch
Timer
Agitator
Outer
Tub
Mixing
Valve
Washtub
Transmission
Motor
Pump

Introduction
201520R6 7
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
The cycle begins with a wash fill. The water
temperature is determined by the temperature selector.
While water fills the washtub, a column of air is
trapped in a pressure bulb and hose. The air pressure
continues to increase as the washtub fills with water
until it is great enough to activate the pressure switch.
The pressure switch then causes the wash fill to stop
andwash agitation to begin.However,the loading door
must be closed for the washer to agitate or spin.
The washer uses a reversing type motor, a special drive
belt and an idler assembly. The idler assembly applies
tension to the outside of the drive belt.
During agitation, the motor runs in the
counterclockwise direction. The spring tension on the
idler pulley applies the tension required to reduce the
slack on the drive belt and maintain maximum belt to
motor pulley contact. This eliminates belt slippage and
ensures an efficient wash action, even with extra large
loads.
The belt drives the transmission drive pulley in the
counterclockwise direction. The pulley drives the helix
which is splined to the input shaft of the transmission.
This causes the input shaft to turn inside of a roller
clutch which is pressed into the transmission cover.
This roller clutch acts as a bearing in the
counterclockwise direction allowing the transmission
gears to operate. The transmission’s rack and pinion
gear design produces a 210 degree agitation stroke at
the output shaft of the transmission which drives the
agitator.Thebrake assembly remains locked during the
agitation mode since no pressure is applied to it by the
transmission drive pulley.
After the wash agitation is completed, the timer
advances into the first spin. During spin, the motor
reverses turning in the clockwise direction to spin the
water out of the washtub. The combination of water,
washtub and loadweightcause the drive belt tension on
the idler side of the belt to overtake the idler spring
pressure allowing the belt to become slack on the
opposite side. This reduces the belt to pulley contact
and allows slipping between the belt and pulley.
As water is removed by the pump and the momentum
of the washtub increases, the idler spring tension
gradually overcomes the belt tension removing the belt
slack. This eventually increases the belt to pulley
contact until maximum spin speed is achieved.
The drive pulley turns clockwise riding upthe ramps of
the helix, exerting pressure on the brake and forcing it
to release from brake pads. The helix drives the input
shaftofthetransmission,andwhentheinputshaftturns
in the clockwise direction the roller clutch locks onto
the shaft causing the entire transmission assembly to
turn. None of the gears in the transmission are
operatingat this time.Thehubofthe washtub is splined
to the transmission tube and rotates with the
transmission assembly. The centrifugal force created
by the spinning washtub causes water to be extracted
from the clothes.
Water is introduced during the first spin to “SPRAY”
the garments and remove suds from them. The initial
spin is followed by rinse agitation to rinse away any
detergent residue. The washer fills and then agitates
like the wash portion of the cycle. Following rinse
agitation, a final spin extracts the rinse water from the
clothes preparing them for the dryer.

Introduction
8201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Customer Service
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of thenearestauthorizedparts
distributor.
For technical assistance, call [phone].
Nameplate Location
When calling or writing about your product, be sure to
mention model and serial numbers. Model and serial
numbers are located on nameplate(s) as shown.
W429SE1B

201520R6 9
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 3
Troubleshooting
IMPORTANT: Refer to Wiring Diagram for aid in
testing washer components.
1. Low Water Level on High Fill
Setting
a. Ifthereis an instance of a low water level on the
highest fill setting, check that the high setting
water level is approximately 1.5 inches below
the top row of washtub holes.
b. If the water level is within .5 inch of this level
without clothes, it is performing as designed.
Recent new mandates from the Department of
Energy (DOE) call for certain efficiencies to be
met by all washer manufacturers which require
the use of a different pressure switch to meet
these requirements. No modification can be
made to the washer to fill higher on this setting.
2. Clicking Noise During Operation
on NEWLY Installed Units
If a clicking noise is heard when first starting up a new
topload washer, the noise is related to the belt taking a
temporary “set” around the idler pulley. The set causes
a slight bump in the belt which in turn causes the idler
lever to tap the motor bracket making the clicking
noise. THE BELT DOES NOT NEED TO BE
REPLACED.
To correct this condition please perform the following
break-in procedure:
1. After installing the unit start a fill cycle to
make sure the seals have been lubricated.
2. Stop the fill cycle and place the unit into a
spin cycle.
3. Run the cycle for several minutes until the
belt has warmed up. This will remove the
“set.”
4. Normal use will keep the belt from
resetting.
5. For extended periods of non-use (three to
four weeks), this procedure might need to
be repeated.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded. W003
WARNING

Troubleshooting
10 201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
3. Motor Hums
A topload washer exhibiting a humming motor in
agitation or spin may require the timer or motor to be
replaced. Refer to flow chart below to determine if the
motor or timer needs to be replaced.
Motor Hums.
Does belt turn
freely in
counterclockwise
direction?
Check
transmission for
proper operation.
No
Does the
motor hum in
the agitate
step?
Start washer in
spin step.
TLW403S
Does belt turn
freely in clockwise
direction?
Check brakes for
proper operation.
No
Yes
Yes
Does the
motor hum in
the spin
step?
Start washer in
agitate step.
Does motor
continue to
hum?
Replace timer.
Yes
No
Yes No
Replace motor.
Yes

Troubleshooting
201520R6 11
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
4. No Hot Water
There is no hot water.
Is the water
supply faucet
closed?
Open faucet.
Yes
Is the water
supply cold?
No
Check water heater.
Yes
Is the hot water
fill hose kinked?
Straighten or
replace hose.
No
Yes
Is the mixing valve
screen or screen in
outer end of fill hose
nearest water supply
faucet clogged?
No
Disconnect hot
fill hose and
clean or
replace screen.
Yes
Is hot water
mixing valve
solenoid
inoperative?
No
Test solenoid
and replace if
necessary.
Is timer
inoperative?
Test for
continuity
through timer
circuits (refer to
wiring diagram)
and replace if
inoperative.
Yes
No
Is temperature
switch
inoperative?
Test switch
and replace if
inoperative.
Yes
No
Is pressure
switch
inoperative?
Test switch.
Must have
continuity from
terminal 1 to 2
when empty or
1-3 when full.
Replace if
inoperative.
Yes
No
Is pressure
hose
clogged?
Remove and
clean or
replace hose.
Yes
No
Is there
broken, loose
or incorrect
wiring?
Refer to
appropriate
wiring
diagram.
Yes
No
TLW346S
Yes
TLW346S

Troubleshooting
12 201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
5. No Cold Water
There is no cold
water.
Is the water
supply faucet
closed?
Open faucet.
Yes
Is the cold
water fill hose
kinked?
Straighten or
replace hose.
Yes
Is the mixing valve
screen or screen in
outer end of fill hose
nearest water supply
faucet clogged?
No
Disconnect
cold fill hose
and clean or
replace screen.
Yes
Is cold water
mixing valve
solenoid
inoperative?
No
Test solenoid
and replace if
necessary.
Yes
Is timer
inoperative?
Test for
continuity
through timer
circuits (refer to
wiring diagram)
and replace if
inoperative.
Yes
Is temperature
switch
inoperative?
Test switch
and replace if
inoperative.
Yes
No
Is pressure
switch
inoperative?
Test switch.
Must have
continuity from
terminal 1 to 2
when empty or
1-3 when full.
Replace if
inoperative.
Yes
No
Is pressure
hose
clogged?
Remove and
clean or
replace hose.
Yes
No
Is there
broken, loose
or incorrect
wiring?
Refer to
appropriate
wiring
diagram.
Yes
No
TLW347S
No
No
TLW347S

Troubleshooting
201520R6 13
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
6. No Warm Water
There is no warm
water.
Is there no
hot water? Refer to
Paragraph 1.
Yes
Is there no
cold water?
No
Refer to Paragraph 2.
Yes
TLW328S
TLW328S

Troubleshooting
14 201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7. Slow Hot Fill or Warm Fill is Too Cold
Hot fill is slow or warm fill
is too cold.
Are fill hose
filter screens
plugged with
debris?
Clean or replace
screens.
Is water
pressure too
low?
Check water pressure.
Recommended water
pressure is 20 to 120 psi.
Yes
TLW378S
Are mixing valve
screens plugged
with debris?
Clean or replace
screens.
Yes
No
No
Yes
Unit is filling properly. Recent new mandates from the
Department of Energy (DOE) call for certain efficiencies to be
met by all washer manufacturers which require the use of a
different fill valve to meet these requirements. No
modification can be made to the washer to fill faster on these
settings.
No
TLW378S

Troubleshooting
201520R6 15
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
8. Water Fill Does Not Stop At Proper Level
Water fill does not
stop at proper level.
Is pressure
switch
inoperative?
Test switch and
replace if
inoperative.
Yes
Is mixing
valve
inoperative?
Test valve and
replace if
inoperative.
Yes
Was there a siphoning
action started in washer
causing water to be
siphoned from washer
during cycle due to end
of drain hose being
lower than cabinet top of
washer?
Install 562P3
Siphon
Break Kit.
TLW348S
Yes
Is there
water in
pressure
hose?
Blow air through
hose to remove
water or replace
hose.
Yes
Is there
broken,
loose,
shorted or
incorrect
wiring?
Refer to
appropriate
wiring diagram.
No
Yes
Is there an
air leak in
pressure
hose?
Replace
hose.
Yes
No
Does drain
hose fit tight
in standpipe
or drain?
Provide an air
gap around drain
hose and drain
receptacle.
Install No. 36878
Standpipe
Adapter (optional
on some
models).
No
No
No
Yes
No
TLW348S

Troubleshooting
16 201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Washer Fills, Motor Hums
Washer fills, motor hums
in wash portion of cycle.
Advance timer to
spin. Close
loading door. Pull
timer knob out.
Does machine
start to spin?
Does pulley
rotate in
clockwise
direction
(spin) only?
Replace transmission.
Yes
TLW377S
Unplug machine.
Remove front
panel. Rotate main
drive pulley in both
directions. Does
pulley freely rotate
in both directions?
Replace
timer
only.
Yes
Does motor hum
in wash and spin
portions of cycle?
Unplug machine.
Remove front
panel. Rotate
main drive pulley
in both
directions. Is
pulley locked in
both directions?
Something
is jammed in
pump. Clean
or replace
pump.
Yes
No
Yes
No
Replace
motor
and
timer.
No
Motor checks OK and
pump is clear.
Yes
TLW377S

Troubleshooting
201520R6 17
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
10.Timer Does Not Advance
Timer does not advance.
Is pause part
of normal
operation?
Timer is designed to
pause during fill
periods and when
going from agitate to
spin. Allow completion
of those steps. Some
cycles (delicate) have
additional pauses.
Refer to diagram for
information on time
required.
Yes
Is timer
inoperative?
Test for
continuity
through timer
circuits (refer to
wiring diagram)
and replace if
inoperative.
Yes
Is lid
open?
No
Close lid. Lid
MUST be closed
any time the
washer is set to
agitate or spin.
Yes
Washer
will not fill?
Timer pauses
until pressure
switch is
satisfied.
TLW349S
No
Has washer
drive motor
over loaded
and motor
thermal
overload been
tripped?
Timer is designed
to stop under
these conditions.
Motor thermal
proctor reset time
may vary
depending upon
the reason for
washer overload,
however, it should
reset within 15
minutes. Check to
ensure washer
was not
overloaded with
clothes.
Yes
Is circuit breaker
to washer tripped,
disconnecting
power to washer?
Reset circuit
breaker.
No
Yes
Timer is designed to
pause when going
from spin into rinse
to allow the washtub
to stop spinning
before filling. Make
sure timer has
advanced into fill
portion of rinse
cycle.
No
Yes
Is timer
motor lead
wire off timer
terminal?
Refer to
appropriate
wiring diagram
and reattach
wire.
No
Yes
Is there broken,
loose or
incorrect wiring?
Refer to
appropriate
wiring diagram.
Yes
Washer
will not fill?
No
Yes
Is washer
siphoning
during rinse
fill?
Install siphon
break kit, Part
No. 562P3.
No
No
No
Yes
TLW349S

Troubleshooting
18 201520R6
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
11.Motor Does Not Run
Motor does not run.
Is electrical
power off, fuse
blown or power
cord not
plugged in?
Check laundry
room for blown or
loose fuse(s) or
open circuit
breakers.
(Washer itself
does not have an
electrical fuse.)
Yes
Is lid open or
lid switch
inoperative?
Close lid or
test switch and
replace if
inoperative.
Yes
Is timer
improperly
set?
No
Reset timer or
try another
cycle.
Yes
Are motor
starting
functions
inoperative; no
start or motor
hums only?
Refer to Test
Procedures
section to check
start switch and
start windings.
TLW474S
No
Is timer
inoperative?
Test for
continuity
through timer
circuits (refer
to wiring
diagram) and
replace if
inoperative.
Yes
Is there
broken,
loose or
incorrect
wiring?
Refer to
appropriate
wiring diagram.
Yes
Refer to
appropriate wiring
diagram for
correct wiring.
Yes
Is motor dead,
won't run?
Refer to Test
Procedures
section to
check switch
and windings.
Yes
Is there a bind in
upper or lower
motor bearing?
Remove belt and
determine if
motor shaft will
spin. Replace
motor if shaft is
locked up.
Yes
Is power
cord
miswired?
No
Yes
Has motor
overload
protector
cycled?
No
Yes
No
No
No
No
Is there a
bind in
pump?
Replace pump.
No
No
Yes
Wait two or three minutes
for overload protector to reset.
If protector cycles repeatedly,
refer to Washer Overheats,
Cycles On Motor Thermal
Protector, Switch Actuator
Kicks In And Out paragraph.
TLW474S
