Alliance Laundry Systems 802733R4 Guide

Installation/Operation
www.comlaundry.com
Frontload Washers
Metered Commercial
FLW1525C
Part No. 802733R4
October 2011
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

802733 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense, caution, and
carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by the
person(s) installing, maintaining, or operating the washer.
Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not
understand.
Failure to install, maintain, and/or operate this machine according to the manufacturer's
instructions may result in conditions which can produce bodily injury and/or property
damage.
W030
WARNING

© Copyright 2011, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
802733
2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Safety Information.............................................................................. 4
Explanation of Safety Messages........................................................... 4
Important Safety Instructions ............................................................... 4
Installation........................................................................................... 6
Dimensions and Specifications............................................................. 6
Before You Start ................................................................................... 7
Tools ................................................................................................ 7
Installing the Washer ............................................................................ 8
Step 1: Position Washer Near Installation Area .............................. 8
Step 2: Position and Level the Washer ............................................ 8
Step 3: Connect Fill Hoses............................................................... 9
Step 4: (Non-Gravity Drain Models Only)
Connect Drain Hose to Drain Receptacle....................................... 11
Step 5: (Gravity Drain Models Only)
Connect Drain Outlet to Drain System........................................... 12
Step 6: Remove the Shock Sleeves and Shipping Brace ................. 13
Step 7: Wipe Out Inside of Wash Drum .......................................... 13
Step 8: (Supply Injection Models Only)
Connect External Supplies to Washer ............................................ 13
Control Function Test ...................................................................... 14
Step 9: Plug In the Washer............................................................... 15
Step 10: Check Installation .............................................................. 16
Operation............................................................................................. 17
Operation Instructions for MDC Washers............................................ 17
Step 1: Load Laundry....................................................................... 17
Step 2: Close Loading Door............................................................. 17
Step 3: Add Laundry Supplies ......................................................... 18
Step 4: Set Fabric Selector and Wash Temperature......................... 18
Step 5: Insert Coin(s) or Card .......................................................... 19
Step 6: Start Washer......................................................................... 19
Indicator Lights................................................................................ 20
Operation Instructions for NetMaster Washers .................................... 21
Step 1: Load Laundry....................................................................... 21
Step 2: Close Loading Door............................................................. 21
Step 3: Add Laundry Supplies ......................................................... 22
Step 4: Set Fabric Selector............................................................... 22
Step 5: Set Wash Temperature......................................................... 22
Step 6: Insert Coin(s) or Card .......................................................... 23
Step 7: Start Washer......................................................................... 23
Indicator Lights................................................................................ 23
Maintenance ........................................................................................ 25
User-Maintenance Instructions............................................................. 25
Lubrication....................................................................................... 25
Cold Weather Care........................................................................... 25
Care of Your Washer ....................................................................... 25
Cleaning Glass Sealing Area ........................................................... 25
Replacing Hoses............................................................................... 25

3
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Filter Screens ................................................................................... 25
Vacations and Extended Non-Use ................................................... 25
Reinstallation of Shipping Materials ............................................... 26
Cleaning Foreign Object Trap ......................................................... 26
Troubleshooting .................................................................................. 27
Contact Information........................................................................... 29
Installer Checklist................................................................ Back Cover

4802733
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANTE: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTA: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the washer.
2. Install the washer according to the
INSTALLATION INSTRUCTIONS. Refer to the
GROUNDING INSTRUCTIONS in the
INSTALLATION manual for the proper
grounding of the washer. All connections for
water, drain, electrical power and grounding must
comply with local codes and be made by licensed
personnel when required. Do not do it yourself
unless you know how!
3. Do not install or store the washer where it will be
exposed to water and/or weather.
4. Do not add the following substances or textiles
containing traces of the following substances to
the wash water: gasoline, kerosene, waxes,
cooking oils, vegetable oils, machine oils, dry-
cleaning solvents, flammable chemicals, thinners
or other flammable or explosive substances.
These substances give off vapors that could
ignite, explode or cause the fabric to catch on fire
by itself.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been ug23sed for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. THE
GAS IS FLAMMABLE, DO NOT SMOKE OR
USE AN OPEN FLAME DURING THIS TIME.
6. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

Safety Information
5
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This appliance
is not intended for use by persons (including
children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the use of
the appliance by a person responsible for their
safety. This is a safety rule for all appliances.
8. Do not reach into the washer if the washtub is
moving.
9. Never operate the washer with any guards, panels
and/or parts removed or broken. DO NOT tamper
with the controls or bypass any safety devices.
10. DO NOT operate individual units if they have
been separated from a stack unit.
11. Use your washer only for its intended purpose,
washing clothes. Always follow the fabric care
instructions supplied by the garment
manufacturer.
12. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. To reduce the risk of poisoning or chemical
burns, keep them out of the reach of children at
all times (preferably in a locked cabinet). Heed
all warnings or precautions.
13. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
14. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
15. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
16. Keep your washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have your washer checked by a
qualified service person.
17. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out. ALWAYS disconnect the
washer from electrical supply before attempting
any service.
18. Disconnect the power cord by grasping the plug,
not the cord. If the supply cord is damaged, it
must be replaced by a special cord or assembly
available from the manufacturer or its service
agent.
19. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
20. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTA: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

6802733
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation

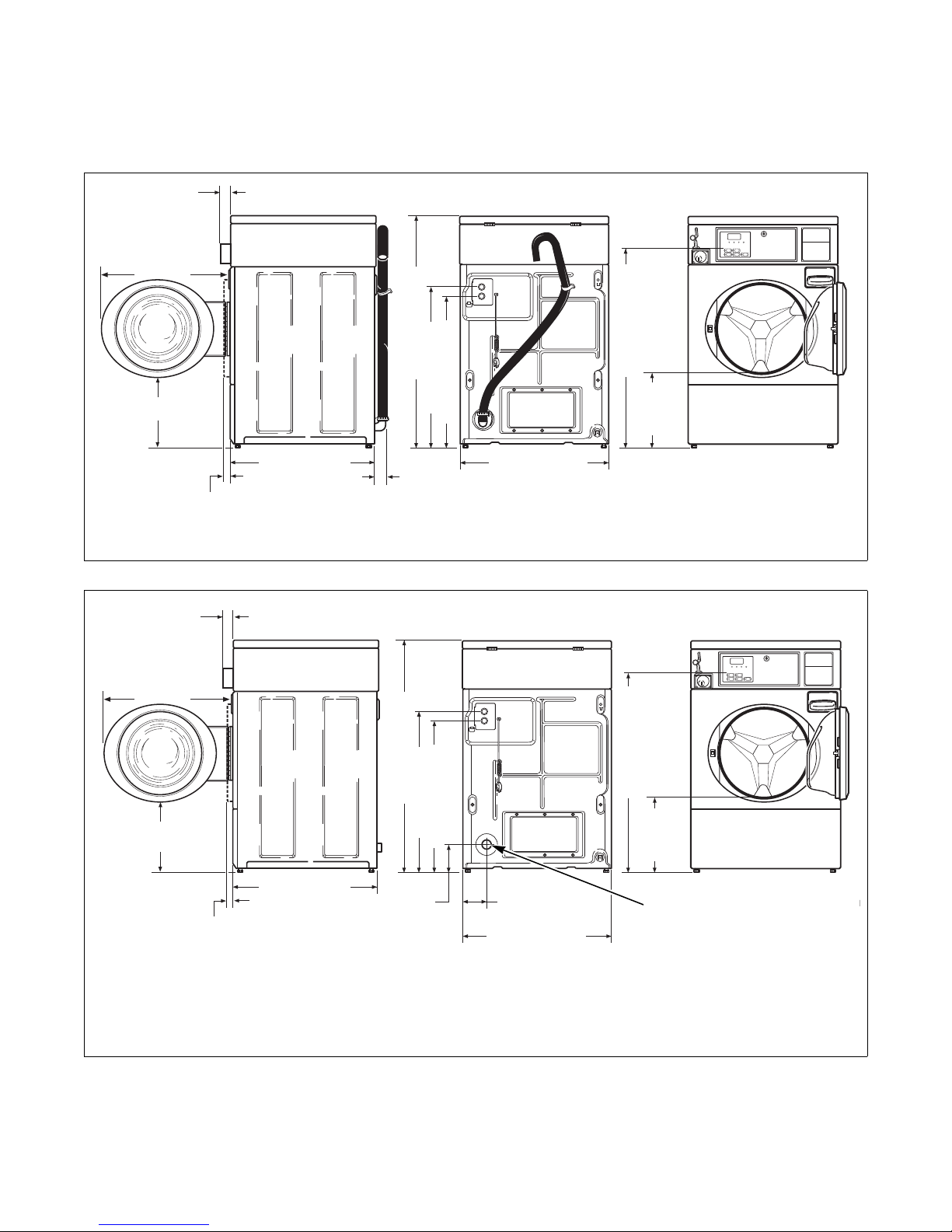

Dimensions and Specifications
FLW2199N
FLW2199N
2 in.
(5.1 cm)
43 in. (109.2 cm)
29.6 in. (75.1 cm)
28 in. (71.1 cm)
24 in.
(61.0 cm)
26.875 in. (68.3 cm)
31.1 in. (79 cm)
2 in.
(5.1 cm)
36.94 in. (93.83 cm)
14.6 in.
(37.08 cm)
13.1 in.
(33.3 cm)
MODELS EQUIPPED WITH DRAIN HOSE
1.5 in.
(3.8 cm)
FLW2200N
11.5 in. (3.81 cm) Inside Diameter
1.86 in. (4.72 cm) Outside Diameter
FLW2200N
2 in.
(5.1 cm)
43 in. (109.2 cm)
29.6 in. (75.1 cm)
28 in. (71.1 cm)
24 in.
(61.0 cm)
26.875 in. (68.3 cm)
31.1 in. (79 cm)
4.1 in.
(10.41 cm)
36.94 in. (93.83 cm)
14.6 in.
(37.08 cm)
13.1 in.
(33.3 cm)
MODELS WITH GRAVITY DRAIN
4.2 in.
(10.67 cm) 1
1.5 in.
(3.8 cm)

Installation
7
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 1
NOTA: An 8 in. (20.32 cm) coin drawer is required
for coin operated models.
NOTA: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
NOTA: Install dryer before washer. This allows
room for attaching exhaust duct.
NOTA: Some moisture in the wash drum is normal.
Water is used during testing at the manufacturer.
D074I
1Wrench
2Screwdriver
3Pliers
4Socket Wrench
5Level
123
5
4

Installation
802733
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installing the Washer
Step 1: Position Washer Near Installation
Area
Move washer so that it is within 4 feet (1.2 meters) of
the desired area of installation.
NOTA: For best performance and to minimize
vibration or movement, install washer on a solid,
sturdy and level floor. Some floors may need to be
reinforced, especially on a second floor or over a
basement. Do not install the washer on carpeting,
soft tile, a platform or other weakly supported
structures.
Figure 2
Step 2: Position and Level the Washer
Position washer so it has sufficient clearance for
installation and servicing.
NOTA: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
Place washer in position on a solid, sturdy and level
floor. Installing the washer on any type of carpeting,
soft tile, a platform or other weakly supported
structures is not recommended.
Place a level on the cabinet top and check if the
washer is level from side to side and front to back.
NOTA: Level must rest on raised portion of top
panel. Refer to Figure 3.
If washer is not level, tilt washer to access the front
and rear leveling legs. For easier access to leveling
legs, prop up washer with a wooden block. Refer to
Figure 3. Loosen 7/8 in. locknut and adjust legs until
the washer is level from side to side and front to back
(using a level). Washer should not rock.
Tighten the locknuts securely against the washer
base using the 7/8 in. wrench. If the locknuts are not
tight, washer will move out of position during
operation.
H054I
H054I
Washers elevated above floor level must
be anchored to that elevated surface,
base or platform. The material used to
elevate the washer should also be
anchored to the floor to ensure that the
washer will not walk or that the washer
can not be physically pulled, tipped or
slid from its installed position. Failure to
do so may result in conditions which can
produce serious injury, death and/or
property damage.
W306
WARNING

Installation
9
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTA: DO NOT slide washer across floor if the
leveling legs have been extended, as legs and base
could become damaged.
Remove rubber feet from accessories bag and place on
all four leveling legs.
Verify that unit doesn’t rock.
Figure 3
Step 3: Connect Fill Hoses
Water Supply
Water supply faucets must fit standard 3/4 inch
(19.1 mm) female garden hose couplings. DO NOT
USE SLIP-ON OR CLAMP-ON CONNECTIONS.
Water supply faucets should be readily accessible to
permit turning them off when washer is not being
used.
Recommended cold water temperature is 60° to 80°
Fahrenheit (16° to 27 Celsius). Recommended
maximum hot water temperature is 125° Fahrenheit
(51° Celsius). Warm water is a mixture of hot and cold
water. Warm water temperature is dependent upon
water temperature and pressure of both the hot and
cold water supply lines.
Water pressure must be a minimum of 20 to a
maximum of 120 pounds per square inch (138 to 827
kPa) static pressure measured at the faucet.
NOTA: Water pressure under 20 pounds per
square inch (138 kPa) will cause an extended fill
time in the washer and may not properly flush out
the detergent dispenser.
FLW2114N

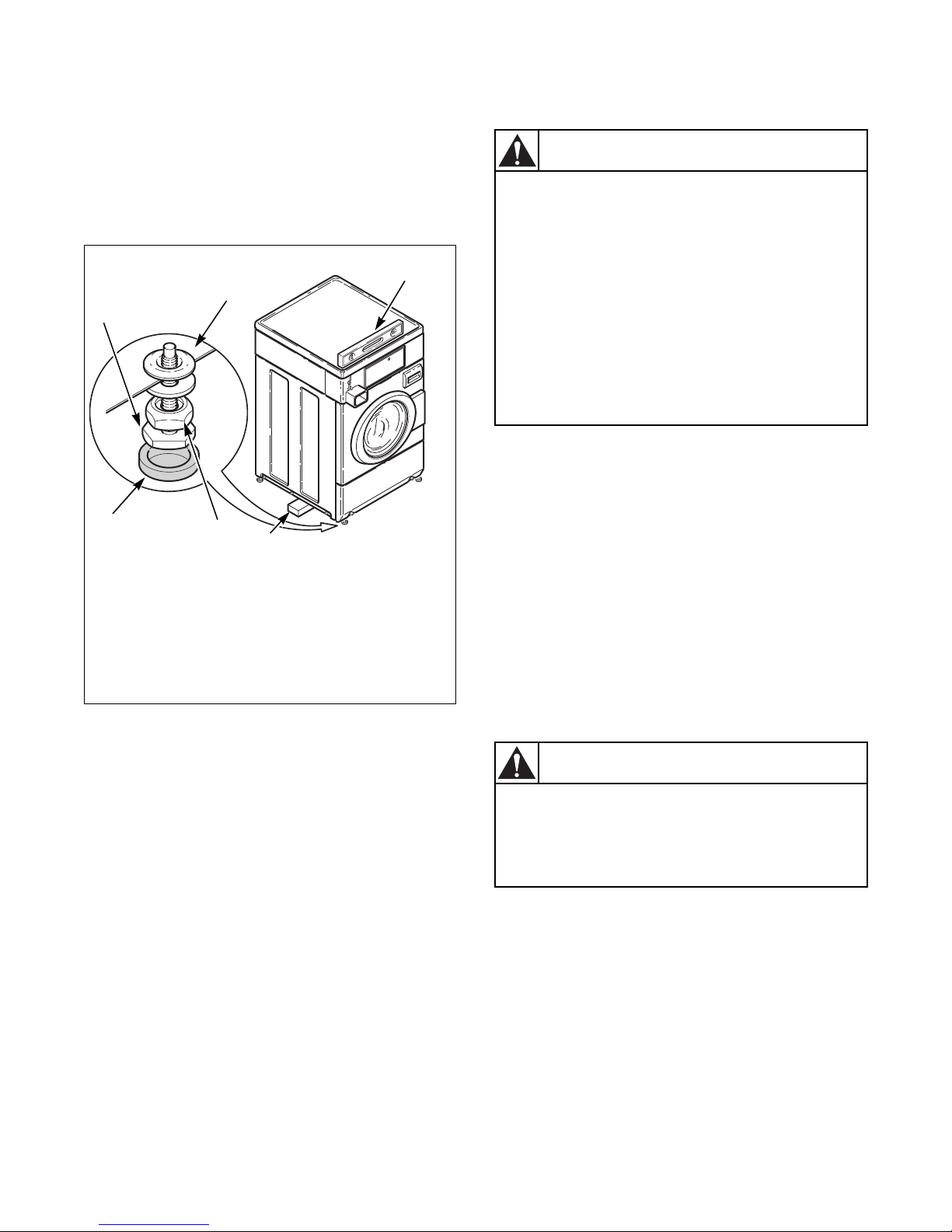

1Leveling Leg
2Washer Base
3Level
4Wood Block
5Locknut
6Rubber Foot
FLW2114N
2
1
3
5
6
4
Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used
for such a period and before using the
washer, turn on all hot water faucets and
let the water flow from each for several
minutes. This will release any
accumulated hydrogen gas. The gas is
flammable. Do not smoke or use an open
flame during this time.
W029
WARNING
To prevent personal injury, avoid contact
with inlet water temperatures higher than
125°Fahrenheit (51°Celsius) and hot
surfaces.
W748
WARNING

Installation
802733
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTA: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
Connecting Hoses
Insert each filter screen into the end of each fill hose
that will connect to the water supply faucet. The screen
must be facing outward. Refer to Figure 4.
Insert each plain rubber washer into the other end of
each fill hose that will connect to the water mixing
valve at the rear of the washer. Refer to Figure 4.
Thread hose couplings onto valve connections finger-
tight, then approximately 1/4 turn with pliers.
IMPORTANTE: DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
Figure 4
IMPORTANTE: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Figure 5
IMPORTANTE: Turn off water supply faucets
after check-out and demonstration. Owner should
turn off water supply whenever there will be an
extended period of non-use.
NOTA: Longer fill hoses are available (as optional
equipment at extra cost) if the hoses supplied with
the washer are not long enough for the installation.
Order hoses as follows:
No. 20617 Fill Hose (8 feet) (2.44 m)
No. 20618 Fill Hose (10 feet) (3.05 m)
TLW1976N
1Faucet
2Fill Hoses
3Plain Rubber Washer
4Filter Screens
HOT
COLD
2
1
3
4
FLW1974N
1Water Supply Faucets
2Hot Water Connection
3Cold Water Connection
4Fill Hoses
FLW1974N
2
1
3
4
WATER
MIXING
VALVE

Installation
11
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

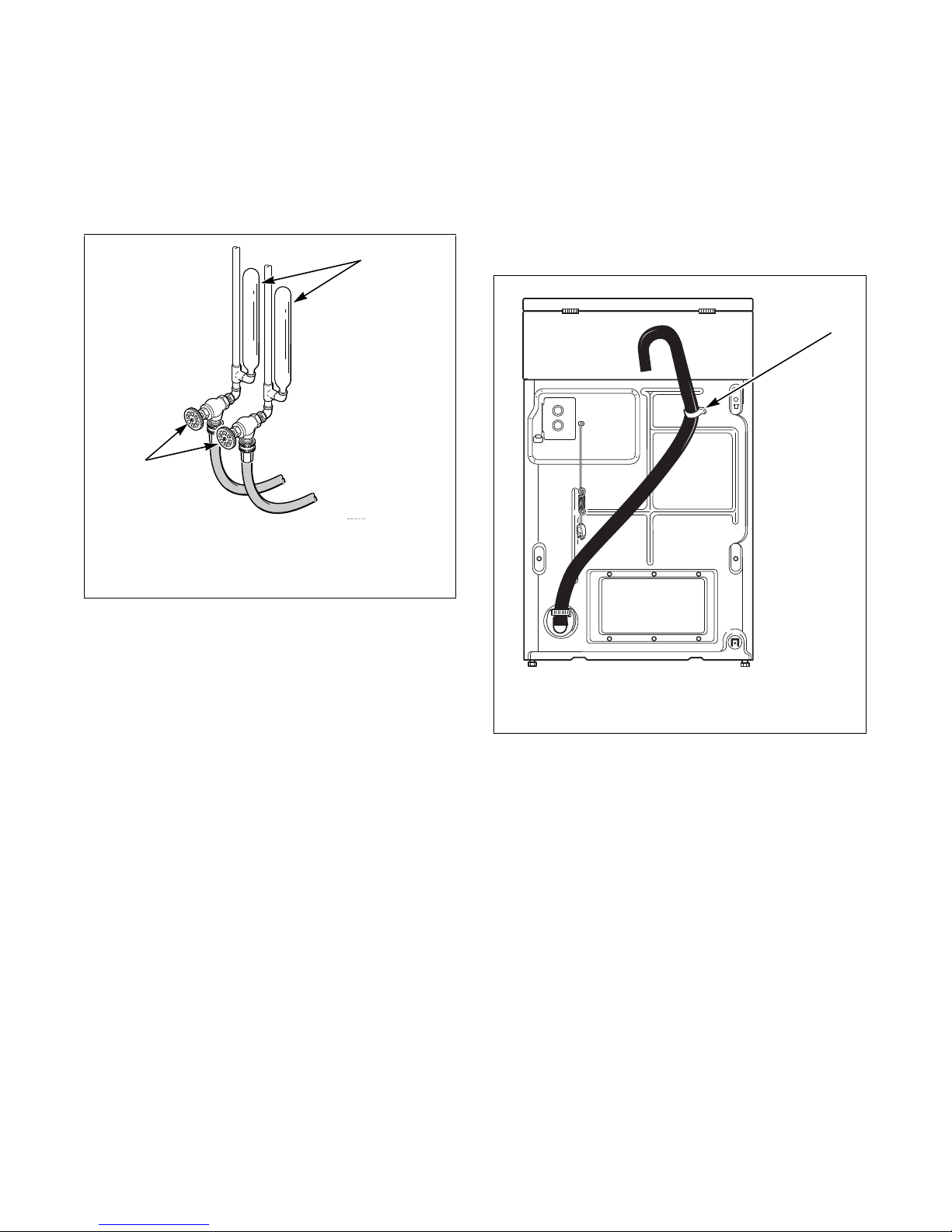

Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (refer to
Figure 6).
Figure 6
Step 4: (Non-Gravity Drain Models Only)
Connect Drain Hose to Drain Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by removing the shipping tape.
IMPORTANTE: Drain receptacle must be capable
of handling a minimum of 1-3/8 inch (3.5 cm)
outside diameter drain hose.
Figure 7
W005I
1Risers (Air Cushions)
2Water Supply Faucets
W005I
2
1
FLW1963N
1Shipping Tape
1

Installation
802733
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

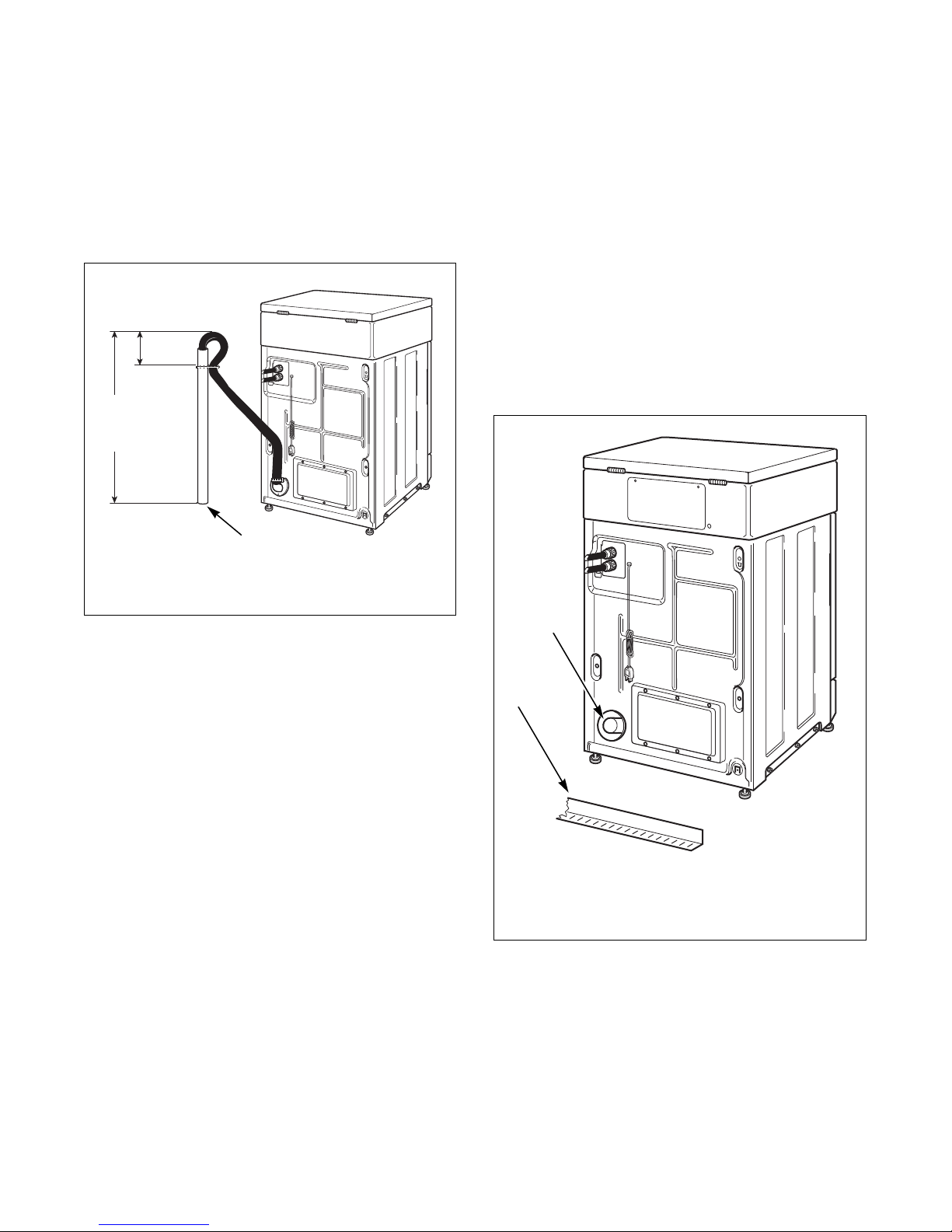

Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. Refer to
Figure 8. This will prevent the drain hose from
dislodging from drain receptacle during use.
Figure 8
Step 5: (Gravity Drain Models Only)
Connect Drain Outlet to Drain System
Remove drain fitting (four inches long) and hose
clamp from accessories bag. Insert drain fitting into
drain outlet hose. Clamp hose and fitting.
Connect the drain fitting to a vented drain system
using a flexible connection (obtain locally). Inside
diameter of fitting is 1.53 in. (3.89 cm) and outside
diameter is 1.66 in. (4.22 cm). The drain system must
be vented to prevent an air lock or siphoning.
IMPORTANTE: Increasing the drain hose length,
installing elbows, or causing bends will decrease
drain flow rates and increase drain times,
impairing machine performance.
Figure 9
FLW1964N
1Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm)
Flw1964N
1
24 TO 36 in.
(61 TO 91.44 cm)
RECOMMENDED
HEIGHT
FLW1935N
1Drain Trough
2Drain Outlet Hose
Flw1935N
2
1

Installation
13
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 6: Remove the Shock Sleeves and
Shipping Brace

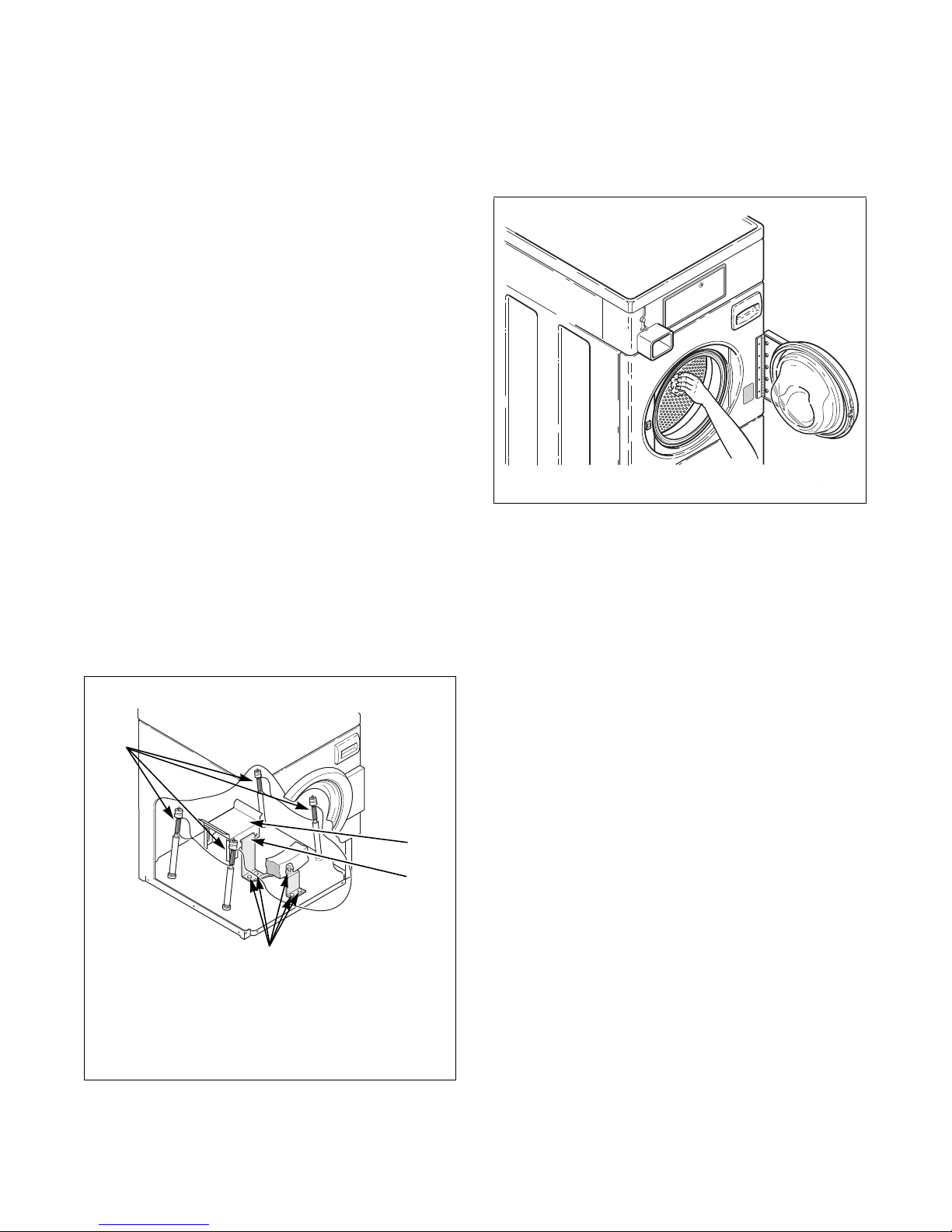

Remove front access panel by removing the two screws
at the bottom of the panel.
Remove the five bolts and lockwashers from shipping
brace with 9/16 in. wrench. Refer to Figure 10. One is
holding the brace to the weight. Remove this bolt first.
Four bolts are located on the washer base. Remove the
two front bolts next and then the two rear bolts.
Remove all four shock sleeves by pulling on the
yellow rope. Remove brace and sleeves from washer.
NOTA: The shipping brace, bolts, washers and
shock sleeves should be saved and MUST be
reinstalled whenever the washer is moved more
than four feet. Refer to User-Maintenance section
for instructions. Do not lift or transport washer
from front or without shipping materials installed.
Store the shipping materials in the accessories bag.
Save materials for use whenever the washer is moved.
Reinstall front access panel.
IMPORTANTE: DO NOT tip washer more than
6 inches (152.4 mm) in any direction after shipping
brace has been removed. Shock absorbers may
separate and damage to washer may result. For
leveling purposes, the washer may be tilted a
maximum of 6 inches (152.4 mm) in any direction.
Figure 10
Step 7: Wipe Out Inside of Wash Drum
Before using washer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside wash drum.
Figure 11
Step 8: (Supply Injection Models Only)
Connect External Supplies to Washer
IMPORTANTE: Undiluted chemical dripping can
damage the washer.
1. Remove two nozzles from accessories bag. Use
either the 3/8 inch or 1/4 inch nozzles, depending
on the diameter of the dispenser tubing used.
2. Attach nozzles to rear of machine. Connection
point located on cabinet, above water mixing
valve. Refer to Figure 12.
3. Connect supply hoses to nozzles and secure with
hose clamps (obtain locally). Refer to Figure 12.
NOTA: Hoses can be connected to either nozzle.
4. Refer to supply injection system instructions and
label inside washer junction box cover
(Figure 13) for electrical connection.
Do not attempt to make supply injection
electrical connections to points other than those
provided specifically for that purpose by the
factory.
5. Refer to supply injection system instructions for
details on operation.
FLW2124N
1Shock Sleeves
2Motor Mount
3Hooked End of Shipping Brace
4Bolts and Lockwashers
FLW2124N
2
1
4
3
FLW2115N
FLW2115N

Installation
802733
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Figure 12
A junction box on the rear panel houses a terminal
strip which furnishes supply output signals for the
supply injection pumps. These are dry contacts.
Voltage needs to be supplied. Refer to Figure 13 for
the injection interface label.
Figure 13
These terminals may be used to provide signals to the
supply injection system but must not be used to
provide power to the actual pump.
Any injection system pump which requires
110 VAC must be powered by a separate external
power source.
Control Function Test
The washer should be cleaned after the installation is
complete. A function test should then be executed on
the unloaded machine:
1. Check the power supply for such characteristics
as correct voltage, phase, and cycles to be certain
they are correct for the washer.
2. Open manual shut-off valves to the washer.
3. Apply power to the washer.
Supply Injection System
Number of liquid supply connections
(1–Detergent and 2–Softener)
2
Liquid supply connection size,
in. (mm)
3/8 (9.52)
or
1/4 (6.35)
FLW2116N
1Injection Point
2Nozzle
3Supply Dispenser Pump Outlet
Wear eye and hand protection when
handling chemicals; always avoid direct
contact with raw chemicals. Read the
manufacturer’s directions for accidental
contact before handling chemicals. Ensure
an eye-rinse facility and an emergency
shower are within easy reach. Check at
regular intervals for chemical leaks.
SW016
WARNING
2
1
3
FLW2028N
DETERGENT
DISPENSER
CONNECTION
SOFTENER
DISPENSER
CONNECTION
SOFTENER
RELAY
DETERGENT
RELAY
CHEMICAL INJECTION
ELECTRICAL INTERFACE
NO CONNECTION
TERMINAL
BLOCK
YELLOW
YELLOW/BLACK
RED
RED/BLACK
801653R1
NOTE: Normally Open Contacts.
Contacts Close to Start Chemical Injection.
Maximum Load Connection per Contact:
1A @ 120VAC/240VAC

Installation
15
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 9: Plug In the Washer
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding Plug)
NOTA: The wiring diagram is located in the
control cabinet.
When plugging in the washer:
DO NOT overload circuits.
DO NOT use an extension cord.
DO NOT use an adapter.
DO NOT operate other appliances on the same
circuit. Use separately fused 15 Amp circuits.
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current), circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 14
to determine correct polarity of the wall receptacle.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring, fuses and circuit breakers
installed by a qualified electrician to make
sure adequate electrical power is
available to the washer.
W518
WARNING
DRY2022N
1 L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
Figure 14
1
2
3
45
Standard 120 Volt, 60 Hertz
3-Wire Effectively
Grounded Circuit
0 V.A.C.
120±12
V.A.C.
120±12
V.A.C .
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING

Installation
802733
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Grounding Instructions
The washer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
The washer is equipped with a cord having an
equipment-grounding conductor and a three-prong
grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
DO NOT modify the plug provided with the washer –
if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
NOTA: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that in Figure 14, the
qualified electrician should correct the problem.
Step 10: Check Installation
Refer to Installer Checklist on the back cover of this
manual and make sure that washer is installed
correctly.
Run washer through one complete cycle to make sure
it is operating properly.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is
properly grounded.
W327
WARNING

17
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
Operation Instructions for
MDC Washers
IMPORTANTE: Prior to first wash, use an all-
purpose cleaner, or a detergent and water solution,
and a damp cloth to remove shipping dust from
inside of washtub.
IMPORTANTE: Remove all sharp objects from
laundry to avoid tears and rips to items during
normal machine operation.
Step 1: Load Laundry
Load items loosely into wash drum.
NOTA: Small items such as baby socks may get
caught around the door. Place these articles inside a
mesh garment bag.
Figure 15
When washing bulky items such as blankets and
comforters, use the DELICATES COLD cycle. The
cycle includes agitation and final spin speeds that
maintain the load’s balance and minimize wear to the
articles.
Step 2: Close Loading Door
Close loading door tightly. The washer will not
operate with the loading door open.
Figure 16
FLW2118N
3
21
OPERATING INSTRUCTIONS
Select Wash Temperature
HOT, WARM, COLD.
Select Fabric Type
NORMAL, PERM PRESS, DELICATE.
Load Supply Dispenser (See Instructions Below).
Load Clothes.
Insert Coin(s) / Card.
To Start Washer-Close Door and Push Start.
1.
2.
3.
4.
5.
6.
Open Dispenser Door.
Load Supplies in Proper
Compartment (as Indicated).
Close Dispenser Door.
1.
2.
3.
Detergent
Liquid Bleach
Fabric Softener
1.
2.
3.
DISPENSER INSTRUCTIONS
685942
FLW2119N
3
21
OPERATINGINSTRUCTIONS
SelectWashTemperature
HOT,WARM,COLD.
SelectFabric Type
NORMAL,PERM PRESS, DELICATE.
LoadSupply Dispenser(See Instructions Below).
LoadClothes.
InsertCoin(s) / Card.
ToStart Washer-CloseDoor and PushStart.
1.
2.
3.
4.
5.
6.
OpenDispenserDoor.
LoadSuppliesin Proper
Compartment(as Indicated).
CloseDispenserDoor.
1.
2.
3.
Detergent
LiquidBleach
FabricSoftener
1.
2.
3.
DISPENSERINSTRUCTIONS
685942

Operation
802733
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

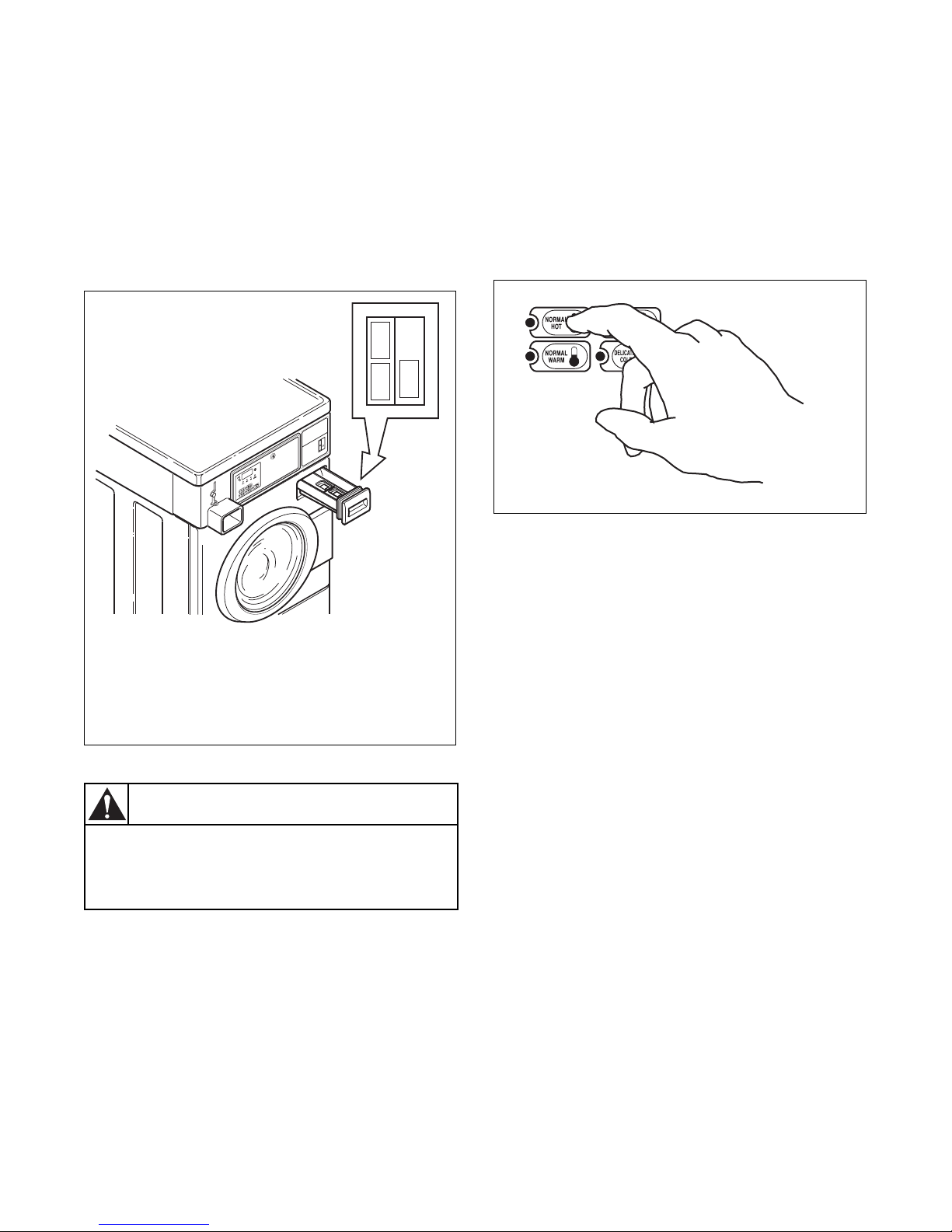

Step 3: Add Laundry Supplies
Open dispenser drawer. Measure and add low sudsing,
high efficiency (HE) detergent (1), bleach (2) and
fabric softener (3) to the dispenser drawer (refer to
Figure 17). Close dispenser drawer.
IMPORTANTE: If using non-HE detergent, avoid
oversudsing by using 1/2 of the detergent
manufacturer’s recommended amount.
Figure 17
Step 4: Set Fabric Selector and Wash
Temperature
Push touchpad for NORMAL/HOT, NORMAL/
WARM, PERM PRESS/WARM or DELICATES/
COLD cycle. Light indicates selection.
NOTA: Changes can be made to Fabric Selector
setting up until the first fill is complete.
Figure 18
FLW2117N
1Detergent
2Bleach
3Fabric Softener
FLW2117N
1
3
2
3
21
OPERATING INSTRUCTIONS
SelectWash Temperature
HOT,WARM, COLD.
SelectFabric Type
NORMAL,PERMPRESS, DELICATE.
LoadSupplyDispenser (SeeInstructionsBelow).
LoadClothes.
InsertCoin(s) / Card.
ToStartWasher-Close Door andPush Start.
1.
2.
3.
4.
5.
6.
OpenDispenserDoor.
LoadSuppliesin Proper
Compartment(as Indicated).
CloseDispenserDoor.
1.
2.
3.
Detergent
LiquidBleach
FabricSoftener
1.
2.
3.
DISPENSER INSTRUCTIONS
685942
Dispenser drawer requires a special tool
for removal. Contact a service person if
removal is necessary.
W236
CAUTION
FLW1920N
FLW1920N
